Fuzzy Inference System (FIS) Model for the Seismic Parameters of Code-Based Earthquake Response Spectra

Abstract

The response spectra defined in seismic design codes include crisp classifications of seismic parameters, which directly affect the spectra’s shape and greatly alter seismic design loads. The optimum design phase seismic forces have an important role in the efficiency of the construction costs and structural safety. Various parameters are used to calculate the seismic design forces, especially presented in the codes with earthquake design spectra. This study presents a rule-based fuzzy inference model with fuzzy sets to determine these parameters using fuzzy inference system (FIS) modelling, which is the most appropriate approach among the different alternatives because both the input and output variables have numerical and linguistic uncertainties in the earthquake problem. Using the seismic zone factor of the region and shear wave velocity of the soil profile as inputs, the model generates the seismic coefficients and peak ground acceleration values of the response spectra specified in the Uniform Building Code (UBC, 1997). The response spectra in this code can be easily generated with these seismic coefficients after their fuzzification. Response spectra of twenty-five different sample cases with and without the FIS model are generated, which provide comparisons for the model superiority assessment. Significant differences are observed between the crisp logic and the FIS model-generated spectra. It is suggested that the FIS model can be modified and applied to various parameters to generate response spectra in different seismic design codes.

1. Introduction

In the seismic design and assessment of structures, response spectra in seismic design codes and code-based provisions are generally used to apply seismic loads during structural analysis [1,2]. Input parameter factors for generating the response spectra are commonly based on soil profiles, seismic zones, seismic coefficients, and site classes, as if they do not include uncertainty components. In the literature, codes overwhelmingly present crisp logic parameter classifications, and thus the fuzzification for uncertainty components remains a potential question for the abovementioned factors like structural safety and construction costs [3,4,5]. The results of several cases, including crisp model values and fuzzy inference system (FIS) products, should be evaluated to compare the change in the response spectra shape for the seismic design loads.

Although there are other fuzzy logic-based methodologies such as hybrid fuzzy, adaptive neuro-fuzzy inference system (ANFIS), fuzzy cognitive mapping (FCM), and fuzzy decision tree (FDT), they are more efficient for clustering multiple data. For example, fuzzy cognitive maps (FCM) and neuro-fuzzy inference systems (NFIS) are used for clustering purposes [6]. In addition, for clustering purposes, K-nearest neighbors and especially fuzzy c-means models play major roles [7]. On the other hand, ANFIS is used by different authors in its hybrid and backpropagation mechanisms for various engineering and medicine examples [8,9]. The fuzzy cognitive maps (FCMs) method is also an efficient decision-making procedure in data management [10,11]. The fuzzy uncertainty digestion procedure for the earthquake spectrum data modelling of input and output variables is adopted in this paper according to the Mamdani FIS [8].

Some earlier studies include fuzzy logic principles and solutions for verbal uncertainties, complexities, complications, and vagueness [12,13,14,15,16,17]. Şen [18] thoroughly described the details and framework of these principles.

In some studies, fuzzy logic principles are modelled with FIS to identify the seismic effects and/or response spectra on earthquakes. For example, Mellal [19] presented a method combining the fuzzy set theory and a nonlinear numerical model. Wadia-Fascetti and Gunes [20] used statistical models to incorporate fuzzy logic for the response spectra generation. Ansari and Noorzad [21] proposed a method to calculate fuzzy response spectra of seismic activity in lowlands. Marano et al. [22] used the fuzzy random theory and fuzzy probabilistic approach to define a ground motion model for a fuzzy-type classical stochastic response spectrum evaluation. Şen [23] focused on FIS modelling in the seismic hazard evaluation of existing buildings by quick visual methods. In the study, inputs and outputs of the model are fuzzified considering expert views and fuzzy rules to connect input variables to output. Furthermore, Şen [24] also presented another FIS model for the earthquake hazard assessment in the upcoming years. On the other hand, Ozkul et al. [25] presented a fuzzy degrading model used in dynamic analyses for the inelastic displacement ratios of reinforced concrete structures. The fuzzy logic approach presented in their work helped to designate the most appropriate classical method to find the inelastic displacement ratios of degrading systems. Al-Fahdawi and Barroso [26] presented adaptive neuro-fuzzy and simple adaptive control methods on three-dimensional coupled buildings under bi-directional seismic excitations. Ghani et al. [27] explored the earthquake-induced liquefaction behavior of fine-grained soils with artificial intelligence-based hybridized modelling using the adaptive neuro-fuzzy inference system. Mehrabi et al. [28] used intelligent fuzzy-based hybrid metaheuristic techniques to predict the seismic response of fiber-reinforced concrete columns. Tombari and Stefanini [29] addressed a hybrid fuzzy-stochastic one-dimensional site response analysis approach considering probability models for the seismic input and fuzzy intervals for the soil uncertainties. Using fuzzy theory, Guo et al. [30] assessed the seismic vulnerability of reinforced concrete structures by global vulnerability curves. Liu et al. [31] investigated the earthquake damages in the 2015 Nepal earthquake and provided seismic measures for post-earthquake reconstruction of damaged buildings. Compared to crisp logic methodologies, fuzzy logic-based methods have the advantage of appreciating logical relationships between input and output variables. Additionally, these approaches help reduce numerical and lexical uncertainties through the training and testing stages, leading to more reliable verification and validation results. Among the limitations of adaptive neuro-fuzzy inference systems is their partial black-box behavior concerning the internal generation mechanism of the system.

Nahhas [32] conducted a study for generating code-compliant seismic response spectra using a fuzzy model. He implemented fuzzy logic-based software to generate Uniform Building Code (UBC, 1997) spectra [33]. There is no study in the literature on acquiring these seismic parameters by fuzzy logic assessment for the response spectra.

The main purpose of this paper is to develop an efficient version of the classical FIS model for input parameters of soil profiles, seismic zones, seismic coefficients, and site classes. Many buildings around the globe are designed according to the UBC (1997), which is still in use in various developing countries. In this paper, this design code’s seismic spectra coefficients are modelled with the proposed FIS, making it possible to express the vagueness of the seismic coefficients. It is hoped that the method presented in this paper can be modified and applied to the other seismic codes’ response spectra generation procedures for better accuracy and precision.

2. Code Overview

In many countries around the world, especially in developing nations, the Uniform Building Code (UBC, 1997) or a seismic code based on UBC (1997) is often used for the seismic design of multi-story buildings. Numerous buildings have been constructed worldwide utilizing the UBC (1997) provisions [33]. The following sub-section briefly presents the seismic provisions of UBC (1997).

2.1. Design Response Spectra

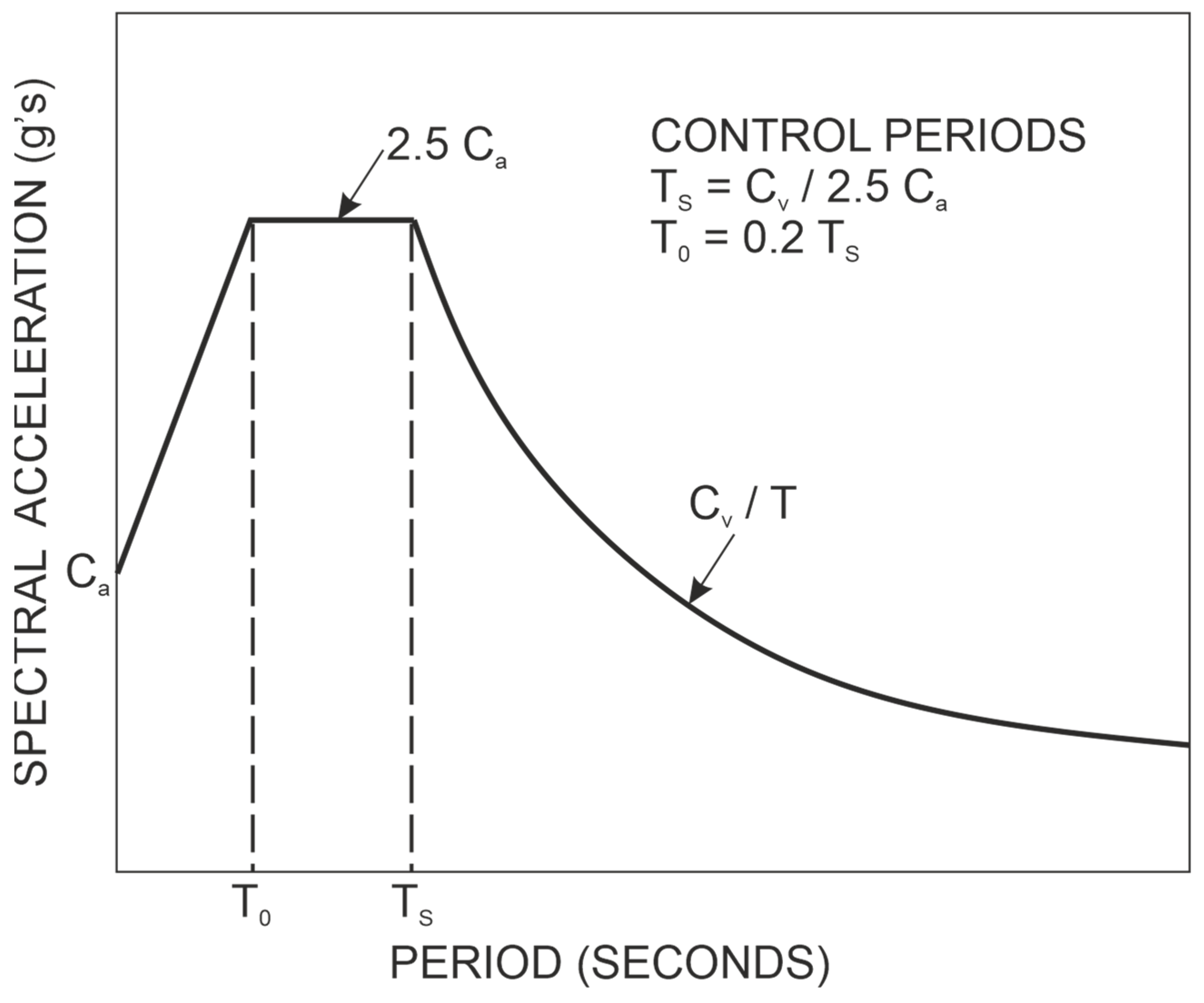

The design response spectra (Figure 1) presented in UBC (1997) mainly depends on two seismic coefficients, C_a and C_v. A function of the C_a coefficient defines the constant acceleration region on the spectrum, and a function of C_v defines the constant velocity region. The control periods (T₀ and T_S) forming the constant acceleration region limits are also defined by functions of both C_a and C_v coefficients. The soil profile types and seismic zone factors are used in the determination of these seismic coefficients. Near-source factors are also applied as multipliers in calculating these seismic coefficients, and these factors are based on the nearest distance to known active faults, namely seismic sources.

2.2. Seismic Coefficients

The seismic coefficients presented in the code (C_a and C_v) are found according to

Table 1. Seismic coefficient, C_a [33].

Soil Profile Type	Seismic Zone Factor, Z
	Z = 0.075	Z = 0.15	Z = 0.2	Z = 0.3	Z = 0.4
SA	0.06	0.12	0.16	0.24	0.32 Na
SB	0.08	0.15	0.20	0.30	0.40 Na
SC	0.09	0.18	0.24	0.33	0.40 Na
SD	0.12	0.22	0.28	0.36	0.44 Na
SE	0.19	0.30	0.34	0.36	0.36 Na
SF	Site-specific geotechnical investigation

and

Table 2. Seismic coefficient, C_v [33].

Soil Profile Type	Seismic Zone Factor, Z
	Z = 0.075	Z = 0.15	Z = 0.2	Z = 0.3	Z = 0.4
SA	0.06	0.12	0.16	0.24	0.32 Nv
SB	0.08	0.15	0.20	0.30	0.40 Nv
SC	0.13	0.25	0.32	0.45	0.56 Nv
SD	0.18	0.32	0.40	0.54	0.64 Nv
SE	0.26	0.50	0.64	0.84	0.96 Nv
SF	Site-specific geotechnical investigation

classifications. In seismic zone 4 regions, near-source factors (N_a and N_v) are applied to the C_a and C_v values as multipliers given in these tables. Near-source factors depend on the closest distance to known seismic sources and the type of seismic source (see

Table 3. Near-source factor, N_a [33].

Seismic Source Type	Closest Distance to Known Seismic Source
	≤2 km	5 km	≥10 km
A	1.5	1.2	1.0
B	1.3	1.0	1.0
C	1.0	1.0	1.0

and

Table 4. Near-source factor, N_v [33].

Seismic Source Type	Closest Distance to Known Seismic Source
	≤2 km	5 km	10 km	≥15 km
A	2.0	1.6	1.2	1.0
B	1.6	1.2	1.0	1.0
C	1.0	1.0	1.0	1.0

). The location and type of these sources can be established upon approved geotechnical or national survey data, such as the hazard map prepared by the United States Geological Survey [34]. The descriptions related to seismic source types are given in

Table 5. Seismic source types [33].

Seismic Source Type	Seismic Source Description
A	Faults that are capable of producing large magnitude events and that have a high rate of seismic activity
B	All faults other than Types A and C
C	Faults that are not capable of producing large magnitude earthquakes and that have a relatively low rate of seismic activity

. In this study, the FIS modelling does not consider the near-source effects, and N_a and N_v multipliers are assumed to be “1.0”.

2.3. Seismic Zones

UBC (1997) defines five different seismic zones as 1, 2A, 2B, 3, and 4, and a seismic zone factor is attached to each zone. Figure 2 provides a seismic zone map of the United States as the code. In this map, the strict boundaries of the zones appear according to the crisp logic classification of zone factors. However, logically there should be a fuzzy transition between the two neighboring zones. These properties directly affect the calculation of C_a and C_v values and, accordingly, the formation of design spectra. The seismic zones and corresponding zone factors are given in

Table 6. Seismic zone factor, Z [33].

ZONE	1	2A	2B	3	4
Z	0.075	0.15	0.20	0.30	0.40

.

2.4. Soil Profiles

Six different soil profile types are defined in UBC (1997), and the classification is based on the average shear wave velocity (V_S) of the top soil profile 30 m (100 feet) from the surface. The soil profile types are classified as S_A, S_B, S_C, S_D, S_E, and S_F, with generic linguistic descriptions such as “hard rock”, “rock”, “very dense soil and soft rock”, “stiff soil”, and “soft soil”. S_F corresponds to soils that are susceptible to ground failure during earthquakes. Thus, site-specific geotechnical investigations are necessary to specify and categorize the seismic properties of S_F soil type. Even though the soil profile types are mainly connected with average shear wave velocities, corresponding standard penetration test (SPT) results and undrained shear strength values are also given in the same chart for soil type designation. The soil profile types and corresponding shear wave velocity, SPT test, and undrained shear strength values are given in

Table 7. Soil profile types [33].

Soil Profile Type	Soil Profile Name/Generic Description	Average Soil Properties for the Top 30 Meters of Soil Profile
		Shear Wave Velocity, VS (m/s)	SPT Test, N (Blows/Foot)	Undrained Shear Strength (kPa)
SA	Hard Rock	>1500	-	-
SB	Rock	760 to 1500
SC	Very Dense Soil and Soft Rock	360 to 760	>50	>100
SD	Stiff Soil Profile	180 to 360	15 to 50	50 to 100
SE	Soft Soil Profile	<180	<15	<50
SF	Soil requiring site-specific evaluation

.

3. Fuzzy Inference System (FIS) Model

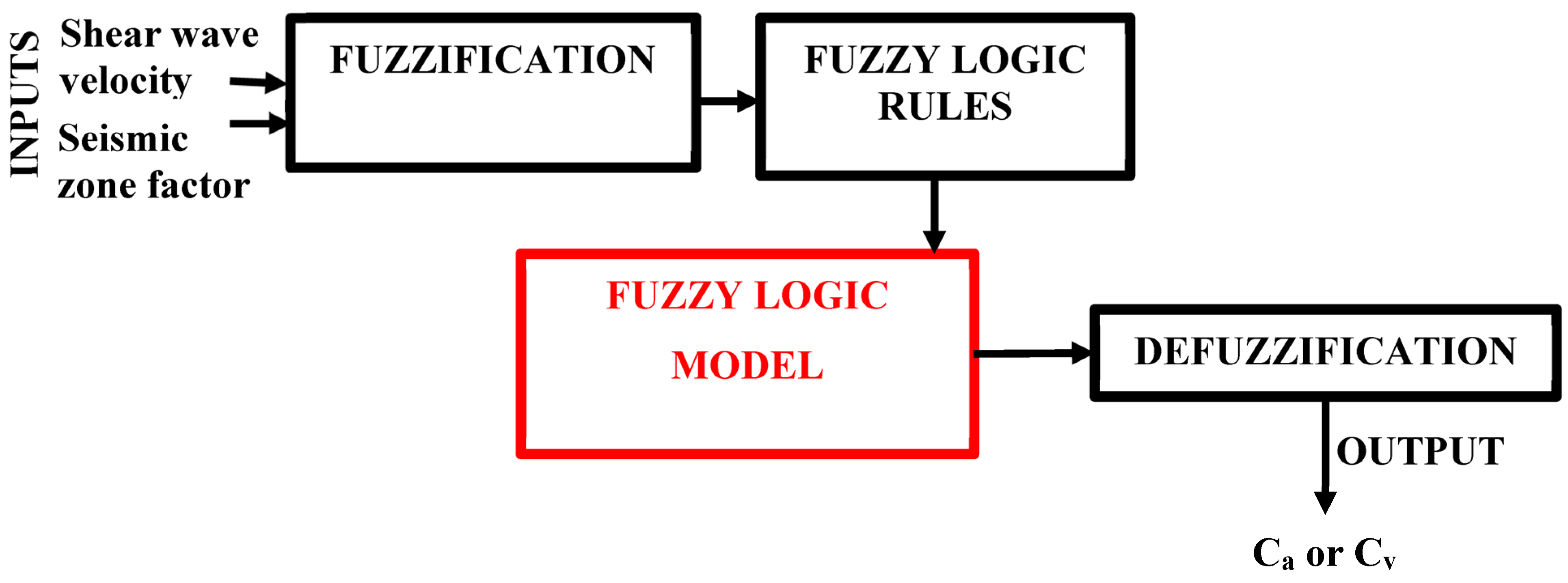

The fundamentals of the proposed FIS, as explained in the previous sections, are adapted in this section for the form of FIS as proposed in this paper for inference and interpretation of the design response spectra seismic coefficients. The approach in this study considers expert view combinations of input variables’ fuzzy sets in the form of fuzzy rule base propositions in the antecedence parts. Each rule antecedent part relates the fuzzy input sets to the seismic coefficient outputs as the consequent (estimation) part. Throughout the study, the Mamdani FIS method is modelled by the MATLAB fuzzy logic controller tool software due to its precision and practicality [15,16,36]. Herein, there are two input parameters, and the model outputs are the seismic coefficients, C_a or C_v. The input variables are the seismic zone factor (Z) of the region and the shear wave velocity of the soil (V_S). These variables are fuzzified according to a rule base, and after applying the model’s generation mechanism, the results are defuzzified to obtain seismic coefficient crisp estimations. Figure 3 shows the overall structure of the model for seismic coefficients (C_a or C_v). The output MFs and rule bases are different, as will be explained in subsequent sub-sections.

3.1. Membership Functions (MFs)

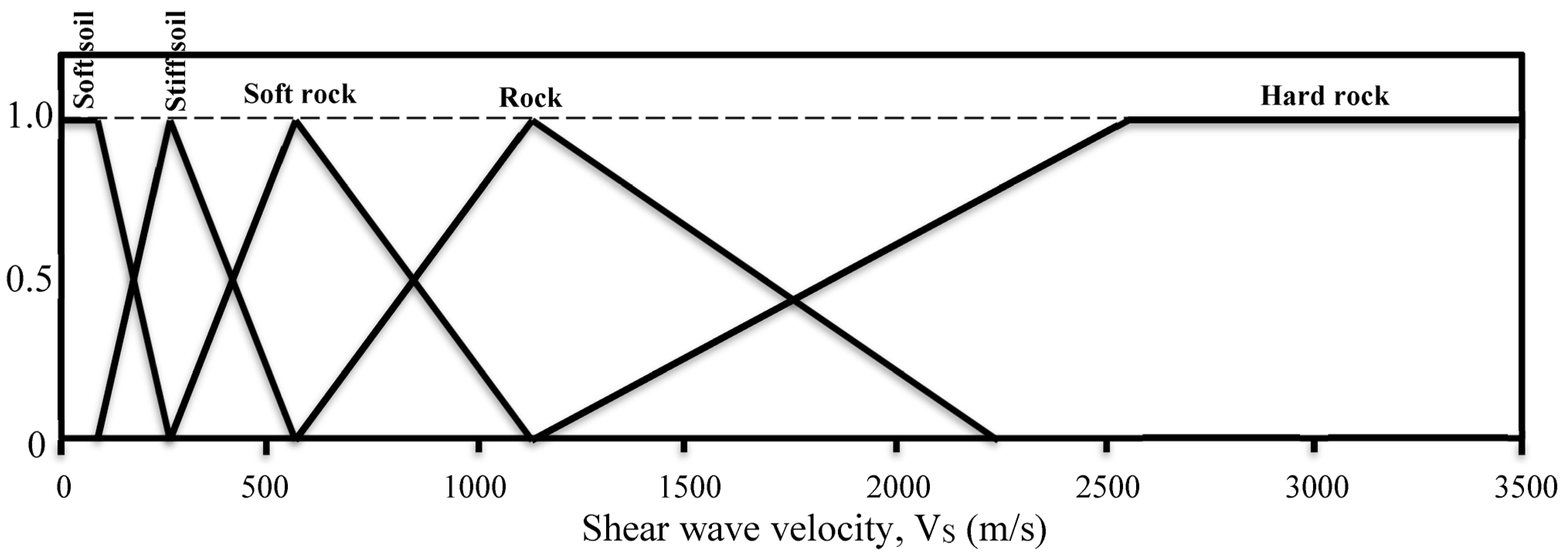

Triangular and trapezium MFs are considered for each input and output variable for the fuzzification procedure. The fuzzy sets are used in the fuzzification of input variables as MFs given by Nahhas [32]. The soil profile types are fuzzified by considering the shear wave velocity values given in the code. The transition between peak shear wave velocity values is achieved by triangular-shaped fuzzy sets. The shear wave velocity (V_S) MFs are given in Figure 4 as “Soft soil”, “Stiff soil”, “Soft rock”, “Rock”, and “Hard rock”.

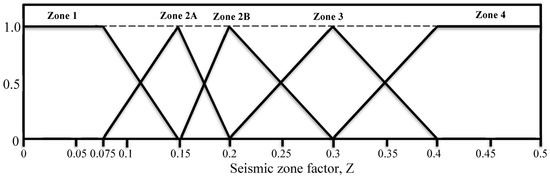

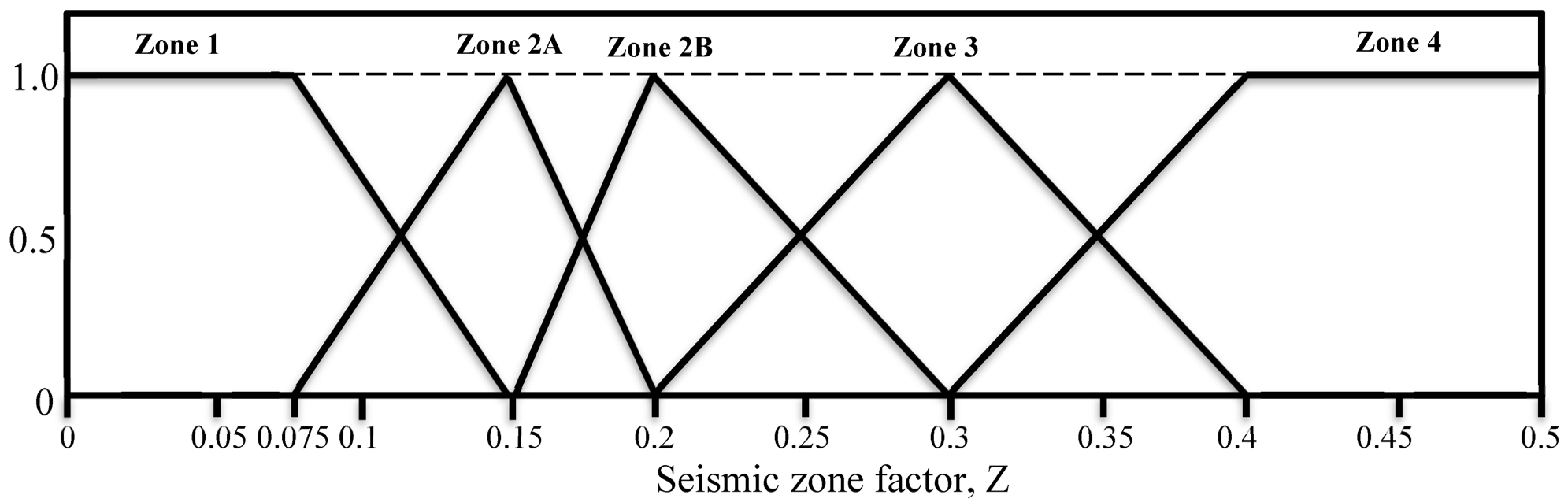

Likewise, the seismic zone factor, Z, is fuzzified by considering the seismic zone factor values given in the code. The transition between peak seismic zone factor values is also achieved by triangular fuzzy sets. The seismic zones’ MFs as “Zone 1”, “Zone 2A”, “Zone 2B”, “Zone 3”, and “Zone 4” are shown in Figure 5.

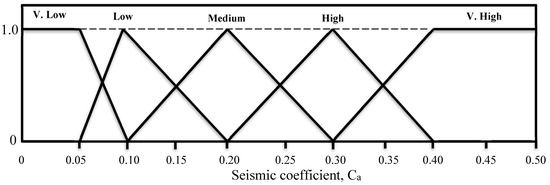

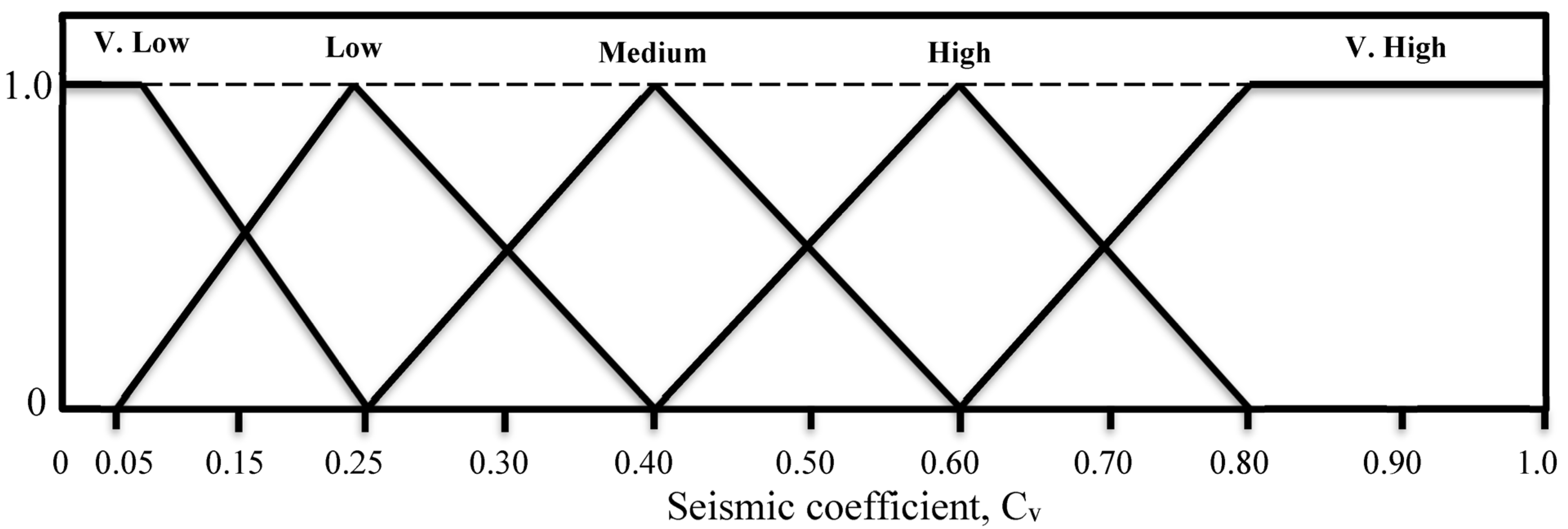

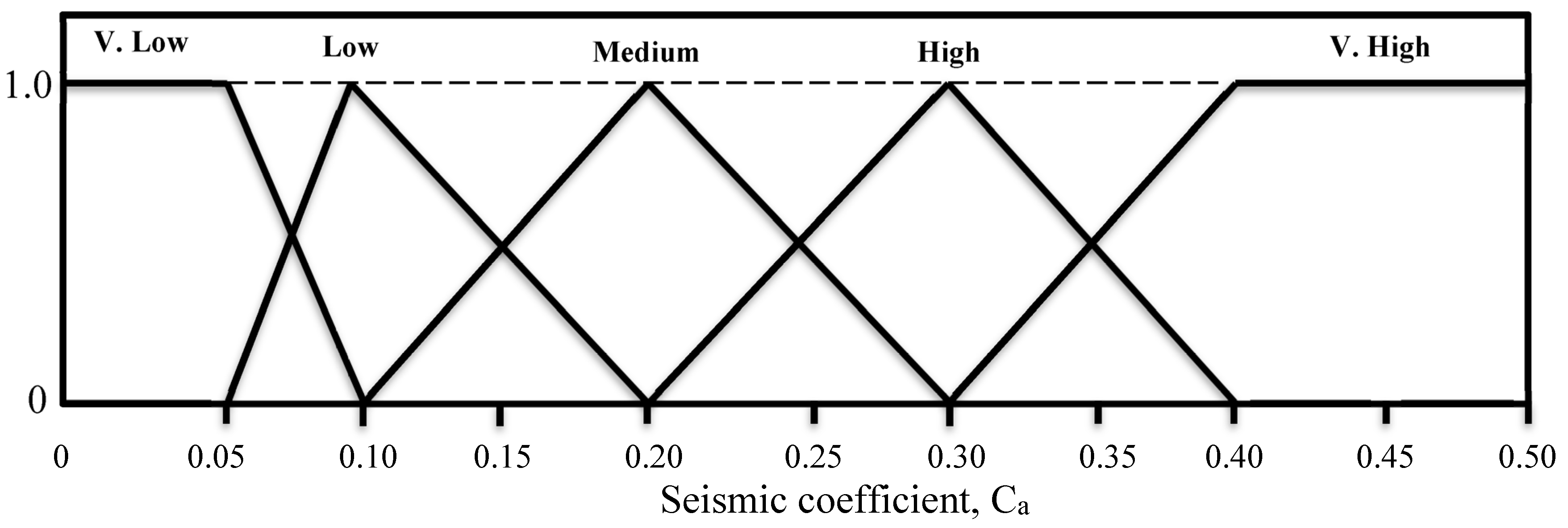

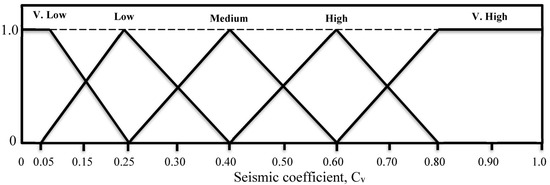

Output membership functions are attached according to the recommendations by Ross [8] with the author’s and some more experienced colleague experts’ views. Each seismic coefficient (C_a or C_v) is categorized individually into five mutually inclusive classes in terms of fuzzy sets as “Very Low”, “Low”, “Medium”, “High”, and “Very High”. The MFs of these outputs are presented in Figure 6 and Figure 7, respectively.

It is to be noted that in all the input and output fuzzifications (Figure 4, Figure 5, Figure 6 and Figure 7), initial and final sets are in the form of trapezium MFs, and in between, there are three triangular MFs.

3.2. Fuzzy Rule Base (FRB) and FIS

Since there are five MFs in each input variable, the number of rules in the fuzzy rule base (FRB) equals 5 × 5 = 25 for the logical system combination of each MF in the two input variables (see Figure 4 and Figure 5). The general structure of each rule is in the form of the following:

“IF soil profile MF AND seismic zone MF THEN C_a or C_v MF.”

In the antecedent part of this statement, that is, between IF and THEN, all input MF combinations are combined by AND logical conjunction. Each of the fuzzy rules is combined by OR logical conjunction. In light of the above explanations, the proposed FIS model FRBs are given in

Table 8. Rule base of seismic coefficients, C_a and C_v.

R1:	IF “Soil_Profile” is “Soft Soil” AND “Seismic_Zone” is “Zone 1” THEN “Ca” and “Cv” is “Low”
R2:	IF “Soil_Profile” is “Soft Soil” AND “Seismic_Zone” is “Zone 2A” THEN “Ca” is “High”, “Cv” is “Medium”
R3:	IF “Soil_Profile” is “Soft Soil” AND “Seismic_Zone” is “Zone 2B” THEN “Ca” and “Cv” is “High”
R4:	IF “Soil_Profile” is “Soft Soil” AND “Seismic_Zone” is “Zone 3” THEN “Ca” and “Cv” is “V. High”
R5:	IF “Soil_Profile” is “Soft Soil” AND “Seismic_Zone” is “Zone 4” THEN “Ca” and “Cv” is “V. High”
R6:	IF “Soil_Profile” is “Stiff Soil” AND “Seismic_Zone” is “Zone 1” THEN “Ca” and “Cv” is “V. Low”
R7:	IF “Soil_Profile” is “Stiff Soil” AND “Seismic_Zone” is “Zone 2A” THEN “Ca” is “Medium”, “Cv” is “Low”
R8:	IF “Soil_Profile” is “Stiff Soil” AND “Seismic_Zone” is “Zone 2B” THEN “Ca” is “High”, “Cv” is “Low”
R9:	IF “Soil_Profile” is “Stiff Soil” AND “Seismic_Zone” is “Zone 3” THEN “Ca” is “V. High”, “Cv” is “Medium”
R10:	IF “Soil_Profile” is “Stiff Soil” AND “Seismic_Zone” is “Zone 4” THEN “Ca” is “V. High”, “Cv” is “High”
R11:	IF “Soil_Profile” is “Soft Rock” AND “Seismic_Zone” is “Zone 1” THEN “Ca” is “Low”, “Cv” is “V. Low”
R12:	IF “Soil_Profile” is “Soft Rock” AND “Seismic_Zone” is “Zone 2A” THEN “Ca” and “Cv” is “Low”
R13:	IF “Soil_Profile” is “Soft Rock” AND “Seismic_Zone” is “Zone 2B” THEN “Ca” is “Medium”, “Cv” is “Low”
R14:	IF “Soil_Profile” is “Soft Rock” AND “Seismic_Zone” is “Zone 3” THEN “Ca” is “High”, “Cv” is “Medium”
R15:	IF “Soil_Profile” is “Soft Rock” AND “Seismic_Zone” is “Zone 4” THEN “Ca” is “V. High”, “Cv” is“Medium”
R16:	IF “Soil_Profile” is “Rock” AND “Seismic_Zone” is “Zone 1” THEN “Ca” and “Cv” is “V. Low”
R17:	IF “Soil_Profile” is “Rock” AND “Seismic_Zone” is “Zone 2A” THEN “Ca” is “Low”, “Cv” is “V. Low”
R18:	IF “Soil_Profile” is “Rock” AND “Seismic_Zone” is “Zone 2B” THEN “Ca” is “Medium”, “Cv” is “V. Low”
R19:	IF “Soil_Profile” is “Rock” AND “Seismic_Zone” is “Zone 3” THEN “Ca” is “High”, “Cv” is “Low”
R20:	IF “Soil_Profile” is “Rock” AND “Seismic_Zone” is “Zone 4” THEN “Ca” is “V. High”, “Cv” is “Low”
R21:	IF “Soil_Profile” is “Hard Rock” AND “Seismic_Zone” is “Zone 1” THEN “Ca” and “Cv” is “V. Low”
R22:	IF “Soil_Profile” is “Hard Rock” AND “Seismic_Zone” is “Zone 2A” THEN “Ca” and “Cv” is “V. Low”
R23:	IF “Soil_Profile” is “Hard Rock” AND “Seismic_Zone” is “Zone 2B” THEN “Ca” is “Low”, “Cv” is “V. Low”
R24:	IF “Soil_Profile” is “Hard Rock” AND “Seismic_Zone” is “Zone 3” THEN “Ca” is “Medium”, “Cv” is “Low”
R25:	IF “Soil_Profile” is “Hard Rock” AND “Seismic_Zone” is “Zone 4” THEN “Ca” is “High”, “Cv” is “Low”

based on expert views. Each rule implies a logically valid relation between input and output fuzzy MFs.

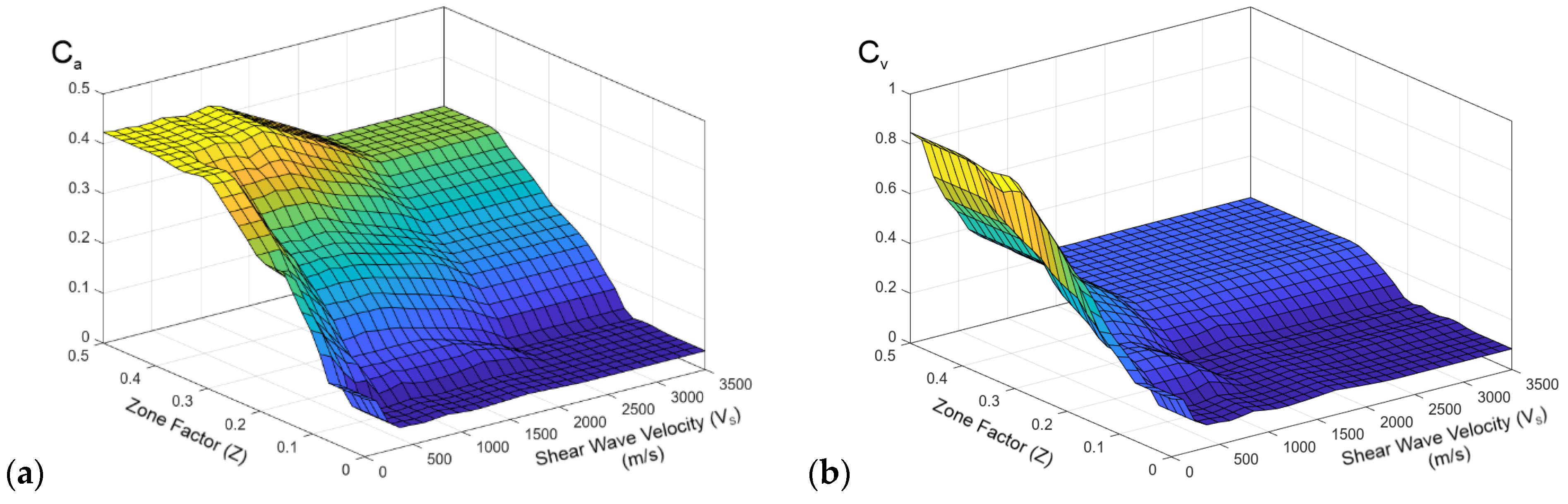

According to fuzzy set operations, “MIN” inference is represented with the “AND” operator for logically combining input sets to obtain output results. The aggregation process is achieved by the “MAX” operator corresponding to the “OR” operation to combine the fuzzy output sets. When the output is achieved in terms of categories previously defined, such as “Very Low”, “Medium”, or “Very High”, a crisp value of the seismic coefficient can be obtained to form the response spectra. For this aim, the output is transformed into a crisp value by defuzzification, in which the “CENTROID” method is used [8]. The crisp output value is calculated by considering the centroid of the consequent output fuzzy set. The surface graphs of the FIS controller’s three-dimensional appearances are presented in Figure 8 for both seismic coefficients, C_a and C_v.

4. Applications

This paper proposed another version of the well-known fuzzy inference system (FIS) approach application to seismic design code response spectra. For the application of the suggested methodology, twenty-five case scenarios are generated to compare the difference between the design response spectra by the crisp seismic coefficients given in the code and the FIS model. The numerical values of shear wave velocity (V_S) and seismic zone factor (Z) are calculated corresponding to C_a and C_v coefficients according to the Uniform Building Form (UBC, 1997) provisions, which were previously described in Section 2. The design response spectra are formed using these crisp values. The FIS model is applied using the same V_S and Z values as inputs for each case, and fuzzy C_a and C_v (C_a′ and C_v′) coefficients are found. Various soil profile types and seismic zone combinations are considered for the calculations. Near-source factors (N_a and N_v) are not fuzzified and are taken as “1.0” because they depend on the closest known distance to seismic sources and the type of seismic source, which are well-known numerical values. The results of these example cases are given in

Table 9. Example case results.

Case No.	Soil Profile	Soil Type	VS (m/s)	Seismic Zone	Z	UBC (1997)		Fuzzy Model		Difference in PSA
						Ca	Cv	Ca′	Cv′
1	Hard Rock	SA	1550	1	0.075	0.06	0.06	0.0414	0.0946	−31%
2	Rock	SB	780	1	0.075	0.08	0.08	0.0415	0.0950	−48%
3	Soft Rock	SC	380	1	0.075	0.09	0.13	0.0414	0.0948	−54%
4	Stiff Soil	SD	200	1	0.075	0.12	0.18	0.0790	0.1620	−34%
5	Soft Soil	SE	30	1	0.075	0.19	0.26	0.1170	0.2330	−38%
6	Hard Rock	SA	2000	2A	0.15	0.12	0.12	0.0649	0.0893	−46%
7	Rock	SB	950	2A	0.15	0.15	0.15	0.1180	0.1500	−21%
8	Soft Rock	SC	470	2A	0.15	0.18	0.25	0.1550	0.2320	−14%
9	Stiff Soil	SD	235	2A	0.15	0.22	0.32	0.2240	0.2790	2%
10	Soft Soil	SE	65	2A	0.15	0.30	0.50	0.3000	0.4170	0%
11	Hard Rock	SA	2450	2B	0.20	0.16	0.16	0.1170	0.0832	−27%
12	Rock	SB	1115	2B	0.20	0.20	0.20	0.2000	0.0897	0%
13	Soft Rock	SC	560	2B	0.20	0.24	0.32	0.2000	0.2330	−17%
14	Stiff Soil	SD	270	2B	0.20	0.28	0.40	0.3000	0.2330	7%
15	Soft Soil	SE	100	2B	0.20	0.34	0.64	0.3000	0.5680	−12%
16	Hard Rock	SA	2900	3	0.30	0.24	0.24	0.2000	0.2330	−17%
17	Rock	SB	1280	3	0.30	0.30	0.30	0.2830	0.2330	−6%
18	Soft Rock	SC	650	3	0.30	0.33	0.45	0.3000	0.3780	−9%
19	Stiff Soil	SD	305	3	0.30	0.36	0.54	0.4080	0.4170	13%
20	Soft Soil	SE	135	3	0.30	0.36	0.84	0.4190	0.7390	16%
21	Hard Rock	SA	3350	4	0.40	0.32	0.32	0.3000	0.2330	−6%
22	Rock	SB	1450	4	0.40	0.40	0.40	0.3880	0.2320	−3%
23	Soft Rock	SC	740	4	0.40	0.40	0.56	0.4170	0.3510	4%
24	Stiff Soil	SD	340	4	0.40	0.44	0.64	0.4190	0.5580	−5%
25	Soft Soil	SE	170	4	0.40	0.36	0.96	0.4140	0.7400	15%

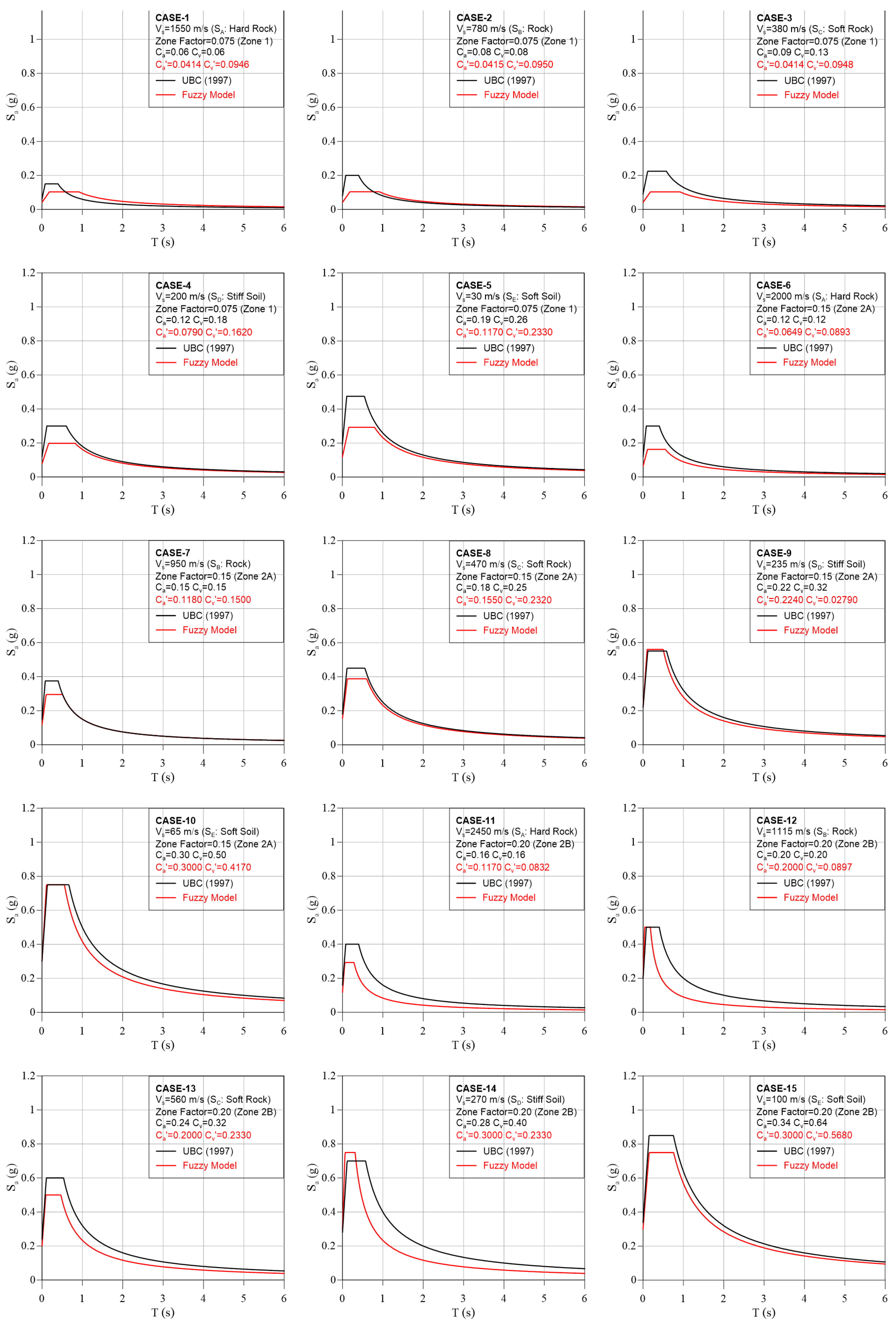

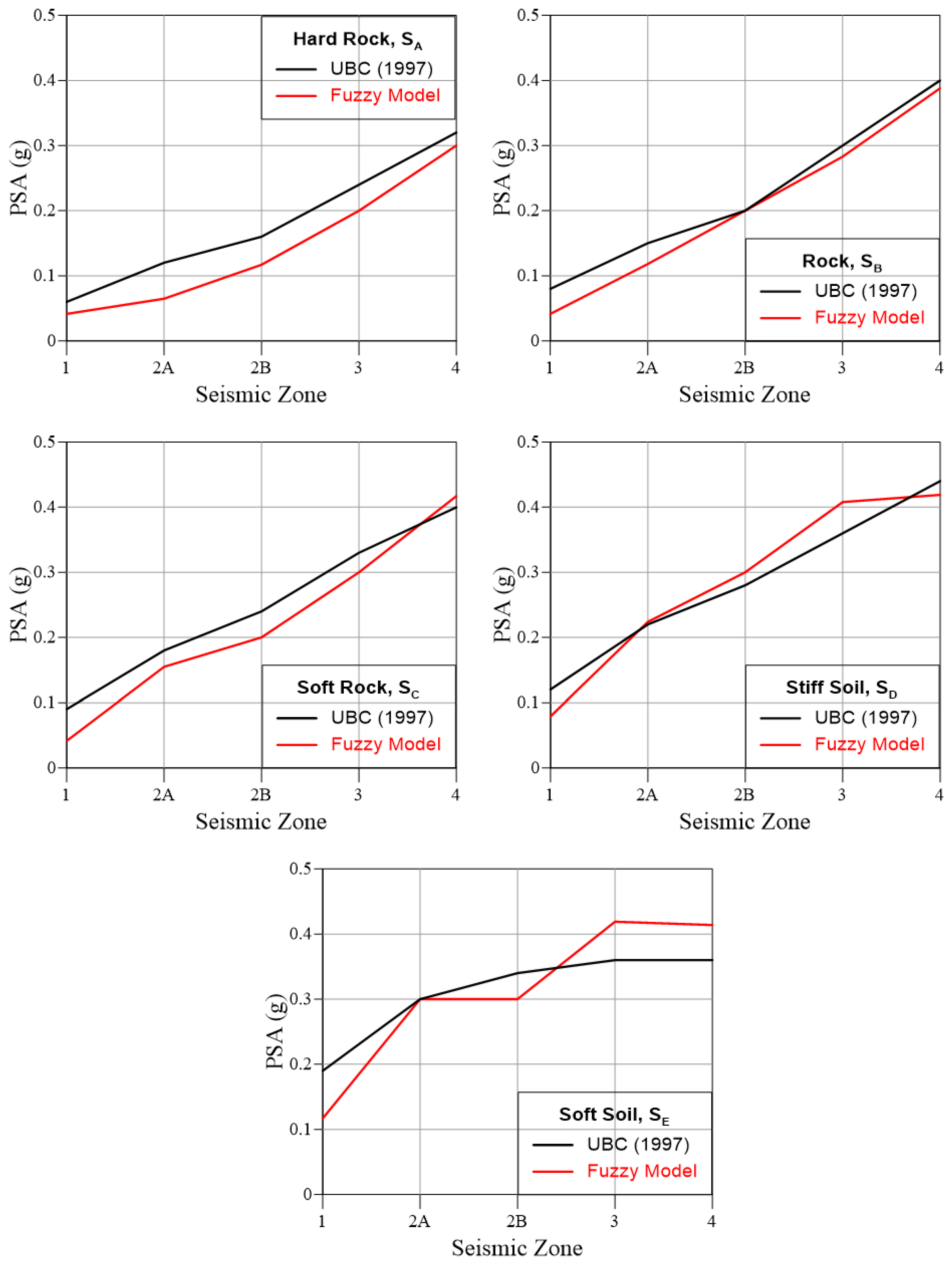

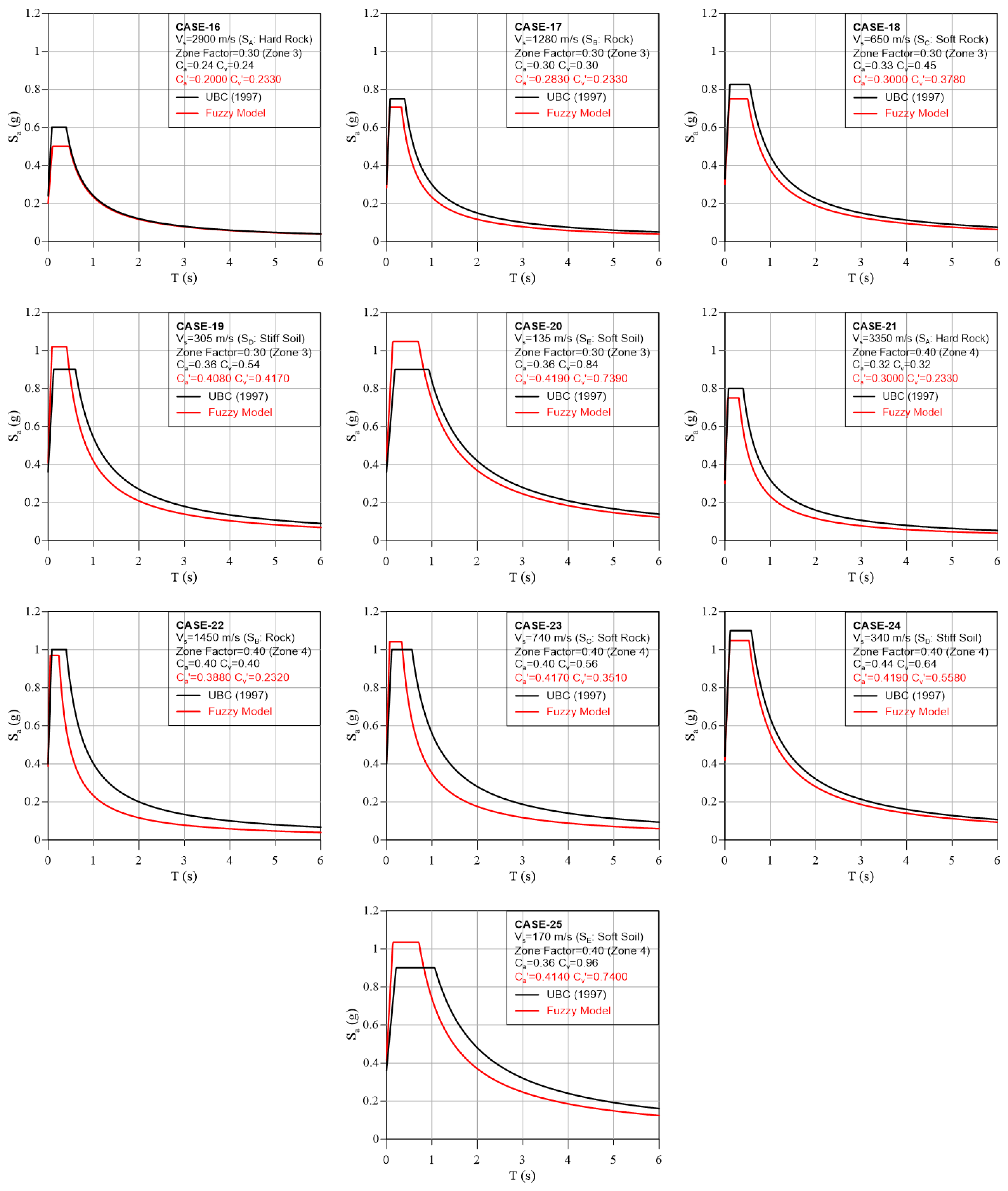

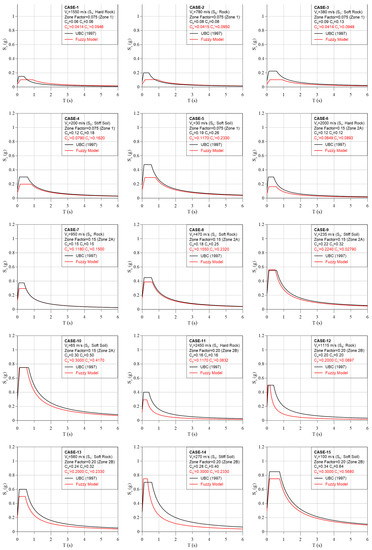

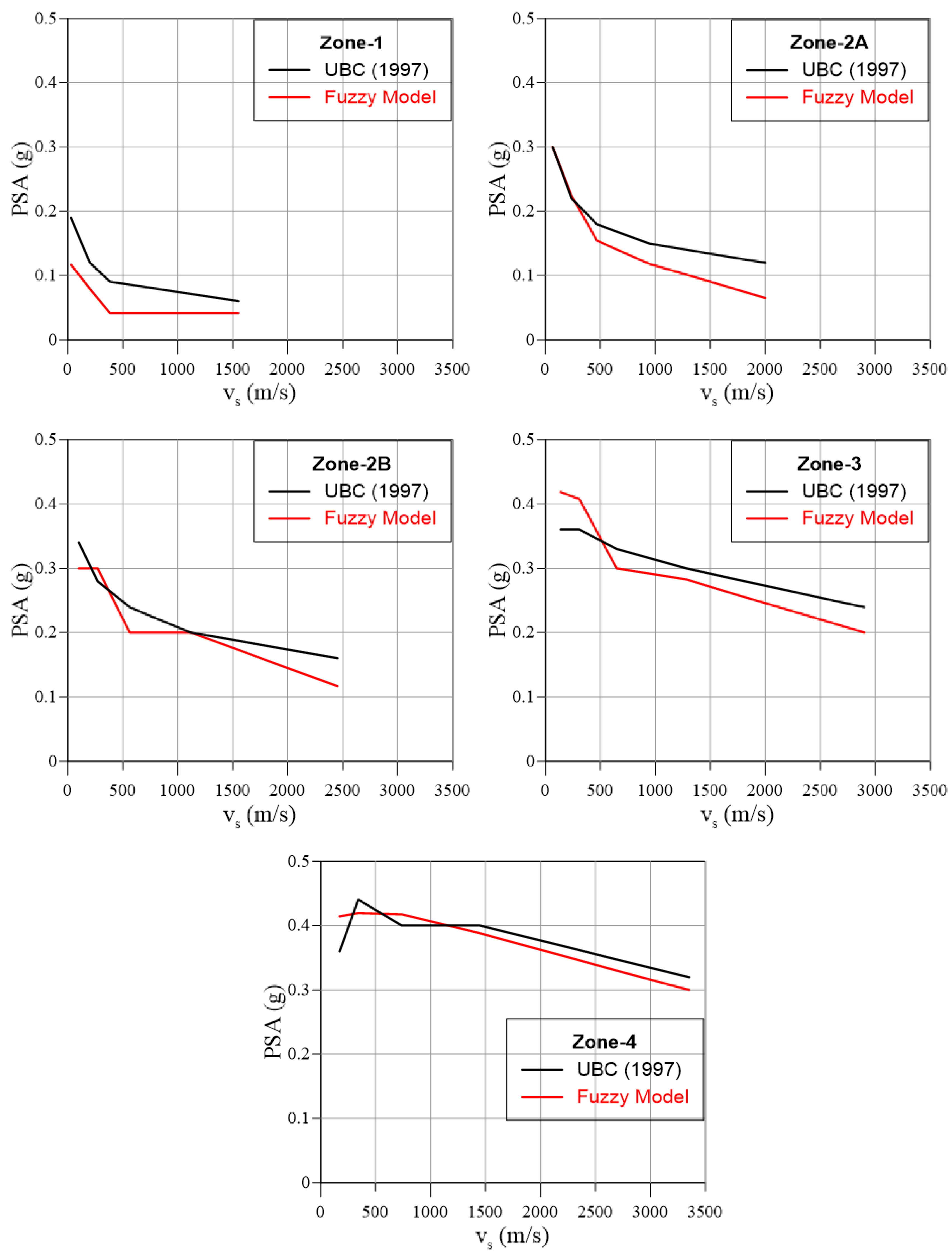

, Figure 9 and Figure 10, respectively. The variation of peak spectral acceleration (PSA) values is also compared based on shear wave velocities, soil profile types, and seismic zones in Figure 11 and Figure 12. PSA corresponds to the C_a coefficient.

When the FIS model seismic coefficients were used to form response spectra, the magnitude of spectral accelerations and the spectra’s shape changed in most cases. In some cases, the response spectra formed using crisp values in UBC (1997) have more conservative spectral acceleration values than those formed by the fuzzy inference model. The difference minimizes in the higher period values. The spectra functions obtained with FIS are lower in relatively weak ground motions (lower seismic zones). On the other hand, there is a tendency for the plateau region (constant acceleration region) and lower arm (constant velocity and displacement regions) of the spectrum curve to be longer, especially on “stiff soils”, which shows that some structures designed according to UBC (1997), especially in “V_S = 1550 m/s” soils and “Zone 1”, may be exposed to higher ground accelerations.

As the seismic zone type increases, it is seen that the FIS model-based spectra become closer to the UBC (1997) spectra, and the spectral accelerations exceed those of the UBC (1997) spectra, especially in “soft soils” that are quite compatible with seismic wave propagation in “soft soils”, considering the highly nonlinear behavior of “soft soils” and the fact that seismic waves are more prone to amplification in these soils [37,38,39,40,41]. When the shorter period regions of spectra before the first control period (T₀) are compared, the spectral acceleration values of FIS model-based spectra are higher than those of the UBC (1997) spectra in higher seismic zones. This outcome highlights a critical issue that should be emphasized, especially for the structural safety of relatively rigid reinforced concrete structures with low periods, such as industrial and nuclear facility structures. When the peak spectral acceleration (PSA) values are compared for each case, the differences between the crisp method and FIS model values have variations, including a case practically with no difference. In the lower seismic zones (Zone-1 and 2A), the PSA values of UBC (1997) are lower than FIS model-based PSA values. The difference increases with increasing shear wave velocity, especially in Zone-2A. In the other seismic zones (Zone 2B, 3, and 4), the FIS model PSA values exceed the UBC (1997) ones, especially at lower shear wave velocity zones. After approximately the V_S = 1000 m/s threshold, the UBC (1997)-based PSA values become larger than the fuzzy model’s values. When the PSA results in the same soil type are compared, it is seen that the PSA values obtained from UBC (1997) are above the FIS model, particularly in rock soils (“hard rock”, “rock”, and “soft rock”). In the softer soil types, such as “stiff soil” and “soft soil”, the FIS PSA values exceed the UBC (1997) ones in some seismic zones, mostly in higher seismic activity zones.

5. Conclusions

The fuzzy logic inference system (FIS) model is a mathematical approach that allows the representation of partial uncertainties based on verbal fuzzy sets that are numerically scaled based on available data. It has been applied in various fields to address problems that involve uncertain or imprecise data. In this research, the crisp classification of seismic codes’ parameters in the formation of response spectra is studied. FIS model response spectra are developed to present a methodology for considering the imperfections in the soil profile type and seismic zone selection. This model, as proposed in this paper, is demonstrated on the seismic parameters of the response spectrum given the Uniform Building Code (UBC, 1997) provisions. The results are presented with twenty-five samples, including various input data such as different soil profile types, shear wave velocities, and seismic zones. The fuzzy and crisp output seismic parameters are found, and the code-compliant traditional and fuzzy response spectra are formed. Significant differences were found in the spectra’s shape and peak spectral acceleration values.

In some specific seismic zones and soil profiles, the resulting FIS model response spectra were more conservative than traditional response spectra. This indicates that there might be an under-design of the current building code, and the crisp design acceleration values of the code may not be sufficient in terms of structural safety when uncertainties in these locations are considered. In some other regions, FIS model response spectra provided similar or lower values than traditional response spectra, showing that the structural designs may have been overdesigned according to the code’s traditional response spectrum. The fuzzy version of the response spectrum in corresponding regions will surely provide a more economical design. Consequently, the utilization of the fuzzy response spectrum has the potential to offer seismic design solutions that are either safer or more cost-effective in different scenarios based on the soil profile and seismic zone.

In conclusion, using a fuzzy logic-based FIS model in forming response spectra can provide a more comprehensive and realistic representation of the uncertainties involved in the problem, which can lead to more robust and reliable designs. A similar methodology can be applied to the seismic parameters of other design codes. However, more research is needed to comprehensively understand the capabilities and limitations of this approach. Among the future proposal research, it is recommended that similar studies should be carried out with other building codes, and inter-comparison of future studies with the existing ones may guide further research directions. Developing fuzzy-based spectra of various seismic design codes considering the fuzzification of various seismic parameters, such as site coefficients that may have high uncertainties, is a potential future research direction. This kind of future work can improve the calculation of seismic design loads in line with the codes’ approach.
