Impact of Nano-SiO₂ on the Compressive Strength of Geopolymer-Solidified Expansive Soil

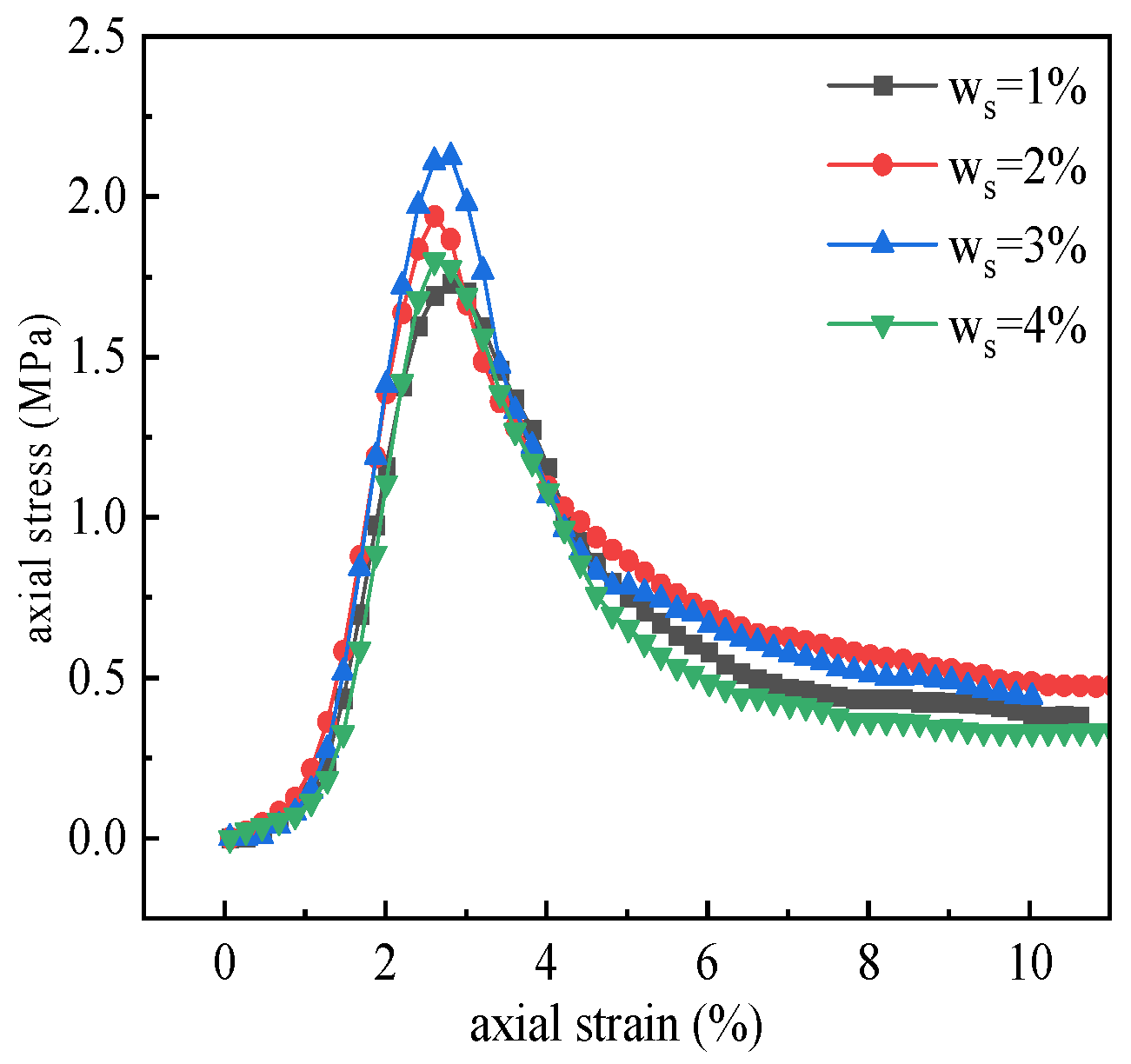

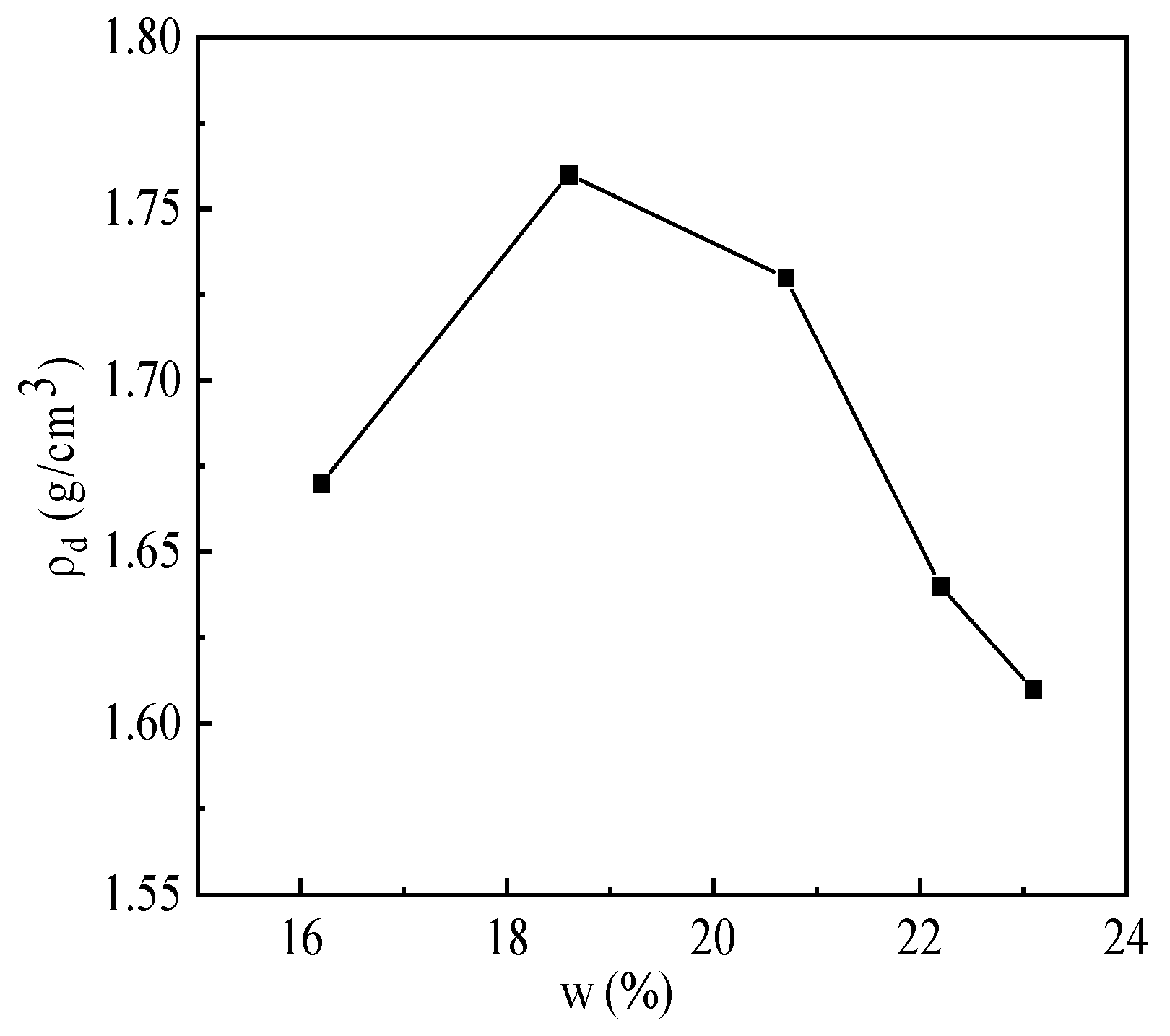

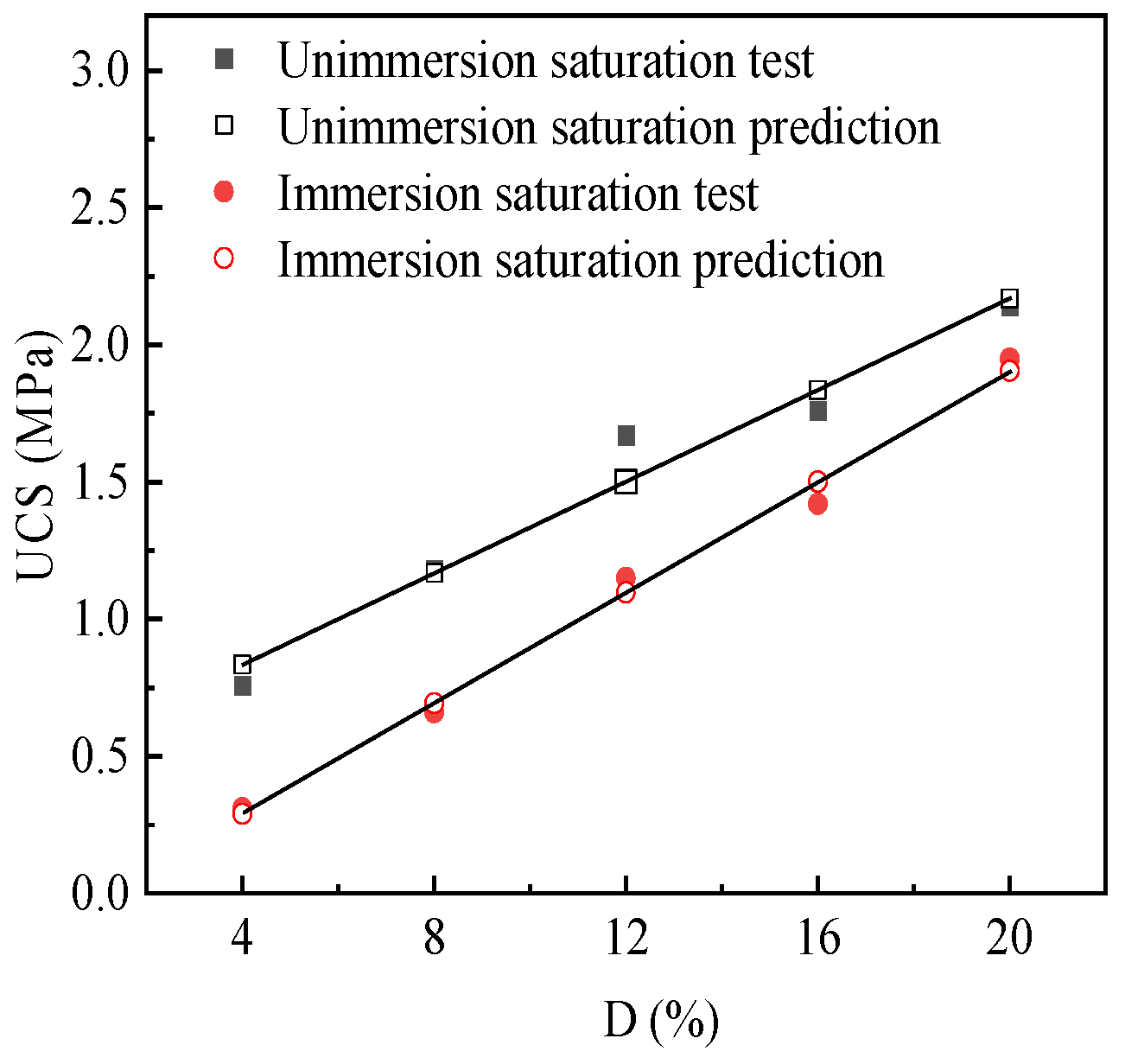

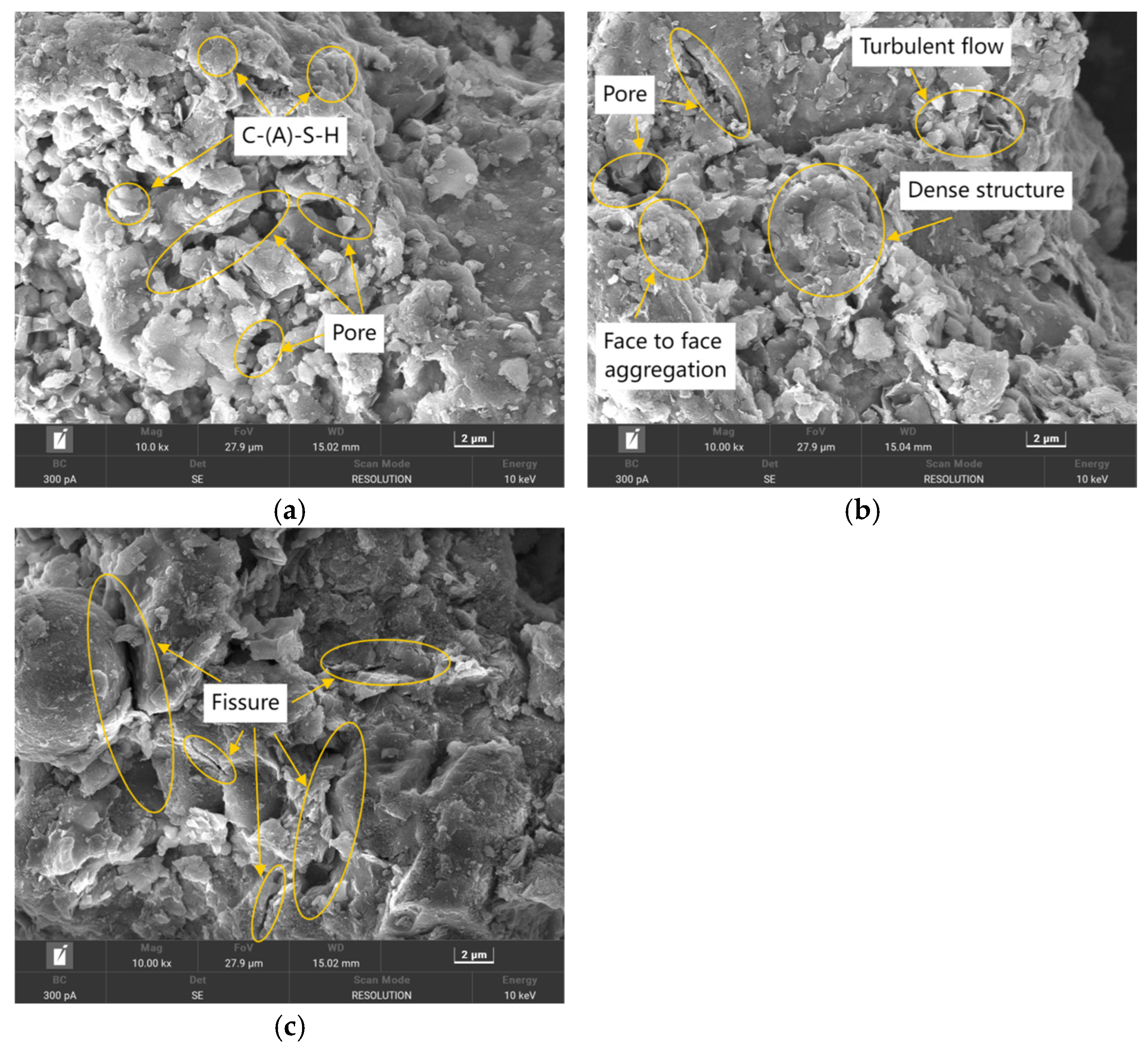

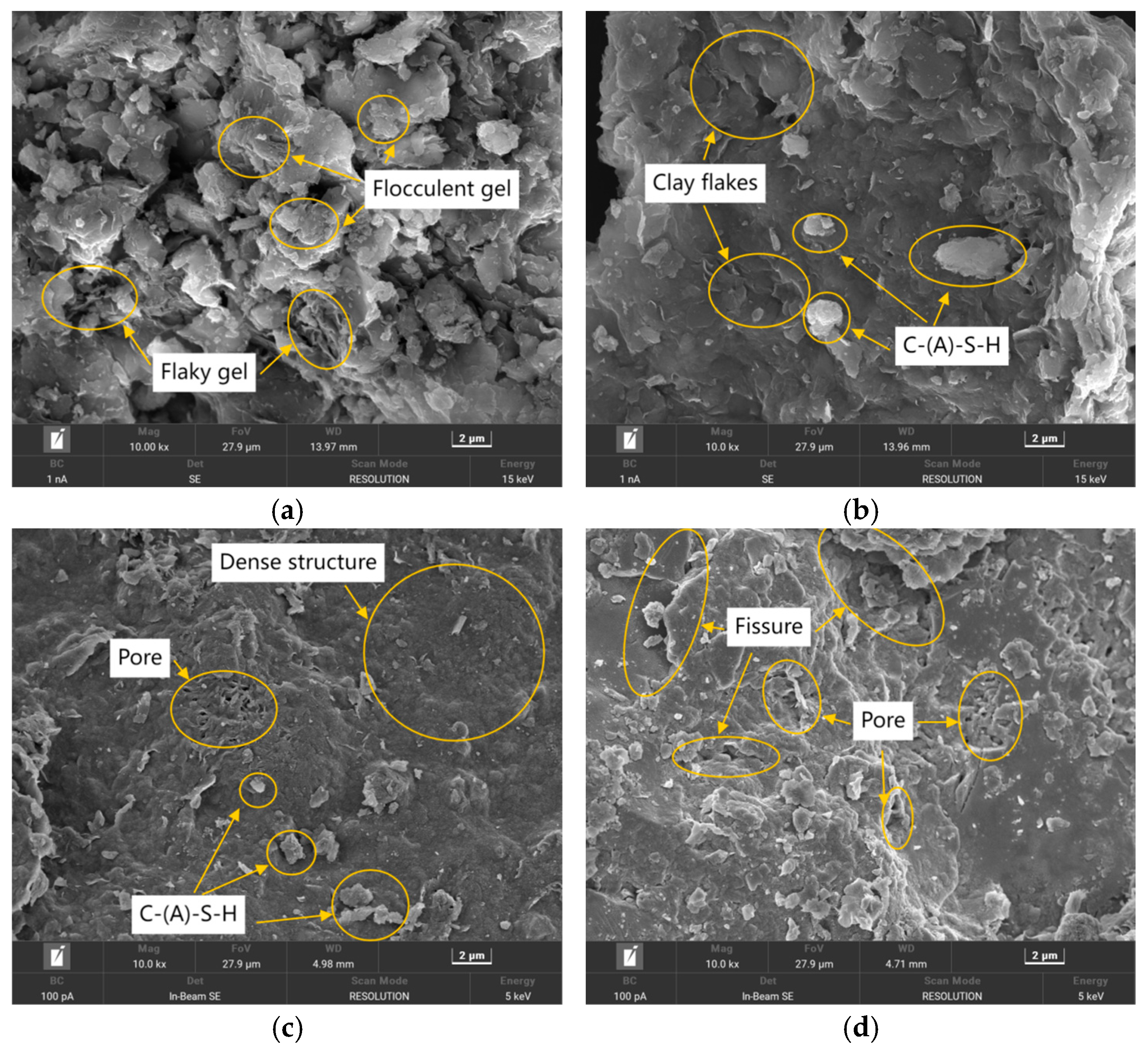

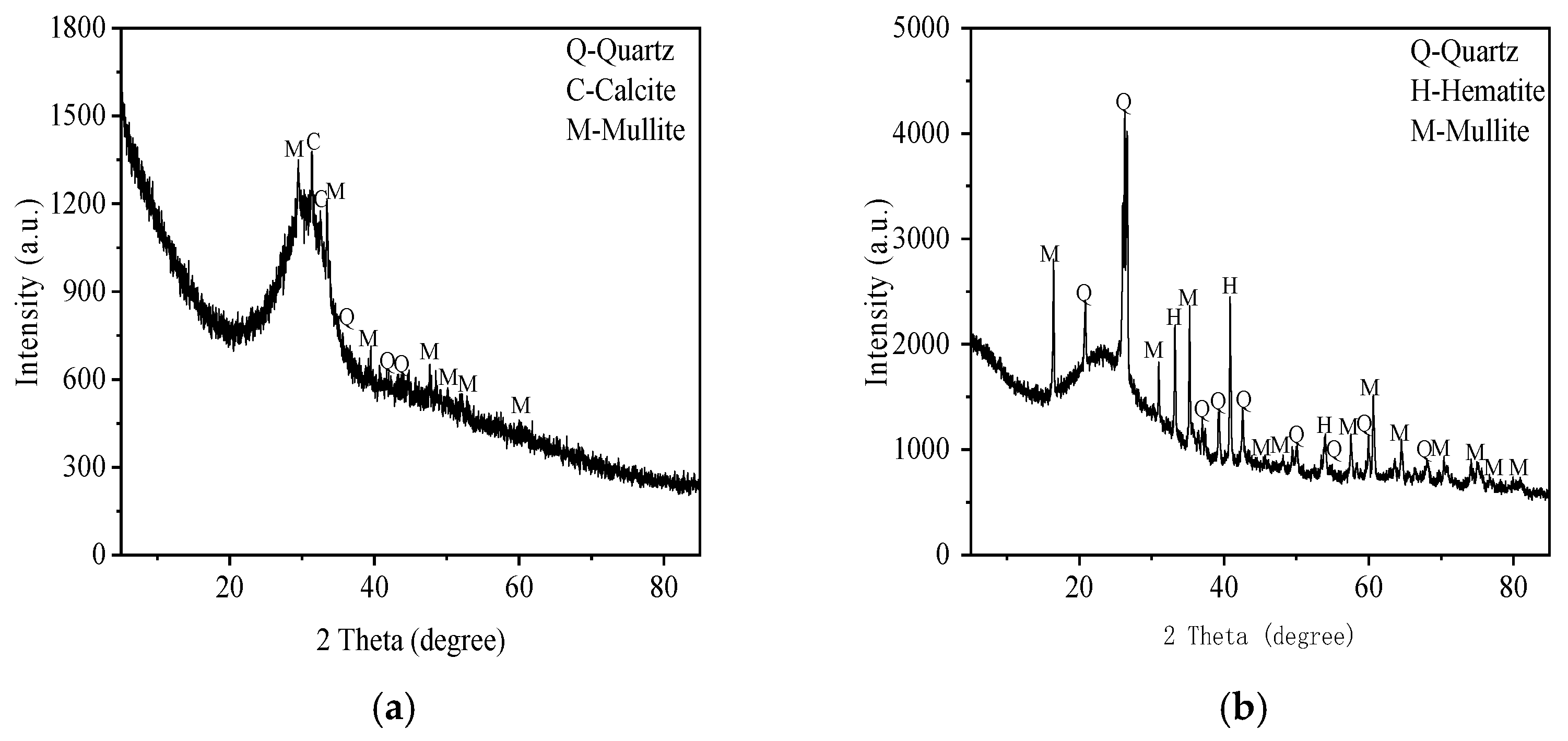

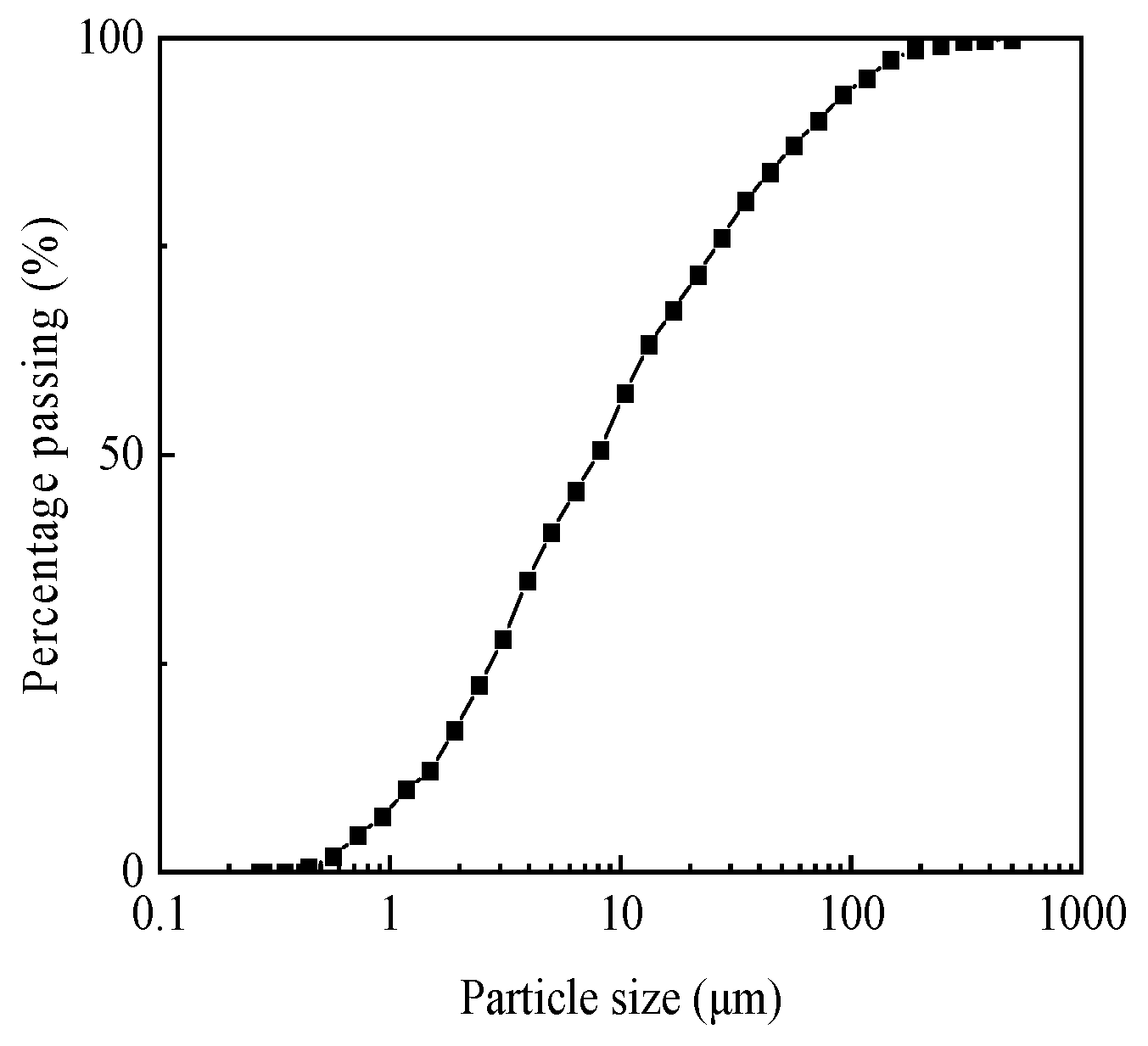

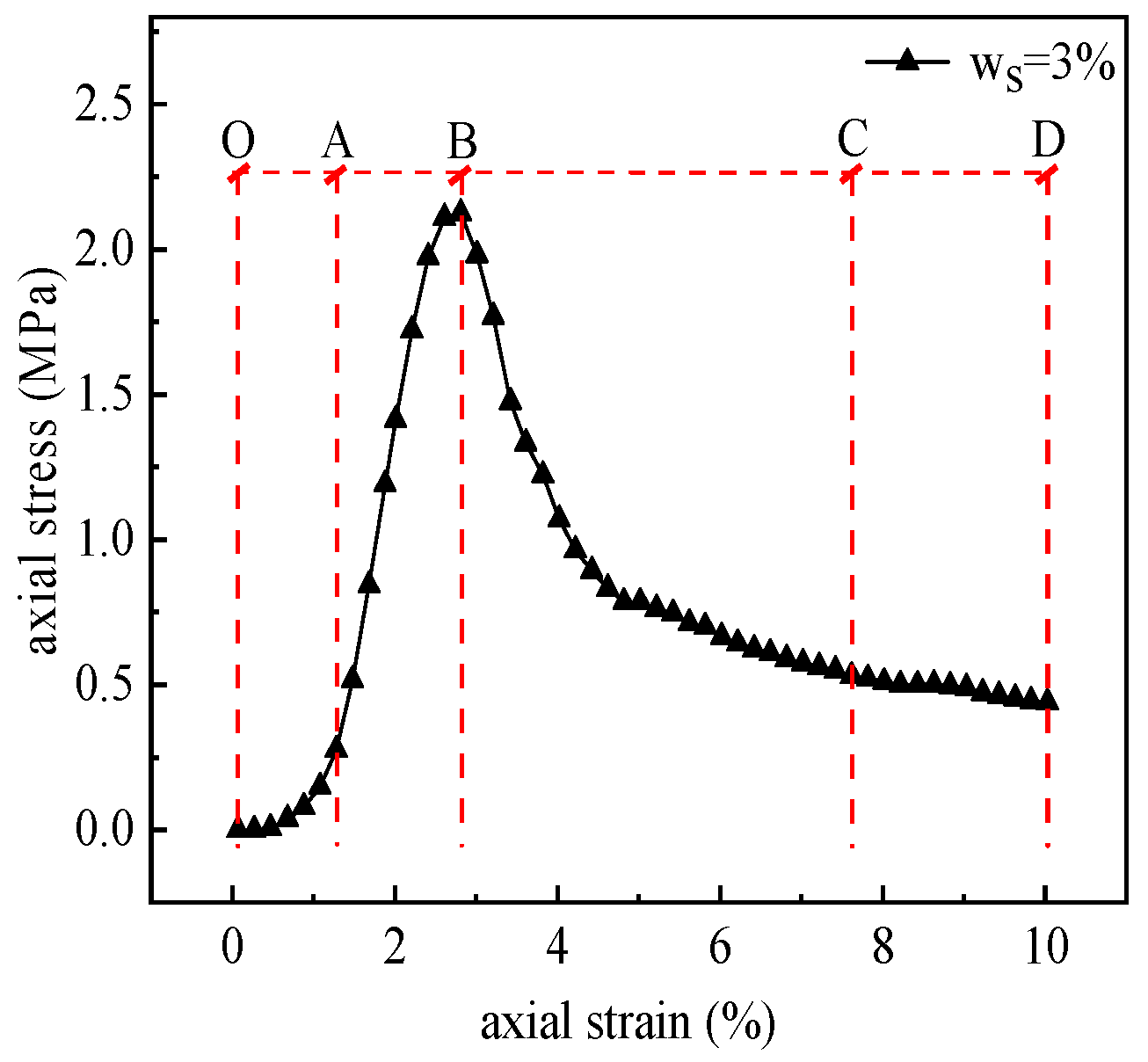

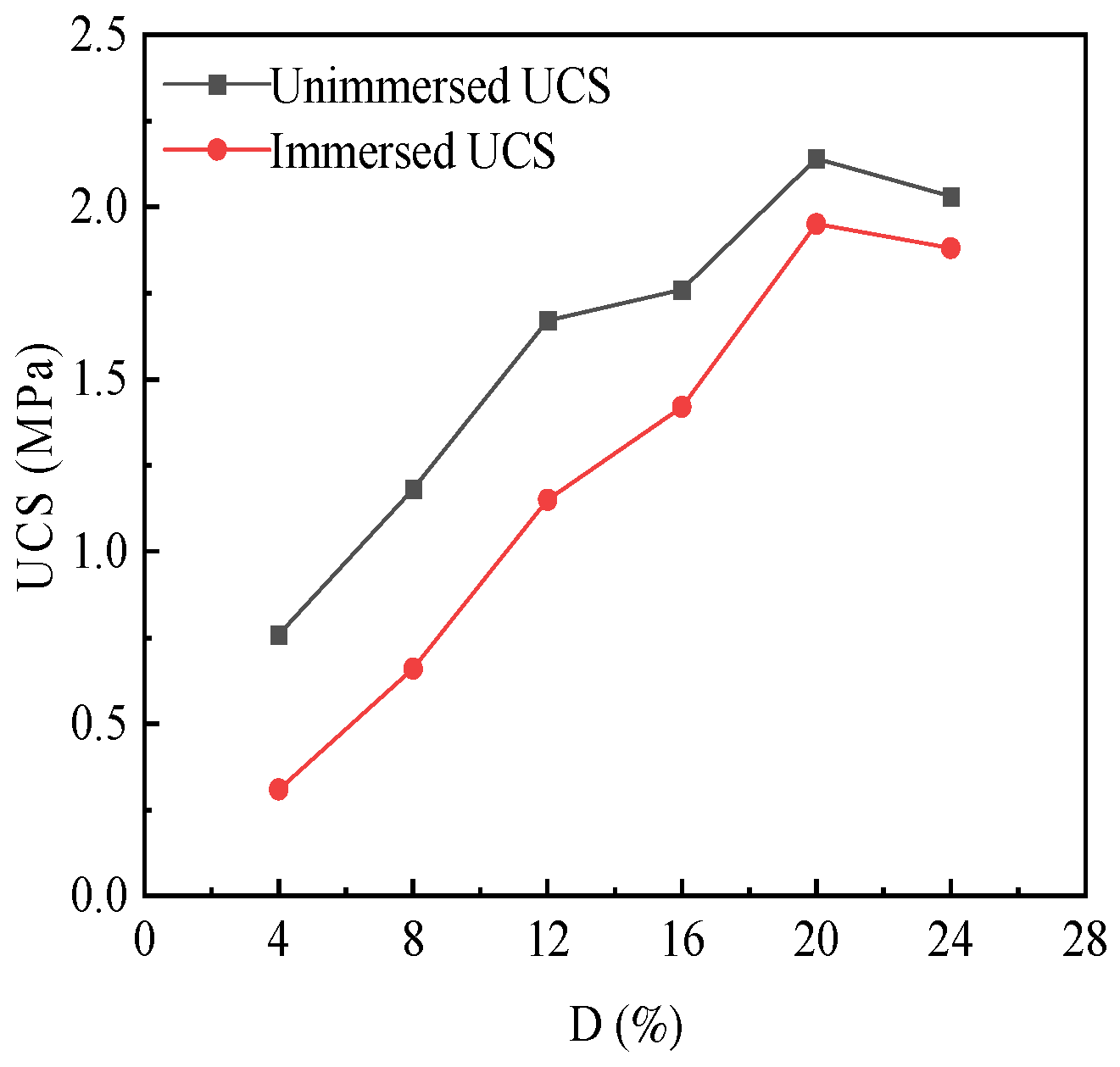

Expansive soil is widely distributed and often needs to be improved for engineering and construction needs. Using blast furnace slag and fly ash as precursors and NaOH as an alkali activator, a geopolymer was prepared to solidify expansive soil, and the effect of nano-SiO₂ on the compressive strength and water stability of the geopolymer-solidified expansive soil was further studied. The effects of alkali addition ratio, nano-SiO₂ addition ratio, and curing agent addition ratio on the unconfined compressive strength and water stability of the cured soil were studied through unconfined compressive strength tests, and the curing mechanism was analyzed by electron microscopy scanning. The experimental results showed that the unconfined compressive strength and water stability of geopolymer-stabilized soil first increased and then decreased with an increase in alkali activator dosage. The optimal dosage of alkali activator was found to be 12.5%. Furthermore, it was found that adding nano-SiO₂ can further enhance the strength and water stability of solidified soil. When the content of nano-SiO₂ was 3%, the unconfined compressive strength was increased by 15%. With an increase in the content of nano-SiO₂ doped polymer (GFNS), the unconfined compressive strength and water stability of the solidified soil showed a trend of first increasing and then decreasing, reaching a peak at a content of 20%. The cementitious materials, such as hydrated calcium silicate and hydrated calcium silicate aluminate, generated by the reaction between nano-SiO₂ and geopolymer played a role in bonding and filling in the solidified soil. Under the joint action of the two, the structural arrangement between the solidified soil particles became more compact, which improved the strength of the solidified soil.
