Study on Early Age Concrete’s Compressive Strengths in Unmanaged Curing Condition Using IoT-Based Maturity Monitoring
Abstract
:1. Introduction
2. Test Program
2.1. Test Specimens
2.2. Materials
3. Test Results

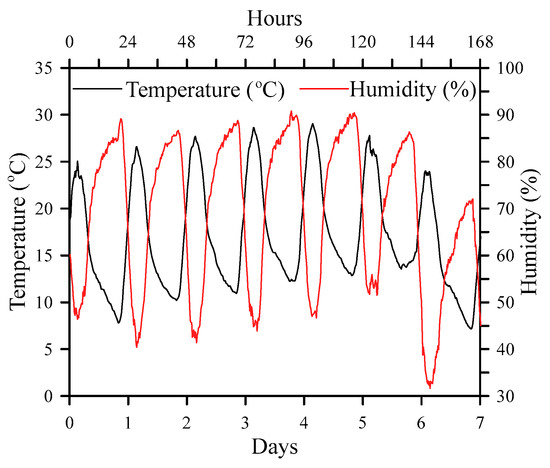

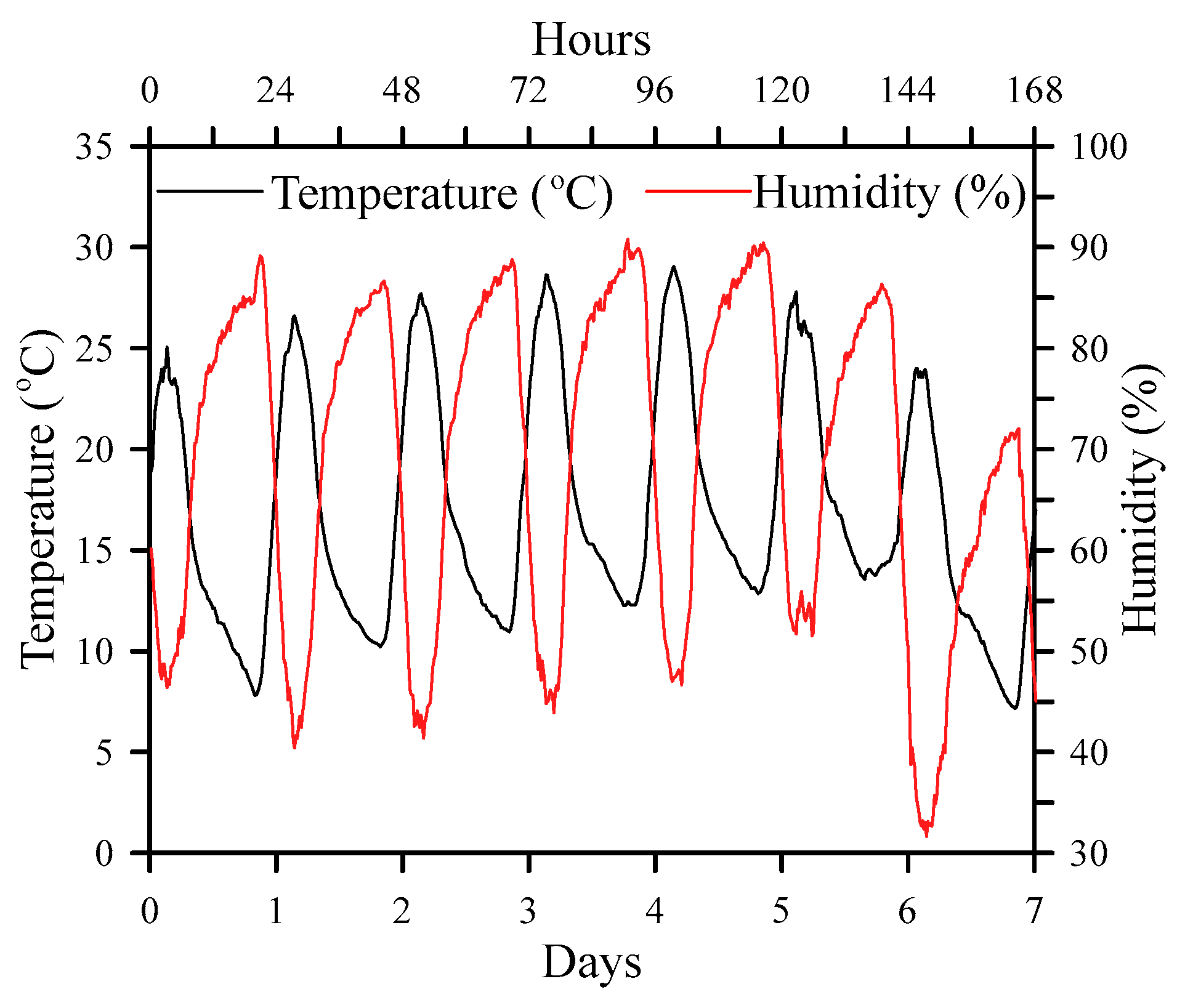

3.1. Ambient Temperature and Humidity

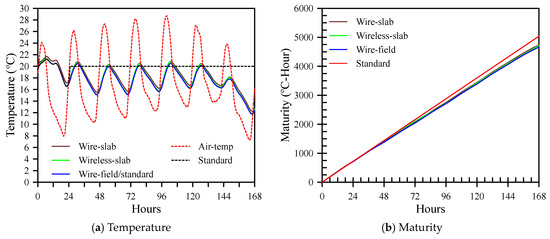

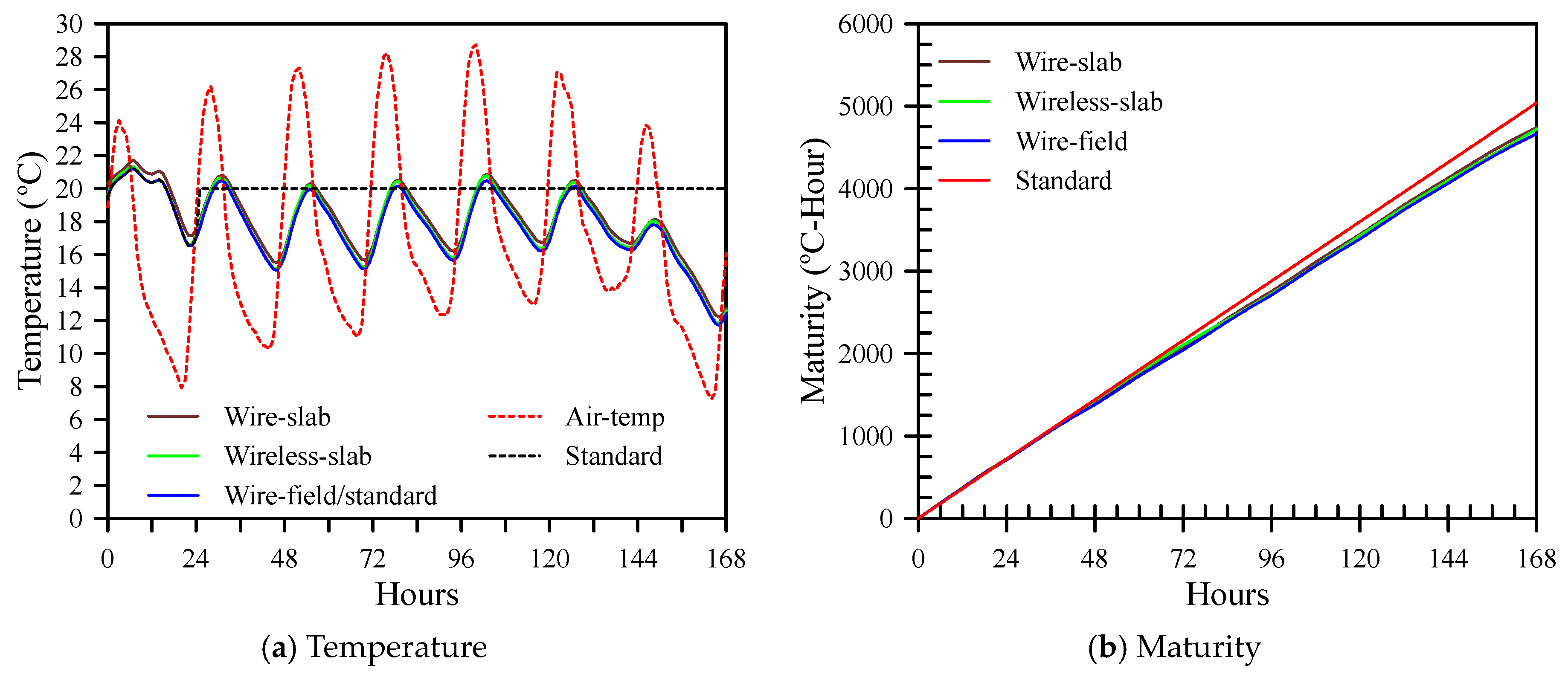

3.2. Maturity

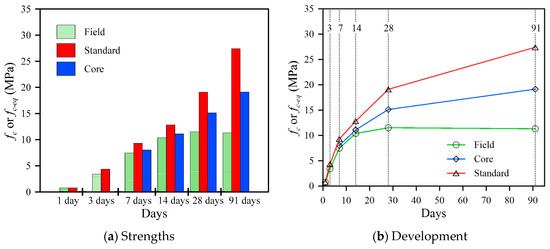

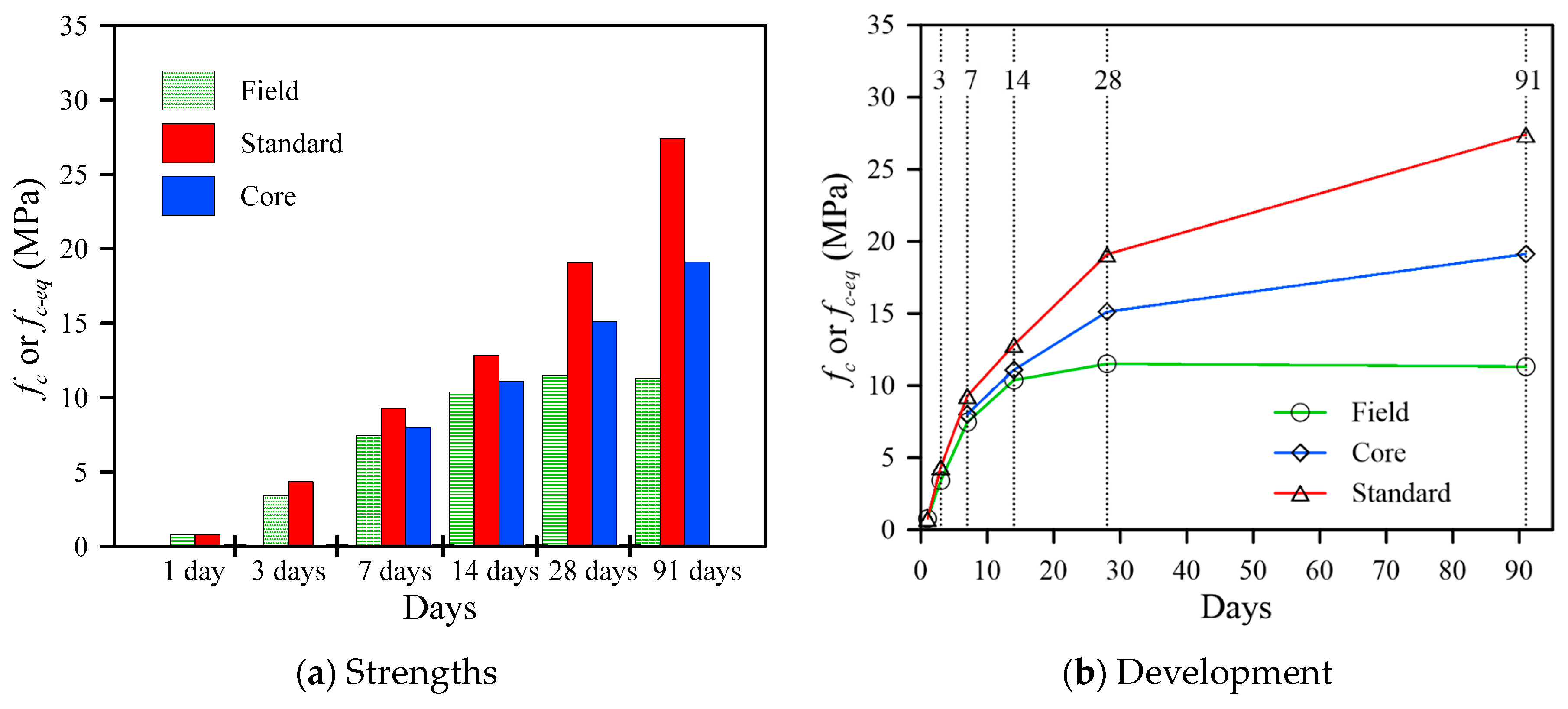

3.3. Compressive Strength Development
3.4. Discussion on the Relationship between Maturity and Compressive Strength
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Nilimaa, J.; Gamil, Y.; Zhaka, V. Formwork Engineering for Sustainable Concrete Construction. CivilEng 2023, 4, 1098–1120. [Google Scholar] [CrossRef]
- Sharma, S.; Dangi, S.K.; Bairwa, S.K.; Sen, S. Comparative study on sensitivity of acceleration and strain responses for bridge health monitoring. J. Struct. Integr. Maint. 2022, 7, 238–251. [Google Scholar] [CrossRef]
- Saidin, S.S.; Jamadin, A.; Kudus, S.A.; Amin, N.M.; Anuar, M.A. An Overview: The Application of Vibration-Based Techniques in Bridge Structural Health Monitoring. Int. J. Concr. Struct. Mater. 2023, 17, 251–267. [Google Scholar] [CrossRef]
- Castillo, D.; Hedjazi, S.; Kabir, E. Study on Early-Age Elastic Modulus of FRC Using Electrical Resistivity and Resonance Frequency. Int. J. Concr. Struct. Mater. 2023, 17, 1–13. [Google Scholar] [CrossRef]
- Kumar, S.; Rai, B. Synergetic Effect of Fly Ash and Silica Fume on the Performance of High Volume Fly Ash Self-Compacting Concrete. J. Struct. Integr. Maint. 2022, 7, 61–74. [Google Scholar] [CrossRef]
- Yoon, I.-S.; Chang, C.; Nam, J.-W. Effect of Carbonation on Chloride Transportation Parameters in Cementitious Materials. J. Struct. Integr. Maint. 2022, 7, 161–167. [Google Scholar] [CrossRef]
- ACI 228.IR-03; ACI Committee 228, In-Place Methods to Estimate Concrete Strength. America Concrete Institute: Farmington Hills, MI, USA, 2003.
- ACI 228.1R-19; ACI Committee 228, Report on Methods for Estimating In-Place Concrete Strength. America Concrete Institute: Farmington Hills, MI, USA, 2019.
- Tekle, B.H.; Al-Deen, S.; Anwar-Us-Saadat, M.; Willans, N.; Zhang, Y.; Lee, C.K. Use of Maturity Method to Estimate Early Age Compressive Strength of Slab in Cold Weather. Struct. Concr. 2022, 23, 1176–1190. [Google Scholar] [CrossRef]
- ASTM C42/C42M-20; Standard Test Method for Obtaining and Testing Drilled Cores and Sawed Beams of Concrete. ASTM International: West Conshohocken, PA, USA, 2022.
- ACI 214.4R-03; ACI Committee 214, Guide for Obtaining Cores and Interpreting Compressive Strength Results. America Concrete Institute: Farmington Hills, MI, USA, 2003.
- ASTM C805/C805M-18; Standard Test Method for Rebound Number of Hardened Concrete. ASTM International: West Conshohocken, PA, USA, 2019.
- ASTM C803/C803M-18; Standard Test Method for Penetration Resistance of Hardened Concrete. ASTM International: West Conshohocken, PA, USA, 2019.
- ASTM C900-19; Standard Test Method for Pullout Strength of Hardened Concrete. ASTM International: West Conshohocken, PA, USA, 2020.
- ASTM C1583/C1583M-20; Standard Test Method for Tensile Strength of Concrete Surfaces and the Bond Strength or Tensile Strength of Concrete Repair and Overlay Materials by Direct Tension. ASTM International: West Conshohocken, PA, USA, 2020.
- ASTM C597-22; Standard Test Method for Ultrasonic Pulse Velocity through Concrete. ASTM International: West Conshohocken, PA, USA, 2023.
- ASTM C1074-19el; Standard Practice for Estimating Concrete Strength by the Maturity Method. ASTM International: West Conshohocken, PA, USA, 2019.
- ASTM C873/C873M-15; Standard Test Method for Compressive Strength of Concrete Cylinders Cast in Place in Cylindrical Molds. ASTM International: West Conshohocken, PA, USA, 2016.
- KCS 14 20 10; General Concrete, Korea Construction Standard Center. Korea Concrete Institute: Sejong, Republic of Korea, 2022. (In Korean)
- Yikici, T.A.; Chen, H.-L. Use of maturity method to estimate compressive strength of mass concrete. Constr. Build. Mater. 2015, 95, 802–812. [Google Scholar] [CrossRef]
- Ma, Q.; Xiao, J.; Ding, T.; Duan, Z.; Song, M.; Cao, X. The prediction of compressive strength for recycled coarse aggregate concrete in cold region. Case Stud. Constr. Mater. 2023, 19, e02546. [Google Scholar] [CrossRef]
- Boubekeur, T.; Ezziane, K.; Kadri, E.-H. Estimation of mortars compressive strength at different curing temperature by the maturity method. Constr. Build. Mater. 2014, 71, 299–307. [Google Scholar] [CrossRef]
- Kampli, G.; Chickerur, S.; Chitawadagi, M.V. Real-time in-situ strength monitoring of concrete using maturity method of strength prediction via IoT. Mater. Today Proc. 2023, 88, 110–118. [Google Scholar] [CrossRef]
- Miller, D.; Ho, N.-M.; Talebian, N.; Javanbakht, Z. Real-time monitoring of early-age compressive strength of concrete using an IoT-enabled monitoring system: An investigative study. Innov. Infrastruct. Solut. 2023, 8, 75. [Google Scholar] [CrossRef]
- Mun, D.-H.; Jang, H.-O.; Lee, H.-S. An Experimental Study on the Prediction of Concrete Compressive Strength by the Maturity Method Using Embedded Wireless Temperature and Humidity Sensor. In Proceedings of the Korean Institute of Building Construction Conference; Korea Institute of Science and Technology Information: Daejeon, Republic of Korea, 2018; Volume 18, pp. 94–95. (In Korean) [Google Scholar]
- Lee, Y.J.; Hyun, S.Y.; Kim, T.W.; Lee, S.W.; Han, M.C.; Han, C.G. Strength monitoring of the wall concrete using insulation formwork and unreinforced formwork using maturity based wireless sensor network. In Proceedings of the Korea Concrete Institute; Korea Institute of Science and Technology Information: Daejeon, Republic of Korea, 2018; Volume 1, pp. 325–326. (In Korean) [Google Scholar]
- ASTM C31/C31M-22; Standard Practice for Making and Curing Concrete Test Specimens in the Field. ASTM International: West Conshohocken, PA, USA, 2022.
- KS L 5210; Portland Blast-Furnace Slag Cement. Korean Agency for Technology and Standards: Eumseong, Republic of Korea, 2023. (In Korean)
- KS L 5405; Fly Ash. Korean Agency for Technology and Standards: Eumseong, Republic of Korea, 2018. (In Korean)
- Saul, A.G.A. Principles underlying the steam curing of concrete at atmospheric pressure. Mag. Concr. Res. 1951, 2, 127–140. [Google Scholar] [CrossRef]
- Jo, S.D.; Kwon, S.H.; Kim, C.Y.; Park, Y.S. Effect of Damage Caused by Extracting Cores on Compressive Strength of Concrete. J. Korea Concr. Inst. 2019, 31, 397–405. (In Korean) [Google Scholar] [CrossRef]
- Oh, H.; Oh, K.-C. An Empirical Approach for Improving the Estimation of the Concrete Compressive Strength Considered the Effect of Age and Drilled Core Sample. J. Korea Inst. Struct. Maint. Insp. 2015, 19, 103–111. (In Korean) [Google Scholar]
- Nilimaa, J. Smart Materials and technologies for sustainable concrete construction. Dev. Built Environ. 2023, 15, e100177. [Google Scholar] [CrossRef]
Curing Type and Sensor | Days | ||||||
---|---|---|---|---|---|---|---|
1 | 3 | 7 | 14 | 28 | 91 | ||
Standard curing | Cylinder | 5 * samples | 5 samples | 5 samples | 5 samples | 5 samples | 5 samples |
Field curing | Cylinder | 5 samples | 5 samples | 5 samples | 5 samples | 5 samples | |

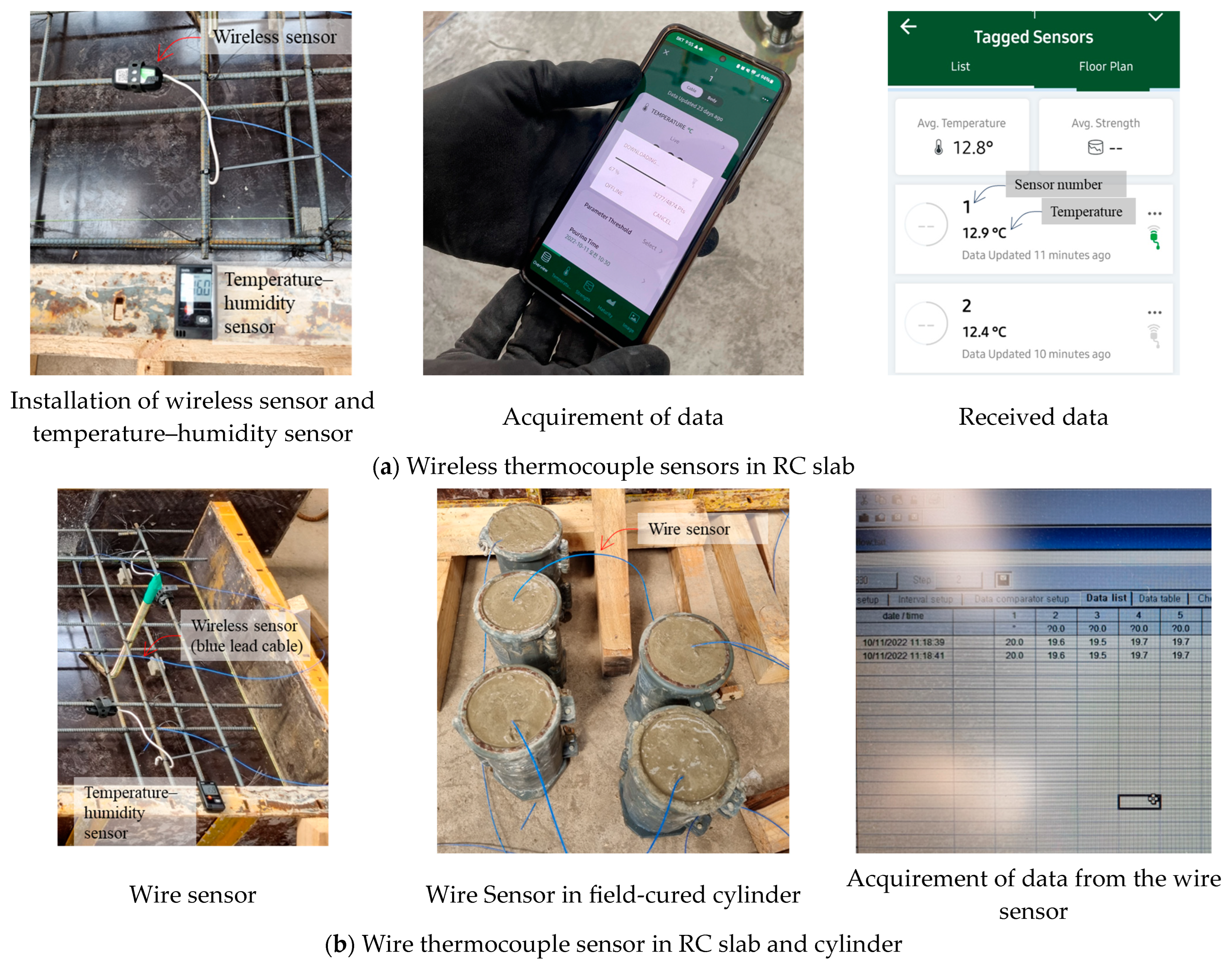

Wire sensor | 5 samples measured | ||||||

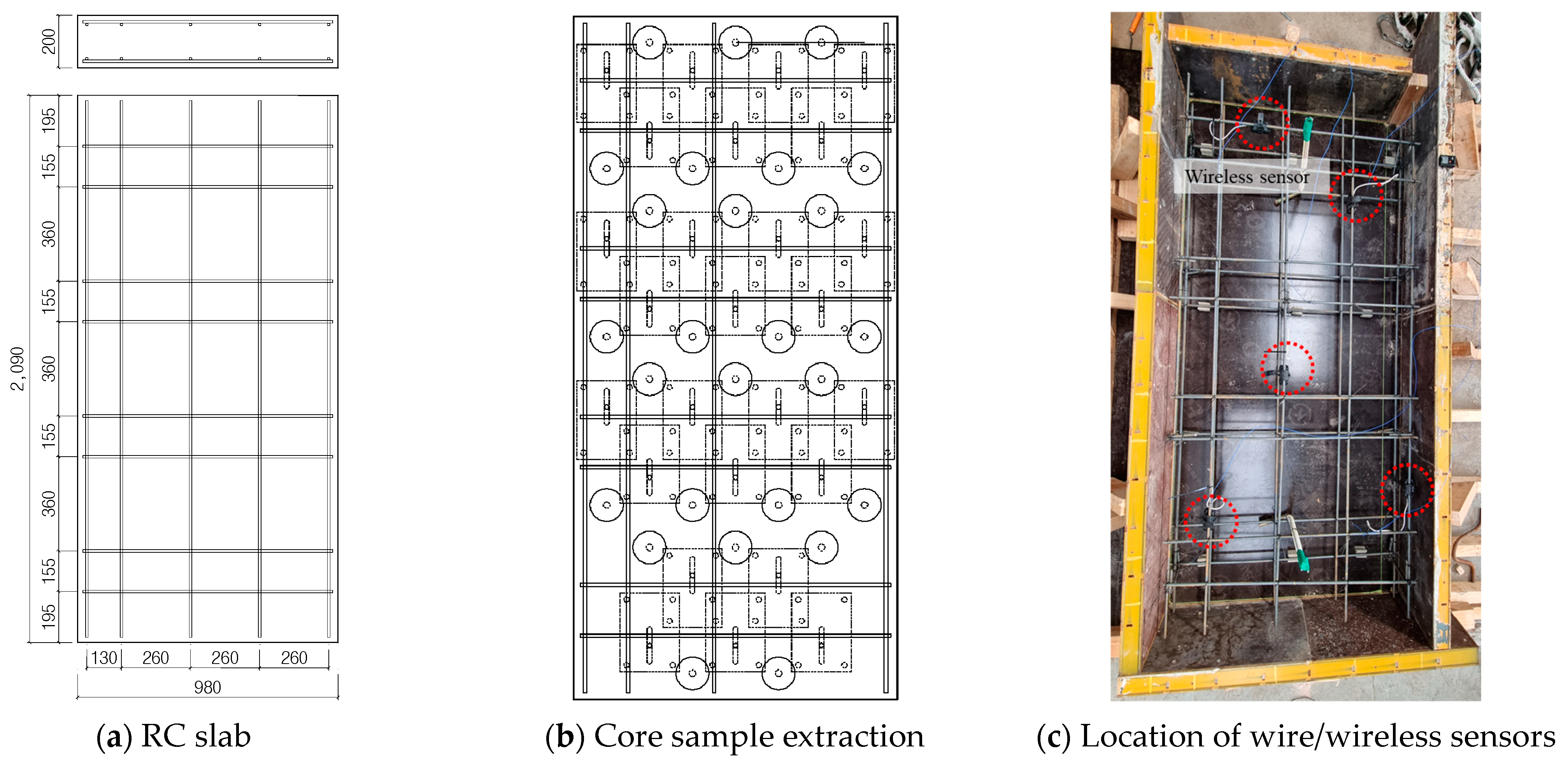

Reinforced concrete slab | Core sample | - | - | 5 samples | 5 samples | 5 samples | 5 samples |
Wire sensor | 5 points were measured | Not available | |||||
Wireless sensor | 5 points were measured | Not available |
Mix. | W/B | S/a | Binder | Water | Aggregate | Admixture | AE Agent | |
---|---|---|---|---|---|---|---|---|
Code. | (%) | (%) | (kg/m3) | (kg/m3) | Fine (kg/m3) | Coarse (kg/m3) | (kg/m3) | (kg/m3) |
25-24-150 | 46.6 | 51.7 | 335 | 119 | 881 | 831 | 29 | 2.55 (1.62%) |
Aggregate | Maximum Size (mm) | F.M | Density | Water Absorption (%) |
---|---|---|---|---|
(Fineness Modulus) | (g/cm3) | |||
Fine | 5 | 2.85 | 2.57 | 1.2 |
Coarse | 25 | 6.85 | 2.6 | 0.4 |
Day | Hour | Maturity Index (°C·h) | |||
---|---|---|---|---|---|
Wire Slab | Wireless Slab | Wire Field | Standard | ||
1 | 0 | 0 | 0 | 0 | 0 |
1 | 31 | 30 | 30 | 30 | |
2 | 61 | 61 | 61 | 61 | |
3 | 92 | 92 | 91 | 91 | |
4 | 124 | 123 | 122 | 122 | |
5 | 155 | 154 | 153 | 153 | |
6 | 187 | 185 | 184 | 184 | |
7 | 218 | 216 | 215 | 215 | |
8 | 250 | 248 | 246 | 246 | |
9 | 281 | 278 | 277 | 277 | |
10 | 312 | 309 | 308 | 308 | |
11 | 343 | 339 | 338 | 338 | |
12 | 374 | 370 | 369 | 369 | |
13 | 405 | 400 | 399 | 399 | |
14 | 436 | 431 | 430 | 430 | |
15 | 467 | 461 | 460 | 460 | |
16 | 497 | 491 | 490 | 490 | |
17 | 527 | 520 | 519 | 519 | |
18 | 557 | 549 | 548 | 548 | |
19 | 585 | 577 | 576 | 576 | |
20 | 614 | 605 | 604 | 604 | |
21 | 641 | 632 | 631 | 631 | |
22 | 668 | 658 | 657 | 657 | |
23 | 695 | 685 | 684 | 684 | |
24 | 723 | 712 | 711 | 711 | |
2 | 30 | 900 | 886 | 886 | 891 |
36 | 1080 | 1066 | 1063 | 1071 | |
42 | 1246 | 1249 | 1226 | 1251 | |
48 | 1401 | 1431 | 1379 | 1431 | |
3 | 54 | 1573 | 1606 | 1550 | 1611 |
60 | 1751 | 1777 | 1725 | 1791 | |
66 | 1917 | 1942 | 1888 | 1971 | |
72 | 2073 | 2103 | 2041 | 2151 | |
4 | 78 | 2248 | 2259 | 2213 | 2331 |
84 | 2427 | 2411 | 2389 | 2511 | |
90 | 2594 | 2564 | 2554 | 2691 | |
96 | 2753 | 2723 | 2710 | 2871 | |
5 | 102 | 2930 | 2893 | 2884 | 3051 |
108 | 3111 | 3069 | 3063 | 3231 | |
114 | 3282 | 3250 | 3230 | 3411 | |
120 | 3444 | 3429 | 3389 | 3591 | |
6 | 126 | 3624 | 3603 | 3567 | 3771 |
132 | 3802 | 3773 | 3743 | 3951 | |
138 | 3970 | 3939 | 3907 | 4131 | |
144 | 4130 | 4099 | 4066 | 4311 | |
7 | 150 | 4297 | 4256 | 4231 | 4491 |
156 | 4458 | 4409 | 4388 | 4671 | |
162 | 4605 | 4562 | 4532 | 4851 | |
168 | 4741 | 4723 | 4665 | 5031 |
Days | Field-Cured Cylinders | Standard-Cured Cylinders | Core Samples | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
No. | L (mm) | Peak Load (kN) | fc (MPa) | SD | No. | L (mm) | Peak Load (kN) | fc (MPa) | SD | No. | L (mm) | Peak Load (kN) | fc-eq (MPa) | SD | |
1 d | A1-1 | 193.5 | 5.3 | 0.7 | −0.1 | A1-1 | 193.5 | 5.3 | 0.7 | −0.1 | None | ||||
A1-2 | 192.8 | 5.6 | 0.7 | −0.1 | A1-2 | 192.8 | 5.6 | 0.7 | −0.1 | None | |||||
A1-3 | 193.2 | 6.4 | 0.8 | 0.0 | A1-3 | 193.2 | 6.4 | 0.8 | 0.0 | None | |||||
A1-4 | 193.0 | 6.8 | 0.9 | 0.1 | A1-4 | 193.0 | 6.8 | 0.9 | 0.1 | None | |||||
A1-5 | 194.0 | 6.1 | 0.8 | 0.0 | A1-5 | 194.0 | 6.1 | 0.8 | 0.0 | None | |||||
Avg. | 193.3 | 6.0 | 0.8 | 0.0 | 193.3 | 6.0 | 0.8 | 0.0 | None | ||||||
3 d | A3-1 | 191.0 | 27.7 | 3.5 | 0.1 | W3-1 | 192 | 33.4 | 4.3 | −0.1 | None | ||||
A3-2 | 191.0 | 27.3 | 3.5 | 0.1 | W3-2 | 191.5 | 32.8 | 4.2 | −0.2 | None | |||||
A3-3 | 190.5 | 27.4 | 3.5 | 0.1 | W3-3 | 193 | 40.6 | 5.2 | 0.8 | None | |||||
A3-4 | 191.0 | 28.1 | 3.6 | 0.2 | W3-4 | 193 | 30.4 | 3.9 | −0.5 | None | |||||
A3-5 | 186.5 | 23.4 | 3.0 | −0.4 | W3-5 | 192.5 | 33.5 | 4.3 | −0.1 | None | |||||
Avg. | 190.0 | 26.8 | 3.4 | 0.0 | 192.4 | 34.1 | 4.3 | 0.0 | None | ||||||
7 d | A7-1 | 190.0 | 56.3 | 7.2 | −0.3 | W7-1 | 195 | 66.1 | 8.4 | −0.9 | C7-1 | 207 | 64.1 | 8.4 | 0.4 |
A7-2 | 192.0 | 60.4 | 7.7 | 0.2 | W7-2 | 193 | 75.5 | 9.6 | 0.3 | C7-2 | 204 | 64.2 | 8.4 | 0.4 | |
A7-3 | 188.0 | 59.9 | 7.6 | 0.2 | W7-3 | 191 | 68.3 | 8.7 | −0.6 | C7-3 | 206 | 58.3 | 7.6 | −0.4 | |
A7-4 | 194.0 | 60.9 | 7.8 | 0.3 | W7-4 | 192 | 71.9 | 9.2 | −0.1 | C7-4 | 206 | 59.2 | 7.8 | −0.3 | |
A7-5 | 192.0 | 55.6 | 7.1 | −0.4 | W7-5 | 193 | 82.7 | 10.5 | 1.2 | C7-5 | 207 | 59.9 | 7.8 | −0.2 | |
Avg. | 191.2 | 58.6 | 7.5 | 0.0 | 192.8 | 72.9 | 9.3 | 0.0 | 206 | 61.1 | 8.0 | 0.0 | |||
14 d | A14-1 | 193.5 | 84.1 | 10.7 | 0.3 | W14-1 | 191.5 | 92.5 | 11.8 | −1.0 | C14-1 | 212 | 86.3 | 11.3 | 0.2 |
A14-2 | 190.5 | 84.8 | 10.8 | 0.4 | W14-2 | 194 | 111.2 | 14.2 | 1.3 | C14-2 | 209.5 | 82.3 | 10.8 | −0.3 | |
A14-3 | 194.5 | 82.8 | 10.5 | 0.2 | W14-3 | 191.5 | 99.5 | 12.7 | −0.2 | C14-3 | 207.5 | 77.5 | 10.1 | −0.9 | |
A14-4 | 192.5 | 77.4 | 9.9 | −0.5 | W14-4 | 191 | 98.1 | 12.5 | −0.3 | C14-4 | 211 | 90.4 | 11.8 | 0.7 | |
A14-5 | 195.5 | 78.3 | 10.0 | −0.4 | W14-5 | 194 | 102.1 | 13.0 | 0.2 | C14-5 | 208.5 | 87.0 | 11.4 | 0.3 | |
Avg. | 193.3 | 81.5 | 10.4 | 0.0 | 192.4 | 100.7 | 12.8 | 0.0 | 209.7 | 84.7 | 11.1 | 0.0 | |||
28 d | A28-1 | 187.0 | 82.7 | 10.5 | −1.0 | W28-1 | 186 | 144.7 | 18.4 | −0.7 | C28-1 | 204.5 | 102.5 | 13.4 | −1.7 |
A28-2 | 184.0 | 104.5 | 13.3 | 1.8 | W28-2 | 188.5 | 159.3 | 20.3 | 1.2 | C28-2 | 204.5 | 121.1 | 15.9 | 0.7 | |
A28-3 | 188.5 | 89.6 | 11.4 | −0.1 | W28-3 | 192 | 143.9 | 18.3 | −0.8 | C28-3 | 204 | 116.1 | 15.2 | 0.1 | |
A28-4 | 187.0 | 81.2 | 10.3 | −1.2 | W28-4 | 188 | 139.6 | 17.8 | −1.3 | C28-4 | 206.5 | 119.8 | 15.7 | 0.6 | |
A28-5 | 188.0 | 93.9 | 12.0 | 0.4 | W28-5 | 190.5 | 162.0 | 20.6 | 1.5 | C28-5 | 208.5 | 117.8 | 15.4 | 0.3 | |
Avg. | 186.9 | 90.4 | 11.5 | 0.0 | 189 | 149.9 | 19.1 | 0.0 | 205.6 | 115.5 | 15.1 | 0.0 | |||
91 d | A91-1 | 188.5 | 86.0 | 11.0 | −0.4 | W91-1 | 191.5 | 233.8 | 29.8 | 2.4 | C91-1 | 204.0 | 150.6 | 19.7 | 0.6 |
A91-2 | 189.5 | 97.0 | 12.4 | 1.0 | W91-2 | 192.5 | 202.7 | 25.8 | −1.6 | C91-2 | 206.5 | 154.0 | 20.2 | 1.0 | |
A91-3 | 190.5 | 70.0 | 8.9 | −2.4 | W91-3 | 186 | 184.1 | 23.5 | −4.0 | C91-3 | 205.0 | 146.0 | 19.1 | 0.0 | |
A91-4 | 190.0 | 95.5 | 12.2 | 0.9 | W91-4 | 189.5 | 215.6 | 27.5 | 0.1 | C91-4 | 212.0 | 146.6 | 19.2 | 0.1 | |
A91-5 | 183.0 | 95.4 | 12.2 | 0.8 | W91-5 | 190 | 239.4 | 30.5 | 3.1 | C91-5 | 209.5 | 133.1 | 17.4 | −1.7 | |
Avg. | 188.3 | 88.8 | 11.3 | 0.0 | 189.9 | 215.1 | 27.4 | 0.0 | 207.4 | 146.1 | 19.1 | 0.0 |

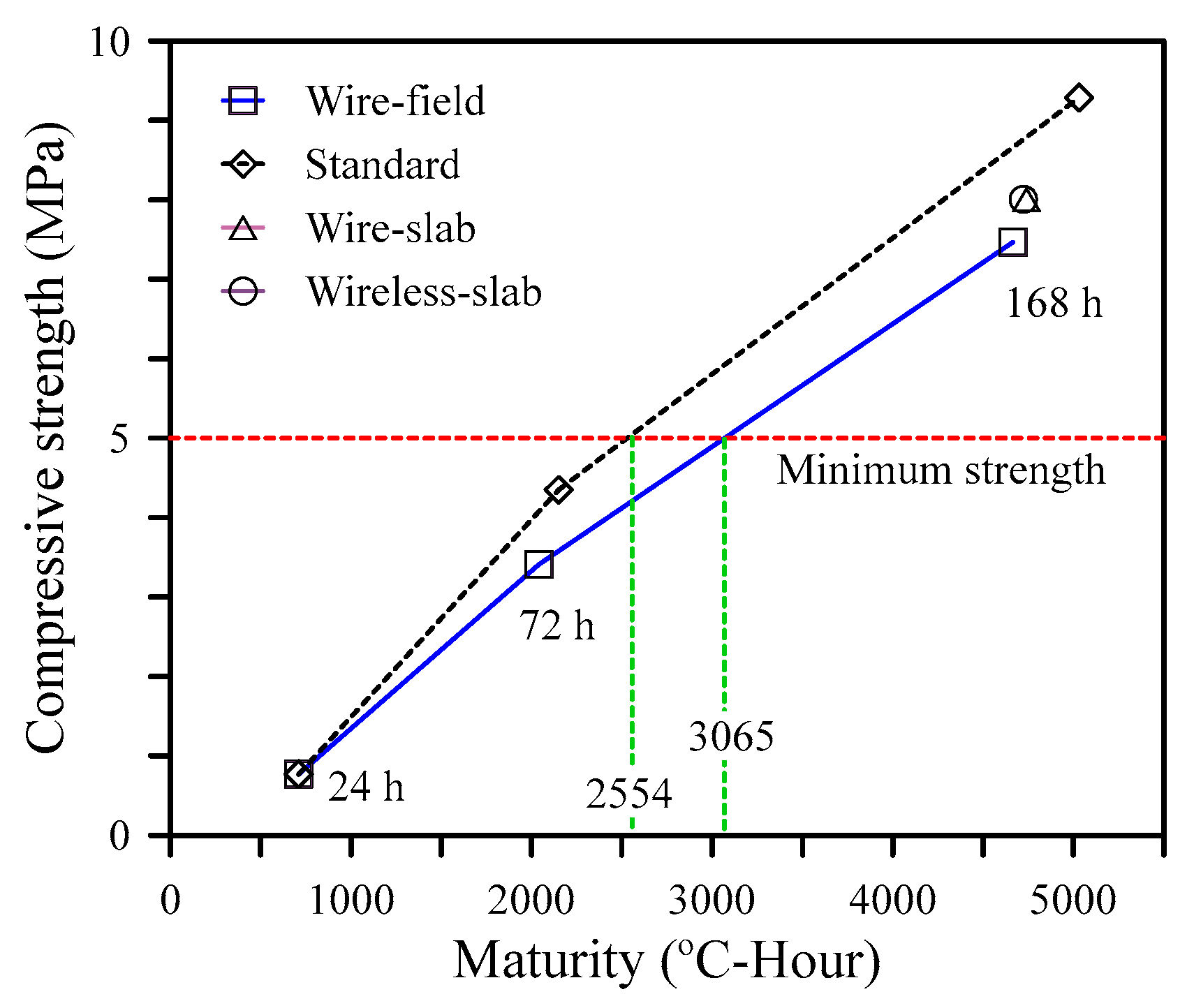

Days | Index | Standard Curing | Field Curing | RC Slab | |
---|---|---|---|---|---|
Wire | Wire | Wireless | |||
1 (24 h) | Maturity (°C·h) [Ratio] | 711 | 711 | 723 | 711 |
[1.00] | [1.00] | [1.02] | [1.00] | ||
fc (MPa) [Ratio] | 0.8 | 0.8 | - | - | |
[1.00] | [1.00] | ||||
3 (72 h) | Maturity (°C·h) [Ratio] | 2151 | 2041 | 2073 | 2103 |
[1.00] | [0.95] | [0.96] | [0.98] | ||
fc (MPa) [Ratio] | 4.3 | 3.4 | |||
[1.00] | [0.79] | ||||
7 (168 h) | Maturity (°C·h) [Ratio] | 5031 | 4665 | 4741 | 4723 |
[1.00] | [0.93] | [0.94] | [0.94] | ||
fc or fc-eq (MPa) [Ratio] | 9.3 | 7.5 | 8.0 | 8.0 | |
[1.00] | [0.81] | [0.86] | [0.86] |
