Using Cement and Calcium Lignosulfonate to Improve the Mechanical Properties and Microstructure of Loess in a Seasonal Freezing Zone
Abstract
:1. Introduction
2. Materials and Methods

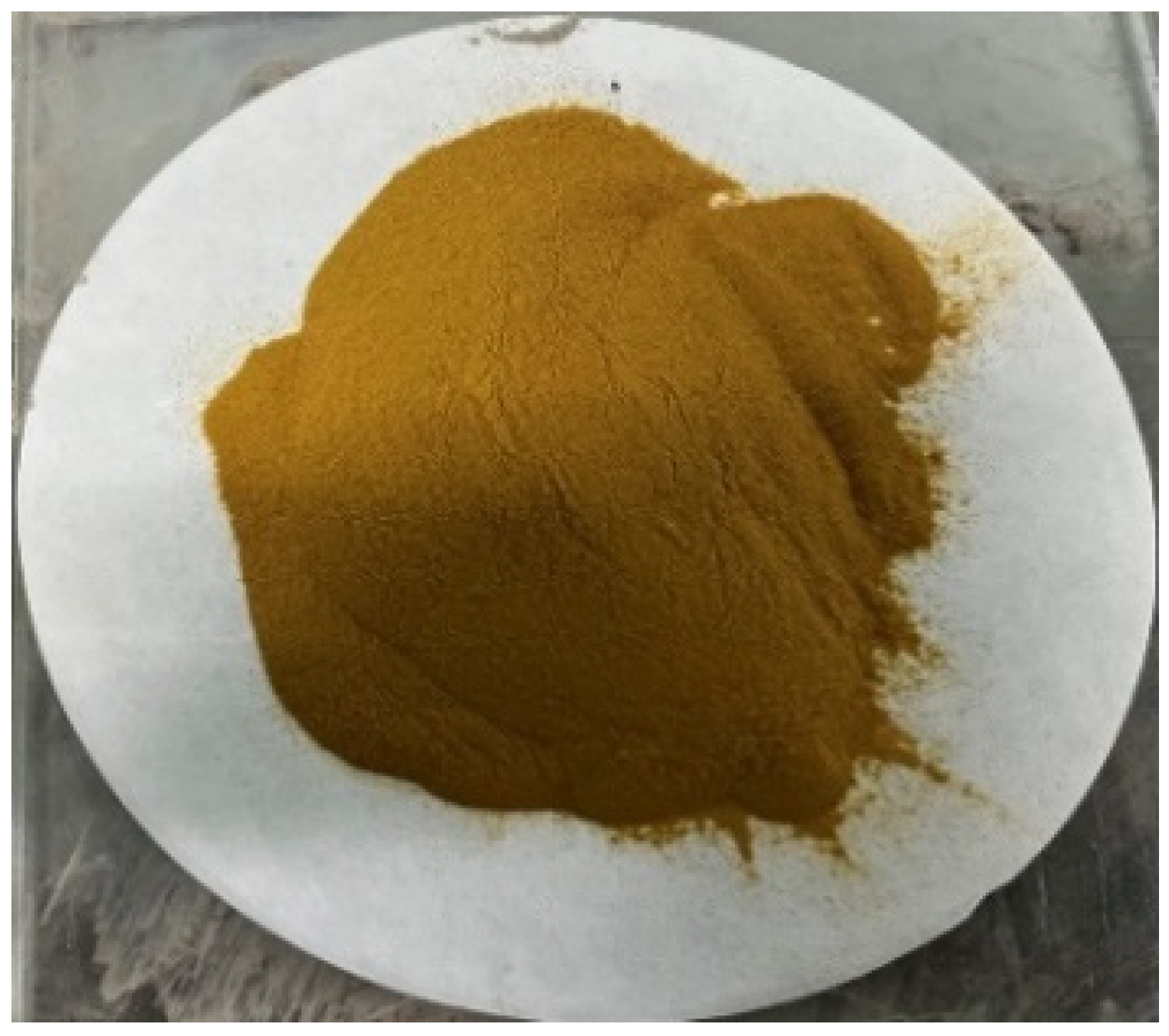

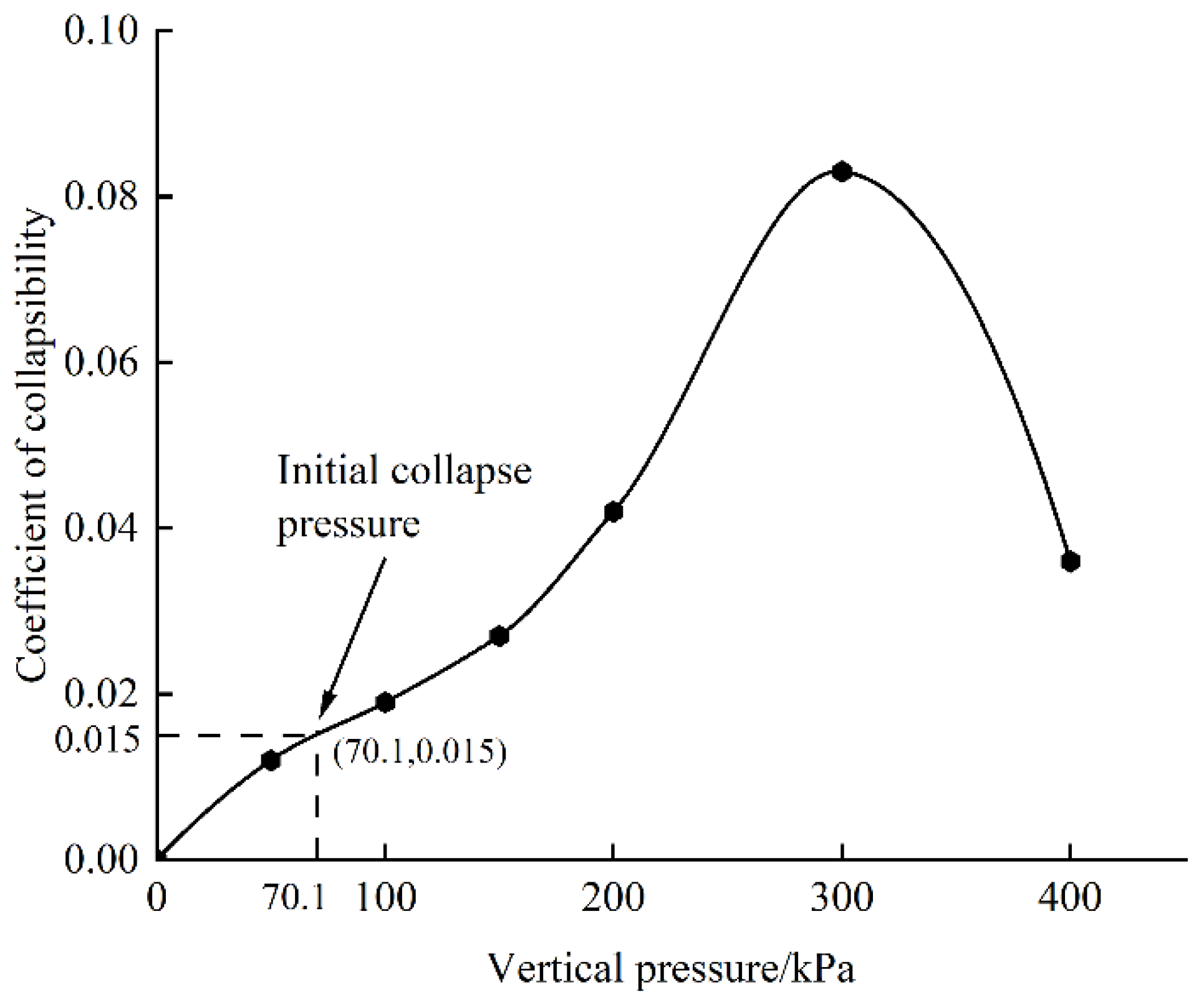

2.1. Materials
2.2. Specimen Preparation
2.3. Test Method

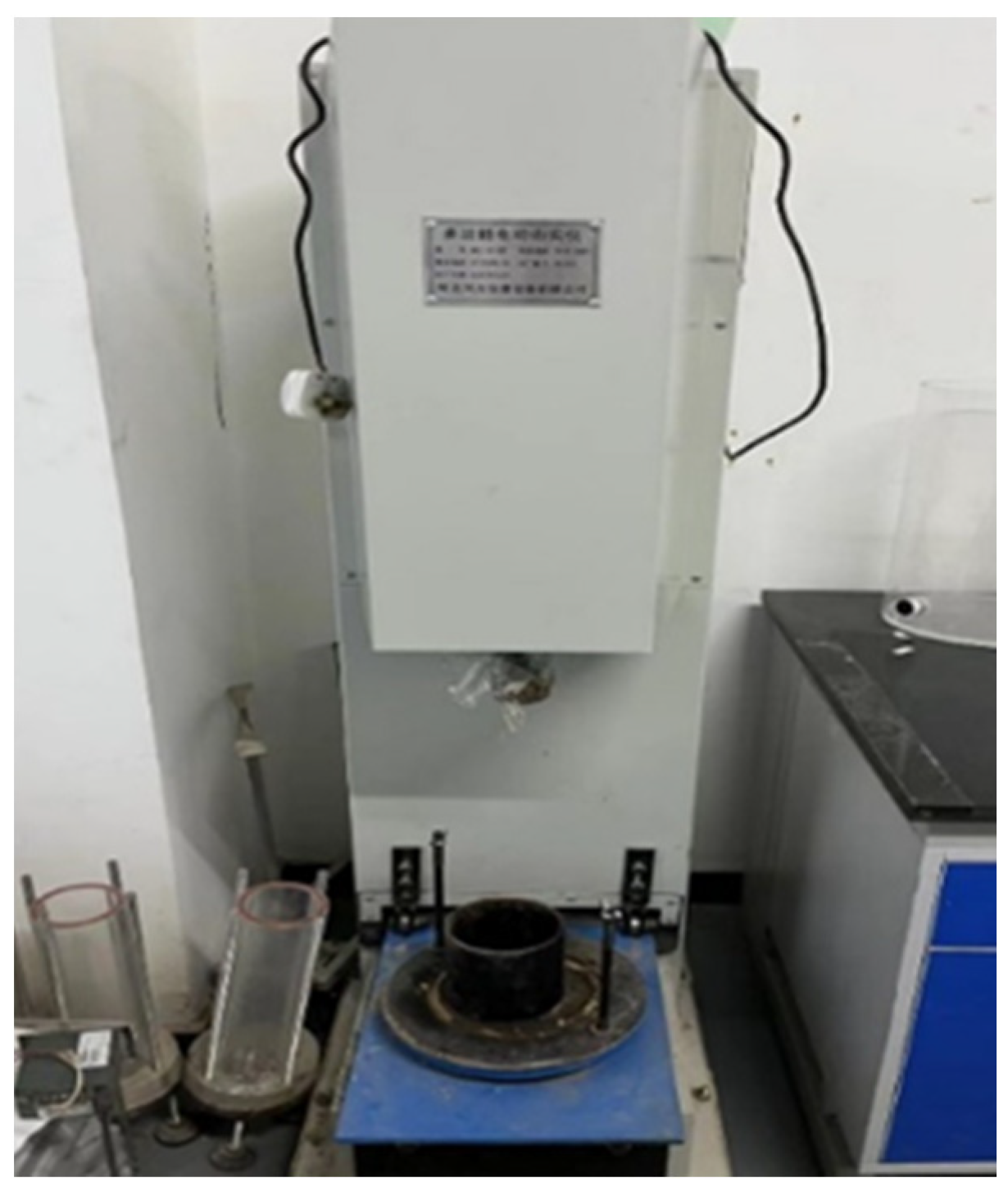

2.3.1. Compact Test

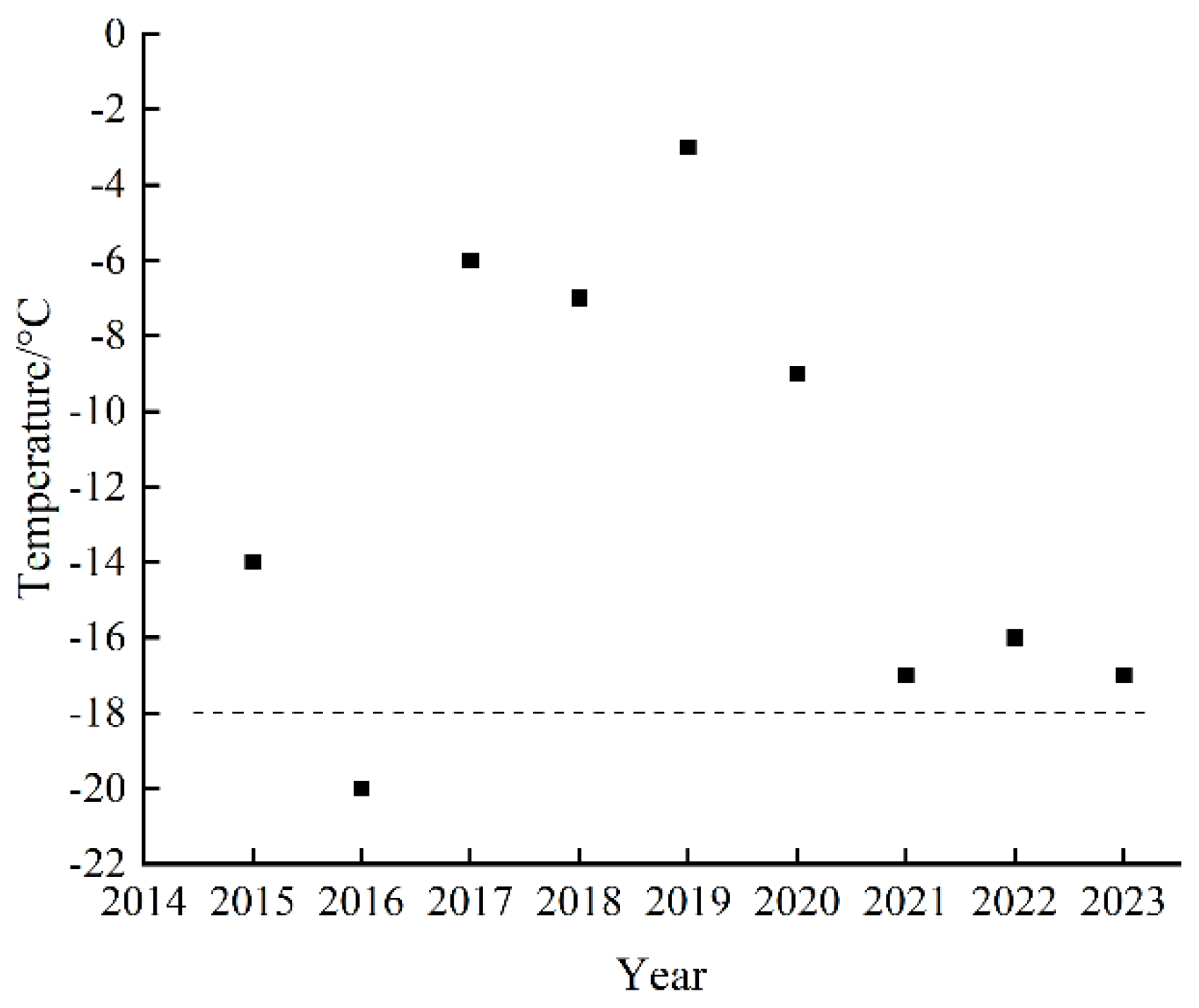

2.3.2. Freeze–Thaw Cycle Test

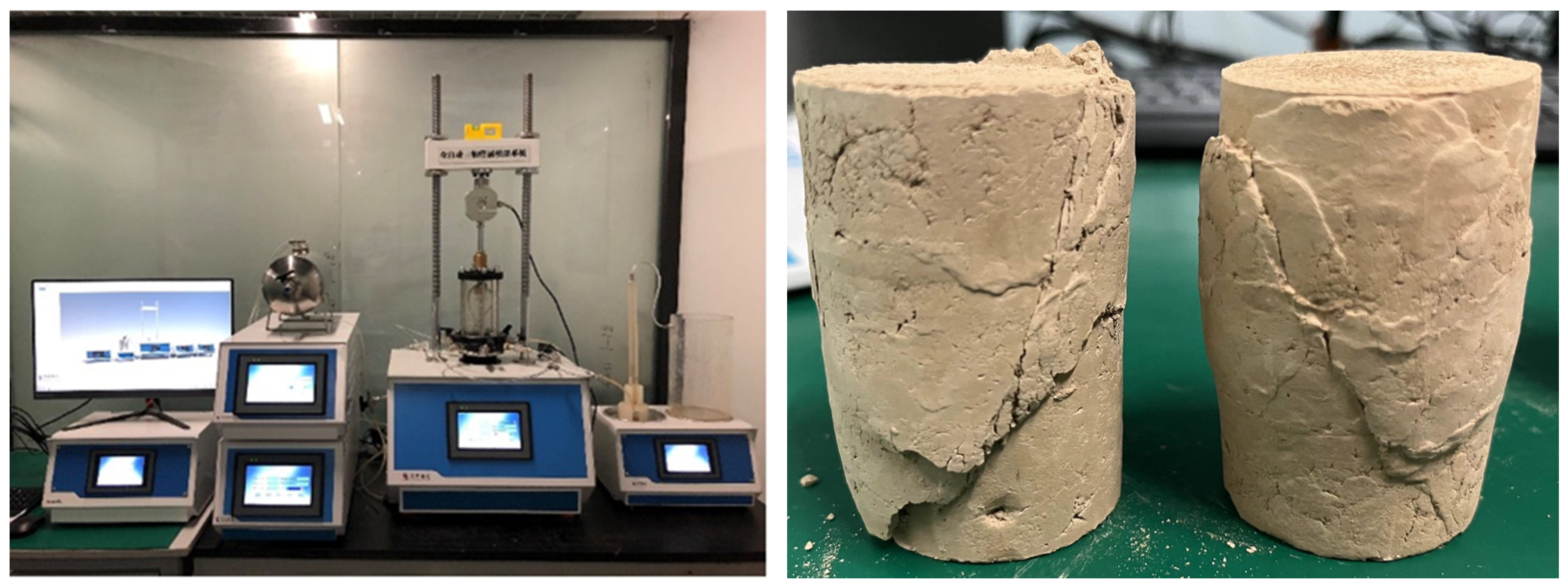

2.3.3. Unconfined Compressive Strength Test

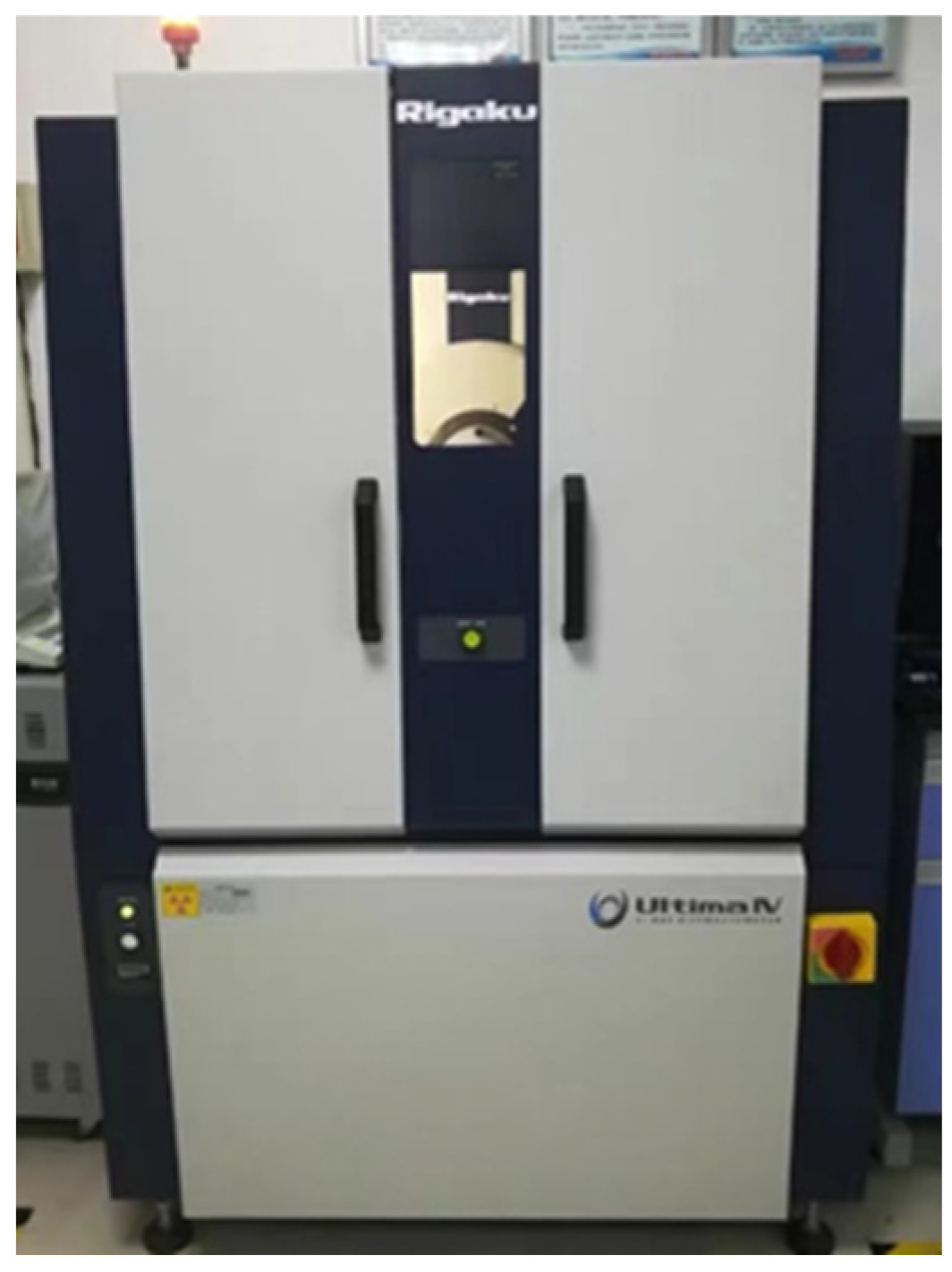

2.3.4. XRD Test

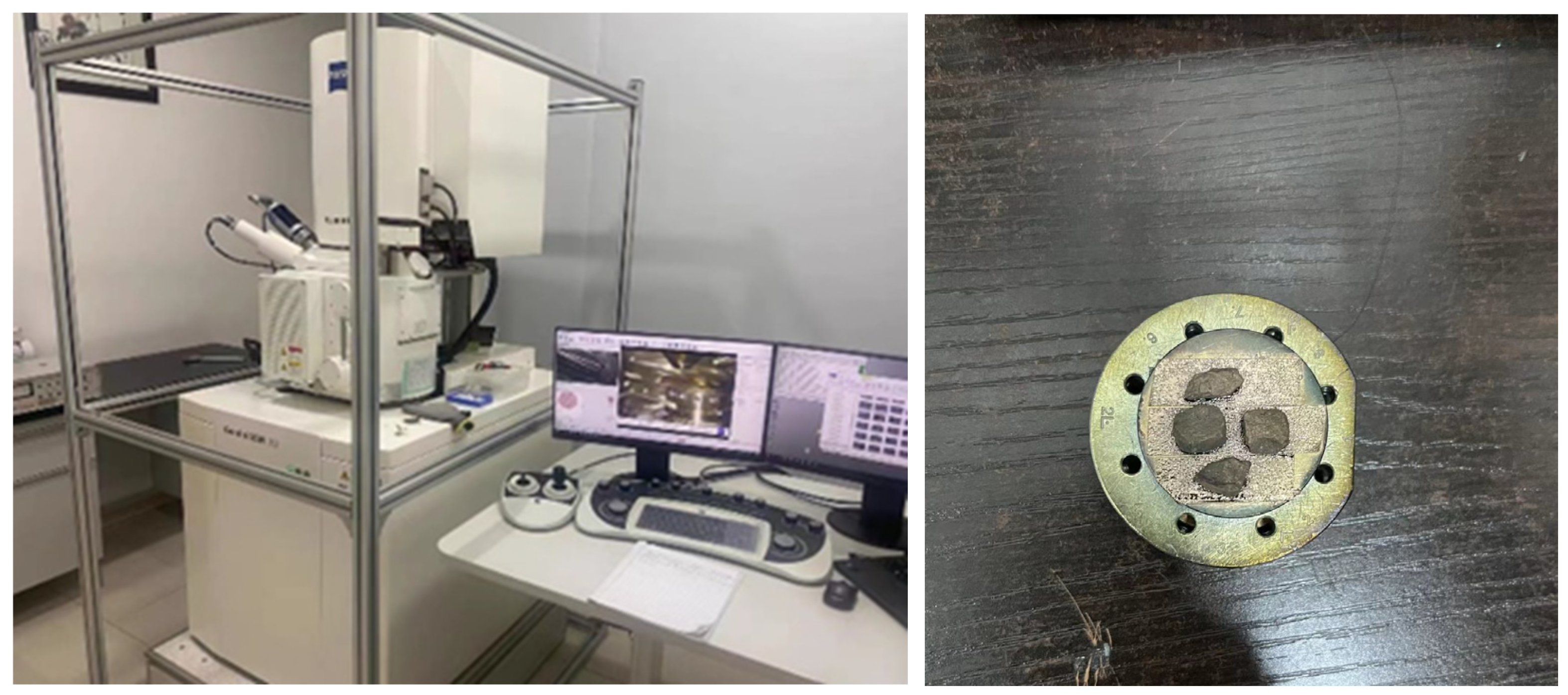

2.3.5. SEM Test
3. Results and Discussion

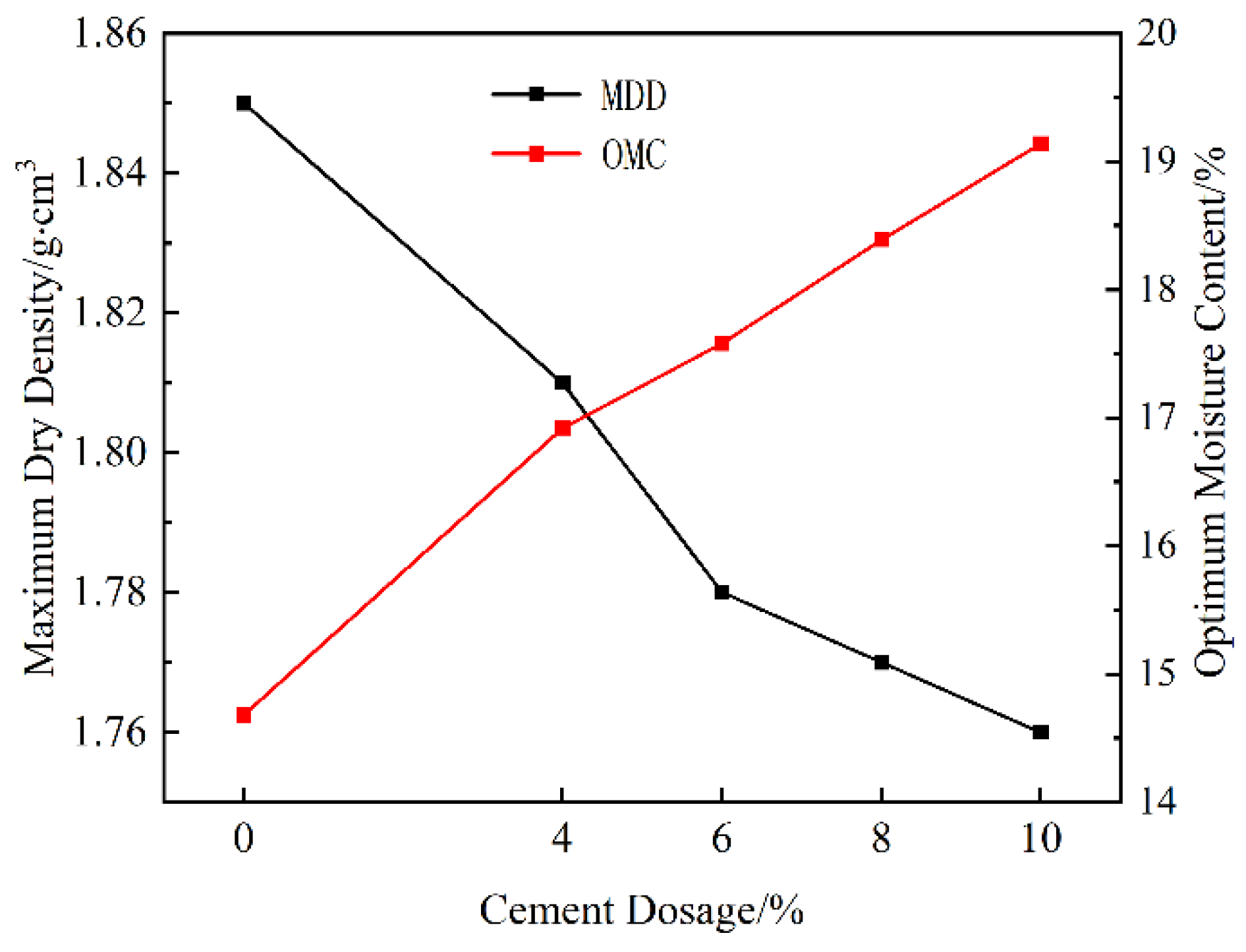

3.1. MDD and OMC
3.2. Unconfined Compressive Strength Test

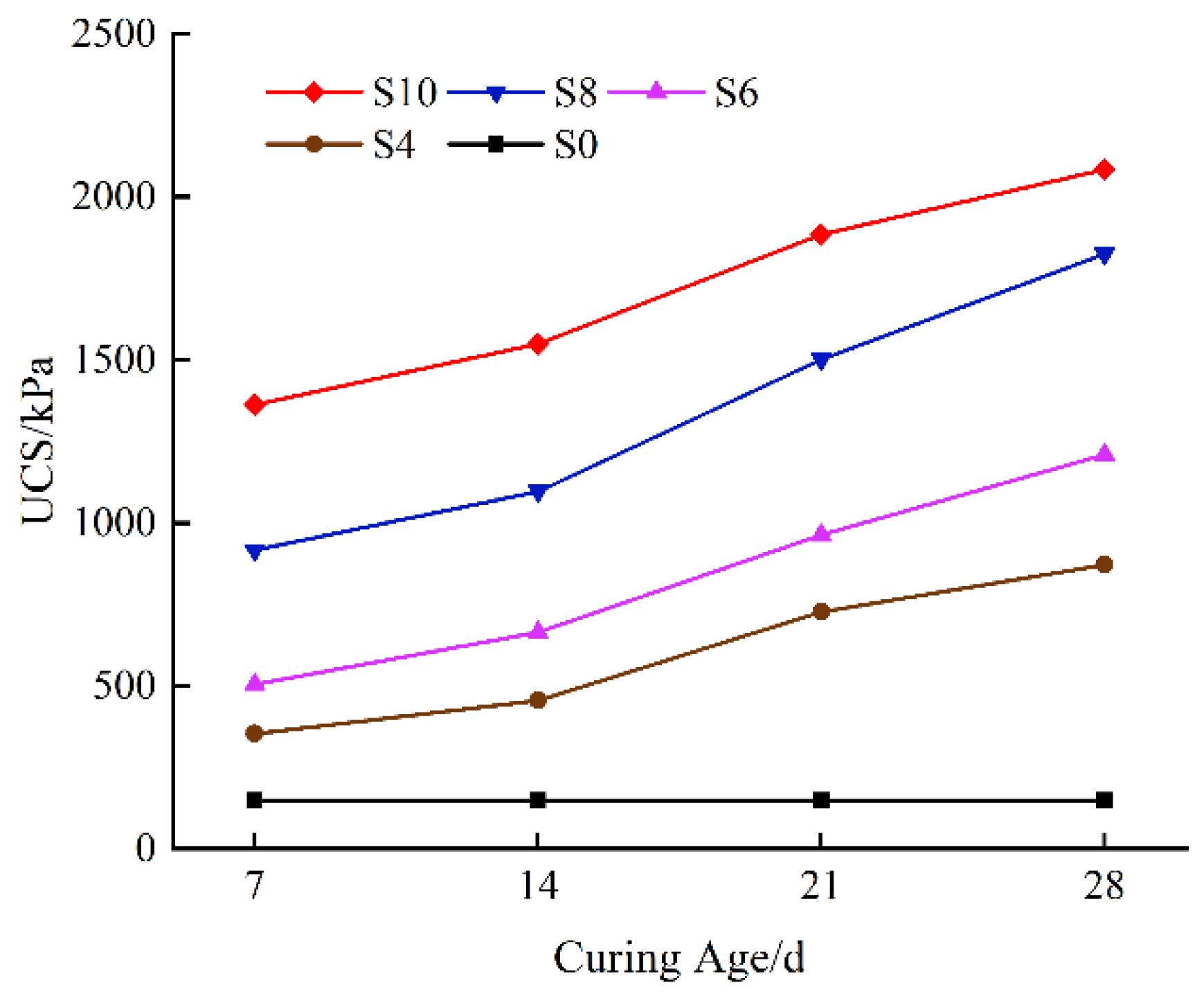

3.2.1. Curing Age

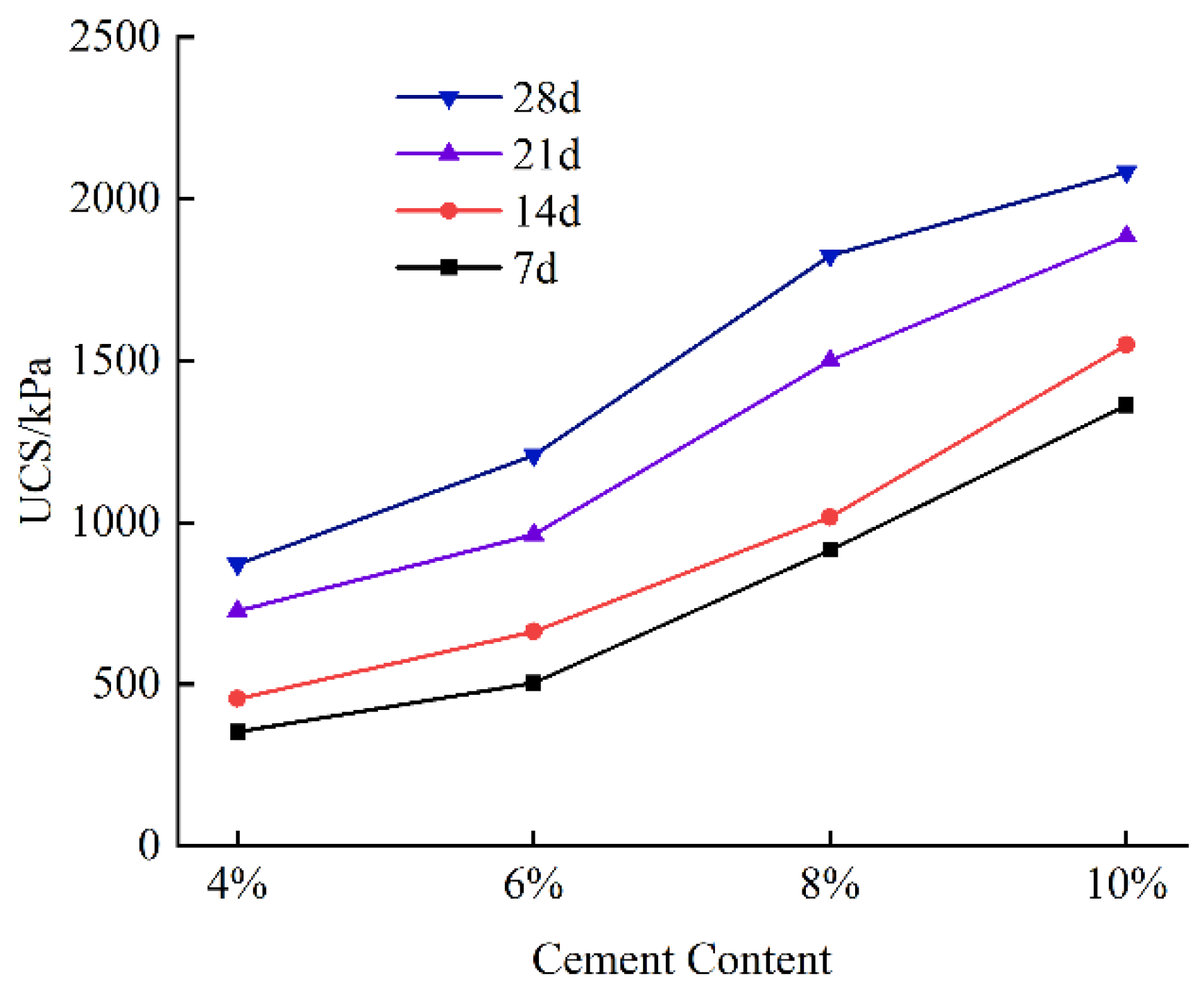

3.2.2. Cement Dosage

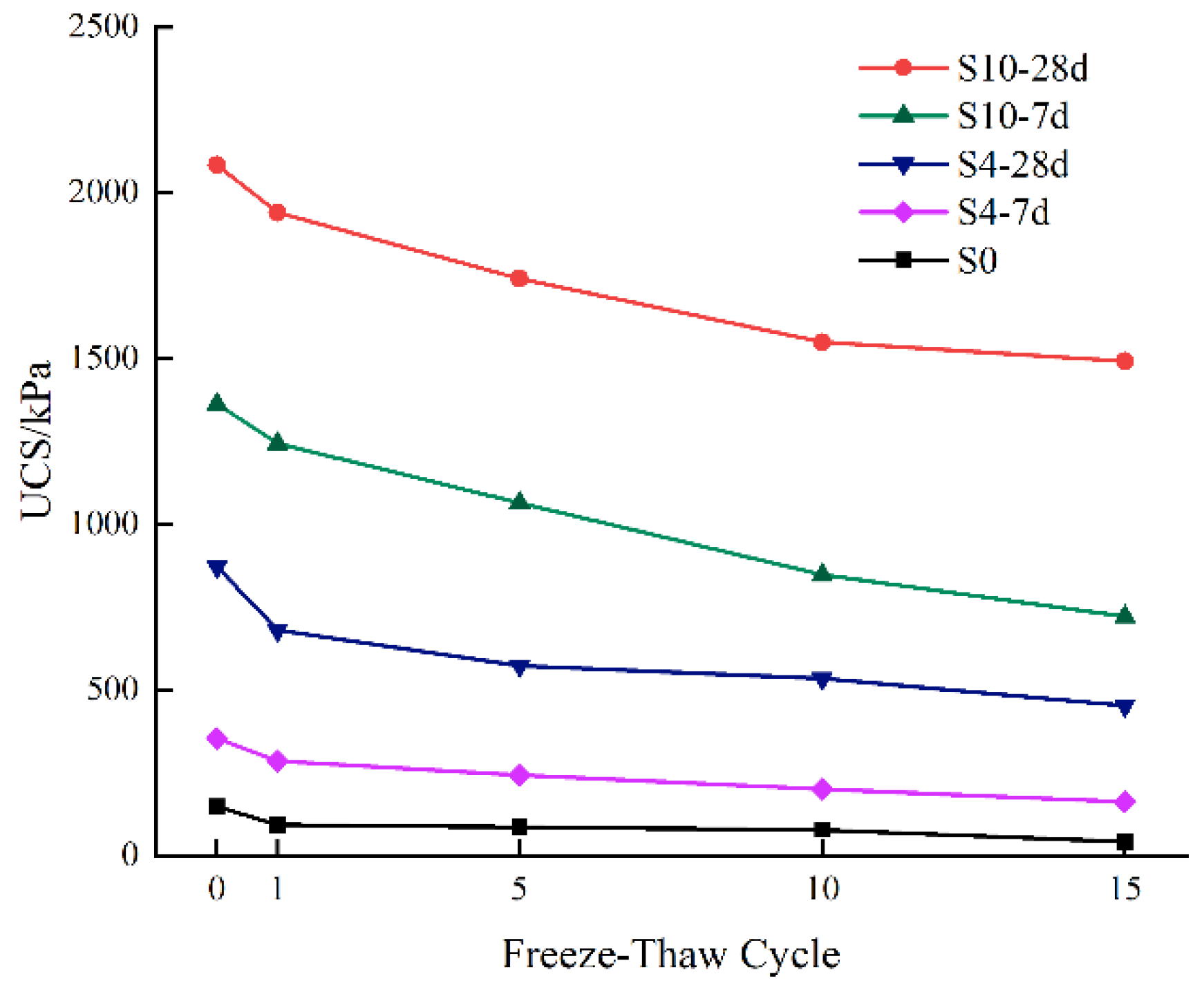

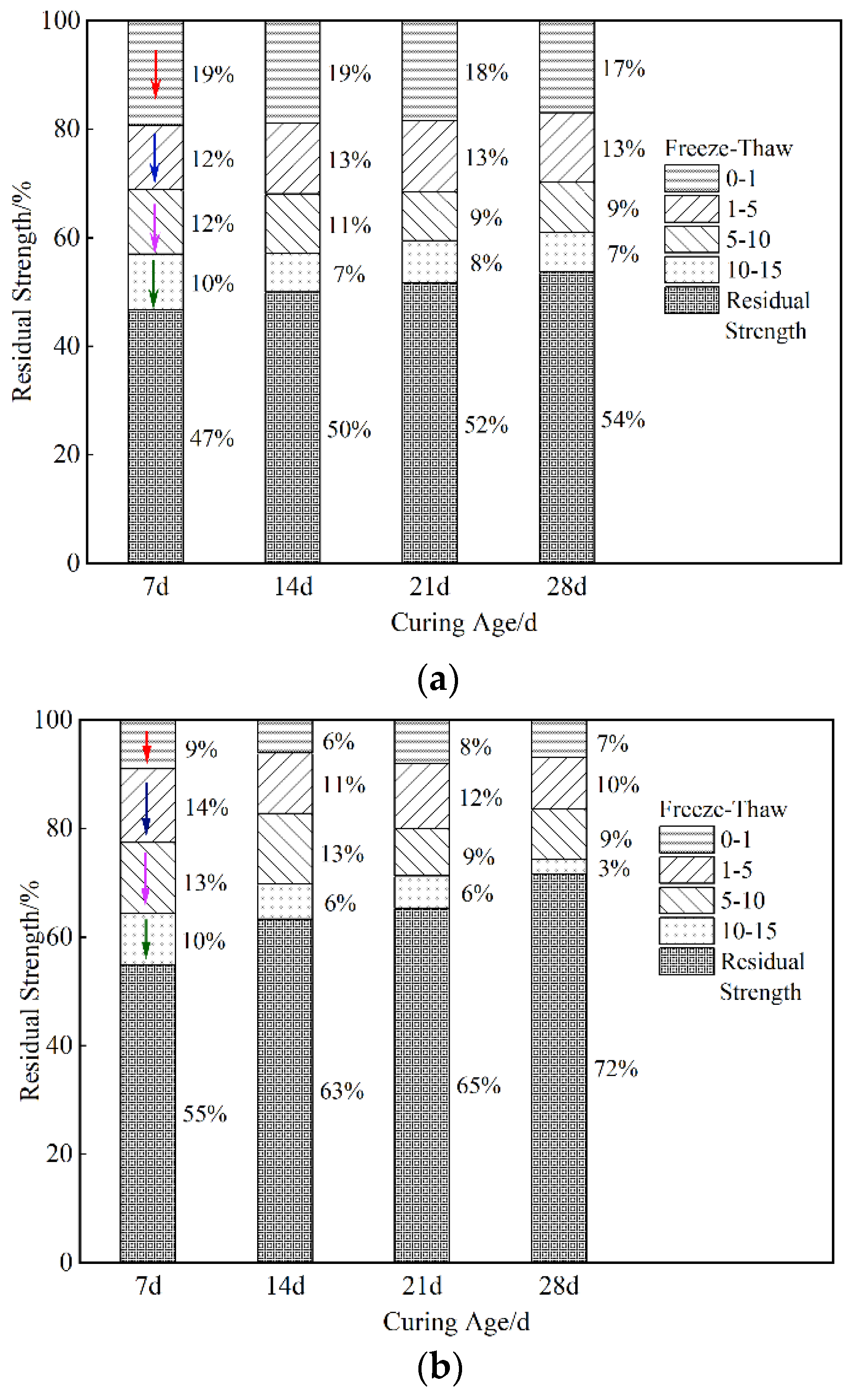

3.2.3. Freeze–Thaw Cycles

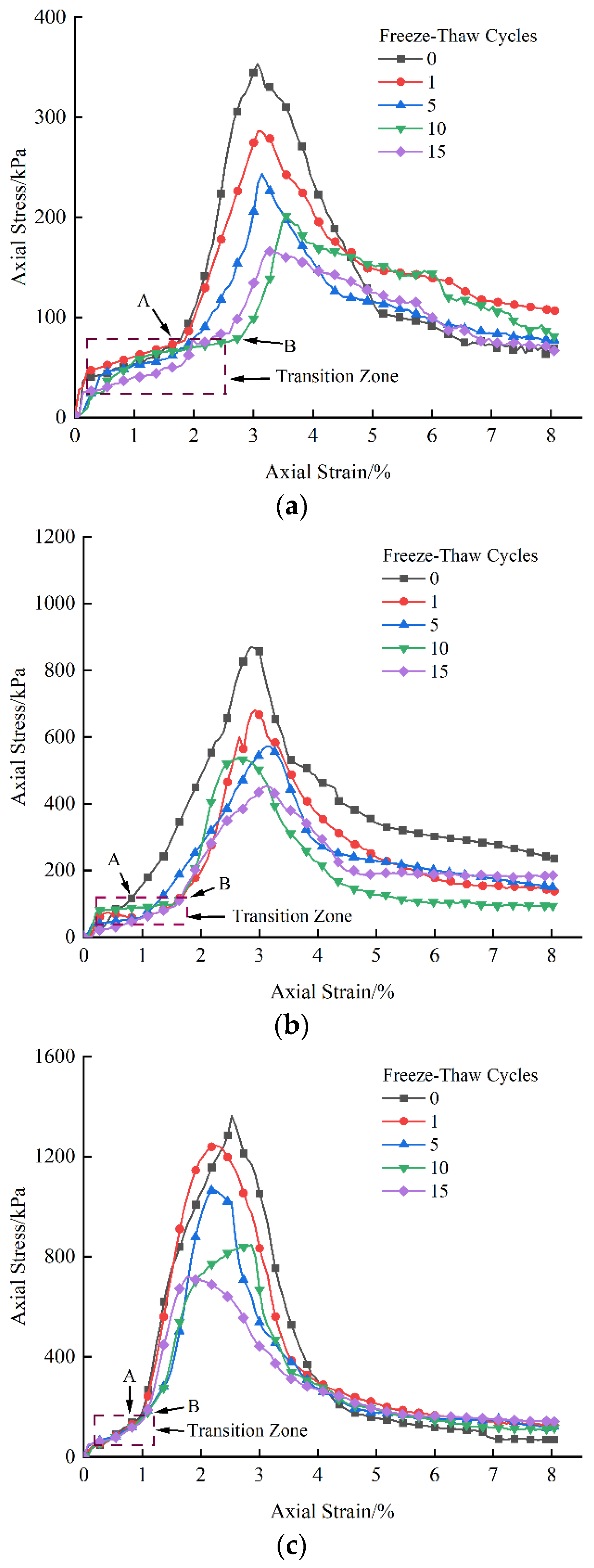

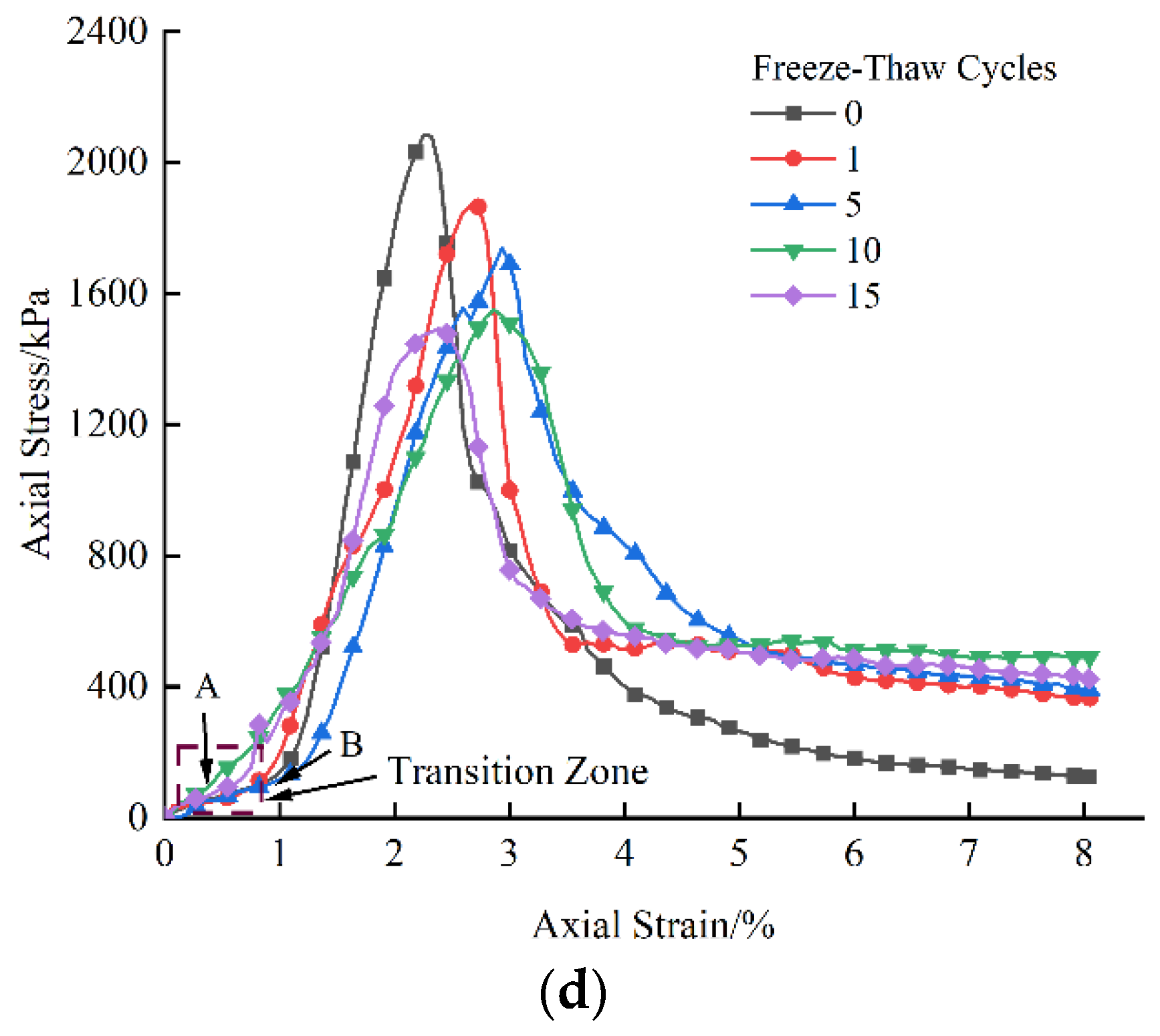

3.3. Stress–Strain Curves

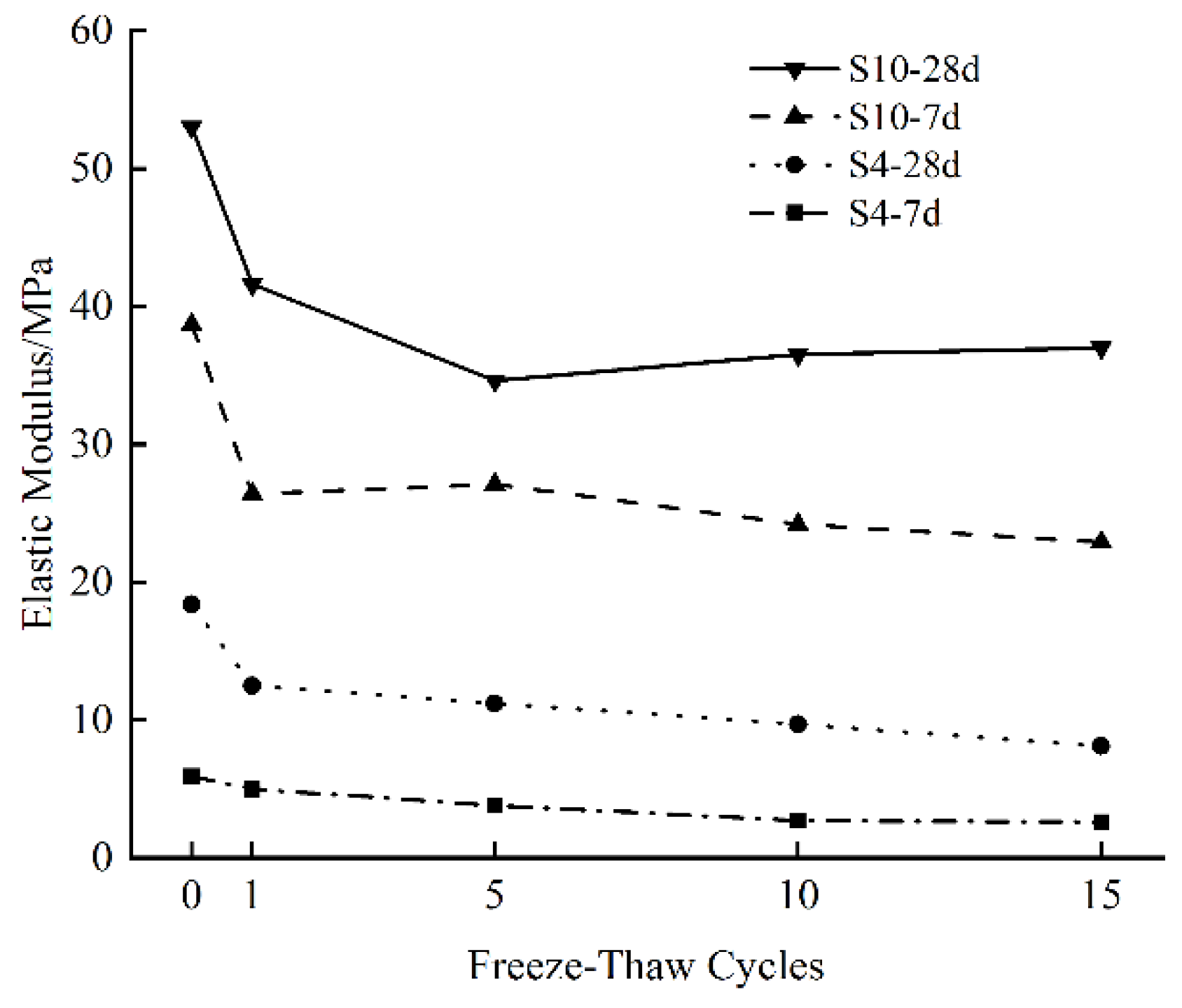

3.4. Modulus of Deformation

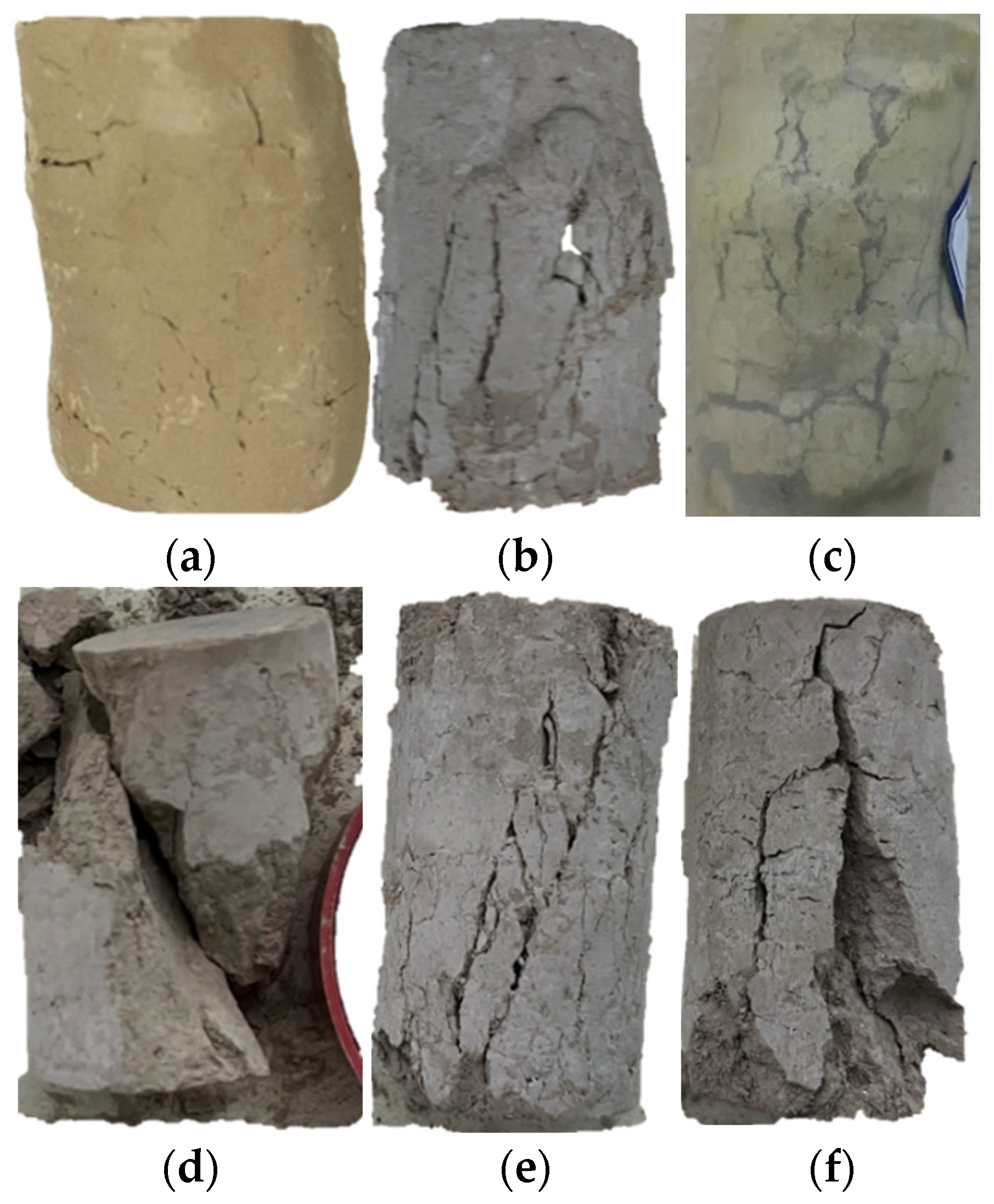

3.5. Damage Pattern Analysis

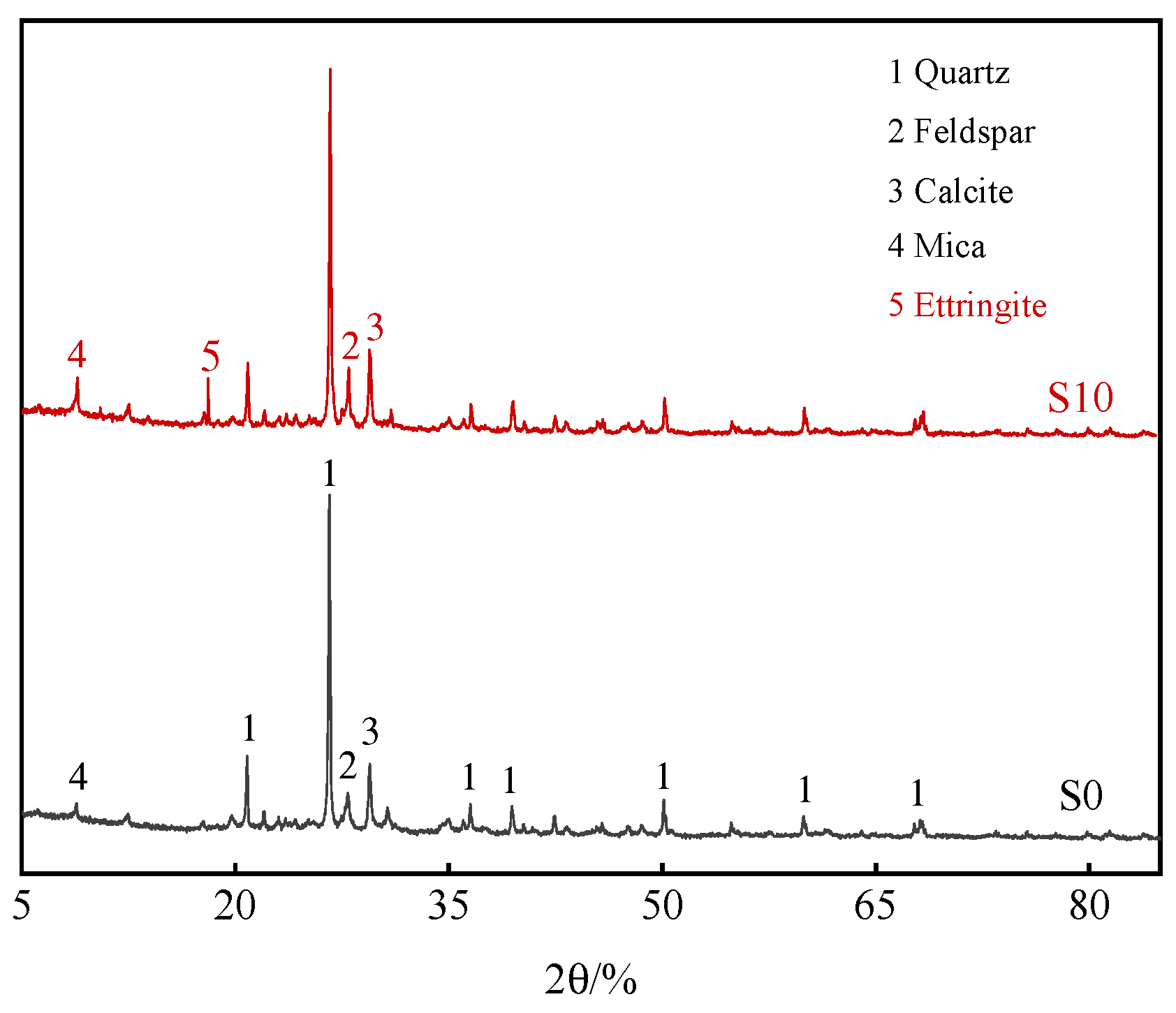

3.6. X-ray Diffraction Test

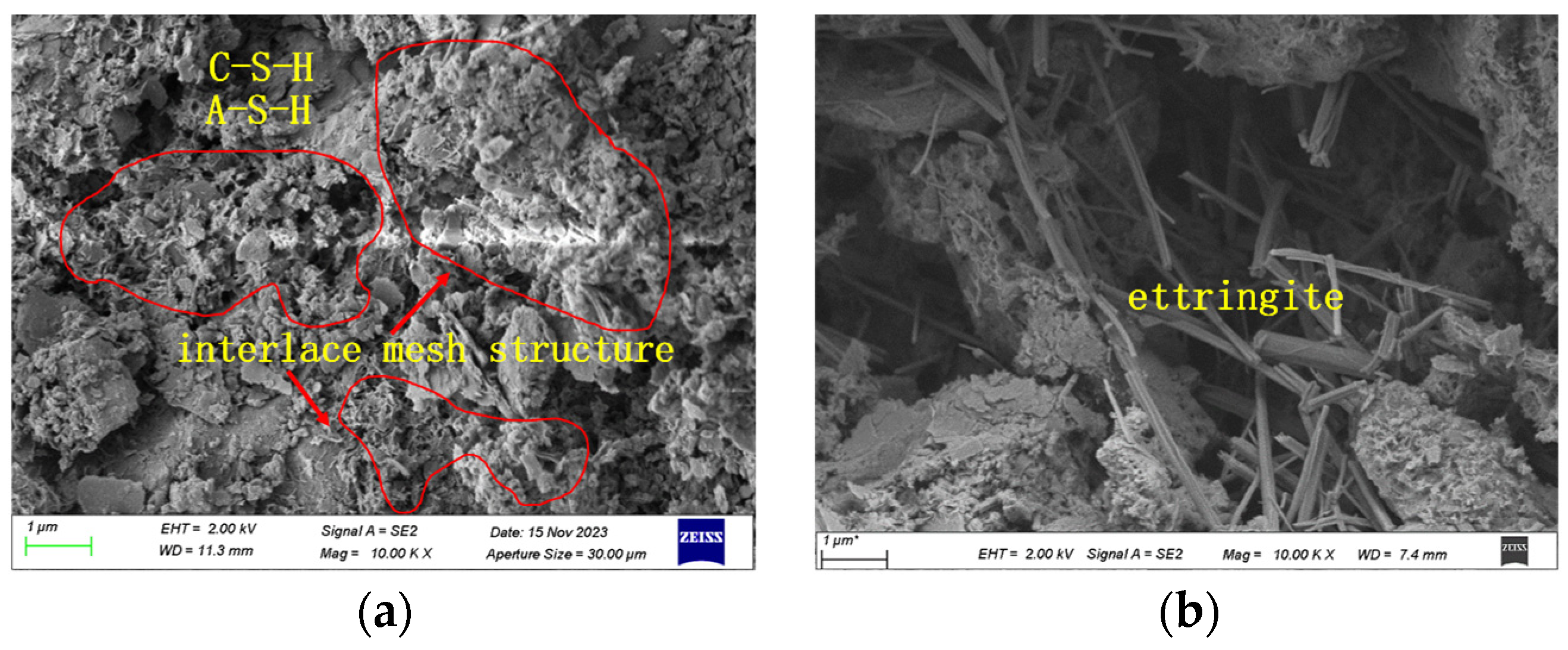

3.7. SEM Test
- (1)

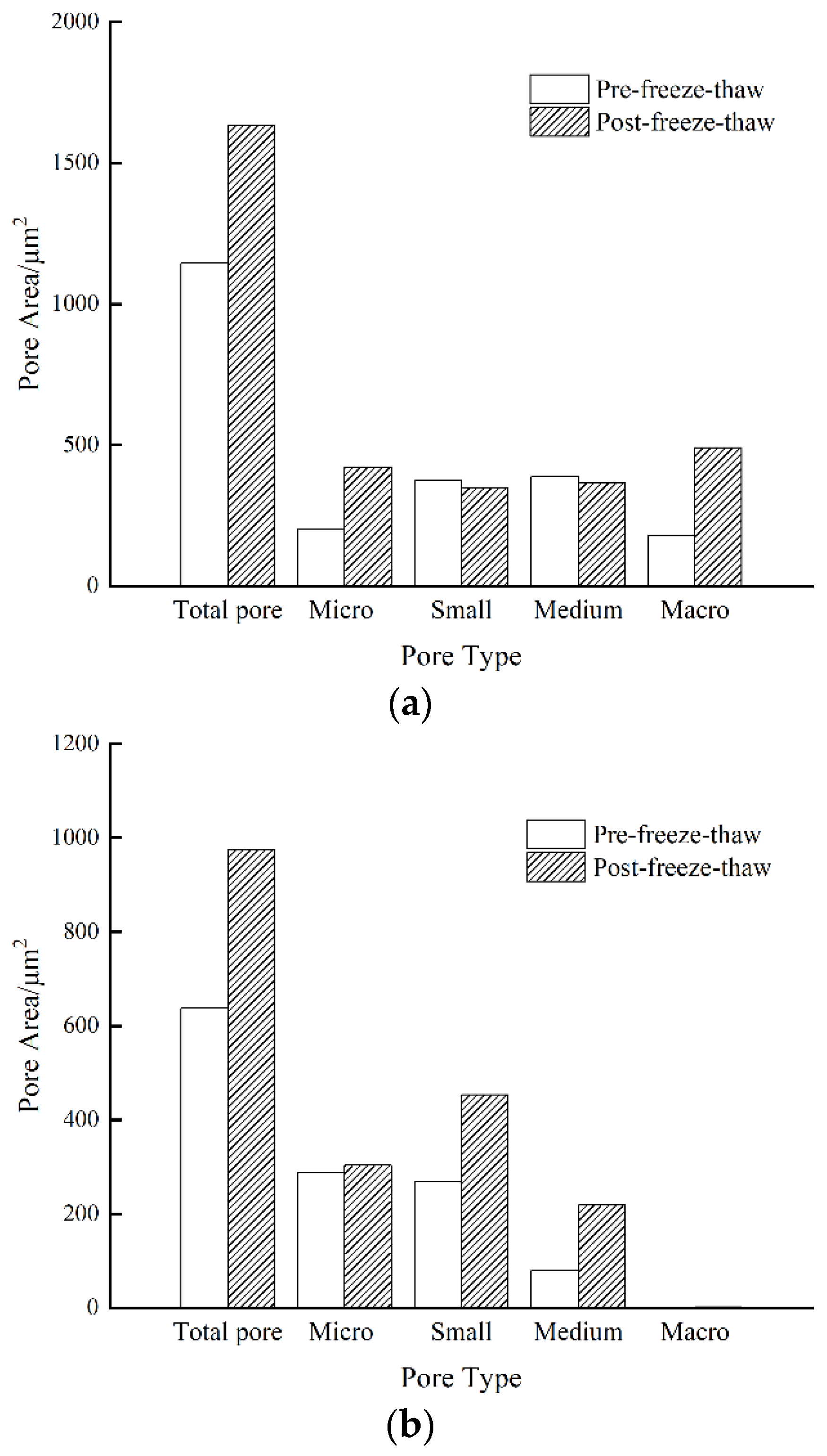

- Pore area
- (2)

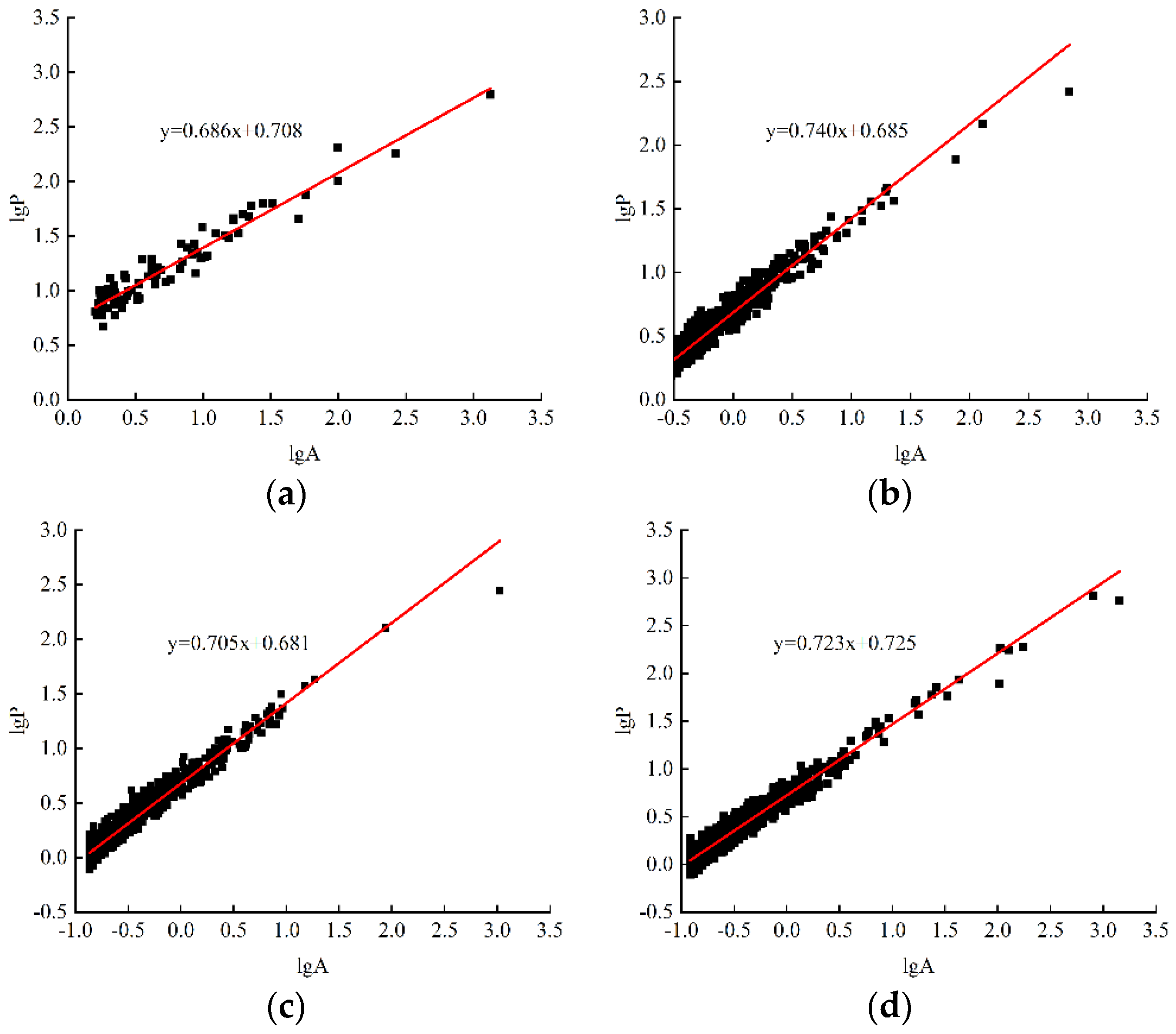

- Fractal dimension and roundness
- (3)
- Roundness
3.8. Discussion
4. Conclusions
- (1)
- The addition of cement–CL can significantly improve the mechanical properties of loess, and the UCS of the soil increases with the augmentation of cement dosage and the prolongation of the curing age. It can reach up to 13 times the strength of loess at the promotion of dosing and aging. The positive effect of cement dosage on the improvement in compressive strength is greater than the curing age. When the cement dosage increases to 8% and the maintenance age reaches more than 21 days, the UCS of the soil increases significantly.
- (2)
- The freeze–thaw damage effect results in larger particle pores and a gradual shift in the particle contact pattern from face-to-face contact to point-to-face contact. The first freeze–thaw cycle causes the greatest structural damage, and the structure tends to be stable after 10 freeze–thaw cycles. The strength loss of loess specimens is as high as 72%, which can be reduced to 28% after stabilization. The addition of an appropriate amount of cement–CL significantly enhances the resistance to freeze–thaw of the soil.
- (3)
- The improvement mechanisms associated with cement–CL include particle filling, the formation of a mesh structure through hydration, the generation of stable crystals via ion-exchange reactions, and the facilitation of calcium ion by CL. Analyses of the physical phase composition, intergranular contacts, pore content, and pore arrangement corroborate the feasibility of the improvement strategy. This scheme is predicated on loess as the primary matrix, with cement hydration providing stabilizing substances and lignocellulose furnishing a calcium source to facilitate the hydration reaction process.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Liang, C.Y.; Cao, C.S.; Wu, S.R. Hydraulic-mechanical properties of loess and its behavior when subjected to infiltration-induced wetting. Bull. Eng. Geol. Environ. 2018, 77, 385–397. [Google Scholar] [CrossRef]
- Juang, C.H.; Dijkstra, T.; Wasowski, J.; Meng, X.M. Loess geohazards research in China: Advances and challenges for mega engineering projects. Eng. Geol. 2019, 251, 1–10. [Google Scholar] [CrossRef]
- Zeimail, A.; Edeskar, T.; LAaue, J.; Choudhary, A.K. Mechanism of thawing. Cogent Eng. 2020, 7, 1716438. [Google Scholar]
- Xu, J.; Ren, J.; Wang, Z.Q.; Wang, S.H. Strength behaviors and meso-structural characters of loess after freeze-thaw. Cold Reg. Sci. Technol. 2018, 148, 104–120. [Google Scholar] [CrossRef]
- Zhao, L.Q.; Peng, J.B.; Ma, P.H.; Leng, Y.Q.; Ma, Z. Microstructure response to shear strength deterioration in loess after freeze-thaw cycles. Eng. Geol. 2023, 323, 107229. [Google Scholar] [CrossRef]
- Phoak, S.; Luo, Y.S.; Li, S.N.; Yin, Q. Influence of submergence on stabilization of loess in Shaanxi Province by adding fly ash. Appl. Sci. 2018, 9, 68. [Google Scholar] [CrossRef]
- Zhang, F.Y.; Pei, X.J.; Yan, X.D. Physicochemical and mechanical properties of lime-treated loess. Geotech. Geol. Eng. 2018, 36, 685–696. [Google Scholar] [CrossRef]
- Ma, Y.W.; Chen, W.W. Study on the mechanism of stabilizing loess with lime: Analysis of mineral and microstructure evolution. Adv. Civ. Eng. 2021, 2021, 6641496. [Google Scholar] [CrossRef]
- Axel, M.; Li, X.A.; Wen, F.; An, M.X. Microstructure and Strength Parameters of Cement-Stabilized Loess. Geotechnics 2023, 3, 161–178. [Google Scholar] [CrossRef]
- Gu, K.; Chen, B. Loess stabilization using cement, waste phosphogypsum, fly ash and quicklime for self-compacting rammed earth construction. Constr. Build. Mater. 2020, 231, 117195. [Google Scholar] [CrossRef]
- Jiang, Y.J.; Ni, C.Y.; Sha, H.W.; Li, Z.H.; Cai, L.Y. Deterioration characteristics of cement-improved loess under dry–wet and freeze–thaw cycles. PLoS ONE 2021, 16, 0253199. [Google Scholar] [CrossRef] [PubMed]
- Guthrie, W.S.; Lay, R.D.; Birdsall, A.J. Effect of reduced cement contents on frost heave of silty soil: Laboratory testing and numerical modeling. In Transportation Research Board 86th Annual Meeting Compendium of Papers; Transportation Research Board: Washington, DC, USA, 2007; Paper No. 07-2999; Available online: https://citeseerx.ist.psu.edu/document?repid=rep1&type=pdf&doi=e3d56ff31ff90892f2e6cce130dfb3570eea3709 (accessed on 14 May 2024).
- Zhang, Y.; Johnson, A.E.; White, D.J. Freeze-thaw performance of cement and fly ash stabilized loess. Transp. Geotech. 2019, 21, 100279. [Google Scholar] [CrossRef]
- Cheng, X.S.; Qi, L.; Zhou, Y.C.; Gao, F.; Zou, W.D. Experimental Study on Cement Improved Loess. Int. J. Pavement Res. Technol. 2022, 15, 384–394. [Google Scholar] [CrossRef]
- Yuan, K.Z.; Liu, K.; Yi, G.Y.; Yang, B.W. Mechanical properties and evolution of microstructure of cement stabilized loess. J. Renew. Mater. 2022, 10, 3611. [Google Scholar] [CrossRef]
- Li, J.D.; Wang, X.; Zhang, Y.J.; Jiang, D.J.; Liu, D.R.; Wang, J.L. Study on strength characteristics and mechanism of loess stabilized by F1 ionic soil stabilizer. Arab. J. Geosci. 2021, 14, 1162. [Google Scholar] [CrossRef]
- Wang, Y.M.; Li, C.; Teng, F.; Gao, L.C. New research on chemical solidification of collapsible loess foundation. Appl. Mech. Mater. 2011, 90, 2466–2471. [Google Scholar] [CrossRef]
- Tabarsa, A.; Latifi, N.; Meehan, C.L.; Manahiloh, K.N. Laboratory investigation and field evaluation of loess improvement using nanoclay–A sustainable material for construction. Constr. Build. Mater. 2018, 158, 454–463. [Google Scholar] [CrossRef]
- Xu, P.; Lin, Q.W.; Fang, L.Y. Study on the mechanical properties of loess improved by lignosulfonate and its mechanism analysis and prospects. Appl. Sci. 2022, 12, 9843. [Google Scholar] [CrossRef]
- Li, G.Y.; Hou, X.; Mu, Y.H.; Ma, W.; Wang, F.; Zhou, Y.; Mao, Y.C. Engineering properties of loess stabilized by a type of eco-material, calcium lignosulfonate. Arab. J. Geosci. 2019, 12, 700. [Google Scholar] [CrossRef]
- Ji, S.G.; Wang, B.Z.; Yang, X.J.; Fan, H.H. Experimental study of dispersive clay modified by calcium lignosulfonate. Rock Soil Mech. 2021, 42, 3. [Google Scholar]
- Yang, B.; Zhang, Y.; Ceylan, H.; Kim, S.; Gopalakrishnan, K. Assessment of soils stabilized with lignin-based byproducts. Transp. Geotech. 2018, 17, 122–132. [Google Scholar] [CrossRef]
- Zou, Q.L.; Wang, W.Z.; Wang, X. Modification mechanism of calcium lignosulfonate on cementing cement. Sci. Rep. 2024, 14, 7558. [Google Scholar] [CrossRef] [PubMed]
- Colombo, A.; Geiker, M.; Justnes, H.; Lauten, R.A.; Weerdt, K.D. The effect of calcium lignosulfonate on ettringite formation in cement paste. Cem. Concr. Res. 2018, 107, 188–205. [Google Scholar] [CrossRef]
- Zhang, T.; Cai, G.J.; Liu, S.Y.; Puppala, A.J. Engineering properties and microstructural characteristics of foundation silt stabilized by lignin-based industrial by-product. Ksce J. Civ. Eng. 2016, 20, 2725–2736. [Google Scholar] [CrossRef]
- GB/T 20123-2019; Standard for Geotechnical Test Method. Ministry of Housing and Urban-Rural Development of the PRC, State Administration for Market Regulation: Beijing, China, 2019.
- Fernandez, M.T.; Orlandi, S.; Codevilla, M.; Piqué, T.M.; Manzanal, D. Performance of calcium lignosulfonate as a stabiliser of highly expansive clay. Transp. Geotech. 2021, 27, 100469. [Google Scholar] [CrossRef]
- Nazari, Z.; Tabarsa, A.; Latifi, N. Effect of compaction delay on the strength and consolidation properties of cement-stabilized subgrade soil. Transp. Geotech. 2021, 27, 100495. [Google Scholar] [CrossRef]
- Xu, W.; Li, Q.; Liu, B. Coupled effect of curing temperature and age on compressive behavior, microstructure and ultrasonic properties of cemented tailings backfill. Constr. Build. Mater. 2020, 237, 117738. [Google Scholar] [CrossRef]
- Li, N.; Zhu, Y.L.; Zhang, F.; Lim, S.M.; Wu, W.Y.; Wang, W. Unconfined compressive properties of fiber-stabilized coastal cement clay subjected to Freeze–Thaw cycles. J. Mar. Sci. Eng. 2021, 9, 143. [Google Scholar] [CrossRef]
- Ma, X.N.; Liu, Y.H.; Yin, W.H.; Wang, X.D.; Guo, S.L. Experimental Study on Strength and Microstructure of Loess Improved by CG-2 Curing Agent and Cement. Buildings 2024, 14, 877. [Google Scholar] [CrossRef]
- Chenarboni, H.A.; Lajecardi, S.H.; Molaabasi, H.; Zeighami, E. The effect of zeolite and cement stabilization on the mechanical behavior of expansive soils. Constr. Build. Mater. 2021, 22, 272. [Google Scholar] [CrossRef]
- Xie, B.L.; Zhang, W.Y.; Sun, X.L.; Huang, Y.L.; Liu, L.Q. Experimental study on the effects of freeze–thaw cycles on strength and microstructure of xining region loess in China. Buildings 2022, 12, 795. [Google Scholar] [CrossRef]
- Sarkar, P.K.; Mitra, N.; Prasad, D. Molecular level deformation mechanism of ettringite. Cem. Concr. Res. 2019, 124, 105836. [Google Scholar] [CrossRef]
- Lardge, J.S.; Duffy, D.M.; Gillan, M.J. Investigation of the interaction of water with the calcite (10.4) surface using ab initio simulation. J. Phys. Chem. C 2009, 112, 7207–7212. [Google Scholar] [CrossRef]
- Lei, X.Y. Pore types of loess soils in China and its collapsibility. Sci. China Ser. B 1987, 12, 1310–1316. [Google Scholar]
Natural Moisture Content /% | Natural Dry Density /g·cm3 | Liquid Limit WL /% | Plastic Limit WP /% | Liquidity Index IL | Plasticity Index IP | Optimum Moisture Content /% | Maximum Dry Density /g·cm3 | Particle Size Distribution/% | ||
---|---|---|---|---|---|---|---|---|---|---|
<5 μm | 5 μm–75 μm | 75 μm–2 mm | ||||||||
9.89 | 1.45 | 28.93 | 13.63 | −0.24 | 15.3 | 14.63 | 1.84 | 15.05 | 81.43 | 3.52 |
Initial Setting Time/min | Final Setting Time/min | Compressive Strength/MPa | Break Off Strength/MPa | ||
---|---|---|---|---|---|
197 | 285 | 3 d | 28 d | 3 d | 28d |
27.1 | 42.5 | 5.7 | 6.5 |
Hammer Bottom Diameter | Hammer Quality /kg | Fall Height /mm | Layer | Number of Hits per Layer | Compaction Cylinder Size | Sample Size | ||
---|---|---|---|---|---|---|---|---|
Diameter /mm | Height /mm | Height /mm | Volume /cm3 | |||||
51 | 4.5 | 457 | 3 | 94 | 152 | 116 | 102 | 2103.9 |
Specimen | Cement Content (%) | CL Dosage | Water Content (%) | Freeze–Thaw Cycles | Curing Age (d) |
---|---|---|---|---|---|
S0 | 0 | 0 | 14.6 | 0, 1, 5, 10, 15 | 7, 14, 21, 28 |
S4 | 4 | 0.5 | 16.5 | 0, 1, 5, 10, 15 | 7, 14, 21, 28 |
S6 | 6 | 0.5 | 17.6 | 0, 1, 5, 10, 15 | 7, 14, 21, 28 |
S8 | 8 | 0.5 | 18.4 | 0, 1, 5, 10, 15 | 7, 14, 21, 28 |
S10 | 10 | 0.5 | 19.1 | 0, 1, 5, 10, 15 | 7, 14, 21, 28 |
Parameter | S0 (Pre) | S0 (Post) | S10 (Pre) | S10 (Post) |
---|---|---|---|---|
Roundness | 1.83 | 2.36 | 1.58 | 1.76 |
