Automatic Detection of Urban Pavement Distress and Dropped Objects with a Comprehensive Dataset Collected via Smartphone

Abstract

Pavement distress seriously affects the quality of pavement and reduces driving comfort and safety. The dropped objects from vehicles have increased the risks of traffic accidents. Therefore, automatic detection of urban pavement distress and dropped objects is an effective method to timely evaluate pavement condition. Firstly, this paper utilized a portable platform to collect pavement distress and dropped objects to establish a high-quality dataset. Six types of pavement distresses: transverse crack, longitudinal crack, alligator crack, oblique crack, potholes, and repair, and three types of dropped objects: plastic bottle, metal bottle, and tetra pak were included in this comprehensive dataset. Secondly, the real-time YOLO series detection models were used to classify and localize the pavement distresses and dropped objects. In addition, segmentation models W-segnet, U-Net, and SegNet were utilized to achieve pixel-level detection of pavement distress and dropped objects. The results show that YOLOv8 outperformed YOLOv5 and YOLOv7 with a MAP of 0.889. W-segnet showed an overall MIoU of 70.65% and 68.33% on the training set and test set, respectively, being superior to the comparison model and being able to achieve high-precision pixel-level segmentation. Finally, the trained models were performed on the holdout dataset for the generalization test. The proposed methods integrated the detection of urban pavement distress and dropped objects, which could significantly contribute to driving safety.

1. Introduction

Different types of urban pavement distress are continuously showing up on the surface and are requiring more and more effort in terms of identification and maintenance. In addition to impairing pavement performance, pavement deterioration also contributes to traffic accidents [1,2]. Consequently, the lifespan of pavements continually shortens, demanding more frequent maintenance to address escalating distress. Thus, it is imperative to promptly recognize and rectify these issues. Timely detection and repair are paramount, with real-time identification of pavement distress proving particularly worthwhile [3,4]. Once information on urban pavement distress is gathered, specific maintenance tasks can be promptly executed, ensuring pavements fulfill their designated functions within their intended service life.

Traditionally, pavement distress detection primarily has relied on manual inspections complemented by multi-functional pavement detection vehicles to assess distress types and corresponding damage levels [5]. However, manual detection methods are notably inefficient and subject to subjective evaluation of pavement distress. Furthermore, manual inspections necessitate traffic control measures, disrupting normal road usage and posing safety hazards to detection personnel. The introduction of pavement detection vehicles has significantly boosted detection efficiency, enabling the rapid collection of pavement surface condition data [6]. Despite these advancements, limitations persist, as detection tasks cannot be consistently performed at fixed speeds or lanes due to traffic flow constraints, resulting in low detection frequencies and hindering real-time, repeated inspections at specific points [7,8,9].

Dropped objects from vehicles present another risk to driving safety. Dropped objects, such as rocks, bottles, and boxes, could distract drivers and interrupt traffic flow. Manual inspection of dropped objects is still a prevalent method to detect these risks. However, it is dangerous to detect and get rid of those dropped objects with manual work. Therefore, detecting dropped objects on the pavement and promptly addressing them is crucial for ensuring safety. The integrated detection of pavement distress and dropped objects could provide a more accurate and reliable solution. Computer-vision-based techniques have been introduced into pavement engineering to achieve automatic detection. Images acquired by different devices were used in deep-learning-based models to automatically detect pavement distress and dropped objects.

Deep learning algorithms encompass two primary categories: supervised and unsupervised learning [10]. Supervised learning necessitates a substantial dataset, while unsupervised learning achieves recognition through clustering algorithms. Traditionally, supervised learning has been favored for its capacity to deliver higher accuracy. Within deep learning algorithms, three fundamental tasks prevail: image classification, object detection, and semantic segmentation. Recent advancements in deep learning technology have seen researchers employ neural network models capable of end-to-end target recognition directly from input images, without manual intervention. Consequently, this approach has found extensive applications in pavement crack detection [11,12]. The methodology for identifying pavement cracks using deep learning typically progresses through three stages: Initially, CNN sliding window technology is primarily employed for crack classification [13]. Subsequently, anchors are devised to pinpoint pavement cracks in images [14]. Finally, pixel-level semantic segmentation is employed to precisely extract pavement crack morphology [15,16]. Input data can vary in format, including grayscale, color, depth, point cloud, and infrared images. Similarly, outputs can range from recognition and detection results at different levels, such as image-level, grid-cell level, region level, and pixel level. Ultimately, deep-learning-oriented models facilitate the identification, localization, segmentation, and measurement of pavement distress and dropped objects [17,18,19].

Although the aforementioned method can effectively classify pavement distress, it lacks the capability to analyze the characteristics of pavement distress based on classification using the trained model. To address this limitation, a fusion model has been developed, integrating Faster R-CNN and morphology to classify, localize, and measure pavement cracks. Faster R-CNN is employed for the classification of various types of pavement distress [20], simultaneously providing distress coordinates for localization [21,22]. The methodology involves using CNN sliding windows to extract the pavement crack skeleton, followed by digital morphology operations to extract crack geometric features, thereby facilitating the evaluation of pavement damage degree. Building upon the two-stage pavement crack detection and segmentation algorithm, the deep learning model YOLO is adopted for crack classification in the first stage, while crack extraction in the second stage is based on the enhanced U-Net [23,24]. In contrast to current single-step classification or crack segmentation methods, the two-stage pavement crack detection model demonstrates superior accuracy, enabling swift classification of pavement cracks and laying a foundation for integrated pavement distress detection [25,26]. However, existing automatic recognition algorithms exhibit limited generality and fail to deliver consistent performance across diverse pavement conditions, while the models’ parameters are excessively large, rendering them unsuitable for offline deployment [27,28].

The current automatic identification and evaluation technology of urban pavement distress makes it difficult to meet the requirements of real-time processing and analysis. The generalization performance of the recognition algorithm under different pavement structures and conditions is poor. The current detection equipment is expensive and heavy, and it cannot be applied to large-scale detection. There are several issues, as follows:

• Lack of a lightweight, multi-dimensional, and high-frequency pavement distress detection platform. Pavement distress detection is carried out by manual inspection combined with a multi-functional pavement detection vehicle. However, the integrated equipment for highway detection and detection is expensive. As for the multi-functional road automated detection vehicle, it is installed with three-dimensional scanning, laser sensors, and other expensive components. Moreover, the full road surface distress data need to be collected several times by lane, and it cannot realize portable, lightweight, and high-frequency automatic road surface detection.
• The recognition algorithm has poor generalization ability. Current algorithms cannot be used for distress recognition of various pavement conditions. The types of pavement distress are single, the model generalization ability is poor, and the data quantity acquisition of data-driven deep learning models is difficult.
• Lack of automatic pavement condition evaluation methods. The evaluation of pavement conditions should include seven steps: identification, localization, segmentation, extraction, measurement, statistics, and evaluation of pavement conditions. However, the current research only contains part of the content.

Therefore, the objective of this research is to develop a lightweight platform to collect pavement distress and dropped objects to establish a comprehensive dataset. YOLO-based algorithms were used to classify and localize urban pavement distress and dropped objects. The W-segnet model was applied to segment pavement distress and dropped objects to provide information for evaluation.

2. Establishment of the Dataset

2.1. Data Collection Method

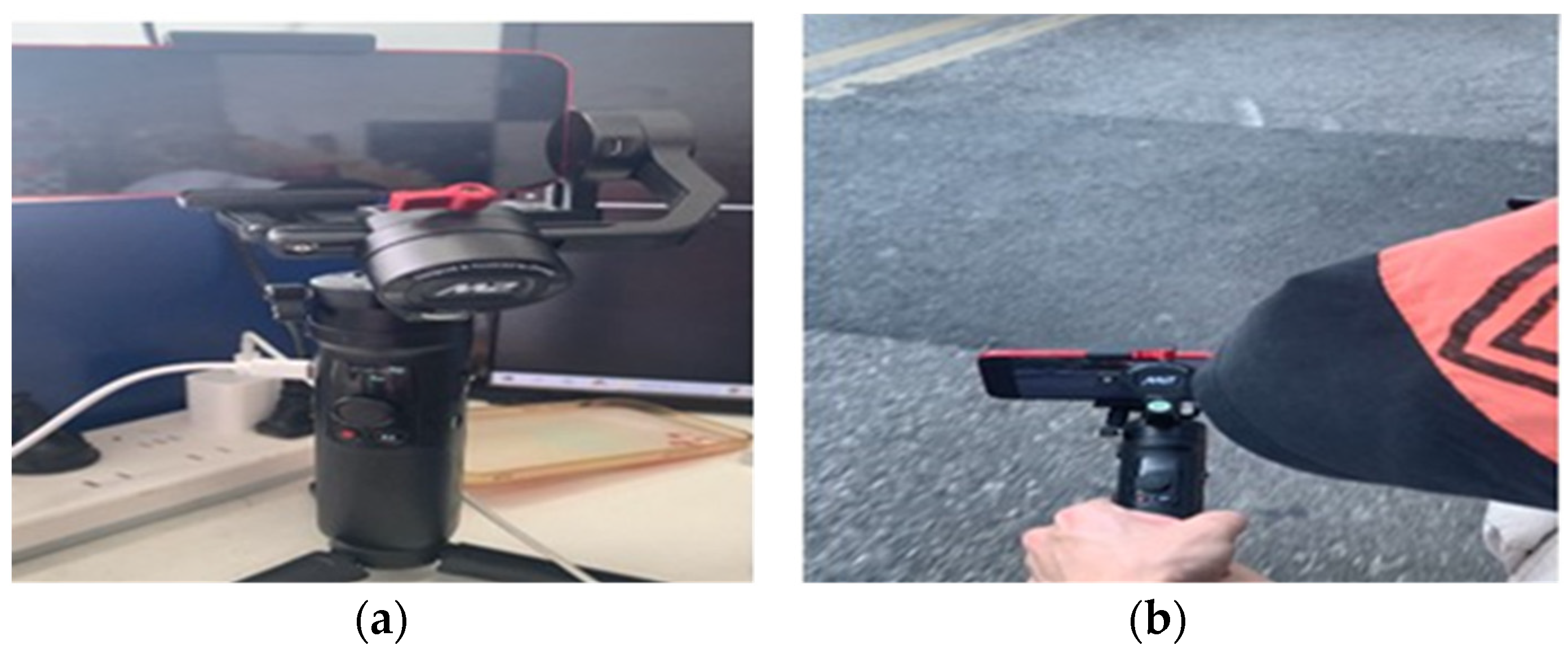

To establish a cost-effective and lightweight platform to collect pavement distress and dropped object images, a smartphone was used to collect images. As shown in Figure 1, the hand-held gimbal stabilizer mounted with a smartphone was utilized to record videos along the pavement to continually collect images. To establish a dataset with various backgrounds, images were captured under different pavement conditions, as well as on rainy and sunny days, to cover commonly seen backgrounds in real life. Six types of pavement distress and three types of dropped objects were collected for model training and testing. A total of 2000 images of pavement distress were collected, and a total of 500 images of dropped objects were captured for model training. As shown in Figure 1, videos were recorded at the speed of 30 km/h along the road with this lightweight platform. Videos were converted into image sequences to establish the dataset.

2.2. Image Annotation

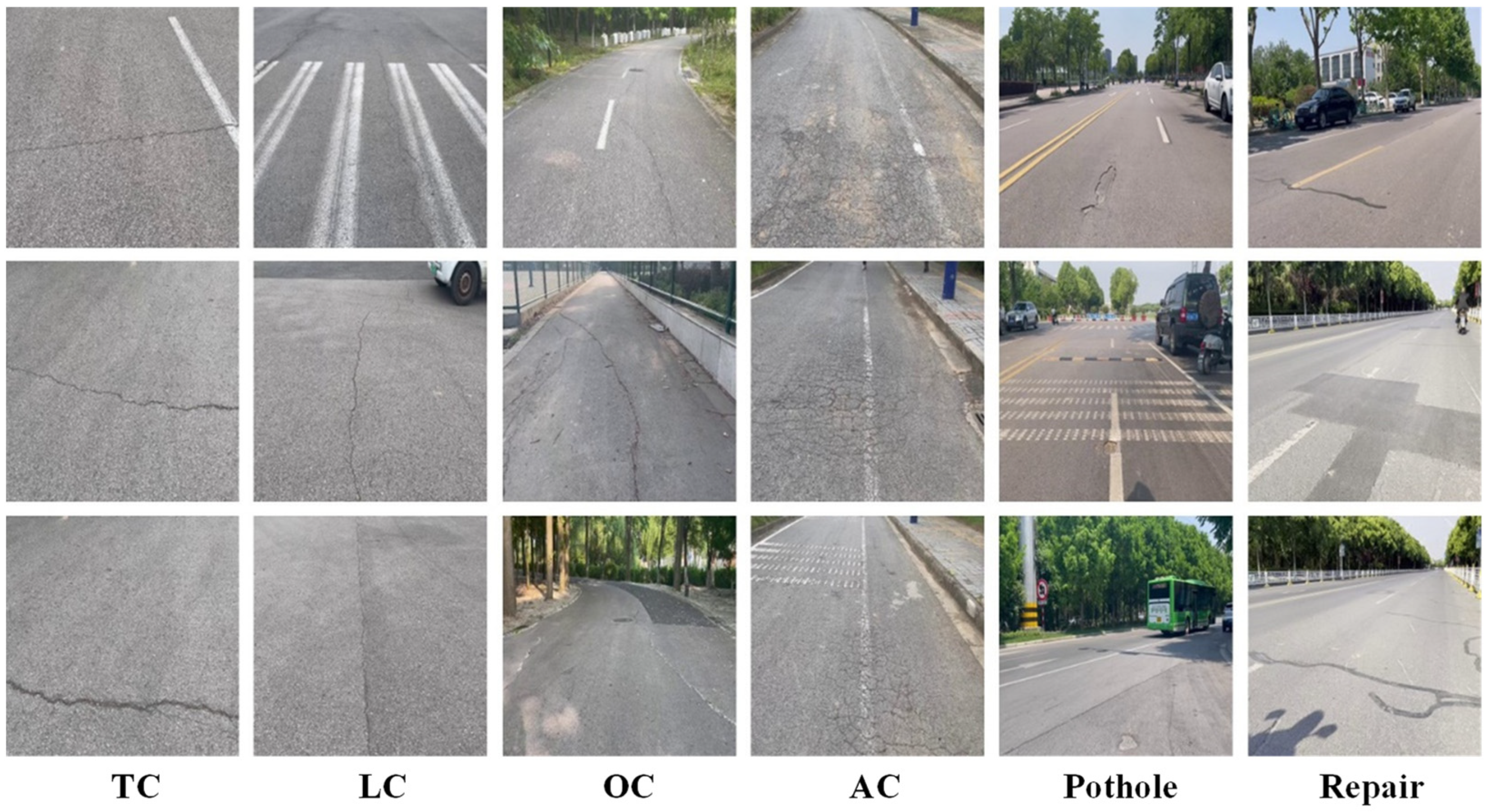

For the supervised learning models, the ground truth of targets is the foundation of high accuracy. Therefore, collected images were annotated to provide information for deep-learning-based models. There are a total of six pavement distresses classified in this research. As shown in Figure 2, the images were transverse crack (TC), longitudinal crack (LC), oblique crack (OC), alligator crack (AC), potholes, and repairs (sealed crack and patch), which frequently occur on the pavement.

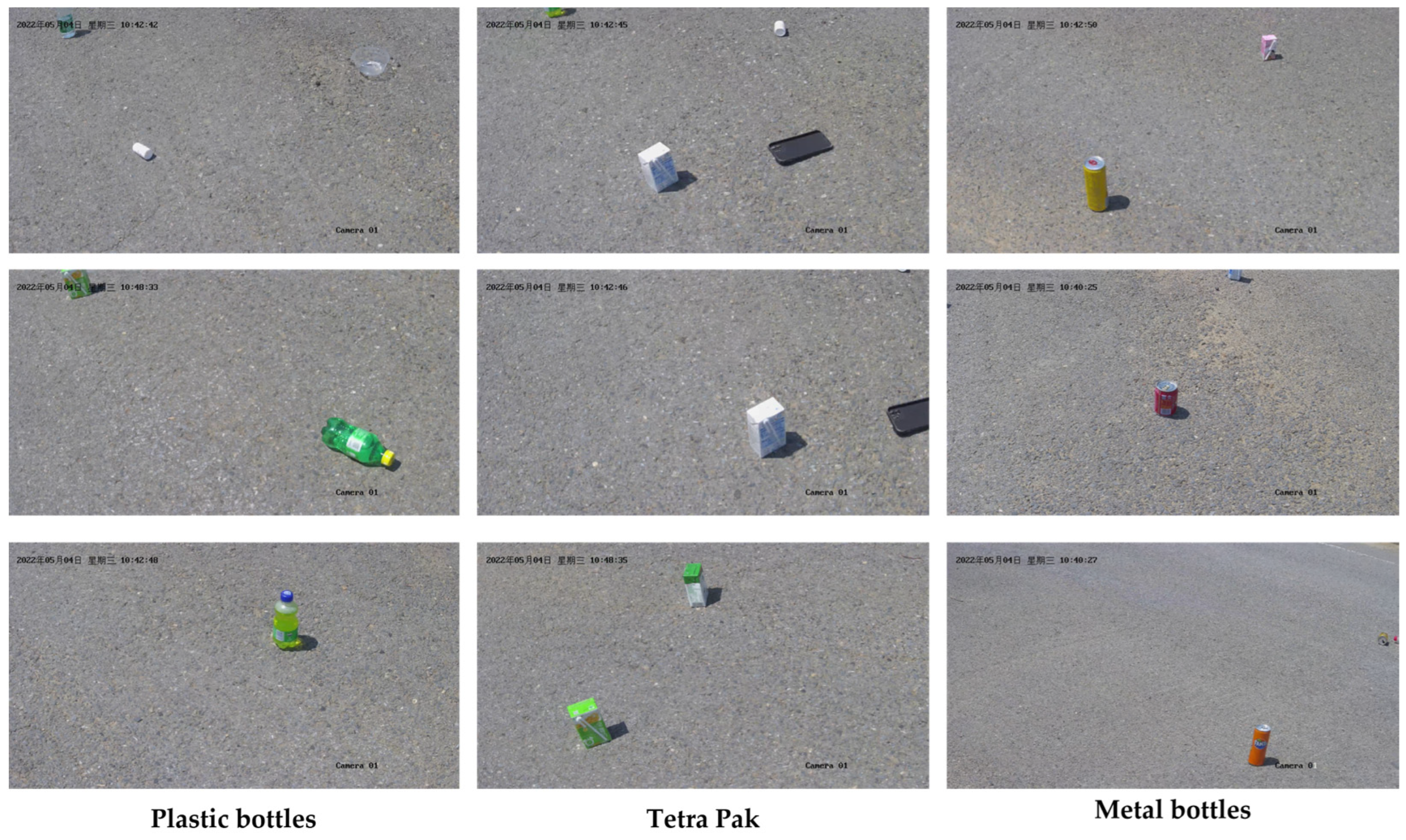

Figure 3 presents three types of typical dropped objects on pavement, containing plastic bottles, tetra pak, and metal bottles. Labelme and LabelImg were used to label pavement distress and dropped objects at the pixel and region levels to automatically detect pavement distress and dropped objects.

Segmentation is more difficult than object detection since it classifies each pixel into one category. Therefore, the segmentation was based on object detection, and it can improve accuracy. Pavement transverse crack, longitudinal crack, oblique crack, and alligator crack were classified as cracks in segmentation to simplify the pixel-level detection as we obtained the detailed classification from region-level detection. Moreover, dropped objects were classified as one class as well to improve the precision of pixel-level detection. One-hot was utilized to encode the targets where [1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0], and [0, 0, 0, 1] represent pavement crack, pothole, repair, dropped objects, respectively.

3. Methodology

3.1. Models for Region-Level Detection

The YOLO series models are state-of-the-art algorithms nowadays for object detection. The YOLO series models are one-stage models that balance the accuracy and training computation. Therefore, YOLOs have been popular for object detection and achieve end-to-end detection, thereby improving the detection efficiency. YOLOv5, YOLOv7, and YOLOv8 were used in this research to achieve region-level detection of pavement distress and dropped objects. YOLOv8 is stable compared with the other two models and it includes five scales named n, s, m, l, and x for different datasets. YOLOv8s is suitable for small datasets, and it made a tradeoff between accuracy and inference. Figure 4 presents the specific structure of YOLOv8 used for region-level detection. YOLOv8 is composed of three parts: backbone, neck, and head. The backbone is responsible for feature extraction via convolutional neural network to obtain abstracted feature maps for the model. The prediction head can detect pavement distress and dropped objects with three scales: small scale (256), medium scale (512), and large scale (1024), which is suitable for detecting objects of different sizes, especially for pavement distress and dropped objects.

3.2. Models for Pixel-Level Detection

To obtain the geometric information of detected pavement distress and dropped objects, segmentation models were adopted to achieve pixel-level detection. Segmentation models assign each pixel with a specific value to extract targets and output an image with a background in black. The mainstream encoder–decoder-based segmentation models were used and compared to select the most suitable model for both pavement distress and dropped objects.

U-Net, SegNet, and W-segnet [2] were compared for the segmentation to extract the pixel-level information from the targets. U-Net and SegNet are the original structures based on the symmetric architecture to extract the features and then restore them into segmentation masks. The W-segnet is inspired by feature fusion, and it utilizes two symmetric encoder–decoder structures to better fuse the features of pavement distresses, thereby improving the segmentation performance.

3.3. Metrics

3.3.1. Loss Function for Region-Level Detection

The target detection model contains three types of losses, which can be calculated according to Equation (1):

$$Loss=los{s}_{box}+los{s}_{confidence}+los{s}_{cls}$$

(1)

where L_box is the difference between the real anchor and the predicted value; L_confidence is the value of confidence in the predicted result of the actual existing box compared with 1, and the value of maximum IOU of the actual non-existent box compared with 0; and L_cls are the boxes that exist, where the kind of predicted results are compared with the actual results.

The regression loss consists of two items: one is the loss of center point coordinates, and the other is the loss of width and height, which can be calculated according to Equation (2):

$$L_{box}={\lambda }_{box}{\displaystyle \sum }_{i=0}^{N_1\times N_1}{\displaystyle \sum }_{j=0}^3{1}_{ij}^{obj}\left[{\left(t_x-t_x^{*}\right)}^2+{\left(t_y-t_y^{*}\right)}^2\right]+{\lambda }_{box}{\displaystyle \sum }_{i=0}^{N_1\times N_1}{\displaystyle \sum }_{j=0}^3{1}_{ij}^{obj}\left[{\left(t_w-t_w^{*}\right)}^2+{\left(t_h-t_h^{*}\right)}^2\right]$$

(2)

$I_{ij}^{obj}$ indicates whether the j-th anchor in the i-th grid contains an object. If it does, the value is 1; otherwise, it is 0. $I_{ij}^{noobj}$ indicates that the j-th anchor in the i-th grid does not contain an object. If it does not, the value is 1; otherwise, it is 0.

The loss of confidence can be calculated by using binary cross-entropy, according to Equation (3):

$$\begin{array}{l}{L}_{confidence}=-{\displaystyle \sum _{i=0}^{N\times N}}{\displaystyle \sum _{j=0}^3}{I}_{ij}^{obj}\left[\stackrel{*}{C_i}log\left(C_i\right)+\left(1-\stackrel{*}{C_i}\right)log\left(1-C_i\right)\right]\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}-{\lambda }_{noobj}{\displaystyle \sum _{i=0}^{N\times N}}{\displaystyle \sum _{j=0}^3}{I}_{ij}^{noobj}\left[\stackrel{*}{C_i}log\left(C_i\right)+\left(1-\stackrel{*}{C_i}\right)log\left(1-C_i\right)\right]\end{array}$$

(3)

The classification loss can be calculated by using binary cross-entropy, according to Equation (4):

$$L_{cls}=-{\displaystyle \sum }_{i=0}^{N\times N}{I}_{ij}^{obj}{\displaystyle \sum }_{c\in \mathrm{classes}}(\left[\stackrel{*}{P_i}log\left(P_i\right)+\left(1-\stackrel{*}{P_i}\right)log\left(1-P_i\right)\right]$$

(4)

where $P_i$ can be calculated by using the logistic function.

3.3.2. Loss Function for Pixel-Level Detection

The dice loss function was used for training, calculated by Equation (5):

$$DiceLoss=1-\frac{2{{\displaystyle \sum }}_1^N{y}_i^{*}{y}_i+\epsilon }{{{\displaystyle \sum }}_1^N{y}_i^{*}+{{\displaystyle \sum }}_1^N{y}_i+\epsilon }$$

(5)

where N is the number of pixels in images,$y_i^{*}$ is the value of ground truth, and $y_i$ is the predicted values by the model. ε is a smooth constant to avoid division by zero.

3.3.3. Performance Evaluation

Performance evaluation was illustrated with the results of the confusion matrix, as shown in

Table 1. Confusion matrix.

True Label	Prediction Results
	Positive	Negative
Positive	TP (true positive)	FN (false negative)
Negative	FP (false positive)	TN (true negative)

.

For the detection of pavement distress and dropped objects, the images with targets (distress or dropped objects) are positive and the images without targets are negative. When the performance of the model is poor, false detections or missed samples can occur, detected as false positives or false negatives. The precision and recall of the model can be calculated based on TP, FP, and FN, according to

$$Precision=\frac{TP}{TP+FP}$$

(6)

$$Recall=\frac{TP}{TP+\mathrm{FN}}$$

(7)

$$AP={\displaystyle \int }p\left(r\right)dr$$

(8)

$$MAP=\frac{1}{n}{\displaystyle \sum }_{i=1}^{n}AP$$

(9)

The precision and recall of the model can be calculated based on TP, FP, and FN, according to

$$MIoU=\frac{1}{k+1}{\displaystyle \sum }_{i=0}^k\frac{p_{ii}}{{{\displaystyle \sum }}_{j=0}^k{p}_{ij}+{{\displaystyle \sum }}_{j=0}^k{p}_{ji}-p_{ii}}$$

(10)

where p_ii is the number of TP; p_ij is the number of FP; and p_ji is the number of FN. $k$ is the classification category.

3.3.4. Experimental Settings

The dataset was divided into a train and a test set for performance evaluation. The proportion of train and test was 8:2, where 2000 images of pavement distress and dropped objects were used for training and 500 images were used for testing. Cross-validation was used in training to adjust hyperparameters automatically to improve the performance of models. Transferring learning, as a commonly used trick, was used to initialize the parameters to help converge. The pre-trained model was trained on the COCO dataset, which includes many types of objects in real life, and they are helpful in improving the detection accuracy of spoiled loads. The initial learning rate was 1 × 10⁻⁴, and the epochs were 700 for all models. All images were resized to 512 by 512 pixels to reduce computation.

4. Results and Discussion

4.1. Performance of Region-Level Detection

The detection performance was evaluated on the test set. From

Table 2. Region-level detection of pavement distress and dropped objects.

Model	AP									MAP
	Pavement Distress						Dropped Objects
	TC	LC	OC	AC	Pothole	Repair	Plastic Bottle	Metal Bottle	Tetra Pak
YOLOv5	0.852	0.812	0.764	0.811	0.964	0.833	0.975	0.946	0.952	0.879
YOLOv7	0.824	0.802	0.702	0.765	0.987	0.865	0.913	0.963	0.927	0.861
YOLOv8	0.877	0.842	0.724	0.799	0.981	0.868	0.968	0.984	0.962	0.889
CrackYOLO	0.682	0.677	0.749	-	-	-	-	-	-	0.703
Paper [29]	0.6	0.5	0.7	0.8	0.8	0.8	-	-	-	0.7

, compared with YOLOv5 and YOLOv7, it can be seen that YOLOv8 had the highest recognition accuracy. The MAP for six types of pavement distress and three types of dropped objects was 0.889, outperforming YOLOv5 and YOLOv7. YOLOv5 presented higher accuracy for oblique crack and alligator crack. The backbone for YOLOv5, YOLOv7, and YOLOv8 was almost the same, and they presented similar performance to pavement distress and dropped objects. Many tricks were used for YOLOv7 and YOLOv8, and the detection performance was improved based on this. Two of the latest pavement distress detection methods were selected for comparison [29,30]. These methods differed in pavement distress classification and did not include dropped object detection.

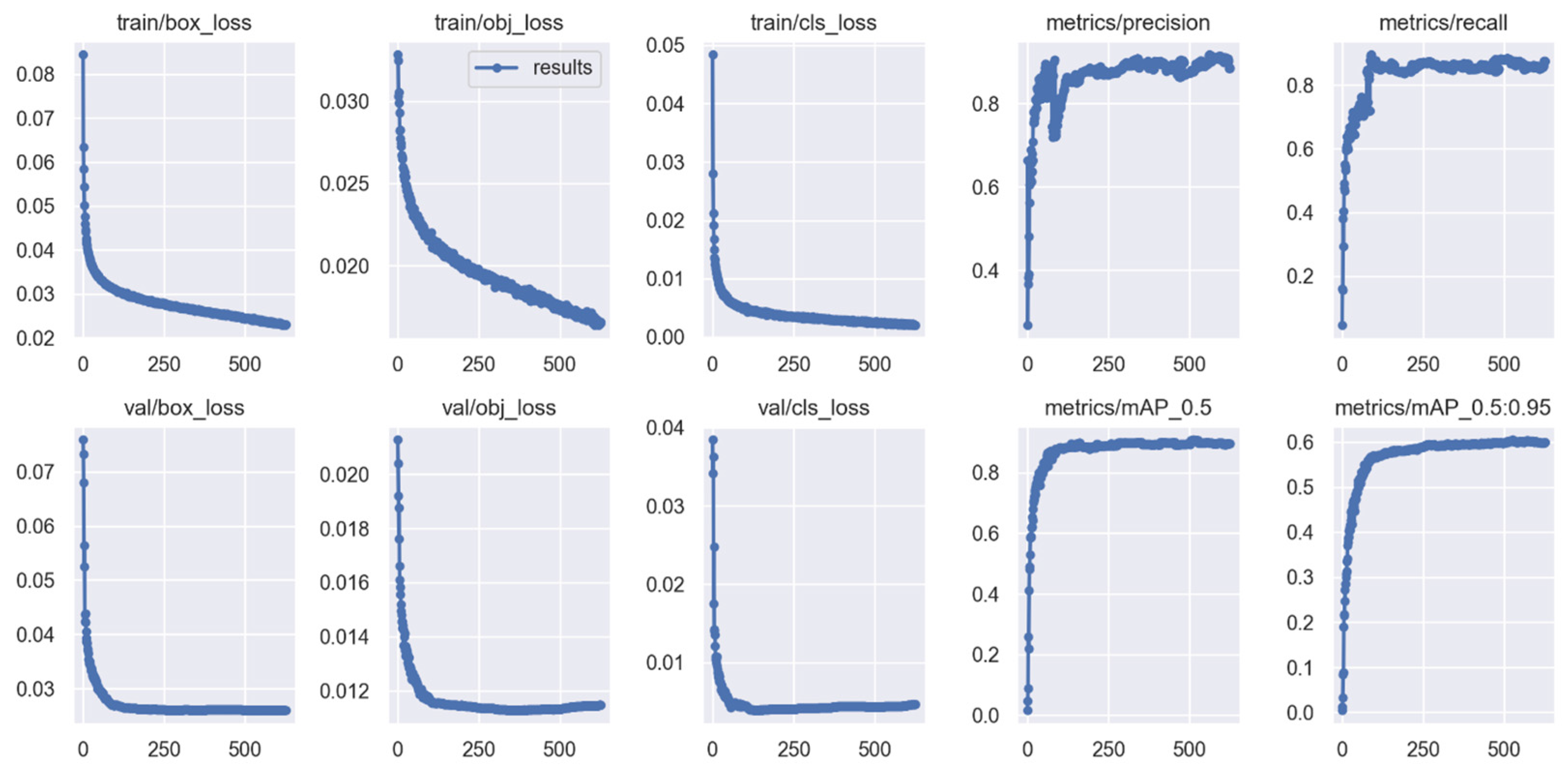

Therefore, to intuitively describe the training stages, parameter changes in training are plotted in Figure 4. The loss of train and validation was not significantly different, and it means that there was no overfitting during the training process. The precision and recall began to stabilize at around 100 epochs, and it showed a slowly increasing trend in the following epochs. It means that the transferring contributed a lot to the initialization of the model since YOLOv8 presented a higher precision at the early training stages.

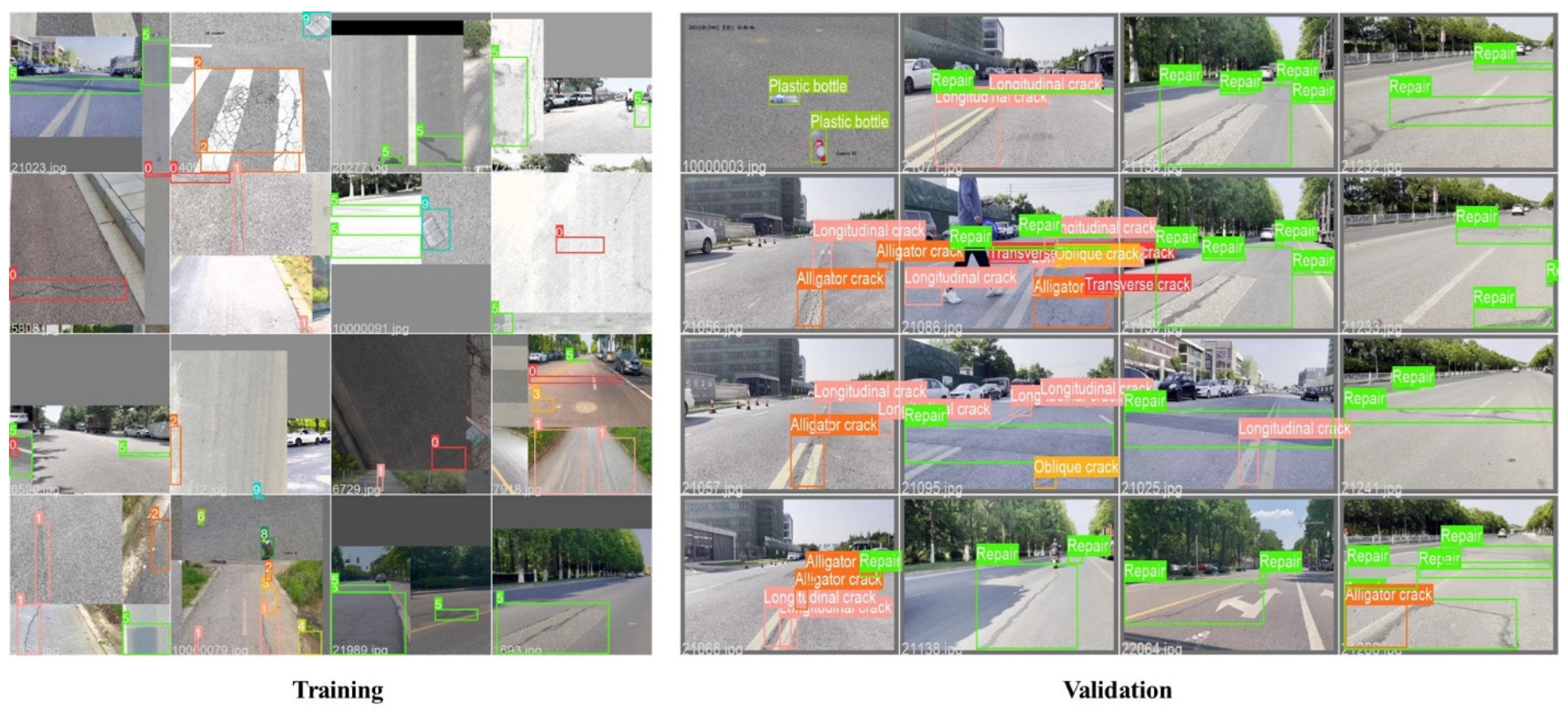

Additionally, YOLOv8 used the Mosaic data augmentation, as shown in Figure 5. Four pavement distress and dropped object images were combined in the training to improve the diversity of the training batch and reduce the difficulties of learning features from different classes, especially for pavement dropped objects with different colors and textures.

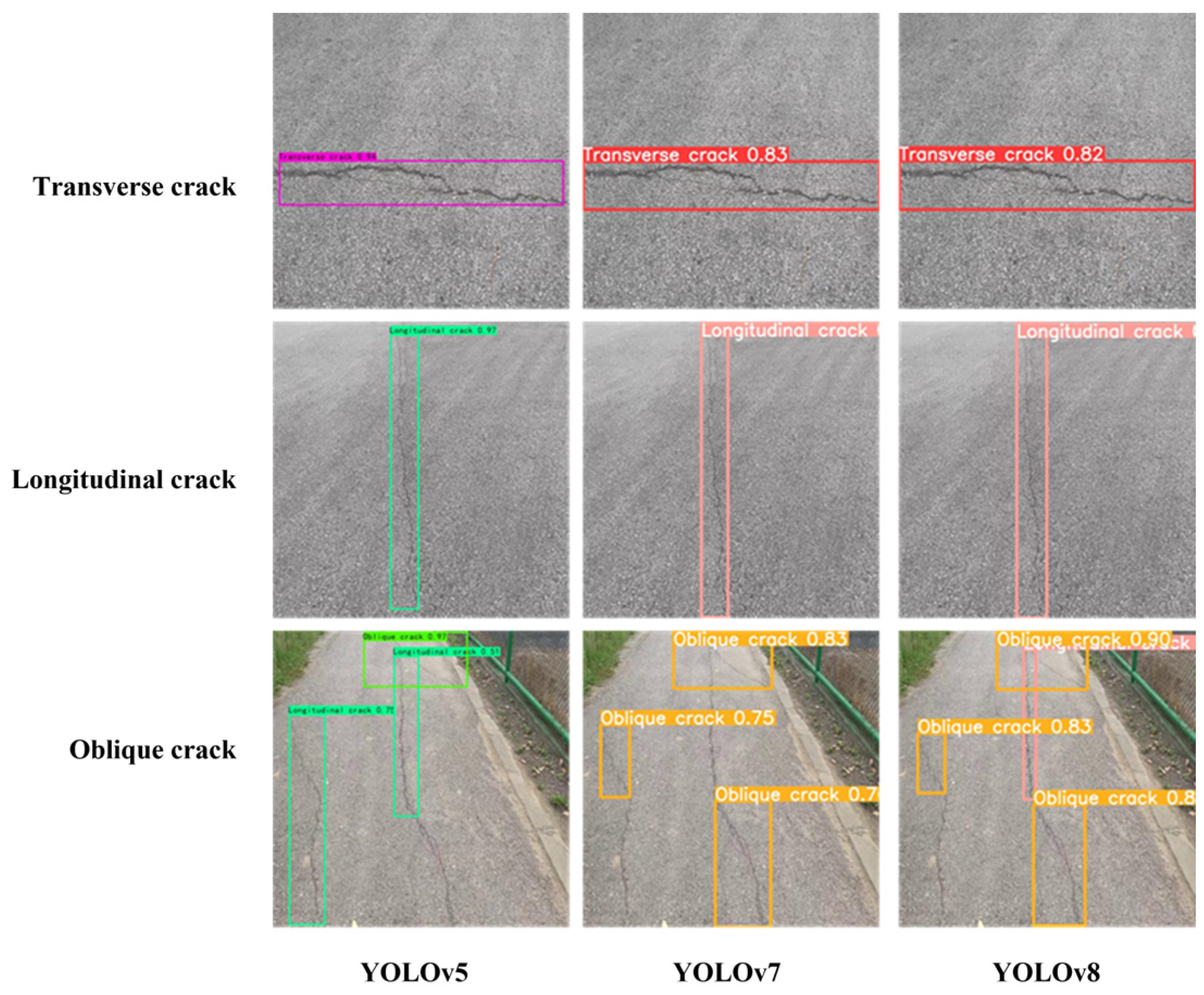

Figure 6 depicts the detection results of pavement distress with YOLOv5, YOLOv7, and YOLOv8. Different crack shapes and orientations are shown in these images. In the first row of Figure 6, all models were able to detect the transverse crack accurately while YOLOv5 had the highest confidence for transverse cracks with a probability of 0.94. However, YOLOv7 and YOLOv8 were successful in localizing the pavement transverse crack with a more proper bounding box to the real case. In the second row, YOLOv5 still presented the highest confidence, while YOLOv7 and YOLOv8 showed the more accurate location of cracks. In the third row, the pavement cracks were more complicated than those simple scenarios where only linear cracks existed. It is difficult to detect the long cracks since models will detect the pavement cracks in different segments. There are two longitudinal cracks and one oblique crack shown in the third row of Figure 6. However, models failed to detect all the longitudinal cracks. One longitudinal crack was divided into two parts, while one segment was classified as a longitudinal crack, and the other was recognized as an oblique crack. Therefore, more diverse pavement cracks should be included for model training to improve the detection performance.

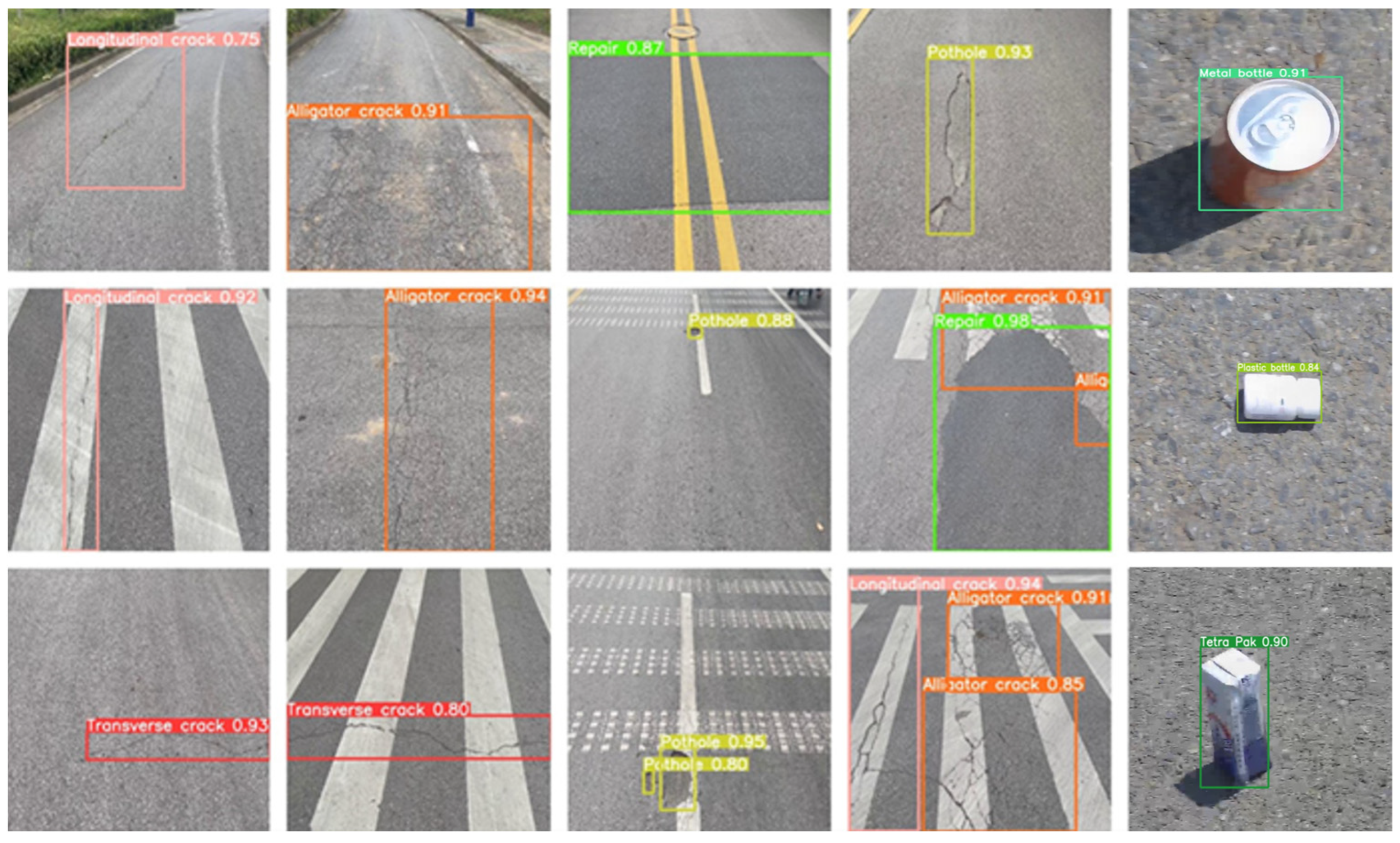

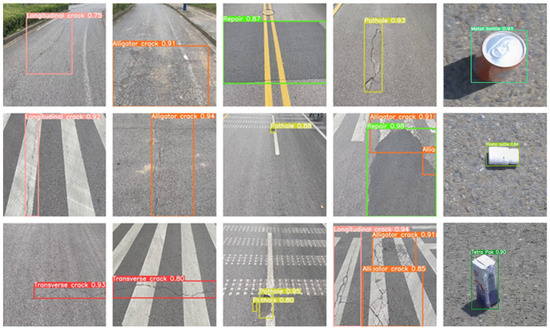

Since YOLOv8 had the highest overall detection performance over pavement distress and dropped objects, Figure 7 presents the region-level detection results. Well-trained YOLOv8 was robust in different scenarios with various pavement conditions. The longitudinal crack that occurred on the pavement marking was detected accurately. The most challenging part was that there were some overlapped pavement distresses, as shown in Figure 7. Alligator cracks occurred around the repaired surface area, and it made the object not that distinguishable. YOLOv8 presents an impressive ability to detect urban pavement distress under these scenarios.

4.2. Performance of Region-Level Detection

Table 3. Pixel-level detection results of pavement distress and dropped objects.

Model	Backbone	Precision (%)		Recall (%)		F1 (%)		MIoU (%)
		Train	Test	Train	Test	Train	Test	Train	Test
W-segnet	VGG16	76.85	75.43	81.02	83.55	78.88	79.28	70.65	68.33
U-Net	VGG16	71.04	72.64	72.56	70.68	71.79	71.65	68.72	65.73
SegNet	ResNet50	63.75	65.62	72.89	75.23	68.01	70.10	60.52	61.73

presents the pixel-level detection of pavement distress and dropped objects based on segmentation models. It is noted that the metrics were calculated based on all types of pavement distress and dropped objects. W-segnet outperformed U-Net and SegNet in terms of precision, recall, F1, and MIoU. In addition, W-segnet used the VGG16, which has fewer parameters compared to ResNet50, thereby balancing the accuracy and the training time.

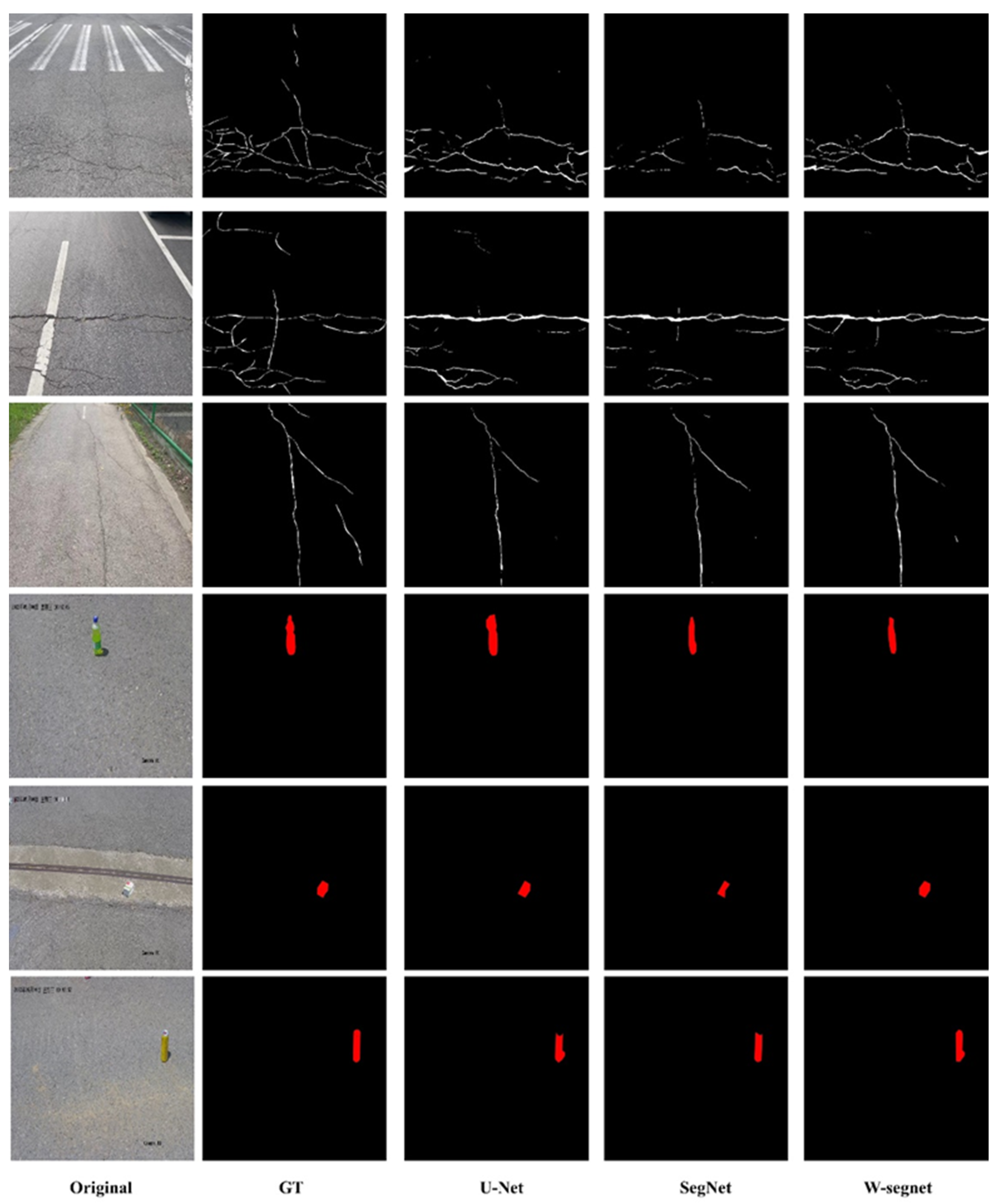

Figure 8 depicts some pixel-level detection samples for pavement cracks and dropped objects. W-segnet can segment fine pavement cracks well compared to U-Net and SegNet. However, these models still cannot produce perfect segmentation results compared to the GT. The first row and second row of Figure 9 present some complicated pavement alligator cracks existing at many intersections among cracks, thereby reducing the detection accuracy. For the third row, three models were able to obtain the main crack skeleton for segmentation, while some detailed information was missing. W-segnet still provided slightly better performance for fine cracks, as shown in Figure 8.

The last three rows in Figure 8 present the segmentation of dropped objects. The red indicates the dropped objects, and the background is black. It was not easy to obtain the exact shape for the segmented masks compared to the ground truth, especially for plastic and metal bottles. W-segnet was able to segment a more accurate edge for tetra pak with the straight edge, while it was difficult for the smooth edge for plastic and metal bottles. Therefore, more diverse pavement dropped objects included in the dataset could contribute to performance improvement.

4.3. Generalization Performance Test

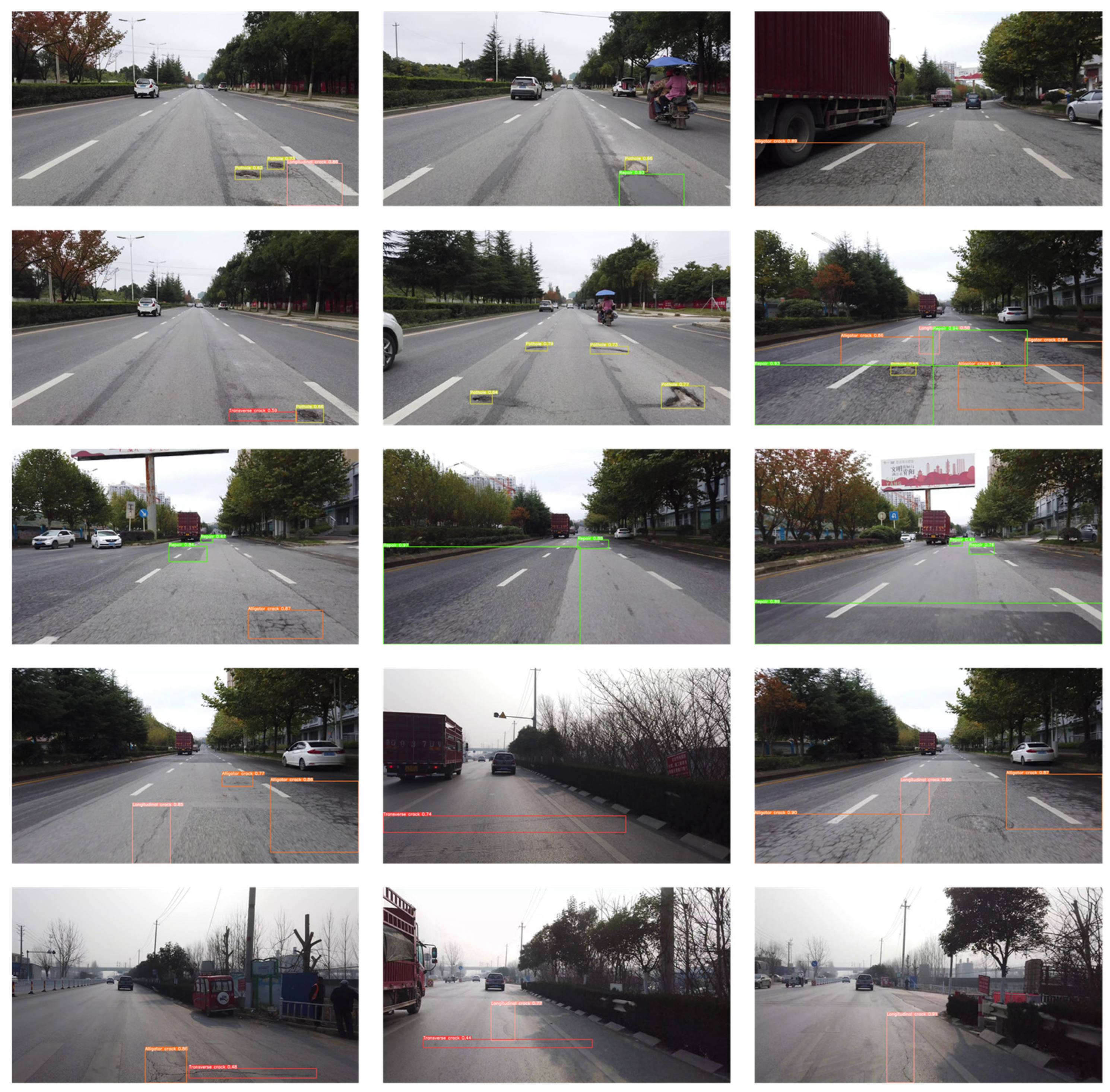

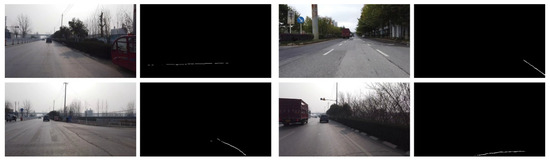

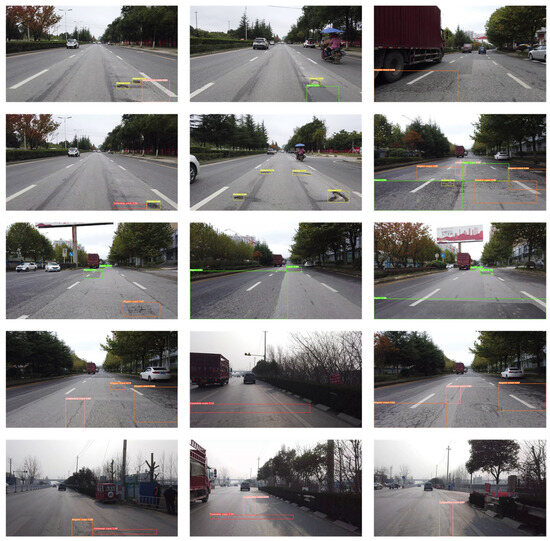

To evaluate the generalization performance of the YOLOv8 and W-segnet, holdout images from a video were used to achieve region-level and pixel-level pavement distress detection, as shown in Figure 9 and Figure 10. It is noted that the region-level detection was more accurate compared with the pixel-level detection. The scenario was different from the collected dataset used for training, and it included a complicated background. The well-trained YOLOv8 still presented impressive region-level results for pavement distresses. The holdout images include the common scene in our daily life, and it demonstrates that the well-trained YOLOv8 based on our dataset provides a good generalization when applied to other datasets. As shown in Figure 10, even with the influence of shadows and uneven illumination, W-segnet was able to produce comparably high segmentation accuracy. It is worth noting that both region-level detection and pixel-level detection met the real-time detection of urban pavement distress and dropped objects, with region-level detection achieving 78 frames per second and pixel-level detection achieving 53 frames per second.

Due to the susceptibility of hardware equipment to moisture, the detection process is typically conducted under clear weather conditions. However, factors like trees along urban roadsides or overcast weather can introduce shadows and water stains on the urban pavement, as depicted in Figure 9. Despite such challenges, the detection and segmentation algorithm proposed in this paper effectively identified images without generating false positives. Yet, there exists a concern regarding overlapping areas among different disease detection boxes within the image. This overlap can potentially inflate results during the calculation of the urban pavement condition index. To address this issue, a general non-maximum suppression technique must be applied to all detection boxes within the same image. This involves consolidating all detection boxes to obtain a comprehensive view for accurate index calculation. One notable limitation of the algorithm is its inability to precisely delineate the detection range of the urban pavement in sections where road markings are absent, which may impact the scoring accuracy of the urban pavement condition index.

5. Conclusions

Pavement distress and dropped objects significantly impact pavement quality, reducing driving comfort and compromising safety. Automatic detection of pavement distress and dropped objects is an effective method to reduce risks and save money. This research obtained a high-quality pavement distress and dropped objects dataset, establishing a cost-effective collection platform. The well-established dataset laid the solid foundation for the detection of pavement distress and dropped objects based on deep learning. The YOLO series object detection models were used to realize the region-level classification and localization. Moreover, W-segnet was adopted to realize pixel-level recognition of pavement distress and dropped objects to obtain the geometric information for evaluation. The main findings of this study are listed as follows:

• A multi-scene and multi-category pavement distress and dropped objects dataset was established with a cost-effective method. The hand-held gimbal stabilizer mounted with a smartphone was developed as a lightweight platform for data collection. A total of 2000 pavement distress images and 500 dropped objects images were collected for training and testing.
• Three YOLO series models were compared to select the most suitable one-stage detection model for region-level detection. YOLOv8 outperformed YOLOv5 and YOLOv7 in terms of all evaluation metrics with an overall MAP of 0.889. YOLOv8 presented higher precision for longitudinal and transverse cracks compared to oblique and alligator cracks. The overall precision for dropped objects was over 0.95, and it succeeded in detecting dropped objects with different sizes. Therefore, YOLOv8 is suitable for both pavement distress and dropped object detection.
• Encoder–decoder-based segmentation models were compared for segmenting pavement distress and dropped objects. A multi-scale feature fusion model: W-segnet showed an overall MIoU of 70.65% and 68.33% on the training set and test set, respectively. W-segnet had a better segmentation performance for the detection of tetra pak with the straight edge, while it showed inferior performance on plastic and metal bottles. W-segnet is more suitable for fine cracks compared with U-Net and SegNet due to the feature fusion.
• Well-trained YOLOv8 and W-segnet were performed on a holdout dataset to evaluate the generalization of the models. With a more complicated background, YOLOv8 can still have better region-level detection results, while W-segnet indicated a slightly inferior segmentation performance. Further, the trained models demonstrated the generalization ability to other datasets.
• In the presence of water stains and shadows in the real environment of urban roadways, the algorithm used in this paper can still effectively identify urban pavement distress and dropped objects accurately. In the process of calculating the urban road condition index, it is necessary to consider the issue of duplicate calculation of detection boxes and establish regulations for urban pavement boundaries.
