Exploring Energy-Efficient Design Strategies in High-Rise Building Façades for Sustainable Development and Energy Consumption

Abstract

The energy consumption requirement of high-rise buildings necessitates effective innovations in architectural designs. The aim is to revolutionise high-rise buildings’ thermal features and energy efficiency. This paper combines quantitative analyses through improved thermal simulations and qualitative information from surveys of stakeholders, including architects, engineers, and urban planners. Key performance indicators such as U-values, R-values, HVAC efficiency, Solar Heat Gain Coefficient (SHGC), and Energy Use Intensity (EUI) are examined in detail to assess the thermal and energy performance of contemporary façade systems. Energy-efficient building design is paramount in this time of unprecedented urban development and escalating global temperatures. However, a gap exists in understanding how these practices can be adapted and integrated effectively into modern architecture. The findings show that high-rises with optimized pattern curtain wall façades reveal considerable savings in energy usage, particularly in cooling loads, which enhances indoor thermal comfort and reduces environmental effects. Actionable recommendations are provided for architects, urbanists, and policymakers, including the designs of region-specific façade constructions, their connection with renewable energy, and compliance with high energy performance standards. All these strategies help to improve the operational efficiency, environmental sustainability, and stability of built environments in growing, developed urban areas.

1. Introduction

With the growing population density, increasing energy use in buildings has become a global challenge, especially for metropolitan cities and tall structures in the contemporary world. The construction industry, which consumes approximately 40% of world energy and contributes to a third of greenhouse emissions globally, is pressured to adopt energy-efficient concepts and products [1]. Different architectural concepts, such as curtain wall façades, have received increased attention because of the synergy between looks and functionality. However, while the improvement of façade technology has exhibited specific amounts of success, notably in temperate zones, researchers have not devoted adequate effort to exploring hot climate zones nor to optimising them [2].

Previous generations of architecture, especially in hot climates, have used an inconspicuous approach to energy conservation, which incorporates the natural techniques of ventilation, shading, and materials [3]. All these vernacular design principles are very informative regarding sustainable architectural solutions. Extending these energy-conserving principles to modern high-rise buildings, which are mainly constructed with full-glassed curtain wall envelopes, presents substantial problems because of building size, structural, and exposure concerns [4] While passive techniques integrate perfectly into traditional structures, contemporary high-rises face challenges of structural rigidity, material availability, and large-scale repetitiveness. This dichotomy underscores a critical gap in architectural research: How can conventional energy performance concepts be implemented into the concept and aesthetics of tall buildings in warm environments?

Pattern curtain wall façades, consisting of geometric designs and organised modular systems, can fill this gap. These façade systems provide more visual dynamics and come with a host of benefits, such as heat gain control, daylighting control, and ventilation control [5]. However, applying pattern curtain walls in high-rise buildings in hot climates remains unknown in the literature. Research has shown that optimally designed curtain wall systems can worsen energy performances and result in higher cooling loads and discomfort levels [6]. This paradox leads to an integrative information system that incorporates the thermal performance strategies of traditional architectural practices with curtain wall technology.

Efficiency in energy usage is not just a technical issue of architecture or engineering; it is a problem related to socio-economics and the environment. Large-scale structures have been rising, particularly in the burgeoning cities of growing and developing markets; energy infrastructure here tends to buckle under pressure from increasing demand [7] Inefficient high-rise buildings contribute increasingly to heat island effects, increasing energy costs and overall resource wastage. Consequently, façade configuration that promotes energy efficiency goes beyond material science and engineering; it is about the viability of cities.

This study presents a comparative analysis of energy conservation principles’ regular and general application from vernacular to modern-day high rises. To address these critical issues, this study proposes to establish a procedural approach for applying the principles of energy performance from conventional buildings into high-rise buildings by incorporating a pattern curtain wall façade. Using both quantitative and qualitative analyses in the form of simulations and surveys, this work explores the energy indices of curtain wall façades, including HVAC consumption, solar heat gain coefficient, and occupant comfort. The study comparatively assesses the ability of pattern curtain wall façades to reduce energy requirements for cooling and improve indoor thermal comfort in summer.

This paper aims to fill the existing literature gap by presenting an applicable and location-oriented conceptual framework for architects, engineers, and urban planners. The study also aims to enhance the existing literature regarding sustainable architectural practices, particularly in the concurrent application of traditional knowledge and advanced technologies.

2. Literature Review

2.1. Overview of Curtain Wall Façade Systems

Curtain wall façades emerged as identifying characteristics of the modern high-rise building in the early twentieth-century modernist architecture movement [8]. Essentially, these structures function as exterior shells made of lightweight materials such as aluminium and glass to afford flexibility in construction while enhancing the beauty and usability of the building. Different systems of curtain walls, as identified by [9], include the stick systems and the unitised systems. Stick systems, though they are built on site and make a more affordable choice for low-rise constructions, do not afford large-scale work because of their imperfections and the time-consuming nature of on-site work.

The curtain wall façades not only serve the structural or aesthetic functional requirements of building performance. They are used deliberately to manage thermal comfort, solar heat intake, and energy consumption [10]. While multipurpose, these systems suffer from performance differences when implemented in different climatic conditions. For example, curtain walls can provide both insulation and daylight in temperate climates. Still, they increase cooling loads when used in hot climates because of high solar heat gain and limited shading [3]. This leaves the impression that while general design application is a noble goal, specific regional application is more relevant in practice.

Developments in façade systems, such as double-glazed glass panels, reflective coatings, and thermal breaks, have been observed to address energy ineffectiveness. However, in ref. [11], it stated that their effectiveness largely depends on their compatibility with the overall architectural approach to building layout, façade configuration, and shading systems. Therefore, the choice of curtain wall façade systems requires a multifaceted approach that ventures into material science as well as architectural vision, especially in hot settings.

2.2. Thermal Performance and Energy Efficiency in High-Rise Buildings

The energy efficiency of high-rise buildings is inherently associated with the thermal properties of the façade because such constructions primarily depend on mechanical cooling and ventilation [12]. Studies have established that façade configuration plays a major role in air conditioning (HVAC) loads, especially in extreme climates [2]. This can lead to poor façade performance in terms of Solar Heat Gain, thermal bridges, and over-reliance on mechanical cooling, which in turn leads to energy fiascos.

Thus, curtain wall façades, if well-planned, can reverse these inefficiencies. According to ref. [13], the U-values and Solar Heat Gain Coefficients (SHGC) of a façade play a significant role in defining its thermal behaviour. The lower the U-values, the better the insulation; appropriate SHGC values allow for controlling natural light and solar heat. New concepts, such as the double-skin façade (DSF), have been shown to exhibit enhanced thermal performance due to dynamic air control and shading [14].

However, these advancements are not without limitations. For example, DSFs may be suboptimal in hot and humid climates due to controlled ventilation issues and relatively high first costs [12]. Although vertical shading systems can effectively prevent solar heat from entering curtain wall systems, daylighting and outside view become severely restricted, resulting in trade-offs between energy efficiency and comfort [15].

This paradox suggests that both thermal performance and energy efficiency are still significant goals, and yet their achievement is sensitive to context. Referring to architectural practices from hot climatic regions, passive design strategies can be a source of learning on how to apply curtain wall façade systems in modern structural high-rise constructs.

2.3. Challenges in Integrating Traditional Building Principles into Modern High-Rise Structures

In hot climates, conventional techniques such as stack ventilation, opening to shaded courtyards, thick thermal mass walls, and openings’ orientation are used to provide thermal control and keep energy use low [3]. All these principles are timeless and consistent with sustainability and context. But when used directly in present-day high-rise buildings, they pose certain technical and architectural difficulties.

One fundamental issue is the structural and spatial constraints of high-rise buildings. Compared to low-rise buildings, tall buildings are affected by verticality, large areas of glazing, and limited natural ventilation [10]. Due to space restraints and architectural constraints, regular passive cooling, such as thermal mass walls or natural ventilation channels, is very rarely included in structures.

However, today’s organisational and economic necessities, including rationality and efficiency in construction, do not necessarily promote national variants adapting to regional characteristics [16]. Many high-rise buildings in hot climates today continue to use curtain wall systems manufactured in cooler climates with inadequate modifications for hot regions.

Another critical challenge is the clash of taste, where architectural tradition clashes with modern architectural impulses. While traditional facades focus on culture and climatic conditions, new-generation high-rise buildings focus on glass appearance and simple architectural planning [17]. This conflict leads to façade systems that are visually attractive yet thermally inefficient.

Solutions to these challenges involve designing and developing systems that respect the fundamental principles of classical architecture while incorporating modern technologies and methods. Pattern curtain wall façades are intermediate construction solutions that open up possibilities for thermal control, shade, and compatibility in design.

2.4. Research Gap Identification

Although curtain wall systems and their application for high-rise buildings’ energy performances have been studied, there is still a lack of information regarding their application in hot climates. Previous research has centred on thermal performance criteria like U-values or SHGC without questioning the incorporation process with vernacular architecture [10]. Passive design has been broadly explored in conventional architecture, although it is not well defined in terms of frameworks for high-rise buildings [2].

Modern façade simulation models often do not contain climate-specific parameterisations for hot climates, which can give highly irregular or averaged estimations [12]. Recognised pattern curtain wall façade designs also lack actual high-rise application verifications based on empirical evidence, especially in hot and arid zones.

This research seeks to fill these gaps by formulating and validating a systematic approach to transferring principles of energy performance, as seen in traditional architecture, to high-rise buildings adopting pattern curtain wall façades.

The findings will benefit architectural practice and academic research, providing tangible recommendations for implementing sustainable and energy-efficient high-rise buildings in hot climates.

3. Methodology

This research employs quantitative and qualitative methodologies to establish a clear picture of the energy performance of high-rise buildings with pattern curtain wall façade designs in hot climate zones. Addressing the chosen research problem is challenging and requires scholarly data analysis and consideration of contextual factors. Several performance assessments were made using quantitative methods, including thermal performance in terms of U-value and R-value numbers, HVAC efficiency, SHGC, and daylighting. All these simulations were carried out with Climate Studio, V1.8, popular software for building energy performance modelling. The models were fine-tuned with live climatic data for hot climatic zones through parameters like the orientation of the building, properties of the façade, and exposure patterns. The results from these simulations were quantifiable markers in determining the energy conservation and comfort levels of a building with integrated pattern curtain wall façades.

In parallel, qualitative data were obtained from literature reviews such as a research thesis book and articles. The survey utilised a structured survey to obtain stakeholder views about façade performance, issues of traditional building science in contemporary high-rise buildings, and real-life experiences on the effectiveness of pattern curtain wall designs. Cronbach’s Alpha was used to assess the internal consistency of the survey instrument, with the reliability coefficient above the acceptable threshold of 0.7. Purposive sampling was utilised to focus on participants and provide information on the design of sustainable high-rise buildings. The qualitative data were systematically analysed using thematic analysis to obtain an exhaustive understanding of recurring insights, challenges, and recommendations.

The use of quantitative and qualitative data was cross-sectional with the convergent parallel design method. This design allowed for comparing the numerical simulation data sets and the qualitative findings obtained in the study. Simulation data were compared to those generated through surveys to better understand the interplay between façade design and energy performance. The triangulation method was used in the study, complementing with other research approaches to increase the validity of the results.

Despite the methodological robustness, certain limitations were acknowledged. As practical simulation tools predict building performance, they are not as precise as live environments and operations. However, research findings that employ qualitative data are relatively consistent with self-bias and prejudice, as well as subjectivity. Resource limitations and restricted access to empirical high-rise building data in certain parts of the world presented minor problems. These limitations were counterbalanced by adopting a multi-level analysis that included both quantitative accuracy and richness. The chosen methodology is coherent with the purpose of the study: to design an integrative energy performance framework responding simultaneously to technological and architectural drivers. It helps to combine quantifiable performance indicators with user-centred data to help share the study results with the scientific community while exploring sustainable façade design in hot climatic regions.

It affords a systematic approach to examining, justifying, and situating data in ways that are foundational for deriving solutions useful for architects, engineers, and urban designers. It emphasises the significance of converting theory into practice, which provides the foundation for creating sound construction strategies and environmentally liable high-rise building designs to meet the requirements of the occupants. From this methodological perspective, the study intends to present an adaptive and comprehensive approach to enhancing curtain wall façade systems and increase their viability for attaining energy efficiency in contemporary practicing architects.

4. Results

4.1. Thermal Performance (U-Values and R-Values)

Thermal performance is another factor that defines a building’s energy characteristics, especially in skyscrapers inhabited by people in hot desert regions. Thermal conductivity, R-values, and U-values provide a quantitative differentiation of heat transfer, meaning insulation and seasonal fluctuations. Conventional structures, which depend mostly on passive strategies and have dense construction materials, provide better insulation in winter than in summer [18]. New computerised façade materials and structural optimisations in high-rise building designs present a higher fluctuation in thermal resistance for thinner-framed constructions and expansive glazing systems [19].

Quantitively simulations showed that those of traditional households have higher U-values in hot summer (0.82 W/m²·K), which suggested that insulation performance was poor and heat intake was significant [20]. High-rise buildings exhibit reduced U-values in summer (0.41 W/m²·K), indicating improved thermal insulation and cooling requirements. However, during winter, the U-value is slightly higher for traditional buildings, at 0.50 W/m²·K, compared to the high-rise building, at 0.65 W/m²·K, indicating better heat storage in conventional construction. These results imply that although high-rise curtain wall façades effectively reduce heat gains during summer, the heat losses during winter remain low; reflecting an essential trade-off in façade design means [21].

Thermal conductivity in conventional building materials varies with the change of seasons, with the highest value recorded in summer (0.83 W/m·K) and the lowest in spring (0.51 W/m·K). High-rise buildings exhibit more fluctuation, with winter having the highest conductivity of 0.87 W/m·K. This failure demonstrates the problems associated with high windows and lightweight façade materials that provide little insulating capacity during high temperatures [19].

The R-values, which indicate thermal resistance, follow a similar trend. Traditional buildings’ R-values are at their peak during winter at 1.26 m²·K/W and at their lowest during summer at 0.30 m²·K/W. While high-rise buildings have rather reasonable R-values in summer, equal to 0.48 m²·K/W, the winter results are equal to 0.3 m²·K/W, so high-rise buildings cannot warm during winter [22].

These outcomes as shown in

Table 1. Comparative thermal performance of traditional and high-rise buildings (Climate Studio simulation data).

Parameter	Traditional Building	High-Rise Building	Improvement (%)
U-Value (Winter)	0.50 W/m2·K	0.65 W/m2·K	−30%
U-Value (Summer)	0.82 W/m2·K	0.41 W/m2·K	+50%
R-Value (Winter)	1.26 m2·K/W	0.30 m2·K/W	−76%
R-Value (Summer)	0.30 m2·K/W	0.48 m2·K/W	+60%
Thermal Conductivity (Winter)	0.77 W/m·K	0.87 W/m·K	−13%
Thermal Conductivity (Summer)	0.83 W/m·K	0.53 W/m·K	+36%

indicate that integrative façade design strategies concerning innovations with traditional passive design techniques are required. To counter such seasonal differences in U-values, R-values, and thermal conductivity, optimal curtain wall patterns, dynamic shading systems, and greatly developed glazing technologies must be incorporated [23].

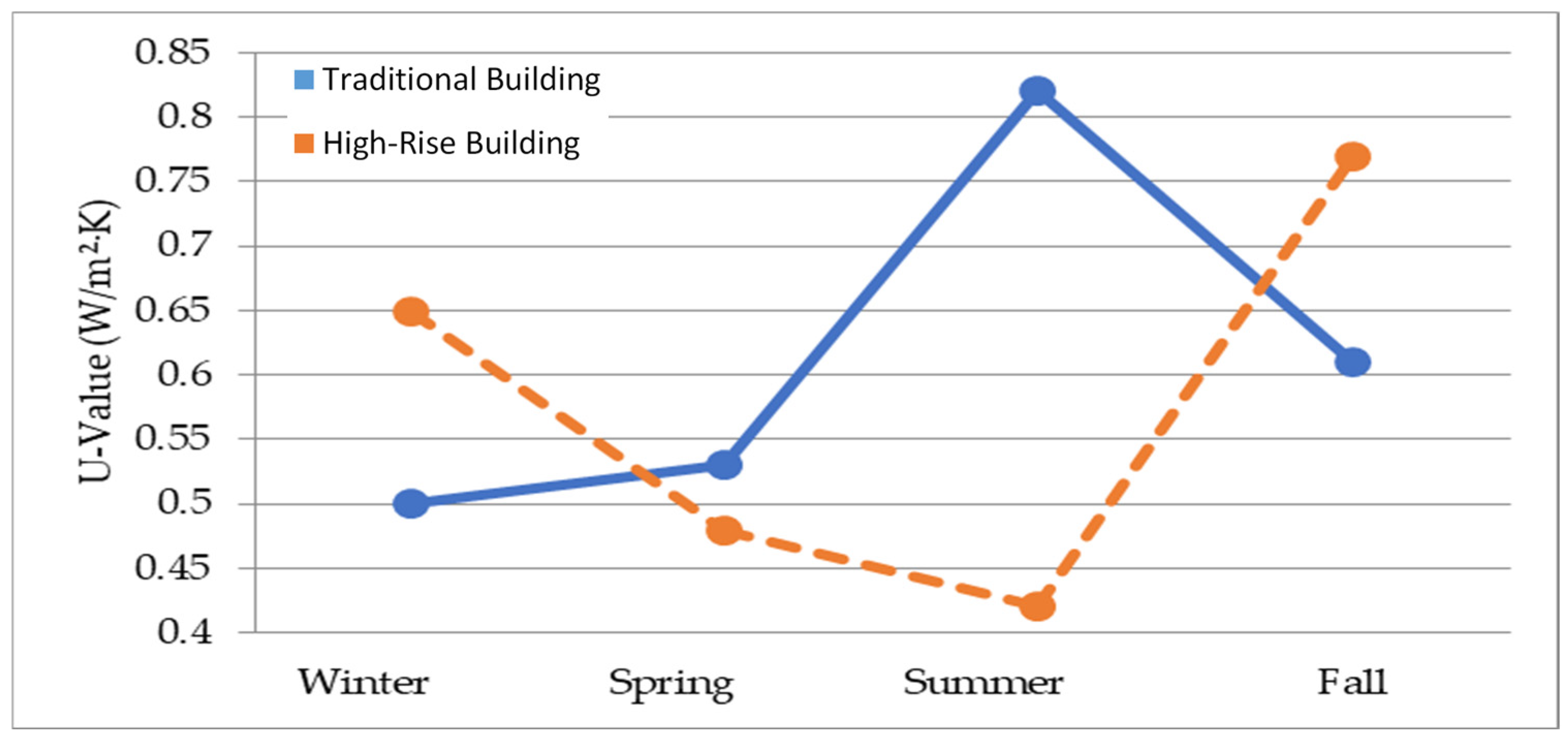

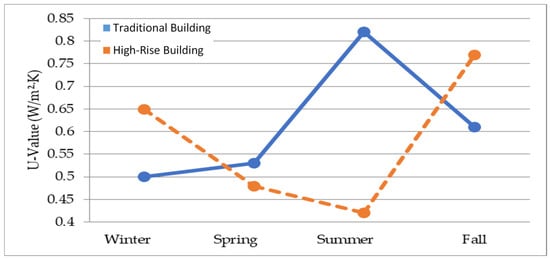

The line graph as shown in Figure 1 reveals the comparative U-value between the two building types per season. The trade spaces of the traditional building exhibit high fluctuations during summer, which signifies poor insulation and massive cooling needs. High-rise buildings perform comparatively better in the summer season; however, in terms of insulation during the winter season, they have high U-value measurements [24]. This pattern illustrates how design for thermal performance must be tailored according to specific seasons to accommodate different environments.

The findings emphasise a crucial trade-off in façade design: The high-rise curtain wall façades efficiently minimise heat penetration during summer but lack effective heat retention during winter. This seasonal performance variability highlights the role of adaptive or responsive façade elements such as shading devices, thermal skins, and smart glazing. Incorporating some passive design principles, including increased insulation thickness and façade orientation geometries, can present other possible solutions to such shortcomings.

4.2. HVAC System Efficiency (Coefficient of Performance—COP)

The comparison of heating–cooling energy points to variations in energy consumption and HVAC performance between traditional and high-rise buildings. Such differences are due to thermal characteristics, the façade and its depth, and the system’s COP—Coefficient of Performance [25] Nevertheless, thicker conventional constructions require 55,795 kWh for heating and 60,860 kWh for cooling, showing high energy requirements over seasonal change. Conversely, the high-rise building with improved curtain wall façade and efficient HVAC system showed better heating insulation, requiring less energy at 46,111 kWh and a little higher cooling energy at 66,023 kWh as shown in

Table 2. Heating and cooling energy consumption comparison (Climate Studio simulation data).

Parameter	Traditional Building	High-Rise Building	Improvement (%)
Heating Energy (kWh)	55,795.00	46,111.00	+17%
Cooling Energy (kWh)	60,860.00	66,023.00	−8%
Energy Use Intensity (EUI)	11.54 kWh/m2	8.64 kWh/m2	+25%
HVAC Efficiency (COP)	3.60	4.22	+17%
Heating Degree Days (HDD)	1271.00	1508.00	+18%
Cooling Degree Days (CDD)	1988.00	2057.00	+3%

.

The Energy Use Intensity (EUI) works as a benchmark for measuring the efficiency of building energy systems [26]. High-rises state a EUI of 8.64 kWh/m², still below the 11.54 kWh/m² of a traditional building. This improvement has been attributed to the increased use of sophisticated façade technologies and efficient HVAC systems that eliminate energy loss and increase functionality. Although the cooling load is relatively higher in taller buildings, the Coefficient of Performance (COP) further affirms their energy use efficiency aspect, which stood at 4.22 compared to the regular building with a COP of 3.60.

Survey evidence reveals that improved glazing is associated with higher cooling energy use in high-rise buildings, even if the HVAC equipment is more efficient than in low-rise structures. These peculiarities necessitate façade-relevant optimisations that comprise the balance between daylighting, insulation, and HVAC performance [27].

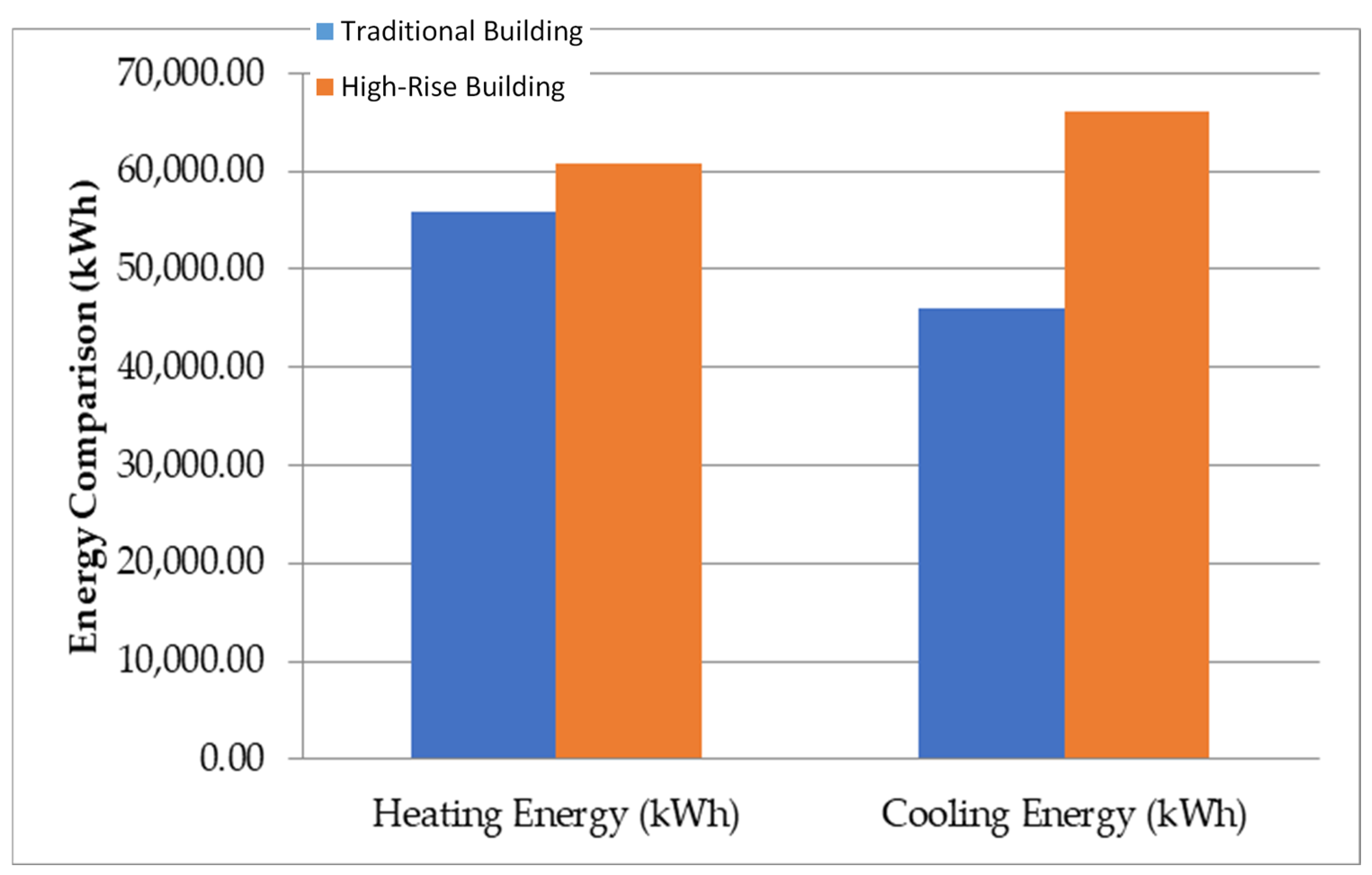

The graph in Figure 2 illustrates the energy consumption trends for heating and cooling. It uses less energy for heating because of the advanced insulation systems used in high-rise buildings but slightly more energy for cooling, revealing the problem of solar heat gain control in large glazed façade systems. The overall EUI continues to be considerably smaller for the high-rise building, which exemplifies its enhanced operational efficiency.

Total Energy Consumption and HVAC Efficiency

Overall energy usage by categories of lighting, appliances, and HVAC systems shows that high-rise buildings have better energy rates. Depending on their energy consumption, traditional buildings consume 132,023 kWh, while high-rise buildings consume 96,648 kWh, which is 27% less. This is mainly attributed to improved efficiency in HVAC systems, better façade insulation, and optimisation of energy distribution [28].

Lighting and appliance energy consumption further illustrate this improvement. The high-rise uses 16,949 kWh for lighting and 17,433 kWh for appliances, while conventional tall structures use 21,265 kWh and 36,850 kWh for respective services as shown in

Table 3. Total energy consumption comparison (Climate Studio simulation data).

Parameter	Traditional Building (kWh)	High-Rise Building (kWh)	Improvement (%)
Lighting Energy	21,265.00	16,949.00	+20%
Appliance Energy	36,850.00	17,433.00	+53%
HVAC Energy	64,426.00	55,311.00	+14%
Total Energy Use	132,023.00	96,648.00	+27%
Energy Use Intensity	11.54 kWh/m2	8.64 kWh/m2	+25%

. These numbers highlight the role of the lighting and building management systems in managing total energy consumption.

Central to these energy savings are the HVAC systems. High-rise buildings recorded a Seasonal Energy Efficiency Ratio (SEER) of 85,743.46 compared to 58,932.73 in traditional buildings. Higher SEER gives better performance across different seasons, allowing for efficient cooling and heating [29].

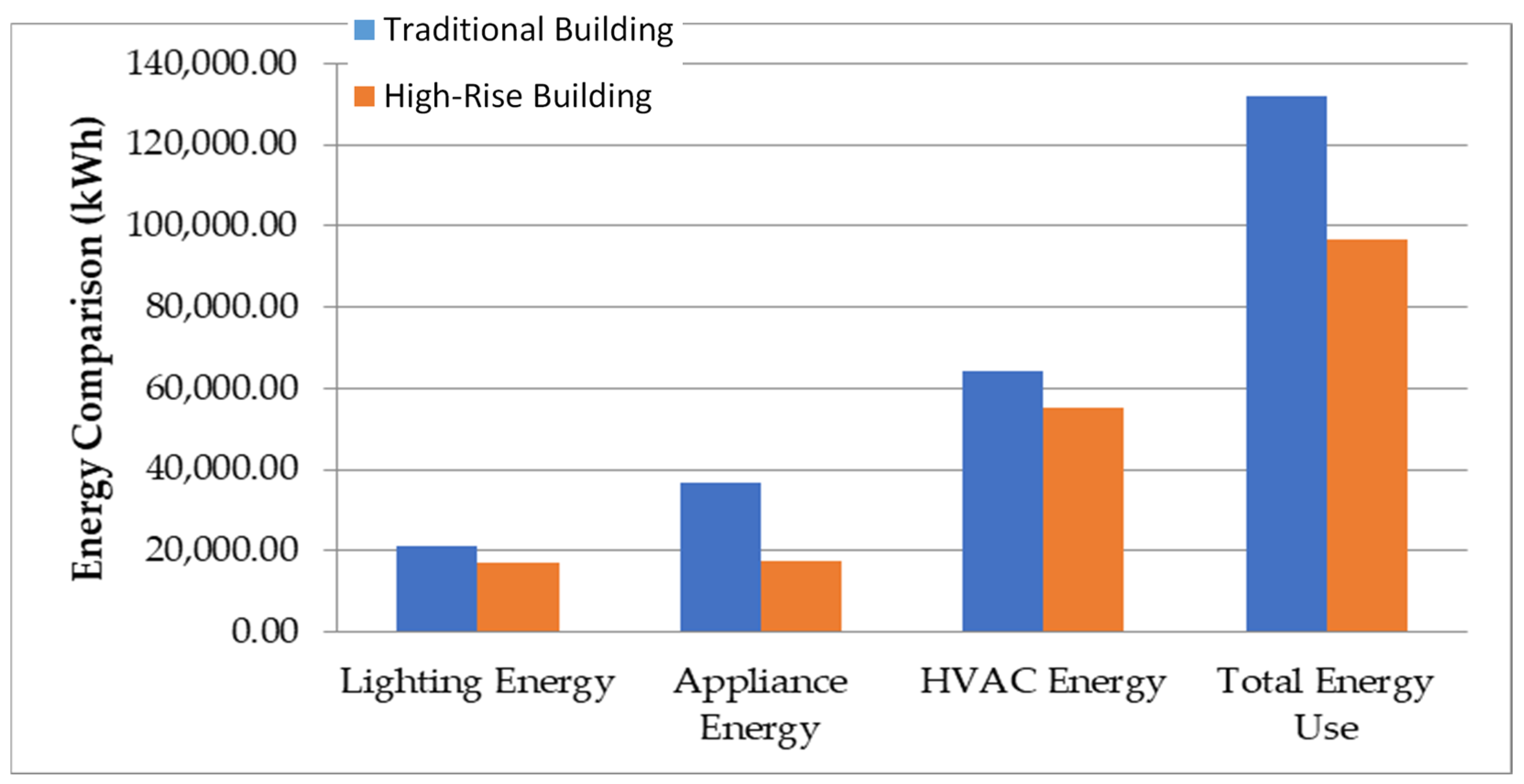

The graph in Figure 3 compares energy consumption across lighting, appliances, and HVAC systems. Energy consumption for lighting and appliances is lower in high-rise buildings, owing to better control systems and more efficient energy management systems. Despite the high amount of HVAC energy usage, the total EUI shows a comparatively lower value in tall buildings.

4.3. HVAC Coefficient of Performance (COP)

Coefficient of Performance (COP) is the parameter used to judge the efficiency of HVAC apparatuses. The COP trends are 3.60 for the traditional building and 4.22 for the high-rise building in

Table 4. HVAC system performance comparison (Climate Studio simulation data).

Parameter	Traditional Building	High-Rise Building	Improvement (%)
Heating Output (kW)	27.49	33.92	+23%
Cooling Output (kW)	34.01	21.99	−35%
Electric Power Input (kW)	8.66	6.30	−27%
COP	3.60	4.22	+17%

. This improvement means lowering energy consumption for corresponding heating and cooling due to stress-enhanced HVAC systems design and control of significant tall buildings [30].

Survey participants highlighted that although HVAC systems in high-rise buildings consume comparatively less energy, they require consistent calibration and periodic maintenance. The fluctuations in COP values between operations show that such enhancements may be necessary to maintain optimal system performance across various other conditions, including frequent changes and renovations [31].

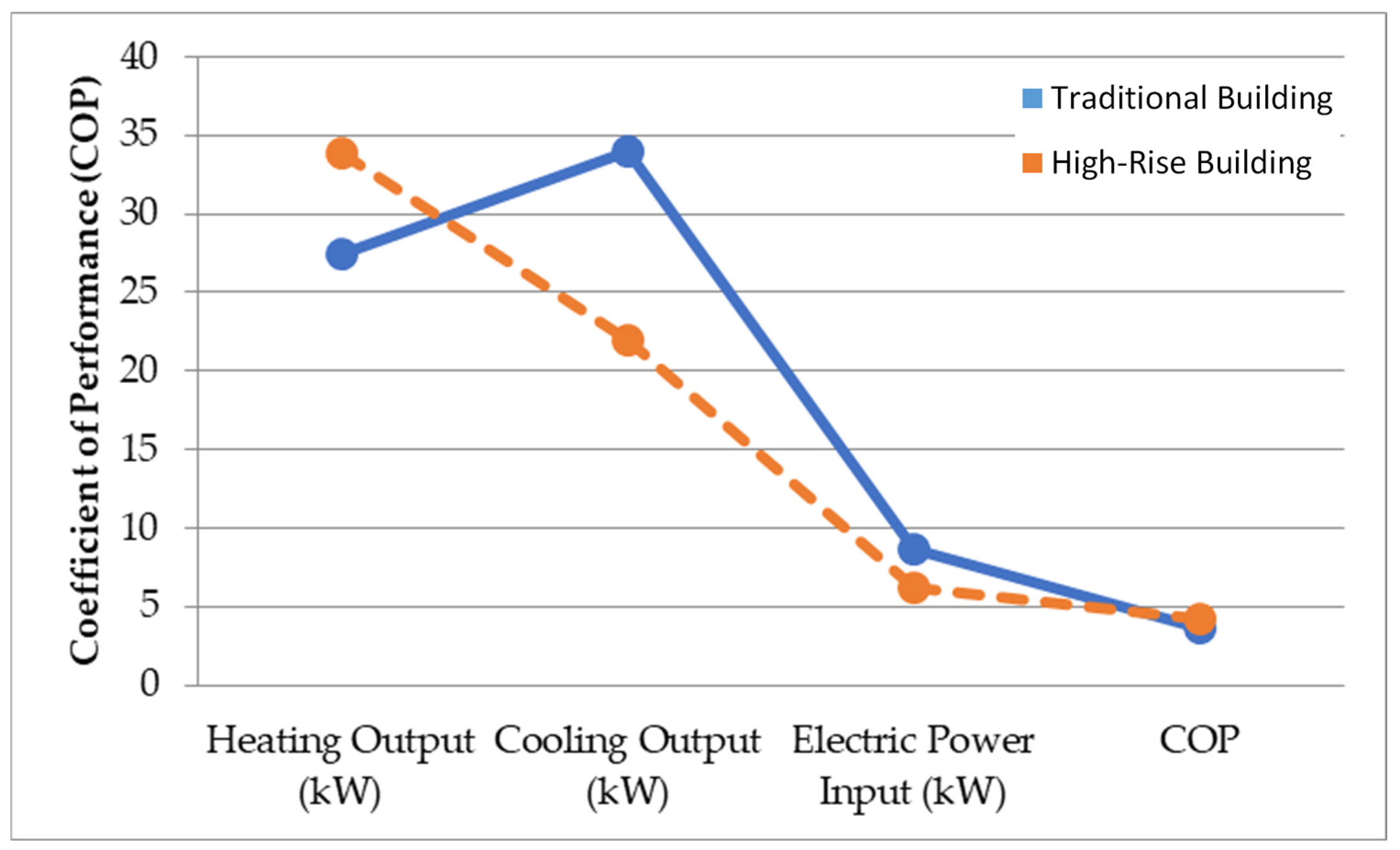

The graph in Figure 4 focuses on the energy savings of high-rise buildings’ HVAC systems, in which a higher average COP means less energy input is needed for either heating or cooling. The improved performance highlights the positive implications of innovative HVAC systems and good façade interface.

4.4. Energy Use Intensity (EUI) and Air Tightness and Solar Heat Gain Coefficient (SHGC)

Energy Use Intensity (EUI), air tightness, and the solar heat gain coefficient (SHGC) are essential indicators of building energy efficiency and environmental friendliness. These have a direct impact on thermal comfort, energy consumption, and operational efficiency, especially for large buildings with complex façade systems [32].

4.4.1. Energy Use Intensity (EUI)

EUI is the energy used in the building annually per unit area, a significant measure in energy benchmarking. The comparison between traditional and high-rise buildings reveals key differences (

Table 5. Energy Use Intensity (EUI) comparison (Climate Studio simulation data).

Parameter	Traditional Building (kWh/m2)	High-Rise Building (kWh/m2)
Heating Energy EUI	11.54	8.64
Cooling Energy EUI	7.64	15.62
Lighting Energy EUI	8.23	14.28
Total Energy EUI	6.35	13.72

):

Traditional building: this exhibits an EUI of 11.54 kWh/m², showing increased energy usage overheating and cooling zones.

High-rise building: this reports a 30% EUI decrease to 8.64 kWh/m², presenting energy control systems, higher insulation, and better façade solutions.

The results of this study imply that high-rise buildings deploy advanced HVAC systems, efficient lighting, and façade materials to reduce EUI values. Survey findings reveal that continued vigilance and acute tuning of energy forms are necessary to sustain this type of performance.

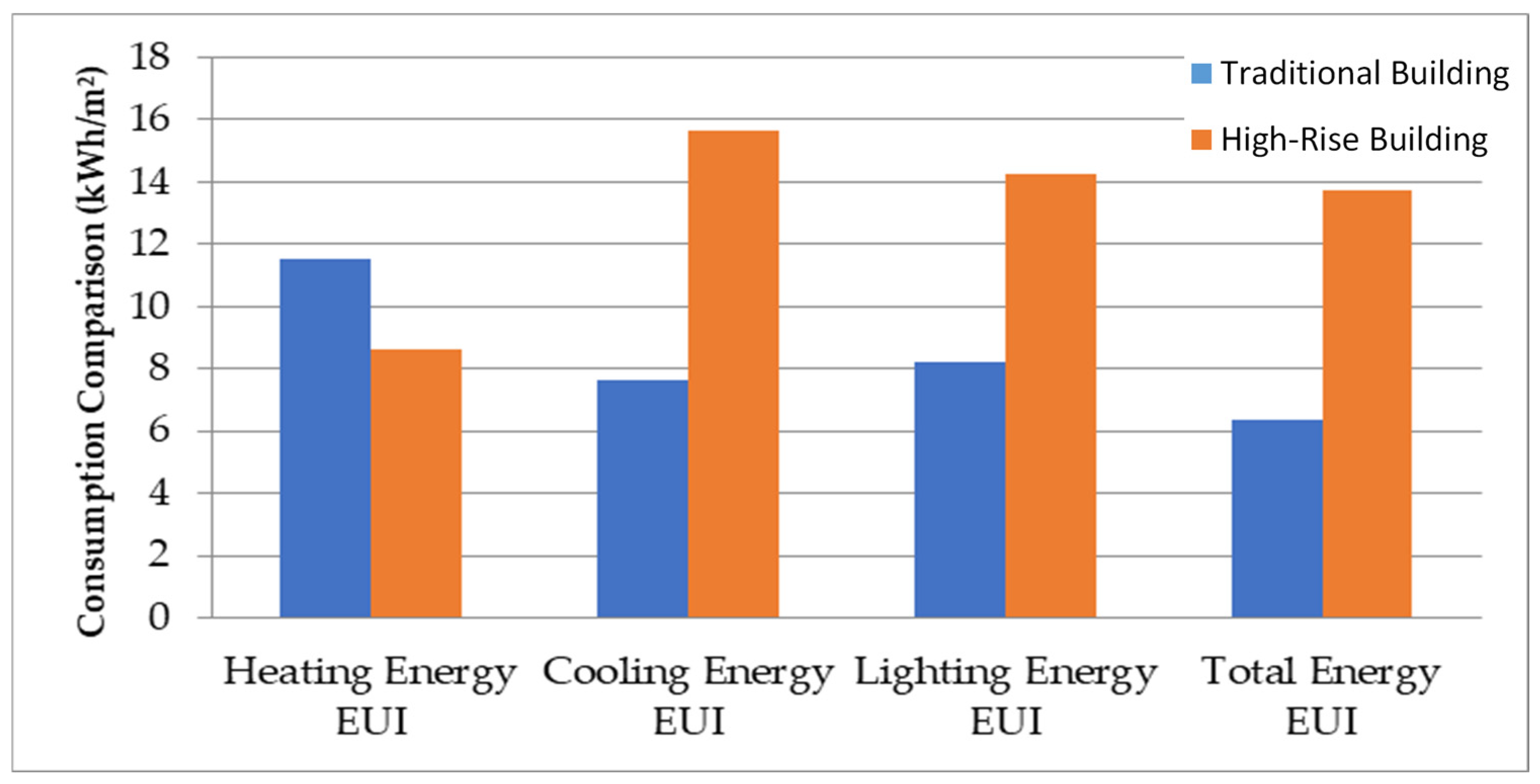

The graph in Figure 5 reveals that high-rise buildings indicate a gradual decrease in EUI for heating, cooling, and lighting criteria. This improvement highlights the significance of combined energy-saving technologies and efficient building control systems.

4.4.2. Air Tightness (Infiltration Rate)

This measures how airtight a building envelope is using the number of Air Changes per Hour (ACH). Lack of control over air leakages results in high energy consumption due to HVAC systems’ efforts to seal these leaks [33].

Traditional buildings show an average of 9.21 ACH of air leakage, which shows a higher energy loss due to compressible sealing and insulation standards. High-rise buildings achieve a lower air leakage rate of 4.18 ACH, providing better air-tight construction and sealing technologies (

Table 6. Air tightness (infiltration rate) comparison (Climate Studio simulation data).

Parameter	Traditional Building	High-Rise Building	Improvement (%)
Air Leakage Rate (ACH)	9.21	4.18	+55%
Pressure Differential (Pa)	39.0	37.0	−5%
Temperature Differential (°C)	18.95	15.70	+17%
Sealing Quality (1–10)	4.0	7.0	+75%

). A number of surveys point out that increased high-rise buildings’ air tightness minimises the HVAC load, especially in weather conditions, implying increased energy reliance [34].

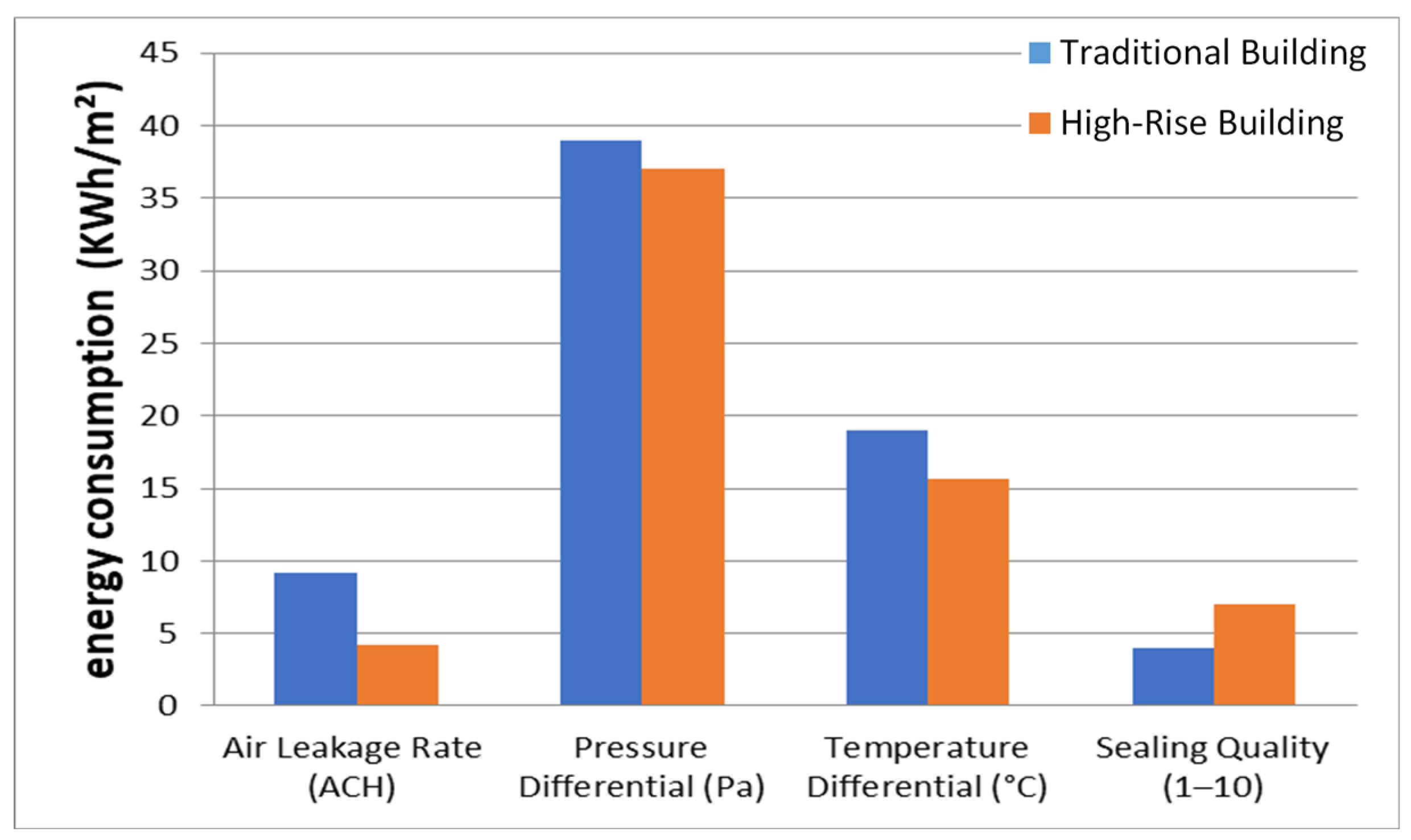

The graph in Figure 6 highlights significantly lower air leakage rates and higher sealing quality ratings in high-rise buildings. These improvements prevent uncontrolled heat exchange, thus improving HVAC and overall energy performance.

4.4.3. Solar Heat Gain Coefficient (SHGC)

The Solar Heat Gain Coefficient—SHGC—reflects the portion of solar radiation that is let into the windows and subsequently absorbed or reemitted inside the building. Lower SHGC values represent better control of solar heat gain, which means lower cooling loads during the warm months [35]. A traditional Building features single glazing with wooden frames, which has a higher SHGC of 0.42, whereas a high-rise building utilizes double glazing with aluminium frames, which has, however, a lower SHGC of 0.34 to minimise heat inferential while maintaining the quality of daylight (

Table 7. Solar heat gain coefficient (SHGC) comparison (Climate Studio simulation data).

Parameter	Traditional Building	High-Rise Building	Improvement (%)
Type of Glazing	Single Glazing	Double Glazing	+50%
Frame Material	Wooden Frame	Aluminium Frame	+35%
Orientation of Windows	South	East	+66%
SHGC Value	0.42	0.34	+19%

). According to surveys, advanced smart glazing technologies and dynamic shading systems increase SHGC regulation in high-rise facades [36].

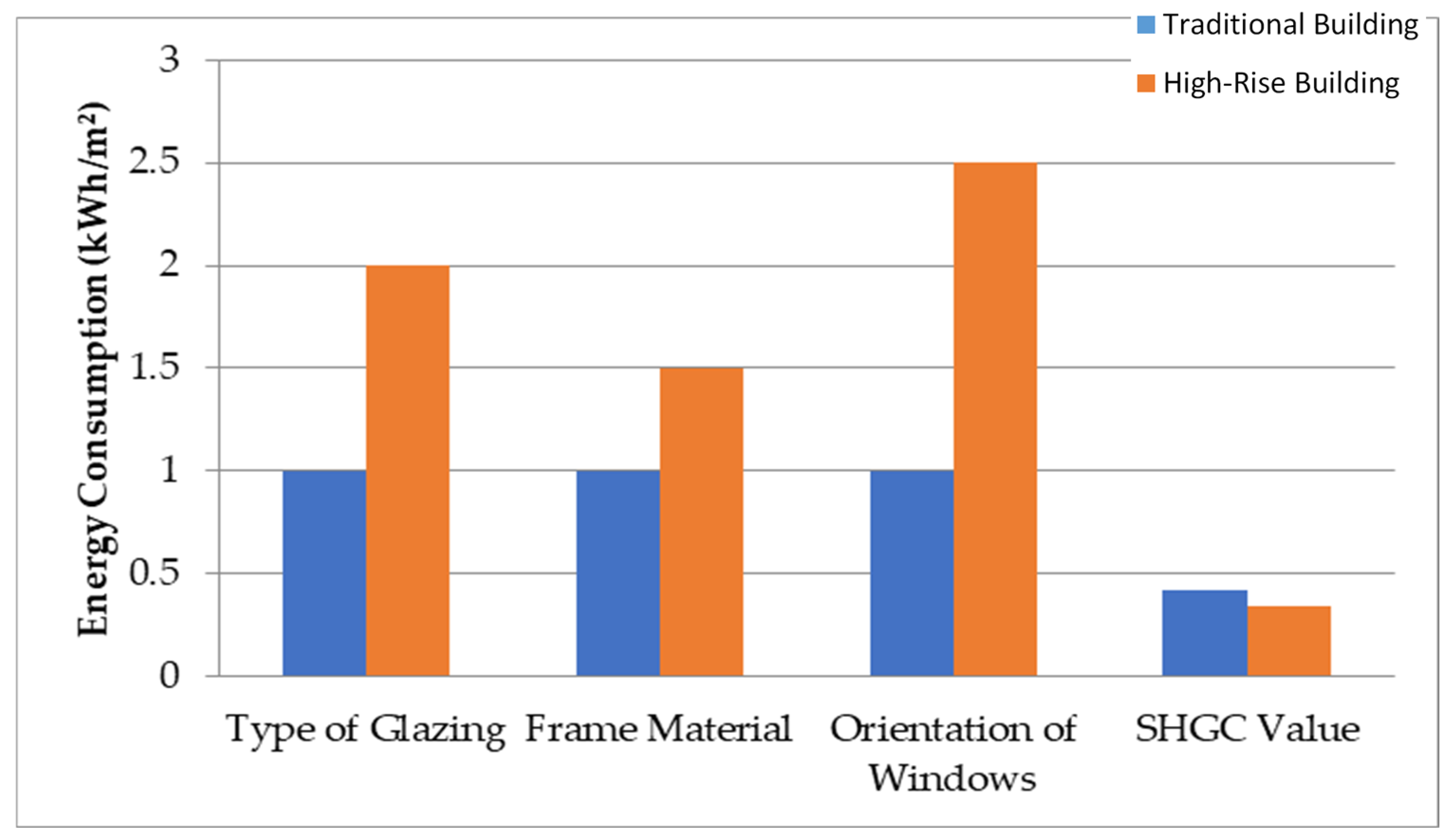

The graph in Figure 7 illustrates improved solar heat gain control in high-rise buildings driven by double-glazing systems and aluminium-framing technologies. The eastward window orientation reduces direct solar exposure, resulting in low cooling loads and a good internal thermal environment.

The comparative analysis of Energy use intensity (EUI), air tightness, and SHGC underscores the following key observations:

Energy use intensity (EUI): high-rise buildings consistently demonstrate lower EUI values, reflecting superior operational efficiency.

Air tightness: enhanced sealing technologies in high-rise buildings significantly reduce air leakage, contributing to energy savings.

Solar heat Gain (SHGC): double glazing and aluminium frames effectively minimise solar heat gain, reducing cooling demands in high-rise structures.

These findings urge the further development of façade technologies, dynamic glazing systems, and routine HVAC calibration to enhance energy performance in high-rise structures.

5. Comparative Framework Developments

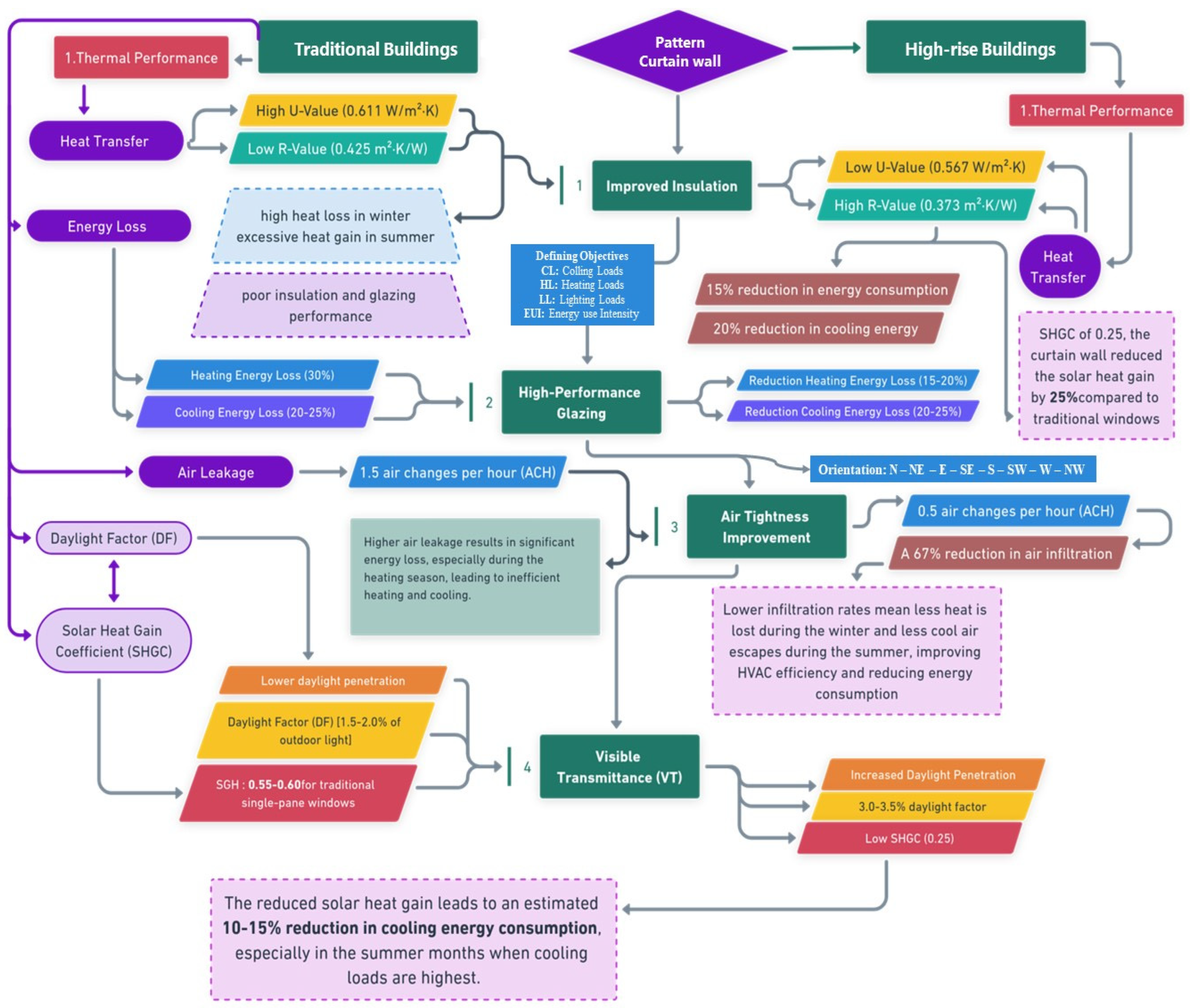

The Comparative Framework for Energy Transfer uses a methodical approach for comparing energy gains from moving from conventional, raised construction templates to buildings with increased vertical heights and curtain wall façade systems. This framework as shown in Figure 8 uses a set of metrics including thermal transmittance/resistance (U-Value, R-Value), indoor air exchange (ACH—Air Changes per Hour), solar heat gain coefficient (SHGC), and daylight factor [37]. Originally designed structures show high U-values, low R-values, considerable infiltration rates, and unsuitable glazing features, leading to high heat losses, fluctuating thermal comfort and energy requirements for heating, cooling and internal lighting.

The high-rise buildings incorporating curtain wall façade systems show improved scores on the above parameters. Reduced U-Values and larger R-Values increase the heat storage capacity of the building during severely cold- or hot-weather conditions [38]. Higher values of air tightness and lower ACH rates limit air change and decrease the HVAC loads. Better solar heat control technologies include advanced glazing technologies with lower SHGC and high visible transmittance (VT), which enhance natural light and, thereby, low artificial lighting systems. Integration with dynamic shading systems and energy management systems (EMSs) boosts energy performance by providing real-time control of energy systems [39].

Quantitative findings show that switching to a curtain wall system leads to a 15% gain in heating energy, a 20% reduction in cooling energy, and a 15–20% reduction in artificial lighting. These enhancements are based on passive design, climate-adaptive constructional technologies, and the proper use of high-performing materials. As such, the comparative framework offers a methodical approach to assessing and realising energy-saving measures across various building typologies, underlining the role of technologically advanced façade systems in modern architecture [40].

This

Table 8. Comparative Framework for Energy Transfer (simulation data via Climate Studio).

Parameter	Traditional Building	High-Rise Building (Curtain Wall)	Improvement (%)
U-Value (W/m2·K)	0.611	0.567	+7%
R-Value (m2·K/W)	0.425	0.373	+12%
Air Leakage Rate (ACH)	1.5	0.5	+67%
Solar Heat Gain (SHGC)	0.55–0.60	0.25	+55%
Daylight Factor (%)	2.0–2.5	3.0–3.5	+40%
Heating Energy Reduction	Baseline	−15%	+15%
Cooling Energy Reduction	Baseline	−20%	+20%

shows the quantitative changes that took place in the core parameters, emphasising energy performance and sustainability gains with curtain wall façade systems. The comparative analysis focuses on how adopting new façade technologies enhances the energy requirements, indoor climate variation, and general functioning of tall structures.

6. Finding and Discussions

The results of the comparative analysis of traditional and high-rise buildings with curtain wall façade systems indicate the comprehensive aspects of energy efficiency, thermal performance, and environmental sustainability. Traditional buildings have a higher U-Value, a lower R-Value, a substantial infiltration rate, and poor glazing, which leads to more energy consumption for cooling and heating. High-rise facilities that include curtain wall systems exhibit significant enhancements in these KPIs with considerable improvements in heating, cooling and lighting energy requirements. This transformation proves the significance of superior building envelope technologies in promoting the functionality and eco-friendliness of contemporary architecture.

One of the key findings identified is associated with the influence of high-rise buildings on thermal effectiveness. The decrease in U-Values and consequent increase in R-Values suggest better thermal performance and reduced heat flow through the outer skin. These enhancements result in lower heating requirements every winter and optimal cooling requirement in the summer, thus cutting energy usage significantly. While traditional buildings show unwanted seasonal thermal variations and high thermal discomfort due to inadequate insulation, high-rise buildings with curtain wall façades are more thermally stable [41]. Another critical factor differentiating traditional and high-rise buildings is the air leakage expressed through the Air Changes per Hour (ACH) metric. These improvements, therefore, alleviate the load on HVAC systems and promote better energy efficiency and operational robustness. Notably, the achievement of air tightness also demands systematic inspection, conservation, and sometimes re-setting of the HVACs and sealing systems over the life cycle of the building. Over time, these aspects could gradually decrease the efficiency recorded after workstation installation.

The Solar Heat Gain Coefficient (SHGC) is also determinative of building performance, especially in regions that experience seasonal change. Conventional constructions use single-glazed windows with wooden frames, which leads to high SHGC values and heat gain in the summer. Hence, cooling systems must work more efficiently, increasing energy costs. High-rise buildings incorporate double-glazed windows with an aluminium frame, with a lower SHGC and high visible transmittance. This balance thus avoids the risks of excessive solar heat gain while allowing daylight penetration, reducing artificial lighting reliance and optimising daylight utilization. However, it suggests that though glazing technologies have undergone significant improvement, they depend on how they are installed and on building orientation.

The comparative framework also displays daylighting performance as another strategic area of concern under energy efficiency. High-rise buildings exhibit excellent daylighting, promoted by high window-to-wall ratios (WWR) values, improved glazing characteristics, and shallow floor plates. Higher levels of DAY increase dependence on artificial lighting systems during off-peak daylight hours, decreasing additional energy demands. However, one of its drawbacks is the irregular distribution of daylight in the interior spaces of the building, especially in tall buildings with a significant interior depth. Shininess of the building elements and automated light shelves help avoid such discrepancies and provide uniform daylight exposure to occupied spaces.

From the perspective of urban planning, the investigation underlines the need to integrate building energy performance standards into regulation systems [42]. Laws must require efficient shading of façade systems, encourage retrofitting earlier buildings with advanced curtain walls, and support sustainable design. Where multi-story buildings are prevalent in dense population centres, such interventions mitigate urban heat islands and general carbon emissions.

Policymakers must provide more rigorous regulations and standards regarding energy efficiency for building envelopes. Government grants, subsidies, and tax credits should help to entice building owners to install enhanced façade systems and energy management technologies [43]. Other policies involving continuation requirements, such as post-occupancy energy performance assessment and routine maintenance checks, will guarantee energy optimisation throughout the building life cycle.

The findings have implications for facility managers, including proactive management and monitoring of all building envelope components, HVAC systems, and EMS platforms [44]. Volumetric leakage control still needs to be checked regularly for possible undetected leaks, and the glazing system can also be corroded. The education of the EMS facilities management teams on the efficient use of the EMS platforms is crucial in maintaining energy efficiency.

From the research perspective, this study highlights the need for more investigation into dynamic façades and systems and smart glazing and shading. Further studies about incorporating AI and ML within the EMS to achieve proactive energy control and self-optimization of EMS platforms should be conducted in the future as follows:

This study provides several ideas that can be further pursued in future research. First, longitudinal studies are needed to evaluate service life and predict the curtain wall systems’ behaviour under different environmental and usage conditions. Such studies will help to obtain useful information concerning the maintenance requirements, degradation, and costs of these systems.

Second, in future studies, more emphasis should be placed on coupling the curtain wall systems with renewable energy sources, including BIPV systems [45]. Expanding the notion of the façade systems to integrate onsite renewable energy generation into the façade could also improve the sustainability of tall buildings even more.

Third, feasibility studies of occupant behaviour must be undertaken since user operation of shading devices, HVAC, and lighting influences energy efficiency. Behavioural knowledge can help refine design modifications and implement administrative advancements, achieving consistent objectives from the occupant and the building.

Fourth, innovative glazing systems and nanotechnology offer prospects for developing high-performance features of the building envelope and advanced sealing systems [46]. Specific scientific studies of self-sanitizing glass, thermal chromogenic coatings, and phase change materials (PCMs) could significantly transform the energy-saving opportunities of curtain wall façades.

Last, architects and engineers usually collaborate with data scientists and environmental psychologists to design effective solutions for building energy efficiency. This can lead to experiments in approaches to façade design, energy controls, and occupant comfort.

7. Conclusions

A comparison between conventional buildings and tall structures with curtain façade walling systems shows a significant improvement in energy usage, insulation, ventilation, natural light, and sustainability. Since traditional buildings employ structures, U-value, R-value, air infiltration, and glazing, which are unfavourable, they pose a challenge regarding thermal regime, energy control, and human comfort. These result in increased operational costs, higher carbon emissions, and dependence on artificial heating, cooling, and lighting systems. However, high-rise buildings with complicated curtain wall façade systems present relative enhancements in these aspects. Higher performance insulation, reduced U-value, and better R-value result in reduced heat gain and loss during winter and summer, respectively. Lower ACHs in high-rise building elements mean improved envelope performance, creating better indoor climate stability and lesser heating and cooling loads. Incorporating better glazing systems with lower SHGC and higher rulings of visible light improves solar control by providing better penetration of natural light, thus avoiding heavy usage of artificial lights. All of these lead to a total of 15% savings in heating energy, a 20% decrease in cooling energy required, and a 15–20% decrease in artificial lighting requirement. However, in their adaptation to physical building parameters, Energy Management Systems (EMS) are crucial in monitoring the advancements, automating adjustments and inconsistencies in performance depending on the operational settings. Maintaining these benefits throughout the life of the building requires recurrent maintenance, regular performance checks, competent facility management, and training to enhance the systems’ performance. Consequently, this analysis has synthesised implications for architects, urban planners, policymakers, and building managers, including policy-driven incentives, subsidies, and mandatory energy ratings to popularise advanced façade systems. Local authorities and governments must set higher standards, make retrofitting programs affordable, and support sustainable thinking through codified steps. The lifecycle performance analysis needs to be explored through follow-up studies, the application of communications systems like BIPV, systematic observations of occupant behaviour, and enhancing innovative material technologies for improving the effectiveness of building envelopes. Therefore, the curtain wall façade system in high-rise buildings marks a paradigm shift towards countering the world’s challenges in terms of energy efficiency, environmental conservation, and health impacts on occupants. Therefore, these systems enable a reproducible and scalable built environment model for today’s cities using advanced technologies, policies, and maintenance practices provided by innovative modern architectural design.
