“Shining a LAMP” (Loop-Mediated Isothermal Amplification) on the Molecular Detection of Phytopathogens Phytophthora spp. and Phytophthora cactorum in Strawberry Fields

by
Dominika G. Siegieda
,
Jacek Panek
and
Magdalena Frąc
*
Institute of Agrophysics, Polish Academy of Sciences, Doświadczalna 4, 20-290 Lublin, Poland
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(11), 1453; https://doi.org/10.3390/pathogens10111453
Submission received: 27 October 2021 / Revised: 7 November 2021 / Accepted: 9 November 2021 / Published: 10 November 2021
(This article belongs to the Special Issue Filamentous Fungal Pathogens)
Browse Figures
Versions Notes

Abstract

:
Phytopathogenic microorganisms belonging to the genus Phytophthora have been recognized many times as causal agents of diseases that lower the yield of many plants important for agriculture. Meanwhile, Phytophthora cactorum causes crown rot and leather rot of berry fruits, mainly strawberries. However, widely-applied culture-based methods used for the detection of pathogens are time-consuming and often inaccurate. What is more, molecular techniques require costly equipment. Here we show a rapid and effective detection method for the aforementioned targets, deploying a simple molecular biology technique, Loop-Mediated Isothermal Amplification (LAMP). We optimized assays to amplify the translation elongation factor 1-α (EF1a) gene for two targets: Phytophthora spp. And Phytophthora cactorum. We optimized the LAMP on pure strains of the pathogens, isolated from organic plantations of strawberry, and successfully validated the assay on biological material from the environment including soil samples, rhizosphere, shoots and roots of strawberry, and with SYBR Green. Our results demonstrate that a simple and reliable molecular detection method, that requires only a thermoblock and simple DNA isolation kit, can be successfully applied to detect pathogens that are difficult to separate from the field. We anticipate our findings to be a starting point for developing easier and faster modifications of the isothermal detection methods and which can be applied directly in the plantation, in particular with the use of freeze-dried reagents and chemistry, allowing observation of the results with the naked eye.

1. Introduction

The reduction in harvest during the production of fruits, caused by pathogenic microorganisms and the diseases they bring to the plantation, is a severe obstacle in agriculture. Phytophthora species have been reported as causal agents for diseases in many crops and ornamental plants in the world [1,2,3,4,5,6]. The number of species recognized inside the genus and their hosts is constantly increasing [7,8], whereas P. cactorum has been reported as a soil-borne pathogen causing dieback mainly of the strawberry (Fragaria × ananassa) by both crown rot and leather rot of fruits [9]. The disease symptoms brought by P.cactorum are often misrecognized as those caused by different fungal pathogens. What is more, the pathogen has been recognized as being able to transmit not only on machine parts used in agriculture, but also in nursery seedlings and by water [10]. Finally, the Phytophthora spp. are not host-specific and can attack many plants, causing their dieback [1]. These four facts increase the severity of the infestation of fields with these pathogenic microorganisms. To implement appropriate preventive methods in the plantations, rapid and efficient detection of phytopathogens present in the fields is crucial. Assays deploying molecular biology techniques offer reliable and immediate detection in comparison to traditional identification methods based on the morphological attributes of the pure strains [11,12,13,14].
Loop-Mediated Isothermal Amplification (LAMP) is a highly effective isothermal DNA amplification technique, developed by Notomi’s team in 2000. The assay uses thermostable polymerase with a strand-displacement activity and two to three pairs of primers to amplify specific DNA fragments [15]. LAMP is characterized by four main advantages in comparison to other molecular techniques used for the detection of pathogens. First of all, the reaction is performed at a constant temperature; it does not require an expensive thermocycler and a water bath or thermoblock is sufficient to carry out the detection. Further, for the visualization of the results with the naked eye, fluorescent dye, such as SYBR Green I or hydroxy naphthol blue (HNB), can be added to the reaction mixture. Next, LAMP is 10–100 times more sensitive than Polymerase Chain Reaction [16] and requires lower amounts of input DNA. Finally, PCR inhibitors do not prevent detection with LAMP [17]. On the other hand, the main disadvantage of the technique is the fact, that the design of primers is complex, which restricts the development and optimization of the method only to specialists [18]. Nonetheless, this assay can be performed by non-specialists with ease. The usefulness of the reaction is also given by the fact that, with the use of a simple thermoblock and a fluorescent dye, the assay is suitable for use outside a well-equipped laboratory, including detection in the field conditions [19]. Therefore, new amplification technologies are useful for the development of rapid and field-deployable approaches to genetic diagnostics [20].
Loop-Mediated Isothermal Amplification has already been deployed in the detection of important strawberry pathogens with success [21,22,23,24,25,26,27,28]. Additionally, the LAMP assay for the detection of Phytophthora spp. on many plants, such as cucumber [29], soybean [30,31], potato [32,33,34,35,36], tomato [33], taro plants [37], lettuce [38], tobacco [39] and Rhododendron trees [16], has been reported. Although there are now numerous examples of LAMP applications in agriculture [40,41], animal health [42], and human medicine [43], there is still the need to develop new assays for the detection of the pathogenic organisms, especially dedicated to specific plants such as strawberry or for native strains of microorganism. Optimising specific detection assays developed for plantations occurring in a particular geographic location is very important, because of the possible genetic variation of site- or plantation-specific strains of pathogens. It is important to remember that organic plantations are characterized by the specific composition of the microbiome and minerals present in the soil and cooccurring in plant tissues which can inhibit the reaction, so it is important to develop detection methods for a given plant and pathogen population. Moreover, approaches that are more sensitive and combine rapid amplification with specificity are becoming an important diagnostic tool, especially for biological samples from the environment (shoots, roots, fruits, rhizosphere, soil) originating from organic cultivation, where chemical agents are not used. Moreover, LAMP for the detection of Phytophthora spp. nor Phytophthora cactorum strains found in strawberry fields has not been proposed so far.
Considering the aforementioned facts, this study aimed to develop and optimize an effective Loop-Mediated Isothermal Amplification method for the detection of the Phytophthora spp. and Phytophthora cactorum pathogens, which are a threat to strawberry plantations.

2. Results

2.1. Specificity of the Developed Reaction

Optimized assays for both of the targets: Phytophthora spp. and Phytophthora cactorum gave positive results for 19 strains (G408/18, G409/18, G412/18, G413/18, G415/18, G416/18, G417/18, G418/18, G419/18, G420/18, G421/18, G429/18, G430/18, G431/18, G432/18, G437/18, G439/18, G440/18, G442/18) (Figure 1a,b). Both of the assays did not amplify non-template controls, as well as non-targeted DNA (Figure 1a,b). The time of detection-Td (minute of the reaction when the maximum of the second derivative of normalized reporter value was reached) for positive reactions for Phytophthora spp. was 13.16, SD ± 0.83, and the Tm (melting temperature) was 89.92 °C, SD ± 0.18 (n = 19). For P.cactorum, the Td was 12.43, SD ± 0.85, and the Tm was 89.77 °C, SD ± 0.17 (n = 19) (T1, Supplementary Materials). Amplification plots for both of the targets are presented in Figure 1. Positive results for all of the tested Phytophthora spp. and Phytophthora cactorum strains suggest that the developed reaction is very specific. Melting curves of Phytophthora spp. and Phytophthora cactorum assays are pictured in the Figure 2a,b, with the peak of the signal at ~90 °C in positive reactions. Melting curves of chosen negative and positive reactions in biological samples from the environment for Phytophthora spp. (Figure 2c) and Phytophthora cactorum (Figure 2d) also showed peak signal at ~90 °C in positive reactions. The melting curve of non-targeted DNA samples (Figure 2e) shows the signal of primer-dimers at peak signal at ~63 °C.

2.2. Sensitivity of the Developed LAMP Assays

Agarose gels for the detection limit of Phytophthora spp. and Phytophthora cactorum conducted on the DNA isolated from the G408/18 strain are presented in Figure 3a,b. The detection of the Phytophthora spp. target was achieved in the samples with the concentration range from 0.3 ng/µL to 3 pg/µL for both of the tested isolation methods. Phytophthora cactorum assay was more sensitive, reaching the detection of 300 fg/µL for both of the isolation methods. What is more, no amplification was observed in non-template controls. The results suggest that the detection limit for the optimized reaction is 3 pg/µL for Phytophthora spp. and 300 fg/µL for Phytophthora cactorum, regardless of the tested DNA isolation method. Probit models of the positive reaction of the detection of Phytophthora spp. (n = 38) and Phytophthora cactorum (n = 38) are shown in Figure 3c,d, respectively.

2.3. Colorimetric Validation

After the detection of Phytophthora cactorum performed on strains G415/18, G416/18, and G417/18 (each in duplicate) in the thermoblock, 1.5 µL of SYBR Green I dye was added into each reaction tube with sterile pipette tips. Reaction mixtures immediately changed color from transparent to yellow in positive samples and into orange in the negative control (Figure 4a). After the examination under the UV light, the positive samples showed bright fluorescence, whereas negative samples were very low. An attempt at visualization of the reaction products in 2% agarose gel revealed ladders in positive reactions, which confirms amplification of LAMP products (Figure 4b).

2.4. Biological Samples from the Environment

In both of the DNA samples of strain G408/18, detected with the Phytophthora spp. assay and isolated with FastDNA Spin Kit for Feces kit (MP Biomedicals) or Plant & Fungi DNA Purification Kit (EURx), the detection time of the environmental sample contaminated with the DNA of G408/18 pure strain environmental sample lengthened in comparison to pure samples of G408/18. Namely, the time of the detection in Plant & Fungi DNA Purification Kit (EURx) sample lengthened from the 17th to 30th minute and FastDNA Spin Kit for Feces kit (MP Biomedicals) from the 18th to 43rd (Figure 5a). What is more, the detection time of contaminated diluted reactions lengthened when compared to the reactions diluted in DirectQ water. Additionally, for the sample isolated with FastDNA Spin Kit for Feces kit (MP Biomedicals), Tm of contaminated diluted reaction decreased from 89.95 °C to 87.78 °C (Figure 5c). In the sample isolated with the Plant & Fungi DNA Purification Kit (EURx) kit, no change of melting temperature was noted (Figure 5b). The detection of the targets in biological samples from the environment was extended to 90 min, due to the fact, that the inhibitors from the environment that co-isolate with the DNA extend the time required for the detection.
In the detection of Phytophthora spp. in biological samples from the environment, 4 out of 348 samples derived in organic plantations of strawberries located in Eastern Poland gave positive results (1%). All of the samples with positive detection came from four different plantations, where the symptoms of the disease have not been recognized in the year of the sampling. The 478/19 bulk soil sample on Aprica plantation from the field 13 and the detection started after 65th minute, and the Tm was 90.15 °C. Sample 490/19 was also a bulk soil sample of Aprica cultivar from field 14. Detection started after the 35th minute and the Tm was 87.77 °C. The sample 48/19C was a bulk soil sample from fields 1 and 2. The detection started after the 66th minute with the Tm of 88.18 °C. Finally, positive sample 1632/20 was a fruit of Rumba cultivar, plantation 15, where the detection started after 66th minute and Tm was 90.32 °C (Table S1).
The Phytophthora cactorum assay gave positive results in 13 biological samples from the environment (4%). Sample 385K/19 was a root of an Aprica cultivar, plantation 4. The detection started from the 23rd minute, Tm was 91.09 °C; next, 449/19K for the root sample of Dipred from the plantation 10, where the previous year the symptoms of the disease caused by Verticillium spp. and Phytophthora spp. were identified. Detection time was 32 min and Tm was 90.13 °C. Sample 45/19C was bulk soil of Aprica cultivar, plantation 11. The remaining positive results were noted in the same field 15, and all of the samples were strawberry fruit samples. The time of detection ranged from 38 to 86 min and the Tm from 88.22 to 89.33 °C. (Table S1).
The peak of melting curves for the biological samples from the environment where the Phytophthora spp. gave positive results ranged from 87.77 to 90.32 °C, whereas for pure strains the range was 89.68–90.05 °C. For the Phytophthora cactorum assay performed on biological samples from the environment, the range of Tm was between 87.66 and 91.09 °C, whereas for pure samples this was within 89.5–90.05 °C.

3. Discussion and Conclusions

Rapid and efficient identification of the pathogens present in a given field is very important as it allows the implementation of proper protection methods and significantly reduces losses related to the spread of the disease caused by microorganisms. Common, traditional plate-culture-based methods, as well as the apple trap method described previously [44] and in this work (Figure 6) for the isolation of pure strains of microorganism from the environment, are characterized with many disadvantages. These methods require a long incubation time and are inconvenient for many samples tested at the same time, when it is necessary to quickly diagnose the disease and the quality of the plantation, taking into account soil, plant, and fruit. Traditional identification methods based on the observation of microstructures of pathogens do not offer sufficient certainty when it comes to valid identification, as opposed to molecular techniques [45]. On the contrary, molecular methods of identification allow detection of the contamination in the field with pathogens before the manifestation of the disease in plants. The presence or absence of a particular pathogen in the field can give a clear indication of whether to start a new plantation. What is more, the results of the molecular detection of the pathogen also give a clear answer whether undertaken agrotechnical measures aimed at the removal of pathogens were effective. However, it is worth mentioning that, in some cases, it might be worth using trap methods and then to perform LAMP detection of these phytopathogens.
For the molecular detection of the Phytophthora spp. with the Polymerase Chain Reaction (PCR), different markers were used, such as ITS1, ITS2 of ribosomal RNA [46,47,48], or cytochrome oxidase I gene (COX1) [49]. Nonetheless, the real-time PCR method was also optimized for the detection of this pathogen. ITS markers were deployed in the detection of Phytophthora spp. in strawberry plantations [50,51]. Enolase (ENOL), ras-like protein (YPT1), and HSP90 genes were also targeted for this aim [52]. Finally, Loop-Mediated Isothermal Amplification is a relatively new detection method, adopting molecular biology, and has been deployed many times in the detection of plant pathogenic fungi and oomycetes on various plants of agricultural significance [41,53,54,55,56,57]. The method has been reported as an efficient tool for the detection of strawberry pathogens, as in [23,24,25,26,27]. In 2017, Khan’s team compared the detection of Phytophthora infestans with PCR, nested PCR, real-time PCR, and LAMP with the application of primers for the YPT1 gene. The team concluded that the LAMP was the most sensitive assay out of the tested methods, being 10 times more sensitive than nested PCR and 100 times more sensitive compared to real-time PCR [58].
LAMP is characterized by several advantages, such as high sensitivity of the reaction, high specificity, and constant thermal conditions of the assay. Among them, the fact that the assay has the potential to be used in field conditions seems to be the most important in sustainable phytopathogen control. Due to the fact that the reaction does not require thermal cycling, as opposed to PCR or qPCR, the water bath or a thermoblock is sufficient to provide constant temperature in order to perform the analysis. As we tested 3 DNA isolation kits in the current study (FastDNA Spin Kit for Feces kit, MP Biomedicals, Plant & Fungi DNA Purification Kit, EURx, and PrepMan Ultra Sample Preparation Reagent—Applied Biosystems by Thermo Fisher Scientific), we proved that the LAMP is not dependent on a specific DNA isolation method. Additionally, as reported in the past, direct evaluation of the results was performed with the addition of chemistry such as calcine [59], hydroxy naphthol blue (HNB) dye [60], or SYBR Green [54,61] as in this study, allowing observation of the change in the color of the positive samples by the naked eye or in ultraviolet light (UV). What is more, lyophilized forms of LAMP reagents [62] can be taken into consideration when talking about the in-field application of the method. Those facts suggest that the assay has a wide range of adaptation possibilities for current conditions in a given laboratory and outside the laboratory. The simplicity of the method application could lead to simple field-deployable products in the future, allowing for rapid detection of plant pathogens from the biological samples from the environment, without costly equipment and highly specialized laboratory staff.
In conclusion, the LAMP assay using primer sets developed in this study successfully detected Phytophthora spp. and Phytophthora cactorum isolates acquired from organic plantations of strawberry. Moreover, the LAMP assay using developed primers and optimized conditions detected these pathogens rapidly and simply in biological samples from the environment, collected from strawberry plantations. Therefore, the results demonstrated that the LAMP assay with developed primer sets can be used for routine detection and monitoring of strawberry plantations for the presence of Phytophthora spp. and Phytophthora cactorum.

4. Materials and Methods

4.1. Obtaining Pure Cultures of Phytophthora spp.

The phytopathogenic organisms used in the development of this assay were gained from organic plantations of strawberries located in Eastern Poland. Infected plant tissues were placed on Petri dishes with Carrot Agar (CA) or Potato Dextrose Agar (PDA) media and incubated at 22 °C until cultures appeared on the plates. Then, they were further subcultured onto new CA or PDA media until pure cultures were obtained [63]. As this method was not efficient enough for some of the strains, the apple trap method was also deployed (Figure 6), as reported in guidelines of the Main Inspectorate of Plant Health and Seed Inspection in Poland [44], to increase the effectiveness of Phytophthora spp. isolation. Granny Smith green apples were washed with detergent water, rinsed with distilled water, and 70% ethanol, and, after such sterilization, fragments of strawberry roots identified visually as infected were placed in the slot in the apple fruit made with a sterile cork borer. The strawberry tissue was covered with cut-out apple tissue and then sealed with a porous adhesive tape (3M Micropore). An apple had three slots for infested roots, and negative control was also made on each trap with no diseased strawberry tissue inside. An apple trap was then placed in a plastic bag and incubated at 22 °C for 10 d [44]. Thereafter, infected apple tissues were placed on the PDA and further subcultured until pure cultures developed on the medium.

4.2. Isolation of the DNA from Pure Strains and Biological Samples from the Environment

For identification purposes as well as to determine the specificity of the reaction and the detection limit assay, the DNA of Phytophthora spp., Botrytis spp., Colletotrichum spp., and Verticillium spp. was isolated with PrepMan Ultra Sample Preparation Reagent (Applied Biosystems by Thermo Fisher Scientific, Waltham, MA, USA), following the manufacturer’s protocol. Then, the DNA samples were diluted 100 times in DirectQ water before the molecular analysis. Following, the D2 large subunit region of the fungal rDNA was amplified and sequenced as described by Pertile et al. [64] with a modified purification step, using Clean DTR (CleanNA, Qaddinxveen, Netherlands). The information regarding pure strains of Phytophthora spp., Botrytis spp., Colletotrichum spp., and Verticillium spp. used in this study is gathered in Table 1.
Isolation of the genomic DNA from pure strains of the Phytophthora sp. (G408/18) for the detection limit assays was performed with FastDNA Spin Kit for Feces kit (MP Biomedicals, Solon, OH, USA) and Plant & Fungi DNA Purification Kit (EURx, Gdańsk, Poland). Before the isolation, pure strains of the pathogen were grown at 22 °C for 10 days in 15 mL conical flasks in Potato Dextrose Broth (PDB). After the incubation, the liquid cultures were centrifuged for 15 min in 4500× g, the supernatant was discarded and cultures were washed with 5mL sterile water three times. In the meantime, for the Plant & Fungi DNA Purification Kit (EURx), homogenization tubes were prepared as described by Panek and Frąc [65]: 2 mL cork-cap tubes were filled with 0.5 g of 3.15 mm diameter and 0.25 g of 1.4 mm diameter glass beads and sterilized. Then, the mycelium was sterilely transferred into the prepared tubes and homogenized with Fast-Prep instrument (MP Biomedicals) at 4 m/s for 10 s and the DNA was isolated according to the manufacturer’s protocol. Obtained DNA was eluted with 100 µL of Tris-HCl buffer (10 mM Tris-HCl, pH 8.5) and stored at −22 °C until used.
For the DNA isolation with the FastDNA Spin Kit for Feces, washed mycelia were first placed into the 2 mL tubes with the 0.1 mm silica spheres, 1.4 mm ceramic spheres, 4 mm glass ball, 825 µL phosphate buffer, and 275 µL PLS reagent. The samples were then centrifuged for 5 min in 14,000× g and supernatant was discarded. Homogenization was conducted with FastPrep 24 instrument (20 s, 6 m/s) with the 978 µL of sodium phosphate buffer and 122 µL of MT buffer. After the centrifugation (15 min, 14,000× g), the supernatant was transferred into the new tube with 250 µL of PPS buffer, mixed, and incubated (10 min, 4 °C). After another centrifugation (2 min, 14,000× g), the supernatant was transferred into a 5 mL tube with 1 mL of Binding Matrix Solution and mixed on a rotator for 5 min. The samples were then centrifuged (2 min, 14,000× g), the supernatant was discarded and the pellet was washed with 1 mL of Wash Buffer 1 and transferred into SPIN Filter columns. The samples were then centrifuged for 1 min in 14,000× g and the filtrate was discarded twice. The second wash was performed similarly, with 500 µL of Wash Buffer 2 and 2 min centrifuge run (14,000× g). Finally, 100 µL of the Elution buffer (TES) was pipetted onto the filter and centrifuged for 2 min (14,000× g). The obtained filtrate was then 10-fold diluted in nuclease-free deionized water and stored at −22 °C until used. The quality and quantity of the genetic material isolated with both of the methods were verified by electrophoresis and with Nanodrop 2000 instrument (ThermoFisher Scientific, Waltham, MA, USA).
The DNA extraction from biological samples from the environment was conducted with the FastDNA Spin Kit for Feces kit, using 0.5 g of soil or 0.25 g of strawberry fruit tissue and according to the manufacture’s protocol with modifications described earlier. Additionally, the homogenization was lengthened to 40 s. The filtrate obtained after the elution was 10-fold diluted in nuclease-free deionized water and stored at −22 °C until performing a detection.

4.3. Primers Development and LAMP Optimization

For the LAMP assay development, the translation elongation factor 1-alpha (EF1α) gene was chosen as a genetic marker after the GenBank database [66] review. Gene was sequenced as described by Frąc et al. [67]. Then, obtained sequences of EF1α fragments of 19 Phytophthora spp. strains collected from strawberry plantations were deposited in GenBank (Table 1) and aligned in MEGA software [68] with several DNA fragments of different representatives from the genus, retrieved from the GenBank database [66]. Further, the possible LAMP primers were designed with the LAMP Designer v.1.13 software (OptiGene Limited, Horsham, UK) and validated in silico with BLAST [69]. All of the oligonucleotides were synthesized in Genomed S.A. (Warsaw, Poland). The Psp_Ef1a_F3 and Psp_Ef1a_B3 primers were used as outer primer pairs for both targets—Phytophthora spp. and Phytophthora cactorum (Patent applications P.437111 and P.437110, respectively). The information regarding sequences of the primers is gathered in Table 2 and the location of the primers in the contig of EF1α gene fragment is presented in Figure 7.
LAMP assays for the method optimization were performed in the 7500 Fast thermocyclers (Applied Biosystems, Foster City, CA, USA) and the total reaction volume was 10 µL. The mixture consisted of 6 µL of Isothermal MasterMix (ISO-001, OptiGene, Horsham, UK), 3 µL of primer mix (Table 2), and 1 µL of the DNA sample. The Isothermal MasterMix consisted of fluorescent dye detected by the FAM channel and an isothermal GspSSD polymerase with strand-displacement activity [24]. The reactions were conducted at 65 °C for 40 min with the reading of the fluorescent signal after every minute. After every reaction, the melting curve analysis was performed (65 °C to 95 °C, ∆0.016 °C/s).
To determine the specificity of the reaction, both primer sets were tested on 19 Phytophthora spp. strains (G408/18, G409/18, G412/18, G413/18, G415/18, G416/18, G417/18, G418/18, G419/18, G420/18, G421/18, G429/18, G430/18, G431/18, G432/18, G437/18, G439/18, G440/18 and G442/18) isolated from organic plantations of strawberry and deposited in the Laboratory of Molecular and Environmental Microbiology (LMEM) collection (Table 1). Additionally, the reaction was carried out with the mix of the non-targeted DNA isolated from five strains of Botrytis spp. (G276/18, G277/18, G321/18, G322/18 and GG323/18), five strains of Colletotrichum spp. (G168/18, G170/18, G171/18, G172/18 and G274/18), and five strains of Verticillium spp. (G294/18, G296/18, G297/18, G298, and G299/18). Each of the representatives of non-targeted species was combined in an equal amount into one Eppendorf tube, then 1 µL of the non-targeted DNA mixture was added into reaction and run in identical conditions as targeted samples in biological triplicates.

4.4. Detection Limit

To establish the detection limit for the optimized reactions, serial 10-fold dilutions of the DNA isolated with three different isolation kits were prepared. Pure strain G408/18 isolated with FastDNA Spin Kit for Feces kit and Plant & Fungi DNA Purification Kit DNA concentrations of 300 pg/µL, 30 pg/µL, 3 pg/µL, 300 fg/µL, 30 fg/µL, and 3 fg/µL were added into the reaction mixtures for Phytophthora spp. and Phytophthora cactorum assays and fluorescent signal was measured during reactions. Additionally, electrophoresis in the agarose gel (2%, 6 V/cm, 40 min) with Color Load (10 x, EURx, Gdańsk, Poland) and the Marker I (A&A Biotechnology, Gdynia, Poland) was conducted for the initial check of results (Figure 4). Further, serial 10-fold dilutions of the G415/18, G416/18, and G417/18 strains isolated with PrepMan Ultra were made with sterilized DirectQ water. Starting concentration of the DNA dilutions was 20 pg/µL and the lowest 20 fg/µL. Probit model of the positive result of the detection of Phytophthora spp. and Phytophthora cactorum was calculated using RStudio v.1.4.1103 with 43 observations for each assay.

4.5. Colorimetric Approach

To ensure the usefulness of the developed method for the detection of Phytophthora spp. and Phytophthora cactorum pathogens outside well-equipped conditions, reaction with undiluted strains G415/18, G416/18, and G417/18 was carried out in the thermo-block (ThermoStat Plus, Eppendorf AG, Hamburg, Germany) at 65 °C for 30 min. To improve the visualization of the results with the naked eye, the reaction was conducted in 20 µL and 1.5 µL of 10 times diluted SYBR Green I (ThermoFisher Scientific, Waltham, MA, USA) was added after the reaction, as the dye inhibits the reaction. Reaction results were also visualized on an agarose gel (2%, 6 V/cm, 40 min) and in UV light (Figure 4).

4.6. Validation of the Assay in Biological Samples from the Environment

As it is known, contaminants derived from biological samples from the environment may co-isolate during the DNA extraction. The reaction verifying how the contaminants of the DNA samples isolated from the environment may affect the effectiveness of the reaction was performed. For this purpose, two samples of the DNA, isolated with MP Biomedicals kit and EURx Plant and Fungi isolation kit from a pure sample of G408/18 were added into the environmental sample (recognized as not contaminated with Phytophthora spp. beforehand) in 1:9 proportion. Additionally, pure samples of the G408/18 were as well diluted 10-fold in sterile water. Then, the detection of Phytophthora spp. was performed on four types of samples: pure strain isolated with EURx, a pure strain isolated with MP, environmental sample contaminated with the G408/18 isolated with EURx, and environmental sample contaminated with the G408/18 isolated with MP. The results obtained during this step were then employed to decide if it is reasonable to increase the length of the environmental assay due to loss of the reaction sensitivity.
For validation of the usefulness of the developed detection method and its potential applicability, the assay was performed on 348 various biological samples from the environment derived from organic plantations of strawberries in July 2019 and 2020. The samples collected in 2019 were divided into categories, according to the plantation (14 different plantations), cultivars of strawberry: (Honey, Aprica, and Dipred), and type of the collected sample (rhizosphere, bulk soil, strawberry roots, and shoots). Samples collected in 2020 were all samples of strawberry fruits. The information regarding collected biological samples from the environment and positive results are gathered in Table S2.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pathogens10111453/s1, Table S1: The time of detection-Td (minute of the reaction when the maximum of 2nd derivative of normalized reporter value was reached), and Tm (melting temperature) for positive reactions for Phytophthora spp. and Phytophthora cactorum; Table S2: Results of the detection of Phytophthora spp. and Phytophthora cactorum in environmental samples of organic strawberry fields. samples collected in 2019 and 2020.

Author Contributions

Conceptualization, M.F., J.P. and D.G.S.; methodology, J.P., D.G.S. and M.F.; software, J.P. and D.G.S.; formal analysis, D.G.S. and J.P.; investigation, D.G.S. and J.P.; resources, M.F.; writing—original draft preparation, D.G.S.; writing—review and editing, J.P. and M.F.; visualization, D.G.S.; supervision, M.F.; project administration, M.F.; funding acquisition, M.F. All authors have read and agreed to the published version of the manuscript.

Funding

This paper was financed by The National Centre for Research and Development in frame of the project BIOSTRATEG, contract number BIOSTRATEG3/344433/16/NCBR/2018.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meszka, B.; Michalecka, M. Identification of Phytophthora spp. isolated from plants and soil samples on strawberry plantations in Poland. J. Plant Dis. Prot. 2016, 123, 29–36. [Google Scholar] [CrossRef] [Green Version]
  2. Wilcox, W.F.; Scott, P.H.; Hamm, P.B.; Kennedy, D.M.; Duncan, J.M.; Brasier, C.M.; Hansen, E.M. Identity of a Phytophthora species attacking raspberry in Europe and North America. Mycol. Res. 1993, 97, 817–831. [Google Scholar] [CrossRef]
  3. Weiland, J.E.; Benedict, C.; Zasada, I.A.; Scagel, C.R.; Beck, B.R.; Davis, A.; Graham, K.; Peetz, A.; Martin, R.R.; Dung, J.K.S.; et al. Late-summer disease symptoms in western washington red raspberry fields associated with co-occurrence of Phytophthora rubi, Verticillium dahliae and Pratylenchus penetrans, but not raspberry bushy dwarf virus. Plant Dis. 2018, 102, 938–947. [Google Scholar] [CrossRef] [Green Version]
  4. Gigot, J.; Walters, T.W.; Zasada, I.A. Impact and Occurrence of Phytophthora rubi and Pratylenchus penetrans in commercial red raspberry (Rubus ideaus) fields in Northwestern Washington. Int. J. Fruit Sci. 2013, 13, 357–372. [Google Scholar] [CrossRef]
  5. Polashock, J.J.; Caruso, F.L.; Oudemans, P.V.; McManus, P.S.; Crouch, J.A. The North American cranberry fruit rot fungal community: A systematic overview using morphological and phylogenetic affinities. Plant Pathol. 2009, 58, 1116–1127. [Google Scholar] [CrossRef]
  6. Tan, J.; Li, Q.; Chen, L.; Zhang, Y.; Zhang, Y.; Zhou, L. Study on the migration of Phytophthora nicotianae zoospores in the soil. Int. J. Agric. Biol. 2018, 20, 397–403. [Google Scholar] [CrossRef]
  7. Kroon, L.P.N.M.; Brouwer, H.; de Cock, A.W.A.M.; Govers, F. The genus Phytophthora anno 2012. Phytopathology 2012, 102, 348–364. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Martin, F.N.; Abad, Z.G.; Balci, Y.; Ivors, K. Identification and detection of Phytophthora: Reviewing our progress, identifying our needs. Plant Dis. 2012, 96, 1080–1103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Maas, J.L. Compendium of Strawberry Diseases, 2nd ed.; American Phytopathological Society (APS Press): St. Paul, MN, USA, 1998; ISBN 0890541949. [Google Scholar]
  10. Orlikowski, L.B.; Trzewik, A.; Ptaszek, M.; Orlikowska, T. Relationship between source of water, occurrence, and pathogenicity of Phytophthora plurivora. Acta Mycol. 2013, 47, 3–9. [Google Scholar] [CrossRef] [Green Version]
  11. Narayanasamy, P. Detection of fungal pathogens in plants. In Microbial Plant Pathogens—Detection and Disease Diagnosis: Fungal Pathogens; Springer: Berlin/Heidelberg, Germany, 2011; Volume 1, pp. 5–199. ISBN 9789048197682. [Google Scholar]
  12. Frąc, M.; Jezierska-Tys, S.; Yaguchi, T. Occurrence, detection, and molecular and metabolic characterization of heat-resistant fungi in soils and plants and their risk to human health. Adv. Agron. 2015, 132, 161–204. [Google Scholar]
  13. Larkin, R.P.; Ristaino, J.B.; Campbell, L.C. Detection and quantification of Phytophthora capsici in soil. Am. Phytopathol. Soc. 1995, 85, 1057–1063. [Google Scholar] [CrossRef]
  14. Capote, N.; Pastrana, M.A.; Aguado, A.; Sanchez-Torres, P. Molecular tools for detection of plant pathogenic fungi and fungicide resistance. Plant Pathol. 2012, 151–202. [Google Scholar] [CrossRef] [Green Version]
  15. Notomi, T.; Okayama, H.; Masubuchi, H.; Yonekawa, T.; Watanabe, K.; Amino, N.; Hase, T. Loop mediated isothermal amplification of DNA. Nucleic Acids Res. 2000, 28, e63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Tomlinson, J.A.; Dickinson, M.J.; Boonham, N. Rapid detection of Phytophthora ramorum and P. kernoviae by two-minute DNA extraction followed by isothermal amplification and amplicon detection by generic lateral flow device. Phytopathology 2010, 100, 143–149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kaneko, H.; Kawana, T.; Fukushima, E.; Suzutani, T. Tolerance of loop-mediated isothermal amplification to a culture medium and biological substances. J. Biochem. Biophys. Methods 2007, 70, 499–501. [Google Scholar] [CrossRef]
  18. Le, D.T.; Vu, N.T. Progress of loop-mediated isothermal amplification technique in molecular diagnosis of plant diseases. Appl. Biol. Chem. 2017, 60, 169–180. [Google Scholar] [CrossRef]
  19. Wilisiani, F.; Tomiyama, A.; Katoh, H.; Hartono, S.; Neriya, Y.; Nishigawa, H.; Natsuaki, T. Development of a LAMP assay with a portable device for real-time detection of begomoviruses under field conditions. J. Virol. Methods 2019, 265, 71–76. [Google Scholar] [CrossRef]
  20. Miles, T.D.; Martin, F.N.; Coffey, M.D. Development of rapid isothermal amplification assays for detection of phytophthora spp. In Plant Tissue. Phytopathology 2015, 105, 265–278. [Google Scholar] [CrossRef] [Green Version]
  21. Frisch, L.M.; Mann, M.A.; Marek, D.N.; Niessen, L. Development and optimization of a loop-mediated isothermal amplification (LAMP) assay for the species-specific detection of Penicillium expansum. Food Microbiol. 2021, 95, 103681. [Google Scholar] [CrossRef]
  22. Wang, H.; Turechek, W.W. A loop-mediated isothermal amplification assay and sample preparation procedure for sensitive detection of Xanthomonas fragariae in strawberry. PLoS ONE 2016, 11, 1–21. [Google Scholar] [CrossRef]
  23. Karimi, K.; Arzanlou, M.; Pertot, I. Development of novel species-specific primers for the specific identification of Colletotrichum nymphaeae based on conventional PCR and LAMP techniques. Eur. J. Plant Pathol. 2019, 463–475. [Google Scholar] [CrossRef]
  24. Panek, J.; Frąc, M. Loop-mediated isothermal amplification (LAMP) approach for detection of heat-resistant Talaromyces flavus species. Sci. Rep. 2019, 1–8. [Google Scholar] [CrossRef]
  25. Wu, J.Y.; Hu, X.R.; Zhang, C.Q. Molecular detection of QoI resistance in colletotrichum gloeosporioides causing strawberry anthracnose based on loop-mediated isothermal amplification assay. Plant Dis. 2019, 103, 1319–1325. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, X.; Harrington, T.C.; Batzer, J.C.; Kubota, R.; Peres, N.A.; Gleason, M.L. Detection of Colletotrichum acutatum sensu lato on strawberry by Loop-Mediated Isothermal Amplification. Plant Dis. 2016, 100, 1804–1812. [Google Scholar] [CrossRef] [Green Version]
  27. Katoh, H.; Fukuda, T.; Nishigawa, H.; Natsuaki, T. Rapid detection of Colletotrichum gloeosporioides in infected strawberry plants using loop-mediated isothermal amplification. J. Gen. Plant Pathol. 2016, 82, 190–198. [Google Scholar] [CrossRef]
  28. Duan, Y.B.; Ge, C.Y.; Zhang, X.K.; Wang, J.X.; Zhou, M.G. Development and evaluation of a novel and rapid detection assay for Botrytis cinerea based on loop-mediated isothermal amplification. PLoS ONE 2014, 9, e111094. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, Q.; Li, B.; Liu, P.; Lan, C.; Zhan, Z.; Weng, Q. Development and evaluation of specific PCR and LAMP assays for the rapid detection of Phytophthora melonis. Eur. J. Plant Pathol. 2013, 137, 597–607. [Google Scholar] [CrossRef]
  30. Dai, T.T.; Lu, C.C.; Lu, J.; Dong, S.M. Development of a loop-mediated isothermal amplification assay for detection of Phytophthora sojae. FEMS Microbiol. Lett. 2012, 334, 27–34. [Google Scholar] [CrossRef] [Green Version]
  31. Zhao, W.; Wang, T.; Qi, R. Ypt1 gene-based detection of Phytophthora sojae in a loop-mediated isothermal amplification assay. J. Plant Dis. Prot. 2015, 122, 66–73. [Google Scholar] [CrossRef]
  32. Kong, L.; Wang, H.; Wang, S.; Xu, P.; Zhang, R.; Dong, S.; Zheng, X. Rapid detection of potato late blight using a loop-mediated isothermal amplification assay. J. Integr. Agric. 2020, 19, 1274–1282. [Google Scholar] [CrossRef]
  33. Ristaino, J.B.; Saville, A.C.; Paul, R.; Cooper, D.C.; Wei, Q. Detection of Phytophthora infestans by Loop-Mediated Isothermal Amplification, Real-Time LAMP, and Droplet Digital PCR. Plant Dis. 2020, 104, 708–716. [Google Scholar] [CrossRef]
  34. Verma, G.; Sharma, S.; Raigond, B.; Pathania, S.; Naga, K.; Chakrabarti, S.K. Development and application of fluorescent loop mediated isothermal amplification technique to detect Phytophthora infestans from potato tubers targeting ITS-1 region. 3 Biotech 2019, 9, 1–14. [Google Scholar] [CrossRef] [PubMed]
  35. Lees, A.K.; Roberts, D.M.; Lynott, J.; Sullivan, L.; Brierley, J.L. Real-Time PCR and LAMP Assays for the Detection of Spores of Alternaria solani and Sporangia of Phytophthora infestans to Inform Disease Risk Forecasting. Plant Dis. 2019, 103, 3172–3180. [Google Scholar] [CrossRef] [PubMed]
  36. Si Ammour, M.; Bilodeau, G.J.; Tremblay, D.M.; van der Heyden, H.; Yaseen, T.; Varvaro, L.; Carisse, O. Development of real-time isothermal amplification assays for on-site detection of Phytophthora infestans in potato leaves. Plant Dis. 2017, 101, 1269–1277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Feng, W.; Otsubo, K.; Hieno, A.; Suga, H.; Kageyama, K. A simple loop-mediated isothermal amplification assay to detect Phytophthora colocasiae in infected taro plants. J. Gen. Plant Pathol. 2019, 85, 337–346. [Google Scholar] [CrossRef]
  38. Feng, W.; Hieno, A.; Kusunoki, M.; Suga, H.; Kageyama, K. LAMP detection of four plant-pathogenic oomycetes and its application in lettuce fields. Plant Dis. 2019, 103, 298–307. [Google Scholar] [CrossRef] [Green Version]
  39. Li, B.; Liu, P.; Xie, S.; Yin, R.; Weng, Q.; Chen, Q. Specific and sensitive detection of phytophthora nicotianae by nested PCR and loop-mediated isothermal amplification assays. J. Phytopathol. 2015, 163, 185–193. [Google Scholar] [CrossRef]
  40. Zhang, S.Y.; Dai, D.J.; Wang, H.D.; Zhang, C.Q. One-step loop-mediated isothermal amplification (LAMP) for the rapid and sensitive detection of Fusarium fujikuroi in bakanae disease through NRPS31, an important gene in the gibberellic acid bio-synthesis. Sci. Rep. 2019, 9, 1–9. [Google Scholar] [CrossRef] [Green Version]
  41. Winkworth, R.C.; Nelson, B.C.W.; Bellgard, S.E.; Probst, C.M.; McLenachan, P.A.; Lockhart, P.J. A LAMP at the end of the tunnel: A rapid, field deployable assay for the kauri dieback pathogen, Phytophthora agathidicida. PLoS ONE 2020, 15, 1–16. [Google Scholar]
  42. Tumino, S.; Tolone, M.; Parco, A.; Puleio, R.; Arcoleo, G.; Manno, C.; Nicholas, R.A.J.; Loria, G.R. Validation of Loop-Mediated Isothermal Amplification (LAMP) Field Tool for Rapid and Sensitive Diagnosis of Contagious Agalactia in Small Ruminants. Animals 2020, 10, 509. [Google Scholar] [CrossRef] [Green Version]
  43. García-Bernalt Diego, J.; Fernández-Soto, P.; Crego-Vicente, B.; Alonso-Castrillejo, S.; Febrer-Sendra, B.; Gómez-Sánchez, A.; Vicente, B.; López-Abán, J.; Muro, A. Progress in loop-mediated isothermal amplification assay for detection of Schistosoma mansoni DNA: Towards a ready-to-use test. Sci. Rep. 2019, 9, 1–11. [Google Scholar]
  44. Szkuta, G. Część II—izolacja i identyfikacja. In Phytophthora Cactorum—Sprawca Zgnilizny Korony Truskawki; Państwowa Inspekcja Ochorny Roślin i Nasiennictwa Główny Inspektorat: Warszawa, Poland, 2005; pp. 1–10. [Google Scholar]
  45. Arbefeville, S.; Harris, A.; Ferrieri, P. Comparison of sequencing the D2 region of the large subunit ribosomal RNA gene (MicroSEQ®) versus the internal transcribed spacer (ITS) regions using two public databases for identification of common and uncommon clinically relevant fungal species. J. Microbiol. Methods 2017, 140, 40–46. [Google Scholar] [CrossRef]
  46. Cooke, D.E.L.; Duncan, J.M. Phylogenetic analysis of Phytophthora species based on ITS1 and ITS2 sequences of the ribosomal RNA gene repeat. Mycol. Res. 1997, 101, 667–677. [Google Scholar] [CrossRef]
  47. Polashock, J.J.; Vaiciunas, J.; Oudemans, P.V. Identification of a new Phytophthora species causing root and runner rot of cranberry in New Jersey. Phytopathology 2005, 95, 1237–1243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Bienapfl, J.C.; Balci, Y. Movement of Phytophthora spp. in Maryland’s Nursery Trade. Plant Dis. 2014, 98, 134–144. [Google Scholar] [CrossRef] [Green Version]
  49. Cooke, D.E.L.; Drenth, A.; Duncan, J.M.; Wagels, G.; Brasier, C.M. A molecular phylogeny of Phytophthora and related oomycetes. Fungal Genet. Biol. 2000, 30, 17–32. [Google Scholar] [CrossRef]
  50. Ozyilmaz, U.; Benlioglu, K.; Yildiz, A.; Benlioglu, H.S. Effects of soil amendments combined with solarization on the soil microbial community in strawberry cultivation using quantitative real-time PCR. Phytoparasitica 2016, 44, 661–680. [Google Scholar] [CrossRef]
  51. Pastrana, A.M.; Basallote-Ureba, M.J.; Aguado, A.; Capote, N. Potential inoculum sources and incidence of strawberry soilborne pathogens in Spain. Plant Dis. 2017, 101, 751–760. [Google Scholar] [CrossRef]
  52. Liao, F.; Zhang, Y.; Zhu, L.-H.; Cao, B.; Lv, D.; Luo, J.-F.; Li, G.-R. Triplex real-time PCR detection of three quarantine Phytophthora pathogens infecting Malus Miller. J. Plant Dis. Prot. 2018, 125, 325–330. [Google Scholar] [CrossRef]
  53. Lan, C.; Yao, J.; Yang, X.; Ruan, H.; Yu, D.; Jiang, J. Specific and sensitive detection of the guava fruit anthracnose pathogen (Colletotrichum gloeosporioides) by loop-mediated isothermal amplification (LAMP) assay. Can. J. Microbiol. 2020, 66, 17–24. [Google Scholar] [CrossRef]
  54. Li, G.R.; Huang, G.M.; Zhu, L.H.; Lv, D.; Cao, B.; Liao, F.; Luo, J.F. Loop-mediated isothermal amplification (LAMP) detection of Phytophthora hibernalis, P. syringae and P. cambivora. J. Plant Pathol. 2019, 101, 51–57. [Google Scholar] [CrossRef]
  55. Moradi, A.; Almasi, M.A.; Jafary, H.; Mercado-Blanco, J. A novel and rapid loop-mediated isothermal amplification assay for the specific detection of Verticillium dahliae. J. Appl. Microbiol. 2014, 116, 942–954. [Google Scholar] [CrossRef]
  56. Duan, Y.B.; Yang, Y.; Li, M.X.; Li, T.; Fraaije, B.A.; Zhou, M.G. Development and application of a simple, rapid and sensitive method for detecting moderately carbendazim-resistant isolates in Botrytis cinerea. Ann. Appl. Biol. 2018, 172, 355–365. [Google Scholar] [CrossRef]
  57. Aslam, S.; Tahir, A.; Aslam, M.F.; Alam, M.W.; Shedayi, A.A.; Sadia, S. Recent advances in molecular techniques for the identification of phytopathogenic fungi—A mini review. J. Plant Interact. 2017, 12, 493–504. [Google Scholar] [CrossRef] [Green Version]
  58. Khan, M.; Li, B.; Jiang, Y.; Weng, Q.; Chen, Q. Evaluation of different PCR-based assays and LAMP method for rapid detection of Phytophthora infestans by targeting the Ypt1 gene. Front. Microbiol. 2017, 8, 1–11. [Google Scholar] [CrossRef]
  59. Zhou, D.; Guo, J.; Xu, L.; Gao, S.; Lin, Q.; Wu, Q.; Wu, L.; Que, Y. Establishment and application of a loop-mediated isothermal amplification (LAMP) system for detection of cry1Ac transgenic sugarcane. Sci. Rep. 2014, 4, 1–8. [Google Scholar] [CrossRef] [PubMed]
  60. Chen, H.-W.; Weissenberger, G.; Atkins, E.; Chao, C.-C.; Suputtamongkol, Y.; Ching, W.-M. Highly Sensitive Loop-Mediated Isothermal Amplification for the Detection of Leptospira. Int. J. Bacteriol. 2015, 2015, 1–6. [Google Scholar] [CrossRef] [Green Version]
  61. Tian, Q.; Lu, C.; Wang, S.; Xiong, Q.; Zhang, H.; Wang, Y.; Zheng, X. Rapid diagnosis of soybean anthracnose caused by Colletotrichum truncatum using a loop-mediated isothermal amplification (LAMP) assay. Eur. J. Plant Pathol. 2017, 148, 785–793. [Google Scholar] [CrossRef]
  62. Chen, H.W.; Weissenberger, G.; Ching, W.M. Development of lyophilized loop-mediated isothermal amplification reagents for the detection of Leptospira. Mil. Med. 2016, 181, 227–231. [Google Scholar] [CrossRef] [Green Version]
  63. Malarczyk, D.G.; Panek, J.; Frąc, M. Triplex Real-Time PCR Approach for the Detection of Crucial Fungal Berry Pathogens—Botrytis spp., Colletotrichum spp. and Verticillium spp. Int. J. Mol. Sci. 2020, 21, 8469. [Google Scholar] [CrossRef]
  64. Pertile, G.; Panek, J.; Oszust, K.; Siczek, A.; Frąc, M. Intraspecific functional and genetic diversity of Petriella setifera. PeerJ 2018, 6, e4420. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Panek, J.; Frąc, M. Development of a qPCR assay for the detection of heat-resistant Talaromyces flavus. Int. J. Food Microbiol. 2018, 270, 44–51. [Google Scholar] [CrossRef] [PubMed]
  66. Benson, D.A.; Cavanaugh, M.; Clark, K.; Karsch-Mizrachi, I.; Lipman, D.J.; Ostell, J.; Sayers, E.W. GenBank. Nucleic Acids Res. 2013, 41, 36–42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Frac, M.; Oszust, K.; Lipiec, J.; Jezierska-Tys, S.; Nwaichi, E.O. Soil microbial functional and fungal diversity as influenced by municipal sewage sludge accumulation. Int. J. Environ. Res. Public Health 2014, 11, 8891–8908. [Google Scholar] [CrossRef]
  68. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar]
  69. Altshul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
Pathogens 10 01453 g001 550

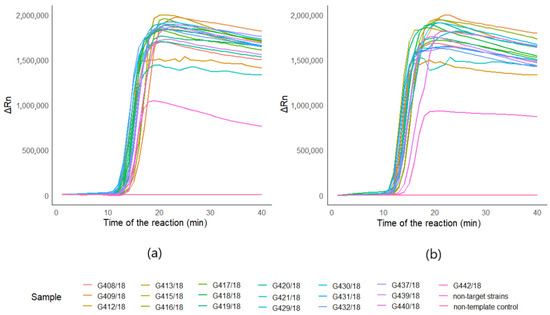

Figure 1. Amplification plots of LAMP detection. Amplification plots of 19 Phytophthora spp. (G408/18, G409/18, G412/18, G413/18, G415/18, G416/18, G417/18, G418/18, G419/18, G420/18, G421/18, G429/18, G430/18, G431/18, G432/18, G437/18, G439/18, G440/18, G442/18) pure strains and non-targeted DNA mixtures of Botrytis spp. (G276/18, G277/18, G321/18, G322/18, GG323/18), Colletotrichum spp. (G168/18, G170/18, G171/18, G172/18, G274/18 and Verticillium spp. (G294/18, G296/18, G297/18, G298, G299/18), deposited in the collection of LMEM; (a) amplification plots of the reaction for Phytophthora cactorum assay; (b) amplification plots of the reaction for Phytophthora spp. target.
Figure 1. Amplification plots of LAMP detection. Amplification plots of 19 Phytophthora spp. (G408/18, G409/18, G412/18, G413/18, G415/18, G416/18, G417/18, G418/18, G419/18, G420/18, G421/18, G429/18, G430/18, G431/18, G432/18, G437/18, G439/18, G440/18, G442/18) pure strains and non-targeted DNA mixtures of Botrytis spp. (G276/18, G277/18, G321/18, G322/18, GG323/18), Colletotrichum spp. (G168/18, G170/18, G171/18, G172/18, G274/18 and Verticillium spp. (G294/18, G296/18, G297/18, G298, G299/18), deposited in the collection of LMEM; (a) amplification plots of the reaction for Phytophthora cactorum assay; (b) amplification plots of the reaction for Phytophthora spp. target.
Pathogens 10 01453 g001
Pathogens 10 01453 g002 550

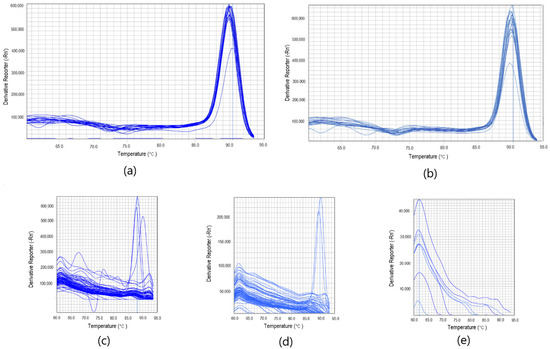

Figure 2. Melting curves of Phytophthora spp. (a) and Phytophthora cactorum (b) assays. Additionally, melting curves of chosen negative and positive reactions in biological samples from the environment for Phytophthora spp. (c) and Phytophthora cactorum (d) at peak signal at ~90 °C. The melting curve of non-targeted DNA samples including Colletotrichum spp., Botrytis spp. and Verticillium spp. (e) show the signal of the detection of primer-dimers at peak signal at ~63 °C.
Figure 2. Melting curves of Phytophthora spp. (a) and Phytophthora cactorum (b) assays. Additionally, melting curves of chosen negative and positive reactions in biological samples from the environment for Phytophthora spp. (c) and Phytophthora cactorum (d) at peak signal at ~90 °C. The melting curve of non-targeted DNA samples including Colletotrichum spp., Botrytis spp. and Verticillium spp. (e) show the signal of the detection of primer-dimers at peak signal at ~63 °C.
Pathogens 10 01453 g002
Pathogens 10 01453 g003 550

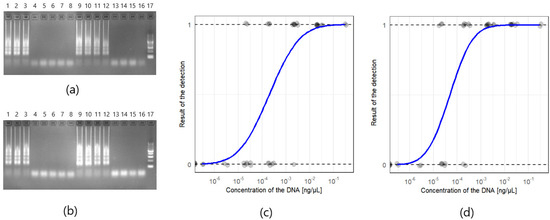

Figure 3. The detection limit of the LAMP detection method for Phytophthora spp. and Phytophthora cactorum: (a) Agarose gel of the detection limit of FastDNA Spin Kit for Feces kit (MP Biosystems) isolation method, for both targets Phytophthora spp. (wells 1–8) and Phytophthora cactorum (wells 9–16) of G408/18 strain. Order of the dilutions in each combination: 300 pg/µL (1 and 9), 30 pg/µL (2 and 10), 3 pg/µL (3 and 11), 300 fg/µL (4 and 12), 30 fg/µL (5 and 13) and 3 fg/µL (6 and 14), 300 ag/µL (7 and 15), NTC (non-template control, 8 and 16); (b) Agarose gel of the Plant & Fungi DNA Purification Kit (EURx) isolation method. Well 17 in (a) and (b) New England BioLabs 50 bp DNA Ladder. Characteristic for LAMP ladder-like patterns are visible on the lanes with positive reactions (1, 2, 3, 9, 10, 11, and 12); (c) Probit model of probability of the positive detection of Phytophthora spp. (n = 38) depending on the concentration of the DNA (isolation of the DNA was performed with the PrepMan Ultra and FastDNA Spin Kit for Feces kit and Plant & Fungi DNA Purification Kit); (d) Probit model for Phytophthora cactorum assay (n = 38).
Figure 3. The detection limit of the LAMP detection method for Phytophthora spp. and Phytophthora cactorum: (a) Agarose gel of the detection limit of FastDNA Spin Kit for Feces kit (MP Biosystems) isolation method, for both targets Phytophthora spp. (wells 1–8) and Phytophthora cactorum (wells 9–16) of G408/18 strain. Order of the dilutions in each combination: 300 pg/µL (1 and 9), 30 pg/µL (2 and 10), 3 pg/µL (3 and 11), 300 fg/µL (4 and 12), 30 fg/µL (5 and 13) and 3 fg/µL (6 and 14), 300 ag/µL (7 and 15), NTC (non-template control, 8 and 16); (b) Agarose gel of the Plant & Fungi DNA Purification Kit (EURx) isolation method. Well 17 in (a) and (b) New England BioLabs 50 bp DNA Ladder. Characteristic for LAMP ladder-like patterns are visible on the lanes with positive reactions (1, 2, 3, 9, 10, 11, and 12); (c) Probit model of probability of the positive detection of Phytophthora spp. (n = 38) depending on the concentration of the DNA (isolation of the DNA was performed with the PrepMan Ultra and FastDNA Spin Kit for Feces kit and Plant & Fungi DNA Purification Kit); (d) Probit model for Phytophthora cactorum assay (n = 38).
Pathogens 10 01453 g003
Pathogens 10 01453 g004 550

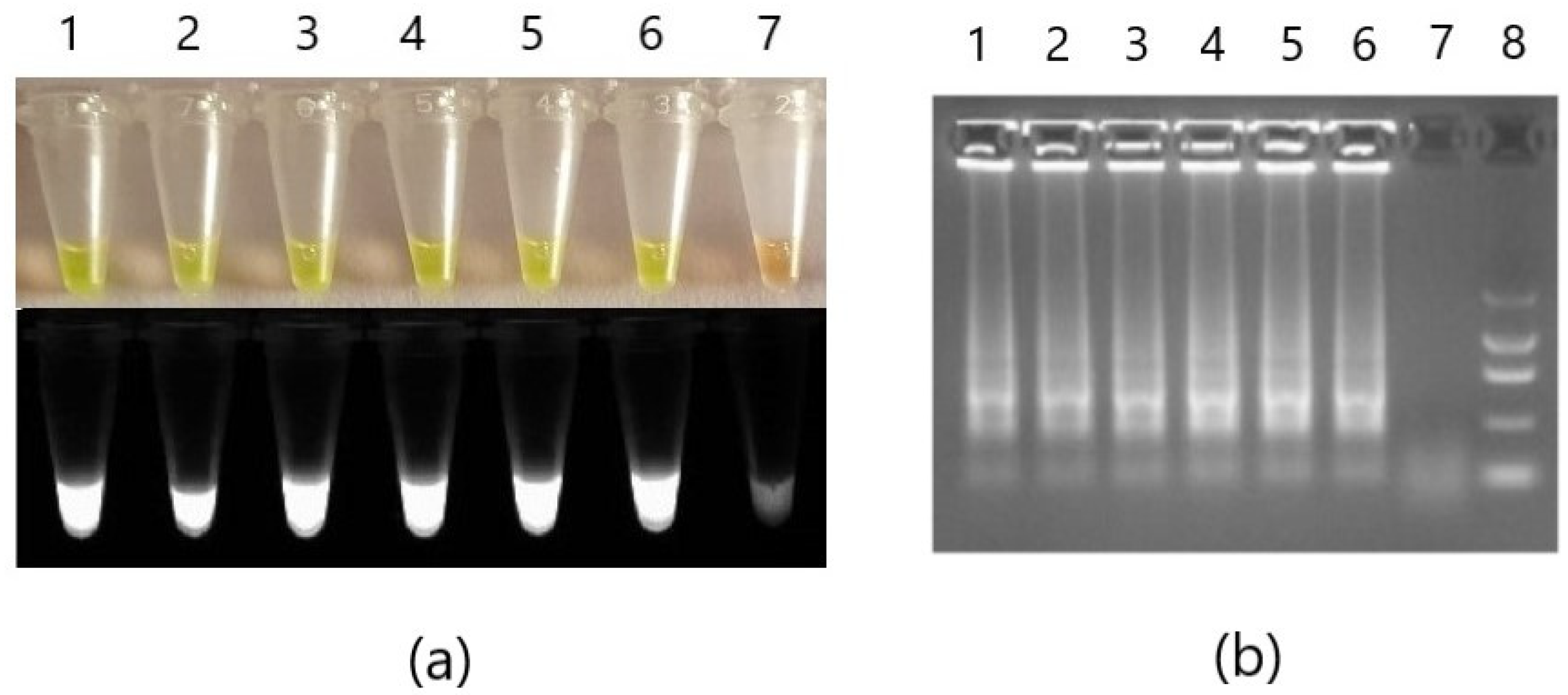

Figure 4. Colorimetric validation of the developed detection methods. LAMP detection for Phytophthora cactorum of strains G415/18 (1 and 4), G416/18 (2 and 5), and G417/18 (3 and 6) conducted in thermo-block in 65 °C for 30 min. After the reaction, SYBR Green I (1:9) dye was added to the mixtures for visualization of the results in visible light and UV (a). Samples were then electrophoresed in 2% agarose gel (b). Positive reactions samples 1-6; non-template control sample 7. Additionally, in (b), the A&A Marker I was added in well 8.
Figure 4. Colorimetric validation of the developed detection methods. LAMP detection for Phytophthora cactorum of strains G415/18 (1 and 4), G416/18 (2 and 5), and G417/18 (3 and 6) conducted in thermo-block in 65 °C for 30 min. After the reaction, SYBR Green I (1:9) dye was added to the mixtures for visualization of the results in visible light and UV (a). Samples were then electrophoresed in 2% agarose gel (b). Positive reactions samples 1-6; non-template control sample 7. Additionally, in (b), the A&A Marker I was added in well 8.
Pathogens 10 01453 g004
Pathogens 10 01453 g005 550

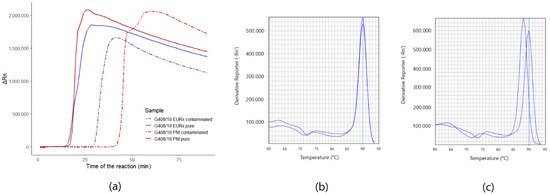

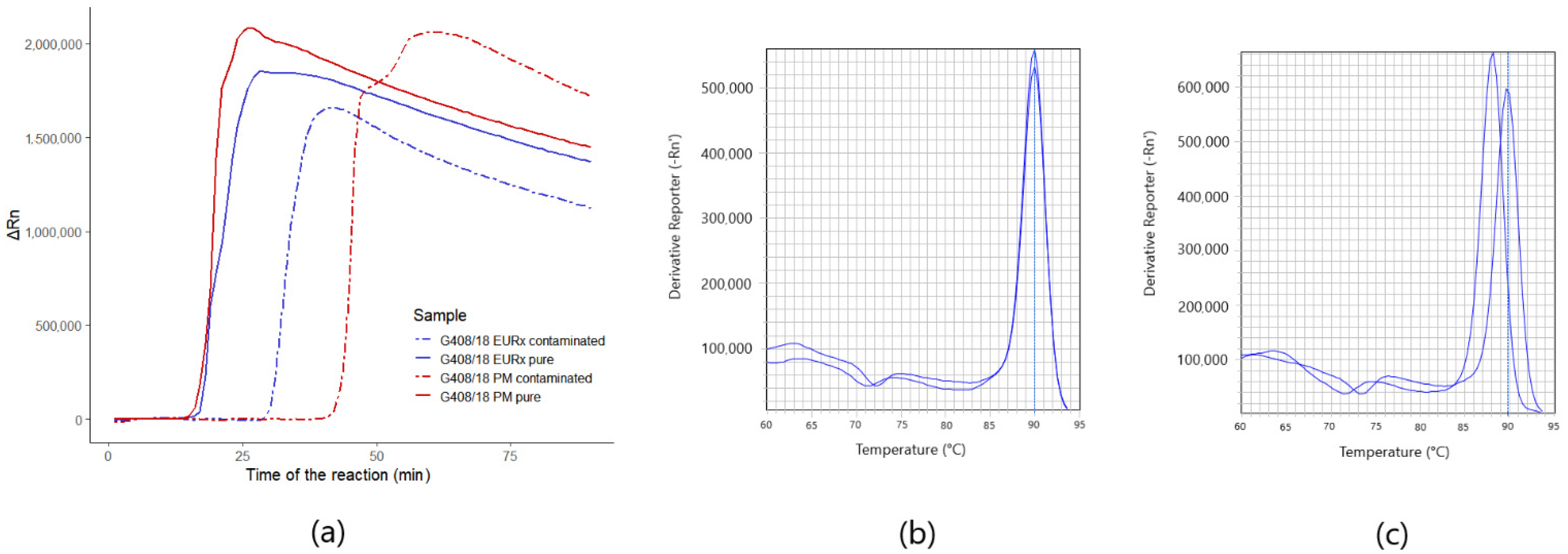

Figure 5. Amplification plots and melting curves of Phytophthora spp. assay: (a) amplification plots for the detection of Phytophthora spp. assay of pure G408/18 strain and contaminated biological material from the environment with the DNA of G408/18, isolated with FastDNA Spin Kit for Feces kit (MP) and Plant & Fungi DNA Purification Kit (EURx); (b) melt curves of pure and contaminated samples isolated with FastDNA Spin Kit for Feces kit (MP Biomedicals); (c) melt curves of pure and contaminated material samples isolated with Plant & Fungi DNA Purification Kit (EURx).
Figure 5. Amplification plots and melting curves of Phytophthora spp. assay: (a) amplification plots for the detection of Phytophthora spp. assay of pure G408/18 strain and contaminated biological material from the environment with the DNA of G408/18, isolated with FastDNA Spin Kit for Feces kit (MP) and Plant & Fungi DNA Purification Kit (EURx); (b) melt curves of pure and contaminated samples isolated with FastDNA Spin Kit for Feces kit (MP Biomedicals); (c) melt curves of pure and contaminated material samples isolated with Plant & Fungi DNA Purification Kit (EURx).
Pathogens 10 01453 g005
Pathogens 10 01453 g006 550

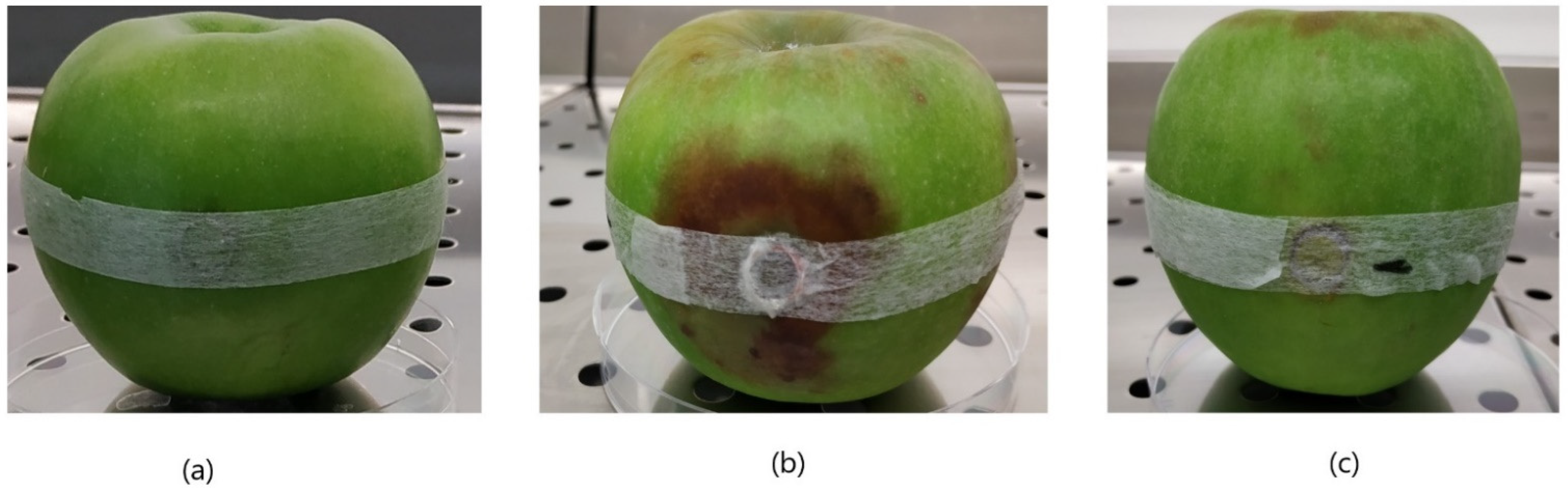

Figure 6. Apple trap method for baiting Phytophthora spp. pathogens. First, fragments of infected strawberry tissues were placed inside surface-sterilized apple fruit (a) and incubated at 22 °C for 10 d in a plastic bag. Infected apple tissues (b) changed color from green to brown, and softened. Negative control (c) remained unchanged.
Figure 6. Apple trap method for baiting Phytophthora spp. pathogens. First, fragments of infected strawberry tissues were placed inside surface-sterilized apple fruit (a) and incubated at 22 °C for 10 d in a plastic bag. Infected apple tissues (b) changed color from green to brown, and softened. Negative control (c) remained unchanged.
Pathogens 10 01453 g006
Pathogens 10 01453 g007 550

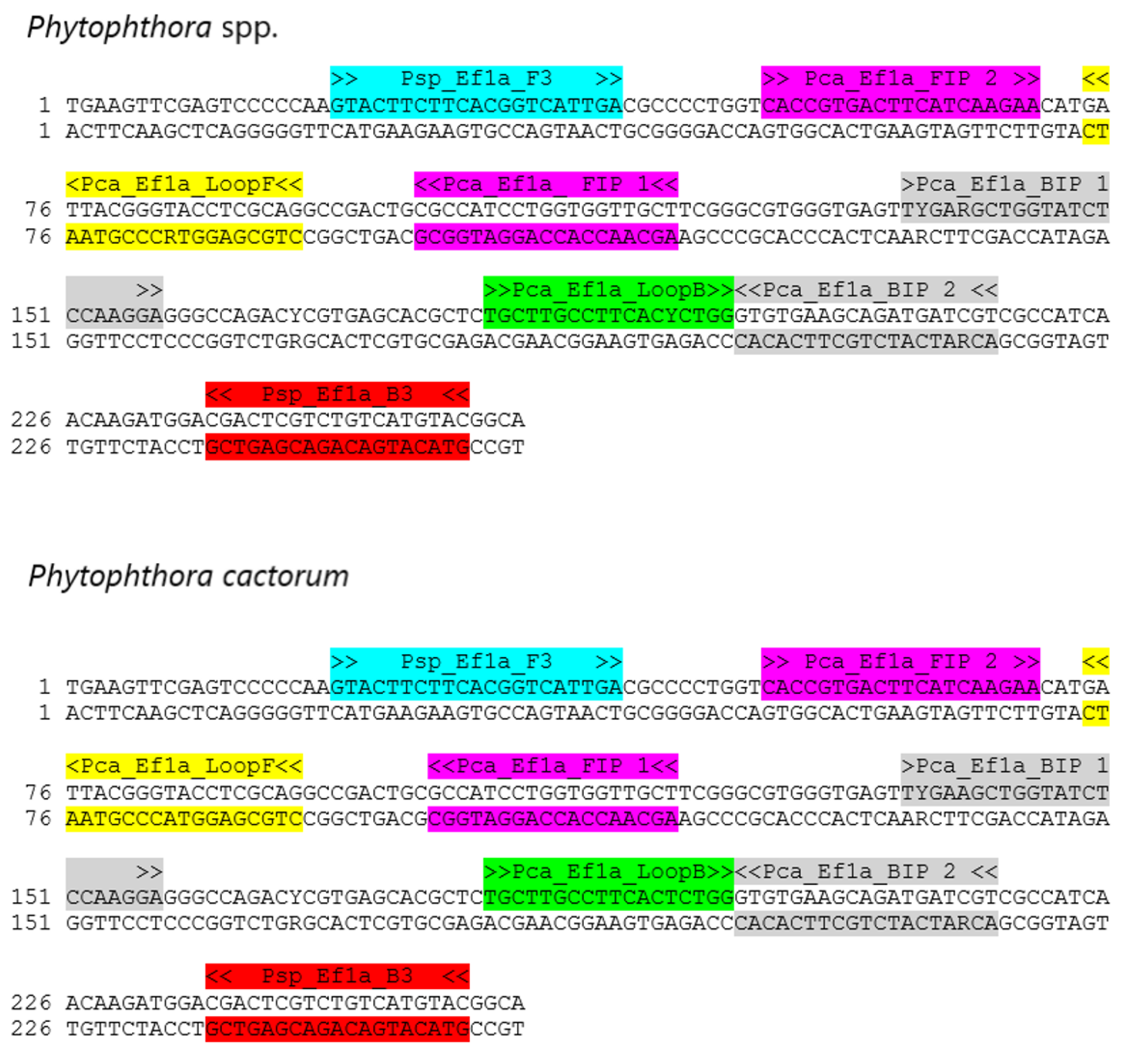

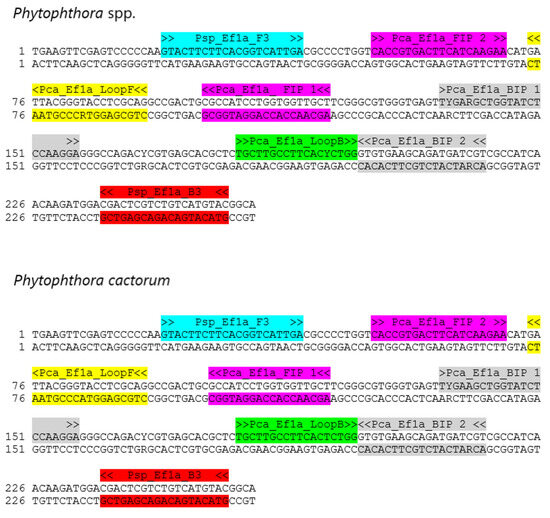

Figure 7. The localization of primers in the fragment of EF1α gene chosen for detection of Phytophthora spp. and Phytophthora cactorum on contig of sequences of Phytophthora spp. strains used for the design of primers.
Figure 7. The localization of primers in the fragment of EF1α gene chosen for detection of Phytophthora spp. and Phytophthora cactorum on contig of sequences of Phytophthora spp. strains used for the design of primers.
Pathogens 10 01453 g007
Table
Table 1. Fungal strains used for the LAMP assay development.
Table 1. Fungal strains used for the LAMP assay development.
Fungal GenusIsolate Code LMEMIsolation SourceMethod of Obtaining Pure StrainThe Accession Number of D2LSU Sequences in GenBankThe Accession Number of EF1α Sequences in GenBank
Phytophthora spp.G408/18 *Strawberry plants, IA PASCA aMT126670.1MW715837
G409/18 *Strawberry plants, IA PAS CA aMT126671.1MW715838
G412/18 *Strawberry roots, IA PASapple trapMT126672.1MW715839
G413/18 *Strawberry roots, IA PASapple trapMT126673.1MW715840
G415/18 *Strawberry roots, IA PASapple trapMT126674.1MW715841
G416/18 *Strawberry roots, IA PASapple trapMT126675.1MW715842
G417/18 *Strawberry roots, IA PASapple trapMT126676.1MW715843
G418/18 *Strawberry roots, IA PASapple trapMT126677.1MW715844
G419/18 *Strawberry plants, IA PASPDA bMT126678.1MW715845
G420/18 *Strawberry plants, IA PASPDA bMT126679.1MW715846
G421/18 *Strawberry plants, IA PASCA aMT126680.1MW715847
G429/18 *Strawberry roots, IA PASapple trapMT126681.1MW715848
G430/18 *Strawberry roots, IA PASapple trapMT126682.1MW715849
G431/18 *Strawberry plants, IA PASPDA bMT126683.1MW715850
G432/18 *Strawberry plants, IA PASPDA bMT126684.1MW715851
G437/18 *Strawberry roots, IA PASapple trapMT126686.1MW715852
G439/18 *Strawberry roots, IA PASapple trapMT126687.1MW715853
G440/18 *Strawberry roots, IA PASapple trapMT126688.1MW715854
G442/18 *Strawberry roots, IA PASapple trapMT126690.1MW715855
Colletotrichum spp.G168/18Strawberry fruits, IA PASPDA bMT126804.1-
G170/18Strawberry fruits, IA PASPDA bMT126805.1-
G171/18Strawberry fruits, IA PASPDA bMT126802.1-
G172/18Strawberry fruits, IA PASPDA bMT126803.1-
G274/18Strawberry fruits, IA PASPDA bMT126807.1-
Botrytis spp.G276/18Strawberry roots, IA PASPDA bMT154303.1-
G277/18Strawberry roots, IA PASPDA bMT154304.1-
G321/18Strawberry roots, IA PASPDA bMT154305.1-
G322/18Strawberry roots, IA PASPDA bMT154306.1-
G323/18Strawberry roots, IA PASPDA bMT154307.1-
Verticillium spp.G294/18Strawberry roots, IA PASPDA bMT133317.1-
G296/18Strawberry roots, IA PASPDA bMT133320.1-
G297/18Strawberry roots, IA PASPDA bMT133316.1-
G298/18Strawberry roots, IA PASPDA bMT133318.1-
G299/18Strawberry roots, IA PASPDA bMT133319.1-
* Fungal strains used for the in silico design of the primers; IA PAS: Institute of Agrophysics, Polish Academy of Sciences; LMEM: Laboratory of Molecular and Environmental Microbiology, IA PAS; a: strain obtained with culturing of plant roots on Carrot Agar; b: strain obtained with culturing of plant roots on Potato Dextrose Agar.
Table
Table 2. Sequences of the primers designed for the LAMP assays for the detection of Phytophthora spp. and Phytophthora cactorum (Patent applications P.437111 and P.437110, respectively).
Table 2. Sequences of the primers designed for the LAMP assays for the detection of Phytophthora spp. and Phytophthora cactorum (Patent applications P.437111 and P.437110, respectively).
MarkerTargetPrimer Name *The Sequence of the Primer 5′–3′Concentration
translation elongation factor 1-α (EF1a) genePhytophthora spp.Psp_Ef1a_F3GTACTTCTTCACGGTCATTGA0.2 µM
Psp_Ef1a_B3GTACATGACAGACGAGTCG
Psp_Ef1a_FIPAGCAACCACCAGrATGGC|CACCGTGACTTCATCAAGAA0.8 µM
Psp_Ef1a_BIPTyGArGCTGGTATCTCCAAGGA|ACrATCATCTGCTTCACAC
Psp_Ef1a_LoopFCTGCGAGGTrCCCGTAATC0.4 µM
Psp_Ef1a_LoopBTGCTTGCCTTCACyCTGG
Phytophthora cactorumPca_Ef1a_FIPAGCAACCACCAGGATGGC|CACGTGACTTCATCAAGAA0.8 µM
Pca_Ef1a_BIPTyGAAGCTGGTATCTCCAAGGA|ACrATCATCTGCTTCACAC
Pca_Ef1a_LoopFCTGCGAGGTACCCGTAATC0.4 µM
Pca_Ef1a_LoopBTGCTTGCCTTCACTCTGG
* Both sets of primers have the same F3 and B3 primer pair.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Siegieda, D.G.; Panek, J.; Frąc, M. “Shining a LAMP” (Loop-Mediated Isothermal Amplification) on the Molecular Detection of Phytopathogens Phytophthora spp. and Phytophthora cactorum in Strawberry Fields. Pathogens 2021, 10, 1453. https://doi.org/10.3390/pathogens10111453

AMA Style

Siegieda DG, Panek J, Frąc M. “Shining a LAMP” (Loop-Mediated Isothermal Amplification) on the Molecular Detection of Phytopathogens Phytophthora spp. and Phytophthora cactorum in Strawberry Fields. Pathogens. 2021; 10(11):1453. https://doi.org/10.3390/pathogens10111453

Chicago/Turabian Style

Siegieda, Dominika G., Jacek Panek, and Magdalena Frąc. 2021. "“Shining a LAMP” (Loop-Mediated Isothermal Amplification) on the Molecular Detection of Phytopathogens Phytophthora spp. and Phytophthora cactorum in Strawberry Fields" Pathogens 10, no. 11: 1453. https://doi.org/10.3390/pathogens10111453

APA Style

Siegieda, D. G., Panek, J., & Frąc, M. (2021). “Shining a LAMP” (Loop-Mediated Isothermal Amplification) on the Molecular Detection of Phytopathogens Phytophthora spp. and Phytophthora cactorum in Strawberry Fields. Pathogens, 10(11), 1453. https://doi.org/10.3390/pathogens10111453

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
