Metagenomic Analysis of Anaerobic Microbial Communities Degrading Short-Chain Fatty Acids as Sole Carbon Sources

by
Daniela Becker
1,2,
Denny Popp
1,3,
Fabian Bonk
1,4,
Sabine Kleinsteuber
1,
Hauke Harms
1 and
Florian Centler
1,5,*
1
UFZ—Helmholtz Centre for Environmental Research, Department of Environmental Microbiology, Permoserstr 15, 04318 Leipzig, Germany
2
IAV GmbH, Kauffahrtei 23-25, 09120 Chemnitz, Germany
3
Institute of Human Genetics, University of Leipzig Medical Center, Philipp-Rosenthal-Str. 55, 04103 Leipzig, Germany
4
VERBIO Vereinigte Bioenergie AG, Thura Mark 18, 06780 Zörbig, Germany
5
School of Life Sciences, University of Siegen, 57076 Siegen, Germany
*
Author to whom correspondence should be addressed.
Microorganisms 2023, 11(2), 420; https://doi.org/10.3390/microorganisms11020420
Submission received: 17 January 2023 / Accepted: 4 February 2023 / Published: 7 February 2023
(This article belongs to the Special Issue Microbial Communities in Anaerobic Digesters)
Browse Figures
Versions Notes

Abstract

:
Analyzing microbial communities using metagenomes is a powerful approach to understand compositional structures and functional connections in anaerobic digestion (AD) microbiomes. Whereas short-read sequencing approaches based on the Illumina platform result in highly fragmented metagenomes, long-read sequencing leads to more contiguous assemblies. To evaluate the performance of a hybrid approach of these two sequencing approaches we compared the metagenome-assembled genomes (MAGs) resulting from five AD microbiome samples. The samples were taken from reactors fed with short-chain fatty acids at different feeding regimes (continuous and discontinuous) and organic loading rates (OLR). Methanothrix showed a high relative abundance at all feeding regimes but was strongly reduced in abundance at higher OLR, when Methanosarcina took over. The bacterial community composition differed strongly between reactors of different feeding regimes and OLRs. However, the functional potential was similar regardless of feeding regime and OLR. The hybrid sequencing approach using Nanopore long-reads and Illumina MiSeq reads improved assembly statistics, including an increase of the N50 value (on average from 32 to 1740 kbp) and an increased length of the longest contig (on average from 94 to 1898 kbp). The hybrid approach also led to a higher share of high-quality MAGs and generated five potentially circular genomes while none were generated using MiSeq-based contigs only. Finally, 27 hybrid MAGs were reconstructed of which 18 represent potentially new species—15 of them bacterial species. During pathway analysis, selected MAGs revealed similar gene patterns of butyrate degradation and might represent new butyrate-degrading bacteria. The demonstrated advantages of adding long reads to metagenomic analyses make the hybrid approach the preferable option when dealing with complex microbiomes.

1. Introduction

Biogas production by anaerobic digestion (AD) provides a sustainable option to transform organic waste into a renewable energy carrier. Under anoxic conditions, organic matter is converted to short-chain fatty acids (SCFAs) as intermediates, and finally to methane and carbon dioxide, catalyzed by different microbes in four steps: hydrolysis, acidogenesis, acetogenesis, and methanogenesis. The first three steps are facilitated by bacteria, whereas the last step is performed by archaea. There are multiple types of biogas reactors. The continuous stirred tank reactor (CSTR) is the most common type for agricultural biogas plants in Germany. The organic loading rate (OLR) is a key parameter in continuous AD processes. At high OLRs, large substrate amounts are fed to an AD reactor, and consequently high methane productivity can be expected. However, high OLRs can also lead to process instabilities and even process failure [1]. The stability of the AD process depends on the interaction of microbes of different functional groups [2]. An important prerequisite to control the process stability is to predict compositional and functional changes of the microbial community as a function of operational parameters. Community composition and complexity as well as operational parameters influence community dynamics [2,3]. For instance, the feeding regime can affect the process stability as well as the microbial community function [1,4,5,6]. The continuous feeding mode is commonly applied in full-scale digesters to obtain stable biogas production [7]. However, several studies showed positive effects of discontinuous feeding (e.g., one feeding per day) compared to continuous feeding [1,8,9,10]. Bonk et al. observed that discontinuous feeding leads to higher relative abundances of Methanosarcina [1]. This methanogen is more adapted to higher acetic acid concentrations and more resistant to low pH values compared to the common acetoclastic methanogen Methanothrix [5]. A higher share of Methanosarcina increased the resilience against organic overloading [1].
Some products of the acidogenesis and acetogenesis steps, such as acetate, formate, H2, and CO2 as well as methyl compounds, can be utilized by methanogenic archaea directly. In contrast, propionate and butyrate are acidogenesis products that first need to be converted into acetate, CO2, and H2 or formate [11]. In the whole AD process, syntrophic butyrate and propionate oxidation during acetogenesis is a bottleneck because of the low abundances of butyrate- and propionate-oxidizing bacteria and their sensitivity to environmental changes [2,12,13]. Disturbances of the AD process can lead to the accumulation of SCFA and consequently process instability [12,14,15,16]. Thus, the cooperation between bacteria and methanogenic archaea is essential for stable process performance. Typical propionate- and butyrate-oxidizing bacteria are Syntrophobacter, Pelotomaculum, Smithella, and Syntrophomonas [12,17]. In AD processes, hydrogenotrophic methanogens depend on hydrogen-producing bacteria, and inversely, syntrophic bacteria can only grow when the hydrogen partial pressure is kept low by hydrogenotrophs. For instance, fatty acid-degrading bacteria that use the β-oxidation pathway, such as Syntrophomonadaceae, grow in syntrophy with hydrogen-consuming microbes [6,18]. Besides acetoclastic methanogenesis catalyzed by Methanothrix or Methanosarcina, syntrophic acetate oxidation (SAO) is an alternative acetate sink in AD. Under mesophilic conditions, Thermacetogenium phaeum, Pseudothermotoga lettingae, Tepidanaerobacter acetatoxidans, Clostridium ultunense, and Syntrophaceticus schinkii [19] are key players of SAO whereby acetate is converted into H2 and CO2 [20,21]. In SAO, both the methyl and carboxyl groups of acetate are oxidized to CO2, and H2 is formed, but the reaction is unfavorable in the absence of hydrogenotrophic methanogens. Therefore, SAO is also an example of the interdependencies between bacteria and archaea in AD [22].
Two metabolic pathways for anaerobic propionate degradation have been described: the methylmalonyl-CoA pathway and the C6-dismutation pathway. Examples of syntrophic propionate-oxidizing bacteria (SPOB) that use the methylmalonyl-CoA pathway are Syntrophobacter and Pelotomaculum [23]. These SPOB degrade propionate directly to acetate and CO2. Propionate is first carboxylated to methylmalonyl-CoA, which is further converted via succinate, fumarate, and malate to oxaloacetate, followed by two decarboxylation steps to pyruvate and eventually to acetyl-CoA [24,25]. In contrast, Smithella uses the C6-dismutation pathway converting propionate to acetate and n-butyrate as an intermediate [26]. Butyrate is then further degraded to acetate via the β-oxidation pathway [27].
For the last AD step, methanogenesis, three important pathways have been described: the acetoclastic, the hydrogenotrophic, and the methylotrophic pathway. In the acetoclastic pathway, acetate is activated to acetyl-CoA and then cleaved into CO2 and a methyl group, which is further reduced to CH4 [28,29]. Methanothrix and Methanosarcina are the only two genera performing acetoclastic methanogenesis. Most of the other known methanogens utilize the hydrogenotrophic pathway, which accounts for the remaining portion of methane production resulting from the reduction of carbon dioxide with hydrogen/formate [30,31].
In this study, Illumina-based shotgun metagenome sequencing was used to characterize and compare compositional and overall functional profiles of reactor microbiomes being subjected to different feeding regimes and OLRs. By restricting the substrate to SCFA, we aimed to select microbiomes that are less diverse than common AD microbiomes and facilitate the functional analysis of acetogenesis and methanogenesis as the last two AD steps. To analyze the genetic profile of individual members of the microbial community (particularly the bacterial community), Illumina-based short-read and Oxford Nanopore-based long-read assemblies were compared with respect to the recovery of high-quality metagenome-assembled genomes (MAGs). Read length is a limitation of the Illumina platform but the high quality is an advantage. Oxford Nanopore reads are long, but the quality is much lower with an error rate of up to 15%, compared to the Illumina error rate of 0.473% (median) [32,33,34,35]. By applying a hybrid assembly approach, the disadvantages of both techniques can be compensated [36,37,38], hence we expected that the completeness of the MAGs increases compared to Illumina-based MAGs. Additionally, the identification and analysis of MAGs can help predict important functional groups [39,40,41].

2. Materials and Methods

2.1. Samples

The biogas reactor experimental design was described by Bonk et al. [1]. In brief, five reactor experiments were conducted (R-1 to R-5) using CSTRs with a working volume of 8 L (R-1 to R-3) or 6 L (R-4 and R-5) (total volume 15 L), which were operated under mesophilic conditions (37 °C), and with a hydraulic retention time of 8 days. Acetate, propionate and butyrate were fed as sole carbon sources in a synthetic medium in a ratio of 0.45:0.1:0.45, based on chemical oxygen demand (COD). This ratio reflects the product spectrum of acidogenic fermentation, in which typically more acetate and butyrate is formed than propionate (see e.g., [42]). Feeding was varied across two parameters: OLR (high and low) and feeding regime (continuous and discontinuous). Reactors R-1 and R-4 were continuously fed, while reactors R-2, R-3, and R-5 received a single feeding pulse per day (Table 1). All reactors were inoculated from a laboratory scale reactor that was fed with the same substrates. The original inoculum was derived from a lab-scale reactor digesting distillers grains.
All reactors had reached a stable production phase when sampling occurred (see Supplementary File S1 for details on observed process performance of all reactors). The following parameters were recorded: pH value, methane production rate, total SCFA concentration, and microbial biomass. The experimental setup, process parameters, and measured data in the stable production phase are summarized in Table 1.
For metagenome analysis using the Illumina MiSeq platform, 1.5 mL reactor effluents were centrifuged for 2 min at −7 °C and 15,000× g, immediately upon sampling. The supernatant was removed. The sample pellets for subsequent DNA extraction were stored at −20 °C. The DNA extraction followed the instruction (buffer SL2, no enhancer solution) of the NucleoSpin® Soil Kit (MACHEREY–NAGEL GmbH & Co. KG, Germany). DNA purity was assessed with a NanoDrop One spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA), and for DNA quantification, the Qubit ™ dsDNA HS Assay Kit (Thermo Fisher Scientific, Waltham, MA, USA) was used.

2.2. Metagenome Sequencing

Libraries for whole-genome shotgun sequencing were prepared using the Nextera® XT DNA Library Preparation Kit (Illumina, San Diego, CA, USA) according to the manufacturer’s protocol. Based on the quantification results by Qubit™ dsDNA HS Assay Kit (Thermo Fisher Scientific, Waltham, USA), the DNA samples were diluted to 0.2 ng/µL.
For indexing, the indexes i7 and i5 were used. Samples were purified using 30 µL AMPureXP beads (AGENCOURT® AMPURE® XP Kit) according to the manufacturer’s instructions. The purified library was eluted in 50 µL resuspension buffer. Finally, the library was checked by the Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA) applying the Agilent High Sensitivity DNA Kit and by Qubit™ dsDNA HS Assay Kit (Thermo Fisher Scientific, Waltham, MA, USA).
The library pool was generated using the concentration (based on Qubit™ quantification) and the average size of DNA fragments (in bp) per sample (based on the Agilent 2100 Bioanalyzer quantification). An individual volume per library was pipetted to obtain a pool library of 50 nM, which was finally controlled using the Agilent High Sensitivity DNA Kit and Qubit dsDNA HS Assay Kit. Libraries including 5% PhiX DNA were sequenced on the Illumina MiSeq platform. For the reactors R-1 to R-3, the MiSeq Reagent Kit v2 (Illumina) with 500 cycles (2 × 250 bp reads) was used, and for the samples from reactors R-4 and R-5, the MiSeq Reagent Kit v3 (Illumina) with 600 cycles (2 × 300 bp reads) was used.
Extracted DNA was prepared for sequencing on the MinIon Mk1B platform (Oxford Nanopore Technologies, Oxford, UK) using the SQK-LSK108 Ligation Sequencing Kit (Oxford Nanopore Technologies, Oxford, UK) according to the manufacturer’s protocol. Libraries were loaded on rec V R9.4 flow cells. The MinIon device was operated with MinKNOW software v1.10.16.
Statistics for both sequencing approaches are provided in Supplementary File S2, B.1.

2.3. Bioinformatic Analysis

2.3.1. Basecalling, Quality Filtering, and Read Trimming

For technical reasons, DNA from sample R-1 was sequenced in two technical replicates on the Illumina platform. Raw reads of both replicates from reactor R-1 were merged to increase the coverage. Adapter sequences of all reads were trimmed automatically during MiSeq sequencing.
First, the Illumina raw reads were quality-filtered by Trimmomatic v0.36 [43] to a minimum read length of 35 bp and minimum average quality of 20. Quality control before and after filtering was performed with FastQC [44] and compared using MultiQC [45]. Between 5 and 25 million high quality reads per sample were generated.
Basecalling of Nanopore raw reads was performed with Albacore v2.3.1 using default settings. Adapters were removed with Porechop v0.2.3 (https://github.com/rrwick/Porechop) using an identity threshold of 90% and splitting reads when adapters were found with 90% identity in the middle of a read. Quality control was performed with FastQC and MultiQC as well.

2.3.2. Analysis of Community Composition and Functional Potential

Community composition was analyzed using a pipeline based on information of expected species of the AD process, as previously described by Becker et al. [46]. Expected species were chosen based on a literature search in the context of AD, gene prediction results using Metaxa v2.1.3 [47,48], and amplicon sequencing results from Bonk et al. [1], and combined in a reference database. The FASTA files including genomes of these expected species were included in this reference database [46]. According to the database, the reads were classified into expected species reads (aligned against the database) and unexpected species reads (unaligned). Bowtie2 v2.3.3.1 [49] was applied to align the Illumina reads against the database of expected species for the classification. Expected reads were directly annotated using DIAMOND v0.9.8 [50] and MEGAN6 v6.12.0 [51] based on the NCBI-NR database (accessed on 11 July 2018), whereas unexpected species reads were additionally subjected to de novo assembly and binning steps.
The assembly of unexpected reads was performed with IDBA v1.1.1 using the IDBA-UD command [52,53] and a k-mer range between 51 and 301, and binned with MaxBin v2.2.4 [54,55] using the marker gene set 40 specific for bacterial and archaeal communities. After binning, unexpected reads of each bin were reassembled using IDBA v.1.1.1 using the IDBA-UD command and a k-mer range between 51 and 301. Assembly and binning statistics were assessed with QUAST v4.5 [56] and CheckM [57]. Reassembled unexpected species reads were annotated with DIAMOND v0.9.8 [50] and MEGAN6 v6.12.0 [51] using the NCBI-NR database (accessed on 11 July 2018). Finally, the annotation results of expected and unexpected species were combined as described by Becker et al. [46].
The EggNOG database [58] option of DIAMOND/MEGAN5 was used to annotate the functional potential of expected reads and assembled unexpected reads by using the protein accession mapping file from October 2016. Finally, the read counts of annotations were combined to cover the whole functional potential (see Supplementary File S2, B.2.2).
To generate a functional catalog of all reads per sample, interleaved paired and unpaired reads were annotated together, without differentiating between expected and unexpected species reads as before. The databases used for the annotation with DIAMOND and MEGAN5 were the protein accession mapping file of EggNOG [58] from October 2016 and the GI to NCBI taxonomy mapping files for the NCBI-NR protein database from June 2018 (both available under http://ab.inf.uni-tuebingen.de/data/software/megan6/download/welcome.html, last accessed: 16 July 2018). Additionally, the taxonomy (genus level) and the functional potential (high-level nodes of EggNOG and Clusters of Orthologous Groups of proteins (COG) IDs) were combined to assess the functional potential per genus (R scripts available at https://git.ufz.de/UMBSysBio/mpp).
Based on the study by Sikora et al. [31], selected enzymes (genes) responsible for the relevant pathways of syntrophic butyrate, propionate, and acetate oxidation as well as methanogenesis, based on the Kyoto Encyclopedia of Genes and Genomes (KEGG) database, were collected (see Supplementary File S1, Tables S1 and S2). This list of genes was used to compile the functional catalog per pathway of interest (Supplementary File S2, B.5).

2.3.3. Reconstruction and Annotation of Metagenome-Assembled Genomes

For reconstructing MAGs, the Illumina reads per sample of the continuously fed reactors (R-1 and R-4, without selection of expected/unexpected species reads) were assembled with SPAdes genome assembler v3.11.1 [59] using the metaSPAdes mode applying k-mers between 51 and 201, and binned with MaxBin v2.2.7 [54,55] using default settings (marker gene set 40). Assembly and binning statistics were generated with QUAST and CheckM, respectively. High quality MAGs (>90% completeness and <5% contamination) and medium quality MAGs (50–89.99% completeness and <10% contamination) [60] were refined with refineM v0.1.1 [61]. Thereby, potential contaminations were removed based on genomic properties, taxonomic assignments of contigs, and incongruent taxonomic assignment of 16S rRNA genes.
Next to the Illumina-based MAGs, Nanopore reads were included in the reconstruction of genomes. They were corrected and assembled with Canu v1.9 using the Nanopore preset parameters and an estimated genome size of 5 Mb [62]. Resulting contigs were binned with Concoct v1.1.0 [63], MetaBAT v2 [64], and MaxBin v2.2.7 [54]. Bins were refined using the bin_refinement module of MetaWrap v1.2.1 [65]. Illumina reads were mapped to each bin using Bowtie v2.3.4.1 [49], and Nanopore reads were mapped to each bin using Minimap v2.17 [66]. Mapped Illumina and Nanopore reads for each bin were used for hybrid assembly using Unicycler v0.4.8 [67]. Resulting MAGs were refined with refineM [61] as described above and the incongruence of contig and 16S rRNA gene taxonomy was checked manually. Refined Illumina-based and hybrid MAGs were characterized with CheckM and QUAST. MAGs were annotated using Prokka v1.13 [68] and Prodigal v2.6.3 [69,70]. Taxonomy was assigned with GTDB-tk v1.0.2 using GTDB-Tk reference data version r89 [71]. Additionally, the hybrid MAGs were analyzed using the type (strain) genome server of DSMZ—German Collection of Microorganisms and Cell Cultures GmbH (https://tygs.dsmz.de/user_requests/new, accessed on 11 July 2018). dRep [72] was used to identify representative MAGs after the refinement step. Lastly, refined and de-replicated MAGs were obtained and analyzed.
Finally, the HUMAnN 2.0 pipeline [73] was used to test for the presence of selected pathways [74] in the Prodigal-annotated hybrid MAGs. Coding sequences were mapped against the UniRef50 EC filtered database using DIAMOND. Default parameter settings were used except for lowering the translated query coverage threshold from 90.0 to 50.0 to account for coding sequences being longer than sequencing reads, which are the typical input for HUMAnN 2.0. Identified gene families were mapped to EggNOG COGs using the humann2_regroup_table script.
Metagenome data of MiSeq Illumina sequencing, Oxford Nanopore sequencing, and representative MAGs are available at https://www.ebi.ac.uk/ena/browser/view/PRJEB42791.

3. Results

3.1. Impact of Feeding Regime and OLR on Microbial Community Composition

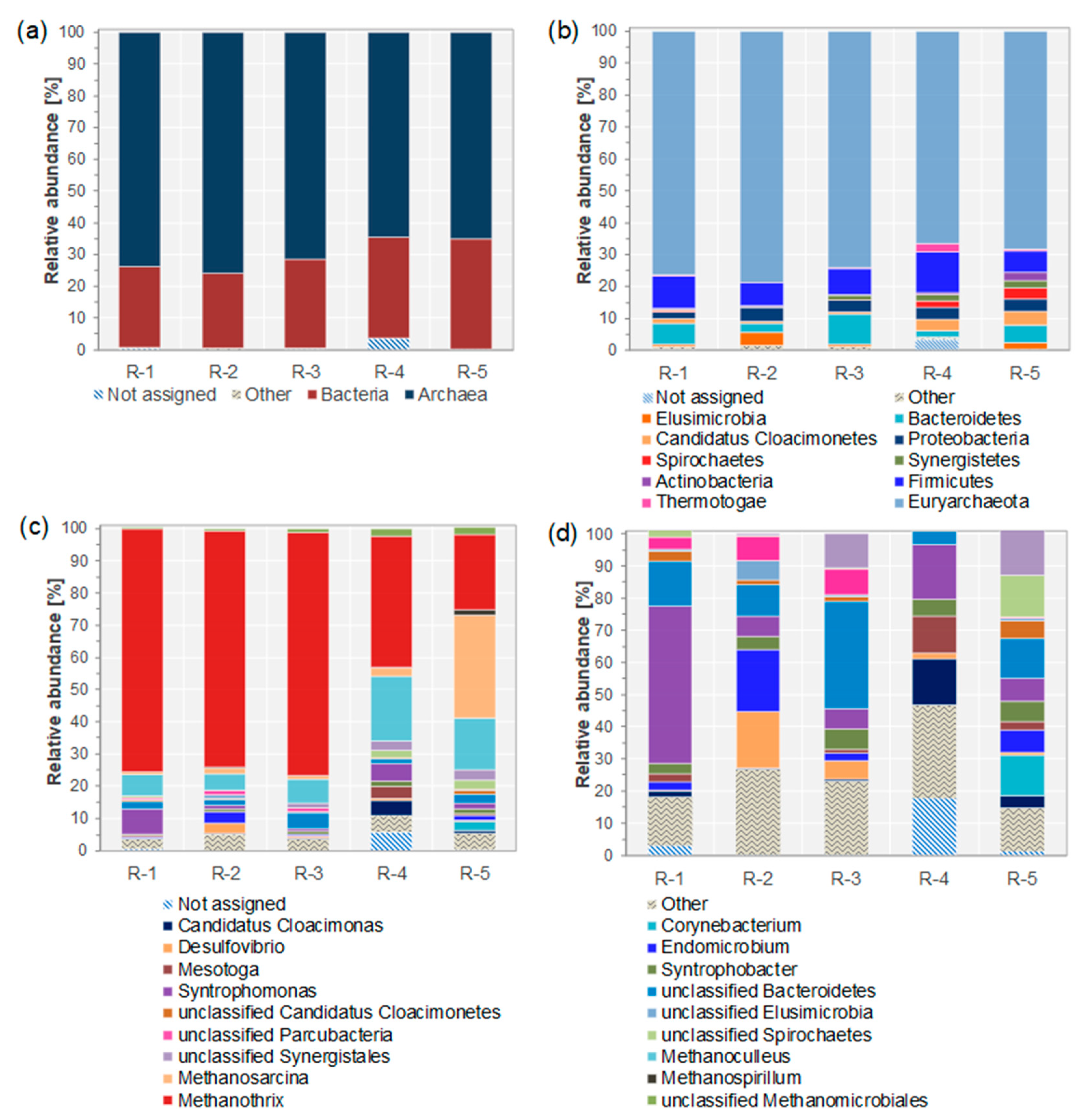

After quality-filtering, between 46% and 67% of all reads could be aligned to the database of expected species. Assembly and binning of unaligned reads led to eleven bins with a contamination below 5% and a completeness higher than 95%. After reassembly, the average total assembly length (mean over the total number of contigs over all samples) was around 26 Mb, the longest contig was around 347 kb, and the highest N50 value was 7.5 kb over all samples (see Supplementary File S2 for details).
The microbial communities in all reactors were dominated by archaea (around 70% relative abundance, see Figure 1a). R-1, R-2, and R-3 revealed similar archaeal community compositions with comparable relative abundances (see Figure 1c). Methanothrix had a relative abundance of around 75% and Methanoculleus of at least 6%, whereas Methanosarcina was less abundant (around 1%). R-4 showed differences in terms of a lower relative abundance of Methanothrix (41%) and a higher relative abundance of Methanoculleus (20%) compared to R-1, R-2, and R-3. Methanosarina increased in abundance up to around 3% in R-4. More conspicuous was the higher relative abundance of Methanosarcina in R-5, with around 32%.
R-4 and R-5 showed higher proportions of bacteria (around 33%) than R-1, R-2, and R-3 (around 26%, Figure 1b). Nine bacterial phyla constituted the bacterial community, with Firmicutes dominating in all reactors (between around 7% and 13%). Bacteroidetes were more abundant in R-1, R-2, and R-3 compared to R-4 and R-5, with around 6.5% compared to 3.8% relative abundance. Besides Spirochaetes, Cloacimonetes were more abundant in R-4 and R-5 than in R-1, R-2, and R-3. Comparing the bacterial communities on the genus level (Figure 1c,d), Desulfovibrio only contributed significantly to the bacterial community composition in discontinuously fed reactors with low OLR (R-2 and R-3). Mesotoga reached up to around 12% but only under continuous feeding at high OLR. At low OLR under continuous feeding (R-1), Syntrophomonas was the dominant genus, while at discontinuous feeding or higher OLR (R-2 to R-5), its relative abundance was lower. Under low OLR, either one or two bacterial genera contributed more than 30% of the bacterial composition (Syntrophomonas under continuous feeding, and either unclassified Bacteroidetes or Desulfovibrio with Endomicrobium under discontinuous feeding), while at high OLR, the distribution was more even. For more information regarding other taxonomic levels, see Supplementary File S2, B.2.1.

3.2. Combining Taxonomic and Functional Annotation

Compared to PCR-dependent analysis methods, metagenomes enable the analysis of community composition without PCR bias, and additionally reveal the functional potential. Even though the bacterial community composition was different in the five reactors, the functional potential was very similar (see Supplementary File S2, B.2.2). Therefore, annotation results were merged over all reactors to assess the functional potential of individual taxa by combining functional and taxonomic annotation of metagenomic reads. For this analysis, 7000 genes and 3500 taxa were considered (see Supplementary File S2, B.4). As SCFAs were supplied as the sole carbon source, the further analysis focused on syntrophic SCFA oxidation and methanogenesis pathways (see Figure 2 and Supplementary File S2, B.5).
Nine genes selected for the oxidative carbon monoxide dehydrogenase/acetyl-CoA synthase (CODH/ACS) pathway (Supplementary File S1) of acetate oxidation were detected and seven of nine genes were unique for the CODH/ACS pathway. Only Acetomicrobium covered the whole CODH/ACS pathway. A high coverage of this pathway was shown for Clostridium and Desulfotomaculum. The acetate oxidation pathway coupled to the reduction of fumarate (Supplementary File S1) was almost completely covered by Burkholderia, Corynebacterium, and Geobacter.
Except for the missing COG2057 gene (acetate CoA-transferase beta subunit), Syntrophomonas and Clostridium covered all selected genes for butyrate oxidation (Supplementary File S1). However, many other genera covered almost the whole butyrate oxidation pathway as well, for example, Bacillus, Desulfotomaculum, Corynebacterium, and Faecalibacterium, among others.
None of the bacterial taxa covered the whole propionate oxidation pathway (Supplementary File S1). The bacterial genera Bacillus, Clostridium, Desulfotomaculum, and Pelotomaculum covered a great part of the propionate oxidation pathway to a lesser extent (around eight of ten selected genes). Accordingly, expected SPOB like Smithella and Syntrophobacter were rare as reflected by their low relative abundance in the whole community.
Syntrophy-specific functional domains of butyrate or propionate oxidation, such as the extra-cytoplasmic formate dehydrogenase (FDH), FDH accessory protein, membrane-integrated proteins, and ribonuclease (Supplementary File S1) were completely encoded in Syntrophobacter, Syntrophomonas, and Syntrophus as well as in Bacillus and Desulfotomaculum.
In our analysis, Clostridium showed a high functional potential and gene coverage in all pathways of acetogenesis (Figure 2). This is in line with Clostridium species having been reported as versatile contributors in the processes of AD [75,76].
The hydrogenotrophic methanogenesis pathway was completely covered by Methanosarcina, Methanoculleus, Methanothrix, Methanolobus, Methanohalophilus, and Methanospirillum (Figure 2). The acetotrophic methanogenesis pathway was almost completely covered by Methanosarcina and partially by Methanothrix, Methanohalophilus, and Methanoculleus. The acetate-CoA ligase (COG0365) was encoded in all archaeal genera. Additionally, Methanosarcina also covered the methylotrophic methanogenesis pathway. Therefore, the functional potential of Methanosarcina for all pathways of methanogenesis was detected.

3.3. Metagenome-Assembled Genomes

3.3.1. MAGs Reconstructed from Illumina Reads Only

MAGs were reconstructed and analyzed to elucidate the functional role of the detected species in more detail. In total, 94 MAGs were obtained. After refinement, 27 high-quality and 29 medium-quality MAGs were generated (see Table 2), from which 45 bacterial MAGs and 11 archaeal MAGs were allocated (see Supplementary File S2, B.6.1 for details). The archaeal MAGs were mainly assigned to the genera Methanothrix, Methanoculleus, and Methanospirillum. The identified bacterial MAGs were taxonomically more diverse and assigned to several already described MAGs (listed in the GTDB). All results of MAG reconstruction from Illumina MiSeq reads are listed in detail in Supplementary File S2, B.6.1. The mean N50 value was 32.24 kb, the total assembly length around 2.29 Mb, and the largest contig was 93.70 kb.

3.3.2. MAGs Based on the Hybrid Assembly Approach

The Illumina MAG analysis was extended by including Oxford Nanopore reads for the samples from the continuously fed reactors (R-1 and R-4, see Supplementary File S2, B.6.2). In total, 27 MAGs based on the hybrid approach were obtained for both reactors, including 13 high-quality and four medium-quality MAGs. Thirteen of these MAGs could be matched to known species (Table 3). Three high-quality archaeal MAGs were obtained with a completeness between 97.22% and 99.35%, and 0.65% contamination (Table 3). Two of them represented Methanothrix soehngenii and the third one Methanoculleus. Additionally, ten high-quality bacterial MAGs were reconstructed, see Supplementary File S2, B.6.2. A Cloacimonas acidaminovorans MAG had the highest quality and was circular. Six of the 13 dereplicated MAGs showed a close relationship to Syntrophobacteraceae or Syntrophomonas. Four MAGs represented circular genomes of Methanothrix soehngenii, Syntrophomonas wolfei, Cloacimonas acidaminovorans, and Mesotoga infera B. The mean N50 value was 1.7 Mb, the total assembly length around 3 Mb, and the largest contig was 1.9 Mb.

3.3.3. Pathways of Interest Encoded by MAGs

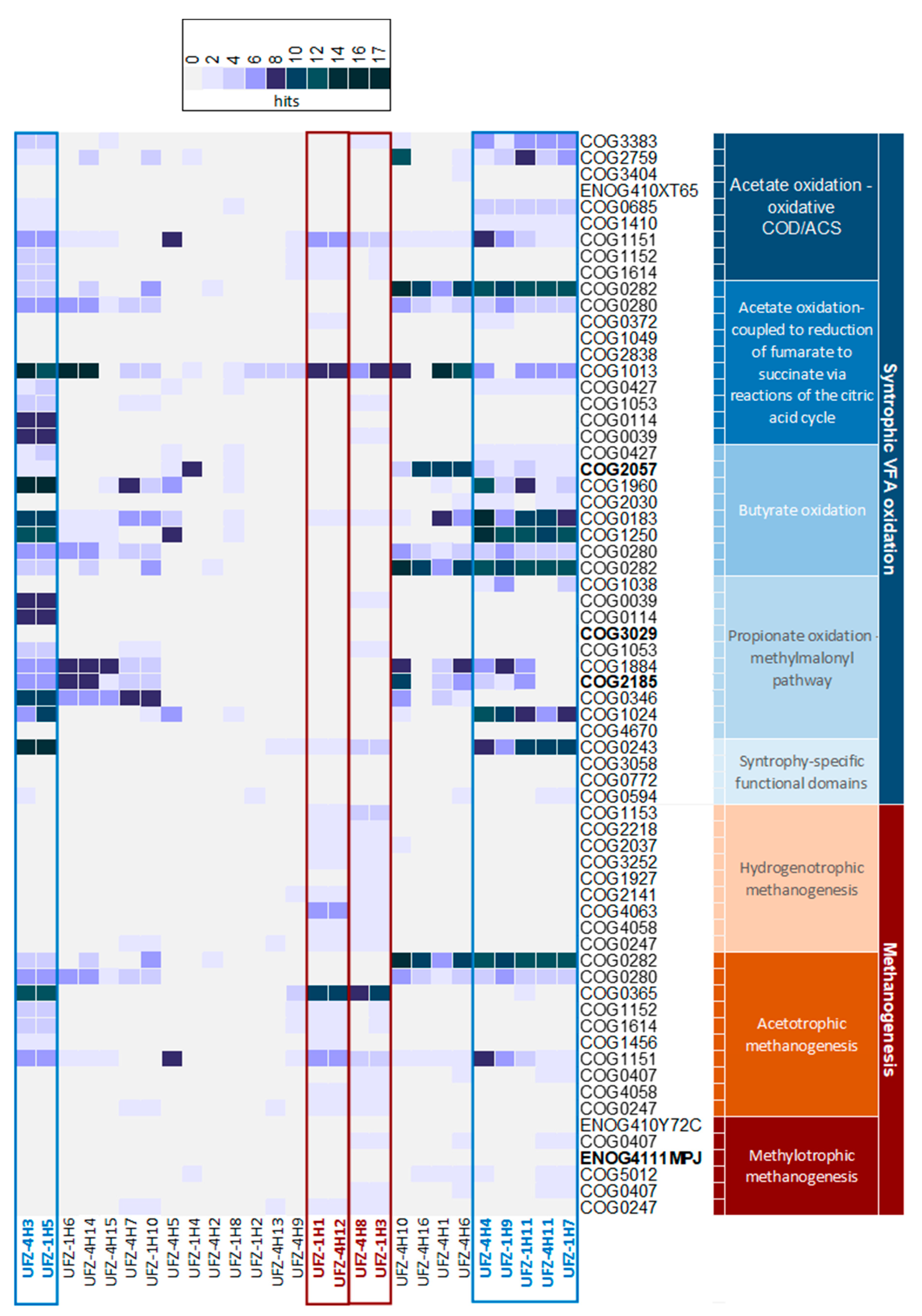

To elucidate the functional role of organisms represented by the reconstructed MAGs within the community, individual MAGs were tested for the presence of genes encoding syntrophic SCFA degradation and methanogenesis pathways (Figure 3). Four clusters of similar enzyme repertoires were identified. Both members of the first cluster (UFZ-4H3 and UFZ-1H5) were assigned to the family Syntrophobacteraceae. They contained genes of all SCFA oxidation pathways including the almost complete pathways for syntrophic butyrate and propionate oxidation. Two MAGs (UFZ-1H1 and UFZ-4H12), both identified as Methanothrix soehngenii, formed the second cluster and covered a great part of the hydrogenotrophic methanogenesis pathway (eight out of nine genes). Both MAGs contained six of the seven unique genes for hydrogenotrophic methanogenesis (encoding formylmethanofuran dehydrogenase, formylmethanofuran-H4MPT formyltransferase, methenyl-H4MPT cyclohydrolase, H2-forming methylene-H4MPT dehydrogenase, and F420-dependent methylene-H4MPT reductase). Hydrogenotrophic methanogenesis was fully covered in the third cluster (UFZ-1H3 and UFZ-4H8) with both MAGs being assigned to Methanoculleus. The last cluster contained five MAGs (UFZ-4H4, UFZ-1H9, UFZ-1H11, UFZ-4H11, and UFZ-1H7) that were all assigned to the family Syntrophomonadaceae. All enzymes belonging to butyrate degradation were found to be encoded in these MAGs (Figure 3).

4. Discussion

By using metagenome approaches, we analyzed composition and functional potential of microbial communities in anaerobic digesters under two different feeding regimes at high and low OLRs, with a focus on the conversion of SCFAs to methane. We focused the analysis on selected pathways of particular interest (SCFA oxidation and methanogenesis) and detected associated genes in reads and MAGs. MAGs were reconstructed and annotated to shed light on uncharacterized taxa. The goal was to characterize the full community and identify the putative functional role of not yet described species.
Previous analysis of the methanogenic reactor communities by mcrA-gene based terminal restriction fragment length polymorphism (T-RFLP) analysis had identified Methanothrix and Methanomicrobiaceae as the main constituents, and an increased share of Methanosarcina under discontinuous feeding [1]. These findings were confirmed with metagenome-based analysis in which Methanothrix and Methanoculleus were the main archaeal genera, and the share of Methanosarcina was increased under discontinuous feeding (R-2, R-3, R-5, Figure 1c), a shift that was more pronounced under high OLRs (R-5, [1]), where Methansarcina partially replaced Methanothrix. It is known that Methanothrix is more sensitive to changing environmental conditions and stress conditions (feeding regime or OLR) than Methanosarcina and Methanoculleus [5,77,78,79,80]. Hence, stress tolerance of AD systems can be promoted if Methanosarcina can be enriched in the reactor at the expense of the more sensitive species, increasing the functional resilience of the methane production process [1]. Discontinuous feeding was shown to increase the relative abundance of Methanosarcina, and Bonk et al. [1] hypothesized that the dynamic environment established by discontinuous feeding provides temporal niches that enable the observed shift in the archaeal community.
The bacterial communities were unique for all reactors, even for reactors R-2 and R-3, which were biological replicates, and no clear trends could be observed regarding OLR and feeding regime (Figure 1d). This has been reported before, including similar values for diversity and evenness of the bacterial communities based on 16S rRNA gene amplicon sequencing data [1].
Using metagenomic data to assess community composition circumvents any PCR biases and, by targeting bacteria and archaea simultaneously, enables the assessment of the ratio between both domains. The observed dominance of archaea was expected as the direct supply of SCFAs as substrate led to the establishment of only the last two steps of AD (i.e., syntrophic SCFA oxidation and methanogenesis), excluding the hydrolysis and acidogenesis steps driven by bacteria. Comparable ratios of bacteria to archaea were also found in other anaerobic digesters supplied with SCFAs [81]. Propionate and butyrate are degraded by bacteria in syntrophy with hydrogenotrophic methanogens, while acetate can either be directly utilized by acetoclastic methanogens or by acetate-oxidizing bacteria, again requiring a hydrogenotrophic methanogen as a syntrophic partner.
Despite the observed variability in bacterial community composition, the overall reactor productivity was not affected, indicating the presence of functional redundancy in the bacterial communities. In low OLR reactors, the bacterial community was dominated by one or two bacterial genera, while high OLR reactors showed a more even distribution of the different genera, indicating that competition played a bigger role under nutrient-limiting conditions. An adaptation of the bacterial community due to an increase in OLR was also observed by Maus et al. [82].
Although being dominated by archaeal genera, the reactors in this study harboured diverse bacterial genera, many with relative abundances below 1%. Given that SCFAs were provided as the sole carbon sources, one could expect that most of these genera are involved in syntrophic SCFA oxidation. Syntrophobacter and Pelotomaculum were identified as known syntrophic oxidizers for propionate. Synthrophomonas was the only butyrate-oxidizing genus detected. Genera such as Cloacimonetes [83,84,85], Cryptanaerobacter [86], and Desulfovibrio [87] have been associated with the oxidation of propionic or butyric acid. Candidatus Cloacamonas acidaminovorans, for example, contains all the genes for propionic acid oxidation via methylmalonyl-CoA, but has not yet been isolated [83].
Besides these known and putative SCFA-oxidizers, our MAGs analysis uncovered many bacteria that were apparently not involved in SCFA oxidation. Similar observations have been made in AD reactors being fed with a single SCFA (acetate or propionate) [88]. Yeast extract was present in the medium in the latter study, potentially supporting the growth of other bacteria than SCFA oxidizers. However, this supplement was absent in our study, and hence cannot explain the observed bacterial diversity. Bacteria not directly utilizing the primary carbon source could either be involved in biomass turnover as scavengers or thrive on proteins, amino acids, polysaccharides, and lipids produced by primary consumers and associated syntrophic partners. Autotrophic methanogens can actively excrete amino acids into the medium [75,76], and amino acid exchange has been postulated in a synthetic coculture [89]. Furthermore, metabolite cross-feeding, especially between phylogenetically distant species, might be an important factor driving microbial community dynamics [90], and explain the observed diversity of bacterial taxa, including proteolytic fermenters and amino acid oxidizers not involved in SCFA oxidation. The primary consumers together with their syntrophic partners may hence be the source of excreted nutrients, which sustain a low abundance shadow microbial community of taxa not involved in the primary process.
Overall, the microbial community composition at the genus level was more similar for reactors only differing in feeding regime, whereas those with different OLR harboured more distinct communities, indicating the importance of substrate quantity for shaping community composition. For example, the ratio of bacteria to archaea was mostly determined by the OLR but not by the feeding regime.
The functional potential was similar between reactors despite different community composition. Hence, functional redundancy in SCFA degradation by known or unknown bacterial species could play an important role. By applying a higher OLR (reactors R-4 and R-5), the relative abundance of bacteria increased compared to the low OLR reactors R-1 to R-3. However, the genus Syntrophomonas, comprising typical butyrate-oxidizing bacteria [20,91], showed the highest abundance in the low OLR reactor R-1. Syntrophomonas was also described as the major syntrophic butyrate-oxidizing bacterium in a butyrate-fed system [92]. Its lower abundance in the other reactors indicates that other species took over its function there. Other species only appeared under high OLR conditions or increased their abundance. For instance, Corynebacterium was not found in R-2 and R-3 but had an abundance in the bacterial community of around 13% in R-5, and Mesotoga was present with a relative abundance of less than 1% in R-2 and R-3 but reached around 3% in R-5. Genera like unclassified Bacteroidetes, Candidatus Cloacimonas, Mesotoga, Desulfovibrio, or Endomicrobium were detected with higher abundance, but none of these taxa covered the complete butyrate degradation pathway. Pathway analysis showed that Desulfosporosinus, Clostridium, or Bacillus showed the same pathway coverage of selected genes as Syntrophomonas. However, the relative abundance of these genera was below 1% of the whole community. Thus, potential functional redundancy between yet undescribed taxa and known taxa might be present in our reactors. Candidatus Cloacimonas was detected mainly in the R-4 community with around 5%. Being frequently detected in AD processes [83,93], the reconstruction of a high quality MAG classified as Candidatus Cloacimonas and with 100% completeness (UFZ-4H1) provides the opportunity to identify its role in the process. However, regarding the main pathways analyzed in this study, there was no clear indication for its participation in syntrophic SCFA oxidation. For example, only three genes out of ten for propionate oxidation via the methonylmalonyl-CoA pathway were found (Figure 3), although the complete pathway was reported for the genome of Candidatus C. aminoacidivorans [83].
Regarding typical propionate-degrading bacteria like Desulfotomaculum, Pelotomaculum, Smithella, and Syntrophobacter [20], only Syntrophobacter was detected with more than 5% in the bacterial community and only around 1.5% in the whole community of R-4 and R-5. The pathway analysis of selected genes of propionate oxidation showed a low coverage of these genes by Syntrophobacter. In contrast, Clostridium and Desulfotomaculum displayed a higher share of the typical propionate oxidation genes. A closer examination of Desulfotomaculum suggested that this genus is metabolically versatile, because it encodes many selected genes for acetate, butyrate and propionate oxidation. A single species of Desulfotomaculum has been described as syntrophic propionate oxidizer yet [94].
The results of Illumina reads as well as the analysis of MAGs showed that Methanothrix (UFZ-4H12) encoded all selected genes of the hydrogenotrophic methanogenesis pathway, besides the acetoclastic methanogenesis pathway. This finding was described already by Smith & Ingram-Smith [95]. As hydrogenotrophic methanogenesis activity of Methanothrix has not been described, it has been speculated that this genus can produce methane based on direct interspecies electron transfer [96]. However, as acetic acid was available in our reactors, Methanothrix most likely utilized the acetoclastic methanogenesis pathway.
Read length is a limitation of the Illumina platform but the high quality is an advantage. Oxford Nanopore reads are long but the quality with an error rate up to 15% is much higher compared to the Illumina read quality [32,33,34]. By applying a hybrid assembly approach, the disadvantages of both techniques can be compensated. Even though Nanopore reads get more accurate due to improvements in technology, Illumina, for polishing of especially low-coverage MAGs, is advantageous [97].
We were expecting that the completeness of the genomes would increase compared to Illumina short read-based MAGs. Furthermore, as expected and as described in the literature e.g., [38,97] the contiguity of the MAGs was considerably increased by incorporating long reads.
By the reconstruction of MAGs, several potentially new species could be identified. Focusing on high quality MAGs, a Syntrophobacteraceae species potentially involved in syntrophic SCFA oxidation (UFZ-4H3), three Syntrophomonadaceae species potentially involved in butyrate oxidation (UFZ-4H4, UFZ-1H11, and UFZ-1H7), and one Methanoculleus species potentially involved in hydrogenotrophic methanogenesis (UFZ-1H3) were identified (Figure 3). The metabolic pathway analysis focused on the two key processes in the reactor: syntrophic SCFA oxidation as the utilization step of the provided carbon sources and methanogenesis as the syntrophically coupled process, providing the required electron sink. However, some of the high-quality MAGs could not be clearly assigned to these key processes (UFZ-4H14, UFZ-1H10, UFZ-4H10, UFZ-4H1, and UFZ-4H6; Figure 3). This indicates that the core community catalyzing the key processes is able to support a wider food web, explaining the observed high diversity. The discovered MAGs provide a first glimpse into this food web, potentially comprising metabolite cross-feeding and scavengers involved in biomass turnover.
The high relative abundance of the archaeal populations limited the read numbers for bacterial populations, limiting the opportunity to reconstruct complete bacterial genomes of rare species. A higher number of bacterial reads would allow to reconstruct more complete genomes of potential new functional groups or species. Nevertheless, 13 medium- and high-quality MAGs could be obtained. The GTDBbk database classification leads to the assumption that some bacterial MAGs belong to the families Syntrophobacteraceae (UFZ-4H3, UFZ-4H4) and Cloacimonadaceae (UFZ-4H1) or the order Bacteroidales (UFZ-1H10).
Concluding, the hybrid assembly revealed to be the optimal approach for genome reconstruction, because the advantage of quality (Illumina approach) and read length (Nanopore) and disadvantages of short reads (Illumina) and lower quality (Nanopore) complement each other. Illumina-based sequencing approaches usually lead to highly fragmented MAGs. This means that complex genomes can only rarely be reconstructed. The functional understanding of microbiomes from AD systems could be expanded and more information could be retrieved from metagenomic samples. After all, an approach that uses a dereplicated set of recovered MAGs from hybrid assemblies is likely to improve our ability to reconstruct genomes and can even enable the strain-specific reconstruction of genomes from metagenomic data.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms11020420/s1: Supplementary File S1 (PDF file) containing details on experimental design, reactor performance and enzyme-pathway mappings and Supplementary File S2 (Excel file) containing additional sequencing analysis data.

Author Contributions

D.B. performed DNA extraction, Illumina sequencing and data analysis, and drafted the manuscript. D.P. performed Nanopore sequencing and contributed to data analysis, interpretation of results and revision of the manuscript. F.B. provided the experimental setup and reactor samples and contributed to the revision of the manuscript. S.K. and H.H. contributed to the interpretation of the results and revision of the manuscript. F.C. designed and supervised the study, performed the pathway analysis and contributed to revision of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Federal Ministry of Education and Research, grant number FKZ 031A317 (e:Bio project “McBiogas”). Cloud computing facilities used for the bioinformatic analyses were provided by the BMBF-funded de.NBI Cloud within the German Network for Bioinformatics Infrastructure (de.NBI) (031A537B, 031A533A, 031A538A, 031A533B, 031A535A, 031A537C, 031A534A, 031A532B).

Data Availability Statement

The sequence data have been deposited in the ENA database under BioProject PRJEB42791 (https://www.ebi.ac.uk/ena/data/view/PRJEB42791).

Acknowledgments

We thank Stephan Schreiber for his support with MiSeq Illumina sequencing.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
