Article

Determinants and Assembly Mechanism of Bacterial Community Structure in Ningxia Section of the Yellow River

by
Rui-Zhi Zhao
1,
Wei-Jiang Zhang
1,*,
Zeng-Feng Zhao
1 and
Xiao-Cong Qiu
2,*
1
School of Civil and Hydraulic Engineering, Ningxia University, Yinchuan 750021, China
2
School of Life Science, Ningxia University, Yinchuan 750021, China
*
Authors to whom correspondence should be addressed.
Microorganisms 2023, 11(2), 496; https://doi.org/10.3390/microorganisms11020496
Submission received: 31 January 2023 / Revised: 10 February 2023 / Accepted: 13 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Microbial Communities in Changing Aquatic Environments)
Browse Figures
Versions Notes

Abstract

:
The Yellow River is a valuable resource in the Ningxia Hui Autonomous Region and plays a vital role in local human activities and biodiversity. Bacteria are a crucial component of river ecosystems, but the driving factors and assembly mechanisms of bacterial community structure in this region remain unclear. Herein, we documented the bacterial community composition, determinants, co-occurrence pattern, and assembly mechanism for surface water and sediment. In comparison to sediment, the bacterioplankton community showed significant seasonal variation, as well as less diversity and abundance. The network topology parameters indicated that the sediment bacterial network was more stable than water, but the bacterioplankton network had higher connectivity. In this lotic ecosystem, CODMn, Chl a, and pH affected the structure of the bacterioplankton community, while TP was the primary factor influencing the structure of the sediment bacterial community. The combined results of the neutral community model and the phylogenetic null model indicate that Bacterial communities in both habitats were mainly affected by stochastic processes, with ecological processes dominated by ecological drift for bacterioplankton and dispersal limitation for sediment bacteria. These results provide essential insights into future research on microbial ecology, environmental monitoring, and classified management in the Ningxia section of the Yellow River.

1. Introduction

Rivers are among Earth’s most dynamic, diverse, and complex ecosystems [1]. Rivers and their tributaries form a vertical continuum called a river network, a complex organization linking water, land, and sea [2]. Rivers contribute to the biodiversity of many landscapes [3]. At the same time, they provide irreplaceable service functions for nature and society, determining biodiversity, ecosystem productivity, and human health and wellbeing in the region [4]. Nevertheless, the ecological functions of river networks are not static, and in the context of climate change and increased human activity, the ecological functions of some rivers have already been affected [5,6,7,8], the ecological functions they are burdened with need to be re-evaluated as soon as possible. Bacteria are considered to be an essential component of riverine ecosystems, not only as contributors to nutrient and energy flows [9,10], but also as significant players in the biogeochemical processes and ecosystem functions of river networks [11]. In addition, changes in bacterial community structure are closely related to the environment. Bacterial diversity can be used as an indicator of river pollution [12]. To a certain extent, the function of river ecosystems is determined by microbial functional diversity [13]. Therefore, the investigation of bacterial community structure and functional characteristics, spatial and temporal dynamics, and their association with the environment will not only help to understand the current status of river ecosystems, but also provide theoretical support for ecological conservation and restoration of water ecology.
In the last 20 years, high-throughput sequencing technology has changed our understanding of the bacterial community by establishing a new area and providing a practical method for microbial community study [14,15]. Revolutionary advances in sequencing technologies can more easily reveal the microbial composition of environmental samples, thus contributing to the comprehension of the role played by microorganisms in the aquatic ecosystems, especially in rivers [16,17].
The Yellow River, the second-largest river in China, originates at the northern foot of the Bayankara Mountains on the Qinghai-Tibet Plateau and empties into the Bohai Sea. It is also the world’s largest turbid river, with a multi-year (1960~2020) average sand content of 20.13 g/L [18]. High turbidity creates an environment with limited light, which inhibits the growth of primary products like phytoplankton and photosynthetic bacteria [19,20]. Additionally, the turbulent environment strongly alters the structure of the riverbed and microclimate, scouring, and siltation, which stresses river species [21,22]. Recently, several studies have reported on the bacterial diversity, spatiotemporal distribution, assembly mechanisms, and environmental interactions in the Yellow River basin. For instance, in the middle reaches of the Yellow River, including from Xiaolangdi Reservoir to Kaifeng Bridge, the dominant phylum of planktonic bacteria is Proteobacteria, with bacterial diversity increasing along the lower reaches of the river [23]. Similar dominant communities are common to the turbid mainstem and clear tributaries of the Weihe River, one of the important tributaries in the middle reaches of the Yellow River, and geographical distance has a significant effect on the structure of the bacterioplankton community [24]. Furthermore, α-Proteobacteria and β-Proteobacteria are the dominant phylum in the overlying waters of the Yellow River estuary and show extremely high sensitivity to environmental factors [25]. However, these studies have tended to focus on the middle and lower reaches and estuaries. There is still a lack of reference studies reported in the upper Yellow River.
Ningxia Hui Autonomous Region is located in the upper reaches of the Yellow River. In this region, the Yellow River provides the most important water source for agriculture, industry, and population. Therefore, the water ecological health of the Ningxia section of the Yellow River is vital to the sustainable development of the Ningxia region. However, the natural conditions of its ecosystems have been negatively impacted by solid sediment transport, climate change, and anthropogenic disturbances. The current state of the water ecology needs to be comprehensively investigated and assessed. Some recent studies have reported on the bacterial community in the Ningxia section of the Yellow River [26,27]. Nevertheless, they are all based on a large-scale sampling of the entire Yellow River mainstem, and no in-depth surveys have been carried out on small-scale river sections by setting up more sampling points. In addition, the fragmented findings make it difficult to provide a holistic picture of the complexity and variability of the bacterial communities in the Ningxia section of the Yellow River.
In this study, the bacterial community structure of 48 samples (including water bodies and surface sediments) from three seasons in the Ningxia section of the Yellow River was studied using high-throughput sequencing technology. Our research goals were: (1) analyze the composition of the bacterial community structure in different habitats and its distribution pattern; (2) identify the main environmental parameters that influence the composition of the bacterial community in different habitats; and (3) reveal the dominant processes that affect the assembly of microbial communities in two habitats. The study results will provide critical information for assessing and managing aquatic ecosystems in the Ningxia section of the Yellow River, and serve as a scientific basis for restoring the river’s water ecology and biodiversity conservation.

2. Materials and Methods

2.1. Study Area, Sample Collection, and Chemical Analysis

The Ningxia section of the Yellow River flows from Nanchangtan in Zhongwei City to Mahuanggou in Shizuishan City, covering 397 km and accounting for 7% of the Yellow River’s entire length. In addition, the Qingshui River, the Kushui River, the Hongliu Ditch, and many other artificial drainage ditches are injected into the Ningxia section of the Yellow River, forming the Ningxia Yellow River Basin. The watershed ranges from 35°50′~39°23′ N and 104°17′~107°12′ E, covering an area of 41,600 km2, accounting for 81% of the total area of Ningxia. In accordance with the project requirements, eight sampling points were set up in the mainstream of the Ningxia section of the Yellow River (Figure 1), and samples were taken in April, July, and October 2021.
Three parallel samples (2 L each) at 50 cm depth were randomly collected at the sampling point and mixed as water samples (6 L). After labeling, the water sample was placed in a polyethylene sampling bottle and stored in an incubator below 4 °C before being transported to the laboratory. The water samples for DNA analysis were filtered through 0.22 μm filter membrane within 24 h (under sterile conditions). The filter membranes were stored at −80 °C until DNA extraction. The sample pretreatment process was carried out in a sterile environment to avoid the contamination of samples by external bacteria. Sediment samples were collected using a modified Peterson mud collector. Three parallel surface sediment samples (sampling depth: 10 cm) were randomly collected from each sample site. After mixing, the samples were packed in a sealed plastic bag, immediately placed in a 4 °C incubator, and transported back to the laboratory for processing and analysis.
Water temperature (WT), electrical conductivity (Cond), salinity (Sal), dissolved oxygen (DO), pH, total dissolved solids (TDS), and chloridion (Cl−) were all measured using a YSI Pro-plus portable water quality analyzer. Fluoride (F−) was measured on site using a HACH HQ40d portable water quality analyzer. Chlorophyll a (Chl a) was measured on site using a HACH Hydrolab DS5X. Total nitrogen (TN), total phosphorus (TP), available phosphorus (AP), ammonia nitrogen (NH4+-N), nitrite nitrogen (NO2−-N), permanganate index (CODMn), and chemical oxygen demand (CODCr) were determined according to the method provided by the Water and Wastewater Detection and Analysis Method (4th edition) (Ministry of Ecology and Environment of the People’s Republic of China 2002). Sulfate (SO42−) was tested according to the water quality determination of the sulfate-Gravimetric method (GB 11899-89). Soil organic matter (SOM) was tested according to the method for determination of soil organic matter (GB 9834-88). Based on the previous method [28], arsenic (As), chromium (Cr), mercury (Hg), and lead (Pb) concentrations were determined by inductively coupled plasma mass spectrometry (ICP-MS).

2.2. Extraction, High-Throughput Sequencing, and Bioinformatics Analysis

Total DNA was extracted using NucleoSpin 96 soi (MACHEREYNAGEL, Dueren, Germany) following the manufacturer’s protocol. DNA concentration and purity were monitored on 1% agarose gels. According to the concentration, DNA was diluted to l ug/μL using sterile water, and 16S rRNA genes of V3-V4 regions were amplified using specific primers 341F (5′-CCTACGGGAGGCAGCAG-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′) with the barcode. All PCR reactions were carried out with 15 μL of Phusion® High-Fidelity PCR Master Mix (New England Biolabs, Ipswich, MA, USA), 0.2 μm of forward and reverse primers, and around 10 ng template DNA. Thermal cycling consisted of initial denaturation at 98 °C for 1 min, followed by 30 cycles of denaturation at 98 °C for 10 s, annealing at 50 °C for 30 s, and elongation at 72 °C for 30 s. Finally, at 72 °C for 5 min.
After mixing the PCR product with the IX loading buffer (SYB green), electrophoresis was performed on 2% agarose gel. PCR products were mixed in equidensity ratios. Then, mixture PCR products were purified using the Qiagen Gel Extraction Kit (Qiagen, Hilden, Germany). Sequencing libraries were generated using the TruSeq® DNA PCR-Free Sample Preparation Kit (Illumina, San Diego, CA, USA). Following manufacturer’s recommendations, sequencing libraries were generated using the NEBNext® Ultra™ IIDNA Library Prep Kit (Cat No. E7645). After the library quality at Novogene Technology Co., Ltd. (Tianjin, China). Purified amplicons were sequenced using the strategies of PE250 on an Illumina NovaSeq 6000 platform.
The platform QIIME2 (v2021.4, https://qiime2.org, accessed on 21 April 2022) was used to process and analyze the raw fastq files [29]. Quality controls, annotations, statistical calculations, and diversity analyses were implemented using the standard QIIME2 Pipeline. Denoise was performed with DADA2 to obtain initial ASVs (Amplicon Sequence Variants), and then ASVs with an abundance less than 0.01% were filtered out [30]. After obtaining the feature table, the taxonomic classification was processed using the Silva reference database (Release 138.1, http://www.arb-silva.de, accessed on 27 July 2022) [31].

2.3. Statistical Analysis

Due to the non-normal distribution of the data in this study, the Kruskal–Wallis test was used for difference analysis of alpha diversity, bacterial community composition, and environmental parameters; whereas the Dunn test (corrected by the Bonferroni method) was used for multiple comparisons. This process was completed in R by the package “rstatix” (version 0.7) [32]. An analysis of the differences in habitats and sampling periods in the Ningxia section of the Yellow River was conducted using nonmetric multidimensional scales (NMDS) based on Bray Curtis distances. The R-value obtained from the Analysis of Similarity (ANOSIM) was used to quantify the degree of difference within the bacterioplankton community. The larger the R-value, the higher the degree of difference between groups. This analysis was completed using the R “vegan” package (version 2.6-2) [33]. Specificity-occupancy (SPEC-OCCU) plots were used to inidentify of potential keystone species in water and sediment; SPEC-OCCU plots were drawn using the “ggpolt2” package (version 3.4.0) [34]. The comparison of phyla between the two habitats was completed using STAMP software (version 2.1.3).
The variance inflation factor (VIF) was calculated to check the collinearities, and variables with VIF > 20 were removed from the analysis to avoid the impact of cross-collinearity. The forward selection was used to select variables driving bacterial community composition using the “ordiR2step” function from vegan (version 2.6-2), all nonsignificant (p > 0.05) variables were eliminated in further analyses [35]. Except for pH, the environmental parameters were log (x + 1) transformed to satisfy the normality and homogeneity requirements. For network analysis, only genera with a relative abundance greater than 0.005 in each habitat and occurring at more than five sample sites were retained to construct co-occurrence pattern networks, and the paired Spearman correlation was calculated using R ”Hmisc” package (version 4.4.0) [36]. The correlation coefficient matrix was formed using the correlation coefficient ≥ |0.7| with a p-value less than 0.05 (Benjamini and Hochberg adjusted) as the standard. The co-occurrence pattern network was visualized using Cytoscape (version 3.9.0) [37]. In addition, the differences between the co-occurrence pattern networks were captured by the dissimilarity index (βw) [38].
The beta nearest taxon index (βNTI) was calculated to measure the relative contribution of different assembly processes. A significant deviation (|βNTI| > 2) indicated the dominance of selection processes (deterministic processes) during the succession of the community. Among these, βNTI > 2 represented variable selection, while βNTI < –2 represented homogeneous selection. On the contrary, |βNTI| < 2 meant that the stochastic process was important in community assembly. The non-significant βNTI value (|βNTI|< 2) was calculated using Raup-Crick (RC bray) based on Bray-Curtis. Generally, RCbray < −0.95 is defined as homogeneous dispersal, RCbray > 0.95 represents dispersal limit, and |RCbray| ≤ 0.95 represents drift [39,40]. The above process was calculated using the R “iCAMP” package (version 1.5.12) [41]. Moreover, to identify the potential contribution of stochastic processes to the assembly of bacterial communities in the Ningxia section of the Yellow River, the NCM (neutral community model) was used to correlate the observed occurrence frequency of ASVs with mean relative abundance [42,43]. The parameter R2 was used to indicate the overall fit to the neutral model; R2 > 0 means that the population conforms to the neutral model (stochastic processes), while R2 < 0 indicates the opposite. The m-value represents the immigration rate. It was uniform for each community member (independent of species), with smaller m-values indicating more restricted species dispersal throughout the community. Conversely, higher m-values indicated less restricted species dispersal. The calculation and plotting of NCM were accomplished by using packages “Hmisc” (version 1.8.2) and “minpack.lm” (version 1.2.2) in R.

3. Results

3.1. Diversity of Bacteria in the Ningxia Section of the Yellow River

After quality control and filtration, the 48 samples from the Ningxia section of the Yellow River generated a total of 2,548,101 high-quality reads, with an average of 54,035 per sample. Those reads were assigned to 1854 ASVs in the water and 4405 ASVs in the sediment. The rarefaction curves, ACE and Chao1 indices indicated that the sample sequencing amount was sufficient, and the sequencing depth covered most of the species in the sample (Figure S1, Table S1).
The Kruskal-Wallis test results for diversity indicators of bacterioplankton community, as shown in Figure 2a–c, demonstrated that the differences in Chao1 and Shannon index among the three sampling periods were statistically significant, while the Pielou’s evenness index was not (p = 0.001 and p = 0.015, respectively). October’s Chao1 and Shannon index were higher than the other two sampling periods. Furthermore, Dunn-test (Bonferroni correction) results showed that those two diversity indicators significantly differed between October and July. The Pielou’s evenness index was higher in April, but there were no significant differences between groups (p = 0.54). However, the diversity indexes showed a different pattern in the sediment samples. All of them revealed no significant variations among the three sampling periods (Chao1, p = 0.47; Shannon, p = 0.46; Pielou, p = 0.50; Figure 2d–f). The complete alpha diversity indexes are summarized in Table S1.

3.2. Community Composition and Dynamics of Bacteria in the Two Habitats

Proteobacteria (44.66%, average relative abundance), Actinobacteriota (22.16%), Bacteroidota (15.35%), Cyanobacteria (7.60%), Firmicutes (5.57%), Verrucomicrobiota (1.36%), Campilobacterota (0.59%), Acidobacteriota (0.37%), Bdellovibrionota (0.31%), and Chloroflexi (0.28%) were the major phyla of the whole bacterioplankton community (57 phyla) in the Ningxia section of the Yellow River (Figure 3a). Different from bacterioplankton, the bacterial community in the sediment samples included 77 phyla. The primary phyla were Proteobacteria (42.20%), Bacteroidota (11.98%), Desulfobacterota (7.07%), Acidobacteriota (4.88%), Actinobacteriota (4.18%), Firmicutes (4.06%), Chloroflexi (3.78%), Cyanobacteria (3.39%), Verrucomicrobiota (3.28%), and Nitrospirota (2.71%) (Figure 3b). A total of 37 differential phyla were screened by Welch’s t-test in both habitats. Figure 3c demonstrated that, with the exception of Actinobacteriota and Bacteroidota, the abundance of each differential phylum was higher in sediment than in water.
As shown in Figure S2a, except for Chloroflexi, the relative abundance of the other phyla significantly varied over the three sampling periods in water. However, only the Firmicutes, Verrucomicrobiota, and Nitrospirota significantly differed over the sample periods in sediment (Figure S2b). The variations in bacterial community composition between the two types of samples were more easily observed at the family level. For instance, more dominant families of Bacteroidota were found in water (Figure S3). In contrast, the dominant families of Proteobacteria were more numerous in the sediment samples (Figure S4). Moreover, seasonal transitions have been observed between families within the same phylum. However, the pattern of variation is different for each family.

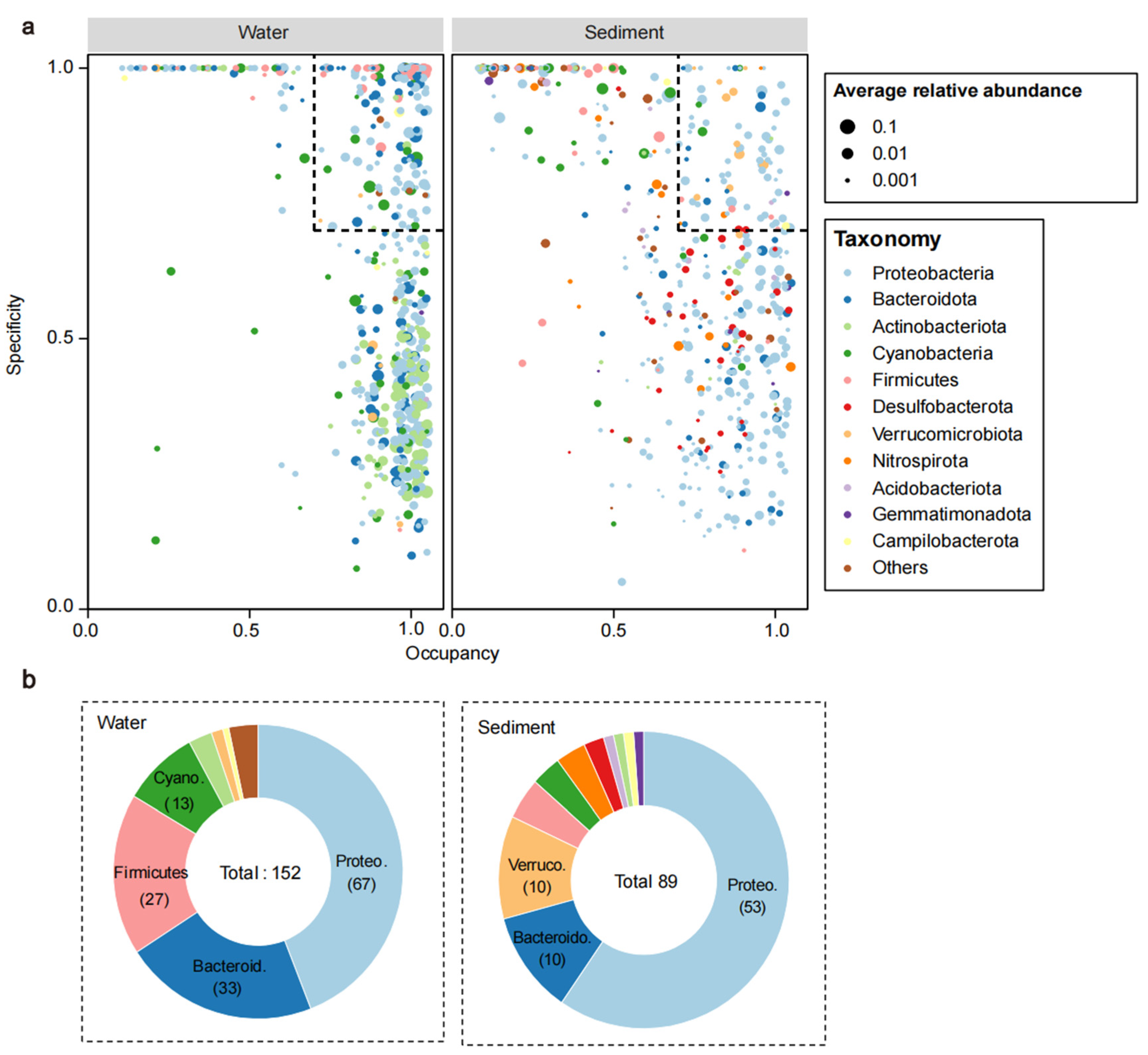

The most abundant 500 ASVs in each habitat were selected as the dominant ASVs. To examine how dominant ASVs were distributed across habitats and how specific they were to a habitat, the occupancy and specificity of these ASVs were then calculated and projected onto the map. ASVs with specificity and occupancy greater than or equal to 0.7 were identified as specialist species (specific to a habitat and shared in their habitat in most sites).
According to Figure 4a, the ASVs from water samples exhibited homogeneous occupancy, yet the ASVs from sediment communities exhibited different occupancy at each site. Furthermore, a total of 241 specialist ASVs were found in the two habitats, of which 152 belonged to water samples and 89 to sediment. Proteobacteria, Bacteroidota, Actinobacteriota, Cyanobacteria, Firmicutes, Verrucomicrobiota, and Campilobacterota were found in both habitat specialist groups, but differed in the number of ASVs. In addition, sediment specialists included ASVs from Desulfobacterota, Nitrospirota, Acidobacteriota, and Gemmatimonadota. In addition, we also identified the dominant ASVs at the family level for different sampling periods in each habitat. Detailed results are presented in Figures S5 and S6.

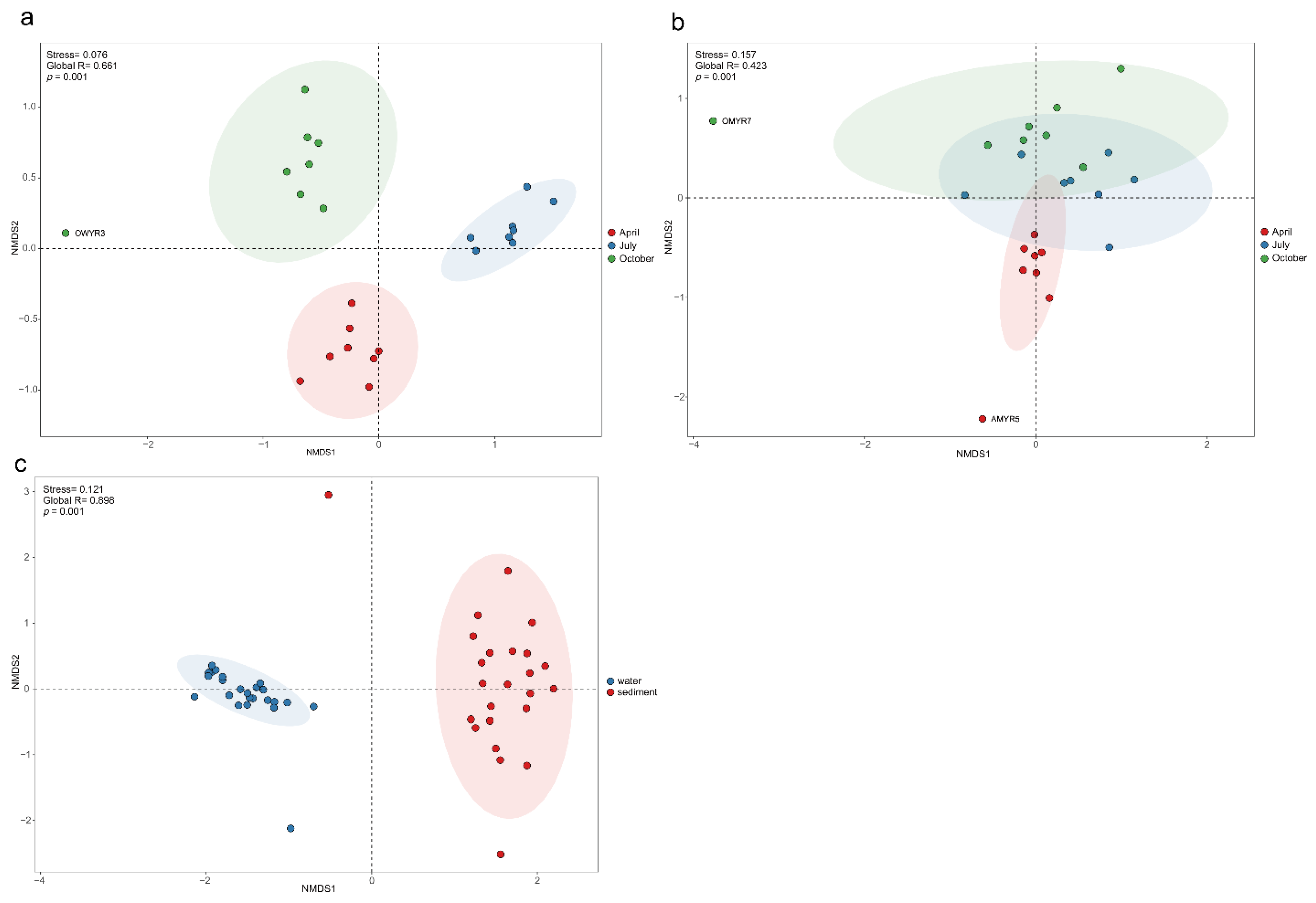

The NMDS based on the Bray-Curtis distance was used to evaluate the bacterial community composition. The result in Figure 5a show that the community of bacterioplankton have a prominent seasonal group (Global R = 0.661, p = 0.001). In contrast, the seasonal groups were not evident in the sediment bacterial community for bacterioplankton (Global R = 0.423, p = 0.001, Figure 5b). Furthermore, bacterial community composition was extremely different in the two habitats (Global R = 0.898, p = 0.001, Figure 5c).

3.3. The Major Environmental Drivers of Bacterial Community

A total of 26 environmental parameters were chosen for this study, including 16 environmental factors for water and 10 for sediments (Table 1). According to the Kruskal-Wallis test for water environmental parameters, WT, pH, DO, Chl a, TN, NH4+-N, TP, and CODMn were substantially different (p < 0.05) among the three sampling periods, while other parameters were not significantly different. In the sediments, the other parameters’ seasonal differences were insignificant, except for OM, TN, AP, and As, which showed significant seasonal variation (p < 0.05).
After environmental variables (VIF > 20) were excluded, forward selection (ordiR2step, 999 permutations) was used to determine the drivers of bacterial community composition. The results suggested that CODMn, pH, Chl a, and DO significantly (p < 0.05) revealed variation in bacterioplankton community composition; whereas the variation in bacterial community composition in the sediment was significantly (p < 0.05) explained by TP. The VIF values for each environmental variable are shown in the Table S2.

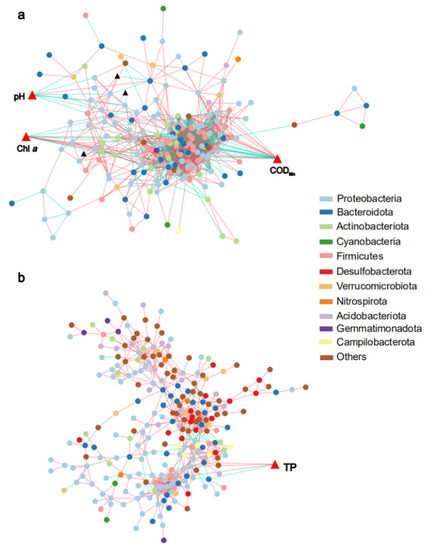

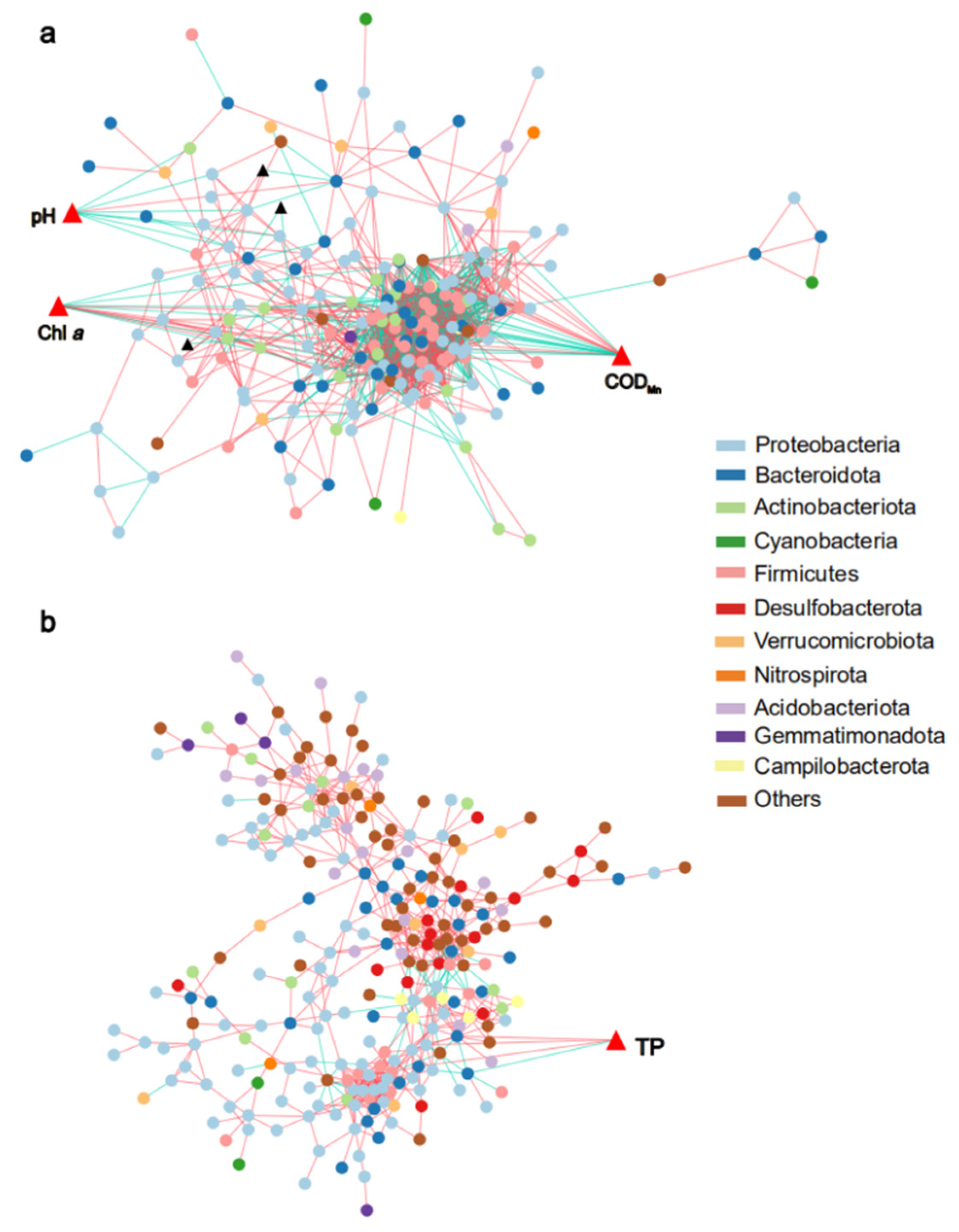

Co-occurrence pattern networks between the dominant bacterial genera (total relative abundance > 0.5% and occurring at more than five sample sites) and environmental variables were established for the two habitats, respectively. In the water samples, the network consisted of 200 nodes and 1722 edges, with a diameter of 9, a density of 0.087, a modularity index of 0.323, an average path length of 3.138, an average clustering coefficient of 0.551, and an average path length of 3.138 (Table 2). In the sediment samples, the network consisted with 276 nodes and 658 edges, with a diameter of 14, a density of 0.017, a modularity index of 0.708, an average path length of 5.531, an average clustering coefficient of 0.373, and an average path length of 5.531 (Table 2). The two networks are significantly different (βw = 1), indicating that the bacterioplankton network has stronger small-world properties than the sediment bacterial network.
In the bacterioplankton network, CODMn, Chl a, and pH showed higher associations with major genera than other environmental variables. When the connections between the nodes were examined, it was observed that the genera connected to CODMn and subject to positive correlation were primarily from the Comamonadaceae and Methylophilaceae (both belong to Proteobacteria), while the negatively correlated genera were mainly from Lachnospiraceae and Ruminococcaceae (Firmicutes). The genera from Comamonadaceae, Moraxellaceae, Microbacteriaceae, Carnobacteriaceae, and Chitinophagaceae were positively connected to Chl a. The first two belong to Proteobacteria and the last three belong to Actinobacteriota, Firmicutes, and Bacteroidota, respectively. The vast majority of bacteria negatively associated with Chl a were from Proteobacteria. Fewer neighbors were connected to the pH node; only the Spirosomaceae (Bacteroidota) were negatively correlated with pH, and most of the positively correlated genera belonged to Proteobacteria (Figure 6a). In contrast, most environmental factors in the sediments were not connected to their neighbors, and only TP was connected to a few edges. Among them, Muribaculaceae (Bacteroidota) was negatively correlated with TP. Cyclobacteriaceae and Porphyromonadaceae (both belong to Bacteroidota), and Rhizobiaceae (Proteobacteria) were positively correlated with TP (Figure 6b). The taxonomic orders of bacteria and their correlations with major environmental factors were shown in Table S3.

3.4. Ecological Assembly Mechanism of Bacterial Community in Different Habitats

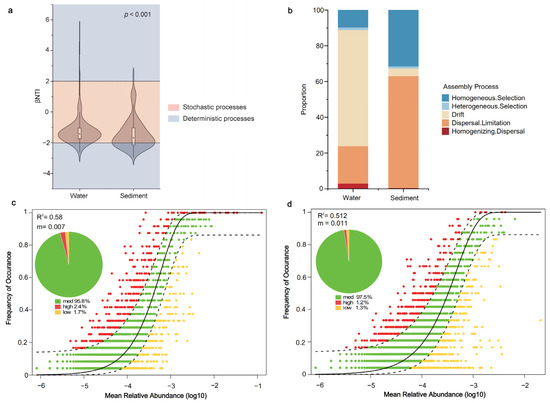

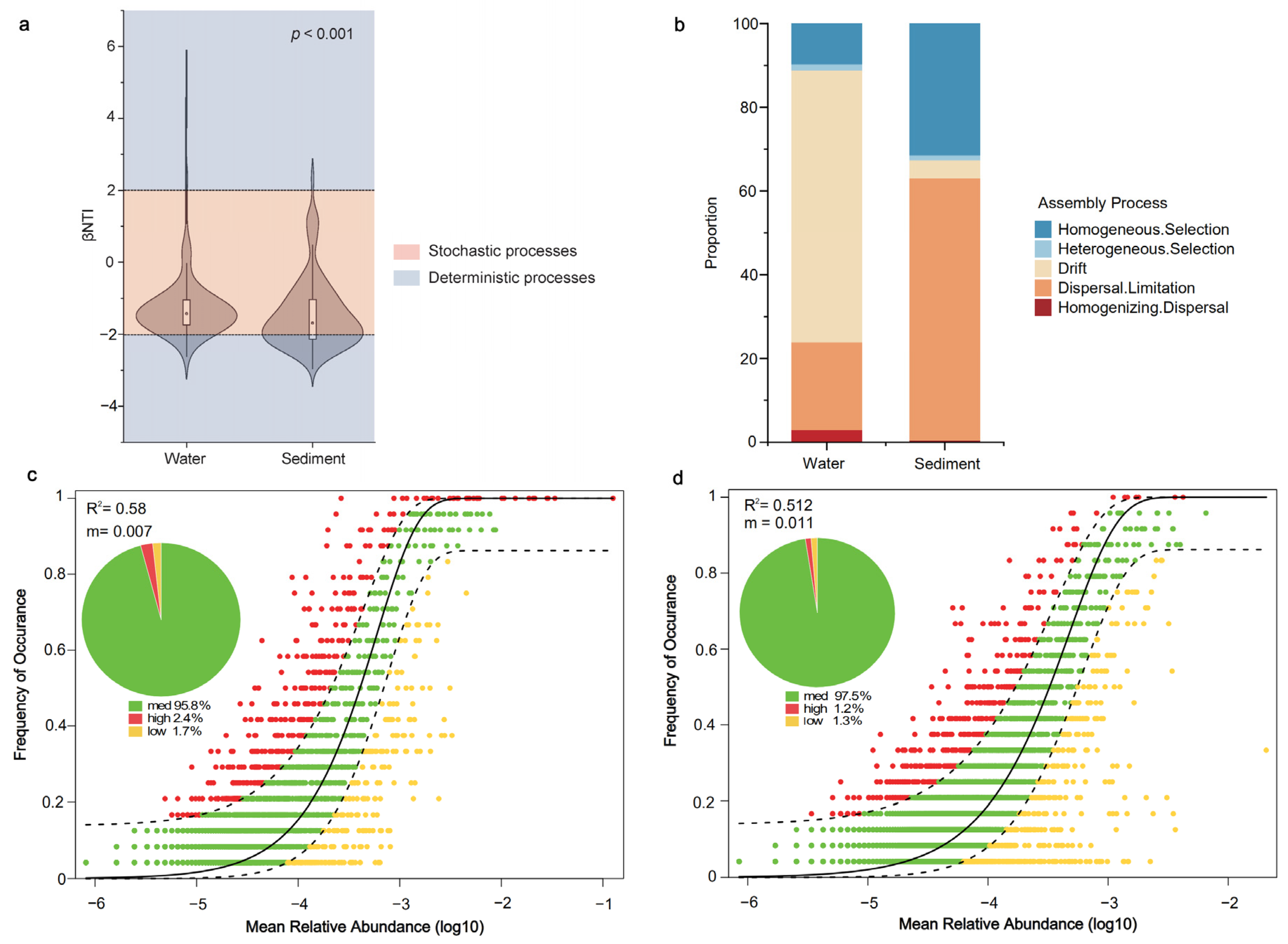

To further assess the relative contributions of deterministic and stochastic processes to the formation of bacterial communities in the Ningxia section of the Yellow River. The bacterial community assembly mechanisms were examined by using the neutral community model (NCM) and the phylogenetic null model. Following the results in Figure 7, the neutral community model predicted most relationships between ASV occurrence frequency and their relative abundance change. The model’s interpretation rate (R2) suggested that stochastic processes had a strong effect on bacterial community assembly in both habitats, accounting for 0.580 and 0.512 of the bacterial community variation in water and sediments, respectively (Figure 7c,d).
Meanwhile, the results of the null model also showed the dominant effect of stochastic processes on bacterial community assembly mechanisms (most |βNTI| < 2, Figure 7a). From Figure 7b, it was shown that, in the bacterioplankton community (88.77%), the proportion being dominated by stochastic processed was higher than those of the sedimentary bacteria community (67.39%). Ecological drift (64.86%) was the dominant process for bacterioplankton community assembly, while sedimentary bacterial community assembly was primarily influenced by dispersal limitations (62.68%).

4. Discussion

In this study, 48 samples were collected from the surface water and sediment of the Ningxia section of the Yellow River, with 24 samples obtained from each habitat. We characterized the bacterial communities and determined the factors affecting their structure. Our results revealed significant differences in bacterial composition, diversity, symbiotic patterns, dominant drivers, and assembly processes between the two habitats.
The Chao1 index, Shannon index, and Pioule index were used to characterize bacterial communities’ abundance, diversity, and evenness. The results showed that the indices of sediment bacterial communities in the Ningxia section of the Yellow River were all higher than those of bacterioplankton communities, consistent with the global pattern of microbial diversity [44]. The bacterial community in surface water was found to be more dynamic compared to the sediment bacterial community, indicating that it was more susceptible to environmental influences [45]. The α-diversity index in this study was calculated based on ASVs, which precludes comparison with studies utilizing OTUs as their clustering units. However, large-scale ecological patterns should remain robust regardless of feature clustering methods [46]. For instance, our study found that the dominant phyla in the Ningxia section of the Yellow River had similarities with the results from two previous studies that utilized OTUs [27,28]. However, they were not identical, especially regarding their relative abundance.
Analysis of the bacterial community composition in the Ningxia section of the Yellow River revealed that the sum of the relative abundance of the dominant bacteria (relative abundance >1%) in the bacterioplankton community exceeded 96.70%, and the most dominant taxa were Proteobacteria, followed by Actinobacteriota and Bacteroidota. Cyanobacteria, Firmicutes, and Verrucomicrobiota were also the dominant phyla of bacterioplankton. Our findings were similar to previous studies in other rivers [24,47] and consistent with the bacterial community composition of typical freshwater bodies [48]. In the sediments, the dominant phyla were Proteobacteria, Bacteroidota, Desulfobacterota, Acidobacteriota, Actinobacteriota, Firmicutes, Chloroflexi, Cyanobacteria, Verrucomicrobiota, and Nitrospirota. Studies in freshwater lakes [49] and rivers [50] have found that Proteobacteria was the most abundant phylum in all sediment samples and was involved in the functioning and processing of freshwater sediment ecosystems [51], such as the inhibition of pathogenic microorganisms, nitrogen, and phosphorus transformation [52]. To probe the specific differences in patterns of bacterial communities between the two habitats, we used STAMP to conduct further analysis. The results indicated a dominance in the number of ASVs belonging to sediment bacteria across most phyla. A recent study confirmed that the high bacterial diversity of sediments is partly due to their ability to recruit and subsequently deposit microbes from surrounding sources, such as soil, sand, and plant debris [53]. Moreover, the sediment provides a stable environment, which can support the growth and reproduction of bacteria. Certainly, the sediment in the Ningxia section of the Yellow River serves as a hub for material cycling and energy transfer. An abundant number of species maximize ecological niche opportunities and enables better energy transfer and nutrient utilization [54]. Nevertheless, it is noteworthy to contemplate the transformation of sediment bacteria and bacterioplankton under strong current disturbance in this turbid, lotic ecosystem.
In this study, NMDS analysis (Figure 5c) clearly separated bacterial communities, and we also identified the occupancy and specificity of the different ASVs (Figure 4). This suggested that habitat type was the main reason for the differences in community structure. Undoubtedly, water and sediment are two different habitats with different environmental conditions, such as the amount of organic matter and nutrient content, all of which affect the composition of the bacterial community [55]. In addition, there was a significant seasonal separation of bacterial communities in the Ningxia section of the Yellow River, and this phenomenon was more significant in the bacterioplankton community (Globe Rwater > Globe Rsediment, Figure 5a,b). The Kruskal-Wallis test results (Figure S2a) showed seasonal differences in the major phyla in each habitat. In the water, there were significant differences in the relative abundance of the nine major phyla, except for Chloroflexi. However, in the sediments, the differences between seasons were only reflected in the three phyla (Fimicutes, Verrucomicobiota, and Nitrospirota) with lower relative abundances. In fact, some environmental parameters (e.g., WT, pH, and TN) in water did considerably vary among the sampling periods (Table 1), and their significant seasonal variations strongly influenced the composition of the bacterioplankton community [56]. Strong perturbations by hydrological factors have caused increased environmental stresses, leading to changes in the bacterioplankton community [57]. The gentle topography and slow water flow in the Ningxia section of the Yellow River result in less disturbance of the sediments. The sediment environment reaches equilibrium through long-term sediment erosion and accumulation, so the seasonal changes in the sediment bacterial community are less significant than those of bacterioplankton [58].
Co-occurrence pattern network analysis helps to decipher complex microbial community structures [59], while the topological parameters are a direct representation of network properties, and they can also be used for network aggregation and connectivity assessment [56,60]. In this study, we separately constructed co-occurrence pattern networks for the bacterial communities in the two habitats. Although the number of nodes in the bacterioplankton network was lower than that in the sediment, there was a clear numerical advantage in edges (connections). It was indicated that a higher contact frequency of the bacterioplankton community. The higher average clustering coefficient, average path lengths and density demonstrated that the complexity of the bacterioplankton co-occurrence network was higher than that of sedimentary bacteria. Additionally, there was a tight association among the major genera. Modules are groups of nodes that are well connected with one another, but less connected with nodes belonging to other modules [43,61]; nodes in the same module occupy similar ecological functions and niches [62]. Higher modularity indicated that the sediment bacterial community had more ecological niches and could maintain community stability through functional and ecological niche concentration, thus minimizing environmental impacts [63].
Bacterial community structure is assumed to result from external environmental factors and the random distribution of different habitats [64]. Multiple external environmental factors may affect bacterial community structure for a lotic system, such as the Yellow River [65]. Our study showed that the influencing parameters of bacterioplankton and sediment bacteria in the Ningxia section of the Yellow River were very different. After removing environmental factors with high covariance (VIF > 20), CODMn, pH, Chl a, and DO had significant effects on the composition of the bacterioplankton (p < 0.05), TP was significantly associated with sediment bacteria (p < 0.05). CODMn is a conventional measure of the contamination by organic and oxidizable inorganic matter in a water sample. In previous studies, the bacterioplankton community structure varies depending on chemical oxygen demand levels [66]. It is widely recognized that pH is essential to bacterial community structure. pH not only directly affects bacterial growth status, but also influences bacterial community structure and diversity by changing the physicochemical properties of water [67]. Chl a is an important indicator of phytoplankton extant, the metabolism of heterotrophic bacteria is closely related to phytoplankton. Meanwhile, both metabolites and secretions of phytoplankton could affect the bacterial community composition, and Chl a content indirectly influences the density changes of planktonic bacteria in the water body [68]. Aerobic bacteria need oxygen to grow and develop due to the lack of antioxidant enzymes, while anaerobic bacteria need to live in an anoxic environment. Therefore, DO is also a primary factor in developing the bacterioplankton community structure [69]. In addition, TP is one of the determinants of bacterial community structure in sediments, which could change bacteria’s overall structure and function by affecting denitrifying bacteria [70,71]. The co-occurrence networks revealed that CODMn, Chl a, and pH were associated with multiple nodes in the bacterioplankton network, and a few dominant genera were associated with TP in another network. Combining the results of the two analyses, we suggest that CODMn, Chl a, and pH mainly drove the bacterioplankton community in this study. However, the main driver factor of sediment bacteria community was TP.
In recent years, the in-depth mechanisms of community assembly have been one of the central challenges and hotspots in microbial ecology. Substantial evidence has shown that deterministic and stochastic processes play a crucial role in the turnover of riverine microbial communities [43,72], and many studies have focused on their different importance [73,74]. In the present study, the effect of ecological processes on bacterial communities in two habitats was first evaluated using a phylogenetic null model [39,40]. Our findings unequivocally demonstrate that stochastic processes play a significant role in assembling bacterial communities in the Ningxia section of the Yellow River. In comparison to the bacterial community in the sediment, the effect of stochastic processes on the assemblage of the bacterioplankton community was more significant (Figure 4a). Furthermore, the dominance of ecological drift in the bacterioplankton community and dispersal limitation in sediment bacterial communities were confirmed by quantifying different ecological processes in community assembly (Figure 4b). Indeed, the NCM results (Figure 4c,d) reiterated the importance of stochastic processes in the two habitats. Our study on the mechanism of bacterioplankton community assembly was in agreement with the results of other rivers, where the stochastic process (dispersal limitation) was the primary process shaping the communities [47,75]. Nevertheless, the findings of this study conflict with those of other studies regarding sediment bacteria. For instance, Yuan et al. [76] found that homogeneous selection was the dominant ecological process for bacterial community assembly in large river sediment. When Lu et al. [77] studied the bacterial communities in estuarine sediments, they discovered that although stochastic processes had a significant impact on bacterial community assembly, deterministic processes were more crucial. Wang et al. [78] also pointed out that the main ecological process determining the bacterial community compositions in water was the dispersal process, whereas in sediments it was the selection process. The discrepancy in the study results may be attributed to the small environmental gradients and spatiotemporal scales in the present study area. In addition, the slower change in elevation gradient may also be a reason [73].

5. Conclusions

The examination of bacterial communities is an important part of monitoring environmental and ecological conditions in rivers. In this study, we examined the bacterial community structure, environmental drivers, and potential assembly mechanisms in two habitats (water column and sediment) in the Ningxia section of the Yellow River. There were some differences in the community structure and diversity between bacterioplankton and sedimentary bacteria. Significant seasonal variation was observed in the bacterioplankton community, but not in the sediment bacterial community. The results showed that the environmental variables CODMn, Chl a, and pH affected the structure of the bacterioplankton community, while TP was the primary factor influencing the structure of the sediment bacterial community. Bacterial communities in both habitats were mainly affected by stochastic processes, with ecological processes dominated by ecological drift for bacterioplankton and dispersal limitations for sediment bacteria. It is noteworthy that the seasonal cycle in this area is an annually recurring process, and whether the dynamics of the bacterial community are similarly recurring in the future needs to be researched in the long term. Future research should pay more attention to the effects of shifting environmental gradients because the process of microbial community assembly is not static. In addition, many natural tributaries and artificial channels converge into the mainstream of the Yellow River to form a complex river network. The development and assembly mechanisms of bacterial communities in this system are still unexplored and should also be encouraged in future studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11020496/s1, Figure S1: Rarefaction curves of bacterial richness of each sample; Figure S2: Relative abundance of different phyla among the three sampling periods. (a) water samples, (b) sediment samples. * p < 0.05, ** p < 0.01, *** p < 0.001, Kruskal-Wallis test; Figure S3: Relative abundances of the dominant bacterial families in water samples. Family with relative abundance < 1% were defined as “other”; Figure S4: Relative abundances of the dominant bacterial families in sediment samples. Family with relative abundance < 1% were defined as “other”; Figure S5: The SPEC-OCCU plots (a) over three sampling periods in water at the family level; Figure S6: The SPEC-OCCU plots (a) over three sampling periods in sediment at the family level; Table S1: Alpha diversity indices of samples based on ASVs; Table S2: Variance inflation factor of the environmental parameters; Table S3: Details of nodes contacted with the drive parameters.

Author Contributions

R.-Z.Z.: Conceptualization, Formal analysis, Writing—original draft, Writing—review and editing; W.-J.Z.: Data curation, Supervision, Funding acquisition; Z.-F.Z.: Investigation; X.-C.Q.: Data curation, Supervision, Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Ningxia University first-class discipline (water conservancy engineering) construction subsidy project under award number NXYLXK2021A03, Key Research and Development Plan (key project) of Ningxia Hui Autonomous Region (2019BFG02014), Ningxia Natural Science Foundation (2020AAC03280).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank all the authors for their contributions. We acknowledge Wen Zhang from the Ningxia Supervision Institute for Veterinary Drugs and Animal Feedstuffs for her outstanding assistance with the formal analysis and investigation. We would like to convey our deep thankfulness and unfathomable regard to editors, reviewers, and authors of all references.

Conflicts of Interest

The authors declare that there was no conflict of interest or any potential financial or other interests that could be perceived to influence the outcomes of this research.

References

  1. Humphries, P.; Keckeis, H.; Finlayson, B. The River Wave Concept: Integrating River Ecosystem Models. Bioscience 2014, 64, 870–882. [Google Scholar] [CrossRef]
  2. Savio, D.; Sinclair, L.; Ijaz, U.Z.; Parajka, J.; Reischer, G.H.; Stadler, P.; Blaschke, A.P.; Blöschl, G.; Mach, R.L.; Kirschner, A.K.T.; et al. Bacterial diversity along a 2600 km river continuum. Environ. Microbiol. 2015, 17, 4994–5007. [Google Scholar] [CrossRef] [Green Version]
  3. Décamps, H. River networks as biodiversity hotlines. Comptes Rendus Biol. 2011, 334, 420–434. [Google Scholar] [CrossRef]
  4. Albert, J.S.; Destouni, G.; Duke-Sylvester, S.M.; Magurran, A.E.; Oberdorff, T.; Reis, R.E.; Winemiller, K.O.; Ripple, W.J. Scientists’ warning to humanity on the freshwater biodiversity crisis. Ambio 2021, 50, 85–94. [Google Scholar] [CrossRef] [PubMed]
  5. Huang, Y.; Zou, L.; Zhang, S.; Xie, S. Comparison of bacterioplankton communities in three heavily polluted streams in China. Biomed. Environ. Sci. 2011, 24, 140–145. [Google Scholar] [CrossRef] [PubMed]
  6. Yang, Y.; Gao, Y.; Huang, X.; Ni, P.; Wu, Y.; Deng, Y.; Zhan, A. Adaptive shifts of bacterioplankton communities in response to nitrogen enrichment in a highly polluted river. Environ. Pollut. 2019, 245, 290–299. [Google Scholar] [CrossRef]
  7. Ghosh, A.; Debnath, M.; Bhadury, P. Datasets of surface water microbial populations from two anthropogenically impacted sites on the Bhagirathi-Hooghly River. Data Brief 2020, 29, 105371. [Google Scholar] [CrossRef]
  8. Huang, H.; Liu, J.; Zhang, F.; Zhu, K.; Yang, C.; Xiang, Q.; Lei, B. Characteristics of planktonic and sediment bacterial communities in a heavily polluted urban river. Peerj 2021, 9, e10866. [Google Scholar] [CrossRef] [PubMed]
  9. Banerjee, S.; Kirkby, C.A.; Schmutter, D.; Bissett, A.; Kirkegaard, J.A.; Richardson, A.E. Network analysis reveals functional redundancy and keystone taxa amongst bacterial and fungal communities during organic matter decomposition in an arable soil. Soil Biol. Biochem. 2016, 97, 188–198. [Google Scholar] [CrossRef]
  10. Madsen, E.L. Microorganisms and their roles in fundamental biogeochemical cycles. Curr. Opin. Biotechnol. 2011, 22, 456–464. [Google Scholar] [CrossRef]
  11. Pin, L.; Eiler, A.; Fazi, S.; Friberg, N. Two different approaches of microbial community structure characterization in riverine epilithic biofilms under multiple stressors conditions: Developing molecular indicators. Mol. Ecol. Resour. 2021, 21, 1200–1215. [Google Scholar] [CrossRef]
  12. Findlay, S. Stream microbial ecology. J. N. Am. Benthol. Soc. 2010, 29, 170–181. [Google Scholar] [CrossRef] [Green Version]
  13. Escalas, A.; Hale, L.; Voordeckers, J.W.; Yang, Y.; Firestone, M.K.; Alvarez-Cohen, L.; Zhou, J. Microbial functional diversity: From concepts to applications. Ecol. Evol. 2019, 9, 12000–12016. [Google Scholar] [CrossRef] [Green Version]
  14. Raes, J.; Bork, P. Molecular eco-systems biology: Towards an understanding of community function. Nat. Rev. Microbiol. 2008, 6, 693–699. [Google Scholar] [CrossRef] [Green Version]
  15. Staley, C.; Unno, T.; Gould, T.J.; Jarvis, B.; Phillips, J.; Cotner, J.B.; Sadowsky, M.J. Application of Illumina next-generation sequencing to characterize the bacterial community of the Upper Mississippi River. J. Appl. Microbiol. 2013, 115, 1147–1158. [Google Scholar] [CrossRef] [PubMed]
  16. Cai, W.; Li, Y.; Shen, Y.; Wang, C.; Wang, P.; Wang, L.; Niu, L.; Zhang, W. Vertical distribution and assemblages of microbial communities and their potential effects on sulfur metabolism in a black-odor urban river. J. Environ. Manag. 2019, 235, 368–376. [Google Scholar] [CrossRef] [PubMed]
  17. de Oliveira, L.F.V.; Margis, R. The Source of the River as a Nursery for Microbial Diversity. PLoS ONE 2015, 10, e0120608. [Google Scholar] [CrossRef]
  18. Yellow River Conservancy Commission (YRCC). Yellow River Sediment Bulletin. 2021. Available online: http://yrcc.gov.cn/nishagonggao/ (accessed on 20 October 2022).
  19. Domingues, R.B.; Barbosa, A.B.; Sommer, U.; Galvao, H.M. Environmental drivers of phytoplankton in a turbid estuary: Nutrient vs. light limitation. Eur. J. Phycol. 2011, 46, 165–166. [Google Scholar]
  20. Lu, Z.; Gan, J. Controls of seasonal variability of phytoplankton blooms in the Pearl River Estuary. Deep. Sea Res. Part II Top. Stud. Oceanogr. 2015, 117, 86–96. [Google Scholar] [CrossRef]
  21. Gascón, S.; Brucet, S.; Sala, J.; Boix, D.; Quintana, X.D. Comparison of the effects of hydrological disturbance events on benthos and plankton salt marsh communities. Estuar. Coast. Shelf Sci. 2007, 74, 419–428. [Google Scholar] [CrossRef]
  22. Olomukoro, J.; Dirisu, A.; Edema, C. Effects of ecosystem disturbance on zoobenthos of a river in Western Nigeria. J. Aquat. Sci. 2016, 31, 143. [Google Scholar] [CrossRef]
  23. Xia, N.; Xia, X.; Liu, T.; Hu, L.; Zhu, B.; Zhang, X.; Dong, J. Characteristics of bacterial community in the water and surface sediment of the Yellow River, China, the largest turbid river in the world. J. Soils Sediments 2014, 14, 1894–1904. [Google Scholar] [CrossRef]
  24. He, H.; Pan, B.; Yu, K.; Zheng, X.; Wu, Y.; Xiao, L.; Zhao, G.; Zhu, P. Determinants of bacterioplankton structures in the typically turbid Weihe River and its clear tributaries from the northern foot of the Qinling Mountains. Ecol. Indic. 2021, 121, 107168. [Google Scholar] [CrossRef]
  25. Wei, G.; Li, M.; Li, F.; Li, H.; Gao, Z. Distinct distribution patterns of prokaryotes between sediment and water in the Yellow River estuary. Appl. Microbiol. Biotechnol. 2016, 100, 9683–9697. [Google Scholar] [CrossRef]
  26. Chen, Y.; Jiang, Y.; Huang, H.; Mou, L.; Ru, J.; Zhao, J.; Xiao, S. Long-term and high-concentration heavy-metal contamination strongly influences the microbiome and functional genes in Yellow River sediments. Sci. Total Environ. 2018, 637–638, 1400–1412. [Google Scholar] [CrossRef]
  27. Zhao, M.M.; Wang, S.-M.; Chen, Y.-P.; Wu, J.-H.; Xue, L.-G.; Fan, T.T. Pollution status of the Yellow River tributaries in middle and lower reaches. Sci. Total Environ. 2020, 722, 137861. [Google Scholar] [CrossRef]
  28. Zhao, Z.; Zhao, R.; Qiu, X.; Wan, Y.; Lee, L. Structural Diversity of Bacterial Communities and Its Relation to Environmental Factors in the Surface Sediments from Main Stream of Qingshui River. Water 2022, 14, 3356. [Google Scholar] [CrossRef]
  29. Bolyen, E.; Rideout, J.R.; Dillon, M.R.; Bokulich, N.A.; Abnet, C.C.; Al-Ghalith, G.A.; Alexander, H.; Alm, E.J.; Arumugam, M.; Asnicar, F.; et al. Reproducible, Interactive, Scalable and Extensible Microbiome Data Science using QIIME 2. Nat. Biotechnol. 2019, 37, 852–857. [Google Scholar] [CrossRef] [PubMed]
  30. Callahan, B.J.; McMurdie, P.J.; Holmes, S.P. Exact sequence variants should replace operational taxonomic units in marker-gene data analysis. ISME J. 2017, 11, 2639–2643. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Yilmaz, P.; Parfrey, L.W.; Yarza, P.; Gerken, J.; Pruesse, E.; Quast, C.; Schweer, T.; Peplies, J.; Ludwig, W.; Glöckner, F.O. The SILVA and “All-species Living Tree Project (LTP)” taxonomic frameworks. Nucl. Acids Res. 2014, 42, D643–D648. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Kassambara, A. Rstatix: Pipe-Friendly Framework for Basic Statistical Tests. 2021. R Package Version 0.7.0. Available online: https://CRAN.R-project.org/package=rstatix (accessed on 15 August 2022).
  33. Oksanen, J.; Simpson, G.L.; Blanchet, F.G.; Kindt, R.; Legendre, P.; Minchin, P.R.; O’Hara, P.B.; Solymos, P.; Stevens, M.H.H.; Szoecs, E.; et al. Vegan: Community Ecology Package. 2020. R Package Version 2.5-7. Available online: https://CRAN.R-project.org/package=vegan (accessed on 17 August 2022).
  34. Gweon, H.S.; Bowes, M.J.; Moorhouse, H.L.; Oliver, A.E.; Bailey, M.J.; Acreman, M.C.; Read, D.S. Contrasting community assembly processes structure lotic bacteria metacommunities along the river continuum. Environ. Microbiol. 2020, 23, 484–498. [Google Scholar] [CrossRef]
  35. Blanchet, F.G.; Legendre, P.; Borcard, D. Forward selection of explanatory variables. Ecology 2008, 89, 2623–2632. [Google Scholar] [CrossRef] [PubMed]
  36. Harell, F.E., Jr. Hmisc: Harrell Miscellaneous. R Package Version 4.6-0. 2021. Available online: https://CRAN.R-project.org/package=Hmisc (accessed on 17 August 2022).
  37. Otasek, D.; Morris, J.H.; Bouças, J.; Pico, A.R.; Demchak, B. Cytoscape Automation: Empowering workflow-based network analysis. Genome Biol. 2019, 20, 185. [Google Scholar] [CrossRef] [Green Version]
  38. Mo, Y.; Peng, F.; Gao, X.; Xiao, P.; Logares, R.; Jeppesen, E.; Ren, K.; Xue, Y.; Yang, J. Low shifts in salinity determined assembly processes and network stability of microeukaryotic plankton communities in a subtropical urban reservoir. Microbiome 2021, 9, 128. [Google Scholar] [CrossRef] [PubMed]
  39. Stegen, J.C.; Lin, X.; Fredrickson, J.K.; Chen, X.; Kennedy, D.W.; Murray, C.J.; Rockhold, M.L.; Konopka, A. Quantifying community assembly processes and identifying features that impose them. ISME J. 2013, 7, 2069–2079. [Google Scholar] [CrossRef]
  40. Stegen, J.C.; Lin, X.; Fredrickson, J.K.; Konopka, A.E. Estimating and mapping ecological processes influencing microbial community assembly. Front. Microbiol. 2015, 6, 370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Ning, D.; Yuan, M.; Wu, L.; Zhang, Y.; Guo, X.; Zhou, X.; Yang, Y.; Arkin, A.P.; Firestone, M.K.; Zhou, J. A quantitative framework reveals ecological drivers of grassland microbial community assembly in response to warming. Nat. Commun. 2020, 11, 4717. [Google Scholar] [CrossRef]
  42. Sloan, W.T.; Lunn, M.; Woodcock, S.; Head, I.M.; Nee, S.; Curtis, T.P. Quantifying the roles of immigration and chance in shaping prokaryote community structure. Environ. Microbiol. 2006, 8, 732–740. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, W.; Ren, K.; Isabwe, A.; Chen, H.; Liu, M.; Yang, J. Stochastic processes shape microeukaryotic community assembly in a subtropical river across wet and dry seasons. Microbiome 2019, 7, 138. [Google Scholar] [CrossRef] [Green Version]
  44. Lozupone, C.A.; Knight, R. Global patterns in bacterial diversity. Proc. Natl. Acad. Sci. USA 2007, 104, 11436–11440. [Google Scholar] [CrossRef] [Green Version]
  45. Zeglin, L.H. Stream microbial diversity in response to environmental changes: Review and synthesis of existing research. Front. Microbiol. 2015, 6, 454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Glassman, S.I.; Martiny, J.B.H. Broadscale Ecological Patterns Are Robust to Use of Exact Sequence Variants versus Operational Taxonomic Units. Msphere 2018, 3, e00148-18. [Google Scholar] [CrossRef] [Green Version]
  47. Sun, H.; Pan, B.; He, H.; Zhao, G.; Hou, Y.; Zhu, P. Assembly processes and co-occurrence relationships in the bacterioplankton communities of a large river system. Ecol. Indic. 2021, 126, 107643. [Google Scholar] [CrossRef]
  48. Newton, R.J.; Jones, S.E.; Eiler, A.; McMahon, K.D.; Bertilsson, S. A Guide to the Natural History of Freshwater Lake Bacteria. Microbiol. Mol. Biol. Rev. 2011, 75, 14–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zhang, J.; Yang, Y.; Zhao, L.; Li, Y.; Xie, S.; Liu, Y. Distribution of sediment bacterial and archaeal communities in plateau freshwater lakes. Appl. Microbiol. Biotechnol. 2015, 99, 3291–3302. [Google Scholar] [CrossRef] [PubMed]
  50. Saccà, M.L.; Ferrero, V.E.V.; Loos, R.; Di Lenola, M.; Tavazzi, S.; Grenni, P.; Ademollo, N.; Patrolecco, L.; Huggett, J.; Caracciolo, A.B.; et al. Chemical mixtures and fluorescence in situ hybridization analysis of natural microbial community in the Tiber river. Sci. Total Environ. 2019, 673, 7–19. [Google Scholar] [CrossRef] [PubMed]
  51. Song, H.; Li, Z.; Du, B.; Wang, G.; Ding, Y. Bacterial communities in sediments of the shallow Lake Dongping in China. J. Appl. Microbiol. 2012, 112, 79–89. [Google Scholar] [CrossRef]
  52. Tang, Y.; Zhao, L.; Cheng, Y.; Yang, Y.; Sun, Y.; Liu, Q. Control of cyanobacterial blooms in different polyculture patterns of filter feeders and effects of these patterns on water quality and microbial community in aquacultural ponds. Aquaculture 2021, 542, 736913. [Google Scholar] [CrossRef]
  53. Zhang, L.; Delgado-Baquerizo, M.; Shi, Y.; Liu, X.; Yang, Y.; Chu, H. Co-existing water and sediment bacteria are driven by contrasting environmental factors across glacier-fed aquatic systems. Water Res. 2021, 198, 117139. [Google Scholar] [CrossRef]
  54. Cardinale, B.J. Biodiversity improves water quality through niche partitioning. Nature 2011, 472, 86–89. [Google Scholar] [CrossRef] [PubMed]
  55. Ren, Z.; Qu, X.; Peng, W.; Yu, Y.; Zhang, M. Nutrients Drive the Structures of Bacterial Communities in Sediments and Surface Waters in the River-Lake System of Poyang Lake. Water 2019, 11, 930. [Google Scholar] [CrossRef] [Green Version]
  56. Shang, Y.; Wu, X.; Wang, X.; Wei, Q.; Ma, S.; Sun, G.; Zhang, H.; Wang, L.; Dou, H.; Zhang, H. Factors affecting seasonal variation of microbial community structure in Hulun Lake, China. Sci. Total Environ. 2022, 805, 150294. [Google Scholar] [CrossRef]
  57. Dai, Y.; Hein, T.; Preiner, S.; Reitsema, R.E.; Schoelynck, J. Influence of water temperature and water depth on macrophyte–bacterioplankton interaction in a groundwater-fed river. Environ. Sci. Pollut. Res. 2020, 27, 13166–13179. [Google Scholar] [CrossRef] [PubMed]
  58. Dang, C.; Wang, J.; He, Y.; Yang, S.; Chen, Y.; Liu, T.; Fu, J.; Chen, Q.; Ni, J. Rare biosphere regulates the planktonic and sedimentary bacteria by disparate ecological processes in a large source water reservoir. Water Res. 2022, 216, 118296. [Google Scholar] [CrossRef] [PubMed]
  59. Barberán, A.; Bates, S.T.; Casamayor, E.O.; Fierer, N. Using network analysis to explore co-occurrence patterns in soil microbial communities. ISME J. 2012, 6, 343–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Zhang, L.; Zhong, M.; Li, X.; Lu, W.; Li, J. River bacterial community structure and co-occurrence patterns under the influence of different domestic sewage types. J. Environ. Manag. 2020, 266, 110590. [Google Scholar] [CrossRef]
  61. Wu, B.; Wang, P.; Devlin, A.; Chen, L.; Xia, Y.; Zhang, H.; Nie, M.; Ding, M. Spatial and Temporal Distribution of Bacterioplankton Molecular Ecological Networks in the Yuan River under Different Human Activity Intensity. Microorganisms 2021, 9, 1532. [Google Scholar] [CrossRef] [PubMed]
  62. Liu, Z.; Ma, X.; He, N.; Zhang, J.; Wu, J.; Liu, C. Shifts in microbial communities and networks are correlated with the soil ionome in a kiwifruit orchard under different fertilization regimes. Appl. Soil Ecol. 2020, 149, 103517. [Google Scholar] [CrossRef]
  63. Chun, S.-J.; Cui, Y.; Baek, S.H.; Ahn, C.-Y.; Oh, H.-M. Seasonal succession of microbes in different size-fractions and their modular structures determined by both macro- and micro-environmental filtering in dynamic coastal waters. Sci. Total Environ. 2021, 784, 147046. [Google Scholar] [CrossRef]
  64. Logue, J.B.; Lindström, E.S. Biogeography of Bacterioplankton in Inland Waters. Freshw. Rev. 2008, 1, 99–114. [Google Scholar] [CrossRef] [Green Version]
  65. Schiaffino, M.R.; Unrein, F.; Gasol, J.M.; Massana, R.; Balagué, V.; Izaguirre, I. Bacterial community structure in a latitudinal gradient of lakes: The roles of spatial versus environmental factors. Freshw. Biol. 2011, 56, 1973–1991. [Google Scholar] [CrossRef]
  66. Shao, K.; Yao, X.; Wu, Z.; Jiang, X.; Hu, Y.; Tang, X.; Xu, Q.; Gao, G. The bacterial community composition and its environmental drivers in the rivers around eutrophic Chaohu Lake, China. BMC Microbiol. 2021, 21, 179. [Google Scholar] [CrossRef]
  67. Deng, R.; Chen, X.; Qiu, L.-P.; Chen, J.-Z.; Meng, S.-L. Bacterial Community Structure and Diversity in the Aqueous Environment of Shihou Lake and its Relationship with Environmental Factors. Indian J. Microbiol. 2021, 61, 475–486. [Google Scholar] [CrossRef] [PubMed]
  68. Dortch, Q.; Packard, T.T. Differences in biomass structure between oligotrophic and eutrophic marine ecosystems. Deep. Sea Res. Part A. Oceanogr. Res. Pap. 1989, 36, 223–240. [Google Scholar] [CrossRef]
  69. Wu, J.; Yang, H.; Pancost, R.D.; Naafs, B.D.A.; Qian, S.; Dang, X.; Sun, H.; Pei, H.; Wang, R.; Zhao, S.; et al. Variations in dissolved O2 in a Chinese lake drive changes in microbial communities and impact sedimentary GDGT distributions. Chem. Geol. 2021, 579, 120348. [Google Scholar] [CrossRef]
  70. Chen, Q.; Fan, J.; Ming, H.; Su, J.; Wang, Y.; Wang, B. Effects of environmental factors on denitrifying bacteria and functional genes in sediments of Bohai Sea, China. Mar. Pollut. Bull. 2020, 160, 111621. [Google Scholar] [CrossRef]
  71. Wu, S.; Li, R.; Xie, S.; Shi, C. Depth-related change of sulfate-reducing bacteria community in mangrove sediments: The influence of heavy metal contamination. Mar. Pollut. Bull. 2019, 140, 443–450. [Google Scholar] [CrossRef]
  72. Chase, J.M. Stochastic Community Assembly Causes Higher Biodiversity in More Productive Environments. Science 2010, 328, 1388–1391. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Li, Y.; Gao, Y.; Zhang, W.; Wang, C.; Wang, P.; Niu, L.; Wu, H. Homogeneous selection dominates the microbial community assembly in the sediment of the Three Gorges Reservoir. Sci. Total Environ. 2019, 690, 50–60. [Google Scholar] [CrossRef] [PubMed]
  74. Zhou, J.; Ning, D. Stochastic Community Assembly: Does It Matter in Microbial Ecology? Microbiol. Mol. Biol. Rev. 2017, 81, e00002-17. [Google Scholar] [CrossRef] [Green Version]
  75. Zhang, T.; Xu, S.; Yan, R.; Wang, R.; Gao, Y.; Kong, M.; Yi, Q.; Zhang, Y. Similar geographic patterns but distinct assembly processes of abundant and rare bacterioplankton communities in river networks of the Taihu Basin. Water Res. 2022, 211, 118057. [Google Scholar] [CrossRef] [PubMed]
  76. Yuan, B.; Guo, M.; Wu, W.; Zhou, X.; Li, M.; Xie, S. Spatial and Seasonal Patterns of Sediment Bacterial Communities in Large River Cascade Reservoirs: Drivers, Assembly Processes, and Co-occurrence Relationship. Microb. Ecol. 2022, 1–18. [Google Scholar] [CrossRef] [PubMed]
  77. Lu, Z.; Liu, Z.; Zhang, C.; Wei, Q.; Zhang, S.; Li, M. Spatial and seasonal variations of sediment bacterial communities in a river-bay system in South China. Appl. Microbiol. Biotechnol. 2021, 105, 1979–1989. [Google Scholar] [CrossRef] [PubMed]
  78. Wang, H.; Zhang, W.; Li, Y.; Gao, Y.; Niu, L.; Zhang, H.; Wang, L. Hydrodynamics-driven community coalescence determines ecological assembly processes and shifts bacterial network stability in river bends. Sci. Total Environ. 2023, 858, 159772. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 11 00496 g001 550

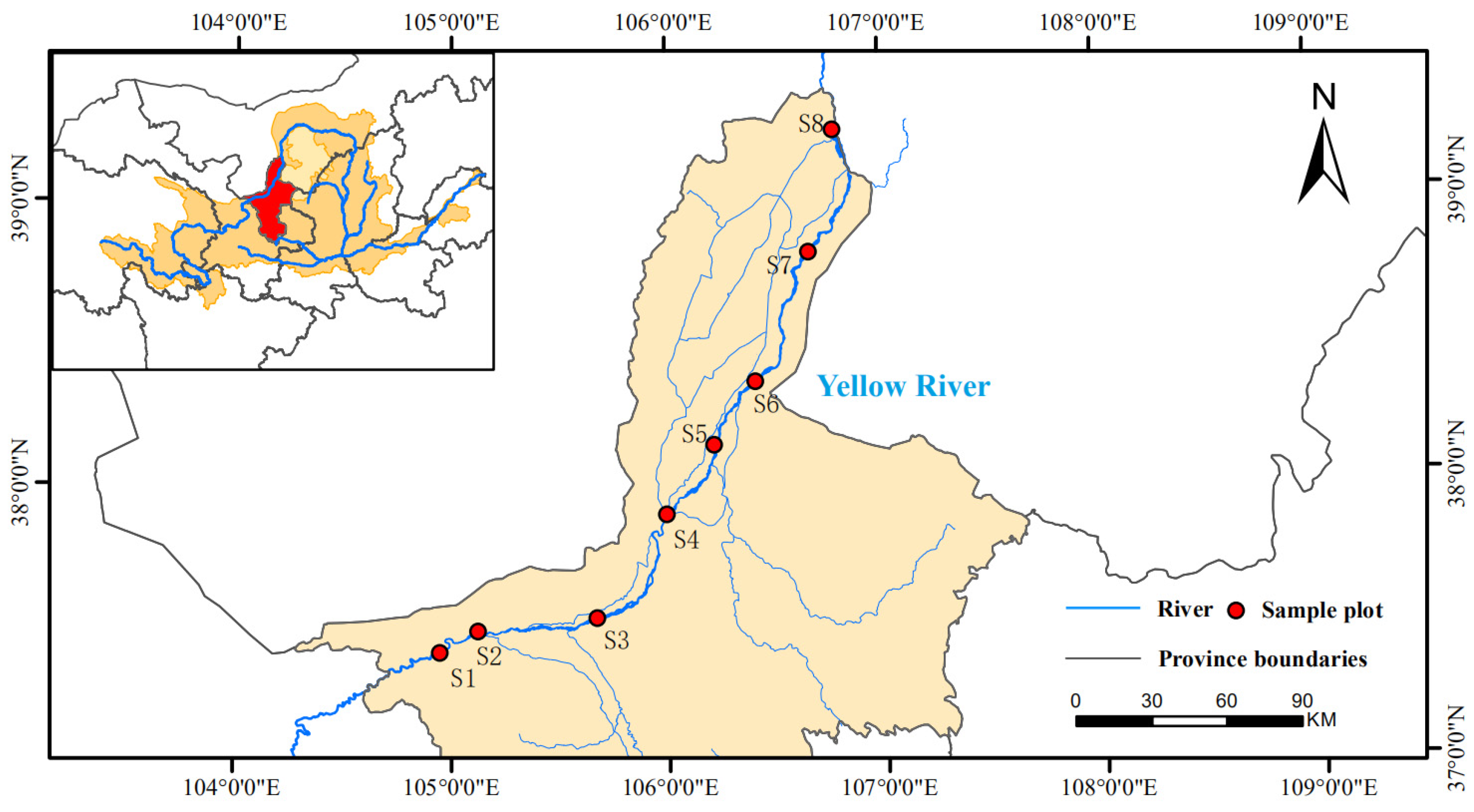

Figure 1. Distribution of sampling sites in the Ningxia section of the Yellow River.
Figure 1. Distribution of sampling sites in the Ningxia section of the Yellow River.
Microorganisms 11 00496 g001
Microorganisms 11 00496 g002 550

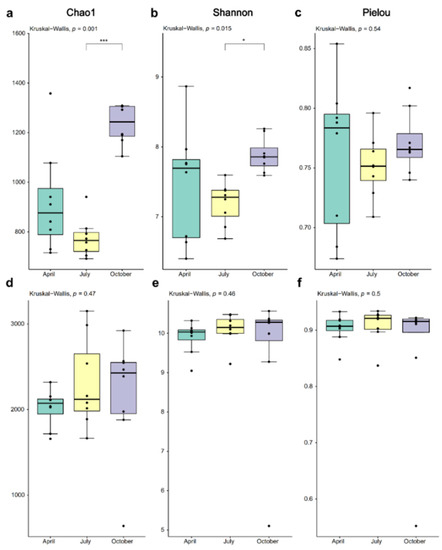

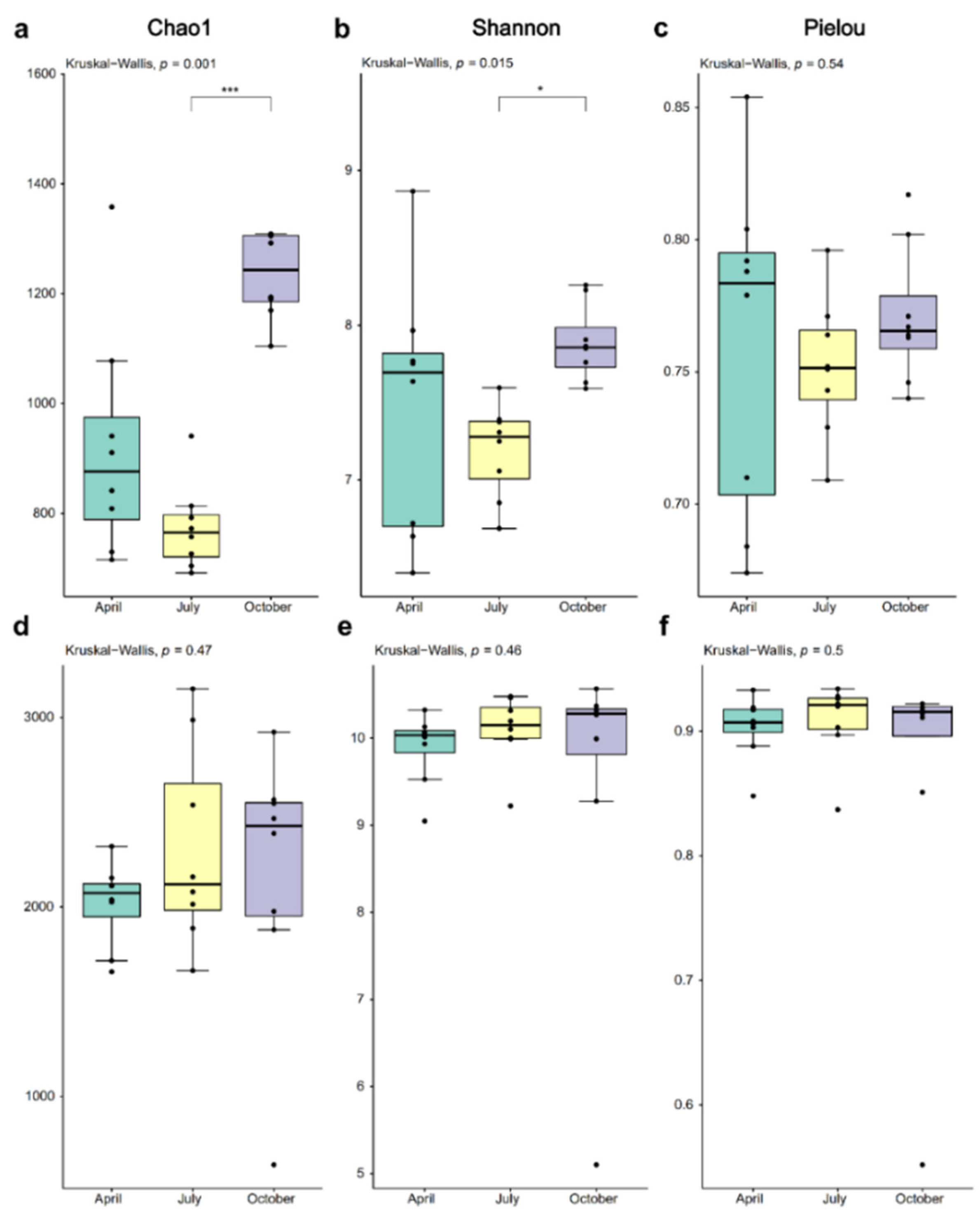

Figure 2. Comparison of alpha diversity indexes between sampling periods in two habitats with the Kruskal-Wallis test and the Dunn test ((a–c), water; (d–f), sediment). *, p < 0.05, *** p < 0.001.
Figure 2. Comparison of alpha diversity indexes between sampling periods in two habitats with the Kruskal-Wallis test and the Dunn test ((a–c), water; (d–f), sediment). *, p < 0.05, *** p < 0.001.
Microorganisms 11 00496 g002
Microorganisms 11 00496 g003 550

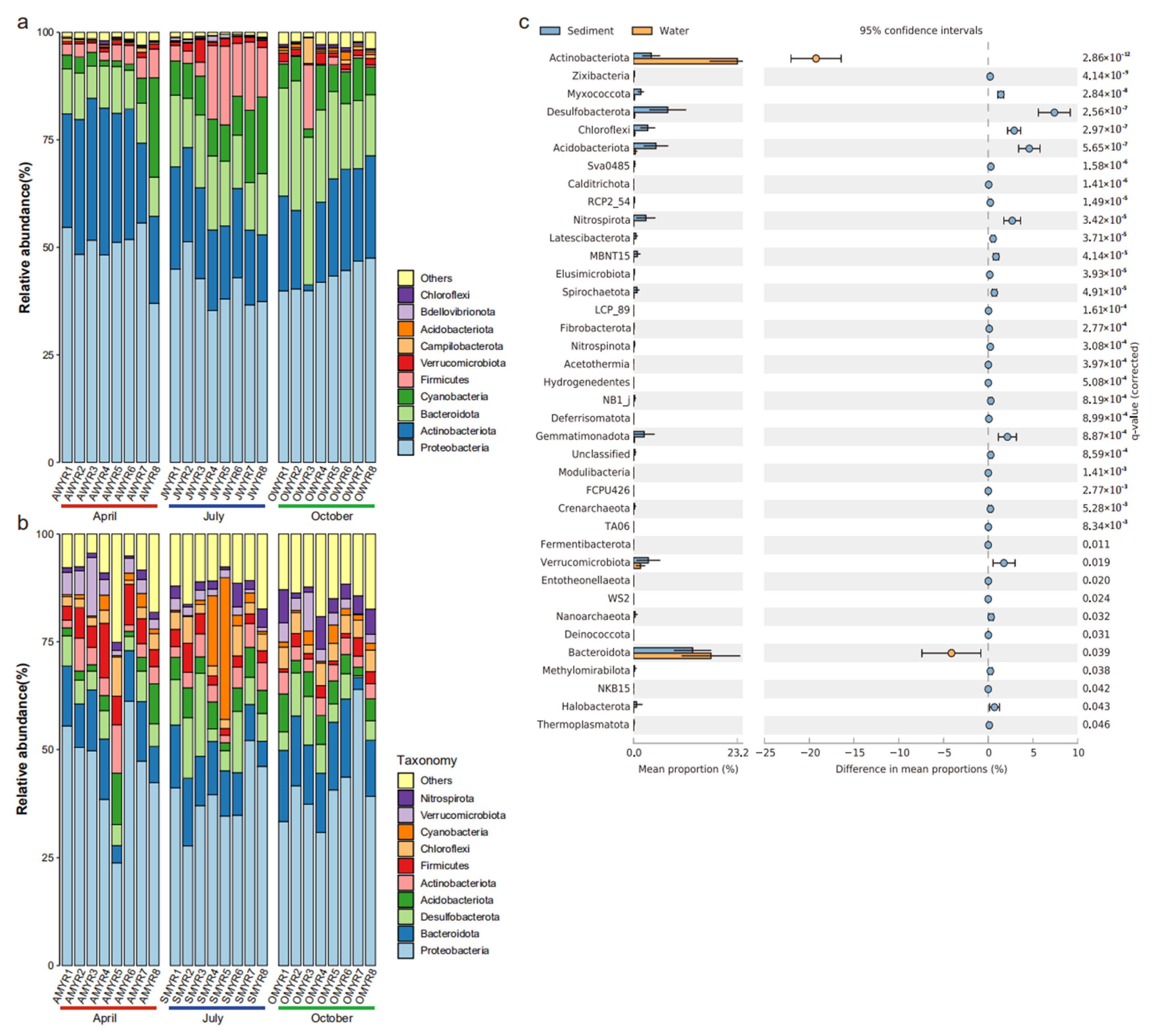

Figure 3. Relative abundances of the top 10 bacterial phyla in the two habitats ((a) water; (b) sediment). The remaining phyla were defined as “other”. The extended error bar plot (c) shows multiple clades with differences in the two habitats. The left bar represents the number of ASVs in each clade, the middle is the 95% confidence interval, and the right is the corrected p-value.
Figure 3. Relative abundances of the top 10 bacterial phyla in the two habitats ((a) water; (b) sediment). The remaining phyla were defined as “other”. The extended error bar plot (c) shows multiple clades with differences in the two habitats. The left bar represents the number of ASVs in each clade, the middle is the 95% confidence interval, and the right is the corrected p-value.
Microorganisms 11 00496 g003
Microorganisms 11 00496 g004 550
Figure 4. The SPEC-OCCU plots (a) show 500 most abundant ASVs in each habitat, the x-axis indicates the occupancy rate of ASVs in all sample sites, the y-axis indicates the specificity of ASVs in the habitat. The dotted box shows the specialized species (specificity and occupancy greater or equal to 0.7). Pie charts (b) show the number of ASVs representing specialists in each habitat.
Figure 4. The SPEC-OCCU plots (a) show 500 most abundant ASVs in each habitat, the x-axis indicates the occupancy rate of ASVs in all sample sites, the y-axis indicates the specificity of ASVs in the habitat. The dotted box shows the specialized species (specificity and occupancy greater or equal to 0.7). Pie charts (b) show the number of ASVs representing specialists in each habitat.
Microorganisms 11 00496 g004
Microorganisms 11 00496 g005 550
Figure 5. NMDS (Nonmetric multidimensional scaling analysis) and ANOSIM for bacterioplankton communities in sampling periods (a,b) and habitats (c) on Bray–Curtis similarity. Stress < 0.2 provides a good representation in NMDS. Global R > 0 means the grouping is valid. Moreover, p < 0.05 indicates a significant difference. Ellipses are 95% confidence intervals around the centroid.
Figure 5. NMDS (Nonmetric multidimensional scaling analysis) and ANOSIM for bacterioplankton communities in sampling periods (a,b) and habitats (c) on Bray–Curtis similarity. Stress < 0.2 provides a good representation in NMDS. Global R > 0 means the grouping is valid. Moreover, p < 0.05 indicates a significant difference. Ellipses are 95% confidence intervals around the centroid.
Microorganisms 11 00496 g005
Microorganisms 11 00496 g006 550
Figure 6. The co-occurrence pattern network shows the connectivity among bacterial communities and environmental parameters ((a) water; (b) sediment). The circle nodes represent different genera, the triangle represents different environmental factors involved in network construction, while red triangle represents main factors. A blue solid line signifies a positive correlation, and a red solid line signifies a negative correlation. CODMn represents the permanganate index, Chl a represents chlorophyll a, and TP represents total phosphorus.
Figure 6. The co-occurrence pattern network shows the connectivity among bacterial communities and environmental parameters ((a) water; (b) sediment). The circle nodes represent different genera, the triangle represents different environmental factors involved in network construction, while red triangle represents main factors. A blue solid line signifies a positive correlation, and a red solid line signifies a negative correlation. CODMn represents the permanganate index, Chl a represents chlorophyll a, and TP represents total phosphorus.
Microorganisms 11 00496 g006
Microorganisms 11 00496 g007 550
Figure 7. The neutral community model (NCM) and the phylogenetic null model for bacterial communities in the Ningxia section of the Yellow River. (a) Distribution of beta nearest taxon index (βNTI), |βNTI|< 2 indicated a stochastic process, |βNTI|> 2 indicated a deterministic process; (b) Relative contributions of deterministic and stochastic processes evaluated by null model framework; (c) Fit of the neutral community model (NCM) based on bacterioplankton community; (d) Fit of the neutral community model (NCM) based on sedimentary bacteria community. The ASVs represented by red dots showed a higher frequency of occurrence than the model predicts, while those represented by yellow dots were the opposite. The ASVs predicted by the 95% confidence interval of the model are shown as green dots.
Figure 7. The neutral community model (NCM) and the phylogenetic null model for bacterial communities in the Ningxia section of the Yellow River. (a) Distribution of beta nearest taxon index (βNTI), |βNTI|< 2 indicated a stochastic process, |βNTI|> 2 indicated a deterministic process; (b) Relative contributions of deterministic and stochastic processes evaluated by null model framework; (c) Fit of the neutral community model (NCM) based on bacterioplankton community; (d) Fit of the neutral community model (NCM) based on sedimentary bacteria community. The ASVs represented by red dots showed a higher frequency of occurrence than the model predicts, while those represented by yellow dots were the opposite. The ASVs predicted by the 95% confidence interval of the model are shown as green dots.
Microorganisms 11 00496 g007
Table
Table 1. Water environment parameters (mean ± SD) of the Taiyangshan wetland in different sampling periods.
Table 1. Water environment parameters (mean ± SD) of the Taiyangshan wetland in different sampling periods.
Habitat
Type		Enviromental
Parameters		AprilJulyOctoberStatistical
Significance
WaterWT (°C)14.19 ± 0.9618.14 ± 1.2410.84 ± 1.73***
pH7.17 ± 0.198.00 ± 0.058.27 ± 0.17***
DO (mg/L)7.89 ± 0.607.05 ± 1.076.25 ± 0.41***
Cond (μS/cm)510.68 ± 99.44575.19 ± 146.53540.00 ± 140.10ns
Sal (ppt)0.31 ± 0.060.34 ± 0.070.28 ± 0.08ns
TDS (mg/L)416.57 ± 73.10428.08 ± 101.53379.00 ± 98.41ns
Chl a (mg/L)18.68 ± 7.415.21 ± 0.988.47 ± 5.32***
TN (mg/L)1.89 ± 0.322.23 ± 0.340.48 ± 0.12***
NH4+-N (mg/L)0.26 ± 0.170.15 ± 0.130.76 ± 0.38***
TP (mg/L)0.03 ± 0.020.06 ± 0.020.07 ± 0.04*
AP (mg/L)0.06 ± 0.060.05 ± 0.050.04 ± 0.03ns
CODMn (mg/L)1.38 ± 0.350.99 ± 0.152.08 ± 0.32***
CODCr (mg/L)9.41 ± 4.457.88 ± 2.3510.51 ± 2.23ns
Cl− (mg/L)100.08 ± 57.370.06 ± 25.32112.69 ± 37.19ns
F− (mg/L)0.40 ± 0.050.39 ± 0.100.40 ± 0.04ns
SO42− (mg/L)176.73 ± 61.24202.71 ± 224.0140.9 ± 21.85ns
SedimentOM (g/kg)6.31 ± 3.514.66 ± 1.942.59 ± 0.94*
TN (g/kg)0.29 ± 0.170.17 ± 0.060.13 ± 0.06*
NH4+-N (mg/kg)18.24 ± 7.0117.16 ± 7.0512.28 ± 3.32ns
TP (g/kg)0.34 ± 0.070.48 ± 0.150.40 ± 0.11ns
AP (g/kg)5.37 ± 3.793.10 ± 2.011.90 ± 0.83*
Pb (mg/kg)16.41 ± 1.3916.89 ± 2.2217.45 ± 1.33ns
Hg (mg/kg)0.06 ± 0.110.03 ± 0.020.03 ± 0.02ns
As (mg/kg)8.1 ± 1.108.57 ± 1.4010.17 ± 0.89**
Cr (mg/kg)0.08 ± 0.030.09 ± 0.030.08 ± 0.03ns
Cd (mg/kg)0.09 ± 0.030.24 ± 0.140.19 ± 0.14ns
*, p < 0.05; **, p < 0.01; ***, p < 0.001; ns, non-significant. The means of each environment parameter were averaged value over all sampling sites.
Table
Table 2. Key topological properties of microbial networks.
Table 2. Key topological properties of microbial networks.
Habitat TypeNodesEdgesACCAPLDiameterDensityModularity
Water20017220.5513.13890.0870.323
Sediment2766580.3735.531140.0170.707
ACC, average clustering coefficient. APL, average path length.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, R.-Z.; Zhang, W.-J.; Zhao, Z.-F.; Qiu, X.-C. Determinants and Assembly Mechanism of Bacterial Community Structure in Ningxia Section of the Yellow River. Microorganisms 2023, 11, 496. https://doi.org/10.3390/microorganisms11020496

AMA Style

Zhao R-Z, Zhang W-J, Zhao Z-F, Qiu X-C. Determinants and Assembly Mechanism of Bacterial Community Structure in Ningxia Section of the Yellow River. Microorganisms. 2023; 11(2):496. https://doi.org/10.3390/microorganisms11020496

Chicago/Turabian Style

Zhao, Rui-Zhi, Wei-Jiang Zhang, Zeng-Feng Zhao, and Xiao-Cong Qiu. 2023. "Determinants and Assembly Mechanism of Bacterial Community Structure in Ningxia Section of the Yellow River" Microorganisms 11, no. 2: 496. https://doi.org/10.3390/microorganisms11020496

APA Style

Zhao, R. -Z., Zhang, W. -J., Zhao, Z. -F., & Qiu, X. -C. (2023). Determinants and Assembly Mechanism of Bacterial Community Structure in Ningxia Section of the Yellow River. Microorganisms, 11(2), 496. https://doi.org/10.3390/microorganisms11020496

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
