Article

Lignin-Degrading Bacteria in Paper Mill Sludge

by
Magda Rodriguez-Yupanqui
1,
Magaly De La Cruz-Noriega
2,
Claudio Quiñones
3,
Nélida Milly Otiniano
2,
Medardo A. Quezada-Alvarez
4,
Walter Rojas-Villacorta
5,
Gino A. Vergara-Medina
6,
Frank R. León-Vargas
7,
Haniel Solís-Muñoz
8 and
Segundo Rojas-Flores
9,*
1
Escuela de Ingeniería Ambiental, Facultad de Ingeniería y Arquitectura, Universidad Cesar Vallejo, Trujillo 13007, Peru
2
Instituto de Investigación en Ciencia y Tecnología, Universidad César Vallejo, Trujillo 13001, Peru
3
Laboratorio de Biotecnología e Ingeniería Genética, Departamento de Microbiología y Parasitología, Universidad Nacional de Trujillo, Trujillo 13011, Peru
4
Departamento de Ingeniería Ambiental, Universidad Nacional de Trujillo, Trujillo 13011, Peru
5
Programa de Investigación Formativa, Universidad Cesar Vallejo, Trujillo 13001, Peru
6
Facultad de Ingeniería Civil y Ambiental, Universidad Nacional Toribio Rodríguez de Mendoza de Amazonas, Chachapoyas 01001, Peru
7
Departamento de Ingeniería Química, Facultad de Ingeniería Química, Universidad Nacional de la Amazonia Peruana, Iquitos 16002, Peru
8
Escuela de Ingeniería Industrial, Facultad de Ingeniería, Universidad Cesar Vallejo, Trujillo 13007, Peru
9
Vicerrectorado de Investigación, Universidad Autónoma del Perú, Lima 15842, Peru
*
Author to whom correspondence should be addressed.
Microorganisms 2023, 11(5), 1168; https://doi.org/10.3390/microorganisms11051168
Submission received: 20 February 2023 / Revised: 30 March 2023 / Accepted: 19 April 2023 / Published: 29 April 2023
(This article belongs to the Section Environmental Microbiology)
Browse Figures
Review Reports Versions Notes

Abstract

:
The effluents generated in the paper industry, such as black liquor, have a high content of lignin and other toxic components; however, they represent a source of lignin-degrading bacteria with biotechnological potential. Therefore, the present study aimed to isolate and identify lignin-degrading bacteria species in paper mill sludge. A primary isolation was carried out from samples of sludge present in environments around a paper company located in the province of Ascope (Peru). Bacteria selection was made by the degradation of Lignin Kraft as the only carbon source in a solid medium. Finally, the laccase activity (Um-L−1) of each selected bacteria was determined by oxidation of 2,2′-azinobis-(3-etilbencenotiazolina-6-sulfonate) (ABTS). Bacterial species with laccase activity were identified by molecular biology techniques. Seven species of bacteria with laccase activity and the ability to degrade lignin were identified. The bacteria Agrobacterium tumefasciens (2), Klebsiella grimontii (1), and Beijeinckia fluminensis (1) were reported for first time. K. grimowntii and B. fluminensis presented the highest laccase activity, with values of 0.319 ± 0.005 UmL−1 and 0.329 ± 0.004 UmL−1, respectively. In conclusion, paper mill sludge may represent a source of lignin-degrading bacteria with laccase activity, and they could have potential biotechnological applications.

1. Introduction

The paper industry generates large volumes of black liquor as by-products and liquid waste from papermaking processes. In these processes, the pulpwood is transformed into paper pulp by removing components such as lignin, hemicellulose, and other materials to release cellulose fibers that are part of black liquor [1]. Black liquor is a complex mixture of compounds that contains a high amount of lignin (35–45%), cellulose, hemicellulose, tannic acid, resin acids, plastids, chlorinated phenol, chlorinated hydrocarbon, surfactant and biocides, acetic acid, formic acid, saccharine acids, carboxylic acids, and hundreds of other components, being, therefore, an extremely complex mixture. Likewise, these have a high total dissolved solids content, leading to a high chemical oxygen demand (COD) and turbidity [2,3,4,5,6].
Black liquor is a difficult effluent to treat due to its complex composition, presenting economic limitations, low-efficiency physicochemical methods, and bioremediation strategies with intrinsic difficulties caused by high pH (10–13) and lignin content [7]. In the paper industry, black liquor undergoes primary and secondary biotreatment processes for its degradation. However, during the secondary treatment process, some biopolymers, such as cellulose, hemicellulose, lignin, and chlorolignin, are degraded to some extent, but some compounds are only biotransformed as the metabolic product [8]. Kraft lignin (KL) is the main pollutant in effluents generated by the paper industry. The complex structure of KL represents a challenge for the scientific community due to its resistance to the depolymerization process [9]. On the other hand, the direct discharge of KL into water (for example, the ocean) generates a negative impact, putting aquatic life and the food chain at risk [3].
One of the main challenges in the paper production industry is the elimination of lignin. These heteropolymer and chlorinated phenols are the major persistent organic pollutants in pulp and paper mill effluents, contributing to color and toxicity [10,11]. Lignin is an irregular, randomly crosslinked phenolic polymer composed of three different phenylpropane monomers connected by C–C bonds and ether bonds. Due to this structure complex, the degradation speed is slow under natural conditions [12]. Over the years physical/chemical procedures have been implemented for the treatment of lignin However, these processes are usually expensive and dangerous for the environment due to the generation of effluents with highly toxic substances. On the other hand, biological treatments use microorganisms or enzymes to degrade lignin. These enzymes (phenol oxidases and heme peroxidases) are called ligninolytic and catalyze the oxidative cleavage of lignin. The biochemical characteristics of these enzymes give them great potential in industrial processes [10].
The major lignin-degrading enzymes are laccase (Lac), lignin peroxidase (LiP), manganese peroxidase (MnP), and versatile peroxidase (VP) [13,14]. Laccase is a multi-cooper oxidase in various microorganisms [14]. This enzyme is classified as benzenediol oxygen reductase (EC 1.10.3.2) and it can oxidize many phenolic and nonphenolic molecules due to its low substrate specificity, using oxygen as an electron acceptor and generating water and by-products [15]. Laccases, LiP, and MnP are the ligninolytic (hemoprotein) enzymes involved in the oxidation of many aromatic compounds. Meanwhile, VP, also known as hybrid peroxidase (manganese-lignin peroxidase), contains glycoproteins and belongs to the oxidoreductase family [13,15,16].
In previous studies, some bacteria were isolated from pulp and paper mill wastewater, for example, Bacillus aryabhattai [17], Bacillus subtilis, Micrococcus luteus, and Phanerochaete crysosporium [18]. Another study shows a ligninolytic strain of Klebsiella, which presented genes involved in the degradation of lignin [19]. Recently, Elframawy et al. [20] studied extracellular peroxidases from bacteria belonging to the Streptomycetaceae family, which degrade various substrates, such as guaiacol, vanillic and veratric acids, and alkaline lignin. Similarly, Granja-Travez et al. [21] established that some bacteria exhibit diverse metabolic strategies used for lignin oxidation, while the β-ketoadipate pathway appears to be the most common pathway for aromatic metabolism in lignin-degrading bacteria.
Some studies suggested that lignin degradation bacteria have a biotechnological potential to be used in bioremediation. Singh et al. [9] studied the biodegradation of KL by B. aryabhattai, which can be used in the treatment of other lignin-containing industrial effluents. Similarly, Kumar et al. [22] investigated the effective degradation of KL from paper effluent and identified Bacillus cereus degrading KL from activated sludge.
In this sense, the objective of the research was to isolate and identify species of lignin-degrading bacteria from sludge formed by effluents discharged into the soils surrounding the paper company located in Ascope. Bacteria with the ability to degrade lignin could be used in future research to assess lignin residues.

2. Materials and Methods

2.1. Sample Collection and Physical-Chemical Characterization

The samples were taken from sludge formed by the mixture of effluents from a paper company with the soil adjacent to the company. The sampling area was located in the province of Ascope (Peru) (Figure 1). Three sludge samples were collected. The co-ordinates of the sampling area are 7°57′57.6″ S 79°14′56.4″ W, 7°57′58.2″ S 79°14′56.3″ W, and 7°57′56.7″ S 79°14′52.7″ W. Samples of 500 mL volume were transferred to the Clean and Emerging Technologies Laboratory at Universidad Nacional de Trujillo (Peru) and then stored at 4 °C until their use.
For the characterization of the sample, a physical-chemical analysis was carried out. The color (PCU, Platinum Cobalt Units) was described according to the Munsell system, while pH and conductivity were determined from the supernatant using a multiparameter instrument (Orion StanTM A329; Thermo Scientific; Waltham, MA, USA). Turbidity was assessed through the nephelometric method of Standard Methods. For another part, lignin, cellulose, and hemicellulose content were measured according to Jönsson et al. [23].

2.2. Isolation and Selection of Lignin-Degrading Bacteria

Primary Isolation and Selection

Three samples were mixed (1.5 L) and a representative 10 mL sample was immediately chosen. A dilution (1:10 v/v) with saline solution (0.85%) was performed from a representative sample. This dilution was then stirred in a vortex and allowed to stand for 5 min until the supernatant had formed. Serial dilutions (106) of the supernatant were made. From the last dilution, it was seeded on nutrient agar. These culture media were incubated at 30 °C for 24 h. Subsequently, a pure culture of each isolated bacterial colony was carried out.
The capability to degrade lignin was proof for each isolated bacterium. For the selection of lignin-degrading bacteria, a culture medium with lignin as the only carbon source was employed. The minimum salt medium (MSM) contained (g/L) Na2HPO4.2H2O, 7.8; KH2PO4, 6.8; MgSO4, 0.2; NaNO3, 0.085; NH4 (CH3COO) Fe, 0.01; Agar powder, 20.0; and alkaline lignin, 5.0. The culture media were incubated at 30 °C for 48 h. Finally, the colonies with different morphology were selected and axenic (pure) culture was performed. These were stored at 4 °C [24].

2.3. Laccase Activity of Selected Bacteria

2.3.1. Enrichment for Enzyme Production

The medium used for crude enzyme production was Berg salt liquid medium, composed of 2 g NaNO3; 0.5 g K2HPO4; 0.02 g MgSO4:7H2O; 0.02 g MnSO4:7H2O; 0.02 g FeSO4:7H2O; 0.5 g CaCl2:2H2O; and 1% alkaline lignin (Sigma Aldrich) in 1L of distilled water [25]. To obtain the crude enzyme from each bacterium, it was necessary to make suspensions, incubated at 30 °C and shaken at 120 RPM for 15 days. Then, they were centrifuged at 7000 rpm for 6 min and the supernatant was separated for enzymatic evaluation.

2.3.2. Laccase Activity Test

The activity of lacasse (Lac) was tested by oxidation of nonphenolic dye 2,2′-azinobis-(3-ethylbenzethioline-6-sulfonate) (ABTS) using the method developed by Lai et al. [26]. This enzyme mixture consists of 0.15 mL of 0.03% ABTS, 0.5 mL of 0.1 M sodium acetate buffer at pH 5.0, and 0.35 mL of sample supernatant. The formation of oxidized ABTS was measured in a quartz cuvette of 1 mL (light passage of 1 cm) and a wavelength of 530 nm using a UV-Vis spectrophotometer. The activities were expressed in UmL−1. A single unit of enzyme activity equates to the oxidation of 1 micromole of lignin per minute under the test conditions, utilizing the molar extinction coefficient. The oxidation of ABTS was followed by an absorbance increase at 420 nm with a molar extinction coefficient of ε420 = 32,000 M−1 cm−1. This activity was evaluated in triplicate.
Laccase activity (UmL−1) = ((Abs × 1000000U)/32000 × 0.350 mL)/1000

2.4. Molecular Identification and Phylogenetic Analysis of the Isolates

For molecular identification, an axenic culture of each bacterium was sent to Ecobiotech Lab SAC Laboratory (Lima, Peru). The procedure described by this laboratory was the following: DNA bacterial extraction was performed using the Cetyl Trimethyl Ammonium Bromide (CTAB) method. Then, the 16 rRNA gene was amplified by PCR technique using 27F and 1492R primers. Sanger sequencing was used to sequence the amplicons by Macrogen Inc. (Seoul, South Korea). The Bioinformatic Software MEGA 11 (Molecular Evolutionary Genetics Analysis) analyzed the sequences. Finally, they were aligned and compared with other sequences in the bioinformatic program Basic Local Alignment Search Tool (BLAST), by which the percentage of identity for the identification of bacteria species will be obtained.
The phylogenetic tree was performed using the methodologies of Maximum Likelihood (ML) and Bayesian Inference (BI) in RAxML v.7.2.6 [27] and MrBayes v.3.2.5 [28], respectively. In RAxML, the GTR + I + Γ replacement model was used for the amplified region (16S rDNA) and the option of fast Bootstrap with 1000 replications. Meanwhile, for MrBayes, the GTR + I+G evolutionary model based on the Akaike Information Criterion (AIC) was first determined in ModelTest v.2.2.10 [29]. Finally, BI was performed in two analyses consisting of 4 MCMC chains for 1,100,000 generations, with one sampling every 200 generations, and 10% of trees (burn-in) were discarded.

2.5. Data Analysis

The statistical analysis of the values of the laccase activity was carried out using SPSS software version 22.0. The values of the means were used, which were obtained from experiments in triplicate. Anova Unifactorial analysis was applied to evaluate significant differences between the means obtained of enzymatic activity for each type of bacteria, with an alpha significance of 5%. For analysis of multiple comparisons, a post hoc analysis with Tukey’s HSD test was performed.

3. Results

3.1. Physical-Chemical Characterization of the Liquid Sample

The characterization of the sludge sample is shown in Table 1. The characteristics show evidence of soil contamination with effluents with black liquor. The color is related to the lignin concentration because this heteropolymer is responsible for the brown color. The sample’s pH alkaline (8.75 ± 0.017) is characteristic of paper industry effluents and gives an idea of what type of microorganisms grows in this type of sample.

3.2. Isolation and Selection of Lignin-Degrading Bacteria

A total of 11 isolated bacteria were obtained from the sample, coded as B-1 to B-11. All the isolated bacteria showed different morphology in Nutritive Agar. However, only seven isolates were selected because they were the only ones that grew from lignin as the only carbon source in the medium (B 1–7).

3.3. Laccase Activity

The colorimetric method (qualitative) showed evidence of laccase activity of the seven selected bacterial isolates. Brown coloration indicates oxidation of 2,2′-azinobis-(3-ethylbenzethioline-6-sulfonate) (ABTS) substrate.
Concerning Table 2, different values of laccase activity were reported at pH 5.0. Regarding the values of laccase activity, strain B-7 produced the highest activity (0.329 ± 0.004d UmL−1), while the lowest value was recorded in strain B-1 (0.181 ± 0.003a UmL−1).
Table 2 also presents a summary of the Tukey HSD test, which shows a significant difference (p < 0.05) between the enzyme activity produced by the seven selected bacteria. Four internally homogeneous groups were generated but different from each other, where strains B-1 (group 1) and B-3 (group 2) differ significantly from the rest; however, in strains B-2, B-4, and B-5 (group 3), equality of means was found (p = 0.27). In the same way, for strains B-6 and B-7 (group 4), the probability was p = 0.18, with a 95% confidence interval. However, B-6 and B-7 have high enzymatic activity (UmL−1) in comparison to the other strains.

3.4. Molecular Identification of Lignin-Degrading Bacteria

The BLAST analysis of the 16S rRNA gene sequence of the isolated bacteria showed the closest phylogenetic relationships with other species, as shown in the phylogenetic tree (Figure 2).
On the other hand, the selected bacteria, B-1; B-2; B-3; B-4; B-5; B-6; and B-7, were identified by the 16S rRNA gene (Table 3). The species of identified bacteria were Agrobacterium tumefaciens (2), Agrobacterium sp. (2), Bacillus sp. (1), Klebsiella grimontii (1), and Beijeinckia fluminensis (1).

4. Discussion

According to physical-chemical characteristics of the sample, soil contamination by effluents with black liquor is evident. In addition, the characteristics of black liquor depend on the conditions of wood processing [26]. The dark brown color is given by the concentration of lignin which is released in the process of lignocellulosic degradation; the greater the lignin, the greater the color intensity of the black liquid [30]. The pH of the sample was alkaline (8.75 ± 0.17); however, it can vary from 7 to more than 13 [31,32,33]. This variation is due to the pH of the white liquor used in the early phases of cooking during processing to obtain cellulose. White liquor has a pH of 13–14 and is rich in hydroxide ions [34]. Turbidity and total solids are determined by organic components that come from black liquor and the environment and the presence of microbial communities [3,35,36]. Finally, the lignin content (84.04 ± 3.70 g/L) comes from the black liquor produced in the paper industry [1]. The recalcitrance of lignin due to its complex structure [37,38] will allow selective isolation of lignolytic microorganisms.
Seven colonies of selected bacteria had the ability to degrade lignin, which is a complex process involving different lignolytic enzymes (LiP, MnP, PV, and Lac) [23,39,40,41,42,43]. The activity of the laccase (Table 2) was determined by the oxidation of the ABTS substrate (brown coloration) and evidences the enzymatic machinery of the bacteria isolated from paper sludge [44]. One of these enzymes is the laccase, which acts in synergy with other peroxidases, providing better percentages of lignin degradation [45]. Recent advances in the mechanisms of lignin degradation by laccase have been studied, finding that there is formation of hydrogen bonds and the participation of certain residues of conserved amino acids (His419, Cys492, His497, and Met502) [46,47]. On the other hand, the laccase activity values obtained in the seven isolates are higher than those reported (2.28 UL−1) in another study [48] and lower than the values reported (4.43 UmL−1) by Bacillus paramycoides BL2 [49]. The different values of the laccase activity of the isolates can be influenced by microbial biodiversity, which regulates enzyme production according to the existing substrate [50].
Table 3 shows that most species are in the phylum Proteobacteria. The laccase is frequently found in prokaryotes, where the largest number of strains with genes expressed by the laccase belong to phylum Proteobacteria, Actinobacteria, and Fimicutes, while in Cyanobacteria and Bacteroides the number of strains with these genes is lower [51]. Regarding identified microorganisms (Table 3), it was possible by sequencing the 16S rRNA gene. It is the first report of some lignin-degrading bacteria strains (Agrobacterium tumefasciens, Klebsiella grimontii, and Beijeinckia fluminensis).
On the other hand, Figure 2 shows the phylogenetic relation between seven bacteria isolated capable of lignin degradation. The species of Agrobacterium have been reported as lignin-degrading [52]. Regarding the enzymes that these species can express, Si et al. (2015) characterized a new gene (atm) that expresses a laccase of Agrobacterium sp. strain S5-1, which improved the digestion of corn stover [53]. On the other hand, a combination of peroxidase enzymes of the DyP type with the accessory enzyme Agro LigE enhances the degradation of polymeric lignin, releasing low-molecular-weight by-products [54]. Meanwhile, another study by Faisal et al. [55] sequenced the genome of Agrobacterium sp. strain S2, identifying various genes that express enzymes with the ability to degrade aromatic compounds derived from lignin, such as superoxide dismutase, cytochrome P450, catalase-peroxidase, non-heme chloroperoxidase and benzaldehyde dehydrogenase, and other aromatic ring oxidizing genes, such as 4-hydroxybenzoate polyprenyltransferase and 4-hydroxyphenylacetate 3-monooxygenase. These findings allow these bacteria to be used for the pretreatment of residues based on lignin and lignocellulose [56].
Regarding the species of Bacillus sp. BL.4, it was possible to isolate it from the black liquor sample. Different species of Bacillus have been reported in samples from effluents from paper manufacturing companies [57], as well as Bacillus altitudinis SL7 [58], Bacillus aryabhattai [9,18], Bacillus paramycoides strain BL2 [49], Bacillus cereus [23], among others [59]. These species can proliferate in black liquor at an alkaline pH (8.75 ± 0.17) due to the enzymatic machinery degrading lignin as peroxidases and laccase [9,23,58,60]. Within the genome of Bacillus genes can be found encoding laccase, cytochrome P450, and vanillin alcohol oxidase, as well as 64 genes involved in multiple aromatic metabolic pathways, such as phenylalanine metabolism and aminobenzoate degradation, as discovered in B. cereus AH7-7 [61].
As for the species of Klebsiella grimontii B-6, this is a species reported for the first time in this study. Klebsiella spp. species are widely distributed in natural environments, such as soils, waters, plants, etc. [62]; then, they can be found in samples involving the use of cellulose-based raw materials, such as black liquor. In this way, these species of bacteria may produce enzymes capable of degrading lignin as Klebsiella pneumoniae NX-1 [63]. Genomic studies in Klebsiella sp. BRL6-2 strain can encode four peroxidases, including glutathione peroxidase and DyP-type peroxidases [64]. Meanwhile, the genome of Klebsiella variicola P1CD1 has 262 genes associated with lignin-modifying enzymes and lignin degradation helper enzymes necessary for the degradation of lignin and aromatic compounds [65].
Finally, the species Beijerinckia fluminensis B-7 has not been reported so far as a lignin degrader. However, the genus Beijerinckia is distributed in the soil and the phyllosphere of plants [66], so it could be in contact with lignin residues and express some of the enzymes involved in its degradation, as demonstrated with the laccase activity determined in this study (0.329 UmL−1). Similarly, it has been shown that some species of this genus can degrade aromatic hydrocarbon molecules [67], demonstrating that this species may be able to degrade complex structures, such as lignin. Finally, Figure 2 shows that B. fluminensis B-7 appears to be related to the genus Agrobacterium, as is mentioned in other studies [68,69,70].

5. Conclusions

It is possible to find lignin-degrading bacteria in sludge samples that are formed in soils by contamination with paper mill effluents. Lignin-degrading bacteria such as Agrobacterium tumefaciens, Klebsiella grimontii, and Beijerinckia fluminensis were first reported. However, future genomic characterization studies of the newly isolated species are required to identify the genes involved in lignin degradation and understand the metabolic pathways involved. On the other hand, through these species, it is possible to give added value to waste with high lignin content, such as to treatment of effluents generated in the paper manufacturing industry.

Author Contributions

Conceptualization, M.R.-Y. and N.M.O.; methodology, C.Q. and H.S.-M.; software, M.A.Q.-A.; validation, W.R.-V., M.R.-Y. and M.D.L.C.-N.; formal analysis, M.R.-Y.; investigation, M.R.-Y., N.M.O., G.A.V.-M.; resources, M.R.-Y. and W.R.-V.; data curation, N.M.O. and G.A.V.-M.; writing—original draft preparation, W.R.-V., F.R.L.-V. and H.S.-M.; writing—review and editing, W.R.-V., S.R.-F., F.R.L.-V. and H.S.-M.; visualization, M.D.L.C.-N.; supervision, M.R.-Y.; funding acquisition, C.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Speight, J.G. Upgrading by Gasification. In Heavy Oil Recovery and Upgrading; Elsevier: Amsterdam, The Netherlands, 2019; pp. 559–614. ISBN 9780128130254. [Google Scholar] [CrossRef]
  2. Chandra, R.; Singh, R.; Yadav, S. Effect of Bacterial Inoculum Ratio in Mixed Culture for Decolourization and Detoxification of Pulp Paper Mill Effluent. J. Chem. Technol. Biotechnol. 2012, 87, 436–444. [Google Scholar] [CrossRef]
  3. Bajpai, P. Pulping Fundamentals. In Biermann’s Handbook of Pulp and Paper; Elsevier: Amsterdam, The Netherlands, 2018; pp. 295–351. ISBN 9780128142400. [Google Scholar] [CrossRef]
  4. Domínguez-Robles, J.; Palenzuela, M.d.V.; Sánchez, R.; Loaiza, J.M.; Espinosa, E.; Rosal, A.; Rodríguez, A. Coagulation–Flocculation as an Alternative Way to Reduce the Toxicity of the Black Liquor from the Paper Industry: Thermal Valorization of the Solid Biomass Recovered. Waste Biomass Valorization 2020, 11, 4731–4742. [Google Scholar] [CrossRef]
  5. Huang, G.; Shi, J.X.; Langrish, T.A.G. A New Pulping Process for Wheat Straw to Reduce Problems with the Discharge of Black Liquor. Bioresour. Technol. 2007, 98, 2829–2835. [Google Scholar] [CrossRef]
  6. Monte, M.C.; Fuente, E.; Blanco, A.; Negro, C. Waste Management from Pulp and Paper Production in the European Union. Waste Manag. 2009, 29, 293–308. [Google Scholar] [CrossRef] [PubMed]
  7. Zheng, Y.; Chai, L.-Y.; Yang, Z.-H.; Tang, C.-J.; Chen, Y.-H.; Shi, Y. Enhanced Remediation of Black Liquor by Activated Sludge Bioaugmented with a Novel Exogenous Microorganism Culture. Appl. Microbiol. Biotechnol. 2013, 97, 6525–6535. [Google Scholar] [CrossRef] [PubMed]
  8. Maurya, D.P.; Singla, A.; Negi, S. An Overview of Key Pretreatment Processes for Biological Conversion of Lignocellulosic Biomass to Bioethanol. 3 Biotech 2015, 5, 597–609. [Google Scholar] [CrossRef]
  9. Singh, A.; Kumar, R.; Maurya, A.; Chowdhary, P.; Raj, A. Isolation of Functional Ligninolytic Bacillus Aryabhattai from Paper Mill Sludge and Its Lignin Degradation Potential. Biotechnol. Rep. 2022, 35, e00755. [Google Scholar] [CrossRef]
  10. Cagide, C.; Castro-Sowinski, S. Technological and Biochemical Features of Lignin-Degrading Enzymes: A Brief Review. Environ. Sustain. 2020, 3, 371–389. [Google Scholar] [CrossRef]
  11. Haq, I.; Roy, S.; Kalamdhad, A.S. Characterization of Pulp and Paper Mill Wastewater and Its Toxicity Analysis Using Vigna Radiata. In Environmental Degradation: Monitoring, Assessment and Treatment Technologies; Springer International Publishing: Cham, Switzerland, 2022; pp. 261–269. ISBN 9783030941475. [Google Scholar]
  12. Wu, X.; Amanze, C.; Wang, J.; Yu, Z.; Shen, L.; Wu, X.; Li, J.; Yu, R.; Liu, Y.; Zeng, W. Isolation and Characterization of a Novel Thermotolerant Alkali Lignin-Degrading Bacterium Aneurinibacillus sp. LD3 and Its Application in Food Waste Composting. Chemosphere 2022, 307, 135859. [Google Scholar] [CrossRef]
  13. Kumar, A.; Chandra, R. Ligninolytic Enzymes and Its Mechanisms for Degradation of Lignocellulosic Waste in Environment. Heliyon 2020, 6, e03170. [Google Scholar] [CrossRef]
  14. Weng, C.; Peng, X.; Han, Y. Depolymerization and Conversion of Lignin to Value-Added Bioproducts by Microbial and Enzymatic Catalysis. Biotechnol. Biofuels 2021, 14, 84. [Google Scholar] [CrossRef] [PubMed]
  15. Arregui, L.; Ayala, M.; Gómez-Gil, X.; Gutiérrez-Soto, G.; Hernández-Luna, C.E.; Herrera de Los Santos, M.; Levin, L.; Rojo-Domínguez, A.; Romero-Martínez, D.; Saparrat, M.C.N.; et al. Laccases: Structure, Function, and Potential Application in Water Bioremediation. Microb. Cell Fact. 2019, 18, 200. [Google Scholar] [CrossRef] [PubMed]
  16. Plácido, J.; Capareda, S. Ligninolytic Enzymes: A Biotechnological Alternative for Bioethanol Production. Bioresour. Bioprocess. 2015, 2, 23. [Google Scholar] [CrossRef]
  17. Zainith, S.; Purchase, D.; Saratale, G.D.; Ferreira, L.F.R.; Bilal, M.; Bharagava, R.N. Isolation and Characterization of Lignin-Degrading Bacterium Bacillus Aryabhattai from Pulp and Paper Mill Wastewater and Evaluation of Its Lignin-Degrading Potential. 3 Biotech 2019, 9, 92. [Google Scholar] [CrossRef] [PubMed]
  18. Tyagi, S.; Kumar, V.; Singh, J.; Teotia, P.; Bisht, S.; Sharma, S. Bioremediation of Pulp and Paper Mill Effluent by Dominant Aboriginal Microbes and Their Consortium. Int. J. Environ. Res. 2014, 8, 561–568. [Google Scholar] [CrossRef]
  19. Melo-Nascimento, A.O.d.S.; Treumann, C.; Neves, C.; Andrade, E.; Andrade, A.C.; Edwards, R.; Dinsdale, E.; Bruce, T. Functional Characterization of Ligninolytic Klebsiella Spp. Strains Associated with Soil and Freshwater. Arch. Microbiol. 2018, 200, 1267–1278. [Google Scholar] [CrossRef] [PubMed]
  20. Elframawy, A.; El-Hanafy, A.; Sharamant, M.; Ghozlan, H. Molecular Identification of Native Egyptian Actinobacteria: Screening for Lignin Utilization and Degradation of Lignin Model Compounds. Biocatal. Agric. Biotechnol. 2022, 40, 102289. [Google Scholar] [CrossRef]
  21. Granja-Travez, R.S.; Persinoti, G.F.; Squina, F.M.; Bugg, T.D.H. Functional Genomic Analysis of Bacterial Lignin Degraders: Diversity in Mechanisms of Lignin Oxidation and Metabolism. Appl. Microbiol. Biotechnol. 2020, 104, 3305–3320. [Google Scholar] [CrossRef]
  22. Kumar, R.; Singh, A.; Maurya, A.; Yadav, P.; Yadav, A.; Chowdhary, P.; Raj, A. Effective Bioremediation of Pulp and Paper Mill Wastewater Using Bacillus Cereus as a Possible Kraft Lignin-Degrading Bacterium. Bioresour. Technol. 2022, 352, 127076. [Google Scholar] [CrossRef]
  23. Jönsson, A.-S.; Nordin, A.-K.; Wallberg, O. Concentration and Purification of Lignin in Hardwood Kraft Pulping Liquor by Ultrafiltration and Nanofiltration. Chem. Eng. Res. Des. 2008, 86, 1271–1280. [Google Scholar] [CrossRef]
  24. Xiong, Y.I.; Zhao, Y.; Ni, K.; Shi, Y.; Xu, Q. Characterization of ligninolytic bacteria and analysis of alkali-lignin biodegradation products. Pol. J. Microbiol. 2020, 69, 339–347. [Google Scholar] [CrossRef]
  25. Tsegaye, B.; Balomajumder, C.; Roy, P. Isolation and Characterization of Novel Lignolytic, Cellulolytic, and Hemicellulolytic Bacteria from Wood-Feeding Termite Cryptotermes Brevis. Int. Microbiol. 2019, 22, 29–39. [Google Scholar] [CrossRef] [PubMed]
  26. Lai, C.M.T.; Chua, H.B.; Danquah, M.K.; Saptoro, A. Isolation of Thermophilic Lignin Degrading Bacteria from Oil-Palm Empty Fruit Bunch (EFB) Compost. IOP Conf. Ser. Mater. Sci. Eng. 2017, 206, 012016. [Google Scholar] [CrossRef]
  27. Stamatakis, A. RAxML-VI-HPC: Maximum Likelihood-Based Phylogenetic Analyses with Thousands of Taxa and Mixed Models. Bioinformatics 2006, 22, 2688–2690. [Google Scholar] [CrossRef] [PubMed]
  28. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian Phylogenetic Inference and Model Choice across a Large Model Space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed]
  29. Posada, D. JModelTest: Phylogenetic Model Averaging. Mol. Biol. Evol. 2008, 25, 1253–1256. [Google Scholar] [CrossRef]
  30. Irfan, M.; Butt, T.; Imtiaz, N.; Abbas, N.; Khan, R.A.; Shafique, A. The Removal of COD, TSS and Colour of Black Liquor by Coagulation–Flocculation Process at Optimized PH, Settling and Dosing Rate. Arab. J. Chem. 2017, 10, S2307–S2318. [Google Scholar] [CrossRef]
  31. Al-Kaabi, Z.; Pradhan, R.R.; Thevathasan, N.; Chiang, Y.W.; Gordon, A.; Dutta, A. Potential Value Added Applications of Black Liquor Generated at Paper Manufacturing Industry Using Recycled Fibers. J. Clean. Prod. 2017, 149, 156–163. [Google Scholar] [CrossRef]
  32. Hamad, H.A.; AbdElhafez, S.E.; Elsenety, M.M.; Sorour, M.K.; Amin, N.K.; Abdelwahab, O.; El-Ashtoukhy, E.-S.Z. Fabrication and Characterization of Functionalized Lignin-Based Adsorbent Prepared from Black Liquor in the Paper Industry for Superior Removal of Toxic Dye. Fuel 2022, 323, 124288. [Google Scholar] [CrossRef]
  33. Sun, R.; Tomkinson, J.; Bolton, J. Effects of Precipitation PH on the Physico-Chemical Properties of the Lignins Isolated from the Black Liquor of Oil Palm Empty Fruit Bunch Fibre Pulping. Polym. Degrad. Stab. 1999, 63, 195–200. [Google Scholar] [CrossRef]
  34. Johakimu, J.K.; Sithole, B.B. Woodchip Impregnation with Weak White Liquor and Its Effect in Mitigating Operational Costs and Environmental Impacts in Kraft Pulp Mills. Biofuel. Bioprod. Biorefin. 2021, 15, 1360–1371. [Google Scholar] [CrossRef]
  35. Trinh, D.T.; Collins, R.L.; Mcdonald, J.D. Factors affecting the conductivity of kraft black liquor. J. Pulp Pap. Sci. 1991, 17, J47–J53. [Google Scholar]
  36. Pola, L.; Collado, S.; Oulego, P.; Calvo, P.Á.; Díaz, M. Characterisation of the Wet Oxidation of Black Liquor for Its Integration in Kraft Paper Mills. Chem. Eng. J. 2021, 405, 126610. [Google Scholar] [CrossRef]
  37. Fitzgerald, C.L.; Thies, M.C. Continuous Recovery of High-Purity Kraft Lignin from Black Liquor via Simultaneous, Liquid-Phase Acidification and Purification. Ind. Crops Prod. 2022, 184, 115084. [Google Scholar] [CrossRef]
  38. Atiwesh, G.; Parrish, C.C.; Banoub, J.; Le, T.-A.T. Lignin Degradation by Microorganisms: A Review. Biotechnol. Prog. 2022, 38, e3226. [Google Scholar] [CrossRef] [PubMed]
  39. Christopher, L.P.; Yao, B.; Ji, Y. Lignin Biodegradation with Laccase-Mediator Systems. Front. Energy Res. 2014, 2, 12. [Google Scholar] [CrossRef]
  40. Pollegioni, L.; Tonin, F.; Rosini, E. Lignin-Degrading Enzymes. FEBS J. 2015, 282, 1190–1213. [Google Scholar] [CrossRef]
  41. Bugg, T.D.H.; Rahmanpour, R. Enzymatic Conversion of Lignin into Renewable Chemicals. Curr. Opin. Chem. Biol. 2015, 29, 10–17. [Google Scholar] [CrossRef]
  42. Silva, J.P.; Ticona, A.R.P.; Hamann, P.R.V.; Quirino, B.F.; Noronha, E.F. Deconstruction of Lignin: From Enzymes to Microorganisms. Molecules 2021, 26, 2299. [Google Scholar] [CrossRef]
  43. Iram, A.; Berenjian, A.; Demirci, A. A Review on the Utilization of Lignin as a Fermentation Substrate to Produce Lignin-Modifying Enzymes and Other Value-Added Products. Molecules 2021, 26, 2960. [Google Scholar] [CrossRef]
  44. Chauhan, P.S.; Goradia, B.; Saxena, A. Bacterial Laccase: Recent Update on Production, Properties and Industrial Applications. 3 Biotech 2017, 7, 323. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, S.; Dong, Z.; Shi, J.; Yang, C.; Fang, Y.; Chen, G.; Chen, H.; Tian, C. Enzymatic Hydrolysis of Corn Stover Lignin by Laccase, Lignin Peroxidase, and Manganese Peroxidase. Bioresour. Technol. 2022, 361, 127699. [Google Scholar] [CrossRef]
  46. Bhatt, P.; Bhatt, K.; Chen, W.-J.; Huang, Y.; Xiao, Y.; Wu, S.; Lei, Q.; Zhong, J.; Zhu, X.; Chen, S. Bioremediation Potential of Laccase for Catalysis of Glyphosate, Isoproturon, Lignin, and Parathion: Molecular Docking, Dynamics, and Simulation. J. Hazard. Mater. 2022, 443, 130319. [Google Scholar] [CrossRef] [PubMed]
  47. Choolaei, Z.; Flick, R.; Khusnutdinova, A.N.; Edwards, E.A.; Yakunin, A.F. Lignin-Oxidizing Activity of Bacterial Laccases Characterized Using Soluble Substrates and Polymeric Lignin. J. Biotechnol. 2021, 325, 128–137. [Google Scholar] [CrossRef] [PubMed]
  48. Sheikhi, F.; Roayaei Ardakani, M.; Enayatizamir, N.; Rodriguez-Couto, S. The Determination of Assay for Laccase of Bacillus Subtilis WPI with Two Classes of Chemical Compounds as Substrates. Indian J. Microbiol. 2012, 52, 701–707. [Google Scholar] [CrossRef]
  49. Verma, P.; Tripathi, S.; Yadav, S.; Chandra, R. Degradation and Decolourization Potential of Ligninolytic Enzyme Producing Bacillus Paramycoides BL2 and Micrococcus Luteus BL3 for Pulp Paper Industrial Effluent and Its Toxicity Evaluation. Arch. Microbiol. 2022, 204, 642. [Google Scholar] [CrossRef]
  50. Ma, Y.; Li, J.; Wu, J.; Kong, Z.; Feinstein, L.M.; Ding, X.; Ge, G.; Wu, L. Bacterial and Fungal Community Composition and Functional Activity Associated with Lake Wetland Water Level Gradients. Sci. Rep. 2018, 8, 760. [Google Scholar] [CrossRef]
  51. Janusz, G.; Pawlik, A.; Sulej, J.; Swiderska-Burek, U.; Jarosz-Wilkolazka, A.; Paszczynski, A. Lignin Degradation: Microorganisms, Enzymes Involved, Genomes Analysis and Evolution. FEMS Microbiol. Rev. 2017, 41, 941–962. [Google Scholar] [CrossRef]
  52. Rashid, G.M.M.; Durán-Peña, M.J.; Rahmanpour, R.; Sapsford, D.; Bugg, T.D.H. Delignification and Enhanced Gas Release from Soil Containing Lignocellulose by Treatment with Bacterial Lignin Degraders. J. Appl. Microbiol. 2017, 123, 159–171. [Google Scholar] [CrossRef]
  53. Si, W.; Wu, Z.; Wang, L.; Yang, M.; Zhao, X. Enzymological Characterization of ATM, the First Laccase from Agrobacterium Sp. S5-1, with the Ability to Enhance in Vitro Digestibility of Maize Straw. PLoS ONE 2015, 10, e0128204. [Google Scholar] [CrossRef]
  54. Rashid, G.M.M.; Bugg, T.D.H. Enhanced Biocatalytic Degradation of Lignin Using Combinations of Lignin-Degrading Enzymes and Accessory Enzymes. Catal. Sci. Technol. 2021, 11, 3568–3577. [Google Scholar] [CrossRef]
  55. Faisal, U.H.; Sabri, N.S.A.; Yusof, N.; Tahir, A.A.; Said, N.N.M.; Riyadi, F.A.; Akhir, F.N.M.; Othman, N.; Hara, H. Draft Genome Sequence of Lignin-Degrading Agrobacterium sp. Strain S2, Isolated from a Decaying Oil Palm Empty Fruit Bunch. Microbiol. Resour. Announc. 2021, 10, e00259-21. [Google Scholar] [CrossRef] [PubMed]
  56. Nurika, I.; Shabrina, E.N.; Azizah, N.; Suhartini, S.; Bugg, T.D.H.; Barker, G.C. Application of Ligninolytic Bacteria to the Enhancement of Lignocellulose Breakdown and Methane Production from Oil Palm Empty Fruit Bunches (OPEFB). Bioresour. Technol. Rep. 2022, 17, 100951. [Google Scholar] [CrossRef]
  57. Raj, A.; Reddy, M.M.K.; Chandra, R.; Purohit, H.J.; Kapley, A. Biodegradation of Kraft-Lignin by Bacillus Sp. Isolated from Sludge of Pulp and Paper Mill. Biodegradation 2007, 18, 783–792. [Google Scholar] [CrossRef]
  58. Khan, S.I.; Zarin, A.; Ahmed, S.; Hasan, F.; Belduz, A.O.; Çanakçi, S.; Khan, S.; Badshah, M.; Farman, M.; Shah, A.A. Degradation of Lignin by Bacillus Altitudinis SL7 Isolated from Pulp and Paper Mill Effluent. Water Sci. Technol. 2022, 85, 420–432. [Google Scholar] [CrossRef]
  59. Ghribi, M.; Meddeb-Mouelhi, F.; Beauregard, M. Microbial Diversity in Various Types of Paper Mill Sludge: Identification of Enzyme Activities with Potential Industrial Applications. Springerplus 2016, 5, 1492. [Google Scholar] [CrossRef]
  60. Mei, J.; Shen, X.; Gang, L.; Xu, H.; Wu, F.; Sheng, L. A Novel Lignin Degradation Bacteria-Bacillus Amyloliquefaciens SL-7 Used to Degrade Straw Lignin Efficiently. Bioresour. Technol. 2020, 310, 123445. [Google Scholar] [CrossRef]
  61. Zhong, H.; Zhou, J.; Wang, F.; Wu, W.; Abdelrahman, M.; Li, X. Whole-Genome Sequencing Reveals Lignin-Degrading Capacity of a Ligninolytic Bacterium (Bacillus cereus) from Buffalo (Bubalus bubalis) Rumen. Genes 2022, 13, 842. [Google Scholar] [CrossRef]
  62. Morgado, S.; Fonseca, E.; Vicente, A.C. Genomics of Klebsiella Pneumoniae Species Complex Reveals the Circulation of High-Risk Multidrug-Resistant Pandemic Clones in Human, Animal, and Environmental Sources. Microorganisms 2022, 10, 2281. [Google Scholar] [CrossRef]
  63. Xu, Z.; Qin, L.; Cai, M.; Hua, W.; Jin, M. Biodegradation of Kraft Lignin by Newly Isolated Klebsiella Pneumoniae, Pseudomonas Putida, and Ochrobactrum Tritici Strains. Environ. Sci. Pollut. Res. Int. 2018, 25, 14171–14181. [Google Scholar] [CrossRef]
  64. Woo, H.L.; Ballor, N.R.; Hazen, T.C.; Fortney, J.L.; Simmons, B.; Davenport, K.W.; Goodwin, L.; Ivanova, N.; Kyrpides, N.C.; Mavromatis, K.; et al. Complete Genome Sequence of the Lignin-Degrading Bacterium Klebsiella Sp. Strain BRL6-2. Stand. Genom. Sci. 2014, 9, 19. [Google Scholar] [CrossRef]
  65. Dos Santos Melo-Nascimento, A.O.; Mota Moitinho Sant Anna, B.; Gonçalves, C.C.; Santos, G.; Noronha, E.; Parachin, N.; de Abreu Roque, M.R.; Bruce, T. Complete Genome Reveals Genetic Repertoire and Potential Metabolic Strategies Involved in Lignin Degradation by Environmental Ligninolytic Klebsiella Variicola P1CD1. PLoS ONE 2020, 15, e0243739. [Google Scholar] [CrossRef] [PubMed]
  66. Gamit, H.A.; Amaresan, N. Isolation and Identification of Beijerinckia. In Springer Protocols Handbooks; Springer: New York, NY, USA, 2022; pp. 119–125. ISBN 9781071617236. [Google Scholar]
  67. Travkin, V.M.; Solyanikova, I.P. Salicylate or Phthalate: The Main Intermediates in the Bacterial Degradation of Naphthalene. Processes 2021, 9, 1862. [Google Scholar] [CrossRef]
  68. Aquilanti, L.; Favilli, F.; Clementi, F. Comparison of Different Strategies for Isolation and Preliminary Identification of Azotobacter from Soil Samples. Soil Biol. Biochem. 2004, 36, 1475–1483. [Google Scholar] [CrossRef]
  69. Oggerin, M.; Arahal, D.R.; Rubio, V.; Marín, I. Identification of Beijerinckia fluminensis strains CIP 106281T and UQM 1685T as Rhizobium radiobacter strains, and proposal of Beijerinckia doebereinerae sp. nov. to accommodate Beijerinckia fluminensis LMG 2819. Int. J. Syst. Evol. Microbiol. 2009, 59, 2323–2328. [Google Scholar] [CrossRef] [PubMed]
  70. Becking, J.H. The Genus Beijerinckia. In The Prokaryotes; Springer: New York, NY, USA, 2006; pp. 151–162. ISBN 9780387254951. [Google Scholar] [CrossRef]
Microorganisms 11 01168 g001 550

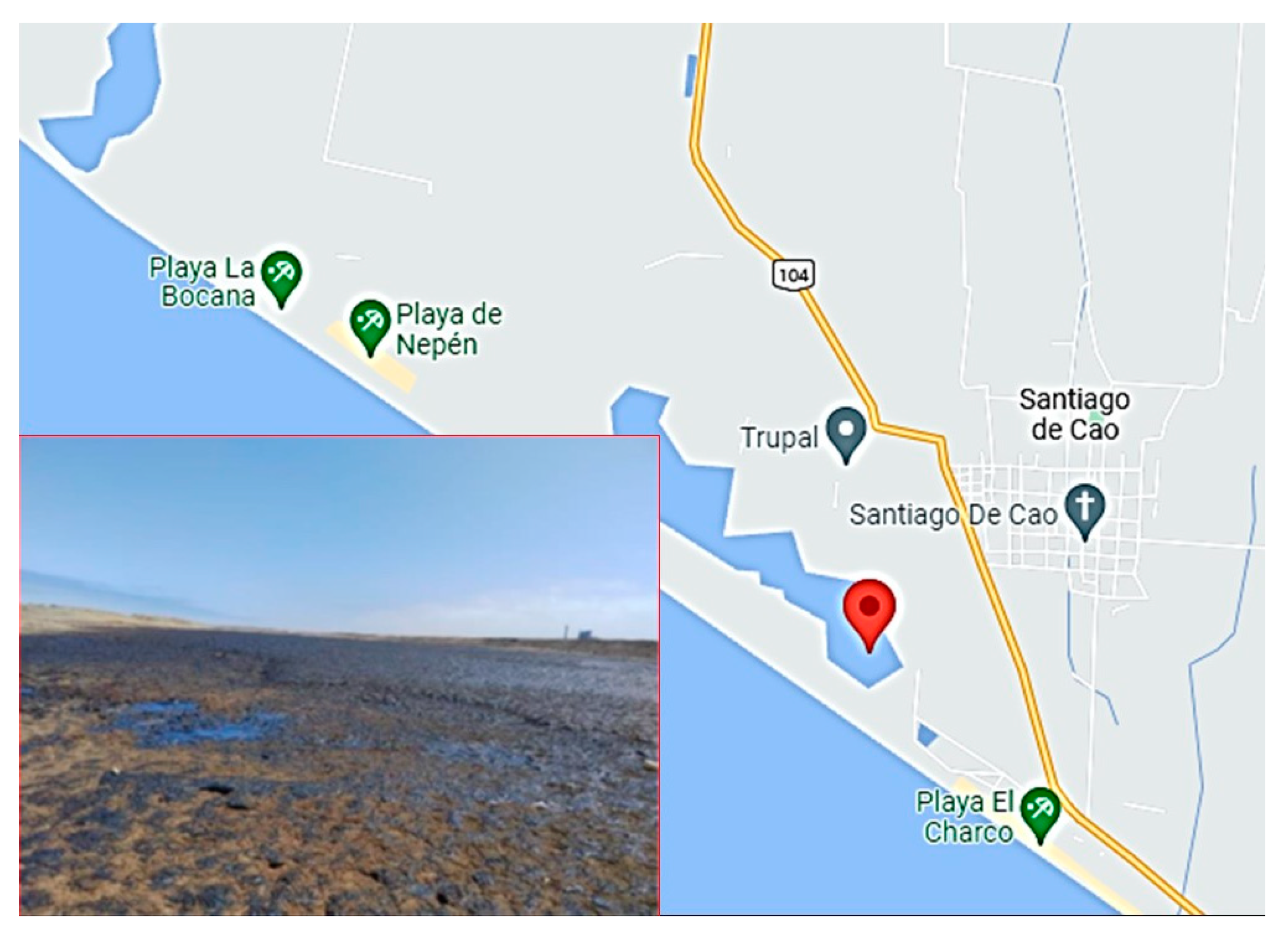

Figure 1. Location of the sampling area in the province of Ascope (Peru).
Figure 1. Location of the sampling area in the province of Ascope (Peru).
Microorganisms 11 01168 g001
Microorganisms 11 01168 g002 550

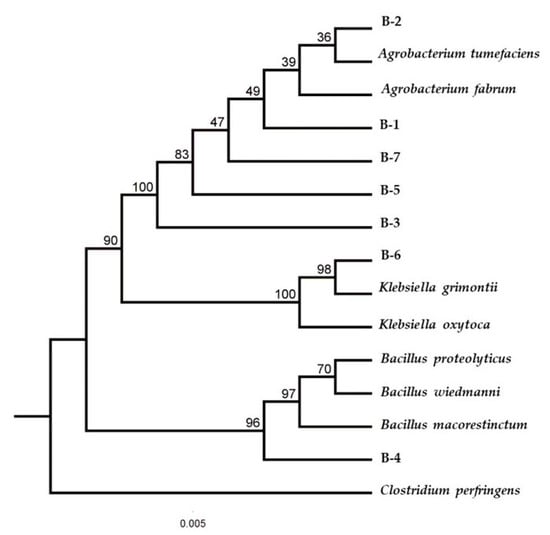

Figure 2. Phylogenetic tree of isolated and selected lignin-degrading bacteria with their related neighboring species.
Figure 2. Phylogenetic tree of isolated and selected lignin-degrading bacteria with their related neighboring species.
Microorganisms 11 01168 g002
Table
Table 1. Physical-chemical characterization of the sample.
Table 1. Physical-chemical characterization of the sample.
ParametersResult
Color (PCU)498,300 ± 16,237
pH8.75 ± 0.17
Conductivity (mS/cm)41.18 ± 2.73
Turbidity (NTU)31,000 ± 1587
Total Solids (g/L)140.84 ± 14.28
Lignin (g/L)84.04 ± 3.70
Cellulose-
Hemicellulose-
Table
Table 2. Laccase activity of lignin-degrading bacteria.
Table 2. Laccase activity of lignin-degrading bacteria.
Sample IDValue ± SD (UmL−1) *
B-10.181 ± 0.003a
B-20.292 ± 0.005b
B-30.275 ± 0.005c
B-40.294 ± 0.005b
B-50.301 ± 0.005b
B-60.319 ± 0.005d
B-70.329 ± 0.004d
* SD: standard deviation obtained in three repetitions. The different letters show significant differences.
Table
Table 3. Identified species using 16S rRNA gene sequencing from samples.
Table 3. Identified species using 16S rRNA gene sequencing from samples.
Sample IDPhylumIdentified Species% IdentityAccess Number
B-1ProteobacteriaAgrobacterium tumefaciens99.09CP040640.1
B-2ProteobacteriaAgrobacterium tumefaciens98.58CP040641.1
B-3ProteobacteriaAgrobacterium sp.84.81NR_041396.1
B-4FirmicutesBacillus sp.88.71NR_115526.1
B-5ProteobacteriaAgrobacterium sp.93.26NR_041396.1
B-6ProteobacteriaKlebsiella grimontii99.72NR_159317.1
B-7ProteobacteriaBeijerinckia fluminensis98.86NR_116306.1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rodriguez-Yupanqui, M.; De La Cruz-Noriega, M.; Quiñones, C.; Otiniano, N.M.; Quezada-Alvarez, M.A.; Rojas-Villacorta, W.; Vergara-Medina, G.A.; León-Vargas, F.R.; Solís-Muñoz, H.; Rojas-Flores, S. Lignin-Degrading Bacteria in Paper Mill Sludge. Microorganisms 2023, 11, 1168. https://doi.org/10.3390/microorganisms11051168

AMA Style

Rodriguez-Yupanqui M, De La Cruz-Noriega M, Quiñones C, Otiniano NM, Quezada-Alvarez MA, Rojas-Villacorta W, Vergara-Medina GA, León-Vargas FR, Solís-Muñoz H, Rojas-Flores S. Lignin-Degrading Bacteria in Paper Mill Sludge. Microorganisms. 2023; 11(5):1168. https://doi.org/10.3390/microorganisms11051168

Chicago/Turabian Style

Rodriguez-Yupanqui, Magda, Magaly De La Cruz-Noriega, Claudio Quiñones, Nélida Milly Otiniano, Medardo A. Quezada-Alvarez, Walter Rojas-Villacorta, Gino A. Vergara-Medina, Frank R. León-Vargas, Haniel Solís-Muñoz, and Segundo Rojas-Flores. 2023. "Lignin-Degrading Bacteria in Paper Mill Sludge" Microorganisms 11, no. 5: 1168. https://doi.org/10.3390/microorganisms11051168

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
