pilA Gene Contributes to Virulence, Motility, Biofilm Formation, and Interspecific Competition of Bacteria in Acidovorax citrulli

by
Yuwen Yang
1,2,*,
Nuoya Fei
1,3,
Weiqin Ji
1,
Pei Qiao
1,
Linlin Yang
1,4,
Dehua Liu
1,5,
Wei Guan
1 and
Tingchang Zhao
1,2,*
1
State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193, China
2
National Nanfan Research Institute (Sanya), Chinese Academy of Agricultural Sciences, Sanya 572024, China
3
College of Life Sciences, Jilin Normal University, Siping 136000, China
4
Department of Plant Pathology, Plant Protection College, Shenyang Agricultural University, Shenyang 110866, China
5
College of Plant Protection, Jilin Agricultural University, Changchun 130118, China
*
Authors to whom correspondence should be addressed.
Microorganisms 2023, 11(7), 1806; https://doi.org/10.3390/microorganisms11071806
Submission received: 30 May 2023 / Revised: 30 June 2023 / Accepted: 12 July 2023 / Published: 14 July 2023
(This article belongs to the Section Plant Microbe Interactions)
Browse Figures
Versions Notes

Abstract

:
Acidovorax citrulli, the causative agent of bacterial fruit blotch, can be divided into two main groups based on factors such as pathogenicity and host species preference. PilA is an important structural and functional component of type IV pili (T4P). Previous studies have found significant differences in pilA DNA sequences between group I and group II strains of A. citrulli. In this study, we characterized pilA in the group I strain pslb65 and the group II strain Aac5. pilA mutants, complementation strains, and cross-complementation strains were generated, and their biological phenotypes were analyzed to identify functional differences between pilA in the two groups. pilA deletion mutants (pslb65-ΔpilA and Aac5-ΔpilA) showed significantly reduced pathogenicity compared with the wild-type (WT) strains; pslb65-ΔpilA also completely lost twitching motility, whereas Aac5-ΔpilA only partially lost motility. In King’s B medium, there were no significant differences in biofilm formation between pslb65-ΔpilA and WT pslb65, but Aac5-ΔpilA showed significantly reduced biofilm formation compared to WT Aac5. In M9 minimal medium, both mutants showed significantly lower biofilm formation compared to the corresponding WT strains, although biofilm formation was recovered in the complementation strains. The biofilm formation capacity was somewhat recovered in the cross-complementation strains but remained significantly lower than in the WT strains. The interspecies competitive abilities of pslb65-ΔpilA and Aac5-ΔpilA were significantly lower than in the WT strains; Aac5-ΔpilA was more strongly competitive than pslb65-ΔpilA, and the complementation strains recovered competitiveness to WT levels. Furthermore, the cross-complementation strains showed stronger competitive abilities than the corresponding WT strains. The relative expression levels of genes related to T4P and the type VI secretion system were then assessed in the pilA mutants via quantitative PCR. The results showed significant differences in the relative expression levels of multiple genes in pslb65-ΔpilA and Aac5-ΔpilA compared to the corresponding WT stains. This indicated the presence of specific differences in pilA function between the two A. citrulli groups, but the regulatory mechanisms involved require further study.

1. Introduction

Bacterial fruit blotch (BFB) is caused by Acidovorax citrulli [1] and is one of the most important seed-borne bacterial diseases of cucurbit crops (such as watermelon and melon). The disease causes seedling blight and fruit rot in susceptible cucurbits [2]. Since it was first reported in the United States in 1965, BFB has spread to many countries and regions in the world, causing substantial economic losses in cucurbit production [3,4].
A. citrulli shows extensive intraspecies genetic diversity. The species is divided into at least two groups based on clear differences in pathogenicity [5], host preference [6,7,8], and genome sequences [9] between strains. Although both groups of A. citrulli strains can infect cucurbitaceae crops such as melon and watermelon, due to the host preferences of different groups of strains, there are significant differences in pathogenicity between the two groups of strains to different hosts [5,6]. Group I strains have strong pathogenicity to both watermelon and melon, while group II strains are more pathogenic to watermelon than melon and less pathogenic to melon than watermelon [7,8]. In the field, group I strains mainly infected the leaves and fruits of non-watermelon cucurbit crops, whereas group II strains mainly infected watermelon leaves and fruits [10,11].
Recent research into the molecular mechanisms associated with A. citrulli pathogenesis has largely focused on the type III secretion system (T3SS) [12,13,14,15,16], the type VI secretion system (T6SS) [17,18], the polar flagellum [19], and quorum sensing [20]. Type IV pili (T4P) are known to contribute to A. citrulli virulence. These hair-like appendages are found on the surfaces of many bacteria and contribute to key bacterial activities and characteristics, such as surface adhesion, colonization, aggregation, biofilm formation, genetic material uptake, and virulence [21,22].
Genetic and functional characterizations of T4P were first conducted on the mammalian pathogen Pseudomonas aeruginosa [23]. The role of T4P in pathogenicity has also been studied in plant pathogens such as Ralstonia solanacearum [24], Xylella fastidiosa [25], Xanthomonas spp. [26], and Pseudomonas spp. [27]. In A. citrulli, T4P insertion mutants were characterized to determine the genetic function of pili. In the A. citrulli group II strain W1, insertion mutants for pilA showed reduced virulence, biofilm formation ability, and twitching motility capacity [28]. In another study, 50 mutants impaired in twitching ability were identified among a library of ~1000 transposon mutants in the A. citrulli group I strain M6; representative mutants were then further characterized [29].
PilA, one of the core components of the T4P structure and function, is a relatively small subunit (13–23 kDa), thousands of which combine to form T4P. Comparisons of pilA gene sequences from plant pathogenic bacteria have revealed extensive genetic variability [30]. A previous study from our lab showed significant sequence diversity in pilA between A. citrulli strains. Based on differences in the pilA sequence, A. citrulli strains were divided into three types; the sequences of the three types of pilA genes can be found in Supplementary Materials Data S1. The sequence identity across the entire gene was 55.81% between types 3 and 1, 56.13% between types 3 and 2, and 61.64% between groups 1 and 2 [31]. We also analyzed the DNA sequences of 31 other T4P genes (Aave_0423, Aave_0532, Aave_0580, Aave_0635, Aave_0637, Aave_0724, Aave_0729, Aave_0732, Aave_0996, Aave_0997, Aave_0998, Aave_0999, Aave_1000, Aave_1422, Aave_2483, Aave_2704, Aave_2716, Aave_2768, Aave_2942, Aave_3156, Aave_3410, Aave_3495, Aave_3549, Aave_3550, Aave_3551, Aave_3552, Aave_3553, Aave_3554, Aave_3680, Aave_3681, Aave_3682) in the A. citrulli group II strain AAC00-1 (GenBank accession number NC_008752.1), and the DNA sequences of those genes are identical to that of the group I strain M6 (GenBank accession number NZ_CP029373.1). We therefore hypothesized that differences in the pilA DNA sequences may lead to functional differences between the groups.
To test this hypothesis, here, we generated pilA deletion mutants, complementation lines, and cross-complementation lines from the group I strain pslb65 and the group II strain Aac5. Pathogenicity, twitching motility, biofilm formation ability, interspecies competition traits, and other phenotypes were assessed in these mutants. Quantitative PCR was also used to analyze the relative expression levels of T3SS-, T6SS-, and T4P-related genes in the two pilA deletion mutants to further explore the function of pilA in the two groups of A. citrulli strains.

2. Materials and Methods

2.1. Bacterial Strains, Plasmids, and Growth Conditions

The bacterial strains and plasmids used in this study are listed in Table S1. A. citrulli strain Aac5 was isolated from watermelon collected in Taiwan, China, and strain pslb65 was isolated from melon collected in Xinjiang, China. A. citrulli strains were grown in King’s B (KB) broth or on KB plates at 28 °C. Escherichia coli strains were grown in Luria Bertani (LB) medium at 37 °C [32]. Liquid cultures were grown with 200 rpm shaking on a rotary shaker (DDHZ-300; Taicang Experimental Instrument Factory, Jiangsu, Taicang, China). Growth media contained 100 μg/mL ampicillin (Amp), 25 μg/mL chloramphenicol (Cm), 25 μg/mL gentamicin (Gm), and/or 50 μg/mL kanamycin (Km), as specified for each experiment. All antibiotics were purchased from Sigma (Shanghai, China).

2.2. Sequence Analysis of pilA in A. citrulli

The DNA sequences of pilA and the amino acid sequences of PilA from A. citrulli strains pslb65 and Aac5 were aligned using Clustal Omega (https://www.ebi.ac.uk/Tools/msa/clustalo/, accessed on 7 February 2023) and visualized with Jalview v2.11.2.4 [33].

2.3. Construction of pilA Gene Deletion Mutants and Complementation Lines

Markerless pilA deletion mutants were generated in the A. citrulli strains Aac5 and pslb65 using homologous double recombination [34]. The sequences upstream and downstream of pilA were amplified from the wild-type (WT) pslb65 and Aac5 strains using the 65AL-F/R and 65AR-F/R primers (for pslb65) and the A5AL-F/R and A5AR-F/R primers (for Aac5) (Table S2). The sequences of the resulting fragments were confirmed via sequencing. The upstream and downstream fragments were concatenated with overlap PCR and then ligated into the pk18mobsacB plasmid using the ClonExpress II One Step Cloning Kit (Vazyme Biotech, Nanjing, China) to generate the pK18-pslb65pilA and pK18-Aac5pilA constructs in E. coli DH5α. pK18-pslb65pilA and pK18-Aac5pilA were then introduced to the A. citrulli strains pslb65 and Aac5, respectively, through triparental conjugation using pRK600 as a helper plasmid. Single-exchange colonies were selected on KB plates containing Amp and Km. Individual transformants were continuously sub-cultured in liquid KB medium containing Amp alone and then screened on KB supplemented with Amp and 10% sucrose. The pilA deletion mutants for pslb65 and Aac5, pslb65-ΔpilA and Aac5-ΔpilA, respectively, were confirmed via PCR using the 65-ΔpilA-L/R, A5AL-L/A5AR-R, Km-F/R, and WFB1/2 primers (Table S2). Information on the primer position, product length, and gene knockout position during the construction of pilA gene deletion mutants and the PCR validation process can be seen in Figure S1.
To generate complementation lines, the pilA genes in pslb65 and Aac5 were amplified using the 65-ΔpilA-L/R and HBA5L/R primers, respectively (Table S2). After confirmation with sequencing, the genes were ligated into pBBR1MCS-2 to create the pBBR-pslb65pilA and pBBR-Aac5pilA constructs. pBBR-pslb65pilA was transferred into the pslb65-ΔpilA and Aac5-ΔpilA mutants to generate complementation (pslb65-ΔpilAcomp1) and cross-complementation (Aac5-ΔpilAcomp2) lines, respectively, using triparental conjugation. Similarly, pBBR-Aac5pilA was transferred into the pslb65-ΔpilA and Aac5-ΔpilA mutants to form cross-complementation (pslb65-ΔpilAcomp2) and complementation (Aac5-ΔpilAcomp1) lines, respectively. Successful transconjugants were confirmed with PCR.
All primers in this study were designed based on the A. citrulli strain AAC00-1 and M6 genomes (GenBank accession numbers NC_008752.1 and NC_CP029373.1, respectively) using Primer Premier v5.0 (PREMIER Biosoft). All primers were synthesized by BGI Laboratories (Shenzhen, China).

2.4. Pathogenicity and Hypersensitive Response (HR) Assays

2.4.1. Spray-Inoculation Assays

The virulence levels of each strain (namely, pslb65, pslb65-ΔpilA, pslb65-ΔpilAcomp1, pslb65-ΔpilAcomp2, Aac5, Aac5-ΔpilA, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2) were measured in 3-week-old watermelon seedlings (Citrullus lanatus cv. ‘Jingxin#3’) and melon seedlings (Cucumis melo cv. ‘TVF192’). Briefly, A. citrulli strains were cultured overnight in KB broth to an OD600 of 0.3 (corresponding to ~3 × 108 colony-forming units (CFU)/mL). The leaves of the melon and watermelon seedlings were spray-inoculated with the bacterial suspension, with sterile water serving as the negative control. Each treatment had 15–20 melon or watermelon seedlings, and 200mL of bacterial suspension was evenly sprayed onto the front and back of the leaves of seedlings in each treatment. At 15 d after inoculation (DAI), the disease severity was determined by measuring the symptoms and calculating the disease index using previously described methods with slight modifications [14]. Seedlings were incubated in a light incubator with a relative humidity of 80% under a 12/12 h light/dark cycle at 26/20 °C.

2.4.2. Stem-Inoculation Experiments

All strains used in spray-inoculation experiments were also used in stem-inoculation experiments, which were performed as previously described [29] with some modifications. Briefly, at 7 d after sowing, the base of the hypocotyl of each seedling (~1 cm above the soil) was inoculated with 108 CFU/mL bacterial suspension using a needle. Seedlings were cultured in a light incubator under the conditions described above for the spray-inoculation assays, and the number of dead seedlings was recorded each day from 3 to 11 DAI. There were 30 seedlings per treatment group (i.e., bacterial genotype) and three independent replicates of the experiment.

2.4.3. HR Assays

To evaluate the effects of pilA deletion on HR induction, bacterial cell suspensions (~108 CFU/mL) were injected into the leaves of 3-week-old tobacco (Nicotiana tabacum var. samsun) plants as previously described [34]. Leaves were visually examined for the HR (tissue collapse) at 24 h after infiltration. Control plants were injected with sterile water. There were three independent replicates of this experiment.

2.5. Twitching Motility Assays

Twitching motility was measured in each A. citrulli strain using the method described by Bahar et al. [28]. Briefly, A. citrulli strains were grown on KB plates containing Amp at 28 °C for 72 h. Each strain was considered to have twitching motility if a thin, light halo was visible around the colonies via light microscopy. An IX83 microscope (Olympus, Japan) was used. Nine plates were inoculated per strain in each replicate experiment, and there were three independent replicates.

2.6. Biofilm Formation Assays

Biofilm formation was assessed as previously described [35]. Briefly, 24-well polystyrene cell culture plates (Costar 3524, Corning, NY, USA) were filled with KB broth and then inoculated with a 1:1000 dilution of each A. citrulli strain at a concentration of 3 × 108 CFU/mL. The plates were incubated at 28 °C for 48 h without shaking. After incubation, 0.1% crystal violet was added to each well, and the plate was incubated for 30 min at room temperature. Each well was then gently washed three times with distilled water. To quantify biofilm formation, the stained biofilms were solubilized in 95% ethanol for 2 h, and then the OD575 value of each stained cell suspension was measured with an Evolution 300 UV/VIS spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). There were three biological replicates for each A. citrulli strain in each experiment, and there were three independent replicates of this experiment.

2.7. Interspecies Bacterial Competition Assays

Interspecies competitions were conducted, with E. coli DH5α serving as the prey strain. The killer strains (WT, mutant, and complementation A. citrulli strains) were cultured in KB broth to an OD600 of 1.5, and the prey culture was grown in LB broth to an OD600 of 2.0. The killer and prey cultures were each centrifuged and resuspended in sterile water and then mixed at a 20:1 killer–prey ratio. After co-culture, the mixed cultures were 10-fold serially diluted and spotted on LB plates containing 25 μg/mL Gm. After 3 h, the number of surviving E. coli DH5ɑ was quantified in log10 (CFU/mL) [18].

2.8. Quantitative Reverse Transcription (qRT)-PCR Assays

To assess the effects of pilA expression on T3SS genes, the WT A. citrulli strains pslb65 and Aac5 and the pilA mutants pslb65-ΔpilA and Aac5-ΔpilA were cultured in the T3SS-inducing broth XVM2 [16]. To assess the effects of pilA expression on T4P genes, the same strains were cultured in KB broth. To assess the effects of pilA expression on T6SS-related genes, the same strains were also cultured in KB broth to OD600 values of 1.0 and 1.5. Total RNA was extracted from each culture using Trizol reagent (Invitrogen, Waltham, MA, USA). cDNA fragments were synthesized using a HiScript II RT SuperMix kit (Vazyme Biotech, Najing, China). rpoB was used as the internal reference gene for expression normalization [35]. qRT-PCR was performed on a 7500 Sequence Detection System (ABI, Waltham, MA, USA) with SYBR Green SuperReal PreMix Plus (TIANGEN, Beijing, China) following the manufacturer’s instructions. Relative gene expression was calculated using the 2−ΔΔCt method [36]. The primers used for qRT-PCR are listed in Table S3. There were three technical replicates per sample and three independent replicates of the experiment.

2.9. Statistical Analysis

Statistical analyses were conducted using SPSS version 22.0 (SPSS, Chicago, IL, USA) and GraphPad Prism 7.0 software (GraphPad Software, La Jolla, CA, USA). Significant differences between treatment groups were assessed with Student’s t-test (for sample pairs) or analysis of variance (ANOVA) and post hoc Duncan’s multiple range test (for multiple samples). Differences were considered statistically significant at p < 0.05.

3. Results

3.1. pilA Sequence Analysis in A. citrulli Strains pslb65 and Aac5

The pilA gene of the group I strain pslb65 was 522 bp, and the pilA gene of the group II strain Aac5 was 507 bp. DNA sequence analysis revealed that the two pilA genes were highly similar from positions 1 to 107 bp, after which the sequences diverged significantly. The overall similarity between the two genes was only 61.64% (Figure 1a). The alignment of the corresponding amino acid sequences showed similar results; amino acids 1–44 were identical, whereas the C-terminal sequences had extensive variation (Figure 1b). SMART (http://smart.embl-heidelberg.de/, accessed on 7 February 2023) did not predict any typical protein domains in either of the two PilA proteins.

3.2. Verification of Mutant and Complementation Strains

3.2.1. Knockout Mutant Verification

PCR amplification using the primer pair WFB1/WFB yielded 360 bp amplicons from each of the two putative mutants (pslb65-ΔpilA and Aac5-ΔpilA), but there was no amplification when the primer pairs Km-F/Km-R, 65-ΔpilA-L/65-ΔpilA-R, or A5AL-L/A5AR-R were used (Figure S2a,b). The two new lines were therefore confirmed to be A. citrulli without the pilA gene, indicating successful mutant construction for each strain.

3.2.2. Complementation Line Verification

PCR was performed on the putative complementation lines using the primer pairs WFB1/WFB and Km-F/Km-R. WFB1/WFB2 yielded 360 bp amplicons, and Km-F/Km-R yielded 634 bp amplicons from the four complementation lines (pslb65-ΔpilAcomp1, pslb65-ΔpilAcomp2, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2) (Figure S2c–f). These results indicated that the four complementation strains were A. citrulli, and each contained the pBBR-pslb65pilA or pBBR-Aac5pilA plasmid. Furthermore, using the primer pair 65-ΔpilA-L/65-ΔpilA-R, pslb65-ΔpilAcomp1 and Aac5-ΔpilAcomp2 yielded identical products, and the primer pair HBA5-L/HBA5-R yielded a separate amplicon that was identical between Aac5-ΔpilAcomp1 and pslb65-ΔpilAcomp2. The PCR products were then analyzed via sequencing. Both PCR and sequencing showed that the complementation and cross-complementation lines had been successfully constructed.

3.3. The Absence of pilA Did Not Affect the HR in Nonhost Plants

The WT, mutant, and complementation strains of pslb65 and Aac5 were injected into tobacco leaves and cultivated for 24 h. The results showed that ∆pilA-pslb65 and ∆pilA-Aac5 could cause the HR in a nonhost plant species (Figure S3).

3.4. pilA Was Required for A. citrulli Virulence

To reveal the role of pilA in A. citrulli pathogenicity, we carried out spray- and stem-inoculation assays.

3.4.1. Spray-Inoculation Assays

Watermelon and melon seedlings were inoculated with the group I strain pslb65 and the corresponding mutant and complementation strains. Leaf symptoms were observed, and the disease indices were calculated at 15 DAI. The results showed that the average disease index was significantly lower in watermelon inoculated with pslb65-ΔpilA compared to WT pslb65. The average disease index was significantly higher in watermelon inoculated with pslb65-ΔpilAcomp1 compared to the knockout mutant but did not reach WT levels. However, the disease index of watermelon plants inoculated with the pslb65 cross-complementation line (pslb65-ΔpilAcomp2) was statistically comparable to that inoculated with the WT strain. In melon, the average disease index of seedlings inoculated with pslb65-ΔpilA was significantly lower than in those inoculated with WT pslb65. The average disease indices were significantly higher for both pslb65-ΔpilAcomp1 and pslb65-ΔpilAcomp2 compared to the knockout mutant but did not return to WT values (Figure 2a).
Watermelon and melon seedlings were also inoculated with the group II strain Aac5 and the corresponding mutant and complementation strains. The average disease index was significantly lower in watermelon inoculated with Aac5-ΔpilA compared to those inoculated with WT Aac5. The average disease indices of watermelon treated with Aac5-ΔpilAcomp1 and Aac5-ΔpilAcomp2 were significantly higher than those inoculated with the knockout mutant but did not reach WT levels. The average disease index of melon inoculated with Aac5-ΔpilA was comparable to the results seen in watermelon (Figure 2b).

3.4.2. Stem-Inoculation Assays

In order to further reveal the role of differences in pilA between the two groups of strains in A. citrulli pathogenicity, watermelon seedlings were inoculated with the group I strain pslb65 and the group II strain Aac5 and the associated knockout mutant and complementation strains. We then measured the number of diseased seedlings from 3 to 11 DAI. The number of diseased seedlings gradually increased over time, and trends were similar between the two groups of strains (Figure 3). At 11 DAI, an average of 21.6 seedlings inoculated with WT pslb65 were diseased (incidence rate = 72.0%). In plants inoculated with pslb65-ΔpilA, an average of 6.3 seedlings were diseased (incidence rate = 21.0%). For plants inoculated with the complementation and cross-complementation lines pslb65-ΔpilAcomp1 and pslb65-ΔpilAcomp2, the average number of diseased seedlings increased again to 24.0 and 18.3, respectively, representing incidence rates of 80.0% and 61.0%, respectively. Seedlings inoculated with WT Aac5 averaged 23.6 diseased seedlings (incidence rate = 78.6%); this decreased to an average of 9.6 diseased seedlings (incidence rate = 32.0%) among those inoculated with the Aac5-ΔpilA mutant. In seedlings inoculated with the complementation line (Aac5-ΔpilAcomp1), there were an average of 22.3 diseased seedlings (incidence rate = 74.3%), which was comparable to the rate among those inoculated with the cross-complementation line Aac5-ΔpilAcomp2 (20 seedlings; incidence rate = 66.6%). These results demonstrated that the pilA mutants of both pslb65 and Aac5 exhibited low virulence in watermelon seedlings, and that the functional pilA genes of group I and group II strains had similar effects on watermelon seedling disease rates.

3.5. Twitching Motility Was Impaired in the pilA Mutants of Group I and Group II A. citrulli Strains

The pslb65-∆pilA strain showed no outer halo when it was grown on KB plates, meaning it had completely lost the capacity for twitching motility. In comparison, the capacity for twitching motility was significantly reduced in the group II strain Aac5-∆pilA, but not completely lost. All four complementation lines (pslb65-ΔpilAcomp1, pslb65-ΔpilAcomp2, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2) showed the restoration of twitching motility to WT levels (Figure 4).

3.6. Biofilm Formation Was Reduced in the pilA Mutants of Strains from Both A. citrulli Groups

The effect of the pilA gene on the capacity of group I and group II strains to form biofilms was next evaluated in KB and M9 media. In KB medium, pslb65-ΔpilA showed decreased biofilm formation compared to the WT strain, but the difference was not statistically significant. However, Aac5-ΔpilA showed significantly lower biofilm formation than the WT Aac5 (p < 0.05). For both strains, both complementation lines restored biofilm formation to WT levels (Figure 5a). In M9 medium, both pslb65-ΔpilA and Aac5-ΔpilA showed significantly lower biofilm formation than the corresponding WT strains (p < 0.05); all four complementation strains somewhat restored biofilm formation, but only Aac5-ΔpilAcomp1 reached levels comparable to the WT (Figure 5b).

3.7. pilA Was Involved in Interspecies Competition

Interspecific competition is one of the important biological functions of T6SS in bacteria. When the T4P gene pilA of A. citrulli was deleted, the expression of T6SS genes hcp and vgrG was affected [18]. To verify the impact of pilA gene deletion on the biological function of T6SS, bacterial interspecific competition experiments were conducted. As a weak competitive strain and model strain, E coli was used as the prey strain in this test [18].
E. coli DH5α was co-cultured with each of the eight A. citrulli lines assessed in this study, namely, the WT, mutant, complementation, and cross-complementation lines from group I (pslb65, ∆pilA-pslb65, pslb65-ΔpilAcomp1, and pslb65-ΔpilAcomp2, respectively) and group II (Aac5, ∆pilA-Aac5, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2, respectively). The E. coli and A. citrulli colonies were then counted. E. coli was significantly more abundant (p < 0.05) when co-cultured with pslb65-∆pilA compared to WT pslb65. The complementation line (pslb65-ΔpilAcomp1) completely recovered interspecific competitiveness with E. coli, whereas colony counts of the cross-complementation line (pslb65-ΔpilAcomp2) were significantly lower than those of the WT or pslb65-ΔpilAcomp1 after co-culture with E. coli. The results for Aac5 and derivative strains were similar. E. coli abundance increased significantly (p < 0.05) when it was co-cultured with Aac5-∆pilA compared with the WT; Aac5-ΔpilAcomp1 completely recovered interspecific competitiveness with E. coli; and Aac5-ΔpilAcomp2 competitiveness was significantly decreased compared to both the WT and Aac5-ΔpilAcomp1 (p < 0.05) (Figure 6).

3.8. pilA Deletion Affected Expression of Genes Related to T3SS, T4P, and T6SS

3.8.1. Effects of pilA on the Expression of T3SS-Related Genes

The relative expression levels of six T3SS core genes (hrpG, hrpX, hrpE, hrcJ, hrcQ, and hrcR) were measured in pslb65-ΔpilA and Aac5-ΔpilA to evaluate the effects of pilA on T3SS by comparing differences between the two groups of strains. In the group I strain pslb65, pilA deletion did not cause significant differences in the expression of six T3SS genes (Figure 7a); for the group II strain Aac5, hrcJ and hrcR were significantly upregulated in the pilA mutant, whereas the other four genes showed no significant differences (Figure 7b).

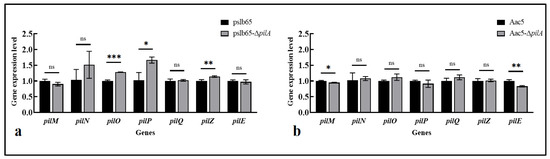

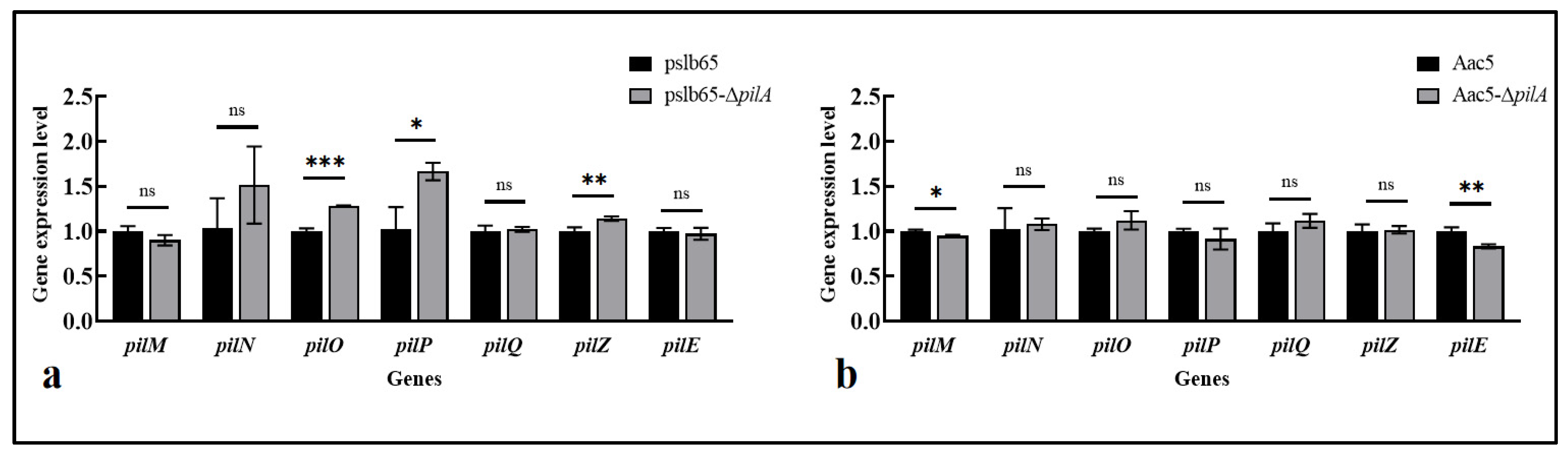

3.8.2. Effects of pilA on the Expression of T4P-Related Genes

Expression levels of seven T4P-related genes were next analyzed in WT A. citrulli and pilA knockout mutants. Three genes (pilO, pilP, pilZ) were upregulated to varying degrees in pslb65-ΔpilA compared to WT pslb65, while the expression levels of the other four genes showed no significant difference (Figure 8a).
Two genes (pilM and pilE) were significantly downregulated to varying degrees in Aac5-ΔpilA compared to WT Aac5 (p < 0.05), and the other five genes showed no significant differences (Figure 8b).

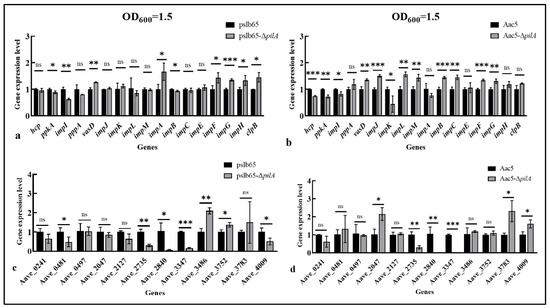

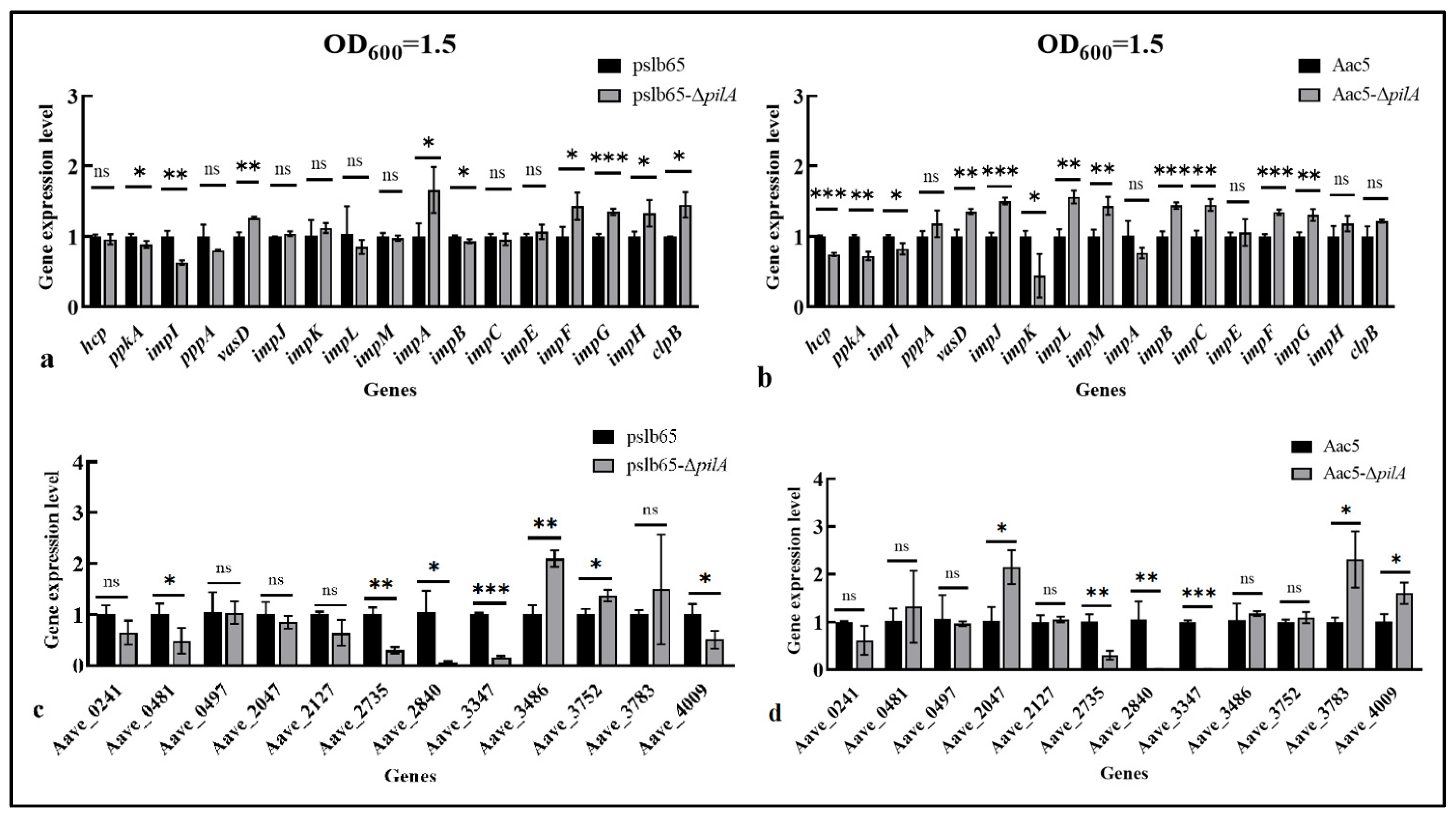

3.8.3. Effects of pilA on the Expression of T6SS-Related Genes

To evaluate the effects of pilA deletion on the T6SS in A. citrulli, relative expression levels were assessed for 29 T6SS-related genes in pslb65-ΔpilA compared to pslb65 and in Aac5-ΔpilA compared to Aac5. The tested genes comprised 17 T6SS genes and 12 valine-glycine repeat protein G (VgrG)-encoding genes (vgrGs). Because T6SS activation is affected by the concentration of a bacterial suspension, we tested the relative expression of T6SS genes in cultures at an OD600 value of 1.5.
For pslb65-ΔpilA, six T6SS genes (vasD, impA, impF, impG, impH, and clpB) were significantly upregulated; three T6SS genes (ppkA, impI, and impB) were significantly downregulated (p < 0.05), and the expression level of hcp showed no significant differences compared to the WT strain (Figure 9a). For Aac5-ΔpilA, eight genes (vasD, impJ, impL, impM, impB, impC, impF, and impG) were significantly upregulated; four T6SS genes (hcp, pppA, impI, and impK) were significantly downregulated (Figure 9b).
For pslb65-ΔpilA, two vgrG genes (Aave_3486 and Aave_3752) were significantly upregulated; five genes (Aave_0481, Aave_2735, Aave_2840, Aave_3347, and Aave_4009) were significantly downregulated (p < 0.05) (Figure 9c). For Aac5-ΔpilA, three vgrG genes (Aave_2047, Aave_3783, and Aave_4009) were significantly upregulated; three genes (Aave_2735, Aave_2840, and Aave_3347) were significantly downregulated (Figure 9d).

4. Discussion

Previous studies have found that group I and group II strains of A. citrulli exhibit differences in pathogenicity, host preference, and genome sequences [5,8,9]. However, there have been no previous reports of the functional differences in a single gene between the two A. citrulli groups. In the present study, the sequence and function of pilA were analyzed in the two groups of strains. Significant differences in the sequences between the two groups were found to correspond to differences in biofilm formation ability, twitching motility, and interspecies competition.
Biofilm formation is a process that allows microorganisms to irreversibly adhere to and grow on a surface by producing extracellular polymers that promote adhesion and matrix formation; this enhances the ability of the bacteria to withstand harsh environmental conditions [37]. The results of this study showed inconsistent effects of pilA deletion on biofilm formation during growth in KB and M9 media. In M9 medium, pilA deletion significantly reduced the capacity for biofilm formation in both strains, consistent with previous reports [28,29]. However, in the nutrient-rich KB medium, the effects of pilA deletion differed between strains. In Aac5, the absence of pilA significantly reduced biofilm formation, but this was not the case for pslb65. Thus, for the group I strain pslb65, nutrient conditions determined the effects of pilA deletion on the capacity for biofilm formation. The relationship between nutrient metabolism and biofilm formation is largely unknown, but it has been suggested that carbon molecules may act as simple nutrients for biofilm-forming bacteria [38]. Alterations in nutrient availability, oxygen depletion, and other environmental factors are also known to affect biofilm dispersion [39]. These factors may be the cause of the observed significant differences in biofilm formation under different nutritional conditions. However, the differences in biofilm formation between pilA deletion mutants in the group I and the group II strain under consistent nutrient conditions may have been caused by group-specific differences in the regulatory pathways associated with pilA.
Previous research found that the pilA and pilO mutant strains of P. syringae pv tabaci 6605 reduced the HR in nonhost Arabidopsis leaves, and qPCR results showed that multiple T3SS-related genes of pilA and pilO deletion mutants were significantly downregulated in expression compared to the WT [27]. However, in this study, we found that there was no significant effect on the HR in nonhost plant tobacco leaves between the pilA deletion mutant of A citrulli and the WT. The qPCR results showed that the expression of T3SS-related genes in pslb65-ΔpilA did not significantly differ compared to the WT, and in Aac5-ΔpilA strains, hrcJ and hrcR were significantly upregulated, whereas the other four genes showed no significant differences. This is different from the research results on P. syringae pv tabaci 6605. This indicates that in A citrulli, the effect of pilA on virulence may not be mediated through T3SS, but through alternative pathways. Vfr is a cAMP-binding protein and a transcriptional regulator that can regulate many virulence factors, such as quorum sensing, T4P biogenesis, and T3SS-related genes [40]. Taguchi (2011) believes that there is a global regulatory system between cAMP, Vfr, and T4P that controls bacterial virulence [27]. Through protein sequence alignment, we found that there is a gene homologous to P. aeruginosa Vfr in A. citrulli. Next, we will further investigate the regulatory relationship between vfr and T4P by constructing vfr mutants.
The group I strain pslb65 completely lost its capacity for twitching motility when pilA was knocked out, consistent with previously published results for the group I strain M6 [29]. Surprisingly, the group II strain Aac5 only partially lost its twitching motility in the pilA mutant. To understand the cause of the loss in motility, we identified seven genes that are predicted to have a close regulatory relationship with pilA in the group II strain AAC00-1 using the STRING website (http://version10.string-db.org, accessed on 3 May 2022). We then measured the relative expression levels of those seven genes in pslb65-ΔpilA and Aac5-ΔpilA compared to the corresponding WT strains. Three genes (pilO, pilP, and pilZ) were upregulated to varying degrees in pslb65-ΔpilA, while in Aac5-ΔpilA, no genes were upregulated, and two genes (pilM and pilE) were significantly downregulated to varying degrees compared to WT Aac5. This indicates that there were certain differences in the regulation of T4P by the pilA gene between the two groups of A. citrulli.
The T6SS plays important roles in pathogenicity, biofilm formation, bacterial interactions, and other biological functions [41]. There is reportedly a T6SS gene cluster in A. citrulli that contains 17 genes [17]. Hcp is not only a protein that plays a structural role in the T6SS but also an indispensable special effector in the T6SS [42]. VgrG is a versatile protein that is essential to T6SS function and is involved in bacterial competition. There is some evidence that Hcp and T6SS expression is only activated in the A. citrulli strain Aac5 at a cell density of OD600 = 1.5 [18]. At that cell density, we found that the interspecific competition experiments with E. coli showed no significant differences between the group I strain pslb65 and the group II strain Aac5; however, after pilA deletion, the interspecific competition ability of Aac5-ΔpilA was significantly higher than that of pslb65-ΔpilA, and complementation with endogenous pilA returned their competitive abilities to WT levels, whereas cross-complementation significantly enhanced the interspecific competition ability of both strains. To further analyze the effects of pilA deletion on T6SS functioning, we analyzed the relative expression of 17 T6SS genes and 12 vgrG genes in pslb65-ΔpilA and Aac5-ΔpilA at cell densities of OD600 = 1.5. Interestingly, the experimental results showed that the expression level of the hcp gene in Aac5-ΔpilA was significantly downregulated (p < 0.0001), while there was no significant difference in pslb65-ΔpilA. Aave_3347 (vgrG gene) also caught our attention, as its relative expression levels were significantly downregulated (p < 0.001) in both pslb65-ΔpilA and Aac5-ΔpilA. This may be one of the reasons for the decrease in interspecific competition with E. coli. The regulatory relationship between the pilA gene and Aave_3347 needs further research.
T6SS activation in Neisseria cinerea, a commensal of the human respiratory tract, can limit the growth of related pathogens. Custodio et al. (2020) believe that T4P affects T6SS-mediated antagonism by constructing and distributing bacteria in mixed microcolonies in this process; in other words, spatial segregation driven by type IV pili dictates prey survival against T6SS assault. In the process of bacterial interspecific competition, the pilA gene is more sensitive to attack by other bacterial T6SSs and can mount an earlier response [43]. Based on comprehensive analysis, we speculate that the main reason for the decrease in pslb65-ΔpilA and Aac5-ΔpilA in the interspecific competition of E. coli is the loss of spatial isolation caused by the loss of T4P; in addition, key differences in the pilA-mediated regulation of T6SS and vgrG between pslb65 and Aac5 play a secondary role.

5. Conclusions

In the present study, we characterized the function of pilA in the A. citrulli group I strain pslb65 and in the group II strain Aac5. There were significant differences in phenotype between the two strains when pilA was deleted. Specifically, twitching motility was completely lost in pslb65-ΔpilA, whereas Aac5-ΔpilA only partially lost motility. Biofilm formation was significantly lower for Aac5-ΔpilA than for Aac5, but there were no significant differences in biofilm formation between pslb65-ΔpilA and the WT pslb65. The deletion of pilA also significantly reduced the interspecific competitiveness of pslb65-ΔpilA and Aac5-ΔpilA compared to the corresponding WT strains. qRT-PCR results showed that significantly more genes related to T4P and the T6SS were upregulated, and significantly fewer were downregulated in Aac5-ΔpilA compared with pslb65-ΔpilA. These results revealed critical differences in pilA function between group I and group II strains, indicating significant intraspecies divergence in T4P regulatory mechanisms.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms11071806/s1: Data S1: The sequences of three types of pilA genes in Acidovorax citrulli; Figure S1: Information on primer position, product length, and gene knockout position during the construction of pilA gene deletion mutants and PCR validation process; Figure S2: PCR validation of the mutants and complementary strains; Figure S3: Effects of pilA in inducing hypersensitive responses in nonhost tobacco; Table S1: The bacterial strains and plasmids in this study; Table S2: Sequences and related information of primers used for construction of mutant and complementary strains; Table S3: Information about primers used for qPCR in this study. References [44,45,46] are cited in the supplementary materials.

Author Contributions

Y.Y. designed the study. Y.Y., N.F., P.Q. and W.J. performed the experiments. N.F., L.Y., D.L. and W.G. performed data analyses. Y.Y. and N.F. wrote the manuscript. T.Z. critically reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Hainan Province Science and Technology Special Fund (ZDYF2023XDNY084), the China Earmarked Fund for Modern Agro-industry Technology Research System (CARS-25), and the Agricultural Science and Technology Innovation Program of the Chinese Academy of Agricultural Sciences (CAAS-ASTIP).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schaad, N.W.; Postnikova, E.; Sechler, A.; Claflin, L.E.; Vidaver, A.K.; Jones, J.B.; Agarkova, I.; Ignatov, A.; Dickstein, E.; Ramundo, B.A. Reclassification of subspecies of Acidovorax avenae as A. avenae (Manns 1905) emend., A. cattleyae (Pavarino, 1911) comb. nov., A. citrulli (Schaad et al., 1978) comb. nov., and proposal of A. oryzae sp. nov. Syst. Appl. Microbiol. 2008, 31, 434–446. [Google Scholar] [CrossRef] [Green Version]
  2. Burdman, S.; Walcott, R.R. Acidovorax citrulli: Generating basic and applied knowledge to tackle a global threat to the cucurbit industry. Mol. Plant Pathol. 2012, 13, 805–815. [Google Scholar] [CrossRef]
  3. Webb, R.E.; Goth, R.W. A seedborne bacterium isolated from watermelon. Plant Dis. Report. 1965, 49, 818–821. [Google Scholar]
  4. Latin, R.X.; Rane, K.K. Bacterial fruit blotch of watermelon in Indiana. Plant Dis. 1990, 74, 331. [Google Scholar] [CrossRef]
  5. Walcott, R.R.; Fessehaie, A.; Castro, A.C. Differences in pathogenicity between two genetically distinct groups of Acidovorax avenae subsp. citrulli on cucurbit hosts. J. Phytopathol. 2004, 152, 277–285. [Google Scholar] [CrossRef]
  6. Zivanovic, M.; Walcott, R.R. Further characterization of genetically distinct groups of Acidovorax citrulli strains. Phytopathology 2017, 107, 29–35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Yan, L.; Hu, B.; Chen, G.; Zhao, M.; Walcott, R.R. Further Evidence of Cucurbit Host Specificity among Acidovorax citrulli Groups Based on a Detached Melon Fruit Pathogenicity Assay. Phytopathology 2017, 107, 1305–1311. [Google Scholar] [CrossRef] [Green Version]
  8. Yang, Y.; Qiao, P.; Wang, T.; Ji, W.; Fei, N.; Zhang, L.; Guan, W.; Zhao, T. Further Characterization of Host Preference of Acidovorax citrulli Based on Growth Competition between Group I and Group II Strains. Horticulturae 2022, 8, 1173. [Google Scholar] [CrossRef]
  9. Eckshtain-Levi, N.; Shkedy, D.; Gershovits, M.; Da Silva, G.M.; Tamir-Ariel, D.; Walcott, R.; Pupko, T.; Burdman, S. Insights from the genome sequence of Acidovorax citrulli M6, a group I strain of the causal agent of bacterial fruit blotch of cucurbits. Front. Microbiol. 2016, 7, 430. [Google Scholar] [CrossRef] [Green Version]
  10. Burdman, S.; Kots, N.; Kritzman, G.; Kopelowitz, J. Molecular, physiological, and host-range characterization of Acidovorax avenae subsp. citrulli isolates from watermelon and melon in Israel. Plant Dis. 2005, 89, 1339–1347. [Google Scholar] [CrossRef] [Green Version]
  11. Yan, S.; Yang, Y.; Wang, T.; Zhao, T.; Schaad, N.W. Genetic diversity analysis of Acidovorax citrulli in China. Eur. J. Plant Pathol. 2013, 136, 171–181. [Google Scholar] [CrossRef]
  12. Zhang, X.X.; Zhao, M.; Jiang, J.; Yang, L.L.; Yang, Y.W.; Yang, S.S.; Walcott, R.R.; Qiu, D.W.; Zhao, T.C. Identification and functional analysis of AopN, an Acidovorax citrulli effector that induces programmed cell death in plants. Int. J. Mol. Sci. 2020, 21, 6050. [Google Scholar] [CrossRef] [PubMed]
  13. Jiménez-Guerrero, I.; Pérez-Montaño, F.; Da Silva, G.M.; Wagner, N.; Shkedy, D.; Zhao, M.; Pizarro, L.; Bar, M.; Walcott, R.; Sessa, G.; et al. Show me your secret(ed) weapons: A multifaceted approach reveals a wide arsenal of type III-secreted effectors in the cucurbit pathogenic bacterium Acidovorax citrulli and novel effectors in the Acidovorax genus. Mol. Plant Pathol. 2020, 21, 17–37. [Google Scholar] [CrossRef] [Green Version]
  14. Ji, W.; Zhao, M.; Fei, N.; Yang, L.; Qiao, P.; Walcott, R.; Yang, Y.; Zhao, T. Essential Acidovorax citrulli Virulence Gene hrpE Activates Host Immune Response against Pathogen. Int. J. Mol. Sci. 2022, 23, 9144. [Google Scholar] [CrossRef]
  15. Jiang, J.; Zhao, M.; Zhang, X.; Yang, L.; Fei, N.; Ji, W.; Guan, W.; Walcott, R.; Yang, Y.; Zhao, T. Acidovorax citrulli Effector AopV Suppresses Plant Immunity and Interacts with Aromatic Dehydratase ADT6 in Watermelon. Int. J. Mol. Sci. 2022, 23, 11719. [Google Scholar] [CrossRef]
  16. Qiao, P.; Zhao, M.; Guan, W.; Walcott, R.; Ye, Y.; Yang, Y.; Zhao, T. A putative multisensor hybrid histidine kinase, BarAAc, inhibits the expression of the type III secretion system regulator HrpG in Acidovorax citrulli. Front. Microbiol. 2022, 13, 1064577. [Google Scholar] [CrossRef] [PubMed]
  17. Tian, Y.; Zhao, Y.; Wu, X.; Liu, F.; Hu, B.; Walcott, R.R. The type VI protein secretion system contributes to biofilm formation and seed-to-seedling transmission of Acidovorax citrulli on melon. Mol. Plant Pathol. 2014, 16, 38–47. [Google Scholar] [CrossRef] [PubMed]
  18. Fei, N.; Ji, W.; Yang, L.; Yu, C.; Qiao, P.; Yan, J.; Guan, W.; Yang, Y.; Zhao, T. Hcp of the Type VI Secretion System (T6SS) in Acidovorax citrulli Group II Strain Aac5 Has a Dual Role as a Core Structural Protein and an Effector Protein in Colonization, Growth Ability, Competition, Biofilm Formation, and Ferric Iron Absorption. Int. J. Mol. Sci. 2022, 23, 9632. [Google Scholar] [CrossRef]
  19. Bahar, O.; Levi, N.; Burdman, S. The cucurbit pathogenic bacterium Acidovorax citrulli requires a polar flagellum for full virulence before and after host-tissue penetration. Mol. Plant Microbe Interact. 2011, 24, 1040–1050. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, T.L.; Guan, W.; Huang, Q.; Yang, Y.W.; Yan, W.R.; Sun, B.X.; Zhao, T.C. Quorum-sensing contributes to virulence, twitching motility, seed attachment and biofilm formation in the wild type strain Aac-5 of Acidovorax citrulli. Microb. Pathog. 2016, 100, 133–140. [Google Scholar] [CrossRef] [Green Version]
  21. Nudleman, E.; Kaiser, D. Pulling together with type IV pili. J. Mol. Microbiol. Biotechnol. 2004, 7, 52–62. [Google Scholar] [CrossRef]
  22. Craig, L.; Pique, M.E.; Tainer, J.A. Type IV pilus structure and bacterial pathogenicity. Nat. Rev. Microbiol. 2004, 2, 363–378. [Google Scholar] [CrossRef]
  23. Mattick, J.S. Type IV pili and twitching motility. Annu. Rev. Microbiol. 2002, 56, 289–314. [Google Scholar] [CrossRef]
  24. Kang, Y.W.; Liu, H.L.; Genin, S.; Schell, M.A.; Denny, T.P. Ralstonia solanacearum requires type 4 pili to adhere to multiple surfaces and for natural transformation and virulence. Mol. Microbiol. 2002, 46, 427–437. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.X.; Hao, G.X.; Galvani, C.D.; Meng, Y.Z.; De la Fuente, L.; Hoch, H.C.; Burr, T.J. Type I and type IV pili of Xylella fastidiosa affect twitching motility, biofilm formation and cell-cell aggregation. Microbiology 2007, 153, 719–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Wang, L.; Makino, S.; Subedee, A.; Bogdanove, A.J. Novel candidate virulence factors in rice pathogen Xanthomonas oryzae pv. oryzicola as revealed by mutational analysis. Appl. Environ. Microbiol. 2007, 73, 8023–8027. [Google Scholar] [CrossRef] [Green Version]
  27. Taguchi, F.; Ichinose, Y. Role of type IV pili in virulence of Pseudomonas syringae pv. tabaci 6605: Correlation of motility, multidrug resistance and HR-inducing activity to a nonhost plant. Mol. Plant-Microbe Interact. 2011, 24, 1001–1011. [Google Scholar] [CrossRef] [Green Version]
  28. Bahar, O.; Goffer, T.; Burdman, S. Type IV pili are required for virulence, twitching motility, and biofilm formation of Acidovorax avenae subsp. citrulli. Mol. Plant Microbe Interact. 2009, 22, 909. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Rosenberg, T.; Salam, B.B.; Burdman, S. Association Between Loss of Type IV Pilus Synthesis Ability and Phenotypic Variation in the Cucurbit Pathogenic Bacterium Acidovorax citrulli. Mol. Plant Microbe Interact. 2018, 31, 548–559. [Google Scholar] [CrossRef] [Green Version]
  30. Burdman, S.; Bahar, O.; Parker, J.K.; De La Fuente, L. Involvement of Type IV Pili in Pathogenicity of Plant Pathogenic Bacteria. Genes 2011, 2, 706–735. [Google Scholar] [CrossRef] [Green Version]
  31. Yang, Y.W.; Zhao, M.; Zhang, L.Q.; Qiao, P.; Bai, X.; Zhang, X.X.; Walcott, R.R.; Guan, W.; Zhao, T.C. Development of a multiplex PCR assay based on the pilA gene sequences to detect different types of Acidovorax citrulli. J. Microbiol. Methods 2019, 158, 93–98. [Google Scholar] [CrossRef] [PubMed]
  32. Sambrook, J.; Russell, D.W. Molecular Cloning: A Laboratory Manual, 3rd ed.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 2001. [Google Scholar]
  33. Waterhouse, A.M.; Procter, J.B.; Martin, D.M.A.; Clamp, M.; Barton, G.J. Jalview Version 2—A multiple sequence alignment editor and analysis workbench. Bioinformatics 2009, 25, 1189–1191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ren, Z.G.; Jiang, W.J.; Ni, X.Y.; Lin, M.; Zhang, W.; Tian, G.Z. Multiplication of Acidovorax citrulli in planta during infection of melon seedlings requires the ability to synthesize leucine. Plant Pathol. 2014, 63, 784–791. [Google Scholar] [CrossRef]
  35. Zhang, X.X.; Zhao, M.; Yan, J.P.; Yang, L.L.; Yang, Y.W.; Guan, W.; Walcott, R.R.; Zhao, T.C. Involvement of hrpX and hrpG in the virulence of Acidovorax citrulli strain Aac5, causal agent of bacterial fruit blotch in cucurbits. Front. Microbiol. 2018, 9, 507–519. [Google Scholar] [CrossRef] [PubMed]
  36. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−∆∆CT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  37. Scribani Rossi, C.; Barrientos-Moreno, L.; Paone, A.; Cutruzzolà, F.; Paiardini, A.; Espinosa-Urgel, M.; Rinaldo, S. Nutrient Sensing and Biofilm Modulation: The Example of L-arginine in Pseudomonas. Int. J. Mol. Sci. 2022, 23, 4386. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, C.; Sun, D.; Zhu, J.; Liu, J.; Liu, W. The Regulation of Bacterial Biofilm Formation by cAMP-CRP: A Mini-Review. Front. Microbiol. 2020, 11, 802. [Google Scholar] [CrossRef]
  39. Abdallah, M.; Benoliel, C.; Drider, D.; Dhulster, P.; Chihib, N.-E. Biofilm formation and persistence on abiotic surfaces in the context of food and medical environments. Arch. Microbiol. 2014, 196, 453–472. [Google Scholar] [CrossRef]
  40. Whitchurch, C.B.; Beatson, S.A.; Comolli, J.C.; Jakobsen, T.; Sargent, J.L.; Bertrand, J.J.; West, J.; Klausen, M.; Waite, L.L.; Kang, P.J.; et al. Pseudomonas aeruginosa fimL regulates multiple virulence functions by intersecting with Vfr-modulated pathways. Mol. Microbiol. 2005, 55, 1357–1378. [Google Scholar] [CrossRef]
  41. Chen, L.; Zou, Y.; She, P.; Wu, Y. Composition, function, and regulation of T6SS in Pseudomonas aeruginosa. Microbiol. Res. 2015, 172, 19–25. [Google Scholar] [CrossRef]
  42. Silverman, J.M.; Agnello, D.M.; Zheng, H.; Andrews, B.T.; Li, M.; Catalano, C.E.; Gonen, T.; Mougous, J.D. Haemolysin Coregulated Protein Is an Exported Receptor and Chaperone of Type VI Secretion Substrates. Mol. Cell 2013, 51, 584–593. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Custodio, R.; Ford, R.M.; Elison, C.J.; Liu, G.; Mickute, G.; Tang, C.M.; Exley, R.M. Type Vl secretion system klling by commensal Neiseria is infuenced by expression of type four pili. eLife 2021, 10, e63755. [Google Scholar] [CrossRef] [PubMed]
  44. Hanahan, D. Studies on transformation of Escherichia coli with plasmids. J. Mol. Biol. 1983, 166, 557–580. [Google Scholar] [CrossRef] [PubMed]
  45. Schäfer, A.; Tauch, A.; Jäger, W. Small mobilizable multi-purpose cloning vectors derived from the Escherichia coli plasmids pK18 and pK19: Selection of defined deletions in the chromosome of Corynebacterium glutamicum. Gene 1994, 145, 69–73. [Google Scholar] [CrossRef] [PubMed]
  46. Kovach, M.E.; Elzer, P.H.; Hill, D.S. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene 1995, 166, 175–176. [Google Scholar] [CrossRef]
Microorganisms 11 01806 g001 550

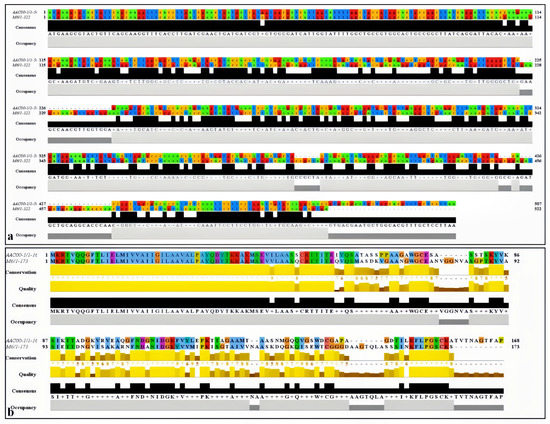

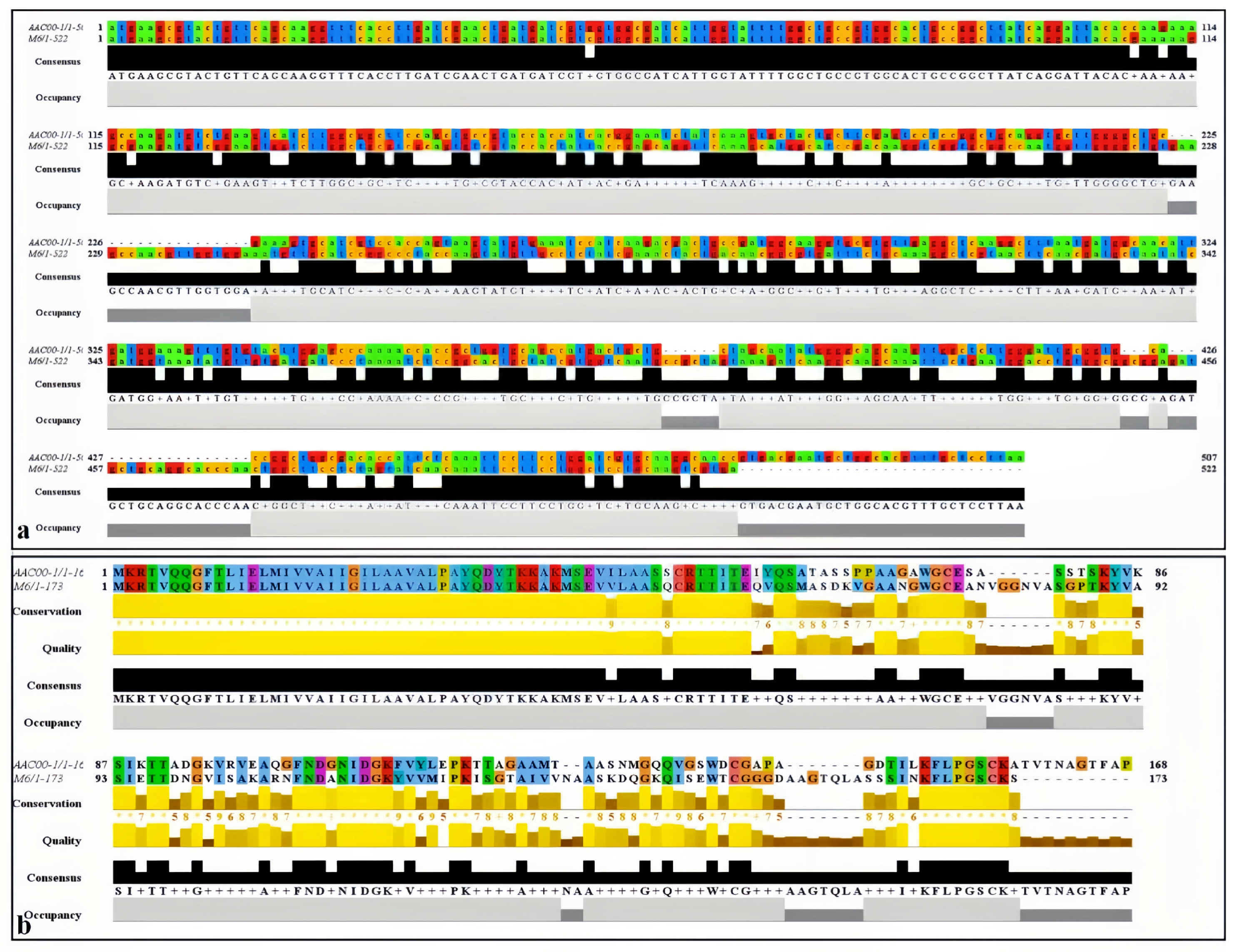

Figure 1. Alignment of pilA sequences from Acidovorax citrulli strains pslb65 and Aac5. Alignment was performed with Clustal Omega and visualized in Jalview. (a,b) Alignment of the (a) pilA DNA sequences and (b) pilA amino acid sequences from the two A. citrulli strains.
Figure 1. Alignment of pilA sequences from Acidovorax citrulli strains pslb65 and Aac5. Alignment was performed with Clustal Omega and visualized in Jalview. (a,b) Alignment of the (a) pilA DNA sequences and (b) pilA amino acid sequences from the two A. citrulli strains.
Microorganisms 11 01806 g001
Microorganisms 11 01806 g002 550
Figure 2. Spray inoculation of watermelon and melon seedlings with wild-type (WT) Acidovorax citrulli group I strain pslb65 and group II strain Aac5 and the corresponding knockout mutant and complementation lines. (a) Leaves of watermelon (upper) and melon (lower) seedlings inoculated with WT pslb65 and the corresponding knockout mutant and complementation lines. (b) Leaves of watermelon (upper) and melon (lower) seedlings inoculated with WT Aac5 and the corresponding knockout mutant and complementation lines. Disease severity was assessed and disease index values were calculated at 15 d after inoculation. Bars show the mean disease index values calculated from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Figure 2. Spray inoculation of watermelon and melon seedlings with wild-type (WT) Acidovorax citrulli group I strain pslb65 and group II strain Aac5 and the corresponding knockout mutant and complementation lines. (a) Leaves of watermelon (upper) and melon (lower) seedlings inoculated with WT pslb65 and the corresponding knockout mutant and complementation lines. (b) Leaves of watermelon (upper) and melon (lower) seedlings inoculated with WT Aac5 and the corresponding knockout mutant and complementation lines. Disease severity was assessed and disease index values were calculated at 15 d after inoculation. Bars show the mean disease index values calculated from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Microorganisms 11 01806 g002
Microorganisms 11 01806 g003 550

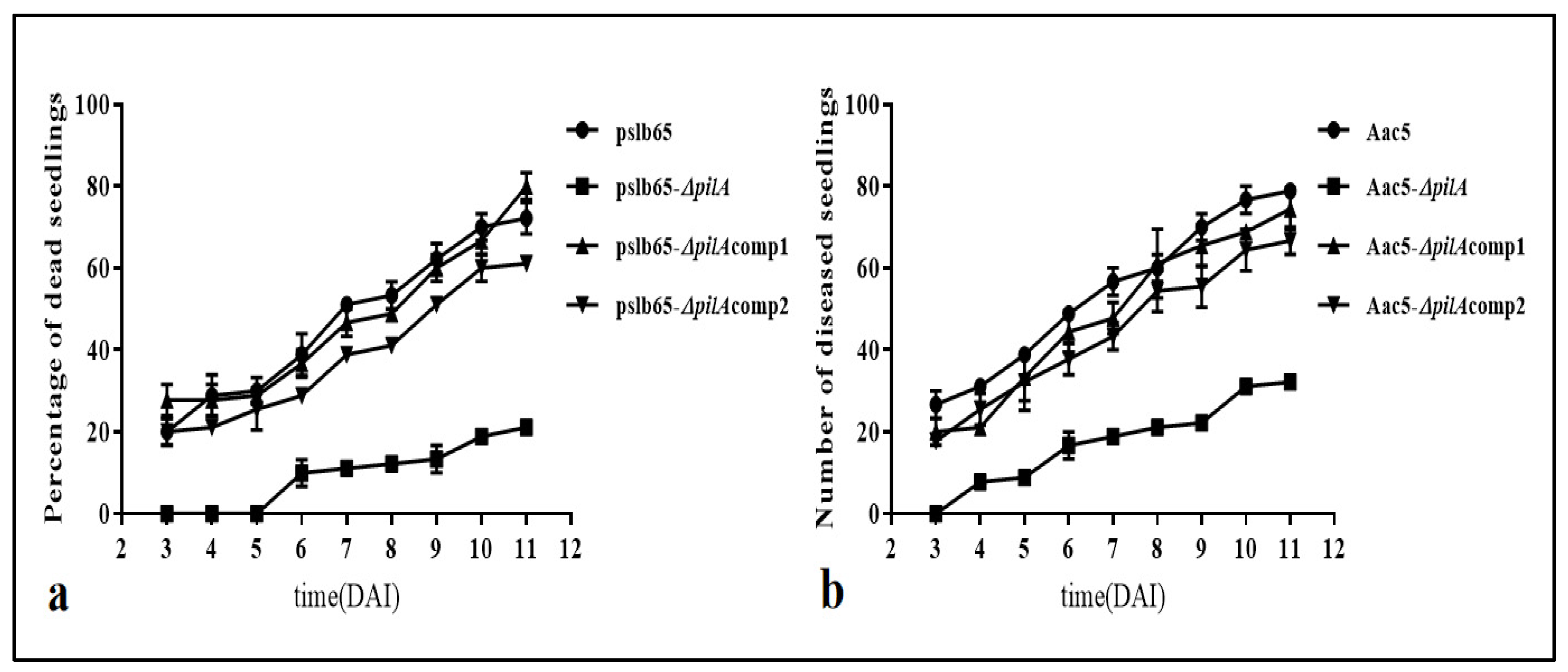

Figure 3. Results of watermelon seedling stem inoculation with Acidovorax citrulli. (a) Disease rates among watermelon seedlings inoculated with the wild-type (WT) group I strain pslb65 and the corresponding pilA knockout mutant and complementation strains. (b) Disease rates among watermelon seedlings inoculated with the WT group II strain Aac5 and the corresponding knockout mutant and complementation strains. Seedlings were assessed from 3 to 11 d after inoculation. Dead seedlings were counted as diseased.
Figure 3. Results of watermelon seedling stem inoculation with Acidovorax citrulli. (a) Disease rates among watermelon seedlings inoculated with the wild-type (WT) group I strain pslb65 and the corresponding pilA knockout mutant and complementation strains. (b) Disease rates among watermelon seedlings inoculated with the WT group II strain Aac5 and the corresponding knockout mutant and complementation strains. Seedlings were assessed from 3 to 11 d after inoculation. Dead seedlings were counted as diseased.
Microorganisms 11 01806 g003
Microorganisms 11 01806 g004 550
Figure 4. Effects of pilA on the capacity for twitching motility in Acidovorax citrulli. The group I strain pslb65 and corresponding knockout, complementation, and cross-complementation lines (pslb65-ΔpilA, pslb65-ΔpilAcomp1, and pslb65-ΔpilAcomp2, respectively) and the group II strain Aac5 and the corresponding knockout, complementation, and cross-complementation lines (Aac5-ΔpilA, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2, respectively) were grown on King’s B plates with ampicillin at 28 °C for 72 h. Twitching motility was assessed based on the visible presence of a thin, light halo around each colony under light microscopy.
Figure 4. Effects of pilA on the capacity for twitching motility in Acidovorax citrulli. The group I strain pslb65 and corresponding knockout, complementation, and cross-complementation lines (pslb65-ΔpilA, pslb65-ΔpilAcomp1, and pslb65-ΔpilAcomp2, respectively) and the group II strain Aac5 and the corresponding knockout, complementation, and cross-complementation lines (Aac5-ΔpilA, Aac5-ΔpilAcomp1, and Aac5-ΔpilAcomp2, respectively) were grown on King’s B plates with ampicillin at 28 °C for 72 h. Twitching motility was assessed based on the visible presence of a thin, light halo around each colony under light microscopy.
Microorganisms 11 01806 g004
Microorganisms 11 01806 g005 550

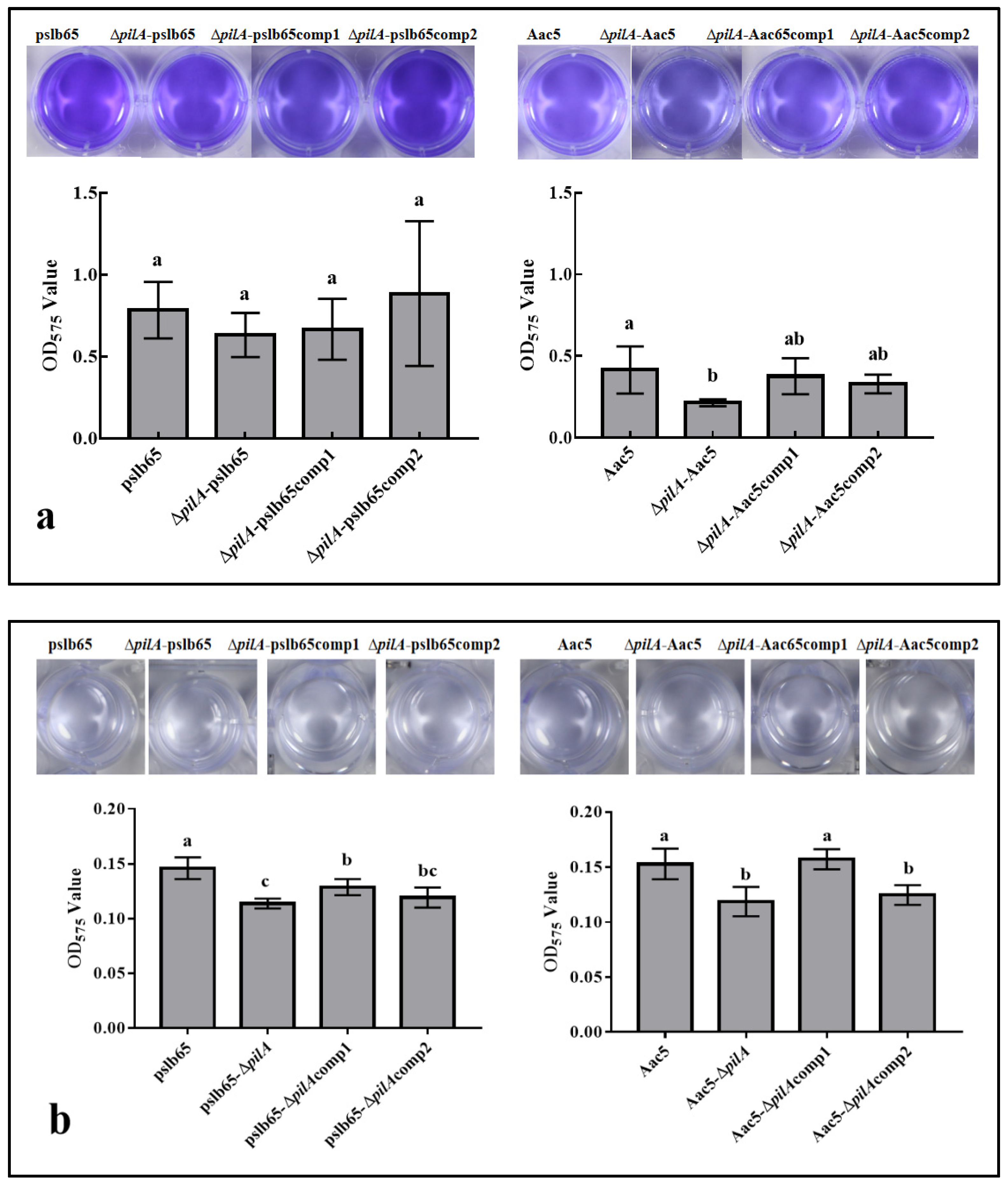

Figure 5. Effects of pilA on biofilm formation in King’s B (KB) and M9 broth. (a,b) Biofilm formation of wild-type (WT) Acidovorax citrulli strains pslb65 and Aac5 and corresponding pilA mutants and complementation lines grown in (a) KB and (b) M9 broth. Bars show the mean OD575 values from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Figure 5. Effects of pilA on biofilm formation in King’s B (KB) and M9 broth. (a,b) Biofilm formation of wild-type (WT) Acidovorax citrulli strains pslb65 and Aac5 and corresponding pilA mutants and complementation lines grown in (a) KB and (b) M9 broth. Bars show the mean OD575 values from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Microorganisms 11 01806 g005
Microorganisms 11 01806 g006 550

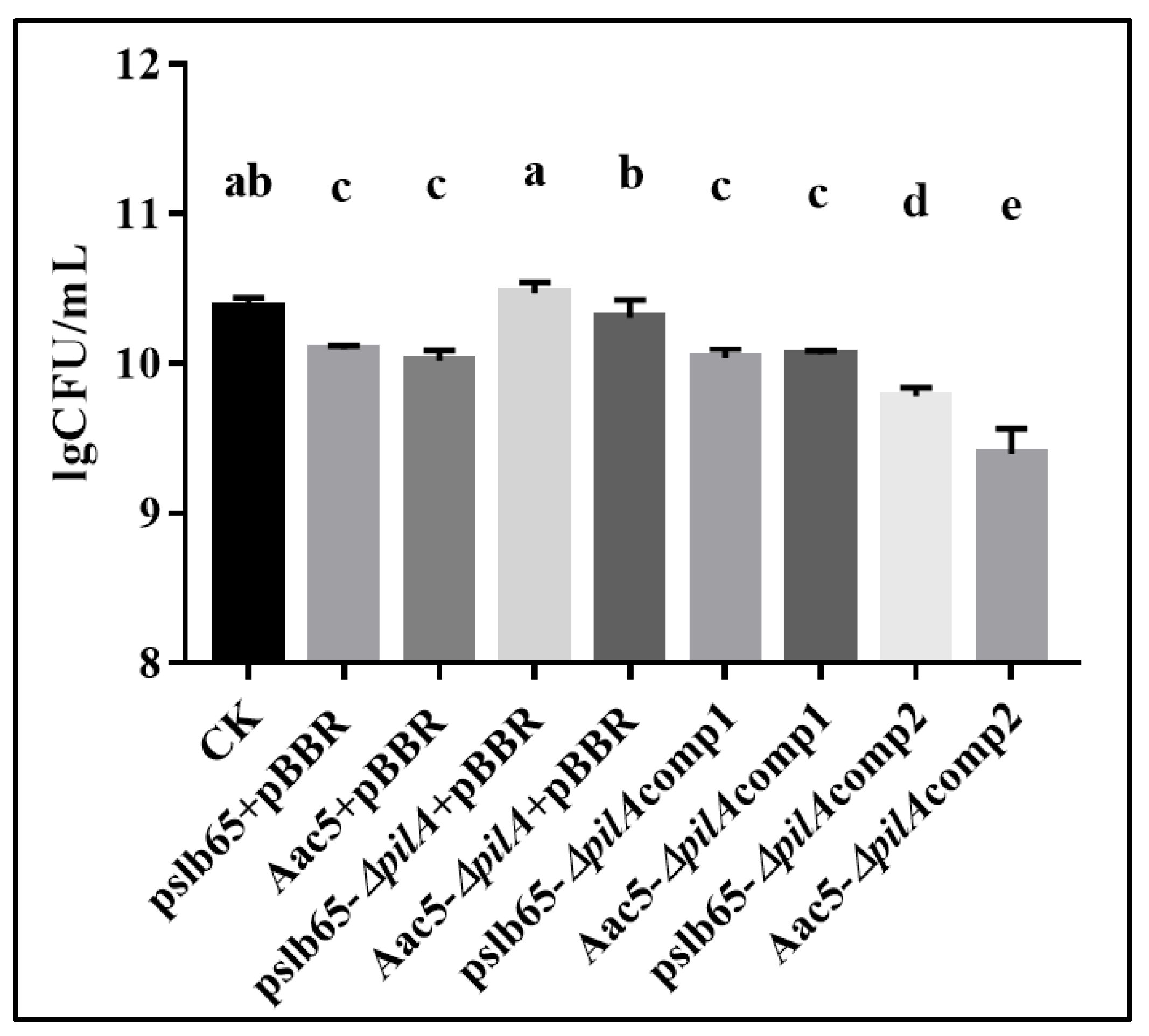

Figure 6. Interspecies competition between Acidovorax citrulli and Escherichia coli DH5α-pBBRMCS5. Killer cultures (the A. citrulli strains pslb65 and Aac5 and the corresponding pilA mutants and complementation strains) were combined with the E. coli prey culture at a ratio of 20:1. Survival was counted after 3 h of co-culture. Bars show the mean values from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Figure 6. Interspecies competition between Acidovorax citrulli and Escherichia coli DH5α-pBBRMCS5. Killer cultures (the A. citrulli strains pslb65 and Aac5 and the corresponding pilA mutants and complementation strains) were combined with the E. coli prey culture at a ratio of 20:1. Survival was counted after 3 h of co-culture. Bars show the mean values from three independent replicates. Error bars represent standard error. Lowercase letters above each bar indicate significant differences between strains at p < 0.05 (analysis of variance and post hoc Duncan’s multiple range test).
Microorganisms 11 01806 g006
Microorganisms 11 01806 g007 550

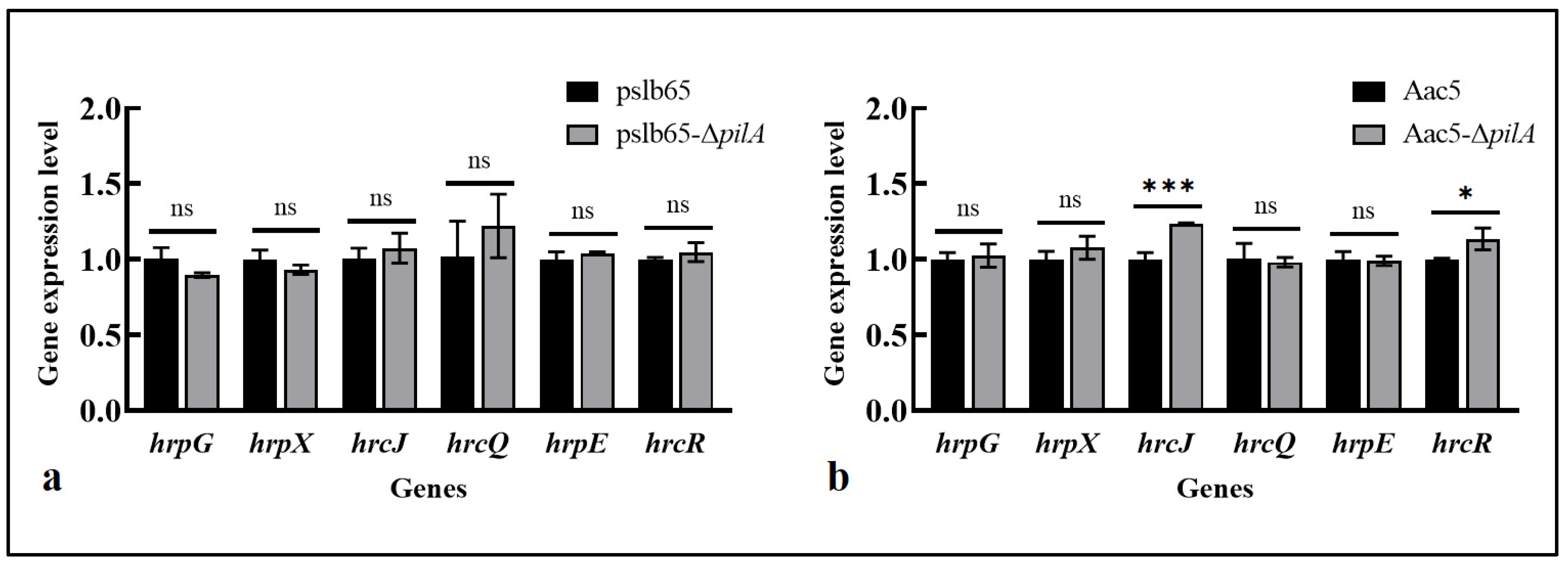

Figure 7. pilA deletion affected expression of type III secretion system (T3SS)-related genes in Acidovorax citrulli. Expression levels of six T3SS genes were measured via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 and in the corresponding pilA mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b) Relative expression levels of the six T3SS genes in (a) the group I strain pslb65-ΔpilA and (b) the group II strain Aac5-ΔpilA compared to the corresponding WT strains. Bars show the mean values from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Figure 7. pilA deletion affected expression of type III secretion system (T3SS)-related genes in Acidovorax citrulli. Expression levels of six T3SS genes were measured via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 and in the corresponding pilA mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b) Relative expression levels of the six T3SS genes in (a) the group I strain pslb65-ΔpilA and (b) the group II strain Aac5-ΔpilA compared to the corresponding WT strains. Bars show the mean values from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Microorganisms 11 01806 g007
Microorganisms 11 01806 g008 550
Figure 8. pilA deletion affected expression of type IV pili (T4P)-related genes in Acidovorax citrulli. Expression levels of 10 T4P genes were measured via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 and in the corresponding pilA knockout mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b). Relative expression levels in (a) the group I strain pslb65-ΔpilA and (b) the group II strain Aac5-ΔpilA compared to the corresponding WT strains. Bars show the mean values from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, ** p < 0.01, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Figure 8. pilA deletion affected expression of type IV pili (T4P)-related genes in Acidovorax citrulli. Expression levels of 10 T4P genes were measured via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 and in the corresponding pilA knockout mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b). Relative expression levels in (a) the group I strain pslb65-ΔpilA and (b) the group II strain Aac5-ΔpilA compared to the corresponding WT strains. Bars show the mean values from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, ** p < 0.01, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Microorganisms 11 01806 g008
Microorganisms 11 01806 g009 550
Figure 9. pilA deletion affected expression of type VI secretion system (T6SS)-related genes in Acidovorax citrulli. A total of 29 T6SS-related genes were selected for study, comprising 17 T6SS genes and 12 vgrG genes. Relative expression levels were assessed via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 compared to the corresponding pilA mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b) Relative T6SS gene expression levels in pslb65-ΔpilA (a) and Aac5-ΔpilA (b) cultured to OD600 values of 1.5. (c,d) Relative vgrG gene expression levels in pslb65-ΔpilA (c) and Aac5-ΔpilA (d) cultured to OD600 values of 1.5. Bars show the mean values calculated from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, ** p < 0.01, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Figure 9. pilA deletion affected expression of type VI secretion system (T6SS)-related genes in Acidovorax citrulli. A total of 29 T6SS-related genes were selected for study, comprising 17 T6SS genes and 12 vgrG genes. Relative expression levels were assessed via quantitative reverse transcription PCR in the wild-type (WT) strains pslb65 and Aac5 compared to the corresponding pilA mutants (pslb65-ΔpilA and Aac5-ΔpilA, respectively). (a,b) Relative T6SS gene expression levels in pslb65-ΔpilA (a) and Aac5-ΔpilA (b) cultured to OD600 values of 1.5. (c,d) Relative vgrG gene expression levels in pslb65-ΔpilA (c) and Aac5-ΔpilA (d) cultured to OD600 values of 1.5. Bars show the mean values calculated from three technical replicates per gene in three independent experiments. Error bars represent standard deviations. * p < 0.05, ** p < 0.01, *** p < 0.001 (Student’s t-test). “ns” indicates that there was no significant difference.
Microorganisms 11 01806 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, Y.; Fei, N.; Ji, W.; Qiao, P.; Yang, L.; Liu, D.; Guan, W.; Zhao, T. pilA Gene Contributes to Virulence, Motility, Biofilm Formation, and Interspecific Competition of Bacteria in Acidovorax citrulli. Microorganisms 2023, 11, 1806. https://doi.org/10.3390/microorganisms11071806

AMA Style

Yang Y, Fei N, Ji W, Qiao P, Yang L, Liu D, Guan W, Zhao T. pilA Gene Contributes to Virulence, Motility, Biofilm Formation, and Interspecific Competition of Bacteria in Acidovorax citrulli. Microorganisms. 2023; 11(7):1806. https://doi.org/10.3390/microorganisms11071806

Chicago/Turabian Style

Yang, Yuwen, Nuoya Fei, Weiqin Ji, Pei Qiao, Linlin Yang, Dehua Liu, Wei Guan, and Tingchang Zhao. 2023. "pilA Gene Contributes to Virulence, Motility, Biofilm Formation, and Interspecific Competition of Bacteria in Acidovorax citrulli" Microorganisms 11, no. 7: 1806. https://doi.org/10.3390/microorganisms11071806

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
