Article

Antifungal Activity of Rhizosphere Bacillus Isolated from Ziziphus jujuba Against Alternaria alternata

1
Institute of Microbiology, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
2
College of Life and Science and Technology, Xinjiang University, Urumqi 830046, China
3
Institute of Soil, Fertilizer and Agricultural Water Conservation, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
4
Key Laboratory of Agricultural Environment in Northwest Oasis of Ministry of Agriculture and Countryside, Urumqi 830091, China
5
Xinjiang Laboratory of Special Environmental Microbiology, Urumqi 830091, China
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(11), 2189; https://doi.org/10.3390/microorganisms12112189
Submission received: 8 September 2024 / Revised: 11 October 2024 / Accepted: 15 October 2024 / Published: 30 October 2024
(This article belongs to the Section Antimicrobial Agents and Resistance)

Abstract

:
The serious impact of Alternaria alternata on jujube black spot disease has seriously affected the quality and yield of jujube, constraining the sustainable development of the jujube industry. The purpose of this study was to isolate and screen highly effective biocontrol strains of jujube black spot disease from jujube rhizosphere soil. Thirty-three soil samples were collected from four regions in southern Xinjiang. The strains with antagonistic effects were isolated and screened by the dilution spread method and plate confrontation method and identified by morphological, physiological, and biochemical characteristics, as well as 16S rDNA, gyrB, and rpoB gene sequences. Indoor and field efficacy experiments were conducted to determine their biocontrol effect. A total of 110 strains with antibacterial activity were selected, and one strain, Bacillus velezensis 26-8, with a stable antagonistic effect was further tested. Biological characteristic experiments showed that strain 26-8 could grow at NaCl concentrations of 0.5–10% and pH 4.0–9.0. The biocontrol experiment results showed that Bacillus velezensis 26-8 could achieve an 89.83% control effect against black spot disease. In conclusion, strain 26-8 has good salt and alkali tolerance, exerts a good control effect on jujube black spot disease, and is worthy of further study.

1. Introduction

The jujube (Ziziphus jujube Mill) is a natural medicinal and edible plant that is rich in various nutrients, including vitamins, amino acids, and proteins [1,2]. The jujube industry serves as a key pillar for economic development in Xinjiang, China. However, in recent years, the emergence of jujube black spot disease has impeded the industry’s growth, resulting in significant economic losses for fruit farmers and adversely affecting the quality and yield of jujube fruits [3]. Currently, chemical control is the primary method for managing plant diseases; however, the long-term use of chemical pesticides can lead to environmental pollution and pose risks to human health. Consequently, biocontrol, as a new green and non-polluting control method, is gaining increasing attention and is expected to gradually replace chemical control [3,4,5].
Biocontrol bacteria are mainly distributed in the soil around the rhizosphere of plants and are an indispensable part of the microbial community structure in the rhizosphere soil. Biocontrol bacteria have the advantages of fast reproduction, simple fermentation, and stable control effect and are the main source of biocontrol agents. The biocontrol bacteria are mostly Bacillus, which is distributed in soil, air, and water. It can inhibit the reproduction of many pathogenic bacteria.
The spore-forming Bacillus is currently the most widely used biocontrol agent due to its rapid reproduction and strong resistance to environmental stressors. Among the various species of Bacillus, Bacillus velezensis has been extensively studied and has demonstrated effective disease prevention and growth-promoting properties [6]. For instance, Zhu Li et al. found that Bacillus velezensis SM905 powder exhibited an 80.74% efficacy in preventing iron tuber charcoal rot, outperforming the effects of carbendazim [7]. Similarly, Zhang Nuoni et al. reported that Bacillus velezensis ZF-10 achieved a relative prevention rate of 61.85% against the tobacco mosaic virus in pot trials [8]. Additionally, Li et al. discovered that Bacillus velezensis Ba-0321 provided an 81.00% prevention rate for tobacco root rot [9]. These studies suggest that Bacillus velezensis is a promising strain for biocontrol against various diseases and has significant application potential. However, there are currently limited reports on the effectiveness of Bacillus velezensis in controlling jujube black spot disease in field conditions, and relatively few products demonstrate consistent efficacy. The practical application of this biocontrol agent is influenced by numerous external factors, including soil conditions and geographical climate [6,10,11,12]. Therefore, further selection of strains with enhanced adaptability is crucial for expanding the resources available for biocontrol agents.
This study utilized the rhizosphere soil of Xinjiang jujube as the experimental material to isolate and screen Bacillus strains exhibiting antibacterial activity against Alternaria alternata. The strains were identified based on their morphological, physiological, and biochemical characteristics and molecular biology methods. Additionally, their growth characteristics were clarified, and the in vitro control effect of the strains on jujube black spot disease was investigated. This research provides valuable germplasm resources for the biological control of jujube black spot disease.

2. Materials and Methods

2.1. Isolation of Soil Microorganisms

A five-point sampling method was used to collect rhizosphere soil samples from jujube orchards in Shaya (47°17′14″ N, 82°42′30″ E), Wensu (41°18′27″ N, 80°34′17″ E), Moyu (37°9′45″ N, 79°38′0″ E), and Zepu (38°9′51″ N, 77°11′10″ E) of Xinjiang, China. We weighed 10.0 g of the soil sample, transferred it to a triangular flask containing 90 mL of sterile water and an appropriate amount of glass beads, shook it at a speed of 150 r/min for 20 min on a shaker to prepare soil suspension, diluted the soil suspension using a 10-fold dilution method to prepare concentrations of 10−3, 10−4, and 10−5, placed them in a constant temperature water bath at 80 °C for 15 min, evenly spread 200 μL of the soil dilution on NA agar plates, let it stand for 20 min, and then inverted the plates and incubated them at 30 °C for 48 h in a constant temperature incubator, with 3 replicates for each treatment. We then selected representative single colonies for purification and cultivation.

2.2. Antimicrobial Screening

We used the flat confrontation method to screen for antagonistic Bacillus spp. [13]. Alternaria alternata was isolated and preserved from the junction of diseased and healthy jujube fruits in this experiment, with the pathogen of jujube black spot as the target bacteria. We used a sterile hole punch to take 6 mm agar discs of A. alternata, placed them in the center of the PDA plate, spotted the antagonistic bacteria in four corners 2 cm away from the center with 3 parallel strains per strain, and incubated them at a constant temperature of 28 °C for 5 days. We then observed whether each strain had an antibacterial effect and recorded the strains with antibacterial activity.
We refer readers to the method described by Yang Di et al. [14] for the secondary screening of the initial strains. First, we inoculated 100 μL of A. tenuissima spore suspension onto the PDA medium and allowed it to stand for 10 min. Using a sterile hole punch, we created four equidistant holes, each 1.5 cm from the center of the PDA plate, following a cross pattern. We then added 100 μL of each antagonistic bacterial sterile filtrate to each hole and incubated it at 28 °C for 5 days, with three replicates per strain. We then observed the presence of inhibition zones and measured their diameters using the cross method.

2.3. Strain Identification

The methods for identifying antagonistic bacteria through morphological, physiological, and biochemical means are as follows: inoculate the purified antagonistic bacteria into nutrient agar (NA) medium and incubate at 30 °C for 48 h; observe the morphological characteristics of the colonies; and select colonies for Gram staining to examine the morphological features of the bacterial cells. The physiological and biochemical tests were performed according to the methods outlined in references [15,16,17,18].
The molecular biological identification methods for antagonistic bacteria are outlined as follows. First, we utilized a DNA extraction kit to isolate the genomic DNA of the antagonistic bacteria. Next, we used the extracted bacterial genomic DNA as a template to amplify target fragments with universal primers for the bacterial 16S rDNA, gyrB, and rpoB genes. The PCR amplification products should be analyzed using 1.7% agarose gel electrophoresis, and the clarity of the electrophoresis bands can be observed with a gel imaging system [19,20]. For bands that exhibited clear amplification products, we sent them to Shanghai Sangon Biotech Co., Ltd. (Shanghai, China) for sequencing. We then employed SeqMan software (version 12.0) to assemble the sequences and subsequently submitted them to the NCBI database for similarity comparison analysis using BLAST software 2.16.0. A phylogenetic tree can be constructed using the Neighbor-Joining method in MEGA7.0 software to determine the classification status of the strains. The amplification system and conditions are detailed in Table 1.

2.4. Determination of Antagonistic Bacterial Strain Growth Characteristics

The determination method of antagonistic bacteria growth curve is as follows: inoculate the antagonistic bacteria activated into 50 mL of the NB medium; shake the culture at 28 °C and 180 r/min for 24 h to obtain seed solution; inoculate the seed solution with 1% inoculum size into the NB medium; and shake the culture at 28 °C and 180 r/min, sampling every 2 h to measure the OD600 nm value using a spectrophotometer, with the sterile NB medium as the control and 3 replicates for each treatment.
The method for determining the effect of temperature on the growth of antagonistic bacteria is as follows: inoculate the antagonistic bacteria into the nutrient broth (NB) medium at a concentration of 1%; and incubate the culture at temperatures of 24 °C, 28 °C, 32 °C, 36 °C, and 40 °C, shaking at 180 rpm for 24 h. The viable bacterial count was assessed using plate-counting techniques.
The method for measuring the effect of pH on the growth of antagonistic bacteria is outlined as follows: prepare the nutrient broth (NB) culture medium at pH levels of 4, 5, 6, 7, and 8; incubate the cultures at 28 °C with shaking at 180 revolutions per minute (r/min) for 24 h; after incubation, determine the number of viable bacteria using the plate-counting method.
The method for determining the effect of NaCl concentration on the growth of antagonistic bacteria is as follows: prepare the nutrient broth (NB) culture medium with NaCl concentrations of 0.5%, 1%, 2%, 5%, 7%, and 10%; incubate the cultures at 28 °C and 180 rpm for 24 h; and assess the number of viable bacteria using the plate-counting method.

2.5. Evaluation of Strain Biocontrol Ability

The method for determining the effect of strain 26-8 on the spore germination of Alternaria alternata was conducted as follows: The concentration of the A. alternata spore suspension was adjusted to 1 × 106 spores/mL using sterile water. The experiment consisted of the following treatments: a control group, which included 1 mL of the pathogenic spore suspension mixed with 1 mL of the nutrient broth (NB) culture medium; and a treatment group, where the pathogenic spore suspension was mixed with the supernatant of antagonistic bacteria fermentation at a 1:1 ratio. Each treatment was incubated at 28 °C for 24 h. Subsequently, 30 μL of the mixture was sampled for microscopic observation, and a total of 500 spores were examined to calculate the spore germination rate, with three replicates for each treatment. The spore germination inhibition rate (%) was calculated using the following formula: Spore germination inhibition rate (%) = [(Control spore germination rate − Treatment spore germination rate)/Control spore germination rate] × 100. The reason for this was improved clarity, technical accuracy, and readability by refining the sentence structure, enhancing vocabulary, and ensuring proper scientific notation.
The experimental methods for in vitro prevention of jujube fruit diseases are as follows: First, wash the jujube fruits with sterile water. Next, soak them in a 2% sodium hypochlorite solution for 5 min, and then rinse them three times with sterile water before allowing them to air dry naturally. Using a sterile needle, create a deep wound approximately 3 mm near the equator of each jujube fruit. Then, inoculate the wound with 10 μL of the A. alternata spore suspension and culture the fruit at 25 °C for 24 h. After this incubation period, inoculate with 10 μL of the antagonist solution. Using the NB culture medium as a control after inoculation, place the fruits in a plastic box, seal them with polyethylene film, and maintain a culture temperature of 25 °C with a relative humidity of 60%. Repeat this process three times, using 10 jujube fruits for each trial, and observe the diameter of the lesions on the jujube fruits every three days. Next, measure the lesion diameter using a cross method and calculate the average. The inhibition rate (%) is calculated using the following formula: Inhibition rate (%) = [(Control lesion diameter − Treated lesion diameter)/Control lesion diameter] × 100.

2.6. Statistical Analysis

Data were analyzed using standard analysis of variance (ANOVA) and Duncan’s multiple comparison tests with SPSS software 23. A p-value of less than 0.05 was considered statistically significant.

3. Results

3.1. Isolation and Screening of Strains

By employing the dilution spread method to isolate soil samples from four regions in Xinjiang, various morphologically distinct single colonies were selected for purification. The strains were initially screened using the plate confrontation method, resulting in the identification of 133 strains exhibiting antibacterial properties. Subsequently, the inhibition zone method was utilized for rescreening, leading to the selection of 110 strains with confirmed antibacterial activity. The antagonistic bacteria were categorized into five groups based on the diameter of the inhibition zones. Specifically, there were 14 strains with inhibition zone diameters ranging from 0 to 5 mm, 10 strains from 5 to 10 mm, 14 strains from 10 to 15 mm, 28 strains from 15 to 20 mm, and 44 strains from 20 to 30 mm (Table 2). Strain 26-8, which demonstrated relatively stable antibacterial activity, was selected, with an inhibition zone diameter of 25.37 ± 0.37 mm (Figure 1).

3.2. Identification of Antagonistic Strains

Strain 26-8 forms circular or irregular colonies on nutrient agar (NA) plates, exhibiting a rough, white, opaque surface. The bacteria are rod-shaped and Gram-positive (Figure 2). Physiological and biochemical tests indicated that strain 26-8 yielded positive results in the methyl red test, Voges–Proskauer (V-P) test, catalase test, oxidase test, nitrate reduction test, and hydrogen sulfide (H2S) gas production test. Additionally, strain 26-8 demonstrated the ability to hydrolyze starch, liquefy gelatin, ferment glucose, and utilize citrate, D-mannose, D-mannitol, and D-xylose, but it did not utilize L-arabinose (Table 3). Based on its morphological and physiological characteristics, along with the guidelines from the common bacterial identification manual, strain 26-8 was preliminarily identified as a Bacillus species.
Through the analysis of the 16S rDNA, gyrB, and rpoB gene sequences of strain 26-8, segments of approximately 1500 bp, 1200 bp, and 400–600 bp were amplified, respectively (Figure 3). The sequencing results were submitted to the NCBI database for BLAST comparison analysis, and gene accession numbers were obtained. The Neighbor-Joining method in MEGA 7.0 software was employed to construct a phylogenetic tree (Figure 4). The results indicated that all three gene sequences clustered together with Bacillus velezensis, exhibiting similarities of 99.28%, 99.64%, and 100%, respectively. In conjunction with morphological and physiological biochemical characteristics, strain 26-8 was identified as Bacillus velezensis.

3.3. Determination of Strain Growth Characteristics

From Figure 5, it is evident that Bacillus velezensis strain 26-8 exhibits slow growth from 0 to 4 h. Between 4 and 16 h, the strain experiences rapid growth, entering the logarithmic growth phase. After 18 h, the biomass of strain 26-8 stabilizes, with an optical density (OD600 nm) value of 1.7812. According to Figure 6, strain 26-8 can thrive within a temperature range of 24 °C to 40 °C, with a maximum viable count of 7.6 × 108 CFU/mL observed at 28 °C. Figure 7 indicates that B. velezensis 26-8 can grow at a pH range of 4.0 to 9.0, with the highest viable count of 8.89 × 108 CFU/mL recorded at pH 7. Growth of the strain is inhibited at pH levels below 5.0 or above 9.0. As illustrated in Figure 8, strain 26-8 can grow effectively in NaCl concentrations ranging from 0.5% to 5%, with no significant differences in growth observed within this range. However, at 7% and 10% salt concentrations, the viable cell count decreases, although the strain can still grow slowly under high-salinity conditions, yielding viable cell counts of 3.0 × 108 CFU/mL and 6.23 × 104 CFU/mL, respectively.

3.4. Effects of Strains on Spore Germination and Mycelial Growth of Alternaria alternata

The strain 26-8 fermentation broth exhibits a significant inhibitory effect on the germination of conidia from the pathogen responsible for jujube black spot disease (Figure 9), achieving an inhibition rate of 66.29% on conidial germination (Table 4). Following treatment with strain 26-8, the diameter of the fungal colonies of Alternaria alternata measured 39.71 mm, resulting in an inhibitory rate of 49.76% on hyphal growth (Table 5). These findings indicate that the sterile filtrate of strain 26-8 effectively inhibits the growth of Alternaria alternata hyphae (Figure 10).

3.5. Evaluation Results of Strain Biocontrol Ability

We pre-inoculated the chain spore suspension on jujube fruits and inoculated the antagonistic bacteria one day later. Observations were made every three days. It was noted that the lesion diameter in the treatment group was smaller than that in the control group. At 15 days, the lesion diameter in the treatment group measured 16.60 mm, significantly lower than the 31.70 mm observed in the control group. According to the results presented in Table 6, the average inhibition rate of black spot disease in jujube fruits for the treatment group was 50.47%. These results indicate that the antagonist 26-8 is effective in controlling black spot disease in jujube fruits.

4. Discussion

Jujube black spot disease is a fungal infection caused by Alternaria alternata, which is prevalent in southern Xinjiang and significantly impacts the development of the jujube industry [21]. Biological control has emerged as a prominent area of research in the prevention and management of plant diseases. Bacillus species are among the most widely utilized biocontrol microorganisms and offer considerable potential for application [22,23,24,25]. Within the Bacillus genus, interest in Bacillus velezensis as a biocontrol agent has increased in recent years. Studies have demonstrated that B. velezensis exhibits varying degrees of inhibitory effects against a range of plant diseases, including Fusarium [26,27,28,29], gray mold [30,31,32,33], and cotton Verticillium wilt [34,35]. The rapid and accurate identification of bacterial strains is essential for subsequent development and application. However, distinguishing Bacillus species solely based on phenotypic, physiological, and biochemical characteristics is often insufficient. With the rapid advancement of molecular biology techniques, molecular-level identification has become increasingly integrated into the process. The 16S rDNA gene sequence is widely utilized for the classification and identification of bacteria. For instance, Cui Lingxiao et al. successfully identified Bacillus velezensis strain 8-4 through 16S rDNA gene sequence analysis [36]. However, for closely related groups, 16S rDNA sequence analysis may fail, leading to inaccurate identification results [37]. In recent years, researchers have discovered that utilizing gene-encoded protein sequences, such as gyrA, gyrB, and rpoB, as molecular identifiers can address the limitations of 16S rDNA gene sequencing [19,38,39]. For instance, Feng et al. analyzed and identified the strain FY-C by integrating both 16S rDNA and gyrB gene sequences to enhance the accuracy of the identification results [40]. In this study, strain 26-8 was examined based on its morphological, physiological, and biochemical characteristics, as well as its 16S rDNA, gyrB, and rpoB gene sequences, leading to its identification as Bacillus velezensis. This research investigated the growth characteristics of B. velezensis 26-8, thereby laying the groundwork for the development and application of biocontrol strains. Strain 26-8 can thrive at temperatures ranging from 24 to 40 °C, with an optimal growth temperature of 28 °C. It can also tolerate pH levels between 4.0 and 9.0, with an optimal pH of 7.0 and salt concentrations from 0.5% to 10%. These findings are consistent with previous research on Bacillus velezensis [41,42,43]. However, they contrast with the study conducted by Yang Di et al., which identified the optimal pH for Bacillus velezensis as 5.5 [14]. Given the extensive land area in our country, characterized by diverse soil types and geographical environments, the growth and reproduction of microorganisms are influenced, leading to variations in their growth characteristics. Consequently, the identification of strains with enhanced environmental adaptability is crucial for biocontrol research. B. velezensis 26-8 exhibits strong salt and alkali tolerance, highlighting its significant biocontrol potential and establishing it as a valuable microbial resource for biocontrol applications.
Research has demonstrated that Bacillus velezensis can produce a variety of antibacterial metabolites, including lipopeptides, proteins, and polyketide compounds. Two endophytic antagonistic bacteria, B. velezensis ZJJDZY and ZJJDYB, exhibited significant antagonistic effects against various pathogenic fungi responsible for black spot disease, indicating their potential as biocontrol resources [44]. The control efficacy of B. velezensis GUAL210 against rose black spot reached as high as 60.96%, suggesting that GUAL210 holds promising prospects for application and development, and may serve as a viable alternative to chemical control agents [43]. This study found that the sterile filtrate of strain 26-8 can inhibit the growth of Alternaria alternata. It is hypothesized that one of the mechanisms by which strain 26-8 exerts its biocontrol effect is through the production of specific active substances that inhibit the growth of the pathogen; however, further research is necessary to identify the specific antibacterial substances and elucidate the biocontrol mechanisms involved. A strain of B. velezensis isolated during this experiment demonstrated a significant inhibitory effect on jujube black spot disease, exhibiting an inhibition zone diameter of 25.37 mm in the plate confrontation test and a control efficacy of 50.47% in the detached fruit treatment experiment. The control efficacy observed in this study differs from that reported in other research, such as the study by Song et al., which indicated that when Bacillus amyloliquefaciens K5-1 was inoculated first on jujube fruits, the control efficacy against winter jujube black spot disease reached 78.50% [45]. This discrepancy may be attributed to the experimental design, where the pathogen was inoculated first, followed by the antagonist. This sequence allowed the pathogen to occupy a favorable niche initially, resulting in a lower control efficacy compared to scenarios where the antagonist is inoculated first. Research on biocontrol agents should extend beyond laboratory conditions to ensure practical applicability. Field efficacy experiments are essential to validate and stabilize the effectiveness of these agents in real-world settings before further development as biological control agents.

5. Conclusions

In this study, 110 strains exhibiting antibacterial activity were screened, and the inhibition zone method was employed for further evaluation. Ultimately, a strain of Bacillus velezensis, designated as 26-8, was identified for its stable antagonistic effects. The plate confrontation experiment revealed that the inhibition zone diameter of Bacillus velezensis 26-8 against Alternaria alternata was 25.37 mm. The results from in vitro control experiments indicated that Bacillus velezensis 26-8 achieved a control efficacy of 50.47% against jujube black spot. Strain 26-8 demonstrated the ability to grow in the presence of 0.5% to 10% NaCl and within a pH range of 4.0 to 9.0. The control efficacy of Bacillus velezensis 26-8 against black spot disease reached an impressive 89.83%. Strain 26-8 exhibits strong saline-alkali tolerance and effective control over jujube black spot, highlighting its potential for further in-depth study.

Author Contributions

Conceptualization, review and editing, Y.S.; project administration, Y.S.; investigation, resources, writing—original draft, Q.Z.; investigation, resources, X.N. and Y.Z.; methodology, H.Y., M.C., N.W., and H.B.; validation, Q.Z., Y.Z., X.N., and Y.S.; visualization, Q.Z.; writing—review and editing, F.Z., R.Y., and K.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Key R R&D plan of Xinjiang Uygur Autonomous Region of China (2021B02004, 2022B02053-2), Major science and technology projects in Xinjiang Uygur Autonomous Region (2022A02005-3, 2023A02009), the National Key R&D Program of China (2022YFD1400304, 2021YFD1400200), and the Stable support project of Xinjiang Academy of Agricultural Sciences, Research, and development of key technologies for prevention and control of agricultural diseases, pests, weeds, and biosafety (xjnkywdzc-2022004).

Data Availability Statement

Data are available upon request due to restrictions.

Acknowledgments

The authors would like to thank Changgeng Zuo for the isolation and characterization of the phytopathogenic fungi Alternaria alternata, Yanzhong Ren for the soil sample collection, and Jingyi Wang for improving the use of English in the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wojdyło, A.; Carbonell-Barrachina, A.A.; Legua, P.; Hernandez, F. Phenolic composition, ascorbic acid content, and antioxidant capacity of Spanish jujube (Ziziphus jujube Mill.) fruits. Food Chem. 2016, 201, 307–314. [Google Scholar] [CrossRef] [PubMed]
  2. Gao, Q.H.; Wu, C.S.; Wang, M. The jujube (Ziziphus jujuba Mill.) fruit: A review of current knowledge of fruit composition and health benefits. J. Agric. Food Chem. 2013, 61, 3351–3363. [Google Scholar] [CrossRef] [PubMed]
  3. Li, M.; Yu, M.L.; Zhang, Z.Q.; Liu, Z.G.; Pan, Y. Control of black spot disease caused by Alternaria alternata on jujube (Ziziphus jujuba Mill. cv. Dongzao) using HarpinXoo protein. J. Hortic. Sci. Biotechnol. 2012, 87, 250–254. [Google Scholar] [CrossRef]
  4. Deng, Q.; Lei, X.; Zhang, H.; Deng, L.; Yi, L.; Zeng, K. Phenylalanine promotes biofilm formation of Meyerozyma caribbica to improve biocontrol efficacy against jujube black spot rot. J. Fungi 2022, 8, 1313. [Google Scholar] [CrossRef]
  5. Hong, L.; Yang, L.F.; Yang, J.; Guo, J.W.; Cheng, J.S. Screening and optimizing fermentation conditions of Actinomycetes spp. antagonistic to Alternaria sp. causing black spot of jujube. Southwest China J. Agric. Sci. 2018, 31, 1634–1637. [Google Scholar]
  6. Chen, Q.; Qiu, Y.; Yuan, Y.; Wang, K.; Wang, H. Biocontrol activity and action mechanism of Bacillus velezensis strain SDTB038 against Fusarium crown and root rot of tomato. Front. Microbiol. 2022, 13, 994716. [Google Scholar] [CrossRef]
  7. Zhu, L.H.; Li, X.H.; Shi, Y.F. Identification of Bacillus subtilis SM905 and its inhibitory effect on the conidia of Colletotrichum sp. in Dendrobium officinale. Chin. J. Biol. Control 2022, 38, 469–475. [Google Scholar]
  8. Zhang, N.N.; Xie, Y.B.; Li, B.; Zhang, Z.J.; Yang, Z.M.; Yan, F.F.; Yang, P.; Chen, S.M.; An, D.R. Screening, identification, and fermentation condition optimization of tobacco potato Y virus resistant bacterium ZF-10. Tob. Sci. 2024, 57, 64–74. [Google Scholar] [CrossRef]
  9. Li, X.J.; Yao, C.X.; Qiu, R.; Bai, J.K.; Liu, C.; Chen, Y.G.; Li, S.J. Isolation, identification, and evaluation of the biocontrol potential of a Bacillus velezensis strain against tobacco root rot caused by Fusarium oxysporum. J. Appl. Microbiol. 2023, 134, lxac049. [Google Scholar] [CrossRef]
  10. Meng, Q.; Hao, J.J. Optimizing the application of Bacillus velezensis BAC03 in controlling the disease caused by Streptomyces scabies. BioContro 2017, 62, 535–544. [Google Scholar] [CrossRef]
  11. Wang, J.; Zhang, W.; Fan, L.; Xie, A.W.; Yang, H.J.; Wei, S.; Zhai, H.Z.; Hu, Y.S.; Lv, Y.Y. Study on the mechanism of Bacillus subtilis from soil inhibiting the growth of Aspergillus flavus. J. Henan Univ. Technol. 2023, 44, 68–74. [Google Scholar]
  12. Toral, L.; Rodriguez, M.; Bejar, V.; Sampedro, I. Crop protection against Botrytis cinerea by rhizhosphere biological control agent Bacillus velezensis XT1. Microorganisms 2020, 8, 992. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, W.W.; Wang, Y.L.; Bi, Y.; Yun, J.M. Screening, identification and biocontrol efficacy of an antagonistic bacterium against potato dry rot. Microbiol. China 2018, 45, 1726–1736. [Google Scholar]
  14. Yang, D.; Du, C.J.; Zhang, J.; Pan, L.F.; Ye, Y.F.; Huang, S.L.; Fu, G. Screening and identification of Bacillus subtilis against banana wilt and its biological characteristics. Chin. J. Biol. Control 2021, 37, 165–171. [Google Scholar]
  15. Dong, X.Z.; Cai, M.Y. Manual of Common Bacterial System Identification; Science Press: Beijing, China, 2001. [Google Scholar]
  16. Sidorova, T.M.; Asaturova, A.M.; Homyak, A.I. Biologically active metabolites of Bacillus subtilis and their role in the control of phytopathogenic microorganisms. Agric. Biol. 2018, 53, 29–37. [Google Scholar] [CrossRef]
  17. Fira, D.; Dimkic, I.; Beric, T.; Lozo, J.; Stankovic, S. Biological control of plant pathogens by Bacillus species. J. Biotechnol. 2018, 285, 44–55. [Google Scholar] [CrossRef]
  18. Perez-Garcia, A.; Romero, D.; De Vicente, A. Plant protection and growth stimulation by microorganisms: Biotechnological applications of Bacilli in agriculture. Curr. Opin. Biotechnol. 2011, 22, 187–193. [Google Scholar] [CrossRef]
  19. Kupfer, M.; Kuhnert, P.; Korczak, B.M.; Peduzzi, R.; Demarta, A. Genetic relationships of Aeromonas strains inferred from 16S rRNA, gyrB and rpoB gene sequences. Int. J. Syst. Evol. Microbiol. 2006, 56, 2743–2751. [Google Scholar] [CrossRef]
  20. De Clerck, E.; Vanhoutte, T.; Hebb, T.; Geerinck, J.; Devos, J.; De Vos, P. Isolation, characterization, and identification of bacterial contaminants in semifinal gelatin extracts. Appl. Environ. Microbiol. 2004, 70, 3664–3672. [Google Scholar] [CrossRef]
  21. Dong, N. Symptoms, Pathogen Analysis, and Indoor Fungicide Screening of Jujube Black Spot Disease. Ph.D. Thesis, Tarim University, Alar, China, 2015. [Google Scholar]
  22. Kuebutornye, F.K.; Abarike, E.D.; Lu, Y. A review on the application of Bacillus as probiotics in aquaculture. Fish Shellfish. Immunol. 2019, 87, 820–828. [Google Scholar] [CrossRef]
  23. Ye, M.; Tang, X.; Yang, R.; Zhang, H.; Li, F.; Tao, F.; Li, F.; Wang, Z. Characteristics and application of a novel species of Bacillus: Bacillus velezensis. ACS Chem. Biol. 2018, 13, 500–505. [Google Scholar] [CrossRef] [PubMed]
  24. Khan, A.R.; Mustafa, A.; Hyder, S.; Valipour, M.; Rizvi, Z.F.; Gondal, A.S.; Yousuf, Z.; Iqbal, R.; Daraz, U. Bacillus spp. as bioagents: Uses and application for sustainable agriculture. Biology 2022, 11, 1763. [Google Scholar] [CrossRef] [PubMed]
  25. Abriouel, H.; Franz, C.M.; Omar, N.B.; Galvez, A. Diversity and applications of Bacillus bacteriocins. FEMS Microbiol. Rev. 2011, 35, 201–232. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, G.F.; Meng, J.F.; Tian, T.; Xiao, X.Q.; Zhang, B.; Xiao, Y.N. Endophytic Bacillus velezensis strain B-36 is a potential biocontrol agent against lotus rot caused by Fusarium oxysporum. J. Appl. Microbiol. 2020, 128, 1153–1162. [Google Scholar] [CrossRef]
  27. Chen, L.; Heng, J.; Qin, S.; Bian, K. A comprehensive understanding of the biocontrol potential of Bacillus velezensis LM2303 against Fusarium head blight. PLoS ONE 2018, 3, e0198560. [Google Scholar] [CrossRef]
  28. Sun, L.; Wang, W.; Zhang, X.; Gao, Z.; Cai, S.; Wang, S.; Li, Y. Bacillus velezensis BVE7 as a promising agent for biocontrol of soybean root rot caused by Fusarium oxysporum. Front. Microbiol. 2023, 14, 1275986. [Google Scholar] [CrossRef]
  29. Wei, J.; Zhao, J.; Suo, M.; Wu, H.; Zhao, M.; Yang, H. Biocontrol mechanisms of Bacillus velezensis against Fusarium oxysporum from Panax ginseng. Biol. Control 2023, 182, 105222. [Google Scholar] [CrossRef]
  30. Jiang, C.H.; Liao, M.J.; Wang, H.K.; Zheng, M.Z.; Xu, J.J.; Guo, J.H. Bacillus velezensis, a potential and efficient biocontrol agent in control of pepper gray mold caused by Botrytis cinerea. Biol. Control 2018, 126, 147–157. [Google Scholar] [CrossRef]
  31. Li, S.; Xiao, Q.; Yang, H.; Huang, J.; Li, Y. Characterization of a new Bacillus velezensis as a powerful biocontrol agent against tomato gray mold. Pestic. Biochem. Physiol. 2022, 187, 105199. [Google Scholar] [CrossRef]
  32. Xue, Y.; Zhang, Y.; Huang, K.; Wang, X.; Xing, M.; Xu, Q.; Guo, Y. A novel biocontrol agent Bacillus velezensis K01 for management of gray mold caused by Botrytis cinerea. AMB Express 2023, 13, 91. [Google Scholar] [CrossRef]
  33. Li, L.; Wang, R.; Liang, X.; Gai, Y.; Jiao, C.; Wang, M. Characterization of a Bacillus velezensis with antibacterial activity and its inhibitory effect on gray mold germ. Agronomy 2023, 13, 1553. [Google Scholar] [CrossRef]
  34. Liu, H.; Zeng, Q.; Yalimaimaiti, N.; Wang, W.; Zhang, R.; Yao, J. Comprehensive genomic analysis of Bacillus velezensis AL7 reveals its biocontrol potential against Verticillium wilt of cotton. Mol. Genet. Genom. 2021, 296, 1287–1298. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, Y.; Yang, N.; Li, S.; Chen, F.; Xie, Y.; Tang, C. Mechanism of oxalate decarboxylase Oxd_S12 from Bacillus velezensis BvZ45-1 in defence against cotton verticillium wilt. J. Exp. Bot. 2024, 75, 3500–3520. [Google Scholar] [CrossRef] [PubMed]
  36. Cui, L.; Yang, C.; Wei, L.; Li, T.; Chen, X. Isolation and identification of an endophytic bacteria Bacillus velezensis 8-4 exhibiting biocontrol activity against potato scab. Biol. Control 2020, 141, 104156. [Google Scholar] [CrossRef]
  37. Christensen, H.; Olsen, J.E. Phylogenetic relationships of Salmonella based on DNA sequence comparison of atpD encoding the β subunit of ATP synthase. FEMS Microbiol. Lett. 1998, 161, 89–96. [Google Scholar] [CrossRef]
  38. Ki, J.S.; Zhang, W.; Qian, P.Y. Discovery of marine Bacillus species by 16S rRNA and rpoB comparisons and their usefulness for species identification. J. Microbiol. Methods 2009, 77, 48–57. [Google Scholar] [CrossRef]
  39. Jia, S.; Song, C.; Dong, H.; Yang, X.; Li, X.; Ji, M.; Chu, J. Evaluation of efficacy and mechanism of Bacillus velezensis CB13 for controlling peanut stem rot caused by Sclerotium rolfsii. Front. Microbiol. 2023, 14, 1111965. [Google Scholar] [CrossRef]
  40. Feng, Y.Y.; Li, B.; Yang, Y.; He, J.X.; An, H.; Yan, F.F.; An, D.R. Screening, identification, and antibacterial mechanism research of antagonistic bacteria against tobacco bacterial wilt pathogen. Chin. J. Biol. Control 2021, 37, 331–339. [Google Scholar]
  41. Fazle Rabbee, M.; Baek, K.H. Antimicrobial activities of lipopeptides and polyketides of Bacillus velezensis for agricultural applications. Molecules 2020, 25, 4973. [Google Scholar] [CrossRef]
  42. Vahidinasab, M.; Adiek, I.; Hosseini, B.; Akintayo, S.O.; Abrishamchi, B.; Pfannstiel, J.; Henkel, M.; Lilge, L.; Voegele, R.T.; Hausmann, R. Characterization of Bacillus velezensis UTB96, demonstrating improved lipopeptide production compared to the strain B. velezensis FZB42. Microorganisms 2022, 10, 2225. [Google Scholar] [CrossRef]
  43. Dong, W.; Long, T.; Ma, J.; Wu, N.; Mo, W.; Zhou, Z.; Jin, J.; Zhou, H.; Ding, H. Effects of Bacillus velezensis GUAL210 control on edible rose black spot disease and soil fungal community structure. Front. Microbiol. 2023, 14, 1199024. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, D.; Gao, Y.; Wu, X.; Zhang, W.; Shu, J.; Zhang, Y.; Zhai, F. Identification of two strains of Bacillus velezensis isolated from Carya illinoensis leaf and their antagonistic effects on pecan black spot pathogen. Chin. J. Biol. Control 2022, 38, 1572. [Google Scholar]
  45. Song, C.; Huang, Y.L.; Xie, C.X.; Xv, W. Screening and control effect determination of antagonistic bacteria against black spot disease of jujube fruit. J. Henan Agric. Sci. 2016, 45, 71–75. [Google Scholar]
Figure 1. Inhibitory effect of antagonistic bacteria on Alternaria.
Figure 1. Inhibitory effect of antagonistic bacteria on Alternaria.
Microorganisms 12 02189 g001
Figure 2. Colony morphology (A) and Gram staining (under 10 × 100 times optical microscope) (B) of strain 26-8. Bar = 5 μm.
Figure 2. Colony morphology (A) and Gram staining (under 10 × 100 times optical microscope) (B) of strain 26-8. Bar = 5 μm.
Microorganisms 12 02189 g002

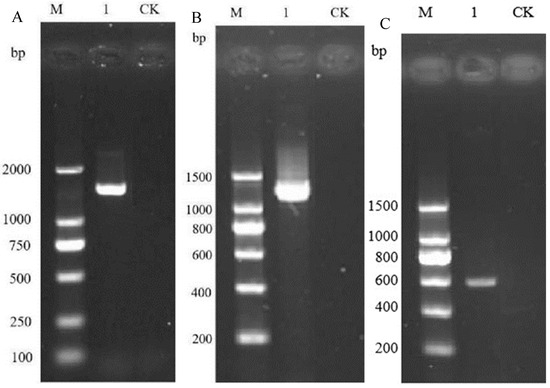

Figure 3. PCR gel electrophoresis based on 16S rDNA (A), gyrB (B), and rpoB (C) gene sequence.
Figure 3. PCR gel electrophoresis based on 16S rDNA (A), gyrB (B), and rpoB (C) gene sequence.
Microorganisms 12 02189 g003

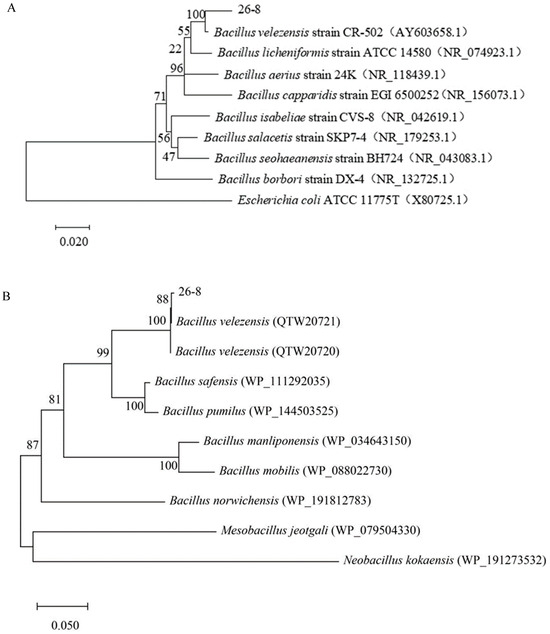

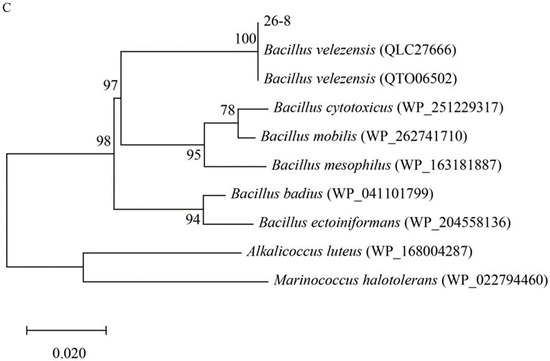

Figure 4. Phylogenetic tree based on 16S rDNA (A), gyrB (B), rpoB and (C) gene sequence. Branch termini are tagged in light of isolate species and GenBank accession numbers. The numbers above (or below) the nodes show the bootstrap values (50%) occurring after 1000 replications. Scale bars represent the average number of nucleotide substitutions per site.
Figure 4. Phylogenetic tree based on 16S rDNA (A), gyrB (B), rpoB and (C) gene sequence. Branch termini are tagged in light of isolate species and GenBank accession numbers. The numbers above (or below) the nodes show the bootstrap values (50%) occurring after 1000 replications. Scale bars represent the average number of nucleotide substitutions per site.
Microorganisms 12 02189 g004aMicroorganisms 12 02189 g004b

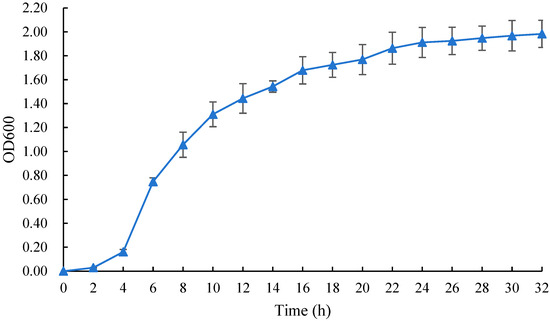

Figure 5. Growth curve of strain 26-8.
Figure 5. Growth curve of strain 26-8.
Microorganisms 12 02189 g005

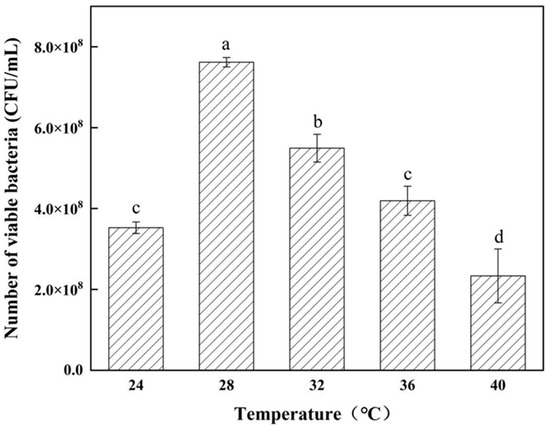

Figure 6. Effect of temperature on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Figure 6. Effect of temperature on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Microorganisms 12 02189 g006

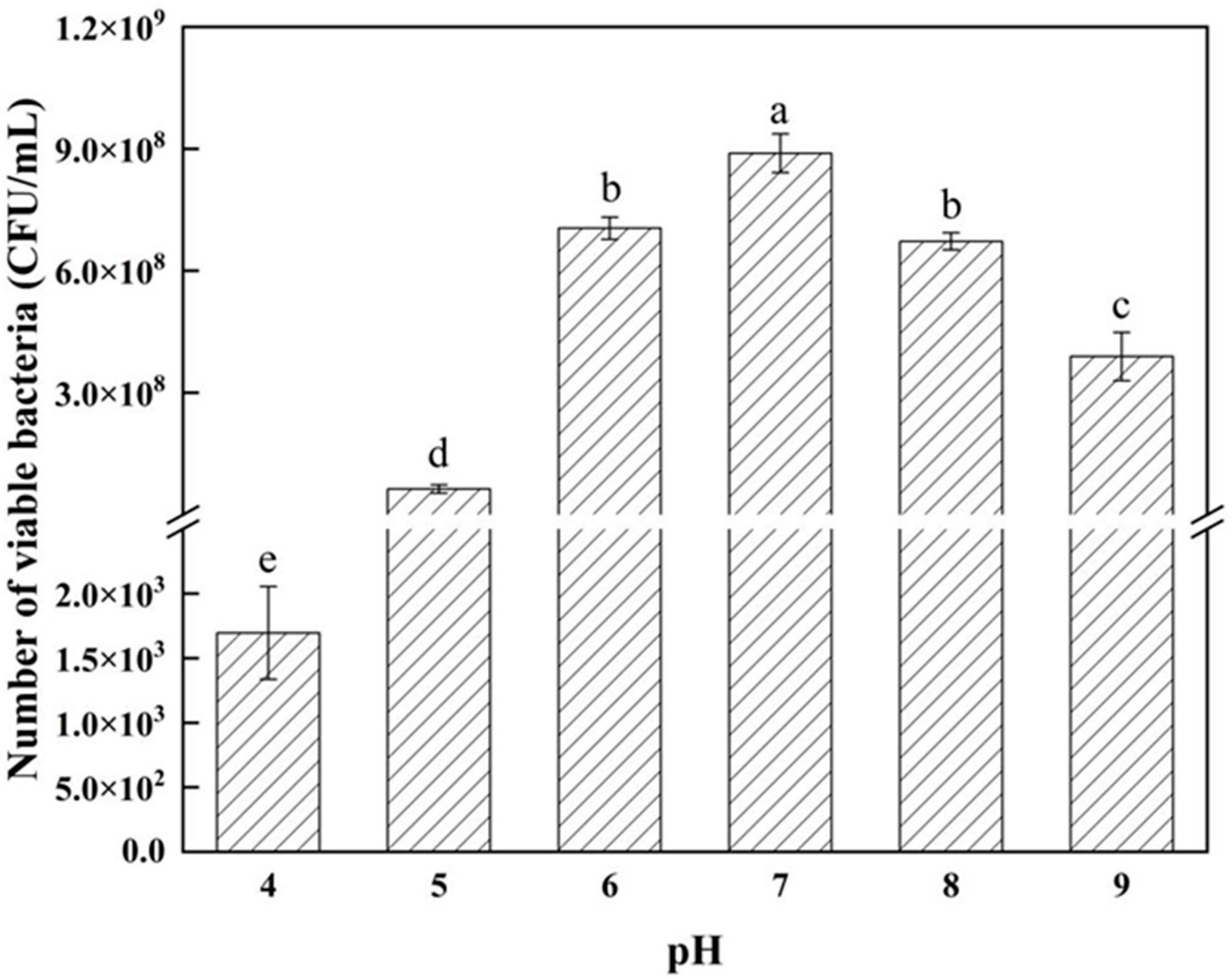

Figure 7. Effect of pH on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Figure 7. Effect of pH on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Microorganisms 12 02189 g007

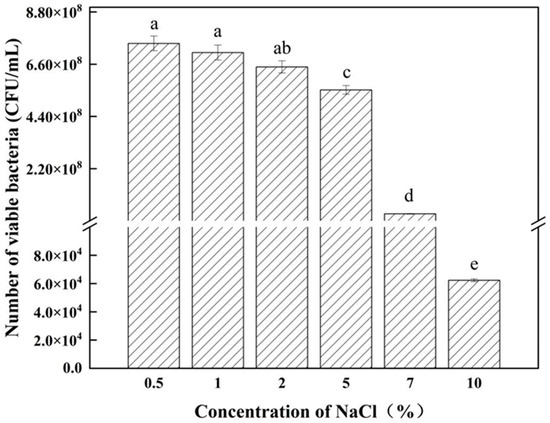

Figure 8. Effect of NaCl concentration on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Figure 8. Effect of NaCl concentration on the growth of strain 26-8. Different lowercase letters represent significant differences between treatments (p < 0.05). Data marked with the same letter on the columns indicate no significant difference (p ≥ 0.05) according to Duncan’s multiple comparison tests.
Microorganisms 12 02189 g008
Figure 9. Microscopy of strain26-8 inhibition of conidium germination of Alternaria alternata. (under 10 × 40 times optical microscope). Scale bars: control, 26-8 = 10 μm.
Figure 9. Microscopy of strain26-8 inhibition of conidium germination of Alternaria alternata. (under 10 × 40 times optical microscope). Scale bars: control, 26-8 = 10 μm.
Microorganisms 12 02189 g009
Figure 10. Diagram of inhibitory effect of antagonists on hyphal growth of Alternaria alternata.
Figure 10. Diagram of inhibitory effect of antagonists on hyphal growth of Alternaria alternata.
Microorganisms 12 02189 g010
Table 1. PCR amplification system and conditions.
Table 1. PCR amplification system and conditions.
Gene SegmentPrimerReaction SystemReaction Conditions
16S rDNA27F(5′-AGAGTTTGATCCTGGCTCAG-3′)
1492R(5′-GGTTACCTTGTTACGACTT-3′)
Mix 12.5 μL
primer 0.5 μL
template 1.0 μL
ddH2O 11.0 μL
95 °C pre-denaturation 5 min. 95 °C degeneration 30 s, 58 °C annealing 15 s, 72 °C elongation 2 min, 20 cycles. 72 °C elongation 10 min.
gyrBUP-1(5′-GAAGTCATCATGACCGTTCTGCAYGCNGGNGGNAARTTYGA-3′)
UP-2r(5′-AGCAGGGTACGGATGTGCGAGCCRTCNACRTCNGCRTCNGTCAT-3′)
95 °C pre-denaturation 5 min. 94 °C degeneration 1 min, 54 °C annealing 1 min, 72 °C elongation 2 min, 25 cycles. 72 °C elongation 10 min.
rpoBf(5′-AGGTCAACTAGTTCAGTATGGAC-3′)
r(5′-AAGAACCGTAACCGGCAACTT-3′)
94 °C pre-denaturation 4 min. 94 °C degeneration 1 min, 51 °C annealing 1 min, 72 °C elongation 1 min, 25 cycles. 72 °C elongation 10 min.
Table 2. Inhibitory activity of 110 antagonistic strains against Alternaria.
Table 2. Inhibitory activity of 110 antagonistic strains against Alternaria.
Antifungal ActivityInhibition Diameter (mm)Number of Strains
-0–514
+5–1010
++10–1514
+++15–2028
++++20–3044
Note: ++++: Very strong; +++: Strong; ++: Middle; +: Weak; -: Very weak.
Table 3. Physiological and biochemical characteristics of strain 26-8.
Table 3. Physiological and biochemical characteristics of strain 26-8.
Items26-8
Methyl red test+
V-P text+
Catalase test+
Oxidse test+
Amylolysis+
Nitrate reduction+
H2S production+
Citrate solution test+
Gelatin liquefaction+
D-mannose+
D-mannitol+
D-xylose+
D-arabinose
Oxidative fermentation of glucosefermentation
Note: +: Positive; −: Negative.
Table 4. Inhibitory effect of strain 26-8 on spore germination of Alternaria alternata.
Table 4. Inhibitory effect of strain 26-8 on spore germination of Alternaria alternata.
TreatmentGermination Rate (%)Inhibition Rate (%)
CK88.46 ± 2.05 a-
26-829.82 ± 0.85 b66.29
Data with the different lowercases letters (a, b) in same column indicated significantly different (p < 0.05, Duncan’s multiple range test).
Table 5. Inhibitory effect of strain 26-8 on hyphal growth of Alternaria alternata.
Table 5. Inhibitory effect of strain 26-8 on hyphal growth of Alternaria alternata.
TreatmentColony Diameter (mm ± SE)Inhibition Rate (%)
CK79.04 ± 0.62 a-
26-839.71 ± 0.31 b49.76
Data with the different lowercases letters (a, b) in same column indicated significantly different (p < 0.05, Duncan’s multiple range test).
Table 6. Effect of strain 26-8 on control of black spot of jujube fruit.
Table 6. Effect of strain 26-8 on control of black spot of jujube fruit.
Time (d)Spot Diameter (% ± SE) aInhibition Rates (%)
Treatment GroupControl Group
35.47 ± 0.33 a10.95 ± 0.77 a50.01
68.39 ± 0.54 a17.07 ± 1.55 b50.88
910.46 ± 1.04 a21.33 ± 0.61 b50.95
1214.28 ± 1.69 a31.00 ± 2.61 b53.95
1516.60 ± 2.56 a31.70 ± 0.86 b46.57
a Means within a column followed by a common lower-case letter are not significantly different (p > 0.05, Duncan’s multiple range test).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zou, Q.; Zhang, Y.; Niu, X.; Yang, H.; Chu, M.; Wang, N.; Bao, H.; Zhan, F.; Yang, R.; Lou, K.; et al. Antifungal Activity of Rhizosphere Bacillus Isolated from Ziziphus jujuba Against Alternaria alternata. Microorganisms 2024, 12, 2189. https://doi.org/10.3390/microorganisms12112189

AMA Style

Zou Q, Zhang Y, Niu X, Yang H, Chu M, Wang N, Bao H, Zhan F, Yang R, Lou K, et al. Antifungal Activity of Rhizosphere Bacillus Isolated from Ziziphus jujuba Against Alternaria alternata. Microorganisms. 2024; 12(11):2189. https://doi.org/10.3390/microorganisms12112189

Chicago/Turabian Style

Zou, Qiang, Yumeng Zhang, Xinxiang Niu, Hongmei Yang, Min Chu, Ning Wang, Huifang Bao, Faqiang Zhan, Rong Yang, Kai Lou, and et al. 2024. "Antifungal Activity of Rhizosphere Bacillus Isolated from Ziziphus jujuba Against Alternaria alternata" Microorganisms 12, no. 11: 2189. https://doi.org/10.3390/microorganisms12112189

APA Style

Zou, Q., Zhang, Y., Niu, X., Yang, H., Chu, M., Wang, N., Bao, H., Zhan, F., Yang, R., Lou, K., & Shi, Y. (2024). Antifungal Activity of Rhizosphere Bacillus Isolated from Ziziphus jujuba Against Alternaria alternata. Microorganisms, 12(11), 2189. https://doi.org/10.3390/microorganisms12112189

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
