Article

Genetic Variation among the Partial Gene Sequences of the Ribosomal Protein Large-Two, the Internal Transcribed Spacer, and the Small Ribosomal Subunit of Blastocystis sp. from Human Fecal Samples

by
Guiehdani Villalobos
1,
Eduardo Lopez-Escamilla
2,
Angelica Olivo-Diaz
2,
Mirza Romero-Valdovinos
3,
Arony Martinez
4,
Pablo Maravilla
4,* and
Fernando Martinez-Hernandez
4,*
1
Departamento de Produccion Agricola y Animal, Universidad Autonoma Metropolitana, Mexico City 04960, Mexico
2
Departamento de Biologia Molecular e Histocompatibilidad, Hospital General “Dr. Manuel Gea Gonzalez”, Mexico City 14080, Mexico
3
Laboratorio de Patogenos Emergentes, Departamento de Biologia Molecular e Histocompatibilidad, Hospital General “Dr. Manuel Gea Gonzalez”, Mexico City 14080, Mexico
4
Departamento de Ecologia de Agentes Patogenos, Hospital General “Dr. Manuel Gea Gonzalez”, Mexico City 14080, Mexico
*
Authors to whom correspondence should be addressed.
Microorganisms 2024, 12(6), 1152; https://doi.org/10.3390/microorganisms12061152
Submission received: 7 May 2024 / Revised: 1 June 2024 / Accepted: 4 June 2024 / Published: 5 June 2024
(This article belongs to the Section Parasitology)

Abstract

:
In the present study, we compared the genetic variability of fragments from the internal transcribed spacer region (ITS) and the small subunit ribosomal DNA (SSUrDNA) as nuclear markers, in contrast with the ribosomal protein large two (rpl2) loci, placed in the mitochondrion-related organelles (MROs) within and among human fecal samples with Blastocystis. Samples were analyzed using polymerase chain reaction (PCR)-sequencing, phylogenies, and genetics of population structure analyses were performed. In total, 96 sequences were analyzed, i.e., 33 of SSUrDNA, 35 of rpl2, and 28 of ITS. Only three subtypes (STs) were identified, i.e., ST1 (11.4%), ST2 (28.6%), and ST3 (60%); in all cases, kappa indexes were 1, meaning a perfect agreement among ST assignations. The topologies of phylogenetic inferences were similar among them, clustering to each ST in its specific cluster; discrepancies between phylogeny and assignment of STs were not observed. The STRUCTURE v2.3.4 software assigned three subpopulations corresponding to the STs 1–3, respectively. The population indices were consistent with those previously reported by other groups. Our results suggest the potential use of the ITS and rpl2 genes as molecular markers for Blastocystis subtyping as an alternative approach for the study of the genetic diversity observed within and between human isolates of this microorganism.

1. Introduction

Blastocystis is a non-flagellated, anaerobic, unicellular stramenopile that commonly inhabits the intestinal tract of humans and animals and is widespread throughout the world. Despite more than 1 billion carriers worldwide, the public health significance remains unknown [1,2]; the blastocystosis prevalence rates vary between countries and within communities, being higher in developing countries than in industrialized countries [3].
This parasite exhibits extensive morphological and genetic variation [4]. Morphological forms include vacuolar, granular, amoeboid, and cyst, each one of which also shows heterogeneity in size [5,6]. Although the isolates from different hosts might appear morphologically similar, Blastocystis from mammals and birds exhibits a high genetic polymorphism comprised of up to 44 ribosomal lineages known as subtypes (STs) [7,8]. These have been described by analyzing the small subunit ribosomal DNA (SSUrDNA), and some STs are as divergent as species or even genera [2]. In humans, at least 14 STs have been identified, ST1 to ST10, ST12, ST14, ST16, and ST23, with STs 1 to 4 being the most common, while the rest are infrequent or rare [9,10,11,12,13]. The remarkable genetic heterogeneity of Blastocystis has been studied by polymerase chain reaction (PCR) with SSUrDNA genotyping [2]. Each one of the genetic tools used has strengthened the findings of the incredible genetic diversity that this parasite presents. However, so far, it has not been possible to establish a clear association between the genetic diversity of subtypes and characteristics such as host specificity, epidemiology, and potential clinical relevance. Analysis of diverse gene segments or the new sequencing technologies allows a better overview of the differences between each group, helping to discriminate subtypes, chimeras, or coinfections. For instance, the internal transcribed spacer region ITS1+5.8S+ITS2 (ITS) was described to be more polymorphic than SSUrDNA, offering reliable results on the genetic variability within populations and, therefore, can be used as a genetic marker of Blastocystis; it also allows distinguishing between different subtypes using only one PCR amplification applied directly to fecal samples [14]. However, the study of subtypes has been limited to the study of a few genes, mainly of nuclear origin. The capacity of other markers of genetic diversity and their impact on the biological study of the parasite, such as those mitochondrion-related organelles (MROs), has been little explored. Blastocystis MROs have characteristics of typical mitochondria, including Complexes I and II from the electron transport chain, mitochondrial DNA, Fe-S cluster assembly, and amino acid metabolism, as well as common proteins identified in obligate anaerobes, including Fe-hydrogenase, pyruvate metabolism, and alternative oxidase [15]. Eight Blastocystis mitochondrial genomes (STs 1–4, 6–9) are available, although not all are assembled [16,17,18]. Twenty-seven protein-coding genes (including rpl2), ribosomal RNA genes, and 16 transfer RNA genes had been described; interestingly, phylogenetic analysis showed an identical topology between the MRO and SSUrDNA genomic sequences for the three main clades grouping Blastocystis STs. [18]. Since some differences between nuclear genes and isolates within the same Blastocystis STs have been widely documented, and each gene tells a different evolutionary story, it is interesting to explore in parallel the genetic variation at different nuclear and MRO loci among Blastocystis isolates.
The objective of the present study was to compare the genetic variability of two nuclear (ITS and SSUrDNA) and one MRO (rpl2) locus among isolates of Blastocystis ST1-3 from human carriers.

2. Materials and Methods

2.1. DNA Extraction and PCR Development

Thirty-six frozen fecal samples stored at −70 °C in 70% ethanol from gastrointestinal symptomatic Mexican Blastocystis carriers that were collected but not analyzed for previous studies and whose participants gave written informed consent [14,19] were recovered and processed for the present study. DNA was extracted from approximately 250 mg of feces using a ZR Fecal DNA MiniPrep kit (Zymoresearch, CA, USA) according to the manufacturer’s protocol. Three different DNA segments were amplified and sequenced: (1) a partial SSUrDNA fragment (~500 bp) was obtained using the primers and PCR conditions reported by Santin et al. [20]; (2) for ITS region (from ~530 to 620 bp, depending of Blastocystis subtype) the set of primers and PCR conditions for amplifying were based on reported by Villalobos et al. [14]; (3) finally, for rpl2 loci (~600 bp) primers were designed based on the alignment from STs sequences available of Blastocystis deposited GenBank; briefly, the MROs genome full sequences of ST1, ST4, and ST7 were aligned using Clustal W [21]; the region that includes almost the entire gene was selected and amplified using rpl2_F (5-AAG TGG TAG AAA TTT TCG WGG-3′) and rpl2_R (5′-GTA ATT AAA CCC CAA GGW GT-3′) primers. PCR amplifications were carried out in a final volume of 50 µL containing 50 pMol of each primer, 1X PCR buffer (8 mM Tris-HCl, pH 8, 20 mM KCl), 2.5 mM MgCl2, 0.5 mM dNTPs, 2 U Taq DNA Polymerase (Invitrogen, Carlsbad, CA, USA), and 100 ng of DNA. PCR products were analyzed with 1.2% agarose gel electrophoresis, visualized by ethidium bromide staining (0.5 µg/mL), and purified with an AxyPrep PCR clean-up kit (Axigen Biosciences, Union City, CA, USA). A commercial supplier sequenced all purified products in both directions.
All sequences were subjected to a BLAST search for genetic identification and submitted to the GenBank database to obtain access numbers (PP592306-33, PP597305-39, and PP587181-PP587213); then, multiple alignments were performed using the CLUSTAL W (accessed on 6 February 2024) [21] and MUSCLE v3.8.31 [22] tools in the MEGA 10.1.8 program [23].

2.2. Phylogenetic Analysis

The phylogenetic trees were built using the molecular evolution model, the general time-reversible model with a gamma distribution (GTR+G) for ITS and rpl2 sequences, and the general time-reversible model with a gamma distribution and invariant sites (GTR+G+I) for SSUrDNA. Bayesian algorithm reconstructions were performed using the MrBayes 3.2.7a software [24]; the analysis was performed for two million generations with sampling trees every 100 generations. Trees with scores below the burn-in phase were discarded, and the remainder were collected and used to build majority consensus trees.
A median-joining network analysis was performed using NETWORK 4.6 [25], and haplotype networks were established under default settings and assumptions. For all analysis, the following sequences of Blastocystis available in GenBank were used as controls of subtypes, i.e., ST1: HQ641595-6 for SSUrDNA, AY125913-9, KM213469-72, KM213475, and KM213477 for ITS, EF494740 for rpl2; ST2: HQ641602, HQ641654, and JX305874-5 for SSUrDNA, KM213492-5 for ITS; ST3: JX305879, HQ641613, JX305880, JX305883, and HQ641611 for SSUrDNA, KM213505-8 for ITS, CU914152, EF494739, HQ909887, JZRK01000047, HQ909886, and HQ909888 for rpl2.

2.3. Genetics of Populations Analysis

The STRUCTURE analysis [26] (https://web.stanford.edu/group/pritchardlab/structure_software/release_versions/v2.3.4/html/structure.html, accessed on 5 March 2024) was carried out to determine the most probable number of clusters across all Blastocystis samples with each gene. The value of K, or a theoretical number of the populations independent of the subtypes, was obtained using the predetermined values of the software: correlated allele frequencies and admixture. A single run of the algorithm started with an initial random association of alleles in K clusters and was established with ten independent replicates for each value of K from 1 to 10 and with a length of burning period of 10,000 and a number of MCMC reps after burning of 100,000. The appropriate number of clusters was determined by calculating the delta K value [27]. A second run was performed using the delta K value assigned in the program (K = 3). This new analysis was run with a burning period length of 50,000 and a number of MCMC reps after burning of 200,000. The probabilities of group membership were as follows: 0.997–0.999 for K1, 0.999 for K2, and 0.993–0.999 for K3 for 18S; 0.996–0.999 for K1, 0.985-0.999 for K2, and 0.979–0.999 for K3 for ITS; and 0.994–0.999 for K1, 0.739–0.999 for K2, and 0.988–0.999 for K3 for rpl2.
The genetic diversity indexes among subtypes and locus were performed using DnaSPv5 [28]; specifically, haplotype diversity (Hd), nucleotide diversity (π, average number of nucleotide differences among all possible pairs of sequences in the sample), haplotype polymorphism (θ, proportion of nucleotide sites that can be predicted to be polymorphic from this region of the genome), and Tajima’s D (the tests indicate a balancing selection with a positive value and purifying selection or recent expansion process if the value is negative) were calculated, according to Hedrick interpretation [29].

2.4. Statistical Analysis

To assess the agreement among positivity for loci analyzed, Cohen’s kappa index was estimated using the IBM SPSS statistics for Windows. Version 27 (Armonk, NY, USA: IBM Corp.).

3. Results

3.1. Blastocystis Subtyping

In total, ninety-six sequences were analyzed: 33 with SSUrDNA marker, 35 with rpl2, and 28 with ITS. Table 1 shows the subtyping obtained for each of the samples for the three different loci studied. Although subtyping was performed in most samples by sequencing the three loci, in 9 cases, sequencing of one locus failed, and in only one sample was subtyped by analysis of one locus. Only three subtypes were identified: ST1 (11.4%), ST2 (28.6%), and ST3 (60%). In all cases, the kappa values obtained were 1 (Table 2), meaning a perfect agreement [30].

3.2. Phylogenetic Inferences

In general, the topology of the phylogenetic trees for the three loci was similar, supported by high posterior probability values (Figure 1, Figure 2 and Figure 3). The most homogeneous clusters were observed for ST1 and 3; particularly, ITS ST1 sequences were grouped only in subgroup A (Figure 1; ST1A) cluster, in accordance with what was previously documented for this marker [14]. Due to the lack of available sequences for ITS and rlp2 for the different Blastocystis STs, only trees with STs 1–3 are shown here; however, for SSUrDNA, a phylogenetic tree was built with all recognized subtypes, and its topology was concordant with the tree for STs 1–3 (Figure 3).
Considerable mutation steps within STs were observed in the haplotype network (Figure 4, Figure 5 and Figure 6) for all STs. In rpl2, contrary to the phylogenetic tree, the greatest variation observed was in ST3 (Figure 5), where the mutation steps were up 100, even greater than those that separate the subtypes. In ITS (Figure 4), the network showed variation in ST1, while the other subtypes were consistent with their cluster, similar to that exhibited by SSUrDNA (Figure 6).

3.3. Genetics of Population Structure

The STRUCTURE software assigned the samples studied here to three subpopulations, and these subpopulations corresponded to STs 1–3, respectively (Figure 7). There were no mixed samples that could not be assigned to any of the three existing subpopulations. Interestingly, the bar plot for ITS showed more diversity of colors in each subpopulation, i.e., few samples with more than one color were observed; in contrast, the rpl2 and SSUrRNA sequences were completely homogeneous. The population indices were generally concordant among the three loci analyzed (Table 3). Comparisons between STs showed that ST3 exhibited the lowest π values with all three loci. The only significant value in Tajima’s D was for ST3 with rpl2 (−2.1949).

4. Discussion

Blastocystis exhibits large genetic diversity, presenting 44 STs based on SSUrDNA analysis [8], and it is precisely this great genetic diversity in this microorganism that has motivated numerous studies. Since knowledge of the genetic structure of parasites can be useful for its control, genetic variation within and between populations determines the future evolutionary changes, as well as the processes of differentiation and genetic speciation [14,31]; therefore, further studies on the genetics of populations of Blastocystis could help clarify the biological processes mentioned above.
In the present study, the genetic variabilities of two nuclear loci (SSUrDNA and ITS) and one mitochondrial locus (rpl2) of Blastocystis isolates were compared. In general, clear amplicons and sequences were yielded during the amplification of the three loci; however, for the SSUrDNA locus, eight samples could not be amplified (22%); for the ITS, three samples could not be amplified (12%), and for rpl2, only one sample could not be amplified (3%). These differences in the detection percentage could be due to failures during the DNA extraction, considering that unpreserved stool samples were stored frozen at −70 °C for ten years and that false negatives may occur if the analysis is performed directly by PCR-stool instead of PCR-culture [32]. In addition, it has been clearly documented that commercial stool DNA extraction systems have different detection rates [33]; in the present study, the commercial system used (Zymoresearch, CA, USA) previously showed a higher success rate in amplifying diagnostic PCR for Blastocystis [33].
Regarding the three STs identified (STs 1–3), these have been identified as the most frequent in Mexico, in both urban and rural populations [14,34,35,36,37,38]. Phylogenetic inferences and haplotype network trees unequivocally grouped the samples into clusters corresponding to STs 1–3. Since no discrepancies in the location of STs were observed in the distribution and topology within the phylogenetic and haplotype trees, it makes sense to rule out possible coinfections or mixtures of STs, as suggested by Poirier et al. [39], when during the analysis of a single copy Blastocystis MRO locus, discrepancies in phylogeny and ST assignment were observed and the presence of a mixture of STs were confirmed by cloning. Although a wide diversity of genetic markers can be designed from DNA regions of both the nuclear and mitochondrial genomes, the resolution and usefulness of each depends largely on the degree of variation in the marker sequence [40]. Since mitochondrial genes evolve at higher rates than nuclear genes, a greater degree of nucleotide variation can be detected, which makes it a potentially useful source of genetic markers for studies of closely related taxa or to resolve lower taxonomic levels for organisms [41,42]. Therefore, the analysis of mitochondrial markers of Blastocystis arises as a complementary approach to support the potential implications of variability in this microorganism. The rpl2 gene is located in a conservative cluster of ribosomal protein genes, rpl2-rps19-rps3-rpl16, in the MRO genome; the size of the rpl2 gene is approximately 753 bp, and its variation can range from 12 to 20% of informative sites, making it a good candidate for the genetic study of the parasite [16].
The ST3 had the lowest values of genetic variability compared to the other STs. This is in accordance with other previous studies [35,36]; also, the only statistically significant negative value obtained in Tajima’s D was for rpl2 in ST3; this negative value indicates a population expansion process with a high frequency of circulating rare alleles [43]; thus, this is in concordance with other reports in which this ST was more genetically diversified than other STs [36,44]. Interestingly, nuclear markers “nuclear genes are less affected by deleterious mutations associated with asexual reproduction” [45], where we expect ITS to be less diverse than mitochondrial; however, together with SSUrDNA, both present higher values of π with respect to rpl2 (0.146 and 0.138, respectively, versus 0.098).
The STRUCTURE software is a common tool widely used for population analysis because it supports researchers to assess patterns of genetic structure in a set of samples, assigning individuals to subpopulations based on analysis of likelihoods [46]. There are many examples of articles about the usefulness of the STRUCTURE program to establish new variants in parasites such as Toxoplasma gondii [47,48] and Plasmodium falciparum [49]. Here, the STRUCTURE bar plots for the three loci used clearly revealed the presence of three subpopulations corresponding to STs 1–3, respectively.

5. Conclusions

We described the potential use of ITS and rpl2 genes as molecular markers for Blastocystis subtyping. However, the main goal was to provide tools that contribute to supporting the genetic diversity observed within and among isolates; thus, as an approach, studying the loci separately opens the possibility of future analyses focused on intrasubtype variability. Certainly, only fragments of the SSUrDNA, ITS, and rpl2 genes were explored, so care must be taken in the scope of the results obtained; however, our results are consistent with other reports of published evidence on metabolic and genetic differences of STs 1–3, showing that these STs could be assigned as different cryptic species. Therefore, although the term subtype (understood as DNA sequences that group together as a discrete clade within the range of diversity of a defined species) remains accepted, it should be considered a future consensus on the evaluation of species in Blastocystis STs 1–3 [50,51,52].

Author Contributions

Conceptualization, G.V., P.M. and F.M.-H.; methodology, E.L.-E., A.O.-D., M.R.-V. and A.M.; software, F.M.-H., A.M. and A.O.-D.; validation, G.V., A.O.-D., A.M., P.M. and F.M.-H.; formal analysis, G.V., P.M. and F.M.-H.; investigation, A.O.-D., M.R.-V. and A.M.; resources, G.V. and F.M.-H.; data curation, G.V. and F.M.-H.; writing—original draft preparation, G.V., E.L.-E., A.O.-D., M.R.-V., A.M., P.M. and F.M.-H.; writing—review and editing, G.V., E.L.-E., A.O.-D., M.R.-V., A.M., P.M. and F.M.-H.; visualization, G.V., A.O.-D., M.R.-V., A.M., P.M. and F.M.-H.; supervision, G.V., P.M. and F.M.-H.; project administration, G.V., E.L.-E., A.O.-D., M.R.-V., A.M., P.M. and F.M.-H.; funding acquisition, G.V., E.L.-E., A.O.-D., M.R.-V., A.M., P.M. and F.M.-H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The Research Ethics and Research Committees of the Hospital Infantil de Morelia “Eva Samano de Lopez Mateos” and General Hospital “Dr. Manuel Gea Gonzalez” (HGMGG) approved the study with reference numbers 12-75-2015 and 12-77-2018 (see reference [14,19]).

Data Availability Statement

All relevant data are within the article. The sequence data were submitted to the GenBank database under the accession numbers PP592306-33, PP597305-39, and PP587181-PP587213.

Acknowledgments

To Laura Marquez and Nelly Lopez, LaNaBio, Instituto de Biologia UNAM, for their assistance during the sequencing technique.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Scanlan, P.D.; Stensvold, C.R. Blastocystis: Getting to grips with our guileful guest. Trends Parasitol. 2013, 29, 523–529. [Google Scholar] [CrossRef] [PubMed]
  2. Stensvold, C.R.; Clark, C.G. Pre-Empting Pandora’s Box: Blastocystis Subtypes Revisited. Trends Parasitol. 2020, 36, 229–232. [Google Scholar] [CrossRef] [PubMed]
  3. Wawrzyniak, I.; Poirier, P.; Viscogliosi, E.; Dionigia, M.; Texier, C.; Delbac, F.; El Alaoui, H. Blastocystis, an unrecognized parasite: An overview of pathogenesis and diagnosis. Ther. Adv. Infect. Dis. 2013, 1, 167–178. [Google Scholar] [CrossRef] [PubMed]
  4. Yoshikawa, H.; Koyama, Y.; Tsuchiya, E.; Takami, K. Blastocystis Phylogeny among Various Isolates from Humans to Insects. Parasitol. Int. 2016, 65, 750–759. [Google Scholar] [CrossRef] [PubMed]
  5. Tan, K.S.W. New Insights on Classification, Identification, and Clinical Relevance of Blastocystis spp. Clin. Microbiol. Rev. 2008, 21, 639–665. [Google Scholar] [CrossRef] [PubMed]
  6. Parija, S.; Jeremiah, S. Blastocystis: Taxonomy, Biology and Virulence. Trop. Parasitol. 2013, 3, 17. [Google Scholar] [PubMed]
  7. Maloney, J.G.; Molokin, A.; Seguí, R.; Maravilla, P.; Martínez-Hernández, F.; Villalobos, G.; Tsaousis, A.D.; Gentekaki, E.; Muñoz-Antolí, C.; Klisiowicz, D.R.; et al. Identification and Molecular Characterization of Four New Blastocystis Subtypes Designated ST35-ST38. Microorganisms 2023, 11, 46. [Google Scholar] [CrossRef]
  8. Santin, M.; Figueiredo, A.; Molokin, A.; George, N.S.; Köster, P.C.; Dashti, A.; González-Barrio, D.; Carmena, D.; Maloney, J.G. Division of Blastocystis ST10 into three new subtypes: ST42–ST44. J. Eukaryot. Microbiol. 2024, 71, e12998. [Google Scholar]
  9. Ramírez, J.D.; Sánchez, A.; Hernández, C.; Flórez, C.; Bernal, M.C.; Giraldo, J.C.; Reyes, P.; López, M.C.; García, L.; Cooper, P.J. Geographic Distribution of Human Blastocystis Subtypes in South America. Infect. Genet. Evol. 2016, 41, 32–35. [Google Scholar] [CrossRef]
  10. Khaled, S.; Gantois, N.; Ly, A.T.; Senghor, S.; Even, G.; Dautel, E.; Dejager, R.; Sawant, M.; Baydoun, M.; Benamrouz-Vanneste, S.; et al. Prevalence and Subtype Distribution of Blastocystis sp. in Senegalese School Children. Microorganisms 2020, 8, 1408. [Google Scholar] [CrossRef]
  11. Jinatham, V.; Maxamhud, S.; Popluechai, S.; Tsaousis, A.D.; Gentekaki, E. Blastocystis One Health Approach in a Rural Community of Northern Thailand: Prevalence, Subtypes and Novel Transmission Routes. Front. Microbiol. 2021, 12, 3800. [Google Scholar]
  12. Osorio-Pulgarin, M.I.; Higuera, A.; Beltran-Álzate, J.C.; Sánchez-Jiménez, M.; Ramírez, J.D. Epidemiological and Molecular Characterization of Blastocystis Infection in Children Attending Daycare Centers in Medellín, Colombia. Biology 2021, 10, 669. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Q.; Yin, W.; Wang, X.; Zhang, Z.; Zhang, R.; Duan, Z. Blastocystis Infection and Subtype Distribution in Domestic Animals in the Qinghai-Tibetan Plateau Area (QTPA) in China: A Preliminary Study. Parasitol. Int. 2021, 81, 102272. [Google Scholar] [CrossRef]
  14. Villalobos, G.; Orozco-Mosqueda, E.G.; Lopez-Perez, M.; Lopez-Escamilla, E.; Córdoba-Aguilar, A.; Rangel-Gamboa, L.; Olivo-Diaz, A.; Romero-Valdovinos, M.; Maravilla, P.; Martinez-Hernandez, F. Suitability of internal transcribed spacers (ITS) as markers for the population genetic structure of Blastocystis spp. Parasit. Vectors 2014, 7, 461. [Google Scholar] [CrossRef] [PubMed]
  15. Tsaousis, A.D.; Hamblin, K.A.; Elliott, C.R.; Young, L.; Rosell-Hidalgo, A.; Gourlay, C.W.; Moore, A.L.; van der Giezen, M. The Human Gut Colonizer Blastocystis Respires Using Complex II and Alternative Oxidase to Buffer Transient Oxygen Fluctuations in the Gut. Front. Cell Infect. Microbiol. 2018, 8, 371. [Google Scholar] [PubMed]
  16. Pérez-Brocal, V.; Clark, G. Analysis of two genomes from the Mitochondrion-Like Organelle of the intestinal parasite Blastocystis: Complete sequences, gene content, and genome organization. Mol. Biol. Evol. 2008, 25, 2475–2482. [Google Scholar] [CrossRef] [PubMed]
  17. Wawrzyniak, I.; Roussel, M.; Diogon, M.; Couloux, A.; Texier, C.; Tan, K.S.W.; Vivarès, C.P.; Delbac, F.; Wincker, P.; El Alaoui, H. Complete circular DNA in the mitochondria-like organelles of Blastocystis hominis. Int. J. Parasitol. 2008, 38, 1377–1382. [Google Scholar] [CrossRef] [PubMed]
  18. Jacob, A.S.; Andersen, L.O.; Bitar, P.P.; Richards, V.P.; Shah, S.; Stanhope, M.J.; Stensvold, C.R.; Clark, C.G. Blastocystis mitochondrial genomes appear to show multiple independent gains and losses of start and stop codons. Genome Biol. Evol. 2016, 8, 3340–3350. [Google Scholar] [CrossRef] [PubMed]
  19. Martínez-Ocaña, J.; Martínez-Flores, W.A.; Olivo-Díaz, A.; Romero-Valdovinos, M.; Martínez-Hernández, F.; Aguilar-Osorio, G.; Flisser, A.; Maravilla, P. Identification of α-L-fucosidase (ALFuc) of Blastocystis sp. subtypes ST1, ST2 and ST3. Rev. Inst. Med. Trop. Sao Paulo 2022, 64, e40. [Google Scholar] [CrossRef]
  20. Santín, M.; Gómez-Muñoz, M.T.; Solano-Aguilar, G.; Fayer, R. Development of a new PCR protocol to detect and subtype Blastocystis spp. from humans and animals. Parasitol. Res. 2011, 109, 205–212. [Google Scholar] [CrossRef]
  21. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity and progressive multiple sequence alignment through sequence weighting, positions-specific gap penalties and weight matrix choice. Nucleic Acids Res. 1994, 22, 4673–4680. [Google Scholar] [CrossRef] [PubMed]
  22. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  23. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular Evolutionary Genetics Analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
  24. Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef] [PubMed]
  25. Bandelt, H.J.; Forster, P.; Röhl, A. Median-joining networks for inferring intraspecific phylogenies. Mol. Biol. Evol. 1999, 16, 37–48. [Google Scholar] [CrossRef] [PubMed]
  26. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of population structure using multilocus genotype data. Genetics 2000, 155, 945–959. [Google Scholar] [CrossRef] [PubMed]
  27. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software structure: A simulation study. Mol. Ecol. 2005, 14, 2611–2620. [Google Scholar] [CrossRef] [PubMed]
  28. Rozas, J.; Sanchez-DelBarrio, J.C.; Messeguer, X.; Rozas, R. DnaSP, DNA polymorphism analyses by the coalescent and other methods. Bioinformatics 2003, 19, 2496–2497. [Google Scholar] [CrossRef] [PubMed]
  29. Hedrick, P.W. Measures of Genetics Variation. In Genetics of Populations, 2nd ed.; Jones and Bartlett Publishers: Sudbury, MA, USA, 1999; pp. 47–87. [Google Scholar]
  30. McHugh, M.L. Interrater reliability: The kappa statistic. Biochem. Med. 2012, 22, 276–282. [Google Scholar] [CrossRef]
  31. Thompson, R.C.A.; Lymbery, A.J. Echinococcus and Hydatid Disease, 1st ed.; CAB International: Wallingford, UK, 1997; pp. 35–63. [Google Scholar]
  32. Santos, H.J.; Rivera, W.L. Comparison of direct fecal smear microscopy, culture, and polymerase chain reaction for the detection of Blastocystis sp. in human stool samples. Asian Pac. J. Trop. Med. 2013, 6, 780–784. [Google Scholar] [CrossRef]
  33. Yoshikawa, H.; Dogruman-Al, F.; Turk, S.; Kustimur, S.; Balaban, N.; Sultan, N. Evaluation of DNA extraction kits for molecular diagnosis of human Blastocystis subtypes from fecal samples. Parasitol. Res. 2011, 109, 1045–1050. [Google Scholar] [CrossRef] [PubMed]
  34. Jimenez-Gonzalez, D.E.; Martinez-Flores, W.A.; Reyes-Gordillo, J.; Ramirez-Miranda, M.E.; Arroyo-Escalante, S.; Romero-Valdovinos, M.; Stark, D.; Souza-Saldivar, V.; Martinez-Hernandez, F.; Flisser, A.; et al. Blastocystis infection is associated with irritable bowel syndrome in a Mexican patient population. Parasitol. Res. 2012, 110, 1269–1275. [Google Scholar] [CrossRef] [PubMed]
  35. Villegas-Gómez, I.; Martínez-Hernández, F.; Urrea-Quezada, A.; González-Díaz, M.; Durazo, M.; Hernández, J.; Orozco-Mosqueda, G.E.; Villalobos, G.; Maravilla, P.; Valenzuela, O. Comparison of the genetic variability of Blastocystis subtypes between human carriers from two contrasting climatic regions of México. Infect. Genet. Evol. 2016, 44, 334–340. [Google Scholar] [CrossRef] [PubMed]
  36. Rojas-Velázquez, L.; Morán, P.; Serrano-Vázquez, A.; Fernández, L.D.; Pérez-Juárez, H.; Poot-Hernández, A.C.; Portillo, T.; González, E.; Hernández, E.; Partida-Rodríguez, O.; et al. Genetic diversity and distribution of Blastocystis subtype 3 in human populations, with special reference to a rural population in Central Mexico. Biomed. Res. Int. 2018, 2018, 3916263. [Google Scholar]
  37. Guangorena-Gómez, J.O.; Lozano-Ochoa, I.I.; Rivera-Medina, I.L.; Méndez-Hernández, A.; Espinosa-Fematt, J.A.; Muñoz-Yáñez, C. Relationship Among Blastocystis, the Firmicutes/Bacteroidetes Ratio and Chronic Stress in Mexican University Students. Curr. Microbiol. 2022, 79, 72. [Google Scholar]
  38. Hidalgo-Gonzalez, L.A.; Salgado-Lopez, J.; Pineda-Rodriguez, S.A.; Martinez, A.; Romero-Valdovinos, M.; Martinez-Hernandez, F.; Rendon-Franco, E.; Olivo-Diaz, A.; Maravilla, P.; Rodriguez-Bataz, E. Identification of Blastocystis sp. in school children from a rural Mexican village: Subtypes and risk factors analysis. Parasitol. Res. 2023, 122, 1701–1707. [Google Scholar] [CrossRef] [PubMed]
  39. Poirier, P.; Meloni, D.; Nourrisson, C.; Wawrzyniak, I.; Viscogliosi, E.; Livrelli, V.; Delbac, F. Molecular subtyping of Blastocystis spp. using a new rDNA marker from the mitochondria-like organelle genome. Parasitology 2014, 141, 670–681. [Google Scholar] [CrossRef]
  40. Blasco-Costa, I.; Cutmore, S.C.; Milner, T.L.; Nolan, M.J. Molecular approaches to trematode systematics: ‘best practice’ and implications for future study. Syst. Parasitol. 2016, 93, 295–306. [Google Scholar] [CrossRef] [PubMed]
  41. Hwang, U.W.; Kim, W. General properties and phylogenetic utilities of nuclear ribosomal DNA and mitochondrial DNA commonly used in molecular systematics. Korean J. Parasitol. 1999, 37, 215–228. [Google Scholar] [CrossRef]
  42. Allio, R.; Donega, S.; Galtier, N.; Nabholz, B. Large variation in the ratio of mitochondrial to nuclear mutation rate across animals: Implications for genetic diversity and the use of mitochondrial DNA as a molecular marker. Mol. Biol. Evol. 2017, 34, 2762–2772. [Google Scholar] [CrossRef]
  43. Tajima, F. Statistical method for testing the neutral mutation hypothesis by DNA polymorphism. Genetics. 1989, 123, 585–595. [Google Scholar] [CrossRef] [PubMed]
  44. Stensvold, C.R.; Christiansen, D.B.; Olsen, K.E.P.; Nielsen, H.V. Blastocystis sp subtype 4 is common in Danish Blastocystis-positive patients presenting with acute diarrhea. Am. J. Trop. Med. Hyg. 2011, 84, 883–885. [Google Scholar] [CrossRef] [PubMed]
  45. Berg, O.G.; Kurland, C.G. Why mitochondrial genes are most often found in nuclei. Mol. Biol. Evol. 2000, 17, 951–961. [Google Scholar] [CrossRef] [PubMed]
  46. Porras-Hurtado, L.; Ruiz, Y.; Santos, C.; Phillips, C.; Carracedo, A.; Lareu, M.V. An overview of structure: Applications, parameter settings, and supporting software. Front. Genet. 2013, 4, 98. [Google Scholar] [CrossRef] [PubMed]
  47. Mercier, A.; Devillard, S.; Ngoubangoye, B.; Bonnabau, H.; Bañuls, A.L.; Durand, P.; Salle, B.; Ajzenberg, D.; Dardé, M.L. Additional haplogroups of Toxoplasma gondii out of Africa: Population structure and mouse-virulence of strains from Gabon. PLoS Negl. Trop. Dis. 2010, 4, e876. [Google Scholar]
  48. Ajogbasile, F.V.; Kayode, A.T.; Oluniyi, P.E.; Akano, K.O.; Uwanibe, J.N.; Adegboyega, B.B.; Philip, C.; John, O.G.; Eromon, P.J.; Emechebe, G.; et al. Genetic diversity and population structure of Plasmodium falciparum in Nigeria: Insights from microsatellite loci analysis. Malar. J. 2021, 20, 236. [Google Scholar] [CrossRef] [PubMed]
  49. Bendezu, J.; Torres, K.; Villasis, E.; Incardona, S.; Bell, D.; Vinetz, J.; Gamboa, D. Geographical distribution and genetic characterization of pfhrp2 negative Plasmodium falciparum parasites in the Peruvian Amazon. PLoS ONE 2022, 17, e0273872. [Google Scholar]
  50. Stensvold, C.R.; Suresh, G.K.; Tan, K.S.; Thompson, R.C.; Traub, R.J.; Viscogliosi, E.; Yoshikawa, H.; Clark, C.G. Terminology for Blastocystis subtypes—A consensus. Trends Parasitol. 2007, 23, 93–96. [Google Scholar] [CrossRef]
  51. Stensvold, C.R.; Clark, C.G. Current status of Blastocystis: A personal view. Parasitol. Int. 2016, 65 Pt B, 763–771. [Google Scholar] [CrossRef]
  52. Jacob, A.S.; Busby, E.J.; Levy, A.D.; Komm, N.; Graham, C. Expanding the Entamoeba Universe: New Hosts Yield Novel Ribosomal Lineages. J. Eukaryot. Microbiol. 2016, 63, 69–78. [Google Scholar] [CrossRef]

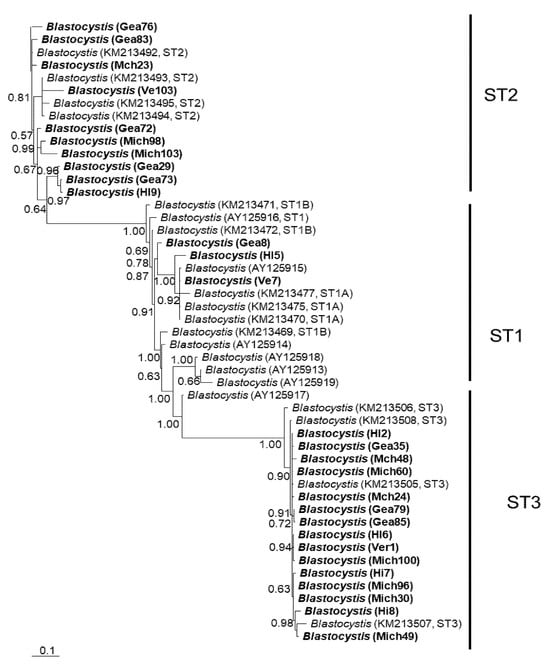

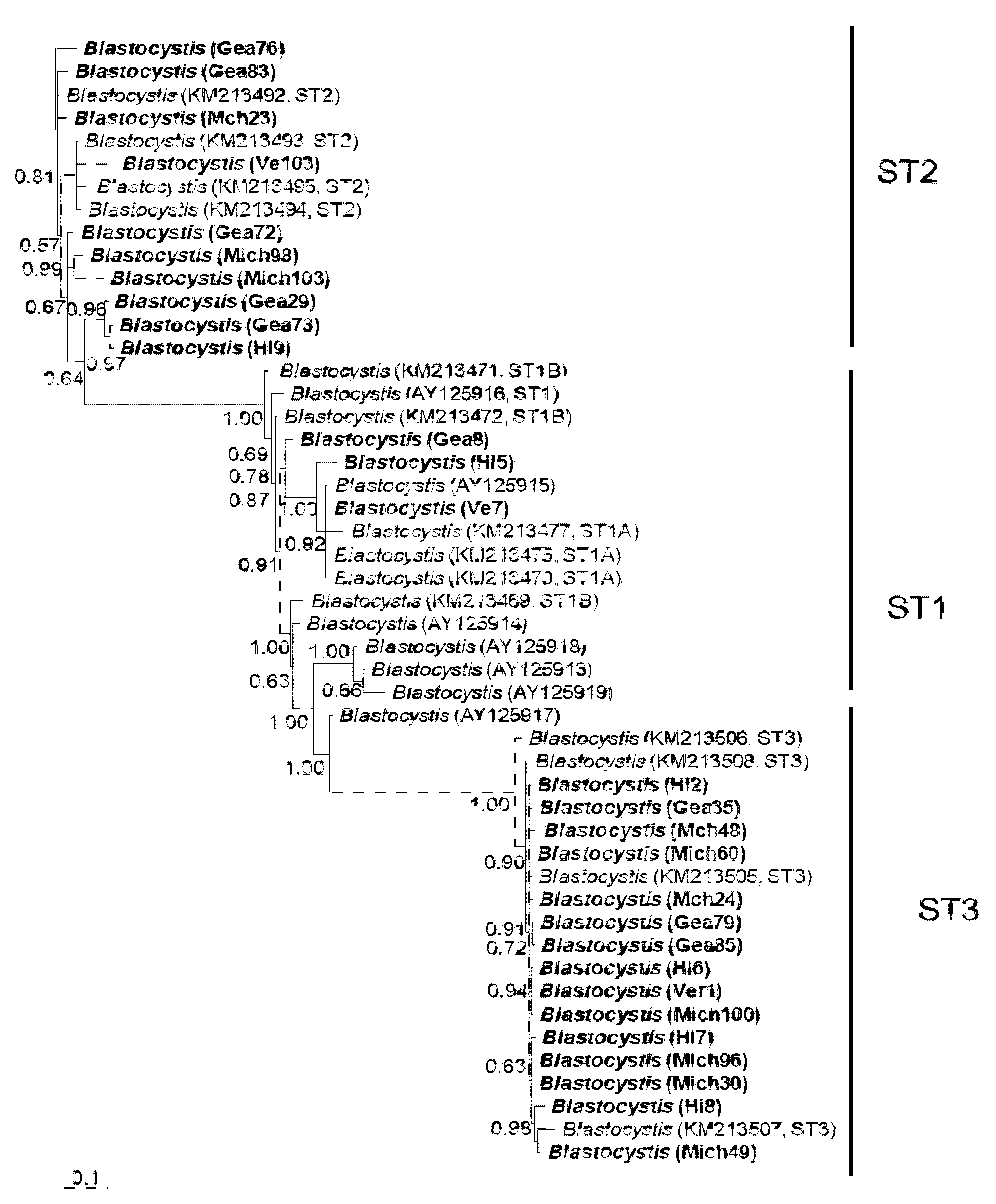

Figure 1. Bayesian phylogenetic tree based on ITS1+5.8S+ITS2 sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Figure 1. Bayesian phylogenetic tree based on ITS1+5.8S+ITS2 sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Microorganisms 12 01152 g001

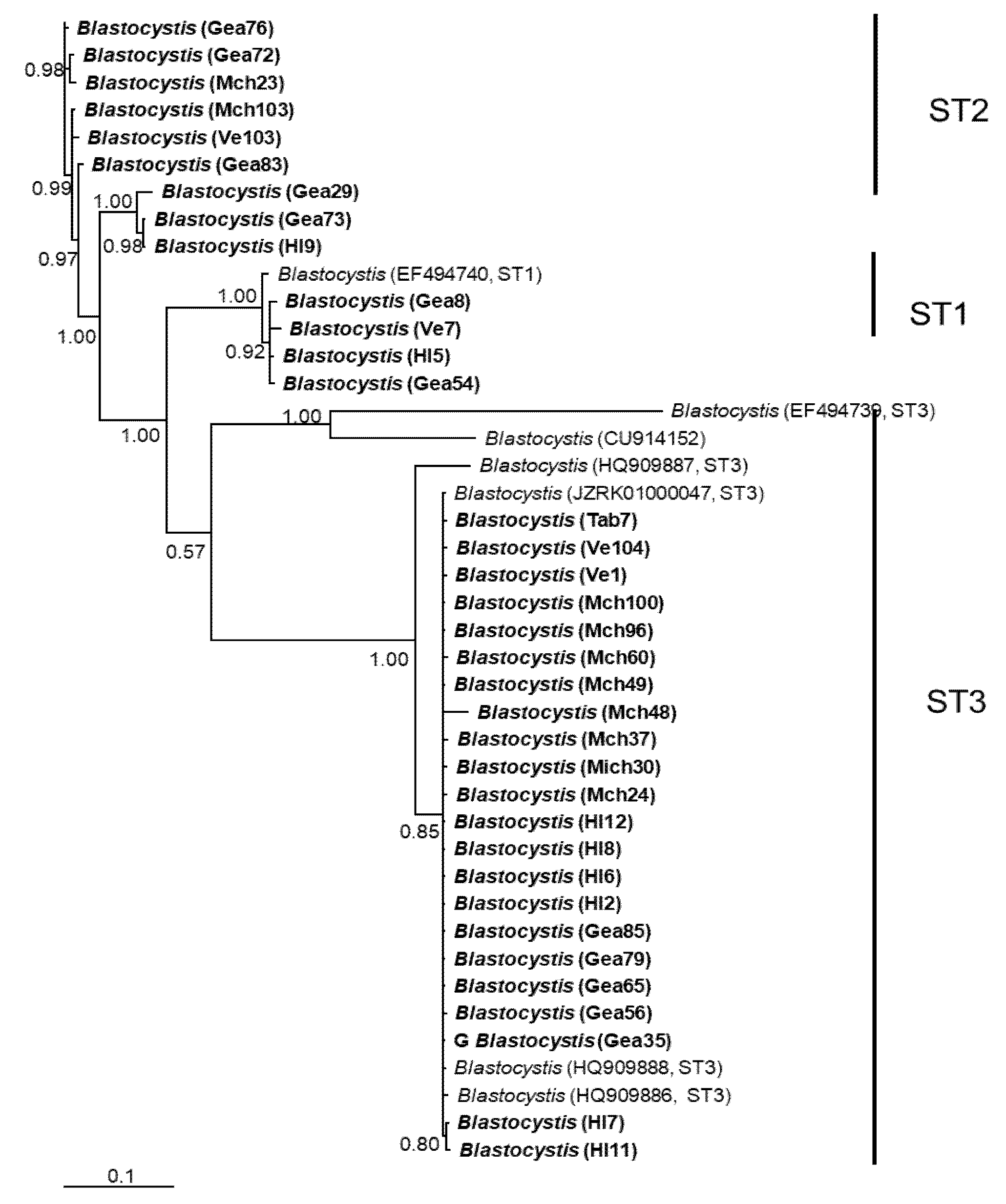

Figure 2. Bayesian phylogenetic tree based on rpl2 sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Figure 2. Bayesian phylogenetic tree based on rpl2 sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Microorganisms 12 01152 g002

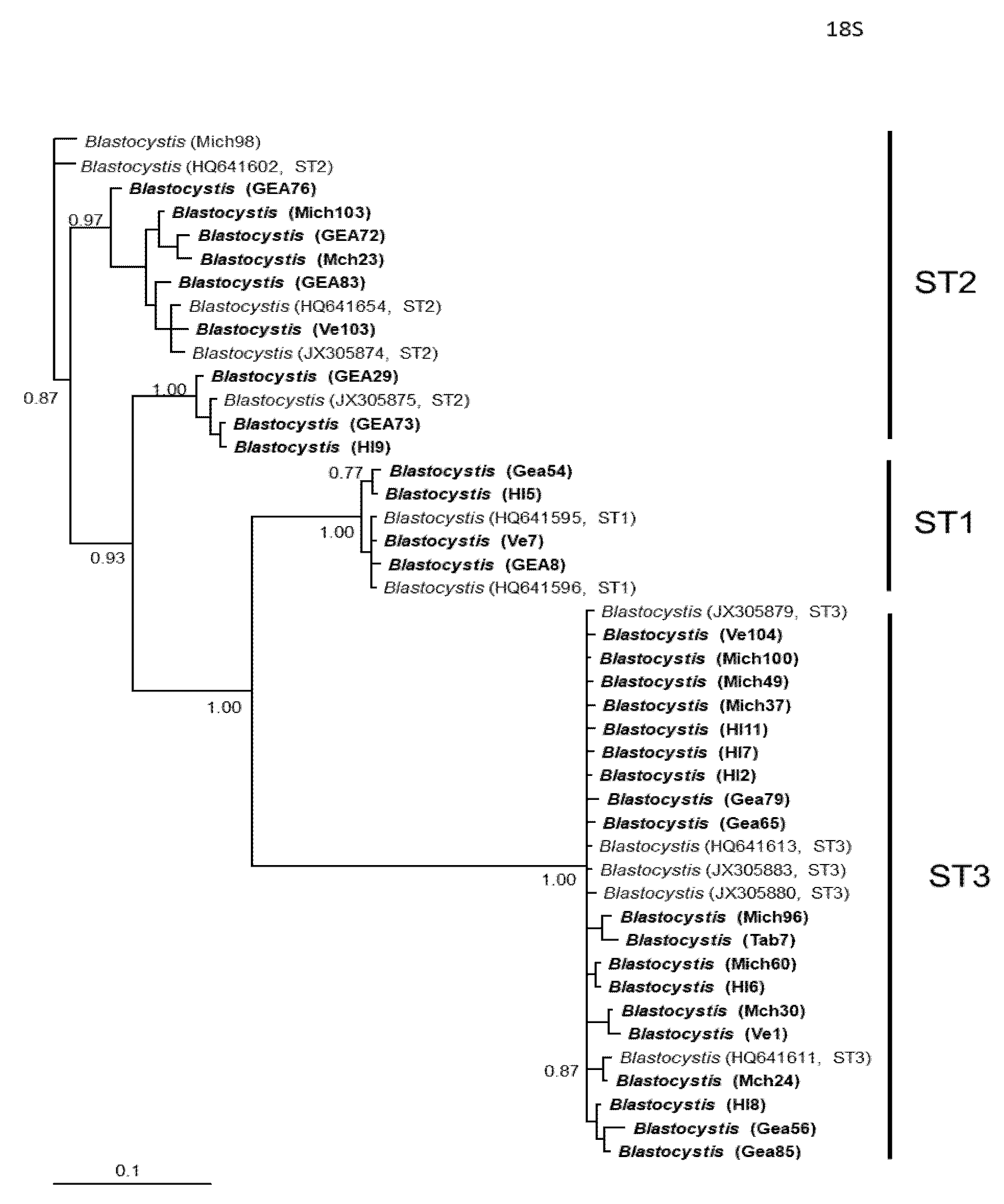

Figure 3. Bayesian phylogenetic tree based on SSUrDNA sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Figure 3. Bayesian phylogenetic tree based on SSUrDNA sequences of Blastocystis. The numbers at the nodes indicate Bayesian posterior probabilities. The sequences obtained in this study are shown in bold.
Microorganisms 12 01152 g003

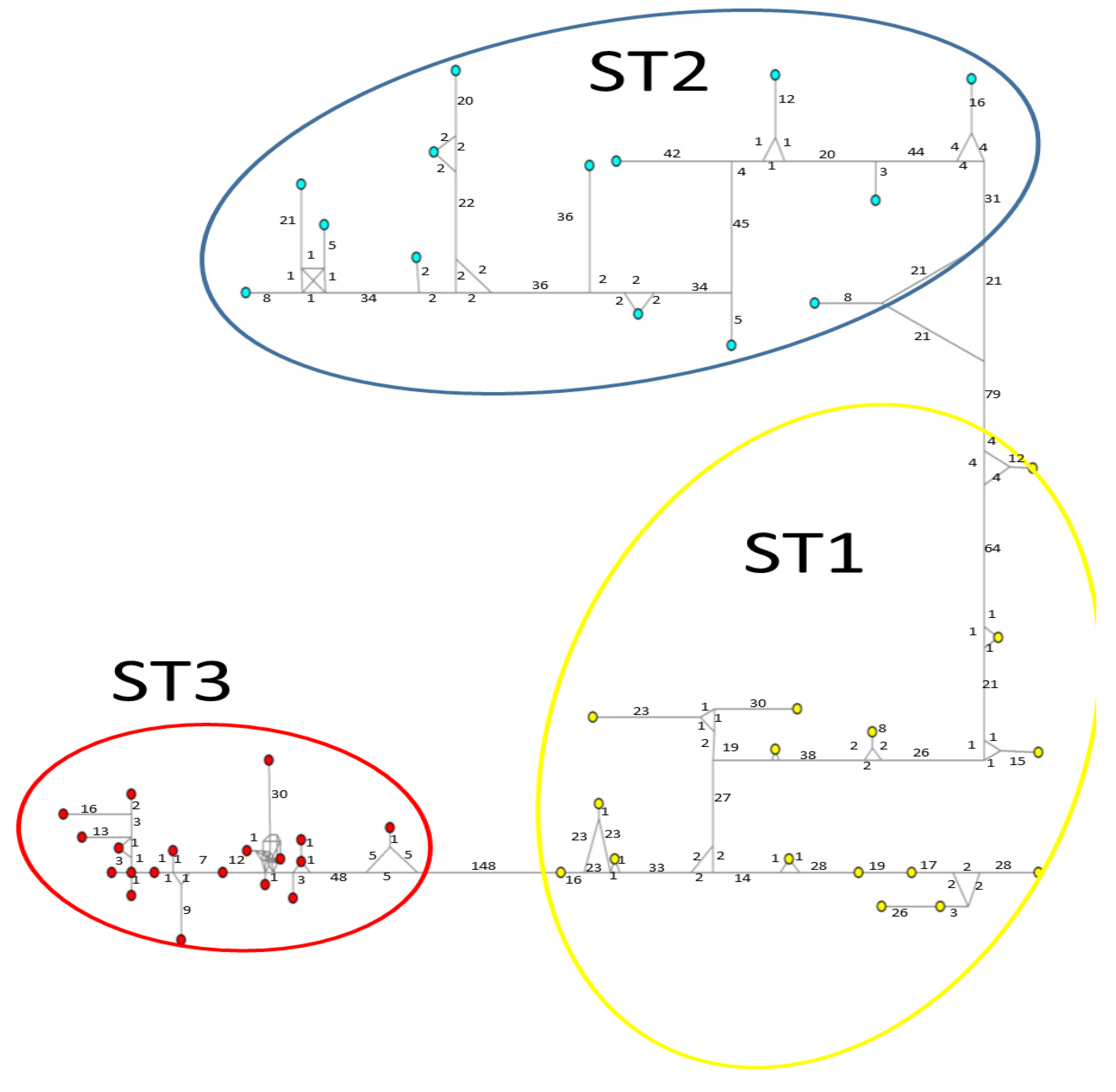

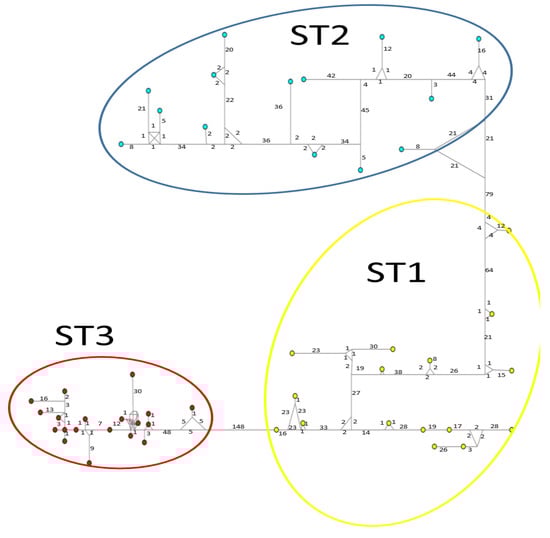

Figure 4. A median-joining haplotype network tree that was generated using ITS1+5.8S+ITS2 sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Figure 4. A median-joining haplotype network tree that was generated using ITS1+5.8S+ITS2 sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Microorganisms 12 01152 g004

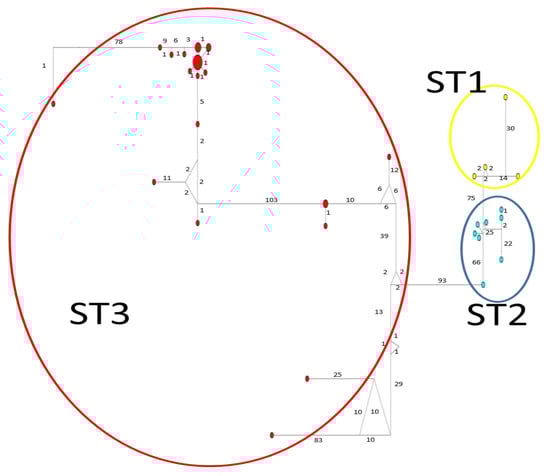

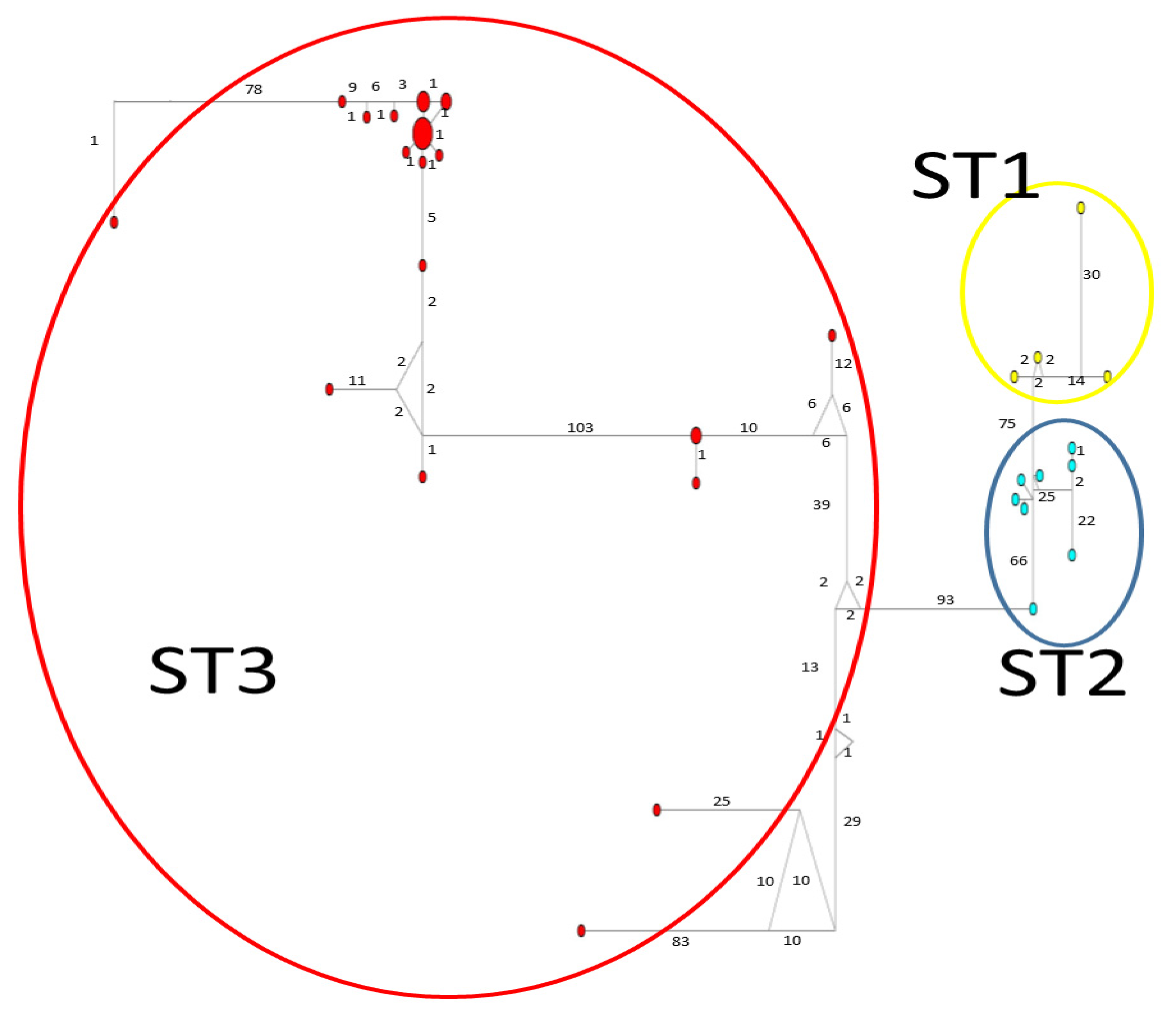

Figure 5. A median-joining haplotype network tree that was generated using rpl2 sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Figure 5. A median-joining haplotype network tree that was generated using rpl2 sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Microorganisms 12 01152 g005

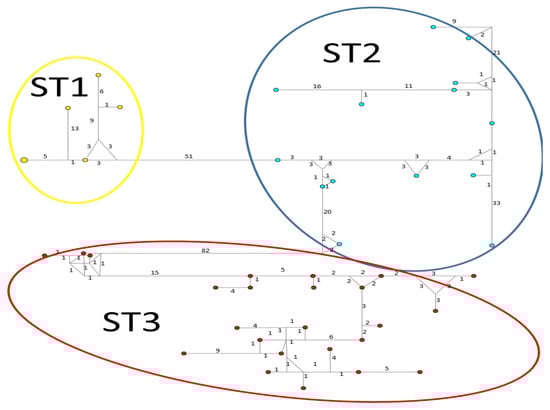

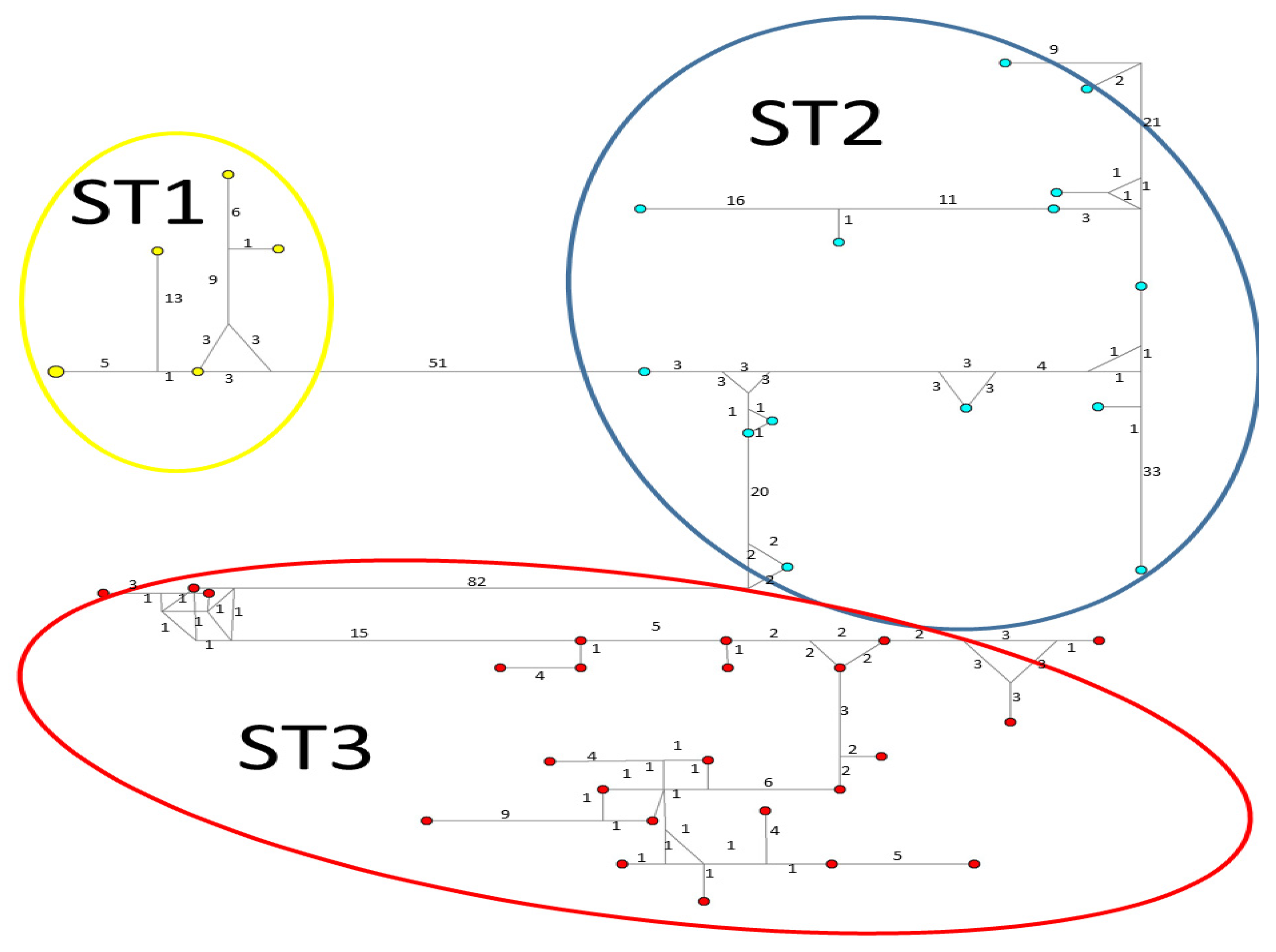

Figure 6. A median-joining haplotype network tree that was generated using SSUrDNA sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Figure 6. A median-joining haplotype network tree that was generated using SSUrDNA sequences of Blastocystis; the numbers on branches refer to mutational changes. Haplotypes for Blastocystis ST1 are shown in yellow, ST2 in blue, and ST3 in red. Numbers in branches are mutational changes; sizes of circles are proportional to haplotype frequencies.
Microorganisms 12 01152 g006

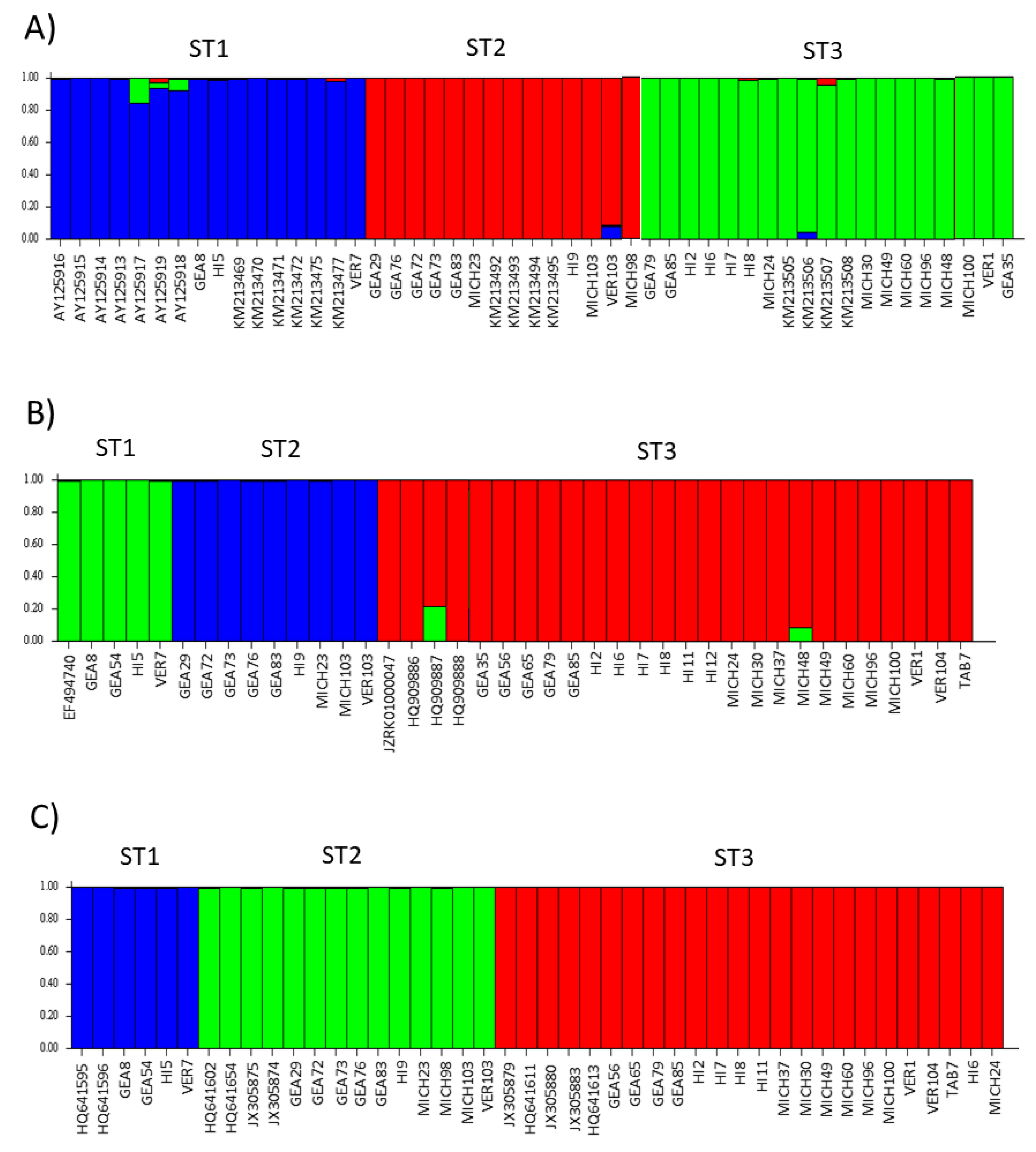

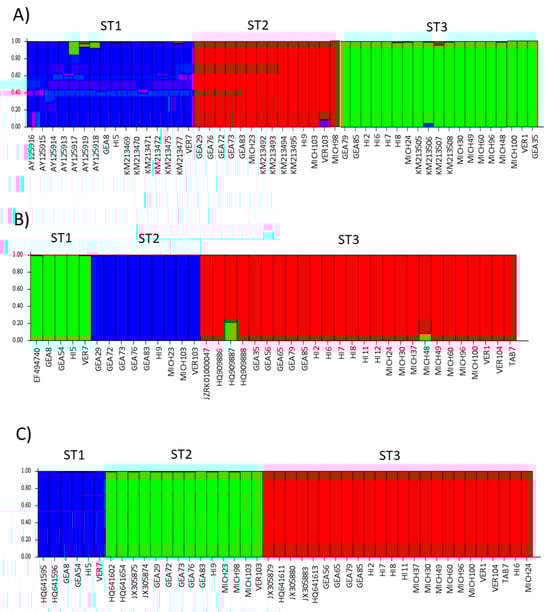

Figure 7. Three genetic structure clusters (indicated by colors) using ITS in (A), rpl2 in (B), and SSUrDNA in (C) sequences of Blastocystis, according to the Bayesian MCMC simulation. Each sample is represented by a thin vertical line divided into colored segments that indicate one of the K3 genetic clusters.
Figure 7. Three genetic structure clusters (indicated by colors) using ITS in (A), rpl2 in (B), and SSUrDNA in (C) sequences of Blastocystis, according to the Bayesian MCMC simulation. Each sample is represented by a thin vertical line divided into colored segments that indicate one of the K3 genetic clusters.
Microorganisms 12 01152 g007
Table 1. Samples (GenBank accession number) and subtyping by ITS, rpl2, and SSUrDNA analysis.
Table 1. Samples (GenBank accession number) and subtyping by ITS, rpl2, and SSUrDNA analysis.
No.SampleSubtype (GenBank Accession Number)
ITSSSUrDNArpl2
1GEA 81 (PP592306)1 (PP587181)1 (PP597305)
2GEA 292 (PP592329)2 (PP587182)2 (PP597309)
3GEA 353 (PP592307)ND3 (PP597318)
4GEA 54ND *1 (PP587183)1 (PP597308)
5GEA 56ND3 (PP587184)3 (PP597319)
6GEA 65ND3 (PP587185)3 (PP597320)
7GEA 722 (PP592308)2 (PP587186)2 (PP597310)
8GEA 732 (PP592309)2 (PP587187)2 (PP597311)
9GEA 762 (PP592310)2 (PP587188)2 (PP597312)
10GEA 793 (PP592311)3 (PP587189)3 (PP597321)
11GEA 832 (PP592312)2 (PP587190)2 (PP597313)
12GEA 853 (PP592313)3 (PP587191)3 (PP597322)
13HI23 (PP592314)3 (PP587192)3 (PP597323)
14HI51 (PP592315)1 (PP587193)1 (PP597306)
15HI63 (PP592316)3 (PP587194)3 (PP597326)
16HI73 (PP592317)3 (PP587195)3 (PP597325)
17HI83 (PP592318)3 (PP587196)3 (PP597326)
18HI92 (PP592319)2 (PP587197)2 (PP597314)
19HI11ND3 (PP587198)3 (PP597327)
20HI 12NDND3 (PP597328)
21Mich 232 (PP592320)2 (PP587199)2 (PP597315)
22Mich 243 (PP592321)3 (PP587200)3 (PP597329)
23Mich 303 (PP592322)3 (PP587201)3 (PP597330)
24Mich 37ND3 (PP587202)3 (PP597331)
25Mich 483 (PP592323)ND3 (PP597332)
26Mich 493 (PP592324)3 (PP587203)3 (PP597333)
27Mich 603 (PP592325)3 (PP587204)3 (PP597334)
28Mich 963 (PP592326)3 (PP587205)3 (PP597335)
29Mich 982 (PP592327)2 (PP587206)ND
30Mich 1003 (PP592328)3 (PP587207)3 (PP597336)
31Mich 1032 (PP592330)2 (PP587208)2 (PP597316)
32Tab 7ND3 (PP587209)3 (PP597337)
33Ve 13 (PP592331)3 (PP587210)3 (PP597338)
34Ve 71 (PP592332)1 (PP587211)1 (PP597307)
35Ve 1032 (PP592333)2 (PP587212)2 (PP597317)
36Ve 104ND3 (PP587213)3 (PP597339)
Total283335
* ND: not determined.
Table 2. Cohen’s kappa coefficient (k) results for the comparison of subtyping between loci.
Table 2. Cohen’s kappa coefficient (k) results for the comparison of subtyping between loci.
Comparisonk Valuep Value
ITS vs. rpl21.01.386 × 10−10
ITS vs. SSUrDNA1.01.966 × 10−10
rpl2 vs. SSUrDNA1.03.371 × 10−12
Table 3. Genetic polymorphism indexes between different Blastocystis sequences.
Table 3. Genetic polymorphism indexes between different Blastocystis sequences.
Loci/STnhHdπΘTajima’s Dp Value
ITS28160.8230.146630.10865
ST13310.053940.05256ND
ST21090.9780.058890.0707−1.25023p > 0.05
ST31580.8290.006080.00995−1.7122p > 0.05
SSUrDNA33200.9340.138060.07457
ST14410.005980.005590.6501p > 0.05
ST21080.9330.057370.039280.50505p > 0.05
ST319100.8770.004580.00511−0.96514p > 0.05
rpl23570.6440.098390.05845
ST14410.006810.00743−0.81734p > 0.05
ST2930.5560.0122211,1070.38489p > 0.05
ST32280.5450.001590.00481−2.1949p < 0.05
n, number of samples; h, haplotypes; Hd, haplotype diversity; π, nucleotide diversity; θ, haplotype polymorphism; ND, not determined.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Villalobos, G.; Lopez-Escamilla, E.; Olivo-Diaz, A.; Romero-Valdovinos, M.; Martinez, A.; Maravilla, P.; Martinez-Hernandez, F. Genetic Variation among the Partial Gene Sequences of the Ribosomal Protein Large-Two, the Internal Transcribed Spacer, and the Small Ribosomal Subunit of Blastocystis sp. from Human Fecal Samples. Microorganisms 2024, 12, 1152. https://doi.org/10.3390/microorganisms12061152

AMA Style

Villalobos G, Lopez-Escamilla E, Olivo-Diaz A, Romero-Valdovinos M, Martinez A, Maravilla P, Martinez-Hernandez F. Genetic Variation among the Partial Gene Sequences of the Ribosomal Protein Large-Two, the Internal Transcribed Spacer, and the Small Ribosomal Subunit of Blastocystis sp. from Human Fecal Samples. Microorganisms. 2024; 12(6):1152. https://doi.org/10.3390/microorganisms12061152

Chicago/Turabian Style

Villalobos, Guiehdani, Eduardo Lopez-Escamilla, Angelica Olivo-Diaz, Mirza Romero-Valdovinos, Arony Martinez, Pablo Maravilla, and Fernando Martinez-Hernandez. 2024. "Genetic Variation among the Partial Gene Sequences of the Ribosomal Protein Large-Two, the Internal Transcribed Spacer, and the Small Ribosomal Subunit of Blastocystis sp. from Human Fecal Samples" Microorganisms 12, no. 6: 1152. https://doi.org/10.3390/microorganisms12061152

APA Style

Villalobos, G., Lopez-Escamilla, E., Olivo-Diaz, A., Romero-Valdovinos, M., Martinez, A., Maravilla, P., & Martinez-Hernandez, F. (2024). Genetic Variation among the Partial Gene Sequences of the Ribosomal Protein Large-Two, the Internal Transcribed Spacer, and the Small Ribosomal Subunit of Blastocystis sp. from Human Fecal Samples. Microorganisms, 12(6), 1152. https://doi.org/10.3390/microorganisms12061152

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
