Genomic Characterization of Bacillus pumilus Sonora, a Strain with Inhibitory Activity against Vibrio parahaemolyticus-AHPND and Probiotic Candidate for Shrimp Aquaculture

by
Karla A. Soto-Marfileño
1,
Zinnia Judith Molina Garza
1,*,
Ricardo Gomez Flores
1,
Vida Mariel Molina-Garza
1,
José C. Ibarra-Gámez
2,
Bruno Gómez Gil
3 and
Lucio Galaviz-Silva
1,*
1
Facultad de Ciencias Biológicas, Universidad Autónoma de Nuevo León, Ave. Universidad S/N, Cd. Universitaria, San Nicolás de los Garza 66455, Nuevo León, Mexico
2
Instituto Tecnológico de Sonora, Departamento de Ciencias Agronómicas y Veterinarias, Ciudad Obregón 85000, Sonora, Mexico
3
Mazatlán Unit, Research Center for Food and Development (CIAD), Ave Sábalo Cerritos S/N, Mazatlán 82112, Sinaloa, Mexico
*
Authors to whom correspondence should be addressed.
Microorganisms 2024, 12(8), 1623; https://doi.org/10.3390/microorganisms12081623
Submission received: 21 June 2024 / Revised: 31 July 2024 / Accepted: 6 August 2024 / Published: 9 August 2024
(This article belongs to the Section Antimicrobial Agents and Resistance)
Browse Figures
Review Reports Versions Notes

Abstract

:
Acute hepatopancreatic necrosis disease, caused by Vibrio parahaemolyticus strains carrying the pirA and pirB toxin genes (VpAHPND), has been causing great economic losses in Asia and America in the shrimp farming industry. Numerous strains are resistant to antibiotics. However, supplementation with probiotic antagonists has become a more desirable treatment alternative. Fourteen strains of microorganisms were assessed for their potential to inhibit VpAHPND in vitro activity. The bacteria with the highest activity were challenged with VpAHPND-infected Pacific white shrimp Litopenaeus vannamei. Furthermore, the genomic characteristics of probiotic bacteria were explored by whole-genome sequencing. We identified the Sonora strain as Bacillus pumilus, which possesses positive proteolytic and cellulolytic activities that may improve shrimp nutrient uptake and digestion. Challenge trials showed a low cumulative mortality (11.1%). B. pumilus Son has a genome of 3,512,470 bp and 3734 coding sequences contained in 327 subsystems. Some of these genes are related to the biosynthesis of antimicrobial peptides (surfactins, fengycin, schizokinen, bacilibactin, and bacilysin), nitrogen and phosphorus metabolism, and stress response. Our in vitro and in vivo findings suggest that B. pumilus Sonora has potential as a functional probiotic.

1. Introduction

Aquaculture has emerged as an alternative strategy for food production with several advantages compared with capture fisheries since it reduces the need to catch additional wild fish to meet the increasing demand, thus contributing to preserving fish species stocks. Currently, mariculture farms provide half of the global aquatic animal production for human consumption [1]. In 2022, fisheries produced 185 million tons, of which approximately 51% originated from aquaculture activity [2]. In this industry, shrimp aquaculture is of the utmost importance to the global economy, especially for countries with low or moderate economic development, such as those belonging to Latin America and Asia [3]. In México, shrimp production has high economic value, with a revenue of approximately 876 million U.S. dollars and a production of 198,000 tons [2]. México ranks seventh in crustacean aquaculture and the states of Sonora, Sinaloa, and Nayarit are the main producers [4]. Nevertheless, the occurrence of diseases has led to losses of millions of U.S. dollars [5]. Among the main infectious agents are viruses, such as the Taura syndrome virus (TSV) and the white spot syndrome virus (WSSV), but bacterial species of the genus Vibrio cause a disease called vibriosis in most species and are considered opportunistic pathogens for shrimp. However, in 2013, atypical epizootics were reported for the first time in shrimp farms in northeastern México (states of Sonora, Sinaloa, and Nayarit), caused by pathogenic strains of Vibrio parahaemolyticus, the etiologic agent of acute hepatopancreatic necrosis disease (VpAHPND) [6]. This disease is characterized by a severely atrophied hepatopancreas in its acute stage, resulting in production losses of 80% and serious economic effects [7]. In the most affected countries by this disease, USD 23.6 billion financial losses have been estimated [8]. Most recently, outbreaks have arisen in the USA (2017), Korea (2018), and Japan (2020) and are assumed to have taken place in other regions of Asia and Latin America [9,10,11].
Antibiotics are commonly used to control various bacterial diseases in shrimp aquaculture. However, the excessive amount used in this field has exerted a strong selective pressure toward the development of antibiotic resistance, producing bacterial adaptation through the horizontal flow of resistance genes by mechanisms of chromosomal mutation or plasmid acquisition. In addition, the increase in the use of antibiotics has led to their accumulation in shrimp meat, making it very difficult to introduce them into the international market because they may pose potential risks to consumer health [12]. Hence, an alternative strategy for the treatment of infections caused by pathogenic microorganisms is supplementation with beneficial bacteria that produce active metabolites with bactericidal activity against pathogens, such as probiotics, which are live microorganisms and, if properly administered, confer benefits to the host [13]. In aquaculture, probiotics have been defined as microbial supplements that have beneficial effects on the host by modifying the host-associated or ambient microbial community, ensuring better feed utilization or enhancing the nutritional value of feed, and improving the host’s response to disease through various mechanisms, including competition for nutrients and/or the inhibition of pathogens derived from the synthesis of antimicrobial peptides (AMP) [14,15]. Bacteria of the genus Bacillus have been used as biological control agents to reduce the co-occurrence of vibriosis in shrimp farms [16], as they are part of the gills, skin, and intestinal tract microbiota of shrimp and it has been found that several species of this genus present antagonistic activity against various microorganisms, as in the case of Bacillus subtilis BT23, 741 [17,18] and two other strains with significant inhibition against VpAHPND, B. subtilis (K3), and B. velezensis [19,20]. Bacillus species have also been found in marine sediment and are ingested naturally by marine animals, such as shrimp, which feed in or on marine sediment [15]. Therefore, this work aimed to assess the in vitro antagonistic effect of fourteen bacterial isolates against VpAHPND, select the best antagonist candidate by in vivo challenging experiments with the Pacific white shrimp Litopenaeus vannamei, and perform genomic characterization to identify genes that produce AMP-related genes in this strain and determine their potential probiotic role in shrimp aquaculture.

Ethics Statement

Pacific white shrimps used in this experiment were healthy farm-grown crustaceans. All bioassays were conducted following the 3R policy (replacement, reduction, and refinement) according to guidelines of the Animal Ethics Committee for Laboratory Animals from Universidad Autónoma de Nuevo León, México.

2. Materials and Methods

2.1. Origin of Bacterial Strains

Samples of green seaweed, seawater, saline sediment, red mangrove, Chinese clam, and hermit crab were collected from the coast of Sonora (26°42′17″ N 110°34′54″ W) and transported to the laboratory at 4 °C in sealed plastic bags (Nasco, Fort Atkinson, WI, USA). Invertebrates were dissected to collect internal organs, which were deposited in sterile 2% NaCl (w/v) (BD Dibico; Estado de México, México), after which 5 g of tissues and seaweeds were individually pulverized, homogenized in a grinder under aseptic conditions, and serially diluted (10−1 to 10−6). Saline sediments and seawater (5 g) were serially diluted. Trypticase soy agar and marine agar, supplemented with 2% NaCl were used to culture the serial dilutions. Colonies of subcultures from isolates were obtained to produce axenic cultures. All cultures were incubated for 24 h at 28–32 °C [18,19,20].
Fourteen strains of microorganisms were selected for this study, whose origins and nomenclature are detailed in Table 1. In addition, the pathogenic strain VpAHPND-D11F of Vibrio parahaemolyticus (NCBI accession number MH091007.1) was isolated from moribund larvae (L. vannamei) in a shrimp farm in Tobari, Sonora, México, and identified by sequencing the 16S rDNA with universal primers, based on comparisons with the nucleotide Basic Local Alignment Search Tool (BLAST) program, as previously reported [21]. Strains were stored in the Laboratorio de Patología Molecular y Experimental of the Facultad de Ciencias Biológicas at Universidad Autónoma de Nuevo León, México.

2.2. Assessment of Antibacterial Activity Based on the Well Diffusion Test

Isolated bacteria were cultured in trypticase soy broth with 2% NaCl (TSB + N; Becton Dickinson, Sparks, MD, USA) for 24 h at 28 °C, after which plates of trypticase soy agar with 2% NaCl (TSA + N; Becton Dickinson) were inoculated with 100 µL of the pathogenic strain VpAHPND D11F at a density of 1.5 × 107 CFU mL−1 and spread with sterilized swabs. Next, four 0.5 cm wells were aseptically punched at equal distances from each other on TSA plates, and 100 µL of isolates were added in triplicate to the wells (~1.5 × 107 CFU mL−1). In the fourth well, we plated 100 μL of sterile TSB + N as a negative control [22,23]. Plates were then incubated for 24 h at 30 °C to determine the isolates antagonistic activity against VpAHPND, as assessed by measuring the diameter of the inhibition halos (mm) between the well and the bacterial lawn with the ImageJ software Version 1.54j [24,25].

2.3. Assessment of Antibacterial Activity Based on the Double Layer Assay

This inhibition test was performed as previously described [26], with some modifications. Firstly, each isolate was previously cultured with a sterile swab in TSA + N for 24 h at 30 °C, after which a 0.5 cm circular piece was cut with a hollow punch and deposited over the surface of a plate of Mueller-Hinton agar (Becton Dickinson) with 2% NaCl. After incubation for 24 h at 30 °C, an overlay of 10 mL of semisolid Mueller-Hinton agar inoculated with 100 μL of the pathogenic strain VpAHPND was poured on the first layer. The assay was performed in triplicate, and the antagonistic effect of the strains against the pathogenic bacteria was evaluated [27]. After 24 h of culture at 30 °C, the diameters of the inhibition halos were measured using the ImageJ software.

2.4. Hemolytic Activity

A sample of bacterial strains freshly grown in TSA + N was obtained with an inoculation loop and cultured by cross streaking on blood agar (Dibico, Cuautitlán Izcalli, México) with one milliliter of heparinized human blood, after which plates were incubated in triplicate for 24 h at 30 °C. We expected α-, β-, and γ-types of hemolysis to be recorded [28].

2.5. Extracellular Enzymatic Activity

Protease production was determined in TSA with 2.5% skim milk (29). To determine amylase activity, isolates were grown in Mueller-Hinton agar supplemented with 1.5% starch, and the degradation halo was revealed by adding Lugol solution to the plate surface after 24 h of incubation [28]. The cellulolytic activity was determined in minimal medium (Sigma-Aldrich Química, Naucalpan, México) supplemented with 2% carboxymethylcellulose (CMC; Sigma-Aldrich Química, Madrid, Spain) and visualized with Congo red dye (Sigma-Aldrich Química). The enzymatic/hydrolytic activity of the strains was observed from the formation of solubilization/degradation halos around colonies [29].

2.6. Biofilm Rupture Assay

Since VpAHPND induces moderate to strong biofilm formation, the potential of isolated strains to prevent the development or destroy preformed biofilms of the pathogenic strain was investigated [28]. An aliquot of 100 μL of VpAHPND D11F with OD560 = 0.02 (1.0 × 10 6 CFU/mL) was transferred to flat-bottomed 96-well microtiter plates and incubated for 24 h (irreversible attachment phase) to 48 h (mature biofilm formation) at 30 °C, without agitation for biofilm development. In addition, cell-free supernatants of the isolates, freshly grown in TSB + N, were obtained by centrifugation at 2000 rpm for 10 min, followed by filtration through a 0.2 μm membrane filter, and 100 µL were placed in each well of microtiter plates and incubated for 24 h at 30 °C. As a negative control, VpAHPND without supernatant was used. The biofilm biomass was analyzed using a crystal violet staining assay, as previously described [30]. Optical densities (OD) were read at 595 nm in a microplate reader (Asys UVM-340 spectrophotometer; Biochrom Ltd., Cambridge, UK). Each isolate was tested in triplicate.

2.7. Test for In Vivo Antagonist Assessment in Bioassays

The Sonora strains were selected for the challenge assays because they produced the best in vitro antagonist and enzymatic activities. Pacific white shrimp were kindly provided by Megalarva de Sinaloa, S. de R.L., México.

2.7.1. Diet Preparation

The Sonora strain was inoculated in 500 mL of TSB + N and incubated for 24 h at 30 °C with agitation at 150 rpm on a gyratory shaker (Max-Q 4450; Thermo Scientific, Madison, WI, USA), and the bacterial concentration was adjusted to 2.5 × 108 CFU mL−1, using the McFarland scale. Next, the bacterial biomass was centrifuged at 5000 rpm for 10 min (Allegra 64R Centrifuge; Beckman Coulter, Brea, CA, USA), and the pellet was washed with PBS and resuspended in 300 mL of sterile saline solution. Next, fish oil was mixed with 500 g of commercial feed for juvenile shrimp (Rangen, Buhl, ID, USA), and the diet (saline solution with probiotics) was sprayed over it. We used a diet without probiotics as a negative control [31,32]. Treatments were evaluated in triplicate. Fifteen shrimps weighing 0.9 g were placed in aquariums containing 30 L of seawater (35 g L−1) with individual aeration pumps, lids, and feeders, and were acclimatized for one week before treatment administration. The diet was then administered for one week before the challenge test with VpAHPND. Every day, water in the aquariums was siphoned to eliminate feces and remains of food. We monitored temperature, dissolved oxygen concentration (DO), pH, and salinity with a waterproof portable meter (Hanna HI98194, Cd. Mexico, México). Sixty percent of the water was replaced weekly with fresh water, and the aquariums were maintained with constant aeration [33].

2.7.2. Challenge Test

The VpAHPND D11F strain was used for bioassays and was inoculated in TSB + N to obtain a fresh culture. Next, three milliliters were added to a flask with 2.5 L of TSB + N and incubated at 160 rpm and 30 °C, until reaching an OD600 = 1 (107 − 109 CFU/mL), after which 140 mL of inoculum were added to each aquarium. Sterile TSB + N was added as the negative control and the positive control consisted of pathogenic bacteria [7]. After inoculum application, shrimps were monitored every hour, and lethargic, erratically swimming moribund shrimps were collected for real-time PCR (qPCR) analysis. Mortality data were recorded and reported as accumulated mortality [34].

2.7.3. Diagnosis of VpAHPND by qPCR

Samples of the stomach, hepatopancreas, and intestine were preserved in 70% ethanol and processed for DNA extraction. The IQ Real AHPND/EMS kit (Gene Reach Biotechnology Corp., Taichung City, Taiwan) was used following the manufacturer’s instructions to detect the presence of copies of the pirA and pirB genes (toxin) and the AHPND plasmid (FAM probe) of V. parahaemolyticus, as well as shrimp genomic DNA (VIC probe). The 7500 Fast Real-Time PCR platform (Applied Biosystems, Foster City, CA, USA) was used with the 7500 Fast System version 1.4.2 software [35].

2.8. Whole Genome Sequencing of the Sonora Isolate

2.8.1. Extraction of Genomic DNA from a Sonora Isolate

As the Sonora strain was the best probiotic candidate, according to the in vitro and in vivo tests, it was selected for genomic DNA analysis. Genomic DNA extraction was performed from a 24-h culture in TSB medium with 2% NaCl (w/v) using the Wizard genomic DNA purification kit (Promega, Madison, WI, USA), following the manufacturer’s protocol.

2.8.2. Sample Tagging

The genomic DNA library preparation was performed using the Nextera XT Library Preparation Kit (Illumina, San Diego, CA, USA), following the supplier’s instructions. Whole genome sequencing was conducted on the Illumina MiSeq platform (Illumina, San Diego, CA, USA) following the MiSeq v.3 protocol (paired-end reads, 2 × 300 bp, and 300 cycles).

2.8.3. De Novo Assembly, Genome Annotation, Phylogenetic Analysis, and Identification of Genes Involved in the Biosynthesis of AMP-Related Genes

Filtering of sequencing data was performed with FastQC and TrimGalore (v0.6.10) (https://github.com/FelixKrueger/TrimGalore, accessed on 7 August 2024). The quality of the reads was analyzed using FastQC, and adapters were clipped using TrimGalore. The resulting reads were then assembled using SPAdes v3.12.0 and the a5 Miseq pipeline [36]. The annotation of the genome was conducted with the RAST tool (Rapid Annotation using the Subsystem Technology), and the antiSMASH platform version 7.10 [37] was used to search for genes involved in the biosynthesis of AMP. The phylogenetic position of the Sonora genome among the reference and representative genomes listed in the NCBI database was identified using PATRIC (Pathosystems Resource Integration Center (https://www.patricbrc.org, accessed on 7 August 2024), which includes the type-strain of B. pumilus from NCBI. The phylogenetic tree was built and edited in iTOL (Interactive Tree of Life, https://itol.embl.de/, accessed on 7 August 2024) using the neighbor-joining method. The bootstrap values were calculated based on 1000 computer-generated trees.

2.9. Statistical Analysis

The results of the inhibition assays were analyzed using one-way ANOVA and Tukey’s multiple comparison test with a confidence interval of 95%. In addition, data from the shrimp challenge bioassay were analyzed using one-way ANOVA and Dunnett’s multiple comparisons test to determine the differences between treatments and survival, respectively [38,39], with the statistical software MINITAB 17 (Minitab Statistical Software, Minitab Inc., State College, PA, USA) and GraphPad Prism 9 (GraphPad Software Inc., San Diego, CA, USA).

3. Results

3.1. In Vitro Evaluation of the Antagonistic Activity of the Isolates against VpAHPND D11F

Seven out of 14 isolates presented zones of inhibition against the pathogen in the well diffusion test. The Sonora isolate significantly (p < 0.05) caused the highest inhibition activity (Figure 1), with an average inhibition diameter of 7.4 mm, higher than those of the remaining isolates, which showed an average value between 3.3 mm and 4.9 mm (Figure 2). In the double layer assay, the Sonora isolate also had a significantly (p < 0.05) larger inhibition diameter of 14.3 mm, followed by the J1, 43, and G2.1 strains, with mean inhibition diameters of 12.2, 11.1, and 11, respectively (Figure 3).

3.2. Hemolytic Activity and Enzymatic Activity

Seven isolates (H3M, H2, Sonora, E2.1, HA, 43, and G2.1) showed γ-hemolysis (Figure 4 and Table 2), whereas G3.2 and Y119 presented α-hemolysis. In addition, G10 and J1 showed a β-hemolysis profile. Regarding isolates 32a and G2, it was not possible to determine the type of hemolysis since these isolates did not grow on blood agar. Regarding the enzymatic activities of the isolates, G2, G3.2, Sonora, E2.1, G10, 32a, and 43 showed proteolytic activity; amylolytic activity was observed only in H3M and G2, and all the isolates except H3M and 32a showed cellulolytic activity. The enzymatic and antagonistic activity of the isolates led us to identify the best isolates for further in vivo challenge. The isolates Sonora, J1, 43, and J1 had the highest antagonistic potential against the pathogenic bacteria in vitro and exhibited the production of enzymes related to improving digestion or nutrient uptake, which are characteristics of interest for declaring a microorganism as a probiotic (Table 2).

3.3. Inhibition of Preformed Biofilms

Results showed that no significant differences were observed in the 24 h biofilm. After 48 h, the cell-free supernatant of the Sonora isolate had an antibiofilm effect (mature biofilm) since it inhibited or ruptured the biofilm of VpAHPND until it reached an OD of 0.15. However, the cell-free supernatant of the G2 and E2.1 isolates showed a weak potential to prevent the biofilm formation of VpAHPND (Figure 5).

3.4. Challenge Trial of the Sonora Strain against VpAHPND and qPCR Results

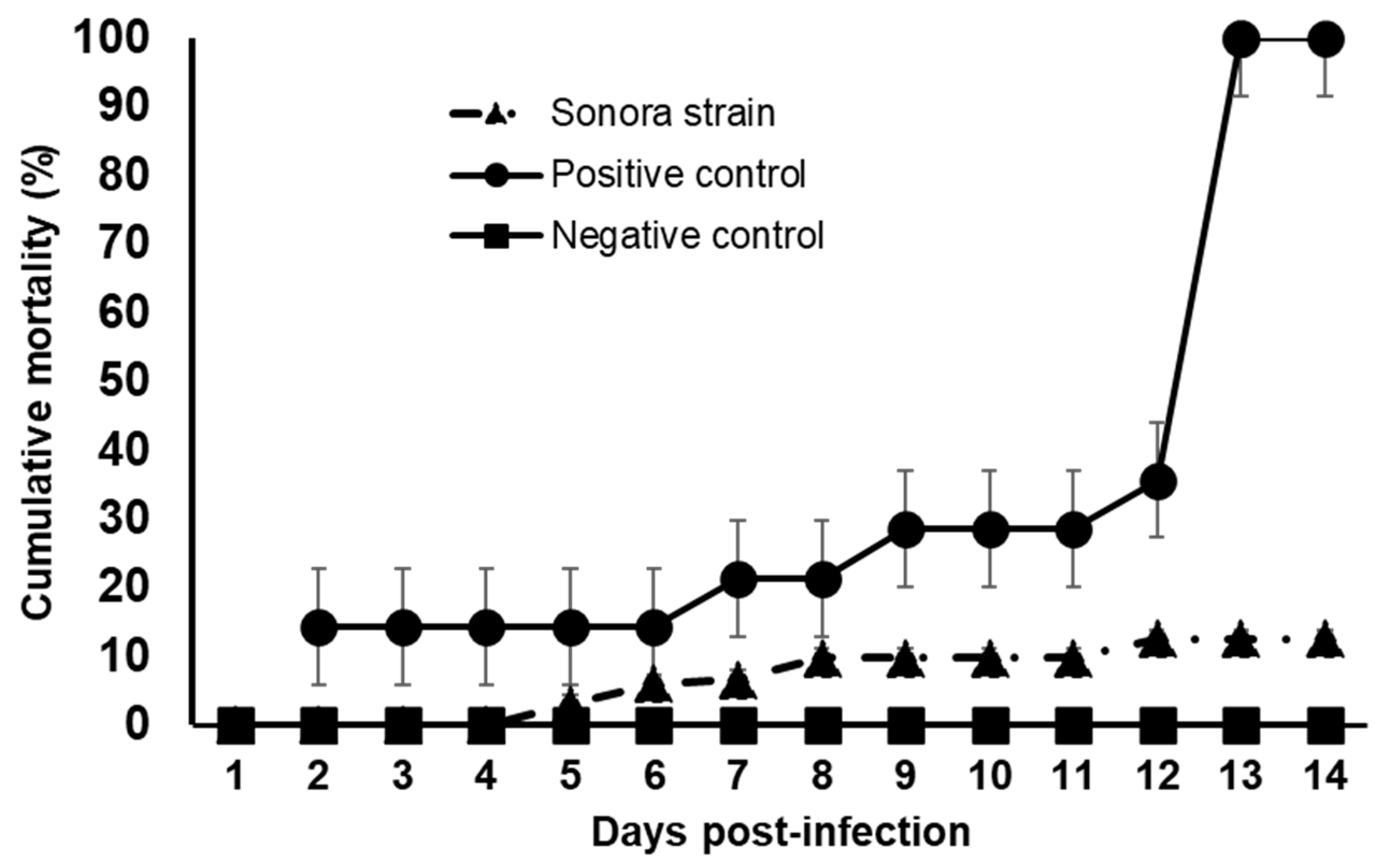

Diets supplemented with the Sonora strain showed significantly (p = 0.05) lower cumulative mortality, close to that of the negative control at 11.1%, at 14 d post-infection, and the positive control started with lethargic and moribund specimens at two days, reaching 90% cumulative mortality at 14 d (Figure 6). One-way ANOVA and Dunnett’s multiple comparison test showed significant differences among trials as compared with the control (p < 0.05). Regarding qPCR results, we did not find DNA copies of the pirA and pirB genes in the samples of stomach, hepatopancreas, and intestine of Sonora and negative control samples.

3.5. De Novo Assembly, Annotation, and Phylogenetic Analysis of the Sonora Isolate

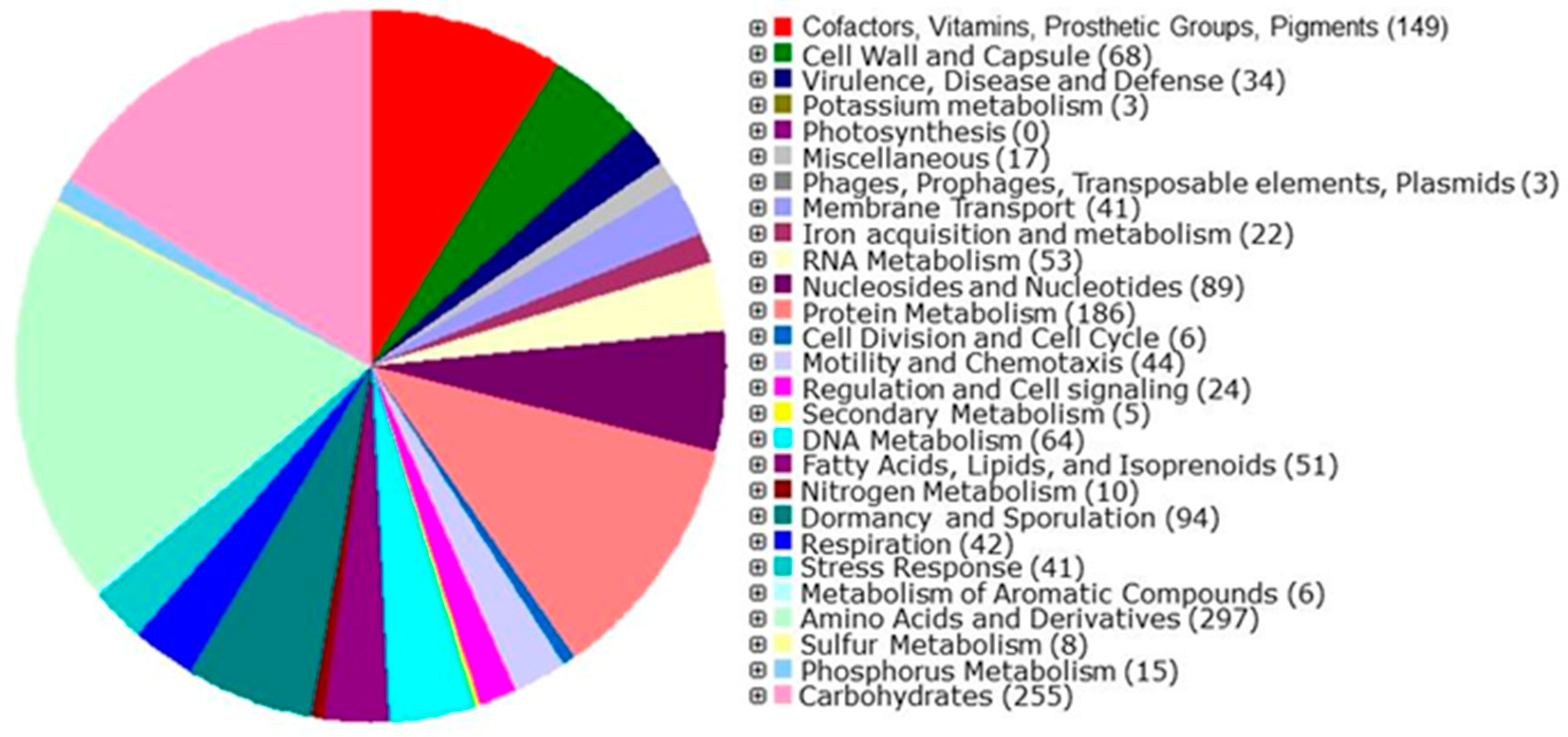

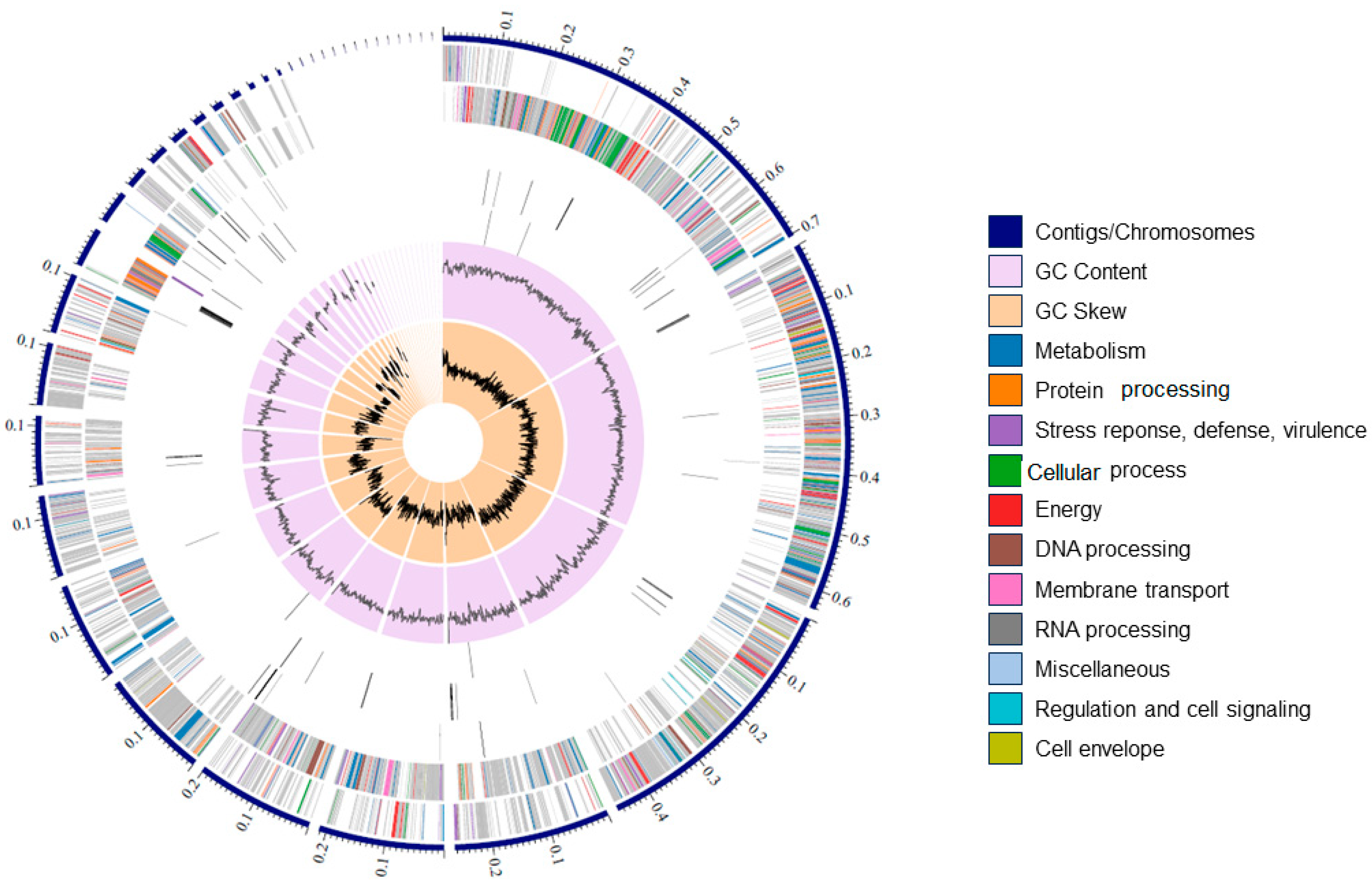

Results from the genome characterization of the Sonora isolate are described in Table 3. After filtering with TrimGalore to remove sequencing adapter sequences and de novo assembly following the a5 pipeline, we obtained 37 contigs, a genome with a length of 3,512,470 bp, a GC content of 41.7%, an N50 of 264,060, and a mean coverage of 190. After their assembly, whole genome annotation was performed using Rapid Annotation Subsystem Technology (RAST v2.0). We predicted and identified 3734 protein-coding genes in 327 subsystems (Figure 7), of which seven genes were related to the biosynthesis of bacteriocins and ribosomal synthesized AMP (bacitracin), six genes were related to copper homeostasis, two genes were related to resistance to cobalt–zinc–cadmium, five genes were related to secondary metabolism (alkylpyrone synthase and auxin biosynthesis), and 10, 11, and 41 genes were related to nitrogen metabolism, phosphorus, and stress response, respectively. The genome of isolated Sonora contained 80 RNAs, 70 tRNAs, and 10 rRNAs. The bacteria did not have plasmids (Table 2). A comparison of the studied genome with other Bacillus genomes revealed that the Sonora strain belonged to Bacillus pumilus (Figure 7).

Genes Related to the Synthesis of AMP-Related Genes

Based on the antiSMASH version 7.1.0 analysis, the predicted AMP in the B. pumilus strain Sonora consisted of an NRPS (nonribosomal peptide synthetase) resembling the surfactin biosynthetic gene cluster (BGC), a beta-lactone with a BGC similar to fengycin, a hybrid NI-siderophore, a terpene cluster with a BGC similar to schizokinen, an NRP-metallopore similar to bacillibactin, a hybrid cluster with an NRPS, a type I paenilamycin-like PKS, and two lichenysin-like NRPSs. Another type of secondary metabolite was identified with a BGC similar to bacilysin, and a terpene, RRE-containing, beta-lactone, RiPP-like and type 3 PKS with an undetermined BGC. Table 4 and Figure 8 show more detailed information regarding the subsystems contained in the genome.

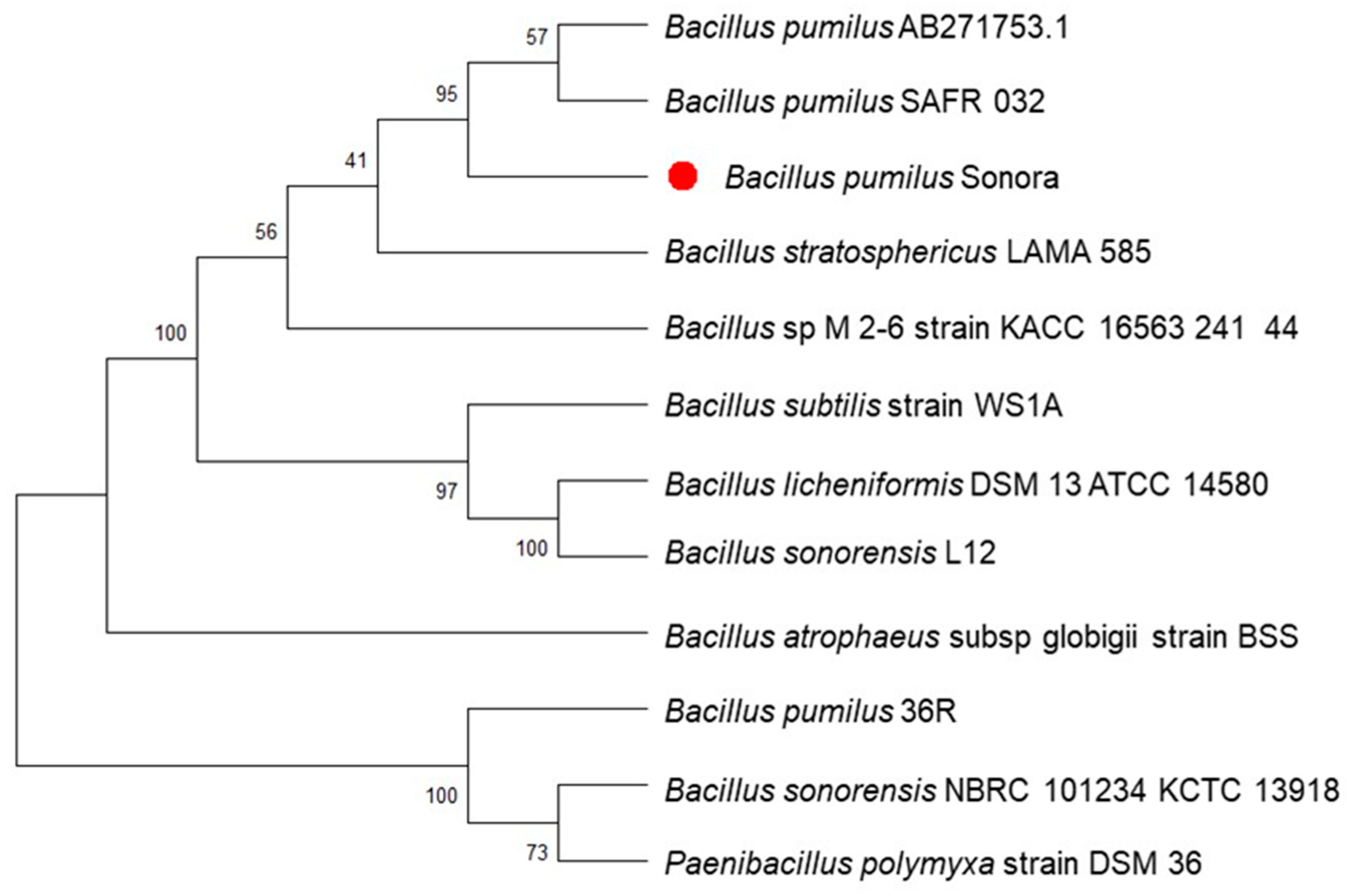

A phylogenetic tree was constructed to identify the most closely related strains to the Sonora isolate. The closest references and representative genomes were identified using Mash/MinHash. PGfams were selected from these genomes to determine the phylogenetic location of B. pumilus Sonora, protein sequences were aligned with MUSCLE, and nucleotides from each of those sequences were assigned to the protein alignment. Our results show that the B. pumilus Sonora strain is closely related to B. pumilus NJ-M2 and B. pumilus SARF-032315750.8 (Figure 9).

4. Discussion

Shrimp farming has significantly contributed to aquaculture production worldwide. However, this production is affected by various diseases [40]. One of the most relevant pathogens is VpAHPND, considered a constant threat in the shrimp industry [41], generating significant economic losses, estimated at approximately more than USD 1 billion per year [2]. Several alternatives have been suggested for the eradication or control of shrimp diseases with agents different from antibiotics due to VpAHPND strains resistance [42]. Among them, the application of probiotics has been preferred as a better alternative, since they confer antagonism against pathogens and help to develop the shrimp immune system, provide nutritional benefits, and assist the intestinal mucosal barrier, and are environmentally friendly and compatible with aquaculture [43].
In this study, bacterial isolates were analyzed to determine their antagonistic potential against VpAHPND and their enzymatic activity, and identify several genomic characteristics of the best candidate as a probiotic. Our results showed that the B. pumilus Sonora strain had the best profile among the candidates. Reports on the antagonistic activity of bacteria against different pathogenic strains of Vibrio sp. have demonstrated that the use of probiotics is the best alternative strategy for the control of pathogens in shrimp farms [44] due to the production of secondary metabolites that contribute to the antagonistic activity, such as aryl-polyene, polyketide synthase (PKS), or bacteriocins that, through different mechanisms such as bacterial competition, release these molecules and inhibit other bacteria [45].
Enzymatic assays for proteases, cellulases, amylases, and the hemolytic activity of the isolates were performed, and the Sonora strain presented cellulolytic and proteolytic activity. In addition to being an excellent antagonist against VpAHPND, this isolate had enzymes that may improve digestive activity by breaking down complex macromolecules, increasing digestion or nutrient absorption [46]. The presence of digestive enzymes in probiotic bacterial strains, such as proteases, amylases, and lipases, may contribute to the digestive process and the production of nutrients in shrimp, which is beneficial for growth, survival, and health in shrimp culture systems [47]. Sonora isolates presented γ hemolysis, and thus their use in fish and shrimp will not have a negative effect [48].
Furthermore, the B. pumilus Sonora strain, in addition to other isolates, was selected as the best inhibitor of VpAHPND biofilm formation. The strains used in this study have marine origins on the Pacific Ocean coasts. In particular, the B. pumilus Sonora strain was isolated from saline sediment, and this bacterium is a rich source of beneficial compounds because it produces new bioactive and anti-biofilm compounds that have not been isolated from terrestrial species. Nithya et al. [49], who evaluated the effects of supernatants of cultures of B. pumilus S6-15 on the formation of gram-positive and gram-negative biofilms, demonstrated that bacterial culture supernatants inhibited the initial attachment and biofilm formation and dispersed the mature biofilm.
During the AHPND challenge assays, our results demonstrated the effectiveness of the Sonora strain as a probiotic since it protected shrimps from the pathogenic effects of the toxins produced by the pirA and pirB genes, with a cumulative mortality of only 11.1%. In addition, our negative qPCR results detected that these genes indicated the bactericidal effect of the Sonora strain to eradicate the pathogenic VpAHPND from the stomach, hepatopancreas, and intestine. Other B. pumilus strains have been reported in challenge assays with a cumulative survival of 75.6%, although mixed with B. subtilis and/or B. licheniformis [50]. Bacillus isolates B2 and BT also showed good probiotic properties and were safe for hosts [51]. B. pumilus and three other species (Pseudomonas putida, P. fluorescens, and Micrococcus luteus) are included in commercial probiotics for aquaculture (Prowins Biotech Private Ltd., Hyderabad, India), but they have not been evaluated against VpAHPND, or specifically in shrimp aquaculture [52]. A few bacterial isolates, O-741, B. subtilis K3, B. velezensis [18,19,20], and others from saline sediment have also been reported as excellent probiotics to eliminate VpAHPND, including B. safensis 13L LOBSAL and B. pumilus 36R ATNSAL [33]. Furthermore, Bacillus species have been used frequently as probiotics for the treatment and/or prevention of diseases in plants, humans, and animals because they produced bacteriocins, trypsin, lipase, amylase, and AMP [33], similar to the results reported here for the Sonora strain.
Based on phylogenetic analyses, the Sonora isolate was identified as B. pumilus. Among the various species of probiotics discovered, species of Bacillus have the best probiotic properties because they produce antimicrobial substances with activity against many bacteria of interest in aquaculture [53,54]. In addition to their sporulation potential, this characteristic extended the period of effectiveness of the bacteria, giving them a double advantage in terms of survival in various environments compared with other probiotics [53]. Some of the mechanisms by which Bacillus species inhibit pathogens, in addition to the synthesis of antimicrobials, involve competition for adhesion sites, inhibition of virulence gene expression by quorum quenching, and the production of lytic enzymes [54,55,56]. B. pumilis Sonora shares the highest similarity with B. pumilus NJ-M2 1408.93 and B. pumilus SAFR-032 315750.8. The former was isolated from soil samples of different agricultural lands [57], unlike the bacteria in this study, which were obtained from saline sediment. However, NJ-M2 produces bacteriocins against different pathogenic bacteria, such as Staphylococcus aureus, S. epidermidis, Enterococcus faecalis, and Streptococcus pneumoniae. Regarding B. pumilus SAFR-032 [58], genome annotation showed that it contained 3715 protein-coding genes, 21 rRNAs, and 72 tRNAs, whereas B. pumilus Sonora contained 24 more coding genes than SAFR-032. However, this strain contained 11 ribosomal rRNAs and two additional tRNAs compared with those of the Sonora strain. The genome of B. pumilus 36R ATNSAL, isolated from saline sediments, had a genome size of 3,941,096 bp, with a GC content of 41.1%, assembled into 283 contigs, an N50 of 49.07 kbp, and a total of 3947 coding genes, 14 rRNAs, and 70 tRNAs [33], and compared with the genome of B. pumilus Sonora, the genome of this strain had a length of 3,512,470 bp, a GC content of 41.74%, an N50 of 26.4 kbp, a variation of 4 rRNAs, and 240 fewer coding sequences compared with 36R ATNSAL (Table 5).
The antiSMASH assay showed that B. pumilus Sonora shares a Bacillus surfactin BCG similar to that of B. velezensis FZB42. This is another bacterium that exerts an antagonistic effect against plant pathogens by producing various antimicrobial agents [59], including surfactin, which is an amphiphilic cyclic nonribosomal lipopeptide that consists of a peptide acyclic heptameric acid attached to a beta-hydroxy fatty acid chain and interacts with the cell membrane. Surfactins inhibit the growth of Salmonella sp. biofilm and inhibit the adhesion of Listeria monocytogenes and Pseudomonas fluorescens by more than 54% [60]. Alternatively, the genome contains a BGC similar to fengycin, a cyclic lipopeptide used as a fungicide and synthesized by Bacillus subtilis as an immune response against fungal infection, acting by damaging the cell membrane of the fungal target [61]. Another predicted BGC is similar to the schizokinen siderophore of the gene cluster found in Leptolyngbya. Siderophores are low molecular weight molecules that function as iron chelators; many microorganisms secrete them to collect ferric iron from the environment [62]. Schizokinen is a siderophore of the hydroxamate type that is a powerful Fe3+ chelator and antioxidant [63]. Despite these characteristics, this siderophore has not been studied in the context of aquaculture. A BGC similar to bacilysin was also predicted in the Sonora isolate, an algaecide compound that disrupts the cell wall of algae and cell membranes of organelles, which explains why it is used to suppress the growth of dangerous algal species, as well as for its anticyanobacterial activity that helps mitigate the dangerous effects of algal blooms [64]. Bacillus velezensis GY65 has a core of genes coding for the synthesis of bacilysin, defensins, macrolactin, and surfactin, giving the bacterium antagonistic potential against pathogenic bacteria [65] in addition to supporting the prevention and control of diseases in aquatic animals. The genome of B. pumilus Sonora also contains a BGC similar to that of bacillibacteria, as bacillibactins E and F are characterized as bacterial siderophores that contain nicotinic and benzoic acid moieties [66]. Bacillibactin is a potential AMP against multidrug-resistant pathogens such as Staphylococcus aureus, Enterococcus faecalis, Pseudomonas aeruginosa, and Klebsiella pneumoniae; thus, it may have antagonistic activity against various pathogenic Vibrio species [67]. B. subtilis BSXE-1601 and B. subtilis (K3) were previously reported as antagonists against several pathogenic species of Vibrio, including VpAHPND [19,68], because their genome harbored genes encoding AMP similar to B. pumilus Sonora (bacillibactin, fengycin, surfactin, and subtilosin A), which have antagonistic activity against pathogenic strains, particularly against VpAHPND [68]. Therefore, the metabolites responsible for this inhibition may be those mentioned above. In addition, this bacterium may have high potential to be used as a multifunctional biological agent in aquaculture against different microorganisms. To verify whether the biosynthetic activity of the antimicrobial compounds found in B. pumilus Sonora is specific to this bacterium, comparative genomics studies of this and other B. pumilus species are needed.
In conclusion, this study demonstrated that the isolated bacterial Sonora strain, subsequently identified as B. pumilus, has probiotic potential in shrimp due to its antagonistic activity against one of the most important pathogens in shrimp aquaculture, VpAHPND, which shows a high mortality rate and resistance to antimicrobials commonly used in shrimp farms. In addition, B. pumilus Sonora has additional desirable characteristics to be considered as a probiotic, such as the potential to produce cellulase and protease enzymes that help aquatic organisms with nutrient uptake and digestion. Furthermore, the study of genomic sequences provided insight into the possible mechanisms by which B. pumilus Sonora antagonizes VpAHPND and provides evidence supporting its antimicrobial potential in aquaculture.

Author Contributions

Conceptualization, L.G.-S. and K.A.S.-M.; methodology, V.M.M.-G. and K.A.S.-M.; software, J.C.I.-G. and R.G.F.; validation, B.G.G. and Z.J.M.G.; formal analysis, V.M.M.-G. and J.C.I.-G.; investigation, K.A.S.-M., L.G.-S., V.M.M.-G., and J.C.I.-G.; resources, L.G.-S. and Z.J.M.G.; data curation, K.A.S.-M., R.G.F., B.G.G., and L.G.-S.; writing—original draft preparation, K.A.S.-M.; writing—review and editing, L.G.-S. and R.G.F.; visualization, R.G.F.; supervision, Z.J.M.G. and V.M.M.-G.; project administration, L.G.-S.; funding acquisition, L.G.-S., J.C.I.-G. and Z.J.M.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financed by Consejo Nacional de Humanidades, Ciencia y Tecnología (CONAHCYT), under grant number 3157, and Programa de Apoyo a la Investigacion Científica y Tecnológica (PROACTI-UANL), grant number 80-CA-2023.

Data Availability Statement

The Whole Genome Shotgun project BioProject PRJNA980260 and BioSample SAMN35624284 for B. pumilus Sonora have been deposited at the DDBJ/ENA/GenBank under the accession number JASUAF000000000. Versions described in this manuscript correspond to JASUAF010000000 (https://www.ncbi.nlm.nih.gov/nuccore/JASUAF000000000, accessed on 24 July 2024).

Acknowledgments

We thank the staff of the Laboratory of Molecular and Experimental Pathology of the FCB for their technical assistance. We are also grateful to CONAHCyT for the scholarship granted to the first author (KASM) during her Ph.D. degree.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Stieglitz, J.D.; Touchton, M.; Benetti, D.D.; Rothen, D.; Clark-Hughes, A.; Haus, B.K.; Zangroniz, A.; Suman, D.O. Chapter 5: Global Marine Aquaculture Development. In Ocean and Society an Introduction to Marine Studies; Spalding, A., Suman, D., Eds.; Routledge: London, UK, 2023; pp. 59–78. [Google Scholar] [CrossRef]
  2. Food and Agriculture Organization of the United Nations. The State of World Fisheries and Aquaculture Blue Transformation in Action; FAO: Rome, Italy, 2024; 264p. [Google Scholar] [CrossRef]
  3. Soo, T.C.C.; Bhassu, S. Signature selection forces and evolutionary divergence of immune-survival genes compared between two important shrimp species. PLoS ONE 2023, 18, e0280250. [Google Scholar] [CrossRef] [PubMed]
  4. [CONAPESCA] Comisión Nacional de Acuacultura y Pesca. Anuario Estadístico de Acuacultura y Pesca. CONAPESCA, México. 2021. Available online: https://nube.conapesca.gob.mx/sites/cona/dgppe/2021/ANUARIO_ESTADISTICO_DE_ACUACULTURA_Y_PESCA_2021.pdf (accessed on 14 June 2024).
  5. Asche, F.; Anderson, J.L.; Botta, R.; Kumar, G.; Abrahamsen, E.B.; Nguyen, L.T.; Valderrama, D. The economics of shrimp disease. J. Invertebr. Pathol. 2021, 186, 107397. [Google Scholar] [CrossRef] [PubMed]
  6. Soto-Rodriguez, S.A.; Lozano-Olvera, R.; Ramos-Clamont, M.G.; Zenteno, E.; Sanchez-Salgado, J.L.; Vibanco-Perez, N.; Aguilar-Rendon, K.G. New insights into mechanism of action of PirAB from Vibrio parahemolyticus. Toxins 2022, 14, 243. [Google Scholar] [CrossRef]
  7. Joshi, J.; Srisala, J.; Truong, V.H.; Chend, T.I.; Nuangsaenge, B.; Suthienkul, O.; Lo, C.F.; Flegel, T.W.; Sritunyalucksana, K.; Thitamadee, S. Variation in Vibrio parahaemolyticus isolates from a single Thai shrimp farm experiencing an outbreak of acute hepatopancreatic necrosis disease (AHPND). Aquaculture 2014, 428–429, 297–302. [Google Scholar] [CrossRef]
  8. Gonzalez-Gomez, J.P.; Soto-Rodriguez, S.; Lopez-Cuevas, O.; Castro-Del Campo, N.; Chaidez, C.; Gomez-Gil, B. Phylogenomic analysis supports two possible origins for Latin American strains of Vibrio parahemolyticus associated with acute hepatopancreatic necrosis disease (AHPND). Curr. Microbiol. 2020, 7, 3851–3860. [Google Scholar] [CrossRef] [PubMed]
  9. Dhar, A.K.; Piamsomboon, P.; Aranguren-Caro, L.F.; Kanrar, S.; Adami, R.; Juan, Y.S. First report of acute hepatopancreatic necrosis disease (AHPND) occurring in the USA. Dis. Aquat. Org. 2019, 132, 241–247. [Google Scholar] [CrossRef] [PubMed]
  10. Han, J.E.; Choi, S.K.; Han, S.-H.; Lee, S.C. Genomic and histopathological characteristics of Vibrio parahaemolyticus isolated from an acute hepatopancreatic necrosis disease outbreak in Pacific white shrimp (Penaeus vannamei) cultured in Korea. Aquaculture 2020, 524, 735284. [Google Scholar] [CrossRef]
  11. Tang, K.F.J.; Bondad-Reantaso, M.G.; Arthur, J.R.; MacKinnon, B.; Hao, B.; Alday-Sanz, V.; Liang, Y.; Dong, X. Shrimp Acute Hepatopancreatic Necrosis Disease Strategy Manual; FAO Fisheries and Aquaculture Circular 1190; FAO: Rome, Italy, 2020; 80p. [Google Scholar] [CrossRef]
  12. Kumar, V.; Roy, S.; Kumar, M.D.; Kumar, S.U. Application of probiotics in shrimp aquaculture: Importance, mechanism of action, and methods of administration. Rev. Fish. Sci. Aquac. 2016, 24, 342–368. [Google Scholar] [CrossRef]
  13. Food and Agricultural Organization of the United Nations. Report on Joint FAO/WHO Expert Consultation on Evaluation of Health and Nutritional Properties of Probiotics in Food Including Powder Milk with Live Lactic Acid Bacteria; FAO: Cordoba, Spain, 2001; 30p. [Google Scholar]
  14. Verschuere, L.; Rombaut, G.; Sorgeloos, P.; Verstrae, W. Probiotic bacteria as biological control agents in aquaculture. Microbiol. Mol. Biol. Rev. 2000, 64, 655–671. [Google Scholar] [CrossRef] [PubMed]
  15. Decamp, O.; Moriarty, D.J.W.; Lavens, P. Probiotics for shrimp larviculture: Review of field data from Asia and Latin America. Aquac. Res. 2008, 39, 334–338. [Google Scholar] [CrossRef]
  16. Rengipipat, S.; Rukprantanporn, S.; Piyatiratitivorakul, S.; Menasaveta, P. Immunity enhancement in black tiger shrimp (Penaeus monodon) by a probiont bacterium (Bacillus S11). Aquaculture 2000, 191, 271–288. [Google Scholar] [CrossRef]
  17. Vaseeharan, B.; Ramasamy, P. Control of pathogenic Vibrio spp. by Bacillus subtilis BT23, a possible probiotic treatment for black tiger shrimp Panaeus monodon. Appl. Microbiol. Int. 2003, 36, 83–87. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, Y.-A.; Chiu, W.-C.; Wang, T.-Y.; Wong, H.; Tang, C.-T. Isolation and characterization of an antimicrobial Bacillus subtilis strain O-741 against Vibrio parahaemolyticus. PLoS ONE 2024, 19, e0299015. [Google Scholar] [CrossRef] [PubMed]
  19. Proespraiwong, P.; Mavichak, R.; Imaizumi, K.; Hirono, I.; Unajak, S. Evaluation of Bacillus spp. as potent probiotics with reduction in AHPND-related mortality and facilitating growth performance of Pacific white shrimp (Litopenaeus vannamei) farms. Microorganisms 2023, 11, 2176. [Google Scholar] [CrossRef] [PubMed]
  20. Chauyod, K.; Rattanavarin, K.; Sarapukdee, P.; Porntheeraphat, S.; Sritunyalucksana, K.; Khemthongcharoen, N. Bacillus velezensis suppression on the growth of Vibrio parahaemolyticus causing acute hepatopancreatic necrosis disease in marine shrimp. J. Appl. Aquac. 2023, 35, 1202–1216. [Google Scholar] [CrossRef]
  21. Galaviz-Silva, L.; Robles-Valdez, A.; Sánchez-Díaz, R.; Ibarra-Gamez, J.C.; Gómez-Gil, B.; Molina-Garza, Z.J. Cepas de Vibrio parahaemolyticus que causan necrosis hepatopancreática aguda en camarón cultivado de Sonora, México y su resistencia a antibióticos. Hidrobiológica 2021, 31, 111–123. [Google Scholar] [CrossRef]
  22. Trinh Ngoc, A.; Nguyen Thanh, T.; Huynh Kim, H.; Pham Kim, L.; Huynh Truong, G.; Truong Quoc, P. Selection of lactic acid bacteria (LAB) antagonizing Vibrio parahaemolyticus: The pathogen of acute hepatopancreatic necrosis disease (AHPND) in whiteleg shrimp (Penaeus vannamei). Biology 2019, 8, 91. [Google Scholar] [CrossRef] [PubMed]
  23. Santos-Beneit, F.; Ceniceros, A.; Nikolaou, A.; Salas, J.A.; Gutierrez-Merino, J. Identification of antimicrobial compounds in two Streptomyces sp. strains isolated from beehives. Front. Microbiol. 2022, 13, 742168. [Google Scholar] [CrossRef] [PubMed]
  24. Galaviz-Silva, L.; Cázares-Jaramillo, G.E.; Ibarra-Gámez, J.C.; Molina-Garza, V.M.; Sánchez-Díaz, R.; Molina-Garza, Z.J. Assessment of probiotic bacteria from marine coasts against Vibrio parahaemolyticus (AHPND strains) in Litopenaeus vannamei. Aquac. Res. 2021, 52, 6396–6409. [Google Scholar] [CrossRef]
  25. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  26. Luo, J.; Wang, Y.; Tang, S.; Liang, J.; Lin, W.; Luo, L. Isolation and identification of algicidal compound from Streptomyces and algicidal mechanism to Microcystis aeruginosa. PLoS ONE 2013, 8, e76444. [Google Scholar] [CrossRef] [PubMed]
  27. Avendaño-Herrera, R.; Lody, M.; Riquelme, C.E. Production of inhibitory substances among bacterial biofilms on marine substrates. Rev. Biol. Mar. Oceanogr. 2005, 40, 117–125. [Google Scholar] [CrossRef]
  28. López-León, P.; Luna-González, A.; Escamilla-Montes, R.; Flores-Miranda, M.C.; Fierro-Coronado, J.A.; Álvarez-Ruiz, P.; Diarte-Plata, G. Isolation and characterization of infectious Vibrio parahaemolyticus, the causative agent of AHPND, from the whiteleg shrimp (Litopenaeus vannamei). Lat. Am. J. Aquat. Res. 2016, 44, 470–479. [Google Scholar] [CrossRef]
  29. Sánchez, T.; León, J.; Woolcott, J.; Arauco, K. Extracellular proteases produced by marine bacteria isolated from sea water contaminated with fishing effluents. Rev. Peru. Biol. 2004, 11, 179–186. [Google Scholar] [CrossRef]
  30. Famuyide, I.; Aro, A.; Fasina, F.; Eloff, J.; McGaw, L. Antibacterial and antibiofilm activity of acetone leaf extracts of nine under-investigated south African Eugenia and Syzygium (Myrtaceae) species and their selectivity indices. BMC Complement. Altern. Med. 2019, 19, 141. [Google Scholar] [CrossRef] [PubMed]
  31. Manilal, A.; Selvin, J.; Sugathan, S.; Panikkar, M.V.N. Evaluation of therapeutic efficacy of Indian green alga, Acrosiphonia orientalis (j. agardh) in the treatment of vibriosis in Penaeus monodon. Thalassas 2011, 28, 33–46. [Google Scholar]
  32. Sugathan, S.; Manilal, A.; Selvin, J. Development of a Probiotic for the Management of Shrimp Vibriosis; Scholars’ Press: London, UK, 2014; pp. 96–98. Available online: https://www.perlego.com/book/3221029/development-of-novel-probiotic-for-the-management-of-shrimp-vibriosis-pdf (accessed on 1 May 2024).
  33. Sánchez-Diaz, R.; Molina-Garza, Z.; Cruz-Suarez, L.E.; Selvin, J.; Kiran, G.S.; Gómez-Gil, B.; Galaviz-Silva, L.; Ibarra-Gámez, J.C. Draft genome sequences of Bacillus pumilus 36R ATNSAL and B. safensis 13L LOBSAL, two potential candidate probiotic strains for shrimp aquaculture. J. Glob. Antimicrob. Resist. 2022, 31, 304–308. [Google Scholar] [CrossRef]
  34. Soto-Rodriguez, S.A.; Gomez-Gil, B.; Lozano-Olvera, R.; Betancourt-Lozano, M.; Morales-Covarrubias, M.S. Field and experimental evidence of Vibrio parahaemolyticus as the causative agent of acute hepatopancreatic necrosis disease of cultured shrimp (Litopenaeus vannamei) in Northwestern Mexico. Appl. Environ. Microbiol. 2015, 81, 1689–1699. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, W.; Hann Ng, T.; Wu, J.; Chen, J.; Wang, H. Microbiome dynamics in a shrimp grow-out pond with possible outbreak of acute hepatopancreatic necrosis disease. Sci. Rep. 2017, 7, 9395. [Google Scholar] [CrossRef] [PubMed]
  36. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.M.; Nikolenko, S.I.; Pham, S.; Prjibelski, A.D.; et al. SPAdes: A new genome assembly algorithm and its applications to single-cell sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef]
  37. Medema, M.H.; Blin, K.; Cimermancic, P.; de Jager, V.; Zakrzewski, P.; Fischbach, M.A.; Weber, T.; Takano, E.; Breitling, R. AntiSMASH: Rapid identification, annotation and analysis of secondary metabolite biosynthesis gene clusters in bacterial and fungal genome sequences. Nucleic Acids Res. 2011, 39, W339–W346. [Google Scholar] [CrossRef] [PubMed]
  38. Leyton, Y.; Borquez, J.; Darias, J.; Cueto, M.; Días, A.; Riquelme, C. Diketoppiperazines produced by a Bacillus species inhibits Vibrio parahaemolyticus. J. Aquacult Res. Dev. 2012, 3, 144. [Google Scholar]
  39. Velmurugan, S.; Raman, K.; Thanga, V.; Viji, M.B.S.; Donio, J.; Adlin, J.; Babu, M.M.; Citarasu, T. Screening and characterization of antimicrobial secondary metabolites from Halomonas salifodinae MPM-TC and its in vivo antiviral influence on Indian white shrimp Fenneropenaeus indicus against WSSV challenge. J. King Saud Univ. Sci. 2013, 25, 181–190. [Google Scholar] [CrossRef]
  40. Zheng, B.; Bossier, P. Toxicity assessment and anti-Vibrio activity of essential oils: Potential for application in shrimp aquaculture. Rev. Aquac. 2023, 15, 1554–1573. [Google Scholar] [CrossRef]
  41. Kumar, V.; Roy, S.; Behera, B.; Bossier, P.; Das, B. Acute hepatopancreatic necrosis disease (AHPND): Virulence, pathogenesis and mitigation strategies in shrimp aquaculture. Toxins 2021, 13, 524. [Google Scholar] [CrossRef]
  42. Tinwongger, S.; Thawonsuwan, J.; Kondo, H.; Hirono, I. Identification of an anti-lipopolysaccharide factor AV-R isoform (LvALF AV-R) related to Vp_PirAB-like toxin resistance in Litopenaeus vannamei. Fish Shellfish Immunol. 2019, 84, 178–188. [Google Scholar] [CrossRef] [PubMed]
  43. Kumar, S.; Verma, A.K.; Singh, S.P.; Awasthi, A. Immunostimulants for shrimp aquaculture: Paving pathway towards shrimp sustainability. Environ. Sci. Pollut. Res. Int. 2023, 30, 25325–25343. [Google Scholar] [CrossRef] [PubMed]
  44. Sivakumar, N.; Sundararaman, M.; Selvakumar, G. Probiotic effect of Lactobacillus acidophilus against vibriosis in juvenile shrimp (Penaeus monodon). Afr. J. Biotecnol. 2012, 11, 15811–15818. [Google Scholar] [CrossRef]
  45. Burks, D.J.; Norris, S.; Kauffman, K.M.; Joy, A.; Arevalo, P.; Azad, R.K.; Wildschutte, H. Environmental vibrios represent a source of antagonistic compounds that inhibit pathogenic Vibrio cholerae and Vibrio parahaemolyticus strains. MicrobiologyOpen 2017, 6, e504. [Google Scholar] [CrossRef] [PubMed]
  46. Kewcharoen, W.; Srisapoome, P. Probiotic effects of Bacillus spp. from Pacific white shrimp (Litopenaeus vannamei) on water quality and shrimp growth, immune responses, and resistance to Vibrio parahaemolyticus (AHPND strains). Fish Shellfish Immunol. 2019, 94, 175–189. [Google Scholar] [CrossRef] [PubMed]
  47. Dawood, M.A.; Koshio, S.; Abdel-Daim, M.M.; Van Doan, H. Probiotic application for sustainable aquaculture. Rev. Aquac. 2019, 11, 907–924. [Google Scholar] [CrossRef]
  48. Wei, C.; Luo, K.; Wang, M.; Li, Y.; Pan, M.; Xie, Y.; Qin, G.; Liu, Y.; Li, L.; Liu, Q.; et al. Evaluation of potential probiotic properties of a strain of Lactobacillus plantarum for shrimp farming: From beneficial functions to safety assessment. Front. Microbiol. 2022, 13, 854131. [Google Scholar] [CrossRef] [PubMed]
  49. Nithya, C.; Devi, M.G.; Pandian, S.K. A novel compound from the marine bacterium Bacillus pumilus S6-15 inhibits biofilm formation in Gram-positive and Gram-negative species. Biofouling 2011, 27, 519–528. [Google Scholar] [CrossRef] [PubMed]
  50. Lee, C.; Han, J.E.; Kim, J.E.; Kim, S.H.; Kim, J.W.; Eun, J.S.; Lee, K.J. Effect of dietary supplementation of Bacillus spp. on growth performance, and resistance of Pacific white shrimp (Litopenaeus vannamei) to acute hepatopancreatic necrosis disease. Isr. J. Aquac. 2019, 71, 10. [Google Scholar] [CrossRef]
  51. Lim, S.Y.; Loo, K.W.; Wong, W.L. Synergistic antimicrobial effect of a seaweed-probiotic blend against acute hepatopancreatic necrosis disease (AHPND)-causing Vibrio parahaemolyticus. Probiotics Antimicrob. Proteins 2019, 12, 906–917. [Google Scholar] [CrossRef] [PubMed]
  52. Ninawe, A.S.; Selvin, J. Probiotics in shrimp aquaculture: Avenues and challenges. Crit. Rev. Microbiol. 2009, 35, 43–66. [Google Scholar] [CrossRef] [PubMed]
  53. Kuebutornye, F.K.A.; Abarike, E.D.; Lu, Y. A review on the application of Bacillus as probiotics in aquaculture. Fish Shellfish Immunol. 2019, 87, 820–828. [Google Scholar] [CrossRef] [PubMed]
  54. Pinchuk, I.V.; Bressollier, P.; Verneuil, B.; Fenet, B.; Sorokulova, I.B.; Mégraud, F.; Urdaci, C. In vitro Anti-Helicobacter pylori activity of the probiotic strain Bacillus subtilis 3 is due to secretion of antibiotics. Antimicrob. Agents Chemother. 2001, 45, 3156–3161. [Google Scholar] [CrossRef]
  55. Musthafa, K.S.; Saroja, V.; Pandian, S.K.; Ravi, A.V. Antipathogenic potential of marine Bacillus sp. SS4 on N-acyl-homoserine-lactone- mediated virulence factors production in Pseudomonas aureginosa (PAO1). J. Biosci. 2011, 36, 55–67. [Google Scholar] [CrossRef]
  56. Suva, M.; Sureja, V.; Kheni, D. Novel insight on probiotic Bacillus subtilis: Mechanism of action and clinical application. J. Curr. Res. Sci. Med. 2011, 2, 65–72. [Google Scholar] [CrossRef]
  57. Qureshi, K.A.; Bholay, A.D.; Elhassan, G.O.; Khan, R.A.; El-Agamy, I. Isolation, purification and characterization of bacteriocin produced by Bacillus pumilus NJ-M2; a future biopreservative. Int. J. Biol. Pharm. Allied Sci. 2016, 5, 2840–2862. [Google Scholar]
  58. Stepanov, V.G.; Tirumalai, M.R.; Montazari, S.; Checinska, A.; Venkateswaran, K.; Fox, G.E. Bacillus pumilus SAFR-032 Genome revisited: Sequence update and re-annotation. PLoS ONE 2016, 11, e0157331. [Google Scholar] [CrossRef] [PubMed]
  59. Rabbee, M.F.; Baek, K.H. Antimicrobial activities of lipopeptides and polyketides of Bacillus velezensis for agricultural applications. Molecules 2020, 25, 4973. [Google Scholar] [CrossRef] [PubMed]
  60. Kumar, R.A.; Prasad, R.V.; Nagarajan, S. Chapter 23: Antibiofilm activities against food pathogens. In Applications of Next Generation Biosurfactants in the Food Sector; Academic Press: New York, NY, USA, 2023; pp. 479–508. [Google Scholar]
  61. Sur, S.; Romo, T.D.; Grossfield, A. Selectivity and mechanism of fengycin, an antimicrobial lipopeptide from molecular dynamics. J. Phys. Chem. 2018, 122, 2219–2226. [Google Scholar] [CrossRef] [PubMed]
  62. Stintzi, A.; Barnes, C.; Xu, J.; Raymond, K.N. Microbial iron transport via a siderophore shuttle: A membrane ion transport paradigm. Proc. Natl. Acad Sci. USA 2000, 97, 10691–10696. [Google Scholar] [CrossRef]
  63. Wang, S.; Pearson, L.A.; Mazmous, R.; Liu, T.; Neilan, B. Heterologous expression and biochemical analysis reveal a schizokinen -based siderophore pathway in Leptolyngbya (Cyanobacteria). Appl. Environ. Microbiol. 2022, 88, e02373-21. [Google Scholar] [CrossRef]
  64. Wu, L.; Wu, H.; Chen, L.; Xie, S.; Zang, H.; Borris, R.; Gao, X. Bacilysin from Bacillus amyloliquefaciens FZB42 has specific bactericidal activity against harmful algal bloom species. Appl. Environ. Microbiol. 2014, 80, 7512–7520. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, J.; Zhang, D.; Wang, Y.; Lui, Z.; Lui, L.; Shi, C. Probiotic effects of Bacillus velezensis GY65 stran in the mandarin fish, Siniperca chuatsi. Aquac. Rep. 2021, 21, 100902. [Google Scholar] [CrossRef]
  66. Wu, Q.; Throckmorton, K.; Maity, M.; Chevrette, M.G. Bacilibactins E and F from a marine sponge-associated Bacillus sp. J. Nat. Prod. 2022, 84, 136–141. [Google Scholar] [CrossRef] [PubMed]
  67. Chakraborty, K.; Kizhakkekalam, V.K.; Joy, M.; Chakraborty, R.D. Bacillibactin class of siderophore antibiotics from a marine symbiotic Bacillus as promising antibacterial agents. Appl. Microbiol. Biotechnol. 2022, 106, 329–340. [Google Scholar] [CrossRef] [PubMed]
  68. Wang, D.; Li, J.; Zhu, G.; Zhao, K.; Jiang, W.; Li, H.; Wang, W.; Kumar, V.; Dong, S.; Zhu, W.; et al. Mechanism of the potential therapeutic candidate Bacillus subtilis BSXE.-1601 against shrimp pathogenic Vibrios and multifunctional metabolites biosynthetic capability of the strain as predicted by genome analysis. Front. Microbiol. 2020, 11, 581802. [Google Scholar] [CrossRef]
Microorganisms 12 01623 g001
Figure 1. Antagonistic activity test of the isolate Sonora (Son) against Vibrio parahaemolyticus (VpAHPND) D11F. Analysis of inhibition zones produced by the well diffusion test.
Figure 1. Antagonistic activity test of the isolate Sonora (Son) against Vibrio parahaemolyticus (VpAHPND) D11F. Analysis of inhibition zones produced by the well diffusion test.
Microorganisms 12 01623 g001
Microorganisms 12 01623 g002

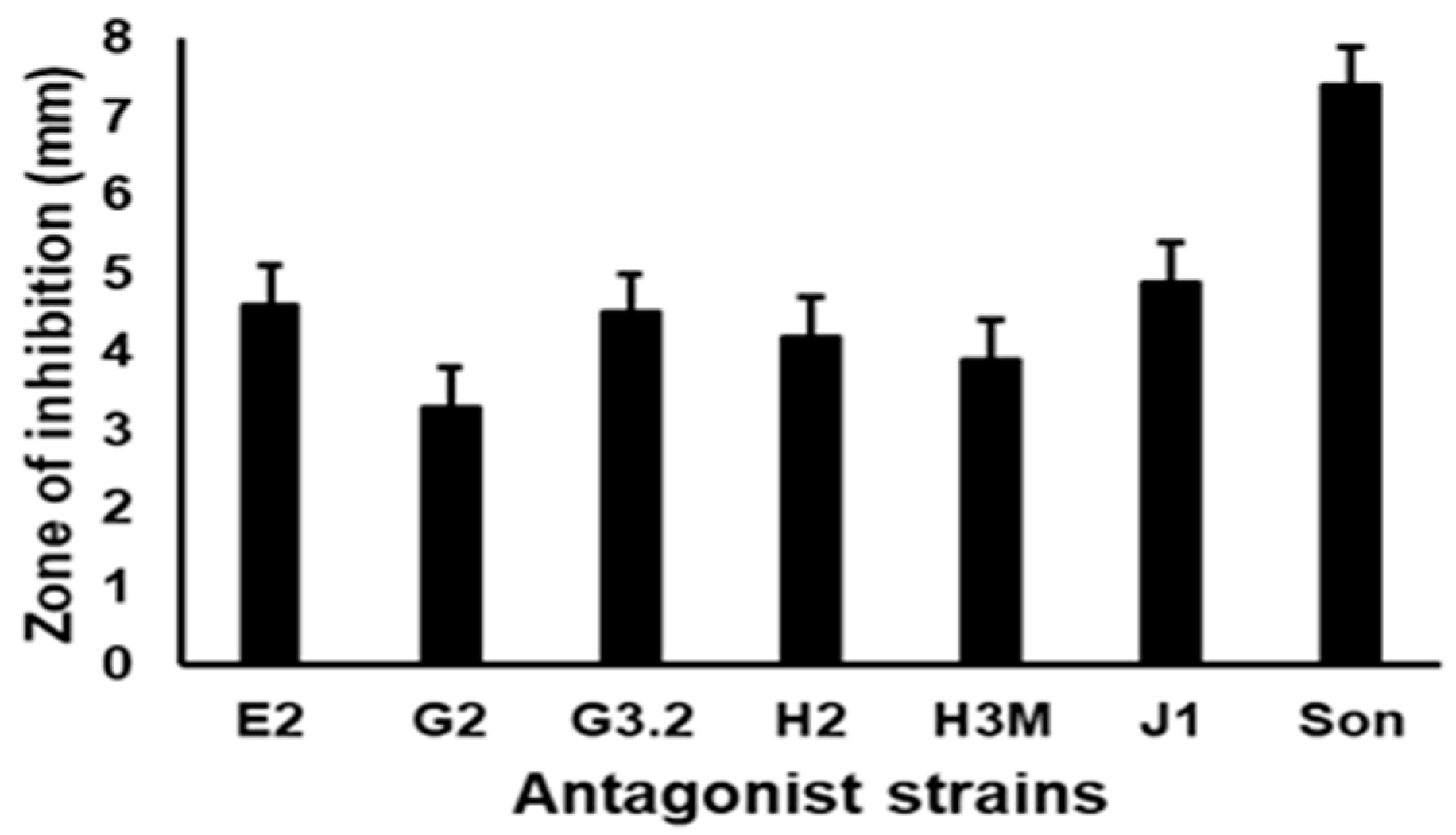

Figure 2. Inhibition halo (mm) of the antagonist strains vs. VpAHPND. Data represent the means ± SD of triplicate determinations. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Figure 2. Inhibition halo (mm) of the antagonist strains vs. VpAHPND. Data represent the means ± SD of triplicate determinations. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Microorganisms 12 01623 g002
Microorganisms 12 01623 g003

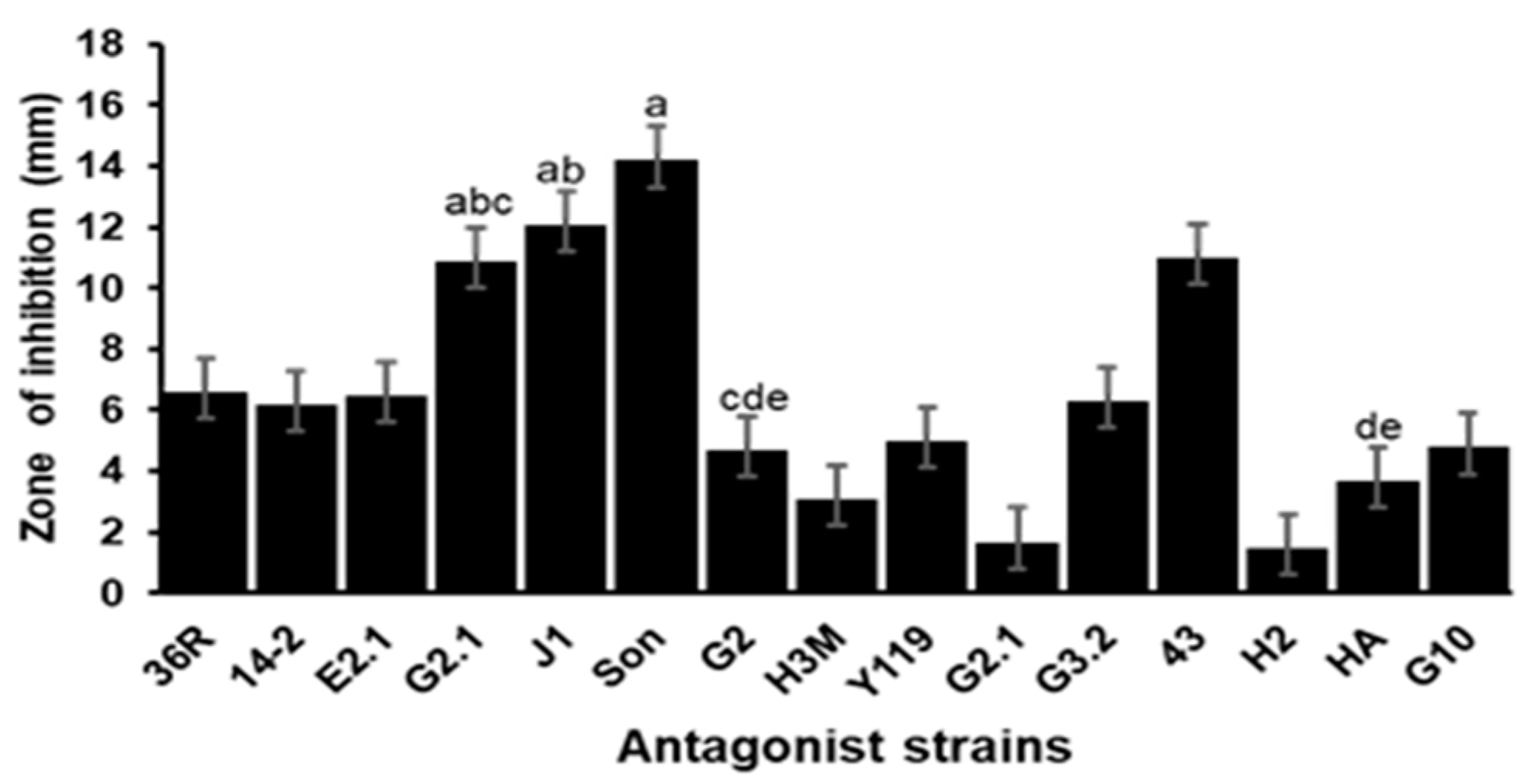

Figure 3. Double layer assay. Inhibition halo (mm) of antagonist strains against Vp AHPND D11F. Data represent the means ± SD of triplicate determinations. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Figure 3. Double layer assay. Inhibition halo (mm) of antagonist strains against Vp AHPND D11F. Data represent the means ± SD of triplicate determinations. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Microorganisms 12 01623 g003
Microorganisms 12 01623 g004
Figure 4. Hemolytic activity of the isolated Sonora against VPAHPND D11F. Representative γ hemolysis (lack of hemolysis) H3M, H2, and Sonora isolates via the well diffusion test.
Figure 4. Hemolytic activity of the isolated Sonora against VPAHPND D11F. Representative γ hemolysis (lack of hemolysis) H3M, H2, and Sonora isolates via the well diffusion test.
Microorganisms 12 01623 g004
Microorganisms 12 01623 g005
Figure 5. Inhibition of preformed biofilm. Data represent the means ± SD of triplicate determinations. ANOVA showed a significance level of p < 0.05. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Figure 5. Inhibition of preformed biofilm. Data represent the means ± SD of triplicate determinations. ANOVA showed a significance level of p < 0.05. Columns with different letters indicate that the means were significantly (p < 0.05) different, according to Tukey’s HSD test.
Microorganisms 12 01623 g005
Microorganisms 12 01623 g006
Figure 6. Cumulative mortality of the bioassays with the Sonora isolate. Data represent the means ± SD of triplicate determinations. The positive control and Sonora strain showed significant (p < 0.001) differences in Dunnett’s multiple comparisons test.
Figure 6. Cumulative mortality of the bioassays with the Sonora isolate. Data represent the means ± SD of triplicate determinations. The positive control and Sonora strain showed significant (p < 0.001) differences in Dunnett’s multiple comparisons test.
Microorganisms 12 01623 g006
Microorganisms 12 01623 g007
Figure 7. Bacillus pumilus Sonora genome. Circular graphic visualization of the distribution of genome annotations. External to internal rings, contigs, CDS forward strand (+), CDS reverse strand (−), RNA genes (rRNA and tRNA), and GC content.
Figure 7. Bacillus pumilus Sonora genome. Circular graphic visualization of the distribution of genome annotations. External to internal rings, contigs, CDS forward strand (+), CDS reverse strand (−), RNA genes (rRNA and tRNA), and GC content.
Microorganisms 12 01623 g007
Microorganisms 12 01623 g008
Figure 8. Schematic distribution of the categories of subsystems contained in the B. pumilus Sonora genome.
Figure 8. Schematic distribution of the categories of subsystems contained in the B. pumilus Sonora genome.
Microorganisms 12 01623 g008
Microorganisms 12 01623 g009
Figure 9. Phylogenetic tree of Bacillus pumilus Sonora (red circle) and its eleven related species based on 16S rDNA sequences. Multiple alignments of amino acids and nucleotides were concatenated into a data matrix via MUSCLE (v.3.8.1551). The maximum likelihood tree was constructed using RAxML v.8.2.12 software with 1000 bootstrap replicates to generate the support values in the tree.
Figure 9. Phylogenetic tree of Bacillus pumilus Sonora (red circle) and its eleven related species based on 16S rDNA sequences. Multiple alignments of amino acids and nucleotides were concatenated into a data matrix via MUSCLE (v.3.8.1551). The maximum likelihood tree was constructed using RAxML v.8.2.12 software with 1000 bootstrap replicates to generate the support values in the tree.
Microorganisms 12 01623 g009
Table 1. Nomenclature and source of isolates from the coast of Sonora, México.
Table 1. Nomenclature and source of isolates from the coast of Sonora, México.
IsolatesSample Source
32aRed mangrove (Rhizophora mangle)
43Chinese clam (Iliochione subrugosa)
SonoraSaline sediment
Y119Seawater
HAMangle mud
J1Seawater
H3MSeawater
H2Hermit crab (Clibanarius panamensis)
G2.1Green seaweed (Enteromorpha sp.)
G2Green seaweed (Enteromorpha sp.)
G3.2Green seaweed (Rhizoclonium sp.)
E2.1Seawater
G10Saline sediment
36RSaline sediment
Table 2. Enzymatic and hemolytic activity assays of the strains.
Table 2. Enzymatic and hemolytic activity assays of the strains.
StrainHemolysisEnzymatic Activity
ProteaseAmylaseCellulase
H3Mγ−+−
H2γ−−+
Sonoraγ+−+
E2.1γ+−+
HAγ−−+
43γ+−+
G2.1γ−−+
G3.2α+−+
Y119α−−+
G10β+−+
J1β−−+
G2N/D+++
32aN/D+−−
Positive (+), negative (−), not determined (N/D).
Table 3. Genomic features of the Bacillus pumilus Sonora strain.
Table 3. Genomic features of the Bacillus pumilus Sonora strain.
FeatureCounts
Genome length3,512,470 bp
GC content41.74%
Plasmid0
Contig L504
Contig N50264,060
Number of coding sequences3734
Number of subsystems327
tRNA70
rRNA10
Table 4. BCGs related to the synthesis of antimicrobials peptides (AMP) contained in the Bacillus pumilus Sonora genome.
Table 4. BCGs related to the synthesis of antimicrobials peptides (AMP) contained in the Bacillus pumilus Sonora genome.
TypeMost Similar Known Biosynthetic Gene Cluster
NRPSSurfactin
BetalactoneFengycin
TerpeneN/D
RRE-containingSchizokinen
BetalactoneN/D
RiPP-likeN/D
T3PKSN/D
NRP-metalloporeBacillibactin
NRPS, T1KPKSPaenilamicin
(2) NRPSLichenysin
OtherBacilysin
Table 5. Comparison of genome characteristics of B. pumilus Sonora with B. pumilus SAFR 032 and 36R.
Table 5. Comparison of genome characteristics of B. pumilus Sonora with B. pumilus SAFR 032 and 36R.
Bacillus pumilus SonoraBacillus pumilus SAFR 032Bacillus pumilus 36R
Genome length3,600,890 bp3,704,641 bp3,941,096 bp
Contigs371283
%GC content41.74%41.5%41.1%
N50264,060 bp3.7 Mb49,075 bp
Protein-coding genes373437103947
tRNA707270
rRNA102114
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Soto-Marfileño, K.A.; Molina Garza, Z.J.; Flores, R.G.; Molina-Garza, V.M.; Ibarra-Gámez, J.C.; Gil, B.G.; Galaviz-Silva, L. Genomic Characterization of Bacillus pumilus Sonora, a Strain with Inhibitory Activity against Vibrio parahaemolyticus-AHPND and Probiotic Candidate for Shrimp Aquaculture. Microorganisms 2024, 12, 1623. https://doi.org/10.3390/microorganisms12081623

AMA Style

Soto-Marfileño KA, Molina Garza ZJ, Flores RG, Molina-Garza VM, Ibarra-Gámez JC, Gil BG, Galaviz-Silva L. Genomic Characterization of Bacillus pumilus Sonora, a Strain with Inhibitory Activity against Vibrio parahaemolyticus-AHPND and Probiotic Candidate for Shrimp Aquaculture. Microorganisms. 2024; 12(8):1623. https://doi.org/10.3390/microorganisms12081623

Chicago/Turabian Style

Soto-Marfileño, Karla A., Zinnia Judith Molina Garza, Ricardo Gomez Flores, Vida Mariel Molina-Garza, José C. Ibarra-Gámez, Bruno Gómez Gil, and Lucio Galaviz-Silva. 2024. "Genomic Characterization of Bacillus pumilus Sonora, a Strain with Inhibitory Activity against Vibrio parahaemolyticus-AHPND and Probiotic Candidate for Shrimp Aquaculture" Microorganisms 12, no. 8: 1623. https://doi.org/10.3390/microorganisms12081623

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
