Article

Infection with the Endonuclear Symbiotic Bacterium Holospora obtusa Reversibly Alters Surface Antigen Expression of the Host Paramecium caudatum

by
Masahiro Fujishima
†,‡
Department of Environmental Science and Engineering, Graduate School of Science and Engineering, Yamaguchi University, Yoshida 1677-1, Yamaguchi 753-8512, Japan
†
Current address: Research Center for Thermotolerant Microbial Resources, Yamaguchi University, Yoshida 1677-1, Yamaguchi 753-8512, Japan.
‡
Current address: Institute for Environmental Radioactivity, Fukushima University, Kanayagawa 1, Fukushima 960-1296, Japan.
Microorganisms 2025, 13(5), 991; https://doi.org/10.3390/microorganisms13050991
Submission received: 22 March 2025 / Revised: 16 April 2025 / Accepted: 22 April 2025 / Published: 25 April 2025
(This article belongs to the Section Molecular Microbiology and Immunology)
Browse Figures
Versions Notes

Abstract

:
It is known that the ciliate Paramecium cell surface including cilia is completely covered by high-molecular-mass GPI-anchored proteins named surface antigens (SAgs). However, their functions are not well understood. It was found that ciliate Paramecium caudatum reversibly changes its SAgs depending on the absence or presence of the endonuclear symbiotic bacterium Holospora obtusa in the macronucleus. Immunofluorescence microscopy with a monoclonal antibody produced SAg of the H. obtusa-free P. caudatum strain RB-1-labeled cell surface of the H. obtusa-free P. caudatum RB-1 cell but not the H. obtusa-bearing RB-1 cell. When this antibody was added to the living P. caudatum RB-1 cells, only H. obtusa-free cells were immobilized. An immunoblot with SAgs extracted from Paramecium via cold salt/ethanol treatment showed approximately 266-kDa SAgs in the extract from H. obtusa-free cells and 188 and 149-kDa SAgs in the extract from H. obtusa-bearing cells. H. obtusa-free RB-1 cells produced from H. obtusa-bearing cells via treatment with penicillin-G-potassium re-expressed 266-kDa SAg, while the 188 and 149-kDa SAgs disappeared. This phenotypic change in the SAgs was not induced by degrees of starvation or temperature shifts. These results definitively show that Paramecium SAgs have functions related to bacterial infection.

1. Introduction

The surface of the cell body and the cilia of the ciliate Paramecium is covered by a 20–30 nm thick layer of high-molecular-weight proteins of 250–300 kDa [1,2,3,4,5,6,7]. In Paramecium, this protein accounts for about 30% of the ciliary proteins and is named the surface antigen (SAg) or immobilization antigen (i-antigen) because the protein is exposed outside the cell surface and the swimming behavior of Paramecium cells incubated with antibodies against the SAg is immobilized [8,9,10]. Paramecium SAg is a glycosylphosphatidylinositol (GPI)-anchored protein with a cysteine periodicity in the entire SAg [11]. It is tethered to the cell surface through a lipid anchor [12,13,14]. Paramecium strains with specific SAgs have been called serotypes. Recently, the genomes of six different Paramecium species were screened for serotype genes and allowed the identification of the subfamilies of the isogenes of individual serotypes that were mostly represented by intrachromosomal gene duplicates [15].
In other organisms, these SAgs fulfill a variety of functions, including the transport of folate [16,17], channel activation [18], and the binding of ligands for signal transduction [19,20,21]. It has been established that the loss of GPI anchoring affects morphogenesis and sporulation in yeast [22] and that GPI-anchored proteins are essential for the growth of Trypanosoma brucei but not for Leishmania mexicana in mammalian cells [23,24]. Furthermore, defects in proteins essential for the localization of GPI-anchored proteins to the cell membrane surface in mice (PIG-A knockout mice) do not survive birth [25], and GPI anchoring is necessary for proper skin differentiation and maintenance [26]. SAg has also been studied in the ciliate Tetrahymena thermophila, but its function remains unknown [27]. However, despite the large number of published articles on SAgs in Paramecium over the past 100 years, their functions remain poorly understood. Yano et al. [28] and Paquette et al. [17] definitively showed specific defects in the chemoresponse to glutamate and folate when the synthesis of GPI-anchored intermediates was reduced, while growth, mating, and swimming behavior seemed to be normal. Conversely, it has been documented that the expressed Paramecium SAg molecules exhibit a response to variations in temperature, pH, salt concentration, type of culture medium, feeding rate, antisera, proteolytic enzymes, UV and X-ray irradiation, patulin, and other antibiotics [29]. Therefore, Paramecium SAg is considered to play a role in adapting to changes in various environmental factors in the field.
The present study is concerned with the phenotypic changes of P. caudatum cells following successful endosymbiosis with endonuclear symbiotic bacteria of the Holospora species to the host nucleus. As previously demonstrated, the infection of endonuclear symbiotic bacteria of the Holospora species results in alterations in the gene expressions of the host concerning intracellular signaling, transcription, and aerobic metabolism [30], as well as heat shock proteins [31,32]. The objective of this study is to determine whether endosymbiosis with the macronucleus-specific H. obtusa modifies the host P. caudatum SAgs and whether the changes in the SAgs are reversible or irreversible, depending on the infection of H. obtusa. Additionally, this study will explore whether the changes in SAgs occur in the same SAgs as those induced by other factors or the specific SAg for infection of H. obtusa.

2. Materials and Methods

2.1. Strains and Cultures

The Holospora obtusa-bearing (symbiotic) Paramecium caudatum strain RB-1 (syngen 4, mating type E) infected with H. obtusa strain F1 and H. obtusa-free (aposymbiotic) RB-1 cells was mainly used in this study. Strain RB-1 cells were collected in 1993 in Stuttgart, Germany by Hans-Dieter Görtz. H. obtusa strain F1 cells were isolated by M. Fujishima using Percoll P4937 (Merk, Darmstadt, Germany) density gradient centrifugation [33] from symbiotic P. caudatum strain c103 collected by H.-D. Görtz (syngen and collected year and place, unknown), and infected the aposymbiotic P. caudatum strain RB-1 cell by mixing them. Symbiotic and aposymbiotic paramecia were cultivated in glass test tubes (18 mm × 180 mm) with a modified Dryl’s solution (MDS) (KH2PO4 was used instead of NaH2PO4·2H2O) [33,34] containing 1.25% (w/v) fresh lettuce juice and 0.0001% (w/v) stigmasterol (Tama Biochemical Co., Ltd., Tokyo, Japan) at 25 °C. The MDS containing fresh lettuce juice and stigmasterol was inoculated with a non-pathogenic Klebsiella pneumoniae strain 6081 one day before use at 25 °C [35]. Strain RB-1 of P. caudatum, 14 strains of P. aurelia species, and 1 strain each of P. polycarium, P. jenningsi, P. duboscqui, P. calkinsi, and P. multimicronucleatum were also used. The strain names of these Paramecium species are given in Table 1 of the results section. The strains of Paramecium used were those of preserved strains in the Fujishima laboratory at Yamaguchi University, Japan. Subsequently, all strains utilized were deposited into the National BioResource Project Paramecium (NBRP-Paramecium, http://nbrpcms.nig.ac.jp/paramecium/) established by M. Fujishima in 2012 at Yamaguchi University (accessed on 30 November 2021).

2.2. Extraction of P. caudatum Surface Antigens by Cold Salt/Ethanol Ttreatment

The surface antigens (SAgs) for aposymbiotic and symbiotic P. caudatum cells were extracted according to the procedure described by Preer [10]. One liter of Paramecium culture in the stationary phase of growth (about 1.0 × 106 cells) was centrifuged at 150 g for 3 min and resuspended in 200 μL of MDS. Then, 800 μL of cold salt/ethanol (10 mM Na2HPO4, 150 mM NaCl, 30% [v/v] ethanol) was added, and the mixture was kept on ice for 1 h. The cell suspension was centrifuged at 25,000× g for 3 min at 4 °C and the supernatant was harvested and mixed with 150 μL of 0.2N HCl with stirring to reduce its pH to 2.0. Then, the supernatant was centrifuged by the same centrifugation, and the pH of the supernatant was increased to 7.0 by adding an equal volume of 0.2N NaOH. The total volume of the extracts was concentrated to 100 μL by ultrafiltration (Sartorius, Göttingen, Germany).

2.3. Production of Monoclonal Antibody

A monoclonal antibody (mAb) specific to the SAg of aposymbiotic P. caudatum strain RB-1 was developed using the method of Galfre and Milstein [36]. Aposymbiotic P. caudatum strain RB-1 cells (2 × 104 cells) suspended in phosphate-buffered saline (PBS, 137 mM NaCl, 2.68 mM KCl, 8.1 mM NaHPO4·12H2O, 1.47 mM KH2PO4, pH 7.2) were injected into the peritoneal cavity of BALB/c mice. The first injection was followed by two booster injections at 2-week intervals. The hybridoma cells producing mAb against the SAg of aposymbiotic P. caudatum RB-1 cells were screened by indirect immunofluorescence microscopy with fluorescein isothiocyanate (FITC)-conjugated goat anti-mouse IgG (G0406, Tokyo Chemical Industry Co., Ltd., Tokyo, Japan) and cloned by limiting dilution [37]. This mAb was named mAb SAgPC and used for indirect immunofluorescence microscopy and immunoblotting in this study. For the development of another mAb specific to the groEL homolog of H. obtusa strain F1, according to Iwatani et al. [38], extracts from excised spots of the H. obtusa groEL homolog on two-dimensional sodium dodecyl sulfate-polyacrylamide gel electrophoresis (2D-SDS-PAGE) gels stained with Coomassie brilliant blue R250 (CBB) (Merck, Darmstadt, Germany) were used as an antigen. This mAb was confirmed not to cross-react with P. caudatum nor its prey, K. pnoemoniae strain 6081, by indirect immunofluorescence microscopy, and used to confirm that H. obtusa in the host P. caudatum RB-1 cells was completely eliminated by penicillin treatment.

2.4. Indirect-Immunofluorescence Microscopy

Paramecium cells were washed with PBS, dried on micro-cover grasses (4.5 × 24 mm, 0.12–0.17 µm thickness, Matsunami micro-cover glass (Kishiwada, Oosaka, Japan), fixed with 4% (w/v) paraformaldehyde for 5 min on ice, washed twice with PBS for 10 min each, and incubated with mAb SAgPC for 1 h at 25 °C. The cover glasses were washed twice with PBS for 10 min each at 4 °C and incubated with fluorescein isothiocyanate (FITC)-conjugated goat anti-mouse IgG (Molecular Probes, Eugene, OR, USA) for 1 h at 25 °C. Then, the cover glasses were washed twice with PBS for 10 min each at 4 °C and observed with a fluorescence microscope, Olympus BH2-RFL (Tatsuno, Nagano, Japan) using the DPlanApo40UV objective. To label live Paramecium cells with mAb SAgPC, cell suspensions of 250 μL of cells in the early stationary phase of growth were mixed with 50 μL of hybridoma culture medium containing mAb SAgPC for 30 min at 25 °C, washed twice with MDS, mixed with 50 μL of FITC-conjugated goat anti-mouse IgG for 30 min at 25 °C, and observed using a fluorescence microscope.

2.5. SDS-PAGE and Immunoblotting

The cold salt/ethanol extracts were mixed with an equal volume of Laemmli’s lysis buffer [39] and boiled for 5 min. Then, 25 μL each of the samples obtained from aposymbiotic and symbiotic cells was subjected to 5% (w/v) SDS-PAGE. The gels were stained with CBB or electroblotted onto the Immobilon-P Poly Vinylidene DiFluoride (PVDF) membrane (Millipore, Bedford, MA, USA). The membrane was incubated with mAb SAgPC for 6 h at room temperature, and the SAg band was detected using Goat anti-mouse IgG + IgM, Alkaline Phosphatase (Biosource, Camarillo, CA, USA), and the BCIP/NBT phosphatase substrate (KPL, Gaithersburg, MD, USA). 2D-SDS-PAGE was performed as previously described by Iwatani et al. [38]. Pre-stain molecular mass markers (Nacalai Tesque Inc., Kyoto, Japan) were used.

2.6. Immobilization Test

The methodology for the SAg immobilization test followed that of previous papers [9,40]. Briefly, a cell suspension of 250 μL of aposymbiotic cells in the early stationary phase of growth was mixed with 50 μL of hybridoma culture medium containing mAb SAgPC at a density of 5000 cells/mL at 25 °C, and we observed whether the cells were immobilized or not every 5 min for the first 30 min, every 10 min for 30–60 min, at 90 min, and every 60 min for 90–360 min. As a control experiment, the cell suspension was mixed with 50 μL of MDS.
Four cover glasses of 4.5 × 24 mm (Matsunami micro-cover glass, Japan) were placed on a glass slide to form a rectangular container for the cell culture medium. An aliquot of cell suspension with or without the mAb (150 µL) was transferred to the container and covered with a 24 × 50 mm cover glass. The glass slide was placed on the stage of a stereomicroscope Olympus SZ-61(Tatsuno, Nagano, Japan) 270 min after mixing with the mAb at 25 °C. Photomicrographs of the swimming loci of the cells were taken under dark-field illumination with an exposure time of 2 s using Fuji chrome 1600 film (Fuji-Film, Tokyo, Japan).

2.7. Creation of Aposymbiotic Cells from Symbiotic Cells

In order to remove H. obtusa from the macronucleus of symbiotic P. caudatum strain RB-1 cells, paramecia were cultivated in a culture medium containing penicillin-G-potassium (ICN, Cincinnati, OH, USA). A stock solution of penicillin-G-potassium was prepared as follows: the antibiotic was dissolved in 10 mM Na-PB, pH 7.0 at a concentration of 25,000 units/mL and kept at −30 °C until use. A quantity of 4.9 mL of the culture medium containing symbiotic cells was mixed with 0.1 mL of a penicillin-G-potassium solution, resulting in an overall concentration of 250 units/mL of penicillin [41]. Then, 5 mL of the fresh culture medium was added on successive days to dilute the antibiotics. Paramecia were observed under a differential-interference-contrast microscope (DIC) and indirect immunofluorescence microscopy on an Olympus BH2-RFL using DPlanApo40UV and DPlanApo100UVPL (Olympus, Tatsuno, Nagano, Japan) with anti-H. obtusa groEL mAb to confirm the absence of H. obtusa in the host macronucleus. Three days after the penicillin treatment, most of P. caudatum strain RB-1 cells were free of H. obtusa, and an aposymbiotic RB-1 clone was established by cloning the paramecia.

2.8. Starvation and Temperature-Shift Stress

Aposymbiotic P. caudatum RB-1 cells (2 × 10⁵ cells) in the early stationary phase of growth were transferred to a centrifuge tube equipped with a 15 µm pore nylon mesh and then filtered. A volume of 100 mL of MDS was added to the cells, which were then washed three times and suspended in 500 mL of sterile MDS. Five milliliters of the cell suspension were used for indirect immunofluorescence microscopy, while the remaining 495 mL was used for the extraction of SAgs via the cold salt/ethanol extraction method [10]. Indirect immunofluorescence microscopy was conducted 0, 1, 2, 4, 7, and 14 days following the induction of starvation, with 150–200 cells being observed in each instance. The extraction of SAgs was performed 0, 2, 4, and 7 days after the initiation of starvation, with the extracted SAgs being utilized for SDS-PAGE and immunoblotting with mAb SAgPC.
In order to examine the effects of different temperatures on the expression of SAg in aposymbiotic P. caudatum RB-1 cells, the cells were cultivated in 500 mL of the culture medium at 25 °C. Approximately 2 × 105 cells in the early stationary phase of growth were transferred to 10, 15, 25, and 35 °C for 24 h. Thereafter, their SAgs were extracted using the cold salt/ethanol extraction method. The types of SAgs expressed in the cells were then examined via SDS-PAGE and immunoblotting with mAb SAgPC.

3. Results

3.1. SAgs Comparison Between Symbiotic and Aposymbiotic Paramecium Cells

A monoclonal antibody (mAb) SAgPC specific to the SAg of the aposymbiotic P. caudatum RB-1 cell was developed by injecting aposymbiotic P. caudatum RB-1 cells into mice. As demonstrated in Figure 1A, indirect immunofluorescence microscopy using the mAb revealed strong FITC fluorescence on the cell surface of the aposymbiotic RB-1 cell, including its cilia. In contrast, the symbiotic RB-1 cell did not exhibit fluorescence. This phenomenon was induced in symbiotic RB-1 within 20 days of infection with H. obtusa. Furthermore, living aposymbiotic RB-1 cells also exhibited FITC fluorescence on their surface, while living symbiotic cells did not. This phenomenon indicates that the epitope in the SAg is reactive to the mAb and exposed outside the cell surface in the living aposymbiotic P. caudatum RB-1 cell, but not in the living symbiotic RB-1 cell. However, as shown in Figure 1B,C, cell extracts obtained from P. tetraurelia stock 51 (lane 1), aposymbiotic P. caudatum RB-1 (lane 2), and symbiotic P. caudatum RB-1 (lane 3) via cold salt/ethanol extraction revealed the presence of bands labeled with the mAb SAgPC. This extraction medium has been widely used for the extraction of SAg proteins from various Paramecium species [10]. In order to ascertain the efficacy of the SAg extraction method for Paramecium cells, a cell extract of P. tetraurelia strain 51 was also utilized. This strain is among the most frequently employed for Paramecium SAg experiments. Consequently, a high-molecular-mass band that had been stained with CBB was detected in the extract from the stock 51 cells (Figure 1B, lane 1), though the stock 51 cells did not show FITC fluorescence via indirect immunofluorescence microscopy. It is well established that the molecular masses of the SAgs of P. tetraurelia stock 51 range from 250 kDa to 300-kDa [4]. Utilizing this band as a 300-kDa marker, the molecular mass of a band extracted from aposymbiotic P. caudatum RB-1 cells was calculated to be 266-kDa (lane 2, black arrow). The observation that SAg extracted from the aposymbiotic RB-1 cells manifests as a 266-kDa protein suggests that this particular protein is the SAg labeled by indirect immunofluorescence microscopy in aposymbiotic P. caudatum RB-1 cells. However, as shown in Figure 1B,C, SAg bands extracted from P. tetraurelia stock 51 (lane 1) and symbiotic P. caudatum RB-1 (lane 3) also showed antigenicity against mAb SAgPC, despite the fact that these cells did not show FITC fluorescence via indirect immunofluorescence microscopy. Furthermore, in the extract obtained from the symbiotic RB-1 cells, a 266-kDa band disappeared and two new bands of low molecular masses appeared (lane 3). The molecular masses of these two bands were calculated to be 188 and 149-kDa using pre-stained molecular mass markers (lane 3, red arrows). These 188 and 149-kDa SAgs and 300-kDa SAg of P. tetraurelia were labeled by this mAb. These SAg epitopes may have been masked in cells fixed with 4% (w/v) paraformaldehyde or in living cells and became reactive with the mAb because the mask was removed during the SAg extraction process or SDS-PAGE. Since FITC fluorescence could not be observed in P. tetraurelia strain 51 by indirect immunofluorescence, the epitopes of the approximately 300-kDa SAg of this strain might be also masked. Since Paramecium clones have the ability to express many different SAgs but each clone expresses only one type of SAg under the same environmental conditions [10], it is an unusual phenomenon for a symbiotic P. caudatum clone to simultaneously express two SAgs of different molecular weights.
SAgs are detected in various Paramecium species such as P. caudatum, P. multimicronucleatum P. primaurelia, P. biaurelia, P. triaurelia, P. tetraurelia, P. octaurelia, and P. novaurelia, [1,15,42,43,44,45]. However, this is the first discovery to demonstrate that P. caudatum SAg is replaced with other SAgs if the P. caudatum cell is infected by the endonuclear symbiotic bacterium H. obtusa. To confirm the species specificity of the cross-reactivities of the mAb SAgPC, 21 Paramecium species including P. caudatum were examined via indirect immunofluorescence microscopy using cells fixed with 4% (w/v) paraformaldehyde. All Paramecium cells in Table 1 are Holospora or Holospora-like bacteria (HLB) free cells. The results demonstrated that an epitope capable of reacting with this mAb by indirect immunofluorescence microscopy was detected exclusively in P. caudatum RB-1 cells and was not detected in the strains of the other Paramecium species examined. However, because the presence of the epitope for mAb SAgPC was confirmed by immunoblotting with cold salt/ethanol extracts of P. tetraurelia stock 51 cells, other FITC-negative Paramecium species in Table 1 may also show the presence of epitopes via immunoblotting. Table 1 also shows that the mAb binds to the cell surface of aposymbiotic P. caudatum RB-1, irrespective of the cell’s phase in the growth cycle, whether in the log phase or the early stationary phase (one day after final feeding at 25 °C).

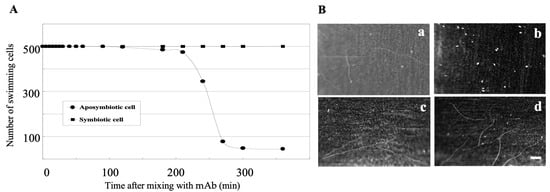

3.2. Immobilization Test of Aposymbiotic and Symbiotic Cells

It is known that an anti-SAg antibody immobilizes the swimming activity of Paramecium cells [8,9,10], so SAg is also called the immobilization antigen (i-antigen). In order to confirm that the mAb SAgPC is able to immobilize the swimming activity of Paramecium cells, the aposymbiotic and symbiotic P. caudatum RB-1 cells were mixed with the culture medium of the hybridoma cells containing the mAb. The resultant mixture was then observed to determine whether the swimming activity of the cells was immobilized or not. As demonstrated in Figure 2, the aposymbiotic cells exhibited immobilization in response to the mAb, while the symbiotic cells did not. The aposymbiotic cells began to immobilize at 2 h post-mixing with the mAb, and approximately 91% of the cells were immobilized after 5 h (Figure 2A). In contrast, when the symbiotic cells were mixed with MDS instead of the culture medium of the hybridoma cells, both cells remained immobilized (Figure 2B, a and b). These results indicate that the 266-kDa protein is the SAg (=immobilization antigen) whose swimming activity is immobilized by the mAb. However, about 9% of the aposymbiotic cells were not immobilized even 6 h after mixing. These cells might be expressing different SAgs. The epitope of this mAb is present not only in the 266-kDa SAg of aposymbiotic P. caudatum but also in 300-kDa SAg of P. tetraurelia stock 51 and in the 188- and 149-kDa SAgs of symbiotic P. caudatum (Figure 1B,C). However, the epitopes in these cells were not labeled by indirect immunofluorescence microscopy, presumably because these epitopes were masked. Therefore, the epitope of 9% of the aposymbiotic cells in Figure 2A might be masked or the local culture conditions occurring in the test tubes for Paramecium culture may have altered the expression of the SAg to a different type of SAg.

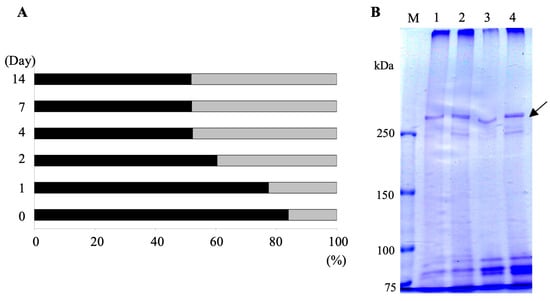

3.3. Reversibility of SAg Expression

As shown in Figure 1, the symbiotic P. caudatum RB-1 cells did not express the 266-kDa SAg. Instead, the cells expressed two new SAgs with low molecular masses of 188 and 149 kDa. To confirm whether changes in SAg expression were truly due to endosymbiosis with H. obtusa, bacteria in the host macronucleus were removed from the host cells by penicillin-G-potassium treatment (see Section 2.7), and its effect on SAg expression was examined by indirect immunofluorescence microscopy, SDS-PAGE, and immunoblotting with mAb SAgPC. Three days after the penicillin treatment, several cells were isolated by a micropipette and transferred to test tubes each with a fresh culture medium to establish aposymbiotic clones. The aposymbiotic cells were cultivated for 22 days after the onset of the penicillin treatment and observed by both DIC and indirect immunofluorescence microscopy with anti-H. obtusa groEL mAb to confirm the absence of H. obtusa in the macronucleus. Immediately after confirming the complete removal of H. obtusa from the host cells, indirect immunofluorescence microscopy using mAb SAgPC and the extraction of SAgs via cold salt/ethanol treatment were performed. SAgs were extracted from 2.5 × 105 cells. As shown in Figure 3, the original aposymbiotic P. caudatum RB-1 cell (A, a) and the newly established aposymbiotic RB-1 cell (A, b) from the symbiotic RB-1 cell via treatment with penicillin showed FITC fluorescence on their cell surface. Namely, both cells express 266-kDa SAgs on the cell surface. The extract of the original aposymbiotic P. cautatum RB-1 treated with penicillin did not show any differences in SAg expression, expressing only 266-kDa SAgs (B and C, lane 4). However, the extract of newly obtained aposymbiotic P. caudatum RB-1 cells derived from penicillin-treated symbiotic RB-1 cells recovered the expression of the 266-kDa SAg protein and lost both 188 and 149-kDa bands (B and C, lane 5). These results show that the host cell changes the SAgs reversibly depending on the presence or absence of H. obtusa in the macronucleus.

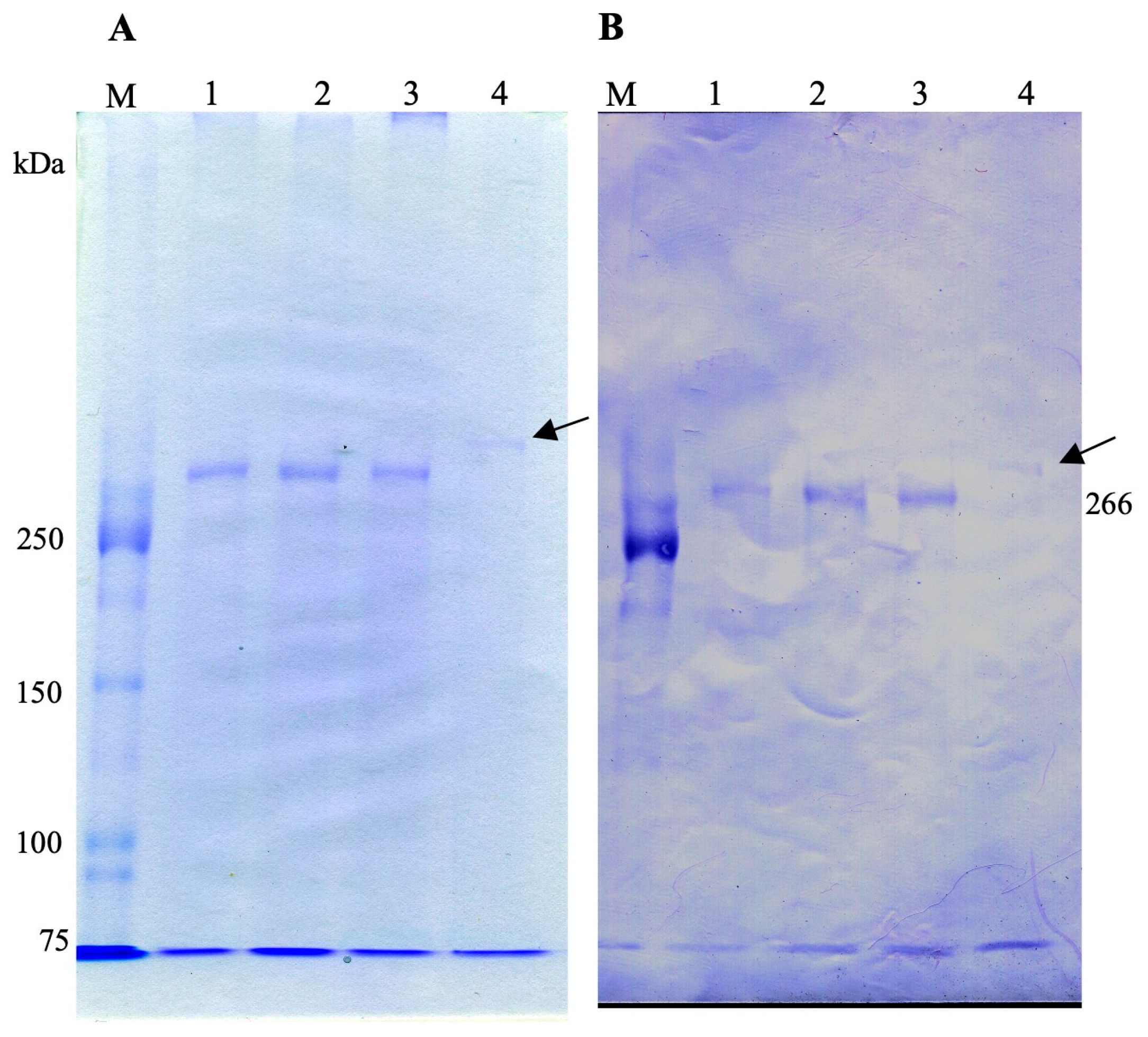

3.4. Effects of Starvation and Temperature Shifts on SAg Expression

The transition from one serotype of SAgs to another has been shown to occur spontaneously at a low frequency or be induced in all cells of the clone simultaneously by modifying the temperature, rate of feeding, antiserum, and other cultural conditions [6,46]. In order to examine whether the change in SAgs is induced by the endosymbiosis with H. obtusa, the loss of the 266-kDa SAg, and the appearance of the 188- and 149-kDa SAgs can be induced by other means, we examined the effects of starvation and cultural temperatures on SAg expression. In the early stationary phase, the aposymbiotic P. caudatum RB-1 cells were washed, suspended in MDS, and starved. Then, the percent of cells expressing the 266-kDa SAg was counted via indirect immunofluorescence microscopy. As shown in Figure 4A, the ratios of the cells expressing SAg labeled by the mAb 0, 1, 2, 4, 7, and 14 days after the onset of starvation were 84%, 77.4%, 60.4%, 52.3%, 52%, and 51.9%, respectively. This indicates a clear decrease in the ratio of labeled cells, from 84% to 52.3% within just 4 days. Cell extracts obtained from starved cells using the cold salt/ethanol extraction method were loaded onto SDS-PAGE 0, 2, 4, and 7 days after washing the cells. As shown in Figure 4B, the 266-kDa band was present in all lanes, but both the 188- and 149-kDa bands were not induced by starvation. The fact that the 266-kDa band does not fade on SDS-PAGE, even though the percentage of cells showing FITC fluorescence in Figure 4A is almost halved, suggests that the starved cells in (A) may have an increased percentage of SAg with the mAb epitope masked.
Subsequently, the aposymbiotic P. caudatum RB-1 cells cultivated at 25 °C and in the stationary phase of growth were subjected to incubation at 10, 15, 25, and 35 °C for 24 h. Thereafter, their SAgs were extracted and loaded onto SDS-PAGE and immunoblots with mAb SAgPC (Figure 5). The 266-kDa SAg band was confirmed at 10, 15, and 25 °C but not at 35 °C. At 35 °C, a new thin SAg band appeared with a molecular mass slightly higher than 266-kDa (arrow, lane 4).
Thus, the 188- and 149-kDa SAgs were not expressed after either starvation or temperature change and, so far, are SAgs whose expression is only induced by endosymbiosis with H. obtusa. Since the type of the SAg expressed by the host reversibly changes depending on the absence or presence of H. obtusa in the host macronucleus, the 188- and 149-kDa SAgs are predicted to play some essential functions in maintaining endosymbiosis with H. obtusa or in suppressing other bacterial infections.

4. Discussion

The Gram-negative bacterium Holospora and Holospora-like bacteria (HLB) (Alphaproteobacteria, Holosporales) are endonuclear symbionts of the ciliate Paramecium species [47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74] and the brackish water ciliate Frontonia salmastra [75]. Recently, their phylogenetic positions were revised [76,77,78,79]. Since the SAg of P. caudatum was reversibly altered by the presence or absence of the endonuclear symbiotic bacterium H. obtusa, an understanding of the infection process and behavior of H. obtusa in the host macronucleus is necessary to know the timing and function of the change in SAgs.
H. obtusa enters the digestive vacuole (DV) through the host cytopharynx, subsequently escaping from the DV into the cytoplasm. Thereafter, it identifies the macronuclear envelope and enters the nucleus. Therefore, it cannot enter the cells in conjugation or early-stage exconjugation, meaning it lacks the ability to form DVs [55,73]. The Holospora species are incapable of multiplying outside of the host cell due to their reduced genome size [62,80,81,82] and show species specificity and nucleus specificity in their habitats [63,67,68,69,73,83,84,85,86]. In the case of H. obtusa, the macronuclear properties necessary for recognition of the target nucleus and invasion into the nucleus by this bacterium are provided by the examined P. caudatum, P. multimicronucleatum, and P. aurelia species and P. jenningsi strains, whereas in P. bursaria, P. putrinum, P. duboscqui, P. woodruffi, P. calkinsi, P. polycaryum, and P. nephridiatum, H. obtusa is unable to invade the macronucleus, even though H. otusa can escape the DV of these Paramecium species and emerge in their cytoplasm. Furthermore, stable maintenance of the infected H. obtusa in the host macronucleus is achieved only in certain strains of P. caudatum. Thus, H. obtusa invades the macronucleus of Paramecium species closely related to P. caudatum but is only maintained in the macronucleus of specific P. caudatum strains [63,67,68,69,73,83,84]. The macro- and micronucleus of P. caudatum originate from a common fertilization nucleus during the conjugation process. The macronuclear property necessary for it to be recognized and infected by H. obtusa is acquired by four of the eight postzygotic nuclei as soon as the four nuclei differentiate morphologically into the macronuclear anlagen [55].
In the infection process of H. obtusa, immediately after mixing H. obtusa and P. caudatum cells, H. obtusa cells are engulfed by the host DVs through the cytopharynx. The infectious form (IF, about 13 μm long) of H. obtusa differentiates from the activated form (AF) via the acidification of the inside of the DV by asidosomal fusion to the DV, and the AF escapes from the DV into the cytoplasm before lysosomal fusion with the DV. The reproductive short form (RF, about 1.5–2 μm long) and intermediate forms between the RF and IF cannot escape from the DV and are eventually digested by the DVs. The first AF appears in the host macronucleus less than 10 min after mixing with paramecia and begins to differentiate to the RF 32–34 h after invasion into the macronucleus at 25 °C [33,55,63,83]. The RFs propagate by binary fissions in the macronucleus [33,87,88]. When the host cell starves or the host protein synthesis is inhibited with emetine, a eukaryotic cell-specific protein synthesis inhibitor, the RFs stop dividing and differentiate into the IFs via the intermediate forms [89]. About half of the length of this IF consists of a cytoplasmic region with two nucleoids stained with 4′,6-diamidino-2-phenylindole dihydrochloride (DAPI) [33,90]. The other half consists of a periplasmic region involving a special tip called an invasion tip [38,87,90,91]. The cytoplasmic regions, periplasmic region, and invasion tip of the IF can be readily identified by a phase-contrast or differential-interference-contrast microscope (DIC) [90,91]. However, unlike IF, RF does not show such subcellular differentiation, and DAPI fluorescence is distributed throughout the cell [33,63,65,67,68,69,73,88,90].
The H. obtusa-bearing symbiotic P. caudatum cells express a high level of heat shock protein genes hsp60 and hsp70. This allows host cells to exhibit high viability when transferred from the normal culture temperature of 25 °C to the unsuitable growth temperature of 35 °C [31]. The H. obtusa-free aposymbiotic P. caudatum cells almost cease swimming at both 4 °C and 40 °C, although cells with H. obtusa can swim at these temperatures [92]. Paramecium cells bearing the micronucleus-specific H. elegans also express high levels of hsp70 mRNA, even at 25 °C, and the host cells acquire heat-shock resistance and survive better than aposymbiotic paramecia, even at 37 °C [32]. Curiously, this overexpression of the hsp70 gene of the host cells continues irreversibly, even after the removal of H. elegans by treatment with penicillin [32]. Nakamura et al. [30] identified six genes of P. caudatum, in addition to hsp60 and hsp70, which were differentially expressed in aposymbiotic and symbiotic cells using differential-display reverse-transcribed PCR. Furthermore, Holospora-bearing Paramecium acquires osmotic stress resistance [93,94] and various metal chloride resistance [95]. This evidence shows that infection with the Holospora species alters the host gene expression.
The present results suggest that H. obtusa in the macronucleus induces the expression of specific SAgs by altering gene expression in the host. Within 20 days of the onset of endosymbiosis with H. obtusa, this SAg was replaced with low-molecular-mass 188 and 149-kDa SAgs. Furthermore, when H. obtusa cells in the macronucleus were completely removed by penicillin, within 22 days of the penicillin treatment, the resulting aposymbiotic cells recovered the 266-kDa SAg again and lost the 188 and 149-kDa SAgs. Therefore, these two SAgs may be involved in maintaining only the Holospora species that are currently in endosymbiosis with the host cell or maintaining only H. obtusa and preventing dual infection by other Holospora species. However, the invasion of H. obtusa from the host DVs to the host macronucleus occurs within 10 min of mixing them, and the IFs differentiate the RFs 32–34 h after mixing at 25 °C [33,55,63,83]. P. caudatum cells that lost the infected H. obtusa from the macronucleus appear 3 days after the penicillin treatment. Therefore, to determine the relationship between the timing of the appearance and disappearance of H. obtusa in the host macronucleus and the timing of the changes in the host SAgs, it is necessary to examine the changes in SAg over a much shorter period.
How does H. obtusa alter the host SAg gene expression after invading the macronucleus of the host P. caudatum? It is known that the OspF effector protein of Shigella flexneri regulates the host gene expression via the modification of the host nuclear protein [96]. Furthermore, it is also known that the AnkA effector protein of the pathogen Anaplasma phagocytophilum is secreted and binds to the host DNA [97]. The AnkA interacts with transcriptional regulatory regions of the CYBB locus at sites where transcriptional regulators bind [98]. Although the mechanism by which H. obtusa alters the host gene expression remains to be elucidated, it has recently been confirmed that 3 h after the invasion of H. obtusa IFs into the host macronucleus, not only the pre-existing 63-kDa protein (periplasmic region protein 1, PRP1) in the large periplasmic region of the IF but also the newly synthesized PRP1 proteins after invasion into the macronucleus are also secreted into the host macronucleus and remain in the nucleus [99]. This PRP1 protein is IF-specific and one of the most abundant proteins of the IF. In addition, the PRP1 protein had a putative signal peptide comprising 24 amino acids near the C-terminal of the protein. Furthermore, a Pfam motif search on Genome Net (https://www.genome.jp/, accessed on 28 November 2022) showed that the PRP1 protein had a DNA-binding domain, D5_N at aa369–491, and had been confirmed to bind with macronuclear DNA [100]. Thus, this PRP1 protein is the most likely candidate predicted to induce changes in the host gene expression, not only for the hsp60 and hsp70 genes but also for the SAg gene. Therefore, it is essential to clarify whether the timing of the replacement of the 266-kDa SAg by the 188 and 149-kDa SAgs after mixing P. caudatum and H. obtusa and the timing of PRP1 secretion into the macronucleus are the same, which will be revealed in future studies.
What is the function of the 188 and 149-kDa SAgs in the symbiotic cells? Many SAgs, known as GPI-anchored proteins in other organisms, function as receptors for signal transduction. Furthermore, it is known that the GPI-anchored protein interacts with the src-family kinase [101]. The symbiotic-specific SAgs may be concerned with the exogenous signal response needed for the endosymbiosis of H. obtusa. Therefore, the function of the SAg in endosymbiosis will be clarified by findings of exogenous signals that affect the selective expression of the SAg. Starvation and various temperatures could not induce the expression of the 188 or 149-kDa SAgs in the aposymbiotic cell. Various ion strengths also did not induce these two SAgs to the aposymbiotic cell (M. Fujishima, unpublished observation). To date, the expression of the 188- and 149-kDa SAgs has been observed to be induced exclusively under conditions of endosymbiosis with H. obtusa. Fujishima and Fujita [83] showed that IFs of H. obtusa infected all P. caudatum strains examined, differentiated into the RFs, and began to multiply via binary fissions in the macronucleus. However, in about 50% of the P. cuadatum strains, H. obtusa disappeared from their macronucleus within two weeks of infection. Namely, only certain strains of P. caudatum can maintain H. obtusa while others cannot. Furthermore, no strains have yet been found to maintain H. obtusa belonging to syngen 12. The strain-specific disappearance of Holospora from the host nucleus after infection has also been reported for H. accuminata in Paramecium bursaria [102]. Therefore, if P. caudatum strains that cannot maintain H. obtusa infecting the macronucleus fail to express 188 and 149-kDa SAgs, it may be possible to show that the 188 and 149-kDa SAgs play an essential role in maintaining H. obtusa. This needs to be confirmed in the future.
On the other hand, H. obtusa is a macronucleus-specific symbiont of P. caudatum, whereas H. elegans, H. undulata, and H. recta are all micronucleus-specific symbionts of P. caudatum. Therefore, it seems that H. obtusa can coexist with the alternative micronucleus-specific one in the same cell. However, there are no confirmed cases of coexistence of these Holospora in the same host cell in nature. The stable coexistence of micronucleus-specific Holospora of different species in the same host cell has also not been observed. Furthermore, when H. elegans was mixed with the external fluid of P. caudatum with H. obtusa in the macronucleus, the H. elegans could infect the micronucleus of the cell but disappeared from the micronucleus without proliferating. On the other hand, when P. caudatum with H. elegans in the micronucleus was given as H. obtusa, H. obtusa could infect the macronucleus but also disappeared immediately from the macronucleus (M. Fujishima, unpublished observation). It is not yet clear how these two Holospora species interfere with each other, even though they are separately present in different nuclei of the host cell.
The following phenomena require further investigation and have been identified as potential areas for future research: (1) What is the subcellular localization of the 188- and 149-kDa SAgs in symbiotic cells? (2) When and how does H. obtusa alter host SAg gene expression during the infection process? (3) What are the functions of the 188- and 149-kDa SAgs in symbiotic cells?

Funding

This research was funded in part by a grant-in-aid for Scientific Research (B) (2) (No. 11694211) from the Japan Society for the Promotion of Science (JSPS) and by a grant-in-aid for Scientific Research on Priority Areas (C) (2) (12206066) from the Ministry of Education, Science, Sports and Culture of Japan (MEXT) to M. Fujishima.

Institutional Review Board Statement

The use of mice for hybridoma production was exempt from institutional ethical review, as the procedure involved only terminal anesthesia and tissue collection post-mortem, in accordance with national and institutional guidelines.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The author thanks Yoshimitsu Nakamura for his cooperation in experiments and preparing the first draft of this manuscript when he was a Ph.D. student at Yamaguchi University; Fema Abamo, Mindanao State University, Philippines, for correcting the English in the first draft of this manuscript when she was a Ph.D. student at Yamaguchi University; and Yuuki Kodama, Shimane University, for assistance in preparing Figure 2.

Conflicts of Interest

The author declares no conflicts of interest.
