Communication

Draft Genome Sequence of the Urinary Catheter Isolate Enterobacter ludwigii CEB04 with High Biofilm Forming Capacity

by
Sulman Shafeeq
1,
Xiaoda Wang
1,
Heinrich Lünsdorf
2,
Annelie Brauner
1,3 and
Ute Römling
1,*
1
Department of Microbiology, Tumor and Cell Biology, Karolinska Institutet, SE-171 65 Stockholm, Sweden
2
Helmholtz Center for Infection Research, DE-38124 Braunschweig, Germany
3
Clinical Microbiology, Karolinska University Hospital, SE-171 76 Stockholm, Sweden
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(4), 522; https://doi.org/10.3390/microorganisms8040522
Submission received: 4 March 2020 / Revised: 2 April 2020 / Accepted: 2 April 2020 / Published: 5 April 2020
(This article belongs to the Section Medical Microbiology)
Browse Figures
Versions Notes

Abstract

:
Enterobacter ludwigii is a fermentative Gram-negative environmental species and accidental human pathogen that belongs to the Enterobacter cloacae complex with the general characteristics of the genus Enterobacter. The clinical isolate E. ludwigii CEB04 was derived from a urinary tract catheter of an individual not suffering from catheter-associated urinary tract infection. The draft genome sequence of the high biofilm forming E. ludwigii CEB04 was determined by PacBio sequencing. The chromosome of E. ludwigii CEB04 is comprised of one contig of 4,892,375 bps containing 4596 predicted protein-coding genes and 120 noncoding RNAs. E. ludwigii CEB04 harbors several antimicrobial resistance markers and has an extended cyclic-di-GMP signaling network compared to Escherichia coli K-12.

1. Introduction

Urinary catheters are used worldwide in hospitals, health care units and community care, but increase the risk of catheter-associated urinary tract infections (CAUTIs) [1,2] with four out of five UTIs due to catheter usage [3,4]. A biofilm constitutes a microbial community which displays as cell aggregates or as adherent to a surface and/or interface enclosed by a self-produced or environment-derived extracellular matrix [5]. With an up to 10% risk of catheter surface colonization by microorganisms per day, detachment of pathogenic microorganisms from the catheter biofilm can cause CAUTI [6]. In addition, the catheter biofilm can serve as a reservoir for antimicrobial resistant microorganisms and can promote horizontal gene transfer of antimicrobial resistance genes [7].
Members of the Enterobacter cloacae complex are commonly isolated from urinary catheters [8,9,10]. The E. cloacae complex consisted originally of six Gram-negative species: Enterobacter asburiae, E. cloacae, Enterobacter hormaechei, Enterobacter kobei, E. ludwigii and Enterobacter nimipressuralis (now reclassified as Lelliottia nimipressuralis [11]). E. ludwigii is a fermentative, motile, rod-shaped bacterium first isolated from a clinical sample and established as a new species in 2005 [12]. Growth on 3-O-methyl-d-glucopyranose and myo-inositol differentiates E. ludwigii from other Enterobacter species [12]. As a versatile predominantly environmental species E. ludwigii isolates have been recognized as prominent electrogenic bacteria, as biofilm-forming heavy-metal-adapted isolates and as abundantly present in endophytic bacterial communities [13,14,15]. Furthermore, E. ludwigii isolates were characterized as bioremediation agents, alternating plant defense and capable of performing other important environmental functions [16,17,18]. In the clinical context, E. ludwigii is abundantly present in primary liver cancer [19]. This study reports the draft genome sequence and initial biofilm and antibiotic resistance characteristics of E. ludwigii CEB04 isolated from one patient not suffering from CAUTI.

2. Materials and Methods

2.1. Growth Conditions and DNA Isolation

Luria–Bertani (LB) medium was used to grow E. ludwigii CEB04. To isolate genomic DNA, E. ludwigii CEB04 was grown in 50 mL LB medium overnight at 37 °C with shaking at 200 rpm. The genomic DNA of E. ludwigii CEB04 was isolated by Genomic-tip 500/G columns (QIAGEN, Hilden, Germany) and Genomic DNA buffer set (QIAGEN, Hilden, Germany) according to the manufacturer’s instructions.

2.2. Genome Sequencing, Assembly and Annotation

The genomic DNA of E. ludwigii CEB04 was sequenced at the National Genomics Infrastructure (NGI, Science for Life Laboratory, Uppsala, Sweden) with PacBio RSII system (Pacific Biosciences, Menlo Park, CA, USA). De novo genome assembly was performed by HGAP4 (Hierarchical Genome-Assembly Process) algorithm from the PacBio SMRT tools [20]. The genome assembly was first polished with Quiver and a second polishing was performed using Arrow. Annotation of the genome was performed by the NCBI Prokaryotic Genome Annotation Pipeline (PGAP) [21] and the Rapid Annotations using Subsystems Technology (RAST; version 2.0) server [22,23,24].

2.3. Phenotypic Analysis

To visualize the biofilm phenotypes, bacteria were grown on LB without salt agar plates containing the dye Congo red (Sigma-Aldrich, Darmstadt, Germany) (40 µg/mL) and Coomassie brilliant blue G-250 (Sigma-Aldrich, Darmstadt, Germany) (20 µg/mL) incubated at 28 and 37 °C. Cell aggregation and pellicle formation were assessed visually after 24 and 48 h, respectively, with cells grown in LB without salt medium in standing culture at 28 and 37 °C. Swimming motility was performed at 37 °C in 0.3% LB agar with the swimming diameter measured after 6 h. Swarming motility was observed in 0.5% Eiken agar with 8% nutrient broth at 37 °C with the swarming diameter measured after 16 h. Control experiments were included as previously described [25,26].
To visualize E. ludwigii CEB04 biofilm formation on the catheter surface, a part of the catheter was incubated in human urine placed in a 96 well plate and incubated at 37 °C for 24 h. The catheter was washed with PBS and 1% glutardialdehyde was added for 24 h. The catheter was washed again with PBS pH 7.0, dehydrated in an acetone series and critically point-dried. After gold sputter coating, samples were analyzed with a scanning electron microscope (SEM; (Zeiss, Gemini 982, Oberkochen, Germany)) at 5 kV acceleration voltage at 9 mm width.

2.4. Genome and Protein Analysis

The average nucleotide identity (ANI) of E. ludwigii CEB04 to the EN119 type strain [12] was calculated as described previously [27]. NCBI conserved domain [28] and Prosite [29] databases were used to scan for GGDEF, EAL and HD-GYP domains in E. ludwigii CEB04. Paired protein alignment was conducted with Clustal Omega in Uniprot (www.uniprot.org/align) using standard parameters. Multiple sequence alignment was performed by MUSCLE, while MEGA 7.0 was used to create ML (Maximum Likelihood) phylogenetic trees [30]. Bootstrap analysis was performed for 1000 replicates. The genome was screened for antimicrobial resistance genes by ResFinder 2.1 [31].

3. Results

3.1. Biofilm Characteristics

The urinary catheter isolate E. ludwigii CEB04 displayed a high biofilm forming capacity on a silicon catheter surface (Figure 1) and exhibited various biofilm characteristics such as adherence to an abiotic polystyrene surface at 28 and 37 °C (Figure 1 and Figure 2 and Table 1). On a Congo red agar plate, E. ludwigii CEB04 showed the so-called pdar (pink, dry and rough) and rdar (red, dry and rough) morphotypes at 28 and 37 °C, respectively. This type of biofilm is characterized by the production of the extracellular matrix components cellulose (pdar) and curli fimbriae, which constitute the visible rdar morphotype [25]. Furthermore, E. ludwigii CEB04 had the ability to form a pellicle at 28 °C and exhibited cell aggregation in liquid culture at 37 °C. E. ludwigii CEB04 was non-haemolytic and showed swimming and swarming motility (0.2 and 3.2 cm, respectively) under standard conditions.

3.2. Genome Assembly and Annotation

The sequence assembly resulted in a single contig of 4,892,375 bps representing the chromosome with a GC content of 54.5 %. Average Nucleotide Identity (ANI) indicated 98.98% identity compared to the genome of the E. ludwigii EN119 type strain [12]. MALDI-TOF mass spectrometry also identified strain CEB04 to belong to the species E. ludwigii. Annotation of the genome resulted in 4596 predicted protein-coding genes and 120 noncoding RNAs. Of note, subsequent Illumina sequencing is required to address inherent PacBio sequencing errors. Furthermore, PacBio sequencing might not have captured plasmids smaller than 10 kbp.

3.3. Antimicrobial Resistance Genes

The genome of E. ludwigii CEB04 was screened for antimicrobial resistance genes by ResFinder 2.1 [31]. This analysis indicated the presence of β-lactam, fosfomycin [32] and fluoroquinolone [33] resistance genes on the chromosome (Table 2). The antimicrobial resistance profile of E. ludwigii CEB04 showed resistance to ampicillin, fosfomycin, ciprofloxacin, cefadroxil, mecillinam and trimethoprim (data not shown), which extends the antimicrobial resistance profile obtained by in silico analysis.

3.4. GGDEF/EAL/HD-GYP Domain Proteins

Cyclic di-GMP is a second messenger promoting biofilm formation [26,34,35]. GGDEF domains are diguanylate cyclases, while EAL and HD-GHP domain proteins are c-di-GMP phosphodiesterases. We identified 15 GGDEF, 12 EAL, 10 GGDEF-EAL and 1 HD-GYP domain proteins in E. ludwigii CEB04, some of which have the same domain structure over the entire length of the proteins (Table 3). Nine proteins possess the RXXD motif indicative for a product-binding inhibitory (I)-site. Eight of these proteins are GGDEF domain proteins (EL-577, EL-703, EL-842, EL-1065, EL-1543, EL-1647, EL-3812 and EL-4124), while one is a GGDEF-EAL domain protein (EL-1102). Eight GGDEF, 8 EAL and 6 GGDEF-EAL domain proteins have homologues in E. coli K-12 MG1655. Closest homologues of all GGDEF/EAL/HD-GYP domain proteins are present in species belonging to the family of Enterobacteriaceae or to alpha-proteobacteria.
Alignment and subsequent phylogenetic analysis (Figure 3A and Supplementary data: Figure S1) clearly further classified the GGDEF domains from E. ludwigii CEB04 into three main classes according to their degree of sequence similarity, which is grossly reflected by the domain structure and, partially, the predicted functionality of the proteins. These three classes were enzymatically functional GGDEF domain proteins (class 1), enzymatically functional GGDEF domains linked to an EAL domain (class 2) and enzymatically non-functional GGDEF domains (class 3). Experimentally well-characterized GGDEF domain sequences from each GGDEF class were included for reference, such as the GGDEF domain of the diguanylate cyclase PleD [36] and AdrA [26] for class 1; YciR [37] for class 2; and STM2503 [37] for class 3. However, the classification according to domain structure does not robustly predict catalytic activity, as class 2 GGDEF-EAL proteins EL-2734 and EL-2988 have a degenerated GG(D/E)EF signature motif suggesting rapid evolution within each class [38]. Three GGDEF domain proteins (the two GAF-GGDEF proteins EL-408 and EL-842; two MASE4-GGDEF proteins EL-577 and EL-1102; and two dCache1-GGDEF proteins EL-406 and EL-3421,) and two MASE1-xGGDEF-EAL proteins (EL-1899 and EL-1965) have the same domain structure, indicating horizontal gene transfer of one of the copies or gene duplication (Figure 3A).
Alignment of the EAL domains and assessment of their phylogenetic relationship by a ML phylogenetic tree (Figure 3B and Supplementary data: Figure S2) showed a phylogenetic classification according to domain structure not to be as robust as previously documented for EAL domains of selected enterobacterial species [39]. However, EAL only domain proteins (EL-2984 and EL-4271), belonging to functional class IIa (enzymatically functional, but unconventional signature motifs) and class IIIb (non-enzymatic), cluster together as previously observed [38,39]. On the other hand, six redox-sensing CSS-EAL proteins (EL-404, EL-405, EL-1383, EL-1742, EL-3490 and EL-4205) and two light sensing BLUF-EAL proteins (EL-524 and EL-905) show homology over the entire length of the protein, however, their cyclic di-GMP turnover domains do not necessarily cluster in the phylogenetic tree (Figure 3).
Among the six CSS-EAL proteins, the EAL domain of the CSS-EAL protein EL-404 is most distant to the EAL domains of other CSS-EAL proteins suggesting recent horizontal transfer or domain shuffling. On the other hand, while clustering of the EAL domains of EL-1650 and EL-405 are supported by bootstrap values, the N-terminal signaling domain of EL-1650 is not a CSS domain [40] with the two cysteine residues in the putative periplasmic domain located in non-homologous positions. The two MASE4-GGDEF proteins have a low overall amino acid identity of 27.7%, the two GAF-GGDEF proteins a 24.3% identity, the two dCache1-GGDEF proteins a 20.3% identity and the two MASE1-GGDEF-EAL proteins have an identity of 29.4% over the entire length of the proteins, suggesting significantly different functionality and/or horizontal transfer from a distantly related species (xenologous genes). On the other hand, an identity of 44.1% of the two BLUF-EAL proteins indicates gene duplication and functional diversification (paralogous genes). To which extent gene duplication, horizontal gene transfer, domain shuffling and sequence evolution contribute to cyclic di-GMP turnover protein diversity in E. ludwigii remains to be investigated in future studies.
Structural biofilm genes required for expression of the rdar biofilm morphotype such as the curli biosynthesis operons csgABC and csgDEFG and the cellulose biosynthesis operons bcsABZC and bcsEFG are encoded on the chromosome of E. ludwigii CEB04 (data not shown).

4. Conclusions

Here, we report the whole genome sequence of E. ludwigii CEB04 isolated from the biofilm of a urinary tract catheter of one patient not suffering from CAUTI. This study is an initial investigation of the strain’s biofilm formation capability and identification of genes involved in biofilm formation, cyclic di-nucleotide second messenger signaling and antimicrobial resistance. More detailed investigations of these genes in E. ludwigii CEB04 will be required in order to analyze their distinct contribution to biofilm formation and antimicrobial resistance.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/8/4/522/s1.

Author Contributions

U.R. and S.S. conceived and designed the experiments; S.S., X.W., H.L., A.B. and U.R. performed the experiments and analyzed the data; S.S. and U.R. wrote the paper and All authors have read and agreed to the published version of the manuscript.

Acknowledgments

We thank Emmanuel Zavalis for initial domain analysis. We acknowledge the National Genomics Infrastructure (NGI), the Science for Life Laboratory Uppsala Genome Center for assistance in whole genome PacBio sequencing. We thank the National Bioinformatics Infrastructure Sweden (NBIS) especially Roy Francis for preforming the second polishing of the genome on our behalf. This research work was funded by the EC (European Commission) through the NOMORFILM project (Horizon 2020) under grant agreement no. 634588.

Conflicts of Interest

The authors declare no conflict of interest.

Data

The sequencing data were deposited to GeneBank under bioproject PRJNA531388 with INSDC (International Nucleotide Sequence Database Collaboration) number CP039741. E. ludwigii CEB04 was deposited in the Culture Collection University of Gothenburg (CCUG) collection, a Swedish depository for clinically relevant bacteria.

References

  1. Wagenlehner, F.M.; Naber, K.G. Hospital-acquired urinary tract infections. J. Hosp. Infect. 2000, 46, 171–181. [Google Scholar] [CrossRef]
  2. Saint, S.; Lipsky, B.A. Preventing catheter-related bacteriuria: Should we? Can we? How? Arch. Intern. Med. 1999, 159, 800–808. [Google Scholar] [CrossRef] [Green Version]
  3. Ha, U.-S.; Cho, Y.-H. Catheter-associated urinary tract infections: New aspects of novel urinary catheters. Int. J. Antimicrob. Agents 2006, 28, 485–490. [Google Scholar] [CrossRef] [PubMed]
  4. Jacobsen, S.M.; Stickler, D.J.; Mobley, H.L.T.; Shirtliff, M.E. Complicated catheter-associated urinary tract infections due to Escherichia coli and Proteus mirabilis. Clin. Microbiol. Rev. 2008, 21, 26–59. [Google Scholar] [CrossRef] [Green Version]
  5. Donlan, R.M.; Costerton, J.W. Biofilms: Survival mechanisms of clinically relevant microorganisms. Clin. Microbiol. Rev. 2002, 15, 167–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hatt, J.K.; Rather, P.N. Role of bacterial biofilms in urinary tract infections. Curr. Top. Microbiol. Immunol. 2008, 322, 163–192. [Google Scholar]
  7. Madsen, J.S.; Burmölle, M.; Hansen, L.H.; Sorensen, S.J. The interconnection between biofilm formation and horizontal gene transfer. FEMS Immunol. Med. Microbiol. 2012, 65, 183–195. [Google Scholar] [CrossRef] [Green Version]
  8. Bagshaw, S.M.; Laupland, K.B. Epidemiology of intensive care unit-acquired urinary tract infections. Curr. Opin. Infect. Dis. 2006, 19, 67–71. [Google Scholar] [CrossRef]
  9. Wang, X.; Lünsdorf, H.; Ehren, I.; Brauner, A.; Römling, U. Characteristics of biofilms from urinary tract catheters and presence of biofilm-related components in Escherichia coli. Curr. Microbiol. 2010, 60, 446–453. [Google Scholar] [CrossRef]
  10. Niveditha, S.; Pramodhini, S.; Umadevi, S.; Kumar, S.; Stephen, S. The isolation and the biofilm formation of uropathogens in the patients with Catheter Associated Urinary Tract Infections (UTIs). J. Clin. Diagn. Res. 2012, 6, 1478–1482. [Google Scholar] [CrossRef]
  11. Brady, C.; Cleenwerck, I.; Venter, S.; Coutinho, T.; De Vos, P. Taxonomic evaluation of the genus Enterobacter based on multilocus sequence analysis (MLSA): Proposal to reclassify E. nimipressuralis and E. amnigenus into Lelliottia gen. nov. as Lelliottia nimipressuralis comb. nov. and Lelliottia amnigena comb. nov., respectively, E. gergoviae and E. pyrinus into Pluralibacter gen. nov. as Pluralibacter gergoviae comb. nov. and Pluralibacter pyrinus comb. nov., respectively, E. cowanii, E. radicincitans, E. oryzae and E. arachidis into Kosakonia gen. nov. as Kosakonia cowanii comb. nov., Kosakonia radicincitans comb. nov., Kosakonia oryzae comb. nov. and Kosakonia arachidis comb. nov., respectively, and E. turicensis, E. helveticus and E. pulveris into Cronobacter as Cronobacter zurichensis nom. nov., Cronobacter helveticus comb. nov. and Cronobacter pulveris comb. nov., respectively, and emended description of the genera Enterobacter and Cronobacter. Syst. Appl. Microbiol. 2013, 36, 309–319. [Google Scholar] [CrossRef] [PubMed]
  12. Hoffmann, H.; Stindl, S.; Stumpf, A.; Mehlen, A.; Monget, D.; Heesemann, J.; Schleifer, K.H.; Roggenkamp, A. Description of Enterobacter ludwigii sp. nov., a novel Enterobacter species of clinical relevance. Syst. Appl. Microbiol. 2005, 28, 206–212. [Google Scholar] [CrossRef] [PubMed]
  13. Mosharaf, M.K.; Tanvir, M.Z.H.; Haque, M.M.; Haque, M.A.; Khan, M.A.A.; Molla, A.H.; Alam, M.Z.; Islam, M.S.; Talukder, M.R. Metal-adapted bacteria isolated from wastewaters produce biofilms by expressing proteinaceous curli fimbriae and cellulose nanofibers. Front. Microbiol. 2018, 9, 1334. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Feng, C.; Li, J.; Qin, D.; Chen, L.; Zhao, F.; Chen, S.; Hu, H.; Yu, C.P. Characterization of exoelectrogenic bacteria Enterobacter strains isolated from a microbial fuel cell exposed to copper shock load. PLoS ONE 2014, 9, e113379. [Google Scholar] [CrossRef] [PubMed]
  15. de Almeida Lopes, K.B.; Carpentieri-Pipolo, V.; Oro, T.H.; Stefani Pagliosa, E.; Degrassi, G. Culturable endophytic bacterial communities associated with field-grown soybean. J. Appl. Microbiol. 2016, 120, 740–755. [Google Scholar] [CrossRef]
  16. Wang, J.; Peiffer, M.; Hoover, K.; Rosa, C.; Zeng, R.; Felton, G.W. Helicoverpa zea gut-associated bacteria indirectly induce defenses in tomato by triggering a salivary elicitor(s). New. Phytol. 2017, 214, 1294–1306. [Google Scholar] [CrossRef] [Green Version]
  17. Mishra, P.; Samuel, M.K.; Reddy, R.; Tyagi, B.K.; Mukherjee, A.; Chandrasekaran, N. Environmentally benign nanometric neem-laced urea emulsion for controlling mosquito population in environment. Environ. Sci. Pollut. Res. Int. 2018, 25, 2211–2230. [Google Scholar] [CrossRef]
  18. de Melo Pereira, G.V.; Magalhaes, K.T.; Lorenzetii, E.R.; Souza, T.P.; Schwan, R.F. A multiphasic approach for the identification of endophytic bacterial in strawberry fruit and their potential for plant growth promotion. Microb. Ecol. 2012, 63, 405–417. [Google Scholar] [CrossRef]
  19. Zhang, L.; Wu, Y.N.; Chen, T.; Ren, C.H.; Li, X.; Liu, G.X. Relationship between intestinal microbial dysbiosis and primary liver cancer. Hepatobiliary Pancreat. Dis. Int. 2019, 18, 149–157. [Google Scholar] [CrossRef]
  20. Chin, C.-S.; Alexander, D.H.; Marks, P.; Klammer, A.A.; Drake, J.; Heiner, C.; Clum, A.; Copeland, A.; Huddleston, J.; Eichler, E.E.; et al. Nonhybrid, finished microbial genome assemblies from long-read SMRT sequencing data. Nat. Methods 2013, 10, 563–569. [Google Scholar] [CrossRef]
  21. Tatusova, T.; DiCuccio, M.; Badretdin, A.; Chetvernin, V.; Nawrocki, E.P.; Zaslavsky, L.; Lomsadze, A.; Pruitt, K.D.; Borodovsky, M.; Ostell, J. NCBI prokaryotic genome annotation pipeline. Nucleic Acids Res. 2016, 44, 6614–6624. [Google Scholar] [CrossRef] [PubMed]
  22. Aziz, R.K.; Bartels, D.; Best, A.A.; DeJongh, M.; Disz, T.; Edwards, R.A.; Formsma, K.; Gerdes, S.; Glass, E.M.; Kubal, M.; et al. The RAST Server: Rapid annotations using subsystems technology. BMC Genom. 2008, 9, 75. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Overbeek, R.; Olson, R.; Pusch, G.D.; Olsen, G.J.; Davis, J.J.; Disz, T.; Edwards, R.A.; Gerdes, S.; Parrello, B.; Shukla, M.; et al. The SEED and the Rapid Annotation of microbial genomes using Subsystems Technology (RAST). Nucleic Acids Res. 2014, 42, D206–D214. [Google Scholar] [CrossRef] [PubMed]
  24. Brettin, T.; Davis, J.J.; Disz, T.; Edwards, R.A.; Gerdes, S.; Olsen, G.J.; Olson, R.; Overbeek, R.; Parrello, B.; Pusch, G.D.; et al. RASTtk: A modular and extensible implementation of the RAST algorithm for building custom annotation pipelines and annotating batches of genomes. Sci. Rep. 2015, 5, 8365. [Google Scholar] [CrossRef] [Green Version]
  25. Bokranz, W.; Wang, X.; Tschäpe, H.; Römling, U. Expression of cellulose and curli fimbriae by Escherichia coli isolated from the gastrointestinal tract. J. Med. Microbiol. 2005, 54, 1171–1182. [Google Scholar] [CrossRef]
  26. Simm, R.; Morr, M.; Kader, A.; Nimtz, M.; Römling, U. GGDEF and EAL domains inversely regulate cyclic di-GMP levels and transition from sessility to motility. Mol. Microbiol. 2004, 53, 1123–1134. [Google Scholar] [CrossRef]
  27. Yoon, S.-H.; Ha, S.-M.; Lim, J.; Kwon, S.; Chun, J. A large-scale evaluation of algorithms to calculate average nucleotide identity. Antonie Van Leeuwenhoek 2017, 110, 1281–1286. [Google Scholar] [CrossRef]
  28. Lu, S.; Wang, J.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; Gwadz, M.; Hurwitz, D.I.; Marchler, G.H.; Song, J.S.; et al. CDD/SPARCLE: the conserved domain database in 2020. Nucleic Acids Res. 2020, 48, D265–D268. [Google Scholar] [CrossRef] [Green Version]
  29. de Castro, E.; Sigrist, C.J.A.; Gattiker, A.; Bulliard, V.; Langendijk-Genevaux, P.S.; Gasteiger, E.; Bairoch, A.; Hulo, N. ScanProsite: Detection of PROSITE signature matches and ProRule-associated functional and structural residues in proteins. Nucleic Acids Res. 2006, 34, W362–W365. [Google Scholar] [CrossRef] [PubMed]
  30. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  31. Zankari, E.; Hasman, H.; Cosentino, S.; Vestergaard, M.; Rasmussen, S.; Lund, O.; Aarestrup, F.M.; Larsen, M.V. Identification of acquired antimicrobial resistance genes. J. Antimicrob. Chemother. 2012, 67, 2640–2644. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, H.; Miao, V.; Kwong, W.; Xia, R.; Davies, J. Identification of a novel fosfomycin resistance gene (fosA2) in Enterobacter cloacae from the Salmon River, Canada. Lett. Appl. Microbiol. 2011, 52, 427–429. [Google Scholar] [CrossRef] [PubMed]
  33. Hansen, L.H.; Johannesen, E.; Burmølle, M.; Sørensen, A.H.; Sørensen, S.J. Plasmid-encoded multidrug efflux pump conferring resistance to olaquindox in Escherichia coli. Antimicrob. Agents Chemother. 2004, 48, 3332–3337. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Römling, U.; Galperin, M.Y.; Gomelsky, M. Cyclic di-GMP: The first 25 years of a universal bacterial second messenger. Microbiol. Mol. Biol. Rev. 2013, 77, 1–52. [Google Scholar] [CrossRef] [Green Version]
  35. Tischler, A.D.; Camilli, A. Cyclic diguanylate (c-di-GMP) regulates Vibrio cholerae biofilm formation. Mol. Microbiol. 2004, 53, 857–869. [Google Scholar] [CrossRef] [Green Version]
  36. Chan, C.; Paul, R.; Samoray, D.; Amiot, N.C.; Giese, B.; Jenal, U.; Schirmer, T. Structural basis of activity and allosteric control of diguanylate cyclase. Proc. Natl. Acad. Sci. USA 2004, 101, 17084–17089. [Google Scholar] [CrossRef] [Green Version]
  37. Römling, U. Characterization of the rdar morphotype, a multicellular behaviour in Enterobacteriaceae. Cell. Mol. Life Sci. 2005, 62, 1234–1246. [Google Scholar] [CrossRef]
  38. Römling, U.; Liang, Z.X.; Dow, J.M. Progress in understanding the molecular basis underlying functional diversification of cyclic dinucleotide turnover proteins. J Bacteriol. 2017, 199. [Google Scholar] [CrossRef] [Green Version]
  39. El Mouali, Y.; Kim, H.; Ahmad, I.; Brauner, A.; Liu, Y.; Skurnik, M.; Galperin, M.Y.; Römling, U. Stand-alone EAL domain proteins form a distinct subclass of EAL proteins involved in regulation of cell motility and biofilm formation in Enterobacteria. J. Bacteriol. 2017, 199. [Google Scholar] [CrossRef] [Green Version]
  40. Herbst, S.; Lorkowski, M.; Sarenko, O.; Nguyen, T.K.L.; Jaenicke, T.; Hengge, R. Transmembrane redox control and proteolysis of PdeC, a novel type of c-di-GMP phosphodiesterase. EMBO J. 2018, 37. [Google Scholar] [CrossRef]
Microorganisms 08 00522 g001 550

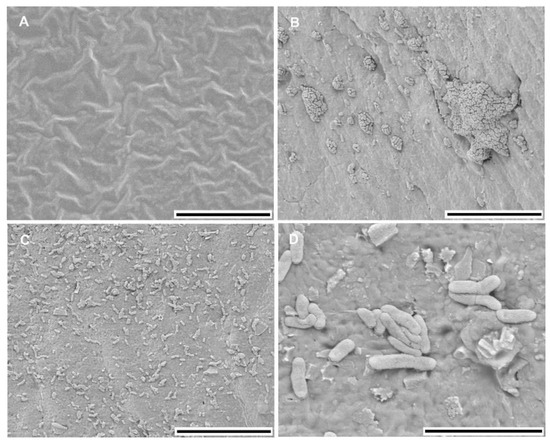

Figure 1. Scanning electron microscopy images showing biofilm formation of the urinary catheter isolate E. ludwigii CEB04 on the surface of a silicon catheter. Catheter control (A), different catheter areas with representative biofilm formation (B,C) and a detailed view of surface-attached cells (D). Scale bars = 20 µm (A–C) and 5 µm (D).
Figure 1. Scanning electron microscopy images showing biofilm formation of the urinary catheter isolate E. ludwigii CEB04 on the surface of a silicon catheter. Catheter control (A), different catheter areas with representative biofilm formation (B,C) and a detailed view of surface-attached cells (D). Scale bars = 20 µm (A–C) and 5 µm (D).
Microorganisms 08 00522 g001
Microorganisms 08 00522 g002 550

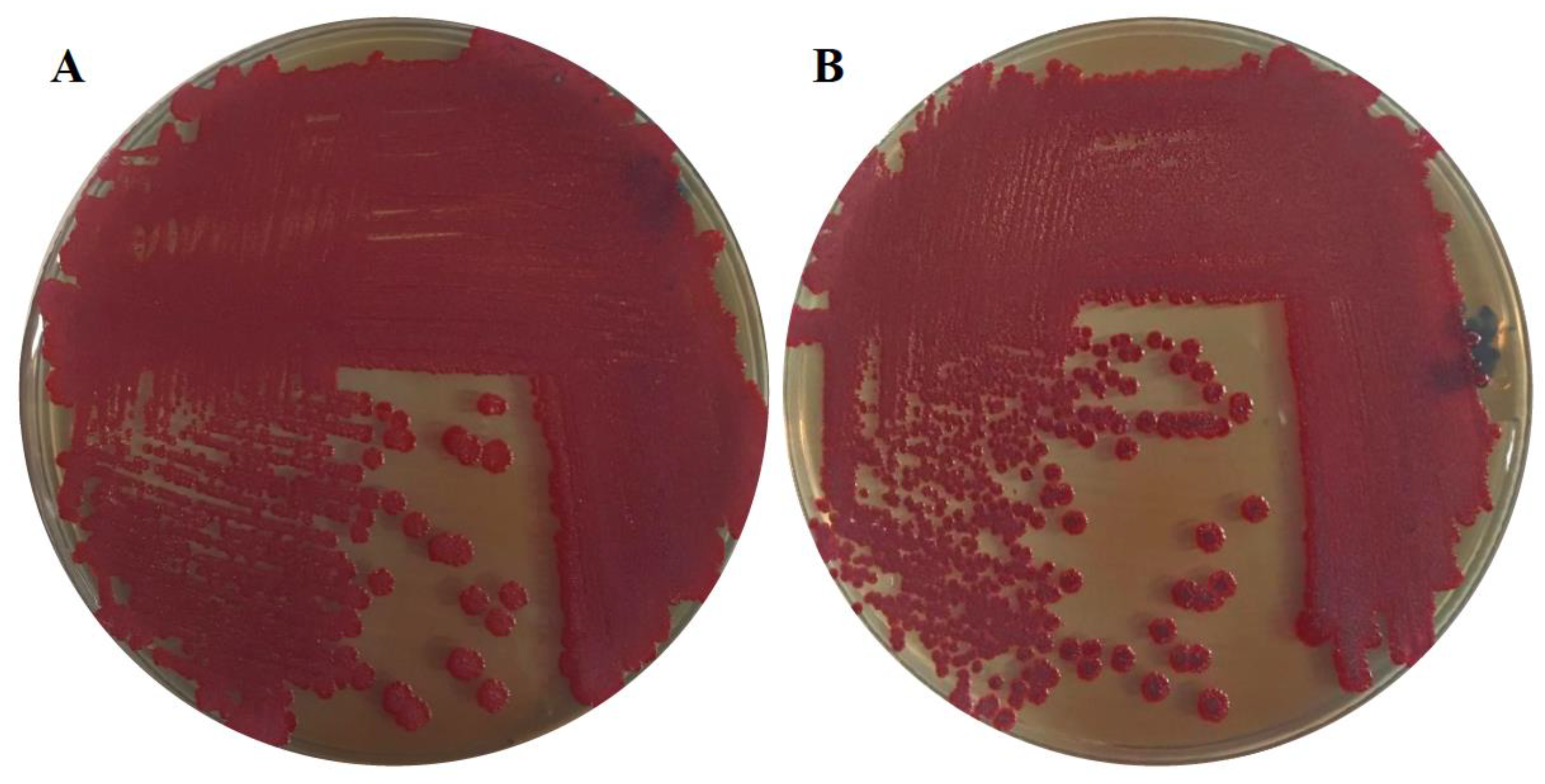

Figure 2. E. ludwigii urinary catheter isolate CEB04 grown on LB without salt agar plates containing Congo red and Coomassie brilliant blue. Plates were incubated for 48 h at 28 °C (A) and 37 °C (B).
Figure 2. E. ludwigii urinary catheter isolate CEB04 grown on LB without salt agar plates containing Congo red and Coomassie brilliant blue. Plates were incubated for 48 h at 28 °C (A) and 37 °C (B).
Microorganisms 08 00522 g002
Microorganisms 08 00522 g003 550

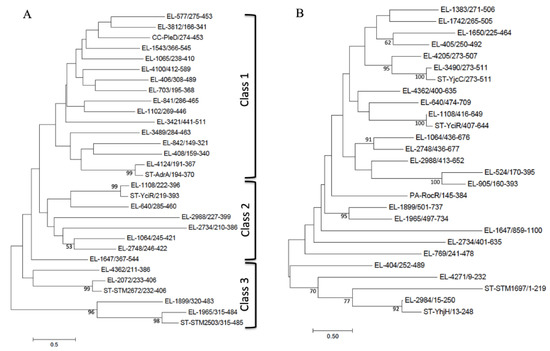

Figure 3. Phylogenetic trees of GGDEF domains (A) and EAL domains (B) in E. ludwigii CEB04. Numbers indicate amino acids of the protein included in the alignment. Bar indicates number of substitutions per site. EL= E. ludwigii, ST= Salmonella typhimurium, CC= Caulobacter crescentus and PA= Pseudomonas aeruginosa.
Figure 3. Phylogenetic trees of GGDEF domains (A) and EAL domains (B) in E. ludwigii CEB04. Numbers indicate amino acids of the protein included in the alignment. Bar indicates number of substitutions per site. EL= E. ludwigii, ST= Salmonella typhimurium, CC= Caulobacter crescentus and PA= Pseudomonas aeruginosa.
Microorganisms 08 00522 g003
Table
Table 1. Biofilm characteristics of E. ludwigii CEB04.
Table 1. Biofilm characteristics of E. ludwigii CEB04.
Pellicle 1Cell Aggregation 1Adherence 1Morphotype 1
28 °C+++-+++pdar
37 °C-++rdar
1 indicates no (-), low (+) and highly pronounced (+++) phenotypes.
Table
Table 2. List of antimicrobial resistance genes found in E. ludwigii CEB04.
Table 2. List of antimicrobial resistance genes found in E. ludwigii CEB04.
Resistance Gene% Gene Identity 1Chromosome PositionPredicted PhenotypeAccession Number of Reference
blaACT-1299.213677688–3678833Beta-lactam resistance AmpC-typeJX440355
fosA297.423879166–3879591Fosfomycin resistanceEU487198
oqxA86.824473130–4474305Quinolone resistanceEU370913
oqxB89.394474329–4477429Quinolone resistanceEU370913
1 compared to reference over the entire length of the gene.
Table
Table 3. List of GGDEF, EAL and HD-GYP domain proteins in E. ludwigii CEB04.
Table 3. List of GGDEF, EAL and HD-GYP domain proteins in E. ludwigii CEB04.
Protein E. ludwigii CEB04Locus Tag 1Protein E. coli MG1655 2% Identity 2,3Domain StructureHighest Identity Outside the Enterobacter Genus
GGDEF domain proteins
EL-406E5283_02015--dCache-1-GGDEFKosakonia sp.; 50.61%; WP043952574.1
EL-408E5283_02035YeaP67.94GAF-GGDEFLelliottia nimipressuralis; 86.26%; WP_134350745.1
EL-577E5283_02875YcdT30.04MASE4-GGDEFLeclercia sp.; 73.95%; WP103793192.1
EL-703E5283_03510--MASE5-GGDEFLelliottia sp.; 65.49%; WP103946328.1
EL-841E5283_04195--Unknown-GGDEFLelliottia sp.; 82.52%; WP129034904.1
EL-842E5283_04200YeaP32.52GAF-GGDEFLelliottia sp.; 70.09%; WP064326108.1
EL-1065E5283_05285YdaM68.54PAS-PAS-GGDEFL. nimipressuralis; 87.07%; WP_134350494.1
EL-1102E5283_05465YcdT43.85MASE4-GGDEFKlebsiella oxytoca; 78.12%; SAP54703.1
EL-1543E5283_07695YdeQ62.15CHASE7-xCache-GGDEFK. oxytoca; 78.12%; SAP54703.1
EL-2072E5283_10410YfiN66.17CHASE8-HAMP-GGDEFL. nimipressuralis; 93.84%; WP_134347265.1
EL-3421E5283_17410--dCache_1-GGDEFL. nimipressuralis; 85.22%; WP_134348056.1
EL-3489E5283_17760--Unknown-PAS-GGDEFLelliottia sp.; 73.66%; WP123429896.1
EL-3812E5283_19415--Unknown-GGDEFL. nimipressuralis; 93.84%; WP_134347265.1
EL-4100E5283_20885--TMAO_torS-HAMP-NarQ-GGDEFCitrobacter sp.; 79.97%; MTZ80699.1
EL-4124E5283_21005AdrA61.31MASE2-GGDEFLelliottia sp.; 76.13%; WP103948306.1
EAL domain proteins
EL-404E5283_02005--CSS-EALKlebsiella sp.; 79.66%; SSW82448.1
EL-405E5283_02010YcgG50.40CSS-EALL. nimipressuralis; 84.39%; P_134349910.1
EL-524E5283_02605BluR62.03BLUF-EALLeclercia sp.; 90.39%; WP_048027580.1
EL-769E5283_03840--Unknown-HTH-LuxR-EALLeclercia sp.; 90.39%; WP_048027580.1
EL-905E5283_04505BluR44.50BLUF-EALL. nimipressuralis; 87.87%; WP_134350370.1
EL-1383E5283_06890YoaD68.61CSS-EALKlebsiella sp.; 64.75%; WP049840643.1
EL-1650E5283_08250--Unknown-EALL. nimipressuralis; 87.87%; WP_134350370.1
EL-1742E5283_08705Rtn60.51CSS-EALMesorhizobium sp.; 90%; TIN52519.1
EL-2984E5283_15070YhjH72.73EALLelliottila aquatilis; 81.95%; WP_103946061.1
EL-3490E5283_17765YjcC63.13CSS-EALL. nimipressuralis; 95.59%; WP_134347305.1
EL-4205E5283_21415YlaB59.69CSS-EALCitrobacter sp.; 61.97%; WP121585463.1
EL-4271E5283_21750--EALMesorhizobium sp.; 90%; TIN52519.1
GGDEF-EAL domain proteins
EL-640E5283_03185--CHASE4-GGDEF-EALLelliottia sp.; 82.64%; WP059178784.1
EL-1064E5283_05280--Unknown-GGDEF-EALCitrobacter sp.; 58.12%; WP086551269.1
EL-1108E5283_05495YciR78.78PAS-GGDEF-EALL. nimipressuralis; 97.44%; TFB20523.1
EL-1647E5283_08235YegE75.32MASE1-PAS-PAS_PAS-GGDEF-xEALMesorhizobium sp.; 92.79%; TIM58473.1
EL-1899E5283_09475YfeA58.25MASE1-xGGDEF-EALL. nimipressuralis; 80.07%; OIR50653.1
EL-1965E5283_09845YfgF62.81MASE1-xGGDEF-EALL. nimipressuralis; 90.43%; WP_134347661.1
EL-2734E5283_13795CsrD77.55GAPES4-xGGDEF-xEALL. nimipressuralis; 80.07%; OIR50653.1
EL-2748E5283_13865--MHYT-GGDEF-EALKosakonia sp.; 79.94%; SEL52885.1
EL-2988E5283_15090YhjK78.15GAPES3-HAMP-xGGDEF-EALL. nimipressuralis; 90.43%; WP_134347661.1
EL-4362E5283_22180--Unknown-GGDEF-EALCitrobacter sp.; 65.63%; WP003836475.1
HD-GYP domain proteins
EL-1478E5283_07365--SBP_bac_3-SBP_bac_3-HD-GYPLelliottia sp.; 72.47%; WP103949684.1
1 locus tags of E. ludwigii CEB04 based on publicy available NCBI annotation; 2 indicates absence of homologous protein in E. coli MG1655; 3 % amino acid identity to E. coli MG1655 homologue over the entire length of the protein.
