Identification and Pathogenic Potential of Bacillus cereus Strains Isolated from a Dairy Processing Plant Producing PDO Taleggio Cheese

by
Erica Tirloni
1,
Simone Stella
1,
Cristian Bernardi
1,
Diletta Mazzantini
2,
Francesco Celandroni
2 and
Emilia Ghelardi
2,3,*
1
Department of Health, Animal Science and Food Safety, University of Milan, via Celoria 10, 20133 Milan, Italy
2
Department of Translational Research and New Technologies in Medicine and Surgery, University of Pisa, Via San Zeno 37, IT-56127 Pisa, Italy
3
Research Center Nutraceuticals and Food for Health-Nutrafood, University of Pisa, 56128 Pisa, Italy
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(6), 949; https://doi.org/10.3390/microorganisms8060949
Submission received: 13 May 2020 / Revised: 9 June 2020 / Accepted: 22 June 2020 / Published: 24 June 2020
(This article belongs to the Special Issue Bacillus: Molecular Considerations)
Browse Figures
Versions Notes

Abstract

:
Low levels of contamination by Bacillus cereus at the cheese farm is essential for reducing any opportunity for growth prior consumption. In this study, B. cereus distribution in a plant producing Protected Designation of Origin Taleggio cheese was investigated and the virulence potential of the isolates was evaluated. Seventy-four samples were collected from Food and Non Food Contact Surfaces (FCS, NFCS), saline curd, and Taleggio. The eleven isolates were identified, typified, and clustered. Strains were tested for the production of hemolysins, hemolysin BL (HBL), phosphatidylcholine-specific phospholipase C (PC-PLC), proteases, and biofilm, and for the presence of chromosomal toxin-encoding genes (sph, plcA, cytK, entFM, bcet, entS, nheA, nheB, nheC). B. cereus was detected on NFCS, FCS, and curd, but not in Taleggio. The isolates were grouped into six clusters, and all produced PC-PLC, hemolysins, and proteases, and most of them HBL (66.7%). All the clusters harbored the nheA, sph, plcA, entFM, and cytK genes, and some also nheB (83.3%), nheC (66.7%), bcet (50.0%), and entS (66.7%). All strains showed biofilm-forming ability. Our data reveal possible contamination of production plants and cheese curd by potentially virulent B. cereus, but bacterial absence in Taleggio highlights the efficacy of a proper management of the production phases in assuring consumer’s protection.

Graphical Abstract

1. Introduction

Spore forming bacteria are still a challenge in dairy processing plants in terms of dairy product safety and spoilage. In particular, Bacillus cereus is recognized as a common contaminant of dairy products with frequent isolation from raw and pasteurized milk [1,2,3], as well as from final products [4,5]. This microorganism was also proven able to replicate in some dairy products such as ricotta and mascarpone cheese [6,7].
B. cereus is recognized as an important spoilage microorganism [8], because of the production of extracellular enzymes like proteases, lipases, lecithinases, and phospholipases, which hydrolyze caseins and triacylglycerols or determine a disruption of the fat globule structure, leading to degradation of milk components and additives [9]. B. cereus is associated with two types of diseases, namely the emetic syndrome (determined by cereulide, a small ring-shaped peptide pre-formed in food before consumption) and the diarrheal syndrome (caused by one or more enterotoxins produced in the small intestine by live bacteria) [10,11,12].
In dairy plants, the ability of B. cereus to adhere to surfaces and form biofilms is of great concern for manufacturers, since biofilm can be a constant source of recurrent contamination of products during the production stages [9].
The aim of this study was to monitor the presence of B. cereus in a dairy plant producing Protected Designation of Origin (PDO) Taleggio cheese. Taleggio is a soft cheese produced in a specific area (8 provinces) of Northern Italy. It is made of whole raw or pasteurized cow milk. The curd is obtained by the addition of calf rennet and microbial starters (Lactobacillus bulgaricus and Streptococcus thermophilus) at a temperature of 32–35 °C. After breaking and purging, the curd is distributed into the molds; it is submitted to a resting phase at 22–25 °C that lasts for 8–16 h and to dry- or brine-salting. Then, ripening takes place on wood axes or boxes and lasts for a minimum of 35 days at refrigeration temperatures. During this phase, the cheese is weekly turned and sponged with salt water. Differently from other soft cheeses, the rind is intended for consumption. In order to monitor the diffusion of B. cereus, all the areas of the plant were sampled, considering several different points. All presumptive B. cereus isolates were identified by matrix assisted laser desorption/ionization-time of flight mass spectrometry (MALDI-TOF MS) and typified by randomly amplified polymorphic DNA PCR (RAPD-PCR), to better comprehend B. cereus spread among different sites of the dairy plant. Moreover, the putative pathogenic significance of B. cereus contamination was investigated by evaluating the production of hemolysins, phospholipases, proteases, and the ability to form biofilms, as well as the presence of toxin-encoding genes of the isolated bacterial clusters.

2. Materials and Methods

2.1. Experimental Plan

Environmental samples were collected from a medium-scale dairy industry producing PDO Taleggio cheese, during two sampling sessions performed in May and July 2017. The plant included two main sections, intended for cheese production and for ripening. A total of 74 environmental samples were collected during production from different areas (production, brining/ripening, packaging). The sampling points were identified as food contact surfaces (FCS), transfer-non food contact surfaces (tr-NFCS, points that can favor the transfer of the contamination among different areas), and non-transfer-NFCS (non-tr-NFCS). Several points were sampled, as summarized in Table 1. In addition to environmental samples, three samples of salt/saline, two samples of curd, and four samples of Taleggio rinds (at the end of the ripening period) were taken.

2.2. Sample Analysis

Sterile swabs (Copan, Brescia, Italy) were used to swab surfaces of about 10 × 10 cm2. After sampling, swabs were placed in sterile tubes with transport medium, kept on ice during transport to the laboratory, and analyzed within 24 h from collection. The presumptive presence of B. cereus was assessed by striking the swabs onto PEMBA (Scharlab, Barcelona, Spain), followed by incubation at 37 °C for 48 h. From each positive sample, a presumptive B. cereus colony was sub-cultured onto tryptic soy agar (TSA, Scharlab, Barcelona, Spain) at 37 °C for 24 h. Samples of cheese curd and PDO Taleggio were also submitted to the enumeration of B. cereus. Briefly, 10 g of sample was ten-fold diluted in chilled sterile diluent solution (0.85% NaCl and 0.1% peptone) and homogenized for 60 s in a Stomacher 400 (Seward Medical, London, UK). Then, appropriate ten-fold dilutions of the homogenates were made in chilled saline, and spread onto PEMBA plates. Plates were incubated at 30 °C for 48 h (limit of quantification equal to 102 CFU/g).

2.3. MALDI-TOF MS Identification

MALDI-TOF MS identification was performed on all isolates as previously reported [13]. Briefly, well-isolated colonies were spotted on the MALDI plates and covered with 1 µL of ethanol, 1 µL of formic acid, 1 µL of acetonitrile, and 1 µL of saturated α-cyano-4-hydroxycinnamic acid (HCCA) matrix solution. Plates were air-dried and placed in the instrument according to the manufacturer’s instructions. The mass spectra were automatically acquired within 10 min, in the positive linear mode at a laser frequency of 60 Hz with an acquisition range from 1.960 to 20.000 Da. Spectra were imported into the integrated MALDI Biotyper software (version 3.1, Bruker, Billerica, MA, USA) and analyzed by standard pattern matching with a default setting. A score ≥ 2.00 indicated identification at the species level, a score ranging from 1.99 to 1.70 indicated identification at the genus level, whereas any score < 1.70 meant no significant similarity of the obtained spectrum with any database entry. Each isolate was tested in triplicate.

2.4. RAPD-PCR

Genomic DNA was extracted from B. cereus isolates as previously described [14]. RAPD-PCR fingerprinting of bacterial genomes was performed with the primers RPO2 (5′-GCGATCCCCA-3′), M13 (5-GAGGGTGGCGGCTCT-3), HLWL85 (5′-ACAACTGCTC-3′), and OPE03 (5′-CCAGATGCAC-3′) [13,15]. RAPD-PCR reactions were carried out in 50-µL mixtures containing 1 µM primer, 10 µL of Wonder Taq Reaction Buffer, 2.5 U of Wonder Taq (Euroclone, Milan, Italy), 50 ng of genomic DNA, and sterile ultrapure water up to 50 µL. PCR conditions were set as follows: 30 cycles consisting of 94 °C for 1 min, 36 °C for 1 min, and 72 °C for 2 min, followed by one cycle consisting of 72 °C for 10 min. Genomic DNA extracted from B. cereus ATCC 14579 and B. cereus ATCC 10987 were used as positive controls for each reaction. The reproducibility of RAPD-PCR profiles was assessed in at least three separate experiments.

2.5. Detection of Hemolysins, Hemolysin BL, Diarrheal Toxin, Phosphatidylcholine-Specific Phospholipase C, and Proteases

The ability to produce and secrete hemolysins and hemolysin BL (HBL) was assessed by streaking bacterial cells on blood agar (Columbia agar containing 5% horse-blood, Oxoid, Basingstoke, UK) and sheep blood agar (Columbia agar containing 5% sheep-blood, Oxoid), respectively. Plates were incubated at 30 °C for 18 h. Hemolysin production was checked by visually evaluating the presence of a halo of incomplete hemolysis immediately around the colonies. HBL secretion was tested by observing the formation of an unusual discontinuous zone of hemolysis surrounding colonies [10]. Diarrheal toxin was detected in filtered culture supernatants by using the B. cereus enterotoxin-reversed passive latex agglutination (BCET-RPLA, Oxoid, Basingstoke, UK) kit accordingly to the manufacturers. The production of phosphatidylcholine-specific phospholipase C (PC-PLC) was evaluated by agar-diffusion assays by using 0.15% l-α-phosphatidylcholine (Sigma-Aldrich, Milan, Italy) [15]. Protease secretion was checked by seeding bacterial cells on 1.5% skim milk (Oxoid, Basingstoke, UK), followed by incubation at 37 °C for 18 h [16]. The presence of a clear degradation halo around colonies was indicative of the presence of proteolytic activities. Experiments were repeated three times in separate days.

2.6. Detection of Toxin-Encoding Genes

For the detection of B. cereus toxin-encoding genes (sphingomyelinase (Smase), sph; diarrheal toxin Bcet, bcet; enterotoxin FM, entFM; enterotoxin S, entS; phosphatidylinositol-specific phospholipase C (PI-PLC), plcA; cytotoxin K (CytK), cytK; non-hemolytic enterotoxin complex (NHE), nheA, nheB, and nheC), PCR reactions were performed on bacterial genomic DNA. For each gene, amplification conditions were set as previously described [15]. Genomic DNA extracted from B. cereus ATCC 14579 was used as positive control for each amplification.

2.7. Biofilm Formation

Bacteria were tested for biofilm formation in Luria Bertani (LB) broth (Oxoid, Basingstoke, UK) as previously described [16]. Briefly, bacteria were grown to the early stationary phase in LB at 37 °C and diluted to an optical density at 600 nm (OD600) of 0.01 in fresh LB. 2 mL were transferred to wells of polystyrene 24-well plates (Falcon/Becton Dickinson, Franklin Lakes, NJ, USA) and incubated in static conditions for 48 h at 37 °C. At the end of incubation, non-adherent planktonic bacteria were removed, wells washed three times with phosphate buffer saline (PBS), and air-dried. Microbial biofilms were stained with 2 mL of 0.3% crystal violet for 10 min, washed with distilled water, and air-dried. Crystal violet was solubilized with 2 mL of 70% ethanol and the OD590 measured. The strong biofilm producer B. cereus ATCC 10987 was used as positive control, while sterile LB was used as negative control. Experiments were repeated three times in separate days and two technical replicates were carried out for each assay.

2.8. Statistical Analysis

Quantitative data were expressed as mean ± standard deviation (S.D). Statistical analysis was performed on GraphPad Prism version 8.0.2 (GraphPad Software, San Diego, CA, USA). Data concerning the prevalence of B. cereus were subjected to chi-square test, in order to compare the results obtained from the different areas of the plant. A comparison was also made among FCS, tr-NFCS, and non-tr-NFCS samples, by applying the exact Fisher’s test. For the evaluation of biofilm formation, the one-way analysis of variance (ANOVA) with Dunnett’s multiple comparisons test was applied, by setting the sterile LB values as control group. A two-sided p-value < 0.05 was considered significant.

3. Results

3.1. Prevalence of B. cereus in Environmental Samples, Curd, and Final Product

In this study, the presence of B. cereus was investigated in various environmental sites in a dairy processing plant producing PDO Taleggio cheese during two sampling sessions (May and July). As reported in Table 1, B. cereus was isolated from 9/74 environmental sites. A higher prevalence (8/40 samples) was observed during the first sampling session if compared to the second (1/34), but no particular correlation could be inferred because of the low number of positive samples. This difference could be linked to several uncontrollable factors, such as the different application of good hygienic practices in July compared to May. Data obtained from environmental samples showed a similar distribution of B. cereus in the different areas dedicated to PDO Taleggio production (4/37 for production area, 2/28 for brining/ripening area, 2/4 for packaging area, p > 0.05; Table 1). Sampling points from different environmental sites were classified as food contact surfaces (FCS, N° = 25), transfer-non food contact surfaces (tr-NFCS, N° = 16), and non-transfer-NFCS (non-tr-NFCS, N° = 33). As shown in Figure 1 and Table 1, the positivity rate for B. cereus detected on FCS was moderate (2/25) and not significantly different from that found on total NFCS (7/49). Considering the results obtained from NFCS (Table 1; Figure 1), the presence of B. cereus was revealed on four non-tr-NFCS (water hose and floor of the production area, and a drain of the packaging area; 4/33) and three tr-NFCS (trolley wheels of the packaging area, operators’ boots of the brining/ripening, and sampler’s overshoes; 3/16), all surfaces related to the floor. Among the FCS, the presence of B. cereus was only detected on a vat used for brining and on a duct for the transport of whey.
In addition to environmental samples, the presence of B. cereus was also investigated in salt/saline, curd, and in the final product PDO Taleggio (Table 1). B. cereus was detected in the cheese curd in both sampling sessions, with amounts equal to 1.6 × 103 CFU/g and 2 × 102 CFU/g in samples from the first and second session, respectively. In contrast, the microorganism was not isolated from salt/saline and PDO Taleggio cheese.

3.2. B. cereus Identification and Clustering

A total of 11 presumptive B. cereus isolates (Table 1) were subjected to identification by MALDI-TOF MS. This technique had been successfully applied for the identification of B. cereus obtained from clinical, food, and environmental samples, as well as from probiotic formulations [13,16,17,18]. All isolates were confirmed as belonging to the B. cereus sensu strictu species, with scores greater than 2.00. Since the isolates were obtained from different samples of the dairy processing plant, we wondered whether they could represent different B. cereus strains. Molecular typing was performed by RAPD-PCR, a method successfully used to genetically differentiate strains belonging to the B. cereus species [15]. Primers RPO2, M13, HLWL85, and OPE03 were separately used to amplify the genomic DNA of each isolates and the amplification profiles obtained with each primer were compared (Figure 2). Genomic DNA of B. cereus ATCC 14579 and B. cereus ATCC 10987 were used as controls for each reaction. Global analysis of the generated patterns (Figure 2) lead us to group the isolates into six different clusters of similarity. Within each group, it can be reasonably assumed that the isolates are a single bacterial strain. The amplification profiles obtained for A11M, A30L, A21M, and A32L were unique (Figure 2), thus indicating that these isolates belong to four different clusters that were called cluster 1, 4, 5, and 6, respectively. Genetic similarities were found for strains (i) A31M, A28M, A29M, A39M, and A13M; and (ii) A9M, and A20M. These results lead us to group the isolates into two different clusters of similarity, named cluster 2 and 3, respectively (Figure 2).

3.3. Virulence Potential of B. cereus Isolates

The ability of B. cereus strains to produce/secrete virulence factors or enzymes with a potential spoilage activity (PC-PLC, proteases, hemolysins, and HBL) was investigated by visualizing the activity of these virulence factors on solid media containing skim milk, phosphatidylcholine, horse blood, and sheep blood, respectively. BCET-RPLA kit was used to detect the presence of the diarrheal toxin (i.e., the L2 component of HBL [19]) in culture supernatants. As shown in Table 2, all B. cereus strains produced PC-PLC, proteases, and hemolysins, while HBL activity, as well as the L2 component of HBL, were detected in clusters 1, 2, 4, and 6. Cluster 3 was unable to produce L2 and this result correlated with the absence of the typical discontinuous halo of HBL on sheep blood agar found for this group. Interestingly, while L2 was detected in culture supernatants, no HBL activity was observed for cluster 5 (Table 2), suggesting that this group could not produce at least one of the other HBL components.
When specific tests were not available, we used PCR to search the toxin-encoding genes (nheA, nheB, nheC, sph, plcA, cytK, bcet, entFM, and entS, encoding NHEA, NHEB, and NHEC, Smase, PI-PLC, CytK, diarrheal toxin Bcet, enterotoxin FM, and enterotoxin S, respectively) in B. cereus genomes. The analysis revealed that all clusters possessed in their genome the nheA, plcA, cytK, and entFM genes (Table 2). On the other hand, clusters 1, 2, 3, and 6 carried also nheB and nheC, while cluster 4 had nheB but not nheC. Interestingly, cluster 5 did not possess nheB nor nheC. Since NHE requires all the three components to be active, these results indicate that clusters 4 and 5 do not produce NHE. Most clusters carried sph, with the only exception of group 5. The bcet and entS genes were present in the genome of strains belonging to the clusters 2, 4, and 6, while were absent in those of the clusters 3 and 5. Cluster 1 carried entS, but not bcet.
The ability of the six B. cereus clusters to produce microbial biofilms was evaluated by the crystal violet assay. This analysis indicated that all strains were able to form biofilm (p < 0.01 for cluster 2 and 4 and p < 0.001 for cluster 1, 3, 5, and 6 compared to the negative control; Figure 3), although its amount was lower (p < 0.001) compared to the strong biofilm producer B. cereus ATCC 10987 (positive control, Figure 3).
B. cereus pathogenic potential is complex and is primarily due to the secretion of several toxins and tissue-destructing exoenzymes [10,11,12]. These virulence factors include hemolysins, cytotoxin (i.e., CytK), trimeric complexes (i.e., NHE and HBL), proteases, enterotoxins (i.e., enterotoxin FM, diarrheal toxin Bcet, and enterotoxin S), and phospholipases (i.e., PC-PLC, PI-PLC, and Smase). The presence of potentially virulent B. cereus strains in dairy processing plants represents a serious health risk for the consumers, because of their ability to cause foodborne diseases. In addition, the production of lipases and proteases by B. cereus could lead to food degradation and spoilage, thus resulting in a great economic loss for food producers [20].
This study analyzed the degree of diffusion of B. cereus in the Taleggio production environment, considering a plant typology where all the phases (production and ripening) are performed following the PDO standard. The microorganism was found in all the areas of the plant at similar rates. This result was expected for the ubiquity of the microorganism and the multiplicity of contamination sources [21]. As regards the microbe distribution in different areas, its recovery from transfer-non food contact surfaces (tr-NFCS) suggests that these surfaces represent contamination carriers between different working areas or from the outside (e.g., during the working pauses or trucks loading/unloading). Water hoses (considered as non-tr-NFCS), which are frequently handled by the operators, can represent both an end point and a potential source of contamination. The presence of B. cereus on the whey duct was considered very critical, since whey is frequently used for products in which the presence of this potential pathogen could be dangerous, such as ricotta or products intended for infants [6,22]. No contamination of the curdling tank was evidenced, suggesting the absence of B. cereus spores in the pasteurized milk used for production. In fact, the total absence of spores cannot be assured by the producer and requires proper control procedures during cheese manufacturing [22,23,24].
The isolation of B. cereus from curd but not from Taleggio was considered interesting. In fact, curd can represent a suitable substrate for B. cereus to replicate and potentially reach counts of concern. It is arguable that the early addition of pro-technological starter cultures (Lactobacillus bulgaricus and Streptococcus thermophilus) coupled with curd and cheese salting contrast the growth of microbial contaminants during the first drying and ripening phases of Taleggio cheese, as observed for other dairy products [5,25,26,27,28]. In this light, B. cereus contamination of the brining vat could be considered as non-critical. In fact, differently from other bacterial species [29,30], B. cereus shows difficulties in replication on the PDO Taleggio cheese surface with the increasing ripening period [7].
The presence of different clusters of B. cereus strains in the same plant suggests the possibility of a reiterated entry of the microorganism from external sources. It is interesting to highlight that cluster 2 comprises isolates found on the floor of the production area, on operators’ boots in the ripening area, on trolley wheels in the packaging area, on the overshoes of a person that was performing the environmental samplings, and in the cheese curd (Table 1). Thus, this strain shows an evident circulation and easy spread from a section to another. A similar correlation was found also for the isolates belonging to cluster 3, since they were found in two different places (the internal surface of whey drainage ducts and water hose, respectively) of the production area (Table 1).
The isolates obtained from the analyzed Taleggio production plant showed a constant ability to produce PC-PLC, proteases, and hemolysins, whereas only most of them were able produce HBL (66.7%). These results agree with previous studies showing a very high rate of PC-PLC, protease, and hemolysin activity [4,31,32,33], and a variable rate of HBL production (ranging from 20 to 90%) by B. cereus isolates [21,34,35].
Considering cheese, several studies confirm the high prevalence of nhe genes in B. cereus isolates [21,31,32,35,36,37,38]. In this study, we found that all the strain clusters harbored nheA, and some also nheB (83.3%) and nheC (66.7%), indicating that 66.7% of the strains are potentially able to secrete active NHE. The frequency of cytK observed in this study (100%) was markedly higher than that observed in cheese by other authors [37,38]. A high frequency of CytK production is generally reported for food poisoning or food related strains [33,39]. The additional finding that all the strain clusters harbored the entFM gene and some also bcet (50.0%), and entS (66.7%) agree with those reported by previous studies performed on milk and dairy products [31,33,37,38].
Together with spores, biofilm production is a pivotal factor for B. cereus survival and persistence in the food industry and dairy processing plants, acting as a barrier against the action of chemicals and sanitization procedures [40,41]. The formation of these microbial consortia favors B. cereus adhesion to several FCS and NFCS surfaces, thus resulting in a potential source of cross-and post-processing contamination of finished products [42]. All the B. cereus strains isolated in this study were able to form biofilm. This evidence supports the idea that spreading of certain B. cereus strains among different sites of the plant could be, at least in part, promoted by their ability to form biofilm. However, the reduction in the number of B. cereus strains found in the second sampling session compared to the first was strongly indicative that cleaning and sanitation procedures were correctly applied to remove the potential source of contamination.

4. Conclusions

The results of this study highlight the diffusion of potential pathogenic B. cereus through a PDO Taleggio processing plant. The ubiquity of this microorganism in the environment was evidenced by the detection of the same strain in different points of the facility, favored by the contamination of equipment that can reach different areas of the production plant, as well as the detection of different strains in the same plant. The presence of B. cereus in the curd, coming from multiple environmental sources or from milk, appears not to be completely avoidable. Nevertheless, the absence of the microorganism in the final product, coupled with the unsuitability of the ripened product for B. cereus growth, should be regarded as positive factors, suggesting that proper management of the production and initial ripening phases by the producer can assure a high level of consumer’s protection.

Author Contributions

Conceptualization, S.S., E.T., and E.G.; methodology, E.T., S.S, C.B., D.M., F.C., and E.G.; software, E.T. and D.M.; validation S.S. and E.G.; formal analysis, E.G.; investigation, E.T., C.B., F.C., and D.M.; resources, E.T. and D.M.; data curation, E.T. and D.M.; writing—original draft preparation, E.T., S.S., C.B., D.M., F.C., and E.G.; writing—review and editing, S.S. and E.G.; visualization, S.S. and E.G.; supervision, E.G.; project administration, S.S.; funding acquisition, S.S. and E.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Christiansson, A.; Bertilsson, J.; Svensson, B. Bacillus cereus spores in raw milk: Factors affecting the contamination of milk during the grazing period. J. Dairy Sci. 1999, 82, 305–314. [Google Scholar] [CrossRef]
  2. Svensson, B.; Monthán, A.; Shaheen, R.; Andersson, M.A.; Salkinoja-Salonen, M.; Christiansson, A. Occurrence of emetic toxin producing Bacillus cereus in the dairy production chain. Int. Dairy J. 2006, 16, 740–749. [Google Scholar] [CrossRef]
  3. Bartoszewicz, M.; Hansen, B.M.; Swiecick, I. The members of the Bacillus cereus group are commonly present contaminants of fresh and heat-treated milk. Food Microbiol. 2008, 25, 588–596. [Google Scholar] [CrossRef] [PubMed]
  4. Wong, H.C.; Chang, M.H.; Fan, J.Y. Incidence and characterization of Bacillus cereus isolates contamination dairy products. Appl. Environ. Microbiol. 1988, 54, 699–702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Spanu, C.; Scarano, C.; Spanu, V.; Pala, C.; Casti, D.; Lamon, S.; Cossu, F.; Ibba, M.; Nieddu, G.; De Santis, E.P.L. Occurrence and behavior of Bacillus cereus in naturally contaminated ricotta salata cheese during refrigerated storage. Food Microbiol. 2016, 58, 135–138. [Google Scholar] [CrossRef] [PubMed]
  6. Tirloni, E.; Ghelardi, E.; Celandroni, F.; Bernardi, C.; Casati, R.; Rosshaug, P.S.; Stella, S. Bacillus cereus in fresh ricotta: Comparison of growth and Haemolysin BL production after artificial contamination during production or post processing. Food Control. 2017, 79, 272–278. [Google Scholar] [CrossRef]
  7. Tirloni, E.; Ghelardi, E.; Celandroni, F.; Bernardi, C.; Stella, S. Effect of dairy product environment on the growth of Bacillus Cereus. J. Dairy Sci. 2017, 100, 7026–7034. [Google Scholar] [CrossRef]
  8. Lücking, G.; Stoeckel, M.; Atamer, Z.; Hinrichs, J.; Ehling-Schulz, M. Characterization of aerobic spore-forming bacteria associated with industrial dairy processing environments and product spoilage. Int. J. Food Microbiol. 2013, 166, 270–279. [Google Scholar] [CrossRef]
  9. Kumari, S.; Sarkar, P.K. Bacillus cereus hazard and control in industrial dairy processing environment. Food Control. 2016, 69, 20–29. [Google Scholar] [CrossRef]
  10. Senesi, S.; Ghelardi, E. Production, secretion and biological activity of Bacillus cereus enterotoxins. Toxins 2010, 2, 1690–1703. [Google Scholar] [CrossRef]
  11. Ehling-Schulz, M.; Lereclus, D.; Koehler, T.M. The Bacillus cereus Group: Bacillus Species with Pathogenic Potential. Microbiol. Spectr. 2019, 7. [Google Scholar] [CrossRef] [PubMed]
  12. Stenfors Arnesen, L.P.; Fagerlund, A.; Granum, P.E. From soil to gut: Bacillus cereus and its food poisoning toxins. FEMS Microbiol. Rev. 2008, 32, 579–606. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Celandroni, F.; Vecchione, A.; Cara, A.; Mazzantini, D.; Lupetti, A.; Ghelardi, E. Identification of Bacillus species: Implication on the quality of probiotic formulations. PLoS ONE 2019, 14, e0217021. [Google Scholar] [CrossRef] [PubMed]
  14. Celandroni, F.; Ghelardi, E.; Pastore, M.; Lupetti, A.; Kolstø, A.-B.; Senesi, S. Characterization of the chemotaxis fliY and cheA genes in Bacillus cereus. Fems Microbiol. Lett. 2000, 190, 247–253. [Google Scholar] [CrossRef] [PubMed]
  15. Ghelardi, E.; Celandroni, F.; Salvetti, S.; Barsotti, C.; Baggiani, A.; Senesi, S. Identification and characterization of toxigenic Bacillus cereus isolates responsible for two food-poisoning outbreaks. Fems Microbiol. Lett. 2002, 208, 129–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Celandroni, F.; Salvetti, S.; Gueye, S.A.; Mazzantini, D.; Lupetti, A.; Senesi, S.; Ghelardi, E. Identification and pathogenic potential of clinical Bacillus and Paenibacillus isolates. PLoS ONE 2016, 11, e0152831. [Google Scholar] [CrossRef]
  17. Shih, A.; Grant, M.; Sankey, C. Bacillus cereus Bacteremia and Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometry. Infect. Dis. Clin. Pract. 2016, 24, 14–17. [Google Scholar] [CrossRef]
  18. Ulrich, S.; Gottschalk, C.; Dietrich, R.; Märtlbauer, E.; Gareis, M. Identification of cereulide producing Bacillus cereus by MALDI-TOF MS. Food Microbiol. 2019, 82, 75–81. [Google Scholar] [CrossRef]
  19. Beecher, D.J.; Wong, A.C.L. Improved purification and characterization of hemolysin BL, a hemolytic dermonecrotic vascular permeability factor from Bacillus cereus. Infect. Immunol. 1994, 62, 980–986. [Google Scholar] [CrossRef] [Green Version]
  20. Gopal, N.; Hill, C.; Ross, P.R.; Beresford, T.P.; Fenelon, M.A.; Cott, P.D. The Prevalence and Control of Bacillus and Related Spore-Forming Bacteria in the Dairy Industry. Front. Microbiol. 2015, 6, 1418. [Google Scholar] [CrossRef]
  21. Berthold-Pluta, A.; Pluta, A.; Garbowska, M.; Stefańska, I. Prevalence and toxicity characterization of Bacillus cereus in food products from Poland. Foods 2019, 8, 269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Pirttijärvi, T.S.M.; Ahonen, L.M.; Maunuksela, L.M.; Salkinoja-Salonen, M.S. Bacillus cereus in a whey process. Int. J. Food Microbiol. 1998, 44, 31–41. [Google Scholar] [CrossRef]
  23. Moradi-Khatoonabadi, Z.; Ezzatpanah, H.; Maghsoudlou, Y.; Khomeiri, M.; Aminafshar, M. Tracking Bacillus cereus in UF-Feta cheese processing line. Int. Dairy J. 2014, 39, 47–52. [Google Scholar] [CrossRef]
  24. Lin, S.; Schraft, A.; Odumeru, J.A.; Griffiths, W.G. Identification of contamination sources of Bacillus cereus in pasteurized milk. Int. J. Food Microbiol. 1998, 43, 159–171. [Google Scholar] [CrossRef] [Green Version]
  25. Wong, H.C.; Chen, Y. Effects of lactic acid bacteria and organic acids on growth and germination of Bacillus cereus. Appl. Environ. Microbiol. 1988, 54, 2179–2184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Rukure, G.; Bester, B.H. Survival and growth of Bacillus cereus during Gouda cheese manufacturing. Food Control. 2001, 12, 31–36. [Google Scholar] [CrossRef] [Green Version]
  27. Muñoz, A.; Maqueda, M.; Gálvez, A.; Martínez-Bueno, M.; Rodríguez, A.; Valdivia, E. Biocontrol of psychrotrophic enterotoxigenic Bacillus cereus in a nonfat hard cheese by an enterococcal strain–producing Enterocin AS-48. J. Food Protect. 2004, 67, 1517–1521. [Google Scholar] [CrossRef]
  28. Sadek, Z.I.; Fathi, F.A.; Salem, M.M.E. Incidence, survival and biocontrol of psychrotrophic Bacillus cereus and its potential for toxin production in milk and Tallaga cheese. Pol. J. Food Nutr. Sci. 2006, 15, 419–425. [Google Scholar]
  29. Galli, A.; Franzetti, L.; Ottogalli, G. Characterization of surface bacterial microflora of Taleggio cheese. Ann. Microbiol. Enzim. 1996, 16, 369–377. [Google Scholar]
  30. Fontana, C.; Cappa, F.; Rebecchi, A.; Cocconcelli, P.S. Surface microbiota analysis of Taleggio, Gorgonzola, Casera, Scimudin, and Formaggio di Fossa Italian cheeses. Int. J. Food Microbiol. 2010, 138, 205–211. [Google Scholar] [CrossRef]
  31. Molva, C.; Sudagidan, M.; Okuklu, B. Extracellular enzyme production and enterotoxigenic gene profiles of Bacillus cereus and Bacillus thuringiensis strains isolated from cheese in Turkey. Food Control. 2009, 20, 829–834. [Google Scholar] [CrossRef] [Green Version]
  32. Moradi-Khatoonabadi, Z.; Ezzatpanah, H.; Maghsoudlou, Y.; Khomeiri, M.; Aminafshar, M. Bacillus cereus contamination of UF-Feta cheese during ripening and shelf life. J. Food Saf. 2015, 35, 41–49. [Google Scholar] [CrossRef]
  33. Yim, J.H.; Kim, K.Y.; Chon, J.W.; Kim, D.H.; Kim, H.S.; Choi, D.S.; Choi, I.S.; Seo, K.H. Incidence, antibiotic susceptibility, and toxin profiles of Bacillus cereus sensu lato isolated from Korean fermented soybean products. J. Food Sci. 2015, 80, M1266–M1270. [Google Scholar] [CrossRef] [PubMed]
  34. Cui, Y.; Liu, X.; Dietrich, R.; Märtlbauer, E.; Cao, J.; Ding, S.; Zhu, K. Characterization of Bacillus cereus isolates from local dairy farms in China. Fems Microbiol. Lett. 2016, 363, fnw096. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Yibar, A.; Çetinkaya, F.; Soyutemiz, E.; Yaman, G. Prevalence, enterotoxin production and antibiotic resistance of Bacillus cereus isolated from milk and cheese. Kafkas Univ. Vet. Fak. Derg. 2017, 23, 635–642. [Google Scholar] [CrossRef]
  36. Zhou, G.; Liu, H.; He, J.; Yuan, Y.; Yuan, Z. The occurrence of Bacillus cereus, B. thuringiensis and B. mycoides in Chinese pasteurized full fat milk. Int. J. Food Microbiol. 2008, 121, 195–200. [Google Scholar] [CrossRef] [PubMed]
  37. De Santis, E.P.L.; Foddai, A.; Virdis, S.; Marongiu, P.; Pilo, A.L.; Scarano, C. Toxin gene pattern in Bacillus cereus group strains isolated from sheep ricotta cheese. Vet. Res. Commun. 2008, 32, S323–S326. [Google Scholar] [CrossRef] [PubMed]
  38. Nduhiu, G.J.; Ombui, J.N.; Nduati, D.W.; Gicheru, M.M. Genetic characterisation of food borne Bacillus cereus strains from milk, cheese and rice by multiplex PCR assay. Int. J. Integr. Biol. 2009, 5, 82–86. [Google Scholar]
  39. Castiaux, V.; Liu, X.; Delbrassinne, L.; Mahillon, J. Is Cytotoxin K from Bacillus cereus a bona fide enterotoxin? Int. J. Food Microbiol. 2015, 211, 79–85. [Google Scholar] [CrossRef] [PubMed]
  40. Ryu, J.H.; Beuchat, L.R. Biofilm formation and sporulation by Bacillus cereus on a stainless steel surface and subsequent resistance of vegetative cells and spores to chlorine, chlorine dioxide, and a peroxyacetic acid–based sanitizer. J. Food Prot. 2005, 68, 2614–2622. [Google Scholar] [CrossRef]
  41. Srey, S.; Jahid, I.K.; Ha, S.D. Biofilm formation in food industries: A food safety concern. Food Control. 2013, 31, 572–585. [Google Scholar] [CrossRef]
  42. Majed, R.; Faille, C.; Kallassy, M.; Gohar, M. Bacillus cereus Biofilms-Same, Only Different. Front. Microbiol. 2016, 7, 1054. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 08 00949 g001 550

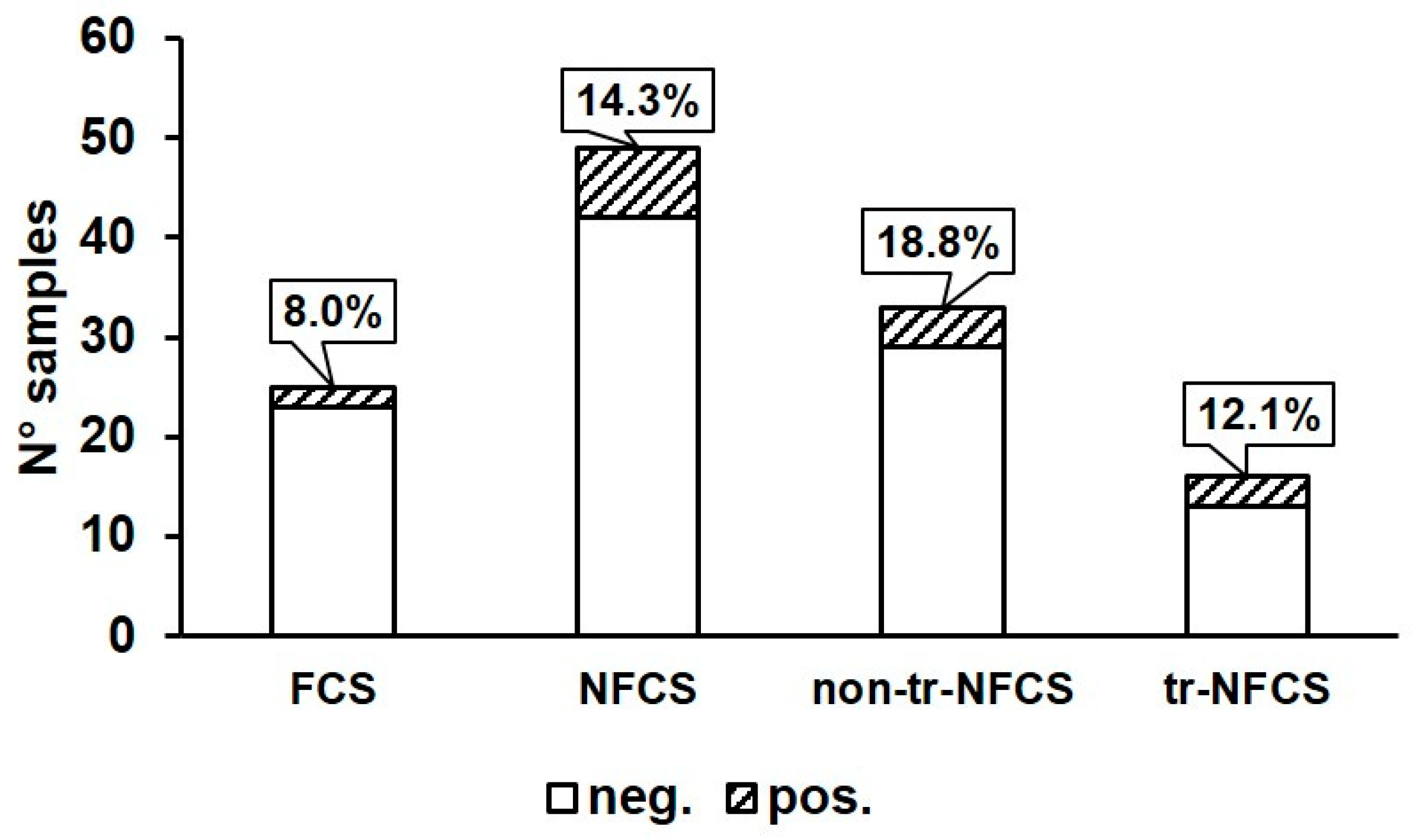

Figure 1. B. cereus detection rate (in percentage) in samples obtained from food contact surfaces (FCS) and non-food contact surfaces (NFCS). NFCS samples were also classified as total NFCS (NFCS), transfer-non food contact surfaces (tr-NFCS), and non-transfer-non food contact surfaces (non-tr-NFCS). Neg: samples negative for the presence of B. cereus; Pos: samples positive for the presence of B. cereus.
Figure 1. B. cereus detection rate (in percentage) in samples obtained from food contact surfaces (FCS) and non-food contact surfaces (NFCS). NFCS samples were also classified as total NFCS (NFCS), transfer-non food contact surfaces (tr-NFCS), and non-transfer-non food contact surfaces (non-tr-NFCS). Neg: samples negative for the presence of B. cereus; Pos: samples positive for the presence of B. cereus.
Microorganisms 08 00949 g001
Microorganisms 08 00949 g002 550

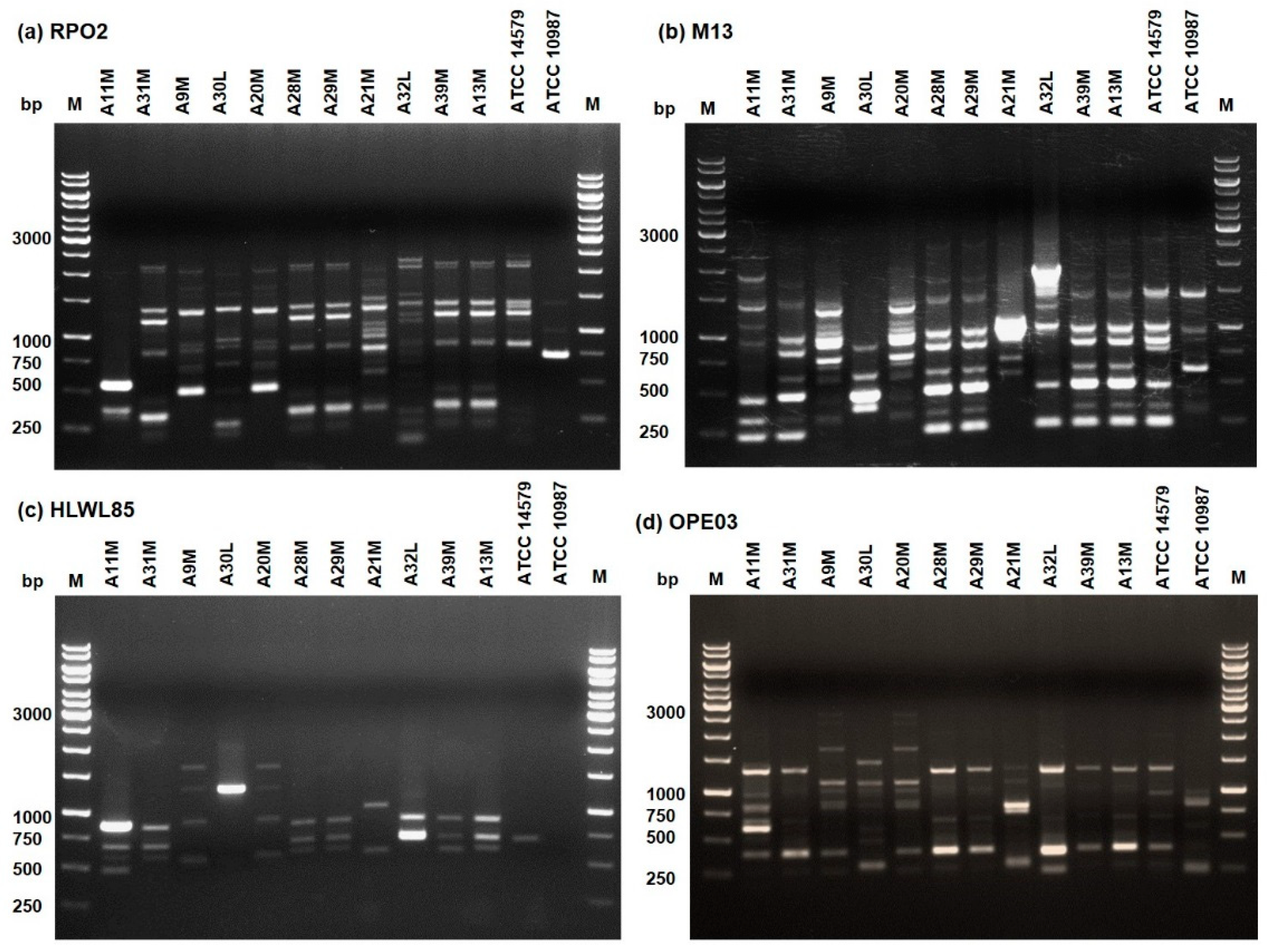

Figure 2. RAPD-PCR amplification profiles obtained with primers RPO2 (a), M13 (b), HLWL85 (c), and OPE03 (d) from B. cereus isolates. Genomic DNA extracted from the reference strains B. cereus ATCC 14579 and B. cereus ATCC 10987 was used as control of each reaction. M = Thermo Scientific GeneRuler 1 kb DNA Ladder (Thermo Fisher Scientific, MA, USA). Numbers on the left margins of each panel indicate the position of the molecular weight standards (bp).
Figure 2. RAPD-PCR amplification profiles obtained with primers RPO2 (a), M13 (b), HLWL85 (c), and OPE03 (d) from B. cereus isolates. Genomic DNA extracted from the reference strains B. cereus ATCC 14579 and B. cereus ATCC 10987 was used as control of each reaction. M = Thermo Scientific GeneRuler 1 kb DNA Ladder (Thermo Fisher Scientific, MA, USA). Numbers on the left margins of each panel indicate the position of the molecular weight standards (bp).
Microorganisms 08 00949 g002
Microorganisms 08 00949 g003 550

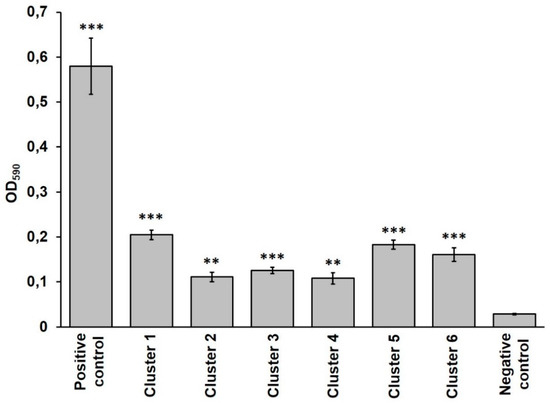

Figure 3. Biofilm formation by each B. cereus cluster evaluated by the crystal violet assay (OD590). Positive control: B. cereus ATCC 10987; negative control: sterile LB. Data are expressed as mean ± S.D. ** p < 0.01, and *** p < 0.001 compared to the negative control.4 Discussion.
Figure 3. Biofilm formation by each B. cereus cluster evaluated by the crystal violet assay (OD590). Positive control: B. cereus ATCC 10987; negative control: sterile LB. Data are expressed as mean ± S.D. ** p < 0.01, and *** p < 0.001 compared to the negative control.4 Discussion.
Microorganisms 08 00949 g003
Table
Table 1. Detection of B. cereus in different areas and sample typologies of the dairy plant. FCS: food contact surfaces; tr-NFCS: transfer-non food contact surfaces; non-tr-NFCS: non-transfer-non food contact surfaces.
Table 1. Detection of B. cereus in different areas and sample typologies of the dairy plant. FCS: food contact surfaces; tr-NFCS: transfer-non food contact surfaces; non-tr-NFCS: non-transfer-non food contact surfaces.
AreaTypologySampleN° Positive/Analyzed SamplesIdentified Isolates (Cluster Number *)
ProductionFCSCurdling tank0/3−
Table-grind-box-whey duct (internal surface)1/7A9M (3)
Operator’s hand0/2−
tr-NFCSDoor-handle0/1−
Trolley wheels0/3−
Operator’s boots0/2−
non-tr-NFCSTable-boxes- whey duct (external surface)0/5−
Water hose1/2A20M (3)
Wall (drip)0/2−
Floor2/4A11M (1), A13M (2)
Drains0/6−
Total4/37 #−
Brining/RipeningFCSBrining vat1/2A21M (5)
Brushing table0/2−
Brush0/2−
Operator’s gloves0/2−
Boxes-board-cheese cloth0/5−
tr-NFCSOperator’s boots1/2A28M (2)
Plastic doors0/1−
non-Tr-NFCSWater hose0/1−
Floor0/6−
Drains0/5−
Total2/28 #−
Packagingtr-NFCSTrolley wheels1/2A39M (2)
non-Tr-NFCSDrain1/2A30L (4)
Total2/4 #−
Sampler overshoestr-NFCS 1/5A31M (2)
Salt/ Saline 0/3−
Curd 2/2A29M (2), A32L (6)
Final product (PDO Taleggio) 0/4−
* strains were clustered by RAPD-PCR (c.f.r. 2.4). # Data obtained from different areas of the plant were subjected to the chi-square test. No significant differences were found (p > 0.05).
Table
Table 2. Production of PC-PLC, proteases, hemolysins, L2 component of HBL, and HBL by each clusters evaluated by phenotypic tests and detection of toxin-encoding genes in bacterial genome performed by PCR.
Table 2. Production of PC-PLC, proteases, hemolysins, L2 component of HBL, and HBL by each clusters evaluated by phenotypic tests and detection of toxin-encoding genes in bacterial genome performed by PCR.
Cluster 1Cluster 2Cluster 3Cluster 4Cluster 5Cluster 6
Production of virulence factors evaluated by phenotypic tests
PC-PLC++++++
Proteases++++++
Hemolysins++++++
L2 component of HBL++−+++
HBL++−+-+
Detection of toxin-encoding genes performed by PCR
nheA++++++
nheB++++−+
nheC+++−−+
sph++++++
plcA++++++
cytK++++++
bcet−+−+-+
entFM++++++
entS++−+−+
