Environmental Drivers and Potential Distribution of Schistosoma mansoni Endemic Areas in Ethiopia

by
Keerati Ponpetch
1,2,3,*,
Berhanu Erko
4,
Teshome Bekana
4,
Tadesse Kebede
4,5,
Di Tian
6,
Yang Yang
2,7 and
Song Liang
1,2,*
1
Department of Environmental and Global Health, College of Public Health and Health Professions, University of Florida, Gainesville, FL 32611, USA
2
Emerging Pathogens Institute, University of Florida, Gainesville, FL 32611, USA
3
Praboromarajchanok Institute, Faculty of Public Health and Allied Health Sciences, Sirindhorn College of Public Health Trang, Trang 92110, Thailand
4
Aklilu Lemma Institute of Pathobiology, Addis Ababa University, Addis Ababa 3614, Ethiopia
5
Department of Microbiology, Immunology and Parasitology, School of Medicine, Addis Ababa University, Addis Ababa 9086, Ethiopia
6
Department of Crop, Soil, and Environmental Science, Auburn University, Auburn, AL 36849, USA
7
Department of Biostatistics, College of Public Health and Health Professions, University of Florida, Gainesville, FL 32611, USA
*
Authors to whom correspondence should be addressed.
Microorganisms 2021, 9(10), 2144; https://doi.org/10.3390/microorganisms9102144
Submission received: 19 August 2021 / Revised: 5 October 2021 / Accepted: 6 October 2021 / Published: 14 October 2021
(This article belongs to the Special Issue Schistosoma and Schistosomiasis)
Browse Figures
Review Reports Versions Notes

Abstract

:
In Ethiopia, human schistosomiasis is caused by two species of schistosome, Schistosoma mansoni and S. haematobium, with the former being dominant in the country, causing infections of more than 5 million people and more than 37 million at risk of infection. What is more, new transmission foci for S. mansoni have been reported over the past years in the country, raising concerns over the potential impacts of environmental changes (e.g., climate change) on the disease spread. Knowledge on the distribution of schistosomiasis endemic areas and associated drivers is much needed for surveillance and control programs in the country. Here we report a study that aims to examine environmental determinants underlying the distribution and suitability of S. mansoni endemic areas at the national scale of Ethiopia. The study identified that, among five physical environmental factors examined, soil property, elevation, and climatic factors (e.g., precipitation and temperature) are key factors associated with the distribution of S. mansoni endemic areas. The model predicted that the suitable areas for schistosomiasis transmission are largely distributed in northern, central, and western parts of the country, suggesting a potentially wide distribution of S. mansoni endemic areas. The findings of this study are potentially instrumental to inform public health surveillance, intervention, and future research on schistosomiasis in Ethiopia. The modeling approaches employed in this study may be extended to other schistosomiasis endemic regions and to other vector-borne diseases.

1. Introduction

Schistosomiasis is a neglected tropical disease affecting more than 258 million people in 78 countries worldwide, with over 90% of human cases occurring in sub-Saharan Africa (SSA) [1]. In Ethiopia, human schistosomiasis is caused by Schistosoma mansoni and S. haematobium, with the former being dominant. Over 5 million people are estimated to be infected by S. mansoni, and 37 million at risk of infection [2]. Information on the distribution of endemic areas was largely based on many school- and community-based epidemiological surveys in past decades [3]. Further, new transmission foci have been constantly reported in the past years, raising concerns over potential impacts of environmental changes (e.g., climate change and water resource projects) on the disease spread [4]. There is a pressing need for improved knowledge on the distribution of endemic areas, particularly at the national scale, and underlying risk factors to inform control and surveillance programs.
Schistosomiasis transmission involves complex interactions between humans, parasites, and snail intermediate hosts in the freshwater environment [5]. Many environmental factors, such as temperature, precipitation, elevation, soil, and vegetation have been explored in relation to the distribution of schistosomiasis endemic areas, and the importance of these factors may vary with the parasite species and eco-epidemiological setting [6]. For example, rainfall and water resource development projects can facilitate the development of habitats suitable for snail intermediate hosts [7]. Temperature can affect parasite development in snail intermediate hosts and cercariae infectivity [8,9]. Elevation is an important indicator for spatial monitoring of snail-borne diseases because some snail species favor certain ranges of elevation. For example, Biomphalaria pfeifferi, an intermediate host of S. mansoni, is mostly found at an altitude of 1000 to 2000 m above sea level [10]. Soil components also play an important role in schistosomiasis transmission, as they affect land use and agriculture practices thereby affect the ecology of snail intermediate hosts [11].
Geographic information systems (GISs) and remote sensing techniques have offered powerful tools for generating, storing, processing, and visualizing data (e.g., satellite imagery-derived environmental data). Various statistical and mathematical methods have been developed to analyze these georeferenced data in order to understand the relationships between environmental factors and living species (e.g., plant, animals, or disease vectors) and predict the potential distribution of species across the landscape [12]. Ecological niche modeling (ENM) involves a class of methods that use occurrence data of species and environmental data to estimate potential species habitats [13]. In public health, ENM has been widely used to understand disease ecologies, in particular related to vector-borne diseases, by modeling the occurrence of the disease or species involved in disease transmission (e.g., hosts, vectors, and pathogens) [14]. This study aims to assess environmental determinants and predict the national distribution of S. mansoni endemic areas in Ethiopia.

2. Materials and Methods

2.1. Schistosomiasis Occurrence Data

A GIS database of historical S. mansoni infection surveys was developed from a systematic review and described in a separate paper [15]. In brief, a systematic review was conducted to assess S. mansoni infections (e.g., prevalence of infection, infection intensity, and distribution) in Ethiopia. The essential data were extracted from published articles and reports (e.g., gray literature), including year, study site (e.g., village/town, district/region, county), geographic coordinates of the study site, target population, sample size, number of positive individuals, prevalence and intensity of infections, and diagnostic techniques used. A total of 95 endemic localities from 62 studies were identified in the systematic review and were included in the current analysis. Additionally, 9 studies reported zero prevalence of S. mansoni infection, and the corresponding 9 sites were used for model validation but not for model development. The 95 endemic sites were treated as ‘occurrence’ points and were georeferenced (Figure 1) for subsequent analyses. However, some ENM techniques used in this study require a sufficient number of both presence and absence data to develop the models [16]. To follow widely accepted practices in the field of ecology, we augmented the presence data with pseudoabsence data points for the niche modeling [17,18]. Specifically, 1000 pseudoabsence data points 20 km away from the ‘occurrence’ locations were randomly generated across the country. The number of pseudoabsence data points is based on empirical evidence from a previous study [19], which suggests that the model accuracy is usually satisfactory when the ratio of presence vs. pseudoabsence reaches approximately 1:10. Choosing an area of a 20 km radius to generate pseudoabsence points is based on the resolution of environmental data (1 km2), allowing adequate environmental differentiation between presence and pseudoabsence locations, a criterion that has also been empirically confirmed by the field epidemiologist and parasitologist in Ethiopia (BE). The procedure of selecting pseudoabsence points was implemented in ArcGIS version 10.3.1.

2.2. Environmental and Ecological Data

Environmental and ecological variables used in this study are summarized in Table 1. These data were obtained from different sources. Elevation data at a resolution of approximately 250 m was obtained from CGIAR Consortium for Spatial Information (CGIAR-CSI) [20]. The Normalized Difference Vegetation Index (NDVI) data at the global scale were generated by Copernicus Global Land Service using long-term statistics over 1999–2017 [21]. The wealth index, provided by the Demographic and Health Surveys (DHS) based on data of household assets, nutrition services, healthcare, education, and other economic indicators [22], has been widely used in characterizing health and economic status [23,24,25]. Wealth index score and cluster coordinates were obtained from Ethiopia’s survey data in 2016 [26]. Data were then georeferenced and interpolated using the Empirical Bayesian Kriging technique [27]. Soil content data were obtained from the International Soil Reference and Information Centre (ISRIC) and reported as a percentage of sand, silt, and clay relative to total soil (g/100 g) [28].
Climate variables used in the analysis were obtained from two sources: WorldClim and the Statistical DownScaling Model (SDSM). The WorldClim offers a global-scale climate dataset and has been used widely in various fields such as geography, ecology, and public health [31,32,33,34]. However, the coarse resolution of global climate data from the WorldClim dataset is likely to limit its usability for studies at the local scale [35]. Moreover, the WorldClim climate data may be associated with potential biases and uncertainties when illustrating present and future climate scenarios at the local scale [36]. The second source of climate data is the SDSM, which is a statistically downscaled climate dataset at the local scale for Ethiopia, Kenya, and Tanzania, based on daily observed weather data (e.g., precipitation, minimum and maximum temperature) from 211 stations in the three countries [30]. The two datasets were developed based on different data sources and algorithms and have different resolutions and accuracies that may result in variations in associated ‘observations’ (e.g., temperature and precipitation) and in turn may impact the empirical relationships to be studied. In the preliminary investigation, we found notable differences in climate variable values between the two datasets in southwestern Ethiopia. To account for such inconsistency and uncertainty, we developed ENMs based on each dataset separately and compared the performance of corresponding models. We obtained annual average temperature and cumulative precipitation from the WorldClim (WC) dataset, which covers the period of 1970–2000, and obtained minimum and maximum temperatures and mean precipitation aggregated data between 1961 and 2005, from the Statistical DownScaling Model (SDSM) dataset.

2.3. Ecological Niche Modeling

An ecological niche of a species is a combination of environmental conditions that allow the species to maintain or grow its population in the long term without the need for immigration [37]. Ecological niche modeling (ENM) has been increasingly used in public health, in particular for understanding the ecology of vector-borne diseases. For example, ENM has been used to identify geographic spaces and ecological conditions that can support disease agents or promote transmission [38]. Several ENM techniques have been developed or extended to estimate the spatial distributions of species, such as the genetic algorithm for rule-set prediction (GARP), maximum entropy (MaxEnt), random forest (RF), generalized linear model (GLM), and generalized additive model (GAM) [39,40,41,42]. However, in practice, choosing a technique most suitable for a specific application remains challenging because these techniques have specific data requirements (e.g., presence–absence, presence–background, and presence-only data), and their performances heavily depend on various factors such as predictor variables, model tuning parameters, and selection of pseudoabsence or background data. [43,44]. A plausible solution to this issue is to combine multiple niche modeling techniques by using an ensemble architecture [45].
In this study, we used eight ENM techniques to analyze the data. The outputs from the eight techniques were then used to develop ensemble models for predicting the potential distribution of S. mansoni endemic areas in Ethiopia. An ensemble model is a machine learning approach that combines all ENM models to improve predictive performance [46,47]. Among the eight techniques, two require presence-only data (Surface Range Envelope (SRE) and MaxEnt). The remaining techniques use both presence and pseudoabsence data, including three regression-based techniques (generalized linear model (GLM), generalized additive model (GAM), and multivariate adaptive regression splines (MARS)), and three decision-tree-based techniques (Classification Tree Analysis (CTA), random forest (RF), and generalized boosting model (GBM)). Predicted occurrence probabilities from the ensemble model were projected to the distribution map [31].

2.4. Model Evaluation

The model evaluation consisted of two independent processes using presence and pseudoabsence data and ground truthing. For the former, all occurrence (95 sites) and pseudoabsence (1000 sites) data were randomly split into two parts with an 80:20 ratio, with 80% (training set) for training the model and the remaining 20% (testing set) for validating the predictive performance of the model. The receiver operating characteristic (AUC) was applied for model evaluation. A model with an AUC lower than 0.7 was considered poorly predictive, between 0.7 and 0.9 as moderately predictive, and greater than 0.9 as highly predictive [48]. ENM models with an AUC greater than 0.7 were then included in the ensemble model. To translate the occurrence probabilities produced by the ensemble model to a binary outcome (i.e., suitable or nonsuitable), we explored an array of threshold values (i.e., from 0.3 to 0.8) and used the cutoff point that maximized the sensitivity and specificity of the model for classifying the ecological suitability, which has been commonly used for predicting species distributions [49].
Relative importance of predictor variables was evaluated using the following procedure. A standard prediction was performed when the models were trained. Then, one of the predictor variables was dropped, and the model was refitted to make a new prediction. A correlation score was calculated between the new prediction and the standard prediction for this particular variable. This procedure of dropping and refitting was repeated for all variables to be evaluated. The resulting correlation scores were then used to evaluate the relative importance of variables in the models. If the two predictions showed a strong positive correlation, the predictor was considered of low importance for the model [50].
The second process of model evaluation involved the use of a mixed approach: a ground-truthing validation and validation using the nine sites reporting the absence of S. mansoni derived from the systematic review. To perform the field ground validation, 25 sites were initially considered, and among them, 16 sites in two regions, Oromia and Southern Nations, Nationalities, and Peoples’ Region (SNNP), were randomly selected for field validation during December 7–22, 2020 (conducted by K.P., B.E., and T.B.). At each selected site, a snail survey was conducted on Biomphalaria pfeifferi and B. sudanica, snail intermediate hosts of S. mansoni. The geographic coordinates of survey sites were also taken during the survey. Finally, these 25 localities were georeferenced and plotted on the predicted risk map for evaluating the accuracy (proportion of number of correct predictions and number of all assessments), sensitivity (proportion of number of true positive predictions correctly classified), specificity (proportion of number of true negatives correctly classified), positive predictive value (proportion of true positives and number of all positive predictions), negative predictive value (proportion of true negative numbers of all negative predictions), and balanced accuracy (arithmetic mean of the sensitivity and specificity to account for imbalance classification classes) of model predictions.

3. Results

3.1. Model Performance

Overall, all eight models exhibited good performance, with the AUC ranging from 0.72 to 0.93 for the WC dataset and 0.74 to 0.88 for the SDSM dataset (Table 2). GBM and RF had the highest AUC for both climate models. Only SRE and CTA had an AUC lower than 0.8 for both datasets. GLM, GBM, GAM, RF, and MaxEnt models using the WC dataset showed higher AUC scores than those using the SDSM dataset, whereas SRE, CTA, and MARS using the SDSM dataset had higher AUC scores than those using the WC. All models had AUC values greater than 0.7, so all models were included in the ensemble model for each climate dataset. The ensemble models using two different weather datasets showed similar AUC values, 0.956 vs. 0.960, which are indeed higher than individual models.
For the field ground-truthing validation, occurrence probabilities were predicted by all individual models as well as the ensemble models, at the 25 locations from validation data and were transformed to endemicity maps (e.g., either ‘endemic’ or ‘nonendemic’), with a threshold of 65 percent probability, and then were compared to the survey results to calculate accuracy, sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and balanced accuracy. The models fitted to the WC data showed an accuracy between 37.50% and 83.33%, sensitivity varied from 25.00% to 100.00%, specificity between 12.50% and 62.50%, PPV between 66.67% and 84.21%, NPV between 33.33% and 100.00%, and balance accuracy was from 40.63% to 78.13%. Ensemble and GBM shared the highest accuracy and balance accuracy at 83.33% and 78.13%, respectively. On the other hand, SRE and MaxEnt shared the lowest balance accuracy at 43.75%.
For the models fitted to the SDSM data, the accuracy varied between 29.17% and 83.33%, sensitivity between 12.50% and 100.00%, specificity between 25.00% and 87.50%, PPV between 66.67% and 84.21%, NPV between 33.33% and 100.00%, and balance accuracy between 37.50% and 84.38%. RF had the highest percentage of accuracy and balance accuracy at 83.33% and 84.38%, respectively. Like the models fitted to the WC data, MaxEnt produced the lowest accuracy and balance accuracy at 29.17% and 37.50%, respectively. In addition, the ensemble model fitted to SDSM had low performance based on the ground truth, showing accuracy, sensitivity, and balance accuracy being less than 50.00% (Table 3).

3.2. Relative Importance of Variables

For both WC-based and SDSM-based models, the elevation and soil properties (silt, clay, and sand) appeared to be the most important predictors. Temperature also had a considerable influence on the predictive performance of the models, regardless of which climate dataset was used. The wealth index and NDVI were of the least importance for both WC-based and SDSM-based models (Figure 2).

3.3. Distribution of S. mansoni Endemic Areas in Ethiopia

Figure 3 and Figure 4 showed the spatial distributions of S. mansoni endemic areas in Ethiopia predicted by the ensemble models as well as individual models built on the two climate datasets, respectively. General spatial patterns were similar between the two ensemble models, with slight differences existing in west Ethiopia. The SDSM-based model estimated a low probability of disease risk in the west (where previous epidemiological surveys lacked), where the WC-based model suggested extended endemic areas beyond current reported ones in this region. Overall, endemic areas (shown in red) were largely distributed in northern, central, and western Ethiopia. However, there were notable variations in the predictions by the individual models, regardless of which climate dataset was used. For example, GLM, GAM, and MARS suggested wider distributions of the disease-endemic areas than that predicted by RF. In addition, the presence–absence maps based on ensemble models showed mild differences in projections between the WC-based and the SDSM-based models not only in the west but also in the east of the country in the eastern part of the country (Figure 5).

4. Discussion

In this study, we conducted ecological niche modeling using S. mansoni occurrence data in conjunction with social and environmental data (i.e., elevation, NDVI, soil properties, and wealth index) and climatic data (i.e., temperature and precipitation) to assess the roles of these factors and predict the potential distribution of endemic areas in Ethiopia. Eight ENM techniques were used, and a resulting ensemble model was developed. This study is among the first to use the ENM approach to study environmental drivers and distribution of S. mansoni endemic areas in Africa. Previous studies in China [51] and South Africa [52] used the ENM approach to estimate the potential habitat of snail intermediate hosts and predicted the risk area of schistosome transmission. Our findings are potentially instrumental for applications in the public health sector, particularly for schistosomiasis surveillance and control programs.
Among the eight ENM and ensemble models developed, we found that the ensemble models had the greatest AUC scores using climate data from both sources. This was because the ensemble platform integrated the ENM models with an AUC score greater than 0.7. Higher performance of the ensemble model compared to individual ENM models, as shown in our study, was also reported in other ecological studies. For example, a study in the United States showed a potentially suitable habitat for three different fishes [53], and Dal Maso and Montecchio [54] studied the geographical distribution of ash dieback disease among trees in Europe. Results from our ensemble models showed that the majority of suitable areas for S. mansoni in Ethiopia were located in the West Montane and Rift Valley ecozones [15]. The findings largely agreed with reports of the high rate of infection in villages around Lake Tana and in rift valley areas near Lake Ziway and Lake Abaya reported three decades ago [55].
In alignment with other studies, our study found some key environmental and ecological factors underlying the distribution of schistosomiasis endemic areas [56]. Particularly, our results from both WC-based and SDSM-based models showed that soil properties are an important factor. This finding agrees with a previous study that reported the importance of soil components in terms of favoring the population growth of snail intermediate hosts [57]. It is interesting to note that the model performance was also influenced by elevation, which is the most influential variable in the WC-based model and the second most in the SDSM-based model. This result confirmed that elevation was an important indicator for spatial monitoring of snail-borne diseases because certain ranges of elevation favor some snail species [15]. Consequently, elevation can be used to help identify the populations most vulnerable to schistosomiasis [55]. Climate variables ranked after soil properties and elevation in terms of variable importance are also pertinent to the schistosomiasis transmission cycle. For example, temperature and precipitation were identified as important factors promoting or inhibiting the growth of parasite and snail intermediate hosts [5]. Shifts in precipitation and temperature patterns can also affect the transmission of schistosomiasis. For example, increasing water temperature may influence cercaria production and shedding from infected snails. Thus, global climate change may further influence the distribution of the disease in the future. In addition, some environmental changes from human activities such as water resource projects may create suitable habitats for intermediate hosts, allowing the disease to spread into nonendemic areas [9].
In this study, we used climate data from two sources (WC and SDSM) to account for potential uncertainties and variabilities due to availability, resolution, and accuracy of the data. As in traditional ENM analyses, we split original data into model-training and model-testing subsets to assess the accuracy of model predictions. The ensemble models based on the two data sources yielded similar predictive performance (AUC = 0.96). In addition to the traditional cross-validation, a field truthing evaluation at randomly sampled locations was also performed, which indicated high accuracy, sensitivity, specificity, PPV, NPV, and balance accuracy of the WC-based models compared to the SDSM-based models. A caveat of the field truthing is its small sample size. Therefore, the field truthing was not meant to replace but to supplement the classic approach of cross-validation.
One limitation of the study is that part of the absence data used in the study was based on pseudoabsence data. Due to the lack of disease-absence data, we generated pseudoabsence data by randomly selecting 1000 locations across the country with the condition that random points are 20 km away from occurrence locations. Although some presence-only algorithms are available now, ENM model performance comparisons show that presence–absence techniques tend to perform better [19]. However, the availability of absence data was usually limited. In this study, we adopted the commonly used approach to overcome this problem by simulating pseudoabsence data with specific criteria. Additionally, selecting a single best-fit model has certain limitations, e.g., differences in data requirement and accuracy, uncertainty of model performance, we used a multimodel ensemble platform based on eight different ENM techniques (e.g., both presence-only and presence–absence data) to predict potential endemic areas. An ensemble model is more robust than a single model and has gained increasing popularity [50]. Thus, using pseudoabsence data with a specific condition can improve the overall model performance and provide more insights compared to using present-only data.
In this study, we present a case applying ENM and ensemble modeling techniques to S. mansoni in Ethiopia. The techniques can be extended to other diseases, particularly related to environmentally mediated infectious diseases. Increasing availability of environmental data makes ENM techniques particularly attractive. At the global or continental scales, open-source data, such as remote sensing imagery and land use/cover, are often georeferenced and can be valuable sources of information for ENM applications [58]. It should be noted that developing a model at the local scale often needs environmental data of fine resolution, which may not be readily available and require researchers to generate necessary data and/or need to take the interactions of biotic variables into account [37]. Nevertheless, the techniques and modeling approaches have great potential for helping to understand disease occurrence and distribution and informing appropriate surveillance and control programs.

Author Contributions

Conceptualization, K.P. and S.L.; methodology, D.T. and Y.Y.; data curation, B.E., T.B. and T.K.; writing—original draft preparation, K.P.; writing—review and editing, B.E., T.B., T.K., D.T., Y.Y. and S.L.; supervision, S.L. All authors have read and agreed to the published version of the manuscript.

Funding

S.L. was supported in part by the National Institutes of Health, Grant Number R01AI125842, and a grant from the World Health Organization.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The dataset will be available in the following repositories (Open Science Framework (https://osf.io)) or upon request to the authors.

Acknowledgments

The authors would like to thank Sarah McKune and Bernard Okech for their critiques and guidance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xu, R.; Feng, J.; Hong, Y.; Lv, C.; Zhao, D.; Lin, J.; Lu, K.; Li, H.; Liu, J.; Cao, X.; et al. A novel colloidal gold immunochromatography assay strip for the diagnosis of schistosomiasis japonica in domestic animals. Infect. Dis. Poverty 2017, 6, 84. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Assefa, A.; Erko, B.; Gundersen, S.G.; Medhin, G.; Berhe, N. Current status of Schistosoma mansoni infection among previously treated rural communities in the Abbey and Didessa Valleys, Western Ethiopia: Implications for sustainable control. PLoS ONE 2021, 16, e0247312. [Google Scholar] [CrossRef] [PubMed]
  3. Alemayehu, B.; Tomass, Z.; Wadilo, F.; Leja, D.; Liang, S.; Erko, B. Epidemiology of intestinal helminthiasis among school children with emphasis on Schistosoma mansoni infection in Wolaita zone, Southern Ethiopia. BMC Public Health 2017, 17, 587. [Google Scholar] [CrossRef] [PubMed]
  4. Bekana, T.; Hu, W.; Liang, S.; Erko, B. Transmission of Schistosoma mansoni in Yachi areas, southwestern Ethiopia: New foci. Infect. Dis. Poverty 2019, 8, 1. [Google Scholar] [CrossRef] [Green Version]
  5. Xue, Z.; Gebremichael, M.; Ahmad, R.; Weldu, M.L.; Bagtzoglou, A.C. Impact of temperature and precipitation on propagation of intestinal schistosomiasis in an irrigated region in Ethiopia: Suitability of satellite datasets. Trop. Med. Int. Health 2011, 16, 1104–1111. [Google Scholar] [CrossRef]
  6. Brooker, S. Spatial epidemiology of human schistosomiasis in Africa: Risk models, transmission dynamics and control. Trans. R. Soc. Trop. Med. Hyg. 2007, 101, 1–8. [Google Scholar] [CrossRef] [Green Version]
  7. Hussen, S.; Assegu, D.; Tadesse, B.T.; Shimelis, T. Prevalence of Schistosoma mansoni infection in Ethiopia: A systematic review and meta-analysis. Trop. Dis. Travel Med. Vaccines 2021, 7, 4. [Google Scholar] [CrossRef]
  8. Getachew, A.; Berhanu, E.; Mulugeta, A.; Beyene, P. Epidemiological study on Schistosoma mansoni infection in Sanja area, Amhara region, Ethiopia. Parasites Vectors 2014, 7, 15. [Google Scholar]
  9. Stensgaard, A.-S.; Vounatsou, P.; Sengupta, M.E.; Utzinger, J. Schistosomes, snails and climate change: Current trends and future expectations. Acta Trop. 2019, 190, 257–268. [Google Scholar] [CrossRef]
  10. Chala, B.; Torben, W. An epidemiological trend of urogenital schistosomiasis in Ethiopia. Front. Public Health 2018, 6, 60. [Google Scholar]
  11. Gordon, C.A.; Kurscheid, J.; Williams, G.M.; Clements, A.C.A.; Li, Y.; Zhou, X.-N.; Utzinger, J.; McManus, D.P.; Gray, D.J. Asian Schistosomiasis: Current Status and Prospects for Control Leading to Elimination. Trop. Med. Infect. Dis. 2019, 4, 40. [Google Scholar] [CrossRef] [Green Version]
  12. Austin, M. Spatial prediction of species distribution: An interface between ecological theory and statistical modelling. Ecol. Model. 2002, 157, 101–118. [Google Scholar] [CrossRef] [Green Version]
  13. Marcelino, V.R.; Verbruggen, H. Ecological niche models of invasive seaweeds. J. Phycol. 2015, 51, 606–620. [Google Scholar] [CrossRef] [PubMed]
  14. Peterson, A.T. Ecologic Niche Modeling and Spatial Patterns of Disease Transmission. Emerg. Infect. Dis. 2006, 12, 1822. [Google Scholar] [CrossRef] [PubMed]
  15. Ponpetch, K.; Erko, B.; Bekana, T.; Richards, L.; Liang, S. Biogeographical characteristics of Schistosoma mansoni endemic areas in Ethiopia: A systematic review and meta analysis. Infect. Dis. Poverty 2021, 10, 83. [Google Scholar] [CrossRef] [PubMed]
  16. Escobar, L.E. Ecological Niche Modeling: An Introduction for Veterinarians and Epidemiologists. Front. Veter Sci. 2020, 7, 713. [Google Scholar] [CrossRef] [PubMed]
  17. Hanberry, B.; He, H.S.; Palik, B.J. Pseudoabsence Generation Strategies for Species Distribution Models. PLoS ONE 2012, 7, e44486. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Iturbide, M.; Bedia, J.; Herrera, S.; del Hierro, O.; Pinto, M.; Gutiérrez, J.M. A framework for species distribution modelling with improved pseudo-absence generation. Ecol. Model. 2015, 312, 166–174. [Google Scholar] [CrossRef] [Green Version]
  19. Barbet-Massin, M.; Jiguet, F.; Albert, C.H.; Thuiller, W. Selecting pseudo-absences for species distribution models: How, where and how many? Methods Ecol. Evol. 2012, 3, 327–338. [Google Scholar] [CrossRef]
  20. Jarvis, A.; Reuter, H.; Nelson, A.; Guevara, E. Hole-Filled Seamless SRTM Data V4: International Centre for Tropical Agriculture (CIAT). Available online: https://srtm.csi.cgiar.org/ (accessed on 31 December 2018).
  21. Buchhorn, M.; Smets, B.; Bertels, L.; Lesiv, M.; Tsendbazar, N. Copernicus Global Land Operations “Vegetation and Energy” CGLOPS-1. Product User Manual. 2017. Available online: https://land.copernicus.eu/global/sites/cgls.vito.be/files/products/CGLOPS1_PUM_LCC100m-V2.1_I3.10.pdf (accessed on 15 December 2018).
  22. Bellows, N.; Weinberger, M.; Reidy, M. Using the Demographic Health Survey wealth index to create family planning market segments based on absolute income levels. BMJ Glob. Health 2020, 5, e002450. [Google Scholar] [CrossRef]
  23. Rutstein, S.O. The DHS Wealth Index: Approaches for Rural and Urban Areas; Macro International Inc.: Calverton, MD, USA, 2008. [Google Scholar]
  24. Egede, L.E.; Voronca, D.; Walker, R.J.; Thomas, C. Rural-Urban Differences in Trends in the Wealth Index in Kenya: 1993-2009. Ann. Glob. Health 2017, 83, 248–258. [Google Scholar] [CrossRef] [Green Version]
  25. Gondwe, K.W.; Walker, R.J.; Mkandawire-Valhmu, L.; Dressel, A.; Ngui, E.M.; Kako, P.M.; Egede, L. Predictors of Wealth Index in Malawi—Analysis of Malawi Demographic Health Survey 2004-2015/16. Public Health Pract. 2020, 2, 100059. [Google Scholar] [CrossRef]
  26. DHS T. Ethiopia DHS 2016. 2016. Available online: https://www.dhsprogram.com/topics/wealth-index/Wealth-Index-Construction.cfm (accessed on 15 December 2018).
  27. Krivoruchko, K. Empirical Bayesian Kriging; Esri: Redlands, CA, USA, 2012. [Google Scholar]
  28. ISRIC. SoilGrids—Global Gridded Soil Information 2020. Available online: https://www.isric.org/explore/soilgrids (accessed on 20 December 2018).
  29. Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1-km spatial resolution climate surfaces for global land areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
  30. Gebrechorkos, S.H.; Hülsmann, S.; Bernhofer, C. Statistically downscaled climate dataset for East Africa. Sci. Data 2019, 6, 31. [Google Scholar] [CrossRef] [Green Version]
  31. Chalghaf, B.; Chlif, S.; Mayala, B.; Ghawar, W.; Bettaieb, J.; Harrabi, M.; Benie, G.B.; Michael, E.; Ben Salah, A. Ecological Niche Modeling for the Prediction of the Geographic Distribution of Cutaneous Leishmaniasis in Tunisia. Am. J. Trop. Med. Hyg. 2016, 94, 844–851. [Google Scholar] [CrossRef] [Green Version]
  32. Molloy, S.W.; Davis, R.A.; VAN Etten, E.J.B. Species distribution modelling using bioclimatic variables to determine the impacts of a changing climate on the western ringtail possum (Pseudocheirus occidentals; Pseudocheiridae). Environ. Conserv. 2014, 41, 176–186. [Google Scholar] [CrossRef]
  33. Liang, R.; Lu, Y.; Qu, X.; Su, Q.; Li, C.; Xia, S.; Liu, Y.; Zhang, Q.; Cao, X.; Chen, Q.; et al. Prediction for global African swine fever outbreaks based on a combination of random forest algorithms and meteorological data. Transbound. Emerg. Dis. 2020, 67, 935–946. [Google Scholar] [CrossRef]
  34. Zheng, P.; Chen, Z.; Liu, Y.; Song, H.; Wu, C.-H.; Li, B.; Kraemer, M.U.; Tian, H.; Yan, X.; Zheng, Y.; et al. Association between coronavirus disease 2019 (COVID-19) and long-term exposure to air pollution: Evidence from the first epidemic wave in China. Environ. Pollut. 2021, 276, 116682. [Google Scholar] [CrossRef] [PubMed]
  35. Lutz, A.F.; ter Maat, H.W.; Biemans, H.; Shrestha, A.B.; Wester, P.; Immerzeel, W.W. Selecting representative climate models for climate change impact studies: An advanced envelope-based selection approach. Int. J. Clim. 2016, 36, 3988–4005. [Google Scholar] [CrossRef] [Green Version]
  36. Gebrechorkos, S.H.; Hülsmann, S.; Bernhofer, C. Regional climate projections for impact assessment studies in East Africa. Environ. Res. Lett. 2019, 14, 044031. [Google Scholar] [CrossRef]
  37. Escobar, L.E.; Craft, M.E. Advances and Limitations of Disease Biogeography Using Ecological Niche Modeling. Front. Microbiol. 2016, 7, 1174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Blackburn, J.K.; McNyset, K.M.; Curtis, A.; Hugh-Jones, M.E. Modeling the geographic distribution of Bacillus anthracis, the causative agent of anthrax disease, for the contiguous United States using predictive ecologic niche modeling. Am. J. Trop. Med. Hyg. 2007, 77, 1103–1110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Guisan, A.; Edwards, T.C., Jr.; Hastie, T. Generalized linear and generalized additive models in studies of species distributions: Setting the scene. Ecol. Model. 2002, 157, 89–100. [Google Scholar] [CrossRef] [Green Version]
  40. Blackburn, J.K. Integrating Geographic Information Systems and Ecological Niche Modeling into Disease Ecology: A Case Study of Bacillus anthracis in the United States and Mexico. Emerging and Endemic Pathogens; Springer: New York, NY, USA, 2010; pp. 59–88. [Google Scholar]
  41. Scholte, R.G.; Carvalho, O.S.; Malone, J.B.; Utzinger, J.; Vounatsou, P. Spatial distribution of Biomphalaria spp., the intermediate host snails of Schistosoma mansoni, in Brazil. Geospat. Health 2012, 6, 95–101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Evans, J.; Murphy, M.; Holden, Z.; Cushman, S. Modeling Species Distribution and Change Using Random forest. In Predictive Species and Habitat Modeling in Landscape Ecology; Springer: New York, NY, USA, 2011; pp. 139–159. [Google Scholar]
  43. Li, J.; Alvarez, B.; Siwabessy, J.; Tran, M.; Huang, Z.; Przeslawski, R.; Radke, L.; Howard, F.; Nichol, S. Application of random forest, generalised linear model and their hybrid methods with geostatistical techniques to count data: Predicting sponge species richness. Environ. Model. Softw. 2017, 97, 112–129. [Google Scholar] [CrossRef]
  44. Čengić, M.; Rost, J.; Remenska, D.; Janse, J.H.; Huijbregts, M.A.J.; Schipper, A.M. On the importance of predictor choice, modelling technique, and number of pseudo-absences for bioclimatic envelope model performance. Ecol. Evol. 2020, 10, 12307–12317. [Google Scholar] [CrossRef]
  45. Thuiller, W.; Lafourcade, B.; Engler, R.; Araújo, M.B. BIOMOD—A platform for ensemble forecasting of species distributions. Ecography 2009, 32, 369–373. [Google Scholar] [CrossRef]
  46. Assefa, A.; Tibebu, A.; Bihon, A.; Yimana, M. Global ecological niche modelling of current and future distribution of peste des petits ruminants virus (PPRv) with an ensemble modelling algorithm. Transbound. Emerg. Dis. 2020. [Google Scholar] [CrossRef]
  47. Hardy, S.M.; Lindgren, M.; Konakanchi, H.; Huettmann, F. Predicting the Distribution and Ecological Niche of Unexploited Snow Crab (Chionoecetes opilio) Populations in Alaskan Waters: A First Open-Access Ensemble Model. Integr. Comp. Biol. 2011, 51, 608–622. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, L.; Liu, S.; Sun, P.; Wang, T.; Wang, G.; Zhang, X.; Wang, L. Consensus Forecasting of Species Distributions: The Effects of Niche Model Performance and Niche Properties. PLoS ONE 2015, 10, e0120056. [Google Scholar] [CrossRef] [Green Version]
  49. Liu, C.; Berry, P.M.; Dawson, T.P.; Pearson, R.G. Selecting thresholds of occurrence in the prediction of species distributions. Ecography 2005, 28, 385–393. [Google Scholar] [CrossRef]
  50. Thuiller, W.; Georges, D.; Engler, R.; Breiner, F. Biomod2: Ensemble Platform for Species Distribution Modeling, R package version 3.0.3.; The R Project for Statistical Computing: Vienna, Austria, 2013. [Google Scholar]
  51. Niu, Y.; Li, R.; Qiu, J.; Xu, X.; Huang, D.; Shao, Q.; Cui, Y. Identifying and Predicting the Geographical Distribution Patterns of On-comelania hupensis. Int. J. Environ. Res. Public Health 2019, 16, 2206. [Google Scholar] [CrossRef] [Green Version]
  52. Manyangadze, T.; Chimbari, M.J.; Gebreslasie, M.; Ceccato, P.; Mukaratirwa, S. Modelling the spatial and seasonal distribution of suitable habitats of schistosomiasis intermediate host snails using Maxent in Ndumo area, KwaZulu-Natal Province, South Africa. Parasites Vectors 2016, 9, 572. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Poulos, H.; Chernoff, B.; Fuller, P.; Butman, D. Ensemble forecasting of potential habitat for three invasive fishes. Aquat. Invasions 2012, 7, 59–72. [Google Scholar] [CrossRef]
  54. Dal Maso, E.; Montecchio, L. Risk of natural spread of Hymenoscyphus fraxineus with environmental niche modelling and ensemble forecasting technique. For. Res. 2014, 3, 131. [Google Scholar] [CrossRef]
  55. Kloos, H.; Lo, C.T.; Birrie, H.; Ayele, T.; Tedla, S.; Tsegay, F. Schistosomiasis in Ethiopia. Soc. Sci. Med. 1988, 26, 803–827. [Google Scholar] [CrossRef]
  56. Kristensen, T.K.; Malone, J.B.; McCarroll, J.C. Use of satellite remote sensing and geographic information systems to model the distribution and abundance of snail intermediate hosts in Africa: A preliminary model for Biomphalaria pfeifferi in Ethiopia. Acta Trop. 2001, 79, 73–78. [Google Scholar] [CrossRef]
  57. Boelee, E.; Madsen, H. Irrigation and Schistosomiasis in Africa: Ecological Aspects; International Water Management Institute: Colombo, Sri Lanka, 2006. [Google Scholar]
  58. Chen, H.; Ponpetch, K. Satellite Imagery Data for Global Health and Epidemiology. In Statistical Methods for Global Health and Epidemiology; Springer: New York, NY, USA, 2020; pp. 25–51. [Google Scholar]
Microorganisms 09 02144 g001 550
Figure 1. Occurrence locations of S. mansoni endemic areas derived from 62 surveys in Ethiopia.
Figure 1. Occurrence locations of S. mansoni endemic areas derived from 62 surveys in Ethiopia.
Microorganisms 09 02144 g001
Microorganisms 09 02144 g002 550

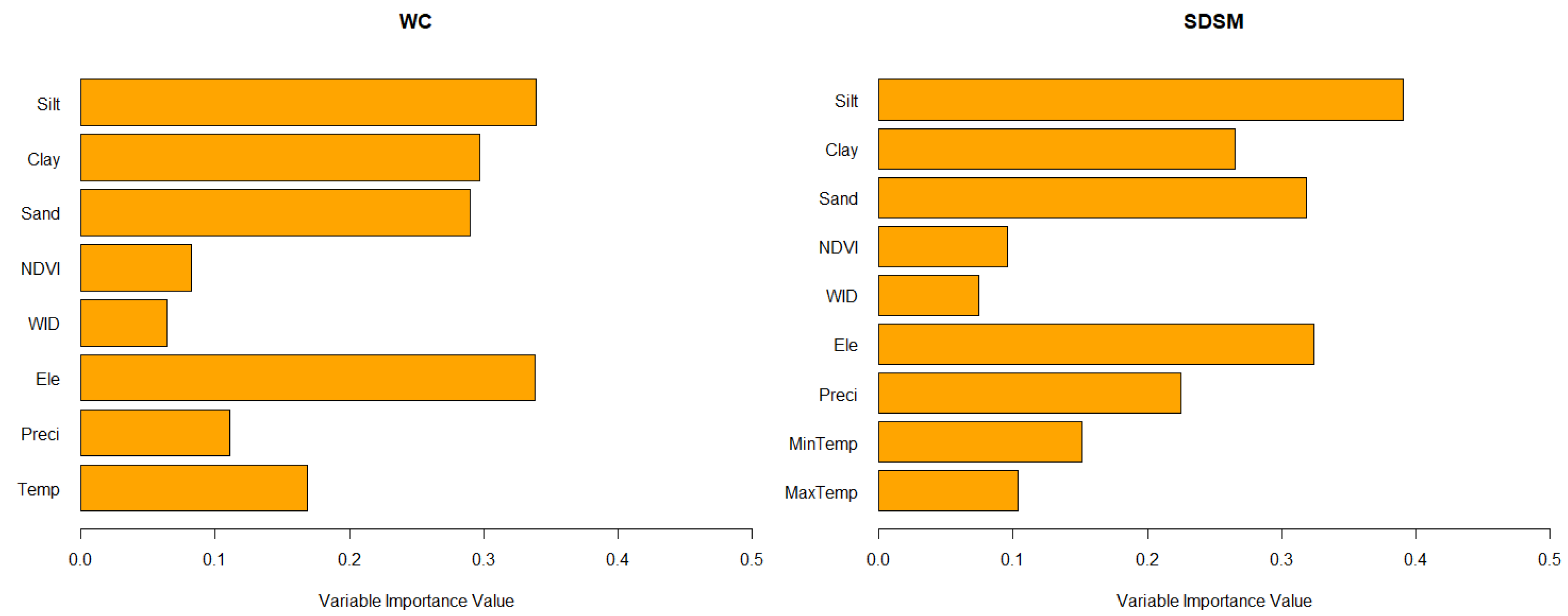

Figure 2. Mean variable importance from all WC-based and SDSM-based models (WID: Wealth Index, Ele: Elevation, Preci: Precipitation, Temp: Temperature, MaxTemp: Maximum Temperature, and MinTemp: Minimum Temperature).
Figure 2. Mean variable importance from all WC-based and SDSM-based models (WID: Wealth Index, Ele: Elevation, Preci: Precipitation, Temp: Temperature, MaxTemp: Maximum Temperature, and MinTemp: Minimum Temperature).
Microorganisms 09 02144 g002
Microorganisms 09 02144 g003 550

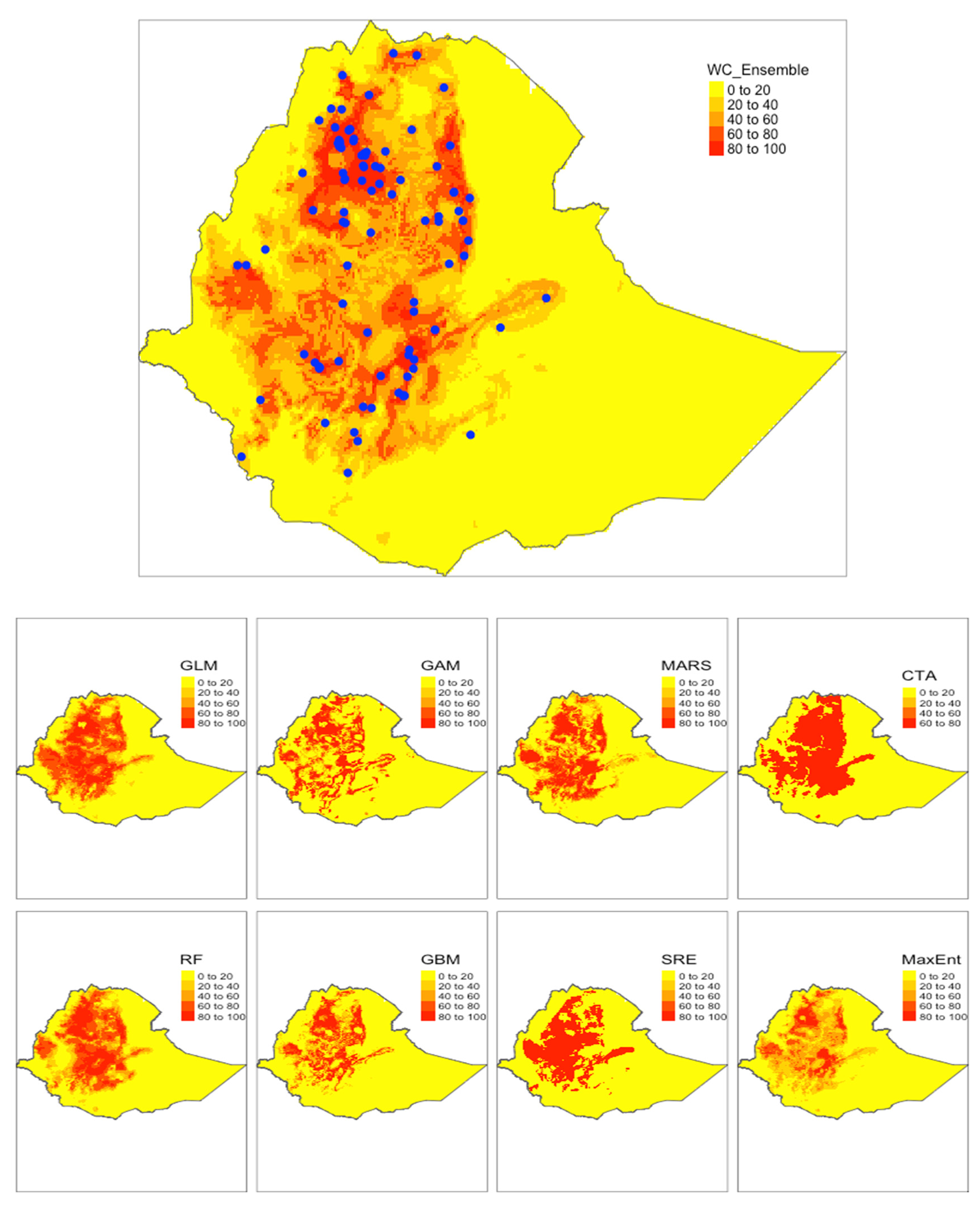

Figure 3. WC-based results showing potential distribution of S. mansoni endemic areas in Ethiopia from different models. Blue dots represent the occurrence locations. Legend shows a probability of occurrence given the environmental suitability ranging from 0 to 100 percent.
Figure 3. WC-based results showing potential distribution of S. mansoni endemic areas in Ethiopia from different models. Blue dots represent the occurrence locations. Legend shows a probability of occurrence given the environmental suitability ranging from 0 to 100 percent.
Microorganisms 09 02144 g003
Microorganisms 09 02144 g004 550

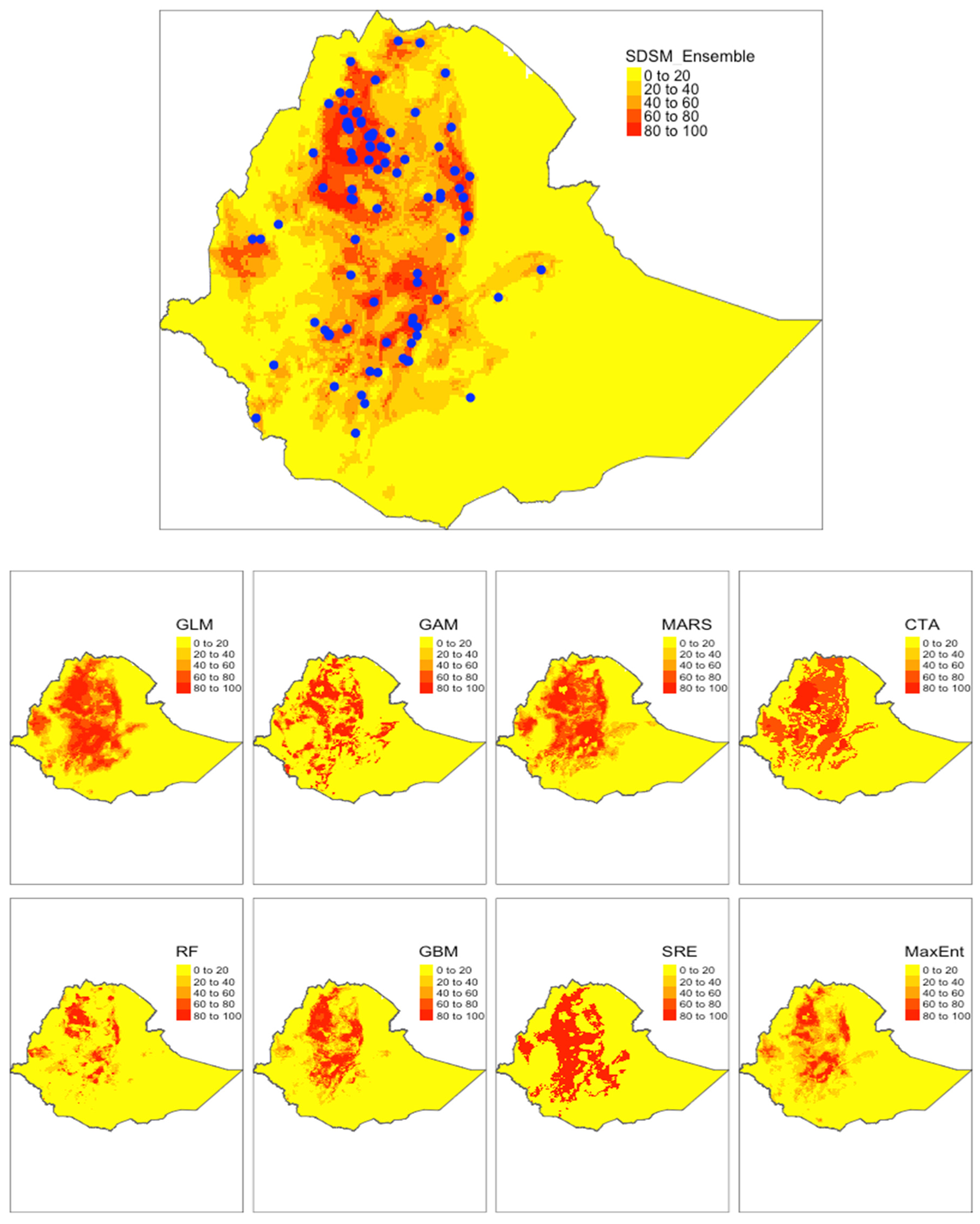

Figure 4. SDSM-based results showing potential distribution of S. mansoni endemic areas in Ethiopia from different models. Blue dots represent the occurrence locations. Legend shows a probability of occurrence given the environmental suitability ranging from 0 to 100 percent.
Figure 4. SDSM-based results showing potential distribution of S. mansoni endemic areas in Ethiopia from different models. Blue dots represent the occurrence locations. Legend shows a probability of occurrence given the environmental suitability ranging from 0 to 100 percent.
Microorganisms 09 02144 g004
Microorganisms 09 02144 g005 550
Figure 5. Distribution of S. mansoni endemic areas in Ethiopia projected by WC-based (left) and SDSM-based (right) ensemble models. An area is ‘endemic’ if the model-predicted probability of presence is ≥0.65 and considered ‘nonendemic’ otherwise. The threshold was chosen to maximize balance accuracy based on the ground-truthing data.
Figure 5. Distribution of S. mansoni endemic areas in Ethiopia projected by WC-based (left) and SDSM-based (right) ensemble models. An area is ‘endemic’ if the model-predicted probability of presence is ≥0.65 and considered ‘nonendemic’ otherwise. The threshold was chosen to maximize balance accuracy based on the ground-truthing data.
Microorganisms 09 02144 g005
Table
Table 1. Environmental and ecological variables, and data sources.
Table 1. Environmental and ecological variables, and data sources.
DataUnitResolutionTime PeriodSource
ElevationMeters Above Sea Level250 m CGIAR Consortium for Spatial Information (CGIAR-CSI) [20]
Wealth Index Score 250 m2016Demographic and Health Surveys (DHS) [23]
Siltg/100 g250 m2008–2012International Soil Reference and Information Centre (ISRIC) [28]
Sandg/100 g250 m2008–2012International Soil Reference and Information Centre (ISRIC) [28]
Clayg/100 g250 m2008–2012International Soil Reference and Information Centre (ISRIC) [28]
NDVI * 1 km1999–2017Copernicus Global Land Service [21]
Mean TemperatureDegrees Celsius1 km1970–2000WorldClim [29]
Annual Precipitationmm1 km1970–2000WorldClim [29]
Max TemperatureDegrees Celsius250 m1961–2005Gebrechorkos SH et al. [30]
Min TemperatureDegrees Celsius250 m1961–2005Gebrechorkos SH et al. [30]
Mean Precipitationmm250 m1961–2005Gebrechorkos SH et al. [30]
* NDVI = Normalized Difference Vegetation Index.
Table
Table 2. Testing AUC values of ENM models based on WC and SDSM datasets.
Table 2. Testing AUC values of ENM models based on WC and SDSM datasets.
ModelWCSDSM
AUCRankAUCRank
GLM0.88350.8516
GBM0.90230.8793
GAM0.87960.8487
SRE0.72390.7359
CTA0.78880.7988
RF0.92920.8754
MARS0.87170.8802
MAXENT0.88940.8725
Ensemble0.95610.9601
Table
Table 3. Field ground-truthing validation using the accuracy (ACC), sensitivity (SE) specificity (SP), positive predictive value (PPV), negative predictive value (NPV), and balanced accuracy (BA).
Table 3. Field ground-truthing validation using the accuracy (ACC), sensitivity (SE) specificity (SP), positive predictive value (PPV), negative predictive value (NPV), and balanced accuracy (BA).
ModelWCSDSM
ACC (%)SE (%)SP (%)PPV (%)NPV (%)BA (%)ACC (%)SE (%)SP (%)PPV (%)NPV (%)BA (%)
GLM58.3375.0025.0069.57100.0050.0050.0043.7562.5069.57100.0053.13
GAM70.8393.7525.0071.4366.6759.3845.8356.2525.0071.4366.6740.63
MARS66.6775.0050.0080.00100.0062.0045.8343.7550.0080.00100.0046.88
CTA75.00100.0025.0072.73100.0062.5079.17100.0037.5072.73100.0068.75
RF41.6743.7537.5084.21100.0040.6383.3381.2587.5084.21100.0084.38
GBM83.3393.7562.5078.9580.0078.1358.3350.0075.0078.9580.0062.50
SRE54.1775.0012.5066.6733.3343.7558.3375.0025.0066.6733.3350.00
MAXENT37.5025.0062.5081.8246.1543.7529.1712.5062.5081.8246.1537.50
Ensemble83.3393.7562.5084.21100.0078.1341.6731.2562.5084.21100.0046.88
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ponpetch, K.; Erko, B.; Bekana, T.; Kebede, T.; Tian, D.; Yang, Y.; Liang, S. Environmental Drivers and Potential Distribution of Schistosoma mansoni Endemic Areas in Ethiopia. Microorganisms 2021, 9, 2144. https://doi.org/10.3390/microorganisms9102144

AMA Style

Ponpetch K, Erko B, Bekana T, Kebede T, Tian D, Yang Y, Liang S. Environmental Drivers and Potential Distribution of Schistosoma mansoni Endemic Areas in Ethiopia. Microorganisms. 2021; 9(10):2144. https://doi.org/10.3390/microorganisms9102144

Chicago/Turabian Style

Ponpetch, Keerati, Berhanu Erko, Teshome Bekana, Tadesse Kebede, Di Tian, Yang Yang, and Song Liang. 2021. "Environmental Drivers and Potential Distribution of Schistosoma mansoni Endemic Areas in Ethiopia" Microorganisms 9, no. 10: 2144. https://doi.org/10.3390/microorganisms9102144

APA Style

Ponpetch, K., Erko, B., Bekana, T., Kebede, T., Tian, D., Yang, Y., & Liang, S. (2021). Environmental Drivers and Potential Distribution of Schistosoma mansoni Endemic Areas in Ethiopia. Microorganisms, 9(10), 2144. https://doi.org/10.3390/microorganisms9102144

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
