Communication

Single Cell Analysis of Bistable Expression of Pathogenicity Island 1 and the Flagellar Regulon in Salmonella enterica

by
María Antonia Sánchez-Romero
1,* and
Josep Casadesús
2
1
Departamento de Microbiología y Parasitología, Facultad de Farmacia, Universidad de Sevilla, Calle Profesor García González, 2, 41012 Seville, Spain
2
Departamento de Genética, Facultad de Biología, Universidad de Sevilla, Apartado 1095, 41080 Seville, Spain
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(2), 210; https://doi.org/10.3390/microorganisms9020210
Submission received: 28 December 2020 / Revised: 16 January 2021 / Accepted: 18 January 2021 / Published: 20 January 2021
(This article belongs to the Special Issue Type III Secretion Systems in Human/Animal Pathogenic Bacteria)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bistable expression of the Salmonella enterica pathogenicity island 1 (SPI-1) and the flagellar network (Flag) has been described previously. In this study, simultaneous monitoring of OFF and ON states in SPI-1 and in the flagellar regulon reveals independent switching, with concomitant formation of four subpopulations: SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1ON FlagOFF, and SPI-1ON FlagON. Invasion assays upon cell sorting show that none of the four subpopulations is highly invasive, thus raising the possibility that FlagOFF cells might contribute to optimal invasion as previously proposed for SPI-1OFF cells. Time lapse microscopy observation indicates that expression of the flagellar regulon contributes to the growth impairment previously described in SPI-1ON cells. As a consequence, growth resumption in SPI-1ON FlagON cells requires switching to both SPI-1OFF and FlagOFF states.

1. Introduction

Invasion of epithelial cells by Salmonella enterica requires the activity of effectors secreted through the type III secretion system (T3SS) of pathogenicity island 1 (SPI-1). In the mammalian ileum and under reductionist laboratory conditions that mimic the intestine, expression of SPI-1 genes is bistable, yielding SPI-1OFF and SPI-1ON subpopulations [1,2,3]. The mechanism that controls SPI-1 bistability remains unknown but probably depends on complex interactive networks and feedback loops involving SPI-1 regulators [4]. Some such regulators control crosstalk between SPI-1 and other gene networks, and an example is the flagellar regulon [4,5,6].
A peculiar trait of SPI-1ON cells is reduced growth rate [7], caused by the energetic burden of building the secretion apparatus, by disruption of the proton gradient during T3SS assembly, or by the energy expense invested in both processes. However, growth retardation associated to SPI-1 expression confers increased antibiotic resistance to SPI-1ON cells [8].
Bacterial motility contributes to invasion by fostering bacterial contact with host cells [9] and by helping to choose optimal infection sites [10,11]. Flagella-mediated adhesion may also contribute to triggering membrane ruffling and concomitant initiation of epithelial cell invasion [12]. Furthermore, flagellin has been shown to be a potent activator of the innate immune response [13,14]. Like SPI-1, the S. enterica flagellar regulon shows bimodal expression [15], and formation of flagellated and non-flagellated subpopulations is under the control of multiple regulators [11,15,16,17,18].
While the contribution of SPI-1 and the flagellar network to epithelial cell invasion has been studied with exquisite detail, certain questions have remained unanswered because they demanded single cell analysis. One such question is whether SPI-1 and the flagellar regulon undergo independent or co-ordinated switching; another is whether flagellar expression, alone or together with SPI-1 expression, alters S. enterica growth. In this study, simultaneous monitoring of OFF and ON states in SPI-1 and the flagellar regulon has permitted visualization of four subpopulations (SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1ON FlagOFF, and SPI-1ON FlagON), indicating that independent switching occurs. In vitro assays using sorted (sub)populations have provided evidence that cells that express SPI-1 and flagella are not optimally invasive, suggesting that both FlagOFF and FlagON cells may contribute to optimal epithelial cell invasion. We also show that expression of the flagellar regulon contributes to the growth impairment of SPI-1ON cells.

2. Materials and Methods

2.1. Bacterial Strains, Media and Culture Conditions

Strains of Salmonella enterica serovar Typhimurium used in this study derive from the mouse-virulent strain SL1344. For simplicity, Salmonella enterica serovar Typhimurium is abbreviated as S. Typhimurium throughout the text. Strain SV7884 (sipB::gfp) was described elsewhere [3]. A transcriptional fusion with the mCherry gene was constructed downstream of the stop codon of fliC. For this purpose, a DNA fragment containing the promoterless mCherry gene and the kanamycin resistance cassette was PCR-amplified from pDOC-R, an mCherry-containing derivative of plasmid pDOC (a gift from Busby’s lab, Univ. Birmingham, UK), using primers 5’GAA CCA GGT TCC GCA AAA CGT CCT CTC TTT ACT GCG TTA AGG GTA CCA TGG TGA GCA AGG 3’ and 5’CTG CCT TGA TTG TGT ACC ACG TGT CGG TGA ATC AAT CGC CAA CCT CGA GAT ATG AAT ATC 3’. The PCR product was integrated into the chromosome of SL1344 using the Lambda Red recombination system [19], generating strain SV7819 (fliC::mCherry). P22 HT-mediated transduction was used to generate strain SV8533 (sipB::gfp fliC::mCherry) using SV7819 (fliC::mCherry) as donor and SV7884 (sipB::gfp) as recipient. Cultures were grown at 37 °C in borosilicate tubes containing 5 mL of Bertani’s lysogeny broth (LB). Oxygen limitation (“invasive” condition) was achieved by growth without shaking.

2.2. Invasion Assays in HeLa Epithelial Cells

HeLa human epithelial cells (ATCC CCL-2) were grown in DMEM containing 10% fetal calf serum and 1 mM glutamine (Life Technologies, Carlsbad, CA, USA). HeLa cells were seeded in 24-well plates (Costar, Corning) the day before the infection. Bacterial cultures were grown overnight at 37 °C in LB without shaking in borosilicate tubes and added to HeLa cells to reach a multiplicity of infection (MOI) of 75 bacteria per eukaryotic cell. Thirty minutes after infection, cells were washed twice with phosphate buffered saline (PBS) and incubated in fresh DMEM medium containing 100 μg/mL gentamicin for 90 min. Numbers of viable intracellular bacteria were obtained after lysis of infected cells with 1% Triton X-100, and plating on appropriate media. Infections were carried out in triplicate. Invasion rates were calculated as the ratio between viable intracellular bacteria and viable bacteria added to infect the HeLa cells.

2.3. Flow Cytometry Analysis

Flow cytometry was used to monitor expression of sipB::gfp (SPI-1) and fliC::mCherry (flagella) fusions. Data acquisition was performed using a MACSQuant® Analyzer 10 flow cytometer (Miltenyi Biotec, Bergisch Gladbach, Germany) and was analyzed with FlowJo X v. 10.0.7r software (Tree Star, Inc., Ashland, OR, USA). S. Typhimurium strains were grown at 37 °C until the desired optical density, washed, and re-suspended in PBS for fluorescence measurement by flow cytometry. Fluorescence values for 100,000 events were compared with the data from the reporter-less control strain, thus yielding the fraction of ON and OFF cells in SPI-1 and in the flagellar system.

2.4. Fluorescence Activated Cell Sorting (FACS) of Live Cells

Cells from an overnight culture were grown under invasive conditions. The culture was washed and re-suspended in PBS to a final concentration of 5 × 106 cells/mL. Cells were sorted using a MoFlo Astrios EQ cytometer (Beckman Coulter, Brea, CA). Immediately prior to sorting, cells were analyzed for GFP and/or mCherry expression. Based on this analysis, gates were drawn to separate cells that expressed both GFP (SPI-1) and mCherry (flagella) (SPI-1ON FlagON subpopulation) from cells that did not (SPI-1OFF FlagOFF subpopulation), as well as cells that expressed either GFP (SPI-1) or mCherry (flagella) (SPI-1ON FlagOFF and SPI-1OFF FlagON subpopulations). From each gate, cells were collected into a sterile tube. After sorting, cells were spun at 4000 rpm for 10 min. FACS buffer was then removed, and cells were re-suspended in DMEM to perform invasion assays. An aliquot of sorted cells was run again at the cytometer to confirm the purity of the preparation. Data were analyzed with FlowJo X v. 10.0.7r software (Tree Star, Inc.).

2.5. Fluorescence Microscopy

Strain SV8533 (sipB::gfp fliC::mCherry) was grown in LB without shaking for 18 h at 37 °C. Samples of 1.5 mL were collected by centrifugation at 3400× g for 5 min. Cells were placed on an agarose slab (0.9% agarose/1% LB medium) pre-warmed at 37 °C. Images were captured with a Zeiss Apotome fluorescence microscope equipped with a 100× Plan Apochromat objective lens and an incubation system that permits cultivation and observation of living cells (37 °C). Pictures were taken at different times using an Axiocam 506 camera, and the images were analyzed using ImageJ software (Wayne Rasband, Research Services Branch, National Institute of Mental Health, MD, USA).

2.6. Statistical Analysis

Student’s t-test (two-tailed) was performed using GraphPad Prism v. 6.0 for Mac to determine statistical differences between two groups.

3. Results

3.1. Single Cell Analysis of the Expression Pattern of Invasion and Motility Genes

Simultaneous monitoring of OFF and ON states in SPI-1 and the flagellar regulon was performed using transcriptional fusions with GFP and mCherry fluorescent proteins. The fusions had been constructed downstream of the SPI-1 gene sipB, which encodes a T3SS effector, and downstream of the flagellar gene fliC, which encodes flagellin. The resulting strain (SV8533, sipB::gfp fliC::mCherry) was used to monitor the pattern of SPI-1 and flagellar expression using fluorescence microscopy and flow cytometry in cultures grown in invasive conditions (LB under oxygen limitation). Bistable expression of both SPI-1 and the flagellar system was observed (Figure 1 and Supplementary Figure S1). The subpopulation of SPI-1ON cells was small as previously described [3] while the FlagON subpopulation was large. Invasion and motility genes thus appear showing independent patterns of bimodal expression, and the subpopulation of cells that secrete SPI-1 invasion effectors and harbor flagella is small. Bistability was also observed under non invasive conditions (LB under aerobiosis) but the subpopulation sizes were different (Supplementary Figure S2).

3.2. Contribution of Virulence and Motility Systems to Invasion of Epithelial Cells In Vitro

Given the involvement of flagella in early steps of the invasion process, one might expect that FlagON cells would be more invasive than FlagOFF cells [15]. To test this hypothesis, epithelial cell invasion assays were performed using FlagOFF and FlagON subpopulations separated by cell sorting. Surprisingly, the FlagOFF subpopulation was as invasive as the FlagON subpopulation (Figure 2B). Therefore, at first sight, cells that harbor flagella do not seem to be more invasive than cells that lack flagella. However, both FlagOFF and FlagON subpopulations contain SPI-1-expressing and SPI-1-nonexpressing cells, and both are necessary for optimal invasion [3]. When sorted SPI-1OFF FlagOFF, SPI-1ON FlagOFF, SPI-1OFF FlagON and SPI-1ON FlagON subpopulations were tested in epithelial cell invasion assays, none of the subpopulations was invasive on its own (Figure 2C). However, the sorted SPI-1ON subpopulations (SPI-1ON FlagOFF and SPI-1ON FlagON) showed higher invasion rates than the SPI-1OFF subpopulations (SPI-1OFF FlagOFF and SPI-1OFF FlagON) (Figure 2C). The possibility that cell sorting might damage either the T3SS or the flagellum has been ruled out previously [3,20]. Furthermore, as a cautionary measure, the population labeled ALL (the whole bacterial population including the four subpopulations) was passed through the cell sorter before the invasion assays. The unsuspected observation that cells that express SPI-1 and flagella are not optimally invasive might perhaps indicate that both FlagOFF and FlagON cells are needed for optimal epithelial cell invasion, in analogy with observations made for SPI-1OFF and SPI-1ON cells [3].

3.3. Growth of Salmonella Cells with Different Patterns of SPI-1 and Flagellar Expression

Expression of Salmonella pathogenicity island 1 (SPI-1) is known to retard growth, thus imposing a "fitness cost" associated to synthesis of the T3SS invasion effectors [7]. Based on this antecedent, growth of S. Typhimurium cells harboring GFP (to monitor SPI-1 expression) and mCherry (to monitor expression of the flagellar network) was monitored by time-lapse microscopy (Figure 3 and Video S1). In the experiment summarized in Figure 3, a SPI-1OFF FlagOFF cell formed a colony after 5 h (black arrow) while SPI-1ON FlagON individual cells (white arrows) did not form colonies. In turn, SPI-1OFF FlagON and SPI-1ON FlagOFF cells (white circles) only began to divide when either the SPI-1 or the flagellar regulon had been switched to OFF, thus yielding SPI-1OFF FlagOFF cells. Therefore, while the SPI-1ON state causes growth retardation as previously described [7], simultaneous FlagON and SPI-1ON states cause growth arrest. The SPI-1ON and FlagON phenotypes do not disappear immediately when cells resume growth, and switching to OFF is observed after a few rounds of division (see Videos S1–S3).

4. Discussion

Coordinated expression of multiple cellular systems is essential for Salmonella Typhimurium virulence. At the stage of epithelial cell invasion in the intestine, expression of pathogenicity island 1 (SPI-1) and of the flagellar gene network is regulated by interacting transcription factors [4,5,18,21,22]. It is also well known that both the flagellar regulon and SPI-1 exhibit bistable expression [1,2,3,7,8,15,16,17,18,23,24,25]. None of these previous studies analyzed simultaneous expression of both systems in single cells, which was the main goal of this study. Indeed, we have used fluorescent fusions to analyze the expression of SPI-1 and the flagellar network by microscopy (including time lapse), flow cytometry and cell sorting. Use of cell sorting circumvents the problems found in tissue culture studies using mutant strains, due to the fact that mutations that prevent biosynthesis of flagella often have pleiotropic phenotypes [26].
Simultaneous monitoring of OFF and ON states in SPI-1 and in the flagellar regulon has permitted the visualization of four subpopulations (SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1ON FlagOFF, and SPI-1ON FlagON), indicating that independent switching occurs (Figure 1). Hence, under gut-like growth conditions, Salmonella populations appear to contain four distinct types of cells.
An unsuspected consequence of the formation of four bacterial lineages was observed when sorted subpopulations were tested in invasion assays in vitro: none of the four subpopulations detected by flow cytometry was highly invasive (Figure 2). This observation raises the possibility that FlagOFF cells may contribute to optimal invasion, in a fashion perhaps analogous to the involvement of SPI-1OFF cells [3,27]. A tentative explanation, speculative at this stage, is that evolution might have endowed FlagOFF cells with hitherto unknown traits that favor invasion. The existence of such traits might explain why the intriguing contribution of FlagOFF cells to invasion is observed in cultured epithelial cells, that is, in the absence of immune responses. In fact, an advantage of the reductionist approach of this study may be the ability to observe interactions between flagella and epithelial cells in the absence of inflammation-related events triggered by the presence of flagella [13,14,28].
Expression of the flagellar regulon enhances the growth defect of SPI-1ON cells; in fact, simultaneous expression of SPI-1 and the flagellar network causes growth arrest (Figure 3). One may thus understand why the subpopulation of SPI-1ON FlagON cells is relatively small (Figure 1). In contrast, the SPI-1OFF FlagON subpopulation is large. Because SPI-1OFF Salmonellae can invade epithelial cells [3,27], possession of flagella might enhance the ability of such cells to find appropriate invasion sites.
In summary, single cell analysis adds novel features to the known roles of SPI-1 and the flagellar regulon in Salmonella invasion. The main observation is that double bistability occurs, producing four subpopulations. The possibility that SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1OFF FlagON, and SPI-1ON FlagON subpopulations cells differ in additional traits besides the presence or absence of the SPI-1 T3SS and flagella may be supported by the pleiotropic control of gene expression exerted by the master flagellar regulator, FlhDC [29]. In analogy with other bistable systems [30,31,32], phenotypic diversification may be advantageous over a deterministic, uniform response by bringing up division of labor and/or other benefits.

5. Conclusions

SPI-1 and the flagellar regulon are bistable systems with independent switching, thereby producing four subpopulations: SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1ON FlagOFF and SPI-1ON FlagON. However, none of the four subpopulations is highly invasive, suggesting that FlagOFF cells might contribute to optimal invasion as previously described for SPI-1OFF cells. Expression of the flagellar regulon enhances the growth impairment previously described in SPI-1ON cells, and growth resumption in SPI-1ON FlagON cells requires switching to both SPI-1OFF and FlagOFF states.

Supplementary Materials

The following materials are available online at https://www.mdpi.com/2076-2607/9/2/210/s1, Figure S1: Fluorescence microscopy images of S. Typhimurium cells expressing SPI-1 (GFP) and/or the flagellar regulon (mCherry). Figure S2: Single cell analysis of expression of SPI-1 (invasion) and flagellar (motility) genes at 37 °C in LB under aerobiosis. Videos S1–S3: Heterogenous expression of virulence (SPI-1) and flagellar (Flag) genes in growing microcolonies.

Author Contributions

Conceptualization, M.A.S.-R.; methodology, M.A.S.-R. and J.C.; software, M.A.S.-R.; validation, M.A.S.-R.; formal analysis, M.A.S.-R.; investigation, M.A.S.-R.; resources, M.A.S.-R. and J.C.; data curation, M.A.S.-R.; writing—original draft preparation, M.A.S.-R.; writing—review and editing, M.A.S.-R. and J.C.; visualization, M.A.S.-R.; supervision, M.A.S.-R.; project administration, M.A.S.-R.; funding acquisition, J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by grant BIO2016-75235-P from the Spanish Ministerio de Economía, Industria y Competitividad—Agencia Estatal de Investigación and the European Regional Fund and by the VI Plan Propio de Investigación y Transferencia from the Universidad de Sevilla.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to Modesto Carballo, Laura Navarro, and Cristina Reyes of the Servicio de Biología, CITIUS, Universidad de Sevilla, and to Alberto Álvarez of the Servicio de Técnicas Aplicadas a la Biociencia, Universidad de Extremadura, Badajoz, for help with experiments performed at the facilities. We also thank Lucía García-Pastor, David R. Olivenza, Rocio Fernández-Fernández, Carmen R. Beuzón and members the RED-FLAG consortium for encouragement and helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bumann, D. Examination of Salmonella gene expression in an infected mammalian host using the green fluorescent protein and two-colour flow cytometry. Mol. Microbiol. 2002, 43, 1269–1283. [Google Scholar] [CrossRef] [PubMed]
  2. Hautefort, I.; Proenca, M.J.; Hinton, J.C.D. Single-copy green fluorescent protein gene fusions allow accurate measurement of Salmonella gene expression in vitro and during infection of mammalian cells. Appl. Environ. Microbiol. 2003, 69, 7480–7491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Sánchez-Romero, M.A.; Casadesús, J. Contribution of SPI-1 bistability to Salmonella enterica cooperative virulence: Insights from single cell analysis. Sci. Rep. 2018, 8, 14875. [Google Scholar] [CrossRef] [PubMed]
  4. Saini, S.; Ellermeier, J.R.; Slauch, J.M.; Rao, C.V. The role of coupled positive feedback in the expression of the SPI1 type three secretion system in Salmonella. PLoS Pathog. 2010, 6, e1001025. [Google Scholar] [CrossRef] [PubMed]
  5. Singer, H.M.; Kühne, C.; Deditius, J.A.; Hughes, K.T.; Erhardt, M. The Salmonella Spi1 virulence regulatory protein HilD directly activates transcription of the flagellar master operon flhDC. J. Bacteriol. 2014, 196, 1448–1457. [Google Scholar] [CrossRef] [Green Version]
  6. Hamed, S.; Wang, X.; Shawky, R.M.; Emara, M.; Aldridge, P.D.; Rao, C.V. Synergistic action of SPI-1 gene expression in Salmonella enterica serovar Typhimurium through transcriptional crosstalk with the flagellar system. BMC Microbiol. 2019, 19, 211–212. [Google Scholar] [CrossRef] [Green Version]
  7. Sturm, A.; Heinemann, M.; Arnoldini, M.; Benecke, A.; Ackermann, M.; Benz, M.; Dormann, J.; Hardt, W.-D. The cost of virulence: Retarded growth of Salmonella Typhimurium cells expressing type III secretion system 1. PLoS Pathog. 2011, 7, e1002143. [Google Scholar] [CrossRef] [Green Version]
  8. Arnoldini, M.; Vizcarra, I.A.; Peña-Miller, R.; Stocker, N.; Diard, M.; Vogel, V.; Beardmore, R.E.; Hardt, W.-D.; Ackermann, M. Bistable expression of virulence genes in Salmonella leads to the formation of an antibiotic-tolerant subpopulation. PLoS Biol. 2014, 12, e1001928. [Google Scholar] [CrossRef]
  9. Jones, G.W.; Richardson, L.A.; Uhlman, D. The invasion of HeLa cells by Salmonella typhimurium: Reversible and irreversible bacterial attachment and the role of bacterial motility. J. Gen. Microbiol. 1981, 127, 351–360. [Google Scholar] [CrossRef] [Green Version]
  10. Misselwitz, B.; Barrett, N.; Kreibich, S.; Vonaesch, P.; Andritschke, D.; Rout, S.; Weidner, K.; Sormaz, M.; Songhet, P.; Horvath, P.; et al. Near surface swimming of Salmonella Typhimurium explains target-site selection and cooperative invasion. PLoS Pathog. 2012, 8, e1002810. [Google Scholar] [CrossRef] [Green Version]
  11. Zarkani, A.A.; López-Pagán, N.; Grimm, M.; Sánchez-Romero, M.A.; Ruiz-Albert, J.; Beuzón, C.R.; Schikora, A. Salmonella heterogeneously expresses flagellin during colonization of plants. Microorganisms 2020, 8, 815. [Google Scholar] [CrossRef] [PubMed]
  12. Chaban, B.; Hughes, H.V.; Beeby, M. The flagellum in bacterial pathogens: For motility and a whole lot more. Semin. Cell Dev. Biol. 2015, 46, 91–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Hayashi, F.; Smith, K.D.; Ozinsky, A.; Hawn, T.R.; Yi, E.C.; Goodlett, D.R.; Eng, J.K.; Akira, S.; Underhill, D.M.; Aderem, A.; et al. The innate immune response to bacterial flagellin is mediated by Toll-like receptor 5. Nature 2001, 410, 1099–1103. [Google Scholar] [CrossRef] [PubMed]
  14. Gewirtz, A.T.; Simon, P.O.; Schmitt, C.K.; Taylor, L.J.; Hagedorn, C.H.; O’Brien, A.D.; Neish, A.S.; Madara, J.L. Salmonella typhimurium translocates flagellin across intestinal epithelia, inducing a proinflammatory response. J. Clin. Investig. 2001, 107, 99–109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Stewart, M.K.; Cookson, B.T. Mutually repressing repressor functions and multi-layered cellular heterogeneity regulate the bistable Salmonella fliC census. Mol. Microbiol. 2014, 94, 1272–1284. [Google Scholar] [CrossRef] [Green Version]
  16. Cummings, L.A.; Wilkerson, W.D.; Bergsbaken, T.; Cookson, B.T. In Vivo, fliC expression by Salmonella enterica serovar Typhimurium is heterogeneous, regulated by ClpX, and anatomically restricted. Mol. Microbiol. 2006, 61, 795–809. [Google Scholar] [CrossRef]
  17. Koirala, S.; Mears, P.; Sim, M.; Golding, I.; Chemla, Y.R.; Aldridge, P.D.; Rao, C.V. A nutrient-tunable bistable switch controls motility in Salmonella enterica serovar Typhimurium. mBio 2014, 5. [Google Scholar] [CrossRef] [Green Version]
  18. Saini, S.; Slauch, J.M.; Aldridge, P.D.; Rao, C.V. Role of cross talk in regulating the dynamic expression of the flagellar Salmonella pathogenicity island 1 and type 1 fimbrial genes. J. Bacteriol. 2010, 192, 5767–5777. [Google Scholar] [CrossRef] [Green Version]
  19. Datsenko, K.A.; Wanner, B.L. One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products. Proc. Natl. Acad. Sci. USA 2000, 97, 6640–6645. [Google Scholar] [CrossRef] [Green Version]
  20. García-Pastor, L.; Sánchez-Romero, M.A.; Gutiérrez, G.; Puerta-Fernández, E.; Casadesús, J. Formation of phenotypic lineages in Salmonella enterica by a pleiotropic fimbrial switch. PLoS Genet. 2018, 14, e1007677. [Google Scholar] [CrossRef] [Green Version]
  21. Chubiz, J.E.C.; Golubeva, Y.A.; Lin, D.; Miller, L.D.; Slauch, J.M. FliZ regulates expression of the Salmonella pathogenicity island 1 invasion locus by controlling HilD protein activity in Salmonella enterica serovar Typhimurium. J. Bacteriol. 2010, 192, 6261–6270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Mouslim, C.; Hughes, K.T. The effect of cell growth phase on the regulatory cross-talk between flagellar and Spi1 virulence gene expression. PLoS Pathog. 2014, 10, e1003987. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Diard, M.; Sellin, M.E.; Dolowschiak, T.; Arnoldini, M.; Ackermann, M.; Hardt, W.-D. Antibiotic treatment selects for cooperative virulence of Salmonella typhimurium. Curr. Biol. 2014, 24, 2000–2005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Freed, N.E.; Silander, O.K.; Stecher, B.; Böhm, A.; Hardt, W.-D.; Ackermann, M. A simple screen to identify promoters conferring high levels of phenotypic noise. PLoS Genet. 2008, 4, e1000307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Stewart, M.K.; Cummings, L.A.; Johnson, M.L.; Berezow, A.B.; Cookson, B.T. Regulation of phenotypic heterogeneity permits Salmonella evasion of the host caspase-1 inflammatory response. Proc. Natl. Acad. Sci. USA 2011, 108, 20742–20747. [Google Scholar] [CrossRef] [Green Version]
  26. Winter, S.E.; Thiennimitr, P.; Nuccio, S.-P.; Haneda, T.; Winter, M.G.; Wilson, R.P.; Russell, J.M.; Henry, T.; Tran, Q.T.; Lawhon, S.D.; et al. Contribution of flagellin pattern recognition to intestinal inflammation during Salmonella enterica serotype Typhimurium infection. Infect. Immun. 2009, 77, 1904–1916. [Google Scholar] [CrossRef] [Green Version]
  27. Ginocchio, C.; Pace, J.; Galán, J.E. Identification and molecular characterization of a Salmonella typhimurium gene involved in triggering the internalization of Salmonellae into cultured epithelial cells. Proc. Natl. Acad. Sci. USA 1992, 89, 5976–5980. [Google Scholar] [CrossRef] [Green Version]
  28. Olsen, J.E.; Hoegh-Andersen, K.H.; Casadesús, J.; Rosenkranzt, J.; Chadfield, M.S.; Thomsen, L.E. The role of flagella and chemotaxis genes in host pathogen interaction of the host adapted Salmonella enterica serovar Dublin compared to the broad host range serovar S. Typhimurium. BMC Microbiol. 2013, 13, 67. [Google Scholar] [CrossRef] [Green Version]
  29. Soutourina, O.A.; Bertin, P.N. Regulation cascade of flagellar expression in Gram-negative bacteria. FEMS Microbiol. Rev. 2003, 27, 505–523. [Google Scholar] [CrossRef] [Green Version]
  30. Dubnau, D.; Losick, R. Bistability in bacteria. Mol. Microbiol. 2006, 61, 564–572. [Google Scholar] [CrossRef]
  31. García-Pastor, L.; Puerta-Fernández, E.; Casadesús, J. Bistability and phase variation in Salmonella enterica. Biochim. Biophys. Acta 2019, 1862, 752–758. [Google Scholar] [CrossRef] [PubMed]
  32. Cota, I.; Sánchez-Romero, M.A.; Hernández, S.B.; Pucciarelli, M.G.; Gel Portillo, F.G.; Casadesús, J. Epigenetic control of Salmonella enterica O-antigen chain length: A tradeoff between virulence and bacteriophage resistance. PLoS Genet. 2015, 11, e1005667. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Microorganisms 09 00210 g001 550

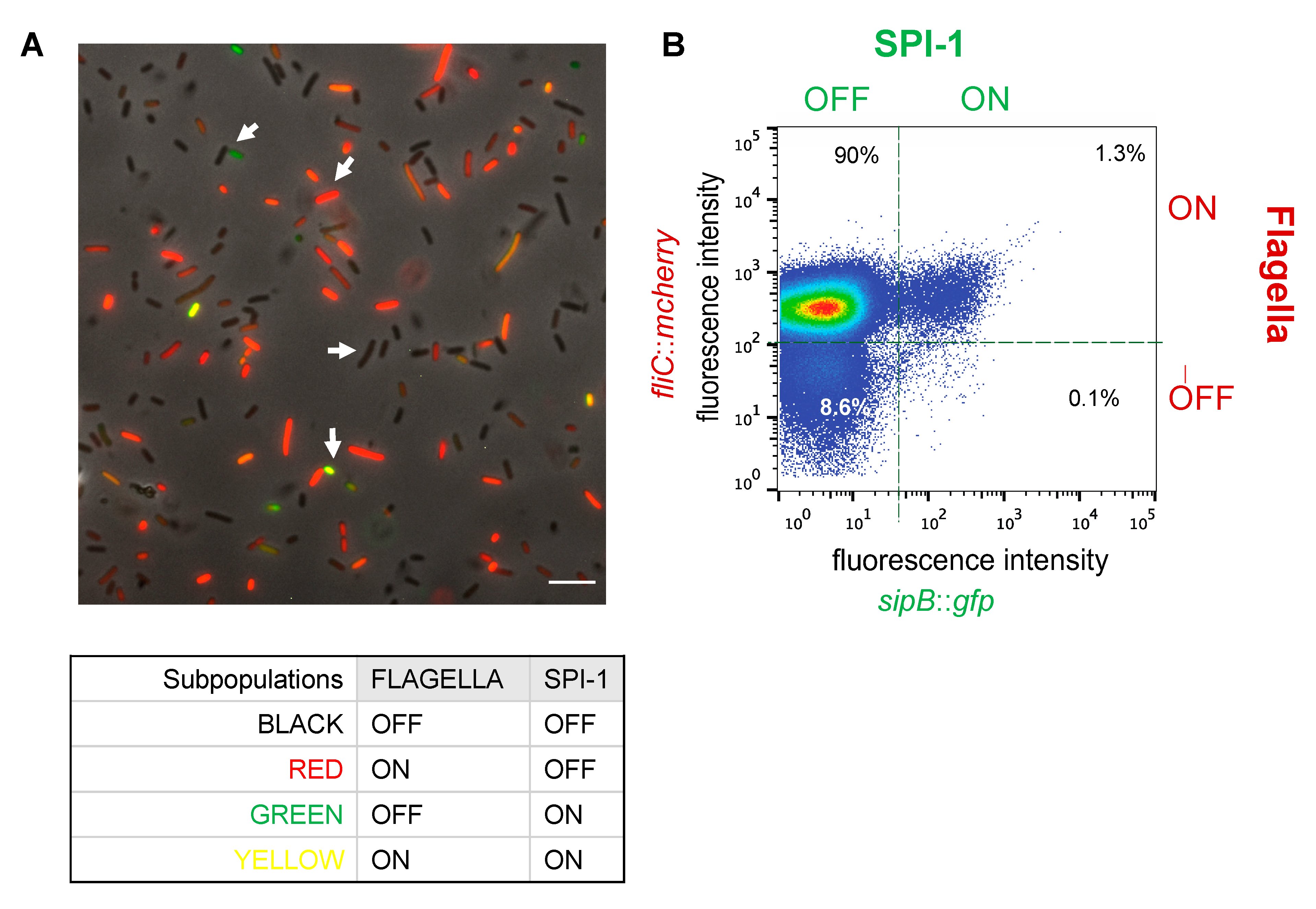

Figure 1. Single cell analysis of expression of SPI-1 (invasion) and flagellar (motility) genes. (A) A representative image of S. Typhimurium strain SV8533 (sipB::gfp fliC::mCherry) grown at 37 °C in lysogeny broth (LB) under invasive conditions, visualized by fluorescence microscopy with a 100× objective. SPI-1 and flagellar genes are tagged with GFP and mCherry, respectively. Examples of Table 5 μm. (B) GFP and mCherry fluorescence intensity distribution in an LB culture of strain SV8533 under invasive conditions, monitored by flow cytometry.
Figure 1. Single cell analysis of expression of SPI-1 (invasion) and flagellar (motility) genes. (A) A representative image of S. Typhimurium strain SV8533 (sipB::gfp fliC::mCherry) grown at 37 °C in lysogeny broth (LB) under invasive conditions, visualized by fluorescence microscopy with a 100× objective. SPI-1 and flagellar genes are tagged with GFP and mCherry, respectively. Examples of Table 5 μm. (B) GFP and mCherry fluorescence intensity distribution in an LB culture of strain SV8533 under invasive conditions, monitored by flow cytometry.
Microorganisms 09 00210 g001
Microorganisms 09 00210 g002 550

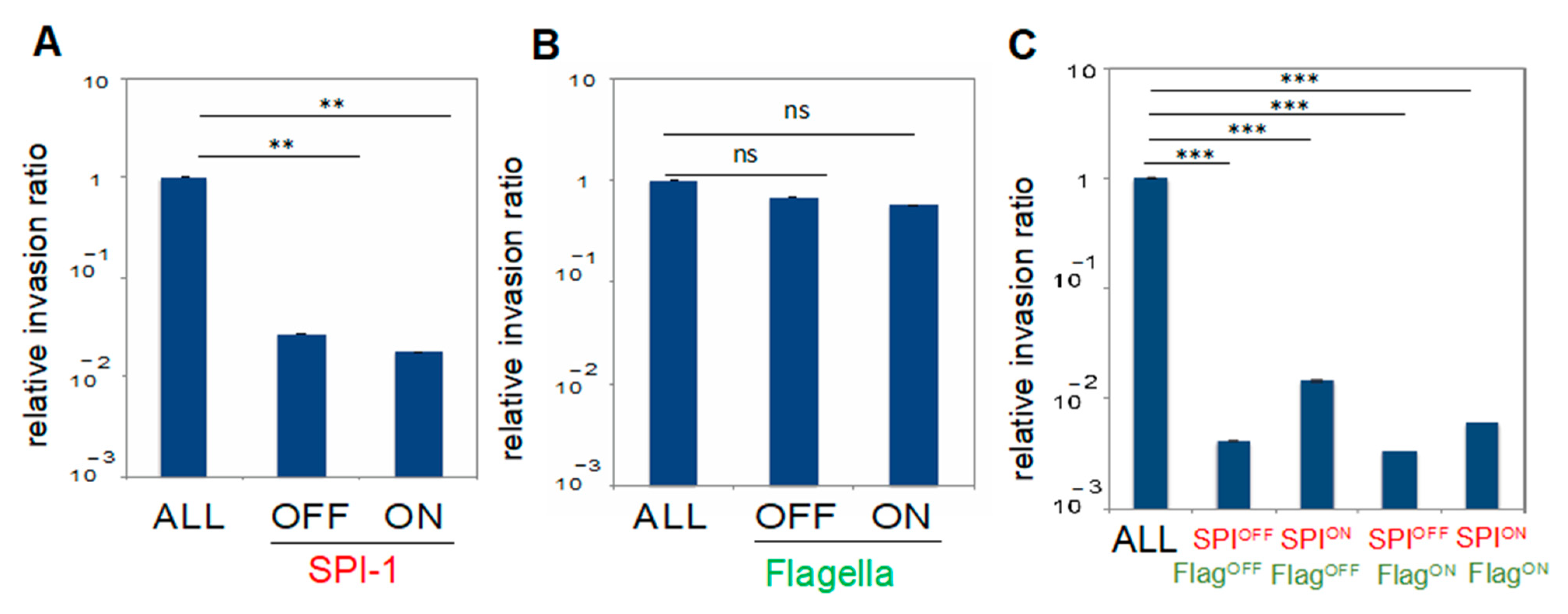

Figure 2. Invasion of epithelial cells by subpopulations expressing invasion and motility determinants (strain SV8533, sipB::gfp and fliC::mCherry). (A) Invasion rates of sorted SPI-1OFF and SPI-1ON subpopulations. Assays were performed using aliquots from the whole bacterial population after passage through the cell sorter (“ALL”) and from SPI-1ON and SPI-1OFF subpopulations. (B) Invasion rates of sorted FlagOFF and FlagON subpopulations. Culture aliquots used in the assays were as above. (C) Invasion rates of sorted SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1OFF FlagON, and SPI-1ON FlagON subpopulations. An aliquot from the whole bacterial population after passage through the cell sorter (“ALL”) was included in the invasion assays. In all panels, averages and standard deviations from >3 independent experiments are shown. Statistical indications: ns, not significantly different; *** significantly different, p < 0.001; ** significantly different, p < 0.01.
Figure 2. Invasion of epithelial cells by subpopulations expressing invasion and motility determinants (strain SV8533, sipB::gfp and fliC::mCherry). (A) Invasion rates of sorted SPI-1OFF and SPI-1ON subpopulations. Assays were performed using aliquots from the whole bacterial population after passage through the cell sorter (“ALL”) and from SPI-1ON and SPI-1OFF subpopulations. (B) Invasion rates of sorted FlagOFF and FlagON subpopulations. Culture aliquots used in the assays were as above. (C) Invasion rates of sorted SPI-1OFF FlagOFF, SPI-1OFF FlagON, SPI-1OFF FlagON, and SPI-1ON FlagON subpopulations. An aliquot from the whole bacterial population after passage through the cell sorter (“ALL”) was included in the invasion assays. In all panels, averages and standard deviations from >3 independent experiments are shown. Statistical indications: ns, not significantly different; *** significantly different, p < 0.001; ** significantly different, p < 0.01.
Microorganisms 09 00210 g002
Microorganisms 09 00210 g003 550

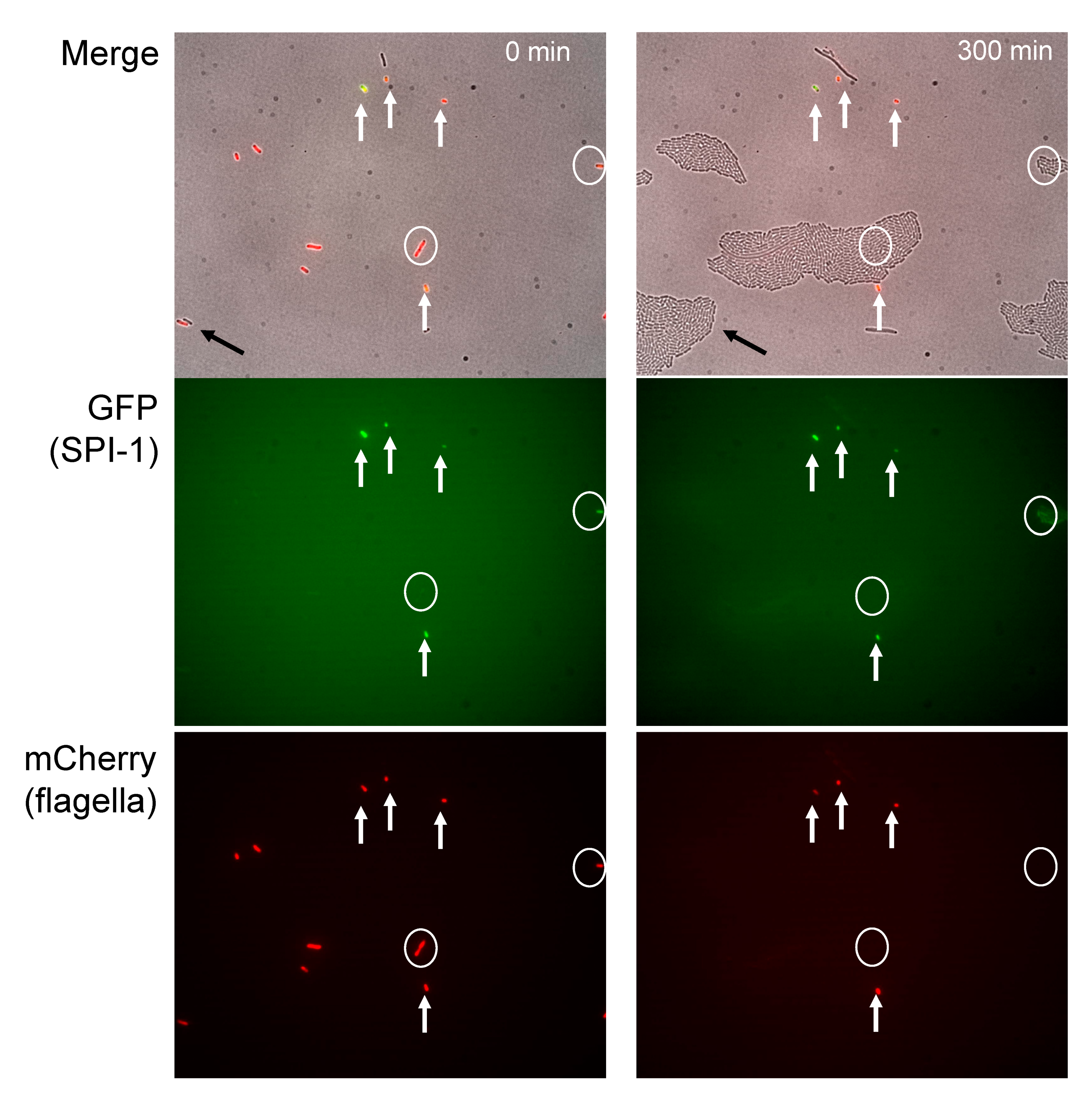

Figure 3. Time lapse microscopy analysis of growth of S. Typhimurium cells that differ in the expression of invasion and flagellar genes. Image from a typical time-lapse microscopy experiment with strain SV8533 (sipB::gfp and fliC::mCherry) (left panel) and after growth on an agar pad at 37 °C Figure 300 min (right panel). Bacteria were imaged to detect SPI-1 (sipB gene) and flagellar (fliC gene) expression (green and red fluorescence, respectively) and growth (phase contrast, 1 frame/10 min). FlagOFF SPI-1OFF individual cells are represented as a black arrow, FlagON SPI-1ON individual cells as white arrows, and FlagON SPI-1OFF and FlagOFF SPI-1ON cells as white circles.
Figure 3. Time lapse microscopy analysis of growth of S. Typhimurium cells that differ in the expression of invasion and flagellar genes. Image from a typical time-lapse microscopy experiment with strain SV8533 (sipB::gfp and fliC::mCherry) (left panel) and after growth on an agar pad at 37 °C Figure 300 min (right panel). Bacteria were imaged to detect SPI-1 (sipB gene) and flagellar (fliC gene) expression (green and red fluorescence, respectively) and growth (phase contrast, 1 frame/10 min). FlagOFF SPI-1OFF individual cells are represented as a black arrow, FlagON SPI-1ON individual cells as white arrows, and FlagON SPI-1OFF and FlagOFF SPI-1ON cells as white circles.
Microorganisms 09 00210 g003
