Genetic Mutations That Confer Fluoride Resistance Modify Gene Expression and Virulence Traits of Streptococcus mutans

by
Hyeon-Jeong Lee
1,
Jihee Song
2 and
Jeong Nam Kim
1,3,*
1
Department of Integrated Biological Science, College of Natural Sciences, Pusan National University, Busan 46241, Korea
2
Department of Family, Youth, and Community Sciences, University of Florida, Gainesville, FL 32611, USA
3
Department of Microbiology, College of Natural Sciences, Pusan National University, Busan 46241, Korea
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(4), 849; https://doi.org/10.3390/microorganisms9040849
Submission received: 12 March 2021 / Revised: 8 April 2021 / Accepted: 13 April 2021 / Published: 15 April 2021
(This article belongs to the Section Antimicrobial Agents and Resistance)
Browse Figures
Versions Notes

Abstract

:
Fluoride is an inorganic monatomic anion that is widely used as an anti-cariogenic agent for the control of caries development. The aims of this study were to identify the mutated genes that give rise to fluoride-resistant (FR) strains of the cariogenic pathogen Streptococcus mutans and explore how genetic alterations in the genome of an S. mutans FR strain optimize the metabolism(s) implicated in the expression of virulence-associated traits. Here, we derived an S. mutans FR strain from a wild-type UA159 strain by continuous shifts to a medium supplemented with increasing concentrations of fluoride. The FR strain exhibited a slow growth rate and low yield under aerobic and oxidative stress conditions and was highly sensitive to acid stress. Notably, microscopy observation displayed morphological changes in which the FR strain had a slightly shorter cell length. Next, using the sequencing analyses, we found six mutations in the FR genome, which decreased the gene expression of the phosphoenolpyruvate-dependent phosphotransferase system (PTS). Indeed, the ability to intake carbohydrates was relatively reduced in the FR strain. Collectively, our results provide evidence that the genetic mutations in the genome of the FR strain modulate the expression of gene(s) for carbon metabolism(s) and cellular processes, leading to diminished fitness with respect to virulence and persistence.

1. Introduction

Dental caries is a common oral disease closely associated with the increasing intake of fermentable carbohydrates due to changes in food processes and dietary habits [1]. Globally, approximately 2.4 billion people have caries on permanent teeth, and the prevalence varies by region and country among individuals with different cultural backgrounds [2]. In the oral cavity, more than 700 species of microorganisms are present, of which Streptococcus mutans and Streptococcus sobrinus are dominantly isolated in dental caries [3,4,5]. In particular, S. mutans is one of the major agents responsible for the initiation of human dental caries, which forms dental plaque (dental biofilm) on the tooth surface. During biofilm development, S. mutans induces plaque acidification through the production of various organic acids via fermentation using monosaccharide or disaccharide molecules, amino sugars, and other sugar derivatives along with the accumulation of extracellular polysaccharide matrix. Consequently, the acidic pH within the dental biofilm leads to an increased proportion of acid-tolerant microorganisms and promotes the occurrence and progression of caries [4,6].
Although dental caries is a preventable disease, lack of dental care and poor oral hygiene behavior are still considered the main causes of caries. To control pathogen-mediated caries, many oral hygiene products or dental materials composed of chemical compounds, such as chlorhexidine, cetylpyridinium chloride, triclosan, and fluoride, have been applied. Among these chemicals, fluoride is commonly used as an anti-cariogenic agent because it not only exerts an antibacterial effect but also protects the tooth surface [7]. In fact, the personal use of oral hygiene products containing fluoride decreases the prevalence of caries by 24–26% in permanent teeth [8]. Moreover, fluoridation of water in the range of 0.5 to 1.0 mg L−1 is a cost-effective method to moderate the potential of cariogenesis [9].
In contrast to the benefits of fluoride on oral health, negative effects, such as the emergence of fluoride-resistant (FR) strains, have become concerning. Previous studies have demonstrated this possibility in both clinical (although scarce) and laboratory conditions and analyzed their resistance mechanisms. This acquired resistance can be either transient or permanent through phenotypic adaptation or genotypic modification. Clinical studies with an S. mutans FR strain isolated from radiation-treated cancer patients with xerostomia (dry mouth) have suggested that the fluoride resistance is unstable and transient via horizontal gene transfer of plasmid DNAs [10,11]. Further, to better understand the resistance mechanism, other research groups have attempted to create FR strains of S. mutans or Enterobacter cloacae species under laboratory conditions [12,13,14]. The laboratory-derived FR strains harboring multiple single-nucleotide polymorphisms (SNPs) present stable, permanent resistance. Interestingly, the physiological outcomes among resistant strains from different sources are inconsistent. For instance, the FR strain from S. mutans C180-2 had a better ability to form biofilms than the parental strain [15], whereas the FR strain derived from the S. mutans 6715 strain showed reduced biofilm production [10].
Enolase and ATPase, which are sensitive to fluoride, have been considered as possible enzymes involved in fluoride resistance [16]. Enolase, also named phosphopyruvate hydratase, participates in glycolysis as a cytosolic metalloenzyme responsible for the conversion of 2-phosphoglycerate (2-PG) to phosphoenolpyruvate (PEP). Fluoride is known to inhibit sugar transport through the PEP:carbohydrate phosphotransferase system (PTS) in oral streptococci through its action on enolase [17]. Moreover, fluoride can diminish the acid tolerance of oral streptococci by inhibiting proton translocation through the Fo domain of ATPase in the membrane [18,19]. Previous reports have demonstrated that the enolase activity of sensitive and resistant strains is markedly reduced in the presence of sodium fluoride (NaF) under low pH conditions [20,21,22]. However, no, or minor, differences in glucose uptake level and ATPase activity have been observed for the FR strain [16,21]. This phenomenon has been discussed with the possibility that the FR strain may possess malfunctioned enolase by a mutation in the coding region, allowing it to become less sensitive to fluoride [16] or altering glycolysis by activating alternative pathways [22].
Recently, it was discovered that the fluoride riboswitch activates the expression of crcB and eriCF that encode fluoride transporters in Escherichia coli and Pseudomonas syringae, respectively [23,24]. However, no fluoride riboswitch has been found in S. mutans genomes, and this bacterium encodes two eriCF homologs, SMU.1289c (named permease_B) and SMU.1290c (named permease_A). These homologs are also annotated as eriC1b and eriC1a, respectively [12,25,26]. One research group showed that both eriC1a and eriC1b are required for growth in a fluoride concentration to which the wild-type strain is susceptible [26]. However, another group has reported controversial results that only the inactivation of the eriC1b gene results in severe growth impairment [25].
To date, several candidate genes directly or indirectly linked to the FR phenotype have been introduced. In particular, Liao et al. compared the genomes of FR strains derived from S. mutans C180-2 and UA159 and identified three common loci with SNPs [22]. These two strains harbor shared mutations in the promoter region of mut (encoding putative mutase) and glpF (encoding putative glycerol uptake facilitator) and in the coding region of the pyk gene (encoding pyruvate kinase) [22]. However, it is unclear how acquired mutations in an S. mutans FR strain influence the transcription levels of genes for certain metabolism(s) associated with fluoride resistance. To address this important knowledge gap, we analyzed the genome of a FR strain that was generated in our laboratory and identified mutations that contribute to fluoride resistance. Moreover, phenotypic changes linked to the transcriptional response induced by these genetic mutations were evaluated. Overall, our results reveal that the expression of genes involved in biochemical pathways can be modulated by acquiring the resistant phenotype to optimize the biological fitness of an S. mutans FR strain.

2. Materials and Methods

2.1. Isolation of Streptococcus mutans Fluoride-Resistant (FR) Strains

An S. mutans FR strain was obtained from a wild-type UA159 strain through continuous shifts to brain heart infusion (BHI) medium (BD Biosciences, New Jersey, NJ, USA) supplemented with increasing concentrations of fluoride, as described previously [14,16] with some modifications. Briefly, an S. mutans wild-type strain was grown to the late-exponential phase (optical density at 600 nm wavelength, OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. The culture was inoculated on BHI agar supplemented with 100 μg mL−1 of NaF (JUNSEI, Tokyo, Japan) and grown at 37 °C in 5% CO2 conditions. Following incubation, a visible colony was again inoculated on fresh BHI agar supplemented with increasing concentrations of NaF per 100 μg mL−1 increment. This sub-culturing was repeated until the maximum concentration of NaF reached 1 mg mL−1. To confirm the stability of fluoride resistance, the mutant colony, which was grown in a 1 mg mL−1 final concentration of NaF, was sub-cultured 20 times through fresh NaF-free BHI agar. Following these passages, the FR cells was able to grow on BHI agar supplemented with 1 mg mL−1 NaF.

2.2. Growth Measurements

For measuring the growth of S. mutans wild-type and FR strains, overnight cultures were diluted 1:100 in fresh BHI medium and anaerobically incubated to early exponential phase (OD600 = 0.2–0.3) at 37 °C. These cultures were then diluted 1:100 in fresh BHI medium and grown under aerobic or anaerobic conditions. To generate anaerobic conditions, the diluted cultures were overlaid with sterile mineral oil. To evaluate the sensitivity to acid stress, the pH of the BHI medium was adjusted to 5.5 by adding 6 N HCl solution. For generating oxidative stress conditions, hydrogen peroxide (H2O2) was added to the medium at concentrations increasing by 0.003%. The optical density of cells growing at 37 °C was measured at a 600 nm wavelength for 24 h at 1-h intervals using a Bioscreen C plate reader (Oy Growth Curves Ab Ltd., Helsinki, Finland).

2.3. Visualization of Cell Morphology and Biofilm

Cell morphology was observed using field emission scanning electron microscopy (FE-SEM) [27]. Cells were grown to the late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. The cultures were placed on either a slide glass or hydroxyapatite (HA) disc and fixed using 10 μL of 2.5% glutaraldehyde in phosphate buffered saline (PBS) overnight at 4 °C. The samples were washed twice with PBS and dehydrated using increasing concentrations of ethanol (25%, 50%, 75%, 90%, and 100%) for 10 min. Following dehydration, the samples were coated and visualized using a SUPRA25 FE-SEM (Carl Zeiss, Oberkochen, Germany).
To assess biofilm formation, early exponential cultures grown in BHI medium were diluted 1:100 in a semi-defined biofilm medium (BM) [28] supplemented with 18 mM glucose and 2 mM sucrose as carbon sources. Cells were grown in a Nunc Lab-Tek II Chamber Slide System (Thermo Fisher Scientific, Waltham, MA, USA) at 37 °C in 5% CO2 conditions for 24 h. The biofilms were washed twice with distilled water and stained using the LIVE/DEAD BacLight Bacterial Viability Kit (Invitrogen, Carlsbad, CA, USA) for 15 min, as described in the manufacturer’s manual. The prepared biofilm samples were visualized using the LSM-800 confocal laser scanning microscope (CLSM; Carl Zeiss, Oberkochen, Germany).

2.4. Genomic DNA Extraction and Whole-Genome Sequencing

S. mutans wild-type and FR strains were incubated at 37 °C in 5% CO2 conditions for 24 h in BHI medium and harvested by centrifugation at 16,000× g for 2 min at 4 °C. Genomic DNA was extracted using GeneElute Bacterial Genomic DNA Kits (Sigma-Aldrich, St. Louis, MO, USA), according to the manufacturer’s instructions. Genomic DNA (1 μg) was sequenced using Illumina HiSeq 2500, and the raw data were analyzed by Theragen (Suwon, South Korea). Briefly, FASTQ files were trimmed using the Sickle tool, filtered, and mapped using the BWA tool. Data were converted to a BAM file by sorting, merging, and de-duplication using the Picard tool. The BAM files were converted to a variant call format that informs genetic variations using the GATK software. Variant annotation was performed using SnpEff. Following statistical analysis, the output file was analyzed using the Genome Workbench program in the NCBI database (https://www.ncbi.nlm.nih.gov/tools/gbench/, accessed on 11 March 2021).

2.5. RNA Extraction and Transcriptome Analysis

Cells were grown to the late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. The cells were harvested and stabilized with 1 mL of RNAprotect Bacteria Reagent (Qiagen, Hilden, Germany). The cells were then pelleted by centrifugation at 18,000× g for 10 min at 4 °C and resuspended in 50/10 mM Tris-EDTA buffer with sodium dodecyl sulfate. The resuspended cells were transferred to a 2-mL screw cap tube containing acid phenol and 0.1 mm glass beads and disrupted using a Bead Beater (Biospec Products, Inc., Bartlesville, OK, USA). Total RNA was extracted using a RNeasy Mini Kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. The concentration of RNA was determined using a NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA).
One microgram of total RNA was used to construct the cDNA library. Paired-end sequencing of the constructed cDNA libraries was performed using Illumina Hiseq 4000 (Macrogen, Seoul, South Korea). Raw data from the RNA-seq were mapped to a reference genome (S. mutans UA159) using Galaxy online (https://usegalaxy.org, accessed on 11 March 2021). FASTQ files were converted to format using the FASTQ groomer tool and confirmed through the FastQC tool. Output files from the FASTQ groomer were aligned with a reference genome of S. mutans UA159 using Bowtie. Mapped reads were converted to BAM files, and the transcripts were assembled and quantified using StringTie. Cufflink assemblies were merged together by Cuffmerge. Quartile library normalization and pooled dispersion estimation methods were performed for differential expression analysis. The functional annotation of the filtered data was performed using the Database for Annotation, Visualization, and Integrated Discovery (DAVID) program (https://david.ncifcrf.gov, accessed on 11 March 2021). Based on the results of functional annotation, the Kyoto Encyclopedia of Genes and Genomes (KEGG) mapper displayed a major pathway that includes a significant difference in gene expression between wild-type and FR S. mutans strains.

2.6. Quantitative Real-Time Reverse Transcription-Polymerase Chain Reaction (qRT-PCR)

qRT-PCR was performed to quantify the expression levels of target genes. cDNA was synthesized using the PrimeScript RT reagent kit (Takara, Shiga, Japan) and random hexamer from 1 μg of total RNA. qRT-PCR was performed using a StepOnePlus Real-Time PCR system (Applied Biosystems, California, USA) using 2 × qPCR master mix (with EvaGreen, high ROX) (Coregen, Busan, Korea) and gene-specific primers (Table S1). The qRT-PCR conditions were as follows: initial denaturation step for 15 s at 95 °C, followed by 40 cycles of denaturation for 20 s at 95 °C, annealing for 30 s at 50 °C, and extension for 30 s at 72 °C. All reactions were performed in triplicate, and the expression levels were normalized to those of the 16S rRNA gene as an endogenous control. Fold changes in gene expression were represented using the 2−ΔΔCt method.

2.7. PEP-Dependent PTS Assay

PTS-dependent transport activity was determined as described previously [29,30], with some modifications. Briefly, an overnight culture of S. mutans strains was grown in tryptone–vitamin (TV) medium [31] supplemented with 0.5% glucose to mid-exponential phase (OD600 = 0.5–0.6) and harvested. Cells were washed twice with 0.1 M sodium potassium phosphate buffer containing 5 mM MgCl2 (pH 7.2) and resuspended in 0.1 volume of the same buffer. The resuspended cells were permeabilized using a toluene–acetone (1:9) solution by vortexing twice for 2 min at 2-min intervals. The reaction mixture was prepared by the addition of 0.05 mM NADH, 5 mM NaF, 5U lactate dehydrogenase (LDH), and 50 mM of the desired carbohydrate to the permeabilized cells. The reaction was initiated by the addition of 2.5 mM PEP, and the rate of PEP-dependent oxidation of NADH was monitored at a 340 nm wavelength using a Multiskan FC microplate reader (Thermo Fisher Scientific, Waltham, MA, USA). The activity values were normalized to the concentration of total protein in the permeabilized cells determined with a bicinchoninic acid assay (Thermo Fisher Scientific, Waltham, MA, USA).

2.8. pH Drop Assay

Acid production in S. mutans strains was measured as described previously [32]. Mid-exponential cultures (OD600 = 0.5–0.6) of S. mutans wild-type and FR strains grown in BHI medium were harvested for 10 min at 4 °C. The cells were washed twice with cold water and resuspended in 4.75 mL of 50 mM KCl with 5 mM MgCl2 solution. The pH of the reaction mixture was adjusted to 7.2 by the addition of 0.1 M KOH solution, and 50 mM (final concentration) of the appropriate carbohydrate was added to initiate the assay. The pH change was monitored at 1-min intervals for 30 min using the SevenCompact pH meter S220 (Mettler-Toledo, Columbus, OH, USA).

2.9. Statistical Analysis

All experiments were repeated at least in triplicate with three individual cultures. For statistically comparing the data, one-way analysis of variance was performed. In all cases, p < 0.05 was considered significant in most assays performed, and RNA-seq results were considered significant at p < 0.01.

3. Results

3.1. Isolation of a Streptococcus mutans Fluoride-Resistant (FR) Strain

As described above, the phenotypes of the FR strains created by different groups appeared to be inconsistent [14,16]. Considering the distinct characteristics of these resistant strains isolated from different experimental environments, we attempted to generate a new FR strain of S. mutans using the procedure described in the Methods section. To determine the stability of fluoride resistance, we determined the end-point growth in BHI medium containing serial concentrations of NaF. As shown, the growth of an FR strain was observed in up to 1 mg mL−1 of NaF, whereas no growth of the UA159 strain was observed at concentrations higher than 400 µg mL−1 (p < 0.05; Figure 1). Thus, the S. mutans FR strain exhibited higher fluoride resistance than the parental strain. Moreover, confirmation that the laboratory-derived FR strain acquired stable, permanent fluoride resistance was made through 20 passages in fluoride-free medium.

3.2. Genomic Analysis Revealed Six Genetic Mutations in the FR Strain

Previous studies have identified genes that contribute to fluoride resistance in different species, and several gene candidates have been found in bacteria such as oral streptococci and Enterobacter cloacae FRM [13,25]. Genome sequencing was performed to identify mutation(s) contributing to the resistance phenotype of the FR strain. As shown in Table 1, the FR strain harbored six mutations in the genome compared to the reference genome of S. mutans UA159 (Reference No, NC_004350.2).
The genomic DNA of the FR strain appeared to include a multiple-nucleotide insertion (563th A to “ACAGAATTGACCT”) in the hsdS gene that encodes a putative restriction endonuclease, single nucleotide substitutions in the coding region of four genes (glpF, C464A; pykF, G1156A; murC2, G289T; and SMU. 2059c, A707T), and single nucleotide substitutions found in the intergenic region between two genes (SMU.1289c and SMU.1290c, A to G), when compared to the laboratory stock UA159 wild-type genome (Table 1). The glpF gene, encoding a glycerol uptake facilitator protein, of the FR strain contained a nonsense mutation that led to the generation of a stop codon as the sequence “C” was changed to “A” at the 464th nucleotide. The pykF gene is a putative pyruvate kinase that is an essential gene for glycolysis, converting PEP to pyruvate. In the FR strain, a pykF gene harbored a missense variant in which the 1156th guanine was mutated to adenine, leading to an amino acid change from valine to isoleucine. The murC2 gene, which encodes a putative UDP-N-acetylmuramyl tripeptide synthetase, had a missense variant in which the 289th nucleotide guanine was changed to thymine, resulting in a change in amino acid from alanine to serine. The 707th adenine in the SMU.2059c gene, encoding a putative integral membrane protein, was changed to thymine, leading to a change from tyrosine to phenylalanine. Interestingly, the intergenic regions of these two genes, SMU.1289c and SMU.1290c, which encode chloride channel permeases, contained a mutation in which adenine was changed to guanine. Importantly, among these mutated genes, there is previous evidence that glpF, pykF, SMU.1289c, and SMU.1290c are potentially major contributors to the fluoride resistance of the S. mutans strain [12,22], although the mutation positions were not identical.

3.3. FR Strain Shows Impaired Growth and Low Stress Tolerance

To assess the growth characteristics of the FR strain, we compared the growth of the wild-type and FR strains under aerobic or anaerobic conditions. While no significant difference in the final yield was found, the anaerobic growth of the FR strain showed slower growth rates (doubling time, 156.54 ± 4.07 min) when compared to the parental strain (53.78 ± 1.90 min) (p < 0.05) (Figure 2a). Similarly, when cells were aerobically grown in plain BHI broth, the FR strain exhibited an apparent growth defect (399.16 ± 62.04 min) along with lower growth of population than the wild-type strain (58.65 ± 0.84 min) (p < 0.05) (Figure 2b).
S. mutans is susceptible to oxidative stresses caused by H2O2 that generates primarily hydroxyl-radical species, which are produced by peroxigenic bacteria to compete with S. mutans [33,34]. When treatment with H2O2 was applied, a slower growth rate and greatly extended lag phase of the FR strain were measured than those shown for the wild-type strain (Figure 2c), indicating that the intact products from the genes mutated in the FR strain are needed for optimal exponential growth in oxidative stress conditions. Furthermore, acid tolerance is recognized as essential for the cariogenic potential of S. mutans [34]. Unexpectedly, no growth of the FR strain was observed, whereas the wild-type strain grew well under the same conditions (Figure 2d). Therefore, the FR strain had impaired growth properties regardless of oxygen pressure and significantly lowered tolerance to an acidic stressor.

3.4. Morphological Change of the FR Strain

According to the bacterial growth law, growth rate, and cell size are known to have a positive relationship with nutrient availability, accompanied by central carbon metabolism [35]. Thus, it is possible that the growth defect of the FR strain is linked to cell size or shape. To confirm this hypothesis, cell morphology of the wild-type and FR strains was observed by growing cells in plain BHI and visualizing using FE-SEM (Figure 3). The samples were prepared as detailed in the Methods section and visualized at ×30,000 magnification. As shown in Figure 3a, the typical oval-shaped cells were observed, which was apparent in the UA159 strain. However, the FR sample contained abnormally shaped cells, which were more compact and rounded (Figure 3b). By comparison, the FR strain showed a relatively smaller cell size (595.95 ± 12.58 nm) than the wild-type strain (621.62 ± 11.47 nm) (p < 0.05). In addition, the cell surface of the FR strain appeared to be more rough with obscure division septa. To assess cell morphology in biofilms, the culture was incubated on a HA disc, similar to the major component of tooth and observed at ×15,000 magnification. Consistent with the above results, the FR sample displayed the absence of normally shaped cells, which were observed in the wild-type strain (Figure 3B). Thus, these results indicated that multiple mutations in the FR strain affected the coordination of growth rate and cell morphology of S. mutans.

3.5. FR Strain Lowers the Ability to Form Biofilms

Biofilm formation is recognized as an important virulence factor that promotes S. mutans adherence to the tooth surface, providing protection or tolerance against external stressors and helping to retain energy sources [36]. According to Cai and colleagues, the FR S. mutans UAFR strain that harbors multiple genetic mutations displays reduced fitness in biofilms [15]. However, the engineered UA35 strain harboring a single point mutation in the promoter region of the mut gene behaves similar to a wild-type UA159 strain. To evaluate biofilm formation by the FR strain, images of the biofilms were obtained using a CLSM by growing cells in a defined BM after 24 h of incubation (Figure 4). Biofilms of the wild-type strain were densely distributed and covered most of the substratum. In contrast, the FR strain formed relatively thinner biofilms that were sparse and spatially clustered. Particularly, the green fluorescence intensity, corresponding to live cells, in the wild-type biofilms was slightly stronger than that in the FR biofilms, which was similar to the live cell count determined by CFUs (Figure S1). Therefore, these results provide evidence that the aberrant architecture of biofilms formed by the FR strain may be related to the live cell population and its slow growth rather than a reduced ability to form biofilms.

3.6. Transcription Profiling of an FR Strain

RNA-seq was performed to assess the differential expression of genes in the FR strain and investigate the relationship between phenotypic variations and transcriptional response by gene mutations that contribute to fluoride resistance in S. mutans. Through transcriptome analysis, genes or operons that differed by at least ≥1.0 or ≤ −1.0 log2 values in expression level were sorted and designated as upregulated (Table S2) or downregulated genes, respectively (Table S3). Overall, the expression of 106 genes was increased in the FR strain, whereas the expression of 22 genes or operons was reduced (p < 0.01). To determine the contribution of fluoride resistance to cellular processes or metabolisms, functional analysis with the RNA-seq data was performed using the DAVID algorithm. Overall, the expression of genes for ABC transporters, PTS, fructose and mannose metabolism, fatty acid metabolism, and fatty acid biosynthesis were significantly influenced in the FR strain. Notably, the expression of malXFGK in the maltose/maltodextrin ABC transporter increased [37,38], and four genes (msmEFG, gtfA) of the msm operon for the metabolism of multiple sugars [39,40] were found upregulated. These two ABC transporters appear to be involved in the uptake of disaccharides and/or oligosaccharides, and the substrate specificity of MalXFGK is distinct from that of MsmEFGK [38]. Additionally, the upregulation of glgP and malQ genes, annotated as putative glycogen phosphorylase and putative 4-alpha-glucanotransferase, respectively, were observed. These two genes are co-transcribed in an operon, negatively governed by the MalR regulator [41]. In addition, a study of purified MalQ and GlpF proteins has demonstrated that the coordination of glucose-releasing and phosphorylase activities by MalQ and GlpF proteins, respectively, allows S. mutans cells to ferment starch-degradation products (e.g., maltose and maltodextrins) in the oral environment [41].
In contrast to the upregulated genes for carbohydrate uptake and utilization, the expression of the mannose PTS transport system encoded by SMU.1961c, SMU.1958c, and SMU.1957 (annotated manXYZ), along with the glucose/mannose enzyme II (EII) permease encoded by manLMN genes was markedly downregulated in the FR strain. GlcNAc and GlcN are the most commonly found amino sugars and serve as building blocks for the peptidoglycan of bacterial cell walls and certain lipopolysaccharides [42,43,44]. GlcNAc and GlcN can be internalized and phosphorylated through the manXYZ-encoded transporter and then converted to N-acetylglucosamine-6-phosphate (GlcNAc6P) or glucosamine-6-phosphate (GlcN6P), respectively, which serve as important allosteric effectors for downstream metabolic processes [45,46]. Recent studies have shown that these amino sugars are transported through the PTS system, with the permease encoded by manLMN playing a dominant role in S. mutans [30]. Taken together, the differential expression in various PTS transports coupled with carbohydrate metabolism was mainly detected, which suggests that the FR strain has a change in specificity and affinity to the carbohydrate substrates.
Next, to explore the influence of the identified mutations that led to fluoride resistance on gene expression, transcription of the mutated genes and genes bearing a mutation in the intergenic region was evaluated (Figure 5a). We further compared the expression pattern of these genes with the results from the qRT-PCR analysis (Figure 5b). The expression of the glpF gene was decreased by 0.5-fold (p < 0.05), whereas the expression of hsdS, SMU.1289c, and SMU.1290c genes exhibited significant enhancement (p < 0.05). However, no significant difference in the expression of pykF, murC2, and SMU.2059c genes was observed between the wild-type and FR strains. Therefore, the expression of glpF, hsdS, SMU.1289c, and SMU.1290c genes was substantially modulated in the FR strain, suggesting that these mutated genes are a primary contributor toward conferring fluoride resistance.

3.7. Fluoride Resistance Affects Carbohydrate Uptake

In general, the PTS system is known to catalyze the uptake and concomitant phosphorylation of carbohydrates using PEP as an energy source and phosphoryl donor [30,47,48,49]. As described above, the expression of PTS-specific genes, specifically for mannose-specific PTS, was found to be downregulated in the FR strain (Figure 6a). In contrast, we also found that the major glucose transporters encoded by the ptsG gene and multiple sugar transporters, including malXFGK and msm operon, were upregulated (Table S2). To confirm whether the downregulation of the five genes (ptnA, ptnC, SMU.1879, SMU.1961c, and SMU.872) affects the ability to uptake sugars in the FR strain, we determined the ability of PTS to uptake carbohydrates, which is represented by the amount of oxidized NADH (Figure 6b). When using glucose, sucrose, mannose, and fructose as sole carbon sources, the amount of oxidized NADH in the wild-type strain was 550.88 ± 49.68, 439.37 ± 4.48, 479.48 ± 86.90, and 515.17 ± 31.48 pmole min−1 ng−1 of protein, respectively. In the FR cells, the oxidized NADH corresponding to the four tested carbohydrates was 227.19 ± 86.79, 300.06 ± 42.54, 238.53 ± 77.15, and 360.33 ± 36.69 pmole min−1 ng−1 of protein, respectively. Thus, the FR strain had lower PTS activity than that of the wild-type strain in conditions supplemented with the tested carbohydrates (p < 0.05).

3.8. Production of Acid-End Products Is Reduced in the FR Strain

S. mutans produces organic acids, specifically lactic acid, as an acid-end product via glycolysis, which is an essential virulence factor in the establishment of caries development [48]. In fact, glycolytic flux following carbohydrate intake is critical for the biosynthesis of acid products and ATP generation. To test whether the lower PTS-dependent transport of carbohydrates could be correlated with acid production by metabolizing internalized carbohydrates, the glycolytic rate of the FR strain was measured using the same carbohydrates as above (Figure 7). When the reaction was initiated in the presence of glucose, sucrose, mannose, and fructose, a significant decrease in pH change of S. mutans wild-type and FR strains was mostly observed during the period from 5 to 10 min. While the wild-type cells rapidly lowered the pH to 4.35 ± 0.10, 4.30 ± 0.11, 4.74 ± 0.15, and 4.82 ± 0.01 after 7 min in the presence of the respective carbohydrate tested, the FR strain lowered the pH to 5.15 ± 0.24, 4.91 ± 0.08, 5.83 ± 0.07, and 5.66 ± 0.17 at the same time point. Moreover, the final pH of the wild-type strain was 3.47 ± 0.08, 3.48 ± 0.05, 3.63 ± 0.06, and 3.64 ± 0.02, respectively. In the FR strain, the final pH was 3.69 ± 0.04, 3.64 ± 0.08, 4.01 ± 0.16, and 3.80 ± 0.03, respectively. Similar to the results of the PTS assays, the FR strain produced lesser organic acids under conditions in which the limited fermentable carbohydrates were supplied than the wild-type strain (p < 0.05). Notably, the pH measured by the pH drop method has a strong correlation with acid tolerance [18,50]. These results are consistent with those of the stress tolerance tests, in which the FR strain showed high sensitivity to an acid stressor. Therefore, insufficient carbohydrate uptake through PTS-dependent carbohydrate transport and glycolytic pathway can partly explain the growth defects of the FR strain under stress conditions, but it did not affect the intracellular production of ATP that is important for stress response (data not shown).

4. Discussion

The data presented herein provide a new understanding of fluoride resistance arising from genetic mutations in the S. mutans genome, which are summarized in Figure 8. The concept involves the interconnection of genetic mutations conferring fluoride resistance with critical virulence attributes. Moreover, our findings reveal that the resistance mechanism integrates into a complex cellular process and carbohydrate metabolism. In particular, our results highlight the interrelationship of a reduced ability to uptake carbohydrates and a decreased flux through glycolysis, which can have an abnormal influence on the biology of S. mutans. Moreover, this investigation provides evidence that the accumulation of mutations to resist fluoride diminishes the expression of virulence traits such as stress tolerance and biofilm formation through, although not directly, gene expression modification.
As listed in Table 1, the FR strain isolated in the current study contained five SNPs and a multiple nucleotide insertion in the genome sequence of S. mutans. Genome comparisons between FR strains created by other groups revealed that the common genes (SMU.1289c, SMU.1290c, glpF, and pykF) containing mutations are required for fluoride resistance [12,22]. Notably, SMU.1289c (permease_B, eriC1b) and SMU.1290c (permease_A, eriC1a), known as chloride channel permeases, are major contributors to the fluoride resistance of S. mutans, functioning as H+-coupled antiporters by releasing F- below the extracellular level [12,25,26]. Our results indicate that the FR strain harboring a mutation (A→G) in the intergenic region of SMU.1289c and SMU.1290c enhanced the expression level by more than fourfold (Figure 5), and this is supported by the evidence that the increased gene expression for fluoride transporters by mutations leads to the efficient export of F- to the extracellular environment [51]. Furthermore, using the promoter finder (http://www.phisite.org/main/, accessed on 11 March 2021), we found one possible promoter in the intergenic region between these two genes. Consistent with the results of Liao and colleagues, mutations in the promoter of the mutase gene result in increased expression of the permease_A gene and acquired resistance [12], and a certain mutation that can modulate operon expression would provide an opportunity for acquiring fluoride resistance. Thus, the genetic variants of this operon could be considered responsible for the phenotype of fluoride resistance in cells derived from the human oral cavity [12,25,26].
While a previous study with a FR strain showed that the promoter of glpF gene carries a mutation in the promoter region (glpFp) [22], our FR strain harbored an SNP at the 464th nucleotide of a coding region that can produce a truncated GlpF protein by a nonsense mutation. A glpF gene encoding a glycerol uptake facilitator protein takes up glycerol into cells as a carbon source for glycolysis and as a precursor for phospholipid biogenesis [49,52]. The slow growth rate of the FR strain shown in this study may have resulted from the low expression and translation of the truncated protein [12]. However, since the experiments in this study were not performed under conditions in which glycerol was supplemented, this growth inhibition can be interpreted as a secondary effect of this mutation (Figure S2) or a combinational effect with other mutations. More interestingly, a pykF gene, which encodes pyruvate kinase that facilitates the conversion of PEP to pyruvate, is an important candidate gene, as shown in a previous study [12]. One possibility is that the enzymatic activity of mutated pykF proteins affects the conversion of PEP to pyruvate, which disturbs the sufficient transfer of phosphate groups for HPr phosphorylation, coupled with phosphoryl transfer protein enzyme I (EI). Therefore, the idea that fluoride resistance could result from the cumulative effect of multiple mutations [53] supports the notion that these common genes harboring mutations are shared in the genomes of the FR strains.
Interestingly, we discovered that the biofilms of the FR strain were not as well established as the wild-type biofilms. This observation appeared to be correlated with the slow growth of the FR strain. In contrast, biofilm is interconnected with genetic competence [54], which suggests that biofilm of the FR strain is associated with competence phenotype. Although the transcription difference did not pass the criterion described above, the expression of the two-component system, ComDE, which involves the genetically specified ability of bacteria to uptake extracellular DNA via transformation [48,54], was significantly increased by approximately 1.5-fold. Conversely, the FR strain displayed a reduced ability to uptake the plasmid pDL278, which carries a spectinomycin resistant marker, in the presence of exogenously supplied competence-stimulating peptide (CSP), when compared to the wild-type strain (Unpublished data). Further, the verification assays with the same number of cells as the wild-type strain showed similar differences, indicating that the slow growth of the FR strain is not related to the low efficiency of transformability. However, the interrelationship between competence and fluoride resistance remains unclear. Therefore, further studies are necessary to investigate the mechanisms through which the expression of competence genes and their regulatory mechanisms are modified by mutations in the FR strain.
This study also provides insights into fluctuations in carbon flow and energy metabolism by fluoride resistance in S. mutans. Among the changes in overall gene expression, the expression of many of the ABC transporters (e.g., MsmEFGK and MalXFGK) and permeases (e.g., Permease_A and Permease_B) was enhanced, whereas a reduced expression for the PEP-dependent PTS systems (e.g., ManLMN and ManXYZ) was observed (Tables S2 and S3). By understanding our data along with existing knowledge, we can propose a model in which insufficient energy is allocated for persistence and virulence attributes, when the FR strain requires a high energy supply for an active transporter capable of exporting fluoride ions (Figure 8). Indeed, our results reveal that various ABC transporters and ATP-utilizing permeases, including fluoride antiporters, were upregulated, and a relative decrease in sugar uptake and glycolysis appeared in the FR strain. Although combinational effects of genetic mutations are required to elicit an effective resistance, the regulation of active membrane proteins may be seen as the most crucial basis for fluoride resistance. In addition, the downregulation of PTS-dependent sugar transport is reflected by cells restricting access to carbons, presumably leading to low energy supply to the downstream cellular processes not essential for survival. Importantly, the mleS gene, a malolactic enzyme for consuming malate derived from glucose, was the most downregulated in the FR strain. Malolactic fermentation stimulates the conversion of L-malate to L-lactate and CO2 by decarboxylation, thereby inducing the alkalization of the cytoplasm and ATP synthesis by F-ATPase [55,56,57]. This enzyme also facilitates the translocation of protons across the membrane in an ATP-dependent manner, contributing to the acid tolerance of S. mutans [55,56,57]. Furthermore, the expression of gshR (SMU.140), mleP (SMU.138), and oxdC (SMU.139) genes, along with the mleS gene, is positively regulated by a regulator mleR, whose transcription was statistically reduced in the FR strain. The gshR, mleP, and oxdC genes encode putative glutathione reductase, putative malate permease, and oxalate decarboxylase, respectively. In particular, the oxdC gene is involved in the removal of reactive oxygen species and is co-transcribed with mleSP genes that contribute to the aciduricity of S. mutans [56]. Therefore, the downregulation of such genes partially supports the results shown in the poor stress response of the FR strain.

5. Conclusions

We showed that the acquisition of stable, permanent fluoride resistance through genetic mutations triggers pleiotropic effects in S. mutans physiology. Notably, through transcriptome analysis, the affected central carbon metabolism by insufficient intake of carbohydrates can influence the branch cellular pathways and ultimately exert aberrant consequences for the virulence and persistence of S. mutans. Therefore, the accumulation of genetic mutations in response to fluoride stress results in an additive effect that may reprogram complex machinery to optimize the balance between bacterial resistance and biological fitness [22,53]. Furthermore, it is necessary to consider the biological importance of these strains in addition to fluoride resistance. The daily use of fluoride-containing dental hygiene products can lead to the high survival of resistant strains in oral environments, which can be a marked advantage itself. However, considering the results shown in the current study, the possibility of resistance generation and persistence in the human oral cavity is questionable. For achieving more evidence for the above question, complementation for each mutation should be conducted to identify which genetic mutations mainly contribute to the resistant phenotype and reduced fitness in S. mutans. Further, the concept investigated in this study needs to be evaluated precisely in an environment that is similar to the human oral cavity in the presence of multiple species of oral microorganisms.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms9040849/s1, Table S1: Oligonucleotides used in this study; Table S2: Up-regulated genes in the FR strain; Table S3: Down-regulated genes in the FR strain, Figure S1: Genetic competence; Figure S2: Growth behaviors of S. mutans wild-type and mutant strains obtained during growth in BHI medium.

Author Contributions

Conceptualization, H.-J.L. and J.N.K.; methodology, H.-J.L. and J.N.K.; software, H.-J.L.; validation, H.-J.L., J.S., and J.N.K.; formal analysis, H.-J.L. and J.N.K.; investigation, H.-J.L. and J.N.K.; resources, H.-J.L. and J.N.K.; data curation, H.-J.L. and J.N.K.; writing—original draft preparation, H.-J.L., J.S., and J.N.K.; writing—review and editing, J.S. and J.N.K.; visualization, H.-J.L., J.S., and J.N.K.; supervision, J.N.K.; funding acquisition, J.N.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (Ministry of Science, ICT & Future Planning) (No. NRF- 2020R1A2C1003388).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All RNA-seq data were deposited in the NCBI database under accession no. GSE149509 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE149509, accessed on 11 March 2021).

Acknowledgments

We thank Lin Zeng at the University of Florida for technical supports on PTS assays.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Petersen, P.E. The World Oral Health Report 2003: Continuous improvement of oral health in the 21st century-the approach of the WHO Global Oral Health Programme. Community Dent. Oral Epidemiol. 2003, 31, 3–24. [Google Scholar] [CrossRef]
  2. Kassebaum, N.; Bernabe, E.; Dahiya, M.; Bhandari, B.; Murray, C.J.L.; Marcenes, W. Global Burden of Untreated Caries: A sys-tematic review and metaregression. J. Dent. Res. 2015, 94, 650–658. [Google Scholar] [CrossRef]
  3. Verma, D.; Garg, P.K.; Dubey, A.K. Insights into the human oral microbiome. Arch. Microbiol. 2018, 200, 525–540. [Google Scholar] [CrossRef] [PubMed]
  4. Loesche, W.J. Role of Streptococcus mutans in human dental decay. Microbiol. Rev. 1986, 50, 353–380. [Google Scholar] [CrossRef] [PubMed]
  5. Beighton, D. The complex oral microflora of high-risk individuals and groups and its role in the caries process. Community Dent. Oral Epidemiol. 2005, 33, 248–255. [Google Scholar] [CrossRef] [PubMed]
  6. Belli, W.A.; Marquis, R.E. Adaptation of Streptococcus mutans and Enterococcus hirae to acid stress in continuous culture. Appl. Environ. Microbiol. 1991, 57, 1134–1138. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Marquis, R.E.; Clock, S.A.; Mota-Meira, M. Fluoride and organic weak acids as modulators of microbial physiology. FEMS Microbiol. Rev. 2003, 26, 493–510. [Google Scholar] [CrossRef] [PubMed]
  8. Marinho, V.C.; Higgins, J.P.; Logan, S.; Deceased, A.S. Fluoride toothpastes for preventing dental caries in children and adolescents. Cochrane Database Syst. Rev. 2003, CD002278. [Google Scholar] [CrossRef] [PubMed]
  9. O’Mullane, D.M.; Baez, R.J.; Jones, S.; Lennon, M.A.; Petersen, P.E.; Rugg-Gunn, A.J.; Whelton, H.; Whitford, G.M. Fluoride and Oral Health. Community Dent Health 2016, 33, 69–99. [Google Scholar] [PubMed]
  10. Streckfuss, J.L.; Perkins, D.; Horton, I.M.; Brown, L.R.; Dreizen, S.; Graves, L. Fluoride Resistance and Adherence of Selected Strains of Streptococcus mutans to Smooth Surfaces After Exposure to Fluoride. J. Dent. Res. 1980, 59, 151–158. [Google Scholar] [CrossRef] [PubMed]
  11. Brown, L.; White, J.; Horton, I.; Dreizen, S.; Streckfuss, J. Effect of Continuous Fluoride Gel Use on Plaque Fluoride Retention and Microbial Activity. J. Dent. Res. 1983, 62, 746–751. [Google Scholar] [CrossRef] [PubMed]
  12. Liao, Y.; Chen, J.; Brandt, B.W.; Zhu, Y.; Li, J.; Van Loveren, C.; Deng, D.M. Identification and Functional Analysis of Genome Mutations in a Fluoride-Resistant Streptococcus mutans Strain. PLoS ONE 2015, 10, e0122630. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Liu, X.; Tian, J.; Liu, L.; Zhu, T.; Yu, X.; Chu, X.; Yao, B.; Wu, N.; Fan, Y. Identification of an operon involved in fluoride resistance in Enterobacter cloacae FRM. Sci. Rep. 2017, 7, 6786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Zhu, L.; Zhang, Z.; Liang, J. Fatty-acid profiles and expression of the fabM gene in a fluoride-resistant strain of Streptococcus mutans. Arch. Oral Biol. 2012, 57, 10–14. [Google Scholar] [CrossRef] [PubMed]
  15. Cai, Y.; Liao, Y.; Brandt, B.W.; Wei, X.; Liu, H.; Crielaard, W.; Van Loveren, C.; Deng, D.M. The Fitness Cost of Fluoride Resistance for Different Streptococcus mutans Strains in Biofilms. Front. Microbiol. 2017, 8, 1630. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hoelscher, G.L.; Hudson, M.C. Characterization of an Unusual Fluoride-Resistant Streptococcus mutans Isolate. Curr. Microbiol. 1996, 32, 156–161. [Google Scholar] [CrossRef] [PubMed]
  17. Hamilton, I. Effects of Fluoride on Enzymatic Regulation of Bacterial Carbohydrate Metabolism. Caries Res. 1977, 11, 262–291. [Google Scholar] [CrossRef]
  18. Bender, G.R.; Sutton, S.V.; Marquis, R.E. Acid tolerance, proton permeabilities, and membrane ATPases of oral streptococci. Infect. Immun. 1986, 53, 331–338. [Google Scholar] [CrossRef] [Green Version]
  19. Sutton, S.V.; Bender, G.R.; Marquis, R.E. Fluoride inhibition of proton-translocating ATPases of oral bacteria. Infect. Immun. 1987, 55, 2597–2603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Bunick, F.J.; Kashket, S. Enolases from fluoride-sensitive and fluoride-resistant streptococci. Infect. Immun. 1981, 34, 856–863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Van Loveren, C.; Hoogenkamp, M.; Deng, D.; Cate, J.T. Effects of Different Kinds of Fluorides on Enolase and ATPase Activity of a Fluoride-Sensitive and Fluoride-Resistant Streptococcus mutans Strain. Caries Res. 2008, 42, 429–434. [Google Scholar] [CrossRef] [PubMed]
  22. Liao, Y.; Yang, J.; Brandt, B.W.; Li, J.; Crielaard, W.; Van Loveren, C.; Deng, D.M. Genetic Loci Associated With Fluoride Resistance in Streptococcus mutans. Front. Microbiol. 2018, 9, 3093. [Google Scholar] [CrossRef] [PubMed]
  23. Baker, J.L.; Sudarsan, N.; Weinberg, Z.; Roth, A.; Stockbridge, R.B.; Breaker, R.R. Widespread Genetic Switches and Toxicity Resistance Proteins for Fluoride. Science 2011, 335, 233–235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Breaker, R. New Insight on the Response of Bacteria to Fluoride. Caries Res. 2012, 46, 78–81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Men, X.; Shibata, Y.; Takeshita, T.; Yamashita, Y. Identification of Anion Channels Responsible for Fluoride Resistance in Oral Streptococci. PLoS ONE 2016, 11, e0165900. [Google Scholar] [CrossRef] [PubMed]
  26. Murata, T.; Hanada, N. Contribution of chloride channel permease to fluoride resistance inStreptococcus mutans. FEMS Microbiol. Lett. 2016, 363, fnw101. [Google Scholar] [CrossRef] [Green Version]
  27. Liao, S.; Klein, M.I.; Heim, K.P.; Fan, Y.; Bitoun, J.P.; Ahn, S.-J.; Burne, R.A.; Koo, H.; Brady, L.J.; Wen, Z.T. Streptococcus mutans Extracellular DNA Is Upregulated during Growth in Biofilms, Actively Released via Membrane Vesicles, and Influenced by Components of the Protein Secretion Machinery. J. Bacteriol. 2014, 196, 2355–2366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Loo, C.Y.; Corliss, D.A.; Ganeshkumar, N. Streptococcus gordonii Biofilm Formation: Identification of Genes that Code for Biofilm Phenotypes. J. Bacteriol. 2000, 182, 1374–1382. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Kornberg, H.L.; Reeves, R.E. Inducible phosphoenolpyruvate-dependent hexose phosphotransferase activities in Escherichia coli. Biochem. J. 1972, 128, 1339–1344. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Moye, Z.D.; Burne, R.A.; Zeng, L. Uptake and Metabolism of N-Acetylglucosamine and Glucosamine by Streptococcus mutans. Appl. Environ. Microbiol. 2014, 80, 5053–5067. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Burne, R.A.; Wen, Z.T.; Chen, Y.-Y.M.; Penders, J.E.C. Regulation of Expression of the Fructan Hydrolase Gene of Streptococcus mutans GS-5 by Induction and Carbon Catabolite Repression. J. Bacteriol. 1999, 181, 2863–2871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Abranches, J.; Nascimento, M.M.; Zeng, L.; Browngardt, C.M.; Wen, Z.T.; Rivera, M.F.; Burne, R.A. CcpA Regulates Central Metabolism and Virulence Gene Expression in Streptococcus mutans. J. Bacteriol. 2008, 190, 2340–2349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Lemos, J.A.; Burne, R.A. A model of efficiency: Stress tolerance by Streptococcus mutans. Microbiology 2008, 154, 3247–3255. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lemos, J.A.C.; Abranches, J.; Burne, R.A. Responses of cariogenic streptococci to environmental stresses. Curr. Issues Mol. Biol. 2005, 7, 95–107. [Google Scholar] [PubMed]
  35. Sargent, M.G. Control of cell length in Bacillus subtilis. J. Bacteriol. 1975, 123, 7–19. [Google Scholar] [CrossRef] [Green Version]
  36. Kreth, J.; Zhu, L.; Merritt, J.; Shi, W.; Qi, F. Role of sucrose in the fitness of Streptococcus mutans. Oral Microbiol. Immunol. 2008, 23, 213–219. [Google Scholar] [CrossRef] [PubMed]
  37. Webb, A.J.; Homer, K.A.; Hosie, A.H.F. A Phosphoenolpyruvate-Dependent Phosphotransferase System Is the Principal Maltose Transporter in Streptococcus mutans. J. Bacteriol. 2007, 189, 3322–3327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Webb, A.J.; Homer, K.A.; Hosie, A.H.F. Two Closely Related ABC Transporters in Streptococcus mutans Are Involved in Disaccharide and/or Oligosaccharide Uptake. J. Bacteriol. 2007, 190, 168–178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Tao, L.; Sutcliffe, I.; Russell, R.; Ferretti, J. Transport of Sugars, Including Sucrose, by the msm Transport System of Streptococcus mutans. J. Dent. Res. 1993, 72, 1386–1390. [Google Scholar] [CrossRef] [PubMed]
  40. Russell, R.; Aduse-Opoku, J.; Sutcliffe, I.; Tao, L.; Ferretti, J. A binding protein-dependent transport system in Streptococcus mutans responsible for multiple sugar metabolism. J. Biol. Chem. 1992, 267, 4631–4637. [Google Scholar] [CrossRef]
  41. Sato, Y.; Okamoto-Shibayama, K.; Azuma, T. The malQ gene is essential for starch metabolism in Streptococcus mutans. J. Oral Microbiol. 2013, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Schäffer, C.; Messner, P. The structure of secondary cell wall polymers: How Gram-positive bacteria stick their cell walls together. Microbiolohy 2005, 151, 643–651. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Dobrogosz, W.J. N-Acetylglucosamine Assimilation in Escherichia coli and Its Relation to Catabolite Repression1. J. Bacteriol. 1968, 95, 585–591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Trent, M.S. Biosynthesis, transport, and modification of lipid A. Biochem. Cell Biol. 2004, 82, 71–86. [Google Scholar] [CrossRef] [PubMed]
  45. Álvarez-AñorveL, I.; Bustos-Jaimes, I.; Calcagno, M.L.; Plumbridge, J. Allosteric Regulation of Glucosamine-6-Phosphate Deaminase (NagB) and Growth of Escherichia coli on Glucosamine. J. Bacteriol. 2009, 191, 6401–6407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. White, R.J. The role of the phosphoenolpyruvate phosphotransferase system in the transport of N-acetyl-d-glucosamine by Escherichia coli. Biochem. J. 1970, 118, 89–92. [Google Scholar] [CrossRef] [Green Version]
  47. Ajdić, D.; McShan, W.M.; Laughlin, R.E.; Savić, G.; Chang, J.; Carson, M.B.; Primeaux, C.; Tian, R.; Kenton, S.; Jia, H.; et al. Genome sequence of Streptococcus mutans UA159, acariogenic dental pathogen. Proc. Natl. Acad. Sci. USA 2002, 99, 14434–14439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Lemos, J.; Palmer, S.; Zeng, L.; Wen, Z.; Kajfasz, J.; Freires, I.; Abranches, J.; Brady, L. The Biology of Streptococcus mutans. Microbiol. Spectr. 2019, 7, 435–448. [Google Scholar] [CrossRef] [PubMed]
  49. Heller, K.B.; Lin, E.C.; Wilson, T.H. Substrate specificity and transport properties of the glycerol facilitator of Escherichia coli. J. Bacteriol. 1980, 144, 274–278. [Google Scholar] [CrossRef] [Green Version]
  50. Bender, G.; Thibodeau, E.; Marquis, R. Reduction of Acidurance of Streptococcal Growth and Glycolysis by Fluoride and Gramicidin. J. Dent. Res. 1985, 64, 90–95. [Google Scholar] [CrossRef] [PubMed]
  51. Liao, Y.; Brandt, B.W.; Zhang, M.; Li, J.; Crielaard, W.; Van Loveren, C.; Deng, D.M. A single nucleotide change in the promotermutpenhances fluoride resistance of Streptococcus mutans. Antimicrob. Agents Chemother. 2016, 60, 7509–7512. [Google Scholar] [CrossRef] [Green Version]
  52. Doi, Y. Glycerol metabolism and its regulation in lactic acid bacteria. Appl. Microbiol. Biotechnol. 2019, 103, 5079–5093. [Google Scholar] [CrossRef]
  53. Brussock, S.; Kral, T. Effects of pH on Expression of Sodium Fluoride Resistance in Streptococcus mutans. J. Dent. Res. 1987, 66, 1594–1596. [Google Scholar] [CrossRef]
  54. Li, Y.-H.; Lau, P.C.Y.; Lee, J.H.; Ellen, R.P.; Cvitkovitch, D.G. Natural Genetic Transformation of Streptococcus mutans Growing in Biofilms. J. Bacteriol. 2001, 183, 897–908. [Google Scholar] [CrossRef] [Green Version]
  55. Sheng, J.; Marquis, R.E. Malolactic fermentation by Streptococcus mutans. FEMS Microbiol. Lett. 2007, 272, 196–201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lemme, A.; Sztajer, H.; Wagner-Döbler, I. Characterization of mleR, a positive regulator of malolactic fermentation and part of the acid tolerance response in Streptococcus mutans. BMC Microbiol. 2010, 10, 58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Sheng, J.; Baldeck, J.D.; Nguyen, P.T.; Quivey, R.G.; Marquis, R.E. Alkali production associated with malolactic fermentation by oral streptococci and protection against acid, oxidative, or starvation damage. Can. J. Microbiol. 2010, 56, 539–547. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 09 00849 g001 550

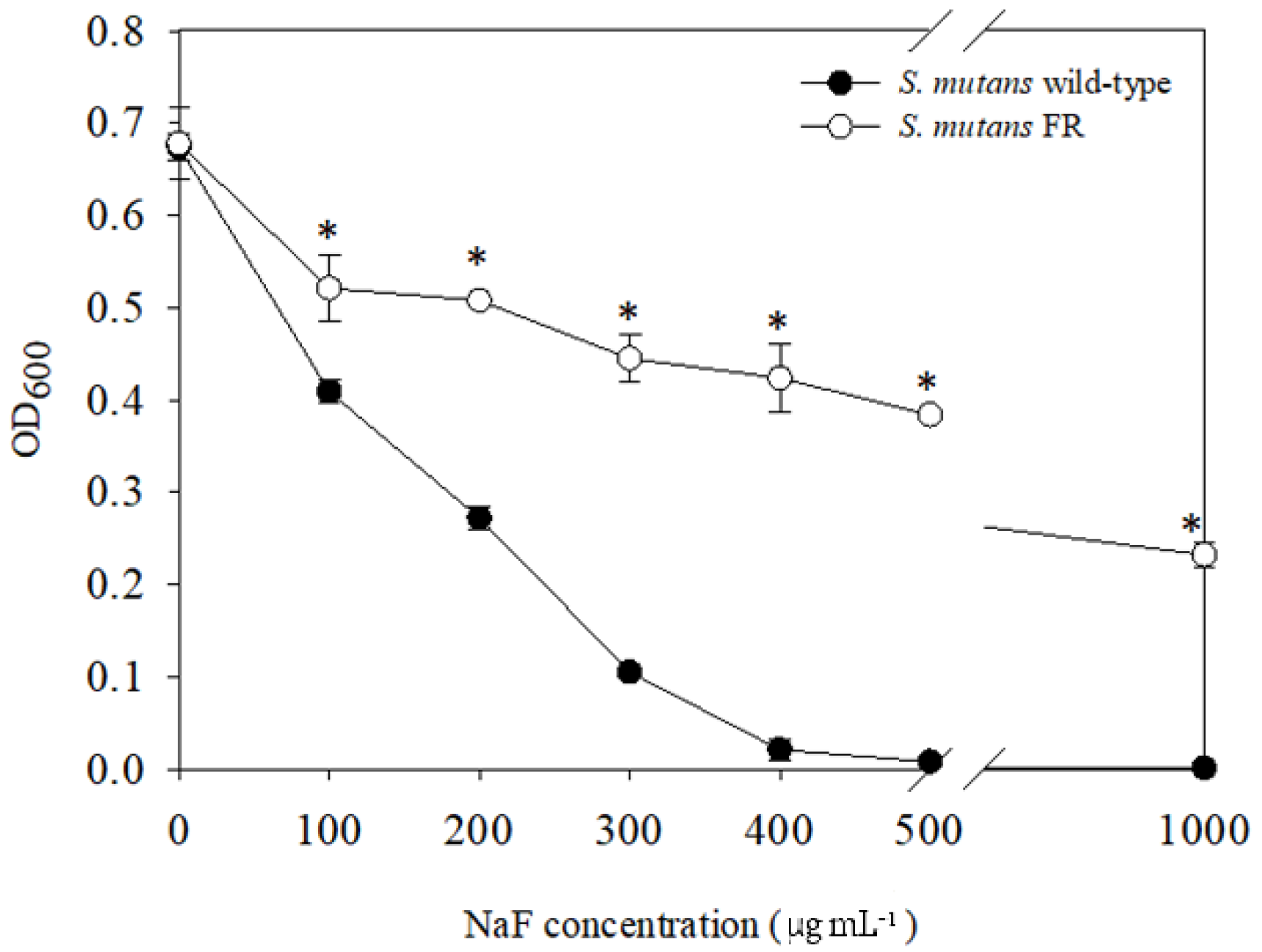

Figure 1. Growth of S. mutans wild-type and FR strains in the presence of fluoride. Cells were grown in BHI medium supplemented with increasing concentrations of NaF at 37 °C in a 5% CO2 atmosphere for 24 h. The end-point growth was determined according to the OD600 value using the Bioscreen C Lab System. The results represent the mean values of three biological repeats. *, differs from the wild-type strain at p < 0.05.
Figure 1. Growth of S. mutans wild-type and FR strains in the presence of fluoride. Cells were grown in BHI medium supplemented with increasing concentrations of NaF at 37 °C in a 5% CO2 atmosphere for 24 h. The end-point growth was determined according to the OD600 value using the Bioscreen C Lab System. The results represent the mean values of three biological repeats. *, differs from the wild-type strain at p < 0.05.
Microorganisms 09 00849 g001
Microorganisms 09 00849 g002 550

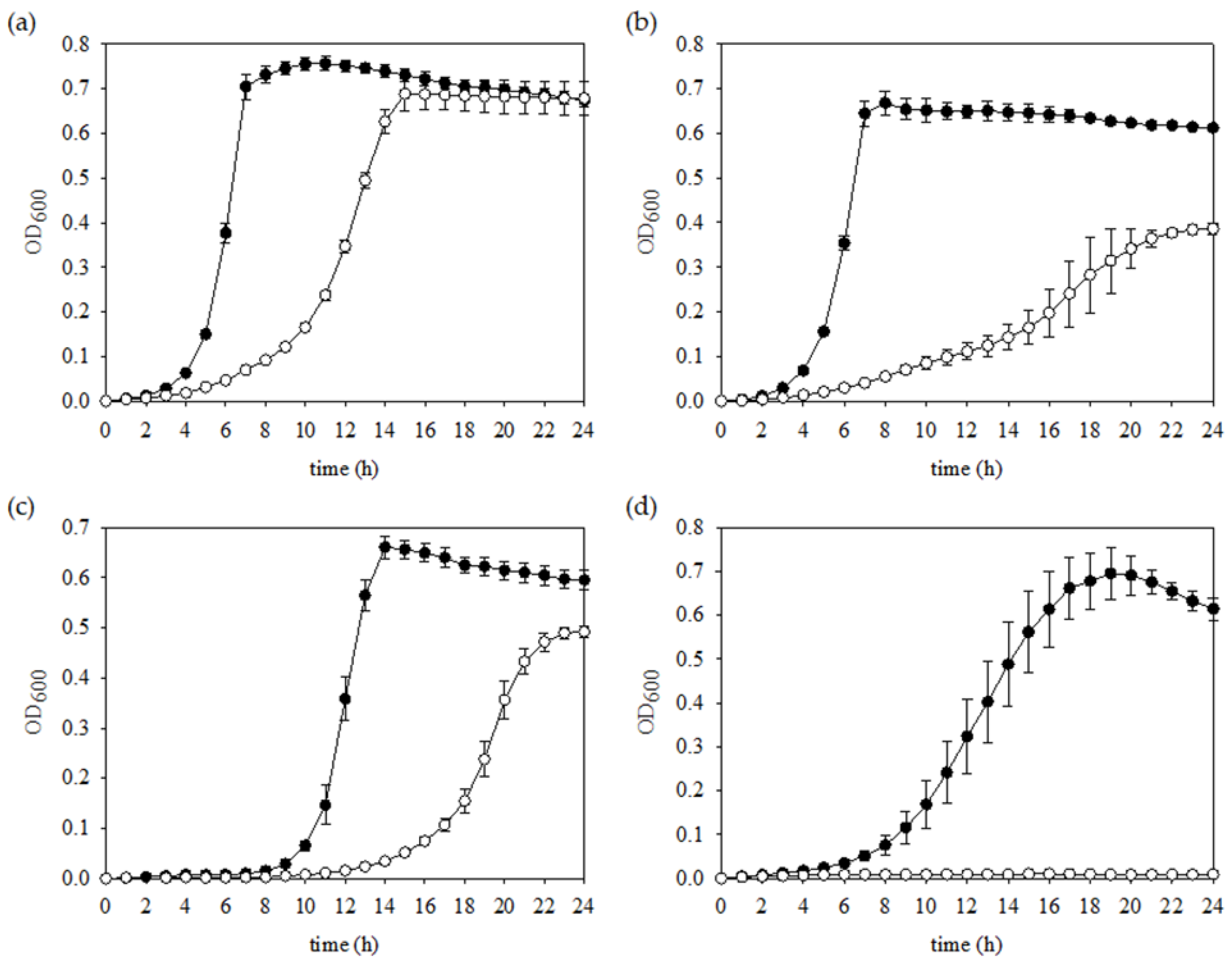

Figure 2. Growth phenotypes of S. mutans wild-type and FR strains under various stress conditions. Cells were grown in triplicate to mid-exponential phase in BHI medium and diluted 1:100 into fresh BHI medium (a) with a mineral oil overlay, (b) without a mineral oil overlay, (c) supplemented with 0.003% H2O2, or (d) supplemented with HCl to lower the pH to 5.5 in anaerobic conditions. The symbols (closed and open circles) indicate S. mutans wild-type and FR strains, respectively.
Figure 2. Growth phenotypes of S. mutans wild-type and FR strains under various stress conditions. Cells were grown in triplicate to mid-exponential phase in BHI medium and diluted 1:100 into fresh BHI medium (a) with a mineral oil overlay, (b) without a mineral oil overlay, (c) supplemented with 0.003% H2O2, or (d) supplemented with HCl to lower the pH to 5.5 in anaerobic conditions. The symbols (closed and open circles) indicate S. mutans wild-type and FR strains, respectively.
Microorganisms 09 00849 g002
Microorganisms 09 00849 g003 550
Figure 3. Cell morphology. The wild-type and FR S. mutans strains were grown to late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. The cultures were fixed on either (a) a glass slide or (b) HA disc and observed at 30,000× magnification using a SUPRA25 FE-SEM.
Figure 3. Cell morphology. The wild-type and FR S. mutans strains were grown to late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. The cultures were fixed on either (a) a glass slide or (b) HA disc and observed at 30,000× magnification using a SUPRA25 FE-SEM.
Microorganisms 09 00849 g003
Microorganisms 09 00849 g004 550
Figure 4. Comparison of biofilm formation between S. mutans wild-type and FR strains. S. mutans wild-type and FR strains were grown to an OD600 value of 0.3 in BHI broth, diluted 1:100 in semi-defined BM supplemented with 18 mM glucose and 2 mM sucrose, and incubated at 37 °C in a 5% CO2 atmosphere for 24 h. Biofilms of wild-type and FR strains were observed using the LSM-800 CLSM, after staining using the LIVE/DEAD BacLight Bacterial Viability Kit. Images presented are a representative set of three independent experiments.
Figure 4. Comparison of biofilm formation between S. mutans wild-type and FR strains. S. mutans wild-type and FR strains were grown to an OD600 value of 0.3 in BHI broth, diluted 1:100 in semi-defined BM supplemented with 18 mM glucose and 2 mM sucrose, and incubated at 37 °C in a 5% CO2 atmosphere for 24 h. Biofilms of wild-type and FR strains were observed using the LSM-800 CLSM, after staining using the LIVE/DEAD BacLight Bacterial Viability Kit. Images presented are a representative set of three independent experiments.
Microorganisms 09 00849 g004
Microorganisms 09 00849 g005 550

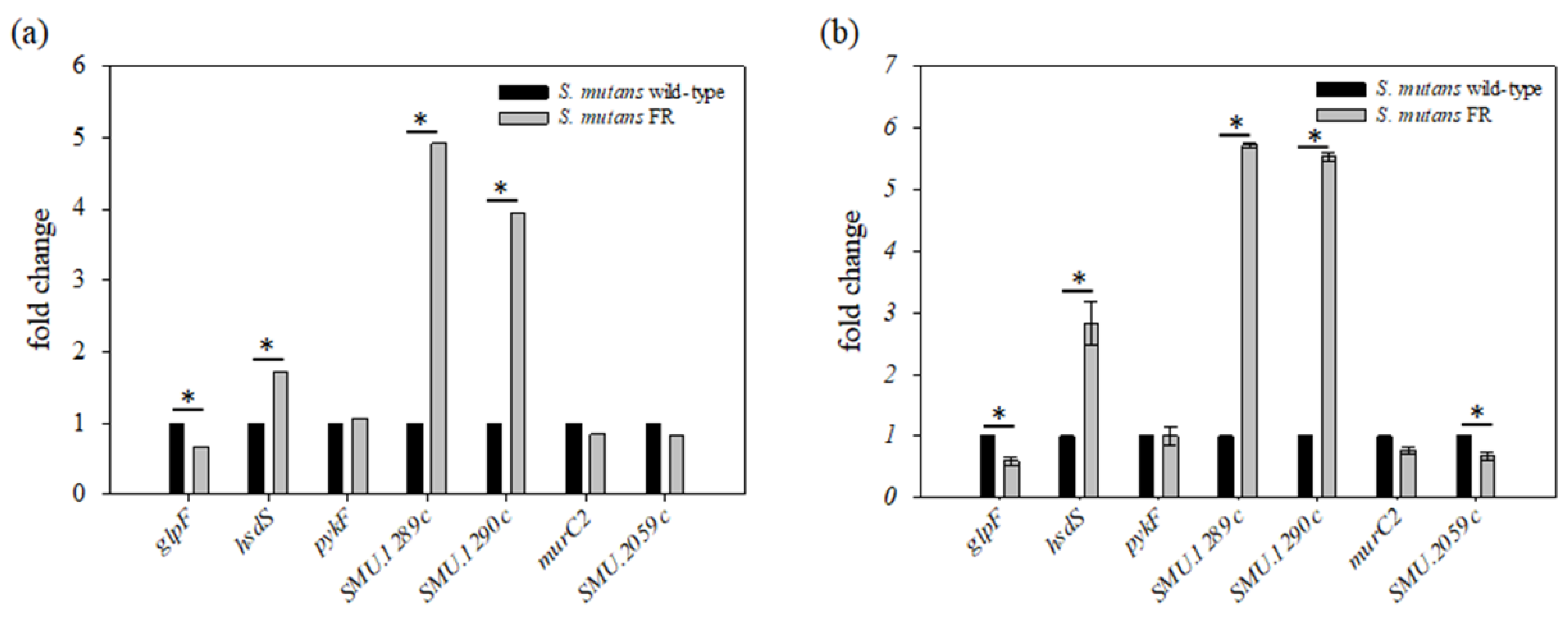

Figure 5. Transcriptional analysis of genes harboring a mutation. (a) Transcriptome analysis was performed by RNA-seq technique using total RNA from the wild-type and FR strains, as described in the Materials and Methods. Transcriptome analysis generated a graph that displays the fold-change values of the selected seven genes bearing a mutation in the FR strain compared to that of the wild-type strain; (b) Comparison of gene expression between S. mutans wild-type and FR strains measured by qRT-PCR. The wild-type and FR strains were grown to late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. cDNA was synthesized with a random hexamer from 1 μg of total RNA. The data indicate the fold changes of the target RNA derived from 1 µg of input RNA after normalization to the 16S rRNA levels in the same samples. *, differs from the wild-type genetic background at p < 0.05.
Figure 5. Transcriptional analysis of genes harboring a mutation. (a) Transcriptome analysis was performed by RNA-seq technique using total RNA from the wild-type and FR strains, as described in the Materials and Methods. Transcriptome analysis generated a graph that displays the fold-change values of the selected seven genes bearing a mutation in the FR strain compared to that of the wild-type strain; (b) Comparison of gene expression between S. mutans wild-type and FR strains measured by qRT-PCR. The wild-type and FR strains were grown to late-exponential phase (OD600 = 0.6–0.7) in BHI medium at 37 °C in a 5% CO2 atmosphere. cDNA was synthesized with a random hexamer from 1 μg of total RNA. The data indicate the fold changes of the target RNA derived from 1 µg of input RNA after normalization to the 16S rRNA levels in the same samples. *, differs from the wild-type genetic background at p < 0.05.
Microorganisms 09 00849 g005
Microorganisms 09 00849 g006 550

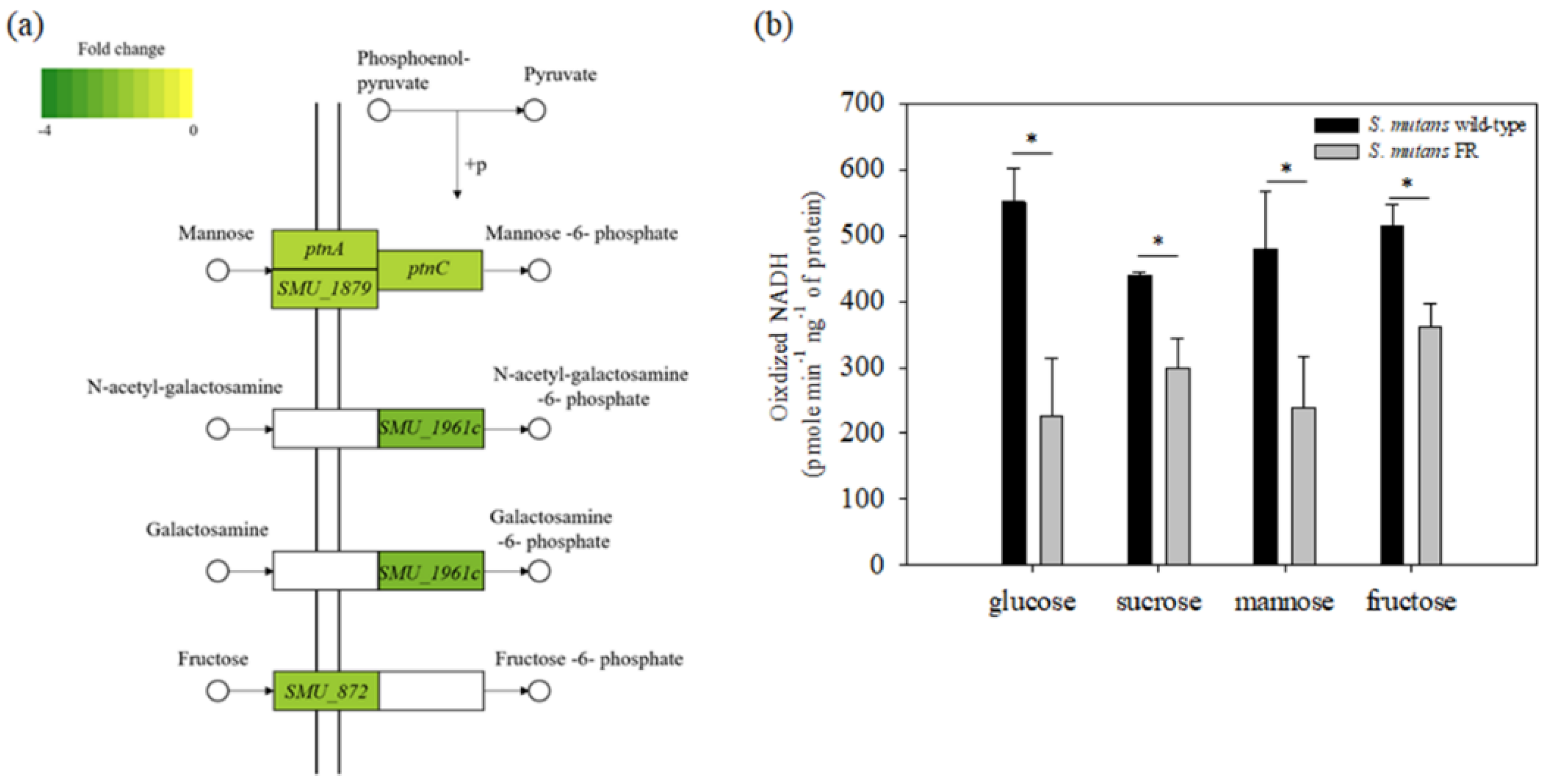

Figure 6. (a) KEGG diagram indicating genes that are a part of the PTS. These genes are highlighted in green, with the color intensity corresponding to their level of downregulation; (b) PTS transport of glucose, sucrose, mannose, or fructose was determined using permeabilized cells as described in the Materials and Methods. *, differs from the wild-type genetic background at p < 0.05. The results are expressed as mean values for three biological repeats, with error bars indicating the standard deviation.
Figure 6. (a) KEGG diagram indicating genes that are a part of the PTS. These genes are highlighted in green, with the color intensity corresponding to their level of downregulation; (b) PTS transport of glucose, sucrose, mannose, or fructose was determined using permeabilized cells as described in the Materials and Methods. *, differs from the wild-type genetic background at p < 0.05. The results are expressed as mean values for three biological repeats, with error bars indicating the standard deviation.
Microorganisms 09 00849 g006
Microorganisms 09 00849 g007 550

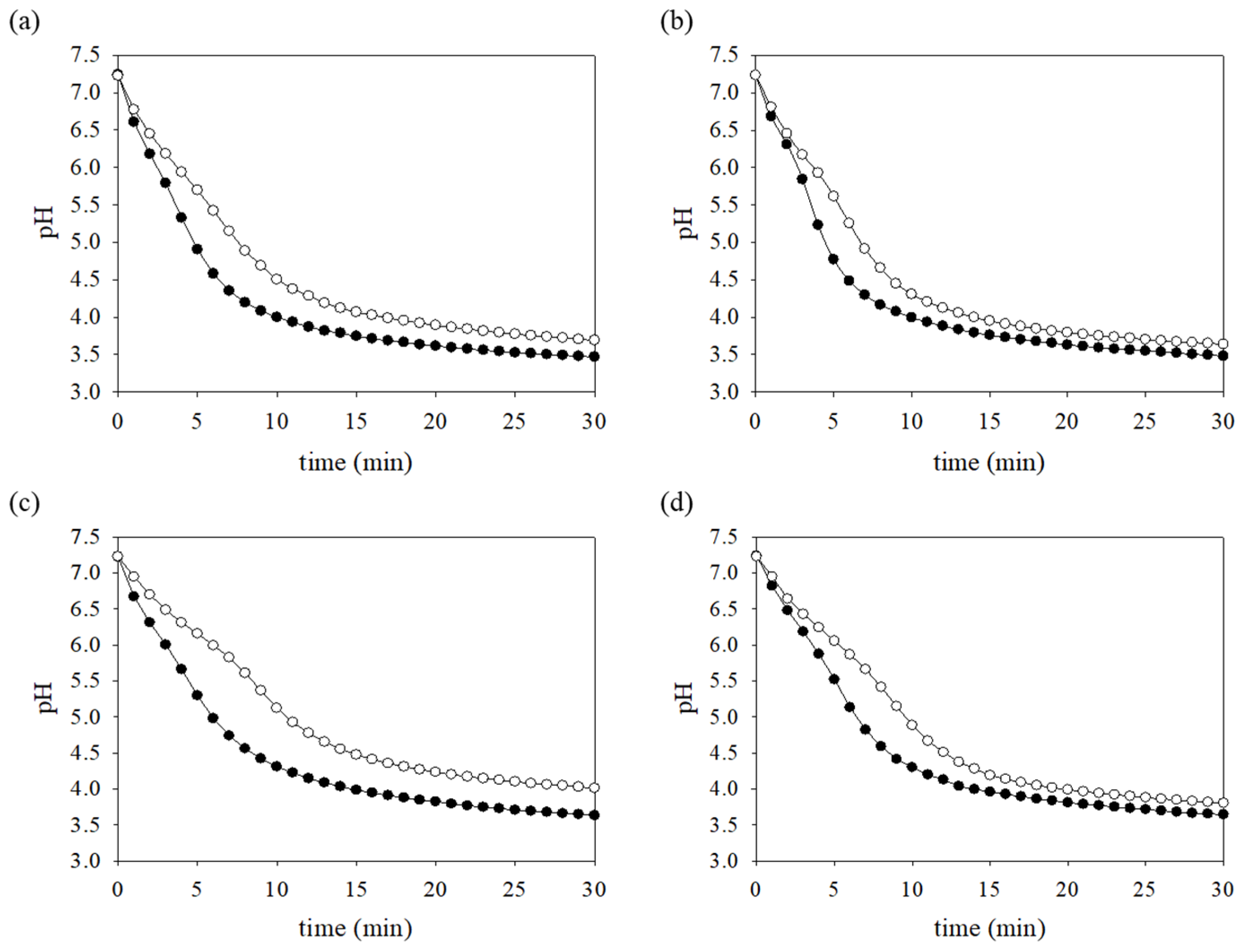

Figure 7. pH drop assays. S. mutans wild-type and FR strains were grown to mid-exponential phase in BHI medium supplemented with 20 mM glucose. The cultures were subjected to pH drop assays as described in the Materials and Methods. The assay was initiated by the addition of 50 mM (a) glucose, (b) sucrose, (c) mannose, or (d) fructose. The change in the pH was monitored at 1-min intervals for 30 min. The data represent the averages of results of three independent experiments. The symbols (closed and open circles) indicate S. mutans wild-type and FR strains, respectively.
Figure 7. pH drop assays. S. mutans wild-type and FR strains were grown to mid-exponential phase in BHI medium supplemented with 20 mM glucose. The cultures were subjected to pH drop assays as described in the Materials and Methods. The assay was initiated by the addition of 50 mM (a) glucose, (b) sucrose, (c) mannose, or (d) fructose. The change in the pH was monitored at 1-min intervals for 30 min. The data represent the averages of results of three independent experiments. The symbols (closed and open circles) indicate S. mutans wild-type and FR strains, respectively.
Microorganisms 09 00849 g007
Microorganisms 09 00849 g008 550

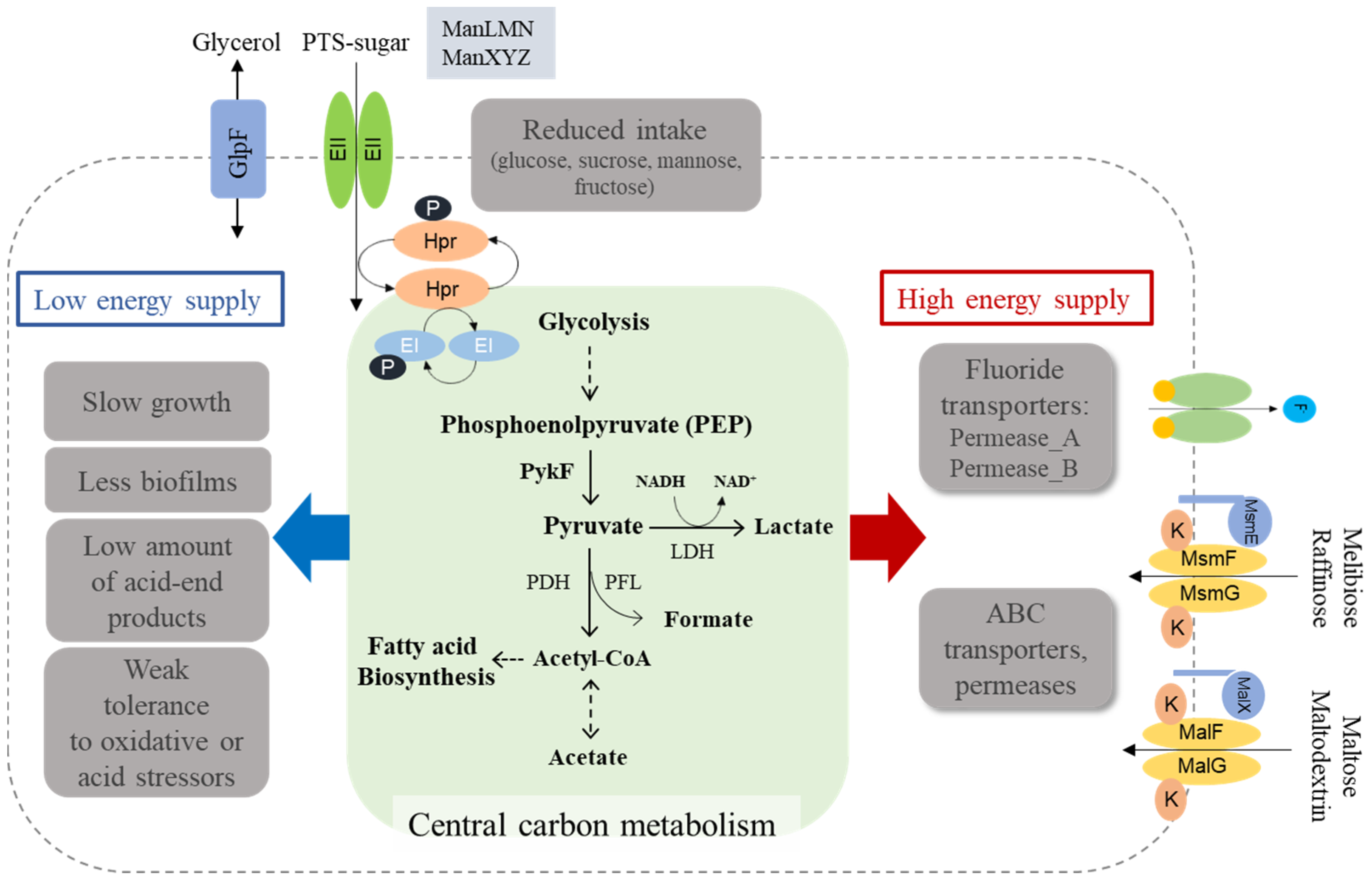

Figure 8. Proposed model for the mechanism of fluoride resistance in S. mutans. Genetic mutations in the FR genome primarily lead to the reduced activities of PEP-dependent PTS systems (e.g., ManXYZ and ManLMN), the consequence of which may strongly influence the carbon inflow and energy production via the central carbon metabolism. In contrast, the expression of putative fluoride transporters essential for fluoride resistance was highly upregulated, which suggests that more energy can be supplied for the efficient activity of these transporters. Interestingly, the upregulation of some transporters (e.g., MsmEFGK and MalXFGK) can be explained by the S. mutans FR cells activating the alternative transporters favorable for other substrates, to overcome the restricted carbon inflow. The red arrow indicates the upregulation of genes by genetic mutation(s) in S. mutans FR strain and the blue arrow indicates the downregulation and observations.
Figure 8. Proposed model for the mechanism of fluoride resistance in S. mutans. Genetic mutations in the FR genome primarily lead to the reduced activities of PEP-dependent PTS systems (e.g., ManXYZ and ManLMN), the consequence of which may strongly influence the carbon inflow and energy production via the central carbon metabolism. In contrast, the expression of putative fluoride transporters essential for fluoride resistance was highly upregulated, which suggests that more energy can be supplied for the efficient activity of these transporters. Interestingly, the upregulation of some transporters (e.g., MsmEFGK and MalXFGK) can be explained by the S. mutans FR cells activating the alternative transporters favorable for other substrates, to overcome the restricted carbon inflow. The red arrow indicates the upregulation of genes by genetic mutation(s) in S. mutans FR strain and the blue arrow indicates the downregulation and observations.
Microorganisms 09 00849 g008
Table
Table 1. List of genes harboring a mutation in the FR strain.
Table 1. List of genes harboring a mutation in the FR strain.
Gene NameDescriptionMutation and LocationEffect
hsdSPutative restriction endonuclease563 A→ACAGAATTGACCTDisruptive inframe insertion
glpFGlycerol uptake facilitator protein464 C→AStop codon
pykFPyruvate kinase1156 G→AVal→Ile
murC2Putative UDP-N-acetylmuramyl tripeptide synthetase289 G→TAla→Ser
SMU.2059cPutative integral membrane protein707 A→TTyr→Phe
SMU.1289c
SMU.1290c		Chloride channel permeaseA→G (Intergenic region of two genes)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, H.-J.; Song, J.; Kim, J.N. Genetic Mutations That Confer Fluoride Resistance Modify Gene Expression and Virulence Traits of Streptococcus mutans. Microorganisms 2021, 9, 849. https://doi.org/10.3390/microorganisms9040849

AMA Style

Lee H-J, Song J, Kim JN. Genetic Mutations That Confer Fluoride Resistance Modify Gene Expression and Virulence Traits of Streptococcus mutans. Microorganisms. 2021; 9(4):849. https://doi.org/10.3390/microorganisms9040849

Chicago/Turabian Style

Lee, Hyeon-Jeong, Jihee Song, and Jeong Nam Kim. 2021. "Genetic Mutations That Confer Fluoride Resistance Modify Gene Expression and Virulence Traits of Streptococcus mutans" Microorganisms 9, no. 4: 849. https://doi.org/10.3390/microorganisms9040849

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
