Weighted Gene Co-Expression Network Analysis Based on Stimulation by Lipopolysaccharides and Polyinosinic:polycytidylic Acid Provides a Core Set of Genes for Understanding Hemolymph Immune Response Mechanisms of Amphioctopus fangsiao

by
Yongjie Wang
1,
Xipan Chen
1,
Xiaohui Xu
1,
Jianmin Yang
1,
Xiumei Liu
2,
Guohua Sun
1,* and
Zan Li
1,*
1
School of Agriculture, Ludong University, Yantai 264025, China
2
College of Life Sciences, Yantai University, Yantai 264005, China
*
Authors to whom correspondence should be addressed.
Animals 2024, 14(1), 80; https://doi.org/10.3390/ani14010080
Submission received: 10 July 2023 / Revised: 5 December 2023 / Accepted: 19 December 2023 / Published: 25 December 2023
(This article belongs to the Section Aquatic Animals)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The health of Amphioctopus fangsiao, a species used in aquaculture or fish farming, can be greatly affected by infections. To understand how their immune system responds, we looked at the changes in their immune cells when exposed to substances that mimic these infections. By studying these responses, we were able to identify key parts of their immune system that change when faced with infection-causing threats. We also discovered important genes, including PKMYT1 (protein kinase, membrane associated tyrosine/threonine 1) and NAMPT (nicotinamide phosphoribosyltransferase), that play a crucial role in this response. Our study gives us a deeper understanding of the immune system of the Amphioctopus fangsiao.

Abstract

The primary influencer of aquaculture quality in Amphioctopus fangsiao is pathogen infection. Both lipopolysaccharides (LPS) and polyinosinic:polycytidylic acid (Poly I:C) are recognized by the pattern recognition receptor (PRR) within immune cells, a system that frequently serves to emulate pathogen invasion. Hemolymph, which functions as a transport mechanism for immune cells, offers vital transcriptome information when A. fangsiao is exposed to pathogens, thereby contributing to our comprehension of the species’ immune biological mechanisms. In this study, we conducted analyses of transcript profiles under the influence of LPS and Poly I:C within a 24 h period. Concurrently, we developed a Weighted Gene Co-expression Network Analysis (WGCNA) to identify key modules and genes. Further, we carried out Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses to investigate the primary modular functions. Co-expression network analyses unveiled a series of immune response processes following pathogen stress, identifying several key modules and hub genes, including PKMYT1 and NAMPT. The invaluable genetic resources provided by our results aid our understanding of the immune response in A. fangsiao hemolymph and will further our exploration of the molecular mechanisms of pathogen infection in mollusks.

1. Introduction

Amphioctopus fangsiao, an economically important species in China’s coastal areas, has attracted attention due to the quality of its meat and its high medicinal value [1,2]. However, bacterial and viral outbreaks during its cultivation often result in substantial economic losses [3]. Aquatic pathogen infections, including common viruses (ISKNV, IHNV) and bacteria (Vibrio vulnificus, Vibrio anguillarum), are extensively reported in marine organisms, causing severe infectious diseases [4,5,6,7,8]. In response to such invasions, the immune system mounts a robust defense that ensures the organism’s safety by identifying and eliminating the invading pathogens [9,10]. Hemolymph, a primary mover of immune cells, plays a crucial role in the mollusk immune system by facilitating rapid and targeted immune responses throughout the organism [11,12]. Pathogens that cause high rates of disease in marine aquaculture in A. fangsiao include Vibrio anguillarum, Vibrio Parahemolyticus, and Edwardsiella tarda. Infected A. fangsiao can show varying degrees of tissue damage, leading to increased culture mortality [13,14,15]. Lipopolysaccharides (LPS) and polyinosinic-polycytidylic acid (Poly I:C), both recognized by pattern recognition receptors (PRRs), are typically employed to mimic bacterial and viral invasions, respectively [16,17]. The stimulation of A. fangsiao with LPS and Poly I:C, followed by transcriptome analysis of its hemolymph, will provide deep insights into the molecular immune mechanisms of A. fangsiao.
The advancement of high-throughput sequencing technology and data analysis methods in recent years has facilitated the discovery of numerous immune-related genes in invertebrates [18,19,20]. These extensive datasets significantly contribute to our knowledge of specific immune responses. Weighted Gene Co-expression Network Analysis (WGCNA), an instrumental bioinformatics tool, aids in understanding gene functions and associations. It enables identification of the correlation among genes with analogous expression patterns [21,22]. One of the main benefits of WGCNA is transforming gene expression data into modules. By analyzing these modules related to traits as a unit, it minimizes computational requirements and enhances accuracy [23,24]. However, the application of WGCNA in invertebrate immunity is scarcely documented.
This study encompasses the analysis of the transcription profiles of hemolymph tissues at 6 and 24 h under two distinct types of stimulation [25,26]. Employing the union of differentially expressed genes (DEGs) within a 24 h period under both stimulation types, the WGC network was constructed. Furthermore, the study utilized GO and KEGG functional enrichment analyses to deduce the relationships between co-expressed genes and immunity. A protein–protein interaction network was also built to explore the functional relationships of key genes between modules. Lastly, the expression patterns of 19 key genes were screened and corroborated using quantitative RT-PCR. The results procured from this research provide a valuable resource and crucial foundation for future studies on the immune mechanism of A. fangsiao.

2. Materials and Methods

2.1. Experimental Procedure

The above experimental procedure and raw data obtained by sequencing were derived from Chen et al. [25,26].
Healthy A. fangsiao were categorized into four groups. The LPS group consisted of 40 animals treated with an intramuscular injection of 100 µL LPS solution, the Poly I:C group also had 40 animals, which were subjected to an intramuscular injection of 100 µL Poly I:C solution, the PBS group consisted of 40 animals treated with an intramuscular injection of 100 µL PBS solution. Lastly, the blank control group contained 20 untreated animals. Additionally, nine A. fangsiao were randomly selected as blank control before injection. Hemolymph cells were swiftly gathered in Trizol and preserved in liquid nitrogen. PBS, Poly IC, and LPS were applied for stimulation experiments with hemolymph tissue extracted at the 6 h and 24 h post-injection mark.
Total RNA was analyzed using Trizol reagent in compliance with the manufacturer’s instructions. Quality control of RNA was performed by Agilent 2100 bioanalyzer.
For RNA extraction, nine A. fangsiao were randomly picked from each time point group: A. fangsiao injected at 0 h (B0h), A. fangsiao injected with PBS at 6 h (P6h), A. fangsiao injected with PBS at 24 h (P24h), A. fangsiao injected with Poly I:C at 6 h (IC6h), A. fangsiao injected with Poly I:C at 24 h (IC24h), A. fangsiao injected with LPS at 6 h (L6h), and A. fangsiao injected with LPS at 24 h (L24h). For each group, nine A. fangsiao were randomly selected and divided into three subgroups. The RNA of the same mole ratio from each A. fangsiao subset was combined to create templates for RNA-Seq library construction. The library preparations were sequenced on an Illumina Novaseq platform and 150 bp paired-end reads were generated. The residual hemolymph RNA post-library construction was utilized for quantitative affirmation via quantitative real-time PCR.
The SRA number for the NCBI database is: SRR20338038–SRR20338058. All subsequent analyses based on sequencing data obtained by Chen et al. are completely new research.

2.2. Identification of DEGs

The initial step in ensuring the accuracy of subsequent analyses requires careful screening of the raw data. This includes the removal of reads containing adapters, unknown base information, and reads of subpar quality. Following this, Trinity software (v2.6.6) is employed to assemble the clean reads into a reference sequence; the sequence cluster of the highest length is then selected by Corset for further analysis. The reference sequence analyzed by Trinity and used as the transcriptome maps the clean reads of each sample. Later, the mapping process is facilitated by RSEM software (v1.3.3) using default parameters. The FPKM values, signifying expression levels, are computed for each gene based on read counts and the gene length. In order to screen out differentially expressed genes between various treatment groups, the DESeq2 R package (1.20.0) is utilized. Gene selection is determined based on a p-value ≤ 0.01 and a |log2fold change| ≥ 1 and categorized as DEGs.

2.3. Bioinformatics Analysis

In this study, 561 DEGs were identified between the experimental and control groups six hours after LPS injection. At the 24 h mark, there were 778 DEGs observed. Similarly, after the injection of Poly I:C, 1082 and 299 DEGs were discovered at the six and 24 h intervals between both groups, respectively. Through sequencing, the analysis unearthed 21 RNA-Seq datasets. The expression data from 2343 genes—representing the union set of DEGs—from all four groups were subsequently selected for the WGCNA. In order to establish a correlation among genes that adheres to scale-free topology network criteria, the most suitable power β was selected [27]. This was achieved when the power was at its minimum, yet maintaining a R2 value above 0.85. Furthermore, a hierarchical clustering tree was constructed utilizing the correlation coefficients between genes. Consequently, genes with similar expression patterns were grouped into the same module. Those not assigned were designated into the grey module. The applied thresholds for module clustering were a minimum module size of 30 and cutting height of 0.75.

2.4. Functional Analysis of Module Genes and Identification of Hub Genes

In this study, we assessed the correlation coefficients between modules and traits using eigenvalues, identifying the ones with the highest correlation to trait eigenvalues as key modules. We conducted an analysis of the primary functions of modular genes using GO and KEGG enrichment. Within these modules, genes exhibiting high connectivity are considered to bear significant biological implications. To further narrow down this investigation, we designated 20 genes from each key module and earmarked the top three genes demonstrating the greatest connectivity as hub genes. Utilizing Cytoscape, we visualized the interactions of hub genes. The tool String (https://cn.string-db.org/, accessed on 4 August 2022) facilitated the construction of protein interaction networks, providing insight into the relationships among genes in distinct modules. From this pool, we identified six hub genes with greater numbers of protein interaction.

2.5. qPCR Validation

We isolated 19 hub genes for validation using qRT-PCR. Primer Premier 5.0 facilitated the creation of gene-specific primer sequences, the details of which are found in Table 1. We evaluated the stability of GAPDH, β-ACTIN, and 18 S genes across varying tissues and developmental stages of A. fangsiao. Due to its relatively stable expression levels at all measured time points, we selected β-ACTIN as the reference gene. The fluorometric quantification procedure adhered to the method previously outlined by Liu et al. [28].

3. Results

3.1. Identification of DEGs

In this investigation, upon LPS stimulation, we identified 561 and 778 DGEs at the 6 h and 24 h marks, respectively. Post-Poly I:C stimulation, 1082 and 299 DGEs were pinpointed at 6 h and 24 h, respectively. For future analyses, we collated these observations into a union of the four groups of DGEs, encompassing 2343 genes. After rigorous data quality control, the average Q20 and Q30 of clean reads exceeded 90%, which proved that the sequencing results were qualified and satisfied the subsequent analysis [27,28]. The read length of each sample as well as the mapping rate is shown in the attached table (Table S1). The reference genome is derived from the splicing of clean reads.

3.2. Weighted Gene Co-Expression Network Analysis

Weighted correlation network analysis is a systems biology approach used to characterize patterns of genetic associations between different samples. It is usually biologically meaningful to choose the smallest soft threshold for the square of the correlation coefficient (R2) greater than 0.85 as the power value for subsequent analysis. The WGCNA was performed on 2343 DEGs, selecting a power of 7, the minimum power where the square of the correlation coefficient (R2) exceeded 0.85, ensuring high biological significance of the network (Figure 1A). Concurrently, average connectivities of DEGs underwent evaluation across different power β values (Figure 1B). Ten distinct modules were identified and clustered (Figure 2), with sizes ranging from 53 to 515 (Table 2).

3.3. Screening and Functional Analysis of Key Modules

This study identified five modules as related to stimulation time, as determined by the eigenvalues of each module. Of these, there was a significant correlation between the brown, pink, and turquoise modules and the LPS invasion time, as well as between the brown, blue, and black modules and the Poly I:C invasion time (Figure 3). Subsequent GO and KEGG enrichment analyses explored the function of each module. The brown module was enriched with 195 GO subclasses (biological process, cellular component, and molecular function), and the pink, turquoise, blue, and black modules were enriched with 223, 153, 67, and 77 GO subclasses, respectively. Figure 4 presents the top 10 GO level-3 terms in these three categories. Several immune-related terms, including cell surface receptor signaling pathway, defense response to virus, innate immune response, positive regulation of interleukin-4-mediated signaling pathway, immune system process, negative regulation of interferon-gamma-mediated signaling pathway, inflammatory response to antigenic stimulus, chemotaxis, and regulation of the apoptotic process, were significantly enriched. Similarly, in level-2 KEGG terms, immune system, infectious disease: bacterial, infectious disease: viral and parasitic were significantly enriched (Figure 5).

3.4. Construction of Key Networks and Identification of Hub Genes

We have constructed gene networks pertinent to the LPS invasion timeline from three modules, utilizing the 20 key genes present in each. This is barring the pink module. Concurrently, a protein–protein interaction network was assembled to aid in discerning the functional connections between the key genes originating from various modules (Figure 6A). Among these genes, DEAF1, FBN2, and GPR158 exhibited the highest connectivity in the brown module and were therefore categorized as hub genes. Similarly, GIP, INCENP, and LOC107984567 were identified as hub genes due to their high connectivity in the pink module, while NAMPT, LOC106883262, and ZNF572 were highlighted in the turquoise module. An additional protein–protein interaction network was crafted to explore the immune relationships across the three modules. Three genes—ANLN, NAMPT, and IRF2—were classified as hub genes (Table 2). Notably, NAMPT displayed high connectivity and was found to bear close relationships to the key genes from the other modules.
Moreover, we built gene networks related to the Poly I:C invasion timeline, again employing the 20 key genes in each module. The blue, brown and black modules were considered. Similar to earlier procedure, another protein–protein interaction network was assembled to explore functional relationships of the key genes across modules (Figure 6B). Here, DEAF1, FBN2, and GPR158 were identified as hub genes in the brown module due to their high connectivity. Likewise, LOC106867328, LOC106882400, and PKMYT1 from the blue module, along with TRIP13, BUB1B, and HAUS4 from the black module, were recognized as hub genes. In an extension of the previous investigation, we constructed another protein–protein interaction network to assess the immune relationships between the three modules and identified PKMYT1, ARF1, and KLHL2 as the hub genes (Table 3). Notably, PKMYT1 demonstrated high connectivity and appeared to be closely related to the key genes of the other modules.

3.5. Quantitative RT-PCR Validation of Hub Genes

The sum of the top three highest scoring genes in each of the most relevant modules and the three most important genes in each gene interaction network totaled 19 genes for validation. The expression levels of the 19 identified hub DEGs were evaluated at each time point using qRT-PCR. Subsequently, these expression levels were juxtaposed against those ascertained from RNA-Seq. By conducting a correlation analysis of all qRT-PCR results with the RNA-Seq data, it was observed that similar expression patterns emerged consistently. The resulting trends are illustrated in Figure 7.

4. Discussion

4.1. The Intention of this Study

A. fangsiao, a significant economic species prevalent in the coastal waters of China, possesses both high nutritional and medicinal value [2]. However, in the culture process, A. fangsiao is vulnerable to infections caused by pathogenic microorganisms such as bacteria, viruses, and parasites. These infections often lead to widespread diseases, resulting in substantial economic losses [29,30]. The integrity of the hemolymph is critical for the health of A. fangsiao, due to its significant role in promoting organism defense through immune processes [12]. Understanding the alterations in the hemolymph transcript profile following pathogen invasion may expedite our exploration of A. fangsiao’s immune molecular mechanisms. This study delves into the hemolymph immune response mechanisms triggered within 24 h upon stimulation by LPS and Poly I:C.

4.2. Discussion of Key Modules and Hub Genes

The research utilized WGCNA on a union set of four groups containing 2343 DGEs. This approach affords a novel insight into the immune molecular mechanisms of A. fangsiao. Subsequently, we identified five modules, each associated with a different time-point following two types of stimulation. We employed GO and KEGG enrichment analyses to explore the functionality of these modules. Notably, we discovered a substantial enrichment of immune-related terms, such as: cell surface receptor signaling pathway, defense response to viruses, innate immune response, positive regulation of interleukin-4-mediated signaling pathway, immune system process, negative regulation of interferon-gamma-mediated signaling pathway, inflammatory response to antigenic stimuli, chemotaxis, and regulation of the apoptotic process. We then screened three hub genes from each model, based on superior intramodule connectivity, and identified six additional hub genes considering their high protein interaction numbers. We hypothesize that the above genes play a significant role in the immune response of A. fangsiao following pathogen-induced stress.

4.2.1. Analysis of Hub Genes in the Brown Module Associated with 0 h Stimulation

In this study, the hub genes DEAF1, FBN2, and GPR158 were identified and found to be enriched in the brown module. Deformed Epidermal Autoregulatory Factor 1 (DEAF1) is a transcription factor associated with autoimmune disorders and has been previously found to bind TTCG motifs [31,32]. Its role as an immunoregulatory factor has been extensively studied in Drosophila [33]. Serving as a cofactor for immune-regulated genes, DEAF1 is capable of adjusting the expression level of immune response genes [34], with its upregulation preventing adverse consequences caused by excessive immune genes expression. FBN2 is an integral component of the extracellular matrix (ECM) that moderates the early stages of elastic fiber assembly [35]. The ECM is highly organized and capable of integrating complex signals to immune cells in a spatially patterned and regulatory manner, notably impacting the behavior of leukocytes within inflamed tissues [36]. Importantly, FBN2 has been found to be associated with immune system diseases as a single gene [37]. It was postulated that FBN2 has an immune function as a matrix signal, influencing the immune responses of hemolymph. G-protein-coupled receptors (GPCRs), including the orphan GPR158 of the GPCR family C, have been implicated in various physiological and disease processes [38]. GPR158 is known to recruit the regulator of G protein signaling (RGS), thereby controlling the activity of other GPCRs [39]. More importantly, GPCR signaling is critical for the spatiotemporal control of leukocyte dynamics during immune responses [40]. These genes potentially have a significant influence on normal immune responses, and their mechanisms of immunoregulation in A. fangsiao warrant further investigation.

4.2.2. Analysis of Hub Genes in the Pink Module Associated with 6 h LPS Stimulation

The hub genes GIP, INCENP, and LOC107984567 were found to be enriched in the Pink module. The glucose-dependent insulinotropic peptide (GIP) is known to regulate glucose metabolism under inflammatory conditions and stimulate the secretion of inflammatory cytokines and chemokines [41,42]. Various immune cell subsets have been found to express receptors for GIP, which signifies the immune system as another field for incretin action [43]. Recent findings suggest that GIP has a direct influence on myeloid immune cells in managing inflammation [44]. These findings led us to hypothesize that GIP plays a crucial role in initiating and managing the inflammatory response post-LPS stimulation. The chromosomal passenger complex protein INCENP is necessary for chromosome condensation, spindle attachment and function, and cytokinesis during mitosis [45]. It is known that immunosuppression often occurs through cell cycle arrest, a standard procedure adopted by immunotoxins. INCENP, being closely related to cell proliferation cycles and tissue repair, has been implicated as candidate genes indicating proliferative effects in immune cells [46,47]. Our results suggest that INCENP could be involved in the proliferation of immune cells to sustain immunity. In this study, we propose that LOC107984567 has a significant relation to the immune response of A. fangsiao due to its high connectivity. The functional analysis of other genes within this module suggests that LOC107984567 might play a role in the regulation of inflammatory responses or cell proliferation. All three genes were noticeably upregulated at the 6 h mark following LPS stimulation. However, the functions and interconnections of these genes in A. fangsiao have not been documented and warrant further research.

4.2.3. Analysis of Hub Genes in the Turquoise Module Associated with 24 h LPS Stimulation

The turquoise module disclosed a significant amount of DEGs, hinting at the potential presence of extensive immune responses within this module. Central to the module are hub genes such as NAMPT, LOC106883262, and ZNF572, which are hypothesized to contribute to immune response processes as primal regulatory elements. Recognized as a member of the nicotinic acid phosphoribosyltransferase (NAPRTase) family, NAMPT is implicated in a multitude of crucial biological undertakings, spanning metabolism, stress response, and aging [48]. Beyond its enzymatic activity, NANMPT operates as a cytokine, significantly influencing immune response regulation [49]. Its demonstrated involvement in apoptosis regulation further extends to inhibiting apoptosis instigated by various inflammatory responses [50]. NAMPT is also perceived as a novel intermediary of innate immunity [51]. As for Zinc-finger (ZNF) proteins, they are known for nucleic acid binding and contributing significantly to vital cellular functions, which include cell proliferation, differentiation, and apoptosis [52]. Recent findings have highlighted the use of ZNF572 as a potential marker for oxidative stress and infections [53], fostering the assumption that ZNF572 might play a pivotal role in immune functionality within A. fangsiao through transcription regulation. In the context of LOC106883262’s high connectivity within the module, and aligning this with the functional analysis of other hub genes, it is speculated that the LOC106883262 gene could be profoundly influential in innate immunity. However, a thorough exploration and understanding of its specific mechanism of action is required. These three genes significantly increased their expression 24 h post-LPS stimulation, suggesting their vital role in A. fangsiao’s immune response.

4.2.4. Analysis of Hub Genes in the Blue Module Associated with 6 h Poly I:C Stimulation

The blue module revealed three hub genes: LOC106867328, LOC106882400, and PKMYT1. PKMYT1 encodes a member of the serine/threonine protein kinase family, a key regulator of cell cycle, and an integral part of DNA damage repair (DDR)-related signaling [54]. Foreseeably, perturbations in cell cycle correlate with an accumulating progression of DNA damages and trigger apoptosis [55]. Recent studies have suggested that PKMYT1 can potentially activate the Notch signaling pathway, implying a possible range of immune functions [56]. This broadens PKMYT1’s role in apoptosis response and augments the immune response under viral stress. Notably, these three genes demonstrated a significant upregulation 6 h post-Poly I:C stimulation with high connectivity. This suggests that they might be instrumental in A. fangsiao’s response to viral stress. These genes have not been extensively researched in mollusks, warranting further exploration of their functions.

4.2.5. Analysis of Hub Genes in the Black Module Associated with 24 h Poly I:C Stimulation

The three hub genes TRIP13, BUB1B, and HAUS4, associated with stress immunity, may be implicated in diverse immune response processes. DNA damage repair is a primary factor influencing cell survival and death, often triggering cell apoptosis [57]. TRIP13 has an essential role in both meiosis and mitosis, primarily in DNA damage repair [58]. The protein complex known as shieldin can protect the broken DNA ends and govern the DNA repair mechanism [59]. Notably, shieldin’s function depends on TRIP13, which drives the suitable assembly and disassembly of shieldin components [60]. On this ground, we propose that TRIP13 may participate in cell apoptosis regulation via shieldin, contributing to immune system stability. BUB1B, also referred to as mitotic checkpoint serine/threonine kinase B, belongs to the spindle assembly checkpoint (SAC) protein family [61]. Analogous to TRIP13, BUB1B is significantly associated with DNA repair, performing overlapping functions in the DNA repair biological process [62]. Furthermore, we discovered that BUB1B mutations can generate a considerable apoptotic response [63]. Previous studies have reported that HAUS/augmin subunits help regulate the mitotic spindle assembly [64], and the current research indicates that HAUS8 positively regulates the RLR-VISA-dependent antiviral signaling pathway. It does so by recruiting the VISA complex, which facilitates the activation of transcription factors IRF3 and NF-κB, thereby activating the IFN-β promoter induced by viral infection [65]. However, there have been few reports on HAUS4, and we hypothesize it shares similar immune functions with HAUS8, but further research is required to validate this claim. These hub genes primarily play critical roles in apoptosis and other immune functions, effectively mitigating the damage caused by viral infection.

4.2.6. Protein–Protein Interaction Network Analyses

The functional interactions of key genes in protein–protein interaction networks have been explored to identify possible hub genes influencing the immune response processes of A. fangsiao. Notably, ANLN, NAMPT, and IRF2 were identified as vital players in the immune processes of A. fangsiao within 24 h following LPS stimulation. ANLN, which encodes for an actin-binding protein, has a critical role in cell growth, migration, and cytokinesis. Its importance extends to participation in the PI3K/PTEN signaling pathway, crucial in cellular life-death control [66,67]. Additionally, ANLN’s interaction with multiple immune cells underscores its indispensable role in the immune system [68,69]. Meanwhile, Interferon regulatory factor 2 (IRF2), a family member of the transcriptional factors, plays an instrumental role in modulating IFN-induced immune responses [70]. Precisely, IRF2 oversees genes linked to apoptosis and immune regulation, thereby attaining a balanced transcriptional activation of IRFs and preventing overreactions in immune response [71]. Moreover, it regulates TLR gene expression, thereby contributing to the innate immune response to infections [72]. NAMPT was distinguished for its high protein interaction numbers and intramodule connectivity. Given the evidence presented, we infer it serves a significant role in immune response against bacterial infection.
In a similar vein, PKMYT1, ARF1, and KLHL2 were recognized as regulatory forces in the immune process of A. fangsiao within 24 h of Poly I:C stimulation. ARF1 plays a fundamental role in autoimmune disease development, presumably by inhibiting apoptosis in activated immune cells [73]. ARF1 has been reported to affect humoral immunity directly by adjusting AMP gene expression. It is also implicated in an alternative immune regulation mechanism [74,75]. Considering the discussions and outcomes of this research, ARF1’s role in A. fangsiao’s immune functions warrants further investigation. KLHL2, an ubiquitin ligases receptor and a substrate adaptor for ubiquitination [76], has been observed regulating innate immune response, adaptive immune response, and the DNA damage response [77,78,79]. However, the immune response of A. fangsiao via ubiquitin against virus leveraged by KLHL2 remains an area for further exploration. Similarly, PKMYT1 was identified owing to its high protein interaction numbers and intramodule connectivity. In light of the foregoing discussions, we hold that it plays a significant role in the immune response against viral infections.

4.2.7. Summary of Immune Responses under the Two Forms of Stimulation

Our results present hub genes that play key roles in inflammation regulation, apoptosis and DNA repair related processes. The above biological processes are more related to the immune defense, and in combination with the analysis of other DEGs with important responsibilities, we hypothesized that the immune defense in A. fangsiao was significantly activated by LPS and Poly I:C stimulation.

5. Conclusions

In this study, we examined the immune response mechanisms of A. fangsiao under pathogenic stress, constructing respective co-expression and protein–protein interaction networks. We identified 19 hub genes and validated them through qRT-PCR, hypothesizing that these genes hold a crucial role in the immune system due to their high connectivity or interaction. The results present a basis for further comprehension of the immune response mechanisms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani14010080/s1, Table S1: Summary of sequencing.

Author Contributions

Conceptualization, X.L. and Z.L.; methodology, X.L., X.C., X.X. and Z.L.; formal analysis, Y.W.; writing—original draft preparation, X.C.; writing—review and editing, Y.W., G.S. and Z.L.; project administration, J.Y. and G.S.; funding acquisition, J.Y.; project administration, G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Agriculture of the People’s Republic of China with grant number CARS-49.

Institutional Review Board Statement

This research was conducted in accordance with the protocols of the Institutional Animal Care and Use Committee of the Ludong University (protocol number LDU-IRB20210308NXY approval date: 8 March 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article and supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pang, Y.; Tian, Y.; Fu, C.; Ren, Y.; Wan, R. Growth and Distribution of Amphioctopus fangsiao (d’Orbigny, 1839–1841) in Haizhou Bay, Yellow Sea. J. Ocean Univ. China 2020, 19, 1125–1132. [Google Scholar] [CrossRef]
  2. Tanaka, K.; Sakai, T.; Ikeda, I.; Imaizumi, K.; Sugano, M. Effects of dietary shrimp, squid and octopus on serum and liver lipid levels in mice. Biosci. Biotechnol. Biochem. 1998, 62, 1369–1375. [Google Scholar] [CrossRef] [PubMed]
  3. Defoirdt, T.; Boon, N.; Bossier, P.; Verstraete, W. Disruption of bacterial quorum sensing: An unexplored strategy to fight infections in aquaculture. Aquaculture 2004, 240, 69–88. [Google Scholar] [CrossRef]
  4. Jones, M.K.; Oliver, J.D. Vibrio vulnificus: Disease and pathogenesis. Infect. Immun. 2009, 77, 1723–1733. [Google Scholar] [CrossRef] [PubMed]
  5. Pedersen, K.; Larsen, L. rRNA gene restriction patterns of Vibrio anguillarum serogroup O 1. Dis. Aquat. Org. 1993, 16, 121–126. [Google Scholar] [CrossRef]
  6. Jung-Schroers, V.; Adamek, M.; Wohlsein, P.; Wolter, J.; Wedekind, H.; Steinhagen, D. First outbreak of an infection with infectious spleen and kidney necrosis virus (ISKNV) in ornamental fish in Germany. Dis. Aquat. Organ. 2016, 119, 239–244. [Google Scholar] [CrossRef] [PubMed]
  7. Yu, Z.-H.; Deng, M.-L.; Geng, Y.; Zhou, Y.; Wang, K.-Y.; Chen, D.-F.; Zhong, Z.-J.; Peng, X.; Huang, X.-L. An outbreak of infectious haematopoietic necrosis virus (IHNV) infection in cultured rainbow trout (Oncorhynchus mykiss) in Southwest China. Aquac. Res. 2016, 47, 2355–2362. [Google Scholar] [CrossRef]
  8. Morse, S.S. Factors in the emergence of infectious diseases. In Plagues and Politics; Palgrave Macmillan: London, UK, 2001; pp. 8–26. [Google Scholar]
  9. Chaplin, D.D. Overview of the immune response. J. Allergy Clin. Immunol. 2010, 125 (Suppl. S2), S3–S23. [Google Scholar] [CrossRef]
  10. Delves, P.J.; Roitt, I.M. The immune system. First of two parts. N. Engl. J. Med. 2000, 343, 37–49. [Google Scholar] [CrossRef]
  11. Zapata, A.; Diez, B.; Cejalvo, T.; Frias, C.G.-D.; Cortes, A. Ontogeny of the immune system of fish. Fish Shellfish. Immunol. 2006, 20, 126–136. [Google Scholar] [CrossRef]
  12. Furuta, E.; Yamaguchi, K. Haemolymph: Blood Cell Morphology and Function, The Biology of Terrestrial Molluscs; CABI Publishing: Wallingford, UK, 2001; pp. 289–306. [Google Scholar]
  13. Bao, X.; Wang, W.; Yuan, T.; Li, Y.; Chen, X.; Liu, X.; Xu, X.; Sun, G.; Li, B.; Yang, J.; et al. Transcriptome profiling based on larvae at different time points after hatching provides a core set of gene resource for understanding the immune response mechanisms of the egg-protecting behavior against Vibrio anguillarum infection in Amphioctopus fangsiao. Fish Shellfish. Immunol. 2022, 124, 430–441. [Google Scholar] [PubMed]
  14. Wang, J.; Feng, Y.; Li, Z.; Wang, W.; Sun, G.; Xu, X.; Yang, J. Pathology of Vibrio anguillarum and Vibrio Parahemolyticus infections in Amphioctopus fangsiao. J. Shandong Univ. 2020, 55, 9. [Google Scholar]
  15. Zhu, X.; Wang, J.; Yuan, T.; Feng, Y.; Li, Z.; Xu, X.; Wang, W.; Sun, G.; Yang, J. Influence of Vibrio anguillarum and Edwardsiella tarda on the liver flora structure of Amphioctopus fangsiao. Aquac. Sci. 2022, 41, 976–981. [Google Scholar]
  16. Freudenberg, M.A.; Tchaptchet, S.; Keck, S.; Fejer, G.; Huber, M.; Schutze, N.; Beutler, B.; Galanos, C. Lipopolysaccharide sensing an important factor in the innate immune response to Gram-negative bacterial infections: Benefits and hazards of LPS hypersensitivity. Immunobiology 2008, 213, 193–203. [Google Scholar] [CrossRef] [PubMed]
  17. Martins, K.A.; Bavari, S.; Salazar, A.M. Vaccine adjuvant uses of poly-IC and derivatives. Expert Rev. Vaccines 2015, 14, 447–459. [Google Scholar] [CrossRef] [PubMed]
  18. Meng, X.L.; Liu, M.; Jiang, K.Y.; Wang, B.J.; Tian, X.; Sun, S.J.; Luo, Z.Y.; Qiu, C.W.; Wang, L. De novo characterization of Japanese scallop Mizuhopecten yessoensis transcriptome and analysis of its gene expression following cadmium exposure. PLoS ONE 2013, 8, e64485. [Google Scholar] [CrossRef]
  19. Zhang, M.; Qiao, G.; Li, Q.; Xu, D.H.; Qi, Z.; Wang, A.; Xu, M.; Huang, J. Transcriptome analysis and discovery of genes involved in immune pathways from coelomocytes of Onchidium struma after bacterial challenge. Fish Shellfish. Immunol. 2018, 72, 528–543. [Google Scholar] [CrossRef]
  20. Xu, Z.; Li, T.; Li, E.; Chen, K.; Ding, Z.; Qin, J.G.; Chen, L.; Ye, J. Comparative transcriptome analysis reveals molecular strategies of oriental river prawn Macrobrachium nipponense in response to acute and chronic nitrite stress. Fish Shellfish. Immunol. 2016, 48, 254–265. [Google Scholar] [CrossRef]
  21. Liang, W.; Sun, F.; Zhao, Y.; Shan, L.; Lou, H. Identification of Susceptibility Modules and Genes for Cardiovascular Disease in Diabetic Patients Using WGCNA Analysis. J. Diabetes Res. 2020, 2020, 4178639. [Google Scholar] [CrossRef]
  22. Chen, S.; Yang, D.; Lei, C.; Li, Y.; Sun, X.; Chen, M.; Wu, X.; Zheng, Y. Identification of crucial genes in abdominal aortic aneurysm by WGCNA. PeerJ 2019, 7, e7873. [Google Scholar] [CrossRef]
  23. Wan, Q.; Tang, J.; Han, Y.; Wang, D. Co-expression modules construction by WGCNA and identify potential prognostic markers of uveal melanoma. Exp. Eye Res. 2018, 166, 13–20. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, M.; Xie, H.; Wei, X.; Dossa, K.; Yu, Y.; Hui, S.; Tang, G.; Zeng, X.; Yu, Y.; Hu, P.; et al. WGCNA Analysis of Salt-Responsive Core Transcriptome Identifies Novel Hub Genes in Rice. Genes 2019, 10, 719. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, X.; Li, Y.; Bao, X.; Zhang, E.; Cui, C.; Liu, X.; Luo, Q.; Yang, J.; Li, Z.; Xu, X. Transcriptome profiling based on protein-protein networks provides a core set of genes for understanding blood immune response mechanisms against LPS stress in Amphioctopus fangsiao. Dev. Comp. Immunol. 2022, 136, 104509. [Google Scholar] [CrossRef]
  26. Chen, X.; Liu, X.; Cai, D.; Wang, W.; Cui, C.; Yang, J.; Xu, X.; Li, Z. Sequencing-based network analysis provides a core set of genes for understanding hemolymph immune response mechanisms against Poly I:C stimulation in Amphioctopus fangsiao. Fish Shellfish. Immunol. 2023, 133, 108544. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, B.; Horvath, S. A general framework for weighted gene co-expression network analysis. Stat. Appl. Genet. Mol. Biol. 2005, 4, 17. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, Z.L.; Palmquist, D.E.; Ma, M.; Liu, J.; Alexander, N.J. Application of a master equation for quantitative mRNA analysis using qRT-PCR. J. Biotechnol. 2009, 143, 10–16. [Google Scholar] [CrossRef]
  29. Jiang, D.; Zheng, X.; Qian, Y.; Zhang, Q. Embryonic development of Amphioctopus fangsiao under elevated temperatures: Implications for resource management and conservation. Fish. Res. 2020, 225, 105479. [Google Scholar] [CrossRef]
  30. Iglesias, J.; Sánchez, F.J.; Bersano, J.G.F.; Carrasco, J.F.; Dhont, J.; Fuentes, L.; Linares, F.; Muñoz, J.L.; Okumura, S.; Roo, J.; et al. Rearing of Octopus vulgaris paralarvae: Present status, bottlenecks and trends. Aquaculture 2007, 266, 1–15. [Google Scholar] [CrossRef]
  31. Yip, L.; Su, L.; Sheng, D.; Chang, P.; Atkinson, M.; Czesak, M.; Albert, P.R.; Collier, A.R.; Turley, S.J.; Fathman, C.G.; et al. Deaf1 isoforms control the expression of genes encoding peripheral tissue antigens in the pancreatic lymph nodes during type 1 diabetes. Nat. Immunol. 2009, 10, 1026–1033. [Google Scholar] [CrossRef]
  32. Stubbs, L.; Sun, Y.; Caetano-Anolles, D. Function and evolution of C2H2 zinc finger arrays. In A Handbook of Transcription Factors; Springer: Dordrecht, The Netherlands, 2011; pp. 75–94. [Google Scholar]
  33. Reed, D.E.; Huang, X.M.; Wohlschlegel, J.A.; Levine, M.S.; Senger, K. DEAF-1 regulates immunity gene expression in Drosophila. Proc. Natl. Acad. Sci. USA 2008, 105, 8351–8356. [Google Scholar] [CrossRef]
  34. Kuttenkeuler, D.; Pelte, N.; Ragab, A.; Gesellchen, V.; Schneider, L.; Blass, C.; Axelsson, E.; Huber, W.; Boutros, M. A large-scale RNAi screen identifies Deaf1 as a regulator of innate immune responses in Drosophila. J. Innate Immun. 2010, 2, 181–194. [Google Scholar] [CrossRef] [PubMed]
  35. Wagenseil, J.E.; Mecham, R.P. New insights into elastic fiber assembly. Birth Defects Res. Part C Embryo Today 2007, 81, 229–240. [Google Scholar] [CrossRef] [PubMed]
  36. Sorokin, L. The impact of the extracellular matrix on inflammation. Nat. Rev. Immunol. 2010, 10, 712–723. [Google Scholar] [CrossRef] [PubMed]
  37. Gibson, G.; Çalışkan, M.; Baker, S.W.; Gilad, Y.; Ober, C. Host Genetic Variation Influences Gene Expression Response to Rhinovirus Infection. PLoS Genet. 2015, 11, e1005111. [Google Scholar]
  38. Patel, N.; Itakura, T.; Gonzalez, J.M., Jr.; Schwartz, S.G.; Fini, M.E. GPR158, an orphan member of G protein-coupled receptor Family C: Glucocorticoid-stimulated expression and novel nuclear role. PLoS ONE 2013, 8, e57843. [Google Scholar] [CrossRef] [PubMed]
  39. Orlandi, C.; Posokhova, E.; Masuho, I.; Ray, T.A.; Hasan, N.; Gregg, R.G.; Martemyanov, K.A. GPR158/179 regulate G protein signaling by controlling localization and activity of the RGS7 complexes. J. Cell Biol. 2012, 197, 711–719. [Google Scholar] [CrossRef] [PubMed]
  40. Lammermann, T.; Kastenmuller, W. Concepts of GPCR-controlled navigation in the immune system. Immunol. Rev. 2019, 289, 205–231. [Google Scholar] [CrossRef]
  41. Kahles, F.; Meyer, C.; Diebold, S.; Foldenauer, A.C.; Stohr, R.; Mollmann, J.; Lebherz, C.; Findeisen, H.M.; Marx, N.; Lehrke, M. Glucose-dependent insulinotropic peptide secretion is induced by inflammatory stimuli in an interleukin-1-dependent manner in mice. Diabetes Obes. Metab. 2016, 18, 1147–1151. [Google Scholar] [CrossRef]
  42. Nie, Y.; Ma, R.C.; Chan, J.C.; Xu, H.; Xu, G. Glucose-dependent insulinotropic peptide impairs insulin signaling via inducing adipocyte inflammation in glucose-dependent insulinotropic peptide receptor-overexpressing adipocytes. FASEB J. 2012, 26, 2383–2393. [Google Scholar] [CrossRef]
  43. Fishman, S.; Zvibel, I.; Varo, C. Incretin Hormones in the Control of Immunometabolism. Immunometabolism 2019, 1, e190004. [Google Scholar] [CrossRef]
  44. Efimova, I.; Steinberg, I.; Zvibel, I.; Neumann, A.; Mantelmacher, D.F.; Drucker, D.J.; Fishman, S.; Varol, C. GIPR Signaling in Immune Cells Maintains Metabolically Beneficial Type 2 Immune Responses in the White Fat from Obese Mice. Front. Immunol. 2021, 12, 643144. [Google Scholar] [CrossRef] [PubMed]
  45. Resnick, T.D.; Satinover, D.L.; MacIsaac, F.; Stukenberg, P.T.; Earnshaw, W.C.; Orr-Weaver, T.L.; Carmena, M. INCENP and Aurora B promote meiotic sister chromatid cohesion through localization of the Shugoshin MEI-S332 in Drosophila. Dev. Cell 2006, 11, 57–68. [Google Scholar] [CrossRef] [PubMed]
  46. Lu, X.; Hu, B.; Zheng, J.; Ji, C.; Fan, X.; Gao, Y. Predose and Postdose Blood Gene Expression Profiles Identify the Individuals Susceptible to Acetaminophen-Induced Liver Injury in Rats. PLoS ONE 2015, 10, e0141750. [Google Scholar] [CrossRef] [PubMed]
  47. Baken, K.A.; Pennings, J.L.; Jonker, M.J.; Schaap, M.M.; de Vries, A.; van Steeg, H.; Breit, T.M.; van Loveren, H. Overlapping gene expression profiles of model compounds provide opportunities for immunotoxicity screening. Toxicol. Appl. Pharmacol. 2008, 226, 46–59. [Google Scholar] [CrossRef]
  48. Liao, L.; Chen, Y.; Wang, W. The current progress in understanding the molecular functions and mechanisms of visfatin in osteoarthritis. J. Bone Min. Metab. 2016, 34, 485–490. [Google Scholar] [CrossRef]
  49. Garten, A.; Petzold, S.; Korner, A.; Imai, S.; Kiess, W. Nampt: Linking NAD biology, metabolism and cancer. Trends Endocrinol. Metab. 2009, 20, 130–138. [Google Scholar] [CrossRef] [PubMed]
  50. Jia, S.H.; Li, Y.; Parodo, J.; Kapus, A.; Fan, L.; Rotstein, O.D.; Marshall, J.C. Pre-B cell colony-enhancing factor inhibits neutrophil apoptosis in experimental inflammation and clinical sepsis. J. Clin. Investig. 2004, 113, 1318–1327. [Google Scholar] [CrossRef] [PubMed]
  51. Luk, T.; Malam, Z.; Marshall, J.C. Pre-B cell colony-enhancing factor (PBEF)/visfatin: A novel mediator of innate immunity. J. Leukoc. Biol. 2008, 83, 804–816. [Google Scholar] [CrossRef]
  52. Urrutia, R. Exploring the role of homeobox and zinc finger proteins in pancreatic cell proliferation, differentiation, and apoptosis. Int. J. Gastrointest. Cancer 1997, 22, 1–14. [Google Scholar] [CrossRef]
  53. Kim, M.A.; Lee, E.J.; Yang, W.; Shin, H.Y.; Kim, Y.H.; Kim, J.H. Identification of a novel gene signature in second-trimester amniotic fluid for the prediction of preterm birth. Sci. Rep. 2022, 12, 3085. [Google Scholar] [CrossRef]
  54. Shao, C.; Wang, Y.; Pan, M.; Guo, K.; Molnar, T.F.; Kocher, F.; Seeber, A.; Barr, M.P.; Navarro, A.; Han, J.; et al. The DNA damage repair-related gene PKMYT1 is a potential biomarker in various malignancies. Transl. Lung Cancer Res. 2021, 10, 4600–4616. [Google Scholar] [CrossRef] [PubMed]
  55. di Rorà, A.G.L.; Cerchione, C.; Martinelli, G.; Simonetti, G. A WEE1 family business: Regulation of mitosis, cancer progression, and therapeutic target. J. Hematol. Oncol. 2020, 13, 126. [Google Scholar] [CrossRef] [PubMed]
  56. Sun, Q.; Luo, M.; Zhao, H.; Sun, H. Overexpression of PKMYT1 indicates the poor prognosis and enhances proliferation and tumorigenesis in non-small cell lung cancer via activation of Notch signal pathway. Eur. Rev. Med. Pharmacol. Sci. 2019, 23, 4210–4219. [Google Scholar] [PubMed]
  57. Roos, W.P.; Kaina, B. DNA damage-induced cell death: From specific DNA lesions to the DNA damage response and apoptosis. Cancer Lett. 2013, 332, 237–248. [Google Scholar] [CrossRef] [PubMed]
  58. Yu, D.C.; Chen, X.Y.; Zhou, H.Y.; Yu, D.Q.; Yu, X.L.; Hu, Y.C.; Zhang, R.H.; Zhang, X.B.; Zhang, K.; Lin, M.Q.; et al. TRIP13 knockdown inhibits the proliferation, migration, invasion, and promotes apoptosis by suppressing PI3K/AKT signaling pathway in U2OS cells. Mol. Biol. Rep. 2022, 49, 3055–3064. [Google Scholar] [CrossRef] [PubMed]
  59. Setiaputra, D.; Durocher, D. Shieldin—The protector of DNA ends. EMBO Rep. 2019, 20, e47560. [Google Scholar] [CrossRef] [PubMed]
  60. de Krijger, I.; Fohr, B.; Perez, S.H.; Vincendeau, E.; Serrat, J.; Thouin, A.M.; Susvirkar, V.; Lescale, C.; Paniagua, I.; Hoekman, L.; et al. MAD2L2 dimerization and TRIP13 control shieldin activity in DNA repair. Nat. Commun. 2021, 12, 5421. [Google Scholar] [CrossRef] [PubMed]
  61. Lampson, M.A.; Kapoor, T.M. The human mitotic checkpoint protein BubR1 regulates chromosome-spindle attachments. Nat. Cell Biol. 2005, 7, 93–98. [Google Scholar] [CrossRef]
  62. Komura, K.; Inamoto, T.; Tsujino, T.; Matsui, Y.; Konuma, T.; Nishimura, K.; Uchimoto, T.; Tsutsumi, T.; Matsunaga, T.; Maenosono, R.; et al. Increased BUB1B/BUBR1 expression contributes to aberrant DNA repair activity leading to resistance to DNA-damaging agents. Oncogene 2021, 40, 6210–6222. [Google Scholar] [CrossRef]
  63. Basu, J.; Bousbaa, H.; Logarinho, E.; Li, Z.; Williams, B.C.; Lopes, C.; Sunkel, C.E.; Goldberg, M.L. Mutations in the essential spindle checkpoint gene bub1 cause chromosome missegregation and fail to block apoptosis in Drosophila. J. Cell Biol. 1999, 146, 13–28. [Google Scholar] [CrossRef]
  64. Cunha-Ferreira, I.; Chazeau, A.; Buijs, R.R.; Stucchi, R.; Will, L.; Pan, X.; Adolfs, Y.; van der Meer, C.; Wolthuis, J.C.; Kahn, O.I.; et al. The HAUS Complex Is a Key Regulator of Non-centrosomal Microtubule Organization during Neuronal Development. Cell Rep. 2018, 24, 791–800. [Google Scholar] [CrossRef] [PubMed]
  65. He, T.S.; Chen, T.; Wang, D.D.; Xu, L.G. HAUS8 regulates RLRVISA antiviral signaling positively by targeting VISA. Mol. Med. Rep. 2018, 18, 2458–2466. [Google Scholar] [PubMed]
  66. Tuan, N.M.; Lee, C.H. Role of Anillin in Tumour: From a Prognostic Biomarker to a Novel Target. Cancers 2020, 12, 1600. [Google Scholar] [CrossRef] [PubMed]
  67. Dai, X.; Chen, X.; Hakizimana, O.; Mei, Y. Genetic interactions between ANLN and KDR are prognostic for breast cancer survival. Oncol. Rep. 2019, 42, 2255–2266. [Google Scholar] [CrossRef] [PubMed]
  68. Xiao, Y.; Deng, Z.; Li, Y.; Wei, B.; Chen, X.; Zhao, Z.; Xiu, Y.; Hu, M.; Alahdal, M.; Deng, Z.; et al. ANLN and UBE2T are prognostic biomarkers associated with immune regulation in breast cancer: A bioinformatics analysis. Cancer Cell Int. 2022, 22, 193. [Google Scholar] [CrossRef]
  69. Luo, C.; Lei, M.; Zhang, Y.; Zhang, Q.; Li, L.; Lian, J.; Liu, S.; Wang, L.; Pi, G.; Zhang, Y. Systematic construction and validation of an immune prognostic model for lung adenocarcinoma. J. Cell. Mol. Med. 2020, 24, 1233–1244. [Google Scholar] [CrossRef]
  70. Gao, P.S.; Leung, D.Y.; Rafaels, N.M.; Boguniewicz, M.; Hand, T.; Gao, L.; Hata, T.R.; Schneider, L.C.; Hanifin, J.M.; Beaty, T.H.; et al. Genetic variants in interferon regulatory factor 2 (IRF2) are associated with atopic dermatitis and eczema herpeticum. J. Investig. Dermatol. 2012, 132 Pt 1, 650–657. [Google Scholar] [CrossRef]
  71. Yuan, S.; Zheng, T.; Li, P.; Yang, R.; Ruan, J.; Huang, S.; Wu, Z.; Xu, A. Characterization of Amphioxus IFN Regulatory Factor Family Reveals an Archaic Signaling Framework for Innate Immune Response. J. Immunol. 2015, 195, 5657–5666. [Google Scholar] [CrossRef]
  72. Nhu, Q.M.; Cuesta, N.; Vogel, S.N. Transcriptional regulation of lipopolysaccharide (LPS)-induced Toll-like receptor (TLR) expression in murine macrophages: Role of interferon regulatory factors 1 (IRF-1) and 2 (IRF-2). J. Endotoxin Res. 2006, 12, 285–295. [Google Scholar] [CrossRef]
  73. Sumiyoshi, M.; Kotani, Y.; Ikuta, Y.; Suzue, K.; Ozawa, M.; Katakai, T.; Yamada, T.; Abe, T.; Bando, K.; Koyasu, S.; et al. Arf1 and Arf6 Synergistically Maintain Survival of T Cells during Activation. J. Immunol. 2021, 206, 366–375. [Google Scholar] [CrossRef]
  74. Khadilkar, R.J.; Ray, A.; Chetan, D.R.; Sinha, A.R.; Magadi, S.S.; Kulkarni, V.; Inamdar, M.S. Differential modulation of the cellular and humoral immune responses in Drosophila is mediated by the endosomal ARF1-Asrij axis. Sci. Rep. 2017, 7, 118. [Google Scholar] [CrossRef] [PubMed]
  75. Selyunin, A.S.; Reddick, L.E.; Weigele, B.A.; Alto, N.M. Selective protection of an ARF1-GTP signaling axis by a bacterial scaffold induces bidirectional trafficking arrest. Cell Rep. 2014, 6, 878–891. [Google Scholar] [CrossRef] [PubMed]
  76. Takahashi, D.; Mori, T.; Wakabayashi, M.; Mori, Y.; Susa, K.; Zeniya, M.; Sohara, E.; Rai, T.; Sasaki, S.; Uchida, S. KLHL2 interacts with and ubiquitinates WNK kinases. Biochem. Biophys. Res. Commun. 2013, 437, 457–462. [Google Scholar] [CrossRef] [PubMed]
  77. Zinngrebe, J.; Montinaro, A.; Peltzer, N.; Walczak, H. Ubiquitin in the immune system. EMBO Rep. 2014, 15, 28–45. [Google Scholar] [CrossRef]
  78. Morris, J.R.; Solomon, E. BRCA1: BARD1 induces the formation of conjugated ubiquitin structures, dependent on K6 of ubiquitin, in cells during DNA replication and repair. Hum. Mol. Genet. 2004, 13, 807–817. [Google Scholar] [CrossRef]
  79. Nishikawa, H.; Ooka, S.; Sato, K.; Arima, K.; Okamoto, J.; Klevit, R.E.; Fukuda, M.; Ohta, T. Mass spectrometric and mutational analyses reveal Lys-6-linked polyubiquitin chains catalyzed by BRCA1-BARD1 ubiquitin ligase. J. Biol. Chem. 2004, 279, 3916–3924. [Google Scholar] [CrossRef]
Animals 14 00080 g001
Figure 1. Diagram of power value and connectivity. (A) The x-axis delineates the power β, with the y-axis symbolizing R2. The line in red signifies R2 = 0.96. (B) The x-axis marks the power β, and the y-axis portrays the mean connectivity.
Figure 1. Diagram of power value and connectivity. (A) The x-axis delineates the power β, with the y-axis symbolizing R2. The line in red signifies R2 = 0.96. (B) The x-axis marks the power β, and the y-axis portrays the mean connectivity.
Animals 14 00080 g001
Animals 14 00080 g002

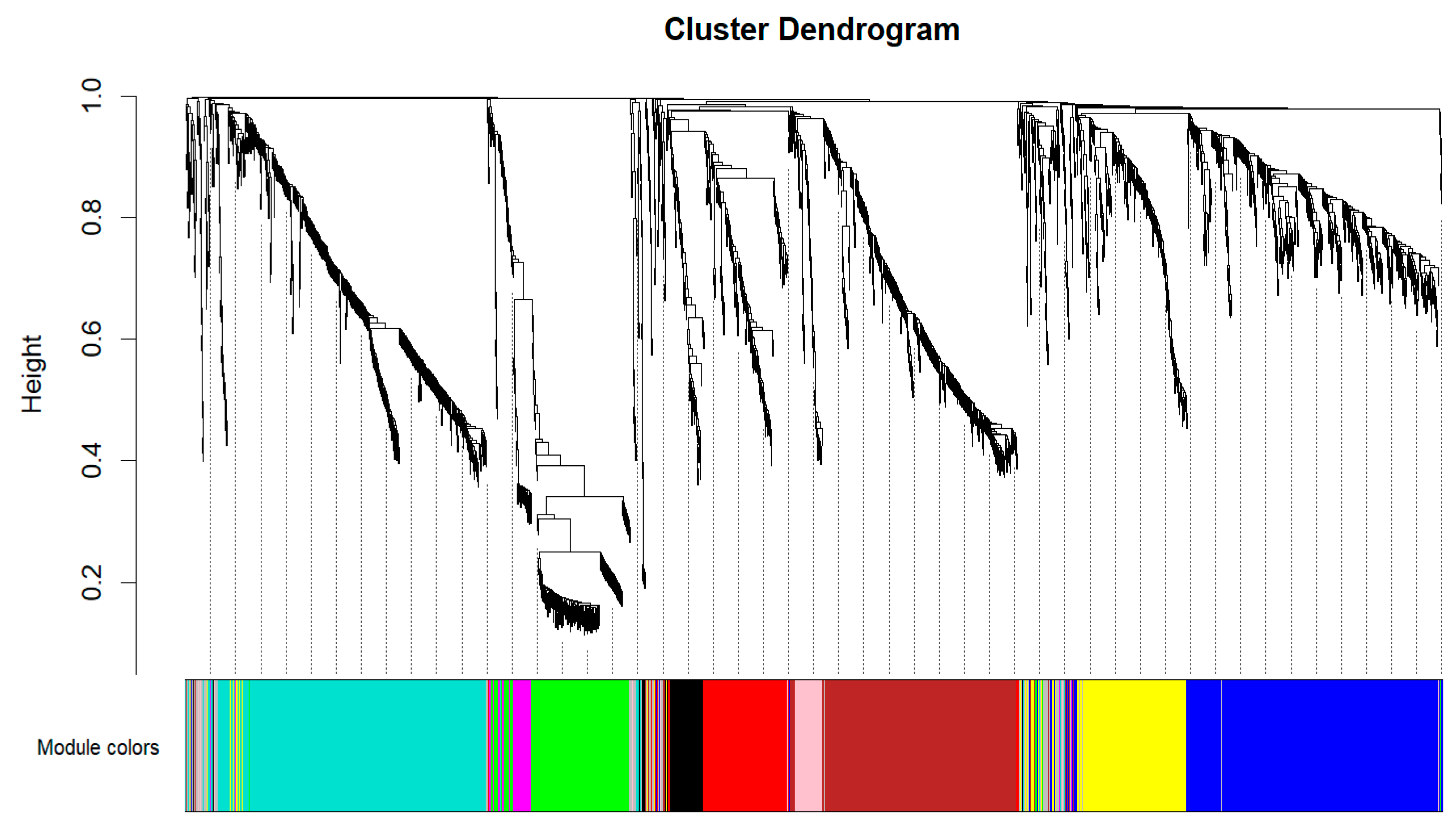

Figure 2. Hierarchical cluster tree of DEGs. Each node of the tree represents a DEG. The associated color denotes its corresponding module. The grey module encompasses all unclustered DEGs.
Figure 2. Hierarchical cluster tree of DEGs. Each node of the tree represents a DEG. The associated color denotes its corresponding module. The grey module encompasses all unclustered DEGs.
Animals 14 00080 g002
Animals 14 00080 g003

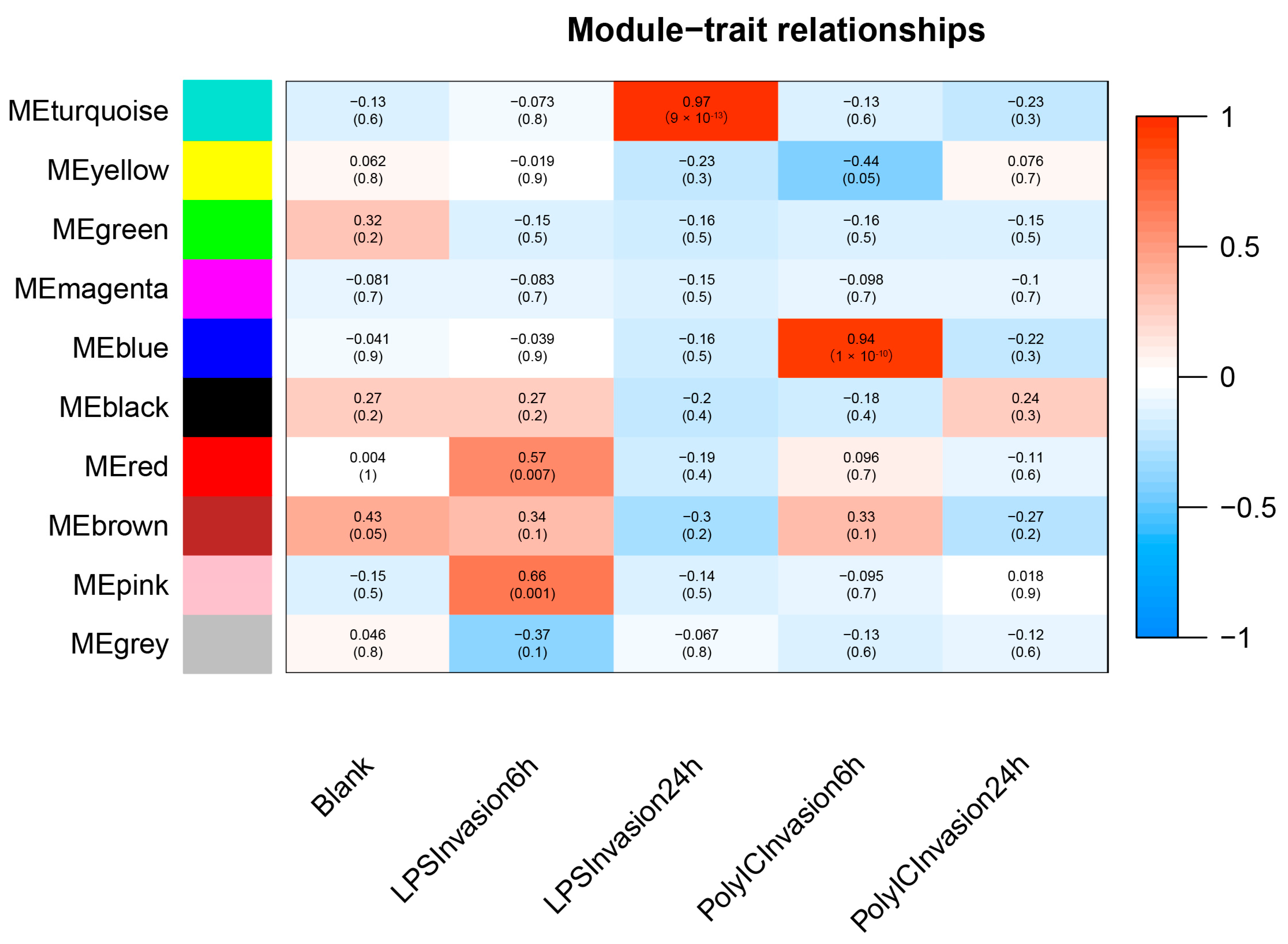

Figure 3. The diagram presents relationships between modules and traits. Each row represents a module, while each column depicts a trait. The significance levels are visually displayed using a color spectrum that ranges from blue, indicative of low significance, to red, denoting high significance.
Figure 3. The diagram presents relationships between modules and traits. Each row represents a module, while each column depicts a trait. The significance levels are visually displayed using a color spectrum that ranges from blue, indicative of low significance, to red, denoting high significance.
Animals 14 00080 g003
Animals 14 00080 g004

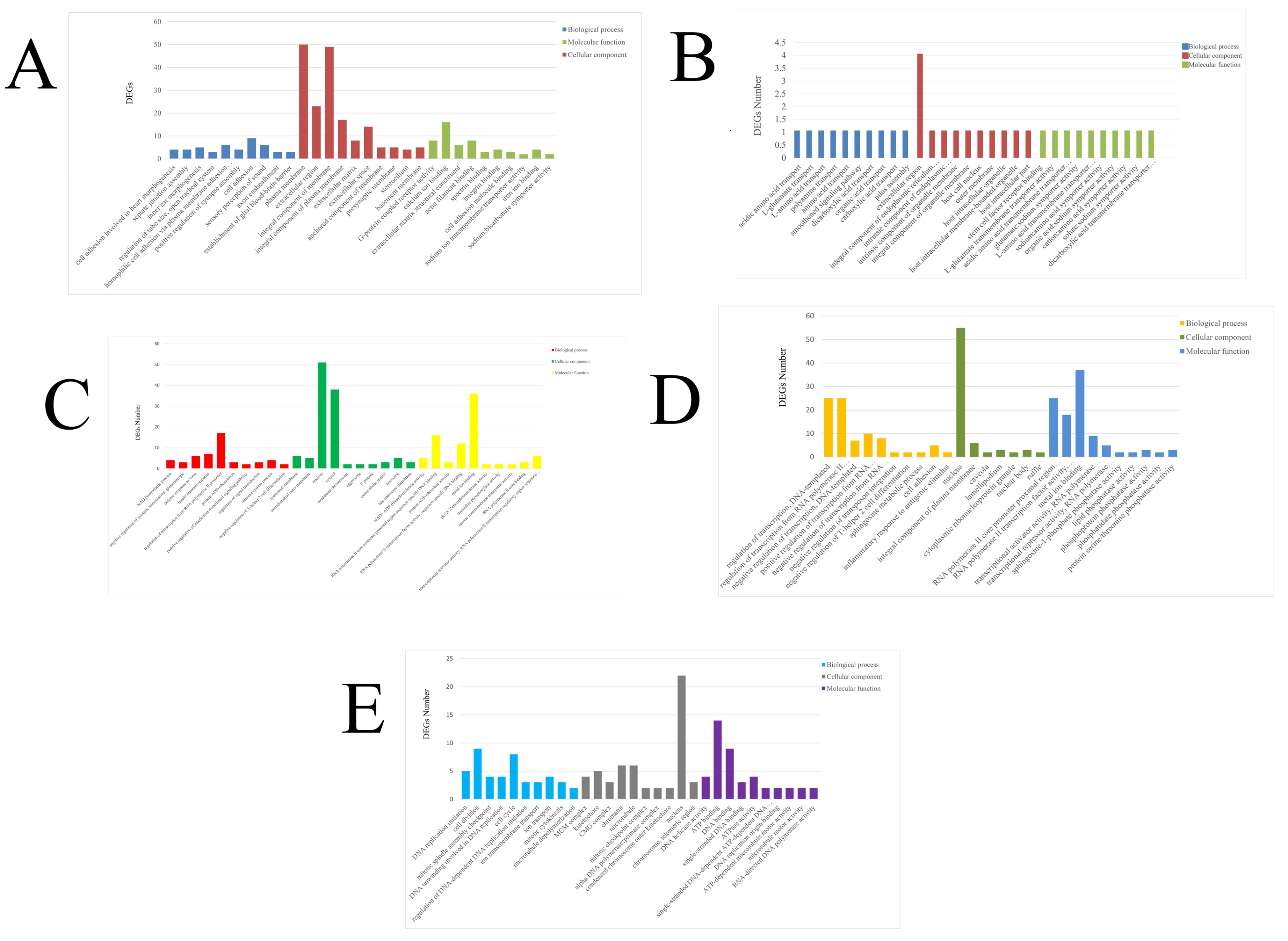

Figure 4. Level-3 GO terms of five modules. (A) GO terms enriched with DEGs in the brown module. (B) GO terms enriched with DEGs in the pink module. (C) GO terms enriched with DEGs in the turquoise module. (D) GO terms enriched with DEGs in the blue module. (E) GO terms enriched with DEGs in the black module.
Figure 4. Level-3 GO terms of five modules. (A) GO terms enriched with DEGs in the brown module. (B) GO terms enriched with DEGs in the pink module. (C) GO terms enriched with DEGs in the turquoise module. (D) GO terms enriched with DEGs in the blue module. (E) GO terms enriched with DEGs in the black module.
Animals 14 00080 g004
Animals 14 00080 g005

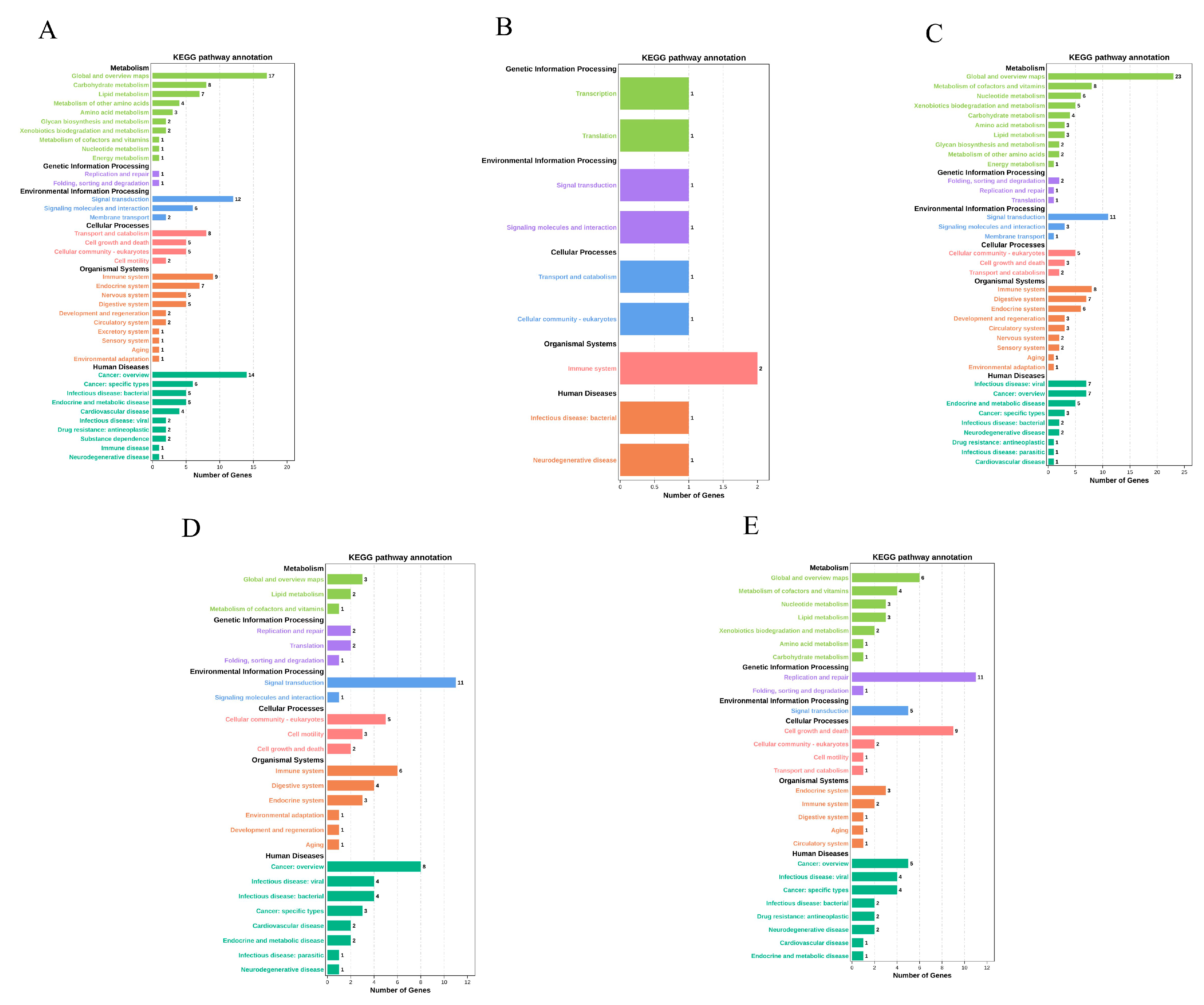

Figure 5. Level-2 KEGG terms of five modules. (A) KEGG terms enriched with DEGs in the brown module. (B) KEGG terms enriched with DEGs in the pink module. (C) KEGG terms enriched with DEGs in the turquoise module. (D) KEGG terms enriched with DEGs in the blue module. (E) KEGG terms enriched with DEGs in the black module.
Figure 5. Level-2 KEGG terms of five modules. (A) KEGG terms enriched with DEGs in the brown module. (B) KEGG terms enriched with DEGs in the pink module. (C) KEGG terms enriched with DEGs in the turquoise module. (D) KEGG terms enriched with DEGs in the blue module. (E) KEGG terms enriched with DEGs in the black module.
Animals 14 00080 g005
Animals 14 00080 g006

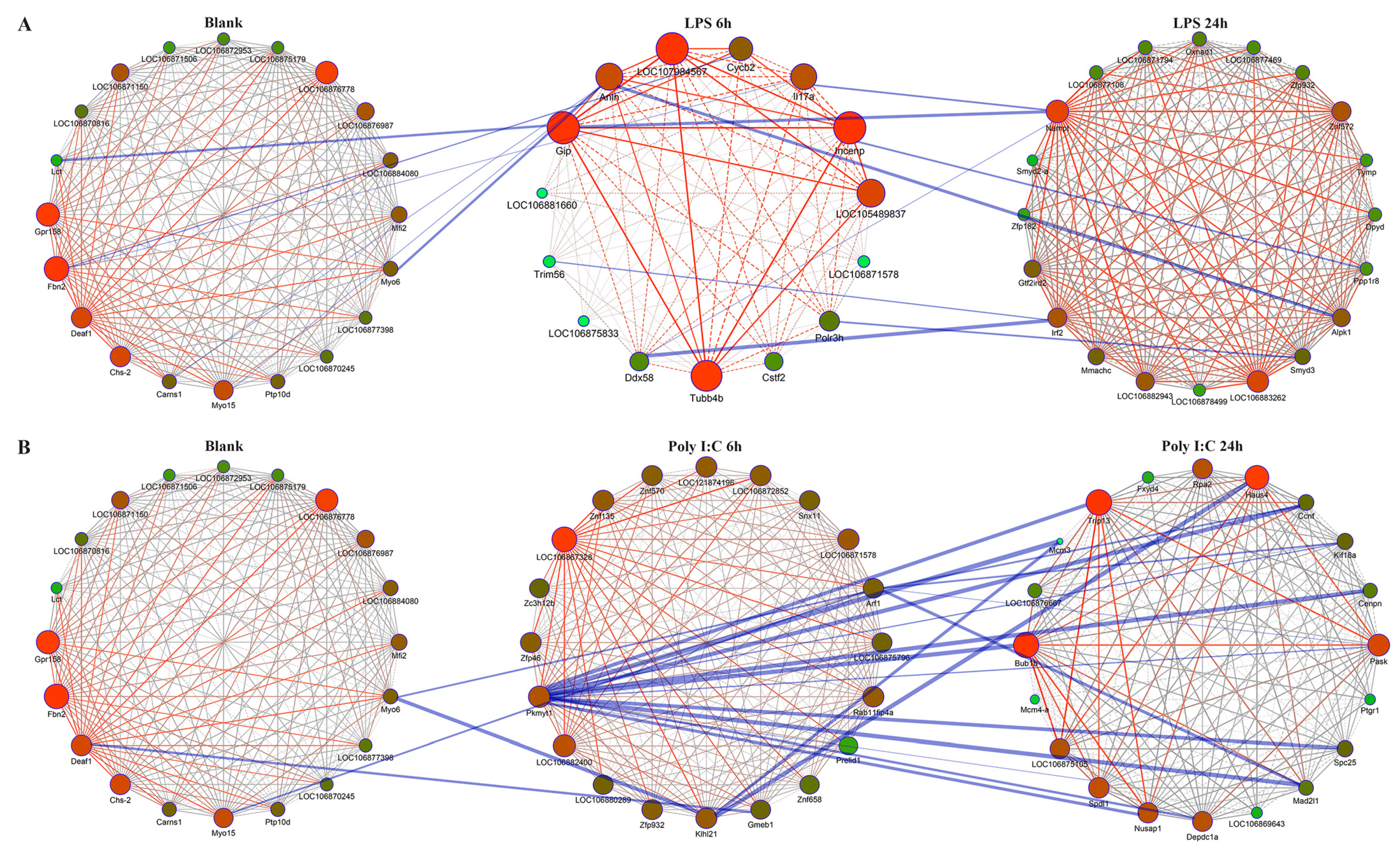

Figure 6. Gene interaction networks. (A) Gene networks are depicted at various time intervals following LPS stimulation. Each circle in the diagram represents a unique gene. The color gradient of the circle, transitioning from green to red, coupled with the transition of the circle size from small to large, symbolizes the gene connectivity from low to high. Within an individual module, a transition of line colors from dark to light and a shift of line thickness from thin to thick represent gene correlations from low to high, respectively. Furthermore, the lines interconnecting various modules signify the interactional relationships between the genes. (B) Gene networks at different time intervals following Poly I:C stimulation are also depicted.
Figure 6. Gene interaction networks. (A) Gene networks are depicted at various time intervals following LPS stimulation. Each circle in the diagram represents a unique gene. The color gradient of the circle, transitioning from green to red, coupled with the transition of the circle size from small to large, symbolizes the gene connectivity from low to high. Within an individual module, a transition of line colors from dark to light and a shift of line thickness from thin to thick represent gene correlations from low to high, respectively. Furthermore, the lines interconnecting various modules signify the interactional relationships between the genes. (B) Gene networks at different time intervals following Poly I:C stimulation are also depicted.
Animals 14 00080 g006
Animals 14 00080 g007
Figure 7. Comparison of expression of hub genes between qRT-PCR and RNA-Seq results. (A) qRT-PCR validation results of genes related to LPS infection. The x-axis stands for the infection time; the y-axis represents fold change. (B) qRT-PCR validation results of genes related to Poly I:C infection.
Figure 7. Comparison of expression of hub genes between qRT-PCR and RNA-Seq results. (A) qRT-PCR validation results of genes related to LPS infection. The x-axis stands for the infection time; the y-axis represents fold change. (B) qRT-PCR validation results of genes related to Poly I:C infection.
Animals 14 00080 g007
Table 1. List of primers used for qRT-PCR validation.
Table 1. List of primers used for qRT-PCR validation.
Gene NameForward Primer (5′-3′)TM (°C)Reverse Primer (5′-3′)TM (°C)Length (bp)
EAF1TTGTCTCTGGGCCATTTAAG60ACTGAGAGCGTCGATTAGTA60102
FBN2GTCTGCAAAGCTGGTTACT60GATTGGCTGTGTGGTTGA60105
GPR158GCTCCACTTGCACATTTATC59GAGAACCTTCGATCCAGAAC60106
GIPCGCGGACTTCCGAAATAATA60GTAACAAAGCTGTCGCAAAG60120
INCENPCGTTAGGCTTGGATCTAGTG60CCTGGAGCTGAGAACTTTG60135
LOC107984567CTATGGGCTGTGAAGGAATC60CGAACAAACGACCGAAGT60165
NAMPTTTAGGGTGCAGGTATAGGAG60GAGAAACCCGCCATTTCA60114
LOC106883262CGCTCTCCGGCTATTTATTT60TCTGATGGCGGGTATTCT60153
ZNF572CCTGTGTGAATACGTCTGTG60ACTGAGAGCAGCAGTTTAAG60128
LOC106867328CACACTCACACGCAAACA61CCACACTCTGCTCACTAAATC60103
LOC106882400GAACGACCAACTTCCTTCTC60GTATCTGCTCCCTTATCCATTC60111
PKMYT1GAATCTGGAACCCGACATAAC60CGTAGCCTCCAGTTGTATCTA61118
TRIP13GAGTGGTCAATGCTCTTCTG60GAGGTGAAGGCAAACCTATG60150
BUB1BGGTAACGGACCTTCTTCAAC60GGGAGAGGTCTGTGGATTAT60108
HAUS4CTGGCGATTCTGATGTTTCT60GCTTCATCAGTTCCTCTACTTC60117
ANLNCTGTTGCTCCACGTCTTATG61GGTCTTGAGCACTACCTTTG60126
IRF2TTCTTCCTCTCTCACCTCAC60CCACTCAAGGCCTGAAATAC60132
ARF1TATCCAGACATTTGCCTTCC60TAGTGAGGGAGAGAGAGAGA60100
KLHL2GAAACATCAGTCGTCTCTGG60CTTGTTACCTCCGCTGTATG60153
Table 2. Summary of module sizes.
Table 2. Summary of module sizes.
ModulesDEG Numbers
grey100
blue508
brown396
green223
megenta53
pink61
red170
tuquoise515
yellow237
black80
Table 3. List of top three gene based on protein–protein interaction networks analyses.
Table 3. List of top three gene based on protein–protein interaction networks analyses.
Gene Abbreviated NameGene Official Full NameProtein Interaction Numbers
LPS stimulation (brown, pink, and turquoise modules)
ANLNanillin, actin-binding protein4
NAMPTnicotinamide phosphoribosyltransferase3
IRF2Interferon regulatory factor 22
Poly I:C stimulation (brown, blue, and black modules)
PKMYT1protein kinase, membrane associated tyrosine/threonine 112
ARF1ADP ribosylation factor 16
KLHL2kelch like family member 23
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Y.; Chen, X.; Xu, X.; Yang, J.; Liu, X.; Sun, G.; Li, Z. Weighted Gene Co-Expression Network Analysis Based on Stimulation by Lipopolysaccharides and Polyinosinic:polycytidylic Acid Provides a Core Set of Genes for Understanding Hemolymph Immune Response Mechanisms of Amphioctopus fangsiao. Animals 2024, 14, 80. https://doi.org/10.3390/ani14010080

AMA Style

Wang Y, Chen X, Xu X, Yang J, Liu X, Sun G, Li Z. Weighted Gene Co-Expression Network Analysis Based on Stimulation by Lipopolysaccharides and Polyinosinic:polycytidylic Acid Provides a Core Set of Genes for Understanding Hemolymph Immune Response Mechanisms of Amphioctopus fangsiao. Animals. 2024; 14(1):80. https://doi.org/10.3390/ani14010080

Chicago/Turabian Style

Wang, Yongjie, Xipan Chen, Xiaohui Xu, Jianmin Yang, Xiumei Liu, Guohua Sun, and Zan Li. 2024. "Weighted Gene Co-Expression Network Analysis Based on Stimulation by Lipopolysaccharides and Polyinosinic:polycytidylic Acid Provides a Core Set of Genes for Understanding Hemolymph Immune Response Mechanisms of Amphioctopus fangsiao" Animals 14, no. 1: 80. https://doi.org/10.3390/ani14010080

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
