A New Species of the Cyrtodactylus pulchellus Group (Squamata: Gekkonidae) from Surat Thani Province, Thailand Underscores This Group’s Remarkable Diversity on the Thai-Malay Peninsula †

by
Korkhwan Termprayoon
1,
Attapol Rujirawan
2,3,
Larry Lee Grismer
4,5,6 and
Anchalee Aowphol
2,3,*
1
School of Science, Walailak University, Nakhon Si Thammarat 80161, Thailand
2
Animal Systematics and Ecology Speciality Research Unit, Department of Zoology, Faculty of Science, Kasetsart University, Bangkok 10900, Thailand
3
Biodiversity Center, Kasetsart University, Bangkok 10900, Thailand
4
Herpetology Laboratory, Department of Biology, La Sierra University, 4500 Riverwalk Parkway, Riverside, CA 92515, USA
5
Department of Herpetology, San Diego Natural History Museum, P.O. Box 121390, San Diego, CA 92112, USA
6
Institute for Tropical Biology and Conservation, Universiti Malaysia Sabah, Jalan UMS, Kota Kinabalu 88400, Malaysia
*
Author to whom correspondence should be addressed.
†
ZooBank: https://zoobank.org/BB8C956F-F21D-4C84-8BD1-5A3A782CD40A.
Animals 2024, 14(22), 3226; https://doi.org/10.3390/ani14223226
Submission received: 27 September 2024 / Revised: 5 November 2024 / Accepted: 8 November 2024 / Published: 11 November 2024
(This article belongs to the Special Issue Evolution, Diversity, and Conservation of Herpetofauna: Second Edition)
Browse Figures
Versions Notes

Simple Summary

This study discovered a new Cyrtodactylus population from Phet Phanomwat Waterfall in Southern Thailand. It has genetic divergences pertaining to mitochondrial NADH dehydrogenase subunit 2 (ND2) gene of ≥3.97% from its sister lineage, C. lekaguli, and bearing ≥ 7.99% genetic divergence from the congeners in the C. pulchellus group. This population can be separated from C. lekaguli by its morphologically significant differences. Based on the molecular and morphological evidence, this population is described as a new species, Cyrtodactylus kanchanadit sp. nov. The discovery of this new species increases the total number of Cyrtodactylus species to 377, of which 57 occur in Thailand.

Abstract

An integrative taxonomic study recognized a new species of the Cyrtodactylus pulchellus group from Kanchanadit District, Surat Thani Province, Southern Thailand. Phylogenetic analyses of the mitochondrial ND2 gene revealed a new species, Cyrtodactylus kanchanadit sp. nov., that is closely related to C. lekaguli. The new species differs from its sister lineage by bearing mean genetic divergence of 4.53% and significant differences in both mensural and morphometric characters (p < 0.05). Cyrtodactylus kanchanadit sp. nov. can be differentiated from the remaining members of the C. pulchellus species group because of its genetic divergence of ≥7.99% and a combination of differences in body size: 11–15 supralabial and 10–12 infralabial scales, 29–35 paravertebral tubercles, 18–23 longitudinal rows of dorsal tubercles, 32–37 rows of ventral scales, 20–23 subdigital lamellae on the fourth toe, 32–37 femoroprecloacal pores in adult males, and four or five dark body bands; weak tuberculation on body; absence of tubercles in the ventral body fold, absence of precloacal pores in females, and absence of scattered pattern of white tubercles on dorsum; presence of precloacal groove depression; and maculated white caudal bands. Cyrtodactylus kanchanadit sp. nov. is currently known from its type locality.

1. Introduction

The genus Cyrtodactylus has been recognized for its remarkable diversity due to its adaptive ability in various habitats (e.g., limestone karst, granitic forest, swamps, vegetation, and lowland evergreen forest) and highly diverse morphology [1,2,3]. Over the decades, extensive exploration of previously unsurveyed areas revealed a vast number of unknown species that have been later described [4,5,6,7]. The discoveries continuously increase the members of this genus to 376 named species [8,9,10,11,12] and makes this genus one of the most diverse genus-level groups of vertebrates [2]. Due to its high adaptability, this genus is broadly distributed from South Asia to Melanesia, covering at least eight geographic regions [1,3,13]. Southeast Asia (including Malaysia, Laos, Myanmar, Cambodia, and Thailand) is recognized as a major global biodiversity hotspot [14] and home to over 180 Cyrtodactylus species within 21 of 31 species groups [2,8].
One of the Southeast Asian species groups is the C. pulchellus group occurring throughout the Thai–Malay Peninsular region. This species group is a monophyletic group containing 19 nominal species [15,16,17,18,19,20,21]. Most members are recognized as karst- and granite-associated species (except C. macrotuberculatus) that independently evolved from a generalist ancestor [1,17]. Despite the growing number in this species group resulting from unexplored areas from lowlands to mountain regions (e.g., [22]), several poorly known areas have not been visited, which are hypothesized to contain hidden diversity along its range. Our recent field surveys discovered a population from Kanchanadit District, Surat Thani Province, Southern Thailand. The morphology of the specimens collected closely resembles those species within the C. pulchellus group in various aspects. Molecular analyses showed it to be a different lineage from C. lekaguli Grismer, Wood, Quah, Anuar, Muin, Sumontha, Ahmad, Bauer, Wangkulangkul, Grismer, and Pauwels, 2012, known from this area, and additional multivariate and univariate analyses showed statistically significant differences between this new population and closely related species. Based on the provided evidence, specimens of the Kanchanadit population are considered to be a new species and are described below.

2. Materials and Methods

2.1. Sampling

The visual encounter surveys were carried out at the Phet Phanomwat Waterfall in Surat Thani Province, Southern Thailand (Figure 1). Nine Cyrtodactylus specimens were collected between 1900 and 2100 h on 26 January 2019. Garmin GPSMAP 64s (Garmin Ltd., Olathe, KS, USA) was used to determine geographical coordinates and elevation. A Kestrel 400 Weather Meter (Nielsen-Kellerman Co., Boothwyn, PA, USA) was used to measure the ambient temperature and humidity, and ecological data were noted individually (i.e., substrate use, microhabitat, and time of capture). Specimens were photographed live and then euthanized using tricaine methanesulfonate (MS-222, Sigma-Aldrich Co., St. Louis, MO, USA). Tissue samples were removed and preserved in 95% ethanol for molecular study. Voucher specimens were fixed in 10% formalin, washed in running water, and then transferred to 70% ethanol for long-term storage. The vouchers were deposited in the herpetological collections of the Zoological Museum, Kasetsart University, Thailand (ZMKU).

2.2. Molecular Analyses

From the newly collected specimens, total genomic DNA was extracted from ethanol-preserved tissues using a NucleoSpin Tissue Kit (Macherey-Nagel GmbH & Co. KG, Dueren, Germany) according to the manufacturer’s standard protocols. The amplification was performed on the partial sequences of the mitochondrial ND2 gene and flanking tRNAs using PCR condition following Termprayoon et al. [21] with a primer pair of MetF6 and COIH [23]. The products were purified using QIAquick® PCR Purification Kit (Qiagen, Hilden, German), and the amplifying primers were used for sequencing in the ABI 3730XL DNA Sequencer by Sangon Biotech Inc. (Shanghai, China) using BigDye version 3 chemistry (Applied Biosystems, Carlsbad, CA, USA). GenBank accession numbers, museum numbers, and locality of specimens used are available in Table S1.
A total of 99 homologous sequences were downloaded from GenBank consisting of seven outgroup species and 92 selected individuals of other species in the C. pulchellus group.
The outgroup species (Agamura persica (Duméril, 1856), Hemidactylus frenatus Duméril & Bibron, 1836, Tropiocolotes steudneri (Peters, 1869), C. elok Dring, 1979, C. hontreensis Ngo, Grismer & Grismer, 2018, C. interdigitalis Ulber, 1993, and C. intermedius (Smith, 1917)) used to root the tree were selected by following Wood et al. [24]. The new and downloaded sequences were aligned using the MUSCLE plug-in implemented in Geneious Prime 2022.2.1. The amino acids of the partial ND2 gene were translated to verify the sequences. All sequences used are listed in Table S1.
Maximum Likelihood (ML) and Bayesian Inference (BI) methods were performed to reconstruct phylogenetic trees. The best substitution models for each codon position and tRNAs were identified using ModelFinder with the Bayesian Information Criterion (BIC) embedded in IQ-TREE [25]. The selected models for ML were HKY + F + I + G4 for 1st, TIM3 + F + G4 for 2nd, and TN + F + G4 for 3rd coding position and K2P + G4 for the tRNAs. The ML tree was run in IQ-TREE webserver [26] with 1000 ultrafast bootstrap (UFB, [27]) replicates. The BI analysis was conducted using MrBayes 3.2.6 on XSEDE [28] through the CIPRES Science Gateway v.3.3 [29], employing the selected model that closely matched the models developed for the ML analysis. The Markov Chain Monte Carlo (MCMC) was run with four chains, three hot and one cold, for 10 million generations and sampled every 1000 generations. The first 25% of each tree was excluded as burn-in. Tracer v. 1.7.1. [30] was used to check the stationarity and the effective sample sizes (ESSs) for all parameters to be sure that all were above 200. With pairwise deletion, MEGA 11 [31] was used to compute uncorrected pairwise sequence divergences (p-distance), both intra- and interspecific.

2.3. Morphological Measurement

Morphological data were collected from the newly collected specimens. Sixteen morphological characters were measured on the left side of the body using Mitutoyo digital vernier calipers (to the nearest 0.1 mm, Mitutoyo Co., Kawasaki, Japan), and eighteen meristic characters were identified under a Nikon SMZ745 (Nikon Co., Tokyo, Japan) dissecting microscope on both left (L) and right (R) sides, when possible. Characters and their abbreviations follow Termprayoon et al. [21] (see Abbreviation).
Additional non-metric categorical characters that were considered were the degree of body tuberculation, and weak tuberculation refers to dorsal body tubercles that are low and rounded, whereas prominent tuberculation refers to tubercles that are raised and keeled; the presence or absence of tubercles on the dorsal and ventral surfaces of the forearms; the presence or absence of tubercles in the gular region, throat, and ventrolateral body folds; body tubercles extending past the base of the tail; the width of the dark body bands relative to the width of the interspace between the bands; the presence or absence of dark pigmentation infused in the white caudal bands of adults; the presence of caudal tubercles; the presence or absence of a precloacal depression or groove; femoroprecloacal pores that are continuous or discontinuous; the presence or absence of scattered white/yellow tubercles on the dorsum; and the presence or absence of white tail tip in hatchlings and juveniles. The color pattern was assessed for dorsal, ventral, and lateral images of the body in both sexes and for all possible age classes before preservation.

2.4. Statistical Analyses

Thirty preserved specimens of the Kanchanadit population (n = 6) and C. lekaguli (n = 24) were used for statistical analysis. R studio version 2023.12.1 was used for all statistical analyses [32]. Fifteen mensural characters were size-adjusted using an allometric equation: Xadj = log[X ± β(SVL ± SVLmean)], where Xadj = adjusted value; X = measured value; β = unstandardized regression coefficient for each species; SVL = measured snout–vent length; and SVLmean = overall average SVL of each allometry species [33,34,35,36] implemented through the R package GroupStruct [37]. Tail length (TL) was rejected for analyses due to their condition (e.g., original, regenerated, or broken tail). The adjustment was conducted for each species and then concatenated into a single data frame to ensure there is no interspecific conflation of variation [38,39]. Prior to the analyses, all 15 adjusted characters and seven meristics (SL, IL, PVT, LRT, VS, 4TL, and BB) were merged into a single dataset. The other characters were omitted as data for some specimens were unavailable.
The dataset was analyzed by principal component analysis (PCA) using the factorMine R package [40] to reduce its complexity and to select a subset of input variables that retain the most significant information. The plots were visualized using ggplot2 package [41]. The differences between the Kanchanadit population and C. lekaguli were compared using both parametric t-test and non-parametric Mann–Whitney U test. Dataset was checked for normal distribution using the Shapiro–Wilk test (p ≥ 0.05) and equality of variance using the Levene’s test (p ≥ 0.05). A comparison was performed by t-test for normalized and equal variance data or Welch’s t-test for unequal data. Non-parametric Mann–Whitney U test was conducted for non-normalized data. A non-parametric permutation-multivariate analysis of variance (PERMANOVA) from vegan package 2.5-3 [42] was used to determine the significant differences in centroid locations and group clustering between species based on the loadings of the first four dimensions recovered from the PCA. The analysis computes a Euclidean (dis)similarity matrix with 50,000 permutations.

3. Results

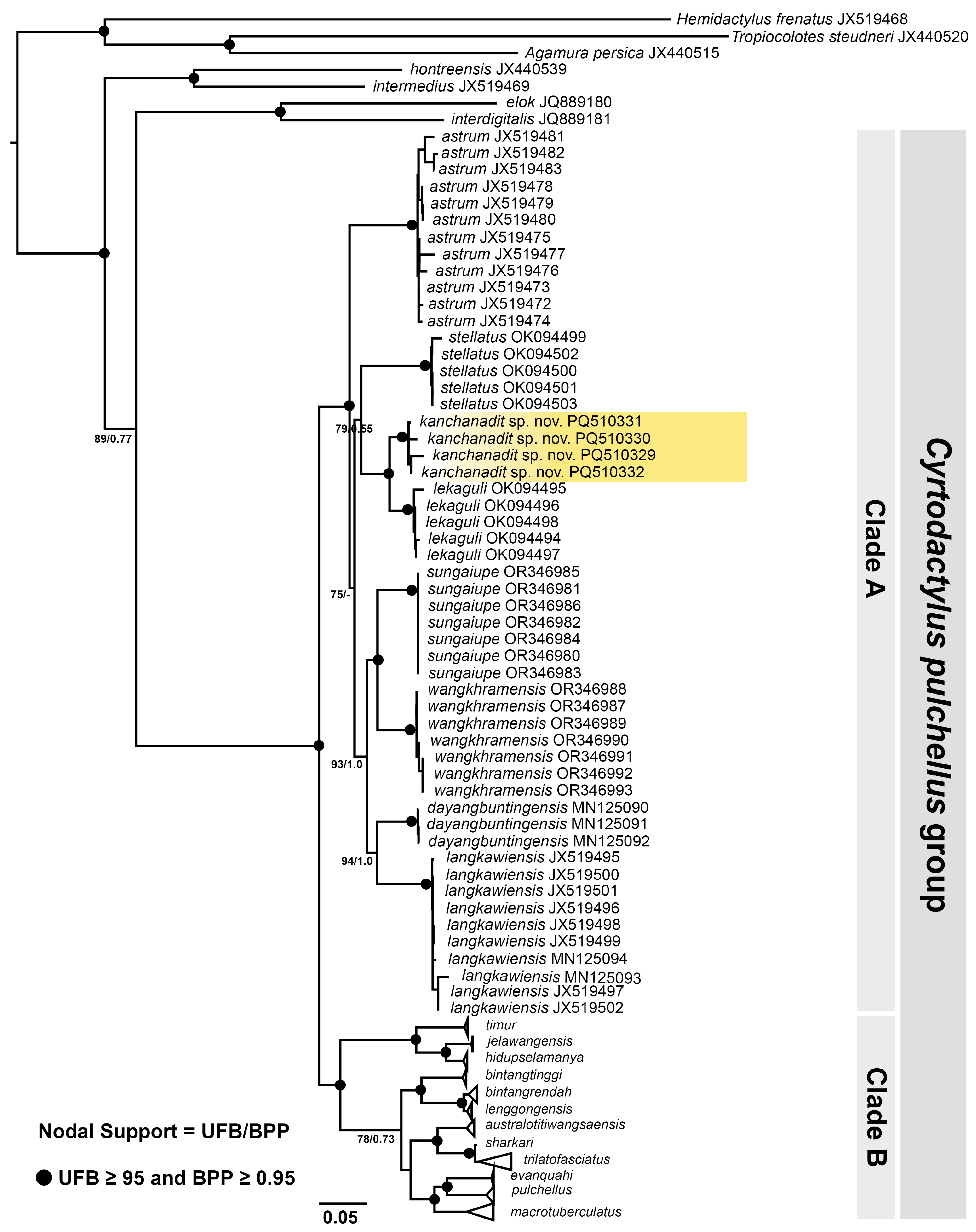

3.1. Phylogenetic Relationships

The phylogenetic ML and BI analyses recovered largely identical topologies with slightly different support values. The ML tree with UFB and BPP is shown in Figure 2. Both analyses showed that the Kanchanadit population is a member of the C. pulchellus group and is deeply nested within Clade A consisting of C. astrum Grismer, Wood, Quah, Anuar, Muin, Sumontha, Ahmad, Bauer, Wangkulangkul, Grismer, and Pauwels, 2012, C. dayangbuntingensis Quah, Grimer, Wood, and Sah, 2019, C. langkawiensis Grismer, Wood, Quah, Anuar, Muin, Sumontha, Ahmad, Bauer, Wangkulangkul, Grismer, and Pauwels, 2012, C. lekaguli, C. stellatus Termprayoon, Rujirawan, Ampai, Wood, and Aowphol, 2021, C. sungaiupe Termprayoon, Rujirawan, Grismer, Wood, and Aowphol, 2023, and C. wangkhramensis Termprayoon, Rujirawan, Grismer, Wood, and Aowphol, 2023.
The Kanchanadit samples formed a strongly supported monophyletic lineage (100 UFB, 1.00 BPP) and were recovered as a sister lineage (100 UFB, 1.00 BPP) to C. lekaguli. The Kanchanadit population had p-distances of 3.97–5.55% from C. lekaguli and ≥ 7.99% from the remaining species in Clade A. The p-distances within the Kanchanadit population were 0.52 to 1.78% (mean: 1.23%). The p-distances between and within species in Clade A of the C. pulchellus group are shown in Table 1.

3.2. Morphology

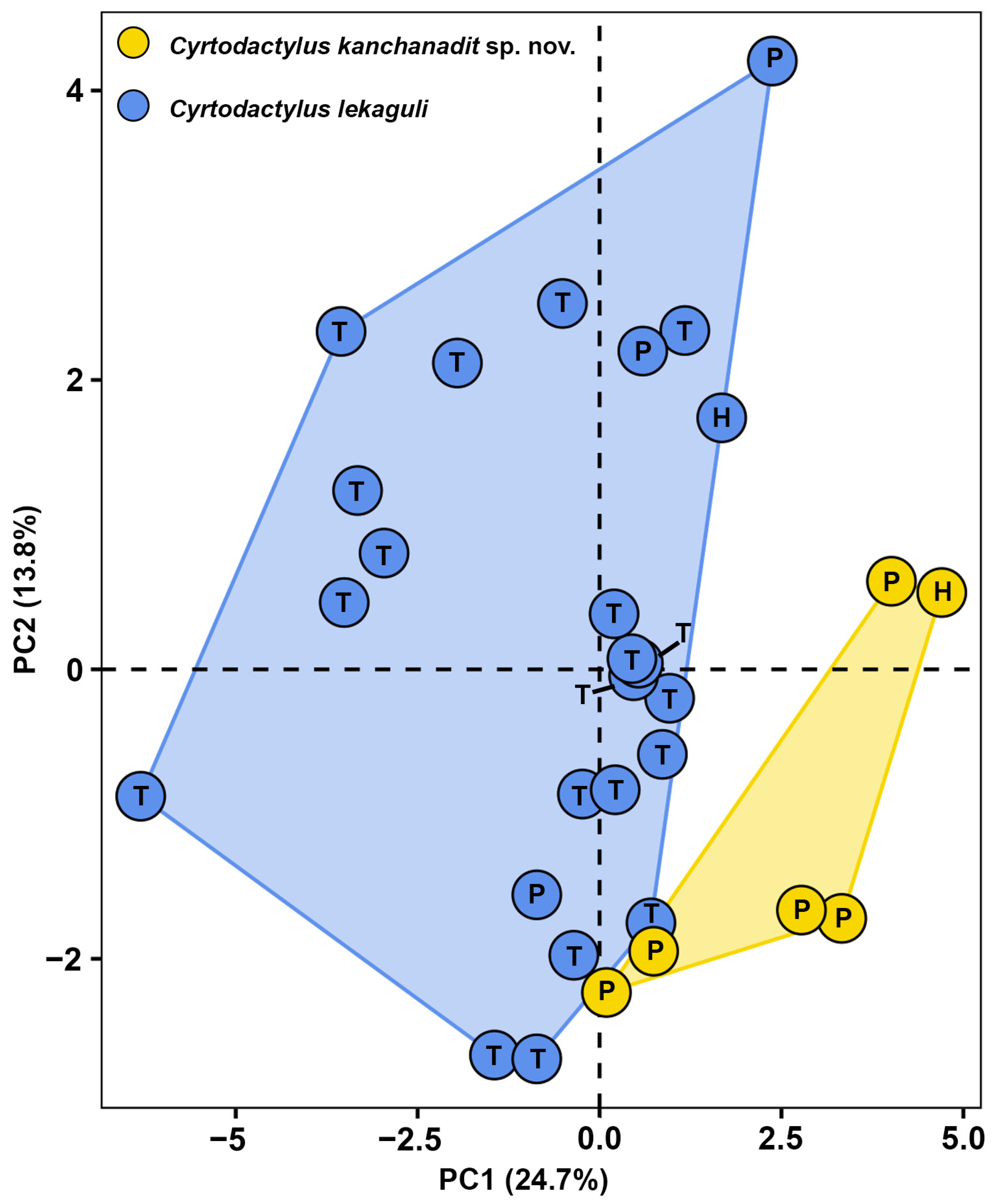

The PCA of two closely related lineages, the Kanchanadit population and C. lekaguli, is shown in Figure 3. The Kanchanadit population and C. lekaguli cluster separately in the plot of PC1 and PC2, which together explain the largest part of the variance. PC1–PC3 accounted for 48.68% of the morphological variation (Table 2). The factor loadings of PC1 accounted for 24.71%, and were heavily loaded on six characters (TWadj, HWadj, ESadj, ENadj, INadj, and PVT). The PC2 accounted for 13.85% of the variation and loaded heavily for AGadj and HDadj. The PC3 accounted for 10.13% of the variation and loaded heavily for HLadj and EDadj. The PERMANOVA analysis indicated that the Kanchanadit population differed significantly in morphospace from C. lekaguli (F = 8.33; R2 = 0.229; p < 0.001).
The t-test (or Mann–Whitney U test) revealed significant differences between the Kanchanadit population and C. lekaguli in TWadj, FLadj, AGadj, HLadj, INadj, SL, PVT, and BB (p < 0.0001–0.0459; Table 3). The Kanchanadit population had larger TWadj, FLadj, AGadj, HLadj, and INadj and higher numbers in SL and BB but lower in PVT than C. lekaguli. Mean, standard deviation (SD), and range of size-adjusted characters and the differences between species are summarized (Table 3; Figure 4).

3.3. Systematic Account

Based on the evidence of their phylogenetic relationships, relatively high genetic divergence, morphological differences, and diagnostic characters, the Kanchanadit population is hypothesized to be distinct from all congeners in the C. pulchellus group and is described below as a new species.
Cyrtodactylus kanchanadit sp. nov.
Figure 5, Figure 6, Figure 7 and Figure 8
Holotype: Adult male (ZMKU R 01091) collected from Thailand, Surat Thani Province, Kanchanadit District, Pa Ron Subdistrict, Tai Rom Yen National Park, Phet Phanomwat Waterfall (8.94243° N, 99.52816° E; 165 m a.s.l.), on 26 January 2019 by Korkhwan Termprayoon, Anchalee Aowphol, Attapol Rujirawan, Siriporn Yodthong, and Natee Ampai.
Paratypes: Three adult males (ZMKU R 01092–01093 and ZMKU R 01096) and two adult females (ZMKU R 01094–01095); same data as the holotype.
Referred specimens: ZMKU R 01097–01098 (two immature) and ZMKU R 01099 (one juvenile); same data as the holotype.
Etymology: The specific epithet kanchanadit refers to the type locality in Kanchanadit District, Surat Thani Province, Thailand.
Suggested common name: Kanchanadit Bent-toed Gecko.

3.3.1. Diagnosis

Cyrtodactylus kanchanadit sp. nov. can be distinguished from all other species of the C. pulchellus group by a combination of the following characters: (1) SVL 92.5–101.1 mm in adult males (n = 4), 108.2–108.5 mm in adult females (n = 2); (2) 11–15 supralabial and 10–12 infralabial scales; (3) weak tuberculation on body; (4) no tubercles on ventral surfaces of forelimbs, gular region, or in ventrolateral body folds; (5) 29–35 paravertebral tubercles; (6) 18–23 longitudinal rows of dorsal tubercles; (7) 32–37 rows of ventral scales; (8) 20–23 subdigital lamellae on the fourth toe; (9) 32–37 femoroprecloacal pores in adult males; (10) absence of precloacal pores in adult females; (11) deep precloacal groove in males; (12) absence of scattered pattern of white tubercles on dorsum; (13) four or five dark dorsal body bands; (14) light caudal bands in adults infused with dark pigmentation; and (15) posterior portion of tail in hatchlings and juveniles white.

3.3.2. Description of Holotype

Adult male 101.1 mm SVL, head moderate in length (HL/SVL 0.29) and wide (HW/HL 0.69), flattened (HD/HL 0.39), distinct from neck, and triangular in dorsal profile; lores concave anteriorly, inflated posteriorly; frontal and prefrontal regions concave; canthus rostralis rounded anteriorly; snout elongate (ES/HL 0.42), rounded in dorsal profile, laterally constricted; eye large (ED/HL 0.23); ear opening oval, obliquely oriented, moderate in size (EL/HL 0.07); eye to ear distance greater than diameter of eye (EE/ED 1.21); rostral rectangular, divided dorsally by an inverted Y-shaped furrow, bordered posteriorly by left and right supranasals and two internasals, bordered laterally by first supralabials; external nares bordered anteriorly by rostral, dorsally by a large anterior supranasal, posteriorly by two moderate postnasals, ventrally by first supralabials; 11/10 (left/right) rectangular supralabials extending to below midpoint of eye, 15/14 to below the posterior margin of the eyeball, decreasing abruptly just posterior to midpoint of eye; 9/8 infralabials extending to below midpoint of eye, 10/12 to upturn the labial margin, decreasing gradually in size posteriorly, usually wider than supralabials; scales of rostrum and lores slightly raised, larger than granular scales on top of head and occiput, and those on the posterior portion of canthus rostralis are slightly larger; scales on top of head and occiput intermixed with rounded, small tubercles extending eyelids; dorsal superciliaries elongate, smooth, largest anteriorly; mental triangular, 3.0 mm in width, 3.7 mm in length, bordered laterally by first infralabials and posteriorly by an enlarged pair of first postmental scales which contact medially for approximately 60% of their length; the second postmental pair smaller than those of the first pair, not in contact with infralabial; one row of slightly enlarged, elongate sublabials extending posteriorly to the seventh (left/right) infralabials; and small, granular, gular scales grading posteriorly into larger, flat, smooth, imbricate, pectoral and ventral scales.
Body relatively short (AG/SVL 0.48) with well-defined, non-tuberculate ventrolateral folds; dorsal scales small, granular, interspersed with low, regularly arranged, weakly keeled tubercles, smaller intervening tubercles rarely present; tubercles extend from the top of head to base of tail extending less than 1/2 of tail; tubercles on the top of head and nape relatively small, and largest on body; 22 longitudinal rows of tubercles at midbody; 35 paravertebral tubercles; 35 flat imbricate ventral scales between ventrolateral body folds; ventral scales larger than dorsal scales; precloacal scales large, smooth; and a deep precloacal groove.
Forelimbs moderately slender, relatively short (FL/SVL 0.16); dorsal scales on forelimbs raised, granular, larger than those on body; dorsal scales on forearm intermixed with enlarged, subconical and weakly keeled tubercles; scales of ventral surface of forearm flat, subimbricate, tubercles absent; palmar scales small, weakly rounded; digits well-developed, inflected at basal, interphalangeal joints; 19/19 (left/right) subdigital lamellae on the fourth finger, 6/6 proximal subdigital lamellae rectangular, broadly expanded proximal to joint inflection, 13/13 distal subdigital lamellae slightly expanded distal to inflection becoming gradually more expanded near the claw; well-developed claws, sheathed by a dorsal and ventral scale; hind limbs more robust than forelimbs, moderate in length (TBL/SVL 0.19), enlarged, subconical, weakly keeled tubercles on dorsal surface of hind limbs separated by smaller juxtaposed scales; ventral scales of thigh flat, smooth, imbricate, larger than dorsal granular scales; ventral, tibial scales flat, smooth, imbricate; a single row of 39 enlarged femoroprecloacal scales extend nearly from knee to knee through precloacal region where they are continuous with enlarged, pore-bearing precloacal scales; 37 continuous pore-bearing femoroprecloacal scales, forming an inverted T bearing a deep, precloacal groove (Figure 7C); eight pore-bearing scales bordering groove (four on each side); postfemoral scales immediately posterior to enlarged scale row small, nearly granular, forming an abrupt union with postfemoral scales on posteroventral margin of thigh; plantar scales weakly rounded to flat; 22/22 (left/right) subdigital lamellae on fourth toe, 8/8 proximal subdigital lamellae rectangular, broadly expanded proximal to joint inflection, 14/14 distal subdigital lamellae slightly expanded distal to inflection becoming gradually more expanded near the claw; and well-developed claws, sheathed by a dorsal and ventral scale.
Regenerated tail 135.8 mm in length, slightly longer than SVL (TL/SVL = 1.34), 10.8 mm in width at base, tapering to a point; dorsal scales of tail flat, squarish; original portion segmented, approximately 8–9 transverse scales rows per segment; one transverse row of two to four dorsal tubercles on the posterior margin of a segment, and four tubercles on the first two segments; caudal tubercles extended to 10th segment of the anterior portion of the original tail (Figure 7E); subcaudal region bearing a large median row of transverse scales; shallow dorsal and lateral caudal furrow; base of tail bearing hemipenial swellings; one row of 3L/3R medium-sized postcloacal tubercles on each hemipenial swelling; and postcloacal scales that are smooth, flat, large, imbricate.

3.3.3. Color of Holotype in Life

Ground color of head, body, and limbs is light brown; superciliaries are light yellow; supralabial and infralabial scales are off-white and gradually dusted with brown anterior to posterior; a wide, dark-brown nuchal band edged anteriorly and posteriorly by thin, yellowish lines bearing scattered creamy-white tubercles extends from the posterior margin of one eye to the posterior margin of another eye; five similar dark-brown body bands between nuchal loop and hind limb insertions edged anteriorly and posteriorly by pale, thin, creamy-white to yellow lines bearing irregular tubercles, and the first band terminates anteriorly to the shoulders, the second to fourth bands terminate just dorsal to the ventrolateral folds, and the fifth band terminates at the groin; dark body bands are thinner than light-colored interspaces; one additional dark-brown band is present posterior to the hind limbs (postsacral band); tubercles on dorsum is similar to body color, and those on the hind limbs are golden brown to light yellow; the ventral surfaces of the head are grayish white, the ground color of the abdomen is white and dusted with brown, and that on limbs is darker; postcloacal tubercles are light yellow; the original portion of the tail bearing seven dark bands is separated by maculate light to dark brown (anteriorly) to white (posteriorly) bands and white caudal band infused with dark pigmentation; the regenerated portion of the tail is light brown with a white marking near the tail tip; subcaudal region is darker than the tail dorsum (Figure 5).

3.3.4. Color of Holotype in Preservative

The overall color pattern of the head, body, limbs, and tail is similar to that in - life, with some fading. The ground color of the head, body, limbs, and dorsum is tan; the dark bands on the dorsum and tail are brown; the yellow-colored tuberculation on dorsum and postcloacal tubercles fades to off-white or white; light-beige colored and dusted with brown on the ventral surface (Figure 6 and Figure 7).

3.3.5. Morphological Variation

The paratypes and referred specimens of Cyrtodactylus kanchanadit sp. nov. closely resemble the holotype with some variation in coloration and banding pattern. The body bands of all examined specimens are very similar to those of the holotype with slight differences in shape and size. The fourth dorsal band of ZMKU R 01092 bifurcates on the midline to the left ventrolateral fold (Figure 8A). All specimens have one internasal scale except the holotype possesses two internasal scales. A juvenile (ZMKU R 01099) has a light-yellow ground color of the body with less prominent tubercles, body bands edged by tiny yellowish lines bearing few tubercles, approximately eleven immaculate dark caudal bands on the original tail, and the posterior portion is white. The mensural and meristic data of examined specimens are in Table 4 and Table 5.
In addition, two individuals (not collected) of Cyrtodactylus kanchanadit sp. nov. from the type locality were distinct from the holotype in their body pattern. In Figure 8C, an individual has four body bands with an irregular pattern on the third band and shows the original tail with 11 dark caudal bands and 12 white caudal bands. The juvenile (Figure 8D) has four body bands instead of five in the type series.

3.3.6. Distribution and Natural History

Cyrtodactylus kanchanadit sp. nov. is currently known from its type locality at Phet Phanomwat Waterfall, Tai Rom Yen National Park, Pa Ron Subdistrict, Kanchanadit District, Surat Thani Province, Thailand (Figure 1 and Figure 9). This type locality is covered by argillaceous limestone [43] and surrounded by lowland dry evergreen forests with large trees, numerous rocks, and boulders along the rocky stream and waterfalls (Figure 9). All geckos were captured from the type locality on 26 January 2019 between 1900 and 2100 h with a temperature of 22.8 °C and relative humidity of 82.9%. Most individuals used rock substrates located in the riparian habitat, except a specimen of ZMKU R 01098, which was found on a midstream rock. Specimen (ZMKU R 01094) is gravid with two eggs (externally visible). This new species is sympatric with other lizard species, including Cyrtodactylus zebraicus (Taylor, 1962), Cnemaspis kamolnorranathi Grismer, Sumontha, Cota, Grismer, Wood, Pauwels, and Kunya, 2010, Sphenomorphus maculatus (Blyth, 1853), Eutropis macularia (Blyth, 1853), and Acanthosaura meridiona Trivalairat, Sumontha, Kunya, and Chinangkul, 2022.

3.3.7. Comparisons

The distinguishing characters between Cyrtodactylus kanchanadit sp. nov. and other members in the C. pulchellus group are summarized in Table S2. Cyrtodactylus kanchanadit sp. nov. is differentiated from all seven recognized species of Clade A as it has a combination of diagnostic characteristics, statistical analyses, phylogenetic placement, and genetic divergence in the mitochondrial ND2 gene.
Cyrtodactylus kanchanadit sp. nov. can be differentiated from C. lekaguli by its statistically significant different values of mensural and meristic characters of TWadj, FLadj, AGadj, HLadj, INadj, SL, PVT, and BB (Table 3) and genetic divergence of 3.97–5.55% (Table 1).
Cyrtodactylus kanchanadit sp. nov. differs from C. astrum as it has 7–9 infralabial scales at the middle of the eyeball (vs. 5 or 6 scales); 29–35 paravertebral tubercles between limb insertions (vs. 38–57 tubercles); 11 dark caudal bands (13 or 14 bands); and the absence of a scattered pattern of white tubercles on dorsum (vs. present) and genetic divergence of 8.59–10.93%.
Cyrtodactylus kanchanadit sp. nov. differs from C. dayangbuntingensis as it has a larger maximum SVL of 108.5 mm (vs. 99.0 mm); 32–37 femoroprecloacal pores in males (vs. 26–29 pores); dorsal band interspace ratio of 0.89–1.66 (vs. 0.75); the absence of scattered pattern of white tubercles on dorsum (vs. present); and genetic divergence of 7.99–9.11%.
Cyrtodactylus kanchanadit sp. nov. differs from C. langkawiensis as it has a larger maximum SVL of 108.5 mm (vs. 99.8 mm); 32–37 longitudinal rows of ventral scales (vs. 38–43 scales); 32–37 femoroprecloacal pores in adult males (vs. 30 pores); and genetic divergence of 8.28–10.06%.
Cyrtodactylus kanchanadit sp. nov. differs from C. stellatus as it has a larger maximum SVL of 108.5 mm (vs. 96.1 mm); 32–37 femoroprecloacal pores in males (vs. 24–29 pores); absent of precloacal pores in females (vs. 11–15 pores) and the absence of scattered pattern of white tubercles on dorsum (vs. present); and genetic divergence of 8.09–9.89%.
Cyrtodactylus kanchanadit sp. nov. differs from C. sungaiupe as it has 7 or 8 pore-bearing scales on the preacloacal groove (vs. 5 or 6 pore-bearing scales) and genetic divergence of 8.58–9.84%.
Cyrtodactylus kanchanadit sp. nov. differs from C. wangkhramensis as it has a larger maximum SVL of 108.5 mm (vs. 98.8 mm); 12 light caudal bands (vs. 10 or 11 bands); and genetic divergence of 8.73–10.18%.

4. Discussion

In this study, we describe a new species, Cyrtodactylus kanchanadit sp. nov., from Southern Thailand based on a combination of molecular genetics, morphological comparisons, and geographic range. The phylogenetic position places this new species as a member of Clade A in the C. pulchellus group, and it is closely related to C. lekaguli. The genetic divergences between each lineage are relatively high. Furthermore, the species can be distinguished by their distribution across various geographic regions. Most of the species in Clade A are primarily found in karst and cave habitats, with the exception of C. lekaguli occurring in forest regions with rocky streams [15,18,20,21]. Morphologically, Cyrtodactylus kanchanadit sp. nov. closely resembles C. lekaguli in body and color pattern. The genetic divergence between C. lekaguli and C. kanchanadit sp. nov. is the smallest of all members of the C. pulchellus species group, and they are sister taxa, so it seems most likely that their similarities are inherited from their common ancestor, while the differences are due to some local adaptations. The discovery of Cyrtodactylus kanchanadit sp. nov. highlights the significant diversity of this well-adapted Cyrtodactylus gecko. This brings the C. pulchellus group to 20 species and increases the total number of Cyrtodactylus species in Thailand to 57 [8,9,10,11,12]. However, populations of the C. pulchellus group in some areas of Thailand remain unexplored, including those of C. lekaguli. To further understand the taxonomy, species boundary, ecology, and geographic distribution of the C. pulchellus group in Thailand, multiple lines of evidence should be applied, and additional surveys in unexplored areas should be conducted.
Grismer [22] noted that color pattern differences among the various populations of Cyrotdactylus pulchellus in Peninsular Malaysia (prior to its partitioning into multiple species) likely indicated that it comprised more than one species. It currently contains 20 nominal species (Figure 2) with more species still to be described (Termprayoon et al. in progress). This is similar to the partitioning of Cyrtodactylus intermedius into 14 species [10] with more being currently described (Grismer et al. in progress), and C. irregularis being partitioned into approximately 35 species [44]. What makes the pulchellus group so remarkable is that this high diversity is confined to the narrow-circumscribed Thai–Malay Peninsula from Phuket Island, Thailand, in the north (Figure 2) to Edau-Rompin, Johor, Peninsular Malaysia, in the south [22].

5. Conclusions

We described a new species of bent-toed gecko genus Cyrtodactylus from Surat Thani Province in Southern Thailand. Cyrtodactylus kanchanadit sp. nov. is the 20th member of the Cyrtodactylus pulchellus group and can be differentiated from its congeners based on its phylogenetic placement, genetic divergences, morphological comparisons, and diagnostic characters. This finding suggests that undiscovered populations may still exist throughout the range. Additional field surveys are needed to understand its species boundary, geographic distribution, and ecology.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani14223226/s1, Table S1: Specimens of outgroup and Cyrtodactylus species examined in this study [15,16,17,18,19,20,21,24,45]. The institutional abbreviations of examined specimens follow Sabaj [46]. Table S2: Comparative characters of the C. kanchanadit sp. nov. and the C. pulchellus group. The differences from a new species denoted in gray-shaded cells. Keys: W = weak; P = prominent; / = data unavailable. Figure S1: Bayesian Inference analysis of Cyrtodactylus kanchanadit sp. nov. and the other members of C. pulchellus group based on mitochondrial ND2 and flanking tRNA of 99 specimens. Support values at nodes are Bayesian posterior probabilities (BPPs).

Author Contributions

Conceptualization, K.T. and A.A.; methodology, all authors; formal analysis and data curation, K.T., A.R. and A.A.; validation, A.R., A.A. and L.L.G.; investigation, K.T., A.R. and A.A.; writing—original draft preparation, K.T., A.R. and A.A.; writing—review and editing, A.R., A.A. and L.L.G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by Walailak University under the New Researcher Development scheme (contract number: WU67205) to KT and received funding support from the NSRF via the Program Management Unit for Human Resources & Institutional Development, Research and Innovation (grant number: B42G670038) to AA and AR.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Care and Use Committee of Kasetsart University (ACKU67-SCI-009, 14 June 2024; ACKU61-SCI-008, 14 August 2018), the Institutional Animal Care and Use Committee of Walailak University (WU-ACUC-67017, 30 September 2024), and the Department of National Parks, Wildlife and Plant Conservation, Thailand permitted field work (permit no. 0907.4/28401).

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author (Anchalee Aowphol).

Acknowledgments

We would like to thank Prapunsak Jaipho (superintendent of Tai Rom Yen National Park) and the Tai Rom Yen National Park’s staff for facilitating the fieldwork. We thank Tanit Srisomsak (Department of Mineral Resources) for his valuable suggestions. Natee Ampai and Siriporn Yodthong assisted with field survey. AA was supported by International SciKU Branding (ISB), Faculty of Science, Kasetsart University.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

SVLSnout–vent length, taken from the tip of snout to the vent;
TWTail width, taken at the base of the tail immediately posterior to the postcloacal swelling;
TLTail length, taken from vent to the tip of the tail, original or regenerated;
FLForearm length, taken from the posterior margin of the elbow while flexed 90° to the inflection of the flexed wrist;
TBLTibia length, taken from the posterior surface of the knee while flexed 90° to the base of the heel;
AGAxilla to groin length, taken from the posterior margin of the forelimb at its insertion point on the body to the anterior margin of the hind limb at its insertion point on the body;
HLHead length, the distance from the posterior margin of the retroarticular process of the lower jaw to the tip of the snout;
HWHead width, measured at the angle of the jaws;
HDHead depth, the maximum height of head from the occiput to the throat;
EDEye diameter, the greatest horizontal diameter of the eyeball;
EEEye to ear distance, measured from the anterior edge of the ear opening to the posterior edge of the eyeball;
ESEye to snout distance, measured from anterior most margin of the eyeball to the tip of snout;
ENEye to nostril distance, measured from the anterior margin of the eyeball to the posterior margin of the external nares;
IOInter orbital distance, measured between the anterior edges of the orbit;
ELEar length, the greatest vertical distance of the ear opening;
INInternarial distance, measured between the nares across the rostrum.
SLSupralabial scales, counted from the largest scale immediately posterior to the dorsal inflection of the posterior portion of the upper jaw to the rostral scale;
SL-mideyeThe numbers of supralabial scales, counted from the largest scale immediately below the middle of the eyeball to the rostral scales;
ILInfralabial scales, counted from the largest scale immediately posterior to the dorsal inflection of the posterior portion of the upper jaw to the mental scale;
IL-mideyeThe numbers of infralabial scales, counted from the largest scale immediately below the middle of the eyeball to the mental scales;
PVTThe number of paravertebral tubercles between limb insertions, counted in a straight line immediately left or right of the vertebral column;
LRTThe number of longitudinal rows of body tubercles, counted transversely across the center of the dorsum from one ventrolateral fold to the other;
VSThe number of longitudinal rows of ventral scales, counted transversely across the center of the abdomen from one ventrolateral fold to the other;
4FLUThe number of small, unmodified subdigital lamellae distal to the digital inflection on the fourth finger, counted from the digital inflection to the claw;
4FLEThe number of expanded subdigital lamellae proximal to the digital inflection on the fourth finger, counted from the base of the first phalanx where it contacts the body of the hand to the largest scale on the digital inflection;
4FLThe total number of subdigital lamellae beneath the fourth finger (4FLU + 4FLE);
4TLUThe number of small, unmodified subdigital lamellae distal to the digital inflection on the fourth toe, counted from the digital inflection to the claw;
4TLEThe number of expanded subdigital lamellae proximal to the digital inflection on the fourth toe, counted from the base of the first phalanx where it contacts the body of the foot to the largest scale on the digital inflection;
4TLThe total number of subdigital lamellae beneath the fourth toe (4TLU + 4TLE);
FPPThe total number of precloacal and femoral pores in male (i.e., the sum of the number of femoral and precloacal scales bearing pores combined as a single meristic referred to as the femoroprecloacal pores);
PCTThe number of rows and total number of postcloacal (hemipenial) tubercles in adult male;
BBThe number of dark body bands between nuchal loop and hind limb insertions;
LCBThe number of light caudal bands on the original tail;
DCBThe number of dark caudal bands on the original tail.

References

  1. Grismer, L.L.; Wood, P.L., Jr.; Le, M.D.; Quah, E.S.; Grismer, J.L. Evolution of habitat preference in 243 species of Bent-toed geckos (Genus Cyrtodactylus Gray, 1827) with a discussion of karst habitat conservation. Ecol. Evol. 2020, 10, 13717–13730. [Google Scholar] [CrossRef] [PubMed]
  2. Grismer, L.L.; Wood, P.L.; Poyarkov, N.A.; Le, M.D.; Kraus, F.; Agarwal, I.; Oliver, P.M.; Nguyen, S.N.; Nguyen, T.Q.; Karunarathna, S. Phylogenetic partitioning of the third-largest vertebrate genus in the world, Cyrtodactylus Gray, 1827 (Reptilia; Squamata; Gekkonidae) and its relevance to taxonomy and conservation. Vertebr. Zool. 2021, 71, 101–154. [Google Scholar] [CrossRef]
  3. Grismer, L.L.; Wood, P.L., Jr.; Poyarkov, N.A.; Le, M.D.; Karunarathna, S.; Chomdej, S.; Suwannapoom, C.; Qi, S.; Liu, S.; Che, J. Karstic landscapes are foci of species diversity in the world’s third-largest vertebrate genus Cyrtodactylus Gray, 1827 (Reptilia: Squamata; Gekkonidae). Diversity 2021, 13, 183. [Google Scholar] [CrossRef]
  4. Ahda, Y.; Nugraha, F.A.D.; Tjong, D.H.; Kurniawan, N.; Amardi, Y.; Fauzi, M.A.; Lin, S.M. A new species of the Cyrtodactylus quadrivirgatus complex (Chordata, Reptilia, Squamata, Gekkonidae) from Sumatra Barat, Indonesia. ZooKeys 2023, 1168, 367–368. [Google Scholar] [CrossRef] [PubMed]
  5. Boruah, B.; Narayanan, S.; Aravind, N.A.; Lalronunga, S.; Deepak, V.; Das, A. Description of six new species of Cyrtodactylus Gray (Squamata: Gekkonidae) from northeastern India. Vertebr. Zool. 2024, 74, 453–486. [Google Scholar] [CrossRef]
  6. Grismer, L.L.; Pawangkhanant, P.; Idiiatullina, S.S.; Trofimets, A.V.; Nazarov, R.A.; Suwannapoom, C.; Poyarkov, N.A. A new species of Cyrtodactylus Gray, 1827 (Squamata: Gekkonidae) from the Thai-Malay Peninsula and the independent evolution of cave ecomorphology on opposite sides of the Gulf of Thailand. Zootaxa 2023, 5352, 109–136. [Google Scholar] [CrossRef]
  7. Grismer, L.L.; Aowphol, A.; Grismer, J.L.; Aksornneam, A.; Quah, E.S.; Murdoch, M.L.; Gregory, J.J.; Nguyen, E.; Kaatz, A.; Bringsoe, H.; et al. A new species of the Cyrtodactylus chauquangensis group (Squamata, Gekkonidae) from the borderlands of extreme northern Thailand. ZooKeys 2024, 1203, 211–238. [Google Scholar] [CrossRef]
  8. Uetz, P.; Freed, P.; Hošek, J. The Reptile Database. Available online: http://www.reptiledatabase.org (accessed on 31 August 2024).
  9. Ampai, N.; Rujirawan, A.; Yodthong, S.; Termprayoon, K.; Stuart, B.L.; Aowphol, A. A new species of karst-dwelling bent-toed gecko of the Cyrtodactylus intermedius group (Squamata, Gekkonidae) from eastern Thailand and the phylogenetic placement of C. intermedius. ZooKey 2024, 1211, 101–130. [Google Scholar] [CrossRef]
  10. Chhin, S.; Neang, T.; Chan, S.; Kong, K.; Ou, R.; Samorn, V.; Sor, R.; Lou, V.; Sin, S.; Chhim, M. A new species in the Cyrtodactylus intermedius (Squamata: Gekkonidae) group from an isolated limestone karst formation in southwestern Cambodia. Zootaxa 2024, 5474, 1–20. [Google Scholar] [CrossRef]
  11. Pauwels, O.S.G.; Chotjuckdikul, N.; Donbundit, N.; Sumontha, M.; Meesook, W. Cyrtodactylus panitvongi, a new cave-dwelling Bent-toed Gecko from Lopburi Province, central Thailand (Squamata: Gekkonidae). Zootaxa 2024, 5512, 373–388. [Google Scholar] [CrossRef]
  12. Sumontha, M.; Panitvong, N.; Kunya, K.; Donbundit, N.; Suthanthangjai, W.; Suthanthangjai, M.; Phanamphon, E.; Pauwels, O.S.G. Two new cave-dwelling species of Bent-toed Geckos from Saraburi and Loei provinces, Thailand (Squamata: Gekkonidae: Cyrtodactylus). Zootaxa 2024, 5512, 272–294. [Google Scholar] [CrossRef]
  13. Grismer, L.L.; Poyarkov, N.A.; Quah, E.S.; Grismer, J.L.; Wood, P.L., Jr. The biogeography of bent-toed geckos, Cyrtodactylus (Squamata: Gekkonidae). PeerJ 2022, 10, e13153. [Google Scholar] [CrossRef] [PubMed]
  14. Myers, N.; Mittermeier, R.A.; Mittermeier, C.G.; da Fonseca, G.A.B.; Kent, J. Biodiversity hotspots for conservation priorities. Nature 2020, 403, 853–858. [Google Scholar] [CrossRef] [PubMed]
  15. Grismer, L.L.; Wood, P.L., Jr.; Quah, E.S.; Anuar, S.; Muin, M.A.; Sumontha, M.; Ahmad, N.; Bauer, A.M.; Wangkulangkul, S.; Grismer, J.L. A phylogeny and taxonomy of the Thai-Malay Peninsula Bent-toed Geckos of the Cyrtodactylus pulchellus complex (Squamata: Gekkonidae): Combined morphological and molecular analyses with descriptions of seven new species. Zootaxa 2012, 3520, 1–55. [Google Scholar] [CrossRef]
  16. Grismer, L.L.; Wood, P.L., Jr.; Anuar, S.; Quah, E.S.; Muin, M.A.; Mohamed, M.; Chan, K.; Sumarli, A.X.; Loredo, A.I.; Heinz, H.M. The phylogenetic relationships of three new species of the Cyrtodactylus pulchellus complex (Squamata: Gekkonidae) from poorly explored regions in northeastern Peninsular Malaysia. Zootaxa 2014, 3786, 359–381. [Google Scholar] [CrossRef] [PubMed]
  17. Grismer, L.L.; Wood, P.L., Jr.; Anuar, S.; Grismer, M.S.; Quah, E.S.; Murdoch, M.L.; Muin, M.A.; Davis, H.R.; Aguilar, C.; Klabacka, R.; et al. Two new Bent-toed Geckos of the Cyrtodactylus pulchellus complex from Peninsular Malaysia and multiple instances of convergent adaptation to limestone forest ecosystems. Zootaxa 2016, 4105, 401–429. [Google Scholar] [CrossRef]
  18. Quah, E.S.; Grismer, L.L.; Wood Jr, P.J.; SA, M.S. The discovery and description of a new species of Bent-toed Gecko of the Cyrtodactylus pulchellus complex (Squamata: Gekkonidae) from the Langkawi Archipelago, Kedah, Peninsular Malaysia. Zootaxa 2019, 4668, zootaxa-4668.1.3. [Google Scholar] [CrossRef]
  19. Wood, P.L., Jr.; Grismer, L.L.; Muin, M.A.; Anuar, S.; Oaks, J.R.; Sites, J.W., Jr. A new potentially endangered limestone-associated Bent-toed Gecko of the Cyrtodactylus pulchellus (Squamata: Gekkonidae) complex from northern Peninsular Malaysia. Zootaxa 2020, 4751, 437–460. [Google Scholar] [CrossRef]
  20. Termprayoon, K.; Rujirawan, A.; Ampai, N.; Wood, P.L., Jr.; Aowphol, A. A new insular species of the Cyrtodactylus pulchellus group (Reptilia, Gekkonidae) from Tarutao Island, southern Thailand revealed by morphological and genetic evidence. ZooKeys 2021, 1070, 101–134. [Google Scholar] [CrossRef]
  21. Termprayoon, K.; Rujirawan, A.; Grismer, L.L.; Wood, P.L., Jr.; Aowphol, A. Two new karst-adapted species in the Cyrtodactyluspulchellus group (Reptilia, Gekkonidae) from southern Thailand. ZooKeys 2023, 1179, 313–352. [Google Scholar] [CrossRef]
  22. Grismer, L.L. Lizards of Peninsular Malaysia, Singapore, and Their Adjacent Archipelagos: Their Description, Distribution, and Natural History, 1st ed.; Edition Chimaira: Frankfurt, Germany, 2011; p. 728. [Google Scholar]
  23. Macey, J.R.; Larson, A.; Ananjeva, N.B.; Papenfuss, T.J. Evolutionary shifts in three major structural features of the mitochondrial genome among iguanian lizards. J. Mol. Evol. 1997, 44, 660–674. [Google Scholar] [CrossRef] [PubMed]
  24. Wood, P.L., Jr.; Heinicke, M.P.; Jackman, T.R.; Bauer, A.M. Phylogeny of bent-toed geckos (Cyrtodactylus) reveals a west to east pattern of diversification. Mol. Phylogenet. Evol. 2012, 65, 992–1003. [Google Scholar] [CrossRef] [PubMed]
  25. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.; Von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [PubMed]
  26. Trifinopoulos, J.; Nguyen, L.T.; von Haeseler, A.; Minh, B.Q. W-IQ-TREE: A fast online phylogenetic tool for maximum likelihood analysis. Nucleic Acids Res. 2016, 44, W232–W235. [Google Scholar] [CrossRef] [PubMed]
  27. Hoang, D.T.; Chernomor, O.; Von Haeseler, A.; Minh, B.Q.; Vinh, L.S. UFBoot2: Improving the ultrafast bootstrap approximation. Mol. Biol. Evol. 2018, 35, 518–522. [Google Scholar] [CrossRef]
  28. Ronquist, F.; Teslenko, M.; Van Der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef]
  29. Miller, M.A.; Pfeiffer, W.; Schwartz, T. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In Proceedings of the 2010 Gateway Computing Environments Workshop (GCE), New Orleans, LA, USA, 14 November 2010; IEEE: New York, NY, USA, 2010; pp. 1–8. [Google Scholar] [CrossRef]
  30. Rambaut, A.; Drummond, A.J.; Xie, D.; Baele, G.; Suchard, M.A. Posterior summarization in Bayesian phylogenetics using Tracer 1.7. Syst. Biol. 2018, 67, 901–904. [Google Scholar] [CrossRef]
  31. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  32. R Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. Available online: https://www.R-project.org/ (accessed on 28 June 2023).
  33. Thorpe, R. Quantitative handling of characters useful in snake systematics with particular reference to intraspecific variation in the ringed snake Natrix natrix (L.). Biol. J. Linn. Soc. 1975, 7, 27–43. [Google Scholar] [CrossRef]
  34. Thorpe, R. A review of the numerical methods for recognising and analysing racial differentiation. Numer. Taxon. 1983, 1, 404–423. [Google Scholar] [CrossRef]
  35. Turan, C. A note on the examination of morphometric differentiation among fish populations: The truss system. Turk. J. Zool. 1999, 23, 259–264. [Google Scholar]
  36. Lleonart, J.; Salat, J.; Torres, G.J. Removing allometric effects of body size in morphological analysis. J. Theor. Biol. 2000, 205, 85–93. [Google Scholar] [CrossRef] [PubMed]
  37. Chan, K.O.; Grismer, L.L. A standardized and statistically defensible framework for quantitative morphological analyses in taxonomic studies. Zootaxa 2021, 5023, 293–300. [Google Scholar] [CrossRef] [PubMed]
  38. Reist, J.D. An empirical evaluation of several univariate methods that adjust for size variation in morphometric data. Can. J. Zool. 1985, 63, 1429–1439. [Google Scholar] [CrossRef]
  39. McCoy, M.W.; Bolker, B.M.; Osenberg, C.W.; Miner, B.G.; Vonesh, J.R. Size correction: Comparing morphological traits among populations and environments. Oecologia 2006, 148, 547–554. [Google Scholar] [CrossRef]
  40. Lê, S.; Josse, J.; Husson, F. FactoMineR: An R package for multivariate analysis. J. Stat. Softw. 2008, 25, 1–18. [Google Scholar] [CrossRef]
  41. Wickham, H. ggplot2: Elegant Graphics for Data Analysis. Available online: https://ggplot2.tidyverse.org (accessed on 28 June 2023).
  42. Oksanen, J.; Blanchet, F.G.; Friendly, M.; Kindt, R.; Legendre, P.; McGlinn, D.; Minchin, P.R.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; et al. R Package for Community Ecologists: Popular Ordination Methods, Ecological Null Models and Diversity Analysis. Available online: https://github.com/vegandevs/vegan (accessed on 27 August 2024).
  43. Department of Mineral Resources. Geological Map of Thailand, Scale 1:50,000 (F4926IV Sheet 4926IV Ban Wang Ri); Department of Mineral Resources: Bangkok, Thailand, 2011.
  44. Ngo, H.T.; Do, Q.H.; Do, D.T.; Bui, T.P.T.; Ho, A.T.N.; Nguyen, T.Q.; Ziegler, T.; Le, M.D. Another new species of Cyrtodactylus (Squamata: Gekkonidae) from Binh Dinh Province, south-central Vietnam. Zootaxa 2024, 5446, 105–120. [Google Scholar] [CrossRef]
  45. Termprayoon, K.; Rujirawan, A.; Grismer, L.L.; Wood, P.L., Jr.; Aowphol, A. Taxonomic reassessment and phylogenetic placement of Cyrtodactylus phuketensis (Reptilia, Gekkonidae) based on morphological and molecular evidence. ZooKeys 2021, 1040, 91–121. [Google Scholar] [CrossRef]
  46. Sabaj, M.H. Codes for natural history collections in ichthyology and herpetology. Copeia 2020, 108, 593–669. [Google Scholar] [CrossRef]
Animals 14 03226 g001
Figure 1. Map illustrating the sampling location of the newly discovered Cyrtodactylus kanchanadit sp. nov. (yellow star) in Kanchanadit District, Surat Thani Province, along with the type localities of closely related species within Clade A of the C. pulchellus group.
Figure 1. Map illustrating the sampling location of the newly discovered Cyrtodactylus kanchanadit sp. nov. (yellow star) in Kanchanadit District, Surat Thani Province, along with the type localities of closely related species within Clade A of the C. pulchellus group.
Animals 14 03226 g001
Animals 14 03226 g002
Figure 2. Maximum Likelihood phylogenetic tree of Cyrtodactylus kanchanadit sp. nov. and the other members of C. pulchellus group based on mitochondrial ND2 and flanking tRNA of 99 specimens. Support values at nodes are ultrafast bootstrap (UFB) and Bayesian posterior probability (BPP).
Figure 2. Maximum Likelihood phylogenetic tree of Cyrtodactylus kanchanadit sp. nov. and the other members of C. pulchellus group based on mitochondrial ND2 and flanking tRNA of 99 specimens. Support values at nodes are ultrafast bootstrap (UFB) and Bayesian posterior probability (BPP).
Animals 14 03226 g002
Animals 14 03226 g003
Figure 3. PCA of Cyrtodactylus kanchanadit sp. nov. and C. lekaguli from their type localities. In the scatter plots, the letters signify different specimen types: holotype (H), paratype (P), and topotype (T).
Figure 3. PCA of Cyrtodactylus kanchanadit sp. nov. and C. lekaguli from their type localities. In the scatter plots, the letters signify different specimen types: holotype (H), paratype (P), and topotype (T).
Animals 14 03226 g003
Animals 14 03226 g004
Figure 4. Comparisons of (A) 15 mensurements and (B) seven meristic characters for Cyrtodactylus kanchanadit sp. nov. and C. lekaguli are summarized in box plots. * denotes significant difference level at p-value < 0.05.
Figure 4. Comparisons of (A) 15 mensurements and (B) seven meristic characters for Cyrtodactylus kanchanadit sp. nov. and C. lekaguli are summarized in box plots. * denotes significant difference level at p-value < 0.05.
Animals 14 03226 g004
Animals 14 03226 g005
Figure 5. Live specimen of the adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) from the type locality in Pa Ron Subdistrict, Kanchanadit District, Surat Thani Province, Thailand.
Figure 5. Live specimen of the adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) from the type locality in Pa Ron Subdistrict, Kanchanadit District, Surat Thani Province, Thailand.
Animals 14 03226 g005
Animals 14 03226 g006
Figure 6. Preserved specimen of the adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) showing dorsal and ventral views of the specimen.
Figure 6. Preserved specimen of the adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) showing dorsal and ventral views of the specimen.
Animals 14 03226 g006
Animals 14 03226 g007
Figure 7. The adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) in a preservative. (A) Head showing dorsal, ventral, and lateral views; (B) ventrolateral fold on the left side of the body; (C) a depression in the shape of an inverted T in the precloacal region and pore-bearing femoroprecloacal scales; (D) ventral views of left manus and left pes; and (E) dorsal view of tail showing last low of tubercles.
Figure 7. The adult male holotype of Cyrtodactylus kanchanadit sp. nov. (ZMKU R 01091) in a preservative. (A) Head showing dorsal, ventral, and lateral views; (B) ventrolateral fold on the left side of the body; (C) a depression in the shape of an inverted T in the precloacal region and pore-bearing femoroprecloacal scales; (D) ventral views of left manus and left pes; and (E) dorsal view of tail showing last low of tubercles.
Animals 14 03226 g007
Animals 14 03226 g008
Figure 8. Specimens of Cyrtodactylus kanchanadit sp. nov. from the type locality show variation in coloration and body pattern. (A) Adult male specimen (ZMKU R 01092) in preservative, (B) live adult female specimen (ZMKU R 01094), (C) an individual from its habitat (not collected) showing four dark dorsal bands with an irregular pattern on the 3rd band, and (D) a juvenile (not collected) bearing four dark body bands and having light yellow color on the body with a white tail tip.
Figure 8. Specimens of Cyrtodactylus kanchanadit sp. nov. from the type locality show variation in coloration and body pattern. (A) Adult male specimen (ZMKU R 01092) in preservative, (B) live adult female specimen (ZMKU R 01094), (C) an individual from its habitat (not collected) showing four dark dorsal bands with an irregular pattern on the 3rd band, and (D) a juvenile (not collected) bearing four dark body bands and having light yellow color on the body with a white tail tip.
Animals 14 03226 g008
Animals 14 03226 g009
Figure 9. Habitat of Cyrtodactylus kanchanadit sp. nov. at the type locality Phet Phanomwat Waterfall, Kanchanadit District, Surat Thani Province. (A) Waterfall and (B) outcrop along the stream bank. Photographs by Siriporn Yodthong.
Figure 9. Habitat of Cyrtodactylus kanchanadit sp. nov. at the type locality Phet Phanomwat Waterfall, Kanchanadit District, Surat Thani Province. (A) Waterfall and (B) outcrop along the stream bank. Photographs by Siriporn Yodthong.
Animals 14 03226 g009
Table 1. Uncorrected pairwise sequence divergences (p-distances) of the Clade A members in the C. pulchellus group. Cyrtodactylus kanchanadit sp. nov. and other species of Clade A in the C. pulchellus group based on mitochondrial ND2 gene and flanking tRNAs. The p-distance values are presented as average values with their ranges in parentheses. Distances within the same species are highlighted in bold.
Table 1. Uncorrected pairwise sequence divergences (p-distances) of the Clade A members in the C. pulchellus group. Cyrtodactylus kanchanadit sp. nov. and other species of Clade A in the C. pulchellus group based on mitochondrial ND2 gene and flanking tRNAs. The p-distance values are presented as average values with their ranges in parentheses. Distances within the same species are highlighted in bold.
SpeciesnCyrtodactylus kanchanadit sp. nov.C. astrumC. dayangbuntingensisC. langkawiensisC. lekaguliC. stellatusC. sungaiupeC. wangkhramensis
Cyrtodactylus
kanchanadit sp. nov.		41.23
(0.52–1.78)
C. astrum129.29
(8.59–10.93)		1.43
(0.00–3.10)
C. dayangbuntingensis38.56
(7.99–9.11)		9.65
(9.25–10.84)		0.15
(0.07–0.22)
C. langkawiensis108.91
(8.28–10.06)		10.32
(9.68–12.63)		7.71
(7.32–8.88)		0.67
(0.00–1.88)
C. lekaguli54.53
(3.97–5.55)		9.64
(8.99–11.33)		8.65
(8.45–8.98)		9.60
(9.20–10.86)		0.63
(0.00–1.35)
C. stellatus58.80
(8.09–9.89)		10.46
(9.79–12.24)		9.58
(9.30–10.40)		10.67
(10.17–12.49)		9.41
(8.83–10.53)		0.52
(0.08–1.12)
C. sungaiupe79.13
(8.58–9.84)		9.87
(9.31–10.84)		8.29
(8.20–8.35)		9.17
(8.79–10.36)		8.87
(8.68–9.21)		9.97
(9.65–10.55)		0.02
(0.00–0.07)
C. wangkhramensis79.36
(8.73–10.18)		9.82
(9.09–11.07)		7.82
(7.53–8.16)		8.60
(8.19–9.65)		9.08
(8.90–9.36)		9.99
(9.44–11.14)		6.74
(6.55–6.89)		0.31
(0.00–0.59)
Table 2. Factor loadings for PC1–PC3 analyzing morphological characters of C. kanchanadit sp. nov. and its sister C. lekaguli. Loadings with high values (below −0.6 and over 0.6) are highlighted in bold.
Table 2. Factor loadings for PC1–PC3 analyzing morphological characters of C. kanchanadit sp. nov. and its sister C. lekaguli. Loadings with high values (below −0.6 and over 0.6) are highlighted in bold.
PC1PC2PC3
SVLadj0.038−0.163−0.144
TWadj0.8570.098−0.076
FLadj0.379−0.4750.427
TBLadj0.4310.056−0.033
AGadj0.283−0.653−0.094
HLadj0.3890.3020.604
HWadj0.8540.173−0.132
HDadj0.2940.602−0.556
EDadj−0.1090.2850.659
EEadj0.5760.307−0.366
ESadj0.6890.5440.214
ENadj0.6390.4020.254
IOadj−0.2950.4900.173
ELadj0.070−0.376−0.017
INadj0.833−0.296−0.140
SL0.552−0.0900.094
IL0.576−0.275−0.118
PVT−0.6100.381−0.137
LRT0.1960.129−0.519
VS0.1450.5700.074
4TL−0.2210.3220.231
BB0.440−0.3100.471
Eigenvalue5.4363.0462.228
Percent of variance24.70713.84510.127
Cumulative proportion24.70738.55348.679
Table 3. Mean ± SD (min–max) and statistical comparisons of Cyrtodactylus kanchanadit sp. nov. and C. lekaguli from 14 size-adjusted morphometric and seven meristic characters. Statistical comparisons from t-test (t) and Mann–Whitney U tests. Key: a tested by Welch’s F test, b tested by Mann–Whitney U test, and * significant at p-value (≤0.05).
Table 3. Mean ± SD (min–max) and statistical comparisons of Cyrtodactylus kanchanadit sp. nov. and C. lekaguli from 14 size-adjusted morphometric and seven meristic characters. Statistical comparisons from t-test (t) and Mann–Whitney U tests. Key: a tested by Welch’s F test, b tested by Mann–Whitney U test, and * significant at p-value (≤0.05).
CharactersCyrtodactylus kanchanadit sp. nov.C. lekagulitp
n = 6n = 24
SVLadj2.00 ± 0.03(1.97–2.04)2.00 ± 0.03(1.9–2.04)73.500 b0.9586
TWadj0.95 ± 0.12(0.77–1.04)0.83 ± 0.06(0.71–0.95)33.000 b0.0459 *
FLadj1.24 ± 0.01(1.22–1.25)1.20 ± 0.02(1.18–1.23)−4.632<0.0001 *
TBLadj1.28 ± 0.01(1.27–1.29)1.27 ± 0.02(1.22–1.30)−1.5220.1393
AGadj1.69 ± 0.01(1.68–1.70)1.67 ± 0.02(1.62–1.71)−3.944 a0.0007 *
HLadj1.47 ± 0.01(1.45–1.48)1.45 ± 0.01(1.43–1.48)−2.6560.0129 *
HWadj1.30 ± 0.01(1.28–1.31)1.29 ± 0.02(1.25–1.32)−1.3310.1939
HDadj1.05 ± 0.02(1.01–1.06)1.06 ± 0.02(1.02–1.09)1.2430.2242
EDadj0.83 ± 0.01(0.81–0.85)0.82 ± 0.03(0.77–0.90)−1.0130.3195
EEadj0.91 ± 0.02(0.87–0.93)0.90 ± −0.02(0.77–0.90)−0.3800.6995
ESadj1.07 ± 0.02(1.06–1.09)1.06 ± 0.01(1.03–1.09)−1.8900.0692
ENadj0.95 ± 0.02(0.93–0.97)0.94 ± 0.02(0.91–0.99)−1.5690.1280
IOadj0.85 ± 0.02(0.83–0.87)0.85 ± 0.03(0.79–0.94)0.2640.7936
ELadj0.29 ± 0.04(0.2–0.32)0.27 ± 0.07(0.13–0.37)−0.6170.5422
INadj0.55 ± 0.03(0.51–0.60)0.51 ± 0.04(0.40–0.56)29.000 b0.0275 *
SL13.00 ± 1.10(12–15)11.63 ± 1.13(9–14)−2.6710.0125 *
IL10.83 ± 0.75(10–12)10.13 ± 1.57(7–13)−1.0650.2960
PVT32.33 ± 2.07(29–35)37.38 ± 4.33(31–49)127.000 b0.0045 *
LRT21.33 ± 1.75(18–23)21.92 ± 1.1(20–25)79.500 b0.7018
VS35.33 ± 1.75(32–37)37.08 ± 3.96(31–47)1.623 a0.1210
4TL21.67 ± 0.82(21–23)21.42 ± 1.18(19–23)67.000 b0.8077
BB5.00 ± 0.00(5)4.00 ± 0.29(3–5)3.000 b<0.0001 *
Table 4. Descriptive morphological characters of type series of Cyrtodactylus kanchanadit sp. nov. Key: H = holotype; P = paratype; M = male; F = female; Re = regenerated; / = data unavailable or inapplicable; L = left; R = right.
Table 4. Descriptive morphological characters of type series of Cyrtodactylus kanchanadit sp. nov. Key: H = holotype; P = paratype; M = male; F = female; Re = regenerated; / = data unavailable or inapplicable; L = left; R = right.
ZMKU R
01091		ZMKU R
01092		ZMKU R
01093		ZMKU R
01094		ZMKU R
01095		ZMKU R
01096
Type seriesHPPPPP
SexMMMFFM
SVL101.1101.194.5108.5108.292.5
Tail conditionReReReReReRe
TL135.8107.298.4112.991.981.8
TW10.810.710.310.710.67.0
FL16.617.016.818.418.016.8
TBL19.418.718.120.019.318.2
AG48.949.146.155.352.443.4
HL29.529.628.129.931.727.7
HW20.420.218.821.120.417.6
HD11.611.410.512.210.910.1
ED6.76.96.17.27.86.1
EE8.28.48.08.67.67.6
ES12.412.311.012.012.210.7
EN9.49.38.49.09.38.2
IO4.64.13.74.64.74.2
EL2.11.62.01.81.92.3
IN4.03.73.43.93.82.9
SL15L/14R12L/13R13L/12R13L/13R12L/12R13L/11R
SL-mideye11L/10R7L/10R9L/9R9L/9R9L/9R9L/8R
IL10L/12R12L/12R11L/12R11L/11R10L/10R11L/10R
IL-mideye9L/8R8L/9R7L/8R8L/8R7L/7R8L/8R
PVT353229343232
LRT222122231822
VS353736363632
4FLU13L/13R13L/13R13L/12R14L/15R13L/13R16L/16R
4FLE6L/6R6L/6R6L/6R6L/6R6L/6R6L/6R
4FL19L/19R19L/19R19L/18R20L/21R19L/19R22L/22R
4TLU14L/14R14L/14R14L/14R15L/15R13L/14R16L/16R
4TLE8L/8L7L/7R7L/8R7L/7R8L/8R7L/6R
4TL22L/22R21L/21R21L/22R22L/22R21L/22R23L/22R
FPP in males373634//32
No of pore-bearing scales on precloacal groove8(4L/4R)8(4L/4R)7(3L/4R)//7(4L/3R)
PCT rows112//2
No of PCT per row3L/3R3L/2R(2 + 4)L/1 + 3)R//(1 + 4)L/1 + 3)R
BB555555
LCB//////
DCB//////
Body band/interspace ratio0.891.141.381.561.351.66
Deep precloacal groove in maleYesYesYes//Yes
Femoroprecloacal pores
continuous		YesYesYes//Yes
TuberculationWeakWeakWeakWeakWeakWeak
Tubercles on ventral surface of forelimbNoNoNoNoNoNo
Tubercles in gular regionNoNoNoNoNoNo
Ventrolateral fold tuberculateNoNoNoNoNoNo
Dorsum bearing scattered pattern of white tuberclesNoNoNoNoNoNo
Adult posterior caudal region white//////
White caudal bands in adults immaculateNoNoNoNoNoNo
Portion of caudal tubercles on original tail//////
Table 5. Descriptive morphological characters of referred specimens of Cyrtodactylus kanchanadit sp. nov. Key: RF = referred specimens; IM = immature; J = juveniles; / = data unavailable or inapplicable; L = left; R = right.
Table 5. Descriptive morphological characters of referred specimens of Cyrtodactylus kanchanadit sp. nov. Key: RF = referred specimens; IM = immature; J = juveniles; / = data unavailable or inapplicable; L = left; R = right.
ZMKU R 01097ZMKU R 01098ZMKU R 01099
RFRFRF
AgeIMIMJ
SVL83.382.164.0
SL 13L/14R12L/14R14L/12R
SL-mideye 9L/10R8L/10R11L/9R
IL10L/11R12L/11R10L/10R
IL-mideye7L/7R7L/7R7L/7R
PVT313232
LRT222222
VS373433
4FLU14L/14R13L/13R14L/14R
4FLE6L/6R6L/6R6L/6R
4FL20L/20R19L/19R20L/20R
4TLU14L/14R13L/14R14L/14R
4TLE7L/8R7L/7R7L/7R
4TL21L/22R20L/21R21L/21R
BB555
LCB///
DCB///
Body band/interspace ratio1.521.41/
TuberculationWeakWeakWeak
Tubercles on ventral surface of forelimb NoNoNo
Tubercles in gular region NoNoNo
Ventrolateral fold tuberculate NoNoNo
Dorsum bearing scattered pattern of white tubercles NoNoNo
Hatchlings/uveniles with white tail tip //Yes
Portion of caudal tubercles on original tail///
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Termprayoon, K.; Rujirawan, A.; Grismer, L.L.; Aowphol, A. A New Species of the Cyrtodactylus pulchellus Group (Squamata: Gekkonidae) from Surat Thani Province, Thailand Underscores This Group’s Remarkable Diversity on the Thai-Malay Peninsula. Animals 2024, 14, 3226. https://doi.org/10.3390/ani14223226

AMA Style

Termprayoon K, Rujirawan A, Grismer LL, Aowphol A. A New Species of the Cyrtodactylus pulchellus Group (Squamata: Gekkonidae) from Surat Thani Province, Thailand Underscores This Group’s Remarkable Diversity on the Thai-Malay Peninsula. Animals. 2024; 14(22):3226. https://doi.org/10.3390/ani14223226

Chicago/Turabian Style

Termprayoon, Korkhwan, Attapol Rujirawan, Larry Lee Grismer, and Anchalee Aowphol. 2024. "A New Species of the Cyrtodactylus pulchellus Group (Squamata: Gekkonidae) from Surat Thani Province, Thailand Underscores This Group’s Remarkable Diversity on the Thai-Malay Peninsula" Animals 14, no. 22: 3226. https://doi.org/10.3390/ani14223226

APA Style

Termprayoon, K., Rujirawan, A., Grismer, L. L., & Aowphol, A. (2024). A New Species of the Cyrtodactylus pulchellus Group (Squamata: Gekkonidae) from Surat Thani Province, Thailand Underscores This Group’s Remarkable Diversity on the Thai-Malay Peninsula. Animals, 14(22), 3226. https://doi.org/10.3390/ani14223226

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
