1. Introduction
The bearing capacity of pavement structure is determined by integrating the modulus of each pavement layer [
1,
2]. However, the bearing capacity of pavement structure decreases with increasing loading and amount of traffic, and it is not efficient to evaluate the in situ structural modulus of each pavement layer using in situ core drilling. Hence, development of nondestructive tests and back-calculation for detecting the structural modulus of pavement structures is critical and necessary.
A falling weight deflectometer (FWD) is a widely used nondestructive test in pavement engineering for evaluating the modulus of each pavement layer. A FWD measures the deflection on the pavement surface subjected to impact loading. Then, the modulus of the pavement layer can be obtained by back-calculation of the measured surface deflections [
3,
4,
5,
6]. The back-calculation analysis conducts iterations of structural analysis (e.g., finite element analysis and multi-layer theory) until the calculated surface deflection matches the measured deflection. Senseney [
7] and Ahmed [
8] conducted lightweight FWD tests and a dynamic finite element analysis model was used to analyze and verify experimental data and to determine the mechanical properties of a road foundation layer comprising a mixture of limestone and bottom slag from an incinerator. Varma et al. [
9] simulated pavement with linear or nonlinear elasticity in a back-calculation to analyze the deflections for obtaining the material properties of various layers. Since asphalt material exhibits viscoelasticity with small deformations [
10,
11], Kutay et al. [
11] employed Schapery viscoelastic theory and performed a back-calculation to determine the dynamic modulus master curve of asphalt pavement through the surface deflection obtained using an FWD. During the iteration process, multilayer-viscoelasticity theory was employed to identify the linear viscoelastic characteristics of asphalt pavement.
Since FWD deflection measurements are related to temperature for asphalt layers, scholars have proposed that the back-calculation of FWD deflection measurements should be temperature-corrected to a reference temperature and the temperature-correction should be dependent on the properties of the asphalt itself [
12,
13,
14,
15]. However, actual in situ temperature data of asphalt layers are difficult to obtain. Therefore, a temperature prediction model must first be established for temperature-correction. On the basis of the BELLS temperature prediction model proposed by Lukanen et al. [
16], Park et al. [
17] established a temperature prediction model appropriate for Michigan State in the United States by using temperature data from the seasonal monitoring of the US Long-Term Pavement Performance project. Park et al. [
18] and Marshall et al. [
19] verified another model, named BELLS3, in North Carolina and Tennessee, respectively. Zheng et al. [
20] employed the BELLS equations as a basis for establishing a temperature prediction model for Henan, China.
In terms of temperature correction, the effect of temperature on the modulus of an asphalt layer has been assessed using a master curve or by conducting deflection value correction to ensure the consistency of evaluation standards. The dynamic moduli obtained using a material test system or through FWD back-calculation were employed to calculate temperature-correction factors, facilitating comparison between data obtained at the same temperature. The Mechanistic-Empirical Pavement Design Guide states that dynamic modulus tests should typically be used to evaluate the linear viscoelasticity of asphalt concrete and determine the effects of various asphalt materials on temperature and frequency [
21,
22,
23]. When tests are conducted at different temperatures and load frequencies with the application of continuous sine waves, the relationship between stress and strain measurements can be expressed by the complex dynamic modulus (E*). Seo et al. [
24] used the S-shaped function for the master curve to determine that the parameters in the function were influenced by the screening percentage, void fraction, and asphalt content, respectively. Subsequently, they estimated different frequencies by using the viscosity and obtained a new master curve equation appropriate for the use of in situ FWD results, specifically for analyzing in situ material conditions. Solatifar et al. [
25] employed the Witczak model [
26,
27,
28] to predict the master curve of the dynamic modulus. By using shift factors acquired in the laboratory, a master curve of FWD data was constructed to serve as the in situ dynamic modulus master curve, which could be used to determine the extent of material damage. In the Long-Term Pavement Performance project, Killingsworth [
29] investigated the relationship between deflection, back-calculation results and pavement temperature. The Washington State Department of Transportation conducted regression analysis on the relationship between the dynamic modulus of traditional dense-graded asphalt mixtures and pavement temperature and proposed a temperature-correction coefficient for the back-calculated modulus of the asphalt mixture layer. Ye et al. [
30] and Zhou et al. [
31] used the exponential function to perform data fitting and adjusted the moduli to the reference temperature. Chen et al. [
32] developed separate temperature-correction functions for deflections and moduli, determining that only deflections at test points close to the falling weight disk were significantly affected by temperature.
3. FWD and Test Site
Figure 1 and

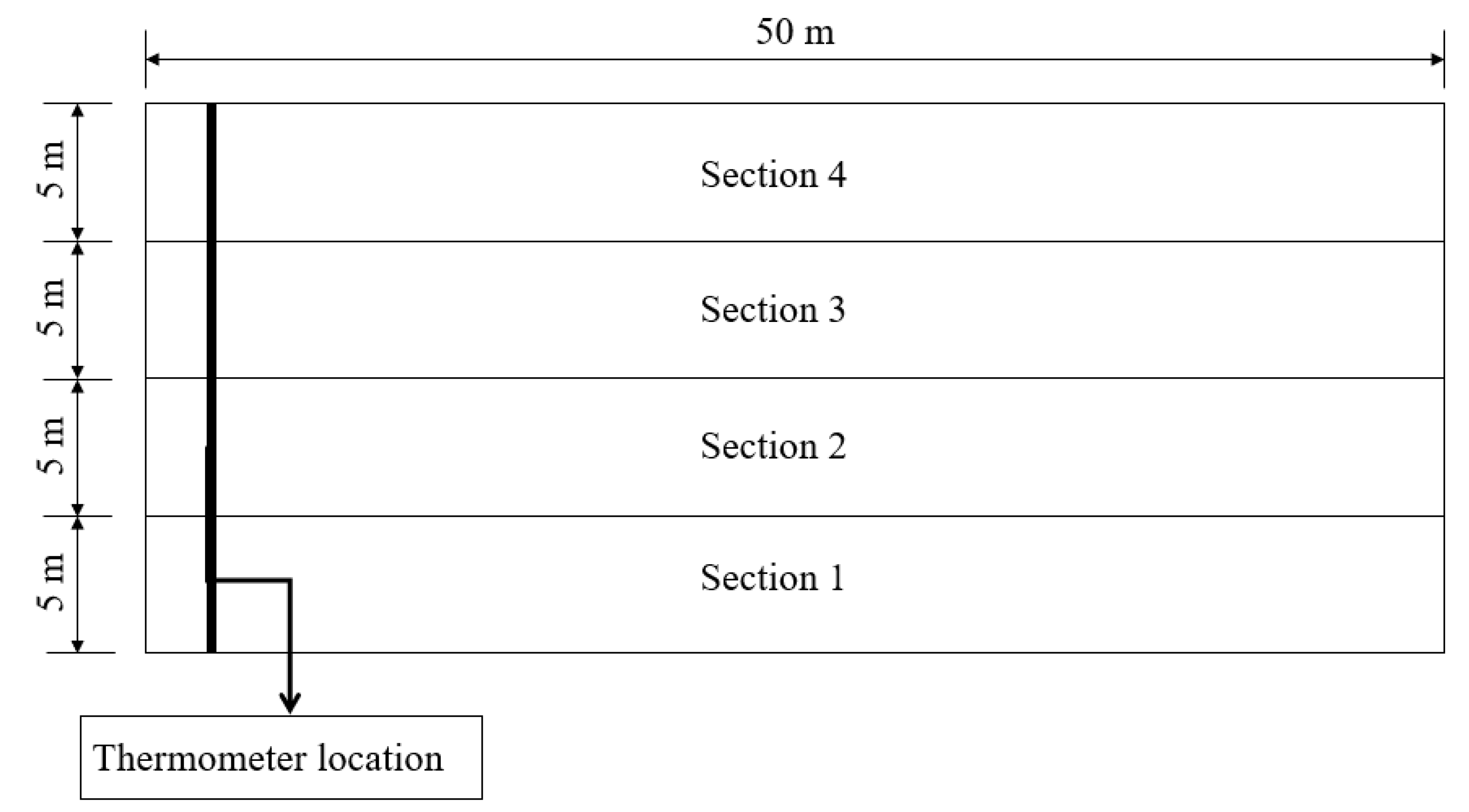

Figure 2 are an aerial photograph and a top-view schematic of the FWD test site constructed by Taiwan Freeway Bureau, respectively. Four types of cross-section which are commonly used in Taiwan freeway pavement structures were constructed at the test site. The length of the test road is 50m, while the width of each pavement cross-section is 5 m.

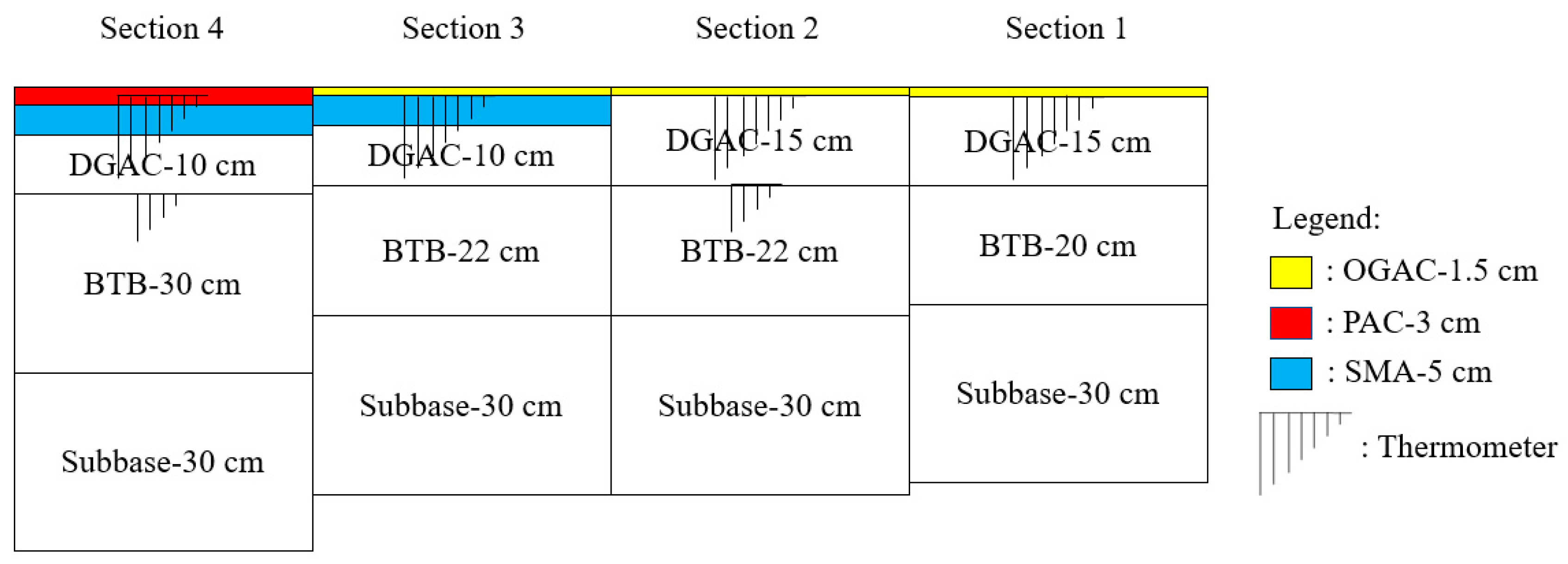

Figure 3 illustrates the schematic for each cross-section. For all cross-sections, an aggregate-type subbase with 30 cm thickness was constructed on a well-compacted subgrade. For cross-sections 2 and 3, a 22-cm-thick bitumen-treated base (BTB) was paved on the aggregate subbase, whereas the thicknesses of BTB layer were 20 cm and 30 cm on the aggregate subbase for cross-sections 1 and 4, respectively. A dense-graded asphalt concrete (DGAC) layer with 15 cm thickness above BTB and 1.5 cm thickness of open-graded asphalt concrete (OGAC) on DGAC layer were constructed for both cross-sections 1 and 2. In cross-sections 3 and 4, DGAC layer with 10 cm thickness and 5 cm thickness of stone mastic asphalt (SMA) were laid on the top of BTB layer. Then, 1.5 cm thickness of OGAC and 3-cm-thick porous asphalt concrete (PAC) were constructed above the SMA layer in sections 3 and 4, respectively.
Table 1 details the asphalt binder type and the percentage of binder content for DGAC, OGAC, PAC, SMA, and BTB. The PAC and SMA were made from Type-III modified asphalt binder, whereas the binder types of remaining materials were AC-20.
In order to develop the temperature-evaluation model and to conduct the temperature correction for FWD back-calculation, thermometers were installed in the FWD test site for the measurements of temperature.

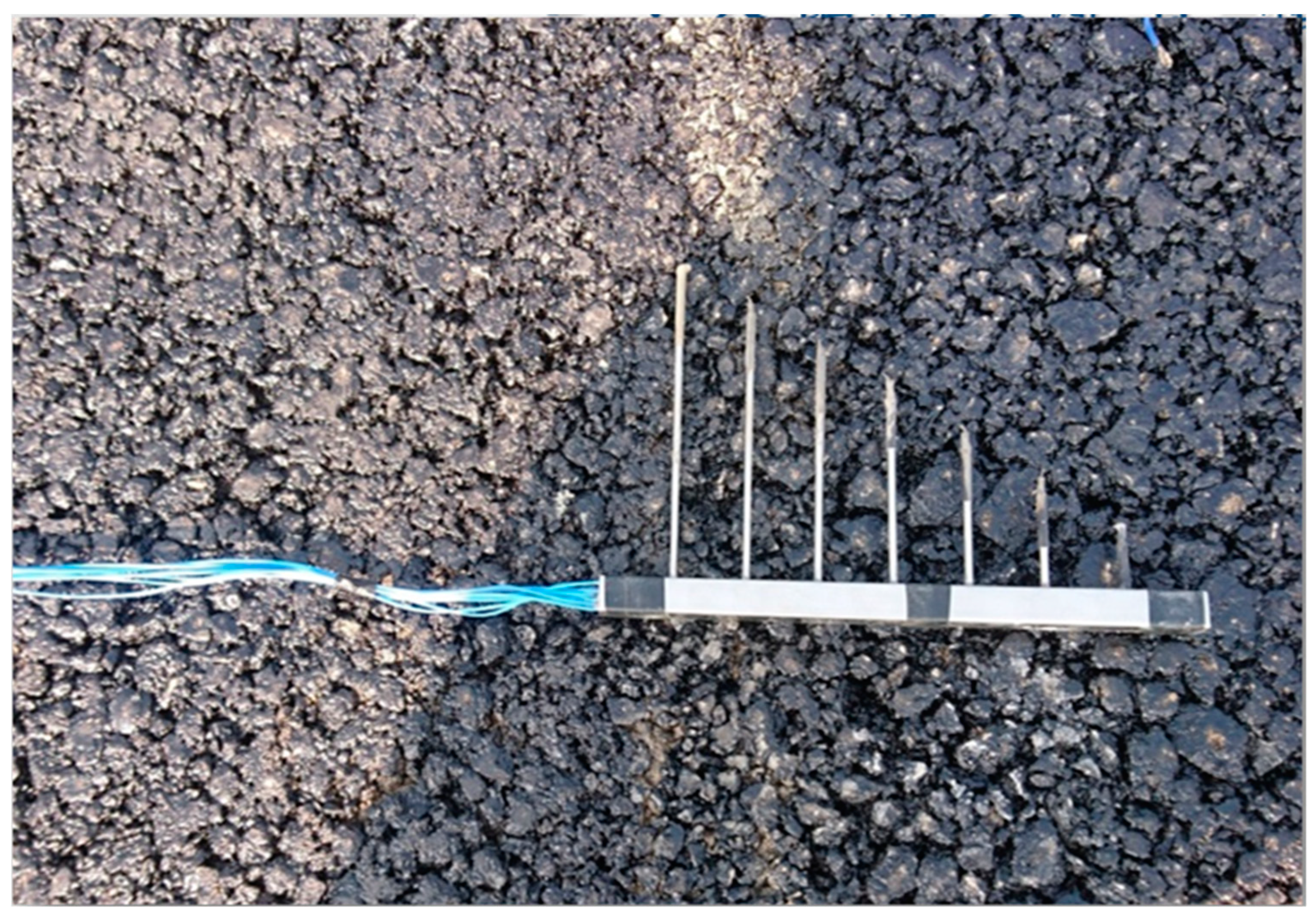

Figure 4 shows a photograph of the thermometers buried in the road section. The locations and depths of the buried thermometers are indicated in
Figure 2 and
Figure 3, respectively. The specific depths of thermometers were buried 3.5, 5.5, 7.5, 9.5, 11.5, 13.5, 15.5, 18.5, 20.5, 22.5, and 24.5 cm below road surface, 11 depths in total. The surface and atmospheric temperature at the test road were also recorded in the test site using a data miner at a frequency of one record per hour.

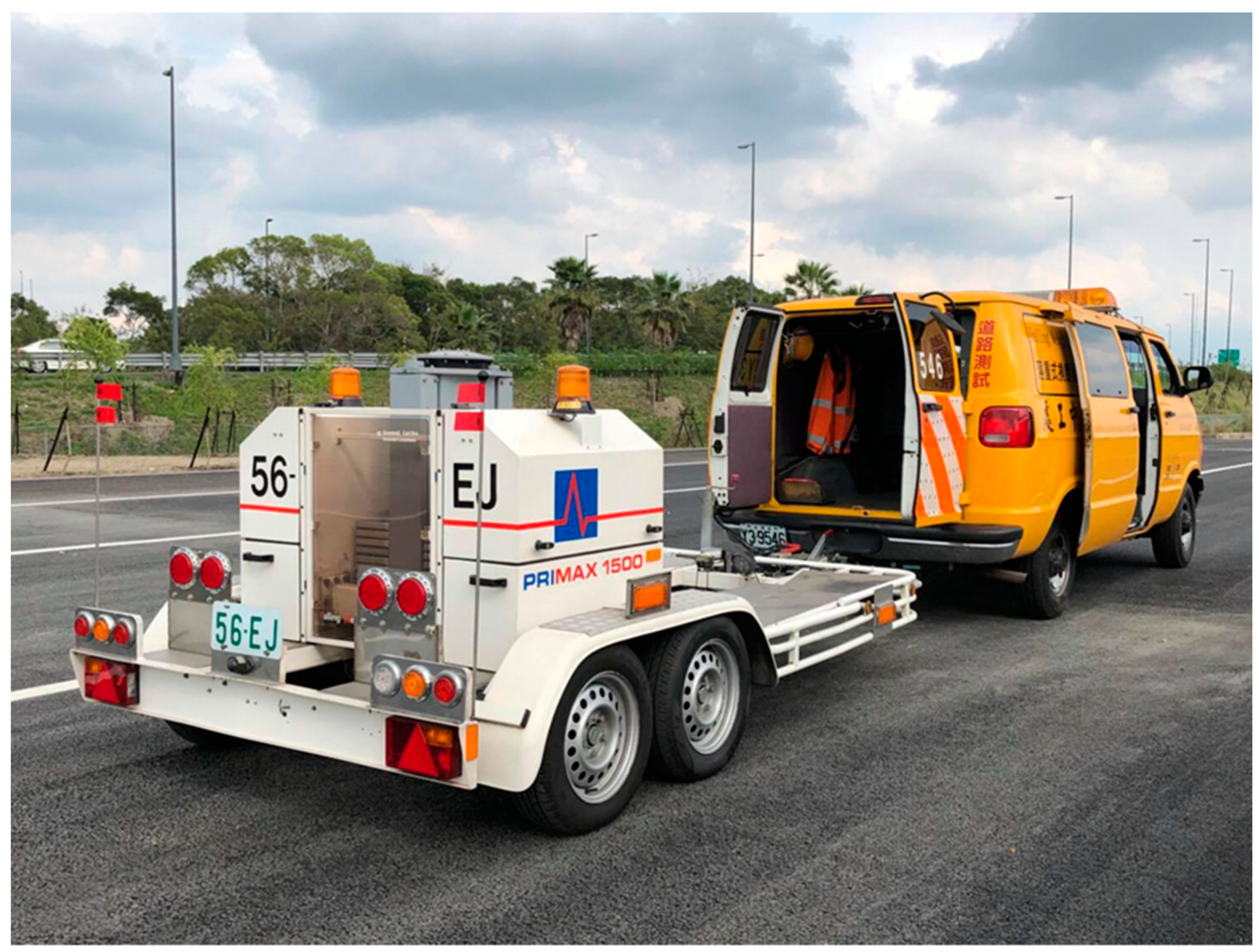

A PRIMAX 1500 FWD device as shown in
Figure 5 was employed in this study. The FWD device applied an impact loading and the surface deflections were measured at 12 locations such as 0, 200, 300, 400, 500, 600, 700, 900, 1200, 1500, 1800, and 2100 mm away from the center of the falling-weight disk. Afterwards, the measured deflections can be entered into the back-calculation software to obtain the modulus of each pavement layer. This research conducted the FWD test at different temperatures (i.e., in the morning, at noon, and in the afternoon) to investigate the effect of temperature on the FWD test and back-calculation results.
To determine the modulus and the relationship between temperature and frequency of the asphalt material layers such as the DENSE and BTB layers, this study performed in situ core drilling on the test roads. The drilled cores were then subject to dynamic modulus tests in a laboratory to obtain a master curve of the dynamic modulus and frequency-temperature shift factors. Subsequently, the frequency-temperature shift factors were used in FWD back-calculation to conduct the temperature correction. Through comparison of the shifted modulus and the dynamic modulus master curve, the effectiveness of applying the frequency-temperature shift factors in FWD back-calculation can be evaluated. In addition, a temperature-evaluation model for different depths of pavement was established by a regression analysis using the atmospheric temperature data and temperature data of various depths at the test site.
4. Pavement Temperature-Evaluation Model
Because pavement surface temperature is strongly influenced by weather conditions and actual pavement conditions such as shadow [
16], the atmospheric temperature was employed as a basis for establishing the temperature-evaluation model in this study. Temperature data of the test site from 8 February 2018 to 8 February 2019 were collected to perform the regression analysis and develop the model.

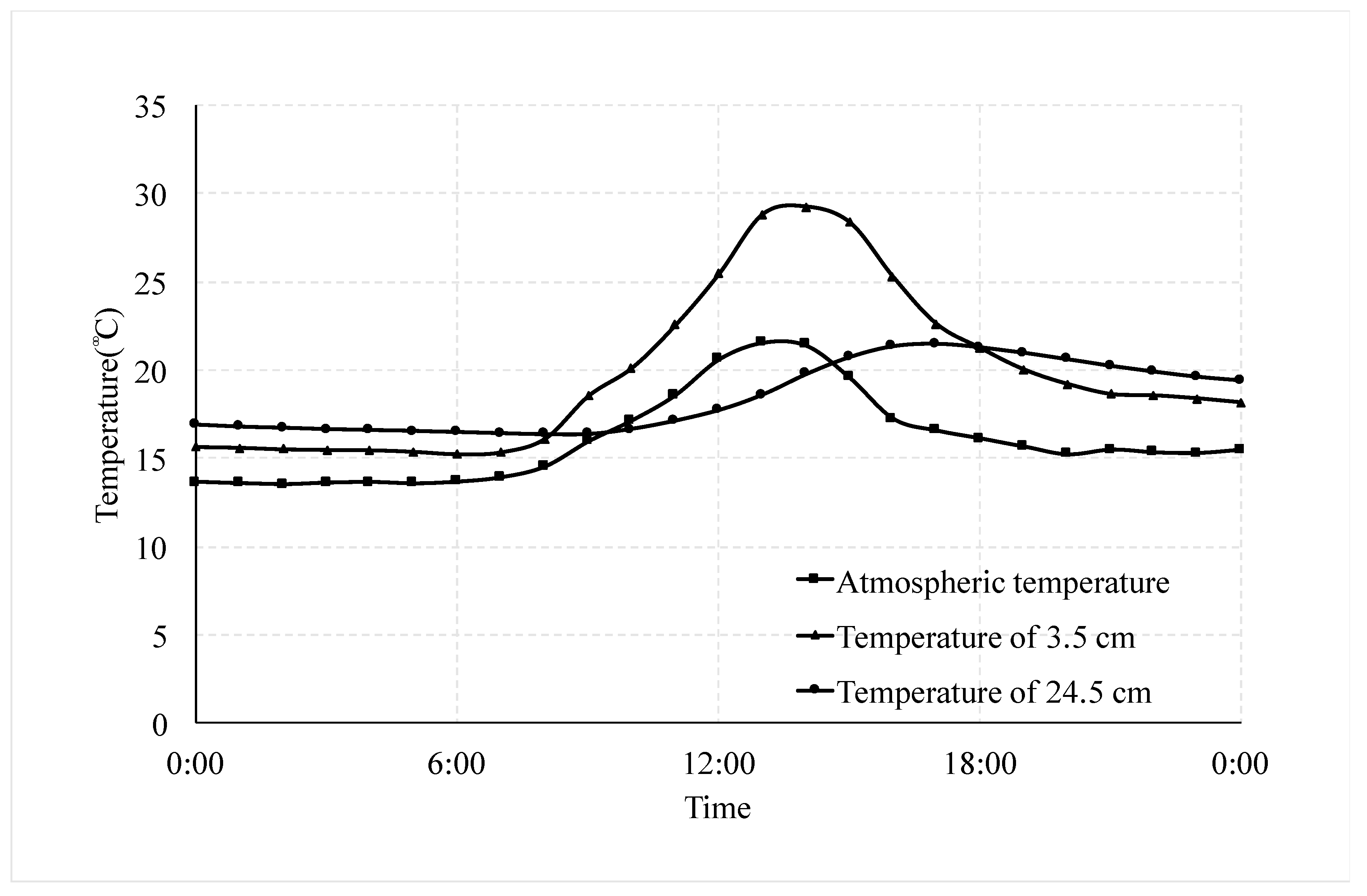

Figure 6 presents the over-time variation of atmospheric temperature and temperature at various road depths on 9 February 2018 as an example, indicating that the 1-day temperature variation has the form of a sine function. Such functions have frequently been employed as the form of a temperature-evaluation model for estimating the temperature at various road depths [
16,
17]. Accordingly, this study also used a sine function as the basis of the temperature-evaluation model. Moreover, as illustrated in
Figure 6, the highest atmospheric temperature occurred around 1 pm, whereas the highest pavement temperatures at depths of 3.5 and 24.5 cm were at 2 pm and 5 pm, respectively. Comparison of the atmospheric temperature and pavement temperature at depths of 3.5 and 24.5 cm as examples (
Figure 6) revealed a delay of temperature variation, and the delay time was longer at deeper depths. This temperature delay was caused by the thermal conduction effect. Conducting the heat received on the road surface to various depths requires time, and hence, a temperature transmission delay phenomenon was observed. According to the literature on the temperature-estimated model [
16,
17], this research attempted to consider the effect of temperature transmission-delay as a parameter
inside the sine function as shown in Equation (1). In Equation (1),
–
are parameters in the temperature model and
is the evaluated temperature (°C) at depth Z. The term
is the atmospheric temperature (°C), while
is the time of the day for which the temperature evaluation is being conducted (e.g., for 1:30 pm,
= 13.5). The model parameters such as
–
in Equation (1) for different depths were obtained by performing regression analysis on the temperature measurements at various depths using the least squares method.
The correlation between model-estimated and measured temperature for various depths was summarized in
Table 2. The results of the correlation coefficient showed that the correlation coefficient decreased with increasing depth and the correlation coefficient dropped to 0.53 at a depth of 24.5 cm. Furthermore, the slope and intercept in
Table 2 were the linear regression function between measured and estimated temperature. The slope and intercept of the regression function closer to 1 and 0, respectively, indicates that the estimated temperatures were more correlated with measured temperatures. However, the results showed that the slope deviated from 1 with increasing depth, while the intercepts diverged away from 0. These results indicated that the temperature model (Equation (1)) cannot accurately estimate the temperature at a deep depth. Hence, this research performed the correlation analysis between the road temperature at various depths and atmospheric temperature considering the temperature transmission-delay.
Table 3 summarizes the correlation analysis results of temperatures measured at various depths and the atmospheric temperature. The results show that if the temperature transmission-delay effect was excluded (e.g., 0 h), the correlation between the measured temperature at various depths and atmospheric temperature was significantly decreased with increasing depth. According to the correlation analysis results, the atmospheric temperatures had the strongest correlations with the temperature at depths of 3.5 and 5.5 cm when its time delay was 1 h, whereas for depths of 7.5–11.5 cm, the correlation was the strongest with 2 h of time delay. The atmospheric temperature was most strongly correlated with the temperature at depths of 13.5–15.5, 18.5–20.5, and 22.5–24.5 cm when its time delay was 3, 4, and 5 h, respectively. Thus, the atmospheric temperature with a longer delay was considered to employed for evaluating the temperature at deeper depths.
Based on the correlation analysis shown in
Table 3, this research introduced a transmission-delay atmospheric temperature (°C)
considering temperature-transmission effect (e.g., for evaluating the temperature of depth 3.5 cm at 4 pm,
should be selected as the atmospheric temperature at 3 pm).
in Equation (1) was then replaced by
as shown in Equation (2). In Equation (2),
–
are the temperature model parameters and these parameters can be obtained by regression analysis of the measured temperatures at various depths.
The correlation between measured temperature and estimated temperature using Equation (2) were shown in
Table 2. The results showed that the correlation coefficient decreased with increasing depth and the correlation coefficient remained high (0.82) at depth of 24.5 cm. Moreover, the slope and intercept of regression equation between model and measured temperatures were close to 1 and 0, respectively. These results indicated that the estimated temperatures using Equation (2) had a high correlation with measured temperatures. Hence, considering the temperature-transmission effect by the term
can efficiently estimate the temperature at a deep depth.
According to the analysis results of Equations (1) and (2), the term
significantly affected the estimation of temperature at deeper depths. This research attempted to consider the temperature-transmission effect only by the term
as shown in Equation (3). In Equation (3),
–
are temperature model parameters. The model parameters such as
–

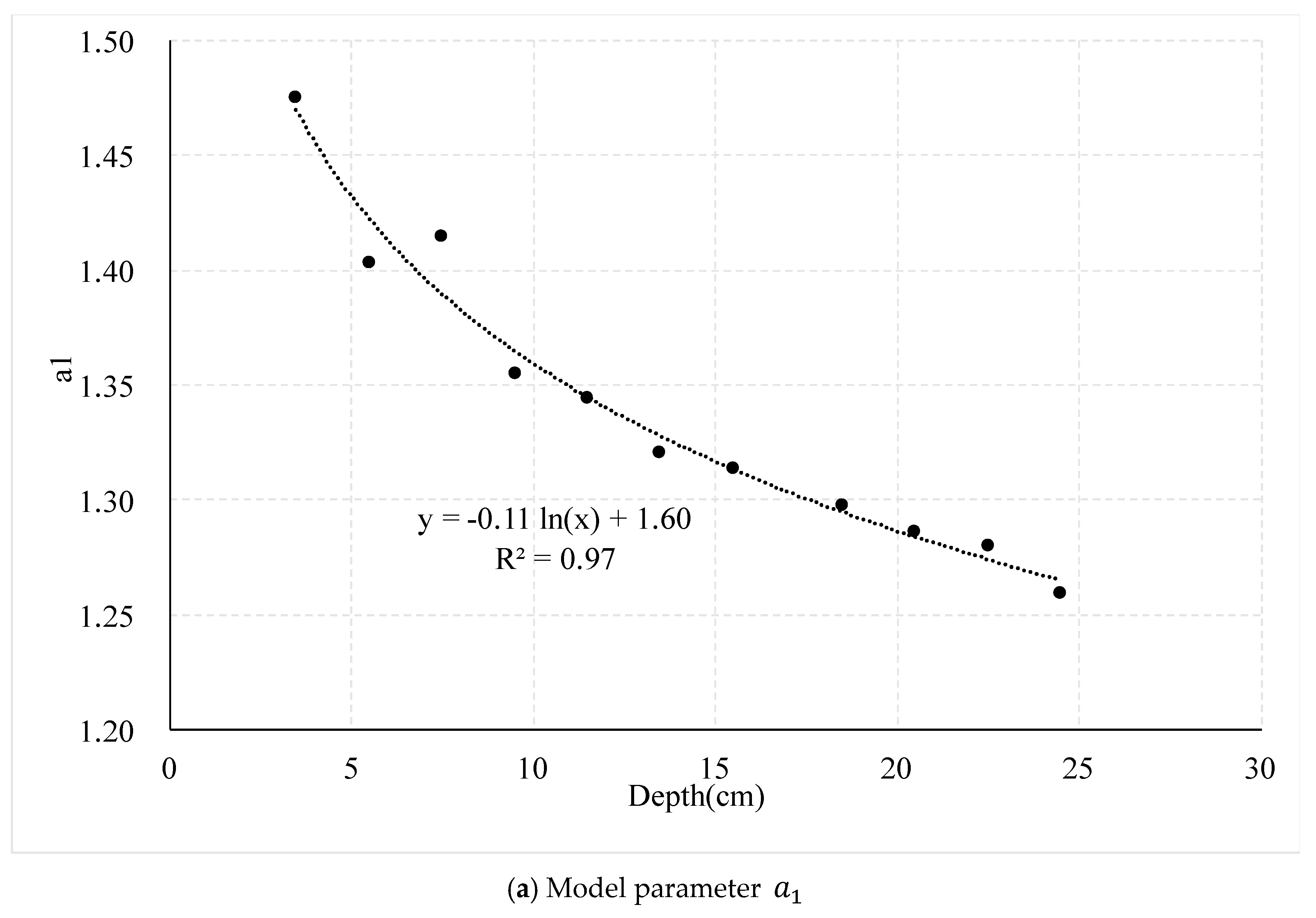

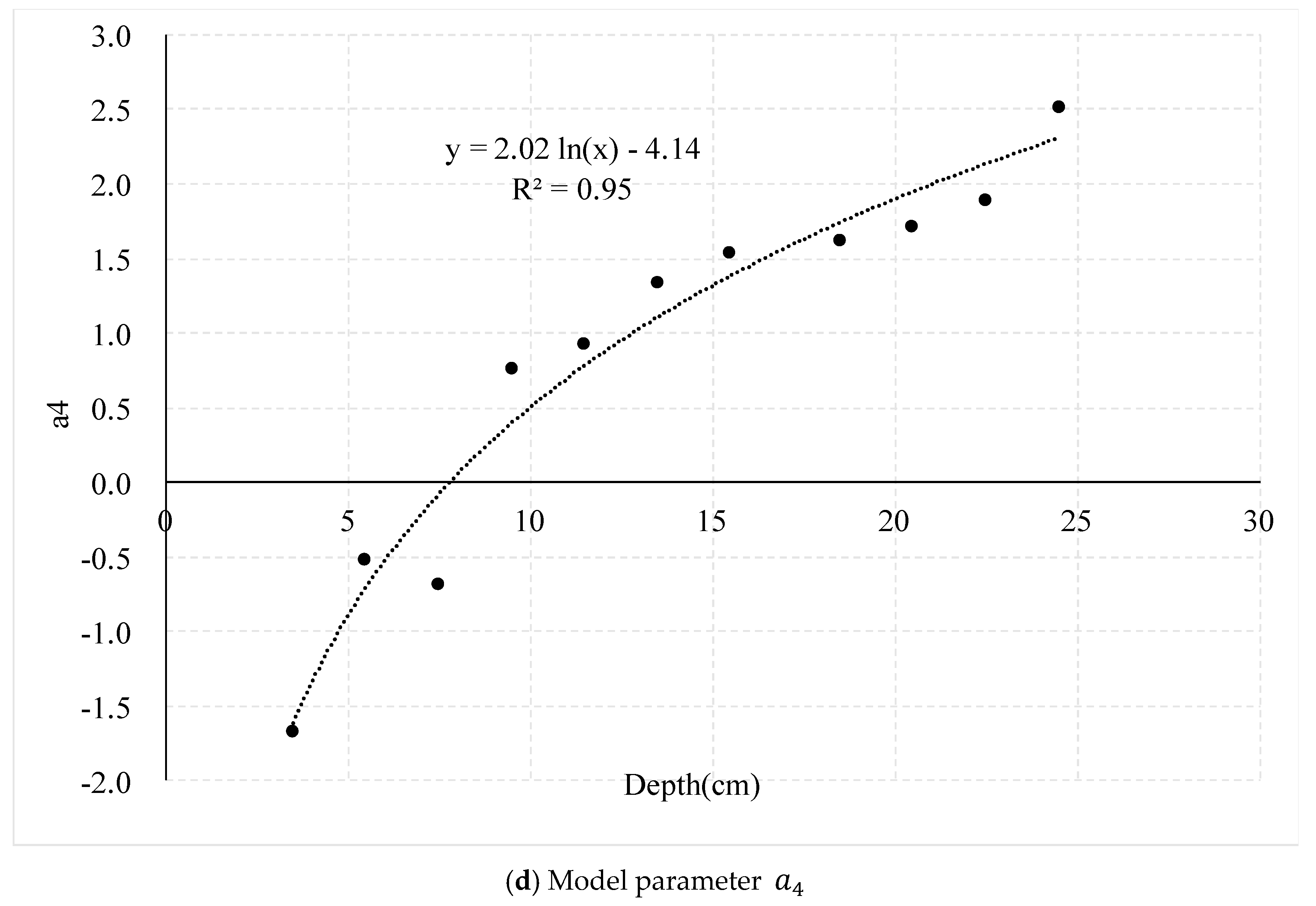

in Equation (3) for different depths were obtained by performing regression analysis on the temperatures measured at various depths using the least squares method. The analysis results of these parameters are presented in

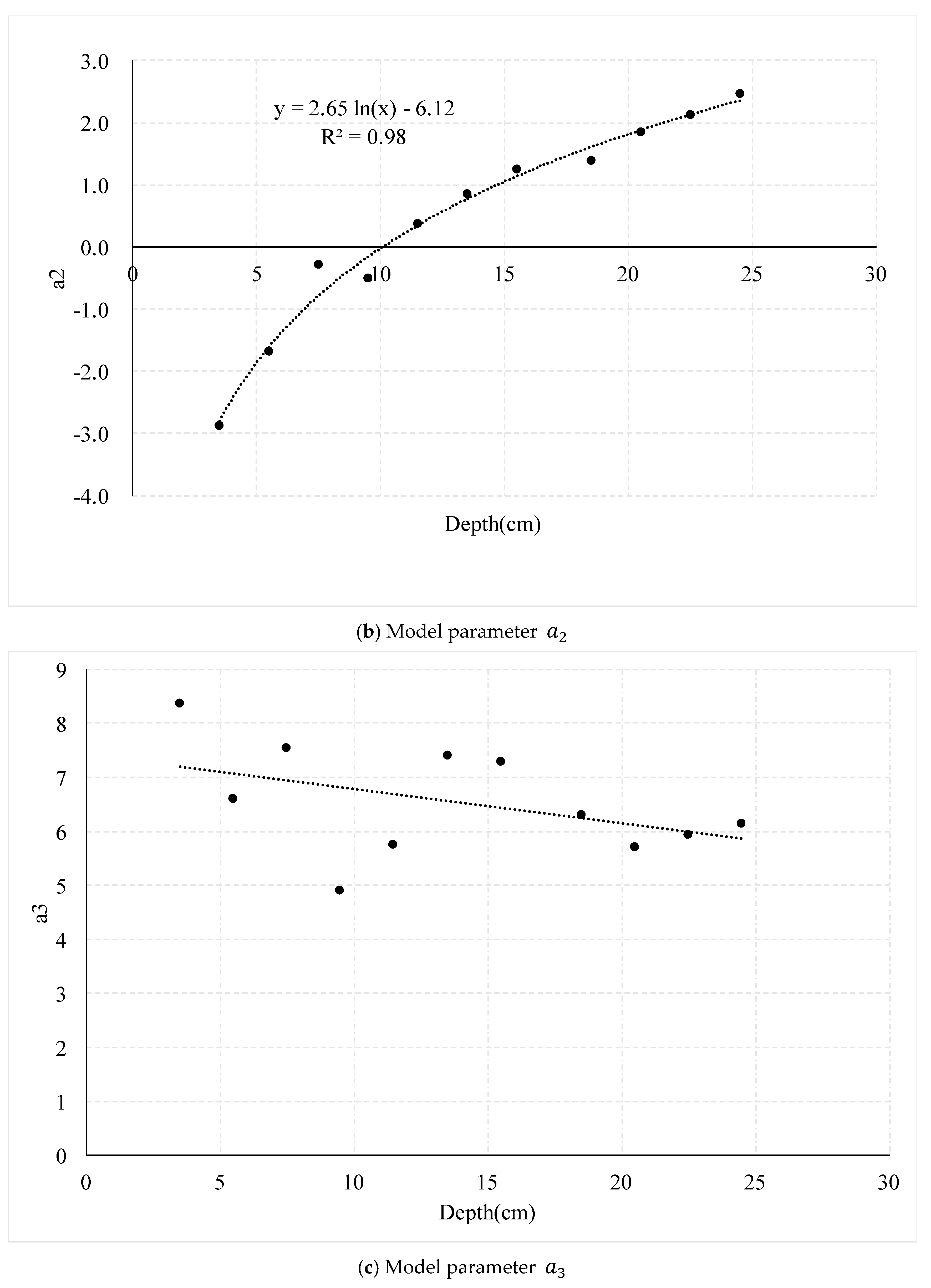

Figure 7, in which
,
, and
are the natural logarithm functions of depth and
is approximated to a fixed value—6.564 in this study.

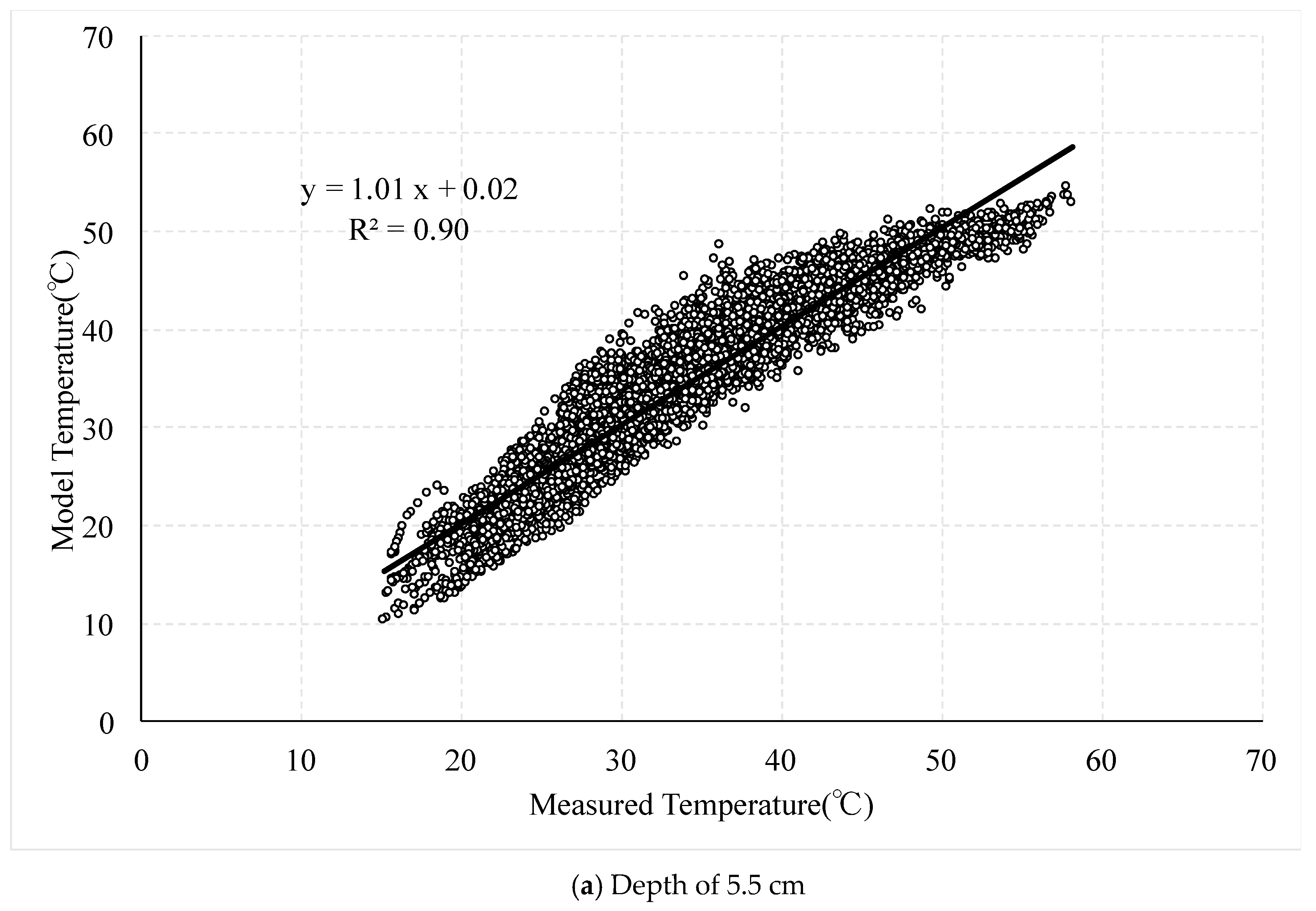

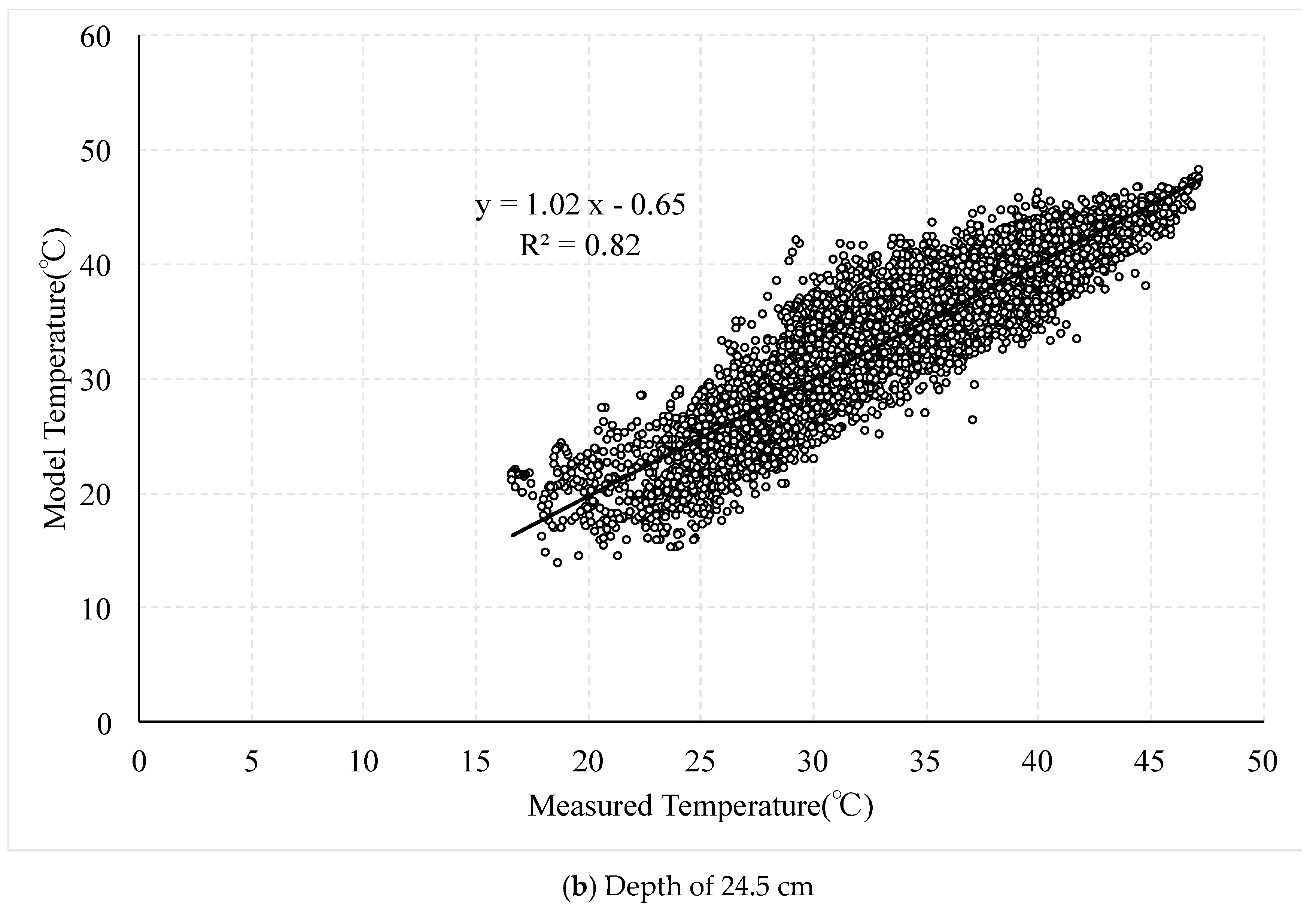

Figure 8 compares the temperatures evaluated by Equation (3) (the model temperature) and the in situ temperature measurements (the measured temperature) for depths of 5.5 and 24.5 cm as examples.
Table 4 summarized the results of correlation between measured and model temperature at various depths. The correlation coefficients at depths of 3.5 and 5.5 cm were 0.87 and 0.90, respectively. The correlation coefficient decreased with increasing depth; however, at a depth of 24.5 cm, the correlation coefficient between the model and measured temperatures remained high at 0.82. Moreover, the slopes of regression equation between model and measured temperatures were within 1 ± 0.05, and the intercepts were all within ±2. The results show that the temperature-evaluation model using Equation (3) can reflect the temperature at various depths in the road structure. Furthermore, the model remains effective when estimating the temperature at deep depths. Hence, in order to reduce the model parameter and to have acceptable accuracy of estimated temperature at deep depths, this research employed Equation (3) as the temperature model to estimate the pavement temperature at various depths. The proposed model and obtained parameters
–
were based on the statistical analysis of temperature measurements in Taiwan. The climate of Taiwan belongs to the subtropics and the lowest and highest atmospheric temperature of the FWD test site are around 6 and 37 °C, respectively. More applications and validations of the model require further temperature measurements and analyses for other weather conditions.
5. Dynamic Modulus Test
To verify the FWD back-calculation with temperature correction, core drilling was performed at the test site. The cored specimens were 10 cm in diameter to satisfy the size requirements of the test specimens in dynamic modulus test. The drilling depth was approximately 35 cm to ensure that both DGAC and BTB were contained. Subsequently, the cored specimens were cut to separate DGAC and BTB, producing DGAC and BTB test specimens of 15 cm in height. However, the surface layers (PAC, OGAC, and SMA) were too thin to meet the height requirement for dynamic modulus testing. Consequently, dynamic modulus tests were only conducted on the DGAC and BTB specimens.
Dynamic modulus tests are widely used to evaluate the influence of temperature and frequency on the properties of asphalt materials. In this study, a material test system was used to perform the dynamic modulus tests at different temperatures and frequencies. The tests were performed at 15 °C, 25 °C, 35 °C, 45 °C, and 55 °C, and frequencies of 25, 10, 5, 1, 0.5, and 0.1 Hz were used for the tests.

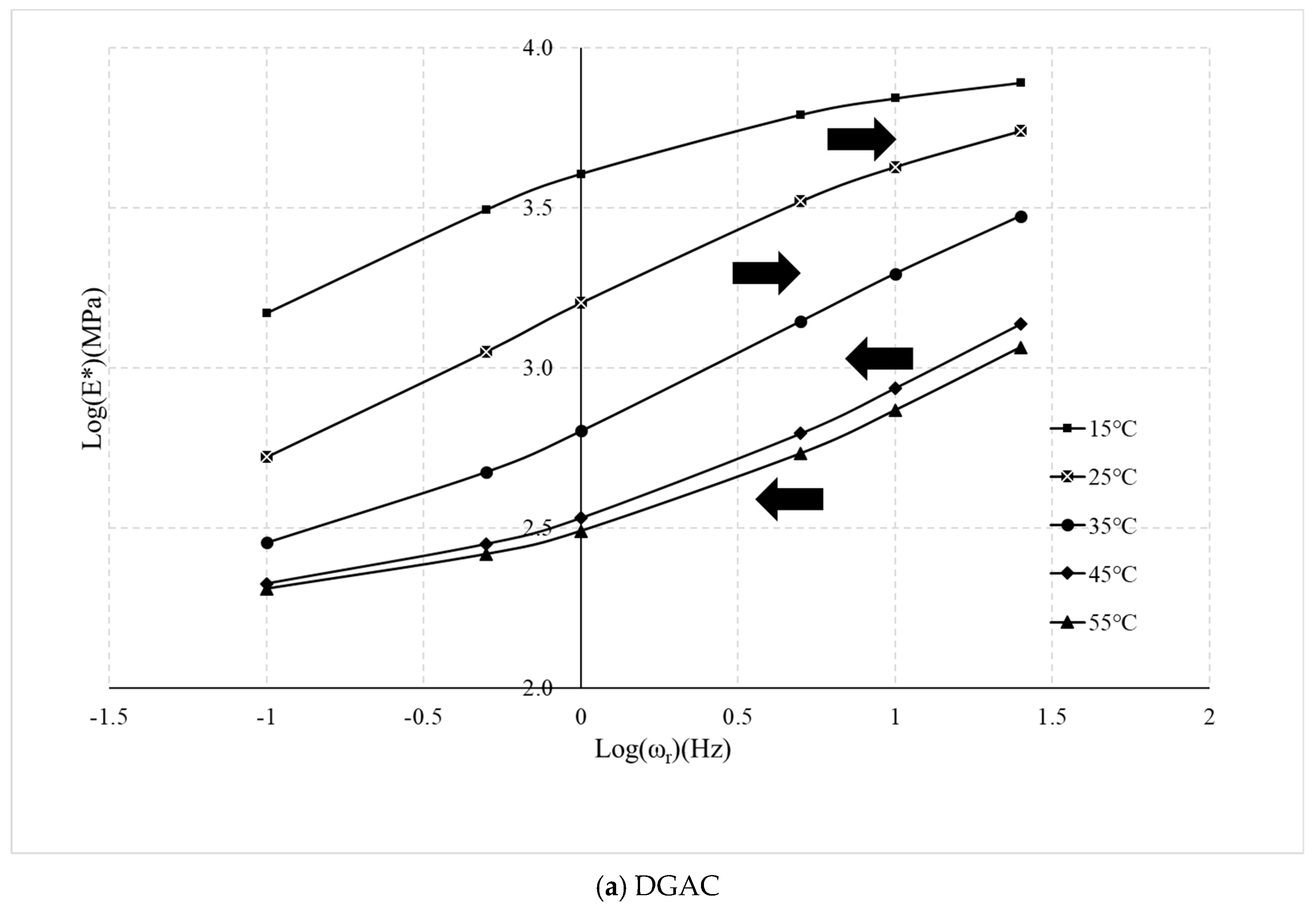

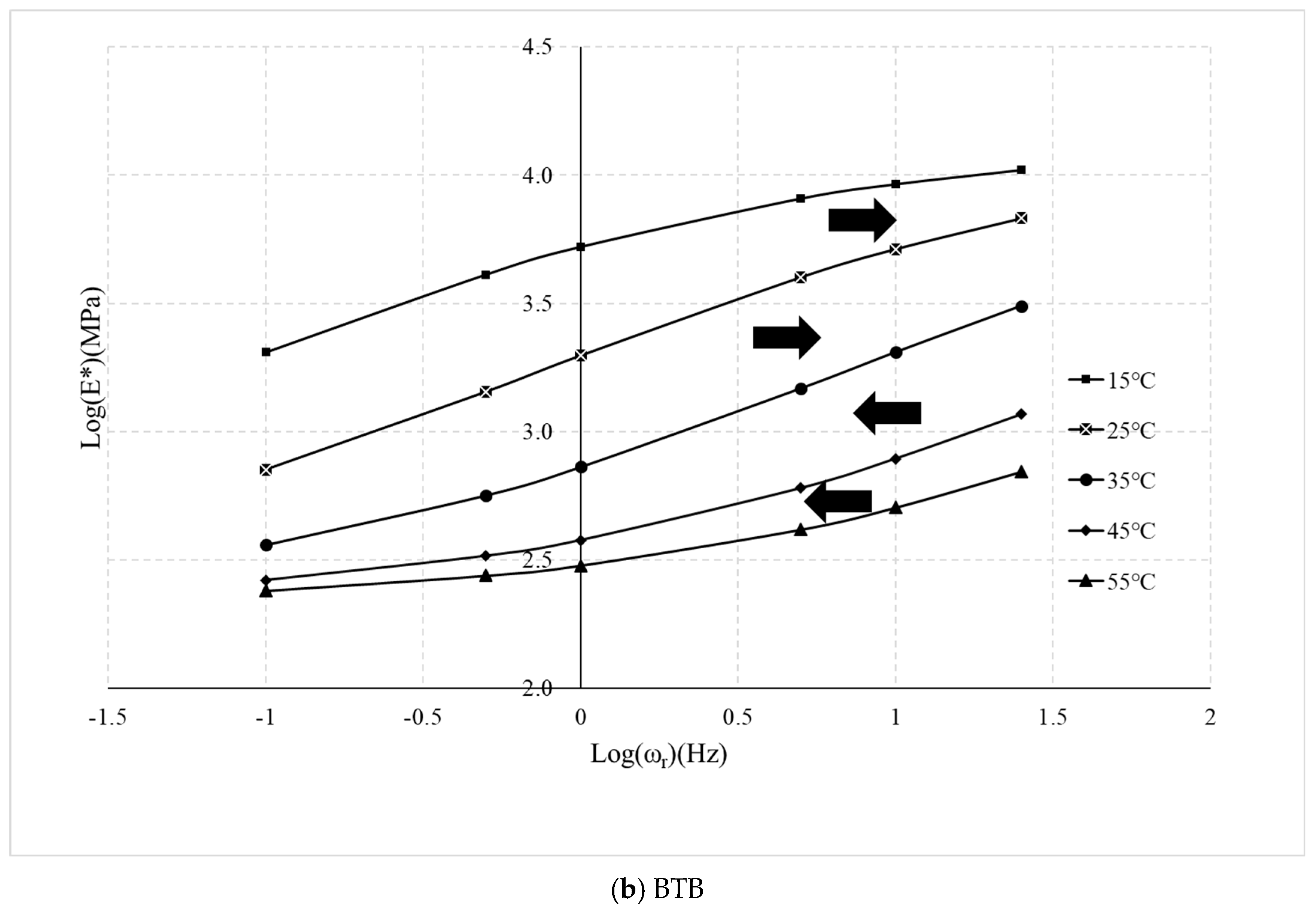

Figure 9 presents the dynamic modulus test results of DGAC and BTB layers at different temperatures and frequencies. The frequency-temperature superposition principle was employed to form the master curve by horizontal shifting (
Figure 9) to the reference temperature 35 °C in this study. A sigmoidal function as shown in Equation (4) was employed to create a master curve of dynamic modulus. In Equation (4),
is the reduced frequency,
is the frequency-temperature shift factor,
is the frequency,
is the minimum logarithmic value of
,
is the maximum logarithmic value of
,
and
are parameters describing the shape of the sigmoidal function.
Table 5 presents the sigmoidal function coefficients for the DGAC and BTB specimens obtained by using the least squares method.

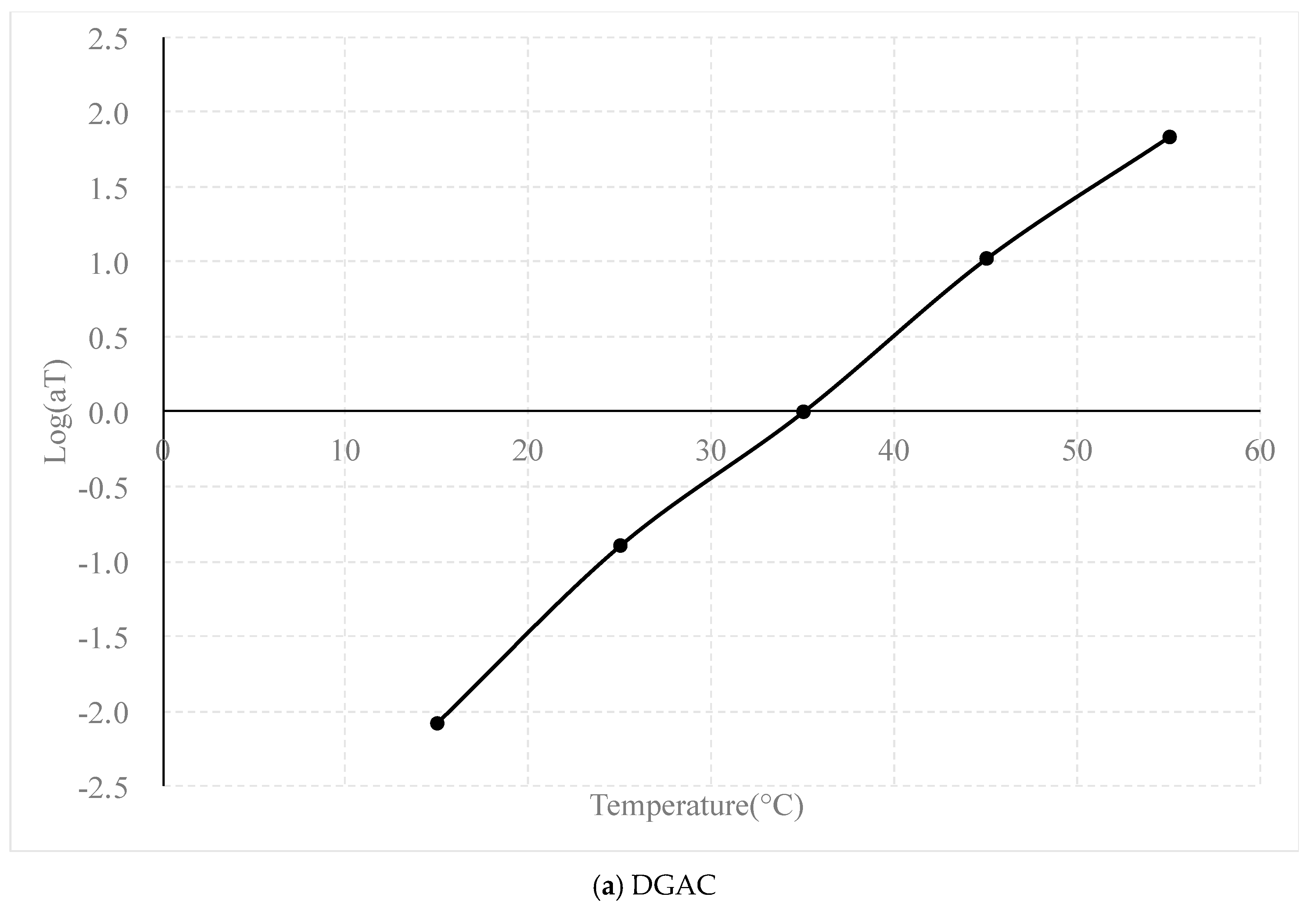

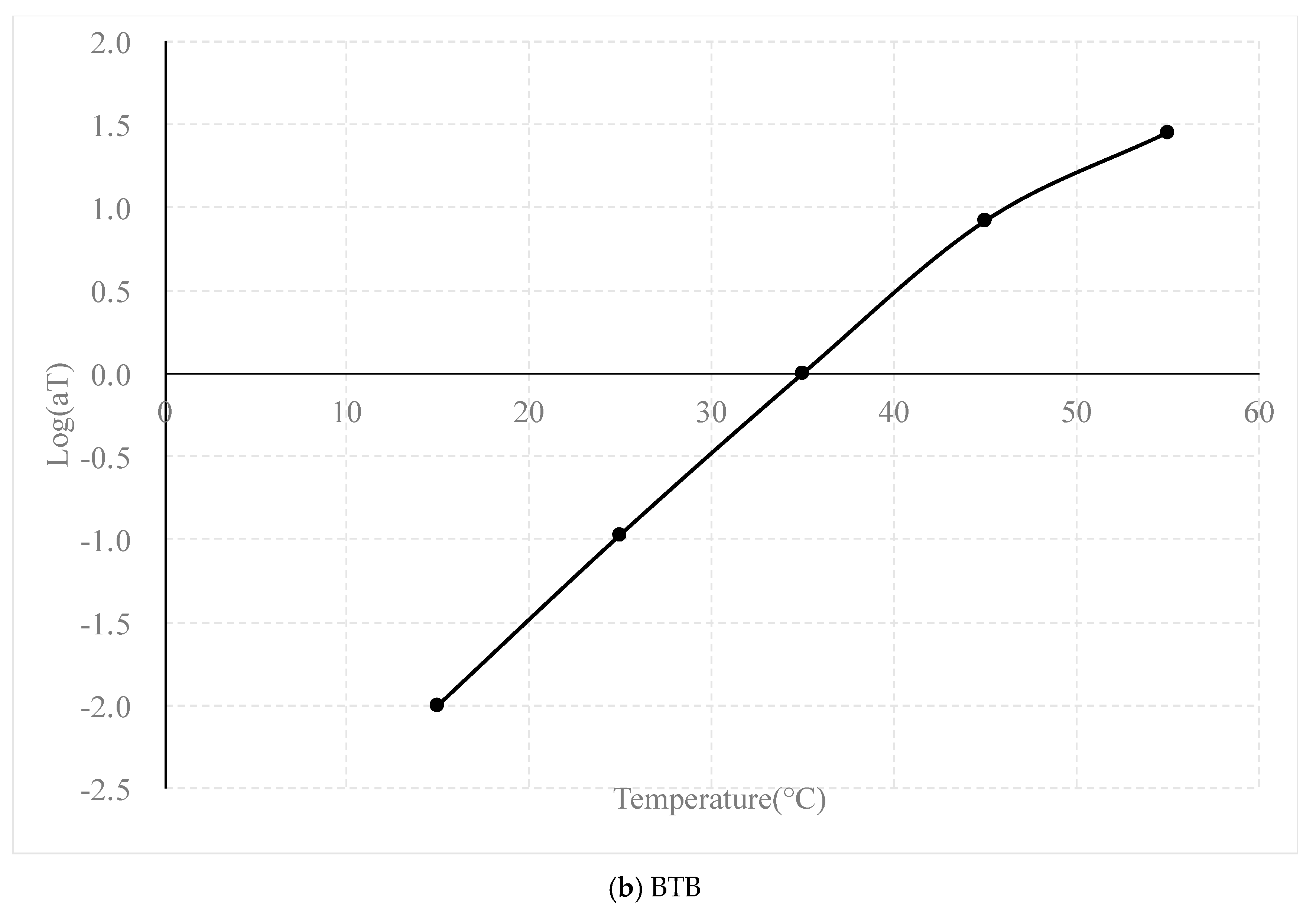

Figure 10 illustrates the relationship between the frequency-temperature shift factor and temperature of the DGAC and BTB specimens, whereas

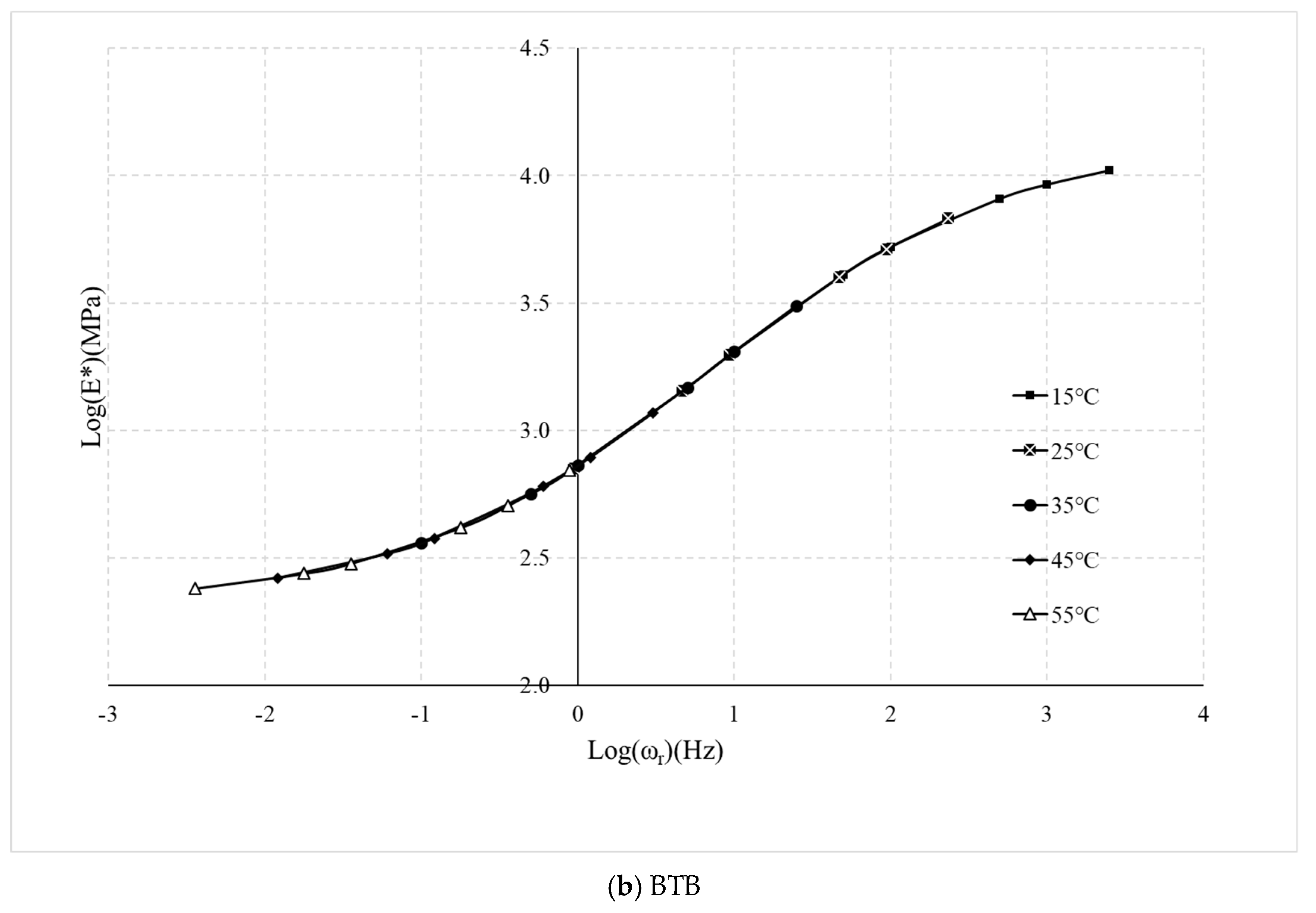

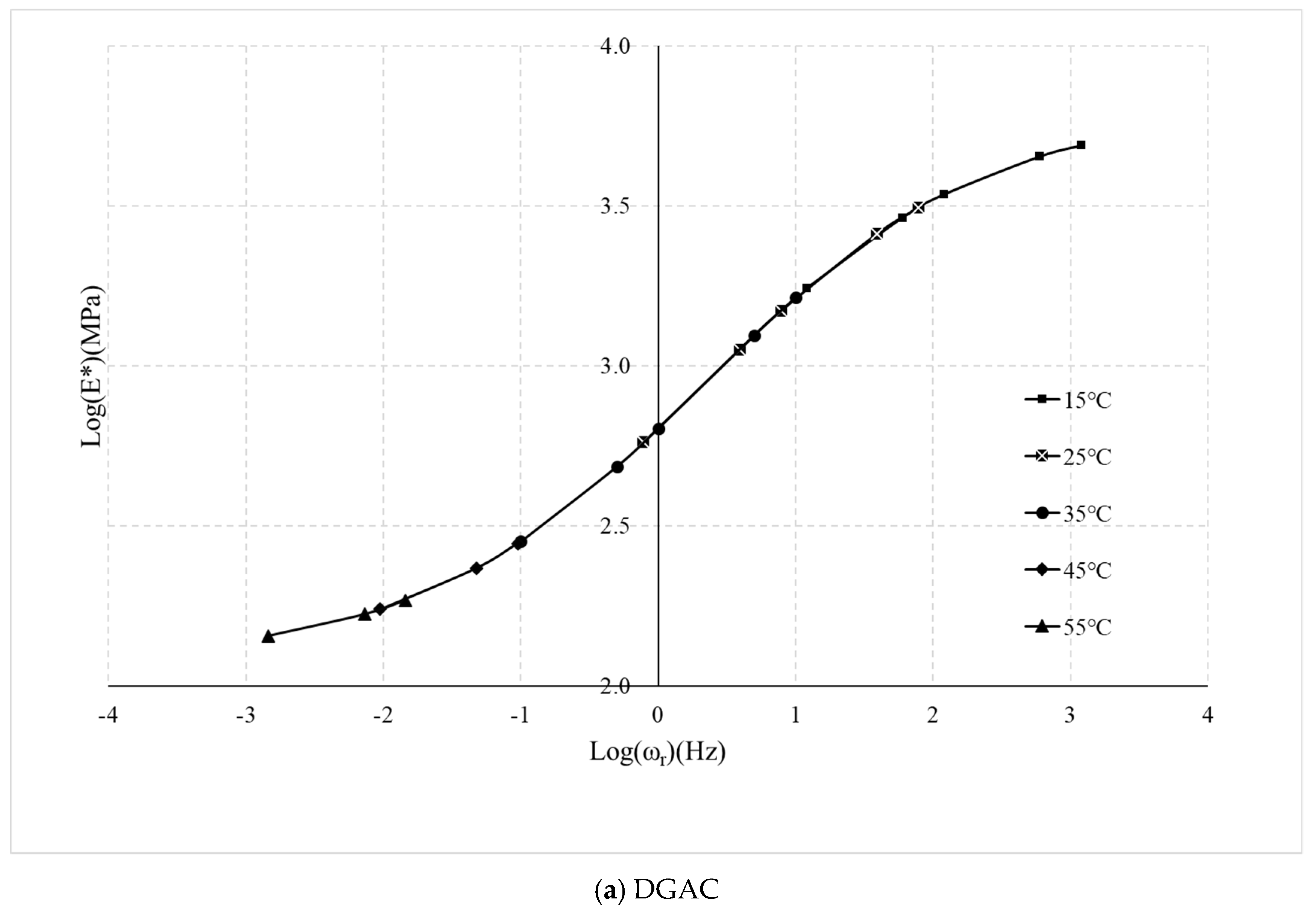

Figure 11 displays the master curve of dynamic modulus for the DGAC and BTB specimens at 35 °C. Then, the relationship between frequency-temperature shifted factor and temperature can be formulated as shown in Equations (5) and (6) for DGAC and BTB, respectively. In Equations (5) and (6),
is the pavement temperature estimated by the temperature-evaluation model (Equation (3)).
The frequency-temperature shift factor
calculated by Equations (5) and (6) is employed to conduct the temperature correction of FWD back-calculation at different temperatures and then the corrected modulus will be compared with master curve (
Figure 11) to verify the effectiveness of the temperature correction of back-calculation using the frequency-temperature superposition principle.
6. FWD Back-Calculation and Frequency-Temperature Correction
The layered elastic analysis program LEAF in the BAKFAA back-calculation software [
33] was employed in this study to perform back-calculation of the FWD data obtained at the four test road sections. Because the surface layers such as OGAC, PAC, and SMA were functional layers and overly thin, they were combined with DGAC to form a single layer for the convenience of back-calculation and improvement of convergence. In Sections 1 and 2, the OGAC was integrated with DGAC to form a single layer; the OGAC and SMA in Section 3 were integrated with DGAC to form a single layer; and the PAC and SMA of Section 4 were integrated with DGAC to form a single layer.
Figure 12 illustrates the adjusted cross-sections used in the back-calculation.
This study considered the loading duration of the FWD as 29 ms, corresponding to an approximate frequency of 17.24 Hz [
34]. Since FWD tests were conducted at different temperatures and the modulus of asphalt material layer is related to temperature, the back-calculated modulus of the asphalt layer could not be directly compared with those obtained by the dynamic modulus test. Therefore, the back-calculated modulus values of asphalt layer had to undergo frequency-temperature correction. This study employed the frequency-temperature shift factors obtained by the dynamic modulus test to perform temperature correction for back-calculation at various temperatures.
Figure 13 illustrates the frequency-temperature correction flowchart, while

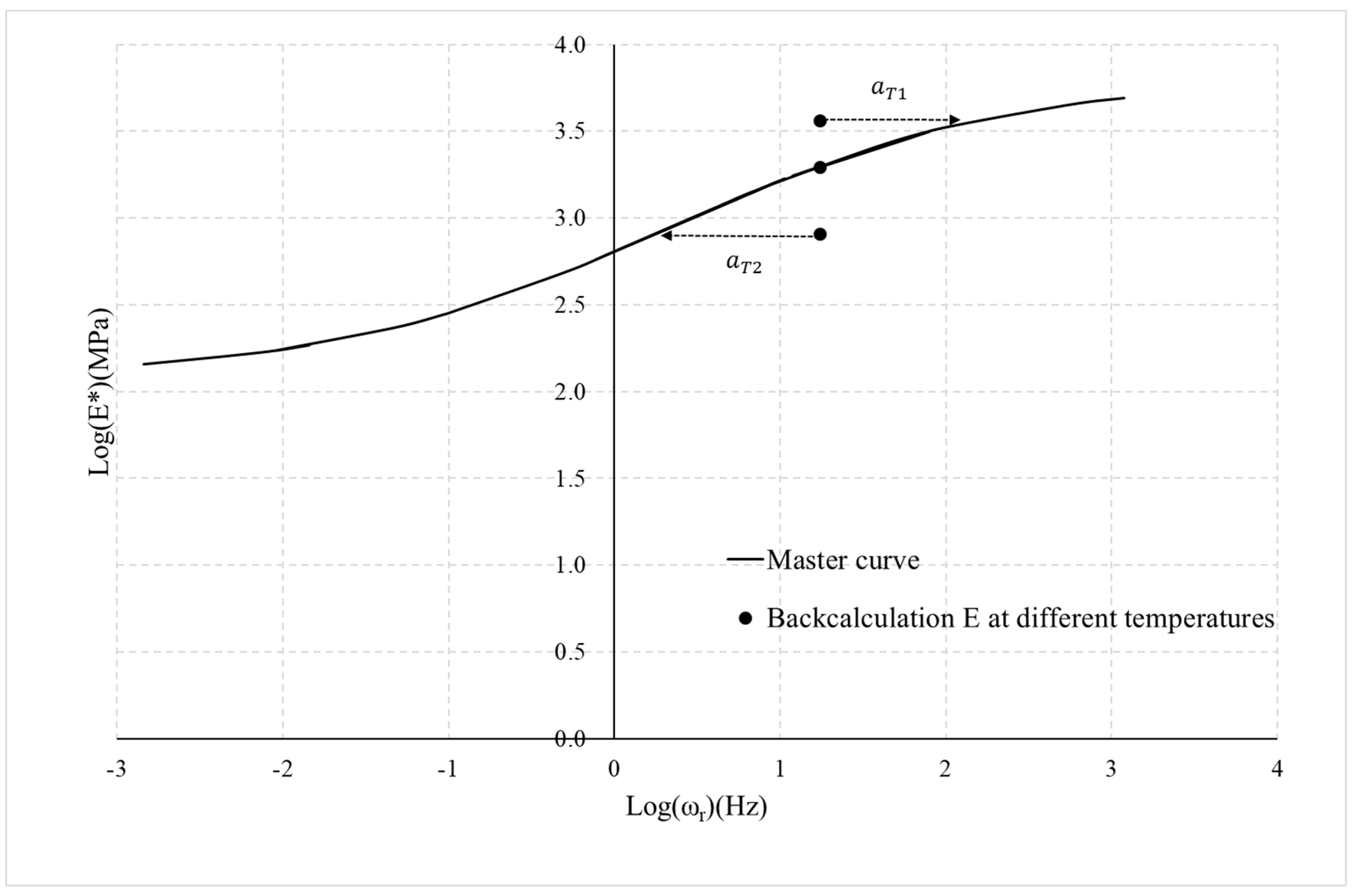

Figure 14 presents a schematic plot of the frequency-temperature correction. Firstly, FWD back-calculation at different temperatures was performed to obtain the modulus of the asphalt material layer represented by the dots in
Figure 14. This study used the temperature from the middle of the asphalt material layer and the temperature was evaluated by the temperature model as shown in Equation (3). According to the determined temperature, the frequency-temperature shift factor can be obtained through the dynamic modulus test (Equations (5) and (6)). The back-calculated modulus of the asphalt layer can be shifted by the same amount of obtained frequency-temperature shift factor shown from the dotted line in
Figure 14. Through temperature correction, the back-calculated asphalt material layer moduli at different temperatures were shifted to those of the reference temperature, enabling comparison of asphalt material layer moduli obtained by dynamic modulus test.

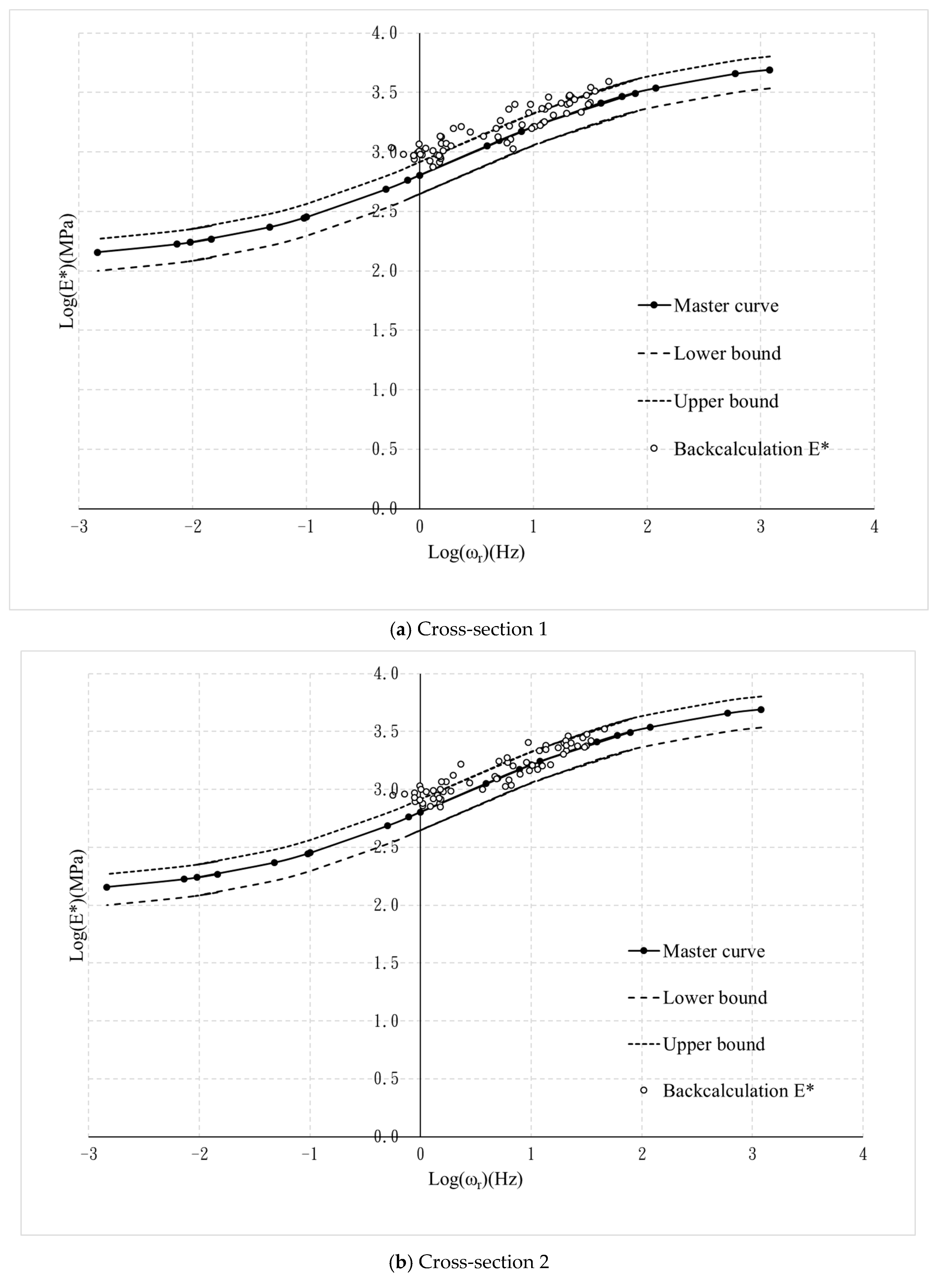

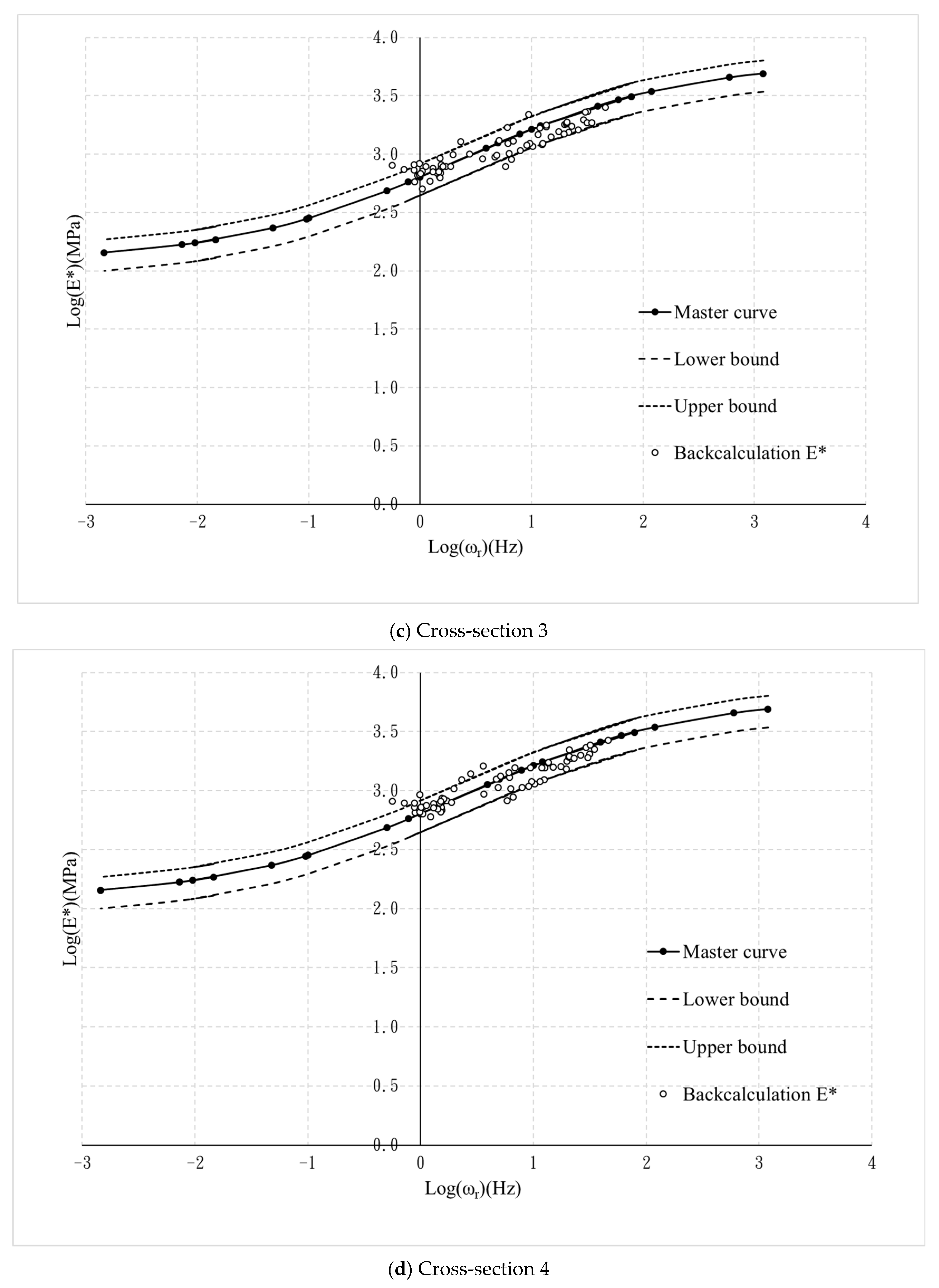

Figure 15 illustrates a comparison of the dynamic modulus master curve of DGAC and the back-calculated modulus of that layer with frequency-temperature correction. The solid line is the master curve of DGAC obtained from the dynamic modulus test, while the dotted lines indicate the ±30% range of the master curve.
Table 6 summarizes the percentage of the back-calculated DGAC results that fell within this ±30% range. The results show that the back-calculated modulus of DGAC with frequency-temperature correction had more than 70% within the ±30% range, except for cross-section 1.

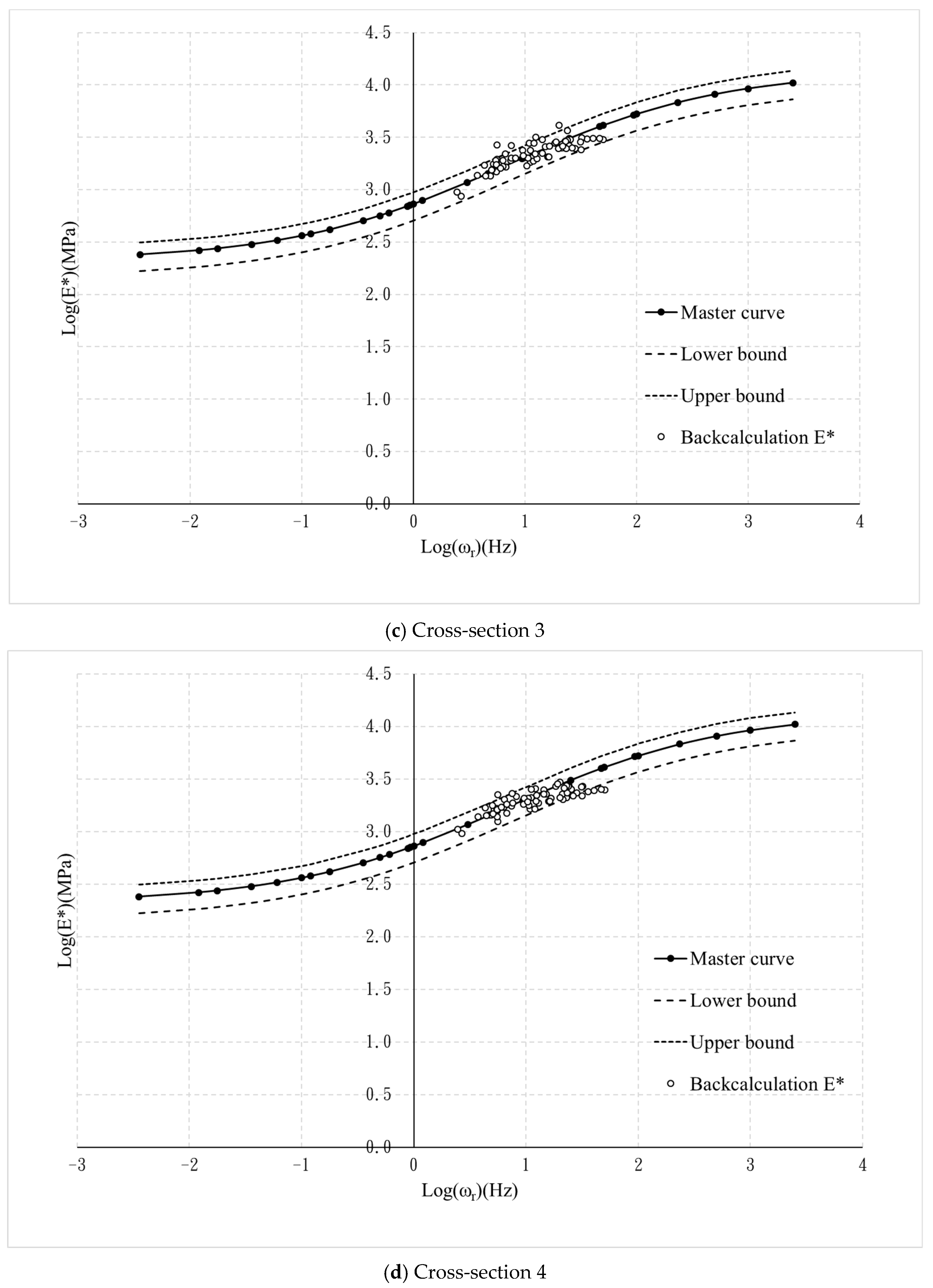

Figure 16 shows a comparison of the dynamic modulus master curve of the BTB and the modulus values obtained by FWD back-calculation with frequency-temperature correction.
Table 7 presents the percentage of back-calculated BTB results that fell within the ±30% range of the dynamic modulus master curve. The results show that more than 85% of back-calculated moduli fell within this range. These results indicate that the proposed frequency-temperature correction can efficiently correct the FWD back-calculated modulus of asphalt material at different temperatures.
By comparing the BTB and DGAC back-calculation results, the BTB results were found to be more accurate than the DGAC results. The reasons can be summarized preliminarily as: (1) The cross-section of the DGAC used in the back-calculation combined several other layers (i.e., OGAC, SMA, and PAC); however, the dynamic modulus master curve of DGAC generated in the laboratory was based on a single material. Hence, the DGAC results were more unsatisfactory than those for the BTB layer. (2) The DGAC was relatively close to the road surface and had a relatively large temperature gradient across its depth. However, the collected temperature adopted for the frequency-temperature correction was simply selected as the temperature at the middle depth of that layer, which could have led to a relatively large error in the DGAC material modulus with frequency-temperature correction.

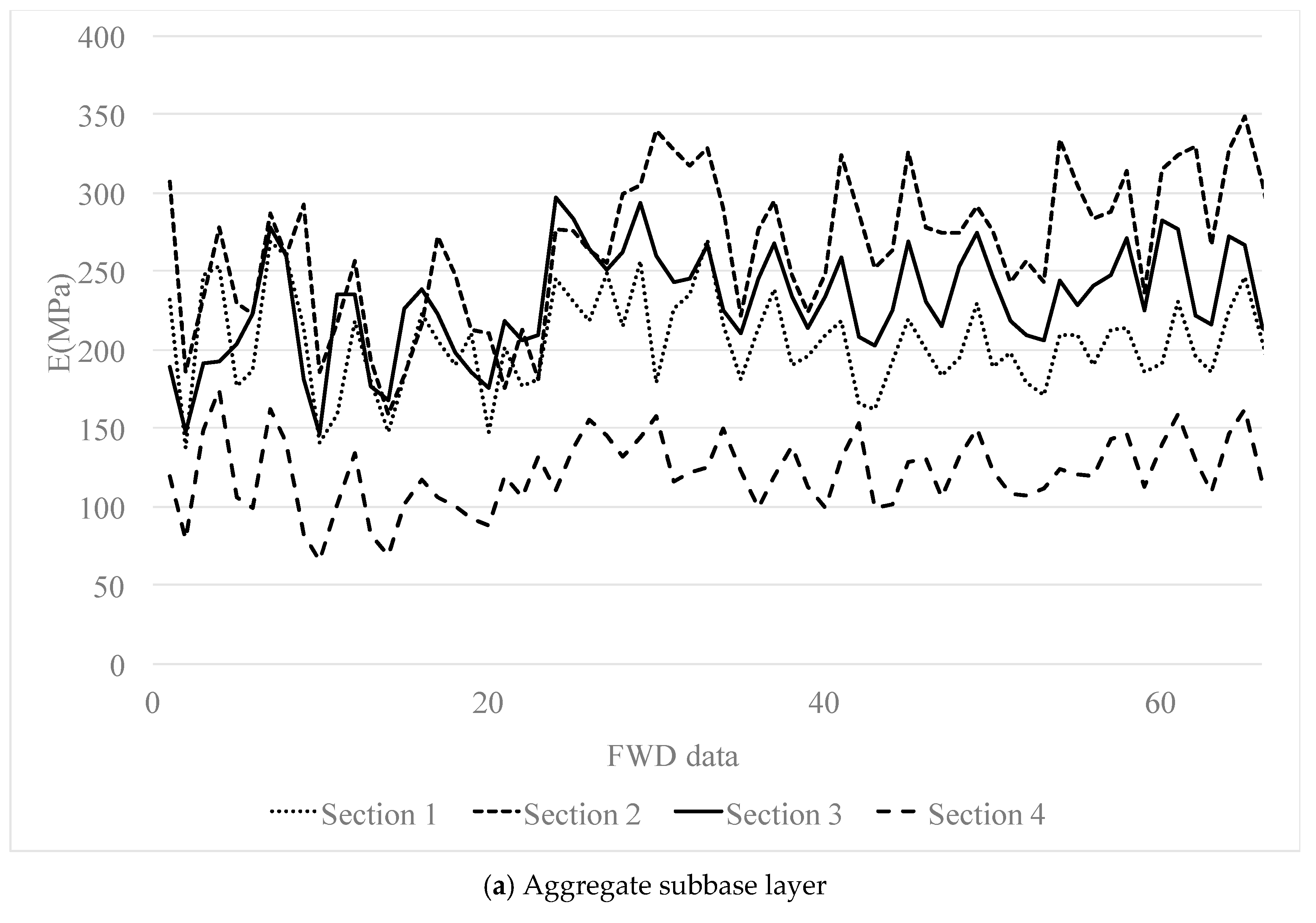

Figure 17 plots the back-calculated modulus of the aggregate subbase layer and subgrade soil layer. The horizontal axis indicates the number of FWD back-calculated data. Since the modulus of the aggregate subbase and soil subgrade are not significantly related to temperature, the frequency-temperature correction does not apply to those layers. The results show the back-calculated modulus of the aggregate subbase in cross-section 4 was consistently considerably lower than that in the other cross-sections. Moreover, the back-calculated modulus of subbase and subgrade in the same section were mostly consistent. These results revealed that FWD tests and back-calculation effectively distinguished the modulus of the four cross-sections and the modulus of the aggregate subbase layer and subgrade soil layer did not strongly influence by temperature, which is in agreement with these materials’ properties.
