Interval Type-2 Fuzzy Inference System Based on Closest Point of Approach for Collision Avoidance between Ships

Abstract

According to International Regulations for Preventing Collision at Sea, collision avoidance started from assessing the collision risk. In particular, the radar was mentioned as suitable equipment for observation and analysis of the collision risk. Thus, many researches have been conducted by utilizing the radar. Fuzzy Inference System based on Type-1 Fuzzy Logic (T1FIS) using Distance to Closest Point of Approach ($D_{CPA}$) and Time to Closest Point of Approach ($T_{CPA}$) computed via the radar has been largely used for assessing the collision risk. However, the T1FIS had significant limitations on the membership function not including linguistic and numerical uncertainties. In order to solve the issue, we developed the Fuzzy Inference System based on Interval Type-2 Fuzzy Logic (IT2FIS) as follows: (i) the T1FIS was selected among proposed methods based on the type-1 fuzzy logic; (ii) we extended the T1FIS into the IT2FIS by gradually increasing the Footprint of Uncertainty (FOU) size taking into consideration symmetry, and (iii) numerical simulations were conducted for performance validation. As a result, the IT2FIS using the FOU size “±5%” (i.e., interval 10% between upper membership function and lower membership function) not only computed the appropriate and linear collision risk index smoothly until near-collision situation but also help to overcome uncertainties that exist in real navigation environments.

1. Introduction

Recently, the possibility of maritime collision accidents has been increasing due to the emergence of large ships, high speed, and the growth of maritime transportation and international trade. Thus, the scale of maritime accidents becomes larger and it causes serious marine pollution, huge economic losses, and loss of life at sea. According to statistic investigation presented by Korean Maritime Safety Tribunal (KMST) [1] over the past five years, collision accidents among entire accidents at sea have reported approximately 13.5%. In particular, more than approximately 90% out of collision accidents was due to human errors. Most of these human errors were a “lack of recognition of collision risk”. According to “Rule 7: Risk of Collision” in the International Regulations for Preventing Collision at the Sea (COLREGs) [2], the collision risk must be assessed by all available means appropriate to the prevailing circumstance using predictive technology. In particular, the radar having the Automatic Radar Plotting Aid (ARPA) function, which can obtain plots of detected objects, equivalent systematic observations, Distance to Closest Point of Approach ($D_{CPA}$), and Time to Closest Point of Approach ($T_{CPA}$), was referred to as an appropriate equipment to obtain early warning of the collision risk in the COLREGs. Therefore, while nearly four decades since the radar appeared, representative two types of static and dynamic assessment methods on the collision risk have been actively utilizing. As for static assessment methods, the term of a ship safety domain was first proposed by Fujii and Tanaka [3] to deal with the safe navigation ships. At this time, safe boundary taking into consideration the distance from the center ship must keep the area of evasion from the overlapping of other ship’s safety domain. This concept of similar definitions can be found in [3,4,5,6,7,8,9,10] applying a different size and shape of the safe boundary. Strength is that the navigator may feel intuitional and comfortable analyzing what spacing around an approaching ship via a graphical shape [11]. However, weakness is that the ship safety domain would not only require complex and frequent reconfiguration according to different types of water areas, but also could not quick computational collision risk and decision-making in dynamic changing circumstances due to only taking account of the ship’s length as a parameter [11].

Hence, a number of researches assessing the collision risk via Collision Risk Index (CRI) have been conducted [12,13,14,15,16,17,18,19]. The CRI is to aggregate dynamic parameters into just one number, and in terms of computational time and quick decision-making, it is faster than ship safety domain. In particular, Hasegawa [15] developed the Fuzzy Inference System (FIS) for computing the CRI based on type-1 fuzzy logic. For this, navigator interviews were used to connect $D_{CPA}$ and $T_{CPA}$ to the CRI. In [16,18], on the basis of [15], fuzzy membership functions using $D_{CPA}$ and $T_{CPA}$ were created by using dimensionless values with the ship length and velocity or adding another input parameter. However, the Fuzzy Inference System based on the type-1 fuzzy logic (T1FIS) was pointed out that membership functions only depended on empirical factor due to navigator interviews [17,19]. Thus, membership functions of $D_{CPA}$ and $T_{CPA}$ were determined on the basis of virtual navigation situation resulting from the maneuverability of the Own-Ship (OS) using K-T (i.e., index of turning ability and index of responsiveness to the helm) equations [17] and near-collision situation data using the ship safety domain [19].

Nonetheless, the T1FIS has the following significant limitations. The membership functions of $D_{CPA}$ and $T_{CPA}$ were created as a crisp degree according to the linguistic variables obtained average values via navigator interviews, ship maneuverability, and near-collision data. These values included errors and did not take into account numerical uncertainties in changing circumstances that may take place at the actual sea area in which a number of ships with different maneuverability were dynamically navigated. Accordingly, the T1FIS did not compute appropriate CRI according to numerical changing of $D_{CPA}$ and $T_{CPA}$ in order that navigator could take an action for collision avoidance at optimal distance and time [15,16,17,18,19]. Therefore, in case the Target-Ship (TS) is approaching to the OS, it would cause that navigator may have difficulty to make an optimal decision for taking an action for collision avoidance based on positioning and timing accuracy.

Unlike the type-1 fuzzy logic, the type-2 fuzzy logic [20,21,22], which consisted of fuzzy degrees of membership that can take into consideration uncertainties, can help to overcome uncertainties that exist in real changing circumstances. In particular, Fuzzy Inference System based on the Interval Type-2 Fuzzy Logic (IT2FIS) in mobile navigation requiring positioning and timing accuracy in a dynamic and unknown environment prevented random errors that change unpredictably, and consequently, taking an action for collision avoidance at optimal distance and time showed smooth trajectory, reduction of path deviation, and saving time [23,24,25,26,27,28,29]. At this time, the interval type-2 membership functions are created from deviation of the parameters of the original type-1 membership functions by a percentage of the universe of discourse of the variables that they are associated to. However, these did not take into consideration systematic way of determining uncertainties on membership function. Hence, the application of appropriate uncertainties is needed to develop the IT2FIS.

In this paper, we propose the IT2FIS in order that the navigator can obtain appropriate CRI in unknown and dynamic circumstances for purpose of efficient taking an action for collision avoidance. This paper has essentially two parts: In the first part, the IT2FISs are generated by gradually increasing the uncertainty size taking into consideration symmetry over a number of steps. In the second part, from the beginning of the encounter situation to the collision situation, the IT2FISs are observed and compared how well the appropriate CRI is being computed according to changing $D_{CPA}$ and $T_{CPA}$ at optimal positioning and timing. At this time, because the number of collision accidents was very few, near-collision, in which there is the danger of collision between ships approaching each other, but with no collision eventually occurring, is used.

The remainder of the paper is organized as follows: Section 2 describes collision avoidance method based on the collision risk. Section 3 presents the IT2FISs using different uncertainty size. In Section 4, numerical experimental results and discussion are conducted. Finally, a summary of the work and the conclusion are drawn in Section 5.

2. Collision Avoidance Method

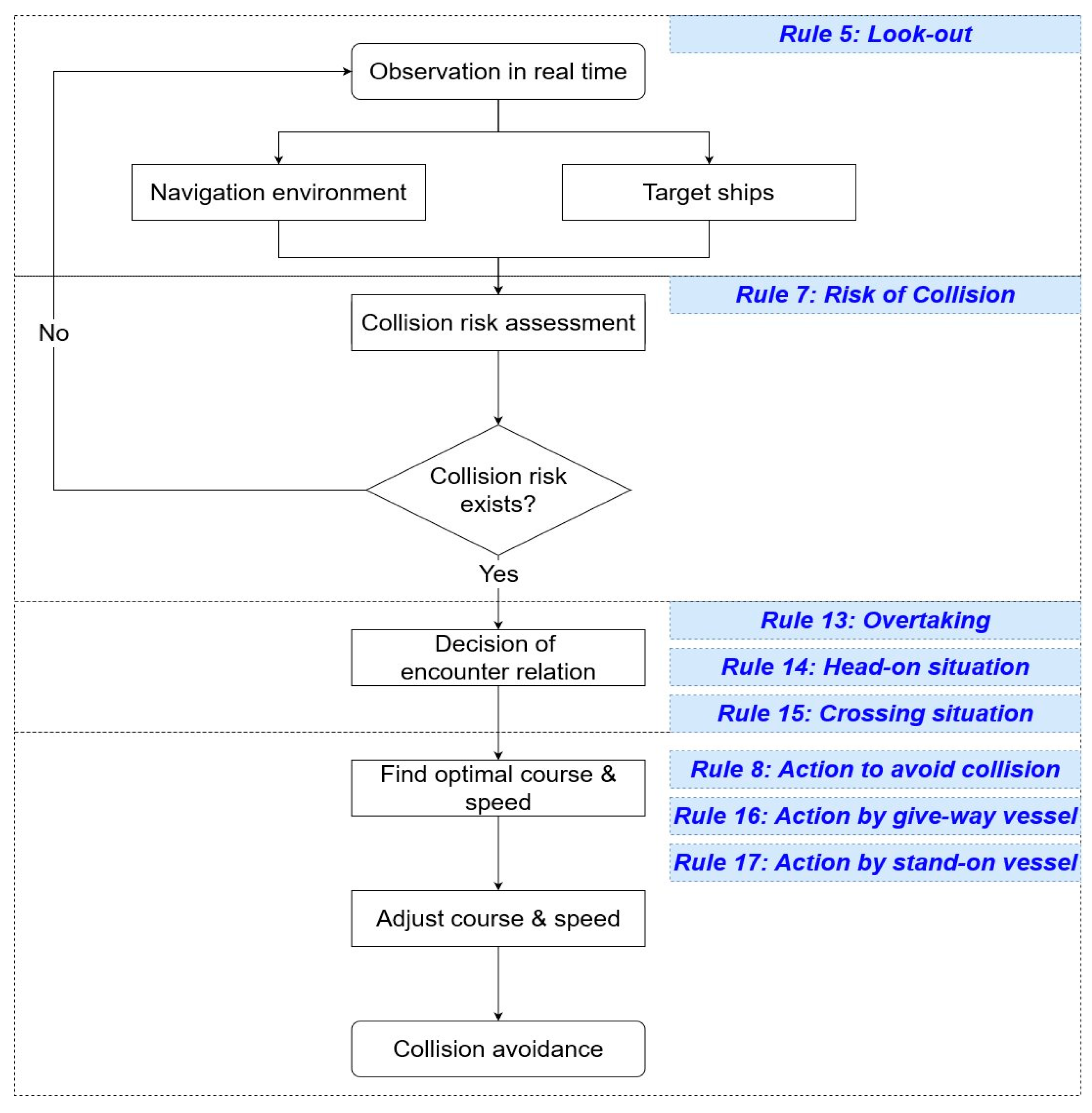

Figure 1 shows the collision avoidance procedure in accordance with the COLREGs, and the following subsection could be four steps [2]. Firstly, the TS and/or obstacle in the vicinity of the OS are detected by using radar plotting according to “Rule 5”. Secondly, the collision risk is assessed on the basis of the computed CRI according to “Rule 7”. Thirdly, encounter relation is decided according to “Rule 13”, “Rule 14”, and “Rule 15”. Finally, taking an action for collision avoidance via optimal course and speed taking into consideration the collision risk is executed by a control command according to “Rule 8”, “Rule 16”, and “Rule 17”.

2.1. Assessment Methods on the Collision Risk

2.1.1. Ship Safety Domain

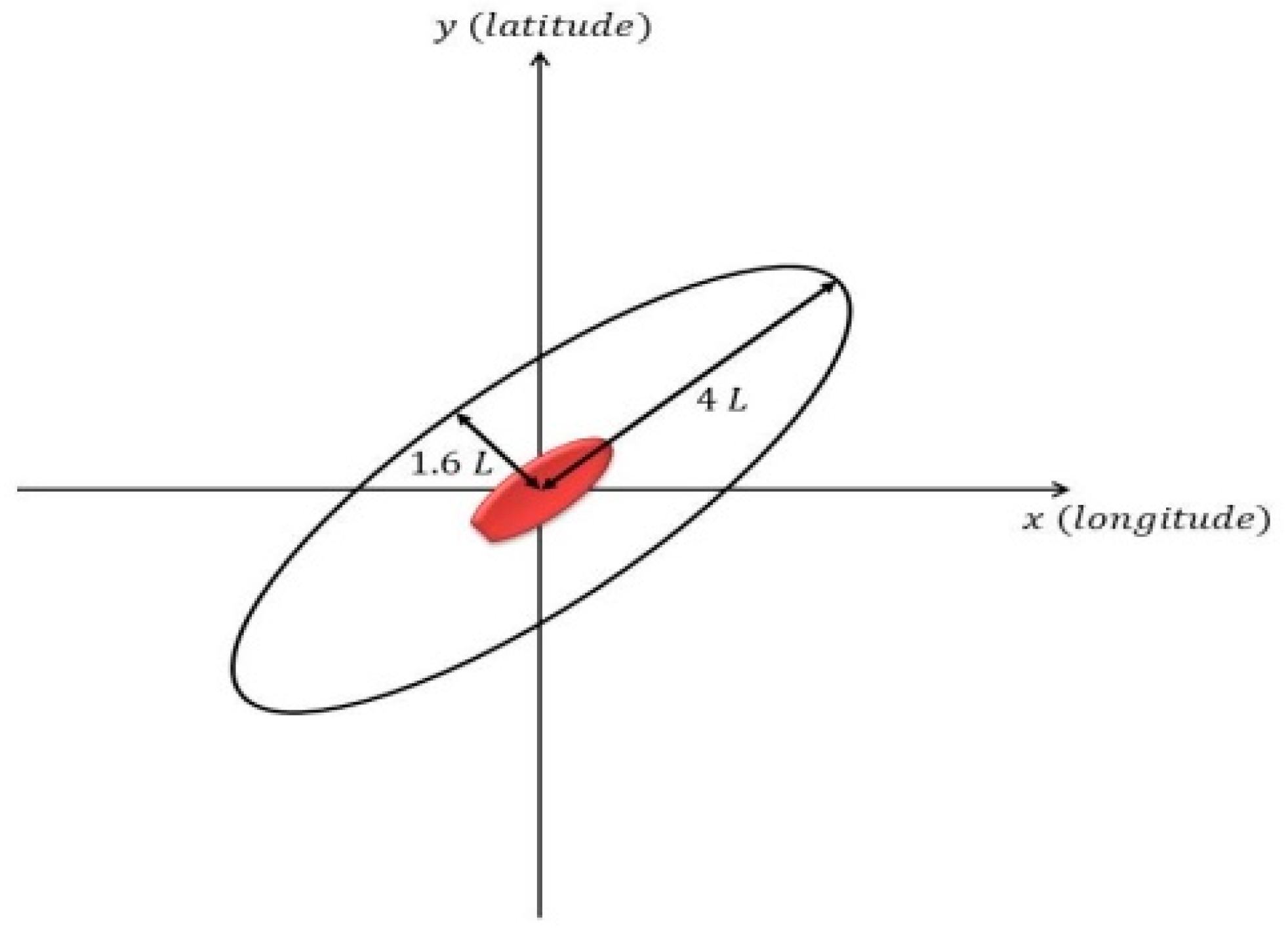

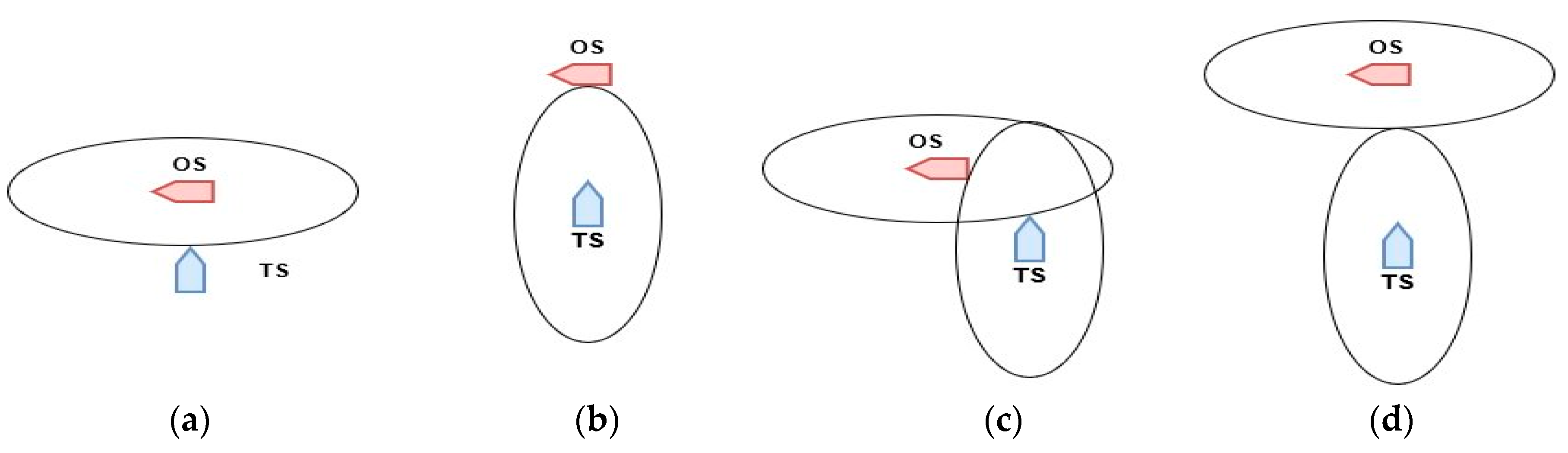

A number of domain models using a different shape and size have been developed with time. Early model was on the basis of statistical process via the radar data for purpose of preventing collision and determining capacity of local waterways [3,4,6,9,10]. After this, navigator’s knowledge [7] and analytical approach [5,8] were utilized for the purpose of collision risk analysis and collision avoidance. In practice, using a ship safety domain in an encounter situation between the OS and the TS can be divided into four as shown in Figure 2.

Recently, the research for suitable determination of size and shape of ship safety domain was conducted on the basis of the Automatic Identification System (AIS) traffic data from Fehmarn belt strait [9]. As a result, size and shape were roughly similar to the ship safety domain, which is an ellipse with a long radius of 4 $L$ and short radius of 1.6 $L$ ($L$ is ship length), proposed by Fujii and Tanaka as shown in Figure 3. Their application scope was to detect near-collision situations and waterway risk analysis. The present study thus considered the near-collision situation using the ship safety domain introduced by Fujii and Tanaka for the purpose of verification of the appropriated CRI computed from the IT2FIS. At this time, safety criterion of ship safety domain was used by Figure 2d.

2.1.2. Closest Point of Approach

The closest point of approach, also known as CPA, is the point where the OS is closest to the TS at any time. Current position, course, and velocity for both the OS and the TS were used in order to compute CPA as shown in Figure 4.

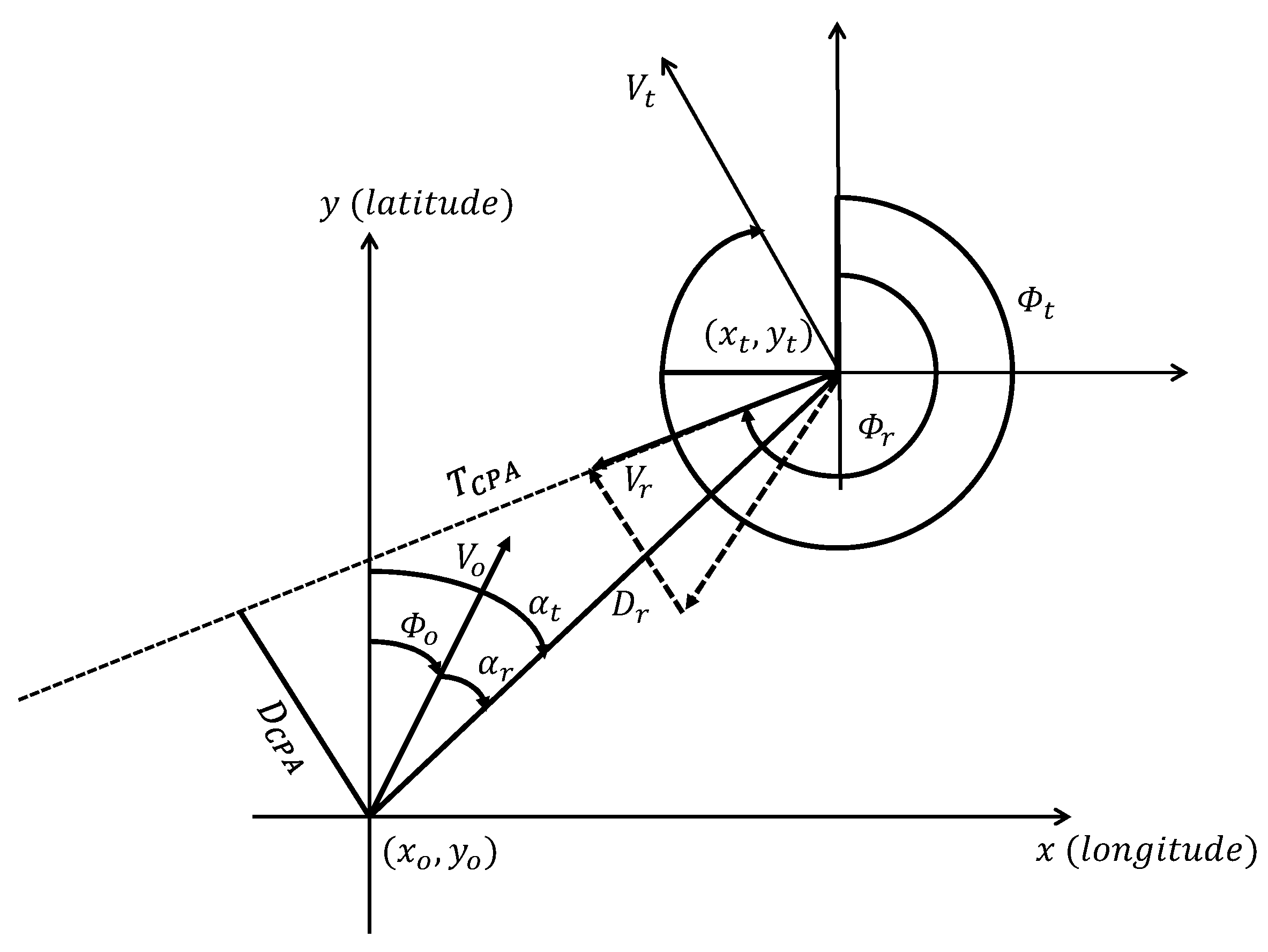

Position, course, and velocity of the OS are given as $\left(x_o, y_o\right)$, ${\Phi }_o$, and $V_o$. Likewise, position, course, and velocity of the TS are given as $\left(x_t, y_t\right)$, ${\Phi }_t$, and $V_t$. The relative moving parameters can be computed as

$$D_r=\sqrt{{\left(x_t-x_o\right)}^2+{\left(y_t-y_o\right)}^2}$$

(1)

$$V_r=V_o\times \sqrt{1+{\left(\frac{V_t}{V_o}\right)}^2-2\times \frac{V_t}{V_o}\times cos\left({\Phi }_o-{\Phi }_t\right)}$$

(2)

$${\Phi }_r=co{s}^{-1}\times \left(\frac{V_o-V_t\times \cos \left({\Phi }_o-{\Phi }_t\right)}{V_r}\right)$$

(3)

where $D_r$ denotes the relative distance between the OS and the TS, $V_r$ denotes the relative velocity, ${\Phi }_r$ denotes the relative course. The distance between the OS and the TS at CPA and the time until CPA are computed as

$$D_{CPA}=D_r\times sin\left({\Phi }_r-{\alpha }_t-\pi \right)$$

(4)

$$T_{CPA}=D_r\times cos\left({\Phi }_r-{\alpha }_t-\pi \right)/V_r$$

(5)

where $D_{CPA}$ is the distance between the OS and the TS, and $T_{CPA}$ is the time to closest point of approach at that time, ${\alpha }_t$ denotes the azimuth of the TS, and ${\alpha }_r$ denotes the relative bearing.

2.1.3. Type-1 Fuzzy Inference System

The linguistic representation and subjective concept like the collision risk originating in the imprecise and vague meaning of words can be dealt from the fuzzy logic [30]. Hence, in order to prevent the collision accidents at sea, the CRI was computed by $D_{CPA}$ and $T_{CPA}$ using fuzzy reasoning [15,16,17,18,19]. In particular, the Type-1 Fuzzy Inference System based on Near-Collision (T1FIS-NC) consisted of the Sugeno fuzzy logic based near collision data via Adaptive Neuro Fuzzy Inference System (ANFIS) [19]. At this time, non-dimensionalized input parameters $D_{CPA}$/L, $T_{CPA}$/(L/V) via ship length (L) and ship velocity (V) were used. Figure 5 shows membership functions (Collision, Danger, Threat, and Attention) with linguistic variables.

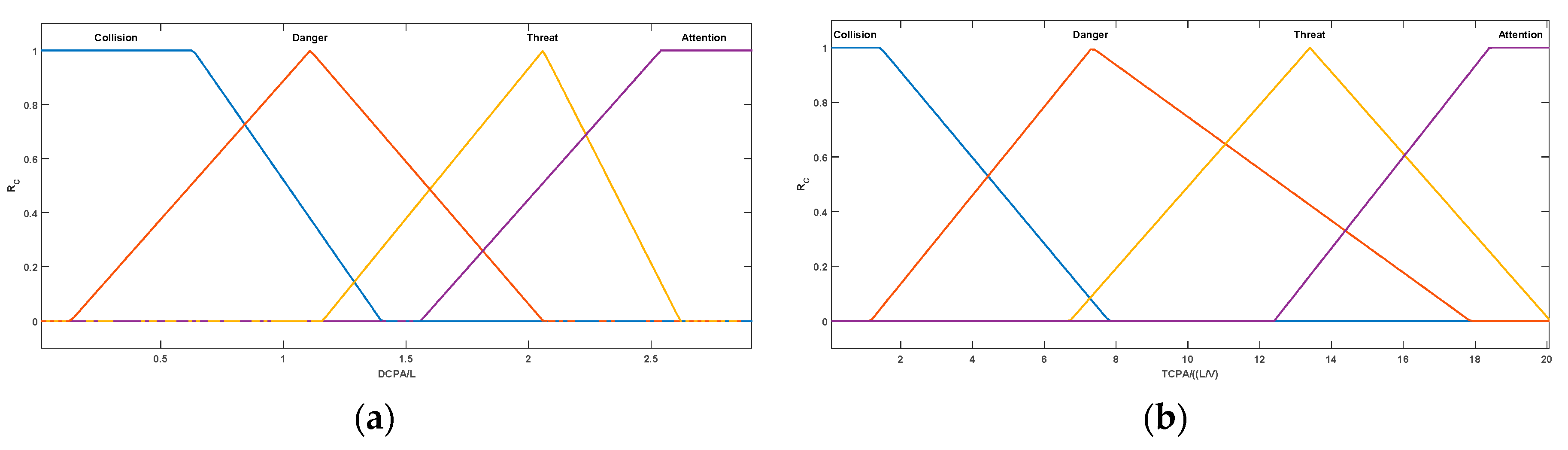

$D_{CPA}$/L and $T_{CPA}$/(L/V) were used for antecedent parameter $x_1$, $x_2$, and $R_c^i$ was used for the consequent parameter. Fuzzy inference rules of T1FIS-NC were composed as

$$Rul{e}_i :if x_1 is {\mu }_{\left(D_{CPA}/L\right)i}and{x}_2 is {\mu }_{\left(T_{CPA}/\frac{L}{V}\right)i}then R_c^i=k_0^i+k_1^i{x}_1+k_2^i{x}_2$$

(6)

where $k_0^i, k_1^i, k_2^i$ are fuzzy sets of the consequent part assigned from the T1FIS-NC. Accordingly,

Table 1. Components of the fuzzy inference rules for the T1FIS-NC.

$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_{\mathit{i}}$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_1$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_2$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_3$	$\cdots$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_{14}$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_{15}$	$\mathit{R}\mathit{u}\mathit{l}{\mathit{e}}_{16}$
${\mathit{D}}_{\mathit{C}\mathit{P}\mathit{A}}$/L	Collision	Danger	Threat	$\cdots$	Attention	Collision	Danger
${\mathit{T}}_{\mathit{C}\mathit{P}\mathit{A}}$/(L/V)	Collision	Threat	Danger	$\cdots$	Threat	Attention	Collision

presents a total of fuzzy inference rules, consisting of a combination of linguistic variables for each membership function.

Figure 6 shows surface based on a total 16 of fuzzy inference rules, and the CRI (i.e., $R_c$) can be computed from 0.0 to 1.0 via the fuzzy inference table as presented in

Table 2. Fuzzy inference rule of the T1FIS-NC.

${\mathit{D}}_{\mathit{C}\mathit{P}\mathit{A}}/\mathit{L}$	${\mathit{T}}_{\mathit{C}\mathit{P}\mathit{A}}/\mathit{L}\mathit{V}$
	Collision	Danger	Threat	Attention
Collision	0.994	0.773	0.477	0.021
Danger	0.777	0.662	0.401	0.017
Threat	0.395	0.423	0.335	0.015
Attention	0.062	0.246	0.152	0.011

.

2.2. Avoiding Action in Encounter Situations

2.2.1. Encounter Situations between Ships

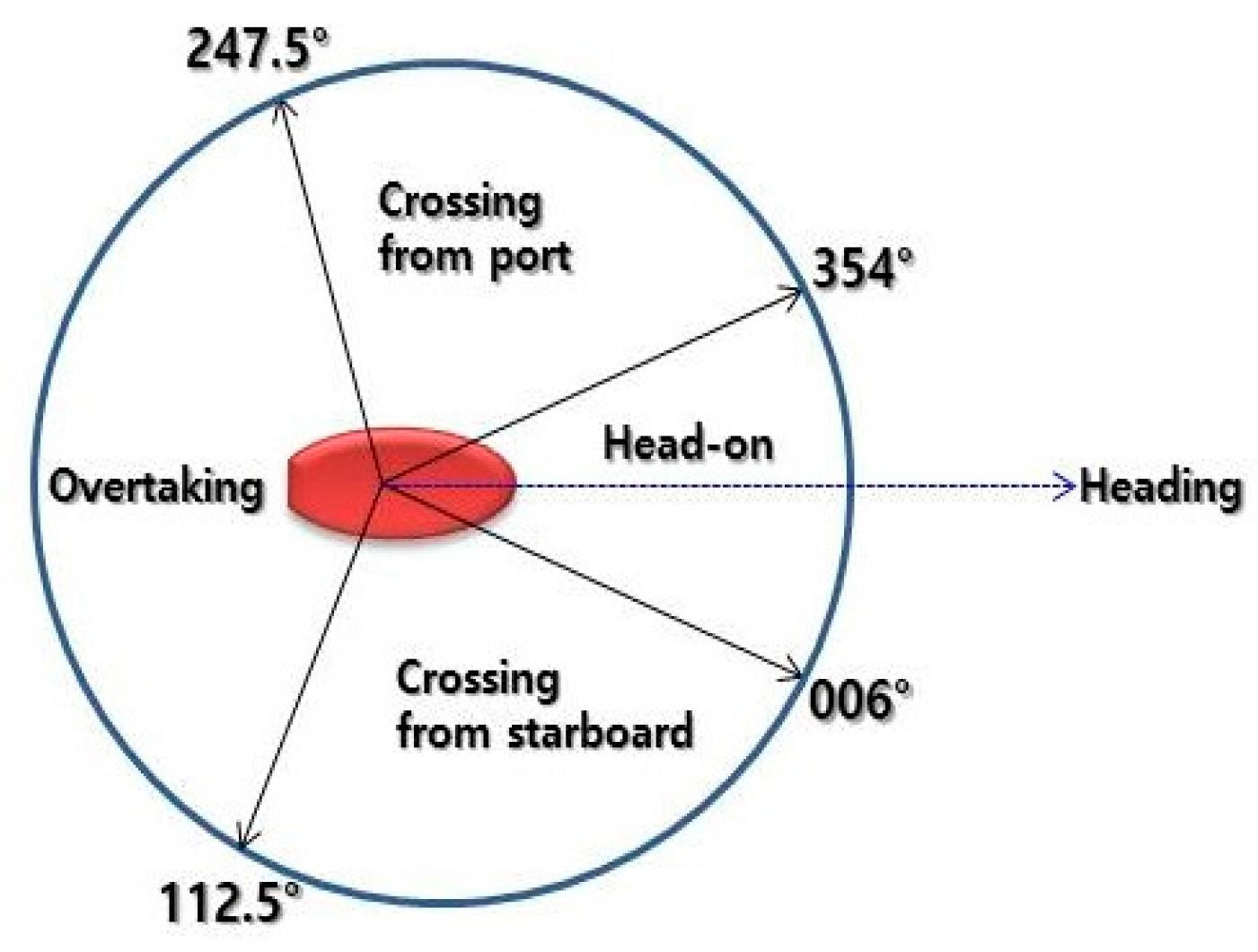

It is important that one’s maneuver makes surrounding ships understand. Otherwise, it could cause the confusion because it makes surrounding ships uncertain. Therefore, it is necessary that all taking an action for collision avoidance are clear and precise in accordance with the COLREGs.

An evasive maneuver for collision avoidance can be divided into overtaking, head-on and crossing, and encounter situations can be judged with relative bearing according to [2,31]. A ship shall be deemed to be overtaking when coming up with the other ship from a direction more than 22.5 degrees abaft its beam. Head-on situation shall be deemed when a ship could see the masthead lights of the other ship in a line or nearly in a line and/or both sidelights. According to the COLREGs, at least the required minimum intensity shall be maintained at all angles from 6 degrees above to 6 degrees below the horizontal. Consequently, the other ship approaching within ±6 degrees by the standard of a ship could be considered as a head-on situation. The crossing situation could be defined that two ships are crossing involving the collision risk. At this time, the angle is between the head-on situation and overtaking situation. Figure 7 presents the different COLREGs situation by its angles.

According to a result of the above, taking an action for collision avoidance in different situations should be as follows:

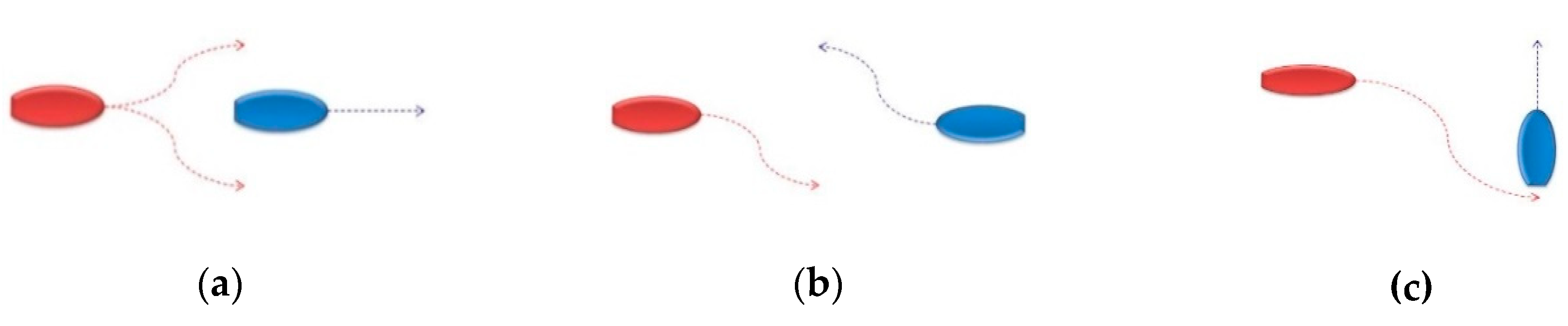

• Overtaking: The ship being overtaken should keep the present course and speed, and overtaking ship can pass the other ship on the both sides as shown in Figure 8a.
• Head on: Both ships should avoid collision by changing the course to the starboard as shown in Figure 8b.
• Crossing: A give-way vessel having the other ship on its starboard side should change its course, and the other ship should keep the present course and speed as shown in Figure 8c.

2.2.2. Avoiding Action Strategy

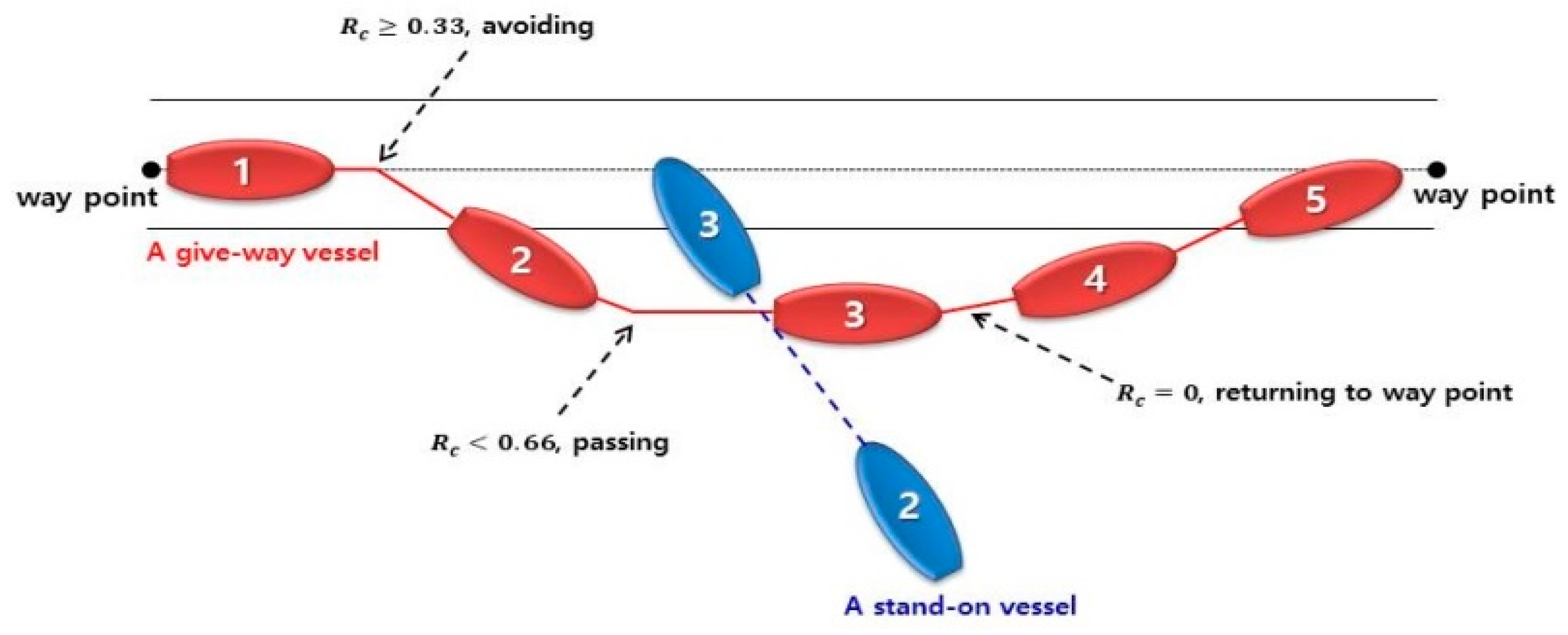

The OS should start avoiding when $R_c$ exceed more than the threshold [19]. The T1FIS-NC designated threshold 0.33 for the give-way vessel and more than 0.66 for a stand-on vessel. When detecting the collision risk reaches to a pre-designated threshold, the give-way vessel should take an action for collision avoidance normally by changing course to the starboard side. At this time, the stand-on vessel must keep the present course and speed. Additionally, then, the give-way vessel should pass through the stand-on vessel in a state not exceeding 0.66. When $R_c$ disappears, the give-way vessel could return to the original path. In case of exceeding more than 0.66, both ships must conduct the best cooperation action for collision avoidance. Figure 9 and pseudo-code show taking an action for collision avoidance and returning path according to the $R_c$.

Pseudo-code for collision prevention algorithms between the OS and the TS (Algorithms 1 and 2).

Algorithm 1 Risk algorithm

Input: $D_{CPA}$/L,$T_{CPA}$/(L/V) Output: $R_c$ via T1FIS-NC Define Normal Status as (0); Define Go to Collision avoidance algorithm as (1); while the TS is approaching the OS do compute $D_{CPA}$/L,$T_{CPA}$/(L/V)  if $R_c$ $\ge$ 0.33 then   return (1);  else   return (0);  end end

Algorithm 2Collision avoidance algorithm

Input: $R_c$, ${\alpha }_r$ Output: Collision avoidance while$R_c$$\ge$ 0.33 do  if ${\alpha }_r$ is in head-on or crossing from starboard then   alter course to starboard by less than $R_c$ 0.66  end if ${\alpha }_r$ is in crossing from port  if $R_c$ $\ge$0.66 then  alter course to starboard  else  keep course and speed  end  end if ${\alpha }_r$ is in overtaking then  keep course and speed  end end

3. Development of Interval Type-2 Fuzzy Inference System for Collision Avoidance

The concept of the type-2 fuzzy set proposed by Zadeh [20] is an extension of the type-1 fuzzy set, which is characterized by membership functions using soft fuzzy boundaries. It can not only provide additional design degrees of freedom, but also be very useful in circumstances where a number of uncertainties are present. Type-1 Fuzzy Logic System (T1FLS) and Type-2 Fuzzy Logic System (T2FLS) have a similar process consisting of four components: a fuzzification unit, a rule base, a fuzzy inference engine, and a defuzzification unit. In particular, the T2FLS has a type reducer, which converts the T1FLS output in order that crisp output can be obtained as shown in Figure 10.

However, in case membership functions and rule based have been increased, the T2FLS had computational complexity due to type-reduction. Hence, the Interval Type-2 Fuzzy Logic System (IT2FLS) using the iterative Karnik–Mendel (KM) algorithm is being more utilized due to the simplification approach and fast computation than general type-2 fuzzy logic [22]. In particular, IT2FLS can be divided into the Mamdani and TSK system (i.e., the Sugeno fuzzy logic). Therefore, in order to develop the IT2FLS, the following process is necessary:

• Design of an initial T1FLS.
• Extension of the T1FLS into the IT2FLS using the partially dependent design.

This study designated the T1FIS-NC to develop the IT2FIS. At this time, the Interval Type-2 TSK Fuzzy Logic System (IT2FLS-TSK) was utilized due to T1FIS-NC composed by the Sugeno fuzzy logic, and then the IT2FISs were generated by increasing the Footprint of Uncertainty (FOU) sizes taking into consideration symmetry over a number of steps. The reason why the FOU sizes are increased over a number of steps is due to not strong relationship between the IT2FIS performance and the expanding FOU sizes [24]. Hence, it is necessary to increase the FOU sizes over a number of steps, and the IT2FIS performance should be analyzed according to the FOU sizes.

3.1. Interval Type-2 Fuzzy Sets

An interval type-2 fuzzy set, denoted $\tilde{F}$, is characterized by a type-2 memberships function ${\mu }_{\tilde{F}} \left(x, u\right)=1$ as

$$\tilde{F}=\left\{\left(\left(x,u\right), {\mu }_{\tilde{F}}\left(x,u\right)\right)|\forall x\in X, \forall u\in J_x\subseteq \left[0, 1\right]\right\}$$

(7)

where $x$, a primary membership value, has domain $X$; $u$, a secondary membership value, has domain $J_x$ at each $x\in X$ and $J_x$ is the primary membership of $x$ and the secondary grades of $\tilde{F}$ all equal 7.

Uncertainty in the primary memberships of the IT2FIS, $\tilde{F}$, consists of a bounded region “FOU”. The Upper Membership Function (UMF) and Lower Membership Function (LMF) of $\tilde{F}$ are two type-1 membership functions that bound the FOU as

$$\mathrm{UMF}={\overline{\mu }}_{\tilde{F}}\left(\mathrm{x}\right) \equiv \overline{FOU\left(\tilde{F}\right)} \forall x\in X$$

(8)

$$\mathrm{LMF}={{\displaystyle \underset{\_}{\mu }}}_{\tilde{F}}\left(\mathrm{x}\right) \equiv {\displaystyle \underset{\_}{FOU\left(\tilde{F}\right)}} \forall x\in X$$

(9)

$$J_x=\left\{\left(x,u\right):u\in \left[ {\overline{\mu }}_{\tilde{F}}\left(\mathrm{x}\right), {\underset{\_}{\mu }}_{\tilde{F}}\left(\mathrm{x}\right)\right] \right\}$$

(10)

where $J_x$ is the interval type-2 fuzzy set. In order to consist of the appropriate type-2 fuzzy sets, the FOU sizes were increased to “±5%” (i.e., interval 10% between the UMF and the LMF) intervals from “±0%” to “±50%” by adding a uniform band around the T1FIS-NC membership functions.

3.2. Interval Type-2 Fuzzy Inference Rules

In the IT2FIS using two inputs ($D_{CPA}$/L and $T_{CPA}$/(L/V)) as parameter $x_1$ and $x_2$, and one output as $R_c^i$ according to the T1FIS-NC, it can be expressed:

$$Rul{e}_i :if x_1 is {\tilde{F}}_1^{i}and{x}_2 is {\tilde{F}}_2^i then R_c^i=k_0^i+k_1^i{x}_1+k_2^i{x}_2$$

(11)

where ${\tilde{F}}_1^i$, ${\tilde{F}}_2^i$ are fuzzy sets of antecedent part assigned from the IT2FIS, $R_c^i$ is the consequent of the rule $i$th of the IT2FIS, and $k_0^i, k_1^i, k_2^i$ are fuzzy sets of the consequent part assigned from the T1FIS-NC.

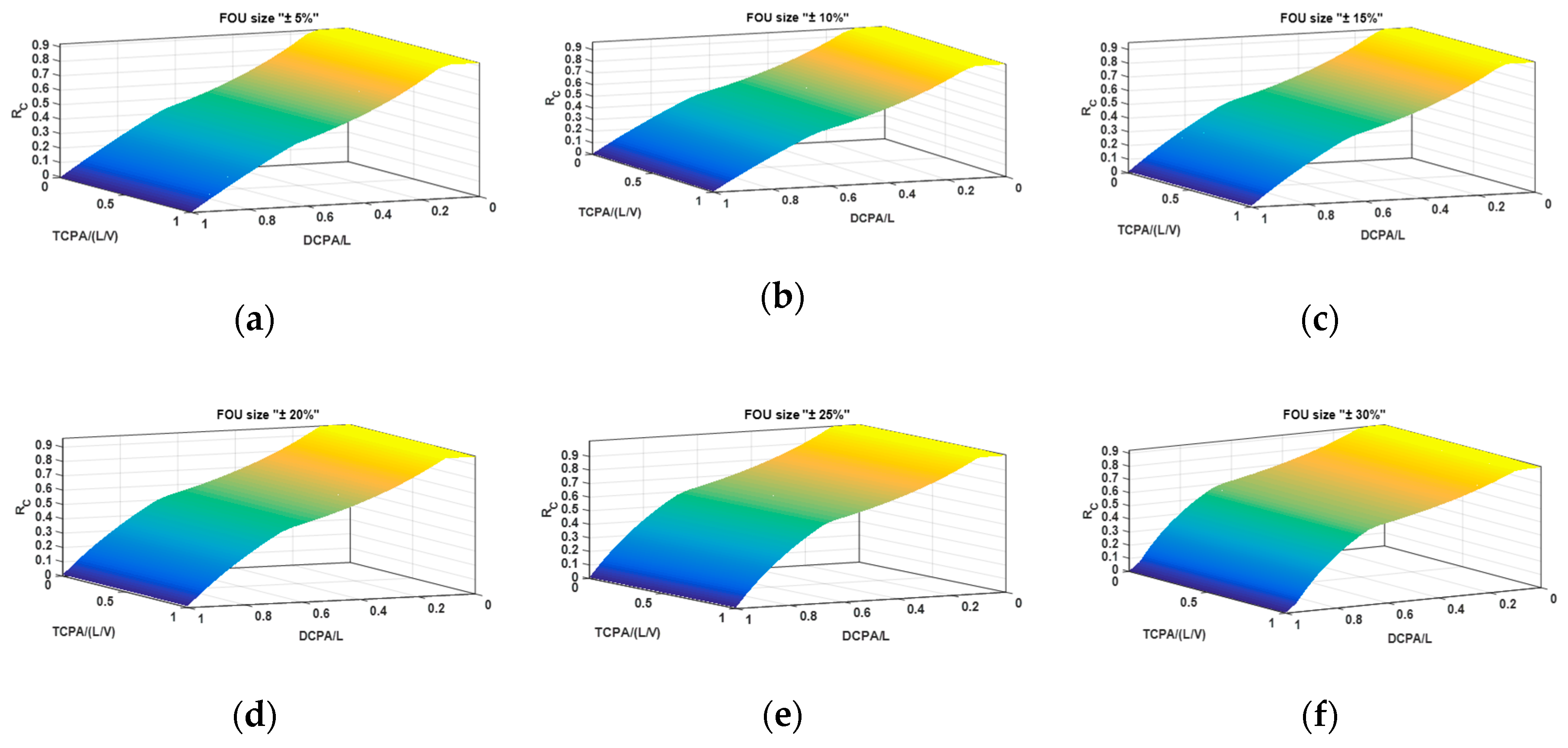

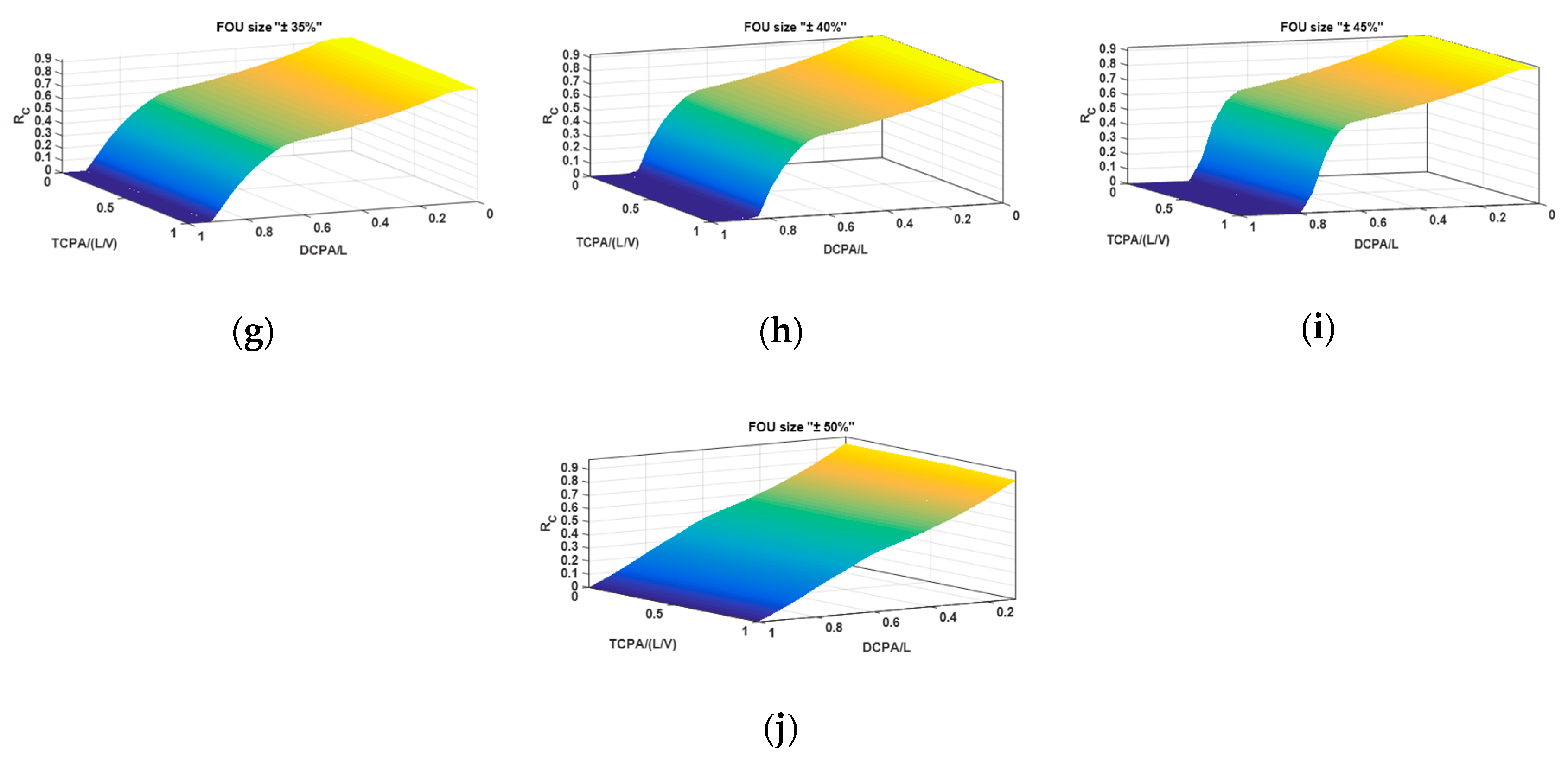

On the basis of the rules, surface of the T1FIS-NC (i.e., FOU size “±0%”), which gradually increased FOU sizes over a number of steps, is as shown in Figure 11.

3.3. Computation of Interval Type-2 Fuzzy Inference System

The result of the input parameters and antecedent operations contained in the firing set produces an interval type-1 set as

$$F^i\left(x\right)=[\underset{\_}{f^i}\left(x\right), \overline{f^i}\left(x\right)]$$

(12)

$${\underset{\_}{f}}^i\left(x\right)={\underset{\_}{\mu }}_{F_1^i}\left(x_1\right)\star {\underset{\_}{\mu }}_{F_2^i}\left(x_2\right)$$

(13)

$$\overline{f^i}\left(x\right)={\overline{\mu }}_{F_1^i}\left(x_1\right)\star {\overline{\mu }}_{F_2^i}\left(x_2\right)$$

(14)

where $F^i\left(x\right)$ is the antecedent of the rule $i$th, and ${\underset{\_}{f}}^i\left(x\right)$ and $\overline{f^i}\left(x\right)$ are upper and lower membership functions, respectively. “⋆” denotes t-norm operator, “minimum” or “product” is used.

Consequent output $R_c^i$ of the rule $i$th is also an interval type-1 fuzzy set and is computed as

$$R_c^i=[r_{cl}^i, r_{cr}^i]={{\displaystyle \int }}_{r_c^1}^{}\cdots {{\displaystyle \int }}_{r_c^N}^{}{{\displaystyle \int }}_{F^1}^{}\cdots {{\displaystyle \int }}_{F^N}^{}1/\frac{{{\displaystyle \sum }}_{i=1}^N{f}^i{r}_c^i}{{{\displaystyle \sum }}_{i=1}^N{f}^i}$$

(15)

KM algorithms are employed for exactly computing the end-points of left “$r_{cl}$” and right “$r_{cr}$”depending on $R_c$ as

$$r_{cl}=\frac{{{\displaystyle \sum }}_{i=1}^N{f}_l^i{r}_{cl}^i}{{{\displaystyle \sum }}_{i=1}^N{f}_l^i}$$

(16)

$$r_{cr}=\frac{{{\displaystyle \sum }}_{i=1}^N{f}_r^i{r}_{cr}^i}{{{\displaystyle \sum }}_{i=1}^N{f}_r^i}$$

(17)

Defuzzification of the interval type-2 set is performed using the average of $r_{cl}$ and $r_{cr}$, and the defuzzified crisp output is achieved as

$$R_c=\frac{\left(r_{cl}+r_{cr}\right) }{2}$$

(18)

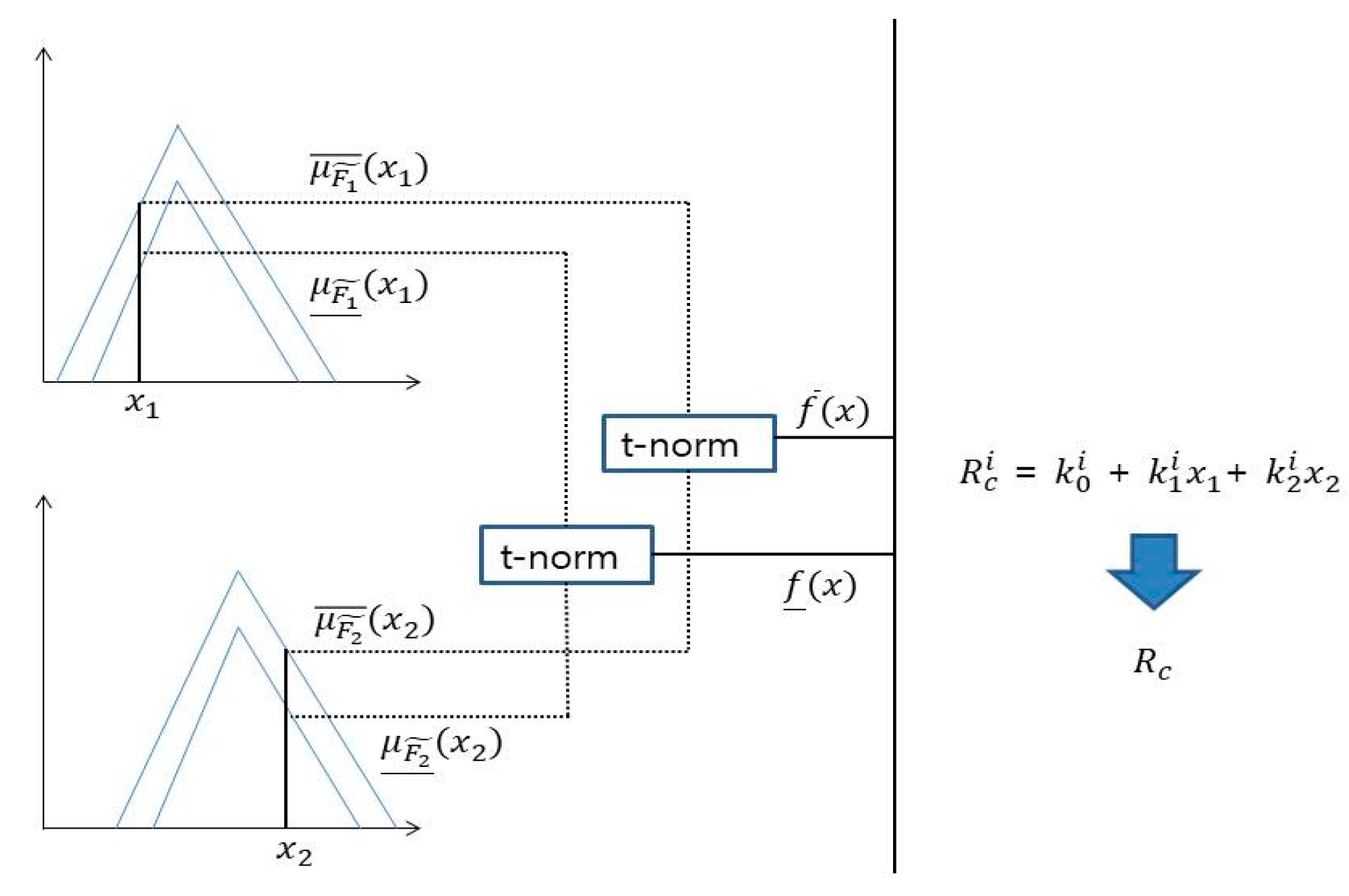

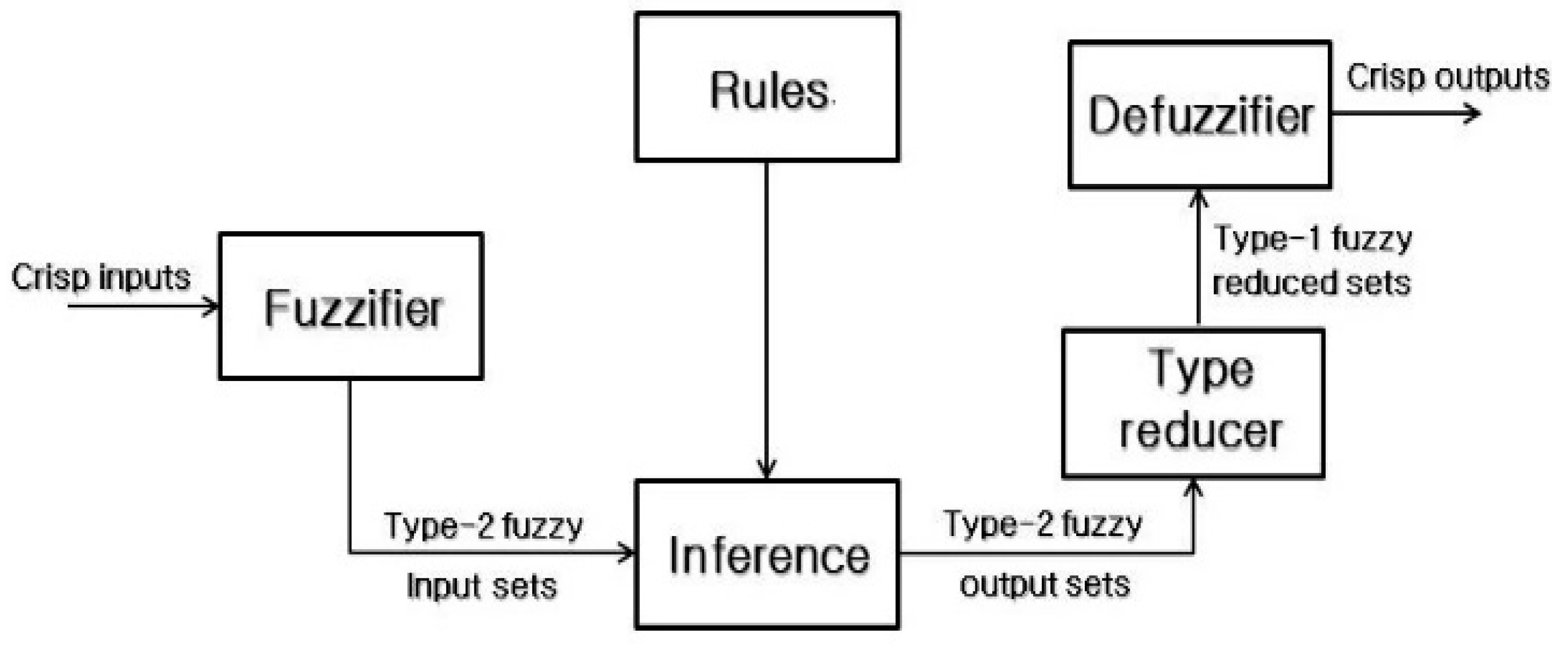

Figure 12 shows the summarized process of inference computation on the IT2FIS.

4. Results and Discussion

4.1. Numerical Simulation Results

In order to validate the performance of the IT2FISs generated by gradually increasing the FOU taking into consideration symmetry over a number of steps, they were applied to near-collision between ships. At this time, one of ships was designated as the OS, and the other was designated as the TS. Navigation information of both ships were extracted from the AIS in Mokpo sea area as presented in

Table 3. Initial parameters in numerical simulation.

	OS	TS
Relative distance	10.48 nm	10.48 nm
Speed	10.6 kts	6.3 kts
Heading	49.5°	171.6°
Ship length	75 m	67 m

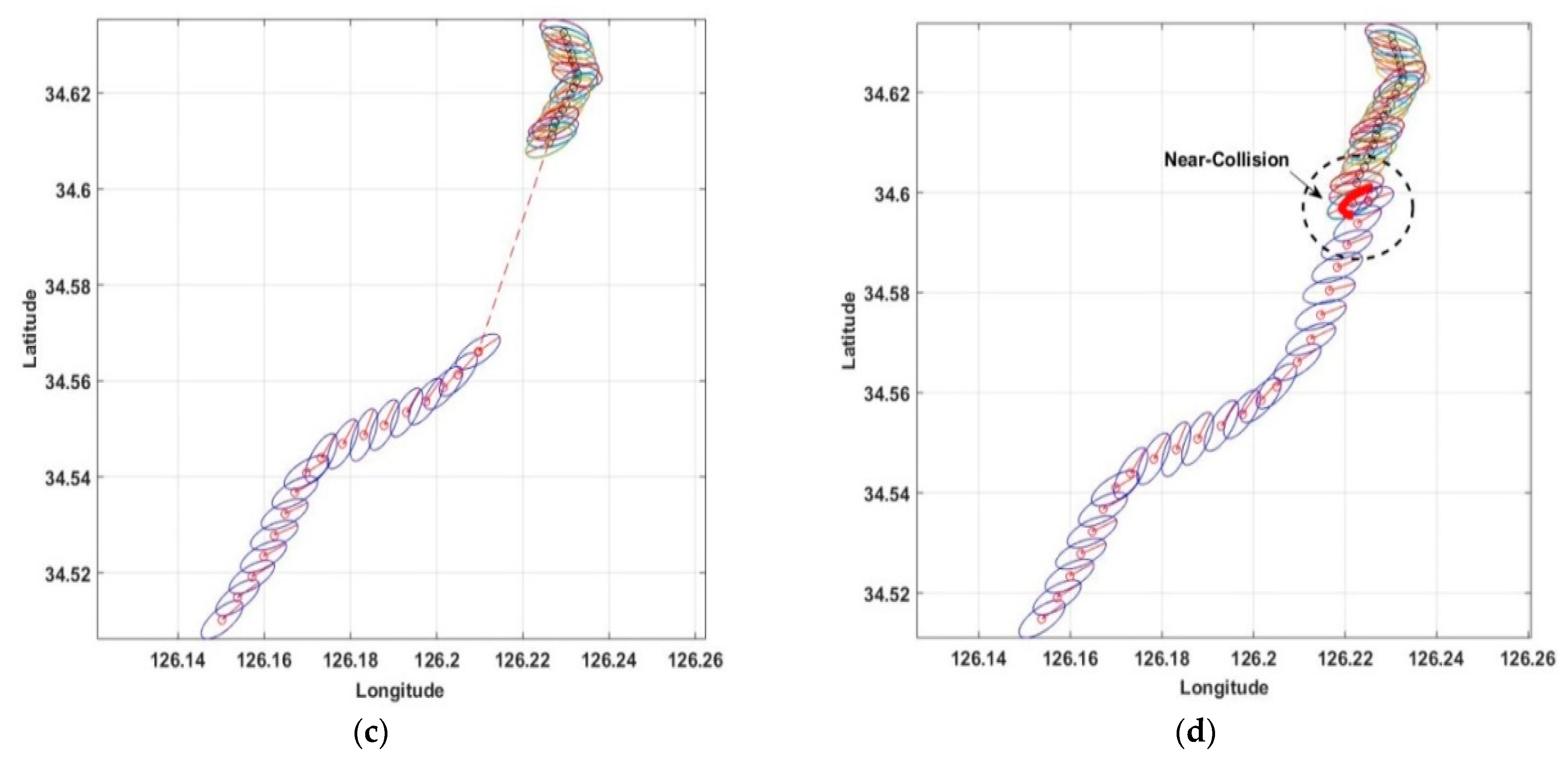

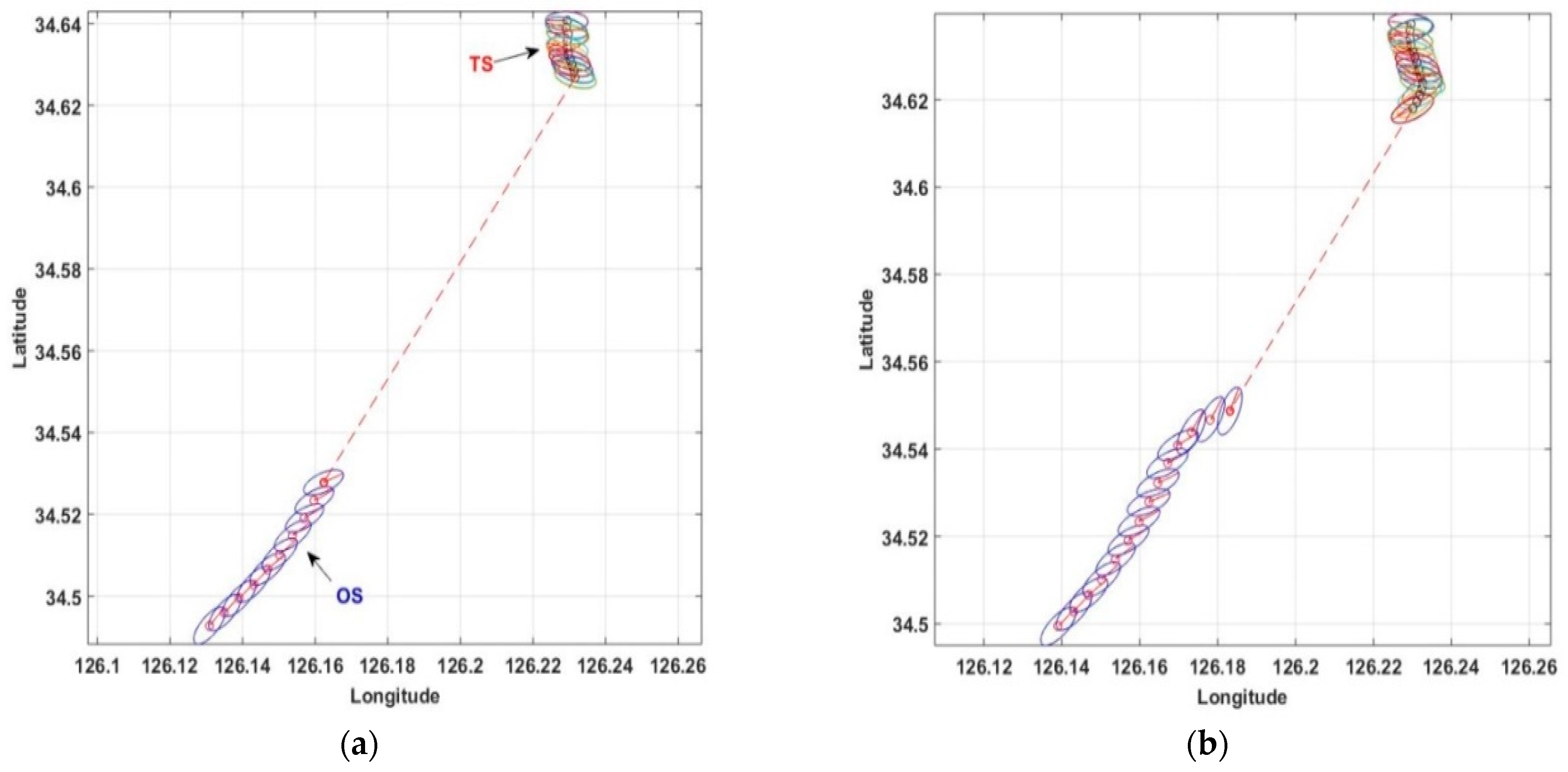

, and Figure 13 shows the occurred area of near-collision, which the ship safety domains proposed by Fujii and Tanaka were overlapped.

Numerical simulation was conducted based on Matrix Laboratory (MATLAB). Figure 14 shows the encounter situation between the OS and the TS, and near-collision was occurred as presented in Figure 14d.

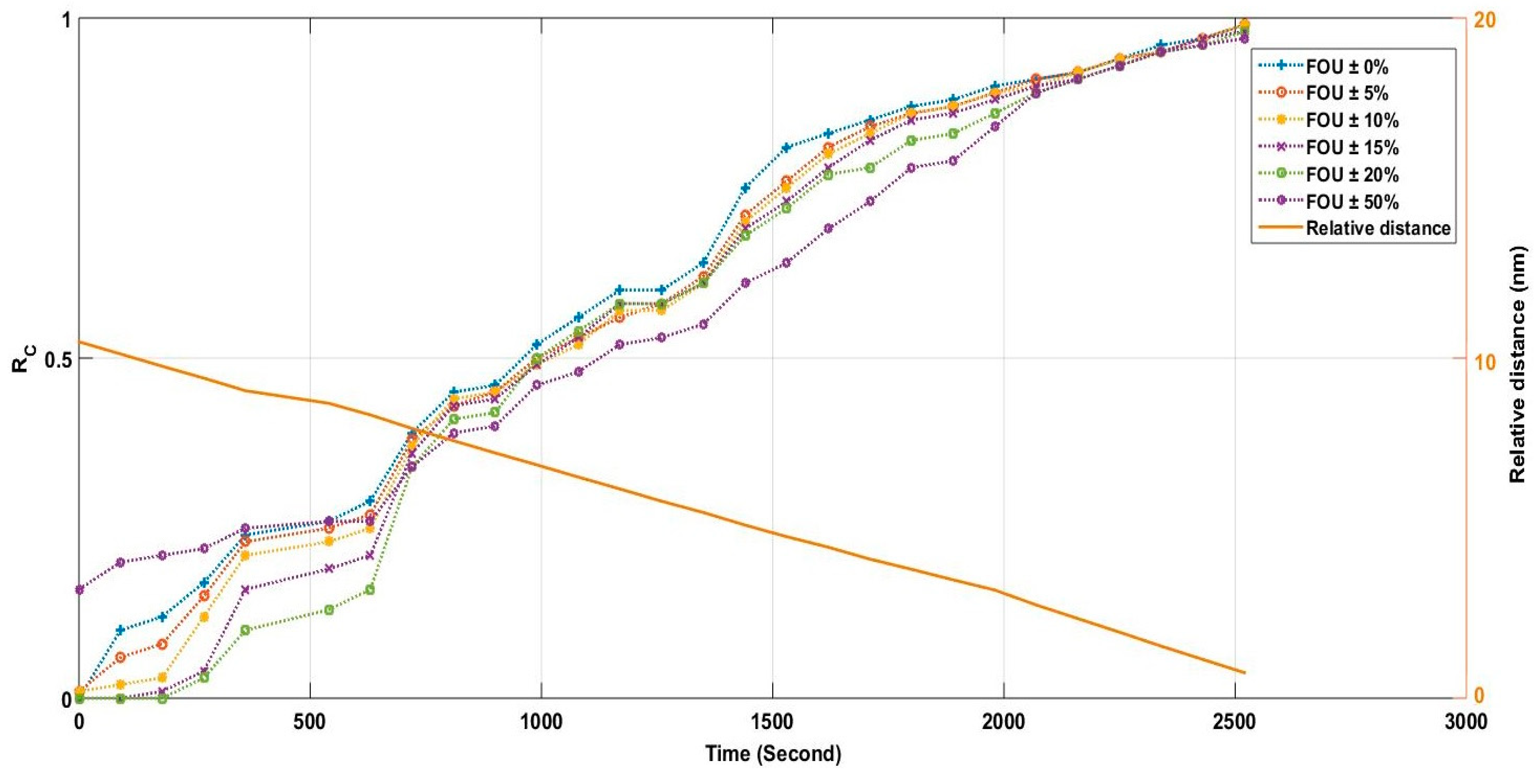

The FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%” were measured by the linear $R_c$ as shown in Figure 15 and

Table 4. Linear $R_c$ computed by different FOU size: background color is identical $R_c$.

Time (s)	Relative Distance (nm)	${\mathit{D}}_{\mathit{C}\mathit{P}\mathit{A}}/\mathbf{L}$	${\mathit{T}}_{\mathit{C}\mathit{P}\mathit{A}}/(\mathbf{L}/\mathbf{V})$	${\mathit{R}}_{\mathit{c}}\mathbf{Computed}\mathbf{by}\mathbf{FOU}\mathbf{Size}$
				±0%	±5%	±10%	±15%	±20%	±50%
0	10.48	0.21	18.77	0.00	0.01	0.01	0.00	0.00	0.16
90	10.12	0.22	16.13	0.10	0.06	0.02	0.00	0.00	0.20
180	9.76	0.22	15.83	0.12	0.08	0.03	0.01	0.00	0.21
270	9.41	0.21	14.59	0.17	0.15	0.12	0.04	0.03	0.22
360	9.04	0.20	13.10	0.24	0.23	0.21	0.16	0.10	0.25
540	8.67	0.20	12.81	0.26	0.25	0.23	0.19	0.13	0.26
630	8.33	0.19	12.56	0.29	0.27	0.25	0.21	0.16	0.26
720	7.93	0.18	11.08	0.39	0.38	0.37	0.36	0.34	0.34
810	7.57	0.18	10.27	0.46	0.43	0.44	0.43	0.41	0.39
900	7.21	0.17	10.13	0.46	0.45	0.44	0.44	0.42	0.40
990	6.86	0.16	9.31	0.52	0.50	0.49	0.49	0.50	0.46
1080	6.5	0.15	8.91	0.56	0.53	0.52	0.53	0.54	0.48
1170	6.15	0.15	8.41	0.60	0.56	0.57	0.58	0.58	0.52
1260	5.79	0.13	8.40	0.60	0.58	0.57	0.58	0.58	0.53
1350	5.46	0.13	8.06	0.64	0.65	0.61	0.61	0.61	0.55
1440	5.09	0.12	7.22	0.75	0.71	0.70	0.69	0.68	0.61
1530	4.75	0.12	6.74	0.81	0.76	0.75	0.73	0.72	0.64
1620	4.44	0.11	6.11	0.83	0.81	0.80	0.78	0.77	0.69
1710	4.09	0.10	5.47	0.85	0.84	0.83	0.82	0.78	0.73
1800	3.79	0.09	4.78	0.87	0.86	0.86	0.85	0.82	0.78
1890	3.48	0.08	4.63	0.88	0.87	0.87	0.86	0.83	0.79
1980	3.18	0.07	4.09	0.90	0.89	0.89	0.88	0.86	0.84
2070	2.74	0.06	3.59	0.90	0.91	0.90	0.90	0.89	0.89
2160	2.34	0.05	3.29	0.92	0.92	0.92	0.91	0.91	0.91
2250	1.94	0.04	2.71	0.94	0.94	0.94	0.93	0.93	0.93
2340	1.53	0.03	2.11	0.96	0.95	0.95	0.95	0.95	0.95
2430	1.14	0.02	1.65	0.97	0.97	0.97	0.97	0.96	0.96
2520	0.75	0.00	1.15	0.99	0.99	0.99	0.98	0.98	0.97

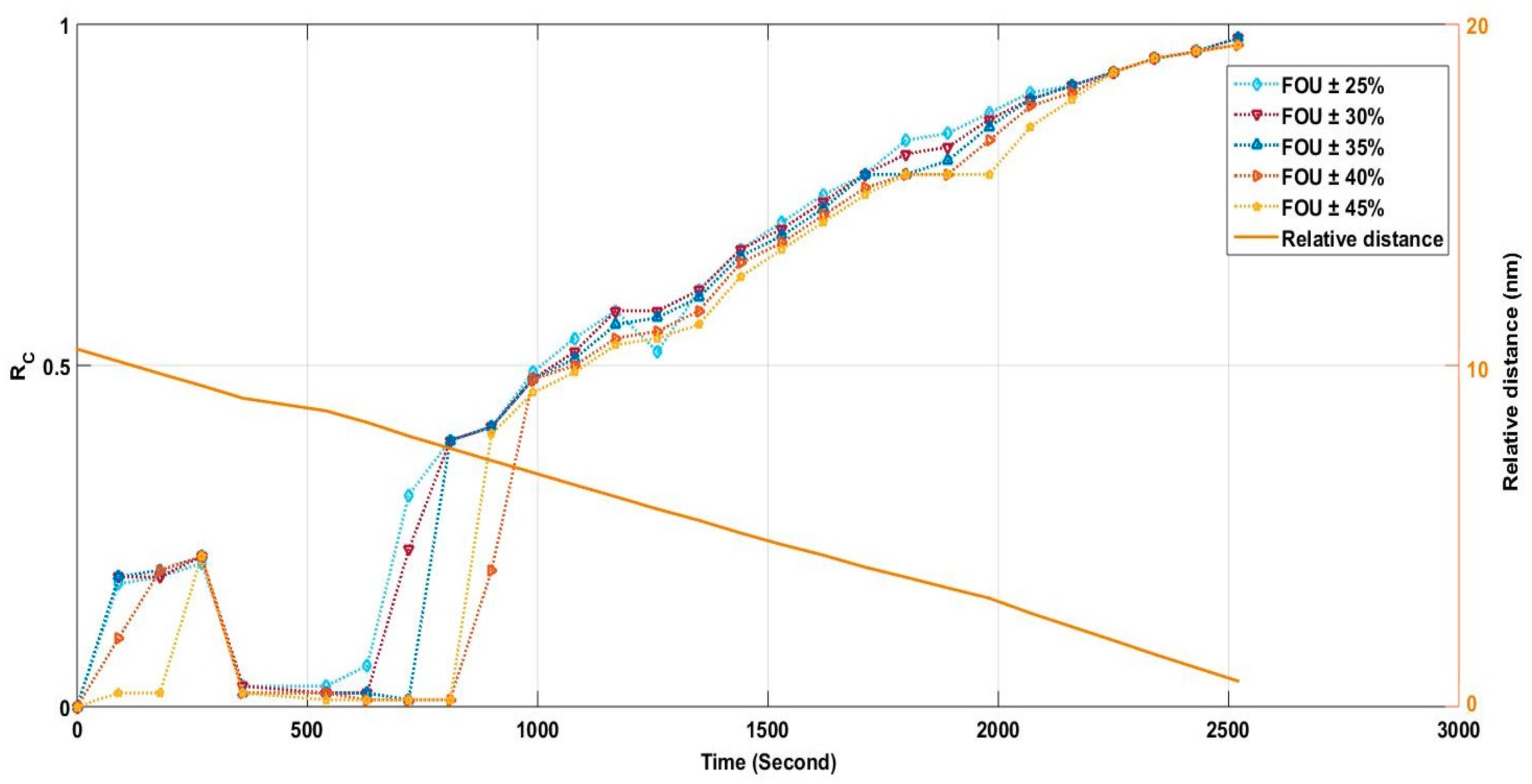

. On the other hand, the FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” were measured by the non-linear $R_c$ as presented in Figure 16 and

Table 5. Non-linear $R_c$ computed by different FOU size: background color is identical $R_c$.

Time (s)	Relative Distance (nm)	${\mathit{D}}_{\mathit{C}\mathit{P}\mathit{A}}/\mathbf{L}$	${\mathit{T}}_{\mathit{C}\mathit{P}\mathit{A}}/(\mathbf{L}/\mathbf{V})$	${\mathit{R}}_{\mathit{c}}\mathbf{Computed}\mathbf{by}\mathbf{FOU}\mathbf{Size}$
				±25%	±30%	±35%	±40%	±45%
0	10.48	0.21	18.77	0.00	0.00	0.00	0.00	0.00
90	10.12	0.22	16.13	0.18	0.19	0.19	0.10	0.02
180	9.76	0.22	15.83	0.19	0.19	0.20	0.20	0.02
270	9.41	0.21	14.59	0.21	0.22	0.22	0.22	0.22
360	9.04	0.20	13.10	0.03	0.03	0.02	0.02	0.02
540	8.67	0.20	12.81	0.03	0.02	0.02	0.02	0.01
630	8.33	0.19	12.56	0.06	0.02	0.02	0.01	0.01
720	7.93	0.18	11.08	0.31	0.23	0.01	0.01	0.01
810	7.57	0.18	10.27	0.39	0.39	0.39	0.01	0.01
900	7.21	0.17	10.13	0.41	0.41	0.41	0.20	0.40
990	6.86	0.16	9.31	0.49	0.48	0.48	0.48	0.46
1080	6.5	0.15	8.91	0.54	0.52	0.51	0.50	0.49
1170	6.15	0.15	8.41	0.58	0.58	0.56	0.54	0.53
1260	5.79	0.13	8.40	0.52	0.58	0.57	0.55	0.54
1350	5.46	0.13	8.06	0.61	0.61	0.60	0.58	0.56
1440	5.09	0.12	7.22	0.67	0.67	0.66	0.65	0.64
1530	4.75	0.12	6.74	0.71	0.70	0.69	0.68	0.68
1620	4.44	0.11	6.11	0.75	0.74	0.73	0.72	0.71
1710	4.09	0.10	5.47	0.78	0.78	0.78	0.76	0.75
1800	3.79	0.09	4.78	0.83	0.81	0.78	0.78	0.78
1890	3.48	0.08	4.63	0.84	0.82	0.80	0.78	0.78
1980	3.18	0.07	4.09	0.87	0.86	0.85	0.83	0.78
2070	2.74	0.06	3.59	0.90	0.89	0.89	0.88	0.85
2160	2.34	0.05	3.29	0.91	0.91	0.91	0.90	0.89
2250	1.94	0.04	2.71	0.93	0.93	0.93	0.93	0.93
2340	1.53	0.03	2.11	0.95	0.95	0.95	0.95	0.95
2430	1.14	0.02	1.65	0.96	0.96	0.96	0.96	0.96
2520	0.75	0.00	1.15	0.98	0.98	0.98	0.97	0.97

. At the initial encounter situation between the OS and the TS, the FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%” inferred the $R_c$ 0.00, 0.01, 0.01, 0.00, 0.00, and 0.16, respectively. The FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” inferred the $R_c$ 0.00. When it comes to a point of time for a give-away vessel (i.e., $R_c$0.33), the computed linear $R_c$ based on the FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%” gave the alarm at about 7.93 nm and 1800 s left until near-collision. The computed non-linear $R_c$ based on the FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” gave the alarm at about 7.93 nm and 1800 s, 7.57 nm and 1710 s, 7.57 nm and 1710 s, 6.86 nm and 1530 s, and 7.21 nm and 1620 s, respectively. In near-collision situation, the FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%” computed the $R_c$ 0.99, 0.99, 0.99, 0.98, 0.98, and 0.97, respectively. The FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” computed the $R_c$ 0.98, 0.98, 0.98, 0.97, and 0.97, respectively.

4.2. Discussion

In Section 4.1, it could be seen that the IT2FISs generated by gradually increasing the FOU size over a number of steps from “±0%” to “±50%” were able to compute $R_c$ as linear-type and non-linear-type. In addition, they gave the collision avoidance alarm depending on the give-way vessel in accordance with the COLREGs [2]. In this section, the measured linear and non-linear $R_c$ according to numerical changing of input parameters, are discussed, as well as comparison with the existing FIS [16,17] as presented in Figure 17, which is a numerical simulation result conducted in a state of Section 4.1.

In terms of the measured linear and non-linear $R_c$, though a total of the measured $R_c$ should be gradually increased according to a reduction of both inputs $D_{CPA}$/L and $T_{CPA}$/(L/V), the FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” computed repeated increase and decrease $R_c$ in encounter situation between the OS and the TS. Accordingly, it is expected to be difficult that navigators make a decision for collision avoidance. On the other hand, as for the $R_c$ measured by the FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%”, state of repeated increase and decrease $R_c$ did not exist in. Likewise, the existing FIS [16,17] did also not compute $R_c$ in a state of repeated increase and decrease. Nonetheless, the FOU size “±0%, ±10%, ±15%, ±20%, and ±50%” and the existing FIS [16,17] computed identical $R_c$ according to changing $D_{CPA}$/L and $T_{CPA}$/(L/V). However, the $R_c$ computed by the FOU size “±5%” only was various according to changing parameters.

According to rule 8 and 16 in COLREGs, the give-way vessel needs to take early action for collision avoidance. Accordingly, ship using the IT2FISs based on FOU size “±0%, ±5%, ±10%, ±15%, ±20%, and ±50%” could be possible that they early detect the collision risk faster than the IT2FISs based on the FOU size “±25%, ±30%, ±35%, ±40%, and ±45%” and the existing FIS [16,17]. At this time, a point of time for a give-way vessel using the existing FIS is 0.60, on the other hand, IT2FISs generated by gradually increasing the FOU size over a number of steps from “±0%” to “±50%” is 0.33 due to extension of the T1FIS-NC.

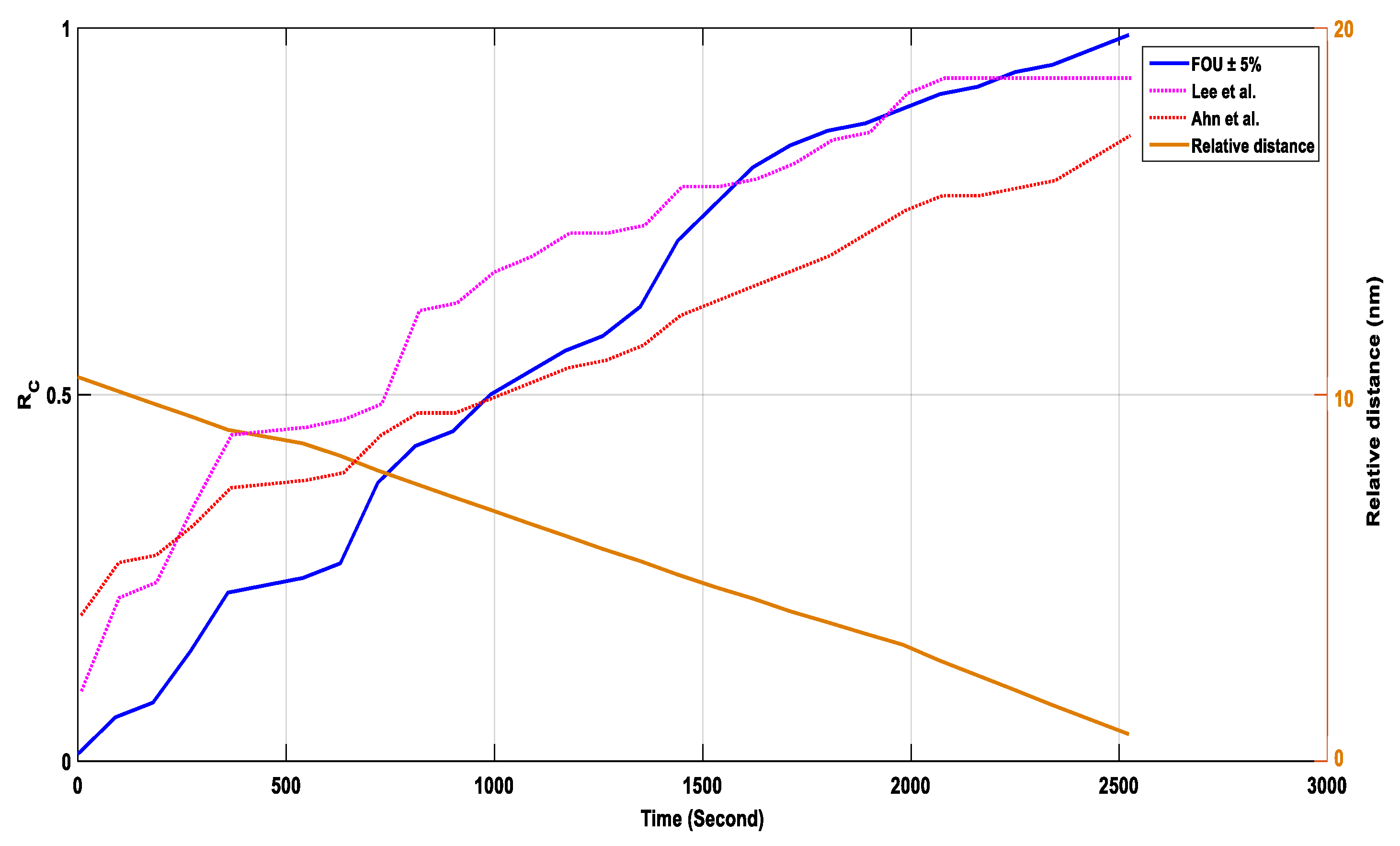

For this reason, a ship using the IT2FIS based on the FOU size “±5%” would be able to take early action for collision avoidance at an appropriate point of positioning and timing via various measured linear $R_c$ according to changing of input parameters.

5. Conclusions

In this paper, we developed the IT2FIS as an extension of the T1FIS-NC, and focused the FOU size taking account of symmetry. We have conducted numerical simulation by applying IT2FISs by the gradually increased FOU to ships navigating with different maneuverability in the actual sea area. As a result of comparison of the IT2FISs and the existing FIS, we were able to analyze that IT2FIS using the FOU size “±5%” computed various and appropriate CRI by linear type until near-collision according to numerical changing of $D_{CPA}$/L and $T_{CPA}$/(L/V). Accordingly, the developed IT2FIS not only overcame the issues pointed out, which did not take into consideration numerical uncertainties in changing circumstances, but also the navigator can make an appropriate decision for collision avoidance by computing CRI in appropriate positioning and timing. In the near future, we are looking forward to extending our work on path planning for collision avoidance by computing the CRI based on developed IT2FIS, and validate smooth trajectory, reduction of path deviation, and saving time (i.e., the time to get to target point from reduction of path deviation after taking an action for collision avoidance).
