1. Introduction
Flooring manufactured from solid wood is the most expensive and desired for interior applications among the other materials in residential buildings [
1]. Homes with solid wood flooring would be expected to have higher resale value than comparable homes with non-wood floors. The overall value of flooring in construction industry in the USA was about
$2 billion and
$5.8 billion in 2009 and 2014, respectively [
2]. It is expected that such values will increase over the next two decades with newly developed residential areas due the high rate of the urbanization in the US [
2]. Although solid wood is considered as prime product in flooring manufacture, its dimensional stability and high cost are some of the major disadvantages. Therefore there has been great trend over the last several decades shifting from solid wood to engineered composite flooring in the industry not only from the point of cost but also being environmentally friendly.
Typical engineered flooring panels consist of several thin layers of wood veneers of various species constructed similar to plywood being more functional and less expensive than solid wood flooring [
1,
2,
3,
4]. Dimensional movement of such flooring due to moisture content fluctuation in surrounding environment is very minimal having cross grain orientation of each ply in the member. Consequently they are more stable than solid wood flooring with minimum changes in their dimensions as their moisture content values change. Oak, maple, ash, birch, cherry, and beech are the most commonly used species to manufacture solid wood and engineered wood floorings [
1,
5].
Overall solid wood flooring market has been changing due to its cost in the form of development of laminated flooring which has been widely used in many countries in the last 30 years. [
1,
2]. Generally laminated flooring is constructed from various layers of elements which are bonded together in the form of a sandwich configuration. High density fiberboard is a composite panel produced from mostly wood waste within the scope of sustainable approach to save overall forest resources. Laminated flooring manufactured from high density fiberboard (HDF) is definitely less expensive than other types of engineered wood flooring [
2,
6]. Direct pressure lamination is produced by having melamine wear resistance protective finish as the top layer, high decorative print paper with different color and patterns, HDF panel as the core layer and balancing melamine as the backing layer. The main purpose of such construction is to provide dimensional stability to the units [
5]. High pressure laminate (HPL) which is also used for flooring has one or two more layers than that of direct pressure lamination (DPL). Assembled panels are compressed using a pressure of 8.5 MPa at an approximate temperature of 160 °C for 30–40 s. Following the conditioning of the panels they are cut into planks for further processes [
1]. Aluminum oxide particles in combination with melamine resin resulting in scratch resistance of the finished product are used as a top wear layer which makes it harder than many solid wood species. Such flooring can be installed in kitchens, bathrooms and other places with high relative humidity but being a hygroscopic material they do not tolerate direct contact of water for long periods of time similar to other wood based floorings. Solid wood flooring has natural irregular grain orientation unlike to engineered floorings or laminate flooring with uniform and homogeneous grain pattern. High pressure laminate flooring is manufactured tongue and groove so that adjacent pieces are interlocked with each other resulting in a solid paneling effect on the floor. Laminated flooring units manufactured from composite panels still have their limitations of high production cost therefore new raw materials are constantly being developed by the producers.
Linoleum and magnesium oxide known as magnesia are two raw materials used as a constructional products including drywall. Linoleum is generally manufactured from the renewable raw material which is linseed oil with addition of calcium carbonate and pigments resulting in flexible sheets [
7,
8,
9,
10].
Magnesia based products have an excellent resistance against moisture fluctuation in surrounding environment therefore they are widely used in manufacture of as drywall panels. Underlayment is another common use of magnesia based panels in different type of constructions. There are limited commercial production lines in Europe manufacturing magnesia bonded particleboard. In general magnesia oxide is applied to the lignocellulosic materials in a batch blender along with other chemicals and water before it is molded in desired panel size. Another major advantage of magnesia is its low cost which makes it more desirable than wood based underlayment composite panels such as particleboard [
2]. However strength properties of magnesia based panels are very poor and unless they are enforced using various types of thick overlays they can easily be broken or split into pieces. In this work commercially manufactured magnesia based panels overlaid with solid oak veneer and thin layer of linoleum were used for the experiments. There are studies carried out related to physical, mechanical and chemical properties of both magnesia and linoleum but there is very limited information on characteristics of panels manufactured from such raw materials as flooring units [
2]. Therefore the objective of this work was to determine mechanical as well as physical properties of oak veneer and linoleum overlaid magnesium panels to be used as flooring members. It is expected that data determined in this work would be useful to understand behavior of such panels consequently they can be used more effectively and efficiently during their service life.
2. Materials and Methods

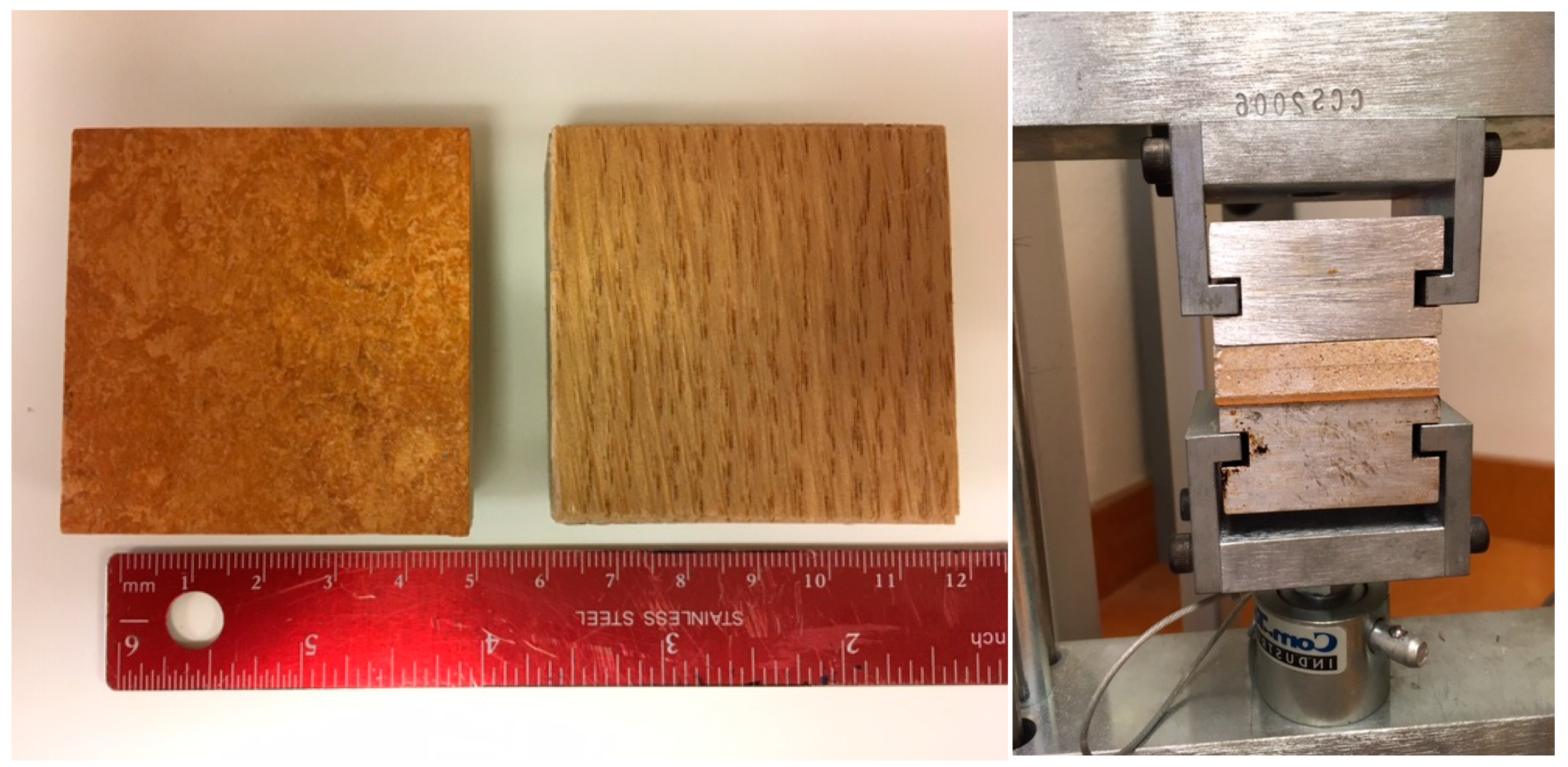

Commercially produced two different types of samples having magnesium substrate with a total thickness of 12.00 mm having linoleum and oak wood veneer overlays were used for the tests as illustrated in
Figure 1. Both linoleum and oak veneer had 2.00 mm thickness. A total of 60 samples, 30 for each type were tested employing a Comten Universal Testing Unit Model DMC-026S equipped with 1000 kg load cell based on ASTM standards to determine their modulus of elasticity (MOE), modulus of rupture (MOR) as well as internal bond strength (IB) (
Figure 1) [
11] Samples were centrally loaded on laminated and non-laminated sides of each sample to determine if there was any influence of loading direction on structural characteristics of the members.

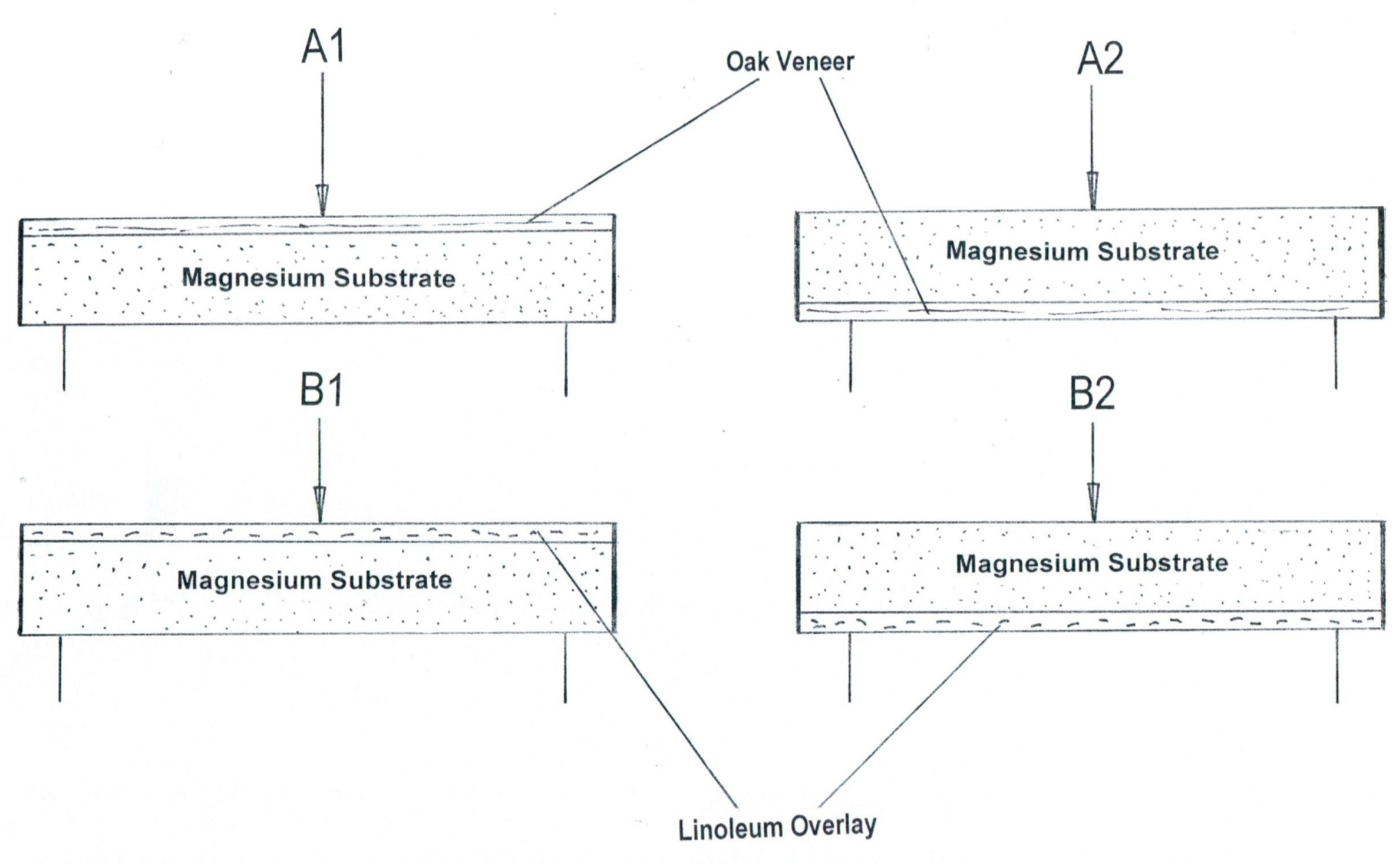

Figure 2 shows schematics of sample type in regard to their loading directions.
A total of forty samples with dimension of 50 mm by 50 mm in panel thickness were used for internal bond (IB) strength test on Comten Testing Unit described above. Samples were glued to aluminum block using a hot-melt adhesive in the form of sandwich configuration and they were kept in climate room having a temperature of 20 °C and relative humidity of 65% for several days before tests were carried out [
11]. Crosshead speed of 3 mm/min was used for both bending and IB tests on the Comten Unit. For both bending and internal bond tests dimensions and weights of each sample were measured at accuracy levels of 0.1 mm and 0.01 g, respectively to determine their average density which was found as 1.09 g/cm
3.
Dimensional stability plays a very important role during the service life of the flooring panels. Therefore 10 samples in 120 mm by 120 mm from each type panel were soaked in water to determine their thickness swelling as a result of 2-h and 24-h water exposure. The thickness of each sample was also measured at four corners after 2-h and 24-h soaking time at accuracy level of 0.1 mm to determine their thickness swelling values.
Roughness of the flooring panels is important for application of varnish or any kinds of maintenance coatings. It is a fact that any rough surface would require higher amount of varnish increasing overall production cost. Roughness can be defined as measure of fine irregularities on a surface [
4,
12]. Surface instability is somehow a latent condition and may never happen unless favorable environmental conditions exist. A total of 40, 50 mm by 50 mm samples were used for roughness measurements. After taking initial measurements at dry condition the samples were soaked in water for 24-h and their roughness measurements were retaken from the surface of each sample. A stylus type equipment SRT-6200 unit was employed for the measurements. The equipment consists of the main unit and pick-up with a skid type diamond stylus with a 5 µm tip radius and 90° tip angle. Four random measurements were taken over 15 mm tracing length from the surface of each sample. Two roughness parameters, namely average roughness (R
a) and mean peak-to-valley height (R
z) were used to quantify the roughness of the specimens. Description and principles of these three roughness parameters are presented in past studies [
12,
13,
14]. Only oak veneer surfaces were considered for roughness test since linoleum is being non-hygroscopic material and having very rough surface.
Finally vertical density profiles of the samples were also tested using an x-ray type density profilometer to be able to compare densification of the face and core portion of the panels.
3. Results and Discussion
Overall properties of the samples are displayed in
Table 1. The highest MOE and MOR values of 4406 MPa and 3478 MPa were found the oak and linoleum overlaid samples loaded on the side of magnesia substrate. Oak overlaid samples had significantly higher bending characteristics as compared to those of linoleum samples due to nature of solid oak veneer. As it is a well-known fact that wood is a natural composite having much higher strength properties as compared to any kind of wood based composites such as particleboard or fiberboard. When strength properties of oak veneer are compared to that of linoleum, soft and pliable properties of linoleum would be responsible for such finding. Similar results were also observed in a preview study carried out panels made using walnut wood veneer as overlay [
2,

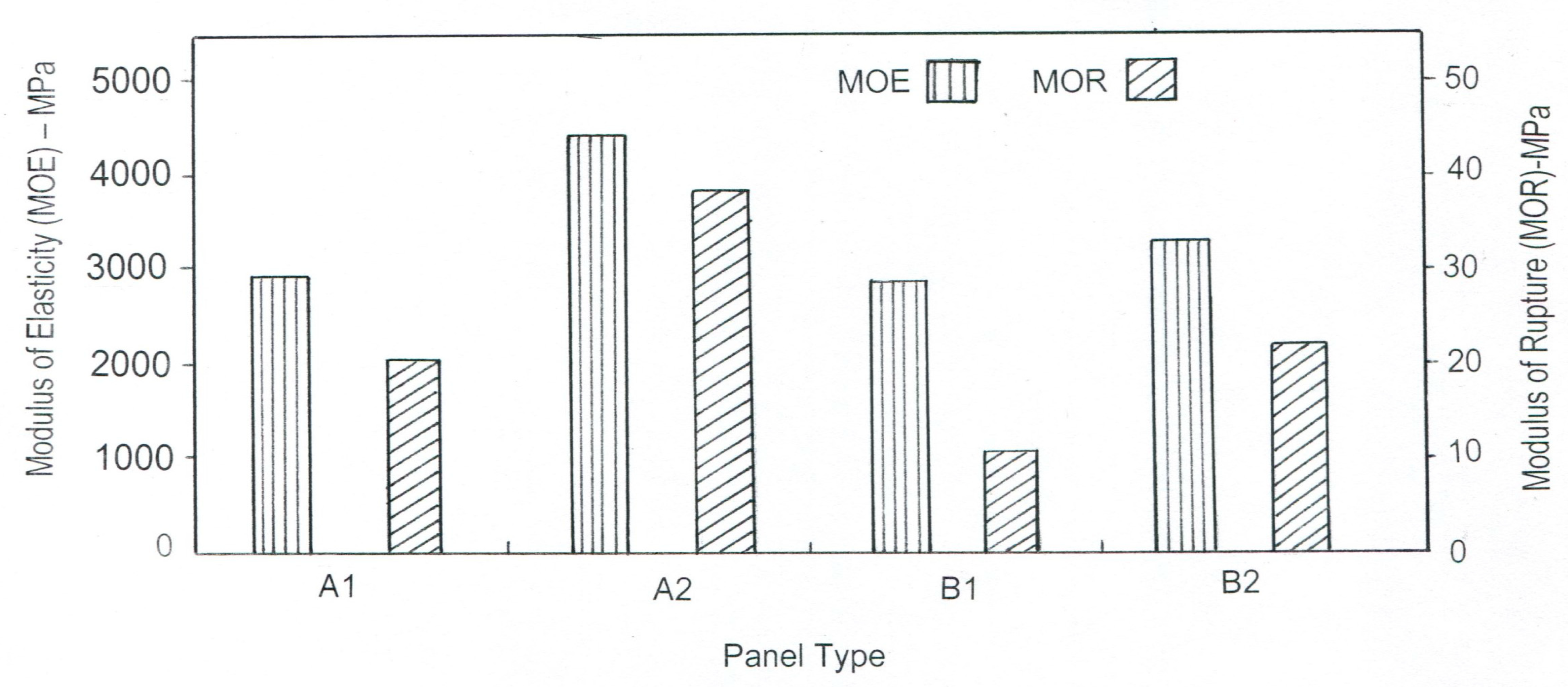

15]. MOE and MOR values of the samples are also illustrated in
Figure 3.
Application of load during the service life of the flooring panels is not that critical however it was the objective to determine magnitude of brittleness of magnesium substrate within the scope of this work [
15,
16,
17]. It appears that both oak veneer and linoleum overlaid samples developed higher resistance resulting in enhanced bending properties of the panels in the case of application of load on substrate direction. When load was applied on overlaid direction, both types of overlays had lower stiffness resulting in lower MOE values consequently also lower bending strength values.

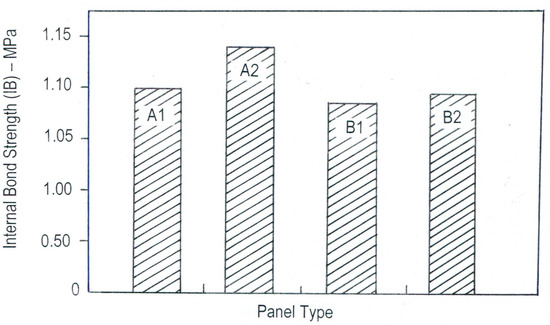

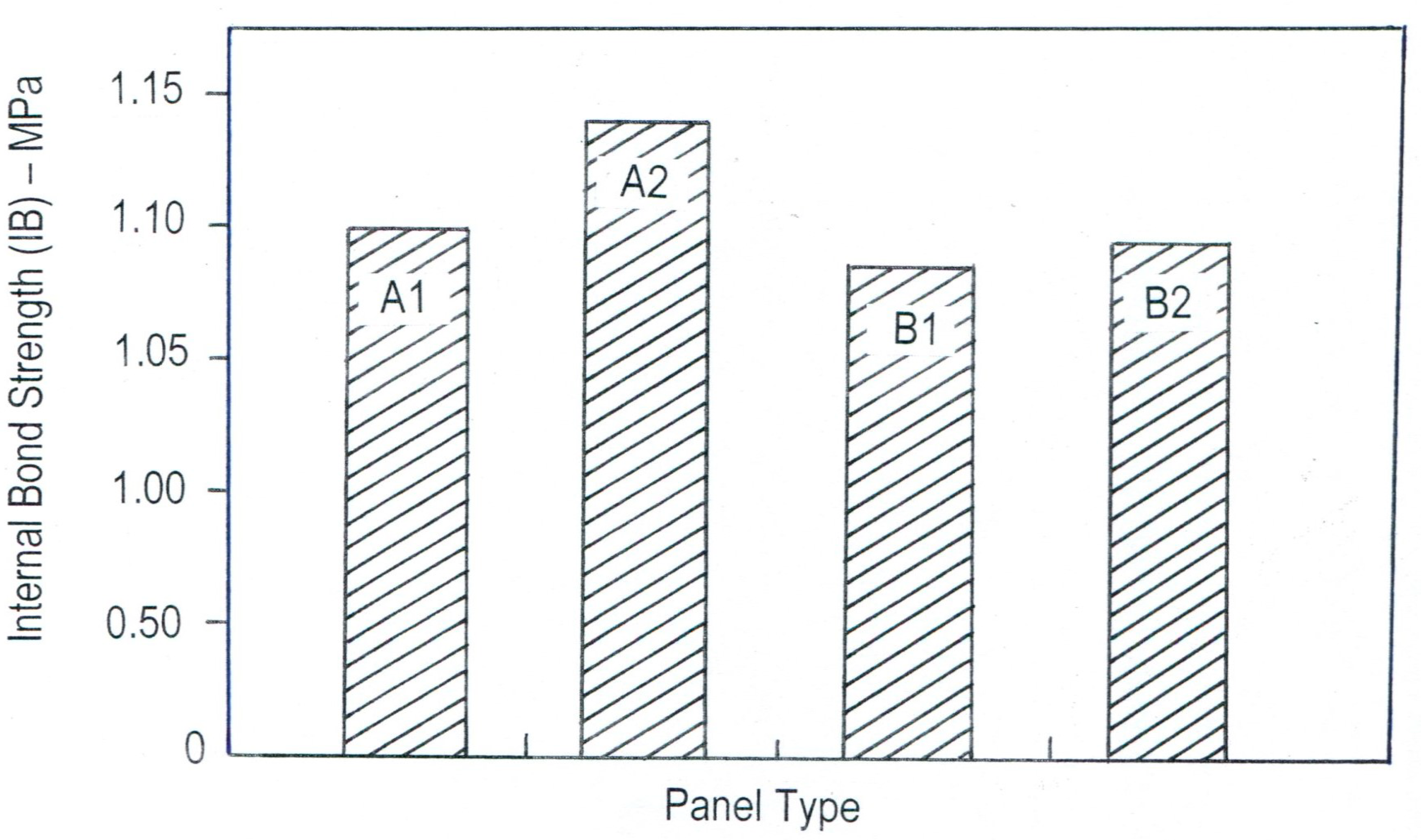

Internal bond strength values of the samples ranged from 1.06 MPa to 1.13 MPa revealing no noticeable difference between two types of specimens as can be seen in
Figure 4. All samples had failure between magnesium substrate and overlays with exception of several glue failures. Overall findings of IB strength values suggest that the glueline between magnesium substrate and overlays were quite strong and no peeling or separation would be expected during service life of these flooring panels [
18].

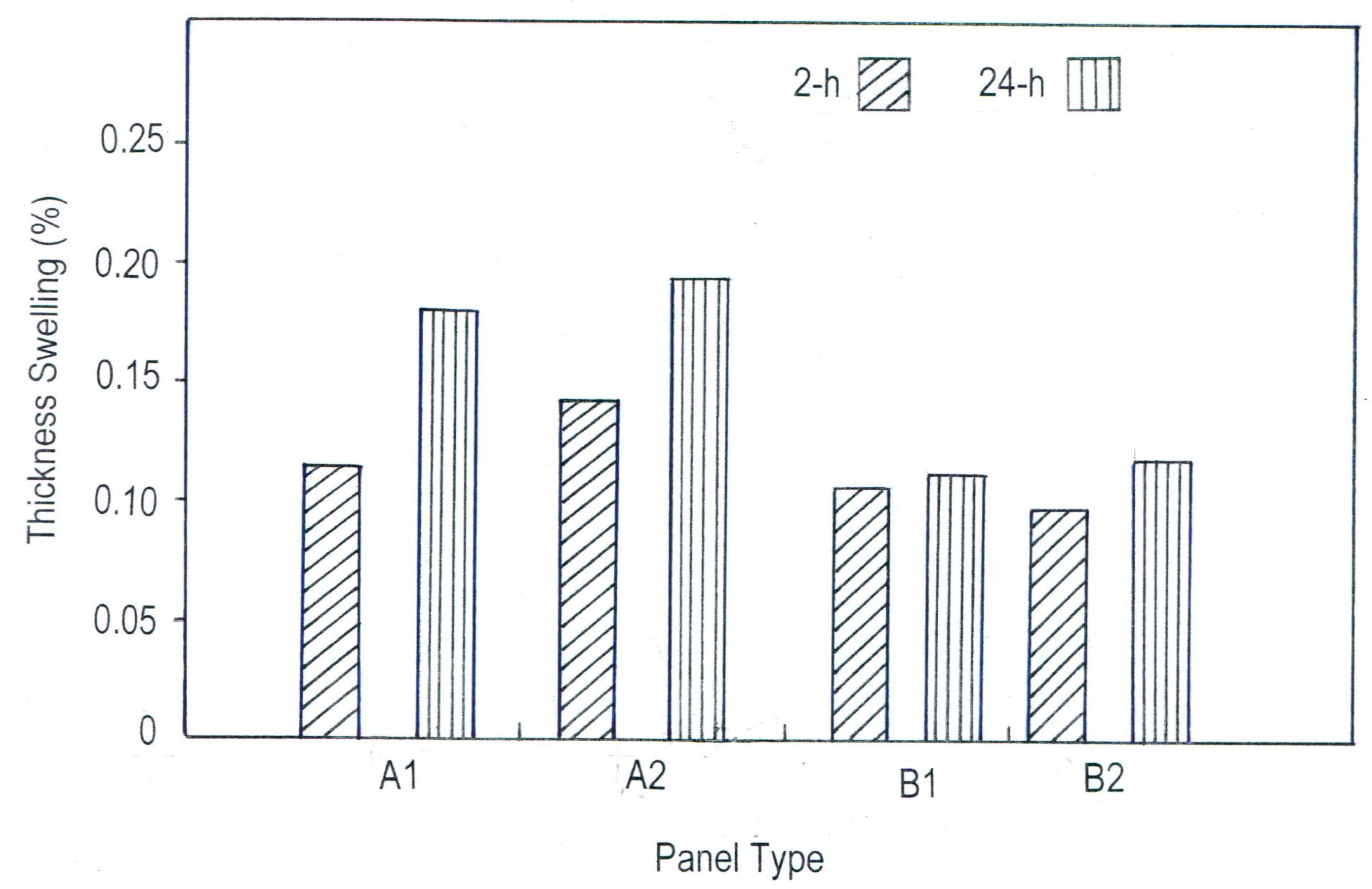

Linoleum overlaid samples had very insignificant thickness swelling ranging from 0.10% to 0.13% for 2 h and 24 h water soaking, respectively, as shown in
Figure 5 Being hygroscopic material solid wood veneer overlaid samples had higher thickness swelling values of up to 0.19% which is still considered very low. As a result of water soaking test none of the samples showed any deterioration with exception of oak veneered samples had some roughness due to their hygroscopic nature. It appears that such products can be used where there is high humidity fluctuation without having any problems [
19,
20]. It can be stated that dimensional stability of the samples is satisfactory. A past study investigated walnut overlaid magnesium substrate flooring panel also determined comparable thickness swelling values of the samples [
2].
As can be seen
Table 1 surface roughness values of the samples in the form of R
a, and R
z, did not show any significant difference as a result of exposure them to 24 h water exposure. Initial R
a and R
z values of oak overlaid type A1 sample were 8.30 µm and 56.20 µm, respectively. Corresponding values of 9.30 µm and 70.15 µm and were found after they were soaked in water. A study carried out to determine walnut overlaid of similar product found lower roughness values [
2,
4]. It is known that oak is a porous species having large ray cells creating relatively rough surface. Higher surface roughness values of oak veneer found in this work could be related anatomical structure of this species.

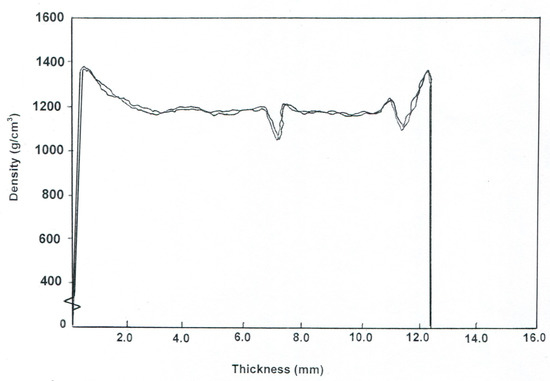

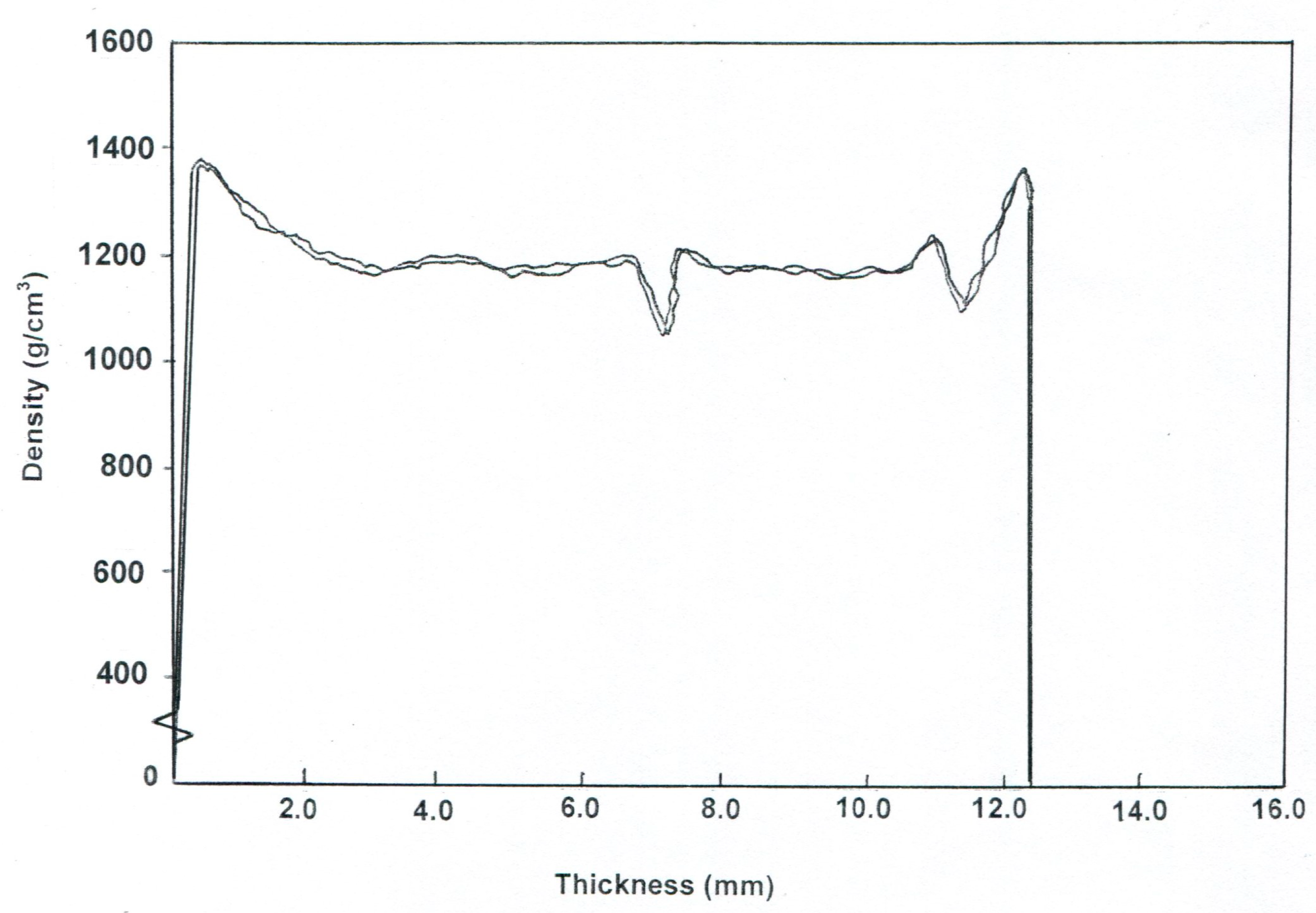

Density profile is an important data to evaluate overall cross section densification of the panels. Both types of samples had similar density profiles to each other. Magnesium panels were constructed combining two plates together during manufacturing this can dearly be observed in a typical density profile depicted in
Figure 6.
