Article

Power Flow Calculation Methods for Power Systems with Novel Structure UPFC

Department of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(15), 5121; https://doi.org/10.3390/app10155121
Submission received: 28 June 2020 / Revised: 18 July 2020 / Accepted: 24 July 2020 / Published: 25 July 2020
(This article belongs to the Section Electrical, Electronics and Communications Engineering)

Abstract

:
Latest unified power flow controller (UPFC) projects adopt novel device structures to meet the requirements of practical applications. Developing power flow calculation methods for these new UPFC structures is of great significance for the design and operation of related projects. To address this issue, this paper deduces an equivalent model of the general structure UPFC, and presents the modified power mismatch equations and Jacobian matrix of the system. Then, three power flow calculation methods suitable for the novel structure UPFC are proposed based on the Newton–Raphson algorithm. The main difference between the three methods is the processing method of UPFC equivalent power injections and the Jacobian matrix. The characteristics of these methods are compared by case studies. Results demonstrate the effectiveness of the three methods for different UPFC structures, and it is found that the improved method, which considers the impact of the Jacobian matrix modifications in UPFC equivalent power injections, can realize power flow calculation in existing calculation programs, and improve the convergence characteristics.

1. Introduction

Flexible AC transmission systems (FACTS) are a collection of power electronic-based controllers [1,2], including the static var compensator (SVC), static synchronous compensator (STATCOM), static synchronous series compensator (SSSC), unified power flow controller (UPFC), etc. FACTS provide an effective means to enhance the controllability and stability of power systems, and a solution to improve the utilization of power equipment [3]. As the latest generation of FACTS devices, unified power flow controllers (UPFC) have comprehensive control capability [4]. While improving transmission capacity and stability of power grids, UPFC also has unique advantages such as accurate and flexible power flow control, centralized layout and little impact on short-circuit current [5]. Therefore, it has a good application prospect in modern power systems.
In recent years, UPFCs have been widely adopted in China. Three UPFC projects have been put into operation in the last five years. These projects have made some improvements in the device structure [6,7,8,9]. As shown in Figure 1, different from the early projects, the latest projects present the following characteristics in terms of the UPFC device structure: (1) As most of the 110 kV and above power grids in China adopt double-circuit lines, the UPFC series side may contain two converters that control the power flows of the double-circuit lines separately, in order to improve the overall transmission capacity; (2) In view of the low demand for reactive power in urban high-voltage grids, the UPFC shunt-side bus can be changed from the original bus to a lower voltage bus to save occupation and investment. These novel UPFC structures have been practically applied because of their technical and economic advantages, and also provide important references for further applications of UPFC. The analysis, development and comparison of power flow calculation methods for these novel structures are of great significance to the design and operation of related projects.
A large amount of research has been conducted on the power flow calculation method for the power system with UPFC, and various UPFC models have been proposed. In terms of algorithms, the unified iteration method and alternating iteration method are the two most important algorithms. The unified iteration method iteratively calculates the UPFC state variables (such as the magnitude and phase angle of the converter output voltage) together with the system state variables; the alternating iterative method decouples the UPFC from the external system, and then it solves the state variables of the UPFC and the external system separately.
In terms of UPFC models, various UPFC models have been proposed, such as the decoupled model, the comprehensive model, the load injection model, the π load injection model, etc. [10]. The decoupled model is adopted in [11,12,13,14]. In [11], for the typical control strategy that the UPFC controls the line active and reactive power and the AC bus voltage, an additional UPFC bus is added to the system. Then, the two buses connected with the UPFC are regarded as PV bus and PQ bus, respectively. Using this method, the UPFC can be removed from the system, and the power flow calculation can be realized by conventional power flow calculation programs. In [12], the UPFC state variables and the system state variables are calculated by the alternating iterative method. In [13,14], the equivalent circuit of the UPFC-embedded line is deduced according to the UPFC control targets, and thus the output voltages of the UPFC can be determined directly. Then, the modifications of power mismatch equations and the Jacobian matrix are presented, and a Newton–Raphson algorithm-based calculation method is proposed. In [15], the load injection model is adopted, and the UPFC is equivalent to an impedance and two injected loads at UPFC terminals. In [16], the π load injection model is adopted, and the UPFC is modeled with the π equivalent circuit and injected loads. Theoretically, when the load injection model (or the π load injection model) is adopted, the relevant elements of the Jacobian matrix could be modified to improve the convergence characteristic, but in practice, for the convenience of program implementation, the modifications to the Jacobian matrix are usually ignored.
The above methods essentially solve the state variables of the UPFC and the external system separately, and thus belong to the category of the alternating iteration method. Different from these methods, the literature [17,18,19,20] adopts the comprehensive model. The series and shunt sides of the UPFC are equivalent to a series circuit of a controllable voltage source and an equivalent impedance, respectively. The voltage magnitudes and phase angles of the controllable voltage sources are regarded as new state variables, and solved together with the rest state variables of the system.
In general, no matter what model is used, the convergence characteristic of the power flow calculation is better when the unified iteration method is adopted. However, on the other hand, the alternating iterative method is more convenient and flexible in use, and requires fewer changes to traditional AC power flow calculation methods. Therefore, some articles try to integrate UPFC into some emerging methods to obtain the advantages of the above two methods. In [10], a new UPFC model based on current injection is developed to integrate the UPFC into the Newton–Raphson current injection load flow method (NR-CIM). In [21], the power/current injection mismatches (PCIM) load flow method is proposed, and the UPFC model is implemented in the developed load flow method. In addition to the research on power flow calculation methods and modeling methods, the constraints handling approach of the UPFC has been analyzed in [22,23]. Although the above articles are mainly applicable to the UPFC of the conventional structure, and have not considered the novel structure UPFC, they still have reference value for the power flow calculation of novel structure UPFC.
This paper deduces an equivalent model of the general structure UPFC, and proposes three power flow calculation methods suitable for different UPFC structures. The rest of this paper is organized as follows: the general structure UPFC and its equivalent model are presented in Section 2. Three power flow calculation methods are proposed in Section 3. The characteristics of these methods are validated by case studies in Section 4. At last, conclusions are drawn in Section 5.

2. The General Structure UPFC and Its Equivalent Model

2.1. The General Structure of UPFC

As shown in Figure 1, the differences between the novel UPFC structures and the conventional structure include: (1) the shunt side of the UPFC may be connected to a different bus with the series side; (2) the series side of the UPFC may contains multiple converters. Considering the adaptability to the conventional structure and the convenience of explanation, this paper takes the structure shown in Figure 2a as the general structure of UPFC for analysis. Other structures will be discussed on the basis of this general structure.
When the decoupled model is adopted, the UPFC and its connected line can be equivalent to the power injections of corresponding buses (which are Plm + jQlm, Pml + jQml and Pne + jQne), as shown in Figure 2b. The equivalent circuit of Figure 2a is shown in Figure 2c. In Figure 2c, ul, uk, um and un are the voltages of bus l, bus k, bus m and bus n, i1, i2, and in are the currents of corresponding lines. rlm, xlm and blm are the resistance, reactance, and susceptance of the transmission line. uB and uE are the equivalent voltage sources of the series converter and the shunt converter, xB and xE are the reactance of the series transformer and the shunt transformer, respectively. Pdc is the active power exchanged between the series side and the shunt side of the UPFC.
According to Figure 2c, the equivalent power injections of the UPFC under different control strategies can be deduced as follows.

2.2. Power Flow of the UPFC Series Side

There are multiple control strategies for the UPFC series converter, mainly including: power flow regulation, series reactive compensation, phase angle shifting and terminal voltage regulation [24,25]. When these control strategies are adopted, the power flows of the UPFC series side can be calculated by the following method:
(1) Power flow regulation
Under this strategy, the active power flow and the reactive power flow of the transmission line are controlled. If we assume Pml + jQml is controlled to Pc + jQc (Pc and Qc are the targets of power flow regulation), then according to Figure 2c we have:
i _ 2 = ( P c + j Q c u _ m ) * u _ m × j b l m
u _ k = u _ m ( r l m + j x l m ) × i _ 2
where * denotes the conjugate of a complex number.
(2) Series reactive compensation
Under this strategy, the series side of the UPFC is controlled to be an equivalent series impedance. If we assume the equivalent impedance is Zc, then according to Figure 2c we have:
u _ k = Z _ c × u _ l + Z _ l × u _ m Z _ c + Z _ l + j b l m Z _ l Z _ c
where:
Z _ l = r l m + j x l m
(3) Phase angle shifting
Under this strategy, the voltage magnitude of bus k is the same as that of bus l. If we assume the desired phase angle difference between bus k and bus l is θ, then we have:
u _ k = u k θ k = u l ( θ l + θ c )
where:
u _ l = u l θ l
(4) Terminal voltage regulation
Under this strategy, the phase angle of bus k is the same as that of bus l. If we assume the desired voltage magnitude of bus k is uc, then we have:
u _ k = u k θ k = u c θ l
According to Equations (2), (3), (5), and (7), it can be found that uk can always be represented by ul, um and the control targets of UPFC, no matter what control strategy is adopted. Then, according to Figure 2c, the power flows of the UPFC series side can be calculated by:
P l m + j Q l m = u _ l × ( u _ k × j b l m + u _ k u _ m r l m + j x l m ) *
P m l + j Q m l = u _ m × ( u _ m × j b l m u _ k u _ m r l m + j x l m ) *
P k m + j Q k m = u _ k × ( u _ k × j b l m + u _ k u _ m r l m + j x l m ) *
When the UPFC has multiple series converters connected in series with multiple lines, the power flows of each line can be calculated according to Equations (8)–(10).

2.3. Power Flow of the UPFC Shunt Side

The shunt converter of the UPFC is used to control the DC voltage. When the active loss of the UPFC is ignored, the active power exchanged between the shunt converter and the power grid is:
P n e = P k m P l m
When there are multiple series converters, we have:
P n e = i ( P k m i P l m i )
where Pkmi and Plmi are the active power flows of the ith series converter.
Besides, the shunt converter of the UPFC also controls Qne or the voltage magnitude of bus n. When the shunt converter controls Qne, Qne is equal to the set value. When the shunt converter controls the voltage magnitude of bus n, Qne is determined after the power flow calculation is solved.

2.4. Equivalent Model of Conventional Structure UPFC

The equivalent model of the conventional structure UPFC is shown in Figure 3. The conventional structure UPFC can be regarded as a special case of the general structure UPFC, and its equivalent model corresponds to the situation where bus l and bus n are the same bus in Figure 2b. Therefore, other formulas can be kept unchanged, except that Plm + Pne and Qlm + Qne are taken as the active and reactive power exchanged between the UPFC and bus l (n).

3. Three Power Flow Calculation Methods

3.1. Power Mismatch Equations and Jacobian Matrix

After the UPFC is considered, the power mismatch equations and the Jacobian matrix need to be modified. For the general structure UPFC, after the UPFC equivalent power injections are considered, the power mismatch equations of bus l, bus m and bus n in polar coordinates become:
{ Δ P l = P l s P l m u l i l u i ( G l i cos θ l i + B l i sin θ l i ) Δ Q l = Q l s Q l m u l i l u i ( G l i sin θ l i B l i cos θ l i ) { Δ P m = P m s P m l u m i m u i ( G m i cos θ m i + B m i sin θ m i ) Δ Q m = Q m s Q m l u m i m u i ( G m i sin θ m i B m i cos θ m i ) { Δ P n = P n s P n e u n i n u i ( G n i cos θ n i + B n i sin θ n i ) Δ Q n = Q n s Q n e u n i n u i ( G n i sin θ n i B n i cos θ n i )
For bus l, bus m and bus n, there are three items on the right side of their power mismatch equations. The first items (Pls, Qls, Pms, Qms, Pns and Qns) are the nodal injection power without the UPFC line. The second items (Plm, Qlm, Pml, Qml, Pne and Qne) are the UPFC equivalent power injections. The third items are the power injected by the nodes into the network, which are the same as those of the system without the UPFC line.
Except these UPFC buses (bus l, bus m and bus n), the power mismatch equations of other buses are the same as those of the system without the UPFC line.
According to Equations (8)–(11), Plm, Qlm, Pml, Qml and Pne are only related to the voltages of UPFC buses. Qne is either a fixed value (when the shunt converter controls Qne) or does not need to participate in the iterations (when the shunt converter controls the voltage magnitude of bus n). Therefore, the Newton–Raphson matrix equations can be expressed as follows:
[ Δ P 1 Δ P 2 Δ Q 1 Δ Q 2 ] = [ H 11 H 12 N 11 N 12 H 21 H 22 + H U N 21 N 22 + N U J 11 J 12 L 11 L 12 J 21 J 22 + J U L 21 L 22 + L U ] [ Δ θ 1 Δ θ 2 Δ U 1 / U 1 Δ U 2 / U 2 ]
where P1, Q1, θ1 and U1 are variables of non-UPFC buses, P2, Q2, θ2 and U2 are variables of UPFC buses. Hij, Nij, Jij and Lij (i = 1, 2; j = 1, 2) in the Jacobian matrix are the same as those of the system without the UPFC. HU, NU, JU and LU are the modifications of the Jacobian matrix required after considering the UPFC line.
For the general structure UPFC, P2, Q2, θ2 and U2 are:
{ Δ P 2 = [ Δ P l Δ P m Δ P n ] T Δ Q 2 = [ Δ Q l Δ Q m Δ Q n ] T { Δ θ 2 = [ Δ θ l Δ θ m Δ θ n ] T Δ U 2 / U 2 = [ Δ u l / u l Δ u m / u m Δ u n / u n ] T
where θl, θm and θn are the phase angles of ul, um, un. Further, ul, um, un are the voltage magnitudes of ul, um, un.
If the shunt converter controls un, Δun does not need to participate in the iterations. If the shunt converter controls Qne, Δun needs to participate in the iterations, and according to Equations (8)–(11), HU, NU, JU and LU can be calculated as:
H U = [ P l m θ l P l m θ m 0 P m l θ l P m l θ m 0 P n e θ l P n e θ m 0 ] , N U = [ u l P l m u l u m P l m u m 0 u l P m l u l u m P m l u m 0 u l P n e u l u m P n e u m 0 ] , J U = [ Q l m θ l Q l m θ m 0 Q m l θ l Q m l θ m 0 0 0 0 ] , L U = [ u l Q l m u l u m Q l m u m 0 u l Q m l u l u m Q m l u m 0 0 0 0 ] .

3.2. Handling Conventional Structure UPFC

For the conventional structure UPFC, according to Figure 3, the power mismatch equations of UPFC buses (bus l and bus m) are:
{ Δ P l = P l s ( P l m + P n e ) u l i l u i ( G l i cos θ l i + B l i sin θ l i ) Δ Q l = Q l s ( Q l m + Q n e ) u l i l u i ( G l i sin θ l i B l i cos θ l i ) { Δ P m = P m s P m l u m i m u i ( G m i cos θ m i + B m i sin θ m i ) Δ Q m = Q m s Q m l u m i m u i ( G m i sin θ m i B m i cos θ m i )
The Jacobian matrix of the system still can be represented by Equation (14). If we assume:
{ Δ P 2 = [ Δ P l Δ P m ] T Δ Q 2 = [ Δ Q l Δ Q m ] T { Δ θ 2 = [ Δ θ l Δ θ m ] T Δ U 2 / U 2 = [ Δ u l / u l Δ u m / u m ] T
Then, the modifications of the Jacobian matrix are:
H U = [ ( P l m + P n e ) θ l ( P l m + P n e ) θ m P m l θ l P m l θ m ] , N U = [ u l ( P l m + P n e ) u l u m ( P l m + P n e ) u m u l P m l u l u m P m l u m ] , J U = [ ( Q l m + Q n e ) θ l ( Q l m + Q n e ) θ m Q m l θ l Q m l θ m ] , L U = [ u l ( Q l m + Q n e ) u l u m ( Q l m + Q n e ) u m u l Q m l u l u m Q m l u m ] .
Compared with Equation (16), it can be observed that because the number of UPFC buses decreases, the items in the modifications decrease. Especially, when the UPFC series converter controls Pml + jQml, and the UPFC shunt converter controls the voltage magnitude of bus l, only the partial derivatives of Plm + Pne need to be calculated in Equation (19). At the same time, according to Equations (1), (2) and (8)–(11), Plm + Pne can be calculated as:
P l m + P n e = P k m = P c + ( S 1 2 + S 2 2 ) r l m u m 2
where:
{ S 1 = Q c × cos ( θ l θ m ) + P c × sin ( θ l θ m ) + u m 2 × cos ( θ l θ m ) b l m S 2 = Q c × sin ( θ l θ m ) P c × cos ( θ l θ m ) + u m 2 × sin ( θ l θ m ) b l m
According to Equation (20), only the partial derivative of Plm + Pne to um is not zero. Therefore, at this time, only one item in the Jacobian matrix needs to be modified with the partial derivative of Plm + Pne to um in Nu.

3.3. Three Power Flow Calculation Methods

Using the power mismatch equations and the Jacobian matrix given above, the power flow of the power systems with novel structure UPFC can be solved by the Newton–Raphson algorithm. However, when the above method (which is referred to as the “original method”) is used for power flow calculation, the power mismatch equations need to be recalculated according to Equation (13) (or Equation (17)), and the Jacobian matrix needs to be modified according to Equation (14). Notably, because the Jacobian matrix needs to be modified in each step of iterations it is difficult to implement this method in existing power flow calculation programs.
Therefore, in practice, the Jacobian matrix is usually not modified, but the equivalent power injections are updated during iterations. The power mismatch equations of this method (which is referred to as the “simplified method”) are the same as those of the original method, so the same calculation accuracy as the original method can be achieved. However, due to the simplification of the Jacobian matrix, the convergence characteristics of the power flow calculation will deteriorate. Under the same condition, the simplified method may require more iterations or even may not converge.
To solve this problem, under the condition that the Jacobian matrix is not changed during the iterations, the impact of the Jacobian matrix modifications can be considered in the UPFC equivalent power injections. According to Equation (14), we have:
[ Δ P 1 Δ P 2 Δ Q 1 Δ Q 2 ] [ 0 0 0 0 0 H U 0 N U 0 0 0 0 0 J U 0 L U ] [ Δ θ 1 Δ θ 2 Δ U 1 / U 1 Δ U 2 / U 2 ] = [ H 11 H 12 N 11 N 12 H 21 H 22 N 21 N 22 J 11 J 12 L 11 L 12 J 21 J 22 L 21 L 22 ] [ Δ θ 1 Δ θ 2 Δ U 1 / U 1 Δ U 2 / U 2 ]
The right side of Equation (22) is the Jacobian matrix used in the simplified method. Therefore, if the power mismatch equations of the UPFC buses are modified so that the system power deviations have the form of the left side of Equation (22), the power flow calculation process without the Jacobian matrix modifications can have the same convergence characteristics as the original method.
To achieve this goal, the second items of the left side of Equation (22) can be added to the equivalent power injections of the UPFC. Then, the new equivalent power injections of the UPFC become:
[ P l m P m l P n e Q l m Q m l Q n e ] = [ P l m P m l P n e Q l m Q m l Q n e ] + [ H U N U J U L U ] [ Δ θ 2 Δ U 2 / U 2 ]
And the power mismatch equations of UPFC buses become:
{ Δ P l = P l s P l m u l i l u i ( G l i cos θ l i + B l i sin θ l i ) Δ Q l = Q l s Q l m u l i l u i ( G l i sin θ l i B l i cos θ l i ) { Δ P m = P m s P m l u m i m u i ( G m i cos θ m i + B m i sin θ m i ) Δ Q m = Q m s Q m l u m i m u i ( G m i sin θ m i B m i cos θ m i ) { Δ P n = P n s P n e u n i n u i ( G n i cos θ n i + B n i sin θ n i ) Δ Q n = Q n s Q n e u n i n u i ( G n i sin θ n i B n i cos θ n i )
Then, the system power deviations can be represented by the left side of Equation (22).
It should be noted that, in principle, at the ith iteration, Δθ2 and ΔU2/U2 in Equation (23) should be the results of this iteration. To calculate the new equivalent power injections of the UPFC in explicit form, Δθ2 and ΔU2/U2 are estimated as follows [26]:
[ Δ θ 2 i Δ U 2 i / U 2 i ] λ [ Δ θ 2 i 1 Δ U 2 i 1 / U 2 i 1 ]
where λ is a scale factor, and the value range of λ is [0,1]. At the first iteration, Δθ2 and ΔU2/U2 are both equal to 0.
With this method (which is referred to as the “improved method”), after the power flow calculation converges, Δθ2 and ΔU2 both approach 0, so that the new equivalent power injections of the UPFC approach the original power injections. Therefore, the power flow obtained by the improved method is the same as that of the original method. Besides, because the improved method uses the same Jacobian matrix as the simplified method, it can be easily implemented in existing power flow calculation programs. Since the impact of the Jacobian matrix modifications is considered in the new equivalent power injections, the improved method will have better convergence characteristics than the simplified method.

4. Case Studies

4.1. WSCC 9-Bus Test System

In order to compare the characteristics of the three power flow calculation methods (the original method, the simplified method, and the improved method), the Western System Coordinating Council (WSCC) 9-bus test system is modified [27]. As shown in Figure 4, a general structure UPFC is added in the system. The series converter is connected in line 4–5, and controls the power flow of the line. The shunt converter is connected with bus 6, and controls the voltage of bus 6 at 1 per unit (pu).
The three power flow calculation methods are adopted, respectively, under an Intel(R) Core(TM) i7-5600U CPU personal laptop. All the calculations are initialized with a flat start, and terminated when the largest voltage magnitude change and the largest voltage phase angle change are both smaller than 10−8 or the maximum iteration count (which is 50) is reached.
When Pc + jQc = −30 MW-j30 MVAr, the three calculation methods can all converge. The power flow calculation results of the three methods are the same, which are shown in Table 1 and Table 2. It is shown that the results of the power flow calculations are reasonable, and the control targets of the UPFC are achieved. The accuracy of the simplified method and the improved method are verified.
Furthermore, in order to compare the convergence characteristics of these methods, Pc is changed from −210 MW to 120 MW. The iteration numbers required under different Pc are shown in Table 3 and Figure 5. For the improved method, when the value of λ changes from 0 to 1 in steps of 0.05, the minimum number of iterations under different λ and the corresponding value of λ are given in Table 3. Besides, when λ is 0.1, the iteration number of the improved method is also presented in Table 3 and Figure 5.
According to Table 3 and Figure 5, the following conclusions can be drawn:
(1)
The number of iterations required by the original method is always the least. Under different control targets of the UPFC, the iteration numbers of the original method are always kept at about 5, and the change is very small.
(2)
When the power flow control target is close to the natural power flow (which is about −30 MW), the number of iterations required by the simplified method is about 10, which is slightly more than the number required by the original method. However, when the regulation effect of the UPFC on power flow increases (for example, when Pc < −100 MW), the number of iterations required by the simplified method increases significantly.
(3)
The improved method requires more iterations than the original method to achieve convergence; but compared with the simplified method, when the UPFC power flow regulation effect increases, the improved method has significantly fewer iterations than the simplified method. The number of iterations can be effectively reduced by simply using the improved method with λ = 0.1. When the UPFC power flow regulation effect is small, the iteration number of the improved method is not much different from the simplified method; both methods can reach convergence in about 10 iterations.
In addition, for each situation in Table 3, when the original method or the improved method is used, the computation time is about 0.01 s. In most cases, the computation time of the simplified method is also around 0.01 s, except when Pc is 120 MW or −210 MW, the computation time is 0.02 s. This is because the iterations of the three methods are all based on the Newton–Raphson algorithm, only the calculation method of the UPFC equivalent power injections and the Jacobian matrix are different. The calculation of the UPFC equivalent power injections and the modification of the Jacobian matrix do not need to be iterated, so their computation time is very short, and can almost be ignored. Therefore, the difference in the computation time of the three methods is mainly related to the number of iterations. When Pc is 120 MW or −210 MW, the number of iterations of the simplified method increases significantly, so the computation time also increases.
When Pc is −150 MW, the variations of the largest voltage magnitude change and the largest voltage phase angle change of the three methods are shown in Figure 6. As shown in Figure 6, the original method maintains the square-convergence characteristic of the Newton–Raphson algorithm, while the convergence characteristic of the simplified method is approximately linear convergence. The convergence characteristic of the improved method is between the original method and the simplified method.
For the system shown in Figure 4, if the general structure UPFC is changed to a conventional structure UPFC with the shunt converter connected to bus 4, the iteration numbers of the three methods under different UPFC control targets are shown in Figure 7. As shown in Figure 7, the iteration numbers are all about 6. According to the analysis in Section 3.2, the main reason for the above result lies in: for the conventional structure UPFC, if the series converter controls the active power and reactive power of the line, and the shunt converter controls the AC bus voltage, only one item is needed to be modified in the Jacobian matrix. The addition of the UPFC has little effect on the Jacobian matrix, so the iteration numbers of the three methods are very close.

4.2. IEEE 39-Bus Test System

In order to further verify the conclusions obtained by the foregoing test case, and to investigate the convergence characteristics of the three power flow calculation methods in a larger system, the Institute of Electrical and Electronics Engineers (IEEE) 39-bus test system is modified. As shown in Figure 8, the shunt converter is connected with bus 5 and the series converters are connected in the double-circuit lines between buses 4 and 14.
Similar to the previous case, when the reactive power of the double-circuit lines is both controlled at 25 MVAr and the voltage of bus 5 is controlled at 1 pu, the iteration numbers of the three methods under different active power control targets are shown in Table 4 and Figure 9.

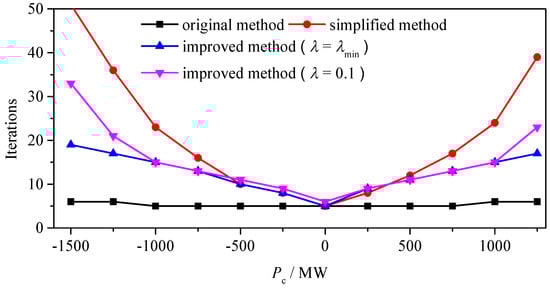

As shown in Table 4 and Figure 9, the original method requires the least iterations. Under different Pc, the iteration numbers of the original method are always kept at about 5; When the power flow control target is close to the natural power flow (which is about −125 MW), that is, Pc changes in the range of −500 MW to 500 MW, the iteration numbers of the simplified method and the improved method are similar, both are about 10, but when Pc exceeds the above range, the number of iterations of the simplified method increases rapidly, and the number of iterations of the improved method is less than that of the simplified method, which verifies the effectiveness of the improved method.
In addition, for all situations in Table 4, when the number of iterations is less than 33, the computation time of the three methods is around 0.01 s; when the number of iterations is greater (equal to or more than 33), the computation time will reach 0.02 s. Overall, the computation time of the three methods is relatively short.
Compared with the WSCC 9-bus test case, we can also find that the number of iterations of the three methods is independent of system scale. After the system scale increases, the number of iterations of the original method can still be kept at about 5. When the UPFC power flow regulation effect is small, the iteration numbers of the simplified method and the improved method can also be kept at about 10.
Moreover, when the shunt converter of the UPFC is reconnected to bus 14 from bus 5, the iteration numbers of the three methods under different UPFC control targets are always about 6. The reason for this result is that the UPFC series converters are connected in double-circuit lines, and the shunt converter is connected to one terminal of the lines. Similar to the conventional structure UPFC, when the series converters control the active power and reactive power of the lines, and the shunt converter controls the AC bus voltage, only one item in the Jacobian matrix needs to be modified, thus the addition of the UPFC has little effect on the Jacobian matrix. Therefore, the three power flow calculation methods are not much different.

5. Conclusions

This paper deduces a decoupled UPFC model based on the general structure UPFC. Three power flow calculation methods applicable to both the novel structure UPFC and the conventional structure UPFC are proposed, and the characteristics of these methods are analyzed and validated. The main conclusions are summarized as below:
(1)
Using the UPFC model proposed in this paper, the UPFC with different structures can be easily integrated in a power flow calculation.
(2)
The power flow calculation method (“original method”), which strictly corrects the power mismatch equations and the Jacobian matrix, can maintain good convergence characteristics under different control targets; however, because this method requires modifications of the Jacobian matrix, it is more complicated in terms of program implementation.
(3)
The simplified method, which only modifies the power mismatch equations based on the UPFC equivalent power injections and does not modify the Jacobian matrix, can realize the power flow calculation in existing calculation programs. However, when the UPFC has a great effect on power flow regulation, the iteration number of this method will increase significantly.
(4)
The improved method, which considers the impact of the Jacobian matrix modifications in the UPFC equivalent power injections, can also realize power flow calculation in existing power flow calculation programs, and this method is superior to the simplified method in terms of convergence characteristics.
(5)
For the conventional structure UPFC, if the series converter controls the active power and reactive power of the line, and the shunt converter controls the AC bus voltage, only one item is needed to be modified in the Jacobian matrix. The addition of the UPFC has little effect on the Jacobian matrix, thus the convergence characteristics of the three methods are very close.
The comparison of these methods is summarized in Table 5. The method with more stars (★) is better. It should be noted that because all these methods are based on the Newton–Raphson algorithm, they have the same disadvantages, such as the need to update and factorize the Jacobian matrix in iteration. Various novel methodologies are developed to overcome these disadvantages [28,29]. In future works, the method to integrate the UPFC into these methodologies should be studied.

Author Contributions

Investigation, writing: J.Y.; Supervision, Z.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Headquarters Research Projects of State Grid Corporation of China, grant number SGTYHT/15-JS-191.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hingorani, N.G. High power electronics and flexible AC transmission system. IEEE Power Eng. Rev. 1988, 8, 3–4. [Google Scholar] [CrossRef]
  2. Georgilakis, P.S.; Hatziargyriou, N.D. Unified power flow controllers in smart power systems: Models, methods, and future research. IET Smart Grid 2019, 2, 2–10. [Google Scholar] [CrossRef]
  3. Albatsh, F.M.; Mekhilef, S.; Ahmad, S.; Mokhlis, H.; Hassan, M.A. Enhancing power transfer capability through flexible AC transmission system devices: A review. Front. Inf. Technol. Electron. Eng. 2015, 16, 658–678. [Google Scholar] [CrossRef]
  4. Gyugyi, L.; Schauder, C.D.; Williams, S.L.; Rietman, T.R.; Tprgerson, D.R. The unified power flow controller: A new approach to power transmission control. IEEE Trans. Power Deliv. 1995, 10, 1085–1097. [Google Scholar] [CrossRef] [Green Version]
  5. Tang, J.; Ma, H.; Yang, X.; Liu, X.; Wang, X.; Wu, J.; Li, D.; Liu, L. Research on AC transmission line fault ride-through control strategy of MMC-based unified power flow controller. J. Eng. 2017, 2017, 1580–1583. [Google Scholar] [CrossRef]
  6. Cai, H.; Yang, L.; Wang, H.; Song, P.; Xu, Z. Application of Unified Power Flow Controller (UPFC) in Jiangsu power system. In Proceedings of the 2017 IEEE Power & Energy Society General Meeting, Chicago, IL, USA, 16–20 July 2017; pp. 1–5. [Google Scholar]
  7. Li, P.; Wang, Y.; Feng, C.; Lin, J. Application of MMC-UPFC in the 500 kV power grid of Suzhou. J. Eng. 2017, 2017, 2514–2518. [Google Scholar] [CrossRef]
  8. Wei, X.; Cui, Y.; Feng, Y.; Song, J.; Yu, Y.; Bao, W.; Guo, Q. Analysis of application effcet of 220 kV UPFC demonstration project in Shanghai Grid. Power Syst. Prot. Control 2018, 46, 136–142. [Google Scholar]
  9. Yang, J.; Song, P.; Xu, Z.; Xiao, H.; Cai, H.; Xie, Z. Small-signal model of vector current-controlled MMC-UPFC. IET Gener. Transm. Distrib. 2019, 13, 4180–4189. [Google Scholar] [CrossRef]
  10. Kamel, S.; Jurado, F.; Lopes, J.A.P. Comparison of various UPFC models for power flow control. Electr. Power Syst. Res. 2015, 121, 243–251. [Google Scholar] [CrossRef] [Green Version]
  11. Nabavi-Niaki, A.; Iravani, M.R. Steady-state and dynamic models of unified power flow controller (UPFC) for power system studies. IEEE Trans. Power Syst. 1996, 11, 1937–1943. [Google Scholar] [CrossRef]
  12. Xu, Y.; Li, N.; Wang, H.; Chen, H. Model of power flow control based on unified power flow controller. Proc. EPSA 1996, 8, 1–6. [Google Scholar]
  13. Fang, W.L.; Ngan, H.W. Control setting of unified power flow controllers through a robust load flow calculation. IEE Proc. Gener. Transm. Distrib. 1999, 146, 365–369. [Google Scholar] [CrossRef]
  14. Wang, X.; Wan, F.; Du, Z. Modern Power System Analysis; China Science Publishing & Media Ltd.: Beijing, China, 2003. [Google Scholar]
  15. Haque, M.H.; Yam, C.M. A simple method of solving the controlled load flow problem of a power system in the presence of UPFC. Electr. Power Syst. Res. 2003, 65, 55–62. [Google Scholar] [CrossRef]
  16. Alomoush, M.I. Exact Pi-model of UPFC-inserted transmission lines in power flow studies. IEEE Power Eng. Rev. 2002, 22, 54–56. [Google Scholar] [CrossRef]
  17. Fuerte-Esquivel, C.R.; Acha, E. Unified power flow controller: A critical comparison of Newton–Raphson UPFC algorithms in power flow studies. IEE Proc. Gener. Transm. Distrib. 1997, 144, 437–444. [Google Scholar] [CrossRef]
  18. Zhang, X. Modeling of FACTS in power flow and optimal power flow analysis. Autom. Electr. Power Syst. 2005, 29, 22–29. [Google Scholar]
  19. Zhang, X.; Godfrey, K.R. Advanced unified power flow controller model for power system steady state control. In Proceedings of the 2004 IEEE International Conference on Electric Utility Deregulation, Restructuring & Power Technologies, Hong Kong, China, 5–8 April 2004; pp. 228–233. [Google Scholar]
  20. Jiang, X.; Fang, X.; Chow, J.H.; Edris, A.; Uzunovic, E.; Parisi, M.; Hopkins, L. A novel approach for modeling voltage-sourced converter-based FACTS controllers. IEEE Trans. Power Deliv. 2008, 23, 2591–2598. [Google Scholar] [CrossRef]
  21. Kamel, S.; Abdel-Akher, M.; Jurado, F.; Ruiz-Rodríguez, F.J. Modeling and analysis of voltage and power control devices in current injections load flow method. Electr. Power Compon. Syst. 2013, 41, 324–344. [Google Scholar] [CrossRef]
  22. Ebeed, M.; Kamel, S.; Yu, J.; Jurado, F. Development of UPFC operating constraints enforcement approach for power flow control. IET Gener. Transm. Distrib. 2019, 13, 4579–4591. [Google Scholar] [CrossRef]
  23. Ebeed, M.; Kamel, S.; Jurado, F. Constraints violation handling of GUPFC in Newton-Raphson power flow. Electr. Power Compon. Syst. 2017, 45, 925–936. [Google Scholar] [CrossRef]
  24. Vural, A.M.; Tumay, M. Mathematical modeling and analysis of a unified power flow controller: A comparison of two approaches in power flow studies and effects of UPFC location. Electr. Power Energy Syst. 2007, 29, 617–629. [Google Scholar] [CrossRef]
  25. Foerte-Esquive, C.R.; Acha, E.; Ambriz-Perez, H. A comprehensive Newton-Raphson UPFC model for the quadratic power flow solution of practical power networks. IEEE Trans. Power Syst. 2000, 15, 102–109. [Google Scholar] [CrossRef]
  26. Yi, S.; Guo, Z. Power flow solution by improved mode additional injection model with power flow controllers. Relay 2004, 32, 5–10. [Google Scholar]
  27. Anderson, P.M. Power system control and stability. IEEE Power Eng. Rev. 1995, 15, 40. [Google Scholar] [CrossRef]
  28. Milano, F. Implicit continuous Newton method for power flow analysis. IEEE Trans. Power Syst. 2019, 34, 3309–3311. [Google Scholar] [CrossRef]
  29. Tostado-Véliz, M.; Kamel, S.; Jurado, F. Power flow approach based on the S-iteration process. IEEE Trans. Power Syst. 2020. [Google Scholar] [CrossRef]

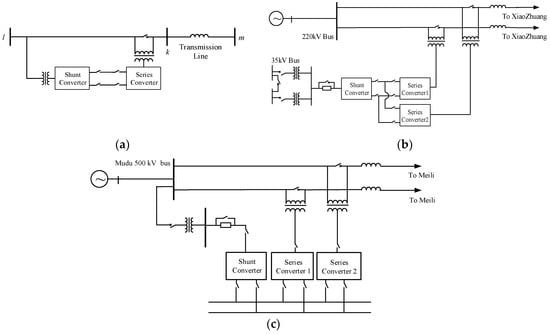

Figure 1. The structures of unified power flow controller (UPFC) projects: (a) Schematic diagram of the conventional structure UPFC; (b) Schematic diagram of the UPFC project in Nanjing western grid; (c) Schematic diagram of the UPFC project in Suzhou southern grid.
Figure 1. The structures of unified power flow controller (UPFC) projects: (a) Schematic diagram of the conventional structure UPFC; (b) Schematic diagram of the UPFC project in Nanjing western grid; (c) Schematic diagram of the UPFC project in Suzhou southern grid.
Applsci 10 05121 g001

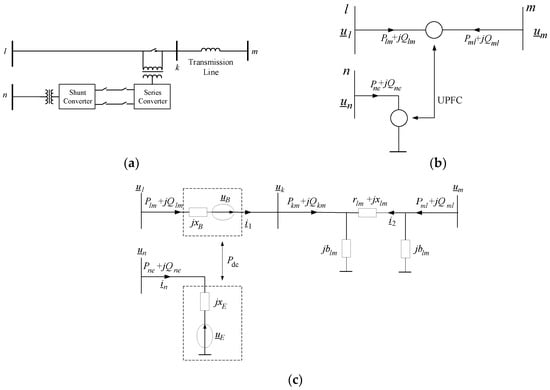

Figure 2. The general structure of UPFC and its equivalent model: (a) the general structure of UPFC; (b) the equivalent model of the general structure UPFC; (c) the equivalent circuit of the general structure UPFC.
Figure 2. The general structure of UPFC and its equivalent model: (a) the general structure of UPFC; (b) the equivalent model of the general structure UPFC; (c) the equivalent circuit of the general structure UPFC.
Applsci 10 05121 g002

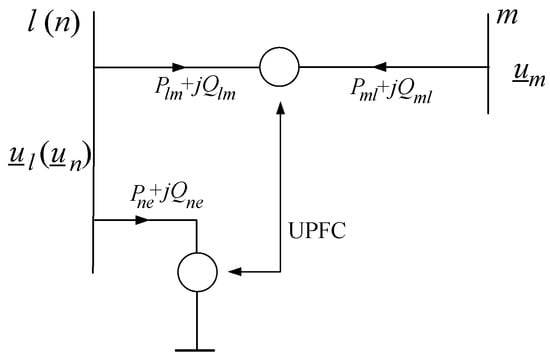

Figure 3. The equivalent model of the conventional structure UPFC.
Figure 3. The equivalent model of the conventional structure UPFC.
Applsci 10 05121 g003

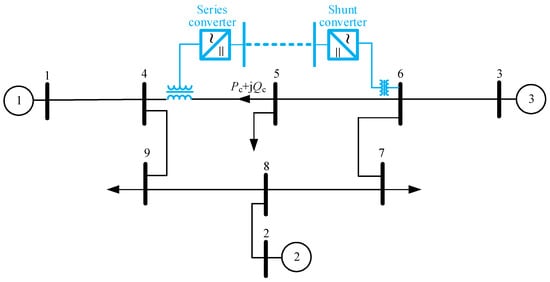

Figure 4. The Western System Coordinating Council (WSCC) 9-bus test system with the general structure UPFC.
Figure 4. The Western System Coordinating Council (WSCC) 9-bus test system with the general structure UPFC.
Applsci 10 05121 g004

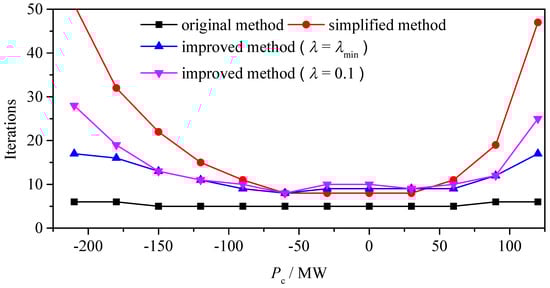

Figure 5. The comparison of iteration numbers under different Pc.
Figure 5. The comparison of iteration numbers under different Pc.
Applsci 10 05121 g005

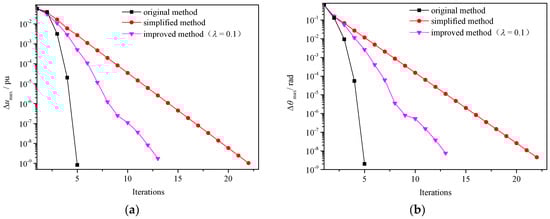

Figure 6. The iteration process of the three methods when Pc is −150 MW. (a) The largest voltage magnitude change; (b) the largest voltage phase angle change.
Figure 6. The iteration process of the three methods when Pc is −150 MW. (a) The largest voltage magnitude change; (b) the largest voltage phase angle change.
Applsci 10 05121 g006

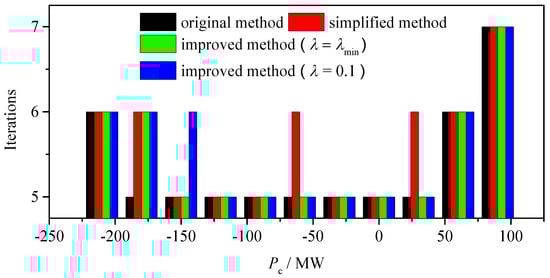

Figure 7. The iteration numbers of the test system with the conventional structure UPFC.
Figure 7. The iteration numbers of the test system with the conventional structure UPFC.
Applsci 10 05121 g007

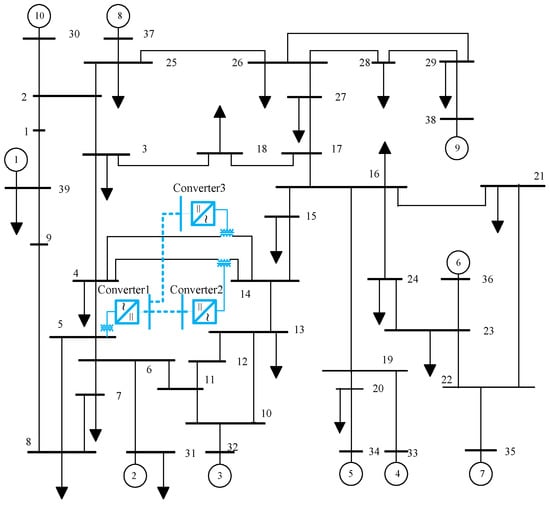

Figure 8. The Institute of Electrical and Electronics Engineers (IEEE) 39-bus test system with a novel structure UPFC.
Figure 8. The Institute of Electrical and Electronics Engineers (IEEE) 39-bus test system with a novel structure UPFC.
Applsci 10 05121 g008
Figure 9. The comparison of iteration numbers under different Pc.
Figure 9. The comparison of iteration numbers under different Pc.
Applsci 10 05121 g009
Table 1. Bus voltage results.
Table 1. Bus voltage results.
Bus No.Voltage/puPhase Angle/°
11.0000.000
21.0009.285
31.0004.147
40.979−2.428
51.001−4.959
61.0001.292
70.9830.114
80.9943.403
90.952−4.534
Table 2. Power flow results.
Table 2. Power flow results.
From Bus No.To Bus No.P/MWQ/MVAr
1472.0837.62
28163.0017.80
3685.002.12
4528.5314.94
4943.5518.87
56−60.000.00
6721.714.15
78−78.37−11.00
8984.09−0.03
Table 3. Iteration numbers of the three methods under different Pc.
Table 3. Iteration numbers of the three methods under different Pc.
Pc/MWOriginal MethodSimplified MethodImproved Method
λ = λ min λ min λ = 0.1
120647170.1525
90619120.112
6051190.0510
305890.05, 0.19
05890.0510
−305890.0510
−605880.05, 0.18
−9051190.0510
−120515110.111
−150522130.113
−180632160.1519
−2106>50 (not converge)170.1528
Table 4. Iteration numbers of the three methods under different Pc.
Table 4. Iteration numbers of the three methods under different Pc.
Pc/MWOriginal Method Simplified MethodImproved Method
λ = λ min λ = 0.1
12506391723
10006241515
7505171313
5005121111
2505899
05556
−2505889
−5005101011
−7505161313
−10005231515
−12506361721
−15006>50 (not converge)1933
Table 5. Comparison of the proposed methods. “★” is used to score methods, the method with more stars (★) is better.
Table 5. Comparison of the proposed methods. “★” is used to score methods, the method with more stars (★) is better.
MethodProgrammingPerformance
Jacobian MatrixUPFC EquivalenceConvergence CharacteristicComputing Time
Original method★★★★★★★★★
Simplified method★★★★★★★★
Improved method★★★★★★★★★★

Share and Cite

MDPI and ACS Style

Yang, J.; Xu, Z. Power Flow Calculation Methods for Power Systems with Novel Structure UPFC. Appl. Sci. 2020, 10, 5121. https://doi.org/10.3390/app10155121

AMA Style

Yang J, Xu Z. Power Flow Calculation Methods for Power Systems with Novel Structure UPFC. Applied Sciences. 2020; 10(15):5121. https://doi.org/10.3390/app10155121

Chicago/Turabian Style

Yang, Jian, and Zheng Xu. 2020. "Power Flow Calculation Methods for Power Systems with Novel Structure UPFC" Applied Sciences 10, no. 15: 5121. https://doi.org/10.3390/app10155121

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
