Recent Progress in Pressure Sensors for Wearable Electronics: From Design to Applications

Abstract

In recent years, innovative research has been widely conducted on flexible devices for wearable electronics applications. Many examples of wearable electronics, such as smartwatches and glasses, are already available to consumers. However, strictly speaking, the sensors used in these devices are not flexible. Many studies are underway to address a wider range of wearable electronics and the development of related fields is progressing very rapidly. In particular, there is intense interest in the research field of flexible pressure sensors because they can collect and use information regarding a wide variety of sources. Through the combination of novel materials and fabrication methods, human-machine interfaces, biomedical sensors, and motion detection techniques, it is now possible to produce sensors with a superior level of performance to meet the demands of wearable electronics. In addition, more compact and human-friendly sensors have been invented in recent years, as biodegradable and self-powered sensor systems have been studied. In this review, a comprehensive description of flexible pressure sensors will be covered, and design strategies that meet the needs for applications in wearable electronics will be presented. Moreover, we will cover several fabrication methods to implement these technologies and the corresponding real-world applications.

1. Introduction

Modern society strives to make the world smart and comfortable. Numerous electronic devices have been actively researched and developed to realize these goals. Through a number of well-developed devices, flexible and wearable devices that change the way we work and play are on the horizon. Electronic devices, such as smartphones and smartwatches, enable an unprecedented amount of information to be easily accessed. Many researchers are immersed in the continuing effort to make lighter and more compact devices and systems. In particular, many studies have been conducted to realize a compact system capable of providing interaction between a human and machine. For human–machine interaction, the role of the sensor is important, and in particular, pressure sensors can acquire substantial information from people, so most research is being conducted on the human/sensor interface.

Pressure sensors can measure various information sources acting on the inside and outside of human skin, as well as on the surface of an object or a machine [1,2,3,4,5,6,7,8]. However, there are many difficulties in applying conventional pressure sensors to wearable electronics because they are traditionally made of stiff materials. Therefore, in order to apply pressure sensors to wearable electronics, such as human-machine interfaces, biomedical sensors, and motion detection, it is important to develop a flexible sensor that is capable of sensitive and consistent performance, even on a curved surface. Thus, the flexibility of the electrode, as well as the sensing layer, should be secured, and various electrical performances, including the sensitivity, detection limit, response time, and mechanical durability must be guaranteed.

Many studies are underway to produce flexible pressure sensors. In particular, there are two main aspects to realize flexible pressure sensors; one is to use inherently flexible materials, and the second is to produce flexibility by forming specially designed structures. Flexible pressure sensors using functional polymers, such as silicone rubber, have received substantial attention. Silicone rubber, like polydimethylsiloxane (PDMS), has excellent flexibility and is particularly suitable for wearable electronics due to its biocompatible nature [9,10,11]. Recently, composite materials have been made by mixing BaTiO₃, carbon nanotubes (CNTs), reduced graphene oxide (rGO), carbon black (CB), Ag nanowires (Ag NWs), and Ag nanoparticles (Ag NPs) to improve the electrical performance of silicone rubber [12,13,14,15,16,17]. These composite materials show electrical properties superior to bulk materials, which can significantly improve the electrical performance of the sensors.

The fabrication of the sensing layer to have a porous structure, or manufacturing it in NW form, is another major way to give the sensor flexibility [18,19,20,21,22]. The nano-size or micro-size structural form of materials can provide excellent flexibility, even if the materials are naturally brittle. In particular, if a naturally flexible material is produced to have various structures, the flexibility can be significantly modified. A flexible material and specially structured sensing layer not only provide excellent mechanical durability, but also improve electrical performances [23,24,25,26,27].

In addition to flexible sensors, self-powered sensor systems have recently been actively studied [28,29,30,31,32,33,34,35]. These self-powered sensor systems do not require an additional power source such as a battery, so they show promise for application in wearable electronics. In particular, triboelectric nanogenerators (TENGs), which were first invented by Wang’s group in 2012 [36], have opened up a new field in self-powered sensor systems, in addition to piezoelectric pressure sensors. TENGs are electronic devices that combine electrostatic induction and the triboelectric effect, and they produce a relatively high voltage output from the contact/separation of two friction layers. In addition, biodegradable sensors became a new active research field in wearable electronics [37]. Biodegradable sensors are particularly popular in the biomedical field and have environmentally positive effects.

In this review, we focus on providing an introduction to fundamental designs based on the type of pressure sensor. In the next section, we present fabrication methods and design strategies for flexible pressure sensors. In Section 4, the applications of flexible pressure sensors are briefly introduced with several examples. Finally, we summarize the recent progress in flexible pressure sensors, offering perspectives regarding the future.

2. Pressure Transduction Mechanism and Design Principles

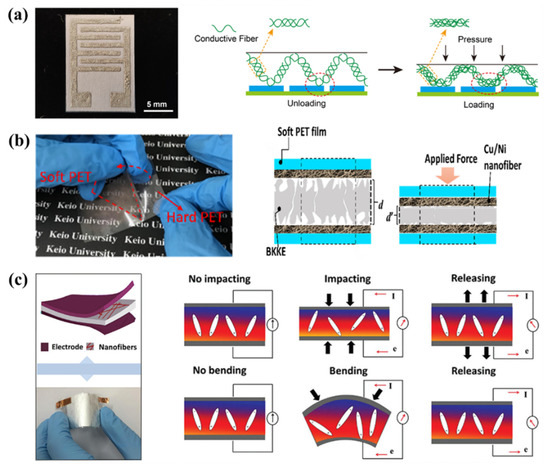

Pressure sensors are categorized into resistive, capacitive, and piezoelectric types, based on the pressure transduction mechanism (Figure 1). Numerous studies have been conducted to improve electrical performances, such as the sensitivity, detection limit, cyclic stability, and so forth. Studies of the active layer’s materials, structure design, and fabrication methods have been actively conducted. In this section, we mainly focus on the sensing mechanism and design strategies according to the type of sensor.

2.1. Resistive Type

The sensing mechanism of a resistive pressure sensor is based on the variation of resistance under applied pressure (Figure 1a). Resistive pressure sensors have been widely studied due to their simple structure, high sensitivity, and wide measurement range. In resistive pressure sensors, the contact resistance between two conductive layers under applied pressure is usually measured. In these sensors, structured conductive layers are typically fabricated. The contact resistance between the electrodes decreases under external pressure because more parts of the active layer come into contact with each other. Coating an as-prepared porous structure with a conductive material is one of the simple ways to obtain a conductive porous structured active layer. Various conductive porous structures have been simply formed using reduced graphene oxide (rGO) with polyurethane (PU) sponge [41], Au NWs with tissue paper [42], rGO, fabric coated with graphene or CNTs [43,44,45], and single-walled carbon nanotubes (SWCNTs) have been coated on an M13 bacteriophage [46]. The sensitivity of a pressure sensor could also be enhanced with micro-patterned PDMS which is coated by conductive materials [47,48,49]. In addition, combining conductive materials such as CNTs [50], multi-walled carbon nanotubes (MWCNTs) [51], rGO [52], and Cu NWs [53] with other highly-deformable materials can help modify the performance of pressure sensors. Randomly-oriented electrospun nanofibers (NFs) have also been used as porous structures to enhance the sensitivity, detection limit, and response time of sensors [54,55,56]. Electrospinning technique will be briefly discussed in Section 3.

In order to fabricate the sensing layer of the resistive pressure sensors, not only chemical vapor deposition but also simple methods such as dip-coating, spray-coating, and drop-casting have been widely used. However, since metals such as silver and gold are generally used, and nano-powders with a size of tens to hundreds of nanometer are used, the material is generally expensive. In addition, for sufficient repeatability, measures to mitigate permanent deformation of the sensing layer are also required.

2.2. Capacitive Type

A dielectric layer of a capacitive type pressure sensor plays a critically important role in achieving high sensitivity (Figure 1b). The capacitive pressure sensor is usually based on a parallel plate capacitor, and the capacitance is defined by the equation: C = ε₀ε_rA/d, where ε₀ and ε_r are the dielectric constants of the vacuum and the dielectric layer, A is the overlapped area of the two electrodes, and d is the distance between the electrodes. When pressure is applied on the sensor, the dielectric layer deforms, i.e., d changes, resulting in variation in the capacitance value.

PDMS and Ecoflex are often used as the dielectric materials of the capacitive pressure sensor due to their highly deformable nature [57,58,59,60,61]. Moreover, by modifying the surface of the dielectric layer with microstructures [62], micropillar arrays [63], wrinkled patterns [64], and pyramidal shapes [65,66], the sensitivity of the sensor can be dramatically enhanced. These patterns of various shapes not only improve the deformability of the dielectric layer, but also vary the effective dielectric constant (ε_r), resulting in more variation in the capacitance. The pores between patterns are occupied by air, and their volumes are reduced by external pressure due to the deformation of the patterns. In general, since the permittivity ε_r is greater than that of the air, as the portion of the air decreases, the effective dielectric constant increases, and consequently, the capacitance increases. With the synergetic effect of enhanced deformability of the dielectric layer and the varied effective dielectric constant, the sensitivity of the sensor can be dramatically enhanced. However, the surface modification method generally causes the pattern to collapse even at small pressure because the size of the pattern is typically only a few tens to hundreds of micrometers. It has high sensitivity until the pattern collapses, but the range is relatively short. In addition, since mold manufacture through photolithography is usually used, it is disadvantageous in terms of fabrication cost. However, once the mold is manufactured, it can be used semi-permanently and shows excellent reproducibility as long as the mold is not damaged.

Another way to improve the deformability of the dielectric layer is to form porous structures [67,68]. Park et al. introduced the fabrication strategy of using porous Ecoflex with a particle template method [69]. In this work, a sugar cube containing Ecoflex was cured, and then the cube was dissolved with hot water to obtain porous structures. Kang et al. described a particle template method with polystyrene (PS) beads as a sacrificial material and PDMS as a dielectric material [70]. PS beads were dissolved in dimethylformamide (DMF) for 12 h, and the fabricated pressure sensor with porous structures showed a sensitivity of 0.63 kPa⁻¹, which is 7.85 times higher than a bare PDMS dielectric layer. To fabricate a porous structured elastomer, Lee et al. first prepared an emulsion of water and PDMS [71]. The phase of water changed from liquid to gas during the curing process to form micro-sized pores, and the PDMS was simultaneously cured, while the pores were trapped in the layer. Our group introduced using fluorocarbon (FC-43) with the emulsion template method, and the highly sensitive capacitive pressure sensor with a sensitivity of 1.43 kPa⁻¹ could be obtained [72]. Yang et al. achieved a great enhancement in sensitivity by using porous pyramidal patterned PDMS [73]. The deformability of the dielectric layer was further modified with both surface structures and porous structures, resulting in an extremely high sensitivity of 44.5 kPa⁻¹. Furthermore, the sensitivity of the porous structure-based capacitive pressure sensor can be further improved with a composite dielectric layer combined with Ag NPs [74], Cu/Ni NFs [39], carbon paste [75], and CNTs [76]. The porous structure has a wide measurement range because pores are spread throughout the entire dielectric layer. It can be manufactured through a simple and inexpensive method; however, the sensitivity of the sensor is relatively low, resulting in a relatively high detection limit.

2.3. Piezoelectric Type

The working principle of a piezoelectric type pressure sensor is that dipole moments in the active material result in the production of electrical potential (Figure 1c). The piezoelectric pressure sensor shows a high resolution, fast response, and high sensitivity. Due to a relatively high piezoelectric characteristic (piezoelectric voltage coefficient, g₃₃), low impedance, and good flexibility, polyvinylidene fluoride (PVDF) and its copolymers were widely used [77]. Composite materials are often used in the production of piezoelectric pressure sensors, as in the two types mentioned above. In particular, BaTiO₃ has often been used as a combined material to enhance the electrical performance of piezoelectric pressure sensors [40,78,79,80]. However, PVDF has a relatively low piezoelectric charge coefficient (d₃₃), resulting in a relatively low pressure sensitivity. On the other hand, inorganic materials, such as ZnO, GaN, InN, ZnS, and CdS has a high d₃₃ and are thus more frequently applied in pressure sensors [81,82,83].

The above-mentioned structured active layers for resistive and capacitive pressure sensors were also actively introduced to enhance the sensitivity of the piezoelectric pressure sensor [84,85,86,87,88]. Since these structured layers experience more deformation under external pressure, more charges are generated from the devices. Meanwhile, the electrospinning technique is widely used as a fabrication method for a piezoelectric pressure sensor. In particular, composite electrospun NFs have been extensively introduced because their combined particles are oriented along with the NFs due to the strong electric field force during electrospinning [89,90,91,92,93,94]. In addition, piezoelectric pressure sensors can be easily applied as self-powered sensors because they generate current and voltage by moving electrons when the sensor is placed under pressure. Self-powered pressure sensors are very attractive in the field of wearable electronics because they do not require an additional power source or energy storage device, such as a battery. However, since the materials used for piezoelectric pressure sensor have poor stretchability, their applications in wearable electronics have been limited.

2.4. Other Types

Other transduction mechanisms have also been utilized to sense external pressure. The transistor-type pressure sensor is a good candidate for a highly-sensitive pressure sensor. Transistors are mainly studied for organic field-effect transistors, and their sensitivity is defined by the deformability of the gate dielectric layer under applied pressure, similar to capacitive-type pressure sensors [95,96,97]. Similarly, various methods have been introduced to improve the deformability of the dielectric layer. Wang et al. fabricated a pyramidal PDMS dielectric layer with a photolithography-based silicon mold, and the sensor showed an extremely high sensitivity of 514 kPa⁻¹ [98]. In addition, materials with excellent deformability, such as PDMS and Ecoflex, have been widely used [99,100].

The triboelectric sensor is another type of promising self-powered pressure sensor. Triboelectric pressure sensors are based on triboelectric nanogenerators (TENGs), whose mechanism is based on the coupling effect of triboelectrification and electrostatic induction. For TENGs, the contact/separation mode is mainly used, with two dielectric layers. To optimize the triboelectric effect, dielectric materials located at the opposite ends of the triboelectric series are demanded. In addition, a larger surface area of the dielectric layer is preferred to induce more charges on their surface. Silicon molds with pyramidal structures are widely used to increase the surface area of the dielectric layers [101,102,103,104]. However, a silicon mold is usually produced with a complex and time-consuming process. As a method of using a low-cost mold rather than a silicon mold, Rasel et al. introduced a sandpaper mold to modify the surface of the layer, resulting in a sensitivity of 0.51 V/kPa [105]. Yao et al. used a C. zebrine leaf as a mold, and the sensitivity of the pressure sensor was boosted with a 14-fold increase compared with a flat surface [106]. Electrospun NFs are also frequently employed due to their fast and simple fabrication process, as well as the high surface area of the NFs [107,108,109,110].

3. Fabrication Technologies

To improve the electrical performances of pressure sensors, various fabrication processes have been introduced. In recent years, flexibility and stretchability are also increasingly demanded for wearable electronics. Many studies are underway to meet these requirements, and various fabrication methods including a dielectric layer, a conductive layer, and a piezoelectric layer will be covered in this section.

3.1. Porous Structures

A porous structure is used in almost all types of pressure sensors because it can broaden the surface area and improve the deformability by lowering the the density and Young’s modulus of the layer. In this section, electrospinning, particle template, and emulsion template will be covered.

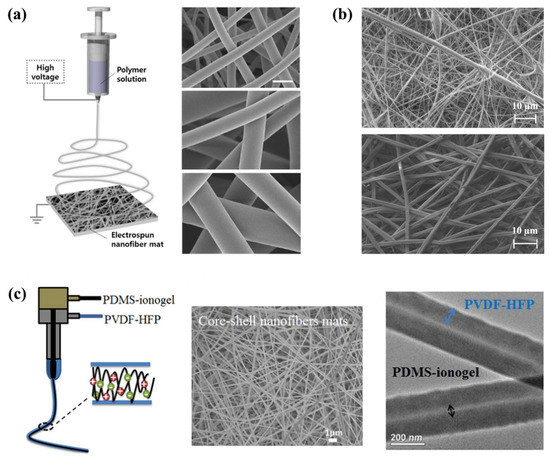

Electrospinning is a promising fabrication technique to produce nano- and micro-sized nanofibers (Figure 2). The NFs promise sufficient deformability even if the material is relatively brittle. In the electrospinning, a polymer solution is ejected from a nozzle by applying a high voltage to the nozzle, and the collector is grounded. After ejection, the jet experiences a whipping instability and extension before deposition due to interactions between charges existing in the jet, resulting in randomly deposited NFs. The electrospun fibers have a rough surface and remarkably large surface area per unit volume. Moreover, the electrospun NF layer has excellent deformability compared to the bulk PDMS layer. Our group has introduced an electrospun NF-based capacitive pressure sensor [111]. An electrospun PVDF-TrFE NF layer exhibited a stiffness 6 times lower than that of a spin-coated PDMS layer. Sharma et al. fabricated MXene composite nanofibrous scaffolds via electrospinning [112]. The fabricated sensor demonstrated a high sensitivity of 0.51 kPa⁻¹ and a minimum detection limit of 1.5 Pa. In addition, the sensor showed stable output signals for 10,000 cyclic tests under pressure of 167 kPa. Chen et al. produced PVDF NFs to fabricate a dielectric layer of a TENG [107]. In this work, polarized PVDF NFs showed higher electrical performances compared to flat-surface PVDF layers and unpolarized PVDF NFs. Core-shell NFs of a PDMS ion gel/PVDF-HFP was first introduced by Lin et al., and the sensitivity with this NF mat was 0.43 kPa⁻¹ [108]. Electrospinning is rarely used for resistive pressure sensors because a high voltage difference of a few kV is induced between the nozzle and ground collector. In addition, electrospinning can only use materials with a high molecular weight.

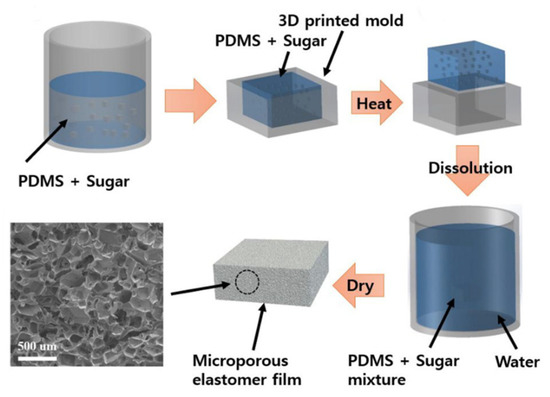

The particle template method is one of the simple ways to produce porous structures [39,67,68,69,70,75,76]. The easily dissolvable particles, such as sugar and NaCl, are first mixed with a matrix material, which is usually silicone rubber (Figure 3). After the matrix material is cured, the particles are dissolved and removed to complete all fabrication processes. The particle dissolving process requires a long duration of several hours to more than 24 h, but as a relatively simple method, even a person without proper training can sufficiently secure reproducibility with the particle template method. Xiong et al. used this method to produce a PDMS mold with a PS bead as a dissolvable particle [114]. Another PDMS layer was produced via the PDMS mold, and Au was sputtered on the new PDMS layer. The spin-coated PVDF layer was then sandwiched between two PDMS layers. The sensor showed a sensitivity of 30.2 kPa⁻¹ which is sufficient to measure pressure of 0.7 Pa.

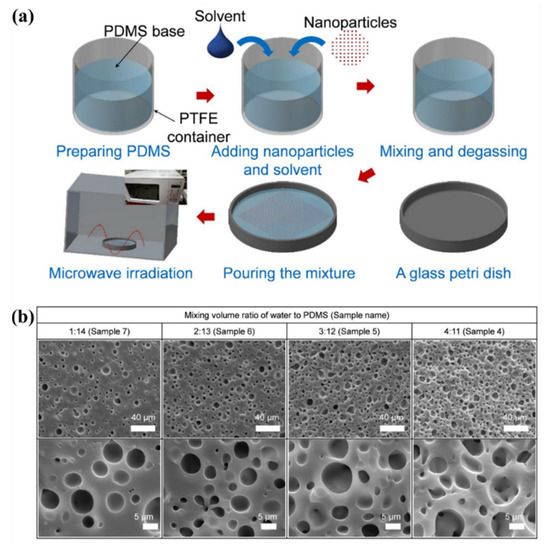

To implement the emulsion template method, two or more aqueous solutions should be homogeneously mixed. For example, a fluorocarbon (FC-43) dispersed PDMS emulsion was used to fabricate a porous structured PDMS layer for TENG and capacitive pressure sensor applications by our group (Figure 4) [72,115]. In this work, the rapid fabrication of the porous structure was the key factor. A microwave-irradiated PDMS emulsion is cured in 3 min, and the dispersed phase (FC-43) is evaporated simultaneously. The volume of FC-43 rapidly increases during the phase change and is trapped in a PDMS layer due to its fast curing. The capacitive pressure sensor with emulsion-templated porous PDMS showed a sensitivity of 1.43 kPa⁻¹_, which is 20 times higher than a non-porous PDMS layer. Through the emulsion template method and microwave irradiation, the rapid fabrication of porous PDMS is possible, but limited solutions can only be homogenously dispersed in a PDMS solution. This limitation applys similarly to all emulsion template methods, but unlike the particle template method, there is no need for post-processing because pores are formed simultaneously with curing of the matrix material.

3.2. Surface Modification

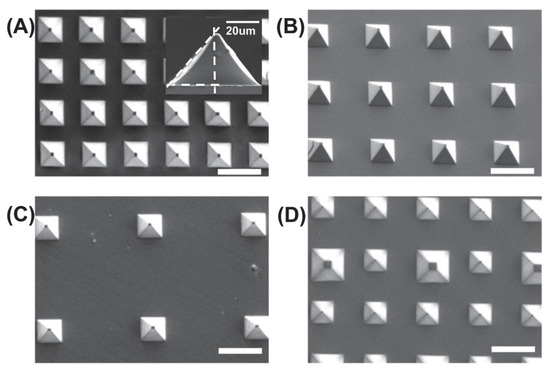

Surface modification aims to produce a pattern of special shape confined to the active layer surface. These patterns have a high aspect ratio and use a mold produced through photolithography or soft-lithography. Pyramid or rod patterns are widely used to enhance deformability and surface area of the active layer surfaces (Figure 5). For resistive pressure sensors, the surface of the soft active layer, including patterns, is coated with conductive materials, such as Pt [116], poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) [117], and rGO [118]. Since the contact surface of the two electrodes becomes larger under external pressure, the deformability of the pattern should be improved for larger variation in resistance [116,117,118]. Kim et al. introduced a sandblasted silicon mold to fabricate vertically-aligned CNTs on a PDMS substrate. As a resistive pressure sensor, it showed a sensitivity of 0.3 kPa⁻¹ at pressure < 0.7 kPa. Lee et al. used micropatterned PDMS as a dielectric layer of a triboelectric tactile sensor [101]. The micropatterned PDMS was developed on various polymer foams, such as PU, ethylene vinyl acetate (EVA), and polyvinyl chloride (PVC). Among these polymer foams, PVC showed the highest sensitivity of 14.3 mV/kPa, but it had the narrowest measurement range. Yang et al. introduced a novel fabrication method for porous pyramidal patterns [73]. Porous structures could be obtained with a particle template method with PS beads, and the pyramidal patterns were fabricated with a silicon mold. The PS beads were stacked in and on the pyramid-patterned mold, and then the PDMS solution was spin-coated. Under sufficient pressure during the curing process, a porous pyramidal PDMS dielectric layer could be obtained. The capacitive pressure sensor with this dielectric layer has a sensitivity of 44.5 kPa⁻¹ which is 10–20 times higher sensitivity compared to other capacitive pressure sensors.

Readily market-available molds, rather than specially prepared molds, or even the leaves of trees, have also been used to modify the surface of the active layer. Su et al. used a mimosa leaf as a mold to fabricate a leaf replica for a resistive pressure sensor [47]. Two gold-deposited replicas were assembled to construct a resistive pressure sensor, and it showed a sensitivity 50.17 kPa⁻¹. This work is significant in that it has produced a highly sensitive pressure sensor using an uncomplicated and low-cost process. Wang et al. produced sandpaper-based PDMS microhump patterns [49]. The patterns were then coated with PEDOT:PSS to fabricate a contact-resistance-based resistive pressure sensor. This sensor showed a remarkably high sensitivity of 851 kPa⁻¹ at <3 kPa. The fabric is another patterned structure that is commercially available around the world. Using the fabric as a mold to improve the surface roughness of the sensing layer can be simplified at a low cost. Wang et al. used a silk mold to obtain a patterned PDMS surface and investigated the effect of the pattern density on the sensitivity of the resistive pressure sensor [119]. The results indicate that a higher pattern density is more advantageous due to its more effective contact sites, which leads to larger charge transfer when pressure is applied. To optimize the geometry of the pyramidal pattern for high sensitivity, Liang et al. presented an analytical model that investigated the structural effects of the patterns [120]. From the results of this work, the compressive deformation of the pyramidal patterns increases as the height of the pyramid increases, and the bottom length of the pyramid decreases. That is, the high aspect ratio of the patterns leads to more deformation of the patterns under the same applied pressure, resulting in higher sensitivity for any type of pressure sensor.

Wrinkled patterns can be fabricated by ultra-violet ozone (UVO) radiated elastomers. UVO radiation on a cured elastomer film leads to silicon oxide layers several nm thick. When the strain is removed, the silicon oxide layer is buckled, showing wrinkled patterns. Baek et al. used a PDMS dielectric layer with wrinkled patterns for the capacitive pressure sensor [121]. The double-sided wrinkled pattern increased the sensitivity up to 0.013 kPa⁻¹. Shuai et al. used a wrinkled structure elastomer as a mold. The Ag NWs drop-casted on the stretched PDMS after the UVO radiation, and then the PDMS solution was poured onto the Ag NW-coated PDMS mold. After the PDMS solution underwent a curing process, an Ag NW-embedded wrinkled PDMS layer can be obtained. Spin-coated PVDF is further used as a dielectric layer, and the pressure sensor showed a high sensitivity of 2.94 kPa⁻¹_, due to the easily-deformed Ag NW electrode.

3.3. Printing Methods

The printing technique has gained the most attention for future applications due to its low material wastage, the capability of large-area production, and low cost. Recently, an additive manufacturing technology that can print plastics, as well as metals, has emerged in various fields [122]. Leigh et al. fabricated 3D structure using carbon black (CB)/polycaprolactone (PCL) composite [123]. The CB/PCL based resistive pressure sensor could detect finger motion. The author also demonstrated a “smart” vessel. They produced a cup containing two conductive traces acting as a capacitor. The capacitance value increases as the amount of water in the cup increases. Zhuo et al. fabricated a 3D-printed mold to enhance the deformability of the PDMS dielectric layer [23]. The capacitive pressure sensor with micropatterned PDMS showed a sensitivity of 1.62 kPa⁻¹. These results are meaningful for the development of electronic devices of various shapes, film-like thin sensors, and for pioneering wider applications.

Solution-based printing methods, such as screen printing, roll-to-roll printing, offset printing, gravure printing, and inkjet printing are also used in this field [124]. Inkjet-printed PDMS can directly act as a pattern, such as a pyramidal pattern, and the control of various experimental variables such as dot size, the distance of each dot, the number of overprinting, and printing speed is much simpler than other surface modification methods. Peng et al. produced inkjet-printed PDMS micropatterns and investigated the effect of pattern distance on the pressure sensitivity (Figure 6) [125]. The sensitivity was improved as the pattern distance increased due to the enhanced deformability. In addition, this device was able to fabricate TENG simply by changing the structure of the device and successfully produced an output voltage of 1.23 V.

3.4. Other Methods

Aside from the fabrication methods mentioned above, other techniques have also been utilized to fabricate pressure sensors. Dip-coating is a widely used coating method because it is a simple, easy to handle, and fast fabrication method [41,42,43,45,46,126]. Especially, dip-coating is often used to fabricate the conductive layer for resistive pressure sensors because the sensing layer of the resistive type sensor should be entirely conductive, unlikely the active layers of other types. However, in order to make a conductive layer by using dip-coating, repeated coating has to be performed to obtain sufficient conductivity.

Spin-coating and spray-coating are fabrication methods that focus more on surface treatment [127,128,129]. The disadvantage is that only low-viscosity solutions can be used, but several variables can be easily controlled to produce thin films quickly and easily [58,62,130,131,132,133,134]. Zhou et al. introduced an interesting spin-coating method that produces a magnetically induced coating to replicate human skin and the sensing mechanism of hairs [135]. The PDMS solution is first spin-coated and cured on a glass substrate. Carbonyl iron particles (CIP) are dispersed in the PDMS solution which is then spin-coated on PDMS/glass substrate. The uncured CIP/PDMS solution is turned into micro cilia array (MCA) under a magnetic field induced by a permanent magnet. After the curing process, the MCA can be obtained on a PDMS substrate. With this structure, the sensor showed a high sensitivity of 0.28 kPa⁻¹.

Table 1. Summary of some pressure sensors and their electrical performances.

Transduction Mechanism	Key Material	Fabrication Method	Sensitivity	Detection Limit	Response Time	Ref.
Resistive	Microstructured PDMS	Mimosa leaf mold-template	50.17 kPa−1	10.4 Pa	20 ms	[47]
	PDMS/CNT	Emulsion-template	0.1113 kPa−1	20 Pa	100 ms	[19]
	Microstructure PDMS	Sandpaper mold-template	851 kPa−1	34 Pa	0.15 ms	[49]
	CNT coated cotton	Dip-coating	14.4 kPa−1	2 Pa	24 ms	[45]
	rGO	Spray-coating	0.82 kPa−1	7 Pa	24 ms	[129]
Capacitive	PVDF-TrFE NF	Electrospinning	2.81 kPa−1		42 ms	[111]
	Porous PDMS	Particle-template	0.51285 kPa−1	-	200 ms	[67]
	Carbon paste/PDMS composite	Particle-template	1.1 kPa−1	4 Pa	60 ms	[75]
	Porous CNT/Exoflex composite	Particle-template	6.42 kPa−1	-	100 ms	[76]
	Pyramid structured PDMS	Silicon mold-template	0.55 kPa−1	3 Pa	-	[136]
	Porous pyramid structured PDMS	Silicon mold and particle-template	44.5 kPa−1	-	50 ms	[73]
Piezoelectric	PZT film and microstructured PDMS	Silicon mold-template	31.8 kC/kPa	-	20 ms	[84]
	Graphene/PbTiO3 composite	-	9.4 MPa−1	-	5–7 ms	[82]
	Transferred PZT	XeCl excimer laser	0.018 kPa−1	-	60 ms	[137]
	PVDF-BaTiO3 NF	Electrospinning	0.017 kPa−1	-	-	[40]
Transistor	Pyramid structured PDMS	Silicon mold-template	514 kPa−1	10 Pa	1.8 ms	[98]
	ZnO nanosheets and MAPbI3	-	0.57 kPa−1	0.5 Pa	-	[31]
	Ag NW embedded PDMS	Wrinkled PDMS mold-template	9.9 kPa−1	0.9 Pa	-	[100]
	Amorphous Indium-Gallium-Zinc oxide	-	0.1 kPa−1	-	190 ms	[21]
Triboelectric	Microstructured PDMS and CNT/PDMS composite	Sandpaper mold-template	0.51 V/kPa	5 kPa	450 ms	[105]
	Interlocking PTFE burrs and PDMS	C. zebrine leaf mold-template	127.22 mV/kPa	-	-	[106]
	Core-shell PDMS ion gel/PVDF-HFP NF	Dual-nozzle electrospinning	0.43 kPa−1	1.5 kPa	-	[108]

provides comprehensive information regarding pressure sensors for an easy comparison of the various approaches.

4. Applications of Flexible Pressure Sensors

4.1. Human-Machine Interfaces

Human-machine interfaces and remote control of robots can be effectively applied in the field of surgery or risky situations [138]. Several companies have produced surgical robots that are already being used to help doctors perform surgery. Until now, these robots are usually used to prevent hand tremor, but it is expected that the interaction between the robot and the surgeon would be possible. High sensitivity is essential for precise information transfer between humans and machines, and for this purpose, the measurement range corresponding to each use should be properly adjusted. Through this application, even when it is difficult for the doctor to physically access the patient, the operation can be remotely performed in the future. In these applications, the pressure sensors are attached to the machine or human body [139,140]. In general, the sensors are mounted on the parts that have a large degree of deformation such as fingers, elbows, or knees. Moreover, sensors are also usually attached to the part where a large pressure is typically applied, such as the fingertips or soles. Therefore, the sensors for human-machine interfaces are required to have sufficient stretchability and a large measurement range with stable output signals.

A textile-based capacitive pressure sensor was demonstrated to be applied for human-machine interfaces as a wearable electronics (Figure 7) [141]. Four channels of capacitive pressure sensors were attached on four fingers (the index, middle, ring, and little fingers) and on the forearm portion of clothes. A remotely operated drone was controlled by the smart glove, and a hexapod robot was also operated with the sensors. Different commands were set for each channel, and as a result of the experiment, it was confirmed that the sensors work well. From these results, the proposed textile-based capacitive pressure sensors have sufficient capability to be used for human-machine interfaces. As described above, many studies have been conducted to apply their pressure sensors to human-machine interfaces [106,142,143,144,145].

4.2. Biomedical Pressure Sensing

Pressure sensors should have sufficient sensitivity to be used as a health monitoring system because biomedical pressure is usually very small on human skin. Biomedical signals, such as the pulse, blood pressure, respiration rate, and cardiac impulse play an important role in health monitoring (Figure 8). The sensors collect the wearer’s health status in various ways so that rapid treatment can be taken during medical emergencies. In this case, the device should be properly attached to the human body and constantly receive information. Therefore, it is highly desired to be compact and small enough that the wearer is not uncomfortable, and sufficient sensitivity is required even in a small size. In addition, there are several restrictions because materials that are harmless to the human body should be used. Numerous studies have been conducted to implement pressure sensors as a health monitoring system [38,146,147,148,149].

One promising way to configure a health monitoring system is to use self-powered pressure sensors [108,150,151]. This type of sensor does not require an additional power source, such as a battery, so the system can avoid becoming heavy enough to distract the human senses. Park et al. used their piezoelectric pressure sensor as a self-powered real-time arterial pulse monitoring system [137]. The signal obtained from the sensor was able to clearly distinguish whether or not the user had recently exercised. In addition, carotid artery pulses and the respiration rate were also clearly detected. One thing to note about these sensors is the use of biocompatible materials. Unlike human-machine interface applications, sensors must be attached directly to human skin to measure very small biomedical pressure. In addition, excellent robustness that can operate semi-permanently is also required.

4.3. Pressure Distribution

A sensor array is required to measure the pressure distribution (Figure 9). This method often analyzes the distribution of pressure applied to an array with an irregular shape. However, the pressure distribution in wearable electronics should aim to measure the distribution on the human body. For this purpose, the sensor needs excellent flexibility and stretchability. The sensor array is expected to be applied to various fields such as sports, ergonomic furniture and clothing, and motorsports. In particular, since it can be used as data for posture control by analyzing information collected from sensor cells, it can be widely used in the sports field. For this, reproducibility is indispensable in sensor manufacturing, and sometimes, since repetitive external force is applied in a harsh environment, mechanically robust design and manufacture are also demanded. Since sensors are designed to contain electrode materials, making the flexible electrodes is also a major research topic [72,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168]. Of course, CNT, rGO, and metal NWs already show excellent performance as flexible electrode materials, but the above materials are relatively expensive and difficult to manufacture.

Kim et al. used liquid metal to produce pressure sensitive microfluidic channels with eutectic gallium indium (EGaIn) [169]. An initially-printed EGaIn line pattern on stretchable substrate was strained with the substrate, and it was transferred onto another non-strained stretchable substrate. By repeating this process several times, a sub-2 μm pattern could be obtained. For the fabrication of a sensor array with these features, 3–10 μm patterns were fabricated with 4 horizontal and 4 vertical EGaIn lines, and the array showed excellent response under applied pressure.

5. Conclusion and Future Perspectives

In this review, recent progress in flexible pressure sensors was introduced, covering their transduction mechanisms, fabrication methods, and applications. The pressure sensor is one of the most demanded electronic devices in wearable electronics, artificial skin, and other fields. Various studies have been conducted, and substantial effort has been devoted to enhancing the electrical performance of sensors. Excellent electrical performance, especially high sensitivity, can broaden the application of the device.

Regardless of the type of sensor, the future trends of sensor development mainly focus on the following aspects. First, high electrical performance, including sensitivity, response time, detection limit, and mechanical durability with a wide measurement range, is necessary. In general, highly-sensitive pressure sensors have a very small detection limit, but a narrow measurement range. In order to apply these sensors to wearable electronics with various quantities of external stimuli, it is essential to have a high sensitivity and a wide measurement range. In addition, hysteresis should be sufficiently secured for easy calibration. The mechanical durability for long-term use should also be guaranteed. Second, a multifunctional sensor is required to meet the needs of applications in the fields of wearable electronics. Unlike a laboratory where the environment is precisely controlled, people’s surroundings vary widely. Various external factors, such as humidity, temperature, vibration, etc., are present, and in order to produce truly wearable electronics, it is necessary to measure all external stimuli. In particular, although only the pressure sensor was covered in this review, the multifunctional sensor that measures both pressure and strain is required because they always act simultaneously on human skin. Third, self-powered sensors are a new trend in the field of wearable electronics in recent years. Piezoelectric and triboelectric pressure sensors are good candidates to realize this function. Overcoming the brittle properties of the piezoelectric materials is the main challenge for piezoelectric pressure sensors. The triboelectric pressure sensor further needs an increased power density. As wearable electronics develop, the device size and power requirements will decrease, but the triboelectric nanogenerator usually generates insufficient power density. In addition to the above trends of future developments, biodegradable and self-healing pressure sensors are desired for a wider range of wearable electronics applications. Further focused research is demanded to discover more flexible, stretchable and yet effective sensing materials. Moreover, to realize these diverse requirements, a novel fabrication method is likely required for future applications.
