Hardware-In-the-Loop Equipment for the Development of an Automatic Perturbator for Clinical Evaluation of Human Balance Control
Abstract
:1. Introduction
2. Materials and Methods

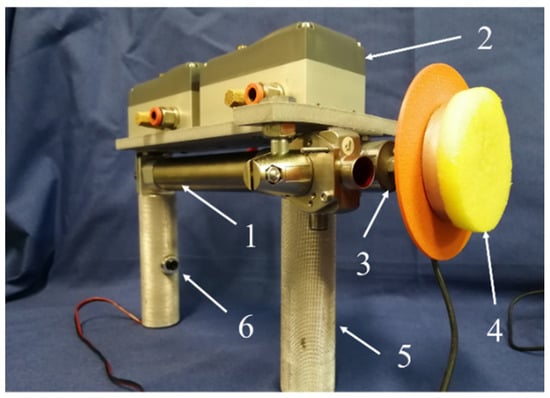

2.1. The Automatic Perturbator (AP)
2.2. The Test-Bench
- Cylinder Ca: ISO 15552 model (Metal Work S.p.A., Italy); stroke: 120 mm; bore: 32 mm; weight: 3 kg; moving mass: 0.18 kg; provided with Nitrile Butadiene Rubber seals;
- Cylinder Cb: MQMLB25TFH-100D model (SMC Corporation, Japan); stroke: 100 mm; bore: 25 mm; weight: 2.7 kg; moving mass: 0.15 kg; a metal seal ultra-low friction cylinder with minimum working pressure 0.005 MPa;
- Valve Va: 3AF2 model (CKD Co. Ltd., Japan); pressure range 0–10 bar; max conductance 1.97 × 10−8 (Nm3)/(sPa); critical ratio 0.14; dead band 0.5 V;
- Valve Vb: LRWD2-34 model (Camozzi Automation S.p.A., Italy); pressure range 0–10 bar; max conductance 1.68 × 10−8 (Nm3)/(sPa); critical ratio 0.36; dead band 0.2 V.

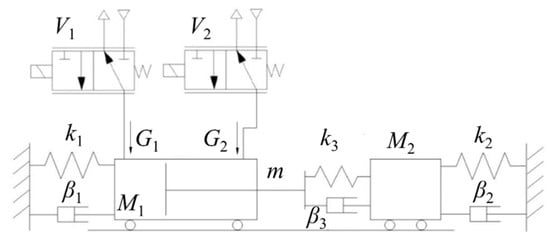

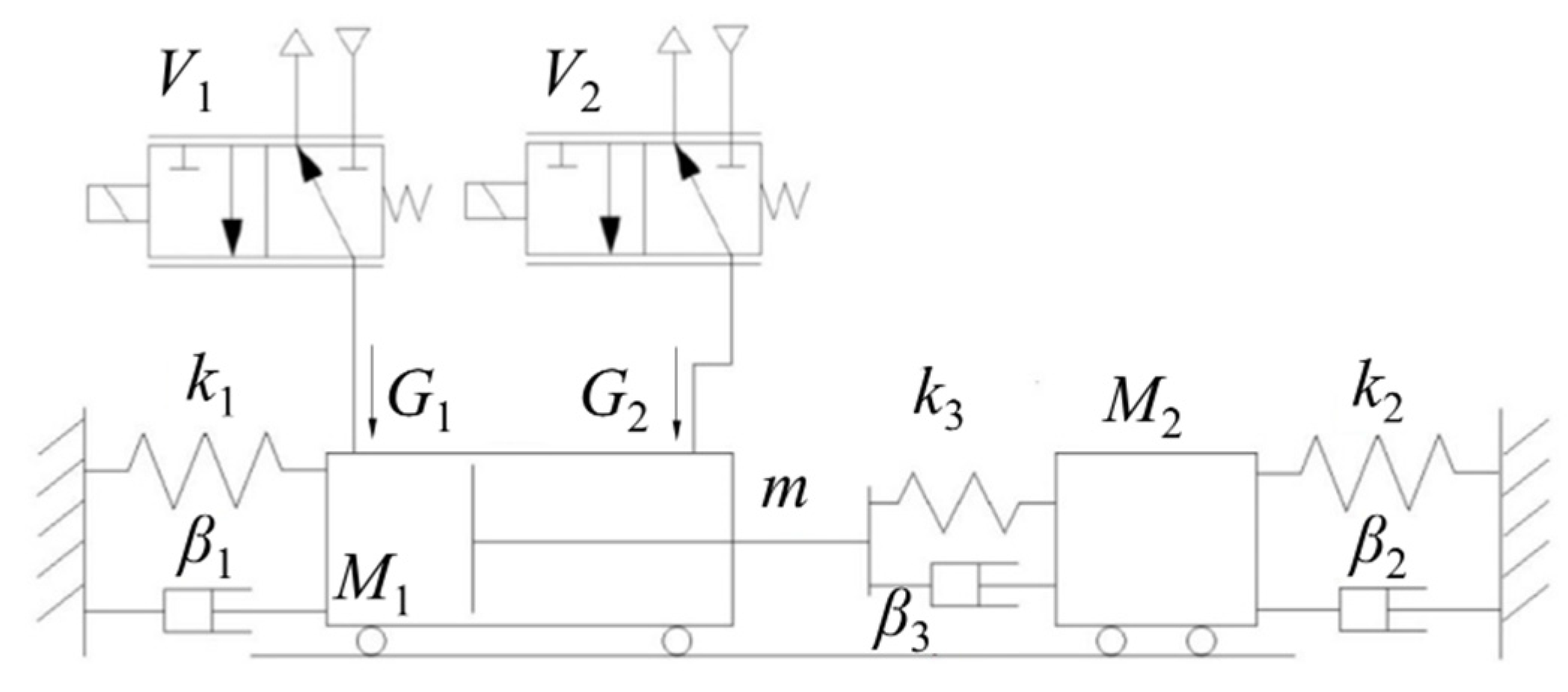

3. Analytical Model of the HIL Equipment

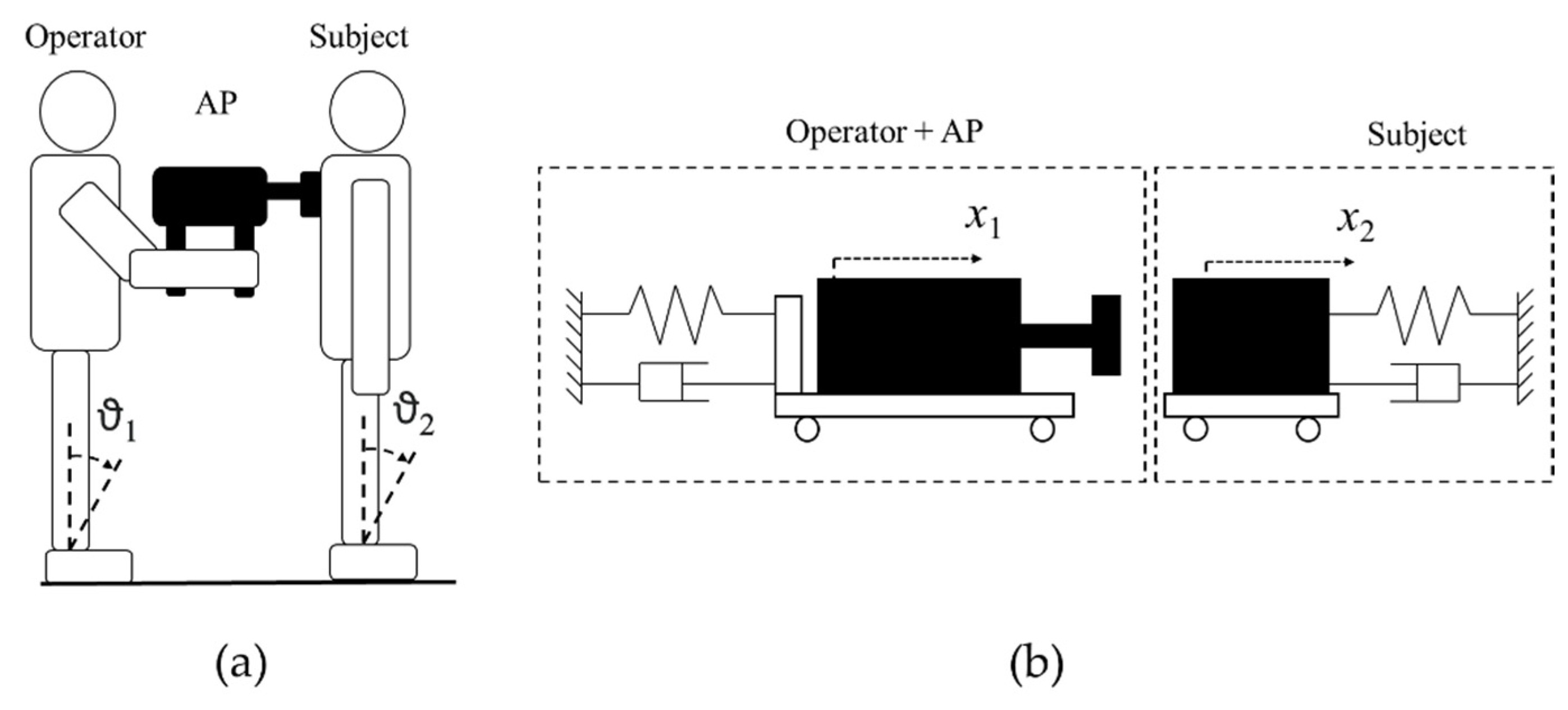

3.1. The Mechanical Impedance of the Subject and the Operator
3.2. Proportional Valves

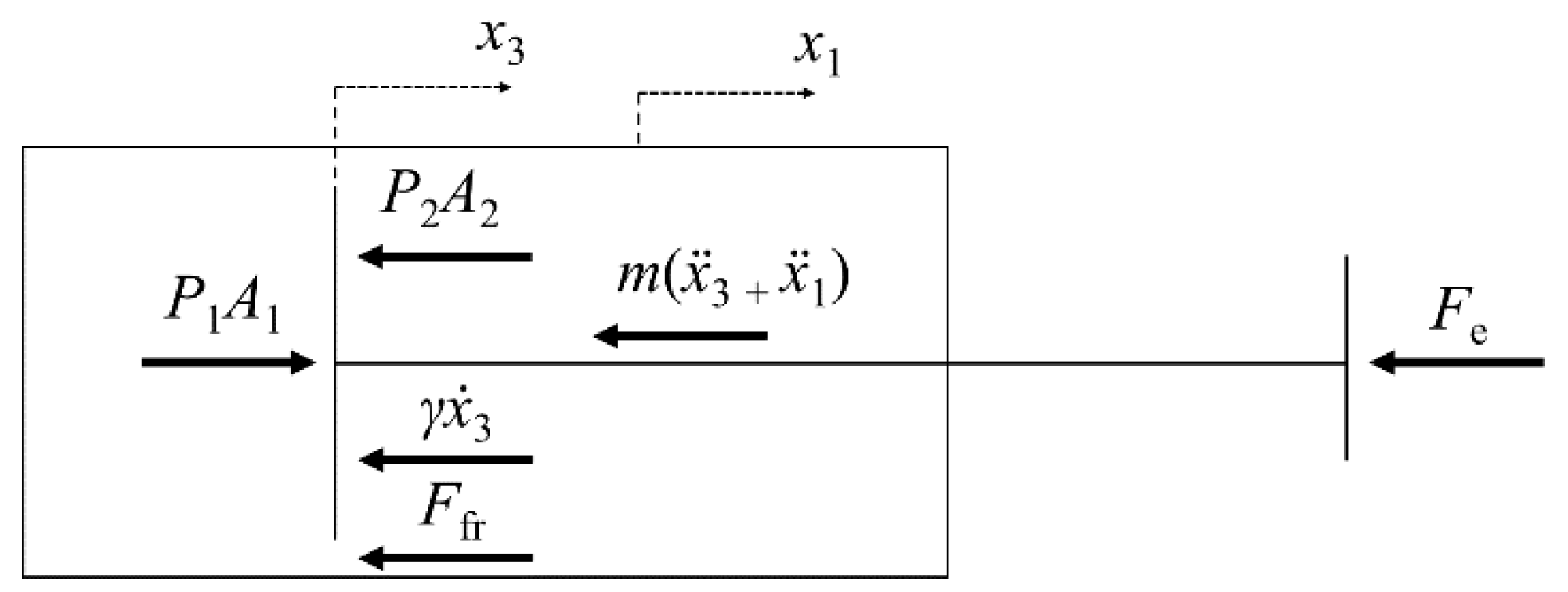

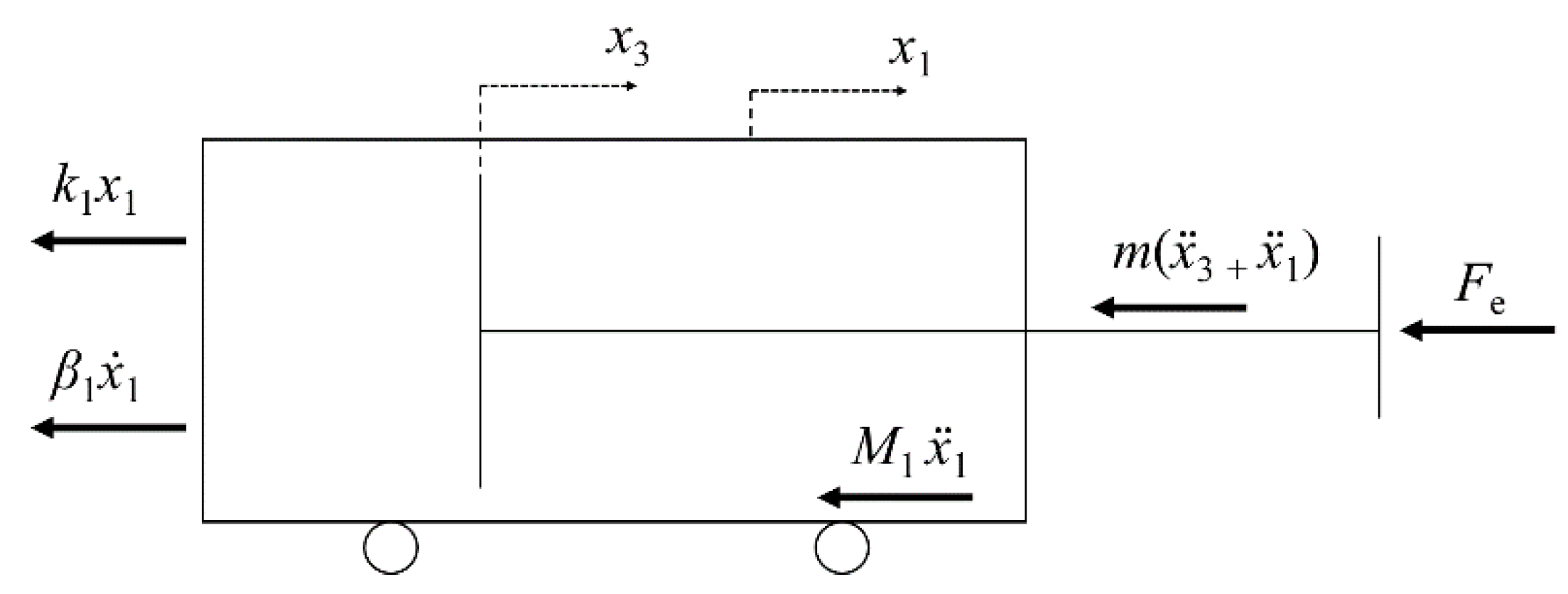

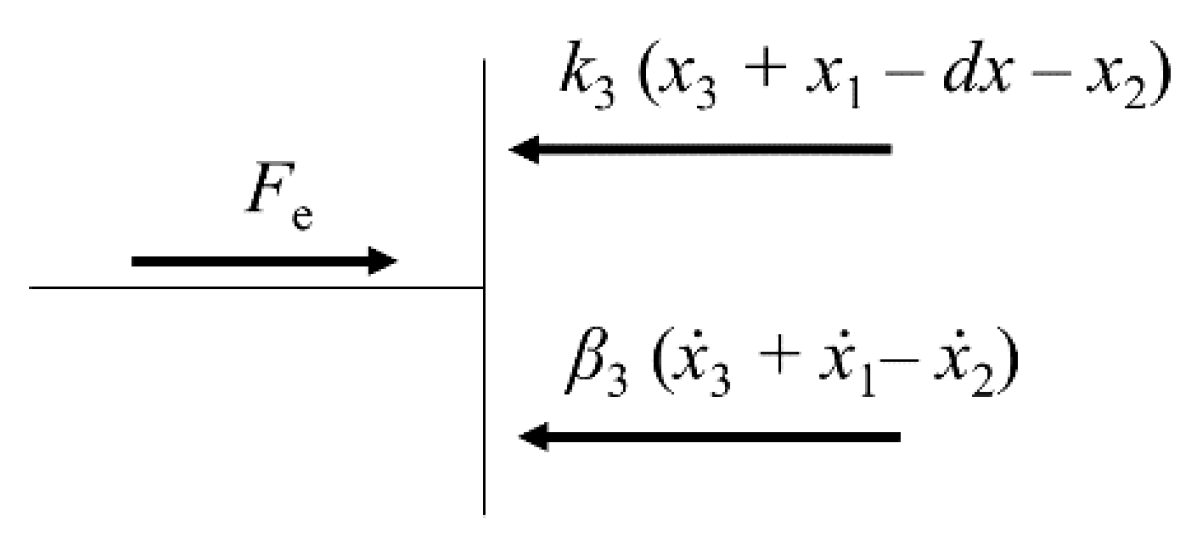

3.3. Pneumatic Cylinder

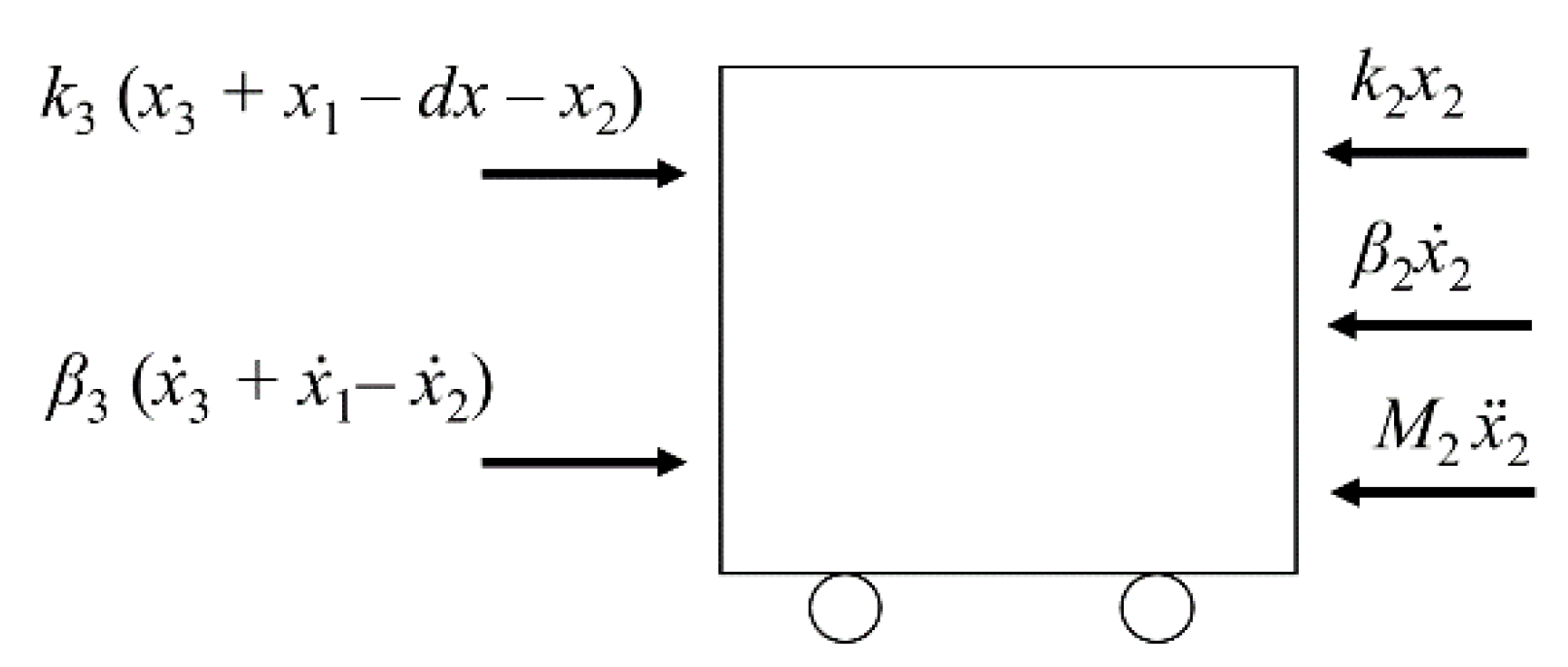

3.4. Stricken Body
4. Control Strategies of the HIL Equipment

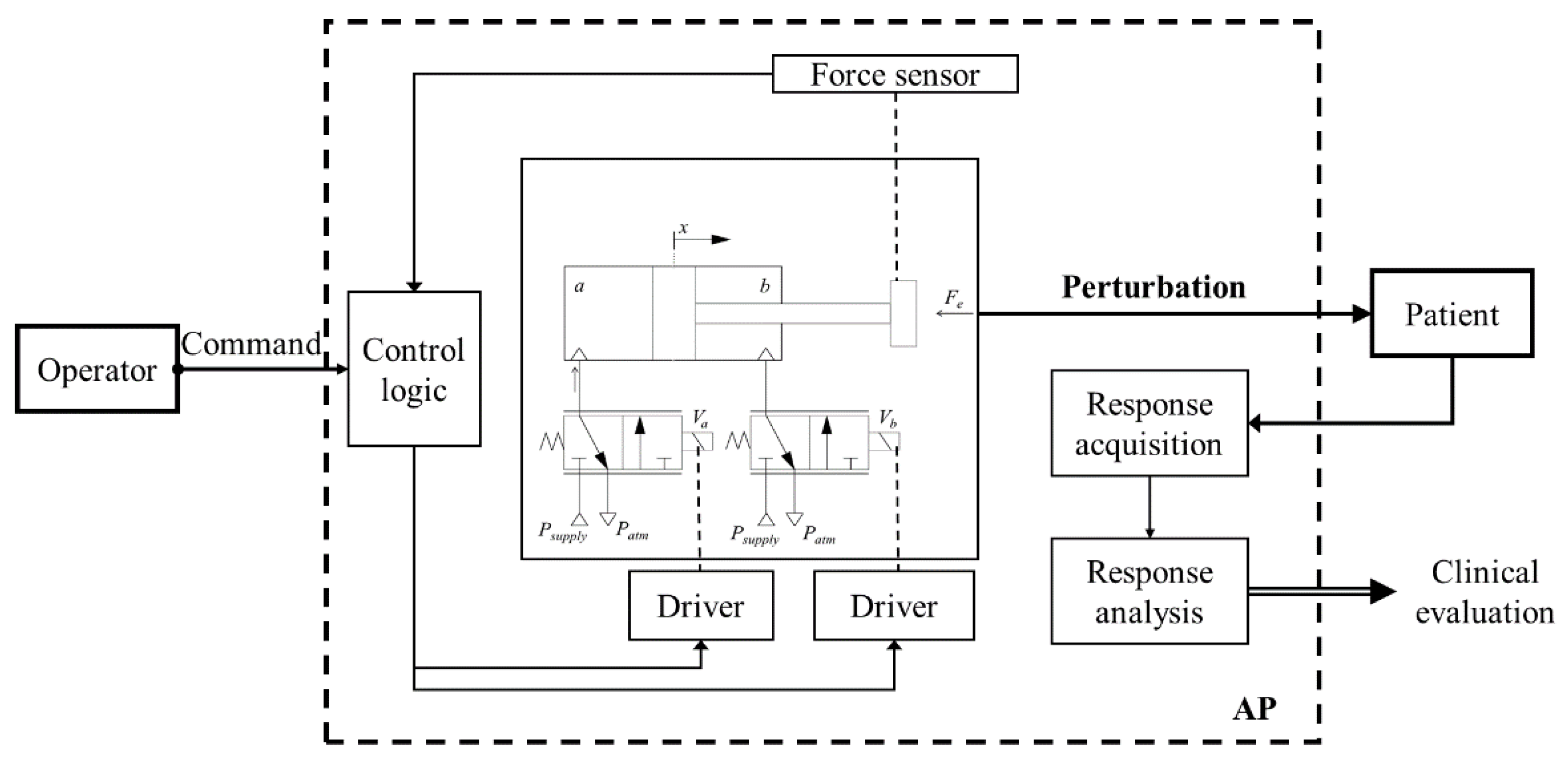

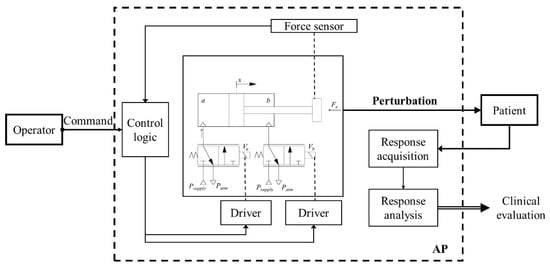

4.1. AP Control Architecture

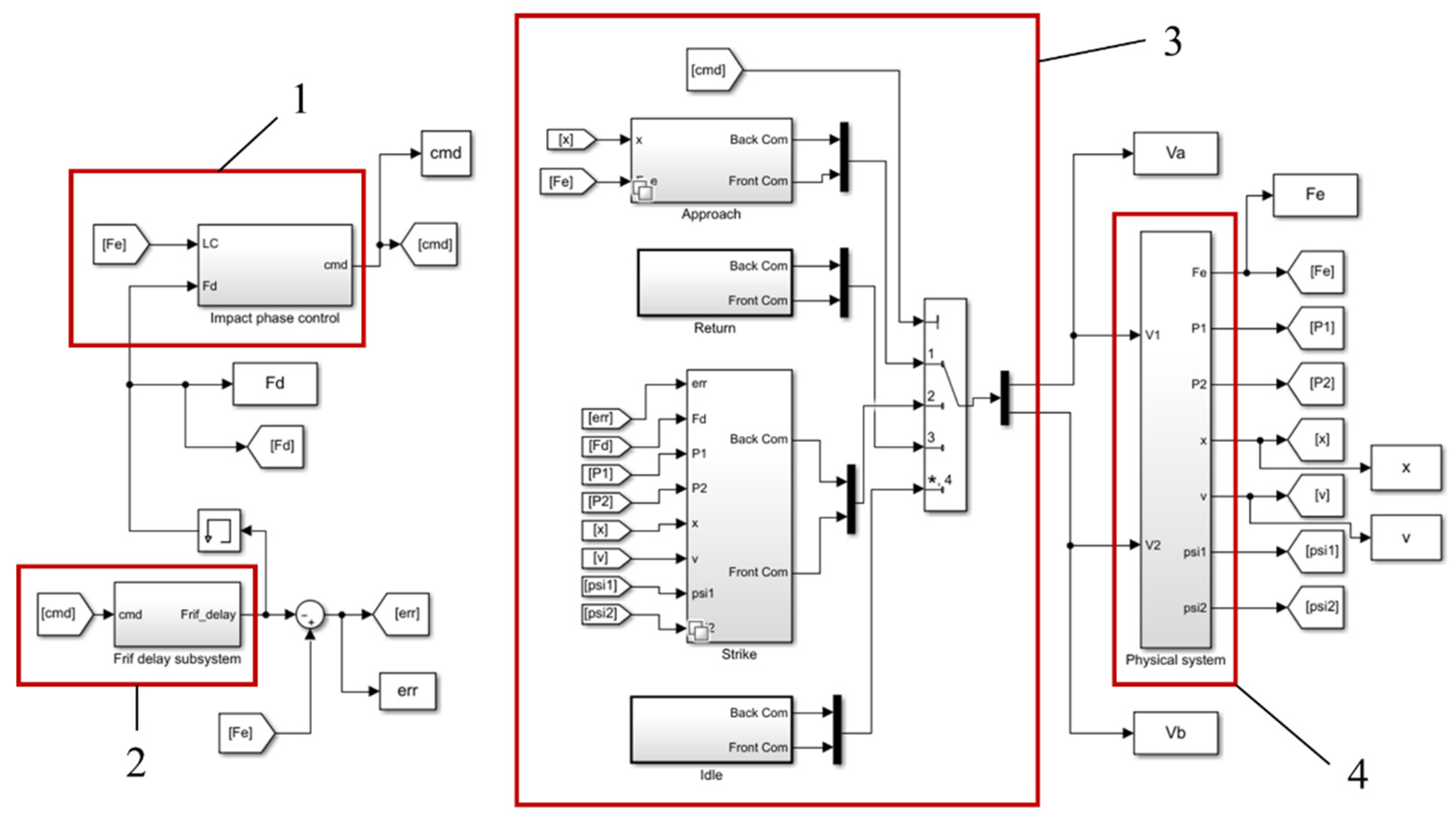

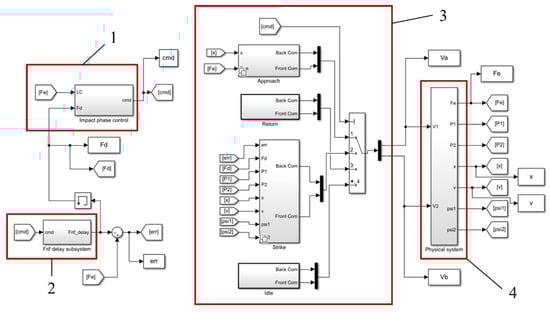

4.2. Control Logic Implementation
- control system of the impact phase;
- control system of the desired force profile;
- selection of operative phases;
- model of dynamic system.

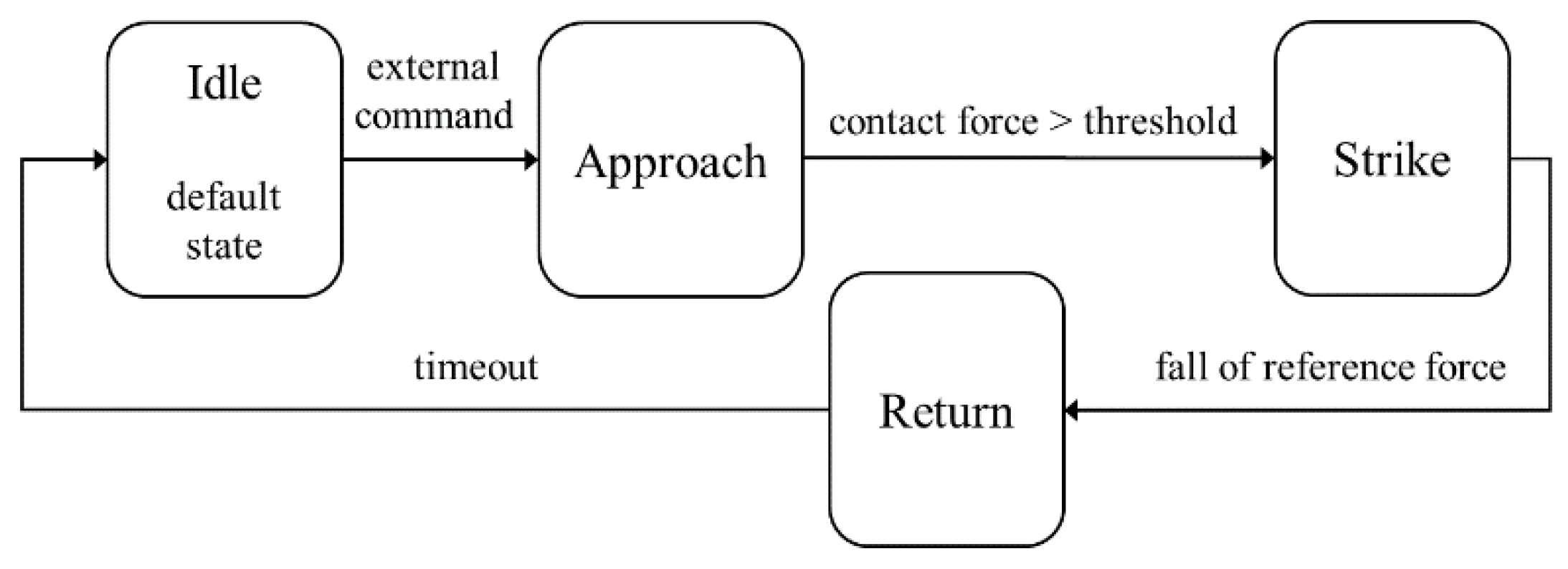

- Idle: the voltage of each valve is reduced to zero. It is the starting condition of the whole system;
- Approach: the rear chamber of the actuator is supplied while the front chamber is discharged, to move the piston rod from the initial retracted condition towards the subject’s mass;
- Strike: a PI controller is used to modulate the valves’ command signals in order to reduce the difference between the desired force (set) and the feedback signal from the load cell;
- Return: the actuator’s front chamber is supplied and the rear chamber is discharged to perform the high speed retraction of piston.
5. Simulations

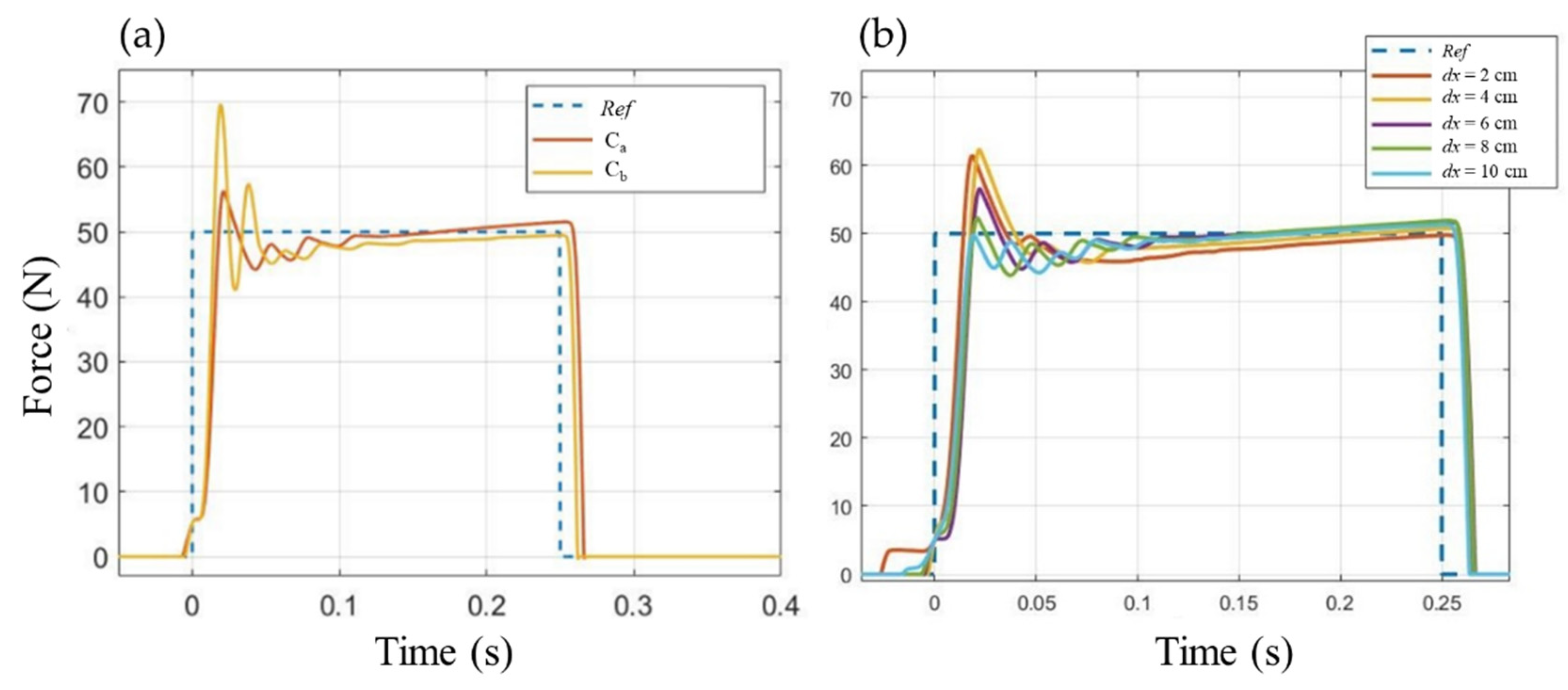

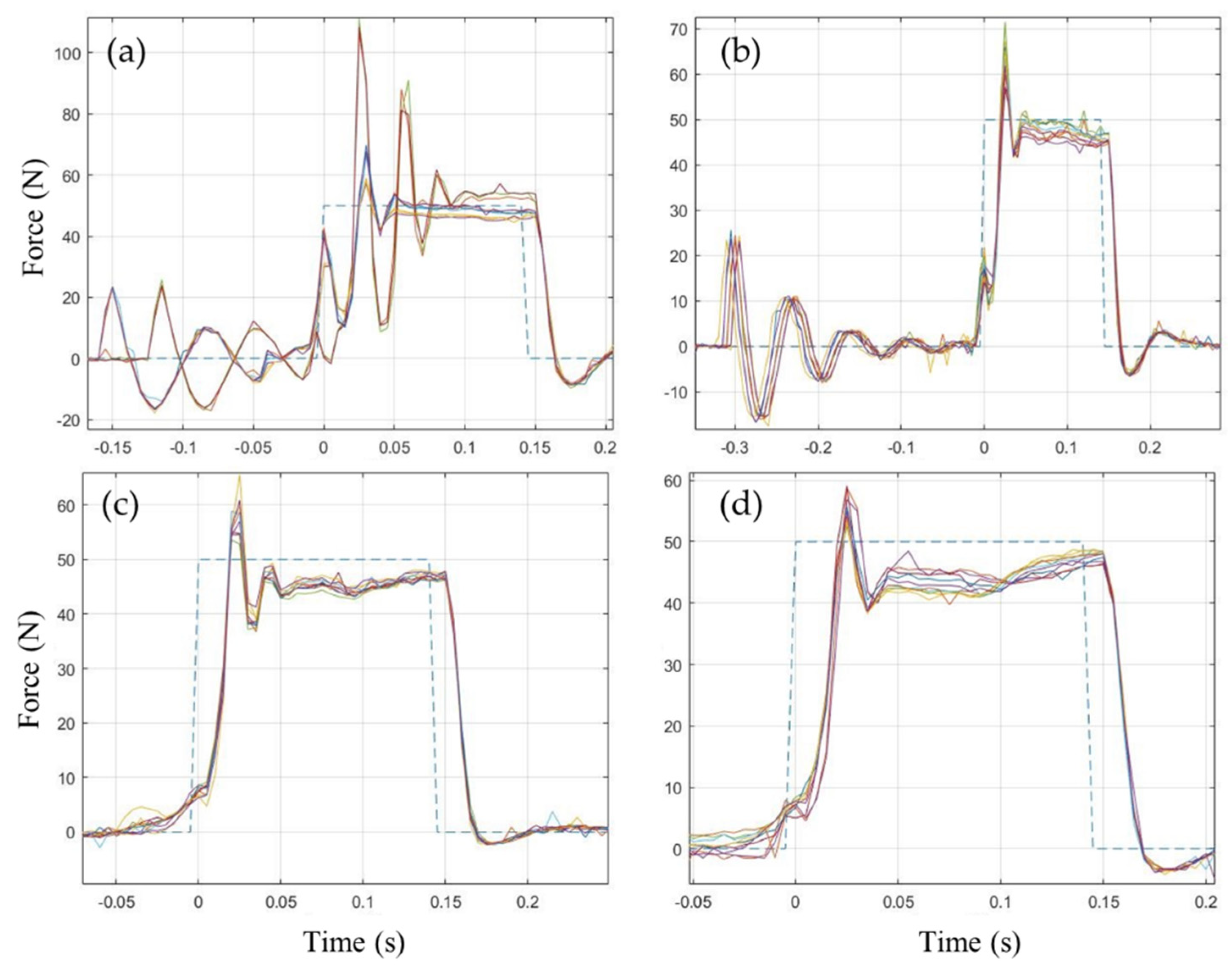

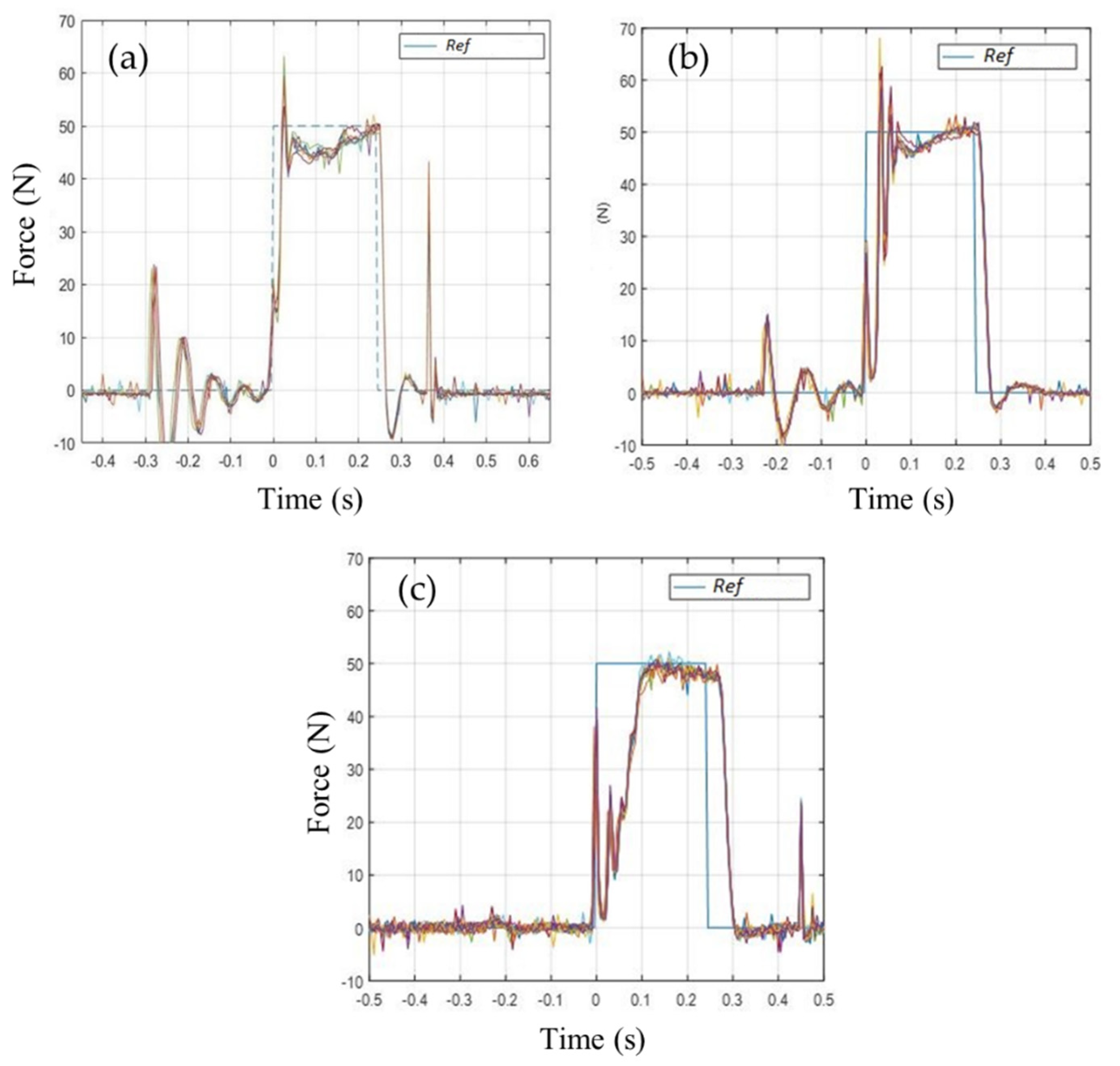

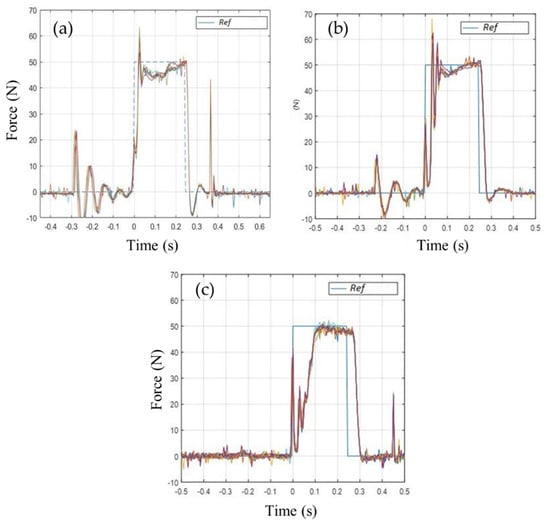

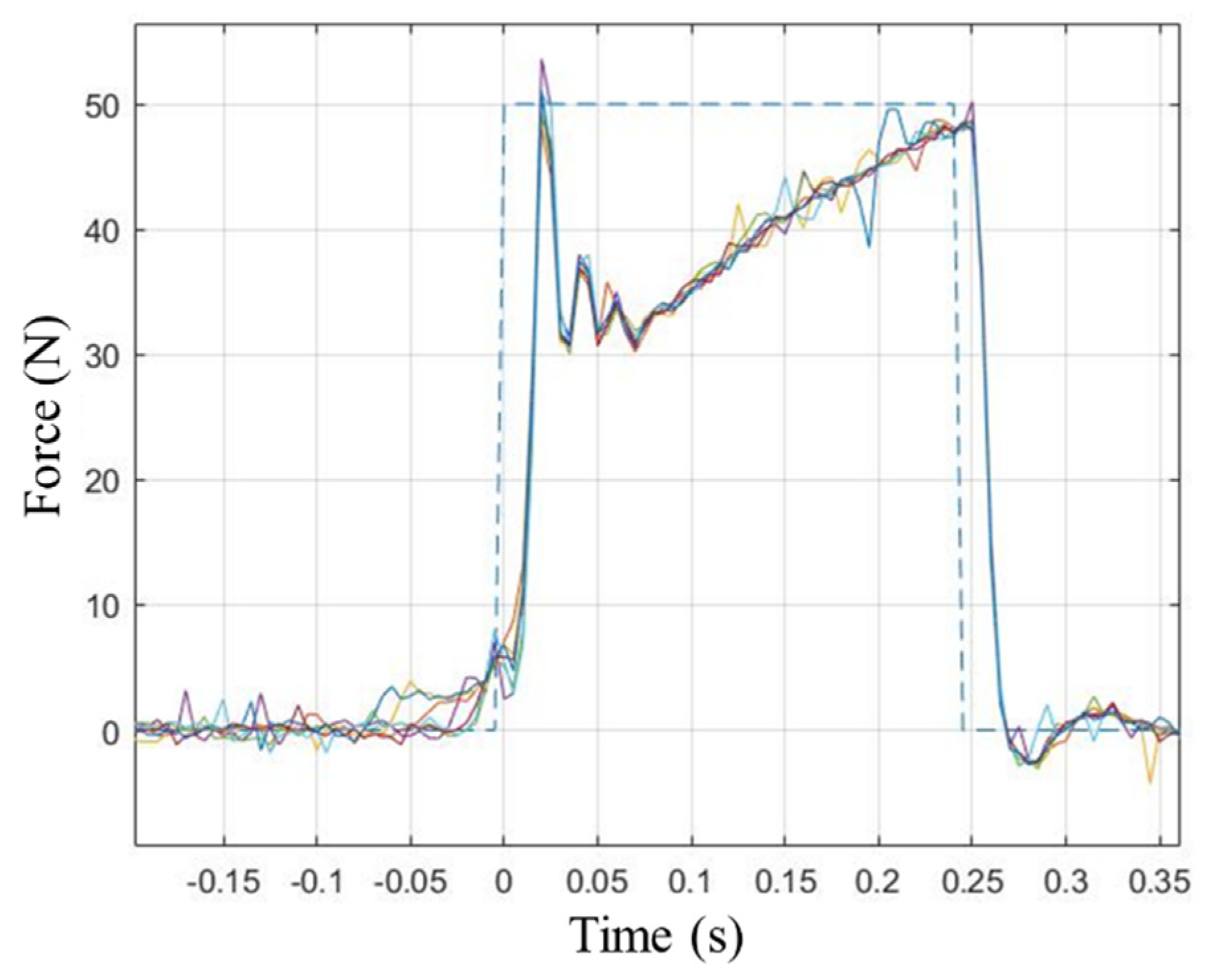

6. Experimental Trials
7. Conclusions
8. Patents
Author Contributions
Funding
Conflicts of Interest
References
- Chen, B.; Lee, Y.J.; Aruin, A.S. Control of grip force and vertical posture while holding an object and being perturbed. Exp. Brain Res. 2016, 234, 3193–3201. [Google Scholar] [CrossRef] [PubMed]
- Davidson, B.S.; Madigan, M.L.; Southward, S.C.; Nussbaum, M.A. Neural control of posture during small magnitude perturbations: Effects of aging and localized muscle fatigue. IEEE Trans. Biomed. Eng. 2011, 58, 1546–1554. [Google Scholar] [CrossRef] [PubMed]
- Ayena, J.C.; Zaibi, H.; Otis, M.J.-D.; Menelas, B.-A.J. Home-Based Risk of Falling Assessment Test Using a Closed-Loop Balance Model. IEEE Trans. Neural. Syst. Rehabil. Eng. 2016, 24, 1351–1362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Martinelli, A.R.; Coelho, D.B.; Magalhães, F.H.; Kohn, A.F.; Teixeira, L.A. Light touch modulates balance recovery following perturbation: From fast response to stance restabilization. Exp. Brain Res. 2015, 233, 1399–1408. [Google Scholar] [CrossRef] [PubMed]
- Piscitelli, D.; Falaki, A.; Solnik, S.; Latash, M.L. Anticipatory postural adjustments and anticipatory synergy adjustments: Preparing to a postural perturbation with predictable and unpredictable direction. Exp. Brain Res. 2017, 235, 713–730. [Google Scholar] [CrossRef] [PubMed]
- Kim, J.; Kim, C.; Lee, J.; Kwon, Y.; Eom, G.; Tak, G.; Hong, J. Human postural control against external force perturbation applied to the high-back. Int. J. Precis. Eng. Man. 2009, 10, 147–151. [Google Scholar] [CrossRef]
- Chen, B.; Lee, Y.J.; Aruin, A.S. Role of point of application of perturbation in control of vertical posture. Exp. Brain Res. 2017, 235, 3449–3457. [Google Scholar] [CrossRef] [PubMed]
- Colebatch, J.G.; Govender, S.; Dennis, D.L. Postural responses to anterior and posterior perturbations applied to the upper trunk of standing human subjects. Exp. Brain Res. 2016, 234, 367–376. [Google Scholar] [CrossRef] [Green Version]
- Duncan, C.A.; Ingram, T.G.J.; Mansfield, A.; Byrne, J.M.; McIlroy, W.E. Population Differences in Postural Response Strategy Associated with Exposure to a Novel Continuous Perturbation Stimuli: Would Dancers Have Better Balance on a Boat? PLoS ONE 2016, 11, e0165735. [Google Scholar] [CrossRef]
- Horak, F.B.; Nashner, L.M. Central programming of postural movements: Adaptation to altered support-surface configurations. J. Neurophysiol. 1986, 55, 1369–1381. [Google Scholar] [CrossRef]
- van der Kooij, H.; de Vlugt, E. Postural responses evoked by platform perturbations are dominated by continuous feedback. J. Neurophysiol. 2007, 98, 730–743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pasma, J.H.; van Kordelaar, J.; de Kam, D.; Weerdesteyn, V.; Schouten, A.C.; van der Kooij, H. Assessment of the underlying systems involved in standing balance: The additional value of electromyography in system identification and parameter estimation. J. Neuroeng. Rehabil. 2017, 14, 97. [Google Scholar] [CrossRef]
- Ruhe, A.; Fejer, R.; Walker, B. The test-retest reliability of centre of pressure measures in bipedal static task conditions--a systematic review of the literature. Gait Posture 2010, 32, 436–445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Prieto, T.E.; Myklebust, J.B.; Hoffmann, R.G.; Lovett, E.G.; Myklebust, B.M. Measures of postural steadiness: Differences between healthy young and elderly adults. IEEE Trans. Biomed. Eng. 1996, 43, 956–966. [Google Scholar] [CrossRef] [PubMed]
- Lee, Y.J.; Chen, B.; Aruin, A.S. Older adults utilize less efficient postural control when performing pushing task. J. Electromyogr. Kinesiol. 2015, 25, 966–972. [Google Scholar] [CrossRef] [Green Version]
- Forghani, A.; Preuss, R.; Milner, T.E. Short-latency muscle response patterns to multi-directional, unpredictable perturbations to balance applied to the arm are context dependent. Neuroscience 2017, 352, 170–179. [Google Scholar] [CrossRef]
- Potocanac, Z.; Golijat, R.; Babic, J. A robotic system for delivering novel real-time, movement dependent perturbations. Gait Posture 2017, 58, 386–389. [Google Scholar] [CrossRef]
- Boonstra, T.A.; Schouten, A.C.; van der Kooij, H. Identification of the contribution of the ankle and hip joints to multi-segmental balance control. J. Neuroeng. Rehabil. 2013, 10, 23. [Google Scholar] [CrossRef] [Green Version]
- Mayagoitia, R.E.; Lötters, J.C.; Veltink, P.H.; Hermens, H. Standing balance evaluation using a triaxial accelerometer. Gait Posture 2002, 16, 55–59. [Google Scholar] [CrossRef]
- Kamen, G.; Patten, C.; Du, C.D.; Sison, S. An accelerometry-based system for the assessment of balance and postural sway. Gerontology 1998, 44, 40–45. [Google Scholar] [CrossRef]
- Moe-Nillsen, R.; Helbostad, J.L. Trunk accelerometry as a measure of balance control during quiet standing. Gait Posture 2002, 16, 60–68. [Google Scholar] [CrossRef]
- Henriksen, M.; Lund, H.; Moe-Nillsen, R.; Bliddal, H.; Danneskiod-Samsøe, B. Test-retest reliability of trunk accelerometric gait analysis. Gait Posture 2004, 19, 288–297. [Google Scholar] [CrossRef]
- Park, S.; Horak, F.B.; Kuo, A.D. Postural feedback responses scale with biomechanical constraints in human standing. Exp. Brain Res. 2004, 154, 417–427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Koozekanani, S.H.; Stockwell, C.W.; McGhee, R.B.; Firoozmand, F. On the Role of Dynamic Models in Quantitative Posturography. IEEE Trans. Biomed. Eng. 1980, BME-27, 605–609. [Google Scholar] [CrossRef] [PubMed]
- Goodworth, A.D.; Peterka, R.J. Identifying mechanisms of stance control: A single stimulus multiple output model-fit approach. J. Neurosci. Methods 2018, 296, 44–56. [Google Scholar] [CrossRef]
- van der Kooij, H.; Jacobs, R.; Koopman, B.; van der Helm, F. An adaptive model of sensory integration in a dynamic environment applied to human stance control. Biol. Cybern. 2001, 84, 103–115. [Google Scholar] [CrossRef]
- Haddadin, S.; Haddadin, S.; Khoury, A.; Rokahr, T.; Parusel, S.; Burgkart, R.; Bicchi, A.; Albu-Schäffer, A. On making robots understand safety: Embedding injury knowledge into control. Int. J. Rob. Res. 2012, 31, 1578–1602. [Google Scholar] [CrossRef]
- Najmaei, N.; Kermani, M.R. Applications of artificial intelligence in safe human-robot interactions. IEEE Trans. Syst. Man Cybern Part B 2011, 41, 448–459. [Google Scholar] [CrossRef]
- Erden, M.S.; Tomiyama, T. Human-intent detection and physically interactive control of a robot without force sensors. IEEE Trans. Robot. 2010, 26, 370–382. [Google Scholar] [CrossRef]
- Muscolo, G.; Marcheschi, S.; Fontana, M.; Bergamasco, M. Dynamics Modeling of Human–Machine Control Interface for Underwater Teleoperation. Robotica 2020, 1–15. [Google Scholar] [CrossRef]
- Tagliamonte, N.L.; Scorcia, M.; Formica, D.; Campolo, D.; Guglielmelli, E. Effects of Impedance Reduction of a Robot for Wrist Rehabilitation on Human Motor Strategies in Healthy Subjects during Pointing Tasks. Adv. Robot. 2011, 25, 537–562. [Google Scholar] [CrossRef] [Green Version]
- De Benedictis, C.; Franco, W.; Maffiodo, D.; Ferraresi, C. Hand rehabilitation device actuated by a pneumatic muscle. Mech. Mach. Sci. 2019, 67, 102–111. [Google Scholar]
- Heidingsfeld, M.; Feuer, R.; Karlovic, K.; Maier, T.; Sawodny, O. A force-controlled human-assistive robot for laparoscopic surgery. In Proceedings of the 2014 IEEE International Conference on Systems, Man, and Cybernetics (SMC), San Diego, CA, USA, 5–8 October 2014; Volume 43, pp. 3435–3439. [Google Scholar]
- Chiaverini, S.; Sciavicco, L. The parallel approach to force/position control of robotic manipulators. IEEE Trans. Robot. Autom 1993, 9, 361–373. [Google Scholar] [CrossRef]
- Richardson, R.; Brown, M.; Bhakta, B.; Levesley, M. Impedance control for a pneumatic robot-based around pole-placement, joint space controllers. Control. Eng. Pract. 2005, 13, 291–303. [Google Scholar] [CrossRef]
- Guang, H.; Ji, L.; Shi, Y.; Misgeld, B.J.E. Dynamic Modeling and Interactive Performance of PARM: A Parallel Upper-Limb Rehabilitation Robot Using Impedance Control for Patients after Stroke. J. Healthc. Eng. 2018, 2018, 8647591. [Google Scholar] [CrossRef] [Green Version]
- Anderson, R.J.; Spong, M.W. Hybrid impedance control of robotic manipulators. IEEE Trans. Robotic Autom. 1988, 4, 549–556. [Google Scholar] [CrossRef]
- Oh, S.; Woo, H.; Kong, K. Frequency-Shaped Impedance Control for Safe Human–Robot Interaction in Reference Tracking Application. IEEE ASME Trans. Mech. 2014, 19, 1907–1916. [Google Scholar] [CrossRef]
- Faudzi, A.A.M.; Mustafa, N.D.; Osman, K. A high performance pneumatic force actuator system: Part II—nonlinear controller design. Math. Probl. Eng. 2014, 19, 261829. [Google Scholar]
- Slotine, J.J.; Sastry, S.S. Tracking control of non-linear systems using sliding surfaces, with application to robot manipulators. Int. J. Control 1983, 38, 465–492. [Google Scholar] [CrossRef] [Green Version]
- Driver, T.; Shen, X. Pressure estimation-based robust force control of pneumatic actuators. Int. J. Fluid Power 2013, 14, 37–45. [Google Scholar] [CrossRef]
- Maffiodo, D.; Franco, W.; De Benedictis, C.; Paterna, M.; Muscolo, G.G.; Roatta, S.; Ferraresi, C.; Dvir, Z. Pneumo-tronic Perturbator for the Study of Human Postural Responses. Adv. Intell. Syst. Comput. 2020, 980, 374–383. [Google Scholar]
- Ferraresi, C.; De Benedictis, C.; Muscolo, G.G.; Pica, O.W.; Genovese, M.; Maffiodo, D.; Franco, W.; Paterna, M.; Roatta, S.; Dvir, Z. Development of an automatic perturbator for dynamic posturographic analysis. In International Workshop on Medical and Service Robots-MESROB 2020: New Trends in Medical and Service Robotics; Springer: Cham, Switzerland, 2020; Volume 93, pp. 273–282. [Google Scholar]
- Winter, D.A.; Patla, A.E.; Prince, F.; Ishac, M.; Gielo-Perczak, K. Stiffness control of balance in quiet standing. J. Neurophysiol 1998, 80, 1211–1221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Potocanac, Z.; de Bruin, J.; van der Veen, S.; Verschueren, S.; van Dieën, J.; Duysens, J.; Pijnappels, M. Fast online corrections of tripping responses. Exp. Brain Res. 2014, 232, 3579–3590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dvir, Z.; Paterna, M.; Quargnenti, M.; De Benedictis, C.; Maffiodo, D.; Franco, W.; Ferraresi, C.; Manca, A.; Deriu, F.; Roatta, S. Linearity and repeatability of postural responses in relation to peak force and impulse of manually delivered perturbations: A preliminary study. Eur. J. Appl. Physiol. 2020, 120, 1319–1330. [Google Scholar] [CrossRef] [PubMed]

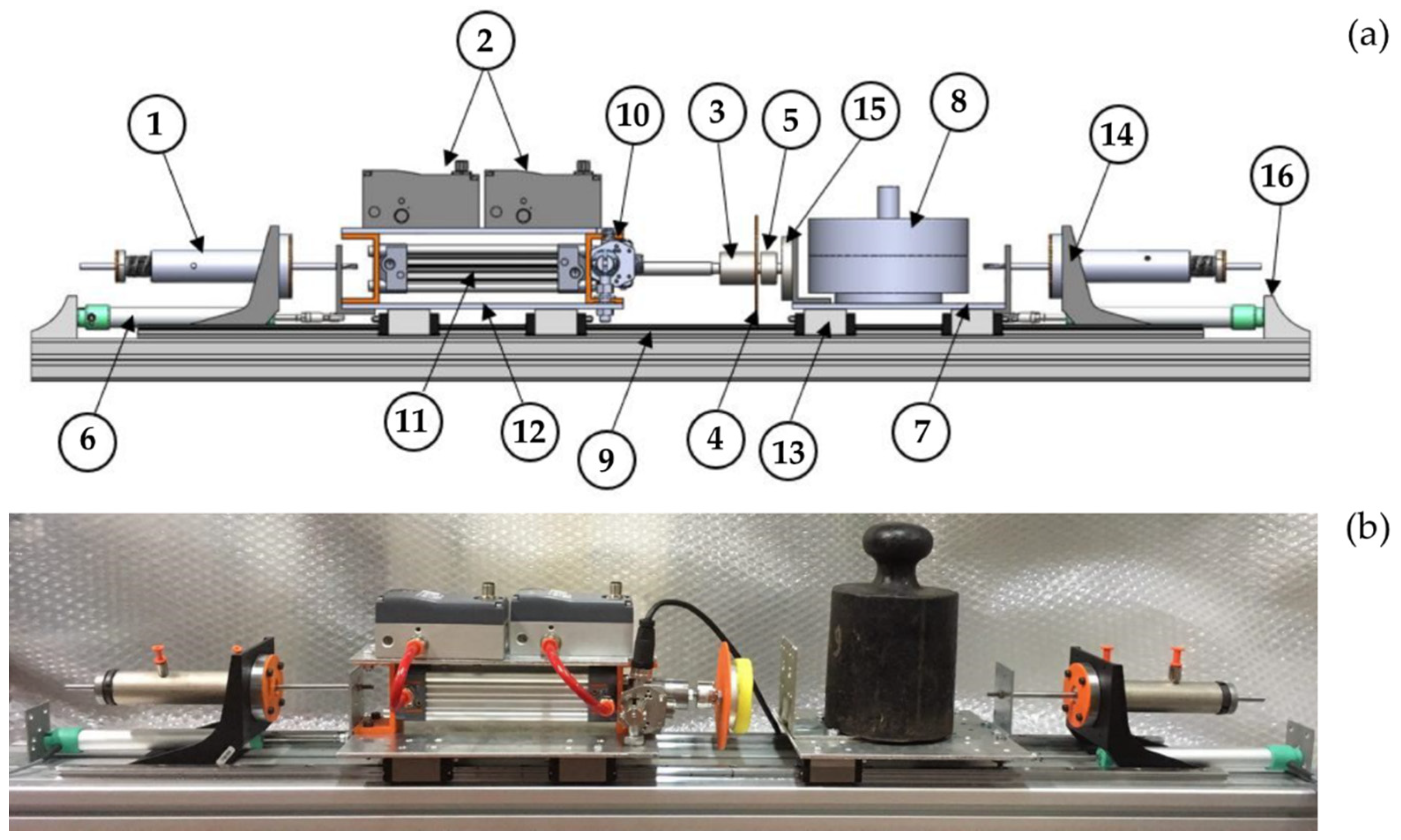

Number | Component |
---|---|
1 | Viscoelastic dampers (×2) |
2 | Flow-proportional valves (×2) |
3 | Support for load cell |
4 | Target for optical sensor |
5 | Load Cell, range 50 kgf (UMM, Dacell Co. Ltd., Cheongju, Korea) |
6 | Linear potentiometer PZ-34-A-100 (Gefran S.p.A., Provaglio D’Iseo, Italy) (×2) |
7 | Support for the stricken mass |
8 | Stricken mass, representing the subject |
9 | Linear guide C-SHR28-1000-B4 (MISUMI Europa GmbH, Frankfurt am Main, Germany) (×2) |
10 | Laser sensor Q4XTULAF300-Q8 (Banner Engineering Corp., Plymouth (MN), USA) |
11 | Pneumatic actuator |
12 | Support for cylinder |
13 | Cart (×8) |
14 | Support for viscoelastic damper (×2) |
15 | Perturbator end striker |
16 | Support for the potentiometer |
Symbol | Description | Unit |
---|---|---|
ds | Diameter of the piston rod | mm |
dc | Diameter of the cylinder | mm |
m | Mass of the piston and rod | kg |
M1 | Mass of the cylinder body | kg |
M2 | Mass of the subject | kg |
x0 | Half of the stroke of the rod | mm |
xm | Dead band of the chamber | mm |
Pi | Initial pressure in the chamber | bar |
Ti | Initial temperature in the chamber | K |
n | Polytropic coefficient of air | |
γ | Viscous coefficient of air | N∙s/m |
Ps | Supply pressure | bar |
Ffr | Friction force on the piston rod | N |
Cmax | Max conductance of the valve | L/(s∙bar) |
Vmax | Max command voltage of the valve | V |
Kv | Static flow gain of the valve | L/(s∙bar∙V) |
τ | Valve response time | ms |
k1 | Elastic constant of the operator | N/m |
β1 | Damping coefficient of the operator | N∙s/m |
k2 | Elastic constant of the subject | N/m |
β2 | Damping coefficient of the subject | N∙s/m |
k3 | Elastic constant of the buffer | N/m |
β3 | Damping coefficient of the buffer | N∙s/m |
