Recent Progress in Biochar-Based Photocatalysts for Wastewater Treatment: Synthesis, Mechanisms, and Applications

by
Jiali Cui
*,
Feng Zhang
,
Hongyan Li
,
Jianguo Cui
,
Yatao Ren
and
Xiaochen Yu
College of Environmental Science and Engineering, Taiyuan University of Technology, Jinzhong 030600, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(3), 1019; https://doi.org/10.3390/app10031019
Submission received: 31 December 2019 / Revised: 19 January 2020 / Accepted: 24 January 2020 / Published: 4 February 2020
(This article belongs to the Special Issue Advances in Semiconductor Photocatalysis)
Browse Figures
Versions Notes

Abstract

:
Biochar (BC) is a carbon-rich material produced from pyrolysis of biomass. In addition to its low toxicity, environmental compatibility, and low cost, BC has the desired advantages of well-developed mesoporous structure and abundant surface functional groups. In recent years, BC-based photocatalysts (BCPs) have played a significant role in many environmental fields. In this paper, we highlight the current progress and several exciting results of BCPs by focusing on their synthesis, characterization, mechanisms, and applications in wastewater treatment. Details on various preparation methods include sol–gel, hydrothermal/solvothermal, ultrasound, calcination, and in situ methods are summarized and discussed. The underlying mechanisms and the applications of BCPs for different semiconductors are reviewed. Furthermore, some future trends and potentials are outlined.

1. Introduction

Photocatalysis has emerged into an efficient and viable technique for purification of wastewater. Various nanoparticles such as TiO2, RuO2, SiO2, ZrO2, ZnO, CdS, and ZnS have been used as semiconductor photocatalysts [1]. Despite the excellent functionality, high photostability, and non-toxicity properties, the quick recombination of hole–electron pairs and poor visible-light response limit the photocatalytic performance of semiconductors [2].
To date, considerable attempts have been made to improve the photocatalytic ability using modification of TiO2. In the beginning, metal or metal oxides were used to dope TiO2 to lower the bandgap energy and motivate the visible-light response. However, metal-based doping photocatalysts increase the carrier recombination rate, induce the photocorrosion, secondary pollution and subject to poor thermal stability [3,4]. The high price also hinders its wide application under visible light. In 2001, Asahi [5] first synthesized a non-metal-semiconductor composite by doping nitrogen. Nitrogen can extend the optical absorption spectra of TiO2 to 500 nm without reducing ultraviolet light. Subsequently, researchers began to study various non-metal-based photocatalysts [6,7]. Doping of semiconductors (e.g., TiO2, ZnO, ZrO2) with non-metals such as C [8], S [9,10], N [11], B [12], F [13,14] and P [15] helped to improve the photocatalytic efficiency. Moreover, non-metals could extend the visible region absorption close to the edge of the valence band, which is more advantageous than metal in improving the visible-light response [16,17].
Among them, combining semiconductors with carbonaceous nanomaterials has been increasingly investigated due to their tunable structural, electrical properties, a wide range of visible-light absorption and enhanced electronic conductivity [4]. Khan et al. [18] first achieved the doping of carbon in the natural gas flame by heating the Ti metal. It significantly changed the absorption characteristics of the catalyst to visible light. Its photoelectric conversion efficiency can reach 8.35%, compared with that of pure TiO2 (1.08%). Sakthivel et al. [19] found that the photocatalytic effect of carbon doping was five times higher than that of nitrogen-doped samples. Chen et al. [20] compared the photocatalytic activities of carbon and nitrogen-doped TiO2 samples under visible-light irradiation. They suggested the higher photocatalytic activity was due to the synergistic effect of carbon and nitrogen atoms. Wang et al. [21] theoretical calculation results demonstrated the forbidden band gap of C-TiO2 was narrowed down to 2.35 eV. They proposed that the introduction of carbon can narrow the band gap, thus enhancing the photocatalytic performance. However, the widespread application of carbon-based photocatalysts was most limited because of the high price and complicated fabrication methods of these materials. Thus, the development of cheap, sustainable and efficient photocatalysts will be of great interest (Figure 1).
Biochar (BC) is produced through pyrolysis, gasification and hydrothermal carbonization of biomass. The biomass feedstocks include wood materials, forestry products, sludge, manure, agricultural residue and organic wastes. In comparison with most conventional activated carbon, biochar possesses a well-developed mesoporous structure and abundant surface functional groups. Furthermore, it can be served as a versatile catalyst or catalyst support [22]. In recent years, biochar-based photocatalysts (BCPs) have received great attention in various environmental fields [23,24,25,26,27]. Some of those recently reported BCPs were TiO2-coconut shell [28], TiO2-Salvinia molesta [29], TiO2-reed straw [30], TiO2-ramie char [31], TiO2-corn cob [32], TiO2-paper sludge and wheat husks [33], TiO2-bamboo [34,35], ZnO-waste biomass [36], g-C3N4/FeVO4-pinus roxbu rghii [37], Bi2O3-corn cobs [38], TiO2-walnut shells [39], TiO2-olive pits and TiO2-wood shaving [40], TiO2-wood pellets [41], and TiO2-plum stones [42], etc.

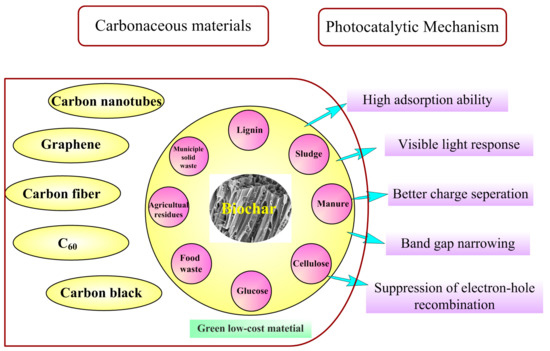

This review presents the recent development of typical BC-based photocatalysts used for wastewater treatment. Notably, a significant proportion of the review concerns the synthesis, mechanisms and applications of BCPs reported in literature, and provides useful suggestions for novel BCPs in photodegradation of wastewater.

2. Synthesis

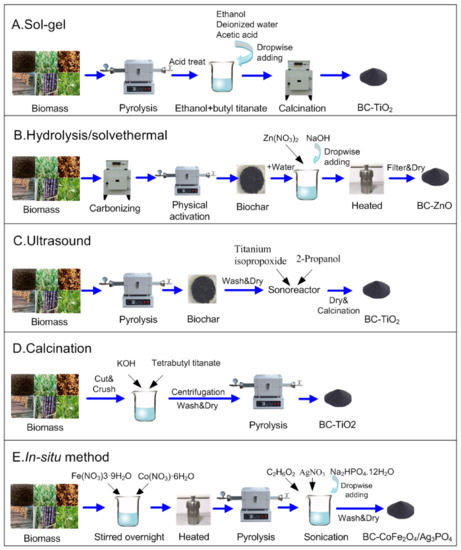

The synthesis route for BCPs has great influence on photocatalytic performance. Various efficient methods and approaches have been reported for the synthesis of BCPs (summarized in Table 1), including sol–gel [28,29,30,31,32,43,44], hydrothermal/solvothermal [36,38,39,45,46,47,48,49,50,51,52,53], ultrasound [40,41,54,55], calcination [34,56,57,58] and in situ methods [35,59], etc.

2.1. Sol–gel Method

The sol–gel method is relatively simple, and the prepared nanomaterials have high purity and uniform particle size. Generally, the sol is prepared by uniformly mixing the sol and the carbon materials, followed by ageing to form a gel and calcination at a higher temperature. However, the main disadvantage of this method is the shape of the material is not well controlled.
Recently, Zhang et al. [28] fabricated BC(coconut shell)-TiO2 compound by sol–gel method. First, the coconut shell was pyrolyzed under nitrogen, followed by washing and rinsing with HCl acid. Secondly, the acid-treated biochar was ageing, washed, dried overnight, and sieved through the mesh. Then, the sol–gel process involved the following sequences. (1) Mixed ethanol with butyl titanate to form solution A; (2) solution B was obtained through mixing ethanol, deionized water, acetic acid with polyethylene glycol; (3) dropwise added solution B into solution A and aged for 24 h. Then, the as-prepared BC was mixed with the sol–gel. Finally, the above mixture was further treated by ageing, filtration, drying, and calcination to form the BCPs. The scheme of the BCPs synthetic process was illustrated in Figure 2A.
For comparison, Silvestri et al. [29] impregnated TiO2 in the Salvinia molesta derived carbonaceous matrices via the sol–gel process and mechanical mixing route. The results showed that the type of TiO2 precursor plays a much more critical role than the impregnation method on the photocatalytic efficiency of the composites. Compared with the sol–gel way, the BCPs fabricated by mechanical mixing exhibited higher photocatalytic performance.

2.2. Hydrothermal/Solvothermal Method

Hydrothermal/solvothermal method is a crystallization process at relatively low reaction temperature (< 200 °C) and higher pressure. It has gained plenty of successes for its outstanding advantages of low agglomeration, better product purity, higher dispersion and low cost in energy [65]. Different kinds of BCPs can be attained by the hydrothermal/solvothermal technique [36,45,46,47,48,49,50,51,52,53].
Vinayagam et al. [36] synthesized ZnO/BC composite by hydrothermal method (shown in Figure 2B). In a typical synthesis, waste biomass was washed and dried, followed by carbonizing under 500–600 °C. Then, the obtained material was activated via physical activation method under an inert atmosphere. Different weight ratios of BCPs were prepared. First, zinc nitrate and BC were mixed and stirred in distilled water, followed by dropwise adding NaOH (1 M) till the pH was 10. Then, the suspension was heated for 6 h at 120 °C. Later, the obtained material was centrifuged, washed, and dried overnight. The result showed ZnO exhibited reduced band gap energy, excellent activities, and reusability either under UV or visible-light irradiations by combined with BC.
In another study, Peñas-Garzón et al. [47] prepared TiO2/BC composite for photocatalytic degradation of acetaminophen under solar light via a multi-step solvothermal process. First, the biomass (lignin) was activated by using different agents. Then, the BC was suspended into the EtOH at room temperature to form solution A. Meanwhile, Ti(OBu)4 was diluted into EtOH (solution B). Later, solution B was dropwise added to solution A until complete homogenization. Afterwards, the hydrolysis of the Ti precursor was performed by adding dropwise water. The mixture was stirred and heated, followed by separation, washing, and drying overnight to obtain TiO2/BC. Through hydrothermal/solvothermal route, anatase phase with an average grain size of 10 nm was formed. TiO2-BC displayed much higher activities than bare TiO2 for the removal of acetaminophen under solar light.

2.3. Ultrasound Method

Ultrasound method has rapidly attracted considerable attention in recent years. As a green technology, this procedure has excellent potential for photocatalysts fabrication, owing to the low temperature, atmospheric pressure, and instant reaction. The obtained photocatalyst exhibited purity phase, high surface area, uniform particle coatings, and different particle sizes and shapes. Moreover, the parameters can be easily adjusted in the preparation process [66]. Lisowski’s group [41,54,66] have developed a series of TiO2-BCPs derived from biomass via a novel ultrasound-assisted methodology. The typical preparation procedure was as follows (Figure 2C). Biochar was prepared via pyrolysis of softwood pellets and miscanthus straw pellets. Then, the as-fabricated BC was mixed with titanium isopropoxide and 2-Propanol, followed by sonication for 1 h. Later, the solvent was removed using a rotary vacuum evaporator assisted by sonication. Subsequently, the obtained mixture was dried and calcined at 400 °C in static air to obtain BCPs. The authors demonstrated that ultrasound could promote the formation of C-C sp2 and sp3, C-O-C, COOH, O=CO and C=C-OH, which may lead to the evolution of surface oxygen vacancies and Ti3+ defects.

2.4. Calcination

Wang et al. [34] fabricated bamboo char-TiO2 composites by calcination route. The schematic for the calcination process is given in Figure 2D. Typically, the bamboo was cut and crushed into powder with different sizes. Then, the bamboo power and tetrabutyl titanate were added into the potassium hydroxide (KOH) solution and kept stirring, followed by centrifugation, washing and drying. Afterwards, the obtained precursors were calcinated at 800 °C under inert gas. They suggested that through the calcination method, the crystallinity of the BCPs was enhanced (93.2%), compared with that of precursor (78.3%). The BCPs improved the photocatalytic activity under both visible-light irritation and UV region.
In another research, biochar (camellia oleifera shells) coupled g-C3N4 nanosheets composites were prepared by a two-step calcination method by Li et al. [60]. They found that the double calcination process can promote the removal of the small g-C3N4. Moreover, owing to the synergistic effects, the BCPs displayed remarkable stability for 4-FP degradation.

2.5. In-Situ Method

Carbon doped anatase TiO2 spheres can be prepared via an in situ method, which was considered to avoid the aggregation of carbon species arises in external carbon precursors addition. Furthermore, carbon can dope in the place of oxygen in the TiO2 lattice [4]. Some researchers [35,62,63,67] have reported the synthesis of BCPs using the in situ method. Brandes et al. [67] proposed an in situ approach to insert TiO2 in the bacterial cellulose matrix. Typically, bacterial cellulose hydrogel was suspended in H2SO4 solution (65%), followed by dropwise addition of TiOSO4·H2SO4·H2O and constant stirring. Then, the mixture was filtered, washed, and dried under vacuum to obtain the BCPs. The ex situ method was also employed for comparison. Spherical bacterial cellulose hydrogels were mixed with P25 and deionized water, forming a sol–gel solution. Afterwards, the as-fabricated mixture was stirred, separated, and washed to remove the residues for further use. They found that the MB removal rate of 70.83 % and 89.58 % were achieved, through in situ and ex situ route, respectively.
Very recently, Zhai et al. [62] synthesized BCPs via an in situ precipitation method (Figure 2E). The magnetic BC@CoFe2O4 was fabricated by a one-pot method. Pine pollen was mixed with Fe(NO3)3·9H2O and Co(NO3)·6H2O and stirred overnight, followed by pH adjusting till 12 with NaOH and stirring another 1 h. Then, the obtained solution was heated at 180 °C for 12 h. Later, the as-prepared powder was pyrolyzed at 500 °C under nitrogen atmosphere to obtain the magnetic biochar (BC@CoFe2O4). BC@CoFe2O4/Ag3PO4 was further synthesized via the in situ precipitation method. BC@CoFe2O4 were added to C2H6O2 and sonicated for 30 min, followed by adding 50 mL AgNO3. Then, 50 mL Na2HPO4.12H2O was dropwise added to the above mixture and kept stirring. Later, the as-prepared mixture was washed and collected for further use. They demonstrated that the increased photocatalytic performance for bisphenol A removal was owing to the in situ process.

3. Characterization

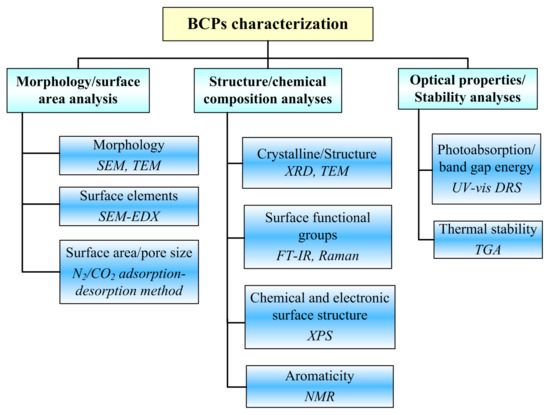

Various characterization methods have been carried out to evaluate the physical, chemical, and mechanical properties of BC and BCPs, such as scanning electron micros copy (SEM), scanning electron microscopy-energy dispersive X-ray spectrometry (SEM-EDS), transmission electron microscopy (TEM), X-ray diffraction (XRD), Fourier transform infrared (FT-IR), Raman spectroscopy, X-ray photoelectron spectroscopy (XPS) and solid-state nuclear magnetic resonance (NMR), etc. (Figure 3).

3.1. Morphology and Surface Area

SEM provides information regarding the structure and microscopic features of BC and BCPs. The sizes of the pores in the BC may be different extremely as the pyrolysis temperature increased. For example, the BC present honeycomb-like pores at a pyrolysis temperature of 700 °C while it disappeared at 200 °C [68]. However, the hollow structure of BC may be broken when the pyrolysis temperature increased to 700 °C [55]. TEM is exceptional for its quality to identify the morphology, crystallinity, and structure of BC and BCPs. Abdul et al. [69] found that graphene nanosheets were transparent and slightly aggregated within BC through the TEM images. Xiao et al. [70] observed the multi-layered structures and nanocrystalline structures of BC.
SEM-EDS is widely applied to identify and quantify the elements in BC. For instance, it was observed that the predominant elements in the sludge-derived BC samples were carbon, oxygen, silica, aluminum, calcium, sulfur, phosphorus, and potassium, etc. [71]. Zhao et al. [68] used SEM-EDS to analyze the elements in the rapeseed stem biochar. They demonstrated the C content increased, and the O content decreased as the pyrolysis temperature rose.
The specific surface areas (SBET) and porosity properties of the BC and BCPs could be investigated by N2 adsorption-desorption isotherm. Generally, the large specific surface area facilitates the adsorption of pollutants. In most cases, after the combination, the SBET of the BCPs is higher than that of the original BC. However, it was found that the mesopores and micropores of BC may be clogged due to the aggregation of semiconductors, thus inducing the decrease of the SBET [62,72].

3.2. Structure and Chemical Composition

XRD is frequently applied to examine the crystalline structure and phase of BC and BCPs. Ye et al. [50] compared the XRD spectrum before and after catalytic degradation. They found that the crystal structure of the g-MoS2/PGBC remains unchanged. Fazal et al. [63] used XRD to investigate the BC (macroalgae) and BC-TiO2 composite. XRD spectra showed that the peak located at 26.9° and 43° corresponded to the (002) plane of crystalline carbon, associating with the graphite-like structures. Furthermore, the graphitic peaks declined with the increase of TiO2 loading, indicating the good intercalation of TiO2 nanoparticles between BC layers.
FT-IR spectra can be applied to distinguish the functional groups and the degree of carbonization of BC. The band absorbance at 710 cm−1 was a characteristic feature of BC [63]. The peak between 875-1035 cm−1 was associated with C–O and OH– stretching vibration. The absorption band was found to shift to higher wavenumber with the increase of TiO2, which indicated that the T–OC– bond changed the optical property and charge transfer. Geng et al. [73] used FT-IR spectra to investigate the molecular component and the degree of carbonization of BC (cellulose). The peaks at 3450, 1750, 1635 and 1040 cm−1 can be assigned to the stretching vibration of the –OH, C=O and C–O–C, respectively. It was stated that the cellulose skeleton was converted to the graphitic structure of amorphous carbon nanofibers during the pyrolysis process.
XPS measurement is applied to analyze the composition and surface chemistry of BC and BCPs. More functional groups of BC at binding energies of 291.2 eV and 531.8 eV associated with carbonates and C=O were observed than in the case of pure lignin [62]. It was found that the pyrolysis process can cause an increase in the surface activity of carbon functional groups present on the surface of BC. Moreover, binding energies of 284.8 eV and 288.6 eV were due to the adventitious elemental carbon and C–O bonds, respectively, indicating the presence of Ti–O–C structure [74].
Raman spectroscopy can be used to characterize BC-based nanostructures. Al-Kahtani et al. [75] demonstrated the D band at 1351 cm−1 and G band at 1587 cm−1 was characteristic bands of graphite carbon. The intensity ratio (ID/IG) reflected the crystalline and graphitization of BC [38]. The ID/IG value of C/Fe3O4/Bi2O3 and C/Fe3O4 were 0.84 and 0.82, respectively, indicating that the graphitization of BC made the BCPs from disorder to order, which was beneficial for electronic conduction. Lower ID/IG means higher graphitization. The BCPs fabricated via ultrasound route displayed a slightly lower ID/IG value (0.37) compared to pure BC (0.48). It was stated the slight change of graphitization might be caused by the reconstruction of structural defects within the sp2 carbon network that arose upon the ultrasound-assisted synthesis method [41].
NMR is another spectroscopic technique commonly used to in-depth investigate the fine structure of BC. The degree of carbonization and stability of BC pyrolyzed at different temperatures and heating rates can be compared using the NMR spectroscopy [76,77]. Moreover, it can provide details on the functional groups and hydrocarbons [78]. Moreover, it was considered that NMR was more suitable for analyzing BC containing C compounds than functional groups [79]. Hence, researchers commonly used both NMR and FT-IR to examine the structure and functional groups.

3.3. Optical Property and Stability

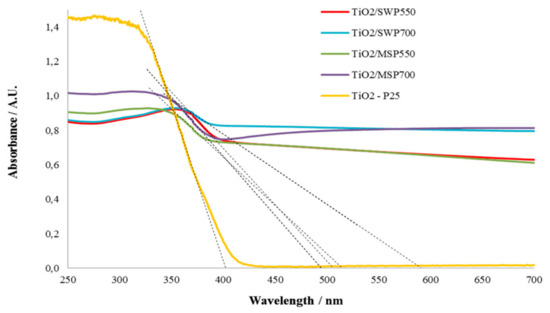

UV–vis diffuse reflectance spectroscopy (DRS) is commonly applied to investigate the optical properties and energy band features of BCPs. Carbon can expand the absorbance range to the visible region [74]. The BCPs showed a red-shift toward longer wavelengths when semiconductors were combined with BC to form the composites [40,41]. However, the absorbance was relatively weak in the visible region because of the low content of BC [43]. The band gap energy of BCPs can be calculated by application of the Kubelka–Munk function [36,80]. The BCPs displayed much different photocatalytic performance in terms of the difference in band gap energy values [41].
Thermogravimetric analysis (TGA) is performed to assess the mass loss and relative stability of BC. Xiong et al. [81] applied TGA to analyze the thermal stability of sulfonated BC. The derivative thermogravimetric (DTG) peak at 600–700 °C diminished while the peak at 200–300 °C became predominant after the sulfonation process. At 1000 °C, the TGA spectra exhibited a more significant mass loss of sulfonated BC (20 wt.%), in comparison with raw BC (16 wt.%), indicating that sulfonation inevitably weakened the thermal stability of BC.

4. Mechanism

Semiconductors have been widely studied for its high thermal and chemical stability, strong oxidizing ability and low cost. Owing to the relatively wide band gap energy (3.20 eV) and low quantum efficiency, TiO2 can only respond in the ultraviolet light, which occupies only about 5% of the sunlight spectrum. Therefore, the development of photocatalysts for absorbing visible light is highly required. The participation of biochar in the synthesis process can change the structure, morphology and light absorption efficiency of the composites, leading to an enhanced performance. The functional groups existed in the biochar may also play pivotal roles in the reaction and further promote the photocatalytic ability [52]. Contaminants in wastewater can be removed based on different mechanisms, which involve: adsorption ability, narrowing the band gap, facilitating the electron transport, suppression of electron/hole charges recombination, π-π stacking interactions, electrostatic interaction, reducing the photocorrosion of TiO2, etc. The main mechanisms are summarized below.

4.1. Adsorption

Owing to its large surface areas, structure stability, and low cost, BC has been frequently applied as support to disperse catalyst nanoparticles. Impregnation of foreign materials onto BC can remove various contaminants through simultaneous adsorption and degradation. In this integrated technology, the adsorption process can enrich pollutants to facilitate the degradation process, as free radicals are very short lived [82]. Kumar et al. [60] concluded that the adsorbed contaminants were more prone to attack by radicals. As soon as the methylparaben was adsorbed onto the surface of BC, it got degraded. Ye et al. [50] explored the removal of tetracycline hydrochloride was dependent on adsorption and degradation processes. They found the BCPs displayed comparatively large adsorbed ability, which was enhanced with increasing BC content. Moreover, the BCPs exhibited a better adsorption effect but weak photocatalytic degradation performance, owing to the poor electron conductivity of the inactivated BC and the serious stacking of MoS2. BC can be used as support structure for adsorption molecules and as potent substrate for the growth of TiO2 photocatalyst on its functionalized surface [63].

4.2. Narrowing the Band Gap

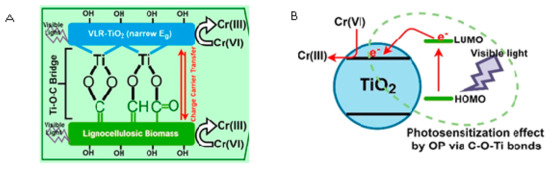

Combining TiO2 with carbonaceous nanomaterials may result in the band gap narrowing. Some ways were summarized below.
(i) Ti-O-C bonding bridge. Di Valentin et al. [83] investigated that carbon can act as a dopant to replace O and Ti by using density functional theory (DFT) calculations. The calculated structures suggested it was easier to replace O when the amount of doped carbon is low and in the oxygen-poor environment, whereas, under oxygen-rich condition, substitution to Ti is preferred. The chemically bonded Ti-O-C plays a significant role in narrowing the band gap, thus promoting the photocatalytic ability [84,85,86]. The spectral response range can be broadened to the visible region due to the forming of Ti-O-C bonds [87,88]. Djellabi et al. [89] synthesized TiO2-olive pits lignocellulosic biochar photocatalysts via ultrasonic-assisted sol–gel method. TiO2 clusters were successfully bonded to BC functional groups through Ti-O-C bridge (Figure 4A). The Ti-O-C was more pronounced in the samples of lower BC content, while the light absorbance increased with the BC content. Additionally, the optical absorption edge of TiO2 was shifted towards the visible-light region due to the introduction of BC. Ti-O-C bonds exhibited a remarkable role in band gap narrowing. The band gap energy varied from 3.02 to 2.63 eV depending on the TiO2/BC ratio.
(ii) Carbonaceous materials can act as photosensitizers and charges receiver to narrow the band gap when combined with other semiconductors [89,90]. Djellabi et al. [89] demonstrated that the BC displayed an organic structure, which induced the visible-light absorption. The photosensitization of TiO2 by BC polymer is shown in Figure 4B. Although the BCPs with higher biochar content showed an obvious visible-light response and narrow band gap, the photocatalytic reduction rate of Cr(VI) was the lowest. It was because the higher content of biochar may block the light absorption and affect the electrons generating. Peng et al. [55] reported similar photosensitization effects by BCPs.

4.3. Facilitating the Electron Transport

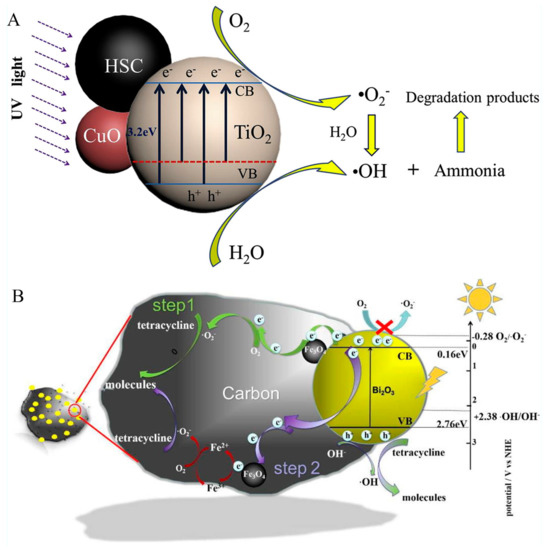

By introducing of biochar, the separation efficiency of electron-holes is enhanced due to the excellent electron transmission ability [91], thus significantly improved charge transport properties. Meng et al. [92] stated that the π-conjugated electron systems from BC was an efficient electronic transfer. The h+ migrates to the surface of TiO2 and produce ·OH, which prolonged the separation lifetime of e− and h+ [30]. BC modified Z-scheme heterojunction was constructed via a facile method [93] (Figure 5). The BCPs showed excellent photocatalytic activity of tetracycline (TC) and Cr(VI), recyclability and stability. ·O2−, ·OH and h+ generated in the photodegradation process were proved to be the important active species. Much higher ·O2– generated in BCPs mainly attributed to the electrons transferred from the conduction band of g-C3N4 to the surface of BC. BC decorated Z-scheme system effectively facilitated the interfacial charge separation and transfer (Figure 3). Li et al. [51] prepared BC/BiOX (X = Cl, Br) composites for MO removal. Similarly, they found that as a carbon dopant, the BC can facilitate the charge separation of the BCPs and elevate the photocatalytic performance under visible light.

4.4. Suppression of Electron-hole Recombination

The lifetime of photogenerated carriers affects photocatalysis significantly. The trapped e- and h+ transferred immediately to the surface and reacted with adsorbed oxygen and water molecules to generate free radicals. However, the lifetime is generally nanosecond, and the electron-hole pairs recombine instantly and induce deactivation.
Carbonaceous materials enhance the electrons-holes separation owing to the excellent double conductivity. Peng et al. [55] prepared TiO2-CuO/BC (hemp stem) under different calcination temperature (500, 600 and 700°C). They found the enhanced removal of ammonia was owing to the retardation of e-/h+ pairs. Moreover, the BC formed a mid-gap energy state above the VB of TiO2 (Figure 6A). Gao et al. [38] synthesized BC/Fe3O4/Bi2O3 composite via a solvothermal method. The electrons in Bi2O3 were transported to the BC/Fe3O4, thus inhibiting the recombination of h+ and e− pairs. The magnetic nanoparticles (BC/Fe3O4) acted as an electron storage center, which was beneficial to transfer the electron from Bi2O3 and reduce the probability of electron return to Bi2O3 (Figure 6B). Meng et al. [92] suggested the synergistic effect between biochar and g-C3N4 resulted in a longer lifetime of excited electrons of semiconductor and hindered photo-induced electron-hole recombination. Fazal et al. [63] also found that photodegradation was sensitive to the loading concentration of TiO2 onto biochar. The photodegradation efficiency was enhanced owing to the reduced charge recombination. Zhu et al. [91] fabricated biochar-based g-C3N4 for 2-Mercaptobenzothiazole degradation. They proposed that the introduction of biochar can produce more active sites and result in highly efficient of electron-hole pairs separation. Furthermore, BC can significantly inhibit the g-C3N4 reunion and stacking.

4.5. Others

Besides the above-discussed mechanisms, some other effects of biochar were also proposed. Shi et al. [94] prepared TiO2/BC (carbonaceous aerogel) composite through a one-pot hydrothermal process. Compared with P25, the composite exhibited excellent photocatalytic activity in MB and CIP degradation under visible-light irradiation. They suggested BC can not only separate the e-/H+ pairs, but also reduce the photocorrosion of TiO2. As the main active species, the ·OH and ·O2− radicals promoted the photocatalytic activity. The free radicals present in the matrix could induce ·OH be trapped by oxygen to form superoxide radical anion [95]. Tan et al. [27,96] summarized the interactions between the organic contaminants and BC, including hydrogen bonding, electrostatic attraction, and ion-exchange in the adsorption process. Fang et al. [97] systematically explored the effects of BC on the transport and transformation of organic contaminants in aquatic systems. It was verified that BC particles could generate ROS, such as ·OH and 1O2 through BC matrix (BCM) and dissolved organic matter (DOM), thus inducing diethyl phthalate degradation under both UV and solar light.

5. Applications of BC-based Photocatalysts

As a kind of sustainable, low-cost, and environment-friendly material, biochar showed a great of advantages when combined with other semiconductors. The microporous structure and large surface area of BCPs was rewarding for efficient diffusion of reactant to the catalytic sites [98]. Moreover, it enhanced the photodegradation ability for various organic substances (phenanthrene [99], phenol [100] and polycyclic aromatic hydrocarbons [101]) and inorganic substances (hexavalent chromium, total chromium [60] and ammonia [55]). As a carbon-rich material, biochar is beneficial for the formation of hierarchical structure carbonaceous nanomaterials, which possesses the advantage of abundant surface functional groups (sulfonyl groups, phenolic groups, acid complexes, etc.). BC serves as alternative carbonaceous nanomaterials, including carbon nanotubes, graphite, C60, carbon fiber, and g-C3N4, etc. [49]. The persistent free radicals contained in biochar can induce the generation of ·O2 in the presence of oxygen, which will improve the photocatalytic performance [95]. The applications of various BCPs are summarized in Table 1.

5.1. TiO2-BCPs

During recent decades, TiO2 has been the most used photocatalyst in the field of water purification owing to the advantages of high photo-activity, price moderate, non-toxicity, low cost and good chemical stability [102]. However, pristine TiO2 still suffers from the low response of visible light and high charge recombination. In recent years, biochar modified TiO2 composites (BC-TiO2) have attracted great attention due to the physical adsorption, electrostatic interaction and suppression of electron/hole charges recombination granted by BC.
Zhang et al. [30] synthesized reed straw biochar-based TiO2 by sol–gel method. The coupling of TiO2 and BC suppressed the recombination of e-/h+ pairs and further promoted photocatalytic degradation efficiency. The sulfamethoxazole removal rate was 91.27%, compared with that of pure TiO2 (58.47%). Furthermore, the obtained BC-TiO2 were successfully applied in real water with a removal rate of 65.70%. Very recently, Lu et al. [39] fabricated a series of BC-TiO2 photocatalysts by direct hydrolysis method and pyrolysis of waste walnut shells for the removal of methyl orange. It showed that catalyst with the weight ratio of 0.2/1 (BC/Ti) exhibited the best decolorization efficiency of 92.45% and mineralization efficiency of 76.56 % after recycling 5 times. Lisowski et al. [41] prepared TiO2-based wood and straw-derived biochar photocatalysts via an ultrasound-assisted route. The prepared composite pyrolyzed at the temperature of 700 °C had plate-like particles structure, which was beneficial for light use and electron-hole separation. Through Kubelka–Munk function, the band gap energy (Eg) of TiO2-BC varied from 2.12 to 2.50 eV depending on different biomass feedstocks and temperatures. At the same time, the red-shift in absorption edge of BCPs was observed (Figure 7). They suggested the improved photoabsorption performance and the extended absorption edge was attributed to the introduction of biochar as well as the intimate interfacial contact caused by ultrasound procedure.

5.2. g-C3N4-BCPs

The graphitic carbon nitride (g-C3N4) has elicited ripples in recent years since Wang et al. [103] discovered the hydrogen production from water over g-C3N4 in 2009. g-C3N4 processes high physicochemical stability, non-toxic, and unique graphene-like two-dimensional structure. During recent decades, lots of research on BC-g-C3N4 conjunctions has been reported.

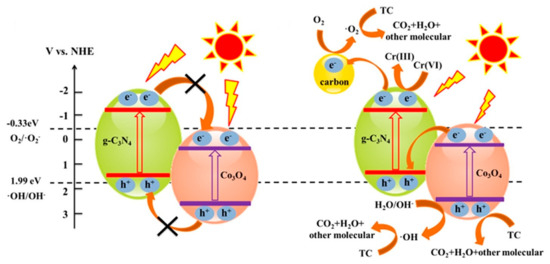

Xie et al. [104] summarized the g-C3N4-based photocatalysts. The Schottky-junction between g-C3N4 and the highly conductive carbon materials enhanced charge separation. Kumar and his co-workers [37,57,105] synthesized a series of BC-based g-C3N4 photocatalysts for wastewater treatment. For example, BC supported g-C3N4/FeVO4 were prepared for methylparaben and 2-chlorophenol photodegradation under solar light [37]. The BCPs exhibited excellent photocatalytic activity with the removal rate of 98.4% (methylparaben) and 90.7% (2-chlorophenol), due to the expended solar light response and enhanced charge separation. Recently, Kumar et al. [45] synthesized BC-based g-C3N4/Bi2O2CO3/CoFe2O4 heterojunction. The high pesticide paraquat removal rate of 99.3% was reached under visible radiation, compared with that of 92.1% under solar light. Due to the greater absorption of the visible spectrum, BC elevated the quantum efficiency, charge separation, and generation of free radicals. Zheng et al. [72] synthesized BC-based g-C3N4 via one-pot pyrolysis with different mass ratio. g-C3N4 modification can expand biochar’s capacity. BC100 (100 (urea): 1 (biomass)) showed 100% removal rate of RR120 through both adsorption and photocatalytic degradation under natural conditions. Li et al. [60] fabricated BC coupled g-C3N4 nanosheets composites through two-step calcination strategy to remove the Cr (VI) from wastewater. Graphitized BCPs could completely degrade the Cr(VI) and total Cr, owing to the photogenerated electrons, high thermal stability, and large specific surface area. Zhang et al. [106] synthesized BC modified graphitic carbon nitride via pyrolysis of kapok fiber. The BCPs presented a narrow band gap and extended light absorption. The BC facilitated the electron transfer and improved the photocatalytic activity. It played a center role as the carbon source and substrate in the epitaxial growth of graphitic carbon nitride.

5.3. Bismuth-BCPs

Bismuth-based photocatalyst has attracted considerable interest in wastewater treatment for its excellent photo-oxidation ability, unique electronic structure and toxic-free properties [107]. Very recently, Zhu et al. [64] prepared bismuth impregnated biochar composites for efficient estrone degradation. They found the Kobs was more than 20 times than that of pristine Bi/Bi2O3. The promoted result was owing to the ·OH radicals generated through the synergistic effect between BC and Bi/Bi2O3. Li et al. [107] synthesized Bi2O3/ZnAl-LDH–BC composite, which displayed an excellent performance in photocatalytic degradation of contaminations under visible light. Owing to the synergistic effects between precursors, the Eg of the BCPs was lower (2.42), compared with Bi2O3 and ZnAl-LDH (2.75 and 2.9, respectively). It was found that the light absorption and the separation of e-/h+ pairs was expedited. Moreover, organic contaminants include afranine T, brilliant green, RB and 4-nitrophenol exhibited optimal stability (Figure 8). The BCPs hold great potential in the field of wastewater treatment.
Kumar et al. [60]’s research showed 97.4% of methylparaben was removed in 2 h under natural sunlight by BC-Fe3O4-BiVO4 composite. The introduction of BC brings high surface area, which facilitated the degradation via radical attack and expedited the radical generation. Gao et al. [38] synthesized BC/Fe3O4/Bi2O3 photocatalyst using corn cobs char. Compared with pure Bi2O3, BC and BC/Fe3O4 showed notable red-shift and a broad absorption region. The degradation rate of tetracycline by BC/Fe3O4/Bi2O3-10 was 2.5 times greater than the bare Bi2O3. Li et al. [108] found that the increased visible-light absorption was owing to the unique biochar-based heterojunction structure. Bismuth oxyhalides (BiOX) exhibited higher photocatalytic activity than anatase TiO2 due to its unique layered structure interleaved with [Bi2O2] slabs and double halogen atoms slabs [51]. Li et al. [109] fabricated a magnetic Fe3O4/BiOBr/BC (reed straw) composite with the visible-light response via a one-step hydrolysis route. The BCPs exhibited better photocatalytic activity for carbamazepine removal (95.51%), owing to the promoted separation of e-/h+ pairs.

5.4. Carbon Quantum Dots (CQDs)-BCPs

Carbon quantum dots (CQDs) have emerged as a potential alternative to traditional expensive and unsustainable material [110]. It processes the advantages of high biocompatibility, tunability and stability [111]. The electron transfer, photoluminescence, and electron reservoir properties of the CQDs can enhance the structural stability and photocatalytic activity. Briscoe et al. [110] proposed the preparation method of CQDs mainly includes top-down and bottom-up route. In the top-down way, larger carbon structures are broken into smaller fractions. In contrast, the bottom-up approach involves forming the CQDs from molecular precursors. When biomass precursors are used for the production of CQDs, the latter method exhibited the advantages of sustainability and biocompatibility.
The introduction of biochar-based CQDs (BCQDs) to the semiconductor could lead to the change of band structure and extend the light absorption [112]. Yao et al. [80] prepared BCQDs modified flower-like BiOI composite through the solvothermal method. They found ·O2- and h+ was the main active species for MB photodegradation. The BCQDs acted as electron acceptors and further facilitated the separation of electron-hole pairs. Recently, Wang et al. [113] prepared BCQDs and BCQDs/Ag/Bi4Ti3O12 using hydrothermal treatment of bamboo powder. They suggested the introduction of BCQDs facilitated the photoelectron generation and transport. Furthermore, the BCQDs acted as an electron reservoir and boosted the photocatalytic performance.

6. Summary and Outlook

This review focus on recent developments related to the treatment of wastewater by BC-based photocatalysts. Various synthesis processes, photocatalytic enhancement mechanisms, and different applications of BCPs were summarized. Semiconductors can be coupled with BC via sol–gel, hydrothermal/solvothermal, ultrasound, calcination, and in situ methods. Besides the well-known adsorption effects of BC, it can also narrow the band gap, facilitate the electron transport, suppress the electron-hole charges recombination and reduce the photocorrosion of semiconductor, etc. Moreover, examples for the applications of BCPs were also summarized, including TiO2-BCPs, g-C3N4-BCPs, Bismuth-BCPs, and CQD-BCPs, etc.
Despite the exciting development of BCPs, some knowledge gaps and issues still exist.
  • Most research on the photocatalytic treatment of wastewater through BCPs focused on individual organic or inorganic substance. However, the real wastewater often contains multicomponent of pollutants. There might be competitive adsorption or photocatalysis between different materials during the removal process. Therefore, the performance of BCPs in treating real wastewater needs to be studied further.

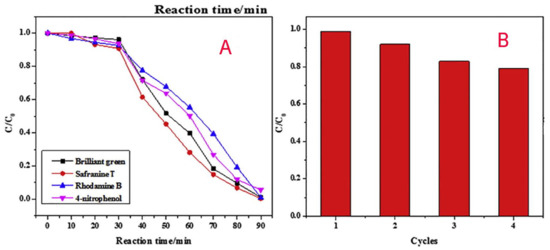

  • Recycling significantly reduces the cost of photocatalysis. The reuse of the BCPs from the slurry systems remains a problem, which limits the widespread of their applications. One promising approach to solve this problem is the magnetic separation by applying an external magnetic field in the water treatment process. More research is required to establish the efficient BCPs recovery at large scale.
  • Despite its advantages, certain hazardous waste biomass such as sewage sludge and municipal waste could release toxic organic or inorganic substances during the pyrolysis process, thus inducing ecological and health risks. Further research on the assessment of the long-term effects and security of the applications in wastewater treatment needs to be considered.
  • By now, most of the research has been carried out in the static system, which is usually applied to test the photocatalytic performance of new catalysts. However, photocatalysis in dynamic conditions may exhibit different abilities. Further investigations are required for the development of BCPs in dynamic photocatalysis system.

Author Contributions

J.C. (Jiali Cui) designed the concept and wrote the first draft of the manuscript. Y.R. and X.Y. contributed with the literature search and illustrations. F.Z., H.L. and J.C. (Jianguo Cui) revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge financial support from the Natural Science Foundation of Shanxi (Grant No. 201801D121275), and the Key Research and Development Project of Shanxi (Social Development) (Grant No. 201803D31046).

Conflicts of Interest

The authors declare no conflict of interest.
