Filtration Efficiency of Electret Air Filters Reinforced by Titanium Dioxide

Abstract

In this study, titanium dioxide (TiO₂), a mineral with a potential and supercapacitor, is used as the reinforcing material to improve the filtration efficacy of electret melt-blown fabrics. Next, the electret melt-blown fabrics are evaluated in terms of surface voltage and filtration efficiency, thereby examining the influences of the TiO₂ ratio and electric field intensity. The test results indicate that the filtration efficiency is proportional to the ratio of TiO₂ and electric field intensity. In particular, with a TiO₂ ratio of 3 wt% and an electric field intensity of 2.5 kV/cm, the electret melt-blown fabrics demonstrate a maximal filtration efficiency of 96.32%, a lowest pressure drop of 40 Pa, and an optimal quality factor of 0.083 Pa⁻¹.

1. Introduction

The development of industry and the progress of traffic have brought with them many negative influences, such as air, noise, and water pollution. In particular, air pollution causes damage to human health, causing many people to suffer from allergy or respiratory diseases [1], which promotes researchers’ interest in the filtering of air pollutants. The issue of polluted air is commonly addressed using air filter materials that are divided into mechanical and nonmechanical types. As for nonmechanical types, polymer electret filter materials garner the most attention because of their high efficiency and low pressure drop [2,3,4,5,6].

Polymer electret filter materials are extensively used in the air filtration field, and the most effective polymer is poly(tetrafluoroethylene) (PTFE). However, PTFE has a high cost and challenging production issues, which makes polypropylene (PP) a staple material for air filtration products in the market. In addition, there are two approaches to strengthen the electret efficacy. One approach is to add dielectric-constant reinforcing materials to the filters, thereby storing much more space charges [7] and thus obtaining higher surface voltage. The reinforcing materials are lithium niobate [8], silicon dioxide [9], nanoscale graphite platelets [10], and barium titanate [7,11,12]. The other approach is to add a nucleating agent that increases the crystallinity of polymers and to obtain greater crystalline and amorphous regions to house more space charges. The nucleating agents are magnesium stearate [13], stearate [14], modified rosin [14], polycarbonate [15], tourmaline [16], DMDBS (3:2, 4-bis(3,4-dimethyldibenzylidene) sorbitol) sorbitol) [17], and NA11 (sodium 2,2′-methylene-bis(4,6-di-tertbutylphenyl)-phosphate) [17].

Titanium dioxide (TiO₂) is one of the materials commonly used in paints and cosmetics [18]. Because of its high dielectric constant, TiO₂ is also used in semiconductors and solar cells. Tyagi et al. found that TiO₂ had excellent charge storage capacity and a great potential as a supercapacitor [19]. Prateek et al. used TiO₂ as the core to be synthesized with titanium compounds, producing materials that had a greater dielectric constant and specific energy when compared to poly(vinylidene fluoride) (PVDF) [20]. Due to the aforementioned upsides of TiO₂, Viraneva et al. added TiO₂ to polypropylene (PP) in the production of composite films. It was found that the surface potential was attenuated in a shorter time when the TiO₂ ratio was increased, which might be attributed to the fact that a higher TiO₂ ratio had a positive influence on the conductivity [21]. Similar findings were found in the study by Zha et al., where TiO₂ was incorporated with polyimide to form nanocomposite membranes. They found that a TiO₂ ratio exceeding 5 wt% resulted in a significant improvement in the conductivity [22]. Because one feature of photocatalysis is to purify air, TiO₂ has been commonly investigated in previous studies on air filter materials [23,24,25,26,27]. For example, Lee et al. strengthened the decomposition of benzene and toluene by means of this particular feature of TiO₂ [23]. Because the majority of studies focused on the photocatalysis purifying feature of TiO₂ where air filtration was concerned and the electret materials were made in the form of membranes or composites, this study incorporates TiO₂ with PP, thereby forming an air filter featuring a fiber morphology. Afterward, the fiber morphology, surface potential, and static electricity filtration efficiency of electret melt-blown fabrics were evaluated, examining the effects of the presence of TiO₂.

2. Materials and Methods

2.1. Materials

PP powders (Metocene MF650Y, Polymirae Co., Ltd., Korea) were a homopolymer with a melt flow rate of 1800 g/10 min (230, 2.16 kg). The TiO₂ (R-103, E Chang Trading Co., Ltd., Taiwan) had a purity of 98% and a particle diameter of 0.23 μm. Herein, the range of particle diameter was between 0.1 and 0.6 μm. NaCl (Shimakyu’s Pure Chemicals Co., Ltd., Japan) had a purity of 99.8%.

2.2. Preparation of Filtration

First, PP powders and TiO₂ (1, 2, 3, or 4 wt%) were made into PP/TiO₂ granules, then melt-blown fabrics using a melt-blown machine ((Tianjin Shengruiyuan Machinery Technology, China), and finally electret melt-blown fabrics using a corona charging device (Taiwan).

Table 1. Intrinsic properties of samples made of different parameters.

TiO2 Ratio (wt%)	Electric Field Intensity (kV/cm)	Basis Weight (g/m2)	Thickness (mm)	Fiber Diameter (μm)	Air Permeability (cm3/s/cm2)
1	1.5	68.3 ± 4.8	0.63 ± 0.04	5.73 ± 2.97	64.43 ± 3.52
	2	76.5 ± 6.4	0.65 ± 0.09	6.18 ± 3.13	60.81 ± 4.59
	2.5	69.4 ± 3.4	0.64 ± 0.09	5.91 ± 3.67	63.64 ± 8.07
2	1.5	75.1 ± 4.5	0.65 ± 0.05	6.47 ± 3.25	61.67 ± 4.09
	2	73.3 ± 6.8	0.64 ± 0.04	6.33 ± 1.98	67.16 ± 5.24
	2.5	67.0 ± 8.9	0.62 ± 0.04	6.76 ± 3.91	66.87 ± 5.12
3	1.5	63.5 ± 11.3	0.68 ± 0.07	6.02 ± 3.28	61.06 ± 4.23
	2	70.0 ± 8.6	0.61 ± 0.06	5.97 ± 3.77	64.50 ± 4.84
	2.5	66.5 ± 8.2	0.65 ± 0.05	6.73 ± 4.12	67.31 ± 3.9
4	1.5	73.5 ± 5.8	0.64 ± 0.02	5.39 ± 2.49	62.00 ± 4.17
	2	71.6 ± 4.4	0.62 ± 0.04	6.74 ± 3.74	59.3 ± 5.72
	2.5	78.8 ± 7.1	0.68 ± 0.06	6.47 ± 3.81	68.65 ± 8.36

*All of the samples are charged for 1 min at a distance of 10 cm, an ambient temperature of 25 °C, and a humidity of 40%. As an electric field intensity of 3 kV/cm generates arc, the maximum electric field intensity used in this study is 2.5 kV/cm.

shows the properties of different electret melt-blown fabrics. In addition, Figure 1 also indicates that the TiO₂ content is not correlated with fiber diameters. Because this study examines the influences of TiO₂ on the electrostatic filtration efficiency of electret melt-blown fabrics, the parameters were adjusted to obtain comparable fiber diameters on purpose.

2.3. Testing

2.3.1. Surface Voltages

A static meter (Model 5740, TAKK Industries Inc., US) is used to measure the surface voltage with a distance being 10 cm. The test results are recorded.

2.3.2. Surface Resistivity

A resistivity meter (OHM-STAT RT-1000, Static Solutions Inc., US) with a test voltage of 100 V was used for the surface resistivity measurement. The two test probes weighing 5 lb had a diameter of 2.5 in.

2.3.3. Filtration Efficiency and Pressure Drop

An electrical low pressure impactor (ELPI^TM, Dekati, Finland) was used for the measurement, with a gas flow of 85 ± 4 L/min and the particulate concentration of 200 mg/m³ (NaCl). Next, the particulate concentrations before and after the filtration process were obtained to compute the filtration efficiency. Moreover, a micromanometer (Models PVM 610, Airflow Measurements Ltd., UK) was used to measure the difference in the pressure at both ends of the filtering materials, using the following equation:

$$\mathrm{FE}=\frac{{\mathrm{C}}_0-{\mathrm{C}}_{\mathrm{i}}}{{\mathrm{C}}_0}\times 100\%$$

(1)

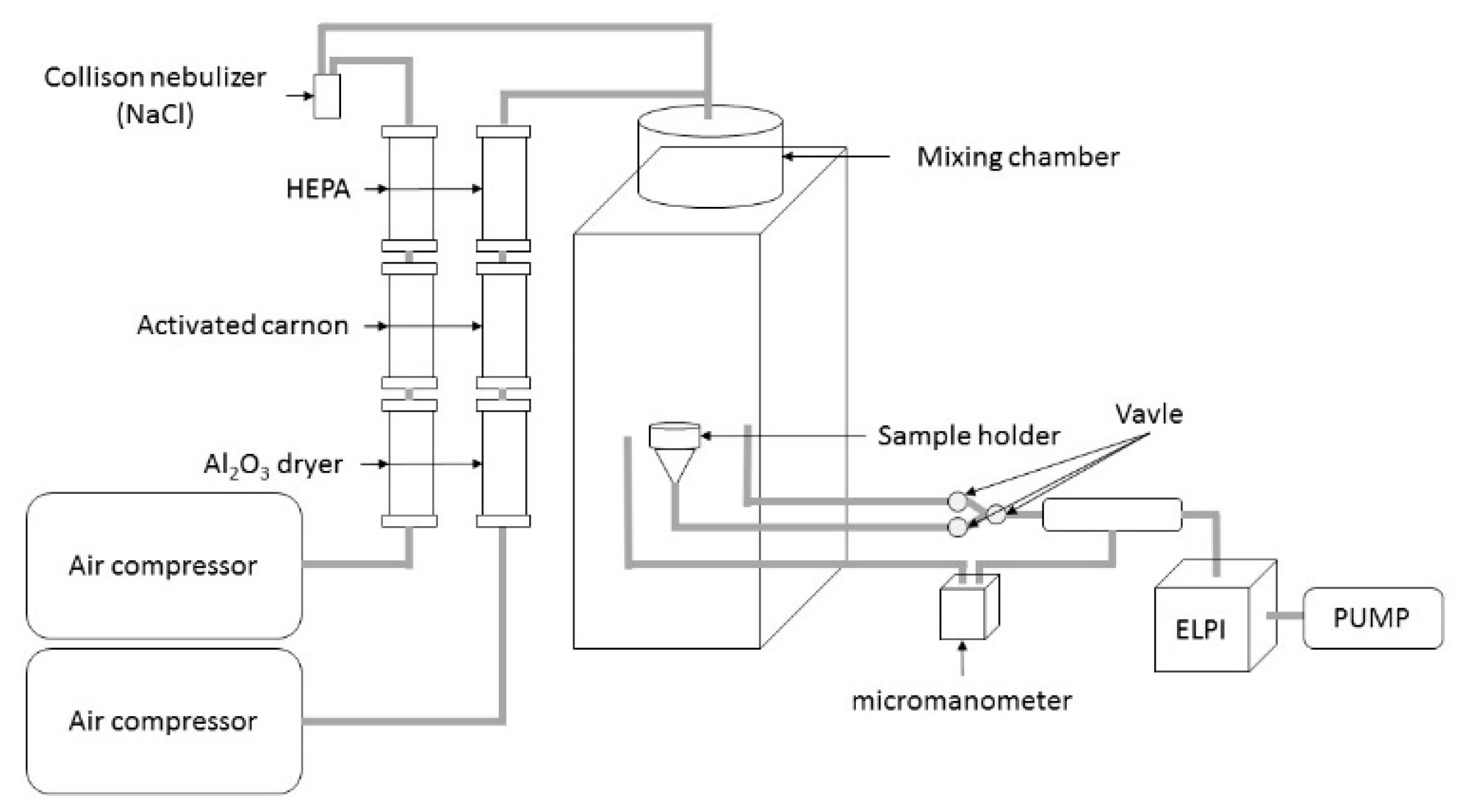

where FE means the filtration efficiency, and C₀ and C_i mean the particulate concentration before and after the filtration process, respectively. Figure 2 illustrates the filtration efficiency and pressure drop tests.

2.3.4. Differential Scanning Calorimeters

A differential scanning calorimeter (DSC, Q200, TA Instruments., USA) was used to measure the apparent enthalpy of crystallization. The heating and cooling rates were 10 °C/min. The crystallinity is computed using the equation as follows:

$$\mathrm{Xc}(\%)=\frac{\Delta H_m}{\Delta H_m^0}\times 100\%$$

(2)

where X_c is the crystallinity, ΔH_m is the apparent enthalpy of crystallization, and ΔH⁰_m is the enthalpy of crystallization when PP has 100% crystallinity.

3. Results and Discussion

3.1. Surface Voltage

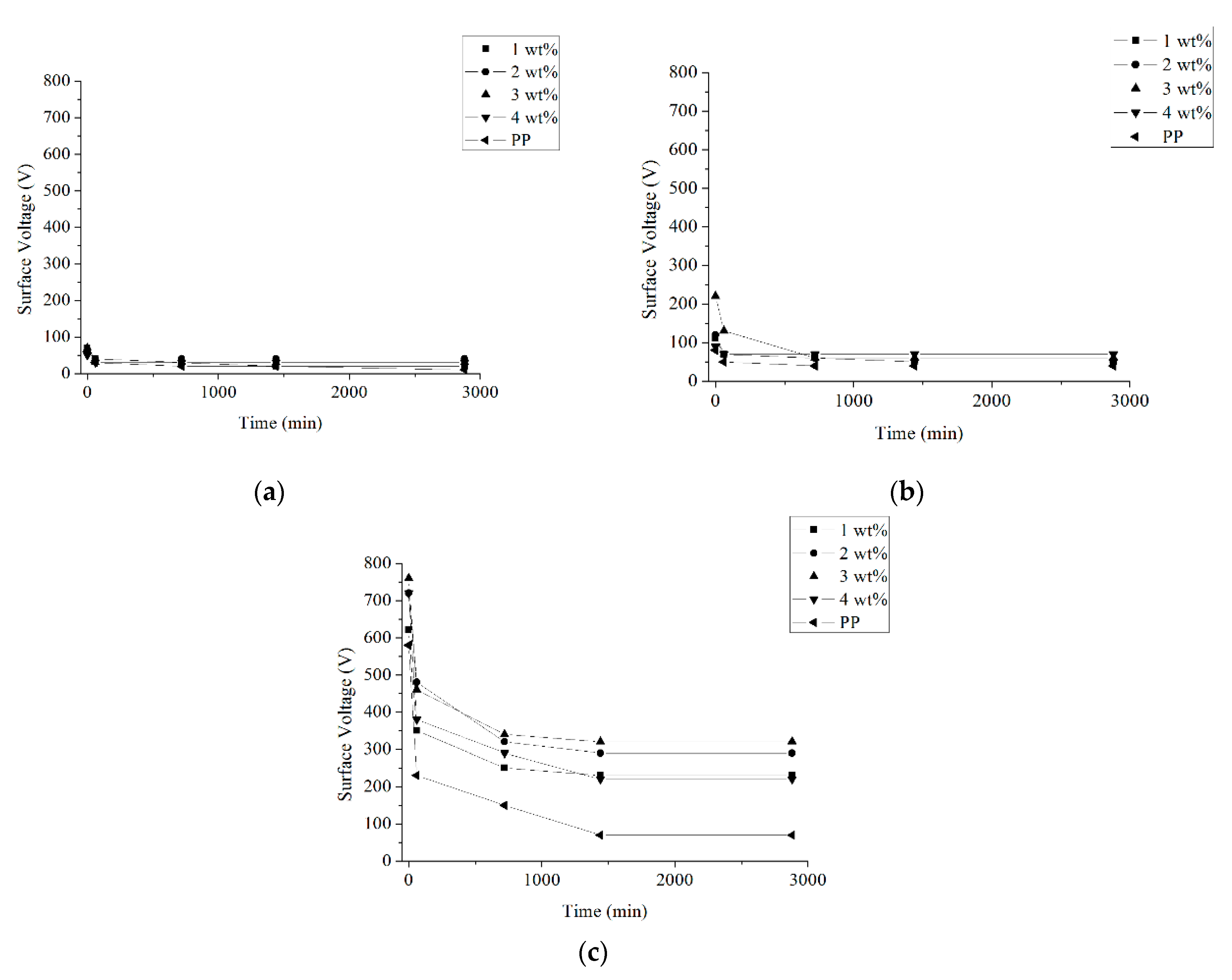

The purpose of adding TiO₂ is to strengthen the surface potential of electret melt-blown fabrics. Figure 3 shows that the fabrics have comparable surface potentials when the electric field intensities are 1.5 and 2.0 kV/cm because the electric field intensity fails to provide enough energy in one minute. When the electric field intensity is 2.5 kV/cm, there is a significant rise in the surface voltage (Figure 3c). Increasing the ratio of TiO₂ improves the surface voltage, especially for the case of 3 wt% of TiO₂, which helps to reach the maximal surface voltage. Nonetheless, 4 wt% of TiO₂ adversely affects the surface voltage due to the agglomeration of TiO₂.

Table 2. Thermal properties of samples as related to the ratio of TiO₂ being 1, 2, 3, and 4 wt%.

TiO2 Ratio (wt%)	Tc (°C)	Tm (°C)	Crystallinity (%)
Pure PP	121.0	146.6	6.9
1	120.0	159.6	15.3
2	122.2	149.9	15.1
3	118.3	147.7	22.3
4	118.2	144.5	16.2

indicates that the crystallinity increases when TiO₂ increases from 1 to 3 wt%, but the crystallinity descends with 4 wt% of TiO₂ and is similar to that with 2 wt% of TiO₂. The descending crystallinity may be ascribed to the agglomeration of TiO₂. Moreover, surface voltage is also dependent on the crystallinity. The interface between crystallization and amorphous regions becomes a trap against charge storage [14,28,29]. A lower crystallinity diminishes the region available to store charges, which in turn reduces the surface voltage. In Figure 3c, the melt-blown fabrics made of 1 and 4 wt% of TiO₂ exhibit comparable surface voltages in terms of the trend and the value. The electret electric charges of TiO₂ are mainly stored over its particles [20], so 4 wt% of TiO₂ does not acquire the surface area as expected, which is attributed to the agglomeration. Moreover, the space charges from crystalline and amorphous regions are also decreased. Both factors render the melt-blown fabrics made of 1 and 4 wt% of TiO₂ with similar surface voltages. The variation in the crystallinity changes the apparent enthalpy of crystallization, which subsequently shifts the temperature of Tc and Tm. The stability of electrostatic charges in melt-blown fabrics is pertinent to the surface potential, which can be computed with the following equation:

$$\mathrm{Surface}\mathrm{Potential}=\frac{V}{V_0}$$

(3)

where V is the surface voltage that changes with time, and V₀ is the initial surface voltage.

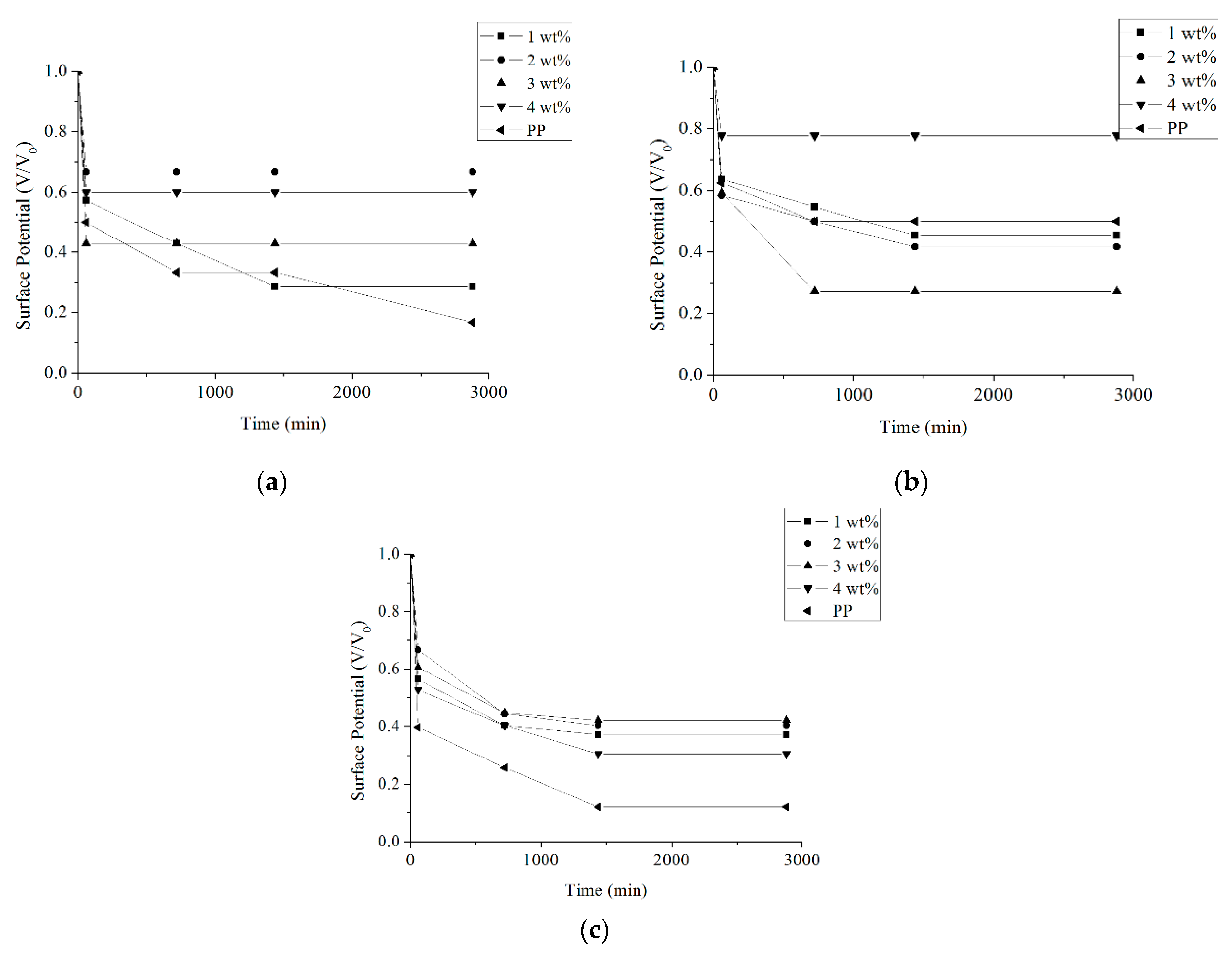

Based on Figure 4a–c, the initial surface voltage appears relatively lower at 1.5 and 2.0 kV/cm, which in turn makes the surface potential higher than the surface potential of 2.5 kV/cm. In particular, 3 wt% of TiO₂ provides the fabrics with an optimal surface potential, which corresponds to the surface voltage. TiO₂ is a material with a high dielectric constant and a low conductivity, and thus can effectively strengthen the charge storage and stability [19]. At the same time, it also serves as an initial point for heterogeneous nucleation, which facilitates the crystallinity of polymer and effectively enlarges the contact area between crystalline and amorphous regions, which is a trap for charge storage. Hence, the surface potential can be significantly improved [14,15,17].

3.2. Surface Resistivity

In light of the study by Viraneva et al., the electrostatic charge of electret exhibits stability that is dependent on the charge storage of particles, space charge of polymers, and the conductivity, the latter of which may also affect the storage of electric charges [21]. The relationship between the TiO₂ ratio and the surface resistivity is shown in

Table 3. Surface resistivity of melt-blown fabrics as related to the TiO₂ ratio.

TiO2 Ratio (wt%)	Surface Resistivity (Ω/SQ)
Pure PP	2.71 × 1011 ± 4.96 × 1010
1	1.79 × 1011 ± 7.12 × 109
2	1.63 × 1011 ± 5.62 × 109
3	1.43 × 1011 ± 1.50 × 1010
4	9.15 × 1010 ± 1.24 × 1010

. An increase in TiO₂ adversely affects the surface resistivity of melt-blown fabrics. Namely, a lower surface resistivity means equivalently a greater electrical conductivity, which dissipates electric charges efficiently. Subsequently, with 4 wt% of TiO₂, the surface resistivity of melt-blown fabrics descends in a short time and eventually resembles that of melt-blown fabrics consisting of 1 wt% of TiO₂ as per Figure 3c. In addition, Zha et al. found that significant variations were not presented until TiO₂ exceeded 5 wt% [22]. By contrast, in this study, 1 wt% of TiO₂ instantly causes a difference, which is ascribed to the difference in the membrane and fiber structures. The electric charges of membranes are freely transmitted along any direction, whereas the electric charges of a fibrous structure are only allowed to be transmitted along the fiber direction (i.e., the direction that is perpendicular to the fiber diameter). Subsequently, melt-blown fabrics exhibit a difference in the surface resistivity when the TiO₂ ratio is low.

3.3. Filtration Efficiency

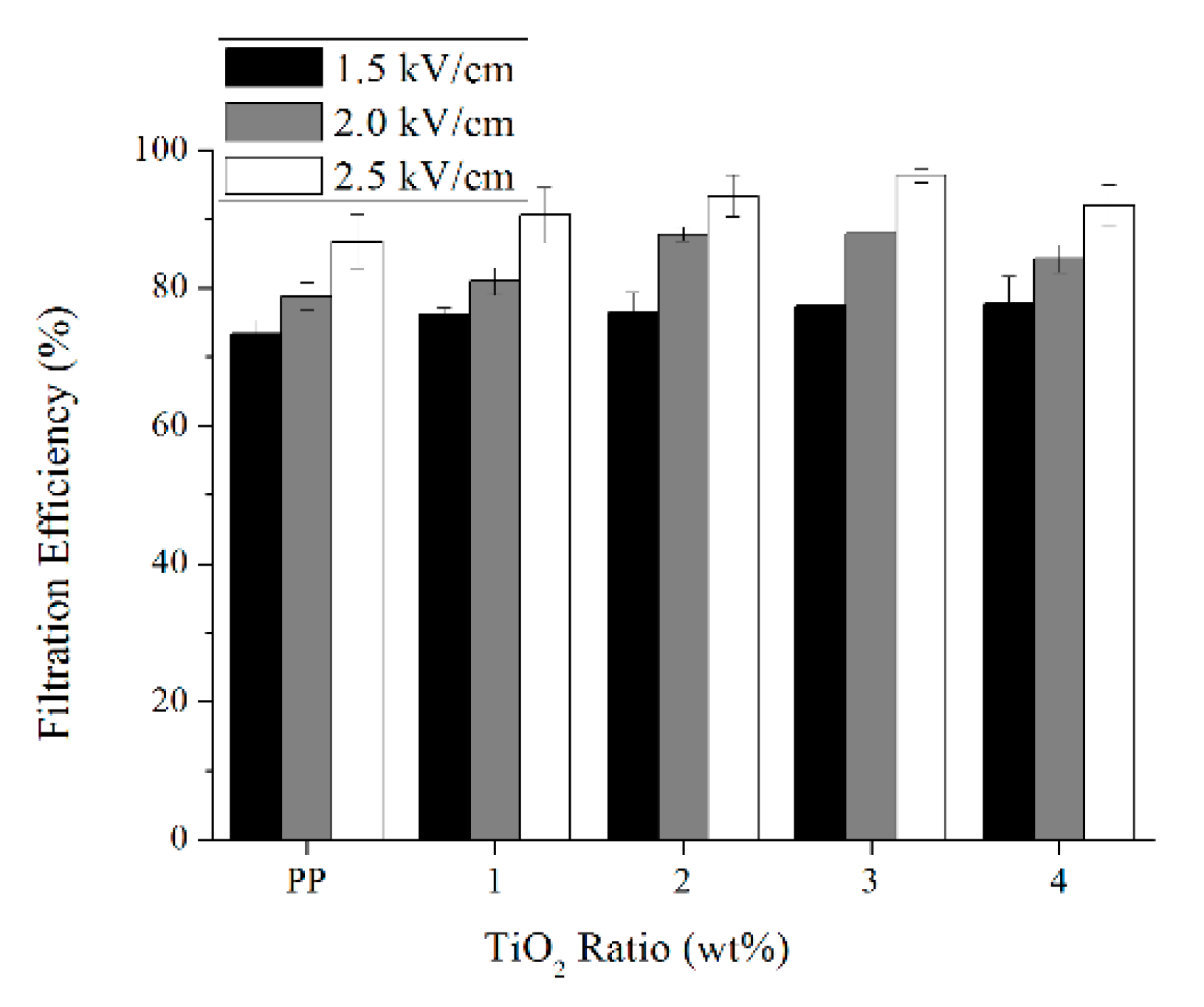

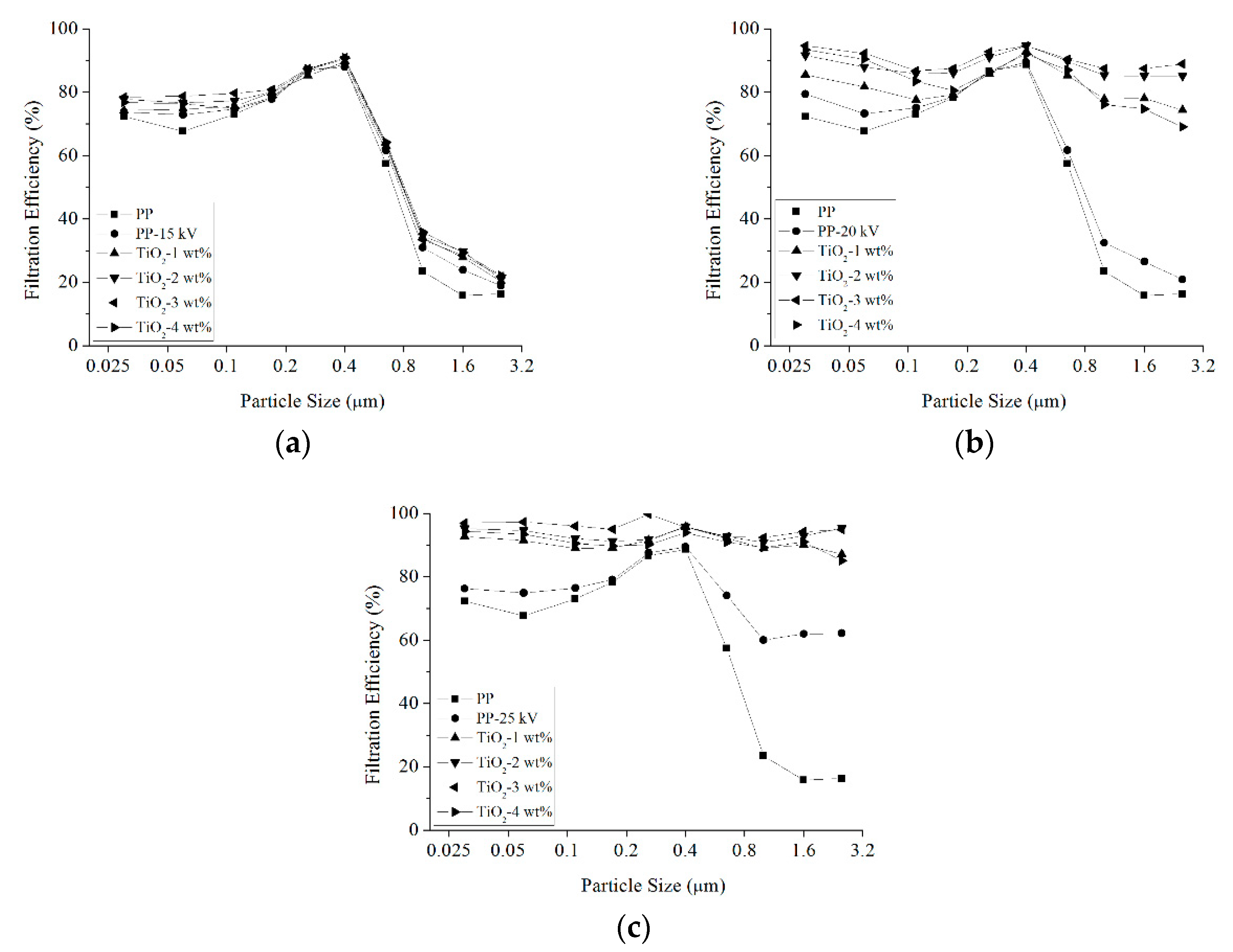

After being in storage for two days, the surface voltage of electret melt-blown fabrics was stabilized, and then the samples were tested for filtration efficiency. In Figure 5 it can be seen that either a rise in TiO₂ or electric field intensity has a positive influence on the filtration efficiency. The filtration efficiency and surface voltage demonstrate the same trend, which suggests that the presence of TiO₂ can heighten the filtration efficiency. Specifically, an electric field intensity of 2.5 kV/cm, rather than 1.5 or 2.0 kV/cm, helps to retain a relatively higher surface voltage, which contributes to higher filtration efficiency. In addition to mechanical filtration, electret also adsorbs particles with the help of electrostatic forces. Figure 6 shows that non-electret pure PP melt-blown fabrics do not perform well when filtering particles at sizes of 0.4–2.5 μm. The mechanical filtration is realized by means of inertial impaction, interception, Brownian diffusion, and gravitational settling. As for particles at sizes exceeding 2.5 μm, they can be effectively filtered simply by mechanical filtration. However, for particles that are smaller than 2.5 μm, especially smaller than 100 nm, the employment of mechanical filtration is not satisfactory [30]. Using static electricity to adsorb particles smaller than 2.5 μm has been proven effective. Particles are polarized as a result of the electric fields caused by the charged fibers in the proximity. The polarized particles are then adsorbed by the charged fibers, thereby acquiring the filtration efficiency of the static electricity adsorption. The higher the surface voltage, the better the particle adsorption performance. With an electric field intensity of 2.5 kV/cm, the melt-blown fibers exhibit good filtration efficiency of particles of 0.03–2.5 μm regardless of the TiO₂ ratio (Figure 6). In particular, the melt-blown fibers composed of 3 wt% of TiO₂ have filtration efficiency higher than 92% when the particle size is between 0.03 and 2.5 μm.

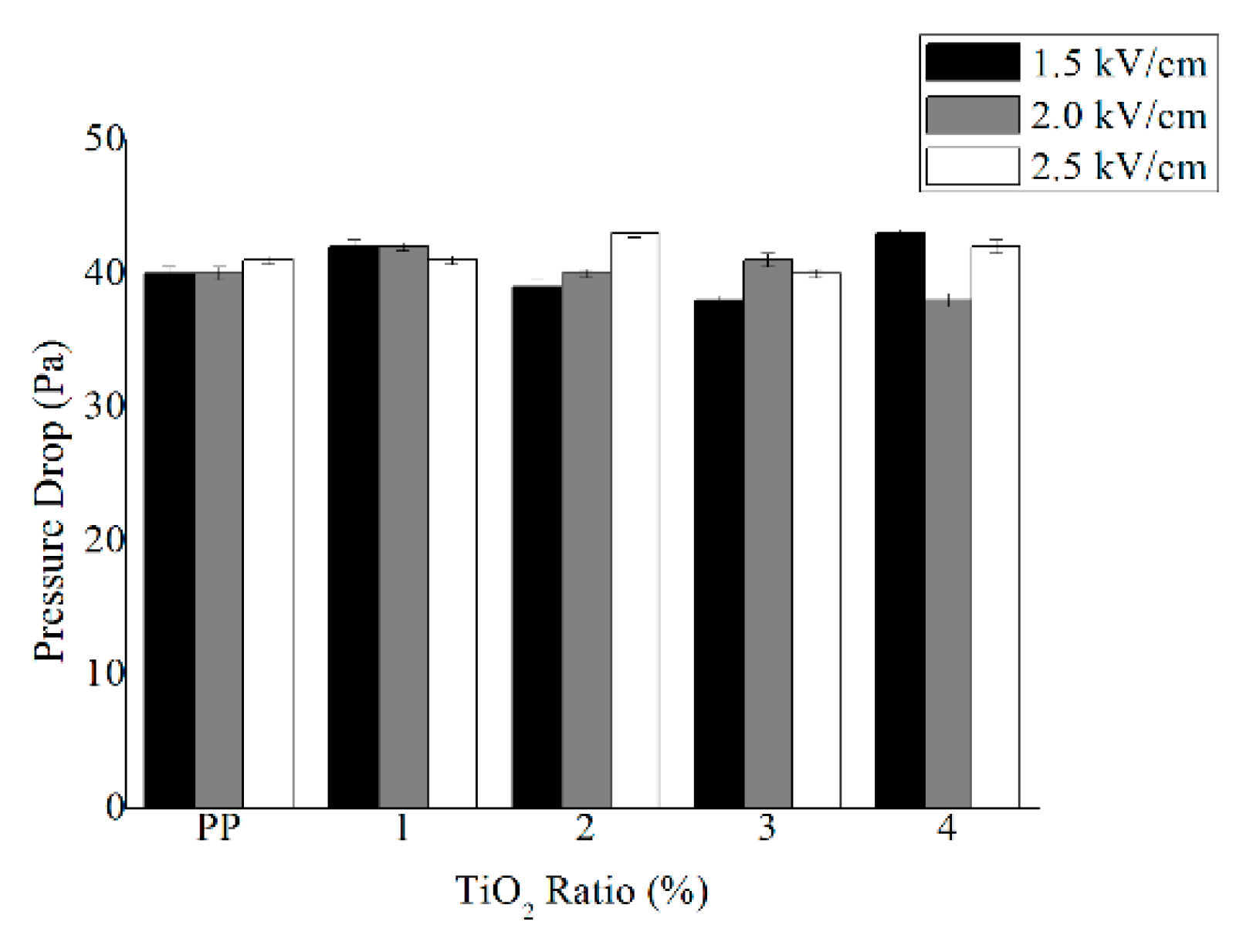

Another important evaluation of filtration measurement is pressure drop performance. Figure 7 shows that the significant pressure drop is absent in all samples because they have to remain as a consistent structure. As a result, the influence of surface voltage on filtration efficiency can be measured accurately. Hence, the basis weight, thickness, fiber diameter, and air permeability of samples are identical in Table 1. Quality factor is commonly used to compare the filtration efficiency between different filters, and the equation is as follows:

$$Q_f=\frac{-\ln \left(1-E\right)}{\Delta P}$$

(4)

where Q_f is the quality factor, E is the filter efficacy, and ΔP is the reduction voltage [31].

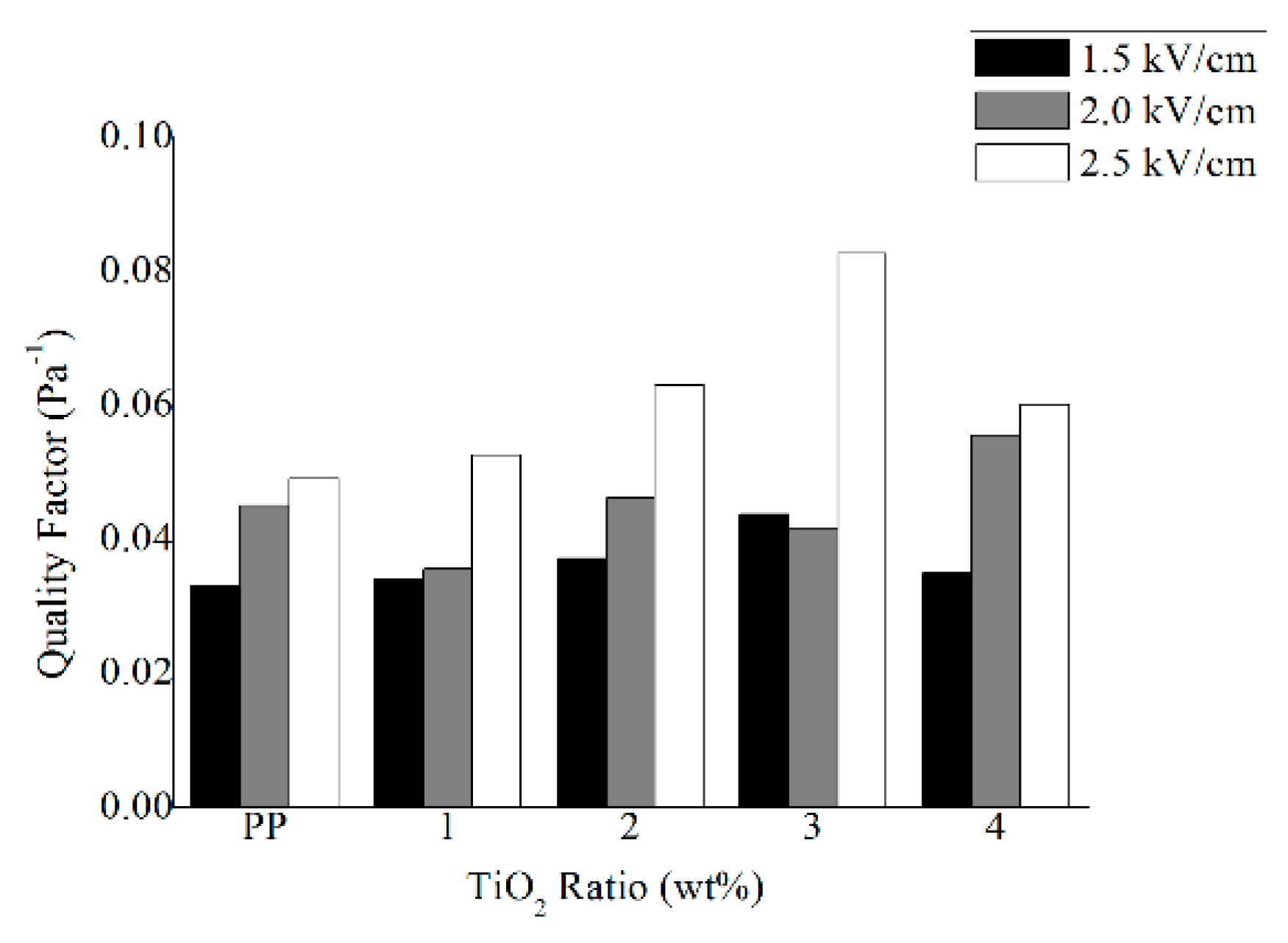

The quality factor is improved with a greater ratio of TiO₂ or higher electric field intensity (Figure 8). The pressure drop pertains to the structure of samples, and the parameters do not alter the structure. Zhang et al. found that the quality factor of commercially available melt-blown fabrics was 0.033 Pa⁻¹ [31]. In comparison, the proposed electret melt-blown fabrics outperform the commercially available ones in terms of filtration efficiency. In particular, the quality factor reaches 0.083 Pa⁻¹ when TiO₂ is 3 wt% and the electric field intensity is 2.5 kV/cm.

4. Conclusions

This study proposes using a low-cost and high-dielectric-constant mineral of TiO₂ to improve the filtration efficiency of electret melt-blown fabrics. The results indicate that a greater ratio of TiO₂ has a positive influence on the surface voltage and filtration efficiency of the filters. In addition, TiO₂ also facilitates the rate of crystallinity of polymer to strengthen the filtration efficiency. Finally, the quality factor of the proposed TiO₂-reinforced electret melt-blown fabrics is 0.083 Pa^−1, which is significantly higher than that (0.033 Pa⁻¹) of the commercially available melt-blown fabrics, thus making these fabrics qualified candidates for masks and other staple filter fields.
