Article

Chemical Composition and Antimicrobial Activity of the Essential Oils of Three Closely Related Hypericum Species Growing Wild on the Island of Crete, Greece

by
Maria-Eleni Grafakou
1,
Aggeliki Diamanti
1,
Eleftheria Antaloudaki
2,
Zacharias Kypriotakis
3,
Ana Ćirić
4,
Marina Soković
4 and
Helen Skaltsa
1,*
1
Laboratory of Pharmacognosy and Chemistry of Natural Products, Department of Pharmacy, School of Health Sciences, National and Kapodistrian University of Athens, Panepistimiopolis, Zografou, 15771 Athens, Greece
2
Division of Plant Biology, Department of Biology, University of Crete, GR-70013 Heraklion, Greece
3
Laboratory of Taxonomy and Management of Wild Flora, Department of Agriculture, School of Agricultural Sciences, Technological Educational Institute of Crete, Stavromenos P.O. Box 140, 71110 Crete, Greece
4
Institute for Biological Research ‘‘Siniša Stanković’’—National Institute of Republic of Serbia, University of Belgrade, Blvd. Despot Stefan 142, 10060 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(8), 2823; https://doi.org/10.3390/app10082823
Submission received: 31 March 2020 / Accepted: 15 April 2020 / Published: 19 April 2020
(This article belongs to the Section Chemical and Molecular Sciences)

Abstract

:
The volatile compositions of three closely related Hypericum species growing wild on the island of Crete were studied, all belonging to the section Coridium. Hydro-distillation in a modified Clevenger-type apparatus was performed according to the Hellenic Pharmacopoeia in order to obtain the essential oils, which were analyzed by GC-MS. Identification of the compounds was carried out by comparison of MS spectra and retention indices with literature data, as well as by co-chromatography with authentic samples. In total, 123 different compounds were identified and the main compounds were by order of their abundance as follows: H. empetrifolium: α-pinene, germacrene D, β-pinene, E-caryophyllene; H. amblycalyx: β-elemene, β-selinene, α-pinene, E-caryophyllene, α-selinene; H. jovis: trans-calamenene, α-selinene, β-elemene. The chemical results revealed the differences and similarities (qualitative and quantitative) between the studied oils, supporting the hypothesis that essential oils from Hypericum spp. do not serve as chemotaxonomic markers. Moreover, the essential oils were subjected to antimicrobial screening. According to the given results, the essential oils possessed better antifungal and anticandidal activities than antibacterial activities.

1. Introduction

The genus Hypericum L. of the family Hypericaceae consists of more than 460 species divided in 36 sections [1] and has a long-term use in traditional medicine. It has been described by Hippocrates [2], Dioscorides [3], and later on in the Medieval era by Nikolaos Myrepsos [4,5]. H. perforatum (St. John’s Wort) has been used as an ancient folk cure for diseases including wounds, kidney and lung ailments, and depression, while in modern times, its monograph was included in 2009 in the European Pharmacopoeia [6]. Hypericum plants are also used in foodstuff, after the evaluation of the concentration of hypericin and xanthone derivatives (Council of Europe, 2000) [7]. Externally, Hypericum is a valuable healing and anti-inflammatory remedy for burns, wounds, sores, bruises, and other skin disorders [6].
The genus produces a plethora of bioactive secondary metabolites, mainly phenols, flavonoids, tannins, xanthones, phloroglucinols, naphtodianthrones and essential oil (EO) [8]. Apart from the well-established antidepressant activity, many extracts and substances have become subject of intense studies concerning a variety of biological activities [8]. Although volatile constituents have been reported to contribute to these activities, only few Hypericum species have been investigated regarding their essential oil content [9,10,11]. Hypericum is considered to be an essential oil-poor genus [9], and so far studies have revealed that its volatile oil demonstrates antimicrobial, antioxidant, anti-angiogenic, gastroprotective, larvicidal, insecticidal activities [10,11,12,13,14].
In continuation to our work on Hypericum spp., we investigated the volatile constituents of three closely related taxa [15], H. empetrifolium Willd., H. amblycalyx Coustur. and Gand, and H. jovis Greuter, which were collected across a relatively restricted geographic range, in the island of Crete (Greece). All three belong to the section Coridium; H. empetrifolium is considered the ancestor of H. amblycalyx and H. jovis, the eastern and western derivatives, respectively [15]. The section Coridium comprises six species. It is worth mentioning that all three species under investigation grow on the island of Crete, while the rest are totally absent from Greece. Therefore, we have undertaken the present study, in order to compare the EOs of the Greek taxa belonging to the section Coridium, and based on the results revealed from those closely related Hypericum taxa, examine the hypothesis that essential oils from Hypericum taxa serve as chemotaxonomic markers. Regarding the chemotaxonomy, many studies describe volatile compounds as chemotaxonomic markers for the genus Hypericum, while Crockett [9] mentioned that statistical analysis of essential oils should not be used to infer phylogeny. The present results corroborate with the latter study, since significant differences (qualitative and quantitative) have been observed. In parallel, a second aim of the present study was the investigation of the antimicrobial activity from the obtained EOs, against a variety of fungi and bacteria. This is the first report of the chemical composition of the essential oils obtained from H. amblycalyx and H. jovis, as well as the first report of the antimicrobial activity of all three Hypericum taxa.

2. Materials and Methods

2.1. Plant Material

Aerial parts from the three Hypericum taxa under-investigation were collected from natural populations in the island of Crete (Greece), during the flowering stage. The plants were collected and identified by Dr. Z. Kypriotakis and voucher specimens of each population were deposited in the Personal Herbarium of Dr. Kypriotakis (Heraklion-Crete). In Table 1, collection sites on the island of Crete, dates of collection and essential oil yield are summarized, while the collection sites are also presented in Figure 1.

2.2. Hydro-Distillation of Essential Oils

In order to obtain the EOs, the air-dried plant material from each sample was finely comminuted and separately subjected to hydro-distillation for 3 h. About 45 g from each plant in 500 mL of distilled water were used and the distillation was performed in a modified Clevenger-type apparatus with a water-cooled oil receiver to reduce artifacts produced during hydro-distillation by over-heating, according to the Hellenic Pharmacopoeia [16]. The EO yield (% v/w; Table 1) was calculated based on dry weight. GC (Gas Chromatography) grade n-pentane was used for the collection of the EOs, with the addition of anhydrous sodium sulphate to reduce any moisture. The EOs were subsequently analyzed by GC-MS (Gas chromatography-mass spectrometry analysis) and finally stored at −20 °C.

2.3. Gas Chromatography-Mass Spectrometry Analysis

GC–MS analyses were carried out using a Hewlett- Packard 7820A-5977B MSD system operating in EI mode (70 eV), equipped with a HP- 5MS fused silica capillary column (30 m × 0.25 mm; film thickness 0.25 µm), and a split-splitless injector. The temperature program was from 60 °C at the time of the injection, raised to 300 °C at a rate of 3 °C/min and subsequently held at 300 °C for 10 min. Helium was used as a carrier gas at a flow rate of 2.0 mL/min. The injected volume of the samples was 2 μL. The analyses were carried out twice, resulting in reproducible results.

2.4. Identification of Compounds

Retention indices for all compounds were determined according to the Van der Dool approach [17], with reference to a homologous series of n-alkanes from C9 to C25. The identification of the chemical components was based on comparison of both relative retention times and mass spectra with those reported in the NIST/NBS and Wiley libraries, as well as those described by Adams [18] and other literature data. In many cases, the essential oils were subjected to co-chromatography with authentic compounds (Fluka, Sigma). Component relative percentages were calculated based on GC peak areas without using correction factors. Optical rotation values of the Eos [ α ] D 20 were determined at 20 °C at 589 nm in cyclohexane (cHex), Polarimeter: Perkin Elmer 341.

2.5. Microbial Cultures

The Gram-positive bacteria Bacillus cereus (human isolate), Micrococcus flavus (ATCC 10240), Staphylococcus aureus (ATCC 11632), and the Gram-negative bacteria Escherichia coli (ATCC 25922), Pseudomonas aeruginosa (ATCC 27853) and Salmonella typhimurium (ATCC 13311) were used in order to determine the potential antimicrobial activity of EOs of the three Hypericum species. For the determination of the antifungal activity, three yeast species Candida albicans (clinical isolate), Candida tropicalis (ATCC 750) and Candida krusei (clinical isolate) and four micromycetes Aspergillus fumigatus (ATCC 9197), Aspergillus niger (ATCC 6275), Penicillium funiculosum (ATCC 36839), Penicillium verrucosum var. cyclopium (food isolate) were tested for their susceptibility. The bacterial strains were cultured on solid Tryptic Soy agar (TSA), while micromycetes were cultured on solid malt agar (MA) and yeast were sustained on Sabouraud dextrose agar (SDA) medium. The cultures were sub-cultured once a month and stored at 4 °C for further utilization. All the tested microorganisms are deposited at the Mycological Laboratory, Department of Plant Physiology, Institute for Biological Research “Siniša Stankovic”, University of Belgrade.

2.6. In Vitro Antibacterial and Antifungal Assays

The minimum inhibitory and bactericidal/fungicidal concentrations (MICs, MBCs and MFCs) were determined using 96-well microdilution plates with a flat bottom [19,20]. The oils were dissolved in 5% dimethylsulfoxide (DMSO) solution that contained 0.10% Tween 80 (v/v) and added appropriate medium with bacterial/fungal inoculum.
For antibacterial assay, bacterial suspensions were adjusted with sterile saline to a concentration of 1.0 × 105 CFU mL−1. Afterward, the bacterial inoculum was added to this mixture in order to achieve the appropriate concentrations. The microplates were incubated for 24 h at 37 °C. The MIC/MBC values for bacteria were detected following the addition of 40 µL of p-iodonitrotetrazolium violet (INT) 0.2 mg/mL (Sigma I8377) and incubation at 37 °C for 30 min [21]. The lowest concentration with no visible growth was defined as the MBC, indicating 99.5% killing of the original inoculum. Streptomycin (Sigma-Aldrich S6501, St Louis, MO, USA) and ampicillin (Sigma-Aldrich A9393, Germany) were used as positive controls for bacteria (1 mg mL−1 in sterile physiological saline). Sterilized distilled water containing 0.1% Tween 80 and 5% DMSO was used as negative control.
The assay for antifungal activity was performed in the following manner: fungal spores/yeast cells were washed from the surface of agar plates with sterile 0.85% saline containing 0.1% Tween 80 (v/v). The spore suspension was adjusted with sterile saline to a concentration of approximately 1.0 × 105 in a final volume of 100 µL per well. MIC/MFC determination was performed by a serial dilution technique using 96-well plates. Microplates were incubated for 24 h at 37 °C for yeasts and for other fungi 72 h at 28 °C. Commercially available antifungal agent—ketoconazole (Zorkapharma, Šabac, Serbia) was used as a positive control. Sterilized distilled water containing 0.1% Tween 80 and 5% DMSO was used as negative control.

3. Results

3.1. Chemical Analysis

As presented in Table 2, the EOs of the under-investigation Hypericum spp., namely H. empetrifolium (HE), H. amblycalyx (HA) and H. jovis (HJ), were complex mixtures; in total 123 individual compounds were identified representing more than 94% of the total EOs, while even the main constituents never exceeded 19% (α-pinene in HE). More specifically, 94.2%, 94.5% and 95.2% of the total EOs were identified regarding HE, HA and HJ, respectively. The main compounds have been revealed as follows: HE: α-pinene (19.0%), germacrene D (12.5%), β-pinene (8.7%), E-caryophyllene (5.3%); HA: β-elemene (17.4%), β-selinene (10.5%), α-pinene (10.2%), E-caryophyllene (8.8%), α-selinene (8.7%); HJ: trans-calamenene (13.5%), α-selinene (8.3%), β-elemene (7.6%). Chemical structures of the most abundant compounds are presented in Figure 2. The under investigation Hypericum spp. yielded EO 0.9%, 0.4% and 0.5 v/w% for HE, HA and HJ respectively, which was calculated in dry weight (Table 1).

3.2. Antimicrobial Activity

The antibacterial and antifungal activities of the three Hypericum EOs are presented as MIC and MBC/MFC in Table 3 and Table 4.

4. Discussion

The three under investigation species contained EOs in low amounts, consistent with previous studies reporting Hypericum as an EO-poor genus [9]. Despite this fact, many studies have been conducted on Hypericum spp. regarding the volatile constituents [9,10,11]; in many cases, the plant material has been collected in Greece [22,23,24,25,26]. Regarding chemotaxonomy, some controversial hypotheses exist; some researchers accept volatile constituents of the genus Hypericum as possible chemotaxonomic markers [27,28] and make use of statistical analysis to divide Hypericum spp. into taxonomic sections [24,29,30], while Crockett [9] mentioned the variability of the EOs from this genus concerning a broader distribution, taxonomic rank or phenological state. Our results are in accordance with the latter author, as both differences and similarities (qualitative and quantitative) were observed between the studied oils. The investigated Hypericum species are closely related taxa, as all belong to the section Coridium; HA and HJ are very close to HE, referred as recent derivatives of the latter and they are considered as the eastern and western member of a species pair, respectively [15]. The Hypericum taxa of the section Coridium (six species in total) are distributed in disjunct geographic areas, except from the derivative taxa of HE in Crete, while the rest of them are totally absent from Greece [15]. HA and HJ are distributed in restricted areas of Crete only, thus being narrow endemic, and this is the first report of the chemical composition of their EOs, although studies have been conducted concerning their content in phloroglucinols derivatives [31,32]. Regarding HE, its populations occupy a wider geographical range: Crete and other Greek Islands, Central Greece, Albania, W. Turkey, Cyrenaica [15,33]. Intraspecific-variability has been observed, in comparison to some previous studies using plant material collected from Mount Parnitha, Attica [21] and Kos Island, Aegean Sea [26]. In those studies, the plant material has also been subjected to hydro-distillation using a Clevenger apparatus [24,26], allowing the comparison of the chemical composition of the EOs. The main compound of the EO from HE was α-pinene (19.0%), a result that is consistent with previous studies for the dominant compound. However, both Petrakis et al. [24] and Fanouriou et al. [26] reported similarly higher percentages (approx. 35%), while the latter study also describes a high amount of iswarane (30.5%), a compound totally absent in the analysis of Petrakis et al. [21], which was revealed in small amounts (2.0%) in our study. The same compound was also identified in HA (2.3%). Generally, the most abundant group of compounds was found to be sesquiterpene hydrocarbons; however, some frequently reported constituents to other Hypericum spp., such as germacrene-D and β-caryophyllene [9,10], were either absent or revealed only in small amounts regarding HA and HJ. Such differences have also been found in the composition of H. perforatum growing wild in Greece [11]. It is noteworthy that HJ was found to be deficient in monoterpene hydrocarbons (0.1%), while this group of compounds was present in HE (36.9%) and HA (15.1%). HA and HJ were also found to be deficient in aliphatic hydrocarbons, like n-nonane, n-decane and n-undecane, which are common compounds in other Hypericum spp. [9,10]; e.g., H. caprifolium and H. myrianthum are characterized by the production of n-nonane and n-undecane, 55% and 20%, respectively [34]. Similar results have been reported for H. coris, the type species of the section Coridium [35]. Finally, H. ericoides, also belonging to the section Coridium, has been studied regarding its EO; however, these studies report quite diverse results, which could be explained by the different extraction methods that have been applied: isolation of the EO from the hexane extract of the plant [36], hydro-distillation [37], and headspace solid phase microextraction [38].
Regarding their anti-microbial potential, the obtained EOs were further subjected to the evaluation of antimicrobial activity in a variety of bacteria and fungi. The selected bacteria were some clinical and food isolates. More specifically, most food-borne illness is caused by infection of Staphylococcus aureus, Bacillus cereus, Listeria monocytogenes, Salmonella typhimurium and Escherichia coli, while S. aureus, Pseudomonas aeruginosa, E. coli give rise to some hospital-acquired infections. The tested fungi of Aspergillus and Penicillium genera are plant, animal and human pathogens, food contaminators and producers of potentially carcinogenic mycotoxins. Penicillium species can produce nephrotoxic, carcinogenic, teratogenic and immunotoxic metabolites, such as ochratoxin A, and contaminate cereals and cereal-based products [39]. Thus, in European countries, P. verrucosum, which produces this mycotoxin, is a major cause of cereal contamination [40]. Therefore, the presence of toxigenic fungi in cereals and food poses a potential risk to human and animal health. Moreover, Aspergillus fumigatus can cause invasive aspergillosis in immunocompromised patients [41]. Regarding the selected Candida species, they are responsible for the fungal infections called candidiasis. C. albicans is the cause for oral and genital infections, while C. krusei is the pathogen for fungemia (bloodstream infection).
According to given results of the antibacterial tests, EOs showed good activity against tested strains, but in variable degree. Minimal inhibitory concentrations ranged between 0.0025–0.030 mg/mL, and minimal bactericidal concentration was 0.005–0.060 mg/mL. All EOs showed higher antibacterial activity in comparison to commercial drugs Ampicillin and Streptomycin. The Gram-negative E. coli and P. aeruginosa were the most sensitive bacteria, since they were inhibited by all tested oils (MIC values in the range of 0.015–0.010 mg/mL). In contrast, the tested oils did not exhibit antibacterial activity against S. typhimurium.
The examined oils were more effective compared to ketoconazole (MIC 0.200–1.500 mg/mL and MFC 0.500–2.000 mg/mL), a commercially available fungicide used as positive control. The most sensitive fungi were the yeasts C. tropicalis and C. krusei with MIC 0.001–0.010 mg/mL and MFC 0.002–0.030 mg/mL. No remarkable activity was detected against A. niger and C. albicans.
Generally, among all tested essential oils, antimicrobial potential could be presented as following: HA > HJ > HE. The Hypericum EOs possessed better antifungal and anticandidal activities than antibacterial activities, with MIC values ranging between 0.001 mg/mL to 0.030 mg/mL, whereas fungicidal activates were within the 0.002 mg/mL−0.060 mg/mL range. Their inhibition and bactericidal/fungicidal concentrations (<100 mg/mL) indicate a good potency level as antibiotics [42], and support their use in the traditional medicine against diseases caused by different species of microorganisms. This is in accordance with previous reports on the antimicrobial activities of EOs from the genus Hypericum, and could be explained due to the presence of α-pinene, β-pinene and (E)-caryophyllene, which are known for their antimicrobial effects [11].

Author Contributions

Conceptualization, M.-E.G. and H.S.; Formal analysis, M.-E.G. and A.D.; Investigation, M.-E.G., A.D. and A.Ć.; Resources, E.A. and Z.K.; Supervision, H.S.; Writing—original draft, M.-E.G.; Writing—review and editing, A.Ć., M.S. and H.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research is in part co-financed by Greece and the European Union (European Social Fund-ESF) through the Operational Programme “Human Resources Development, Education and Lifelong Learning” in the context of the project “Strengthening Human Resources Research Potential via Doctorate Research” (MIS-5000432), implemented by the State Scholarships Foundation (ΙΚΥ).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Crockett, S.L.; Robson, N.K.B. Taxonomy and chemotaxonomy of the genus Hypericum. Med. Aromat. Plant Sci. Biotechnol. 2012, 5, 1–13. [Google Scholar]
  2. Totelin, L.M.V. Hippocratic Recipes: Oral and Written Transmission of Pharmacological Knowledge in Fifth- and Fourth-Century Greece. In Studies in Ancient Medicine; Brill: Leiden, The Netherlands, 2009. [Google Scholar]
  3. Dioscorides, P. Des Pedanios Dioskurides aus Anazarbos Arzneimittellehre in Fünf Büchern: Übersetzt und Mit Erklärungen Versehen von Prof. Dr. J. Berendes; Ferdinand Enke: Stuttgart, Germany, 1902. [Google Scholar]
  4. Valiakos, E.; Marselos, M.; Sakellaridis, N.; Constantinidis, T.; Skaltsa, H. Ethnopharmacological approach to the herbal medicines of the “Antidotes ” in Nikolaos Myrepsos’ Dynameron. J. Ethnopharmacol. 2015, 163, 68–82. [Google Scholar] [CrossRef]
  5. Valiakos, E.; Marselos, M.; Sakellaridis, N.; Constantinidis, T.; Skaltsa, H. Ethnopharmacological approach to the herbal medicines of the “Elements Alpha to Delta” in Nikolaos Myrepsos’ Dynameron. Part II. J. Ethnopharmacol. 2017, 205, 246–260. [Google Scholar] [CrossRef] [PubMed]
  6. HMPC. Community Herbal Monograph On Hypericum perforatum L., Herba (Well-Established Medicinal Use). Available online: https://www.ema.europa.eu/en/documents/herbal-monograph/final-community-herbal-monograph-hypericum-perforatum-l-herba-well-established-medicinal-use_en.pdf (accessed on 20 March 2019).
  7. European Commission. Opinion of the Scientific Committee on Food on the Presence of Hypericin and Extracts of Hypericum sp. in Flavourings and Other Food Ingredients with Flavouring Properties. Available online: https://ec.europa.eu/food/sites/food/files/safety/docs/fs_food-improvement-agents_flavourings-out113.pdf (accessed on 20 February 2019).
  8. Avato, P. A Survey on the Hypericum Genus: Secondary Metabolites and Bioactivity. Stud. Nat. Prod. Chem. 2005, 30, 603–634. [Google Scholar] [CrossRef]
  9. Crockett, S.L. Essential Oil and volatile components of the genus Hypericum (Hypericaceae). Nat. Prod. Commun. 2010, 5, 1493–1506. [Google Scholar] [CrossRef] [Green Version]
  10. Bertoli, A.; Cirak, C.; Teixeira da Silva, J.A. Hypericum species as sources of valuable essential oils. MAPSB 2011, 5, 29–47. [Google Scholar]
  11. Guedes, A.P.; Franklin, G.; Fernandes-ferreira, M. Hypericum sp.: Essential oil composition and biological activities. Phytochem. Rev. 2012, 11, 127–152. [Google Scholar] [CrossRef] [Green Version]
  12. Rouis, Z.; Laamari, A.; Abid, N.; Elaissi, A.; Cioni, P.L.; Flamini, G.; Aouni, M. Chemical composition and larvicidal activity of several essential oils from Hypericum Species from Tunisia. Parasitol. Res. 2013, 112, 699–705. [Google Scholar] [CrossRef]
  13. Rouis, Z.; Abid, N.; Koudja, S.; Yangui, T.; Elaissi, A.; Cioni, P.L.; Aouni, M. Evaluation of the cytotoxic effect and antibacterial, antifungal, and antiviral activities of Hypericum triquetrifolium Turra essential oils from Tunisia. BMC Complement. Altern. Med. 2013, 13, 24. [Google Scholar] [CrossRef] [Green Version]
  14. Wagan, T.; Hu, D.; He, Y.; Nawaz, M.; Nazir, Y.; Mabubu, J.I.; Hua, H. Repellency of three plant essential oils against Red Flour Beetle Tribolium castaneum (Herbst, 1797) (Coleoptera: Tenebrionidae). Turk. Entomol. Derg. 2016, 40, 347–354. [Google Scholar] [CrossRef] [Green Version]
  15. Robson, N.K.B. Studies in the Genus Hypericum L (Hypericaceae) 5 (2). Sections 17. Hirtella to 19. Phytotaxa 2010, 4, 127–258. [Google Scholar] [CrossRef]
  16. Scientific Committee of the Hellenic Pharmacopoeia. Hellenic Pharmacopoeia, 5th ed.; National Organization for Medicines of Greece: Athens, Greece, 2002; Chapter 28.12.
  17. Van Den Dool, H.; Kratz, P.D. A generalization of the retention index system including linear temperature programmed gas—Liquid partition chromatography. J. Chromatogr. A 1963, 11, 463–471. [Google Scholar] [CrossRef]
  18. Adams, R.P.M. Identification Of Essential Oil Components By Gas Chromatography/Mass Spectrometry, 4.1 ed.; Allured Publishing: Carol Stream, IL, USA, 2017. [Google Scholar]
  19. Espinel-Ingroff, A. A comparison of the E-test with the NCCLS M38-P method for antifungal susceptibility testing of common and emerging pathogenic filamentous fungi. J. Clin. Microbiol. 2001, 39, 1360–1367. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Clinical and Laboratory Standards Institute. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria that Grow Aerobically, 8th ed.; CLSI publication M07-A8; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2009. [Google Scholar]
  21. Tsukatani, T.; Suenaga, H.; Shiga, M.; Noguchi, K.; Ishiyama, M.; Ezoe, T.; Matsumoto, K. Comparison of the WST-8 colorimetric method and the CLSI broth microdilution method for susceptibility testing against drugre sistant bacteria. J. Microbiol. Methods 2012, 90, 160–166. [Google Scholar] [CrossRef] [PubMed]
  22. Couladis, M.; Baziou, P.; Petrakis, P.V.; Harvala, C. Essential Oil Composition of Hypericum perfoliatum L. Growing in Different Locations in Greece. Flavour Fragr. J. 2001, 16, 204–206. [Google Scholar] [CrossRef]
  23. Couladis, M.; Chinou, I.B.; Tzakou, O.; Petrakis, P.V. Composition and antimicrobial activity of the essential oil of Hypericum rumeliacum subsp. apollinis (Boiss. & Heldr.). Phytother. Res. 2003, 17, 152–154. [Google Scholar] [CrossRef] [PubMed]
  24. Petrakis, P.V.; Couladis, M. A method for detecting the biosystematic significance of the essential oil composition: The Case of Five Hellenic Hypericum L. Species. Biochem. Syst. Ecol. 2005, 33, 873–898. [Google Scholar] [CrossRef]
  25. Pavlovic, M.; Tzakou, O.; Petrakis, P.V.; Couladis, M. The Essential Oil of Hypericum Perforatum L. Hypericum tetrapterum Fries and Hypericum olympicum L. growing in Greece. Flavour Fragr. J. 2006, 21, 84–87. [Google Scholar] [CrossRef]
  26. Fanouriou, E.; Kalivas, D.; Daferera, D.; Tarantilis, P.; Trigas, P. Hippocratic Medicinal Flora on the Greek Island of Kos: Spatial distribution, assessment of soil conditions, essential oil content and chemotype analysis. J. Appl. Res. Med. Aromat. Plants. 2018, 9, 97–109. [Google Scholar] [CrossRef]
  27. Mathis, C.; Ourisson, G. Étude chimio-taxonomique du genre Hypericum: II. Identification de constituants de diverses huiles essentielles d’Hypericum. Phytochemistry 1964, 3, 115–131. [Google Scholar] [CrossRef]
  28. Mathis, C.; Ourisson, G. Étude chimio-taxonomique du genre Hypericum: III. Répartition des carbures saturés et des monoterpènes dans les huiles essentielles d’Hypericum. Phytochemistry 1964, 3, 133–141. [Google Scholar] [CrossRef]
  29. Nogueira, T.; Marcelo-Curto, M.J.; Figueiredo, A.C.; Barroso, G.; Pedro, L.G.; Rubiolo, P.; Bicchi, C. Chemotaxonomy of Hypericum genus from Portugal: Geographical distribution and essential oils composition of Hypericum perfoliatum, Hypericum humifusum, Hypericum linarifolium and Hypericum pulchrum. Biochem. Syst. Ecol. 2008, 36, 40–50. [Google Scholar] [CrossRef]
  30. Smelcerovic, A.; Spiteller, M.; Patrick, A.; Smelcerovic, Z.; Raabe, N. Essential oil composition of Hypericum L. species from southeastern serbia and their chemotaxonomy. Biochem. Syst. Ecol. 2007, 35, 99–113. [Google Scholar] [CrossRef]
  31. Winkelmann, K.; San, M.; Kypriotakis, Z.; Skaltsa, H. Antibacterial and cytotoxic activity of prenylated bicyclic acylphloroglucinol derivatives from Hypericum amblycalyx. Z Naturforsch C 2003, 58, 527–532. [Google Scholar] [CrossRef]
  32. Athanasas, K.; Magiatis, P.; Fokialakis, N.; Skaltsounis, A.L.; Pratsinis, H.; Kletsas, D. Hyperjovinols A and B: Two New Phloroglucinol Derivatives from Hypericum jovis with antioxidant activity in cell cultures. J. Nat. Prod. 2004, 67, 973–977. [Google Scholar] [CrossRef]
  33. Strid, A. Atlas of the Aegean Flora; Botanic Garden and Botanical Museum Berlin, Freie Universität Berlin: Berlin, Germany, 2016; Volume 3, p. 921800. [Google Scholar]
  34. Ferraz, A.B.F.; Limberger, R.P.; Bordignon, S.A.L.; Von Poser, G.L.; Henriques, A.T. Essential Oil composition of six Hypericum species from Southern Brazil. Flavour Frag. J. 2005, 20, 335–339. [Google Scholar] [CrossRef]
  35. Schwob, I.; Bessiere, J.M.; Dherbomez, M.; Viano, J. Composition and Antimicrobial Activity of the Essential Oil of Hypericum coris. Fitoterapia 2002, 73, 511–513. [Google Scholar] [CrossRef]
  36. Cardona, M.L.; Marco, J.A.; Sendra, J.M.; Seoane, E.; Ibañez, J.T. Waxes and Volatile Oils in Hypericum ericoides (Guttiferae). Lipids 1983, 18, 439–442. [Google Scholar] [CrossRef]
  37. Hosni, K.; Msaâda, K.; Taârit, M.B.; Chahed, T.; Marzouk, B. Volatile Constituents of two Hypericum species from Tunisia. Nat. Prod. Commun. 2011, 6, 1731–1734. [Google Scholar] [CrossRef] [Green Version]
  38. Rouis, Z.; Elaissi, A.; Abid, N.; Lassoued, M.A. Volatile Components of Hypericum humifusum, Hypericum perforatum and Hypericum ericoides by HS-SPME-GC and HS-SPME-GCMS Using Nano Scale Injection Techniques. Dig. J. Nanomater. Bios. 2011, 6, 1919–1928. [Google Scholar]
  39. Moss, M.O. Mycotoxin review—1. Aspergillus and Penicillium. Mycologist 2002, 16, 1–4. [Google Scholar] [CrossRef]
  40. Cabañes, F.J.; Bragulat, M.R.; Castellá, G. Ochratoxin A Producing Species in the Genus Penicillium. Toxins 2010, 2, 1111–1120. [Google Scholar] [CrossRef]
  41. Latgé, J. The pathobiology of Aspergillus fumigatus. Trends Microbiol. 2001, 9, 382–389. [Google Scholar] [CrossRef]
  42. Kuete, V. Potential of Cameroonian plants and derived products against microbial infections: A review. Planta Medica 2010, 76, 1479–1491. [Google Scholar] [CrossRef] [PubMed] [Green Version]

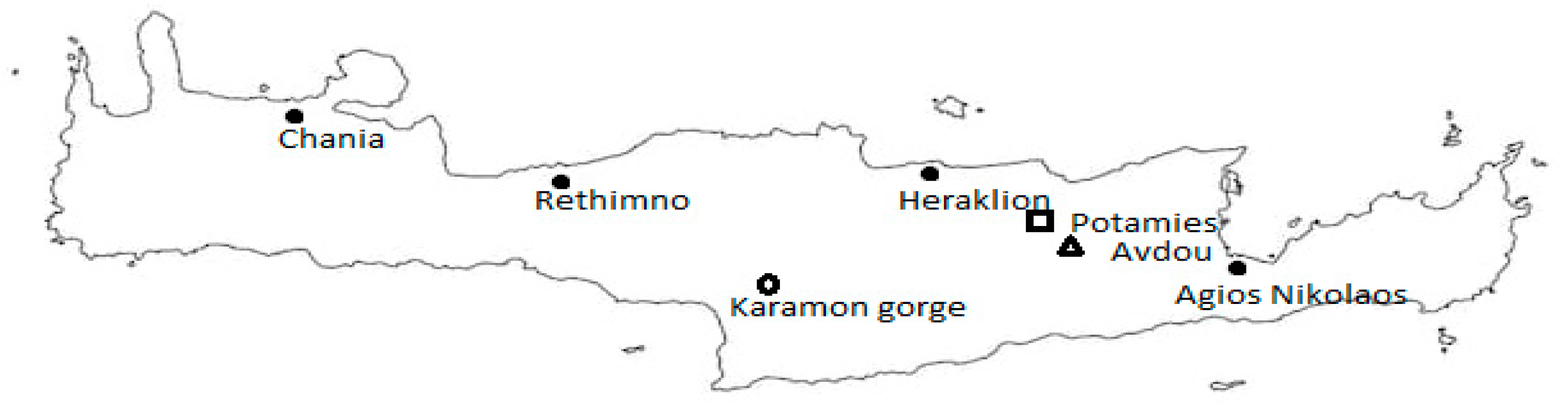

Figure 1. Collection sites of the three under-investigation Hypericum spp.; Map of Crete, Greece; ○ H. jovis, □ H. empetrifolium,H. amblycalyx.
Figure 1. Collection sites of the three under-investigation Hypericum spp.; Map of Crete, Greece; ○ H. jovis, □ H. empetrifolium,H. amblycalyx.
Applsci 10 02823 g001

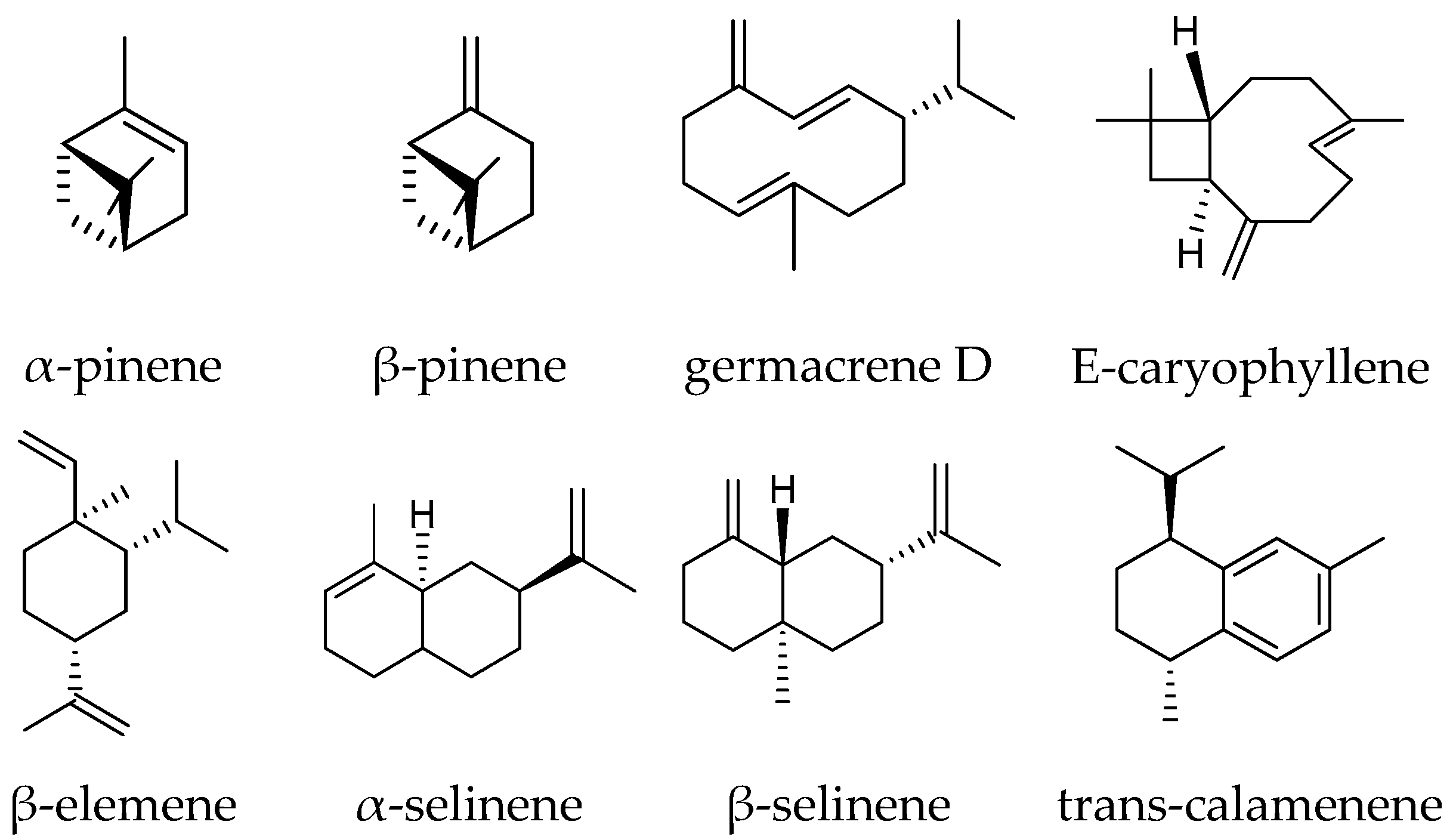

Figure 2. Chemical structures of the most abundant compounds.
Figure 2. Chemical structures of the most abundant compounds.
Applsci 10 02823 g002
Table 1. Collection sites, dates and essential oil yield of the three under-investigation Hypericum spp.
Table 1. Collection sites, dates and essential oil yield of the three under-investigation Hypericum spp.
Hypericum spp.AbbreviationsCollection SitesDate of CollectionEO Yield
(% v/dry Weight)
H. empetrifolium Willd.HEPotamies Village, Heraklion, Crete; altitude: 215 m13/05/20180.9
H. amblycalyx Coustur. and GandHAAvdou Village, Heraklion, Crete; altitude: 520 m13/05/20180.4
H. jovis GreuterHJKamaron gorge, Crete; altitude: 680 m22/06/20170.5
Table 2. Qualitative and quantitative composition (% v/v) of EOs.
Table 2. Qualitative and quantitative composition (% v/v) of EOs.
CompoundsRIHEHAHJ
1(3E)-2.3-dimethylhepta-1.3-diene9020.2--
2α-thujene9131.0--
3α-pinene92819.010.2-
4α-fenchene9380.50.1-
5camphene9400.30.3-
63-methyl-nonane9623.5--
7β-pinene9728.71.5-
86-methyl-5-hepten-2-one979-0.10.1
9myrcene9841.80.5
10hexenyl acetate985--0.1
11n-decane9940.2--
12α-phellandrene1001tr--
13α-terpinene10110.1--
14p-cymene10180.80.2-
15limonene10221.61.20.1
16cis-ocimene10300.70.2-
17trans-ocimene10401.90.5-
18γ-terpinene10500.30.1tr
192-methyl-decane10561.8--
20terpinolene10800.20.2-
21n-undecane10941.02.01
22n-nonanal1097-0.20.2
23endo-fenchol11080.20.1
24α-campholenal11190.1--
25allo-ocimene11280.1--
26trans-pinocarveol11290.20.2-
27neo-allo-ocimene1133-0.1-
28trans-verbenol11350.2--
29camphor1137tr--
30camphene hydrate1141tr--
31isoborneol11520.1--
32pinocarvone1153-0.2-
33borneol11580.30.3-
343-methyl-undecane1162---
35terpinen-4-ol11670.1--
36α-terpineol11810.20.5-
37myrtenol11860.2--
38verbenone11980.1--
39citronellol1219tr--
40linalool acetate12460.4--
412-undecanone12850.1--
42tridecane12900.1--
43carvacrol1292-0.2-
44α-longipinene13372.10.3-
45α-cubebene1338--0.4
46cyclosativene1359--0.2
47α-ylangene13600.3-0.6
48α-copaene13630.40.20.6
49β-bourbonene13700.4--
50geranyl acetate13730.1--
51β-cubebene13760.1--
52β-elemene13800.217.47.6
53β-longipinene13840.3--
54α-cedrene13890.1--
55E-caryophyllene14065.38.82.9
56β-cedrene14090.90.20.5
57β-gurjunene14240.50.30.2
58aromadendrene14300.60.70.7
59α-himachalene14330.4--
60α-humulene14370.61.22.1
61E-β-farnesene14451.6-2.8
62allo-aromadendrene 14500.4--
63cis-cadina-1(6).4-diene1453--0.1
64ishwarane14532.02.3-
654,5 di-epi-aristolochene 1453-0.3-
66γ-muurolene14610.73.56.2
67germacrene D146612.52.93.7
68β-selinene14731.010.510
69valencene1476-0.6-
70α-selinene14801.08.78.3
71α-muurolene14830.82.15.6
72β-himachalene1485-2.0-
73epizonarene1488--6.5
74trans-β-guaiene 1492--0.3
75E.E-alpha-farnesene14920.8--
76δ-amorphene1494-0.11.6
77γ-cadinene14961.50.54.5
787-epi-α-selinene 1499-0.40.2
79δ-cadinene15063.1--
80trans-calamenene 1508-4.413.5
81γ-dehydro-ar-himachelene 1514--1.2
82cadina-1.4-diene15140.2-0.3
83α-cadinene15190.40.10.3
84α-calacorene15240.10.21.5
85β-calacorene 1544tr-0.3
86E-nerolidol15470.5--
873Z-hexenyl-benzoate15530.10.30.2
88himachalene epoxide1556---
89spathulenol15581.5--
90caryophyllene oxide15631.81.21.1
91cubeban-11-ol15730.1--
92salvial-4(14)-en-1-one1574--0.3
93viridiflorol15780.2-0.4
94rosifoliol15810.3--
95humulene epoxide II1589tr-0.3
96junenol15970.30.20.2
97cubenol 1.10-di-epi1608-0.2-
981-epi-cubenol16080.1--
99epi-α-cadinol 1609--0.5
100caryophylla-4(12).8(13)-dien-5-alpha-ol1619-0.4-
101cubenol16200.5-0.3
102τ-muurolol16262.30.51.3
103Torreyol = α-muurolol 16320.50.20.4
104β-eudesmol1635--0.2
105epoxide-allo-aromadendrene 1637---
106α-cadinol 16400.8-1.9
107selin-11-en-4-α-ol1643-3.8-
108cis-calamenen-10-ol 1647--0.2
109intermedeol1652-0.4-
110calamenen-10-ol trans16560.2--
11114-hydroxy-9-epi-E-caryophyllene 1661--0.3
112cadalene1664tr-0.6
113germacra-4(15).5.10(14)-trien-1-α-ol1665-0.10.2
114eudesma-4(15).7-dien-1β-ol1676--0.9
115amorpha-4.9-dien-2-ol1703--0.5
116nootkatol1710--0.2
117γ-costol1714-0.60.5
118cyclocolorenone1743-0.20.3
119benzyl-benzoate17570.1--
1206.10.14-trimethyl-pentadec-2-one1843--0.2
121n-hexadecanol18770.3--
122nonadecane18980.1--
123heneicosane20970.1--
Total identification 94.294.595.2
[ α ] D 20 −14.891.13−1.66
(c 0.10)(c 1.06)(c 0.48)
Grouped ComponentsHEHAHJ
Monoterpene hydrocarbons36.915.10.1
Oxygenated monoterpenes2.11.40
Sesquiterpene hydrocarbons38.367.983.3
Oxygenated sesquiterpenes9.27.610.0
Others7.62.51.8
Components listed in order of elution from a HP 5MS column. RI: Retention indices calculated against C9–C25 n-alkanes on the HP 5MS column; tr: traces; concentrations below 0.01% are marked as -.
Table 3. Antibacterial activity of Hypericum EOs mg/mL.
Table 3. Antibacterial activity of Hypericum EOs mg/mL.
BacteriaHJ
MIC
MBC
HE
MIC
MBC
HA
MIC
MBC
Streptomycin
MIC
MBC
Ampicilin
MIC
MBC
Staphylococcus aureus0.015
0.030
0.030
0.060
0.015
0.030
0.05
0.10
0.25
0.40
Bacillus cereus0.0075
0.015
0.015
0.030
0.0025
0.0050
0.10
0.20
0.25
0.40
Listeria monocytogenes0.020
0.040
-0.010
0.020
0.20
0.40
0.40
0.50
Pseudomonas aeruginosa0.0015
0.0030
0.005
0.010
0.0025
0.0050
0.20
0.40
0.75
1.25
Salmonella typhimurium---0.20
0.40
0.40
0.50
Escherichia coli0.0015
0.0030
0.010
0.015
0.0025
0.0050
0.20
0.40
0.25
0.50
-: the determination of the MIC and MBC values was not possible since expected MIC and MBC values were not in the tested range of concentrations (0.16 mg/mL).
Table 4. Antifungal activity of Hypericum EOs mg/mL.
Table 4. Antifungal activity of Hypericum EOs mg/mL.
FungiHJ
MIC
MFC
HE
MIC
MFC
HA
MIC
MFC
Ketoconazole
MIC
MFC
Aspergillus fumigatus0.015
0.030
0.030
0.060
0.010
0.020
0.20
0.50
Aspergillus niger---0.20
0.50
Penicillium funiculosum0.015
0.030
0.030
0.060
0.010
0.020
1.50
2.00
Penicillium verucosum0.025
0.05
0.030
0.060
0.010
0.020
0.20
0.50
Candida albicans-0.005
0.010
-0.50
1.00
Candida tropicalis0.010
0.030
0.001
0.002
0.005
0.010
0.30
0.50
Candida krusei0.010
0.030
0.001
0.002
0.005
0.010
0.50
1.00
-: the determination of the MIC and MFC values was not possible since expected MIC and MFC values were not in the tested range of concentrations (0.16 mg/mL).

Share and Cite

MDPI and ACS Style

Grafakou, M.-E.; Diamanti, A.; Antaloudaki, E.; Kypriotakis, Z.; Ćirić, A.; Soković, M.; Skaltsa, H. Chemical Composition and Antimicrobial Activity of the Essential Oils of Three Closely Related Hypericum Species Growing Wild on the Island of Crete, Greece. Appl. Sci. 2020, 10, 2823. https://doi.org/10.3390/app10082823

AMA Style

Grafakou M-E, Diamanti A, Antaloudaki E, Kypriotakis Z, Ćirić A, Soković M, Skaltsa H. Chemical Composition and Antimicrobial Activity of the Essential Oils of Three Closely Related Hypericum Species Growing Wild on the Island of Crete, Greece. Applied Sciences. 2020; 10(8):2823. https://doi.org/10.3390/app10082823

Chicago/Turabian Style

Grafakou, Maria-Eleni, Aggeliki Diamanti, Eleftheria Antaloudaki, Zacharias Kypriotakis, Ana Ćirić, Marina Soković, and Helen Skaltsa. 2020. "Chemical Composition and Antimicrobial Activity of the Essential Oils of Three Closely Related Hypericum Species Growing Wild on the Island of Crete, Greece" Applied Sciences 10, no. 8: 2823. https://doi.org/10.3390/app10082823

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
