Removal of Chromium from Synthetic Wastewater Using Modified Maghemite Nanoparticles

Abstract

The main aim of this study was to ascertain the removal of chromium ions from synthetic wastewater using modified maghemite nanoparticles (MNPs). Commercially available maghemite nanoparticles (NPs) (< 50 nm) were modified using sodium dodecyl sulfate (SDS). The MNPs were characterized using a powder X-ray diffractometer (XRD) and Fourier transform infrared spectrophotometer (FTIR). Statistically designed batch experiments were carried out to evaluate the effects of various parameters, namely the pH of the solution, initial chromium concentration, and adsorbent dose, on the chromium removal efficiency (RE). The results from this study showed that the adsorbent dose had a synergistic effect on chromium RE, while pH and initial chromium concentration had antagonistic effects on the RE. An optimal chromium RE of 95.8% was obtained at pH = 2.6, adsorbent dose = 5 g/L, and initial chromium concentration = 20 mg/L. The analysis of variance (ANOVA) results showed that the model was significant, with high F value (F = 80.07) and low P value (P = < 0.001). Based on the results obtained from the experiments, the MNPs could be exploited as an efficient adsorbent for chromium removal from wastewater.

1. Introduction

The three most common forms of chromium that exist in our environment are metallic (Cr⁰), trivalent (Cr⁺³), and hexavalent (Cr⁺⁶). Metallic chromium does not occur naturally in elemental form. Trivalent chromium ion, Cr (III), is found in trace amounts in humans and is an essential nutrient for insulin, sugar, and lipid metabolism. Hexavalent chromium species (Cr⁺⁶) are highly toxic agents that act as carcinogens, mutagens, and teratogens in different biological systems [1]. Hexavalent chromium is included in the World Health Organization’s (WHO) list of 10 chemicals of major public health concern and the maximum level of total chromium in drinking water has been set as 0.05 mg/L [2]. The United States Environmental Protection Agency (USEPA) prescribes that the levels of chromium in water should be reduced to 0.1 mg/L using appropriate technologies [3].

Hexavalent chromium (Cr⁺⁶) usually exists in wastewater in the form of oxyanions, such as chromate (CrO₄^2-) and dichromate (Cr₂O₇^2-), and does not precipitate easily using ordinary precipitation techniques. Cr(VI), a hazardous material, is also found in solution as the monomeric ions H₂CrO₄⁰, HCrO₄⁻ (bichromate), and CrO₄²⁻ (chromate), or as the dimeric ion Cr₂O₇²⁻ (dichromate) [4,5]. According to the literature, chemical redox followed by precipitation can be applied for Cr⁺⁶ removal from contaminated water streams [6].

In this work, adsorption technology was considered as the most promising technique for chromium removal from industrial wastewater. Hu et al. [7] reported the removal of chromium from industrial wastewater using maghemite nanoparticles as the adsorbent. This technique has been used in many industrial case studies, whereby various adsorbents were found to be effective for heavy metal removal [1,8,9]. In principle, adsorption not only removes heavy metals but also recoups and recycles them back into the industrial process [10]. The adsorbed material, which is either toxic or valuable, is recouped in a concentrated form for disposal or reuse. The solid adsorbent can often be regenerated for reuse [11]. Several natural and synthetic materials have been used as Cr(VI) adsorbents, such as activated carbons, biological materials, zeolites, chitosan, and industrial wastes [12,13,14]. However, these adsorbents also have several disadvantages and limitations, including high cost, low adsorption capacity, and difficulties associated with the separation and removal following the treatment steps. Therefore, in this study, maghemite (γ-Fe₂O₃) was used as the adsorbent because of its high surface area, magnetic properties, and chemical stability [15]. Maghemite, a common magnetic material, is a promising environmentally friendly adsorbent for heavy metal removal because it is inexpensive, readily available, and it can be easily separated and recovered [16,17,18].

Various surface modification techniques have been used to suitably modify surface properties and study the resultant changes in adsorption efficiency. Nanoparticles (NPs) have been of special interest to researchers and scholars due to their magnetic properties, availability, and susceptibility to modification. For example, bentonite-supported zero-valent iron nanoparticles and imine functionalized magnetic nanoparticles have been exploited for the removal of Cr (VI) from landfill leachate and Zn²⁺ and As³⁺ from wastewater, respectively [19,20]. Based on a preliminary literature review, it was noticed that sodium dodecyl sulfate (SDS), a common synthetic anionic surfactant, has never been used before with NPs for heavy metal ion removal, despite its proven potential for substantially and suitably altering the surface properties of nanoparticles. In this study, the adsorption potential of NPs modified with SDS for chromium heavy metal ions was investigated.

NPs have been used in various fields, such as in cleaning applications, lubrication, stabilization of emulsions, preparation of nano- and microparticles, and even as model systems for biological membranes in protein research [21,22]. SDS molecules contain a 12-carbon saturated alkyl chain bound to a negatively charged sulfonate head (-OSO₃^-), and therefore are structurally comparable to many bio-surfactants [23]. This makes them suitable for adsorption over the maghemite surface. To the best of our knowledge, NPs modified with SDS have not been used so far to study Cr⁺⁶ removal from wastewater. The main objectives of this study were to investigate the adsorption efficiency of modified maghemite nanoparticles (MNPs) for chromium removal and to determine their viability as an alternative for chromium removal from wastewater. The specific objectives of the present work are: (i) to synthesize MNPs using SDS and characterize them using XRD and FTIR; (ii) to determine the optimal process conditions for enhanced chromium removal; and (iii) to study the effects of pH, adsorbent dosage, and initial concentration on chromium removal using MNPs.

2. Materials and Methods

2.1. Sample Preparation

Stock solution of chromium was prepared using 2.829 g of analytical grade K₂Cr₂O₇ (Nice Chemicals, Chennai, India). This was dissolved in double-distilled water forming 250 mg/L of chromium stock solution and used within a month of preparation [24]. The sample chromium solutions for all experiments were prepared by diluting the stock solution with distilled water to achieve the desired concentration levels. The required pH was adjusted by using either 0.1 N HCl or NaOH.

2.2. Adsorbent Preparation and Characterization

The NPs obtained from Sigma-Aldrich (Bengaluru, India), after suitable modification, were used as the adsorbent. SDS was used to modify the surface characteristics of NPs, according to the method described elsewhere [25]. In this method, different volumes of 5% (w/v) SDS solution (1, 2, 3, and 4 mL) were tested to identify the most effective concentration for chromium removal. The SDS solution was added to 0.1 g of NPs and stirred for 90 s. Thereafter, the MNPs were separated using magnetic decantation and then washed with double-distilled water (4 times). After this step, drying was done overnight at 60 °C in a hot air oven. The dried particles were crushed in a mortar and pestle (made of marble to avoid any external particle contamination).

To determine the suitable SDS concentration, the NPs (0.1 g) were added to 10 mL samples of 2000 mg/L of chromium solution at pH = 5.0 in a 250 mL flask and placed in an orbital shaker at 200 rpm, at ~35 °C room temperature for 30 min [26]. Thereafter, magnetic decantation was done to the samples and the resulting solution was stored for further analysis. The concentration of chromium was determined using atomic absorption spectroscopy (AAS). It was observed that the most effective SDS concentration for chromium removal was 2 mL. Hence, the NPs modified using 2 mL SDS were selected as the model adsorbent in this study.

FTIR analysis (IR Affinity-1 spectrophotometer, Japan) was done to determine the specific functionality of the NPs (Figure 1a) and MNPs (Figure 1b), respectively, in transmission mode. An average of 5 scans was collected for each measurement in the range of 400–4000 cm^-1. The crystalline structure of these nanoparticles was characterized by XRD analysis (T-8 Brooker Advanced, Germany), operated at 30 kV and a current of 40 mA with Cu-Kα radiation (λ = 0.154 nm). A scan mode was used to collect the 2θ data from 20° to 90°.

2.3. Batch Adsorption Experiment and Chromium Analysis

Batch experiments were conducted in 250 mL conical flasks (in duplicates) containing 20 mL of chromium solution of the desired concentration. Predetermined concentrations of adsorbents were added to these flasks. All the experiments were performed in an orbital shaker at room temperature (~35 °C) and 200 rpm. The pH of the solution was monitored using a digital pH meter (Orion 3-star, Thermo Electron Corporation, USA). Based on the results from preliminary kinetic studies, a stirring time of 80 min was selected as the equilibrium time. Upon completion of the experiments, the separation of the liquid phase from the spent adsorbent was achieved by filtration using Whatman 42 (2.5 µm) filter paper. The chromium concentration in the filtrate was measured using an atomic absorption spectrometer (Varian SPECTRA A240, USA). The current was 7.0 mA, with the detection wavelength set at 357.9 nm and with a slit bandwidth of 0.2 nm, as recommended by the manufacturer. The percentage of chromium removal was calculated using Equation (1):

$$RE(\%)=\frac{C_0-C_e}{C_0}\times 100$$

(1)

where RE is the chromium removal efficiency (%), C₀ and C_e are the initial and final or equilibrium concentrations in the solution (mg/L), respectively.

The adsorption equilibrium time was determined through preliminary experiments at an initial concentration of 20 mg/L, pH of 6.0, and at room temperature over a period of 120 min. The optimal contact time was found to be 80 min. Then, 10 mL of solution was taken in six conical flasks of 250 mL capacity and 0.05 g of MNPs were added to the solution. The flasks were taken out at regular intervals from the shaker, as stated above, and the solution was separated using the standard magnetic decantation procedure.

2.4. Experimental Design and Optimization of Parameters

The experiment was designed with pH, adsorbent dose, and initial concentration as the independent variables and the chromium RE as the dependent response variable. The pH and adsorbent dose ranges were selected based on previous research works [24,27]. The initial concentration was selected based on the prevailing chromium contamination in ground water in the surrounding areas [28]. In this work, a full-factorial central composite design (CCD) consisting of a complete 2^k factorial design, n₀ center point (n₀ > 1), and two axial points on the axis of each design variable at a distance of α = 1.682 from the design center was used [27]. Thus, a total of N = 2^k + 2k + n₀ (where k stands for number of factors and n₀ for the number of times center point was replicated) design points was used in this work (k = 3, n₀ = 6). The center point replicates were chosen to verify any change in the estimation procedure as a measure of the precision property. The independent variables, experimental range, and levels for chromium removal are given in

Table 1. Experimental variables and levels investigated by central composite design (CCD).

Variables	Coded Values
	−1.682	−1	0	1	1.682
pH (X1)	2.6	4	6	8	9.4
Adsorbent dose (X2, g/L)	0.8	2.5	5	7.5	9.2
Initial chromium concentration (X3, mg/L)	3.2	10	20	30	36.8

. The optimum values of the test variables were obtained using the numerical point prediction tool in MINITAB (Version 16, PA, USA).

The experimental design matrix is shown in

Table 2. Experimental design matrix and results for adsorption of chromium.

Run	Actual Level of Factors			Coded Level of Factors			Chromium RE (%)
	X1	X2 (g/L)	X3 (mg/L)	X1	X2	X3	Experimental	Predicted
1	4	2.5	10	−1	−1	−1	80.54	84.38
2	8	2.5	10	1	−1	−1	69.79	69.87
3	4	7.5	10	−1	1	−1	92.72	94.54
4	8	7.5	10	1	1	−1	90.36	89.56
5	4	2.5	30	−1	−1	1	67.46	67.44
6	8	2.5	30	1	−1	1	52.35	49.72
7	4	7.5	30	−1	1	1	93.82	92.92
8	8	7.5	30	1	1	1	82.2	77.54
9	2.64	5	20	−1.682	0	0	95.48	93.94
10	9.36	5	20	1.682	0	0	73.95	74.85
11	6	0.795	20	0	−1.682	0	49.58	49.69
12	6	9.204	20	0	1.682	0	88.34	87.69
13	6	5	3.182	0	0	−1.682	92.81	91.28
14	6	5	36.82	0	0	1.682	72.15	72.98
15	6	5	20	0	0	0	80.85	80.99
16	6	5	20	0	0	0	80.89	80.99
17	6	5	20	0	0	0	80.84	80.99
18	6	5	20	0	0	0	80.87	80.99
19	6	5	20	0	0	0	83.49	80.99
20	6	5	20	0	0	0	81.02	80.99

. Experiments 15–20 at the center point were used to calculate the experimental error, consistent with the sequential model sum of squares. The model selection was based on the highest order polynomials wherever the additional terms were important, and also because the models were not aliased. RSM was used to develop a correlation between the adsorption of chromium from solution to the adsorption of chromium by the MNPs. The data obtained from the experiments were used to fit a complete quadratic polynomial model through the CCD experiment, which helped to interpret the results in a statistically significant manner.

Commonly used statistical analysis tests were performed on the experimentally obtained % removal of chromium for the analysis of variance (ANOVA) to determine the variables that have a significant effect, i.e., either antagonistic or synergistic [29]. The response surface and contour plots were also obtained using the software by choosing appropriate internal settings for the process parameters.

3. Results

3.1. Characterization of NPs and MNPs

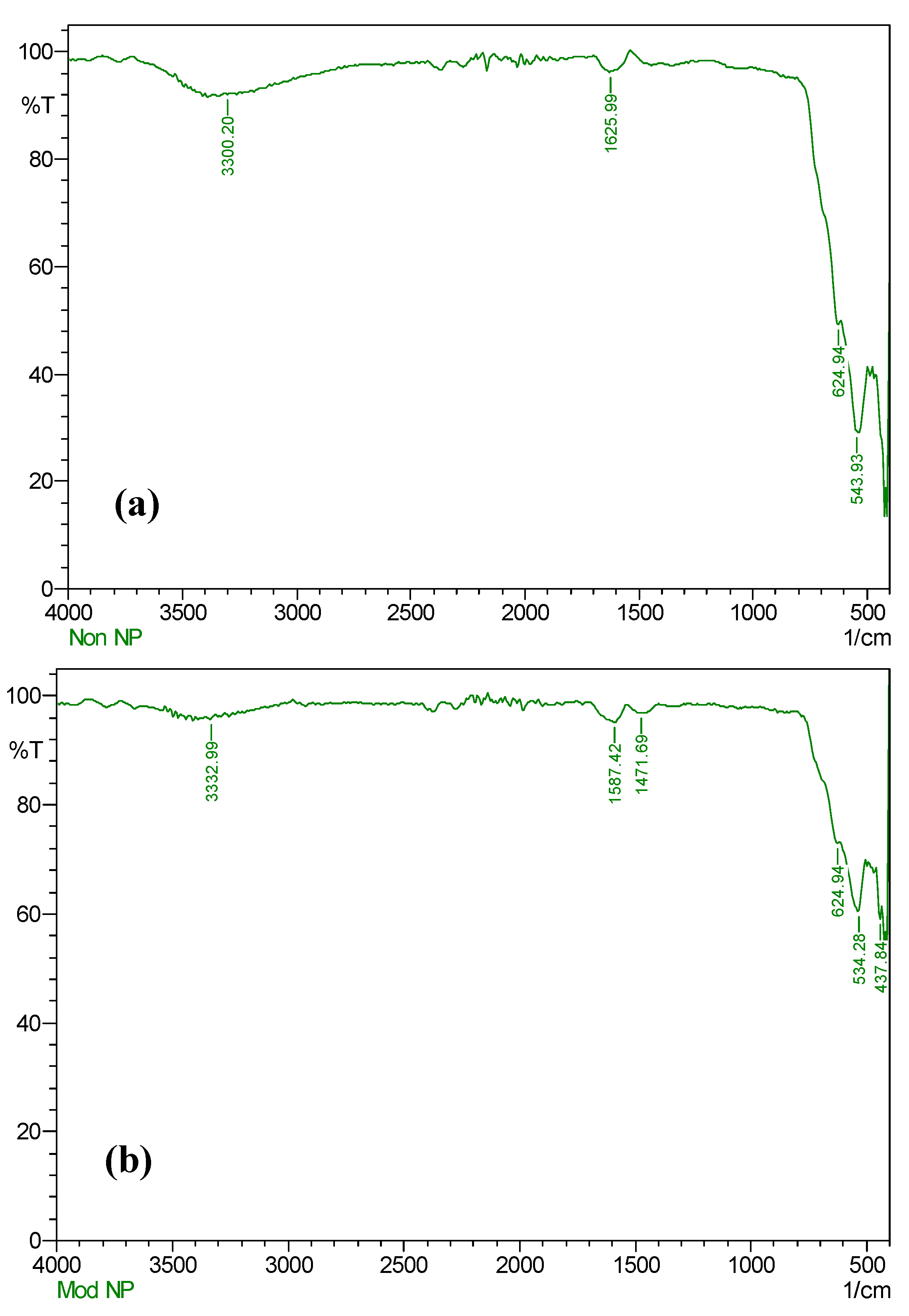

FTIR analysis determined the specific functionality of the NPs (Figure 1a) and MNPs (Figure 1b). The most abundant functional group observed in our samples was the hydroxyl group, with broad bands at 3300 and 3332 cm^-1 (OH stretching mode), respectively, and bands at 1625 and 1587 cm^-1 (OH bending modes), respectively. The Fe-O stretching bands appeared at 624.94 and 543.93 cm^-1 for both the samples. In the case of MNPs, as shown in Figure 1b, the sulphate ion band appeared at 437.84 cm^-1, confirming that the maghemite had been successfully modified [30].

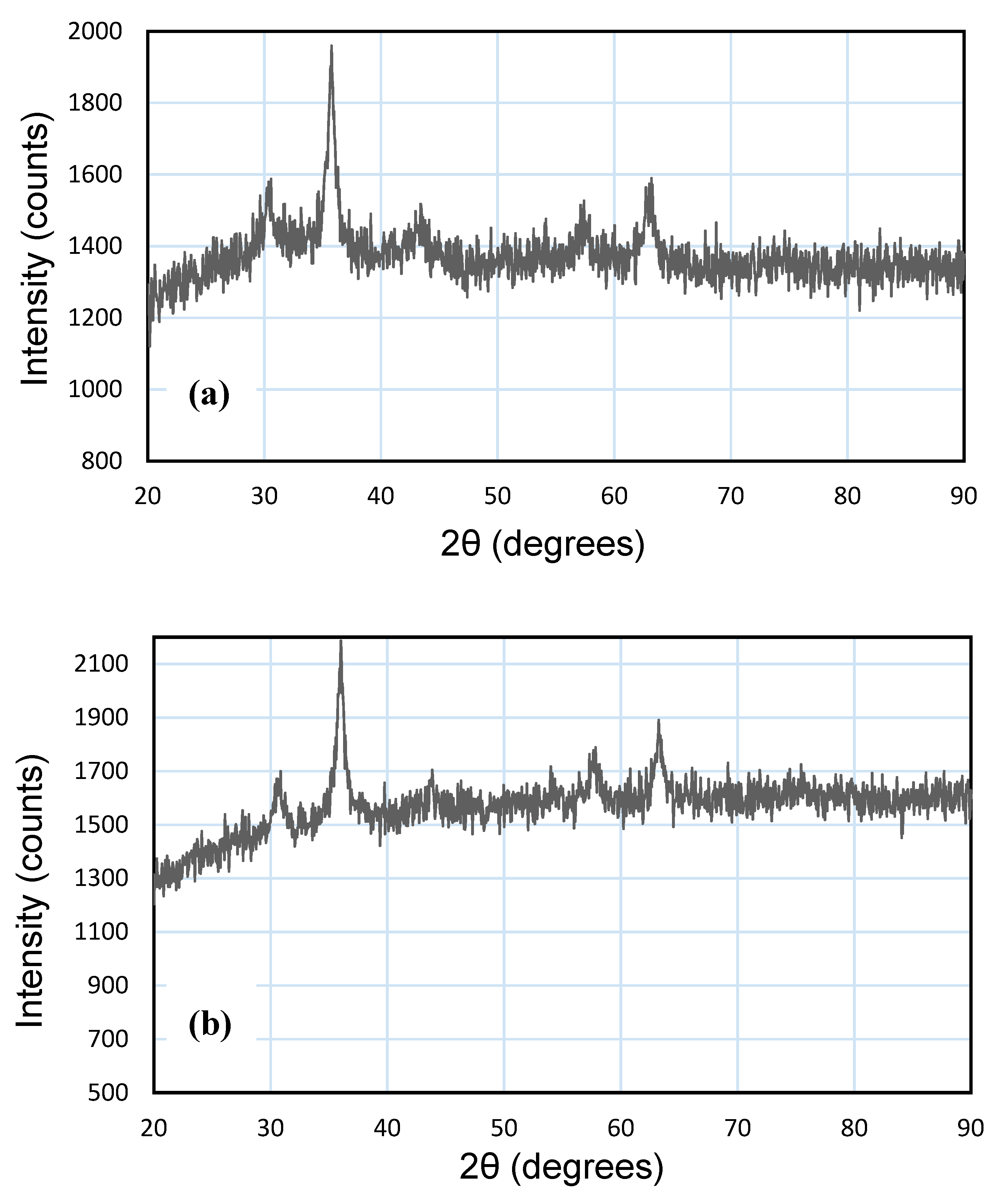

The results of XRD analysis of NPs and MNPs given in Figure 2a,b reveals that all diffraction peaks are consistent with the standard structure of maghemite.

3.2. Development of the Regression Model and Statistical Analysis

The data obtained from the experiments were used to fit a complete quadratic polynomial model, as given in Equation (2). The maximum chromium RE was found to be 95.5%.

$$\begin{array}{c}Y=91.74-6.22X_1+7.35X_2-0.78X_3+0.304X_1^2-0.696X_2^2+0.004X_3^2\\ +0.297X_1{X}_2-0.085X_2{X}_3+0.117X_1{X}_3(2)\end{array}$$

(2)

where Y is the % removal of chromium, X1 is the pH, X2 is the adsorbent dose (g/L), and X3 is the initial concentration (mg/L), respectively.

In this study, the values of R² and R² (adj) were found to be 99.24% and 98.55%, respectively, confirming the accuracy of the model. From ANOVA, it was determined that the model was found to be significant, as it has a high F value (F = 80.07) and low P value (P = < 0.001). It was also observed that the linear effects were significant with high F and low P values (

Table 3. ANOVA of chromium removal.

Source	Sum of Squares	Degree of Freedom	Mean Square	F Value	P Value	Remarks
Regression	2976.04	9	330.67	144.94	0	Significant
Linear	2546.38	3	848.79	372.05	0	Significant
X1	423.48	1	423.48	185.63	0	Significant
X2	1739.86	1	1739.86	762.64	0	Significant
X3	383.03	1	383.03	167.9	0	Significant
Square	320.03	3	106.68	46.76	0	Significant
X12	36.28	1	21.38	9.37	0.012
X22	281.11	1	272.98	119.66	0	Significant
X32	2.64	1	2.64	1.16	0.308	Insignificant
Interaction	109.63	3	36.54	16.02	0	Significant
X1× X2	17.64	1	17.64	7.73	0.019	Significant
X1× X3	23.19	1	23.19	10.16	0.01
X2× X3	68.8	1	68.8	30.16	0
Residual Error	22.81	10	2.28	_	_
Lack of fit	17.18	5	3.44	3.05	0.123	Insignificant
Pure Error	5.64	5	1.13	_	_
Total	2998.85	19

). The regression coefficients, t values, and P values for all the linear, squared, and interaction effects of the parameters are given in

Table 4. Estimated corresponding t- and P-values of the model term coefficients.

Model Term Coefficient	t -Value	P-Value
Constant	132.014	0
X1	−13.624	0
X2	27.616	0
X3	−12.957	0
X12	3.061	0.012
X22	−10.939	0
X32	1.075	0.308
X1 × X2	2.781	0.019
X1 × X3	−3.188	0.01
X2× X3	5.491	0

. Table 4 can be interpreted as follows: (i) the coefficient of adsorbent dose (X₂) had a highly significant positive effect (P < 0.05) on chromium removal, (ii) the coefficients of linear effects due to pH (X₁) and initial chromium concentration (X₃) were negatively significant, (iii) the coefficients due to the squared effects of pH had significant positive effects on chromium removal with P < 0.05, (iv) the coefficient of squared effects of initial chromium concentration (X3) was insignificant (P < 0.4) on the chromium RE (Y), and (v) the coefficients due to the interaction between pH × adsorbent dose and adsorbent dose × initial chromium concentration had positive effects (P < 0.005) on chromium removal.

As evident from the calculated F value (144.94) and the low probability value (P = < 0.001), the ANOVA of the regression model demonstrated that it was highly significant (Table 3). Values of P < 0.05 indicated that the model terms were highly significant at the 95% confidence interval. In addition, the lack of fit of the model was insignificant (P = 0.123), indicating its accuracy in describing the experimental data. The linear model terms were more significant (F = 372.05 and P = < 0.001) than the square (F = 46.76 and P = <0.001) and interaction (F = 16.02 and P = < 0.001) model terms. This indicated that the linear model terms, i.e., the main effects of the process variables, significantly affected the % chromium RE.

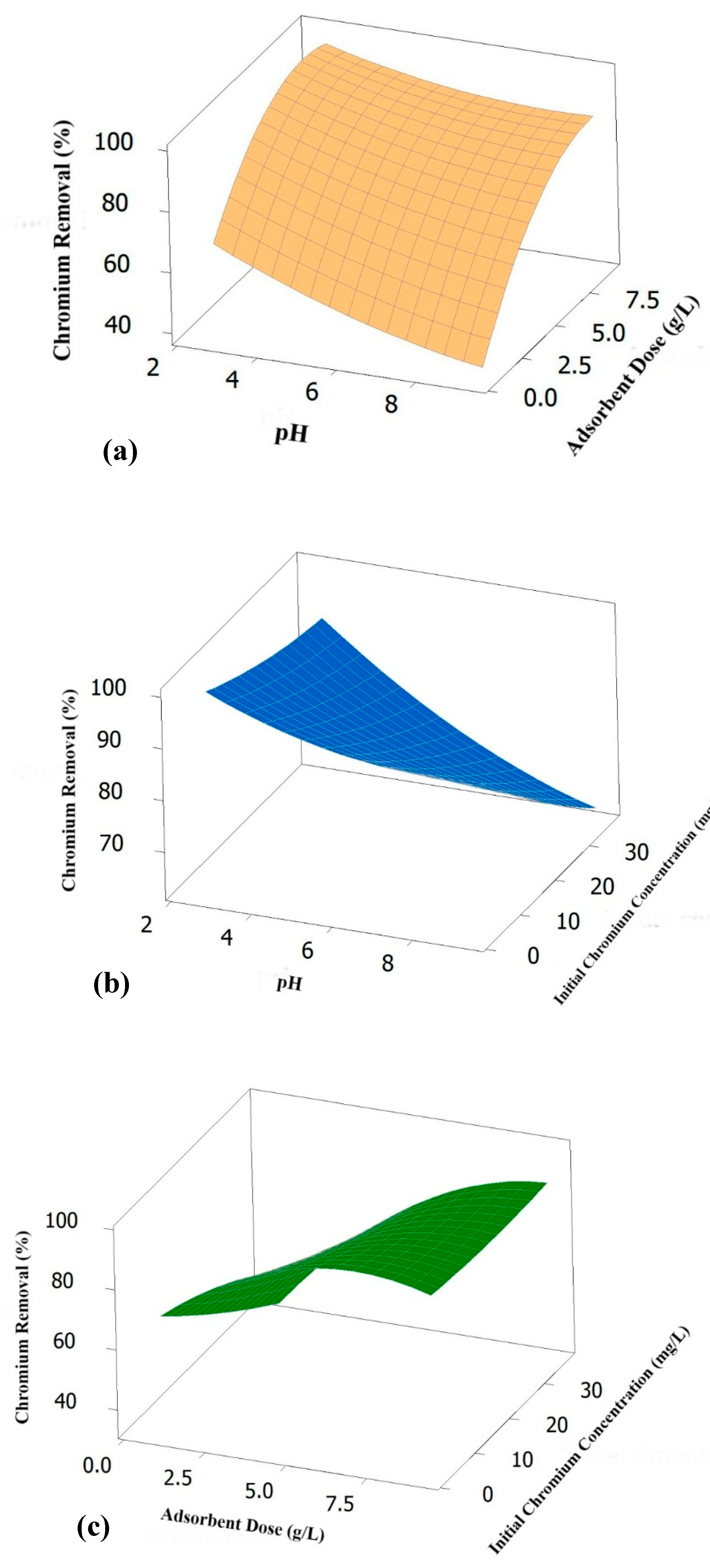

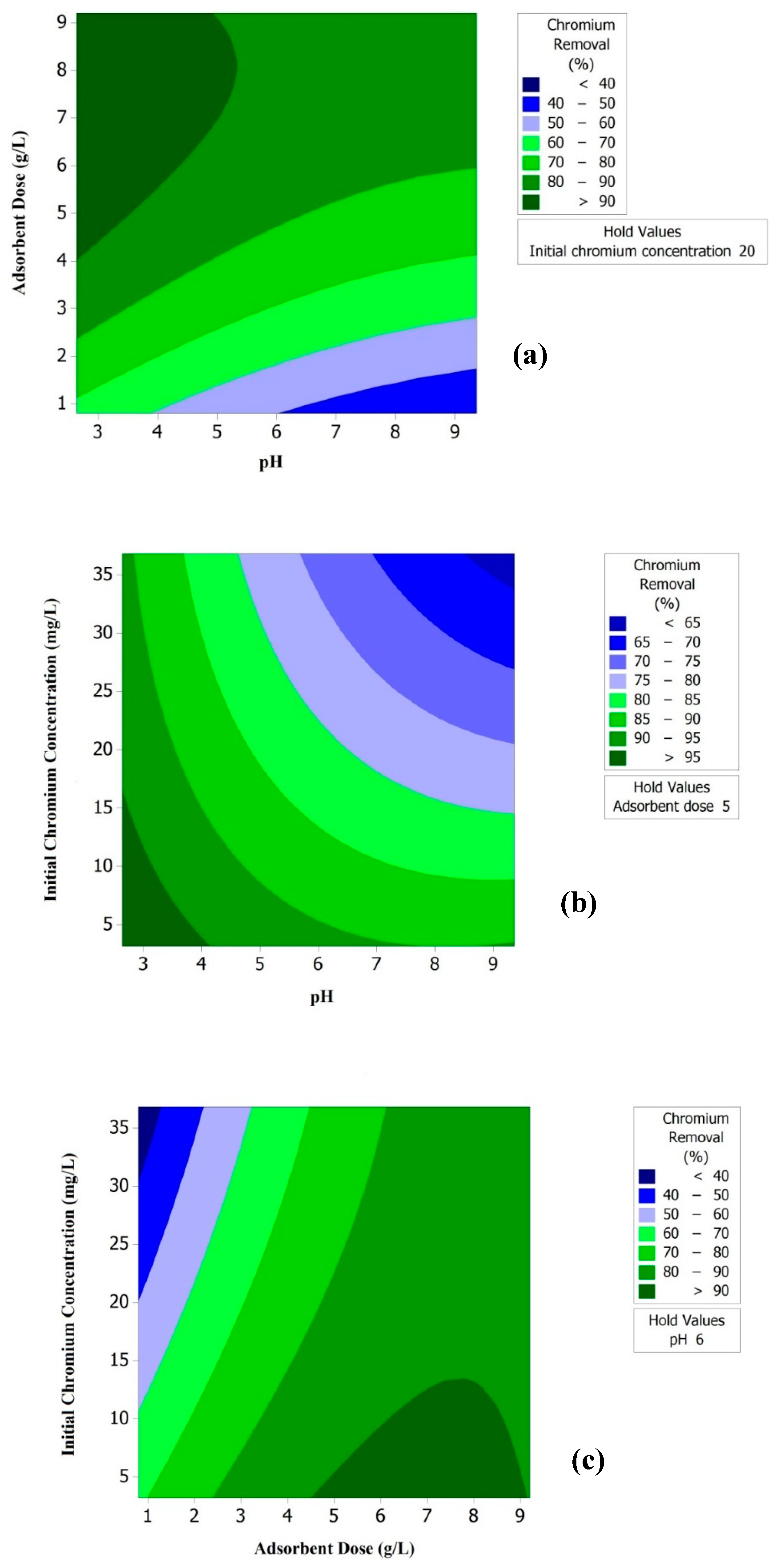

The response surface and contour plots are shown in Figure 3 and Figure 4, respectively. While the response surface plots (Figure 3a) show a clear peak, the plots in Figure 3b,c did not show clear peaks, which suggests that the optimum conditions of the variables were outside the chosen experimental range. For model design, one variable is held at its intermediate level to check the interaction effect of the other two variables.

The surface plots shown in Figure 3a–c reveal information on the combined effects of pH (X₁), adsorbent dose (X₂), and initial chromium concentration (X₃) on the chromium RE. For instance, Figure 3a shows that chromium RE decreases with increasing X₁ and increases with increase in X₂. As can be observed from Figure 3a, there is a decrease in the chromium RE with an increase in the pH from 3.0 to 9.0. This is because of the interaction between the chromium ions and OH^- ions. As can be observed from Figure 3b, there is a decrease in the chromium RE with an increase in the initial chromium concentration. Under the optimum conditions of pH = 2.6, adsorbent dose = 5 g/L, and initial chromium concentration = 20 mg/L, chromium RE of 95.8% was obtained.

3.3. Effect of pH on % Removal of Chromium

The pH of a solution is one of the most important parameters that dictates the sorption of metal ions onto an adsorbent’s surface because it determines the adsorbent’s surface charge and also affects speciation of metal ions in aqueous systems. It can be observed from Figure 3a, b that the chromium RE decreased from 70% to 30% with an increase in the pH from 3.0 to 9.0. The affinities of maghemite for the different species of Cr(VI) existing at acidic pH values, namely H₂CrO₄⁰, HCrO₄⁻, CrO₄²⁻, and Cr₂O₇²⁻ [31], may be different, and can be attributed to the variation in RE at different pH values. Chromium exists in various oxyanionic forms, such as HCrO₄⁻ and Cr₂O₇²⁻ in acidic pH (pH 2 to 6). Above pH 6.0, CrO₄²⁻ is the major ionic species. The adsorption of chromium through MNPs turned out to be a highly pH-dependent process. At lower pH values, increased chromium RE can be attributed to H⁺ ions being adsorbed by SO₄^- of sulfate group present on the surface of SDS, which might form complexes with Cr₂O₇²⁻ and HCrO₄^- through electrostatic interactions [32]. Reduction in chromium RE at higher pH is a result of competition between CrO₄^2- and OH^- ions to occupy the anion exchange sites of the adsorbent. Cr⁶⁺ removal at higher pH might be due to the reduction of Cr⁶⁺ to Cr³⁺ by the electron-rich polymer matrix [33]. A similar observation has been reported using maghemite nanoparticles as the adsorbent, where chromium RE decreased with increase in pH, which is due to electrostatic interaction between the chromium species and the adsorbent surface [7].

3.4. Effect of Adsorbent Dose on % Removal of Chromium

The effect of adsorbent dose on chromium removal is shown in Figure 3a, c. It was observed that the chromium removal increased from 30% to 90% with an increase in the adsorbent dose. This increase in RE is due to the availability of greater number of active sites in the adsorbent. The chromium uptake increased up to an adsorbent dose of 8 g/L. The RE of Cr(VI) ions increased up to an optimum dose (8 g/L), beyond which the concentration did not significantly change. This result was expected because increasing the adsorbent dose provides greater adsorption sites for a fixed initial solute concentration. Thus, for an adsorbent dose less than 8 g/L, the removal of Cr(VI) ions increased with increasing adsorbent dose. However, after achieving the optimum dose (i.e., dose more than 8 g/L), increasing adsorbent dose led to decrease in the RE because of interfering adsorption sites together. Therefore, there was no further increase in the removal [34]. Similar observations were observed by Nematollahzadeh et al. [35], where catecholamine-coated maghemite nanoparticles are used as the adsorbent for chromium removal. Lower amounts of the adsorbent may achieve acceptable results because of the higher surface area-to-volume ratio [26].

3.5. Effect of Initial Concentration on % Removal of Chromium

The effect of initial concentration on the uptake of chromium was studied at different initial chromium concentrations. The effect of initial concentration on removal of chromium is shown in Figure 3b, c, which shows that an increase in initial chromium concentration decreases the chromium RE. From the figures it can be observed that with an increase in the initial chromium concentration from 5 to 35 mg/L, there is a decrease in the chromium RE from 95% to 75%. This can be attributed to the fact that that for a fixed adsorbent dosage, a finite and limited number of available adsorption active sites lead to a decrease in percentage removal of Cr(VI) ions with increasing initial concentration [36]. Hu et al. [37] made similar observations, i.e., with an increase in the initial chromium concentration there is a decrease in the chromium RE while using maghemite nanoparticles as the adsorbent.

3.6. Practical Implications of the Work and Future Research Prospects

Although it is difficult to compare the adsorption capacity of maghemite nanoparticles with other similar iron oxide nanosorbents (

Table 5. Adsorption capacities and mechanisms of chromium (VI) removal by different iron-oxide-based nanosorbents.

Nanosorbent	Experimental Condition	Adsorption Capacity (mg/g)	Adsorption Mechanism	References
Maghemite	pH = 2.5, concentration = 5-200 mg/L, contact time = 15 min, temperature = 25 °C	19.2	Electrostatic attraction and ion exchange.	[37]
Maghemite	pH = 2.5, concentration = 50 mg/L, temperature = 25 °C, contact time = 10 min, pHZPC = 6.3	17.0	Electrostatic attraction and ion exchange.	[7]
Maghemite	pH = 4.0, concentration = 0.3 g/L, contact time = 120 min, pHZPC = 6.6	1.62	Adsorption was controlled by surface sorption and intraparticle diffusion, followed by redox reaction.	[15]
Montmorillonite- supported magnetite	pH = 2.0-2.6, concentration = 0.5 g/L, contact time = 120 min	15.3	Adsorption was a physico-chemical process, including an electrostatic attraction followed by a redox reaction.	[41]
δ-FeOOH-coated maghemite	pH = 2.5, concentration range = 10-200 mg/L, contact time = 30 min, adsorbent dose = 0.1 g	25.8	Cr(VI) adsorption onto the δ-FeOOH-coated γ-Fe2O3 is mainly controlled by outer-sphere complexation.	[42]
Diatomite-supported magnetite	pH = 2.0-2.5, concentration range = 50 mg/L, contact time = 120 min, temperature = 25 °C	11.4	Adsorption was a physico-chemical process, which included an electrostatic attraction followed by a redox process.	[43]
Hematite	pH = 3.0, concentration range = 1-100 mg/L, contact time = 240 min, temperature = 25 °C, pHZPC = 9.35	200	Adsorption of Cr (VI) onto hematite nanoparticles was by inner-sphere surface complexation.	[44]
Mixed magnetite and maghemite	pH = 2.0, concentration range = 0.5-4 mg/L, contact time = 24 h, adsorbent dose = 0.4 g/L	2.4	Electrostatic attraction between chromium and magnetite–maghemite mixture.	[45]
Modified maghemite	pH = 2.6, concentration = 20 mg/L, contact time = 80 min	4.0	Electrostatic attraction and ion exchange.	This study

), due to a variety of conditions in which experiments have been carried out, it was found that the sorption capacity of MNPs (in this study) for Cr(VI) using equilibrium experiments at pH 2.6 and room temperature (35 °C) is 4 mg/g, which is higher than that reported for maghemite in the literature (i.e., 1.62 mg/g) [15]. However, when considering the practical applications of using maghemite nanoparticles, it is important to also understand that these nanoparticles have widespread applications in daily health care items, textiles, cleaning products, biomolecules, and a wide array of professional and recreational items. Therefore, it is important to understand the fate of the nanoparticles in the natural environment. The fate of maghemite nanoparticles not only depends on their physico-chemical properties, but also on the disposal location (i.e., water, solid waste landfills, natural habitats, and wastewater). According to Donia and Carbone [38], assessing the release and behavior or fate of these nanoparticles is very complex due to the large variety of complex interactions they could have with other contaminants and substrates, and also the type of nanoparticles disposed. Thus, the authors recommend the use of appropriate analytical techniques and toxicity studies to characterize the nanoparticles based on their toxicity behavior in water (e.g., using particle chemistry principles) and soil environments. Further studies should also be aimed at performing genotoxic and eco-toxicological assessments of these nanoparticles using representative aquatic species. From a resource recovery view point, it will also be economical to recover the maghemite nanoparticles, as the aggregation and sedimentation behavior of most of the commonly used nanoparticles may occur naturally in the presence of suspended or dissolved substances in water (e.g., of nature organic matter origin). According to Liu et al. 2014 [39], the nanoparticles might undergo precipitation-, adsorption-, and dissolution-based mechanisms in the water bodies; therefore, the authors recommend chemical coagulation and flocculation processes as easy recovery steps based on their settling characteristics. Anew, the use of sophisticated analytical techniques, such as single-particle inductively coupled plasma mass spectrometry (sp-ICP-MS) and multiple fractionation techniques, in combination with light scattering and elemental detection, should also be used to understand the chemical speciation, dissolution, degradation, and surface properties (i.e., due to precipitation and/or adsorption) of the nanoparticles during the chemical transformation process(es) of maghemite nanoparticles in aquatic and soil environments [40].

4. Conclusions

The influence of process parameters, i.e., pH, adsorbent dose, and initial concentration, on chromium removal were investigated by performing statistically designed experiments. The data obtained from ANOVA establishes that the model was highly significant. The results showed that as pH and initial concentration increases chromium removal decreases, but as adsorbent dose increases chromium removal increases. Concerning the interaction effects, adsorbent dose and initial concentration showed positive effects, while the interaction between pH and initial concentration showed negative effects. Adsorbent dose also showed a significant squared effect in the experiment. The maximum chromium removal (95.5%) was observed at pH = 2.6, adsorbent dose = 5 g/L, and initial chromium concentration = 20 mg/L. The proposed model equation can certainly provide a good estimation of chromium removal in large-scale systems, such as tannery industries. A systematic study on the removal of chromium using MNPs can provide a practical solution for tannery industries located around Vellore (India) to reduce waste discharges, recover useful materials, and reduce or prevent pollution. We would suggest further research to examine the regeneration aspect of MNPs and their subsequent use in order to make them more economical for industrial use.
