Effect of Paper Sludge and Dendromass on Properties of Phytomass Pellets

Abstract

Woody and agricultural wastes are important fuels in many countries, and have the potential of being even more important in the future. The main problems of plant biomass combustion are low ash melting temperatures and increased emissions. The most widely used treatment to solve the problem of low ash melting point is blending a fuel with an additive. In this work, pellets were produced from wheat straw containing wood sawdust and paper sludge in the following proportions 40:40:20 and 45:45:10 (straw/sawdust/paper sludge). The purpose of this work was to study the influence of sludge and dendromass on the straw pellet parameters and combustion process. The highest calorific value of 15.71 MJ kg⁻¹ was registered for a sample with a 10% paper sludge concentration. The effectiveness of paper sludge was proved, and the ash melting temperature was increased from 1025 to 1328 °C for the same sample.

1. Introduction

The European Union is working to move to clean energy, which means a decrease in the consumption of fossil fuels and an increase the proportion of renewable fuel energy sources. The issue of plant biomass, which is beginning to be used in larger quantities, is currently being addressed. Plant biomass can be processed into pellets or other forms for combustion purposes. Combustion of agricultural pellets brings with it various problems, and one of the most common is the low melting point of ash. The most important issue is the deformation temperature of the ash, i.e., when the ash starts to stick to the walls and parts of the boiler. After reaching the deformation temperature, the ash turns into slag, sinter, and other agglomerates. This means that combustion is influenced, and may even be stopped. The disadvantages of straw and other residues are also higher amounts of ash, and forming aggressive compounds during combustion. After reaching the deformation temperature, the ash turns into slag, sinter, and other agglomerates. These agglomerates inhibit the air supply to the base burning layer, such that the combustion process can be limited. This means that combustion is disrupted, and may even be stopped. Some of the ash particles are transferred by the flue gases and form deposits on the boiler walls. Higher emissions from the combustion of plant biomass containing undesirable compounds, compared to wood pellets, also cannot be ignored [1,2,3,4].

There are several ways to eliminate or reduce these disadvantages. One of the possibilities is to optimize the combustion device, or co–combustion of plant biomass, with another fuel. Co–firing of wheat straw, pine stem wood, and softwood bark in a 150 kW boiler shows less signs of slagging and fouling propensities than combustion of pure straw. The proportion of plant biomass is given on the basis of the effect on the individual properties of the combustion process [5].

The co–firing of straw and natural gas has proved ineffective since the ash caused exposure to superheaters. The high flue gas temperature in the boiler was the reason for straw ash sticking on the walls. These problems are reduced by co–firing coal and straw because the coal contains sulfur, and ash adds Al and Si. The ash and sulfur binds the alkali from the straw, inhibiting deposit formation and corrosion. It was determined that the concentration of sulfur resulted in a decrease of chlorine–induced corrosion in waste combustors. Based on calculations, the content of sulfur changes the melting point of the potassium compound to higher temperatures (from approximately 800 to 1100 °C). The co–firing of straw and coal can be an effective method to utilize straw for power production [6,7,8]. The results of co–firing these fuels in a full–scale power plant indicated a decrease of NO and SO₂ concentrations, and this was achieved by the addition of straw up to 20%. The decrease in NO concentration was due to lower overall fuel–N conversion. The sulfur reduction was recorded with increasing straw proportion, and could be associated with the high potassium concentration of straw [9].

Improving the properties of plant biomass can be also achieved by adding various additives that increase the melting temperature of ash. Additives have various chemical compositions, and in the work of Wang et al. the ash related issues of briquettes were mitigated with phosphorus–based additives. Maize straw briquettes with the addition of ammonium dihydrogen phosphate and calcium phosphate monobasic significantly inhibited ash slagging and melting problems [10]. The influence of kaolin and dolomite as additives to the different straws was also investigated. These additives were added to rape, wheat, and barley straw ashes at 550 °C, and the results showed that the low melting points of the straws could be enhanced by kaolin and dolomite [11]. The tests of ashes from mixtures of rye straw and three additives were done at the same conditions. The addition of kaolin substantially increased the sintering and melting temperatures of the rye straw ash. The test with calcite showed the best results in abating the sintering, and the addition of Ca–sludge was less pronounced in terms of sintering decrease [12].

Paper sludge is generated as waste in the paper industry. Due to its low calorific value, the sludge itself is not interesting for energy use. The high concentration of calcite and kaolin in paper sludge makes it an attractive additive. [13]. These minerals showed a decrease of slagging and increase of melting temperature during the combustion of biomass pellets [14,15,16].

Plant biomass would appear to offer no benefits over dendromass. Its main advantage is the low price compared to other fuels, availability near the place of use, and thus a reduction in the total costs associated with transport, and therefore it is important to find the parameters for optimal combustion [13,17].

The aim of this work was to increase the melting temperature of ash by producing pellets with content of sawdust and paper sludge as an additive. The goal was to experimentally achieve the optimal ratio of these three raw materials, where the combustion process would proceed correctly without the mentioned issues, and with respect to a low emissions concentration.

2. Materials and Methods

In this work, wheat straw and sawdust, both with average measured moisture around 4%, were used as input material. Paper sludge with a moisture content of 25% was used as an additive. Paper sludge ash has a fluid temperature above 1500 °C, and this can be explained by its high calcium and silica content [18,19,20]. For the production of quality pellets, moisture content of about 4% of the input material was needed. Therefore, it was necessary to dry the paper sludge in a MEMMERT dryer with forced ventilation until an average moisture of about 3–5% was reached. The pelleting of input ingredients was done in a pellet press, KAHL 33–390/500. The four pellet samples were produced with the following contents: 100% of wheat straw (S–100), 100% of sawdust (SD–100), 45% straw/45% sawdust/10% paper sludge (SSPS–45/45/10), and 40% straw/40% sawdust/20% paper sludge (SSPS–40/40/20).

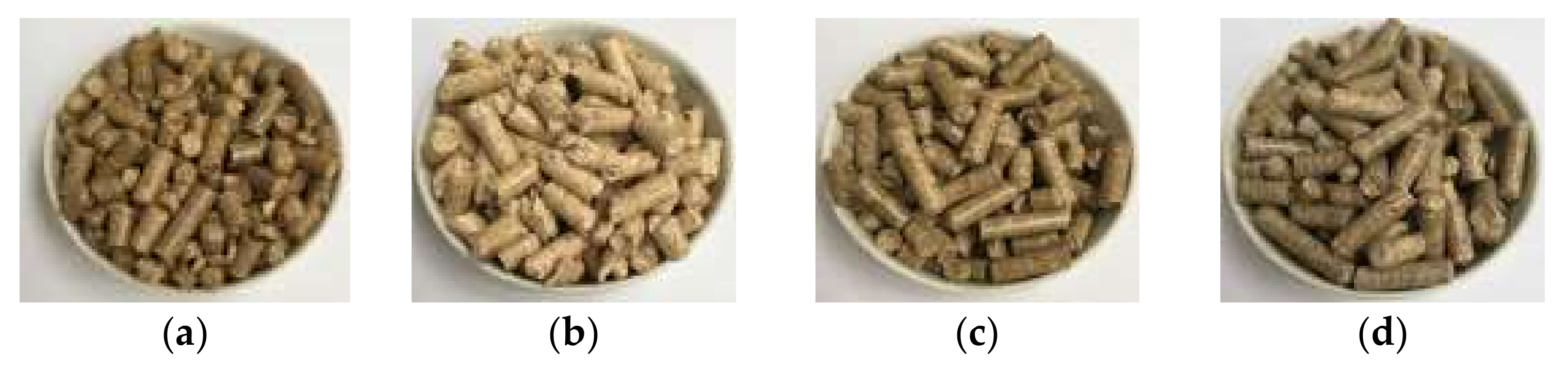

Figure 1 shows the produced samples of pellets, and at first glance the color differences of the samples are obvious, where the increasing proportion of sludge has a darkening effect on the samples.

2.1. Ultimate and Proximate Analysis of Samples

The produced samples were analyzed in CHN628 and TGA–701 analyzers, LECO. Figure 2 presents the ultimate analysis of the fuels, and a decrease in the C and H content of the samples with the concentration of paper sludge was registered compare to the SD–100 sample.

There was an increased proportion of nitrogen in the samples except the pellets made of sawdust. The content of N was relatively high in sample S–100 due to excessive soil fertilization. The sample made of paper sludge also had a higher concentration of nitrogen, and influenced the samples SSPS–45/45/10 and SSPS–40/40/20. The standard deviation of analyzed carbon and nitrogen was in the range of ±0.5%, and in the case of hydrogen the fluctuation was ±0.8%.

2.2. Analysis of Samples

The proximate analysis of the samples was performed on a thermogravimetric analyzer TGA 701. The results of the measured moisture, volatile matter, ash, and fixed carbon are presented in

Table 1. Proximate analysis of samples.

Sample	Moisture (%)	Volatile Matter (%)	Ash (%)	Fixed Carbon (%)
S–100	6.87	71.30	5.02	16.81
SD–100	3.86	74.99	0.49	16.31
SSPS—45/45/10	5.83	70.90	6.8	16.47
SSPS—40/40/20	4.13	70.27	10.53	15.07
PS100 [18]	5.61	55.71	42	0.93
Standard deviation	±1.24	±0.78	±2.53	±1.08

.

It can be noticed that sample SSPS 45/45/10 shows a similar concentration as the pellets made of pure straw. The highest value of ash was measured for the sample SSPS 40/40/20. For comparison, the paper sludge (PS100) contains a high ash concentration, and it is almost 100 times higher than that of SD–100.

2.3. Calorific Values

A LECO AC 500 calorimeter was used to determine the higher calorific value (HCV) of samples, and the lower calorific values (LCV) were subsequently calculated by the following equation [21]:

$$LCV=HCV-{\mathrm{r}}_{H2O}\left(W_p+8.94·x_H\right)$$

(1)

where r_H2O is the water heat of vaporization [kJ/kg], W_p is water content in the sample (% wt.), 8.94 hydrogen to water conversion coefficient and $x_H=0.01·H_h·B_p$; where H_h is the hydrogen content in the sample (% wt.), B_p is volatile content in the sample (% wt.).

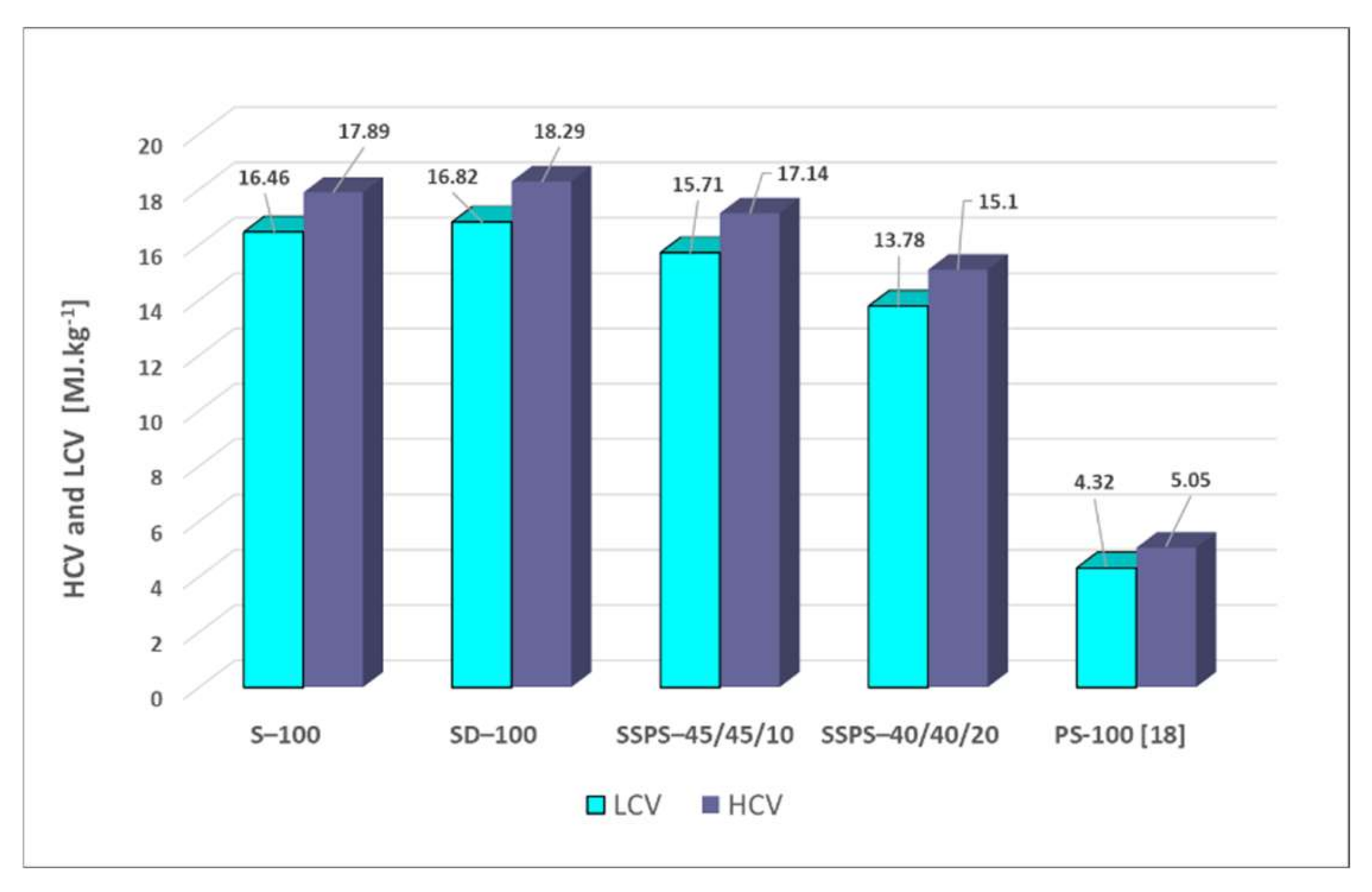

The highest LCV was found for the pure wood pellets (16.82 MJ·kg⁻¹), and the sample of pure straw reached the lower calorific value of up to 16.46 MJ·kg⁻¹. The calorific value of paper sludge was 4.33 MJ kg⁻¹ [18]. The higher the percentage of sludge content in the pellets, the lower the calorific value of the fuel, which is due to the low calorific value of the paper sludge itself (Figure 3).

2.4. The Ash Melting Temperatures of Samples

Ash fusion temperatures are crucial quality parameters for predicting the performance of a fuel, and analyze the tendency for slagging. The ash melting points of the samples were measured on the basis of the STN ISO 540 standard. The meltability of ash was analyzed by a LECO AF 700 device, monitoring the deformation of ash pyramids at different temperatures. The characteristic changes of ash melting are defined by the following temperatures: DT—deformation temperature, ST—shrinkage (softening) temperature, HT—hemisphere temperature, and FT—flow (fluid) temperature.

In

Table 2. Melting temperatures of the pellet samples.

Sample	DT (°C)	ST (°C)	HT (°C)	FT (°C)
S100	1025	1081	1121	1205
SD–100	1115	1254	1313	1500
SSPS—45/45/10	1328	>1500	>1500	>1500
SSPS—40/40/20	1301	>1500	>1500	>1500
PS100 [18]	1305	>1500	>1500	>1500
Standard deviation	±0.23	±0.15	±0.13	±0.08

are presented the ash melting points of the produced samples, and the measured results indicated that a higher concentration of sludge raised the ash melting temperatures. The highest ash deformation temperature was recorded for the sample SSPS—45/45/10, and such a value would be expected for a sample with a 20% sludge concentration. The resulting anomaly is probably because the ash was not homogeneous, and could have contained less sludge due to uneven mixing.

3. Experimental Research and Results

3.1. Experimental Combustion in the Boiler

Combustion of the samples was performed in an experimental boiler with a rated heat output of 18 kW (Figure 4). The emission probes and thermocouples were installed into the chimney, and a data logger registered all parameters.

Combustion of all pellet samples was carried out at the same operating conditions, and three measurements for each sample were performed. Approximately 6.5 kg of pellets were burned during one measurement, which lasted 60 min.

3.2. The Analyses of Results

The experimental measurements consisted of two tasks, in the first the boiler heat power was recorded, and in the second the concentrations of gaseous emissions and particulate matter (PM) were measured.

The heat power of the boiler did not differ significantly during all three measurements of one sample, since the boiler operated under stable conditions. Figure 5 shows the average power values of the boiler, and the highest power was registered when burning a sample of 100% pure wood pellets. A slightly lower power of 11.82 kW was measured for the sample SSPS–45/45/10, but it was higher by more than 2 kW compare to pure straw. The lowest heat output of the boiler was 9.49 kW, which was caused by a 20% share of paper sludge in the sample SSPS–40/40/20. The standard deviation of the measured values was evaluated, and was in the range of 0.49–1.10 kW (see Figure 5).

In Figure 6a are the average values of carbon monoxide emissions measured during the combustion of the four pellet samples. The CO is formed during the incomplete combustion as a by–product, and its concentration depends on the amount of oxygen supplied to the combustion process. According to the standard STN EN 303–5 2012, the maximum CO concentration is 3000 mg·m⁻³ for an automatic boiler with a rated heat power up to 50 kW. All the produced samples met this standard, and the sample SD–100 had the lowest concentration of CO, as expected.

The highest CO₂ emissions were during the combustion of 100–SD, indicating complete combustion. Thus, most of the C contained in this sample had left the boiler in the form of CO₂. The results of sample S–100 showed the lowest concentration, as expected.

Another monitored emission parameter was NOx, which is formed depending on high temperatures by nitrogen oxidation, and chemical composition of the fuel. The value of the NOx emission limit for the combustion of phytomass is at the level of 650 mg.m⁻³. This value was met by all the tested pellet samples. In Figure 7a it can be seen that the lowest NOx emission production was shown for a sample of pure wood pellets of 179 mg·m⁻³, followed by a sample of pure straw of 295 mg·m⁻³. The SSPS–45/45/10 and 40/40/20 samples reached approximately the same NOx values, of 330 mg·m⁻³.

It is also important to control the concentration of particulate matters, mainly due to the inhalation of these particles and the harmful effect on the human body [15]. The concentrations of the total particulate matters measured for the produced samples can be seen in Figure 7b. It is clear from the results that the SD–100 sample produced the least amount of PM, and the highest amounts of PM were measured for pellets made from pure straw. According to the standard STN EN 303–5 2012, a limit of up to 150 mg·m⁻³ is set for particulate matters.

4. Discussion and Conclusions

Many manufacturers are looking for solutions to prevent the problem of the low ash melting temperatures of plant biomass. They try to solve this by modifying parts of the combustion device (e.g., burner) or by producing pellets with admixtures of various raw materials and additives that would suppress these undesirable properties. The increase of ash melting temperature was already investigated in a previous work, and data showed that 10% of sludge raised the temperature to around 250 °C [18].

This work was focused on the production of pellets from straw, wood sawdust, and paper sludge, which would contribute to the improvement of some properties compared to pure straw. A total of three independent measurements were performed for each sample of pellets under steady–state conditions. The sample SSPS 45/45/10 seem to be a promising option in terms of the examined parameters. Boiler heat output boiler during the combustion of this sample was higher in comparison to the pure straw sample, and the concentration of CO emissions was half as low compared to the S–100 sample. The measured NOx emissions for SSPS–45/45/10 were slightly higher (around 10%) compared to pure straw. In the case of CO₂ the difference between all of the samples was negligible. The PM concentration measured for the SSPS 45/45/10 sample was 154 mg·m⁻³, and this is approximately 35.6% less than S–100. The positive properties of the paper sludge were verified in its ability to raise the melting temperature of the plant biomass ash. After addition of 10% sludge, an increase of deformation temperature from 1025 to 1328 °C was noticed compared to the reference pellet. The combustion of the samples confirmed the possibility of seamless operation of the boiler.

Co–firing of straw, saw dust, and a small amount of paper sludge (about 10%) in the form of pellets can be an effective way to utilize straw in thermal energy production. The combination of these materials should be experimentally measured in a full–scale power plant to verify the results.
