1. Introduction
Manufacturing systems are progressing with the advancements in the industry. The core technologies used in manufacturing systems can be classified into machine vision technology, industrial robot control technology, industrial PC technology, programmable logic controller (PLC) technology, and sensor technology. Among them, machine vision technology is thought to be an important technology, able to either reduce production costs or improve productivity [
1,
2,
3,
4,
5,
6]. In this paper, we adopt machine vision technology to detect incorrect parts (called defects) occurring during the assembly process.
The parts assembly process is an important factor in lowering the defect rate of finished products because, if a defective part is used in a finished product, it is seen as a defect of the finished product rather than as a defect of the part itself. The defect rate may be affected by a worker’s ability and work environment since the worker determines the inputs and assembles the components of the part. Consequently, the defect rate may decrease if the product is assembled by a skilled worker. As such, automation is also a crucial factor in reducing the defect rate of finished products during the assembly process [
7,
8].
Machine vision technology can be classified into two categories based on “after” and “before” parts production. The first is a technology to detect defects after parts production, and the second is a technology to classify components of production parts for the purpose of improving the work efficiency of workers before parts production. One of the technologies used in both categories is alignment calibration technology. Although it is a technology that senses the angle and position of a product by using a mark engraved on it or a unique pattern on the product itself, there are cases in which unique patterns and marks cannot be used, owing to the structural characteristics of the production parts (such as automotive parts).
Accuracy and processing speed are important factors in the process of automotive parts classification. Accuracy refers to a metric showing how well the system distinguishes the vehicle type by extracting features after calibrating the alignment of the input parts. The processing speed is the time required to distinguish the vehicle type. In this context, this paper proposes a method for classifying vehicle types by measuring the size of the parts after calibrating their alignment and after improving the processing speed of vehicle classification by applying CPU-based parallel processing. In addition, this paper proposes a method to distinguish defects based on a convolutional neural network (CNN) for accuracy.
Conventional alignment calibration techniques include a line detection method [
9], an integral histogram method [
10,
11], and a projection-based integral histogram method [
1]. The line detection method calibrates the alignment of a part by detecting a line, which is a characteristic of the part. Although alignment can be quickly calibrated using a line of the part when there is a straight line in a section of an image, there may be alignment errors in the case of vehicle headlights because they are configured with curved surfaces. Consequently, processing time and costs may increase. The integral histogram method detects marks, such as circles and crosses, by applying integral, histogram-based template matching. In this method, good detection performance cannot be expected if there is no mark on the part. Although improved integral histogram methods incorporate a projection-based integral histogram method, a unique pattern cannot be used because of the characteristics of vehicle headlight parts. These conventional techniques are difficult to apply for vehicle headlights and, thus, in this paper, a new alignment calibration technique using a major axis of an object is used.
To detect incorrect parts of an input headlight, after calibrating their alignment, the system distinguishes the vehicle type, which requires a quick processing time. To complete this, in this paper, a method for distinguishing vehicle types by the size of the parts is proposed, where its processing speed is improved by applying CPU-based parallel processing. In addition, this paper proposes a method to determine defect or not based on a convolutional neural network (CNN) for accuracy improvement. The proposed method is similar to the method of [
12] where the existence of a defect or lack thereof is judged by the similarity (correlation coefficient, etc.) of an inspection target with the template image. The criteria for determining defect or not is defined by the operator in [
12]. However, in this paper, the classification model is automatically illustrated from raw images by VGG19, which is a convolutional neural network. This means the system does not need to define a similar measurement and its threshold manually.
The structure of this paper is as follows.
Section 2 explains the overall system structure of the technology applied.
Section 3 describes the proposed vehicle part alignment calibration and the CNN-based defect detection method.
Section 4 discusses the experimental results on the defect detection performance between the proposed method and the existing method, and
Section 5 concludes this paper.
2. System Configuration

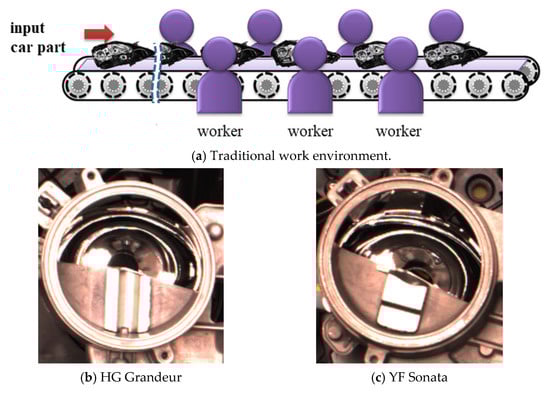

The traditional work environment for manufacturing a conventional vehicle headlight is shown in
Figure 1a. It is an environment in which several workers assemble two or more headlight parts in one conveyor system. The worker determines the vehicle type of the headlight and selects the parts to be assembled. However, in the case of some parts, the structure of the headlights is similar, as shown in
Figure 1b,c, which may result in errors in the assembly process.

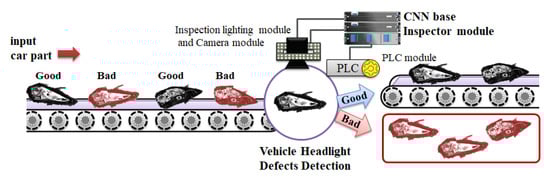

The method proposed in this paper automatically determines the defects for different types of parts, as shown in
Figure 2. The alignment is calibrated by extracting the features of the vehicle headlight when the vehicle headlight is first input to the system, and whether the headlight is defective or not is determined based on the CNN after detecting the region of interest (ROI).

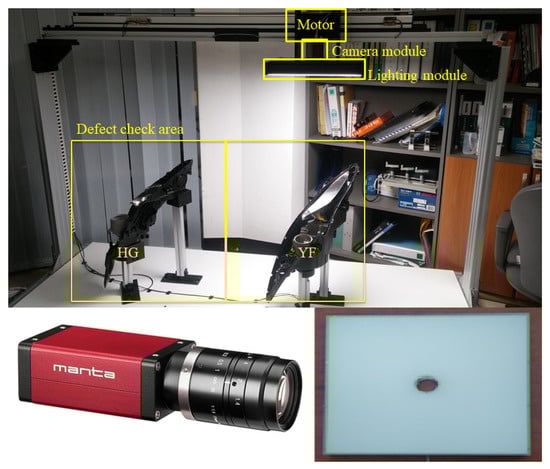

The classifier system for different part types consists of an inspector module, PLC module, inspection lighting module, and camera module. The functions of each part type are as follows.
Inspection lighting module: This module controls the amount of light for image shooting when a vehicle headlight is input into the inspection region. It is controlled by the inspector module.
Camera module: When a vehicle headlight is input into the inspection region for detecting defects, the part is photographed by the camera module and the captured image is transmitted to the inspector module.
Inspector module: The inspector module receives vehicle headlight images from the camera module, detects defects in the headlight area of the received images, and transmits information on the presence of defects to the PLC.
PLC module: The PLC module receives information regarding the presence of defective vehicle headlights from the inspector module and classifies vehicle headlights as superior or inferir based on the presence of defects.
3. Method for Detecting Defective Vehicle Headlight Parts

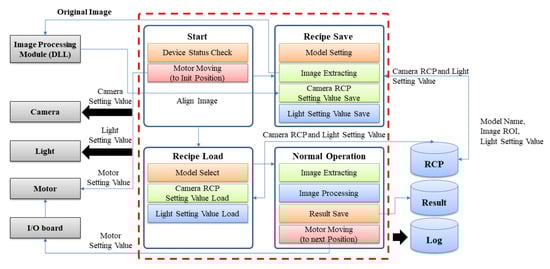

In order to judge the defect, the recipe must be saved by executing the system first. The recipe (information on inspection regions, camera settings, lighting brightness settings, and so on) of a vehicle type is saved by the recipe save module in
Figure 3 after executing the start module, which checks the status of the equipment in terms of system operation and sets the motor’s default position. After saving the recipe, the system is run again to perform the defect determination process. In this process, the start module is executed first through which a vehicle model (or type) for inspection is determined and then the motor is moved to the inspection position of the vehicle type. Then, some values for the camera and the light settings are loaded from the recipe load module and transferred. Afterward, the defect is judged by the normal operation module. The normal operation module is a module related to the actual model classification and inspection, which returns the inspection result and stores it for a history search in the database.

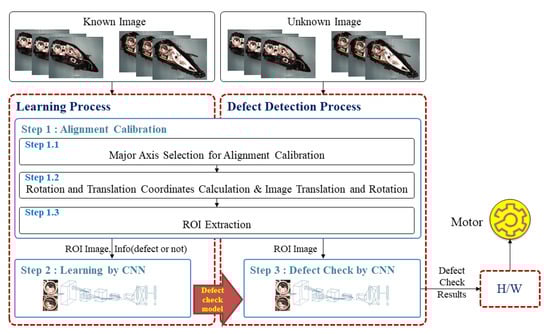

The proposed method for detecting whether headlight components are defective is comprised of two processes. The first process is the inspection reference information setting process, which sets the inspection region (ROI) after position calibration of the acquired image. The structure of a vehicle headlight is different for each vehicle type, and the position, number, and size of the inspection regions are different. Therefore, in the first process, the worker designates the position and size of the part to be inspected and saves the position and size of the inspected region in the database. The second process determines the presence of defects within ROIs based on the CNN after position calibration of the acquired image, as shown in
Figure 4.
3.1. Alignment Calibration Using Major Axis Coordinates (Step 1)
The processing of the major axis coordinate search step for alignment calibration consists of a total of four steps. The first step is the likelihood-based color model transformation used in the particle filter [
13,
14,
15]. The second step is the object acquisition, object hole removal, and object major axis coordinate search. The third step is the translation and rotation transformation. Finally, the fourth step is the obtainment of ROIs using the major axis of the object.
3.1.1. Likelihood-Based Color Model Transformation

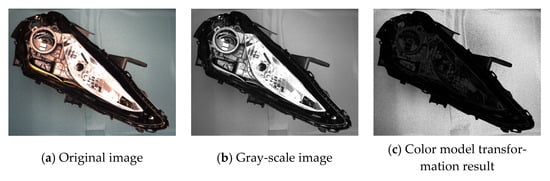

When a vehicle headlight image is captured using the inspection lighting (

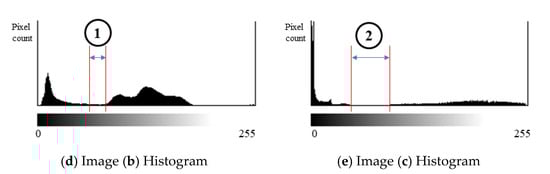

Figure 5a), there is a shadow due to the structure of the headlight. Thus, the color distribution in the histogram is skewed to one side (
Figure 5d) when binarization is performed based on the gray-scale image [
16]. Consequently, the interval to be set as the threshold value narrows (
Figure 5d ①). Moreover, three threshold values need to be selected when using the hue-saturation-value (HSV) model in order to minimize the influence of light. Only one threshold can be used instead of three since the likelihood and normalization are applied after changing the red-green-blue (RGB) model to the HSV model to minimize the influence of light. As such, a wider threshold setting interval than the gray-scale, image-based setting interval should be used in the proposed method.
The applied likelihood is shown in Equation (1). The likelihood value is calculated using the HSV value of the sampling coordinate and the HSV value of the input image. Normalization is applied by employing Equation (2) after calculating the likelihood value. The result of this step is shown in
Figure 5c, and the threshold setting interval is shown in
Figure 5e ②.
where
denotes the likelihood result value of the pixel,
denotes the hue value of the sampling coordinate
,
denotes the hue value of the image coordinate
,
denotes the normalized value of the image coordinate
, and
denotes the height
and width
of the input image.
3.1.2. Object Acquisition and Object Major Axis Coordinate Search

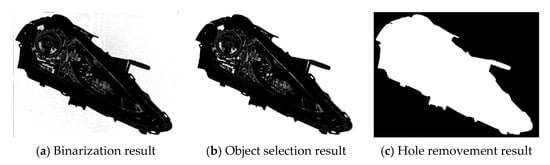

After binarization, the object is acquired—as shown in
Figure 6b—by applying a flood fill [
17] to remove the noise in the background, as shown in
Figure 6a. The reference coordinates of the inspection target are required in order to apply the flood fill, and the worker inputs these directly when setting the recipe. There is an internal hole in a headlight, which needs to be removed since it may affect feature extraction. To this end, the internal hole is removed using the same method as extracting the background, and OpenMP is used to shorten the operating time.
The hole removement process is as follows, of which the result is shown in
Figure 6c.
① Object acquisition using flood fill.
② Change the value of the image border to any value other than 0 and 1.
③,④ Initiate parallel processing for the top and bottom. Each processor changes the current pixel value to the border value if the current pixel value is 1 and the previous pixel value is the border value. No changes are made to the pixel value if the current pixel value is 0.
⑤ Change the pixel value to 1 if the current pixel value is 0 or 1.
⑥ Obtain the final result.

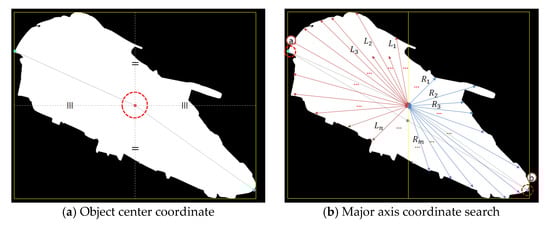

In terms of the major axis coordinate search of the object, the distance from the center of the object to the coordinate of the object with left and right pixel values of 1 is calculated, as shown in
Figure 7a, after calculating the center coordinate of the object using its upper left (e.g., ⓐ) and lower right (e.g., ⓑ) coordinates, as shown in
Figure 7b. The left and right major axis coordinates of the object are obtained by finding the coordinates with the greatest distance value, among the calculated distances, to the left and right pixels. This process is expressed by Equations (3) and (4).
where
and
denote the left border (
)/right border (
) coordinates of the object,
and
denote the coordinates of the center of the object
:
,
, and
denote the coordinates of a pixel with a value of 1 among the left-end and the right-end pixels of the object, respectively.
3.1.3. Image Translation and Rotation

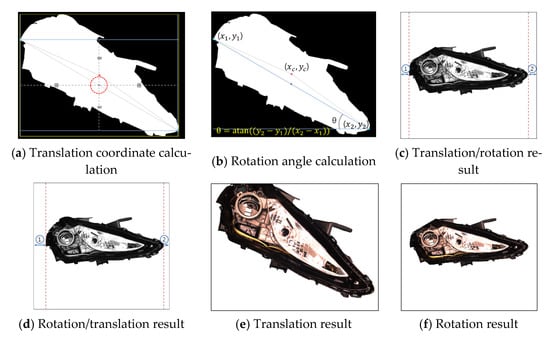

The image translation and rotation method comprise a total of three steps. The first step is the calculation of the rotation angle and the translation coordinate. The second step is the image translation transformation, and the last step is the image rotation transformation. In the first step, the translation coordinate is the distance from the center of the major axis to the image center coordinate, and the rotation angle is the angle at which the major axis will rotate. The translation coordinates are calculated by first obtaining the center coordinates ((
)/2, (
where
and
are the coordinates of the left and right end points of the major axis—and then finding the difference between this central coordinate and the image central coordinate, as shown in
Figure 8a. The angle
at which the image is to be rotated is calculated using the following equation
, as shown in
Figure 8b.
In the second step, image translation and rotation are applied by using the rotation angle and the translation coordinate obtained in the calculation step. The image translation transformation is applied first, since—although the translation coordinate calculated earlier is affected by the image rotation when the image rotation transformation is initially applied—the rotation angle calculated earlier is not affected by the image translation when the image translation transformation is first applied. In other words, although the rotation transformation leaves the distance to the left and right unchanged after the image translation transformation, as shown in
Figure 8c ① and ②, the rotation transformation is applied (as shown in
Figure 8f) after employing the translation transformation (as shown in
Figure 8e). This is because the distance to the left and right of the translation transformation after image rotation transformation is different (as shown in
Figure 8d ① and ②).
3.1.4. ROI Designation and Acquisition
The image provided to the worker for the purpose of setting the coordinates of the ROI is not the raw image acquired from the camera, but an image from which holes have been removed after completion of the normalization process of position calibration. If an image that has not completed the normalization process is used, the position and angle may change depending on the environment in which the image is acquired, and there may be false detection problems when determining defects. To this end, this paper provides the worker with an image processed with normalization to set the inspection region.

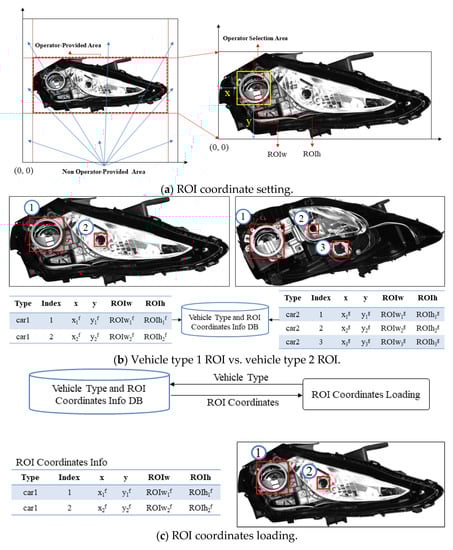

The image from which the surrounding background has been removed is provided to the worker, as shown in
Figure 9a, and the coordinates are set to the coordinates with the surrounding background removed. The ROI information is managed by grouping the start coordinates
of the inspection region, the size information
of the region, and the reference image into one set.
Since the structure of the headlights for each vehicle type is different, the location of the inspection region, the number of inspection targets, and the size of the inspection region are configured differently, as shown in
Figure 9b. Therefore, the size or the number of the region and position coordinates cannot be designated identically when setting and storing the inspection region. In this study, the database and input screen are configured to individually designate and manage the inspection region information and reference images for each model.
For the purpose of detecting defects, the inspection region information for an ROI is searched and loaded from the database based on the model classification information, as shown in
Figure 9c. The inspection region information contains inspection region coordinates, of which each set has a reference image, index, start coordinate, and inspection region size, and is transmitted to detect the presence of defects, where
n denotes the number of inspection regions set by the worker in the inspection region coordinate setting step.
3.2. CNN-Based Training for Detecting Defects (Step 2)
The size of the ROI for detecting defects is different for each inspection region, as shown in

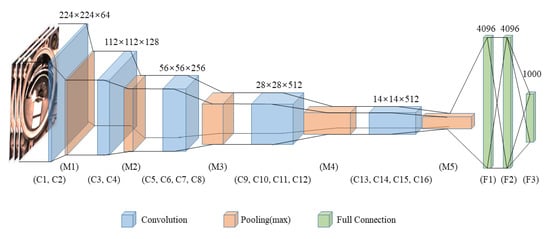

Figure 9. Therefore, an image size conversion process is required to apply the previously proposed CNNs of various structures (ReNet-5, AlexNet, GooLeNet, REsNet, VGG19, etc. [
18,
19]) to an ROI image. The feature map size of the input layer of ReNet-5 is 32 × 32 of which the depth is 1. In the case of AlexNet, the feature map size is 227 × 227, and the depth is 3. In the cases of GooLeNett, REsNet, and VGG19, the feature map size is 224 × 224, and the depth is 3. Therefore, the image size of the ROI needs to be changed to fit the input layer. In this study, VGG19 was used, and the image size of the ROI was changed to fit the input layer of VGG19, as shown in
Figure 10. Among the verified CNNs, the VGG19 has the advantage of a simple structure and good performance for classification. In addition, it can be easily applied to field applications. Therefore, the VGG19 was used in this paper.
The detailed structure of VGG19 includes a feature size and stride of the convolution layer of 3 × 3 and 1, respectively, and the padding is configured to be the same as shown in
Table 1, in which a CNN model for detecting defects is built, and used to detect defects in parts.
3.3. CNN-Based Defect Detection (Step 3)

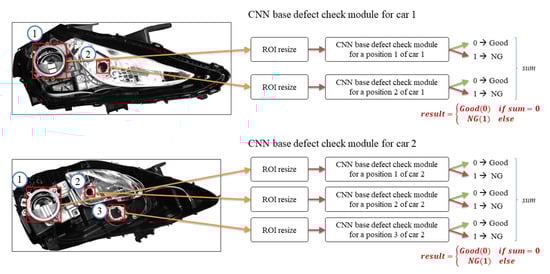

It was found that the ROI position and size to be detected for defects were different depending on the vehicle type, and the ROI size was different for the same vehicle type. Therefore, the CNN model was constructed for each ROI of the vehicle type, and the presence of defects (Good = 0, NG = 1) was detected for each model, as shown in
Figure 11. Finally, the vehicle headlight was determined to be good after tallying the result of each model if the sum is zero, and, as NG, if the result’s sum did not equal zero.
5. Conclusions

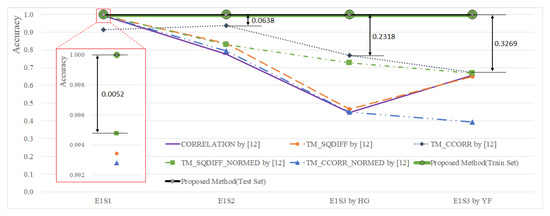

A method to detect defects in products was proposed in this paper based on a CNN after calibrating the alignment, in order to reduce the defects depending on the workers’ ability and work environment when manually assembling the components. The defect detection performance was compared with the existing defect detection method to analyze objective performance. It was found that the proposed method showed a performance improvement of more than 0.1569 (15.69% on average) as compared to the existing method.
In this paper, the hardware was a beta version, which is an environment for algorithm and system development. Thus, the performance of the proposed method will need to be verified in a real hardware system of the Smart Factory.
