A Redox-Neutral, Two-Enzyme Cascade for the Production of Malate and Gluconate from Pyruvate and Glucose

Abstract

A triple mutant of NADP(H)-dependent malate dehydrogenase from thermotolerant Thermococcus kodakarensis has an altered cofactor preference for NAD⁺, as well as improved malate production compared to wildtype malate dehydrogenase. By combining mutant malate dehydrogenase with glucose dehydrogenase from Sulfolobus solfataricus and NAD⁺/NADH in a closed reaction environment, gluconate and malate could be produced from pyruvate and glucose. After 3 h, the yield of malate was 15.96 mM. These data demonstrate the feasibility of a closed system capable of cofactor regeneration in the production of platform chemicals.

1. Introduction

Platform chemicals are molecules that can be used to make a variety of industrially valuable products including solvents, polymers, pharmaceuticals and foods [1]. Most commercial platform chemicals are mass-produced from petrochemical processes that use fossil fuels as the starting raw materials [2], typically via low-cost, high-volume commodity chemicals (methanol, ethylene, propene, butadiene, benzene, toluene and xylene) [3]. While recent advances have enabled the use of renewable approaches on an industrial scale (such as the production of polylactide and polyethylene from ethylene and biomass-derived lactic acid [4]), the sustainable production of a wider range of platform chemicals is a priority given global concerns about the environment, limited resources, and high oil prices [3,5].

One platform chemical in high global demand is malic acid. Malic acid, along with other four-carbon diacids (such as succinic and fumaric acids), was reported as one of the top value-added chemicals from biomass in a 2004 U.S. Department of Energy report [6]. Four-carbon diacids can be converted into 1,4-butanediol which can be further converted into high-value products such as tetrahydrofuran, an important material for polymer production. The current commercial production of malic acid is via the chemical hydration of petrochemically derived maleic/fumaric acid [7], but advances in the field of metabolic engineering have renewed interest in its bio-based production [8]. Natural high-capacity malic acid producers such as Aspergillus flavus are not well-suited to industrial use due to their physiological constraints [3] and the associated generation of aflatoxin (a carcinogen). A particular concern is the need to control multiple metabolic pathways that lead to the formation of unwanted intermediates [9], thereby reducing conversion efficiencies.

Cell-free metabolic engineering uses purified enzyme systems or crude cell lysates in the synthesis of complex biomolecular commodities, thereby overcoming limitations associated with using whole cells [3]. However, the high cost of processes involving enzyme purification and the need to supplement reactions with the necessary cofactors are current challenges. The nicotinamide nucleotides NAD⁺ and NADP⁺ are used by most redox enzymes, and their balance is crucial in cell-free enzymatic pathways which lack metabolic regulation from living cells [3]. Developing cascades consisting of multiple enzymes in cell-free pathways is a recent development [10]. This has led to developments in the design of cell-free systems in which cofactors can be recycled on account of their high costs [11]. Glucose dehydrogenase (GDH), along with formate dehydrogenase (FDH), are the two most widely used enzymes for cofactor recycling in industrial/commercial processes, with GDH from the Bacillus species showing the highest activity and stability, leading to its wide applications in industry [12].

NADP(H)-dependent malate dehydrogenase from the thermophilic archaeon Thermococcus kodakarensis, catalyzes the HCO₃⁻ independent reductive carboxylation of pyruvate to malate and produces lactate as a by-product. Its application in artificial enzymatic cascades that use NADH as a cofactor is now possible following directed evolution to alter its cofactor preference from NADPH to NADH [13]. A triple mutant was identified that exhibited a sixfold higher k_cat/K_M for NAD⁺ than the wildtype enzyme together with increased malate (and lower lactate) yields. The triple mutant enzyme (hereafter referred to as MDH*) catalyzed pyruvate carboxylation with NADH to give a 1.2 times higher yield of malate than the wildtype enzyme with NADPH [13].

We previously immobilized purified recombinant GDH from Sulfolobus solfataricus onto novel, hierarchically structured macroporous–mesoporous silica supports and produced gluconic acid from both glucose and bread waste hydrolysate using NAD⁺ as a cofactor. The aim of the present study was to use GDH and MDH* in a closed system capable of cofactor regeneration in the production of malate from pyruvate (Supplementary Materials, Figure S1). We hypothesized that MDH* would use the cofactor byproduct of GDH-facilitated gluconic acid production from glucose to catalyze the conversion of pyruvate to malate via NADH, leading to its regeneration in the process.

2. Materials and Methods

2.1. Microorganisms and Enzyme Production

Expression—the gene encoding MDH* from Thermococcus kodakarensis (GenBank accession number BAE47514.1) was synthesized and cloned into pET-30a via NdeI and BamHI at the 5′ and 3′ restriction sites, respectively. The full-length gene encoding 3 mutations (R221G, K228R and I310V) was synthesized by GenScript with the sequence optimized for expression in E. coli and the vector was transformed into BL21-DE3 competent cells. Cells were grown in LB media supplemented with 50 µg/mL kanamycin and grown at 37 °C and 220 rpm to A₆₀₀ = 0.6. 1 mM (final concentration) IPTG (isopropyl ß-D-1-thiogalactopyranoside) was used for induction and the cells were grown at room temperature for 18 h at 220 rpm.

Purification—cell pellets were obtained by centrifugation and re-suspended in 100 mM HEPES pH 7.5, 200 mM MgCl₂, 10% glycerol. Cell lysis was carried out using a cell disruptor system (Bandelin, SONOPULS, Berlin, Germany), followed by heat treatment at 70 °C for 30 min. Cellular debris was removed by centrifugation, and the crude lysate was bound overnight to Ni–NTA resin (Qiagen, Hilden, Germany) and eluted with buffer containing 500 mM imidazole, 100 mM HEPES pH 7.5, 200 mM MgCl₂, 10% glycerol. The protein was then dialyzed into 100 mM HEPES pH 7.5, 200 mM MgCl₂, 10% glycerol. Fractions containing MDH* were pooled and their protein concentration was determined using the bicinchoninic acid assay (BCA; Reagent Compatible BCA Assay Kit, ThermoFisher Scientific, Waltham, MA, USA) and a Nanodrop device (ThermoFisher Scientific, Waltham, MA, USA). Samples were snap-frozen in liquid nitrogen and stored at − 80 °C. GDH used in this study was expressed, purified, and characterized as previously described [14].

2.2. Enzyme Activity Assays

MDH* activity was assayed in 500 mM HEPES pH 7.5, 5 mM NH₄Cl, 0.5 mM MnCl₂, 30 mM pyruvate, 85 mM NaHCO₃ and 1 mM NADH. Unless otherwise stated, the activity assay for MDH* was conducted in 96-well plates in a FLUOstar Omega Microplate Reader fitted with an atmospheric control unit (allowing full control and regulation of oxygen and carbon dioxide within the microplate reader chamber) at 55 °C for 2 h at 15% CO₂ and 5% O₂. The activity of both MDH* and GDH (produced as described previously [14]) was detected by monitoring the NAD⁺ concentrations of the supernatants with a plate reader at 340 nm. Optimization studies were performed using MATLAB 2019a.

2.3. Determination of Kinetic Constants

The kinetic constants for MDH* were determined by measuring the reaction rates at regular time intervals and different substrate levels (0–75 mM). K_M and V_max values were calculated from Lineweaver–Burk plots.

2.4. HPIC Analysis

Known standard concentrations of substrates/products were analyzed via HPIC to produce standard curves. These standard curves were then used to calculate the unknown concentrations of chemicals of interest. HPIC was performed using a Dionex™ Integrion™ HPIC™ System (Thermo Fisher Scientific, Waltham, MA, USA). Unless otherwise stated, all samples were diluted ten times and detected under reaction conditions of 5 mM eluent (NaOH) at 30 °C at a 0.38 mL/min flow rate. It was not possible to analyze glucose, gluconate or lactate with HPIC, and alternative chemical and enzymatic approaches were insufficiently sensitive. Pyruvate and malate were detectable in 2 mL reactions.

3. Results

3.1. Purity and Activity of Recombinant MDH*

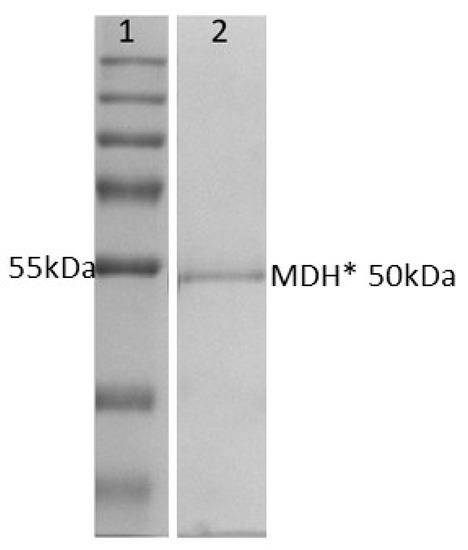

In building an enzyme cascade, the use of thermophilic enzymes has the potential to improve enzyme stability and therefore reduce costly enzyme purification. As we previously demonstrated, recombinant thermophilic GDH can be purified in a single step after initial heat treatment at 70 °C for 30 min [14]. In this study, we also produced recombinant thermophilic MDH* in order to couple its activity with that of GDH. Following heat treatment and affinity purification, MDH*-containing fractions were analyzed by SDS-PAGE to determine protein purity. Figure 1 shows that purified recombinant MDH* (which contained a decahistidine tag and linker with a combined molecular weight of 50 kDa) was >95% pure. Protein-containing fractions were analyzed by BCA, pooled, and used immediately in experiments or snap-frozen prior to storage at −80 °C.

3.2. Effect of GDH Buffer Components on the Activity of MDH*

In order to identify reaction conditions that would support both enzymes in a one-pot cascade reaction, it was necessary to analyze the effect on MDH* activity of buffer components required for optimum GDH activity. The assay reagents needed for the two different enzymes varied, with some being used at different concentrations whilst others are only needed for one enzyme and not the other (

Table 1. Standard assay conditions for GDH and MDH*.

GDH Standard Assay Conditions at 55 °C	MDH* Standard Assay Conditions at 55 °C
No atmospheric control required 100 mM HEPES pH 7.5 2.5% glycerol 30 mM MgCl2 100 mM glucose 5 mM NAD+	15% CO2 and 5% O2 500 mM HEPES pH 7.5 5 mM NH4Cl 0.5 mM MnCl2 30 mM pyruvate 85 mM NaHCO3 1 mM NADH

). In particular, MDH* activity assays require additional assay reagents in comparison to GDH, as well as atmospheric control (Table 1).

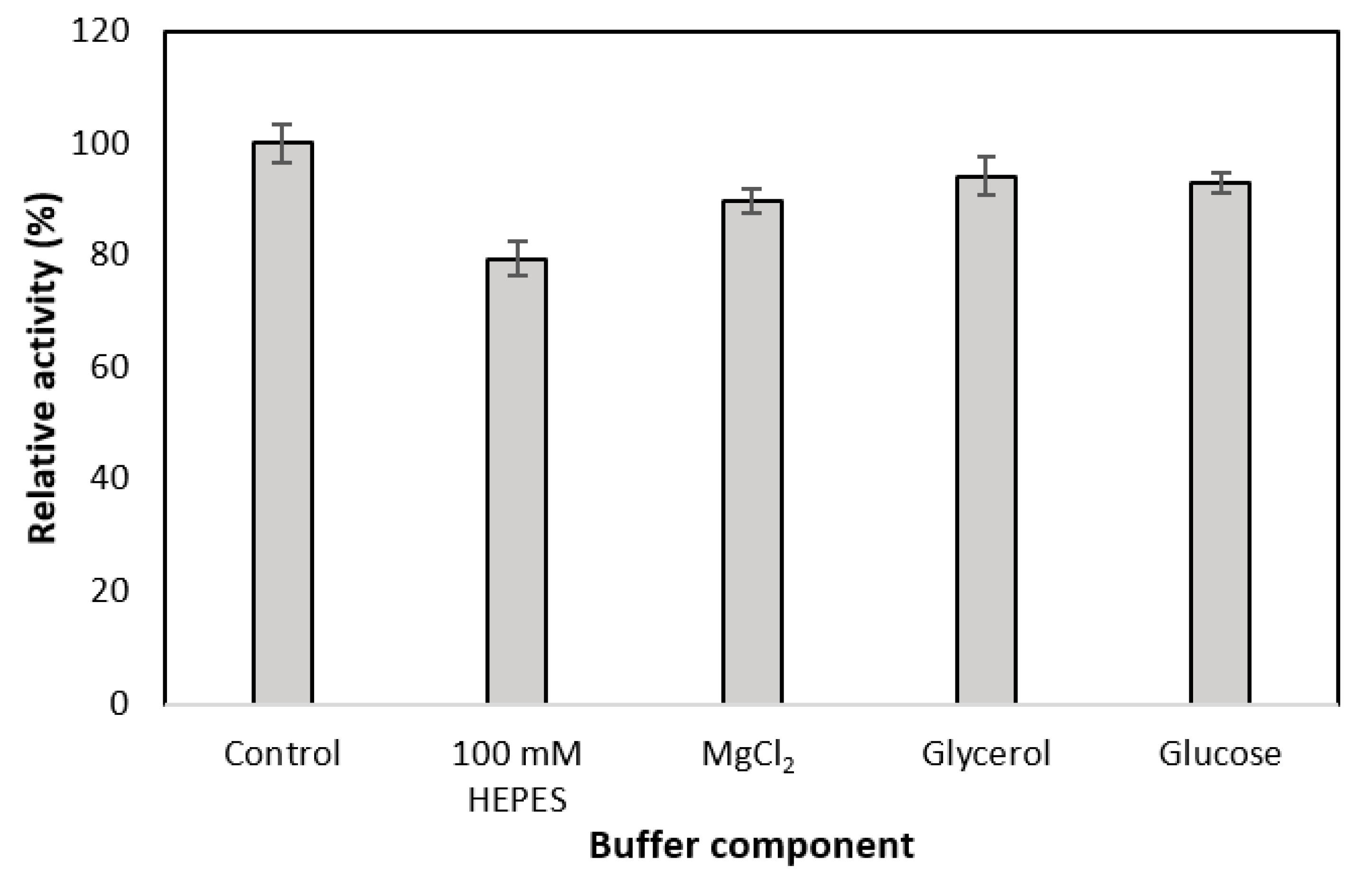

The most significant effect was seen when the HEPES concentration was reduced from 500 mM to 100 mM (Figure 2), which is the concentration used in the GDH buffer (Table 1). As a result, the activity of MDH* reduced by 20% (Figure 2). In contrast, the addition of glycerol, glucose, and MgCl₂ into the MDH* reaction mixture had no significant effect on MDH* enzymatic activity.

3.3. Effect of Atmospheric Conditions Required by MDH* on the Activity of GDH

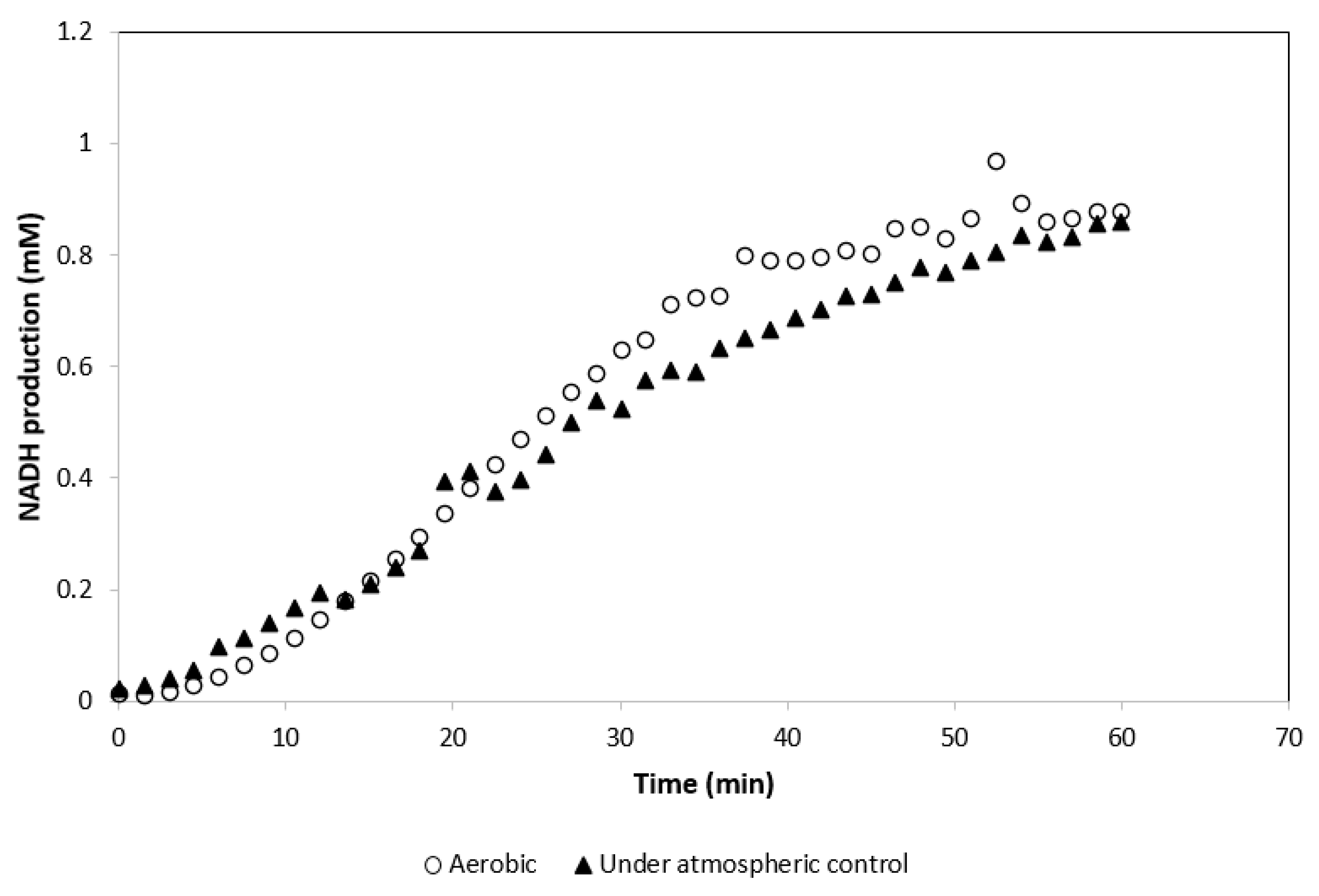

The activity of GDH was tested at 55 °C, 15% CO₂, and 5% O₂ atmospheric conditions in a standard GDH reaction mix. The activity of the GDH under these conditions was compared with the activity of GDH under its standard aerobic (without atmospheric control) assay conditions. Activity of GDH was determined not to be affected by the atmospheric conditions required by MDH* (Figure 3).

3.4. Effect of MDH* Assay Buffer Components on the Activity of GDH

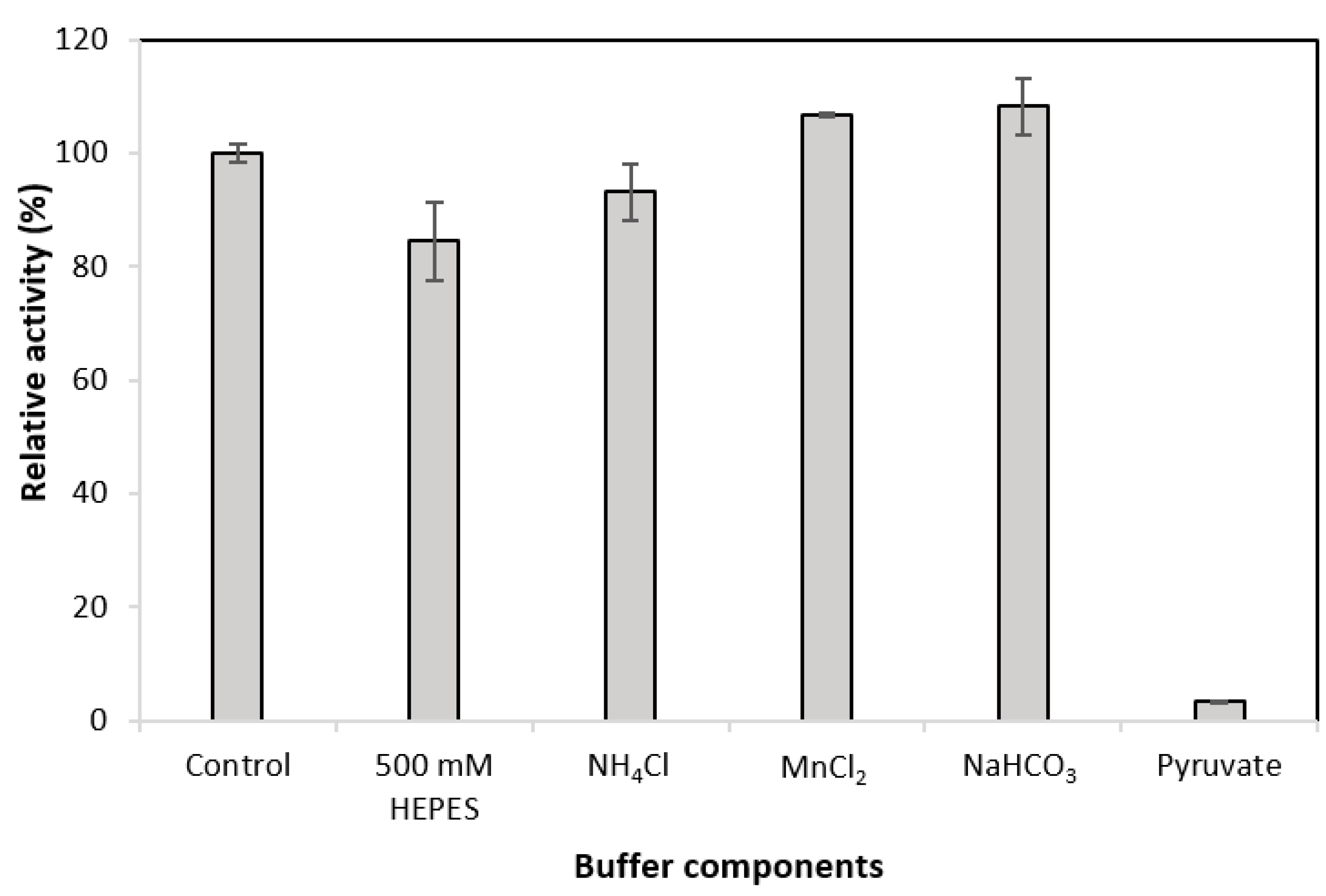

Having examined the effect of GDH buffer components on MDH* activity, the effects of MDH* buffer components were examined on the activity of GDH under 15% CO₂ and 5% O₂. The initial glucose concentration was 100 mM. Figure 4 shows that the presence of pyruvate has a significant effect on the activity of GDH. When the pyruvate concentration was 30 mM, GDH activity decreased by 96.7%. Increasing the final concentration of HEPES from 100 mM to 500 mM decreased the activity of GDH by 15.5%. When MnCl₂ and NaHCO₃ were added to the buffer, the activity of GDH showed an increase of 6.9% and 8.2%, respectively.

3.5. Effect of Pyruvate Concentration on the Activity of GDH

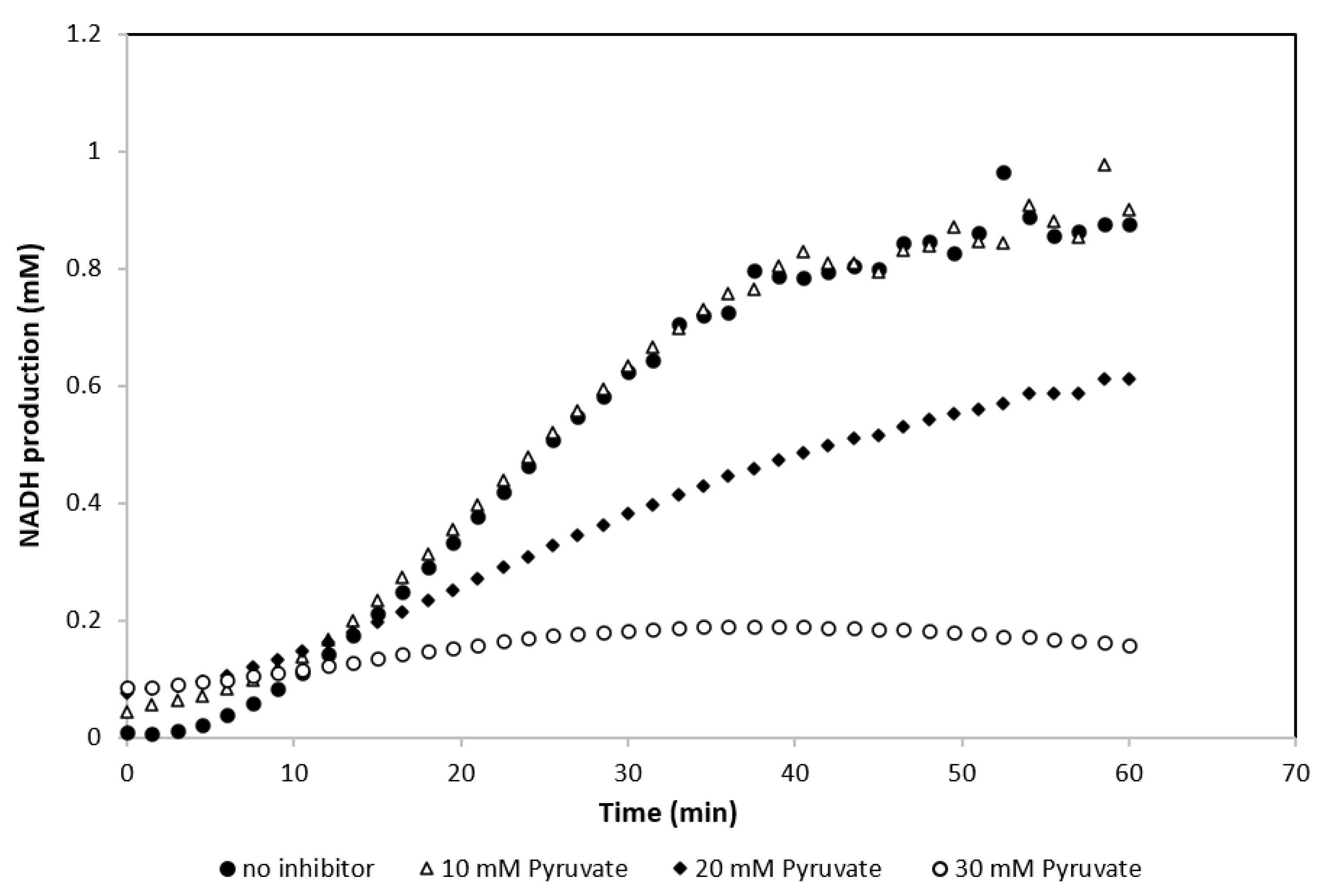

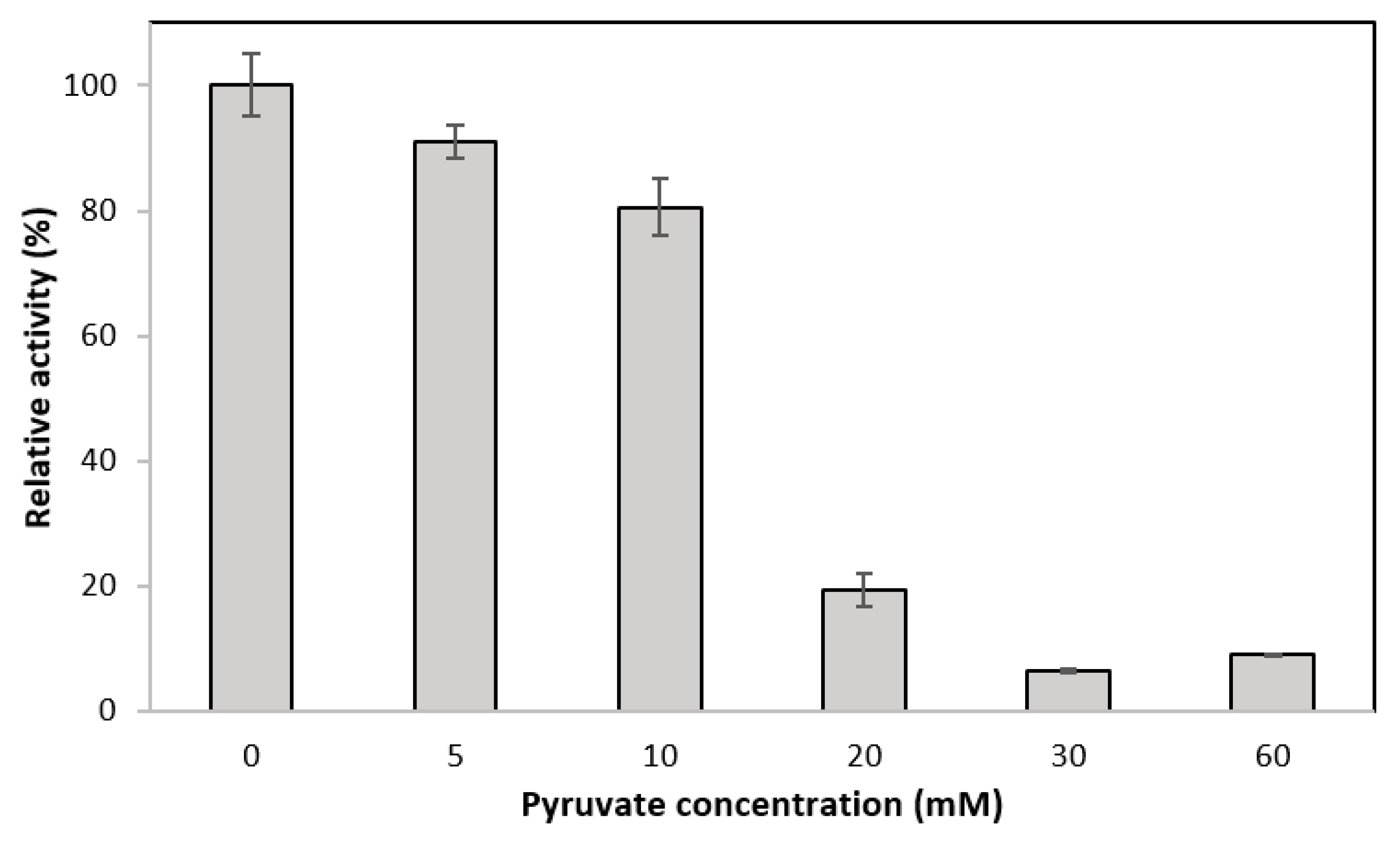

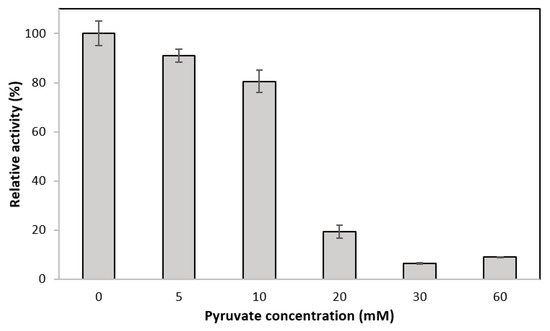

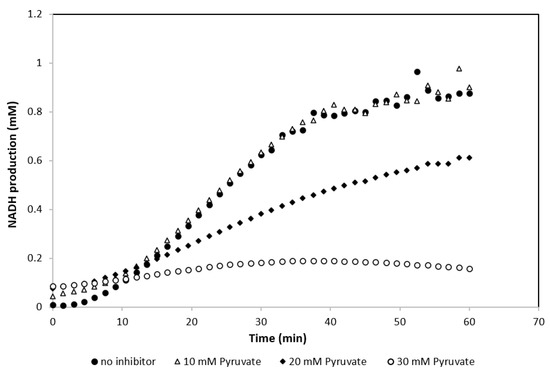

The presence of pyruvate had a substantial negative effect on the activity of GDH (Figure 4). The effect of adding pyruvate at concentrations of 0–60 mM to the standard GDH assay buffer was therefore examined. NADH formation was recorded over 2.5 h and the relative activity of GDH was calculated (Figure 5). As shown in Figure 5, pyruvate concentrations above 10 mM had a significant effect on the activity of GDH and reduced it by over 50%. This was further explored by following NADH production in the first hour of the experiment with pyruvate concentrations ranging from 0–30 mM. Figure 6 shows the effect of different pyruvate concentrations on the activity of the GDH during the first hour of the experiment, whereby concentrations of <10 mM of pyruvate had no significant effect on the reaction.

3.6. Optimization of Atmospheric and Temperature Conditions for the Activity of Purified MDH*

The reaction conditions for the efficient conversion of pyruvate to malate by MDH* require high CO₂ and low O₂ levels. All experiments undertaken were therefore performed under standard MDH* reaction conditions (55 °C, 5% O₂ and 15% CO₂). This was further explored and optimized by testing the effects of different O₂ and CO₂ ratios at different temperatures on the activity of MDH* to obtain optimal reaction conditions. A Box–Behnken design and response surface methodology were used with MATLAB 2019a, to develop a model that identified the conditions leading to maximum MDH* activity. The values of the three chosen input variables are shown in Supplementary Table S1. The chosen temperature range of 45–65 °C was selected on account of instrumental technical specifications and the use of a thermophilic enzyme. Fifteen independent experiments were performed to examine the effect of the experimental variables on the initial reaction rate of MDH* activity. The initial reaction rate was calculated via the decrease in NADH concentration at the beginning of the reaction. The full data set for all 15 conditions is shown in

Table 2. Experimental conditions and initial MDH* activity rates obtained with the input conditions outlined in Supplementary Table S2 and as calculated using the model *.

Experiment Number	O2 (%)	CO2 (%)	Temperature (°C)	Initial Rate (mM/min)	Initial Rate * (mM/min)
1	2.5	5	55	0.068	0.066
2	7.5	5	55	0.061	0.064
3	2.5	15	55	0.067	0.065
4	7.5	15	55	0.086	0.088
5	2.5	10	45	0.030	0.039
6	7.5	10	45	0.059	0.063
7	2.5	10	65	0.098	0.095
8	7.5	10	65	0.103	0.094
9	5	5	45	0.052	0.045
10	5	15	45	0.054	0.082
11	5	5	65	0.076	0.049
12	5	15	65	0.092	0.099
13	5	10	55	0.078	0.086
14	5	10	55	0.092	0.086
15	5	10	55	0.088	0.086

(and Supplementary Table S2). The highest initial reaction rate, 0.103 mM/min, was detected at 65 °C, 7.5% O₂, and 10% CO₂ for experiment number eight (Table 2). The maximum initial reaction rate value was calculated by the model to be 0.102 mM/min, with temperature, O₂ and CO₂ values of 65 °C, 5.625% and 12.5%, respectively. The experimentally obtained value and the value as calculated by the model were in close agreement. These conditions were then used for all further activity assays (65 °C, 5.6% O₂ and 12.5% CO₂).

3.7. Coupling MDH* and GDH for Cofactor Recycling

Having identified buffer conditions that could support the activity of both enzymes, the activities and cofactor recycling capabilities of purified MDH* and GDH were assayed within the same experiment at the optimal conditions of 65° C, 5.6% O₂ and 12.5% CO₂. Pyruvate and glucose concentrations were each adjusted to 30 mM, the concentration of HEPES was kept at 500 mM, and all other components were added to the reaction as shown in Table 1. Two different experimental setups were used to determine the success of coupling the two enzymes.

In the first setup, changes in pyruvate concentration were examined, which would indicate the conversion of NADH to NAD⁺ and pyruvate to malate by MDH*. The reaction was tested under optimal conditions (65 °C, 5.6% O₂ and 12.5% CO₂), by the addition of NADH. In the second setup, the same reaction mixture was used but the reaction was initiated by the addition of NAD⁺ instead of NADH. Changes in the NADH concentration were monitored for 2 h with a plate reader. The final NADH concentrations were compared with an enzyme-free reaction control containing the same initial concentration of NADH as the first experimental setup (

Table 3. Coupling GDH and MDH* for cofactor recycling capabilities.

	Scenario 1: Presence of Both Enzymes (GDH and MDH*), NADH as Cofactor	Scenario 2: Presence of Both Enzymes (GDH and MDH*), NAD+ as Cofactor	Control: No Enzyme, Contains Same Amount of NADH as Scenario 1
Final NADH concentration, mM	1.21 ± 0.06	1.31 ± 0.01	1.74 ± 0.04
Gluconic acid concentration, mM	8.81	10.45	0

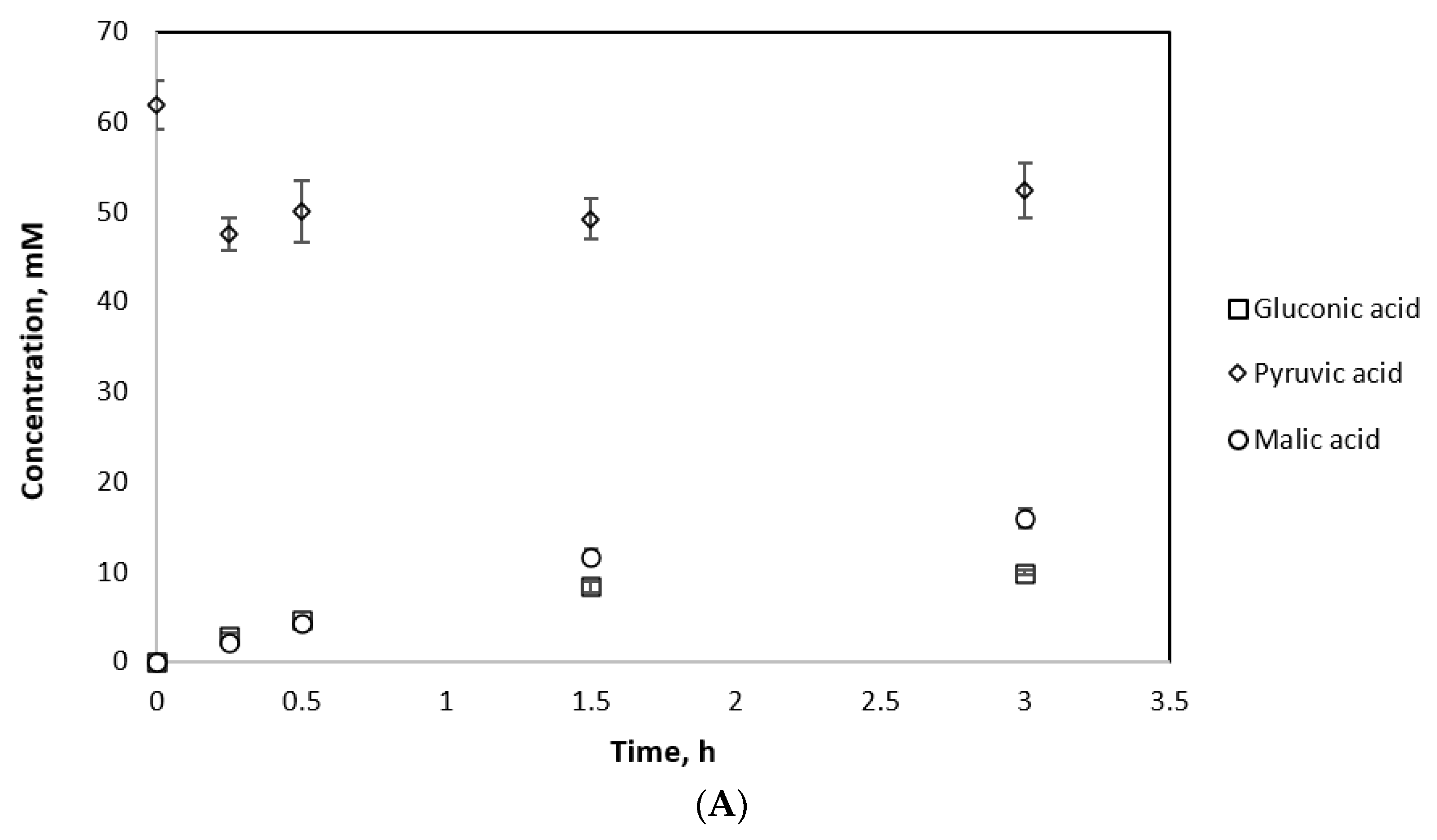

). Despite the presence of 30 mM pyruvate, GDH still displayed activity. The NADH consumption in the first setup demonstrated the activity of MDH*. The concentrations of malate and gluconate produced by the cascade were also established by deproteinizing samples of the reaction mixture, diluting them 10-fold, and analyzing them via HPIC. However, due to the high dilution factor, malate peaks were below the detection limit and pyruvate as the substrate was in excess; hence, small changes in concentrations were indistinguishable. However, gluconic acid production was detected in both cases, demonstrating that cofactor recycling had been achieved.

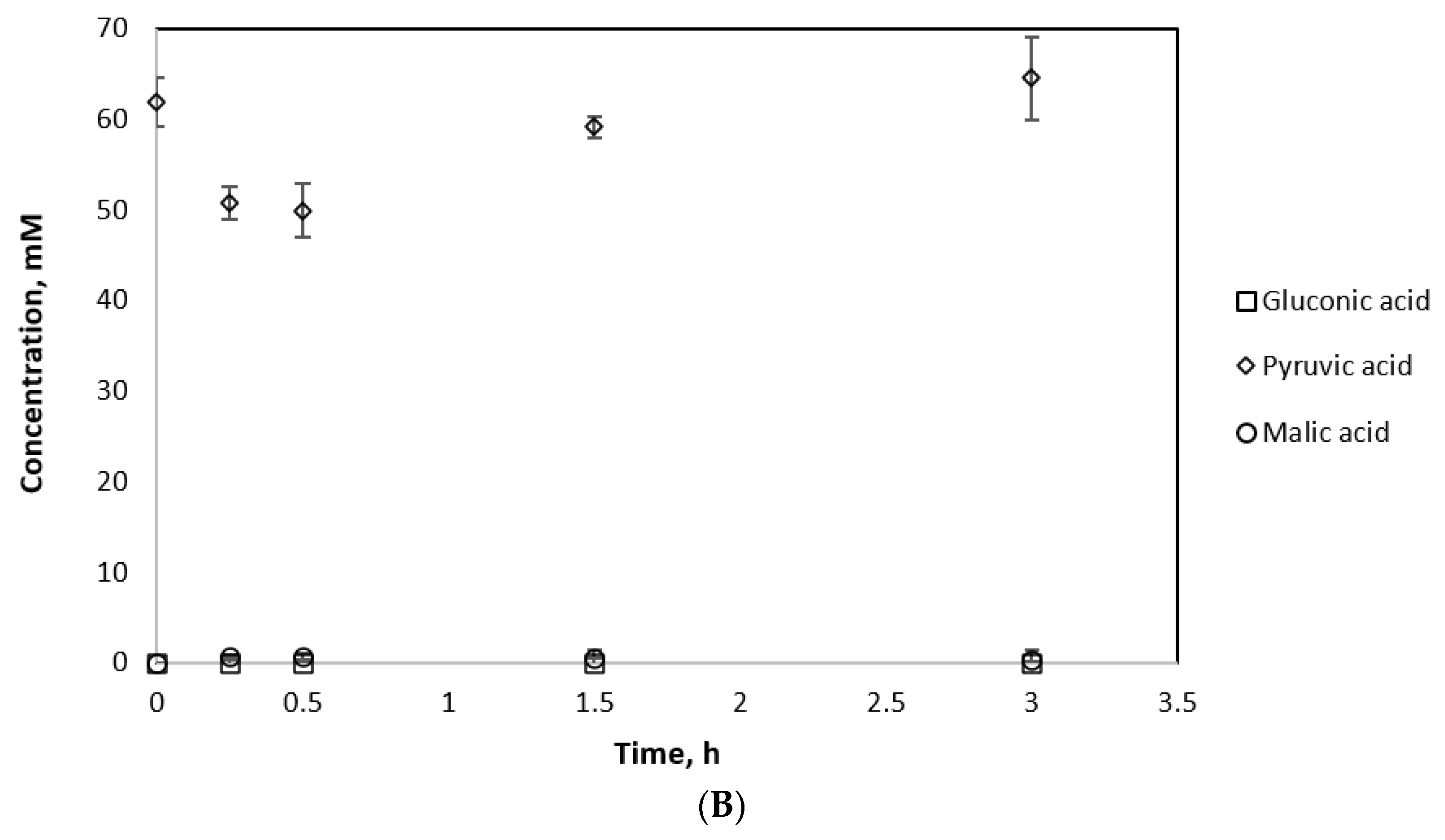

To detect malate by HPIC, 2 mL cascade reactions were set up and monitored via plate reader, comprising 13.2U GDH and 3.3U MDH* under optimal reaction conditions (65 °C, 5.6% O₂ and 12.5% CO₂). The reactions were initiated by the addition of NADH. All experiments were carried out in triplicate under the same conditions for different periods of time. An MDH*-only reaction was run as a control (Figure 7B). The gluconic and malic acid yields from the cascade reaction were significantly higher than when MDH* was used alone (Figure 7A). As a result, 15.96 mM malic acid and 9.94 mM gluconic acid were produced by the cascade reaction after 3 h compared to 0.309 mM malic acid from the MDH*-only reaction. Notably, 2 mM malic acid was produced by the dual enzyme system after 15 min (which is higher than the malic acid yield by MDH* alone after a reaction time of 3 h) and another high-value chemical, gluconic acid, was additionally produced by the cascade system from glucose and NAD⁺.

4. Discussion

To ensure a successful coupled reaction, the effects of GDH (the regeneration enzyme) reaction conditions on the activity of MDH* (the production enzyme) were examined. The highest reduction in MDH* enzymatic activity was caused by a decrease in HEPES buffer concentration from the standard 500 Mm HEPES in MDH* assays to 100 Mm HEPES in GDH assays; the activity of MDH* was reduced by 20% (Figure 2). The majority of enzymes require only moderate ionic strength, typically ranging between 50 and 200 Mm, but this is not the case for thermophilic enzymes which require buffer concentrations up to 1 M [15]. The observed decrease in activity is therefore likely due to the reduction in buffer capacity which, along with any added components, can reduce the obligatory enzyme activity [16]. Aside from HEPES, the addition of other GDH assay components such as MgCl₂, glycerol, and the GDH substrate, glucose, did not reduce MDH* activity by more than 10% (Figure 2).

MDH* activity assays were carried out under 15% CO₂ and 5% O₂ atmospheric conditions; therefore, GDH activity was assayed under atmospheric conditions required by MDH* and activity levels of GDH were measured via the concomitant production of NADH from the oxidation of glucose to gluconate. After 60 min, there was no significant difference between the amount of NADH produced by GDH assayed under aerobic conditions and GDH assayed under atmospheric control (Figure 3). From these findings, it was concluded that GDH is a suitable cofactor recycling partner and its reaction components do not drastically inhibit the activity of MDH*. It was concluded that GDH can be utilized effectively under altered atmospheric conditions as per the requirements of MDH*.

For a fully feasible cofactor recycling coupling, the assay components of MDH* were also tested on the activity of GDH under atmospheric conditions. This experiment demonstrated the drastic effect of pyruvate on reducing the activity of GDH (Figure 4). This loss of activity was determined to be due to the competitive inhibition of GDH by pyruvate, because concentrations of 10 mM pyruvate reduced GDH activity by ~60%, and a twofold increase in pyruvate concentration increased the K_M value sixfold (Supplementary Table S3). Concentrations of 30 mM pyruvate and 30 mM glucose were used to mitigate the issue of GDH inhibition by pyruvate. Cofactor recycling was demonstrated when using NAD⁺ or NADH as cofactors in the presence of both GDH and MDH* (Table 3).

In conclusion, we have demonstrated cofactor regeneration within a closed system of two thermophilic enzymes. The work carried out here sets the foundation for this concept to be explored further with longer reaction times and further optimization of reaction conditions. The redox neutrality of the two enzymes may now be exploited further by expanding the number of enzymes in the cascade system. Further optimization regarding the separation of the products can also be explored. Immobilization of the coupled enzymes will provide potential solutions to issues linked with enzyme cost and stability [17,18] and for catalyst recycling on an industrial scale [19], offering advantages of both economy and sustainability.
