The Role of HNO2 in the Generation of Plasma-Activated Water by Air Transient Spark Discharge

by
Mário Janda
*,
Karol Hensel
,
Peter Tóth
,
Mostafa E. Hassan
and
Zdenko Machala
Faculty of Mathematics, Physics and Informatics, Comenius University Mlynská Dolina, 84248 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(15), 7053; https://doi.org/10.3390/app11157053
Submission received: 8 July 2021 / Revised: 27 July 2021 / Accepted: 28 July 2021 / Published: 30 July 2021
(This article belongs to the Special Issue Frontiers in Atmospheric Pressure Plasma Technology)
Browse Figures
Versions Notes

Abstract

:
Transient spark (TS), a DC-driven self-pulsing discharge generating a highly reactive atmospheric pressure air plasma, was employed as a rich source of NOx. In dry air, TS generates high concentrations of NO and NO2, increasing approximately linearly with increasing input energy density (Ed), reaching 1200 and 180 ppm of NO and NO2, at Ed = 400 J/L, respectively. In humid air, the concentration of NO2 decreased down to 120 ppm in favor of HNO2 that reached approximately 100 ppm at Ed = 400 J/L. The advantage of TS is its capability of simultaneous generation of the plasma and the formation of microdroplets by the electrospray (ES) of water directly inside the discharge zone. The TS discharge can thus efficiently generate plasma-activated water (PAW) with high concentration of H2O2−(aq), NO2−(aq) and NO3−(aq), because water microdroplets significantly increase the plasma-liquid interaction interface. This enables a fast transfer of species such as NO, NO2, HNO2 from the gas into water. In this study, we compare TS with water ES in a one stage system and TS operated in dry or humid air followed by water ES in a two-stage system, and show that gaseous HNO2, rather than NO or NO2, plays a major role in the formation of NO2−(aq) in PAW that reached the concentration up to 2.7 mM.

Graphical Abstract

1. Introduction

Highly reactive non-thermal (cold) plasmas (NTP) in atmospheric air can be generated by various electrical discharges. Their high chemical activity is due to the presence of high energy electrons. The NTP are therefore very commonly used in various environmental, surface processing, or biomedical applications [1,2,3]. The research interest focused on the cold plasma applications in biology and medicine has dramatically grown during the last decades, because NTP can efficiently inactivate bacteria and other dangerous microbes and induce interesting therapeutic effects, e.g., against cancer cells [4,5].
There are several biocidal agents provided by non-thermal plasma treatments: UV radiation, ions, and reactive neutral species [6,7,8]. The role of individual agent can vary depending on the used plasma source, input energy density, or gaseous environment. The reactive oxygen and nitrogen species (RONS) were demonstrated as the key biocidal agents produced in the transient spark (TS) air discharge extensively studied in our group [9]. We previously reported that the dominant gaseous products in the air treated by TS were nitric oxide (NO) and nitrogen dioxide (NO2) [10].
Biomedical applications of NTP often lead to the interaction of plasmas with liquid media (e.g., water). The generation of NTP in contact with water has therefore become a hot topic over the last few years [11]. Transport of active species from the plasma (gas phase) into the liquid phase leads to the production of so-called plasma-activated water (PAW), with various potential applications in medicine (e.g., wound healing or inactivation of cancer cells) or in agriculture (e.g., seed germination and plant growth promotion, pest control) [12,13,14,15,16]. With PAW, the biocidal effects of plasma can be indirectly applied in cases where a direct plasma treatment is not possible.
The composition of PAW and thus also its potential application varies with the used plasma source and working gas [15,17]. The liquid phase RONS in PAW include long-lived species: ozone (O3(aq)), hydrogen peroxide (H2O2(aq)), nitrites (NO2−(aq)), or nitrates (NO3−(aq)), besides short-lived species that are challenging for diagnostics: hydroxyl OH, peroxyl HO2 radicals, atomic O, N and H, singlet molecular O2 (1Δ), superoxide anion O2− and other ions. Transport of reactive species from gas to water is the primary source of the liquid RONS, but the composition of liquid RONS does not perfectly mirror the concentrations of gaseous RONS. First, the concentration of liquid phase RONS depends on the solubility of their gas phase counterparts. Second, the composition of PAW is influenced by a rich set of the subsequent chemical reactions in the liquid phase [18,19].
The highest achievable (saturated) concentration of species in liquid phase c i s a t u r is determined by Henry’s law:
c i s a t u r = k H i p i
Here p i is partial pressure and k H i is the Henry’s law coefficient of i-species. For instance, H2O2 (with kH = 108,000 mol.kg−1 atm−1 at 298.15 K [20]) is much more soluble than many other gas phase RONS, having k H by seven orders of magnitude higher than O3 and NO2, and by eight orders of magnitude higher than NO. The high solubility of H2O2 leads to the depletion of its gas phase concentration near the liquid interface [21,22]. The highest achievable concentration of H2O2(aq) in the liquid phase is thus limited by the number of available H2O2 molecules in the gas phase. On the other hand, for weakly soluble molecules, such as O3, the assumption of the constant concentration and partial pressure in the gas phase is valid. Here, the saturated concentration in the liquid phase could be achieved without a noticeable decrease of O3 concentration in the gas phase. In plasma-liquid interactions, the situation is much more complicated, because solubility determined by Henry’s law coefficient is valid for systems in thermodynamic equilibrium. This is certainly not the case of NTP interacting with water. Electric fields, temperature gradients, electrohydrodynamic spray of liquids, charging of water droplets, ionic wind, chemical reactions among various species, and other phenomena make solvation of reactive species from NTP to water very complicated process that is still not completely understood [11,21].
The plasma-liquid interface surface area is a key parameter maximizing the contact between the plasma and the treated water solution, thus determining the obtained plasma chemical effects [23]. The transformation of bulk water into fine droplets results in an increase of this interfacial surface area and thus accelerates the transport of reactive plasma species into the water. The electrohydrodynamic spray of liquids, here simply called electrospray (ES), is a simple process to produce microdroplets from bulk liquid by a strong electric field. Despite the pioneering experimental studies describing several ES modes were conducted more than a century ago [24,25], due to a high application potential of ES in many areas [26,27,28,29,30,31], the research of ES continues [32,33,34], and several reviews were published recently focused on different aspects of ES [35,36,37].
The idea of using ES microdroplets to increase plasma-water interface area has been adopted by several research groups [21,38,39,40], as well as in our previous works [15,41]. For instance, TS was also used to prepare PAW by the electrospray of fine aerosol droplets directly through the active plasma zone, which resulted in a very efficient transfer of gaseous RONS into water. The PAW generated by TS contains besides H2O2(aq) high concentration of NO2−(aq) and NO3−(aq) [15]. This was attributed to the fact that the dominant gas phase species in air TS are NO and NO2.
In this paper we focus on the possible role of gas phase nitrous acid (HNO2) on the PAW generation by TS. Even with much lower gas phase concentration than NO2 and NO, HNO2 may influence PAW generation significantly since the k H of HNO2 (50 mol kg−1 atm−1 at 298.15 K [42]) is four and five orders of magnitude higher then k H of NO2 (0.007 mol kg−1 atm−1 at 295 K [43]) and NO (0.0018 mol kg−1 atm−1 at 298.15 K [44]), respectively. In our previous work, we were able to detect small amounts of HNO2 in the gas phase using the Fourier transform infrared (FT-IR) spectroscopic technique [45]. A new diagnostic technique (direct UV-Vis absorption spectroscopy) allowed us to perform a more precise HNO2 diagnosis in the TS-treated air when installed much closer to the plasma reactor. Moreover, the experiments where PAW is prepared by the direct ES of microdroplets directly through the discharge zone in a common one-stage system are compared to the experiment with a two-stage system, with one reactor for the TS air treatment followed by the ES of water microdroplets in the second reactor.

2. Materials and Methods

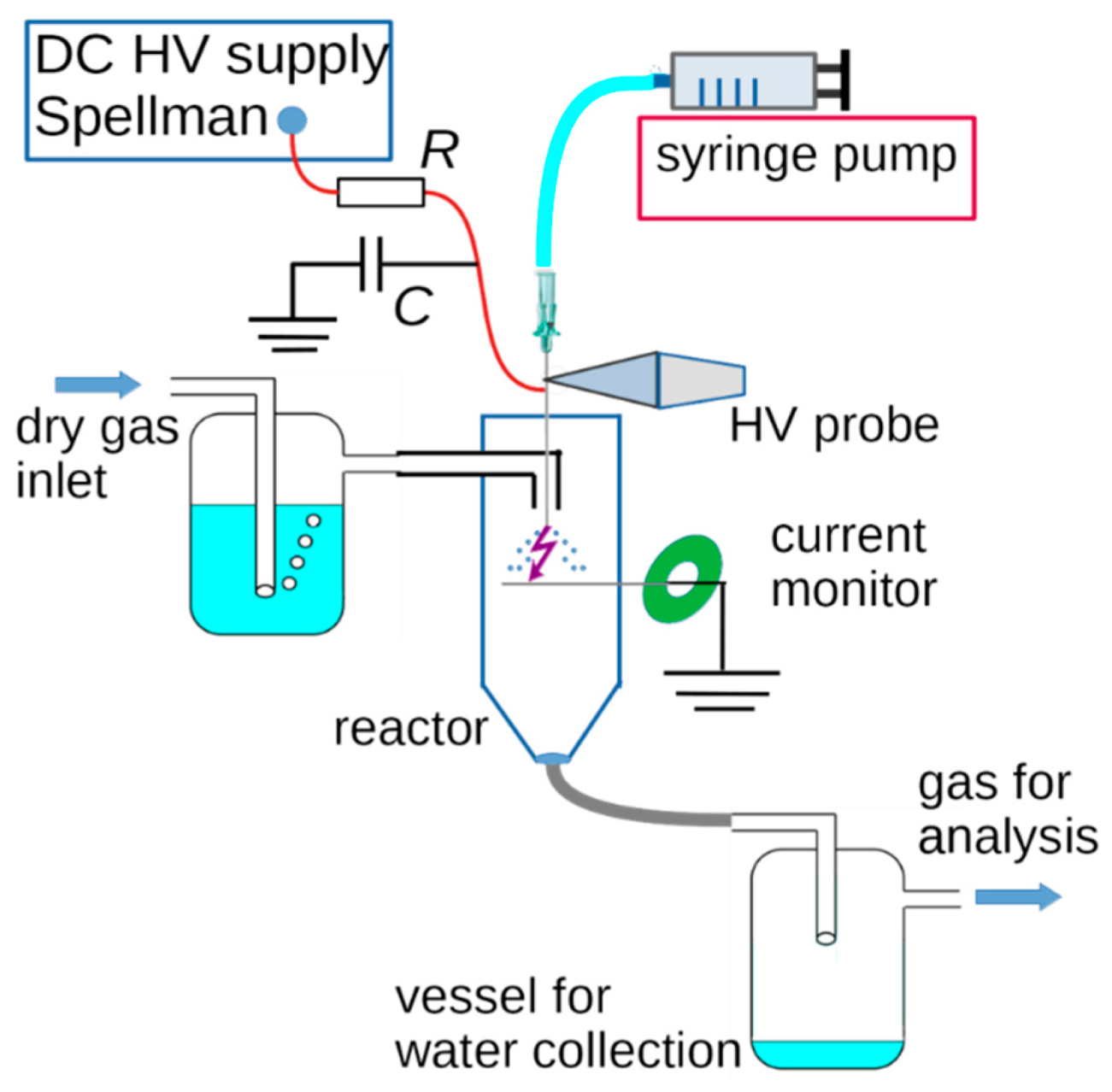

Several types of experiments were performed in a one-stage system (1SS) with a single reactor (Figure 1), or in two-stage system (2SS) with two reactors in series (Figure 2). In 1SS, the single reactor enables a simultaneous generation of TS with a direct ES of water. This reactor can be also used for generation of TS without ES, or vice-versa, for generation of ES without TS. In 2SS, the gas is treated by TS inside the first reactor, and subsequently passed into the second reactor with water electrosprayed on the microdroplets. In 2SS, the second reactor is the same as the single reactor used in 1SS (Figure 2).
The treated air was either dry synthetic air (99.999% purity, Messer Tatragas, Bratislava, Slovakia), or humidified synthetic air. In addition, dry and humidified O2 (99.95% purity, Linde Gas, Bratislava, Slovakia) were used in two comparative experiments. In order to moisturize the gas, the dry air was bubbled through a bubbler filled with deionised (DI) water (with conductivity < 3 μS/cm). Typically, the relative humidity around 94–96% was achieved, verified by humidity sensor. The gas flow rate 1.1 L/min was constant in all experiments, controlled by rotameters Aalborg. We also performed additional comparative experiments in 1SS focused on NO and NO2 solvation to ES water microdroplets without discharge. For this purpose, as well as for calibration of spectrometers, two special pressure tanks with calibration gases were used: one with 2000 ppm of NO in N2, the second one with 1000 ppm of NO2 in synthetic air. Lower concentration of NO and NO2 was achieved by mixing of gases from these bottles with N2 or synthetic air, respectively. More specific description of the used discharge and individual components of our experimental setups follow.

2.1. Reactor Details

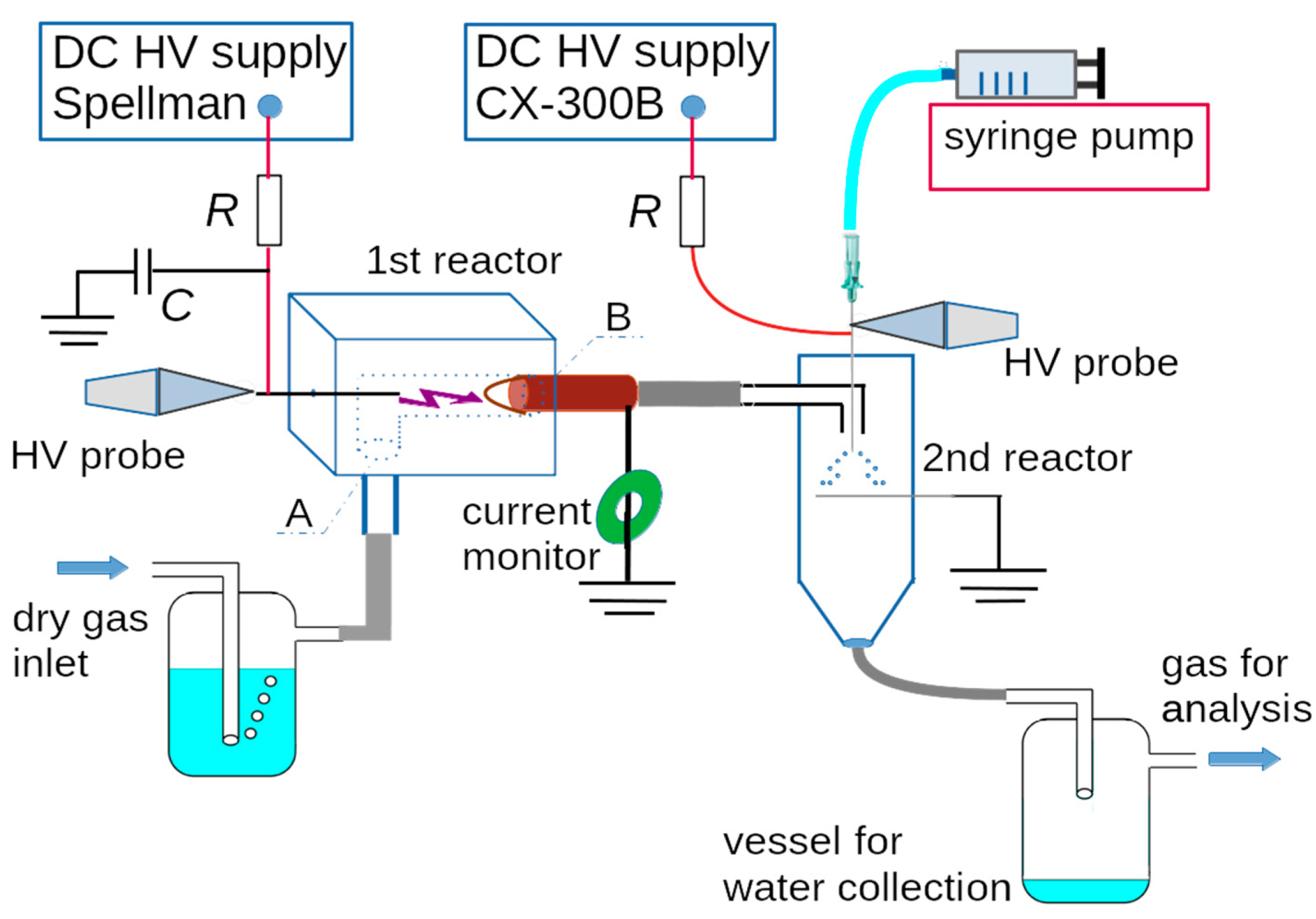

The first reactor in 2SS (Figure 2) used for TS generation, has shape of a block with dimensions 16 × 11 × 43 mm made of polytetrafluoroethylene (PTFE). Two intersecting perpendicular holes A and B (diameter 6 mm with M6 thread) are drilled in this block, so that the gas can pass through it, making 90 degree turn. One of these openings (B) serves for insertion of grounded electrode into the reactor. The grounded electrode is a copper wire with diameter 1 mm connected to the end of copper tube used for gas outlet, with the inner diameter 5 mm and outer diameter 6 mm and with outer M6 thread. There is another hole, with diameter 2 mm and M2 thread, opposite to the opening B. The M2 hole serves for insertion of stressed (anode) electrode, namely an iron M2 screw with a sharpened tip. The gap between the electrodes is approximately 10 mm.
The second reactor, used for ES in 2SS experiments (Figure 2) and for generation of both TS and ES in 1SS experiments (Figure 1), has a cylindrical shape with an inner diameter 2.9 cm and its length is 13 cm. The high voltage is applied to the top blunt hollow needle electrode (anode), having outer diameter 0.7 mm and inner diameter 0.5 mm. When this reactor is used as a second stage for generation of ES without TS (2SS experiments), a CX-300B DC HV power supply (unbranded, China) is used, connected to the anode via series resistor R = 13.5 MΩ. The applied voltage is 6 kV (below TS onset voltage) and it is monitored by a N2771A HV probe (Agilent, Santa Clara, CA, USA). The current was not measured in the second reactor when used only for ES generation without TS, because it was below the measurable limits of our current 2877 monitor (Pearson Electronics, Palo Alto, CA, USA).
The grounded electrode is also a medical needle with the outer diameter 0.7 mm going through the body of the reactor, with the gap between the electrodes being 10 mm. The top needle electrode (anode) is also used for the ES water input, continuously supplied with the deionized water (pH ~5.4, conductivity ~3 μS/cm) by a NE-300 syringe pump (New Era Pump Systems, Farmingdale, NY, USA) through silicon tubing under controlled flow rate ( Q w = 100–500 μL/min). The treated gas enters the reactor in the upper part in direction parallel to the HV needle electrode, where it comes to contact with electrosprayed microdroplets. The water and the gas leave the reactor together at the bottom of the cylindrical reactor. The water is collected in a vessel behind, while the gas continues towards the analytical part of the system. The openings in the reactor where needle electrodes are inserted are sealed by a vacuum grease to avoid leaks of a treated gas.

2.2. TS Generation and Diagnostics

A high voltage (HV) DC power supply (SL30P300 Spellman, Hauppauge, NY, USA) connected to the reactor via series resistor R = 3.2 MΩ is used to generate positive polarity TS between two metallic electrodes in a pin-to-wire configuration. The distance between electrodes in both reactors is approximately 10 mm. The TS discharge characteristics were measured by a P6015A HV probe (Tektronix, Berkshire, UK) and a Pearson Electronics 2877 current monitor, and then processed by a TBS2104 digital oscilloscope (Tektronix).

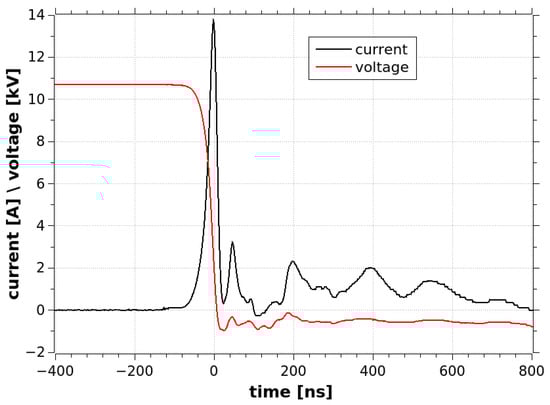

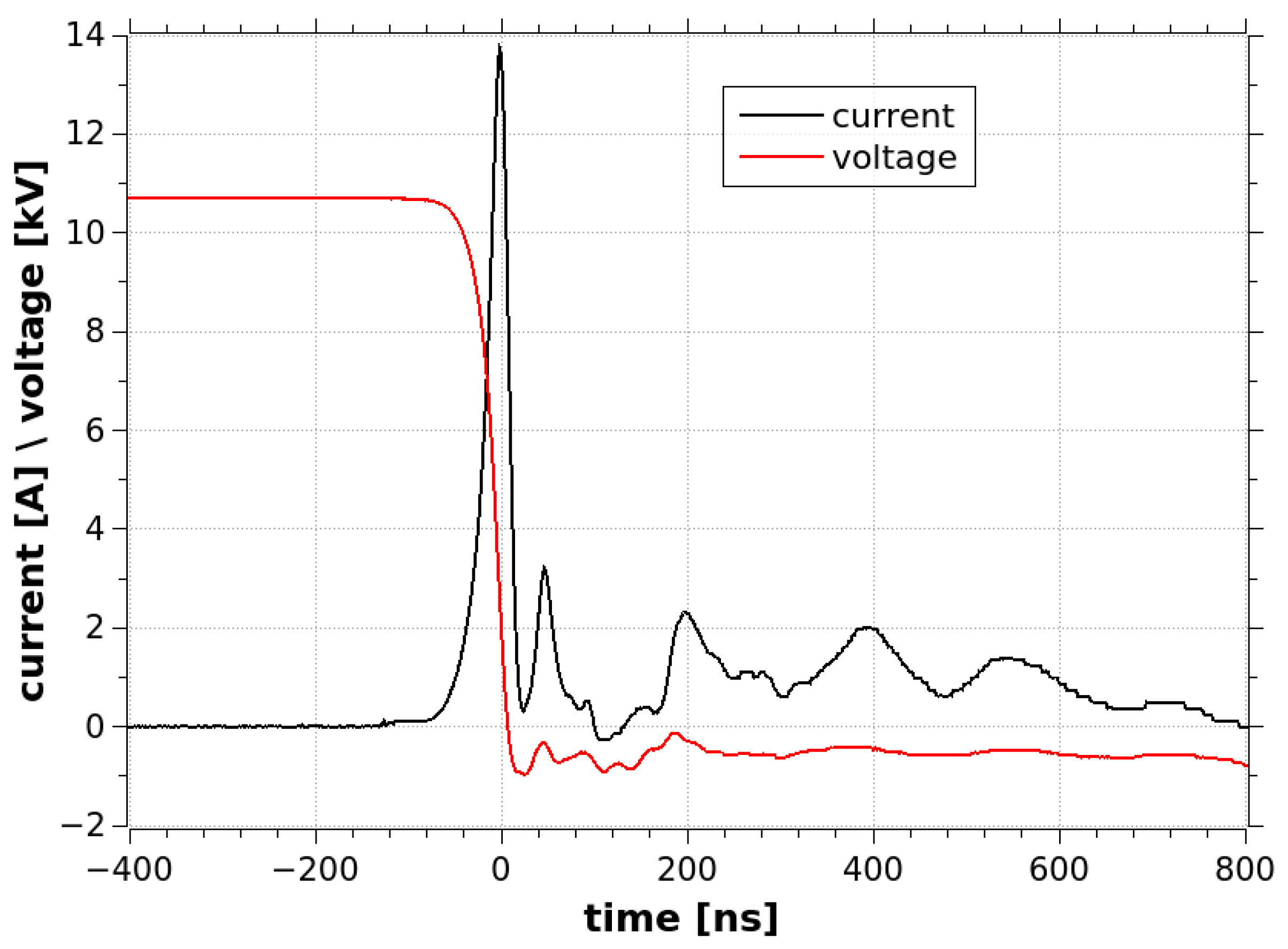

Despite using DC power supply, TS is a self-pulsing discharge characterized by short high current pulses (Figure 3), with a typical repetition frequency f = 1–10 kHz [46,47]. Energy delivered to the plasma per pulse can be calculated from the measured current I and voltage V waveforms by the following formula:
E p = ∫ T V × I d t
with the integration period T covering all the spark current pulse produced by discharging of the electric circuit capacity C. In our previous works we relied on internal capacity of the circuit, provided mostly by the HV cable connecting the anode with the ballast resistor R, with a length 1–2 m. Here we used a much shorter cable and thus we used an external capacitor C = 50 pF to provide a sufficient discharging capacity. Still, 50 pF is low enough to avoid classical spark discharge that generates a thermal plasma, because TS current pulses have too short duration and Ep is only around 2 mJ/pulse. Knowing Ep, the discharge power (p) can be obtained as a product of the repetition frequency times the energy delivered per pulse: P = f × E p . Finally, the input energy density E d in [J/L] can be calculated as follows:
E d = 60 × P / q
where q is a gas flow rate in [L/min].

2.3. Gas Phase Diagnostics

The analytical system for gas composition analysis consists of three stages. First, the gas leaving the plasma reactor entered a 10 cm long cell with inner diameter 2.5 mm, used for UV-Vis absorption spectroscopy. As a light source, an AvaLight-D-S deuterium lamp (Avantes, Louisville, CO, USA) is used, along with an Avantes AvaSpec-Mini4096CL spectrometer for spectrally resolved light detection. Spectral resolution is 0.4–0.5 nm and spectra in the range 190–650 nm were recorded. Next, the analysed gas passes to the second, 75 cm long cell for UV-Vis absorption spectroscopy, with the same inner diameter 2.5 mm. As a light source, an Insight PX-2 pulsed Xe lamp (Ocean Insight, Orlando, FL, USA) is used here, with an Ocean Insight STS-UV spectrometer for spectrally resolved light detection. Spectral resolution is 3 nm and spectra in the range 185–665 nm are recorded. The UV-Vis absorption technique enables quantitative simultaneous detection of NO, NO2, HNO2 and O3. Measurement in two absorption cells with different lengths serves to expand the dynamic range of the studied RONS from a few ppm up to more than 1000 ppm. For example, the 75 cm cell enables quantitative detection of NO approximately in the range 5–200 ppm, while the 10 cm cell expands the upper detection limit of NO up to ~1400 ppm.
The third technique used for analysis of treated gas was Fourier transform infrared (FT-IR) spectrophotometry (IRAffinity-1S with wavenumber range 7800–350 cm−1 and a best spectral resolution of 0.5 cm−1, Shimadzu, Kyoto, Japan). The absorption spectroscopy in IR region is more versatile, i.e., more compounds can be found in the spectra than in the UV-Vis region. Besides NO, NO2, HNO2 and O3, detectable also in UV-Vis region, we can detect HNO3, N2O, CO, CO2 and almost all volatile hydrocarbons. In practice, the variations of water vapor concentration during experiments with humid air and with ES makes analysis of FT-IR spectra more complicated. The obtained spectra are noisy, with more complicated baseline shifts. Moreover, the used spectrometer is very sensitive to the electromagnetic noise from TS.
Both FT-IR and UV-Vis absorption techniques are absolute. The concentration of studied RONS in the gas were obtained by fitting of measured spectra with synthetic spectra. In order to obtain synthetic FT-IR spectra, we downloaded set of absorption lines for NO, NO2, H2O, HNO3, O3 and H2O2 molecules from HITRAN database [48]. Next, we convoluted these absorption lines to match the calculated spectra with the spectra measured by our spectrometer for spectral resolution 1 cm−1. We verified this approach by measurement of NO and NO2 with known concentration from calibration pressure tanks. As there is no suitable set of absorption lines for HNO2, we used absorption cross sections downloaded from supplemental HITRAN database [49].
The UV-Vis absorption cross sections of NO, NO2, HNO2, HNO3, N2O4, O3 and H2O2 were downloaded from the MPI-Mainz UV/VIS Spectral Atlas [50]. Next, we convoluted all absorption cross sections measured with better spectral resolution to fit spectral resolution of our spectrometers, keeping the area under the curve constant. Our approach was verified by using calibration pressure tanks with the known concentration of NO and NO2.

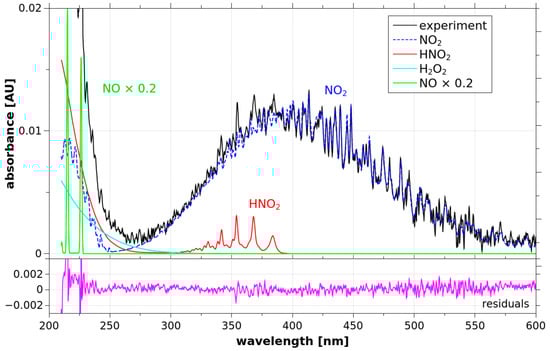

Figure 4 shows an example of the experimentally obtained spectrum, fitted by synthetic spectra of NO2, HNO2, H2O2 and NO. We achieved very good agreement between experimental and synthetic spectra by combined absorption of NO2, HNO2, NO and H2O2 molecules. The H2O2 absorption cross sections helped us to fit the spectrum in the range 200–280 nm, although the obtained concentrations of H2O2 are not presented in this paper because the H2O2 absorption cross section has no specific pattern and N2O, N2O4, or HNO3 have very similar cross sections. Absorbance in this part of the spectrum is also influenced by humidity inside the absorption cell.

2.4. Analysis of Water

The pH of collected plasma-activated water (PAW) was measured by a calibrated pH-EC-TDS-TEMP pH multimeter (EZ-9908, unbranded, China), and the concentrations of NO2−(aq) and H2O2(aq) formed in water were detected by the colorimetric methods using the Shimadzu UV-1800 UV/VIS absorption spectrophotometer. A Nitrate/Nitrite Colorimetric Assay Kit (# 780001, Cayman Chemicals, Ann Arbor, MI, USA) with ready-to-use Griess reagents was used for a quantitative analysis of NO2−(aq). The Griess assay method is the most commonly used for NO2−(aq) detection in plasma-activated solutions [51,52,53,54,55,56,57]. In the Griess diazotation reaction, NO2−(aq) reacts with sulfanilic acid under acidic conditions to form a diazonium ion, which couples to α-naphthylamine to form a readily water-soluble, deep purple colored azo dye, with the absorption maximum at 540 nm. The specificity and accuracy of the Griess assay for the detection of NO2−(aq) in PAW was confirmed by ion chromatography [58].
Measurement of H2O2(aq) was performed by the titanium oxysulfate assay based on the reaction of H2O2(aq) with the titanium (IV) ions under acidic conditions. The yellow-colored product of pertitanic acid H2TiO4 is formed with the absorption maximum at 407 nm [59]. The concentration of H2O2(aq) is proportional to the absorbance according to Lambert–Beer’s law (molar extinction coefficient ε = 6.89 × 102 L mol−1 cm−1). Because of the possible H2O2(aq) decomposition by NO2−(aq) under acidic conditions, sodium azide (NaN3, 60 mM) was added to the sample prior to mixing with the titanium oxysulfate reagent [19]. Sodium azide immediately reduces NO2−(aq) into molecular nitrogen and preserves the H2O2(aq) concentration intact.

3. Results and Discussion

TS generates a highly reactive non-equilibrium plasma (despite a very short temporary gas temperature increase during the spark phase [47]), with chemical effects comparable to plasmas generated by short HV pulses [60]. One of the advantages of the TS in comparison with discharges generated by short HV pulses is its capability of simultaneous generation of the plasma and the ES of water through the discharge zone. ES cannot be induced by short voltage pulses applied to the needle. In the TS, the voltage on the hollow needle electrode is not constant, but it is high enough to induce formation of microdroplets most of the time, except during the short period after voltage drops associated with gas breakdown (Figure 5a).

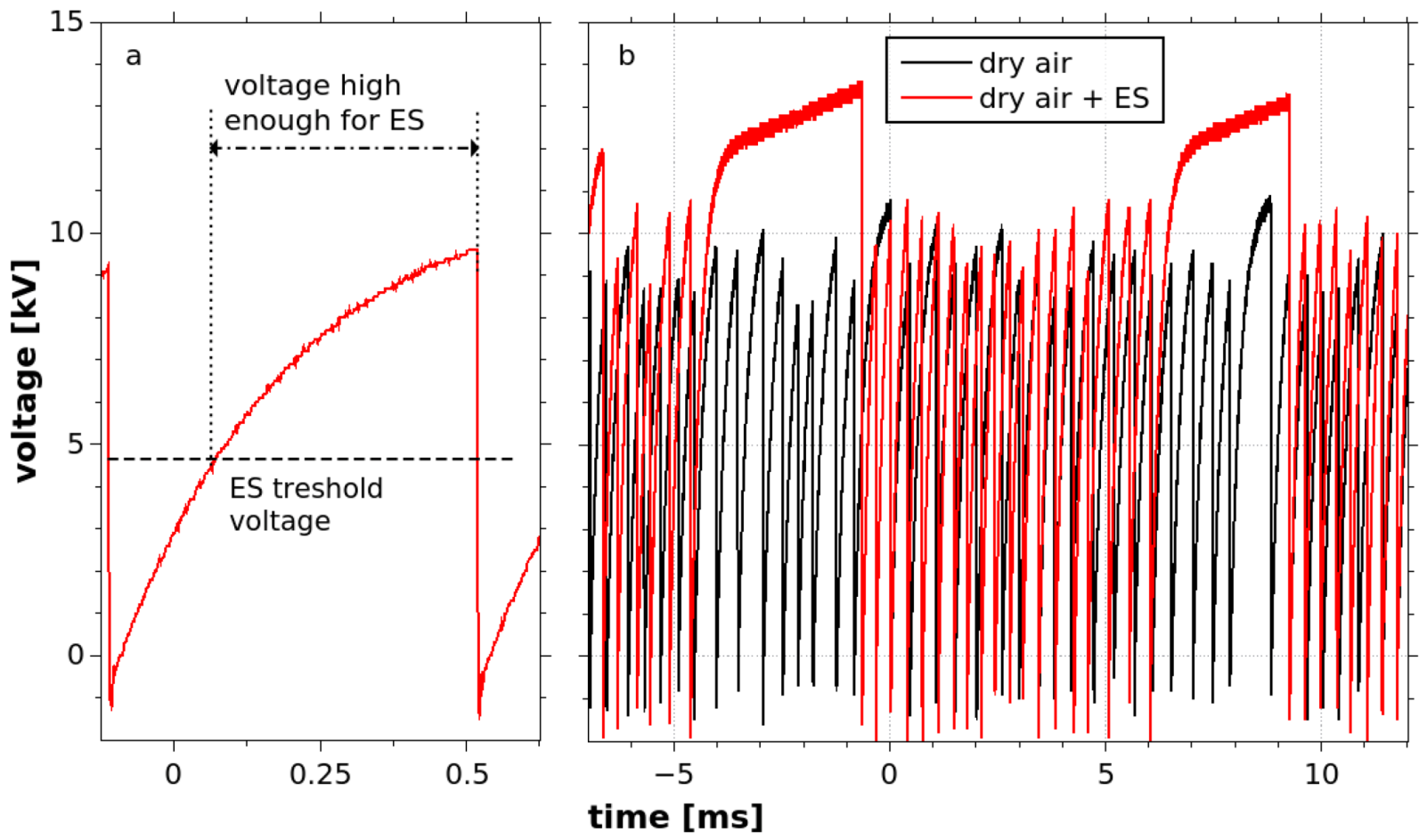

However, we must consider that TS and ES influence each other. This mutual influence causes instabilities of both ES and TS. Stable steady-state ES can be achieved only without a discharge or with a pulseless discharge, such as glow corona [61]. Vice-versa, the water flow needed for the ES causes instabilities of the TS, as shown in Figure 5b with periods where voltage increases well above the TS onset voltage (~10 kV), but no voltage drops associated with TS current pulses (e.g., time period 6–9 ms on Figure 5b). During these periods, only corona discharge may be generated, with much lower power and almost no generation of nitrogen oxides. Moreover, due to these corona discharge periods, the uncertainty of f in TS combined with ES is higher than in TS without ES. As a result, the uncertainty of the input energy density Ed is higher, causing a worse repeatability of experimental results. Nevertheless, it is still possible to compare generation of RONS by TS with and without ES, as shown in the Section 3.1.
The formation of RONS in the gas phase as described in Section 3.1 is just the first step in PAW generation. The second step is the solvation of gaseous RONS into water microdroplets. The changes of gaseous RONS concentrations caused by ES of water are described in Section 3.2. Finally, the Section 3.3 shows results from the analysis of generated PAW, explaining importance and contribution of individual RONS generated by TS (NO, NO2 and HNO2) on the achieved concentration of NO2−(aq).

3.1. Generation of RONS in the Gas Phase

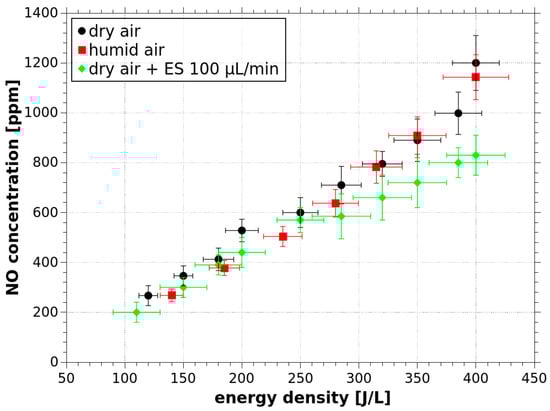

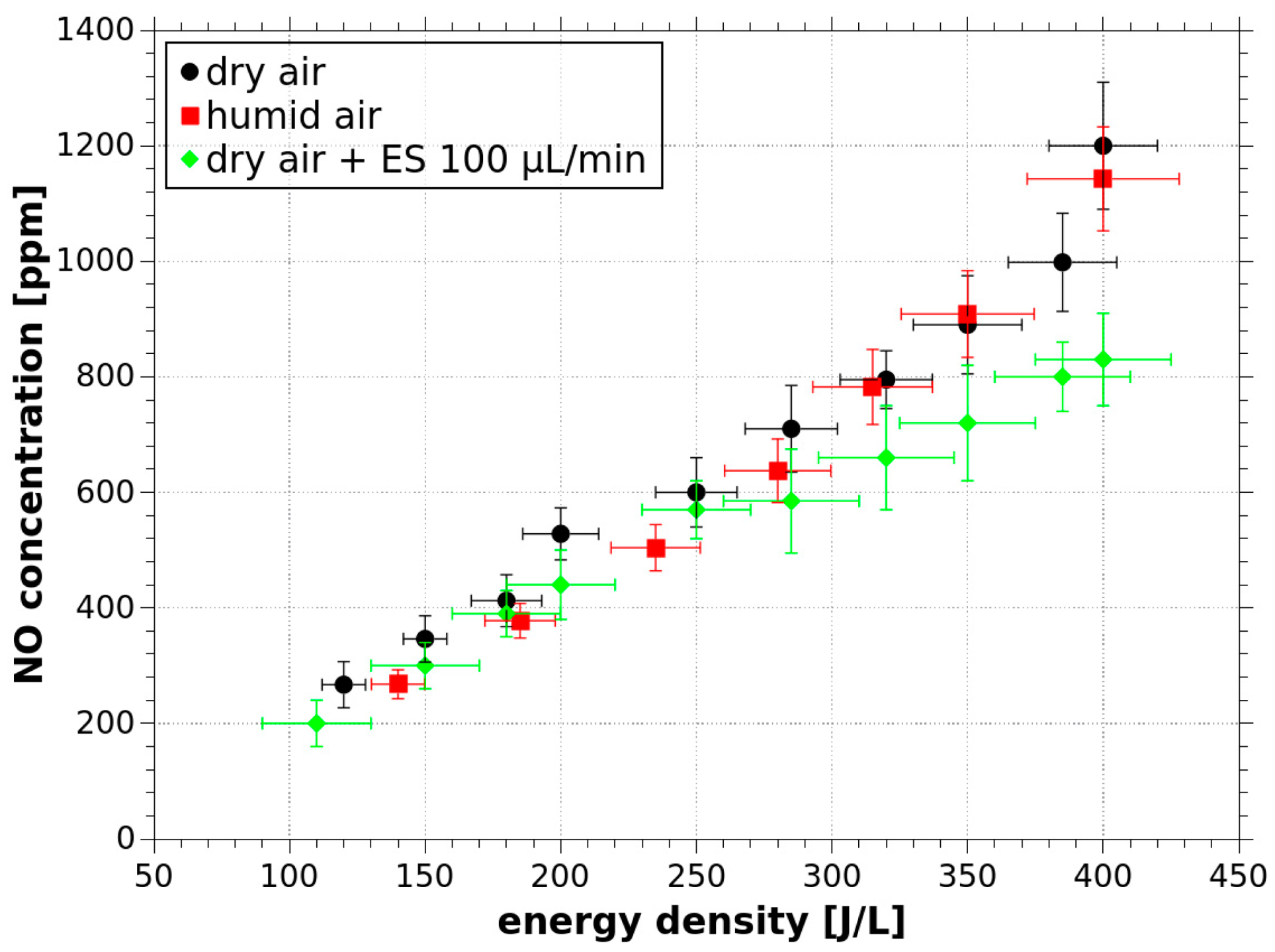

The analytical method we used enables the detection of various RONS. In the dry air treated by the TS we detected only three long-lived species: NO, NO2 and traces of HNO2. Other possible RONS, such as O3 or HNO3 were not detected. NO is a dominant product of the air TS plasma with the highest concentration achieved. The concentration of NO grows almost linearly with increasing input energy density, and the concentration of NO using either dry or humid air are almost identical (Figure 6).
Based on preliminary results from chemical kinetic model of TS [62], we assume that NO is generated by the modified Zeldovich mechanism. The original Zeldovich mechanism is initiated by the thermal decomposition of N2 and O2 into their atomic states at high temperature (above ~1500 K). Despite the fact that TS generates ‘cold’ non-equilibrium plasma, the temperature during the short spark phase of the TS can be as high as ~3000 K [47]. Next, both N and O atomic radicals are able to produce NO:
O + N2 → NO + N
N + O2 → NO + O
The rate coefficient of Reaction (5) with N atoms is four orders of magnitude higher at 3000 K than at room temperature, but the production of N atomic radicals via the thermal decomposition of N2 is very slow, even at 3000 K (rate coefficient ∼ 1.5 × 10 − 24 cm 3   s − 1 ) [63]. As a result, the thermal decomposition of N2 is a rate-limiting step of the thermal NO formation. In the TS discharge, the thermal mechanism of NO formation is bypassed by alternative reaction pathways for the generation of N and O atomic radicals. The influence of spark on plasma induced chemistry is not based on gas heating only, more important is an achievement of a high degree of ionization, with the electron density n e > 10 17 cm−3 [64].
The high degree of ionization results in a high degree of atomization thanks to the dissociative electron-ion recombination reactions:
e + O2+ → O + O   (O(1D) ~40%, O(1S) ~5%)
e + N2+ → N + N  (N(2D) ~45%, N(2P) ~5%)
In the next step, the products of reactions (6) and (7) enhance the NO synthesis, especially by N production bypassing the rate limiting step in the Zeldovich mechanism by Reaction (4). Moreover, reactions (4) and (5) can be much faster if one of the reactants is in an excited state [63,65]. There are many other reactions that can contribute to N or O atoms production. For example, additional O atoms can also be created from O2 molecules by dissociative electron attachment reaction.
A few microseconds after the spark current pulse, air cools down and the N concentration decreases. Consequently, the NO production stops. Remaining O atoms start to generate ozone O3:
O + O2 + M → O3 + M
Alternatively, the atomic oxygen can oxidize NO to form NO2 in a three-body Reaction (9):
NO + O + M → NO2 + M
However, Reaction (8) producing O3 is faster. Consequently, O3 also oxidizes NO to NO2:
NO + O3 → NO2 + O2

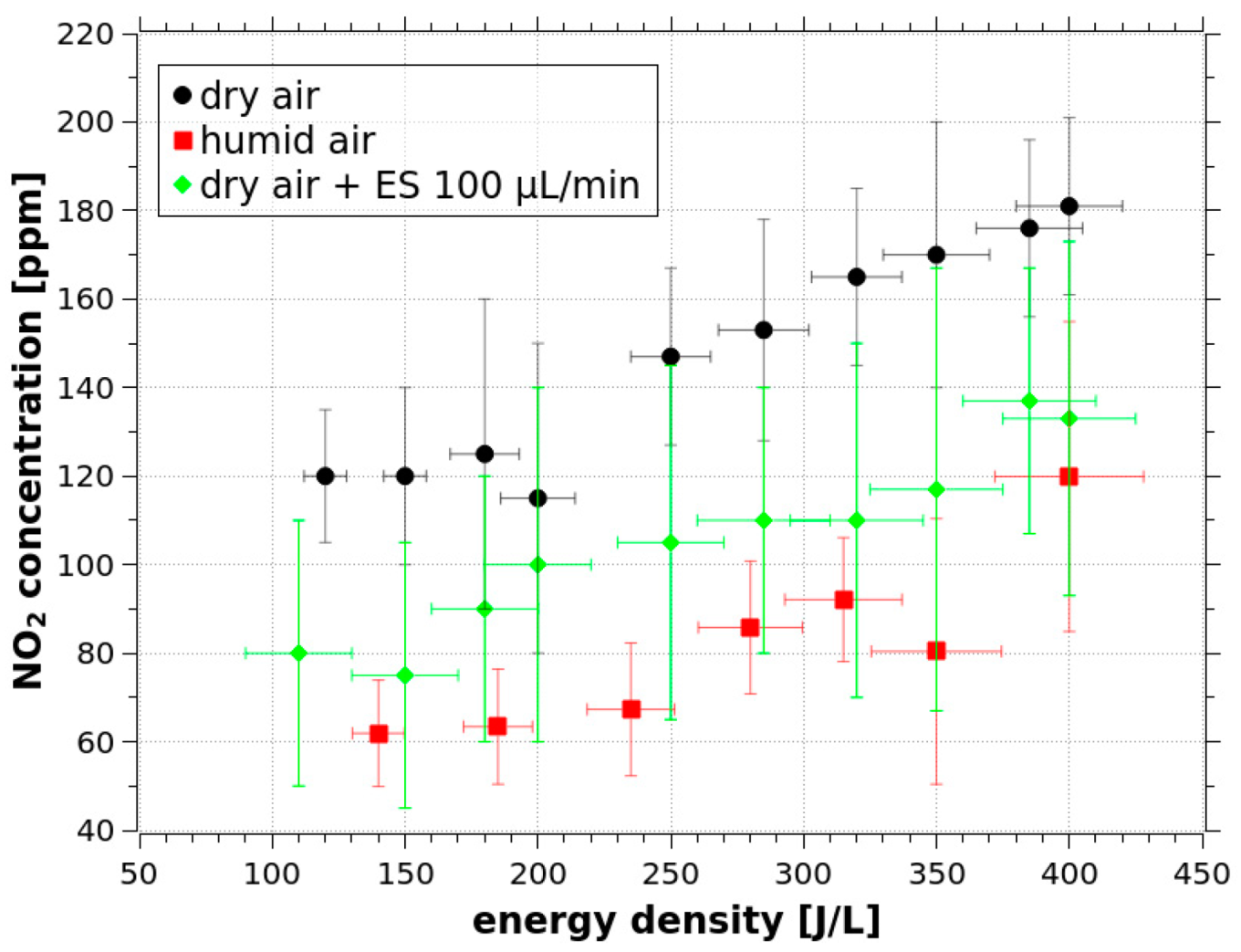

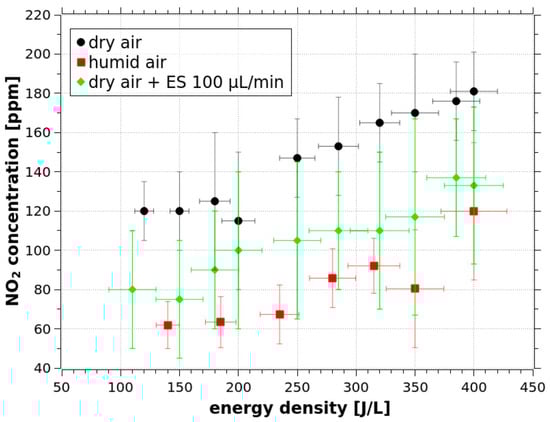

As a result, NO2 is a product with the second highest measured concentration (Figure 7). In dry air, there are no other significant products of TS.
We observed no O3 at the outlet, probably because Reaction (10) is fast enough and there is a sufficient amount of NO so that O3 is fully consumed by the oxidation of NO to NO2 before the gas enters the closest UV absorption cell (the estimated delay between the moment when air is treated by the discharge and when it is analyzed in the short UV cell is 17–20 s). If we assume that Reaction (10) is a dominant source of NO2, the achieved NO2 concentration (~100–200 ppm, Figure 7) should be approximately equal to concentration of formed and immediately consumed O3. To understand O3 formation without its depletion by NO, we performed experiments in 1SS with TS operating in dry O2. These experiments proved that TS can really generate high concentration of O3 (Figure 8), when it is not consumed by reaction with NO.

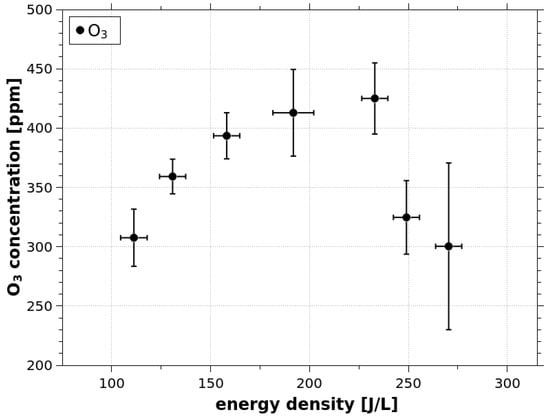

We also performed experiments in humid O2, where the electron impact reaction with H2O can result into several radicals (OH, H) or ions (O−, OH−, H2O+) [66,67]. The OH radicals can be also created by collisions of H2O with O(1D) species. Next, H and OH radicals can decompose O3 in the reactions:
H + O3 → OH + O2
OH + O3 → HO2 + O2
For this reason, the concentration of O3 generated in humid O2 was approximately 15 times lower than in dry O2. We can also expect lower production of O3 in the humid air compared to dry air. In turn, lower production of O3 could explain why the presence of humidity in air decreased the NO2 concentration (Figure 7). However, the concentration of NO2 in humid air was not 15 times lower than in dry air. It is probably because NO2 may be also generated by different reaction channels, for example by the reaction with HO2 radical. Sufficient amount of HO2 radicals may be provided by reaction of OH radicals with O3 (Equation (12)), or with H2O2.
The presence of OH radicals influences the reaction mechanism even more significantly by the reaction:
NO + OH + M → HNO2 + M

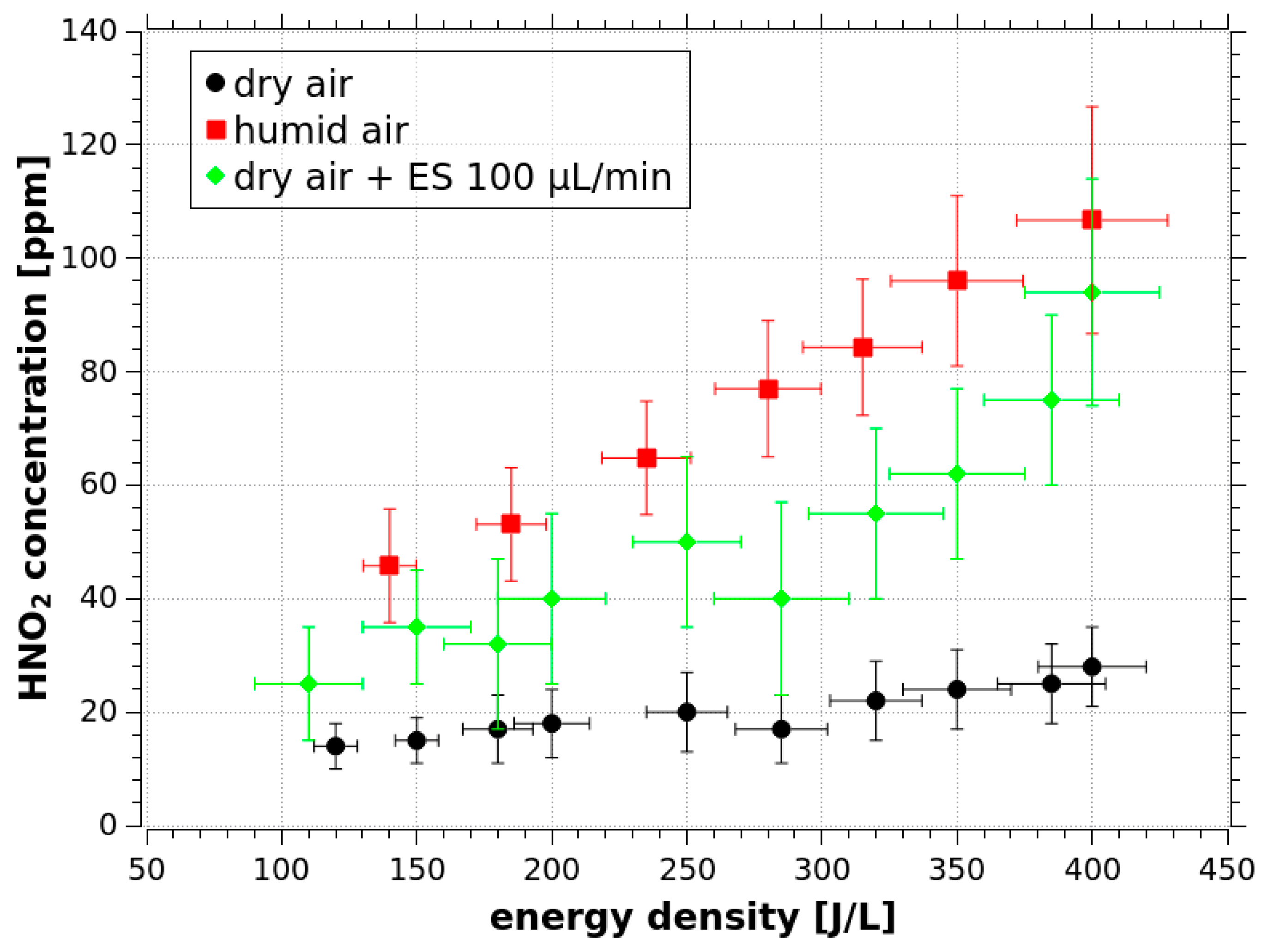

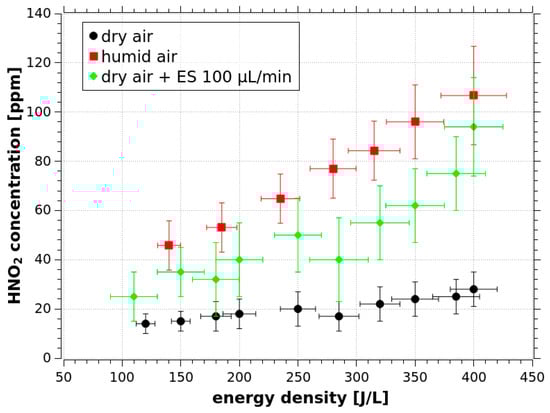

leading to the formation of HNO2. In the humid air treated by TS, the HNO2 concentration becomes comparable to NO2 concentration (Figure 9). Some HNO2 was observed in dry air as well, showing a significant influence of even minor H2O impurities (from the carrier gas and/or due to desorption from surfaces) on NO, NO2 and HNO2 generation chemistry.

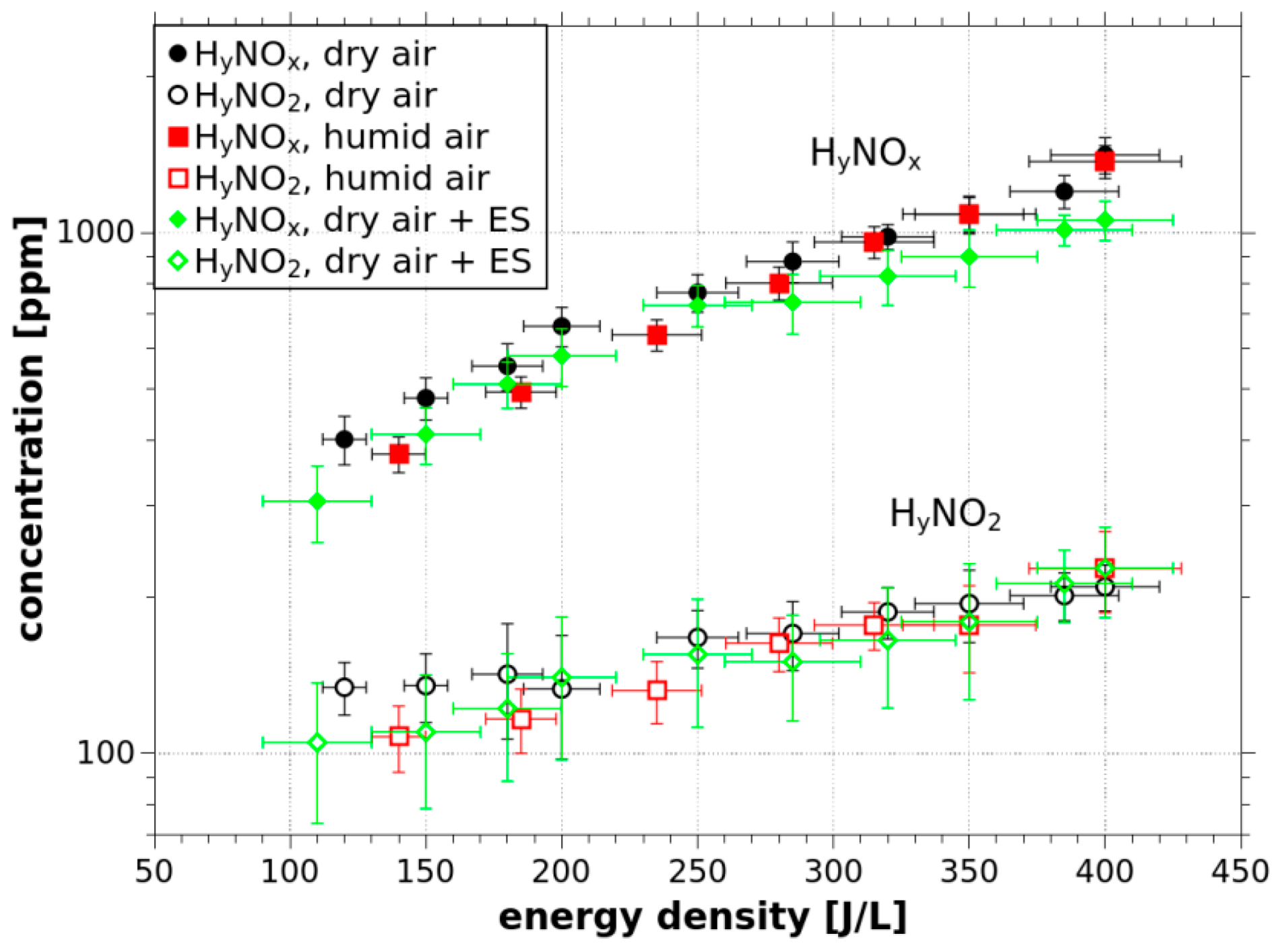

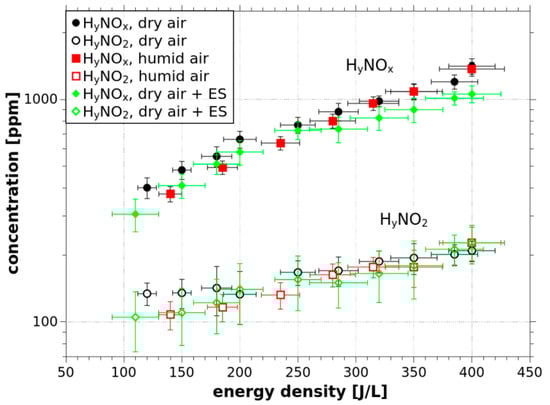

Overall, the sum of NO2 and HNO2 concentrations (HyNO2) is almost equal in humid and dry air, only below Ed ~250 J/L it is slightly lower in humid air compared to dry air. The total amount of HyNOx (NO + NO2 + HNO2) is within the experimental uncertainty the same in the entire range of Ed (Figure 10).
The total amount of HyNOx is constant in time as well, based on comparison of concentrations obtained in short UV-Vis absorption cell and concentrations measured by FT-IR spectrometry. However, the ratio of individual components slightly changes. The NO2 concentration increases, while the concentrations of NO and HNO2 slightly decrease. The decomposition of HNO2 may proceed via the following reaction:
HNO2 + HNO2 → NO2 + NO + H2O.
Taking into account the instability of HNO2 molecules, we can deduce that their concentration is higher inside the reactor than when measured in the short UV absorption cell. Nonetheless, the measured concentration of HNO2 is so high that HNO2 probably plays a major role in PAW generation by TS with ES, because it has a much higher solubility than NO2 and NO. Thus, the concentration of RONS in TS with ES is not influenced only by chemical reactions (11)–(14), but also by the solvation processes discussed in Section 3.2.

3.2. Solvation of Gaseous RONS to ES Microdroplets

The solubility of gases depends on their Henry’s law coefficient. NO, NO2 and HNO2 generated by TS differ significantly from the solubility point of view. The solubility of NO is the lowest (with Henry’s law coefficient kH = 0.0018 mol kg−1 atm−1 at 298.15 K [44]). It is easy to show that in an experiment with gas flow 1.1 L/min and water flow rate 100 μL/min, even if we achieve a saturated NO solution, the decrease of the gas phase concentration of NO is not detectable as it is much smaller than the accuracy of our analytic techniques. Thus, the decrease of NO concentration generated by TS in dry air with ES compared to the results without ES (Figure 6), cannot be explained by the solvation of NO into water.
We assume that there are other processes responsible for this NO decrease. We must consider instabilities of TS caused by the water flow supplied for the ES, as shown in Figure 5b with long time scale voltage waveforms. Taking into account the appearance of short periods without spark pulses and energy consumed on evaporation of the sprayed microdroplets, we assume that water sprayed into the discharge has a cooling effect. This could explain a lower efficiency of TS to generate NO at higher input energy densities (Figure 6).
The solubility of NO2 is slightly higher than the solubility of NO, almost by about one order of magnitude. However, the decrease of NO2 in the experiment with ES compared to the dry air (Figure 7) also cannot be dominantly due to the NO2 solvation to liquid water. Moreover, there was even less NO2 in the experiment in humid air than in dry air or air with ES. We thus suppose that the observed changes of NO2 concentration are rather related to the shift in NO2/HNO2 formation chemistry due to the presence of H2O (reactions (11)–(14)).
The solubility of HNO2 is much higher (by three orders of magnitude) than the solubility of NO2. Thus, it is possible that the measured gaseous HNO2 concentration is influenced by the solvation effect. However, it is questionable since the sum of NO2 and HNO2 (HyNO2) is the same in all experiments (Figure 10). It is therefore possible that the decrease of HNO2 in the experiment in dry air with ES compared to the experiment in humid air is caused by the change in NO2/HNO2 chemistry due to differences in the humidity.
In the single reactor experiments in 1SS, when comparing the results with and without ES, it is impossible to separate changes of NO2 and HNO2 concentrations due to solvation to water, changes in chemical pathways of their formation and decay, cooling effect of water, or discharge instabilities. In order to assess the role of individual RONS in PAW generation, additional experiments were performed in 2SS with two reactors. The synthetic air (dry or humidified) was treated by TS in the first reactor. This treated air containing HyNOx was lead as the inlet gas into the second reactor with ES but without TS. We measured changes of the gas composition and aqueous NO2−(aq) and H2O2(aq) in the accumulated water (see Section 3.3).

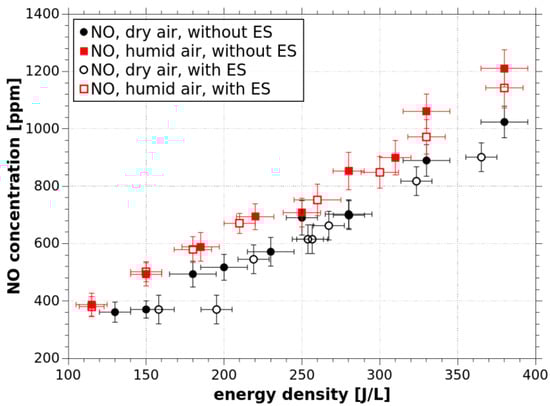

Figure 11 shows the comparison of NO concentration generated by TS in dry and humid air in 2SS with and without ES treatment in the second reactor (water flow rate 500 μL/min). These results confirm a low solubility of NO, because its concentration in gas is within the experimental uncertainty not influenced by ES, both for dry and humid air.

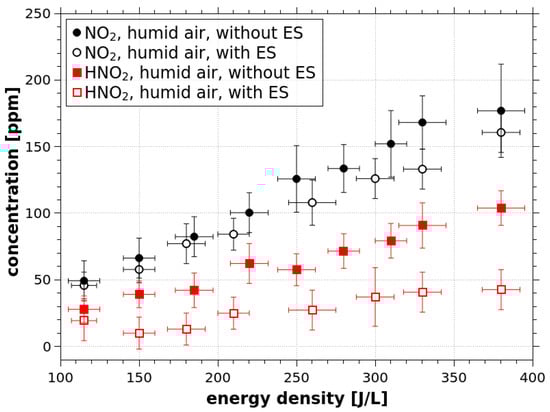

The solubility of NO2 is almost by one order of magnitude higher than the solubility of NO. There is probably some decrease of NO2 due to post-discharge ES treatment, especially at higher energy densities, i.e., when the NO2 concentration is higher (Figure 12).
However, the decrease is still not significant with respect to the experimental uncertainty. The decrease of HNO2 due to ES is more remarkable, despite that after the ES treatment in the second reactor, the HNO2 concentration is already quite low and the relative experimental uncertainty is higher. These results indicate the key importance of HNO2 for PAW generation, which is further confirmed by the PAW analysis.

3.3. Analysis of Plasma-Activated Water

We measured NO2−(aq) and H2O2(aq) in plasma-activated water collected during 1SS experiments with TS combined with ES, as well as in water collected during 2SS experiments, with TS and ES separated into two reactors. As for control, we also performed experiments in 1SS with ES, but without TS. The used gas was either synthetic air (dry or humidified), or NO and NO2 from calibration pressure tanks, mixed with N2 or synthetic air, respectively.
In the control experiments with ES, the applied voltage (6 kV) was not sufficient for TS generation, but it was above the onset voltage of the corona discharge. Due to this, there was probably some formation of reactive species inside the ES reactor, and we detected a low concentration of H2O2(aq), ~20 μM. This weak corona discharge in air, however, produced no detectable amount of nitrogen oxides and no NO2−(aq) was detected in water.

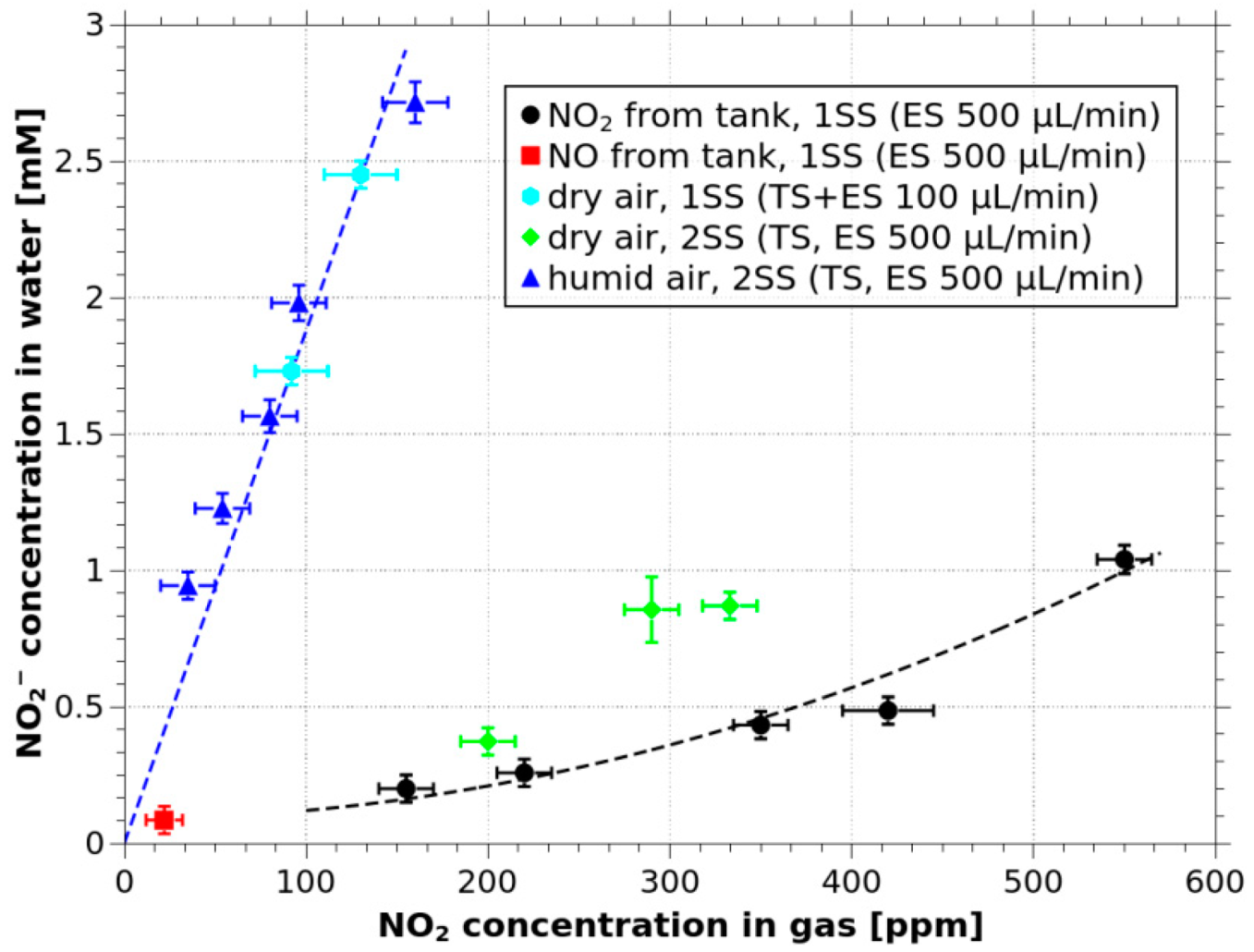

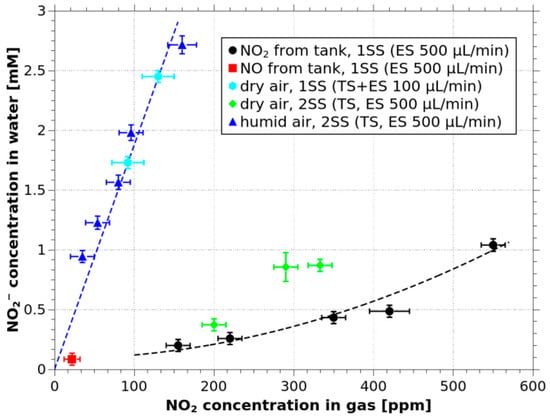

Relatively small amount of NO2−(aq) (~80 μM, Figure 13, red point) was detected in control experiment in 1SS with ES and without TS, using gas from the pressure tank containing ~1400 ppm NO in N2. This proves a low solubility of NO. The formation of NO2−(aq) from the dissolved NO(aq) proceeds via the following reaction:
NO(aq) + NO2(aq) + H2O → 2NO2−(aq) + 2H+
Thus, the dissolved NO2(aq) is also needed to produce NO2−(aq). In the gas phase only around 25 ppm NO2 was detected and this limited the NO2−(aq) production. We can conclude that without NO2, even very high concentration of NO has almost a negligible effect on the aqueous RONS formation. On the other hand, the solvation of NO2 from the gas phase into water can lead to NO2−(aq) formation even without a presence of NO(aq), via the following reaction:
NO2(aq) + NO2(aq) + H2O → NO2−(aq) + NO3−(aq) + 2H+
One NO2−(aq) molecule is produced from two dissolved NO2−(aq) molecules. If we assume that NO2−(aq) is proportional to the gas phase NO2 concentration, Reaction (16) could explain why the measured concentration of NO2−(aq) in water can be well fitted as a quadratic function of the gas phase NO2 concentration (Figure 13, black points), when NO2 from the pressure tank mixed with dry synthetic air was used.
In the dry synthetic air treated by TS in the first reactor and ES in the second reactor (2SS), the measured concentration of NO2−(aq) in water was higher, above the fitting curve valid for NO2 from the pressure tank (Figure 13, green points). We assume that it can be explained by the presence of both NO and NO2 in the sprayed gas, i.e., both NO and NO2 can also contribute to the NO2−(aq) formation via Reactions (15) and (16).
If NO2 in the gas phase plays a dominant role on NO2−(aq) formation in water, one could expect less NO2−(aq) in the water collected during 2SS experiments in humid synthetic air, where the gas phase NO2 concentration produced by TS in the first reactor was lower compared to that generated by TS in the dry air. On the contrary, significantly higher NO2−(aq) concentration was observed (Figure 13, blue points). Here, the TS discharge in the first reactor generated not only NO and NO2, but also directly by gaseous HNO2, which can then form NO2−(aq) directly by its rapid solvation into water microdroplets generated by ES in the second reactor. Figure 13 shows an approximately linear dependence of NO2−(aq) on gaseous NO2 when applying ES in humid air treated by TS. This most likely indicates a linear dependence of NO2−(aq) on the gaseous HNO2 concentration, since HNO2 concentration is proportional to the NO2 concentration (Figure 12).
If we assume that the amount of NO2−(aq) in the liquid phase is proportional to the depletion of HNO2 from the gas phase, we can estimate the expected NO2−(aq) concentration in the water. The highest HNO2 decrease observed was approximately 50 ± 10 ppm. Taking into account gas and water flow rates, the corresponding estimated NO2−(aq) concentration in the liquid phase should be 4.4 ± 0.9 mM. The measured NO2−(aq) concentration was somewhat lower: 2.7 ± 0.2 mM. This difference could be explained by the instability of NO2−(aq) at acidic conditions, because the measured pH = 2.5–2.8 in the collected water. The disproportionation reaction:
3NO2−(aq) + 3H+ → 2NO(aq) + NO3−(aq) + H3O+
leads to exponential-like NO2− decrease in time. In PAW generated by TS, the observed characteristic decay time was approximately 30–40 min [58]. In our experiments in 2SS, the collected water sample was mixed with Griess reagent within 5 min after the end of the experiment. During this time, the NO2− concentration could decrease approximately by about 20% from the concentration reached at the moment when the experiment was stopped. Moreover, conversion of NO2−(aq) to NO3−(aq) also occurs during the time of experiment (4 min) inside the vessel where the water accumulates. Taking into account the NO2−(aq) concentration decrease due to Reaction (17) and the experimental uncertainty, the agreement between the measured NO2−(aq) concentration and the estimated one from the HNO2 depletion from the air is satisfactory.
In the previous paragraphs we have discussed and compared differences of NO, NO2 and HNO2 solubility, and we based our reasoning mainly on differences of Henry’s law coefficients of these three species. As mentioned in the Introduction, the Henry’s law coefficient is valid for systems in a thermodynamic equilibrium and in plasma-water interactions, the solvation process may be influenced by many other phenomena. Here we must emphasize that in 2SS, the plasma and water did not interact directly. Direct interaction of plasma with water microdroplets occurred only in 1SS. However, the concentration of NO2−(aq) in PAW generated in 1SS with a direct contact of TS with microdroplets is not higher than NO2−(aq) concentration achieved in 2SS experiments in humid air with TS and ES separated into two reactors. It shows the same trend and similar values (Figure 13, cyan vs. blue points). This result justifies the reasons to compare solubility of species with long lifetime based on their Henry’s law coefficient.
The major difference between PAW generated by TS with simultaneous ES (1SS), and water prepared in 2SS by spraying humid air treated by TS in the first reactor, is the concentration of produced H2O2(aq). In the latter case the H2O2(aq) concentration was only around 20 μM, while the concentration of H2O2(aq) in PAW generated by TS with ES was higher, 60–80 μM. This result can be interpreted so that H2O2(aq) is created mainly by solvation of OH radicals with short lifetime and therefore their concentration in the second reactor of 2SS is negligible. However, we must admit that this is just an assumption that must be verified by additional measurements.
Another interesting fact concerning H2O2(aq) is its very low concentration compared to NO2−(aq). In our previous research we showed that TS in an open-air reactor can generate PAW with significantly higher H2O2(aq) concentration, exceeding the concentration of NO2−(aq) [15]. The NO2−(aq)/H2O2(aq) ratio was approximately 3:7. In a closed reactor, with higher concentration of NOx in the gas phase, this ratio was much different, approximately 15:1 in favor of NO2−(aq). Here, with even higher concentrations of NOx in the gas phase, the NO2−(aq)/H2O2(aq) ratio is even higher, approximately 30–40:1. We therefore suppose that new results presented in this paper are consistent with the previous observations. However, we must admit that the low concentration of H2O2(aq) in PAW with very high concentration of NO2−(aq) and acidic pH can be also explained by a partial depletion of H2O2(aq) by its reaction with NO2−(aq) during the liquid sample accumulation and processing.

4. Conclusions

Transient spark (TS) discharge in air turns out to be a very efficient source for generation of nitrogen oxides NO and NO2. More than 1000 ppm of NO was generated with an input energy density of 400 J/L. It was shown that in humid air, the TS discharge also generates a significant amount of HNO2, providing 10–100 ppm of HNO2 depending on the input energy density.
The air TS discharge in contact with water is very suitable for the generation of plasma-activated water (PAW), because TS can operate in a direct contact with water electrosprayed (ES) into the discharge zone. The formation of microdroplets with high interface surface area facilitates the transfer of reactive species from plasma into water. HNO2 was also detected in air treated by TS in combination with water ES in one-stage system (1SS). This indicates an important role of HNO2 in PAW generation, because HNO2, although directly produced at lower concentrations, is much more soluble than two other major gas phase species generated by TS, NO and NO2.
To assess the role of HNO2, measurements were performed in two-stage system (2SS), where dry or humid air was treated by TS in the first reactor and water ES was applied in the second reactor. The dry air treated by TS in the first reactor contained mainly NO and NO2 with only traces of HNO2, while in the humid air, NO2 decreased and HNO2 reached almost the same concentration of as that of NO2. For comparison, we also applied ES on NO and NO2 from pressure tanks diluted in N2 or air, respectively. These experiments confirmed that solvation to ES microdroplets caused a significant depletion of HNO2 from the gas phase, while the depletion of NO was not observed, and the decrease of the NO2 concentration was questionable.
The importance of HNO2 for PAW generation by TS in air was proved by the measured concentrations of NO2−(aq) in water. The concentration of NO2−(aq) was much higher in humid air containing HNO2 than in dry air with higher concentration of NO2, but almost no HNO2 in 2SS experiments with TS in the first reactor and ES in the second reactor.
The NO2−(aq) concentration in 2SS experiments in humid air was similar (or even higher) than NO2−(aq) concentration in PAW generated by a direct contact of the plasma with microdroplets in 1SS. The advantage of using 2SS is the stability and repeatability of the process. The TS in humid air without ES microdroplets inside the first reactor is relatively stable and the stable ES of water with higher water flow rate can be also achieved without TS in the second reactor. On the contrary, in 1SS with a direct contact of the discharge with water, the ES and TS negatively influence each other and both ES and TS are less stable. However, the advantage of using 1SS with generation of TS and ES in the same reactor is reaching a higher concentration of H2O2 in the water.
The optimization of the HNO2 generation by TS and of the 2SS with a shorter distance between TS and ES reactors are planned in future. Further research of undergoing chemistry is also desirable, both experimentally and by chemical kinetic modeling. Comparison of biocidal effects of PAW generated in 1SS and 2SS should be also performed to investigate the role of low vs. high H2O2(aq) concentration in addition to NO2−(aq). Nevertheless, this experimental study showed that gaseous HNO2 produced in plasma discharges operated in humid air is a dominant contributor of nitrites in the plasma-activated water.

Author Contributions

Conceptualization, M.J., Z.M. and K.H.; methodology, M.J., K.H., P.T. and Z.M.; software, M.J.; validation, M.J. and P.T.; formal analysis, M.J. and P.T.; investigation, M.J., M.E.H. and P.T.; resources, M.J., K.H. and Z.M.; data curation, M.J., M.E.H. and P.T.; writing—original draft preparation, M.J.; writing—review and editing, Z.M., K.H., M.J. and M.E.H.; visualization, M.J.; supervision, Z.M., K.H. and M.J.; project administration, K.H. and M.J.; funding acquisition, Z.M. and M.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Slovak Research and Development Agency, grant number APVV-17-0382, and Slovak Grant Agency VEGA, grant number 1/0419/18.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that supports the findings of this study are available within the article. Additional data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.
