Article

Solar Potential in Saudi Arabia for Inclined Flat-Plate Surfaces of Constant Tilt Tracking the Sun

by
Ashraf Farahat
1,
Harry D. Kambezidis
2,*,
Mansour Almazroui
3,4 and
Mohammed Al Otaibi
5
1
Department of Physics, College of General Studies, King Fahd University of Petroleum and Minerals, Dhahran SA-31261, Saudi Arabia
2
Atmospheric Research Team, Institute of Environmental Research and Sustainable Development, National Observatory of Athens, GR-11810 Athens, Greece
3
Centre of Excellence for Climate Change Research, Department of Meteorology, King Abdulaziz University, P.O. Box 80208, Jeddah SA-21589, Saudi Arabia
4
Climatic Research Unit, School of Environmental Sciences, University of East Anglia, Norwich NR4 7TJ, UK
5
Health, Safety, Security and Environment Excellence Section, Industrial Security and Responsible Care Department, Sahara International Petrochemical Company, SIPCHEM, Jubail Industrial City 31961, Saudi Arabia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(15), 7105; https://doi.org/10.3390/app11157105
Submission received: 7 July 2021 / Revised: 27 July 2021 / Accepted: 28 July 2021 / Published: 31 July 2021

Abstract

:
The objective of the present work is to investigate the optimally performing tilt angles in Saudi Arabia of solar panels that follow the daily motion of the Sun. To that end, the annual energy sums are estimated for surfaces with tilt angles in the range 5°–55° at 82 locations covering all Saudi Arabia. All calculations use a surface albedo of 0.2 and a near-real value, too. It is found that tilt angles of 40°, 45°, and 50°, respectively, are optimal for the three recently defined solar energy zones in Saudi Arabia. The variation of the energy sums in each energy zone on annual, seasonal and monthly basis is given for near-real ground albedos; the analysis provides regression equations for the energy sums as functions of time. A map of the annual global inclined solar energy for Saudi Arabia is derived and presented. The annual energy sums are found to vary between 2159 kWhm−2year−1 and 4078 kWhm−2year−1. Finally, a correction factor, introduced in a recent publication, is used; it is confirmed that the relationship between the correction factor and either the tilt angle or the ground-albedo ratio has a general application and it may constitute a nomogram.

1. Introduction

Installations with tilted solar collectors for exploiting the renewable energy of the Sun have long been available in the market as commercial products. Solar flat-plate panels are nowadays widely used for converting solar energy into electricity (PV installations) or hot water (solar heating systems). These stationary systems consist of solar panels that receive solar radiation (i) at a fixed tilt angle with a southward orientation in the northern hemisphere or a northward orientation in the southern hemisphere; (ii) at a fixed tilt angle following the motion of the Sun; and (iii) at a varying tilt angle following the motion of the Sun, a mechanism that ensures that the solar rays always remain normal to the receiving plane. The mode (i) is widely used because of its lower cost for the static supporting frame of the solar system. The mode (ii), also known as a one- or single-axis system, provides higher solar energy on the inclined surface mounted on a vertical rotating axis, but has a slightly higher cost in order to maintain the moving parts. The mode (iii) is considered the most effective and is known as a two- or double-axis system. It provides the best performance of the solar systems rotating with the aid of a vertical and a horizontal axis, but is associated with higher maintenance costs because of more mechanical moving parts. The first category of solar systems is also called stationary or static, while the other two are dynamic, because of their Sun-tracking ability. Farahat et al. [1] examined the mode (i) for the performance of flat-plate solar collectors in Saudi Arabia. This work is a continuation as it investigates the mode (ii) for the solar energy received on single-axis systems across the country.
Though static solar systems have received a lot of attention from researchers and solar energy developers, the dynamic ones (and especially the single-axis-mode collectors) have not been neglected either. Much effort has been invested at both the solar-energy-calculation level and the solar-system-development level to improve both the moving and the electronic parts for the Sun-tracking sensors [2,3]. The calculation of the optimum tilt angle and orientation for receiving maximum solar energy on solar flat-plate collectors has been the objective of various studies that use different strategies for obtaining solar radiation data: solar radiation modelling, e.g., [4,5]; combining with ground-based solar data, e.g., [6]; or utilising international data bases, e.g., [7,8]. Recently, a new method was presented by [9] for Greece and was applied in a recent study for Saudi Arabia [1]. The proposed method finds the maximum solar energy received by flat-plate collectors with southward (northward) orientation in the northern (southern) hemisphere. The idea behind this methodology is applied in the present study for solar collectors with constant tilt tracking the Sun.
An extensive review of the studies conducted for Saudi Arabia related to the present work can be found in [1].
From the above it is clear that no attempt has been made so far to construct a solar map for Saudi Arabia to show the solar potential on inclined flat planes that track the Sun. This gap is bridged in the present study, which includes three innovations. (i) For the first time, solar maps for Saudi Arabia showing maximum energy on optimally inclined flat surfaces tracking the Sun are derived. (ii) For the second time the three solar energy zones introduced by the same authors for Saudi Arabia [1] are also utilised here. (iii) The notion of the (ground-albedo) correction factor introduced in [1] is also used here, and the shape of the universal curves (representable as nomograms) of this parameter in relation to the tilt angle and the ground-albedo ratio is confirmed.
The structure of the paper is as follows. Section 2 describes the data collection and data analysis. Section 3 deploys the results of the study, while Section 4 presents the conclusions and main achievements of the work. Acknowledgements and References follow.

2. Materials and Methods

2.1. Data Collection

For the implementation of the study hourly values of the following parameters were collected: direct, Hb (in Wm−2), and diffuse, Hd (in Wm−2), horizontal solar radiation. These values were downloaded from the PV—Geographical Information System (PV-GIS) tool [10] using the latest Surface Solar Radiation Data Set—Heliostat (SARAH) 2005–2016 data base (12 years) [11,12]. The PV-GIS provides solar radiation data for any location in Europe, Africa, Middle East including Saudi Arabia, central and southeast Asia and most parts of the Americas. Solar radiation in the PV-GIS platform is calculated from satellite observations and modelling [13,14].
A set of 82 sites in Saudi Arabia was selected to cover the whole territory of the country. Hourly values of Hb and Hd were downloaded from PV-GIS for all 82 sites; Table 1 shows the names and provides the geographical coordinates of these sites, while Figure 1 is a map of Saudi Arabia showing their location. The criterion for selecting these sites is mentioned in [1].

2.2. Data Processing and Analysis

This section consists of five steps, which are briefly described as more details can be found in the companion paper [1].
Step 1: The downloaded hourly data from the PV-GIS platform were converted from the universal time coordinate (UTC) into local standard time (LST = UTC + 3 h).
Step 2: The hourly global horizontal radiation, Hg (in Wm−2), values were estimated as the sum Hg = Hb + Hd.
Step 3: Use of the XRONOS.bas algorithm was made to calculate the solar altitudes, γ, for all sites in LST; this code is based on the SUNAE routine introduced by Walraven [15], and all subsequent modifications [16,17].
Step 4: All radiation and solar geometry values were assigned to the nearest LST hour (i.e., values at hh:mm LST were assigned to hh:00 LST).
Step 5: All hourly solar radiation values were retained for subsequent analysis that (i) were greater than 0 Wm2, (ii) corresponded to γ ≥ 5°, and (iii) Hd ≤ Hg.
For estimating global solar irradiance on an inclined plane fixed on a one-vertical axis tracker, Hg,t,β (in Wm−2), there was adopted the isotropic model of Liu-Jordan (L-J) [18] (the subscript t stands for ‘tracking’, and β is the tilt angle of the inclined plane with respect to the local horizon, in degrees). The isotropic model was used to estimate the ground-reflected radiation from the surrounding surface, Hr,t,β (in Wm−2), received on the inclined flat-plate surface. The L-J model has proved to be as efficient as other more sophisticated models in providing the tilted total solar radiation in many parts of the world [19]. For a Sun-tracking surface mounted on a vertical axis the received total solar radiation is given by a slight modification of Equation (1) in [1]
Hg,t,β = Hb,t,β + Hd,t,β + Hr,t,β,
where the subscript t denotes tracking by the inclined surface. According to Liu-Jordan [18]
Hd,t,β = Hd·Rdi,
Hr,t,β = Hg·Rr·ρg0, (or ρg)
Rdi = (1 + cosβ)/2,
Rr = (1 − cosβ)/2,
Hb,tβ = Hb·cosθ/sinγ,
cosθ = sinβ·cosγ·cos(ψ − ψ′) + cosβ·sinγ.
where θ is the incidence angle (the angle formed by the normal to the inclined surface and the line joining the surface with the centre of the Sun), and ψ, ψ′ are the solar azimuths of the Sun and of the inclined plane, respectively; ψ = ψ′ in this case. The parameters Rdi and Rr are called the isotropic sky-configuration and ground-inclined plane-configuration factors, respectively. In the L-J model the ground albedo usually takes the value of ρg0 = 0.2 (Equation (3)), which is considered as reference in solar radiation modelling, although it refers to grassland areas [19]. Also, close-to-reality ground-albedo values, ρg, were used in this work. To retrieve such values for the 82 sites, use of the Giovanni portal [20] was made (details in [1]). Annual mean ρg values were then computed and used to re-calculate Hg,t,β.
The tilt angle in the present study varied in the range 5°–55° in increments of 5° (i.e., 11 tilt angles). This range fully covers all latitudes of Saudi Arabia (from ≈18° N to 32° N). For every site and tilt angle, hourly values of Hg,t,β were estimated from Equation (1) for both ρg0 = 0.2 and ρg. From the hourly Hg,t,β values, annual, seasonal and monthly solar energy sums (in kWhm−2) under all-sky conditions were estimated for 82 sites, 11 tilt angles, and 2 ground-albedo values.

3. Results

3.1. Annual Energy Sumss

Annual solar energy sums were derived from the appropriate data base of each site for every tilt angle in the range 5°–55° (in 5° increments) by using both ground albedos, ρg0 and ρg in Equations (1)–(7). From the calculated annual energy sums, the maximum sum and its corresponding (optimum) tilt angle were then obtained. Table 2 shows these maximum annual Hg,t,opt. β sums for all sites with the corresponding optimum tilts, opt. β (columns 2 and 3 for ρg0 and ρg, respectively). From this table, it is seen that the average Hg,t,opt. βg0 (column 2) is 2745.5 kWhm−2, while the average Hg,t,opt. βg (column 3) is 2769.7 kWhm−2, i.e., a 0.9% increase. Because of this small difference, the annual maximum solar energy sums from calculations with ρg were only considered in this study, as done in [1]. The reason for using both ground-albedo values was to show the difference in the derived maximum annual energy sums (columns 2, and 3 in Table 2). Therefore, it is interesting to see how the annual energy sums for the opt. β-derived values under the ρg calculations (Hg,t,opt. β/ρg) are distributed across the 82 sites in Saudi Arabia. Figure 2 shows this spatial coverage of the country. Surprisingly no consistent pattern in terms of opt. β exists; to the contrary, there is a great mix of opt. β in the country, which does not seem to follow any particular logic. This may be attributed to intrinsic errors when deriving the solar horizontal radiation values in the PV-GIS tool. Therefore, such a distribution has no practical value to the solar energy industry as no clear application zones are formed as energy-application guidelines (as in the case of southward-oriented solar collectors in [1]) and may simply create confusion about the selection of the most appropriate tilt angle for the installation of a solar system at any particular location in Saudi Arabia. This unexpected outcome led to the idea of an ‘innocent manipulation’ of the opt. β values. This manipulation was based on the adoption of the three solar energy zones (SEZ) defined in [1]. This means that at a site for which the methodology has selected a ‘wrong’ opt. β, a manual selection of the ‘correct’ tilt (according to the SEZ where the site itself belongs to) was made. Then, the corresponding annual solar energy sum was obtained. This is shown in the fourth column of Table 2, which provides the correct distribution of the 82 sites along the 3 SEZs (SEZ-A with selected opt. β = 40°, SEZ-B with selected opt. β = 45° and SEZ-C with selected opt. β = 50°). The corrected distribution is shown in Figure 3, which coincides with that of Figure 4 in [1]. After this correction, one would like to see what the created solar energy-sum differences are; Figure 4 shows these differences across all 82 sites. These energy differences, ΔHg,t,β/ρg, are defined as: ΔHg,t,β/ρg = Hg,t,opt. β/ρg − Hg,t,selected opt. β/ρg. From Figure 4a, it is seen that most of the sites 1–43 do not produce large differences, while the sites 44–82 result in annual energy deficits as low as −55 kWhm2year−1. The mean annual solar energy sums for all sites 1–43 and 44–82 are 3026.3 kWhm2year−1 and 2954.7 kWhm2year−1, respectively, while their corresponding mean differences are −4.4 kWhm2year−1 and −5.7 kWhm2year−1. This means that in the first group of sites, the absolute error derived from the manual selection of the optimum tilt angles is 0.15% (100 × 4.4/3026.3) while the error for the second group 0.19% (100 × 5.7/2954.7), both being quite insignificant. Therefore, the new distribution of the 82 sites in Figure 3 does not influence the solar energy yield across Saudi Arabia.
Contrary to the 3 SEZs adopted in the present work, Zell et al. [21] divided the country into five geographical areas in order to use and analyse the solar radiation data from [22]. Nevertheless, this division has of no practical value as it did not meet any solar radiation criteria.
Kaddoura et al. [7] estimated 12 optimal β for each of the 12 months of the year for Tabuk (#8 in Table 1), Al Jawf (#9), Riyadh (#10), Jeddah (#16), and Abha (#24). These β were derived from modelling and they, therefore, have a purely theoretical value.
In what follows, the notation Hg,t,β/ρg refers to the selected optimal β, i.e., to Hg,t,selected opt. β/ρg.

3.2. Monthly Energy Sums

The intra-annual variation of Hg,t,β/ρg in each specific SEZ region is shown in Figure 5. Figure 5a refers to all sites in SEZ-A with optimal β = 40°, Figure 5b to all sites in SEZ-B with optimal β = 45°, Figure 5c to the sites in SEZ-C with optimal β = 50°, and Figure 5d to all sites irrespective of SEZ and optimal β. The expressions for the lines that best fit the means and their coefficient of determination, R2, are given in Table 3. It is seen that the R2 statistic obtains high values; this allows a solar energy user or investor in Saudi Arabia to estimate the monthly energy production in any of the three SEZs in an accurate way by applying the regression equations. The graphs also contain curves for the mean ± 1 standard deviation (σ). It is apparent in all graphs (and especially in those that refer to SEZ-A and SEZ-B) that two secondary Hg,t,β maxima in March and October exist. These occur because of the variation of the solar elevation (or altitude, γ) throughout the year at a certain time during the day. To demonstrate this, Figure 6 shows the variation of Hg,t,40 during 2005–2016 at three sites in Saudi Arabia at high, mid and low latitudes, i.e., Arar (#6, 30.96 degN), Jeddah (#16, 21.49 degN), and Jazan (#17, 16.89 degN). Jazan has two energy maxima, one in April and another in October; Jeddah has two, one in March and another in October, while Arar shows a normal behaviour (maximum energy in July).

3.3. Seasonal Energy Sums

In solar energy installations the minimum and maximum possible energy received by them corresponds to the winter and summer months, respectively. Therefore, this section is devoted to analysing the solar energy totals during all seasons, i.e., spring (March-April-May), summer (June-July-August), autumn (September-October-November), and winter (December-January-February).
Figure 7 presents the total solar energy received on a flat surface in SEZ-A (Figure 7a), SEZ-B (Figure 7b), SEZ-C (Figure 7c), and all SEZs (Figure 7d) under all-sky conditions during spring, summer, autumn, and winter. The energy values are sums for each season averaged over the period 2005–2016 and for all sites belonging to the same SEZ (or all SEZs). Table 3 gives the regression equations for the curves that best fit the mean ones in each case. It is interesting to observe that the fits are ideal (R2 = 1) in all cases.

3.4. Maps of Annual Energy Sums

Figure 8 shows the solar potential over Saudi Arabia in terms of the annual Hg and Hg,t,β/ρg sums. A gradual increase in the annual solar potential in the direction NE–SW for both horizontal and optimally-inclined flat planes is observed. Very similar patterns to those in the present study are given in the Solar Radiation Atlas for Saudi Arabia [23]. Farahat et al. [1] have come to similar conclusion as regards the maximum solar energy received by flat-plate collectors oriented to south with optimum inclination. They justified this observation by the latitude gradient of the sites and the variability in meteorology across the country from north to south [24].

3.5. Evaluation of the PV-GIS Tool

Various studies have presented validation results for the solar radiation PV-GIS-satellite-derived data by comparing them with ground-based solar radiation measurements from 30 BSRN (Baseline Solar radiation Network) stations [13,14,25]. The reported differences (%) in the form of 100 × (estimated values—measurements)/measurements were found to vary between −14% and +11% (the estimated values refer to the PV-GIS tool and the measurements come from the BSRN). Furthermore, Farahat et al. [1] demonstrated this comparison by taking monthly mean Hg values measured at the Actinometric Station of the National Observatory of Athens (ASNOA, 37.97° N, 23.72° E, 107 m above sea level) and corresponding values from the PV-GIS platform for the period 2005–2011. Figure 9 presents this comparison, which shows an excellent agreement (R2 = 0.99). Nevertheless, the PV-GIS-estimated values seem to overestimate the measured Hg ones by +10%, a figure that is within the range in the above-mentioned studies, i.e., from −14% to +11%. Therefore, the PV-GIS data were accepted for use in the present study.

3.6. Correction Factor

Farahat et al. [1] introduced the notion of the correction factor, CF, which is defined as: CF = Hg,t,β/ρg/Hg,t,β/ρg0. Actually, CF is the ratio of the annual Hg,t,β sum at each site of the 82, calculated twice, once for ρg0 = 0.2 and a second time for ρg = actual value. The meaning of the CF is that it corrects the energy on an inclined surface under the influence of a ground albedo equal to 0.2 to that which is under the influence of the near-real ground-albedo value. Figure 10 presents the variation of CF as function of β for all 82 sites; the controlling parameter is the ratio ρr = ρgg0. Note that the higher the ρr value is (i.e., for ρg > ρ0), the more concave the best-fit curve is; in contrast, the lower the ρr value is (i.e., for ρg < ρ0), the more convex the best-fit curve becomes. In the exceptional case of ρg = ρ0 (as for site #24), CF = 1. All the data points at every β in Figure 10 correspond to the 82 sites. Figure 11 shows the distribution of the ρr values across the 82 sites.
A diagram of CF vs. ρr is shown in Figure 12, where a linear relationship exists along all sites at the same β. The controlling parameter in this case is β; as β increases, so does the slope of the linear fit to the data points. The data points along each line correspond to the 82 sites.
Beside the above, a more detailed analysis was performed for CF. In this analysis, the average values of CF = Hg,t,β/ρg/Hg,t,β/ρg0 were calculated for all βs in the range 5°–55° and all sites belonging to the same SEZ, as well as all sites irrespective of SEZ. The results are shown in Figure 13. It is clearly seen that all mean CF values have an increasing trend with increasing β, because a flat-plate tilted surface receives more reflected radiation from its surroundings as its tilt angle increases. Moreover, the standard deviation, σ, of the mean CF increases with β, because Hg,t,β increases with increasing β, a fact that produces larger dispersion of the annual solar energy across all sites. In contrast, σ becomes smaller in the transition from SEZ-A to SEZ-C sites, a result that comes from the combination of the multitude of sites in each SEZ and the dispersion of the individual Hg,t,β values in the SEZ as shown by R2 in Table 3 (decreasing dispersion by increasing R2 from SEZ-A to SEZ-C). Note that the majority of the sites lies in SEZ-B (28 sites in SEZ-A, 40 in SEZ-B, and 14 in SEZ-C). Table 4 gives the regression equations for the curves that best fit the data points in each SEZ and all SEZs, too. These regression relationships have the same shape as those of the sites in Figure 10. This occurs because few sites have ρr < 1, and, therefore, the average of the CF across all sites in the same SEZ, or all SEZs, gives a relationship resembling a site with ρr > 1.
From the above it is confirmed that the curves of CF vs. β (Figure 10) and CF vs. ρr (Figure 12) are universal and may be represented graphically as nomograms to allow any one of those variables to be calculated from the other two; this was demonstrated for the first time worldwide by [1].

4. Conclusions and Discussion

The present study investigated solar availability across Saudi Arabia on flat-plate solar panels that track the Sun along its daily path in the sky. The main objective was to find the optimum tilt angles of solar panels that produce maximum annual energy in this configuration under all-sky conditions. This was achieved by calculating the annual energy sum on flat-plate surfaces with tilt angles tracking the Sun in the range 5°–55° with an increment of 5° at 82 sites across Saudi Arabia; the solar availability on a horizontal plane was also included for reference purposes. The calculations of the energy received on the tilted surfaces were performed for a ground albedo equal to 0.2 (as a reference value) and also for a near-real ground albedo.
The first outcome of the work was that the optimum tilt angles for flat-plate solar collectors mounted on a vertical axis that track the Sun over Saudi Arabia are 40°, 45°, and 50°. The second finding of the study was that these three optimum tilt angles can group the 82 sites into the three (solar energy) zones (SEZ) defined in [1], i.e., SEZ-A with 40°, SEZ-B with 45°, and SEZ-C with 50°. The third conclusion was related to the variation of the annual maximum solar energy in each SEZ, i.e., 2767–3314 kWhm−2year−1 (average 3044.9 kWhm−2year−1 in SEZ-A), 2159–4078 kWhm−2year−1 (average 2975.6 kWhm−2year−1 in SEZ-B), 2324–3692 kWhm−2year−1 (average 2932.5 kWhm−2year−1 in SEZ-C), and 2159–4078 kWhm−2year−1 (average 2991.9 kWhm−2year−1 in all SEZs). In relation to fixed-tilt solar systems reported in [1], the one-vertical axis solar systems in Saudi Arabia show an average increase in the maximum annual solar energy yield of +21.8% for SEZ-A, +22.6% for SEZ-B, +31.2% for SEZ-C, and +23.5% for all SEZs. Beside the annual energy sums, monthly solar energy values averaged over all locations belonging to the same SEZ as well as to all SEZs were estimated under all-sky conditions. Regression equations were provided as best-fit curves to the monthly mean energy sums that estimate the solar energy potential per SEZ (and all SEZs) with great accuracy (R2 ≥ 0.82). These expressions may prove very useful to architects, civil engineers, solar energy engineers, and solar-energy-system investors in order to assess the solar energy availability in Saudi Arabia for Sun-tracking flat-plate solar collectors throughout the year.
Seasonal solar energy sums were also calculated. They were averaged over all sites in the same SEZ as well as over all sites (all SEZs), under all-sky conditions. For every case, regression curves that best fit the mean values were estimated with absolute accuracy (R2 = 1). Maximum sums were found in the summer (836.6 kWm−2), and minimum ones in the winter (664.1 kWm−2), as expected. The corresponding figures for the maximum energy received on a flat-plate solar collector in Saudi Arabia having an optimum tilt angle towards south are 659.9 kWm−2 and 532.3 kWm−2, respectively for summer and winter [1]. Therefore, the single-axis solar systems provide a high increase in the maximum seasonal energy yield in comparison to the static ones of +26.8% and +24.8%, respectively.
The correction factor, CF, introduced in [1], was used in this work, too. A graph of CF as a function of the tilt angle (in the range 5°–55°) showed exponential growth for sites having ratios ρr = ρg0 > 1, or exponential decay in the cases of ρr < 1. Such curves are assumed to be universal (i.e., representable as nomograms), since similar graphs in [1] had the same shape. Nevertheless, this universality remains to be confirmed at other locations in the world with different climate and terrain characteristics. A graph of CF as a function of ρr was prepared for different values of the tilt angle in the range 5°–55°. Best-fit curves to the data points were estimated and were found to be linear, with decreasing slopes in proportion to decreasing tilt angles. These curves are also assumed to be nomograms, since similar graphs in [1] had the same shape. Nevertheless, this kind of nomogram has to be confirmed at other sites worldwide with different climate and terrain characteristics.
Three innovations appeared in the present study: (i) For the first time, solar maps for Saudi Arabia of the maximum energy received on optimally-inclined flat surfaces mounted on a system with a vertical axis that rotates and tracks the Sun were derived; (ii) for the first time, the three energy zones identified in [1] were used here and the same sites as in [1] were accommodated in the same zones; (iii) universal curves (nomograms) of CF in relation to β and ρr were derived for this case, too.
As far as the utilisation of the results presented here is concerned, this can be summarisd as follows. The solar industry has now a new rule for the inclined supporting frames mounted on single-axis solar systems; the inclined frame must have an angle of 40°, 45°, or 50° to the local horizon, depending on the SEZ to be installed. The same utilisation guidelines given by [1] for the static solar systems apply to this case, too.
This last paragraph of the work is devoted to the performance efficiency and operation cost of a static (fixed-tilt) and a single-axis solar PV system. Talavera et al. [26] examined the levelised cost of electricity (LCOE, in €kWh−1) for the two systems at five sites (two in Spain, one in Saudi Arabia, one in Brazil, and one in the USA) and found it varying according to site and type of the PV system. Overall, the LCOE for the single-axis PV system is a little bit higher than that for a fixed-tilt one. Nevertheless, the difference is not big and varies as +4.4%, 0%, 0%, +8.6%, and +1% for the five sites, respectively. Another study [27] concluded that the amount of electricity generation by a single-axis PV system in the USA is about 12–25% higher than that for a fixed-tilt one. A study for Jordan [28] showed that a dual-axis PV system generates 31.29% more annual electricity than a fixed-tilt one. For Europe, it has been found [29] that a single-axis PV system produces an annual energy yield of 30% higher in southern, and 25% in central Europe and up to 50% in northern Scandinavia.

Author Contributions

Data collection, data analysis, writing—review and editing, A.F.; Conceptualisation, methodology, data collection, data analysis, writing—original draft preparation, H.D.K.; writing—review and editing, M.A.; writing—review and editing, M.A.O. All authors have read and agreed to the published version of the manuscript.

Funding

Researchers would like to acknowledge the support provided by the Deanship of Scientific Research (DSR) at the King Fahd University of Petroleum and Minerals (KFUPM) for funding this work through project no. DF181010.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The solar radiation data and the ground-albedo ones for Saudi Arabia are publicly available and were downloaded from the PV-GIS platform (https://ec.europa.eu/jrc/en/pvgis (accessed between 19 December 2020 and 16 January 2021)) and the Giovanni website (https://giovanni.gsfc.nasa.gov/giovanni/ (accessed on between 6 and 30 May 2021)), respectively. The ASNOA solar radiation data are available on request, but they were used on a self-evident permission to the second author as ex. member and now Emeritus Researcher in the Institution.

Acknowledgments

The authors are thankful to the Giovanni-platform staff as well the MODIS-mission scientists and associated NASA personnel for the production of the ground-albedo data used in this research. They also thank the personnel of the PV–GIS platform for providing the necessary solar horizontal irradiances over Saudi Arabia. A.F. is thankful to Dalia Amer for her help in data organisation and processing. B.E. Psiloglou and N. Kappos are acknowledged for maintaining the solar radiation equipment on the ASNOA platform.

Conflicts of Interest

The authors declare no conflict of interest.

Correction Statement

This article has been republished with a minor correction to the readability of Table 3. This change does not affect the scientific content of the article.

References

  1. Farahat, A.; Kambezidis, H.D.; Almazroui, M.; Ramadan, E. Solar Potential in Saudi Arabia for Southward-Inclined Flat-Plate Surfaces. Appl. Sci. 2021, 11, 4101. [Google Scholar] [CrossRef]
  2. Akbar, H.S. Design of Sun Tracker System for Solar Energy Applications. J. Phys. Res. 2015, 1, 29–34. [Google Scholar]
  3. Hafez, A.Z.; Yousef, A.M.; Harag, N.M. Solar Tracking Systems: Technologies and Trackers Drive Types—A Review. Renew. Sustain. Energy Rev. 2018, 91, 754–782. [Google Scholar] [CrossRef]
  4. Altarawneh, I.S.; Rawadieh, S.I.; Tarawneh, M.S.; Alrowwad, S.M.; Rimawi, F. Optimal Tilt Angle Trajectory for Maximizing Solar Energy Potential in Ma’an Area in Jordan. J. Renew. Sustain. Energy 2016, 8, 033701. [Google Scholar] [CrossRef]
  5. Evseev, E.G.; Kudish, A.I. The Assessment of Different Models to Predict the Global Solar Radiation on a Surface Tilted to the South. Sol. Energy 2009, 83, 377–388. [Google Scholar] [CrossRef]
  6. Kambezidis, H.D. The Solar Radiation Climate of Athens: Variations and Tendencies in the Period 1992–2017, the Brightening Era. Sol. Energy 2018, 173, 328–347. [Google Scholar] [CrossRef]
  7. Kaddoura, T.O.; Ramli, M.A.M.; Al-Turki, Y.A. On the Estimation of the Optimum Tilt Angle of PV Panel in Saudi Arabia. Renew. Sustain. Energy Rev. 2016, 65, 626–634. [Google Scholar] [CrossRef]
  8. Ohtake, H.; Uno, F.; Oozeki, T.; Yamada, Y.; Takenaka, H.; Nakajima, T.Y. Estimation of Satellite-Derived Regional Photovoltaic Power Generation Using a Satellite-Estimated Solar Radiation Data. Energy Sci. Eng. 2018, 6, 570–583. [Google Scholar] [CrossRef]
  9. Kambezidis, H.D.; Psiloglou, B.E. Estimation of the Optimum Energy Received by Solar Energy Flat-Plate Convertors in Greece Using Typical Meteorological Years. Part I: South-Oriented Tilt Angles. Appl. Sci. 2021, 11, 1547. [Google Scholar] [CrossRef]
  10. Huld, T.; Müller, R.; Gambardella, A. A New Solar Radiation Database for Estimating PV Performance in Europe and Africa. Sol. Energy 2012, 86, 1803–1815. [Google Scholar] [CrossRef]
  11. Urraca, R.; Gracia-Amillo, A.M.; Koubli, E.; Huld, T.; Trentmann, J.; Riihelä, A.; Lindfors, A.V.; Palmer, D.; Gottschalg, R.; Antonanzas-Torres, F. Extensive Validation of CM SAF Surface Radiation Products over Europe. Remote Sens. Environ. 2017, 199, 171–186. [Google Scholar] [CrossRef]
  12. Urraca, R.; Huld, T.; Gracia-Amillo, A.; Martinez-de-Pison, F.J.; Kaspar, F.; Sanz-Garcia, A. Evaluation of Global Horizontal Irradiance Estimates from ERA5 and COSMO-REA6 Reanalyses Using Ground and Satellite-Based Data. Sol. Energy 2018, 164, 339–354. [Google Scholar] [CrossRef]
  13. Mueller, R.W.; Matsoukas, C.; Gratzki, A.; Behr, H.D.; Hollmann, R. The CM-SAF Operational Scheme for the Satellite Based Retrieval of Solar Surface Irradiance—A LUT Based Eigenvector Hybrid Approach. Remote Sens. Environ. 2009, 113, 1012–1024. [Google Scholar] [CrossRef]
  14. Amillo, A.G.; Huld, T.; Müller, R. A New Database of Global and Direct Solar Radiation Using the Eastern Meteosat Satellite, Models and Validation. Remote Sens. 2014, 6, 8165–8189. [Google Scholar] [CrossRef]
  15. Walraven, R. Calculating the Position of the Sun. Sol. Energy 1978, 20, 393–397. [Google Scholar] [CrossRef]
  16. Wilkinson, B.J. An Improved FORTRAN Program for the Rapid Calculation of the Solar Position. Sol. Energy 1981, 27, 67–68. [Google Scholar] [CrossRef]
  17. Kambezidis, H.D.; Papanikolaou, N.S. Solar Position and Atmospheric Refraction. Sol. Energy 1990, 44, 143–144. [Google Scholar] [CrossRef]
  18. Liu, B.; Jordan, R.C. The Long-Term Average Performance of Flat-Plate Solar-Energy Collectors. Sol. Energy 1963, 7, 53–74. [Google Scholar] [CrossRef]
  19. Kambezidis, H.D.; Psiloglou, B.E.; Gueymard, C. Measurements and Models for Total Solar Irradiance on Inclined Surface in Athens, Greece. Sol. Energy 1994, 53, 177–185. [Google Scholar] [CrossRef]
  20. Acker, J.G.; Leptoukh, G. Online Analysis Enhances Use of NASA Earth Science Data. Eos Trans. Am. Geophys. Union 2007, 88, 14. [Google Scholar] [CrossRef]
  21. Zell, E.; Gasim, S.; Wilcox, S.; Katamoura, S.; Stoffel, T.; Shibli, H.; Engel-Cox, J.; Al Subie, M. Assessment of Solar Radiation Resources in Saudi Arabia. Sol. Energy 2015, 119, 422–438. [Google Scholar] [CrossRef]
  22. ESMAR. Global Solar Atlas 2.0. 2019. Available online: https://globalsolaratlas.info/map?c=11.523088,8.613281,3 (accessed on 1 July 2021).
  23. National Renewable Energy Laboratory. Kingdom of Saudi Arabia: Solar Radiation Atlas. Available online: https://digital.library.unt.edu/ark:/67531/metadc690351/ (accessed on 1 July 2021).
  24. Marey, H.S.; Gille, J.C.; El-Askary, H.M.; Shalaby, E.A.; El-Raey, M.E. Aerosol Climatology over Nile Delta Based on MODIS, MISR and OMI Satellite Data. Atmos. Chem. Phys. 2011, 11, 10637–10648. [Google Scholar] [CrossRef]
  25. Mueller, R.; Behrendt, T.; Hammer, A.; Kemper, A. A New Algorithm for the Satellite-Based Retrieval of Solar Surface Irradiance in Spectral Bands. Remote Sens. 2012, 4, 622–647. [Google Scholar] [CrossRef]
  26. Talavera, D.L.; Muñoz-Cerón, E.; Ferrer-Rodríguez, J.P.; Pérez-Higueras, P.J. Assessment of Cost-Competitiveness and Profitability of Fixed and Tracking Photovoltaic Systems: The Case of Five Specific Sites. Renew. Energy 2019, 134, 902–913. [Google Scholar] [CrossRef]
  27. Drury, E.; Lopez, A.; Denholm, P.; Margolis, R. Relative Performance of Tracking versus Fixed Tilt Photovoltaic Systems in the USA. Prog. Photovolt. Res. Appl. 2013, 22, 1302–1315. [Google Scholar] [CrossRef]
  28. Hammad, B.; Al-Sardeah, A.; Al-Abed, M.; Nijmeh, S.; Al-Ghandoor, A. Performance and Economic Comparison of Fixed and Tracking Photovoltaic Systems in Jordan. Renew. Sustain. Energy Rev. 2017, 80, 827–839. [Google Scholar] [CrossRef]
  29. Huld, T.; Cebecauer, T.; Šúri, M.; Dunlop, E.D. Analysis of One-Axis Tracking Strategies for PV Systems in Europe. Prog. Photovolt. Res. Appl. 2010, 18, 183–194. [Google Scholar] [CrossRef]

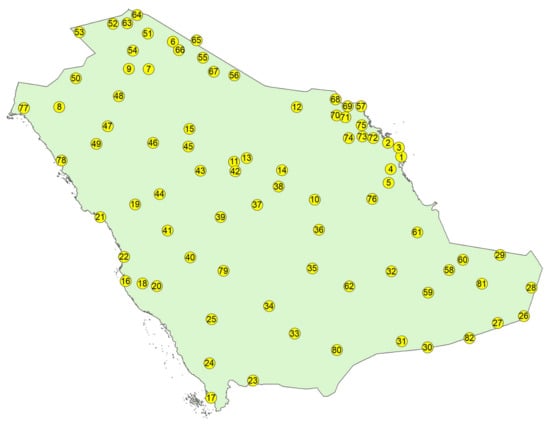

Figure 1. Distribution of the selected 82 locations in Saudi Arabia. The numbers in the circles refer to those in column 1 of Table 1. This figure is reproduction of Figure 1 in [1].
Figure 1. Distribution of the selected 82 locations in Saudi Arabia. The numbers in the circles refer to those in column 1 of Table 1. This figure is reproduction of Figure 1 in [1].
Applsci 11 07105 g001

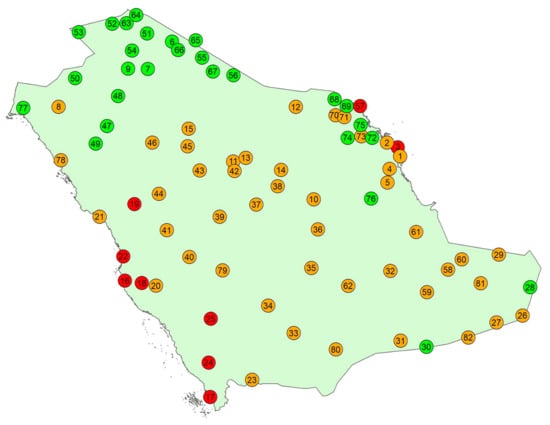

Figure 2. Distribution of the 82 selected sites in Saudi Arabia for maximum Hg,t,opt. β/ρg. The numbers in the circles refer to those in column 1 of Table 1. The red circles correspond to sites with opt. β = 40°, the orange with opt. β = 45°, and the green ones with opt. β = 50°.
Figure 2. Distribution of the 82 selected sites in Saudi Arabia for maximum Hg,t,opt. β/ρg. The numbers in the circles refer to those in column 1 of Table 1. The red circles correspond to sites with opt. β = 40°, the orange with opt. β = 45°, and the green ones with opt. β = 50°.
Applsci 11 07105 g002

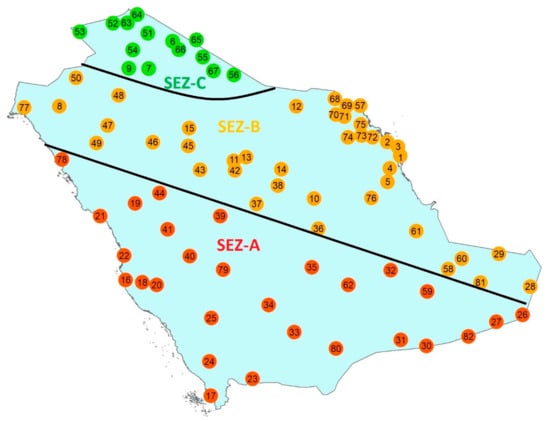

Figure 3. Corrected distribution of the 82 selected sites in Saudi Arabia for maximum Hg,t,opt. β/ρg. The numbers in the circles refer to those in column 1 of Table 1. The red circles correspond to sites with selected opt. β = 40° (SEZ-A), the orange with selected opt. β = 45° (SEZ-B), and the green ones with selected opt. β = 50° (SEZ-C). This figure is a reproduction of Figure 4 in [1].
Figure 3. Corrected distribution of the 82 selected sites in Saudi Arabia for maximum Hg,t,opt. β/ρg. The numbers in the circles refer to those in column 1 of Table 1. The red circles correspond to sites with selected opt. β = 40° (SEZ-A), the orange with selected opt. β = 45° (SEZ-B), and the green ones with selected opt. β = 50° (SEZ-C). This figure is a reproduction of Figure 4 in [1].
Applsci 11 07105 g003

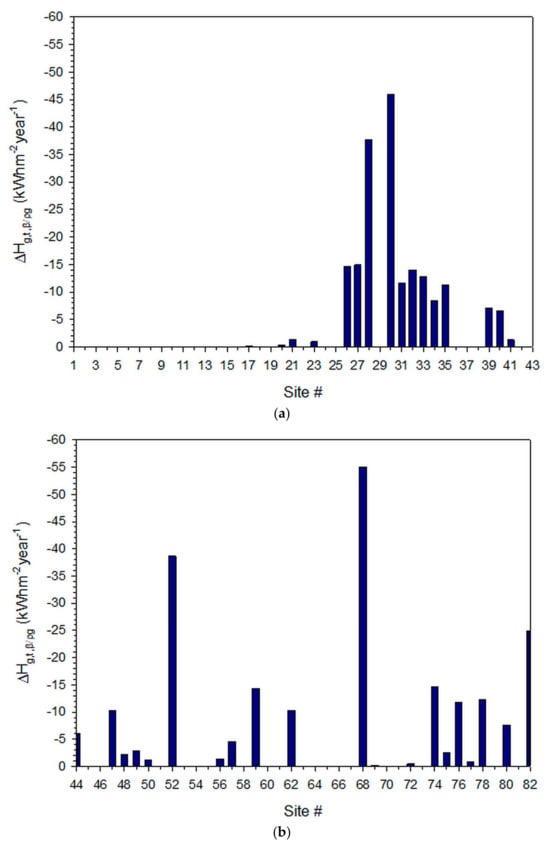

Figure 4. Differences of the annual maximum solar energy sums, ΔHg,t,β/ρg, on flat planes between optimally-derived and selected tilt angles for sites (a) 1–43 and (b) 44–82, under all-sky conditions and averaged over the period 2005–2016. ΔHg,t,β/ρg = Hg,t,opt. β/ρg − Hg,t,selected opt. β/ρg, where t refers to the tracking mode. The individual Hg,t,β/ρg values in the differences are shown in Table 2 (columns 3 and 4, respectively) together with their optimal β.
Figure 4. Differences of the annual maximum solar energy sums, ΔHg,t,β/ρg, on flat planes between optimally-derived and selected tilt angles for sites (a) 1–43 and (b) 44–82, under all-sky conditions and averaged over the period 2005–2016. ΔHg,t,β/ρg = Hg,t,opt. β/ρg − Hg,t,selected opt. β/ρg, where t refers to the tracking mode. The individual Hg,t,β/ρg values in the differences are shown in Table 2 (columns 3 and 4, respectively) together with their optimal β.
Applsci 11 07105 g004

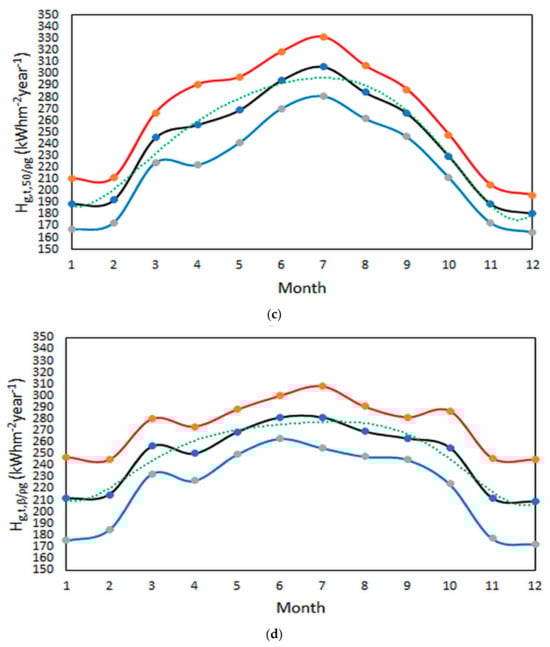

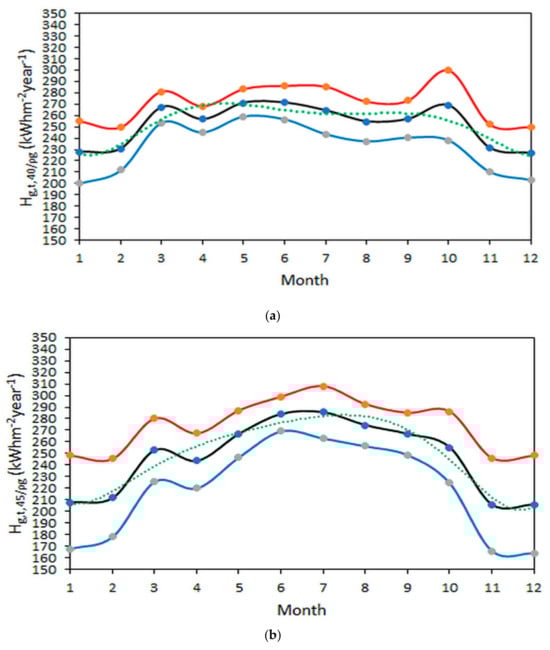

Figure 5. Intra-annual variation of (a) Hg,t,40/ρg in SEZ-A, (b) Hg,t,45/ρg in SEZ-B, (c) Hg,t,50/ρg in SEZ-C, and (d) Hg,t,β/ρg in all SEZs, under all-sky conditions and averaged over the period 2005–2016. The black solid lines represent the monthly Hg sums averaged over all corresponding sites. The red lines correspond to the mean + 1σ curves, and the blue lines to the mean − 1σ curves. The green dotted lines refer to the best-fit curves to the mean ones.
Figure 5. Intra-annual variation of (a) Hg,t,40/ρg in SEZ-A, (b) Hg,t,45/ρg in SEZ-B, (c) Hg,t,50/ρg in SEZ-C, and (d) Hg,t,β/ρg in all SEZs, under all-sky conditions and averaged over the period 2005–2016. The black solid lines represent the monthly Hg sums averaged over all corresponding sites. The red lines correspond to the mean + 1σ curves, and the blue lines to the mean − 1σ curves. The green dotted lines refer to the best-fit curves to the mean ones.
Applsci 11 07105 g005aApplsci 11 07105 g005b

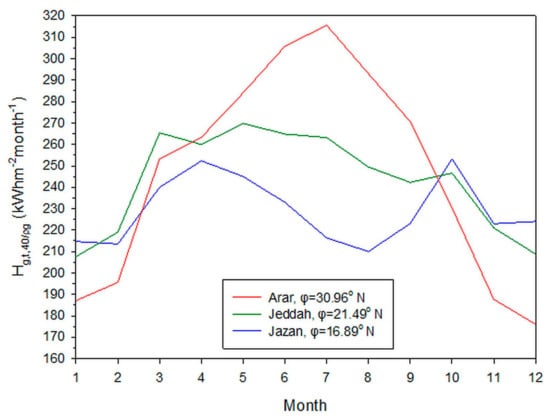

Figure 6. Intra-annual variation of the solar energy sum on a 40°-tilted plane, Hg,t,40/ρg, at the sites of Arar (#6 in Table 1), Jeddah (#16), and Jazan (#17). The values of Hg,t,40/ρg are averages over each month in the period 2005–2016 at 13.00 LST. The name and the geographical latitude of each site are shown in the legend.
Figure 6. Intra-annual variation of the solar energy sum on a 40°-tilted plane, Hg,t,40/ρg, at the sites of Arar (#6 in Table 1), Jeddah (#16), and Jazan (#17). The values of Hg,t,40/ρg are averages over each month in the period 2005–2016 at 13.00 LST. The name and the geographical latitude of each site are shown in the legend.
Applsci 11 07105 g006

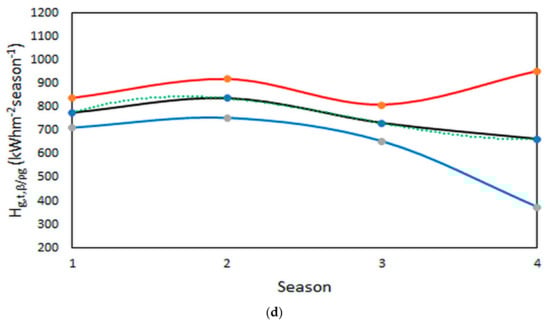

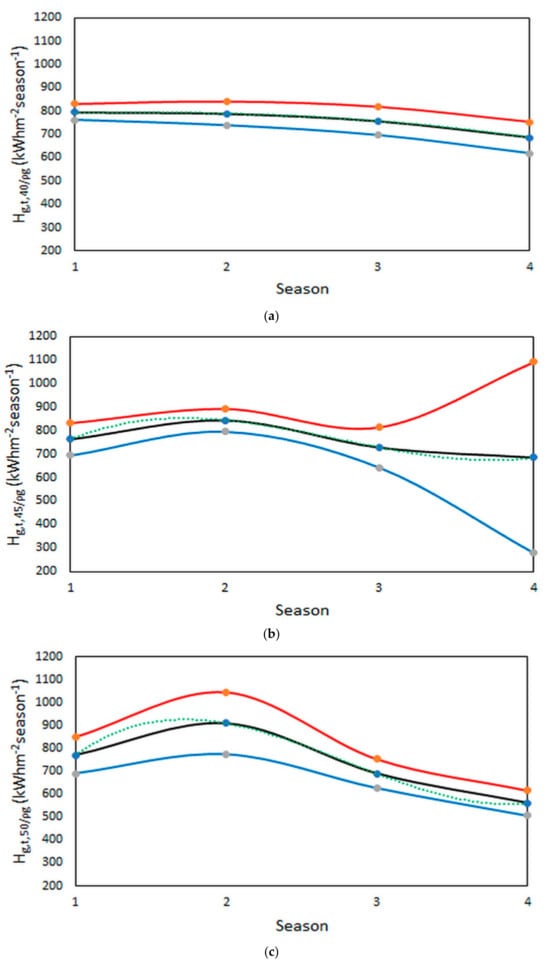

Figure 7. Seasonal variation of (a) Hg,t,40/ρg in SEZ-A, (b) Hg,t,45/ρg in SEZ-B, (c) Hg,t,50/ρg in SEZ-C, and (d) Hg,t,β/ρg in all SEZs. The black lines represent the seasonal mean. The red lines refer to the mean + 1σ curves, and the blue ones to the mean—1σ curves, under all-sky conditions and averaged over the period 2005–2016. The green dotted lines refer to the best-fit curves to the mean ones. The numbers 1–4 in the x-axis refer to the seasons in the sequence spring to winter.
Figure 7. Seasonal variation of (a) Hg,t,40/ρg in SEZ-A, (b) Hg,t,45/ρg in SEZ-B, (c) Hg,t,50/ρg in SEZ-C, and (d) Hg,t,β/ρg in all SEZs. The black lines represent the seasonal mean. The red lines refer to the mean + 1σ curves, and the blue ones to the mean—1σ curves, under all-sky conditions and averaged over the period 2005–2016. The green dotted lines refer to the best-fit curves to the mean ones. The numbers 1–4 in the x-axis refer to the seasons in the sequence spring to winter.
Applsci 11 07105 g007aApplsci 11 07105 g007b

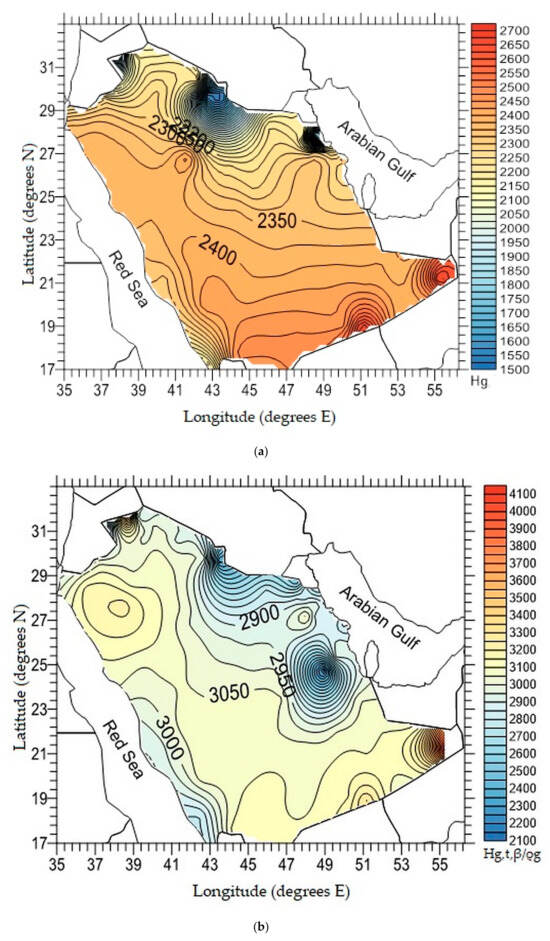

Figure 8. Distribution of the annual (a) Hg (kWhm−2year−1) and (b) Hg,t,β/ρg (kWhm−2year−1) sums over Saudi Arabia, under all-sky conditions and averaged over the period 2005–2016. The different colouring in the Hg levels is due to the different colour scales used. Figure 8a is reproduction of Figure 7a in [1].
Figure 8. Distribution of the annual (a) Hg (kWhm−2year−1) and (b) Hg,t,β/ρg (kWhm−2year−1) sums over Saudi Arabia, under all-sky conditions and averaged over the period 2005–2016. The different colouring in the Hg levels is due to the different colour scales used. Figure 8a is reproduction of Figure 7a in [1].
Applsci 11 07105 g008

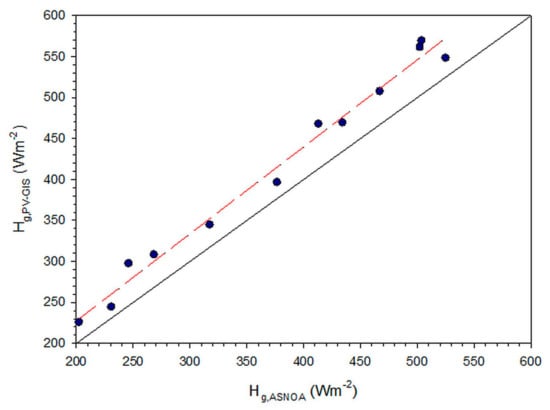

Figure 9. Comparison of monthly mean Hg values from PV-GIS to measured Hg values at ASNOA in the period 2005–2011. The red dashed line represents the best fit to the data points and is expressed by the regression equation: Hg,PV-GIS = 1.06 Hg,ASNOA + 14.96 (R2 = 0.99). The solid black line is the 1:1 (or y = x) line. This figure is reproduction of Figure 8 in [1].
Figure 9. Comparison of monthly mean Hg values from PV-GIS to measured Hg values at ASNOA in the period 2005–2011. The red dashed line represents the best fit to the data points and is expressed by the regression equation: Hg,PV-GIS = 1.06 Hg,ASNOA + 14.96 (R2 = 0.99). The solid black line is the 1:1 (or y = x) line. This figure is reproduction of Figure 8 in [1].
Applsci 11 07105 g009

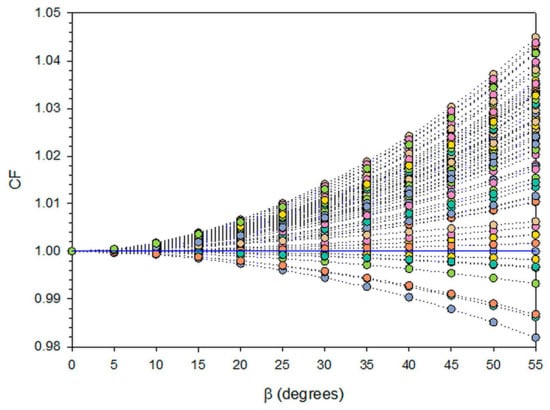

Figure 10. Variation of the correction factor, CF, as function of the tilt angle of the inclined flat plane, β, under all-sky conditions and averaged over the period 2005–2016. The dotted lines are the best-fit curves to the data points for each site, expressed as 3rd-order polynomials. The blue horizontal line indicates CF = 1.
Figure 10. Variation of the correction factor, CF, as function of the tilt angle of the inclined flat plane, β, under all-sky conditions and averaged over the period 2005–2016. The dotted lines are the best-fit curves to the data points for each site, expressed as 3rd-order polynomials. The blue horizontal line indicates CF = 1.
Applsci 11 07105 g010

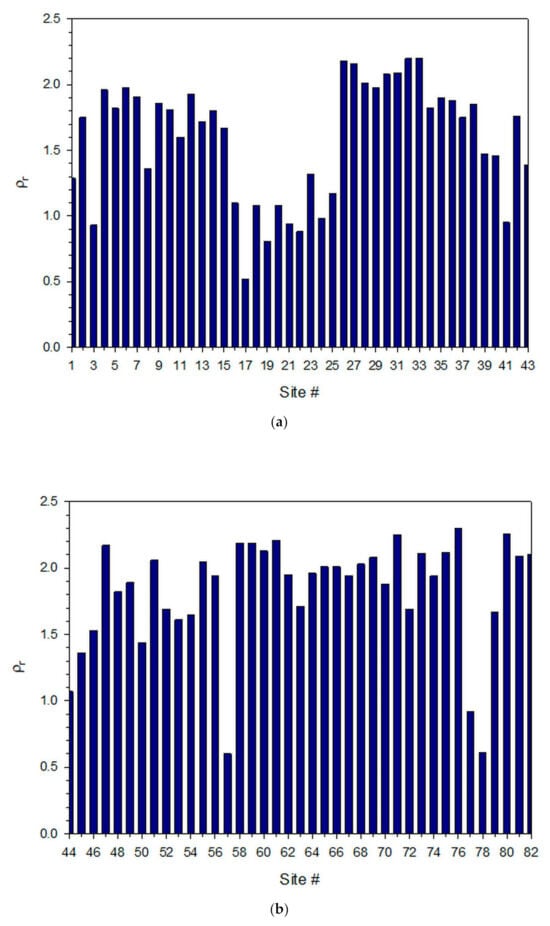

Figure 11. Annual mean ratios of ground albedo, ρr, for the 82 sites in Saudi Arabia; (a) sites 1–43, (b) sites 44–82, averaged over the period 2005–2016. The site #24 has ρr = 1, because its ρg = ρg0 = 0.2.
Figure 11. Annual mean ratios of ground albedo, ρr, for the 82 sites in Saudi Arabia; (a) sites 1–43, (b) sites 44–82, averaged over the period 2005–2016. The site #24 has ρr = 1, because its ρg = ρg0 = 0.2.
Applsci 11 07105 g011

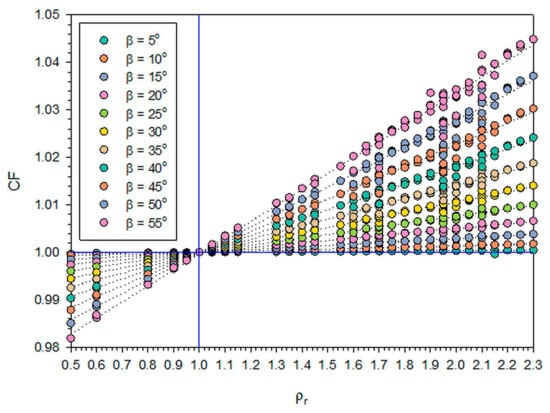

Figure 12. Variation of the correction factor, CF, as function of the ground-albedo ratio, ρr, for various tilt angles, β, for a flat plane tracking the Sun in Saudi Arabia, averaged over the period 2005–2016. The blue lines correspond to CF = ρr = 1. Notice that the datum point (1,1) is the site of Arar (#24), as expected. The black dotted lines are the best fits to the CFs of all sites having the same tilt angle.
Figure 12. Variation of the correction factor, CF, as function of the ground-albedo ratio, ρr, for various tilt angles, β, for a flat plane tracking the Sun in Saudi Arabia, averaged over the period 2005–2016. The blue lines correspond to CF = ρr = 1. Notice that the datum point (1,1) is the site of Arar (#24), as expected. The black dotted lines are the best fits to the CFs of all sites having the same tilt angle.
Applsci 11 07105 g012

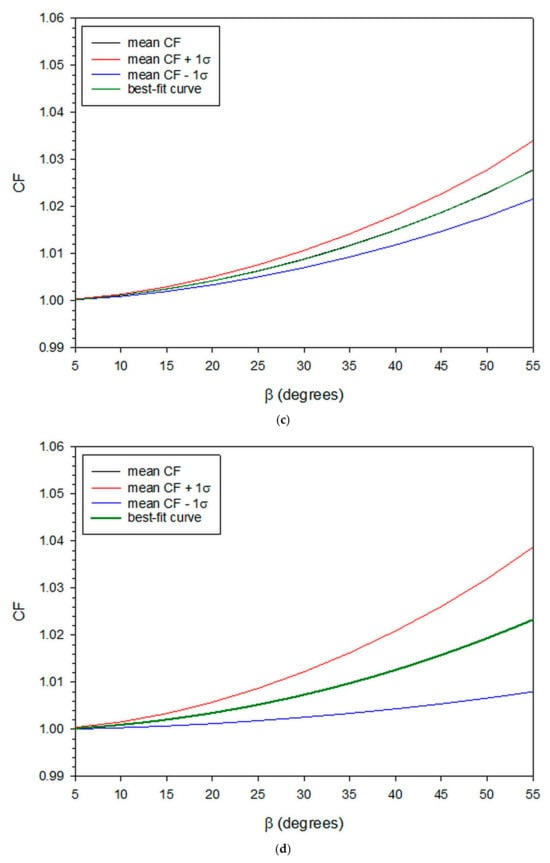

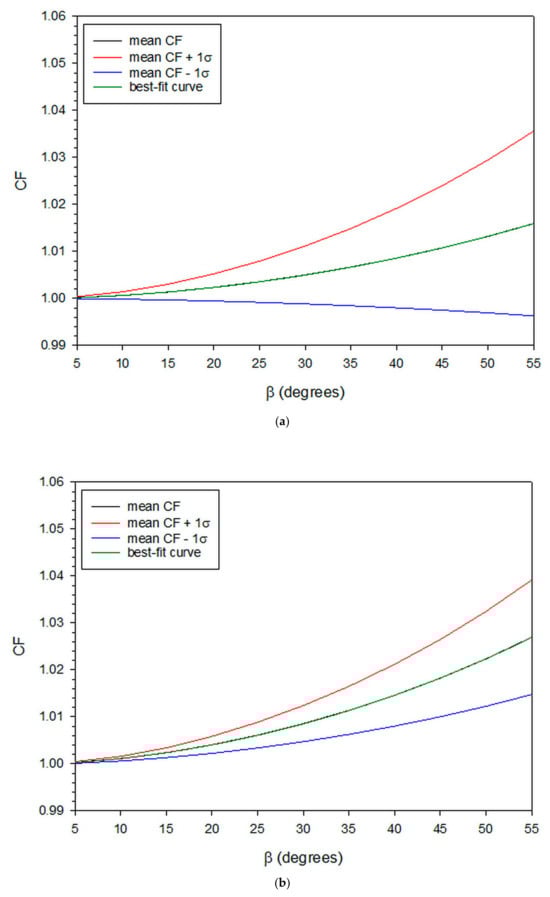

Figure 13. Variation of the correction factor, CF, as function of the tilt angle, β, for an inclined surface in (a) SEZ-A, (b) SEZ-B, (c) SEZ-C, and (d) all SEZs, averaged over the period 2005–2016. The black solid lines are the mean CF values, while the red and blue ones correspond to the mean + 1σ, and mean − 1σ, respectively. The green dotted lines are the best fits to the mean curves and can hardly be distinguished as they coincide with the mean curves.
Figure 13. Variation of the correction factor, CF, as function of the tilt angle, β, for an inclined surface in (a) SEZ-A, (b) SEZ-B, (c) SEZ-C, and (d) all SEZs, averaged over the period 2005–2016. The black solid lines are the mean CF values, while the red and blue ones correspond to the mean + 1σ, and mean − 1σ, respectively. The green dotted lines are the best fits to the mean curves and can hardly be distinguished as they coincide with the mean curves.
Applsci 11 07105 g013aApplsci 11 07105 g013b
Table 1. The 82 sites selected over Saudi Arabia to cover the whole territory of the country; φ is the geographical latitude, and λ the geographical longitude in the WGS84 geodetic system. This table is reproduction of Table 1 in [1].
Table 1. The 82 sites selected over Saudi Arabia to cover the whole territory of the country; φ is the geographical latitude, and λ the geographical longitude in the WGS84 geodetic system. This table is reproduction of Table 1 in [1].
#Siteφ (Degrees N)λ (Degrees E)
1Dammam26.4250.09
2Al Jubail26.9649.57
3Ras Tanura26.7750.00
4Abqaiq25.9249.67
5Al Hofuf25.3849.59
6Arar30.9641.06
7Sakaka29.8840.10
8Tabuk28.3836.57
9Al Jawf29.8939.32
10Riyadh24.7146.68
11Al Qassim26.2143.48
12Hafar Al Batin28.3845.96
13Buraydah26.3643.98
14Al Majma’ah25.8845.37
15Hail27.5141.72
16Jeddah21.4939.19
17Jazan16.8942.57
18Mecca21.3939.86
19Medina24.5239.57
20Taif21.2840.42
21Yanbu24.0238.19
22King Abdullah Economic City22.4539.13
23Najran17.5744.23
24Abha18.2542.51
25Bisha19.9842.59
26Al Sahmah20.1054.94
27Thabhloten19.8353.90
28Ardah21.2255.24
29Shaybah22.5254.00
30Al Kharkhir18.8751.13
31Umm Al Melh19.1150.11
32Ash Shalfa21.8749.71
33Oroug Bani Maradh Wildlife19.4145.88
34Wadi ad Dawasir20.4944.86
35Al Badie Al Shamali21.9946.58
36Howtat Bani Tamim23.5246.84
37Al Duwadimi24.5044.39
38Shaqra25.2345.24
39Afif24.0242.95
40New Muwayh22.4341.74
41Mahd Al Thahab23.4940.85
42Ar Rass25.8443.54
43Uglat Asugour25.8542.15
44Al Henakiyah24.9340.54
45Ar Rawdah26.8141.68
46Asbtar26.9640.28
47Tayma27.6238.48
48Al Khanafah Wildlife Sanctuary28.8138.92
49Madain Saleh26.9238.04
50Altubaiq Natural Reserve29.5137.23
51Hazem Aljalamid31.2840.07
52Turaif31.6838.69
53Al Qurayyat31.3437.37
54Harrat al Harrah Conservation30.6139.48
55Al Uwayqilah30.3342.25
56Rafha29.6343.49
57Khafji28.4148.50
58Unnamed 121.9251.99
59Unnamed 221.0351.16
60Unnamed 322.3352.53
61Unnamed 423.4250.73
62Unnamed 521.2848.03
63Unnamed 631.7039.26
64Unnamed 732.0239.65
65Unnmaed 831.0242.00
66Unnamed 930.6341.31
67Unnamed 1029.7842.68
68Unnamed 1128.6847.49
69Unnamed 1228.4147.97
70Unnamed 1328.0547.53
71Unnamed 1427.9747.88
72Unnamed 1527.1548.98
73Unnamed 1627.2148.56
74Unnamed 1927.1548.02
75Unnamed 1827.6648.52
76Unnamed 1924.7448.95
77Unnamed 2028.3435.17
78Unnamed 2126.2736.67
79Unnamed 2221.8943.06
80Unnamed 2318.7647.54
81Unnamed 2421.3853.28
82Unnamed 2519.2452.79
Table 2. Maximum Hg,t,β annual sums for the 82 sites in Saudi Arabia for optimal tilt angles, opt. β, with reference albedo ρg0 and a near-real albedo ρg, under all-sky conditions for the period 2005–2016. The Hg values are rounded integers.
Table 2. Maximum Hg,t,β annual sums for the 82 sites in Saudi Arabia for optimal tilt angles, opt. β, with reference albedo ρg0 and a near-real albedo ρg, under all-sky conditions for the period 2005–2016. The Hg values are rounded integers.
Site #Hg,t,β/ρg0 (kWhm−2Year−1)/
Optimum β (Degrees)
Hg,t,β/ρg (kWhm−2Year−1)/
Optimum β (Degrees)
Hg,t,β/ρg (kWhm−2Year−1)/
Selected Optimum β (Degrees)
12826/452846/452846/45
22824/452873/452873/45
32785/452782/402782/45
42862/402925/452925/45
52872/402925/452925/45
62921/452993/502993/50
73015/453081/503081/50
83149/453173/453173/45
92963/453022/503022/50
102937/452991/452991/45
112915/452955/452955/45
122748/452804/452804/45
132897/452944/452944/45
142900/452953/452953/45
152991/453035/453035/45
162912/402918/402917/40
172794/402767/352767/40
182903/402909/402909/40
193035/453021/403021/40
202926/402931/452931/40
213058/453054/453053/40
222946/402940/402940/40
233111/403129/453128/40
242803/402803/402803/40
253078/403086/403086/40
263041/403123/453109/40
273039/403118/453103/40
284013/504115/554078/45
292974/453043/453043/45
303268/453360/503314/40
313069/403144/453132/40
323002/403083/453069/40
333062/403144/453131/40
343017/403070/453062/40
352999/403061/453050/40
362984/403046/453046/45
372976/453028/453028/45
382899/452956/452956/45
393001/453032/453025/40
403065/453097/453091/40
413041/453038/453037/40
422917/452967/452967/45
433005/453033/453033/45
443078/453082/453076/40
452984/453008/453008/45
463073/453111/453111/45
473149/453239/503228/45
483004/453060/503058/45
493118/453183/503181/45
503027/453058/503056/45
512926/453004/503004/50
523666/553731/553692/50
532332/502365/502365/50
542936/452980/502980/50
552891/452964/502964/50
562272/502325/552324/50
572721/452700/402696/45
583018/403100/453100/45
593029/403111/453097/40
603011/403091/453091/45
612961/403042/453042/45
623015/403079/453069/40
632841/452892/502892/50
642877/452926/502926/50
652845/452913/502913/50
662852/452922/502922/50
672908/452978/502978/50
682546/552608/552553/45
692760/452827/502827/45
702763/402833/452833/45
712764/452821/452821/45
722779/402859/502859/45
732817/452863/452863/45
742995/453082/503067/45
752883/452947/502945/45
762113/502171/502159/45
772914/403002/503002/45
783145/453138/453125/40
793114/453086/453086/40
803041/403085/453078/40
813084/403170/453170/45
822988/453076/503051/40
Table 3. Regression equations for the best-fit curves to the monthly/seasonal mean Hg,t,β/ρg sums averaged over all respective sites in the period 2005–2016, together with their R2 values; s is either month in the range 1–12 or season in the range 1–4 (1 = spring, 2 = summer, 3 = autumn, 4 = winter).
Table 3. Regression equations for the best-fit curves to the monthly/seasonal mean Hg,t,β/ρg sums averaged over all respective sites in the period 2005–2016, together with their R2 values; s is either month in the range 1–12 or season in the range 1–4 (1 = spring, 2 = summer, 3 = autumn, 4 = winter).
SEZRegression EquationR2
A (months)
A (seasons)
Hg,t,40/ρg = 0.0054 s6 − 0.218 s5 + 3.4241 s4 − 25.977 s3 + 95.627 s2 − 142.65 s +296.38
Hg,t,40/ρg = −2.0956 s3 − 0.5587 s2 + 10.341 s + 787.81
0.82
1
B (months)
B (seasons)
Hg,t,45/ρg = 0.0049 s6 − 0.1809 s5 + 2.5754 s4 − 18.215 s3 + 65.134 s2 − 90.585 s +248.07
Hg,t,45/ρg = 44.915 s3 − 367.88 s2 + 870.06 s + 216.23
0.94
1
C (months)
C (seasons)
Hg,t,50/ρg = 0.0051 s6 − 0.1867 s5 + 2.6857 s4 − 19.7280 s3 + 74.6630 s2 − 106.5200 s +235.9800
Hg,t,50/ρg = 74.807 s3 − 627.99 s2 + 1499.1 s − 174.91
0.98
1
A,B,C (months)
A,B,C (seasons)
Hg,t,β/ρg = 0.0051 s6 − 0.1955 s5 + 2.9007 s4 − 21.259 s3 + 77.717 s2 − 112.08 s +263.4
Hg,t,β/ρg = 33.967 s3 − 286.87 s2 + 683.91 s + 344.56
0.94
1
Table 4. Regression equations for the best-fit curves to the CF–β data points averaged over all respective sites in the period 2005–2016, together with their R2 values, for SEZ-A, SEZ-B, SEZ-C, and all SEZs.
Table 4. Regression equations for the best-fit curves to the CF–β data points averaged over all respective sites in the period 2005–2016, together with their R2 values, for SEZ-A, SEZ-B, SEZ-C, and all SEZs.
β (SEZ)Regression EquationR2
40° (A)CF = 8.0863 × 10−9 β3 + 4.1615 × 10−6 β2 + 3.9379 × 10−5 β + 0.99981
45° (B)CF = 1.1413 × 10−8 β3 + 7.0911 × 10−6 β2 + 7.0532 × 10−5 β + 0.99971
50° (C)CF = 2.0347 × 10−8 β3 + 6.4319 × 10−6 β2 + 9.3106 × 10−5 β + 0.99961
40°,45°,50° (A,B,C)CF = 1.1802 × 10−8 β3 + 5.9782 × 10−6 β2 + 6.4260 × 10−5 β + 0.99971
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Farahat, A.; Kambezidis, H.D.; Almazroui, M.; Al Otaibi, M. Solar Potential in Saudi Arabia for Inclined Flat-Plate Surfaces of Constant Tilt Tracking the Sun. Appl. Sci. 2021, 11, 7105. https://doi.org/10.3390/app11157105

AMA Style

Farahat A, Kambezidis HD, Almazroui M, Al Otaibi M. Solar Potential in Saudi Arabia for Inclined Flat-Plate Surfaces of Constant Tilt Tracking the Sun. Applied Sciences. 2021; 11(15):7105. https://doi.org/10.3390/app11157105

Chicago/Turabian Style

Farahat, Ashraf, Harry D. Kambezidis, Mansour Almazroui, and Mohammed Al Otaibi. 2021. "Solar Potential in Saudi Arabia for Inclined Flat-Plate Surfaces of Constant Tilt Tracking the Sun" Applied Sciences 11, no. 15: 7105. https://doi.org/10.3390/app11157105

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
