Fault Diagnosis System of Power Grid Based on Multi-Data Sources

Abstract

In order to complete the function of power grid fault diagnosis accurately, rapidly and comprehensively, the power grid fault diagnosis system based on multi-data sources is proposed. The integrated system uses accident-level information, warning-level information and fault recording documents and outputs a complete diagnosis and tracking report. According to the timeliness of three types of information transmission, the system is divided into three subsystems: real-time processing system, quasi-real-time processing system and batch processing system. The complete work is realized through the cooperation between them. While a real-time processing system completes fault diagnosis of elements, it also screens out incorrectly operating protections and circuit breakers and judges the loss of accident-level information. Quasi-real-time system outputs reasons for incorrect actions of protections and circuit breakers under the premise of considering partial warning-level information missing. The batch processing system corrects diagnosis results of the real-time processing system and outputs fault details, including fault phases, types, times and locations of faulty elements. The simulation results and test show that the system can meet actual engineering requirements in terms of execution efficiency and fault diagnosis and tracking effect. It can be used as a reference for self-healing and maintenance of power grids and has a preferable application value.

1. Introduction

The transmission network is the main component of the power system and is responsible for large-capacity power transmission tasks. Therefore, the safety of the transmission network is of vital importance to the entire power system. When a transmission network fails, quickly identifying faulty elements is the primary task of fault diagnosis, and it is also a prerequisite for the smart grid to be self-healing. In order to carry out follow-up maintenance and record fault history information, it is necessary to store fault details such as the fault locations, types, phases, times of the faulty elements. In addition, it is also indispensable to find the circuit breakers and relay protection devices that did not operate correctly at the time of the fault and to track the reasons for their incorrect operations. Therefore, proposing a complete fault diagnosis system to organically combine the above tasks has an urgent need in practical engineering applications.

When it comes to transmission network operation, power flow [1], optimal power flow [2], optimal power flow [3], security analysis [4] and state estimation [5] are indispensable and important computational tools. Reference [1] proposed a robust and efficient LF solver based on the Bulirsch–Stoer algorithm, which solves the load-flow (LF) problem of super-large-scale systems and improves computational performance. Reference [2] used marine predator algorithm (MPA) to solve the multi-region optimal power flow (OPF) problem considering renewable energy sources and load variability. Reference [3] proposed a methodology to quickly obtain the saddle-node bifurcation points of power systems, which significantly reduces the computational cost. Reference [4] proposed an online line switching methodology to alleviate overloads with look-ahead capability, which provides a set of high-quality line switching solutions and improves speed (online application) and accuracy. Reference [5] proposed an improved probabilistic load and distributed energy resources (DERs) modeling as pseudo-measurements, which has the ability to estimate the states of the power grid with high accuracy and short computational time. These improved new technologies (especially the method proposed in reference [5]) enable the dispatching center to monitor and estimate the operating status of the entire power grid more accurately and quickly, providing feasibility for fault diagnosis.

Traditional power grid fault diagnosis methods, including expert system [6], Petri net [7] and other diagnostic algorithms, are based on protection operation information and circuit breaker tripping information. These methods could accurately diagnose faulty elements under the premise of complete information. Reference [8] proposed a fault diagnosis method under the condition of partial circuit breaker information loss, which supplemented practical application. As the data sources available for fault diagnosis become more abundant, multi-source information fusion [9] has also been applied to the field of fault diagnosis. However, these methods can only be used to determine faulty elements and cannot provide fault details.

In order to obtain the fault details, the recording wave data were also applied to the field of fault diagnosis by scholars as an information source [10]. However, due to the large storage space required by the fault recording documents, the recorded wave data cannot be uploaded to the dispatching end in real-time. Therefore, the fault diagnosis method based on the recorded wave data as the data source has the problem of time efficiency.

Fault tracking [11] refers to finding reasons for the incorrect actions of relay protection devices or circuit breakers by investigating the relevant alarm data in substations. Reference [12] used the inference chain and Bayesian network to track the faults of relay protection devices and achieved favorable results. However, it did not fully consider the problem of partial alarm data information loss. There was a possibility that some fault reasons were lost or misjudged.

Fault diagnosis methods based on multiple information sources [13,14] can provide a complete fault diagnosis report, including various fault details. However, former related studies have some shortcomings. The fault diagnosis method proposed in reference [13] fails to consider the time efficiency. Reference [14] evaluated the action behavior of protections and circuit breakers based on fault recording data, which may lead to low maintenance efficiency of relay protection devices and circuit breakers in practical engineering applications.

Considering the shortcomings of existing fault diagnosis and tracking methods and applications, this paper proposes a fault diagnosis system based on multi-data sources in order to achieve rapid, accurate and comprehensive effects of fault diagnosis and tracking. The main work is as follows:

(1)

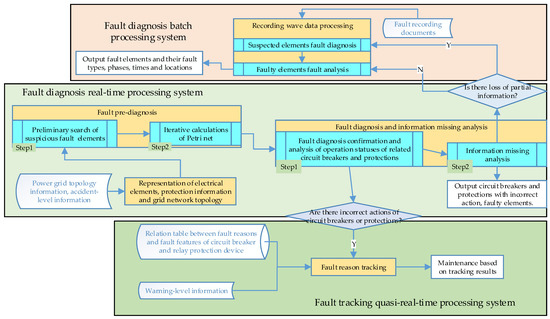

Show the framework and the operation process of the fault diagnosis system;

(2)

Divide the whole system into three subsystems to realize, respectively, and design the cooperation scheme between them to complete the whole fault diagnosis and tracking work;

(3)

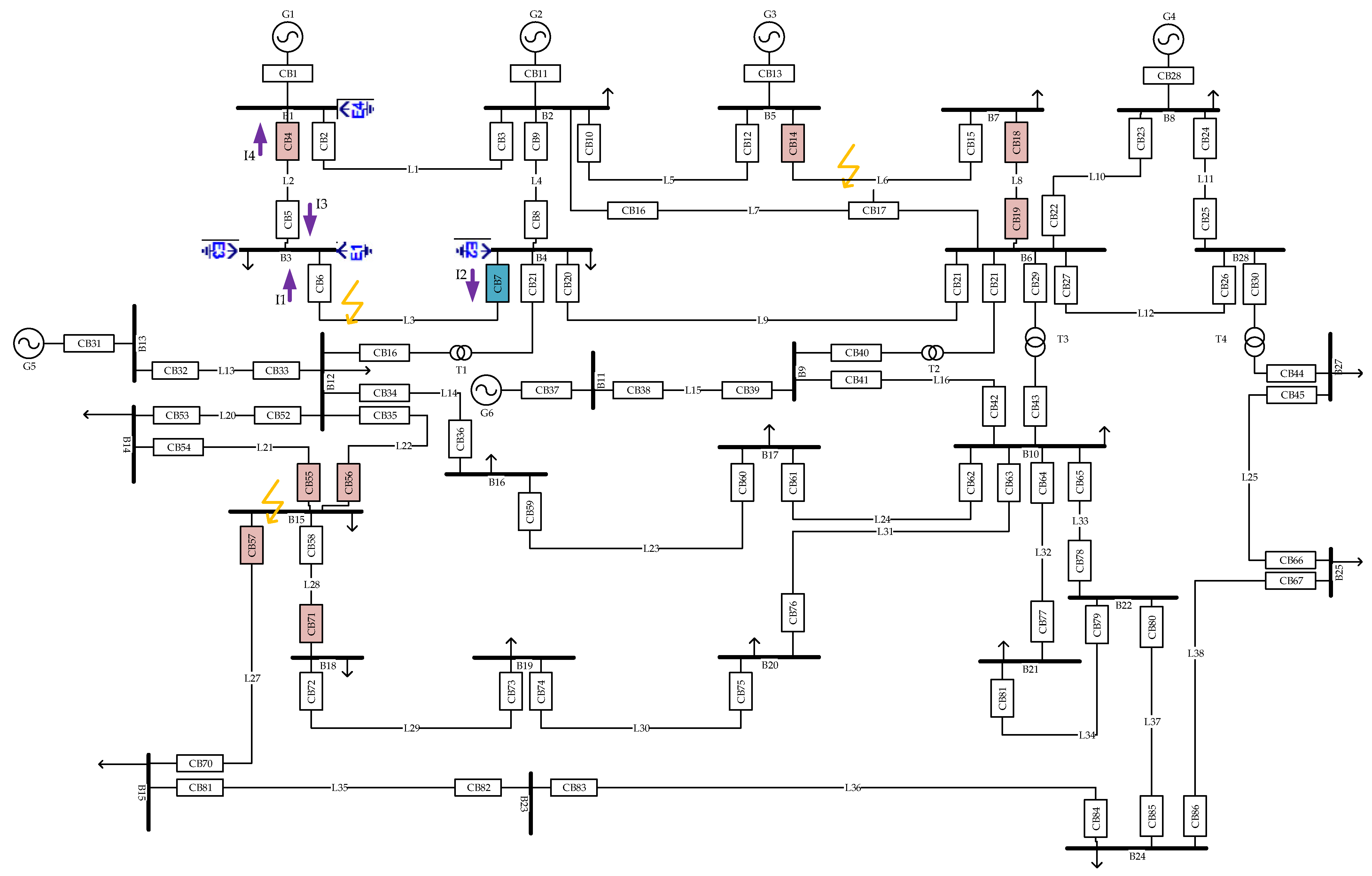

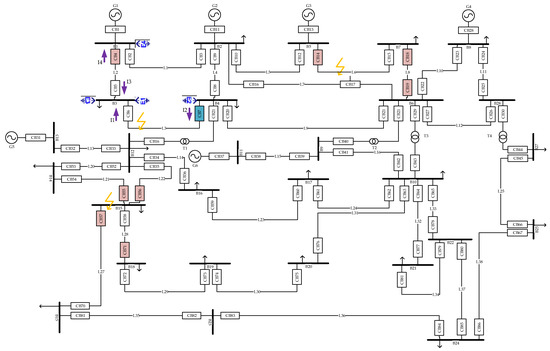

Take a fault scenario on the IEEE30 bus system as an example to verify the system. A transverse comparison between this system and related technologies is made to prove the advantages of this system in terms of computational efficiency, reliability, and processing the problem of partial information loss.

2. System Framework and Operation Process

In this article, the fault diagnosis system is divided into a real-time processing system, quasi-real-time processing system and batch processing system from the timeliness of information transmission. The system framework is shown in Figure 1.

2.1. Brief Introduction of Fault Diagnosis Real-Time Processing System

Real-time processing system mainly deals with accident-level information, including protection action information and circuit breaker tripping information, which is reported by substations in real-time. Therefore, this subsystem at the dispatching center takes a real-time response to the information and diagnoses grid fault rapidly. By using this subsystem, circuit breakers and protections with maloperation or refuse-operation and faulty elements are obtained, and the loss of accident-level information is analyzed.

2.2. Brief Introduction of Fault Tracking Quasi-Real-Time Processing System

The quasi-real-time processing system mainly deals with warning-level information, including the online monitoring information of circuit breakers and warning information of relay protection devices. Warning-level information is sampled in the substation by polling and is not reported to the dispatching center. When maloperation and refuse-operation information of circuit breakers and protections is transmitted from dispatching center to substations, quasi-real-time processing systems at substations initiates. According to warning-level information of related circuit breakers and relay protection devices, the reasons for incorrect actions are output work on the premise of considering the loss of partial warning-level information.

2.3. Brief Introduction of Fault Diagnosis Batch Processing System

The batch processing system mainly deals with fault recording documents. Due to the large storage space and low real-time requirements of fault recording documents, this subsystem at dispatching center inputs fault recording documents in batches in the form of multiple sets of documents and schedules them in the way of workflow. Then, this subsystem verifies and corrects the diagnosis result of the real-time processing system and finally outputs fault details, including fault locations, phases, types and times.

2.4. System Operation Process

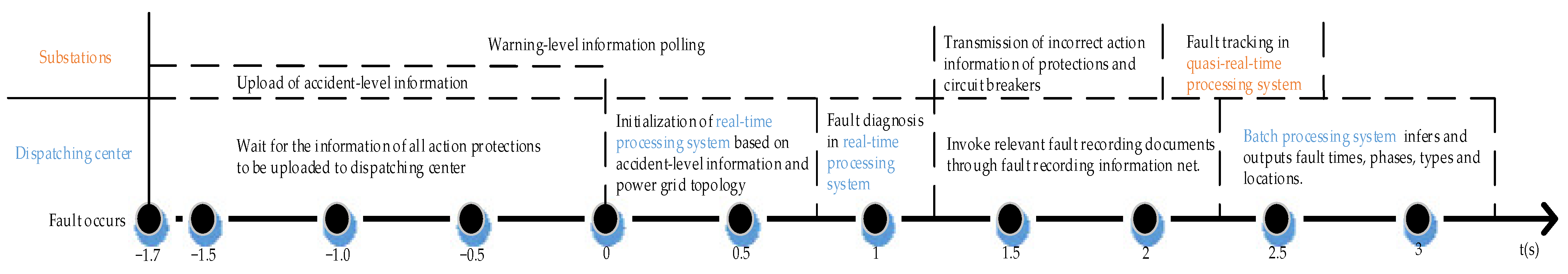

The complete operation process of fault diagnosis and tracking is completed by the cooperation of the three subsystems, described as follows:

After the fault occurs, the dispatching center first obtains accident-level information from the scene. A real-time diagnosis system makes the information representation of the power grid network topology information and accident-level information and then finds out the suspicious faulty elements through fault pre-diagnosis link. In the process of fault diagnosis and information loss analysis, faulty elements can be determined, and operation statuses of related protections and circuit breakers are analyzed. Then through the classification of action protections, this subsystem judge whether information missing occurs. When information loss occurs, a set of suspected faulty elements is given.

After operation statuses of circuit breakers and protections having been analyzed, the incorrect action information of circuit breakers and protections are transmitted to corresponding substations. Each corresponding substation immediately starts a quasi-real-time processing system. This subsystem extracts fault features of relay protection devices and circuit breakers related to incorrect actions in warning-level information and compares them with the relation table between fault reasons and features. Through the fault reason tracking link, the possible fault reasons for incorrect actions are arranged in order to guide the maintenance work of corresponding relay protection devices and circuit breakers.

After getting the diagnosis result, the dispatching center invokes related fault recording documents from the fault recording information net and initiates a batch processing system. When partial accident-level information is lost, this subsystem extracts relevant fault recording wave data of the suspected faulty elements outputted by a real-time processing system and diagnoses them. Subsequently, it is consistent with the situation when no information loss occurs: fault recording wave data of faulty elements that have been diagnosed are extracted to verify whether a fault occurs, and fault phases, types, times and locations of faulty elements are outputted to form a complete diagnosis report.

3. Realization of Fault Diagnosis Real-Time Processing System

Many symbols are involved in this chapter. The main symbols are shown in

Table 1. Table of main symbols.

Symbol (1)	Meaning	Symbol (1)	Meaning
V class	The class of all electrical elements in power grid	NBP	The class of near backup protections
V_e	The class of partial electrical elements containing transformers, buses, lines and generators in power grid	BP	The class of bus protections
B class	The class of circuit breakers in power grid	P*	The set of the grid’s action protections
V_ot	The class of electrical elements other than V_e class elements and B class elements	V_e1 (2)	The initial set of suspicious faulty V_e class elements
V_T	The class of transformers	V_e2 (2)	The set of suspicious faulty V_e class elements
V_G	The class of generators	V_e3 (2)	The initial set of faulty V_e class elements
V_L	The class of lines	V_e4 (3)	The set of faulty V_e class elements
V_B	The class of buses	V_e5 (4)	The set of suspected faulty V_e class elements
G class	The class of the power grid network	P_1 (3)	The set of maloperation protections
P class	The class of protections	P_2 (3)	The set of refuse-operation protections
MP	The class of main protections	P_3 (4)	The set of unprocessed protections
TP	The class of transformer protections	CB_1 (3)	The set of maloperation circuit breakers
RBP	The class of remote backup protections	CB_2 (3)	The set of refuse-operation circuit breakers

⁽¹⁾ Only the main symbols are listed here. Other symbols (especially symbols used in calculations) are defined in the corresponding sections. All symbols in the main text of this article are expressed in italics. ⁽²⁾ V_e1, V_e2 and V_e3 are defined in detail in Section 3.2. ⁽³⁾ V_e3, P_1, P_2, CB_1 and CB_2 are defined in detail in Section 3.3.1. ⁽⁴⁾ V_e5 and P_3 are defined in detail in Section 3.3.2.

.

3.1. Object-Oriented Information Representation Method of Electrical Elements, Protection Information and Power Grid Network Topology

In this article, the object-oriented representation method is used to classify and design all electrical elements, protections and network topology in the power grid, as shown in Figure 2.

In the object-oriented representation method, a subclass inherits all the attributes and methods of its parent class and has its own other attributes, while a single object is an instantiation realization of the subclass. The inheritance performance between parent class and child class preferable shows the relationship between power grid network and various electrical elements.

Compared with other representation methods, object-oriented representation of electrical elements, protections and network topology in the power grid has many advantages:

• The system is easier to maintain. When the operating status of certain elements or parts of the power grid changes, only one single object or partial module needs to be modified;
• Code reuse and system development efficiency are improved. Electrical components, their connection relationships and protections in the power grid are abstracted into categories, and logical thinking methods closer to nature are adopted, which can reduce the amount of repetitive code and the amount of follow-up work development;
• The system functions are easier to expand. Based on the characteristics of inheritance, encapsulation and polymorphism, a system structure with high cohesion and low coupling can be designed to reduce the complicated process of conversion and mapping from the actual grid fault to the diagnosis system model.

From the perspective of graph theory mentioned in reference [7], the topological structure of a single grid can be represented by an undirected graph G = (V^*,E). The vertex set V^* is composed of all electrical elements in the grid, and the physical connection between elements constitutes the arc set E.

In this article, electrical elements are divided into three categories, namely $V^{*} = V_e^{*}\cup B^{*}\cup V_{\mathit{ot}}^{*}$. B^* denotes the circuit breaker set. $V_e^{*} = \{V_L^{*},V_B^{*},V_T^{*},V_G^{*}\}$, where $V_L^{*}$ is the line set, $V_B^{*}$ is the bus set, $V_T^{*}$ is the transformer set, $V_G^{*}$ is the generator set. $V_{\mathit{ot}}^{*}$ denotes other elements (including load node, etc.).

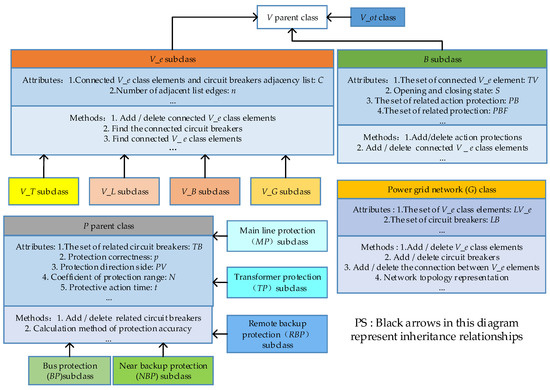

In Figure 2, V_e class is the abstraction of concrete objects in $V_e^{*}$. V_L class is the abstraction of concrete objects in $V_L^{*}$. V_B class is the abstraction of concrete objects in $V_B^{*}$. V_T class is the abstraction of concrete objects in $V_T^{*}$. V_G class is the abstraction of concrete objects in $V_G^{*}$. V_ot class is the abstraction of concrete objects in $V_{\mathit{ot}}^{*}$. B class is the abstraction of concrete objects in B^*.

G class represents the power grid network, whose topology relationship is defined in a nested way: G stores the set of V_e class elements and the set of circuit breakers. The connection relationship between a V_e class element and other V_e class elements and the connected circuit breakers are stored in the attribute C (adjacency list) of the element. The connection relationship between a circuit breaker and V_e class elements is stored in the attribute TV of the circuit breaker.

The attribute n of a V_e class element represents the number of other V_e class elements directly connected to the V_e class element. Regardless of whether a circuit breaker is controlled or passively closing and opening, the attribute S of the circuit breaker represents the opening and closing state of the circuit breaker (1 represents the opening state and 0 represents the closing state). Attribute PBF stores all protections related to the circuit breaker. Attribute PB stores action protections related to the circuit breaker.

The set of action protections P^* is the main information source used in a real-time processing system for fault diagnosis. The protection class (P class) is divided into five subclasses, as shown in Figure 2 (other protections that do not relate to fault diagnosis are not considered in this article). The attribute p (namely correctness of the protection), which has a detailed calculation method in Section 3.3.1, indicates the probability of protection operating correctly according to its setting principle. The protection range is represented by attributes PV and N: PV represents the nearest V_e class element in the protection range, which determines the direction of the protection range. N denotes the number of V_e class elements in the shortest path between the farthest V_e class element in the protection range and PV of the protection (containing PV and the element itself). N determines the extension of the protection range.

The attribute t (namely protective action time) indicates the sum of the action time of the protection relay and delay of the related circuit breaker. What needs to be noted is that the initialization of the real-time processing system should wait for the information of all action protections to be uploaded to the dispatching center before starting. According to the general setting time of remote backup protections and the delays of circuit breakers, this paper sets 1.5 s as the time delay between receiving the first action protection and the initialization of the real-time processing system. Action protections that exceed this delay time value will not participate in fault diagnosis this time.

All kinds of attributes and methods of classes include but are not limited to the content in Figure 2. Other attributes and methods will be defined in the corresponding chapters later.

For example, the method to obtain the protection range of protection is shown in Algorithm 1.

Algorithm 1 Protection range search algorithm: Scope_Protection (P, G, P. V_e, P. tree)

Input: a protection: P and the power grid network: G

Output: the set of all V_e class elements within the protection range of P:P. V_e and protection range tree of P:P. tree

The algorithm procedure is as follows:

Step (1) Input P and G.

Step (2) Taking P. PV as the starting point, the depth-first search of G is carried out. The cut-off condition of a single branch search is that there are Pa. N V_e class element nodes or access to the generator node or load on the path of the branch. The tree structure P. tree = (V, E) is formed by the search topological results, where V is the finite set of electrical components in the power grid, E is the directed connection relationship formed by the depth-first search of the power grid topology from P. PV as the root node, and P. PV ∈ V.

Step (3) Take the related circuit breaker set P. TB of P and cut off the branches of P. tree containing elements in P. TB to form a new P. tree.

Step (4) Traverse all V_e class element nodes in the P. tree and place them in P. V_e.

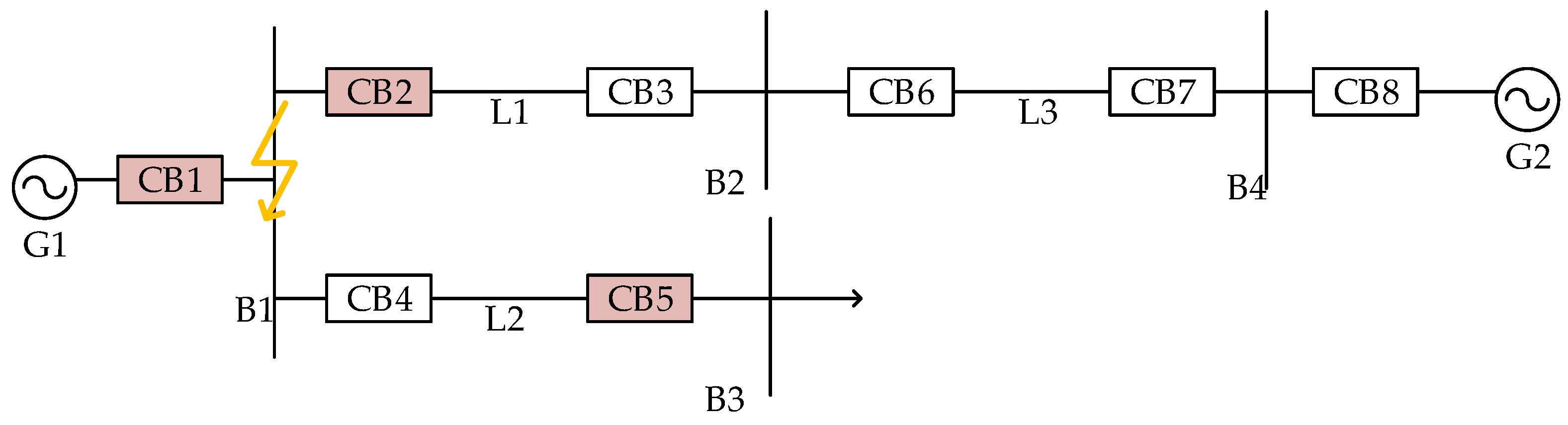

An example of a simple power grid fault is shown in Figure 3.

The fault description is as follows: Bus B1 fails. B1 bus protection (BP_B1) actions. Circuit breakers CB1 and CB2 trip. Circuit breaker CB4 refuses to operate. The fault is removed by the remote backup protection (RBP_L2_B3) on the B3 side of line L2. Circuit breaker CB5 trips. The action protections received by the dispatching center are BP_B1 and RBP_L2_B3, and the tripping circuit breakers are CB1, CB2 and CB5.

According to the object-oriented representation method in Figure 2, B1, L1, L2, CB1, CB2, CB4, CB5, BP_B1 and RBP_L2_B3 are taken as examples for object instantiation, as shown in

Table 2. Instance representation of B1, L1, L2 and BP_B1, RBP_L2_B3.

Element Name	B1	L1	L2	Protection Name	BP_B1	RBP_L2_B3
Subclass	V_B(Bus)	V_L(Line)	V_L(Line)	Subclass	BP	RBP
Adjacency list: C	{G1:CB1, L1:CB2, L2:CB4}	{B1:CB2, B2:CB3}	{B1:CB4, B3:CB5}	The set of related circuit breakers: TB	[CB1, CB2, CB4]	CB5
Edges of C: n	3	2	2	Coefficient of protection range: N	1	3

and

Table 3. Instance representation of CB1, CB2, CB4 and CB5.

Circuit Breaker Name	CB1	CB2	CB4	CB5
The set of connected elements: TV	[L1, B1]	[B1, L1]	[B1, L2]	[L2, B3]
Opening and closing state: S	1	1	0	1
The set of related action protections: PB	BP_B1	BP_B1	BP_B1	RBP_L2_B3

.

When an element fails, the protections of the faulty element itself act first to remove the fault. When related protections or circuit breakers refuse to act, the fault is removed by the backup protections of the adjacent elements, which is the embodiment of the selectivity of stage relay protection. Therefore, whether an element is faulty can be judged by its own protection and circuit breaker information and its adjacent element’s backup protection and circuit breaker information. A tree structure is defined to store the topological relationship of the element waiting for diagnosis and contains relevant protection, circuit breaker information, adjacent elements and their connection relationship.

Definition 1.

Protection information connection tree: V_root. Tree = (V, E). Protection information connection tree is an attribute of V_e class. V is a finite set of electrical elements in the power grid. E is the directed connection relationship formed by the depth-first search of the power grid topology from V_ root. The termination condition for a single branch search is accessing to the farthest circuit breaker node from V_root within the protection range of related protections of the circuit breaker or accessing to V_G class element or load node. V_root ∈ V. And V_root is the root node of tree structure.

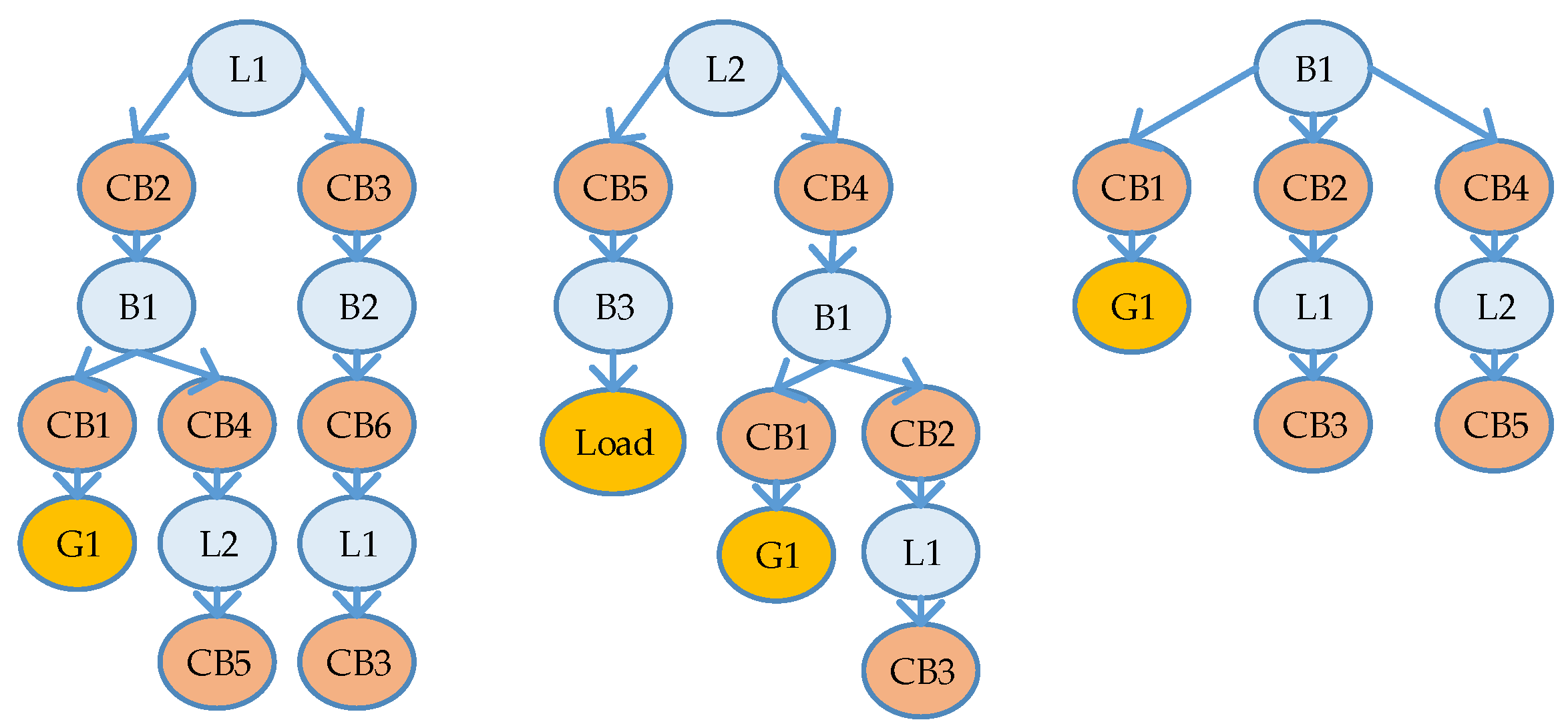

Taking L1, L2 and B1 in Figure 3 as examples to construct their protection information connection tree, as shown in Figure 4:

3.2. Fault Pre-Diagnosis

In this section, this article first uses an algorithm to process accident-level information received by the dispatching center and then uses the reverse reasoning Petri net proposed in reference [7] for fault diagnosis inference and calculation.

In practical engineering, there may be complex topology and excessive elements. The traversal of each V_e class element in the diagnosis process is time-consuming and labor-intensive, which cannot meet the needs of practical engineering. Therefore, the algorithm searches the topology of the power grid through the set of action protections (P^*), and gets all elements within the protection range of each protection in P^* to form the initial set of suspicious faulty V_e class elements.

The sufficient and necessary condition for the existence of a token in the final place of a Petri net is that all the second layer places of the net can obtain tokens after iterative calculations. According to the mapping relationship between tree structure and reverse reasoning Petri net, for a V_e class element, only when the number of tripping circuit breakers (and the element is within the protection range of the action protection related to the circuit breaker) exceeds the number of adjacent list edges (n) of the element in the protection information connection tree of it, all the second layer places of the Petri net may obtain tokens after iterative calculations. Through the screening of this condition, the range of suspicious faulty elements can be further reduced to form the set of suspicious faulty V_e class elements.

Definition 2.

Eigenvalue: k. k is an attribute of V_e class. The k value of a V_e class element represents the number of tripping circuit breakers in the protection information connection tree of the element (and the element is within the protection range of the action protection related to the circuit breaker).

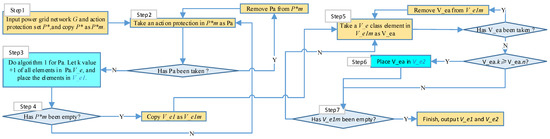

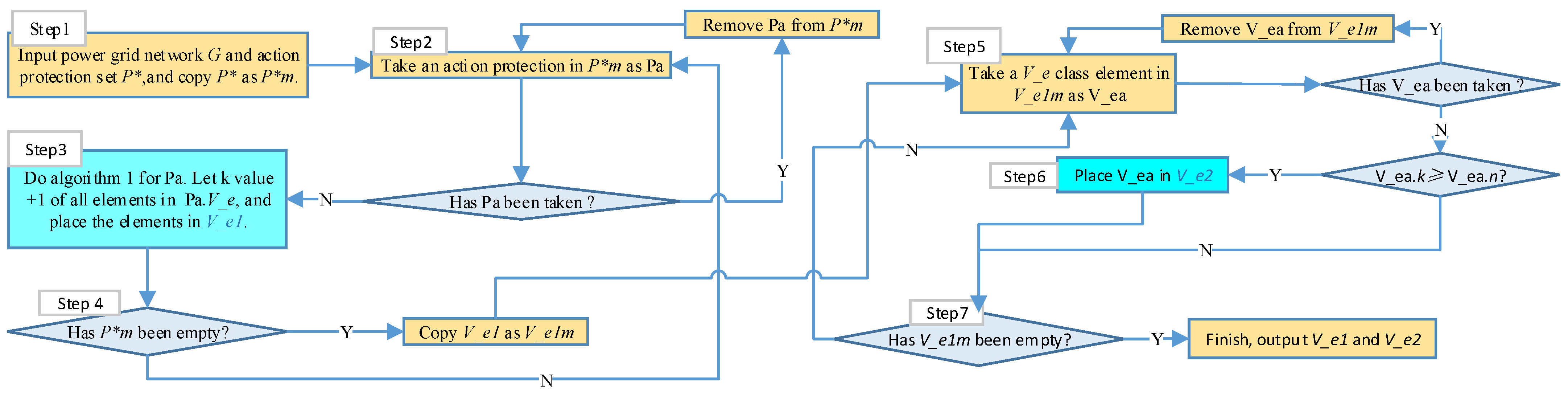

The flow chart of Algorithm 2 is shown in Figure 5.

Algorithm 2 Preliminary search algorithm for suspicious faulty V_e class elements: Search_FaultV_e (G, P*, V_e1, V_e2)

Input: the power grid network: G and the set of the grid’s action protections: P*.

Output: the initial set of suspicious faulty V_e class elements: V_e1 and the set of suspicious faulty V_e class elements: V_e2.

After V_e2 having been obtained, the protection information connection tree is constructed for each element in V_e2. Map the protection information connection trees to reverse reasoning Petri nets and perform iterative calculations. Then place the V_e class elements with a token in the final place into the initial set of faulty V_e class elements (V_e3).

Demonstrate the process with a simple grid shown in Figure 4 of Section 3.1.

Initialize G and input P^* = {BP_B1, RBP_L2_B3}. Then complete Algorithm 2, get V_e1 = {L1, L2, B1}, V_e2 = {B1}.

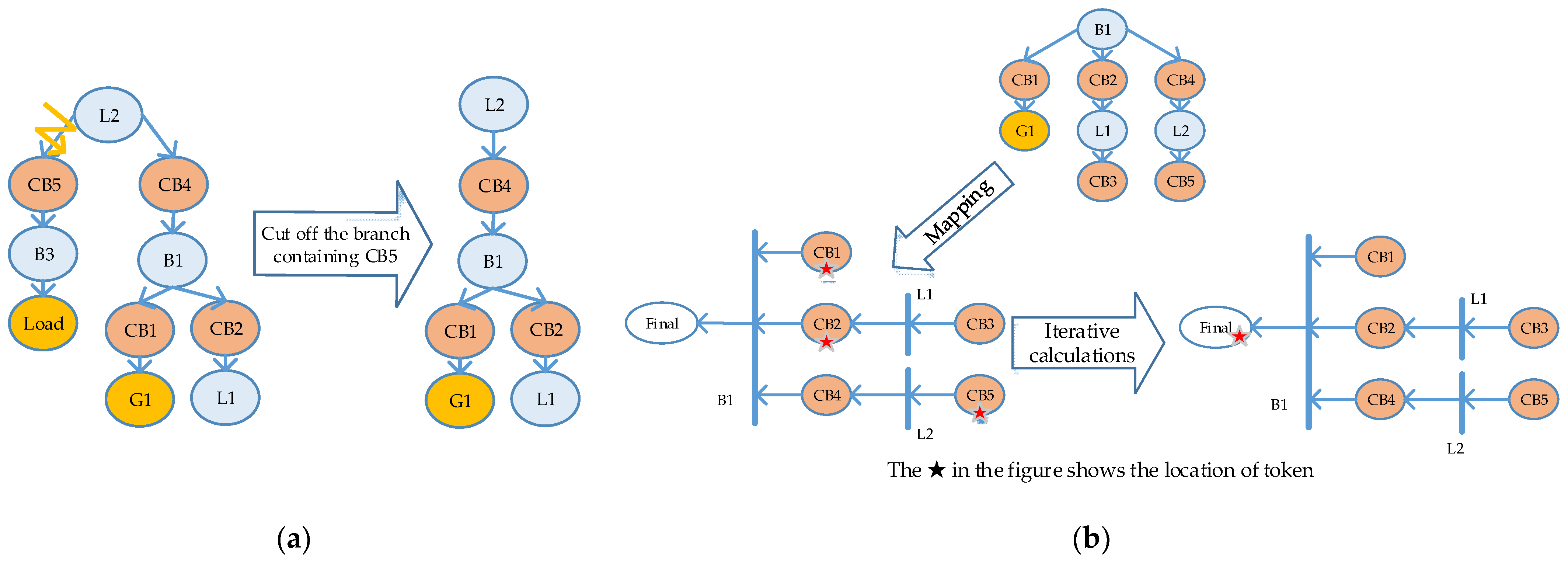

In Step (3) of Algorithm 2, the process of doing Algorithm 1 for RBP_L2_B3 is shown in Figure 6a.

Map the protection information connection tree of B1 to a reverse reasoning Petri net, and then perform iterative calculations, as shown in Figure 6b.

The final place of B1 Petri net is placed in a token, so B1 is placed in V_e3.

Finally, V_e3 = {B1} is obtained.

3.3. Fault Diagnosis and Information Missing Analysis

3.3.1. Fault Diagnosis Confirmation and Operation Status Analysis of Related Circuit Breakers and Protections

In this section, all the elements in V_e3 are investigated one by one to judge whether a fault occurs and whether relevant protections and circuit breakers operate normally.

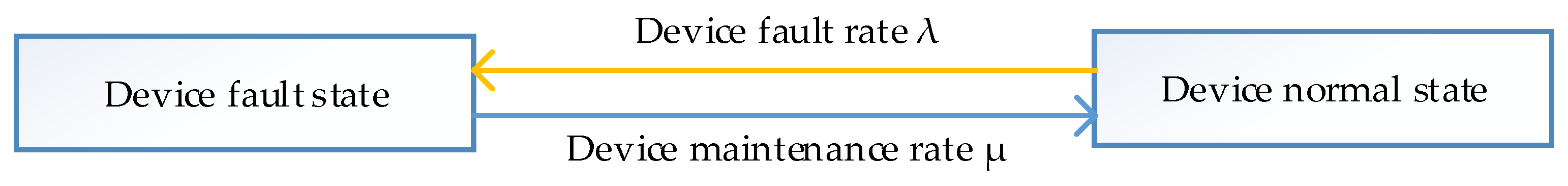

In order to simplify the model, the state space of a single relay protection device (or a circuit breaker) is divided into two categories: device fault and device normal. The state transition diagram is shown in Figure 7.

According to Markov’s state-space theory, the state transition matrix A is:

$$A = \left[\begin{array}{cc}1-\mu & \mu \\ \lambda & 1-\lambda \end{array}\right]$$

(1)

It is assumed that the fault probability of a device is p₀ and the normal probability of the device is p₁. The sojourn probability matrix T = [p₀ p₁], and T·A = T, p₀ + p₁ = 1. The normal probability of a device defined as the correctness of the device, as Equation (2):

$$p_1 = \frac{\mu }{\lambda +\mu }$$

(2)

Referring to the statistics of the China Electric Power Research Institute on the operation of Chinese grid relay protection devices and circuit breakers, the correctness of each protection and circuit breaker in this article is calculated by corresponding numerical values in references [15,16].

Taking the bus protection as an example. Λ = 0.556 (unit: times/(100 sets per year)), µ = 0.25 (unit: times/h). According to Equation (2), the correctness of bus protection, namely BP. P = 0.975. MP. P = 0.98, NBP. P = 0.96, RBP. P = 0.96, TP. P = 0.98, and CB. P = 0.97 can be calculated similarly.

What needs to be noted is that in actual engineering applications, accurate data statistics should be determined according to product, manufacturer, year of production, and other details. The correctnesses of protections and circuit breakers currently used have reached a high level (at least higher than 95%). Thus, the error between the general statistical value used in this paper and the actual statistical value is extremely small. In the subsequent calculation process, the calculation error caused by such a small error is also extremely small, and it will not change the final judgment on whether circuit breakers and protections are operating correctly. This is the conclusion that has been gotten after comparing the calculation process between extreme data (95%) and general statistical values. Therefore, in order to simplify the description and calculation, this article adopts the statistical values of the general meaning.

Many types of protection only relate to one circuit breaker. Thus, these protections are only involved with one branch of the protection connection tree of a V_e class element. It is assumed that when Vy (a V_e class element) fails, according to the principle of relay protection stage coordination, the circuit breaker should trip arranged at the z-th position in a branch of Vy protection information connection tree is CBy_z. In CBy_z.PBF, the protection, which should act arranged at the x-th position according to action time is Py_z_x, and its protection correctness is denoted as p_{Py_z_x}.

It is assumed that circuit breakers that should trip arranged before CBy_z do not trip, and CBy_z operates normally. The probability of Py_z_x action to remove the fault is:

$$p\left(y\_z\_x\right) = {{\displaystyle \prod }}_{i=1}^{x-1}\left(1-p_{Py\_z\_i}\right)p_{Py\_z\_x}$$

(3)

Thus, the probability of CBy_z tripping to remove the fault is:

$$p\left(y\_z\right) = {{\displaystyle \sum }}_{x=1}^{zm}p\left(y\_z\_x\right)$$

(4)

In Equation (4), zm denotes the number of protections that can be used to remove the Vy fault in CBy_z.PBF.

Remove the original assumptions. The new assumption is that CBy_z operates normally. The recurrence formula of the probability of CBy_z tripping to remove the fault is:

$$G\left(y\_z\right) = \left(1 - G\left[y\_\left(z-1\right)\right]CB.p\right)p\left(y\_z\right)$$

(5)

In Equation (5), initial condition is that G(y_1) = p(y_1).

When Vy fault occurs, the recurrence formula of the probability of Py_z_x action to remove fault is:

$$G\left(y\_z\_x\right) = CB.p\left(1 - G\left[y\_\left(z-1\right)\right]CB.p\right)p\left(y\_z\_x\right)$$

(6)

The refuse-operation information of related circuit breakers can usually be known. When a circuit breaker refuses to trip and the fault is removed by next-level protection, the circuit breaker node should be skipped when calculating the probability.

For example, when calculating G(B1_CB4_RBP_L2_B3) in the simple grid fault shown in Figure 3, CB5 should be considered as the first circuit breaker node on the B1-CB4-L2-CB5 path. G(B1_CB4_RBP_L2_B3) = CB. p × RBP. p = 0.9312.

Protection may be involved in multiple branches (such as longitudinal differential protection). It is assumed that the protection, which should act arranged in the t-th position is Py_t. In the branches Py_t is involved in, n related circuit breakers trip under the control of Py_t action, and k related circuit breakers refuse to trip. The probability of Py_t action to remove the fault is:

$$G\left(y\_t\right) = CB.p^n{\left(1 - CB.p\right)}^k{{\displaystyle \prod }}_{i=1}^{t-1}\left(1 - p_{Py\_i}\right)p_{Py\_t}$$

(7)

When Vy fails, the joint action of ym protections causes the tripping of the related circuit breakers to remove the fault. The probability of Vy fault can be calculated by the transfer function f (·) and is defined as fault correctness of Vy (namely p_Vy).

$$p_{Vy} = 1 - {{\displaystyle \prod }}_{i=1}^{ym}\left(1 - Gi\right)$$

(8)

The calculation method of Gi is determined by protection i. When i is involved in multiple branches, Gi is calculated according to Equation (7). When i is involved in only one branch, Gi is calculated by Equations (3)–(6).

According to relevant models and data in references [17,18], this article sets 0.8 as the boundary value to determine whether the element is faulty. When the fault correctness of the element is greater than or equal to 0.8, the element is judged to be faulty. What needs to be noted is that 0.8 is only the reference value set in this article, and calculation changes should be made according to the actual probability during engineering application. Elements whose fault correctness is lower than 0.8 are not without failures. This system will output their fault correctness as the probability of failure.

The essence of Vy fault correctness p_Vy is the conditional probability of Vy fault when the operating information of protections and circuit breakers related to Vy are known. According to the Bayesian theorem, when the fault diagnosis is completed, the posterior probability of the action of the protection Px (namely action expectation of Px: E_Px) can be calculated according to Equations (9)–(11).

$$S_{Ni-Px}=\{\begin{array}{c}0 \left(Ni fault removed by protection with priority higher than Px\right)\\ p_{Px}{p}_{Ni} \left(Protection resection with priority higher than Px failed to remove Ni fault\right) \end{array}$$

(9)

$$A{S}_{Ni-Px}=(1-{{\displaystyle \sum }}_{k=1}^{i-1}A{S}_{Nk-Px})S_{Ni-Px}$$

(10)

$$E_{Px}={{\displaystyle \sum }}_{N\subseteq Px.tree}{{\displaystyle \sum }}_{i=1}^{Ni}A{S}_{Ni-Px}$$

(11)

In Equations (9)–(11), Ni denotes the i-th V_e class node in the N-th branch of the protection range tree of Px (the smaller i value, the closer to the root node), and the initial condition is that AS_N1−Px = S_N1−Px. In Equation (11), the AS value of each V_e class node can only be calculated once and cannot be repeated.

Action information of protection Px is transformed into the actual action value T_Px. When Px acts, T_Px = 1, when Px does not act, T_Px = 0. The operation status of Px can be analyzed according to the difference between action expectation and actual action value, as shown in Equation (12):

$$\{\begin{array}{c}-0.2 < E_{P_x} - T_{P_x} < 0.2 P_x operates normally. \\ 0.2 \le E_{P_x} - T_{P_x} \le 1 P_x maloperation.\\ -1 \le E_{P_x}-T_{P_x} \le -0.2 P_x refuses action.\end{array}$$

(12)

According to the above method to determine faulty elements and the method to analyze operation statuses of protections, an algorithm defined on the power grid network G is given below. The fault diagnosis of each element in V_e3 is performed, and the operation statuses of related protections are analyzed.

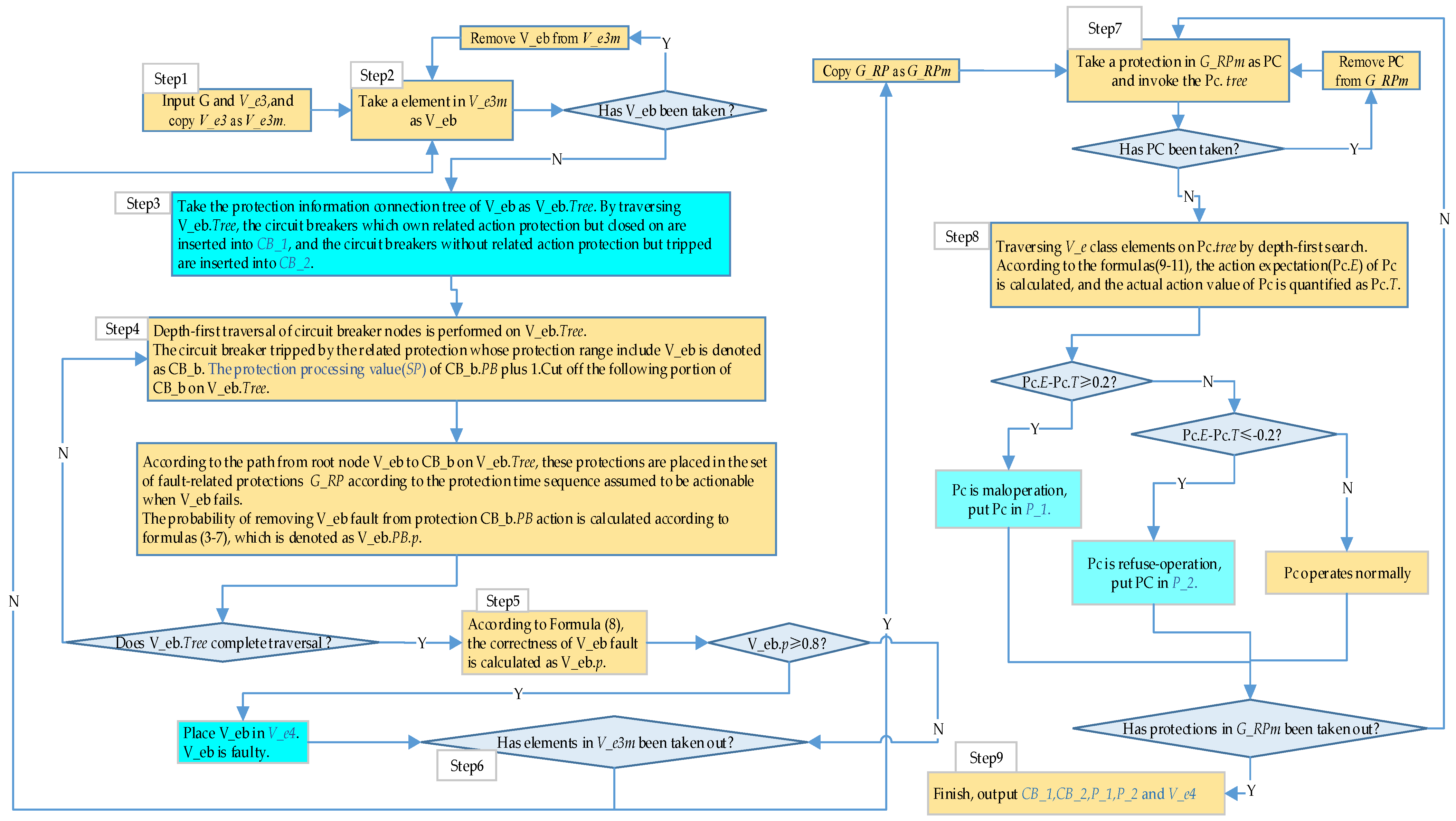

The implementation flowchart of Algorithm 3 is shown in Figure 8.

Algorithm 3 Faulty elements determination and operation status analysis of related protections and circuit breakers algorithm: Confirm_Fault (G, V_e3, V_e4, P_1, P_2, CB_1, CB_2):

Input: the power grid network: G and initial set of faulty V_e class elements: V_e3.

Output: the set of faulty V_e class elements: V_e4, the set of maloperation protections: P_1, the set of refuse-operation protections: P_2, the set of maloperation circuit breakers: CB_1, the set of refuse-operation circuit breakers: CB_2.

In the following, the simple grid fault shown in Figure 3 is used as an example to show the algorithm process.

Initialize G and input V_e3 = {B1}. From Step 3, obtain CB_1 = {CB4}, CB_2 = {}. B1.BP_ B1.p = 0.0275, B1.RBP_L2_B3.p = 0.9312 are calculated in Step 4. B1.p = 0.9331 is calculated in Step 5, which exceeds 0.8. And V_e4 = {B1}.

In Step 8 and Step 9, the action exceptions of protections related to B1 fault are calculated, respectively, and BP_B1.E = 0.9098, RBP_L2_B3.E = 0.8957. As BP_B1.T = 1, RBP_L2_B3.T = 1, the difference between the action expectations and actual values of the two protections is in the range of (−0.2, 0.2). BP_B1 and RBP_L2_B3 operate normally.

In summary, the faulty element in the power grid is B1. CB4 refuses to trip. There is no protection maloperation or refuse-operation phenomenon.

3.3.2. Information Missing Analysis Based on Classification of Action Protections

When a V_e class element in the power grid fails, protections on both sides (or multiple sides) of the element should act together to disconnect related circuit breakers to remove the faulty element. However, in practical engineering, the protection action information and circuit breaker tripping information are often lost. In this circumstance, the dispatching center may only receive accident-level information of one side (or more sides, but less than the number of adjacency list edges of the element).

The purpose of circuit breaker tripping controlled by protection action is to remove a faulty V_e class element. The reverse reasoning Petri net used in the fault pre-diagnosis process in Section 3.2 is logically calculated from the purpose of circuit breaker tripping and protection action. The mapped reverse reasoning Petri net cannot work when the protection action and circuit breaker tripping information on the protection information tree of suspicious faulty elements are incomplete.

Although it is impossible to determine the potential faulty elements related to the missing part of the information, some suspected faulty elements can be speculated by classifying the known protection action information.

It is defined that the protections whose action information can be used to diagnose suspicious faulty elements (namely, the protection action whose purpose is to remove one or more elements in V_e3) as the processed protections and other action protections are regarded as unprocessed protections.

Definition 3.

Protection processing value: SP. SP is an attribute of protection class to classify action protections. The calculation method of SP has been given in Step 4 of Algorithm 3. When the protection processing value SP of a protection is n, it means that the protection has participated in the fault diagnosis calculation of n V_e elements in V_e3. Therefore, when the protection processing value SP of a protection is no less than 1, it represents that the protection is a processed protection. The protection processing values of unprocessed protections are equal to the initial value 0.

The information between the processed protections and the untreated protections do not interfere with each other, so the original power grid network can be decomposed into two parts: the network with only the processed protections and the network with only the untreated protections. The fault diagnosis result of the original power grid is the superposition of the two diagnosis results.

The fault diagnosis of the network with only processed protection is completed in Section 3.2 and Section 3.3.1, while the fault diagnosis of the network with only unprocessed protection needs to be completed by the batch processing system.

The following is Algorithm 4 to complete the logic process described in this section.

Algorithm 4 Power grid decomposition and suspected faulty elements search based on classification of action protections: Decompose_FV (G, P*, P_3, V_e5)

Input: the power grid network: G and the set of the grid action protections: P*.

Output: the set of unprocessed protections: P_3 and the set of suspected faulty V_e class elements: V_e5.

The specific steps of the algorithm are as follows:

Step (1) input G and P*;

Step (2) Traversing P*, selecting the protections whose protection processing value (SP) is 0 to form P_3 (If P_3 is an empty set, no partial information loss occurs. The following steps are not carried out.);

Step (3) Reconstructing power grid network G1. Only the topological connection of elements in G is retained, all V_e class elements in G1 are initialized. The breaking and closing states (S) of circuit breakers related to protections in P_3 are retained, and the other circuit breakers are initialized.

Step (4) Invoke Algorithm 2, namely Search_FaultV_e (G1, P_3, V_G1e1, V_G1e2), to generate the initial set (V_G1e1) of the suspicious faulty V_e elements of G1, which is used as the set (V_e5) of suspected faulty elements of G.

4. Fault Tracking Quasi-Real-Time Processing System and Fault Diagnosis Batch Processing System

4.1. Implementation of Fault Tracking Quasi-Real-Time Processing System

When a real-time processing system transmits the sets (CB_1, CB_2) of maloperation and refuse-operation circuit breakers and the sets (P_1, P_2) of maloperation and refuse-operation protection to substations, the substations can call the warning information of corresponding relay protection devices and the online monitoring information of corresponding circuit breakers to screen fault features of these devices. According to the fault features of these devices and the relation table between fault reasons and features, fault reasons can be tracked immediately through the corresponding algorithm.

4.1.1. Relation Table between Fault Reasons and Fault Features of SF6 Circuit Breaker

Circuit breakers are various, including oil circuit breakers, vacuum circuit breakers, SF6 circuit breakers and so on. Due to limited space, this article only studies the most widely used SF6 circuit breaker.

According to the relevant content in references [19,20], this article gives the table of partial fault features and partial fault reasons (including the prior probability of each reason), as shown in

Table 4. Table of partial fault reasons and partial fault features.

Number	Fault Reason	Prior Probability	Number	Fault Feature
r1	Operating power failure	3.21%	f1	Abnormal voltage at two ends of tripping/closing coil
r2	Secondary circuit poor contact	8.84%	f2	Undersize current RMS of tripping/closing coil
r3	Short circuit of tripping/closing coil	4.57	f3	Oversize current RMS of tripping/closing coil
r4	Damage of tripping/closing coil	12.63%	f4	Short current time of tripping/closing coil
r5	Coil core jam or top rod deformation	21.23%	f5	Long current time of tripping/closing coil
r6	Dynamic contact connecting rod fault or transmission component jam	22.15%	f6	Long time of split/close of dynamic contact
			f7	Long asynchronism time of tripping/closing process
r7	Excessive distance deviation between static and dynamic contacts	5.61%	f8	Abnormal total stroke
			f9	Excessive shell temperature of operating mechanism
r8	Short residual life of motor	3.2%	f10	Long pressing time for hydraulic/pneumatic actuator
r9	Fault of energy storage motor	3.25%	f11	Hydraulic/pneumatic operating system cannot build pressure
r10	Loop, seal ring and valves leakage	14.31%	f12	Frequent start-up of oil/gas pumps
r11	Pressure switch connection fault or pressure gauge malfunction	2.04%	f13	Abnormal decrease in hydraulic/pneumatic pressure
			f14	Abnormal rise in hydraulic/pneumatic pressure

. Combined with the engineering practice experience, the probabilities of each fault reason leading to corresponding fault features are calculated. The relation table between fault reasons and fault features of the SF6 circuit breaker is constructed according to calculation results.

Table 5. The relation table between fault reasons and features of SF6 circuit breaker.

Number	f1	f2	f3	f4	f5	f6	f7	f8	f9	f10	f11	f12	f13
r1	0.45	0.4
r2		0.4	0.3
r3			0.75	0.75
r4	0.55	0.8		0.5
r5			0.4		0.95
r6						0.75	0.5	0.7
r7						0.2	0.5	0.15	0.55
r8						0.05		0.15	0.45
r9										0.2	0.35	0.7
r10										0.8	0.65	0.3	0.95
r11													0.05

is stored in substations in the form of adjacency list. For example, for fault reason r1, its fault feature adjacency list is {f1:0.45, f2:0.4}, for fault feature f1, its fault reason adjacency list is {r1:0.45, r4:0.55}.

The construction process of the relation table of fault reasons and features of the relay protection device is consistent with that of the circuit breaker. Due to limited space, the detailed construction process and data, which can be found in reference [19] are not given here.

4.1.2. Fault Reason Tracking Considering Partial Information Loss

In reference [13], the Bayesian network algorithm for fault tracking of relay protection devices is given. Considering the loss of partial warning-level information, the algorithm is improved in this article.

Table 5 can be seen as the adjacency matrix M(R,S) between the fault reasons and features. M(R,S) is a sparse matrix with a large number of elements of 0. After M(R,S) is partitioned, the part with a value equal to 0 can be separated from the part with data. This shows that part of fault reasons will only cause the fault features of the block part where these reasons are located, and there may be relations between the fault features in the same block part. When partial warning-level information is lost, the fault features related to the lost information can be used to calculate the probability of occurrence with the obtained fault features of the same block part.

The fault reason tracking process is as follows:

Step (1): After receiving the incorrect action information of a circuit breaker or relay protection device from the dispatching center, fault features of the device are extracted from warning-level information. The initial set of fault features (F_1) is obtained.

Step (2): Call the fault reason adjacency list of each feature in F_1 and obtain the initial set of fault reasons as R_1.

Step (3): Repeat the following work: call the fault feature adjacency list of every reason in a set of fault reasons, supplement the set (F_) of fault features, and then call the fault reason adjacency list of every element in F_, supplement the set (R_) of fault reasons, until R_ and F_ reaches complete mapping.

Step (4): Calculate the conditional probability of each reason in R_ under the premise of occurrence of each feature in F_ one by one according to Equation (13).

$$p(rx|fy) = \frac{p_{rx }p(fy|rx)}{{{\displaystyle \sum }}_{ri\in R\_}{p}_{ri }p(fy|ri)}$$

(13)

In Equation (13), p_rx denotes the prior probability of the fault reason rx, p(fy|rx) represents the probability of the fault feature fy caused by rx, and p(rx|fy) represents the conditional probability of rx when fy occurs.

Step (5): First, calculate the Bayesian suspected degree of each reason in R_ according to Equation (14).

$$B\left(rx\right) = \frac{{{\displaystyle \sum }}_{fi\in F\_1}p(rx|fi)}{{{\displaystyle \sum }}_{rt\in R\_}{{\displaystyle \sum }}_{fi\in F\_1}p(rt|fi)}$$

(14)

In Equation (14), B(rx) denotes the Bayesian suspected degree of the fault reason rx.

When the relevant data of partial warning-level information is known, the conditional probability H_fi of fault feature fi is set to consider partial information loss. The Bayesian suspected degree is corrected to avoid a large deviation of the fault trace results. The calculation formula of H_fi is as follows:

$$H_{fi} = \{\begin{array}{c}1 fi\in F\_1\\ 0 Related data of fi are known and fi\notin F\_1\\ {{\displaystyle \sum }}_{rt\in R\_}B\left(rt\right)p(fi|rt), Related data of fi are unknown\end{array}$$

(15)

According to Equation (16), the Bayesian suspected degree of each reason in R_ is calculated again and regarded as the revised suspected degree of each fault reason.

$$p\left(rx\right) = \frac{{{\displaystyle \sum }}_{fi\in F\_}{H}_{fi}p(rx|fi)}{{{\displaystyle \sum }}_{rt\in R\_}{{\displaystyle \sum }}_{fi\in F\_}{H}_{fi}p(rt|fi)}$$

(16)

Finally, the maintenance work can be rapidly carried out according to the order of the revised suspected degree of each fault correction. The following example of a simple grid fault shown in Figure 4 shows the fault tracking process.

According to Section 3.3.1, the set of refuse-operation circuit breakers is {CB4}. The abnormal data and unknown data of CB4 obtained by the substation are shown in

Table 6. Abnormal data and unknown data of CB4.

Project	Data	Normal Value
Current RMS of tripping/closing coil	3.2 A	2.2~2.4 A
Current time of tripping/closing coil	44 ms	56~60 ms
voltage at two ends of tripping/closing coil	unknown	210~230 V

.

From the data analysis, the initial set (F_1) of CB4 fault features is {f3, f4}. According to Steps (2) and (3), the set of fault reasons (R_) is {r1, r2, r3, r4, r5}, the set of fault features (F_) is {f1, f2, f3, f4, f5}. According to Step (4), the conditional probability of each reason in R_ under the premise of occurrence of each feature in F_ is obtained as shown in

Table 7. Conditional probability table of CB4.

	Prior Probability/%	f1	f2	f3	f4	f5
r1	3.21	0.172	0.086
r2	8.84		0.237	0.182
r3	4.57			0.235	0.352
r4	12.63	0.828	0.677		0.648
r5	21.23			0.583		1

.

According to Equation (14), the Bayesian suspected degree of each fault reason is calculated. Then calculate the revised suspected degree of each fault reason according to Equations (15) and (16). The results are shown in

Table 8. Suspected degree of fault reasons.

Fault Reason	r1	r2	r3	r4	r5
Bayesian suspected degree	0	0.091	0.2935	0.324	0.2915
Revised suspected degree	0.0141	0.0836	0.2695	0.3651	0.2677

.

By comparing Bayesian suspected degree and revised suspected degree, it can be found that the fault reason tracking method based on Bayesian suspected degree does not consider r1. However, due to the loss of information, r1 may occur in practical engineering. The revised suspected degree can give r1, which plays a guiding role in the subsequent maintenance work.

Staff can rapidly repair CB4 according to the order of r4, r3, r5, r2 and r1.

4.2. Implementation of Fault Diagnosis Batch Processing System

At present, the networking work aimed at realizing the remote transmission of the entire power grid’s fault recording data has been completed in many provinces of China. The batch processing system at the dispatching center can input the fault recording data documents in batches of multiple sets of documents through the fault recording information net and schedule them in the form of workflow. Under the premise that a real-time processing system provides diagnosis results, the batch processing system diagnoses elements in V_e5, verifies the set of faulty elements (V_e4), outputs the information of fault phases, fault types, fault locations and fault times.

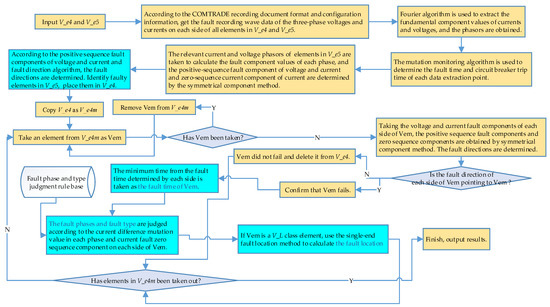

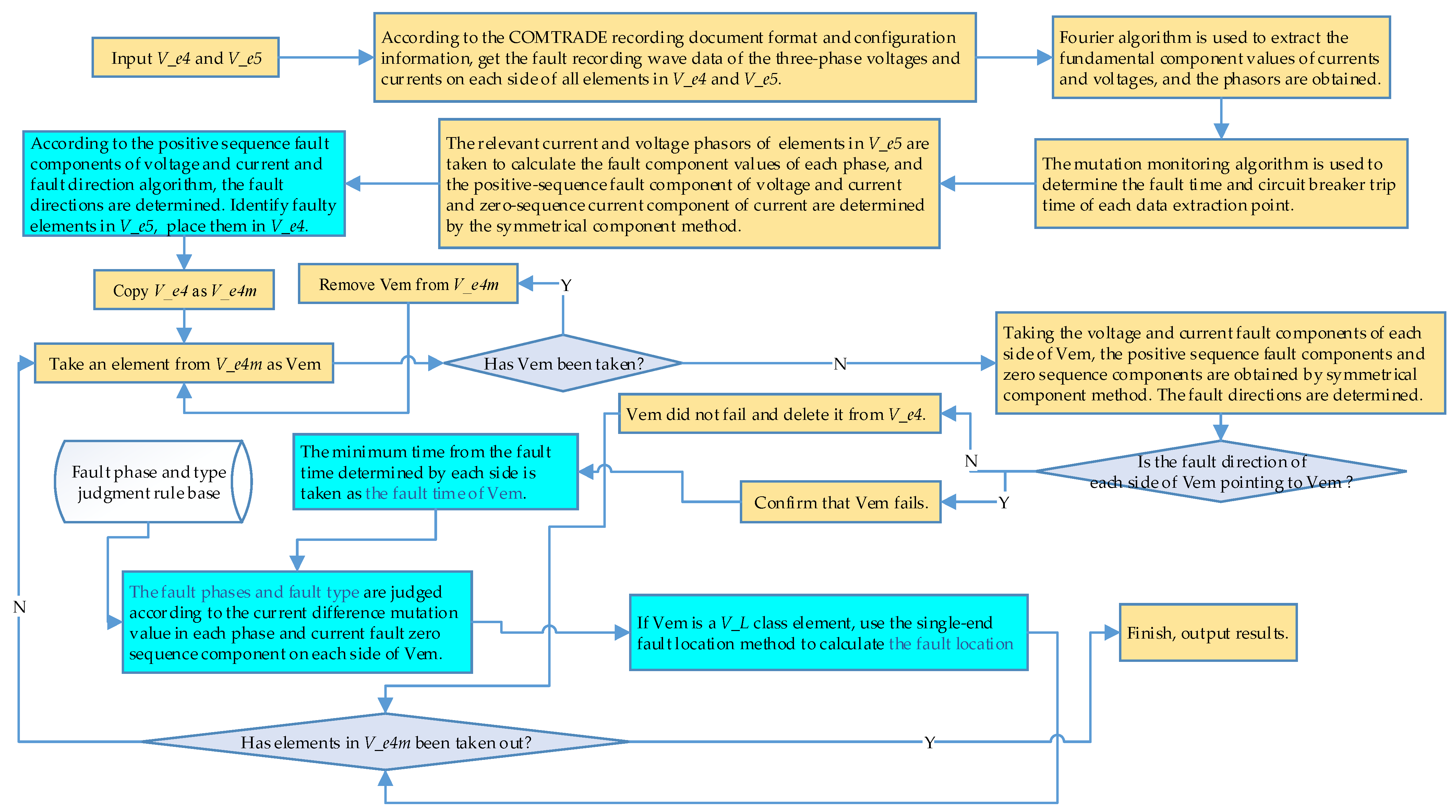

Fault recording data processing flow is shown in Figure 9.

The COMTRADE recording document format, Fourier algorithm, mutation monitoring algorithm, symmetrical component method, fault direction algorithm, single-end fault location method and fault phase and type judgment rule have been introduced in detail in references [10,13]. Due to limited space, this article does not repeat.

5. Example Analysis

5.1. Description of Example and Running Process of Fault Diagnosis System

The fault diagnosis system and related algorithms have been implemented in the Pycharm2020 programming environment. In order to test the reliability and efficiency of the system in the face of rather complex fault problems, the IEEE 30bus system, whose protection is configured according to the requirements of 330–500 kV power grid in a province of China, is simulated in PSCAD.

The partial wiring diagram of the IEEE 30bus system is shown in Figure 10. The overall wiring diagram of the IEEE 30bus system is too large to be displayed clearly. Some electrical elements unrelated to fault diagnosis are hidden in Figure 10. All electrical elements have been numbered.

The fault example used in this paper considers the simultaneous faults of three V_e class elements. Although the simultaneous faults of three V_e class elements are very likely to lead to unstable operation of the power system, the purpose of this example is to simulate extreme grid fault conditions to demonstrate the process and performance of this fault diagnosis system.

Fault description is as follows: Line L3 fault occurs. L3 mainline protection acts.CB6 refuses to trip. Remote backup protection on the B1 side of line L2 acts to remove the fault. At the same time, line L6 fault occurs. L6 mainline protection acts. CB15 refuses to trip. The fault is removed by the remote backup protection on the B6 side of line L8 but causes near backup protection on the B7 side of line L8 maloperation. At the same time, the bus B15 fault occurs. B5 bus protection acts. CB58 refuses to trip, and the fault is removed by the remote backup protection on the B18 side of line L28.

The accident-level information received by the dispatching center includes action protections RBP_L2_B1, MP_L6, NBP_L8_B7, RBP_L8_ B6, BP_B15, RBP_L28_B18 and tripping circuit breakers CB4, CB18, CB19, CB55, CB56, CB57, CB71. Due to loss of partial accident-level information, tripping of CB7 and action of MLP_L3 are unknown.

The real-time processing system in the dispatching center is started first. In the fault pre-diagnosis process, the initial set of suspicious faulty elements (V_e1 = {L2, B3, L3, L6, B7, L8, B15, L28, L21, L22, L27}) and the set of suspicious faulty elements (V_e2 = {L6, L8, B15}) are obtained by Algorithm 2. The initial set of faulty elements (V_e3 = {L6, L8, B15}) is obtained by constructing Petri nets and iterative calculations.

In the stage of fault diagnosis and information missing analysis, according to the Algorithm 3, the calculated correctness values are L6.p = 0.9325, L8.p = 0.0773, B15.p = 0.933. The operation statuses of related protections are calculated and judged to show in

Table 9. Judgment of operation statuses of related protections.

Name	MP_L6	NBP_L8_B7	MP_L8	NBP_L8_B6	RBP_L8_B6	BP_B15
Action expectation	0.9139	0.0698	0.0758	0.0698	0.9030	0.9097
Actual action value	1	1	0	0	1	1
Difference	−0.0861	−0.9302	0.0758	0.0698	−0.0970	−0.0903
Judgment	Operate nomally, no maloperation	Maloperation	Operate normally, no refuse-operation	Operate normally, no refuse-operation	Operate nomally, no maloperation	Operate nomally, no maloperation

.

The set of faulty elements is V_e4 = {L6, B15}. Maloperation protection set is P_1 = {NBP_L8_B7}. Refuse-operation protection set is P_2 = {}. Maloperation circuit breaker set is CB_1 = {}. Refuse-operation circuit breaker set is CB_2 = {CB58, CB15}.

According to Algorithm 4, unprocessed protection set (P_3 = {RBP_L2_B1}) and the set of suspected faulty elements (V_e5 = {L2, B3, L3}) are obtained.

After obtaining P_1 and CB_2, corresponding substations start their quasi-real-time systems. Data mining is carried out for warning-level information related to maloperation protection and refuse-operation circuit breakers. Then fault reasons are tracked.

The tracking process of refuse-operation circuit breaker CB15 is taken as an example. The relevant data of CB15 is shown in

Table 10. Relevant data of CB15.

Project	Data	Normal Value
Current RMS of tripping/closing coil	1.2 A	2.2~2.4 A
Current time of tripping/closing coil	37 ms	56~60 ms
Voltage at two ends of tripping/closing coil	220 V	210~230 V

.

According to the process of tracking fault reasons in Section 4.1.2, the suspected degree of each fault reason for CB15 refuse-operation is obtained, as shown in

Table 11. Suspected degree of fault reasons.

Fault Reason	r1	r2	r3	r4	r5
Bayesian suspected degree	0.043	0.1185	0.176	0.6625	0
Revised suspected degree	0.043	0.1185	0.176	0.6625	0

.

Therefore, CB15 is overhauled according to the sequence of r4, r3, r2 and r1.

The incorrect action reasons for CB58 and NBP_L8_B7 can be tracked in the same way.

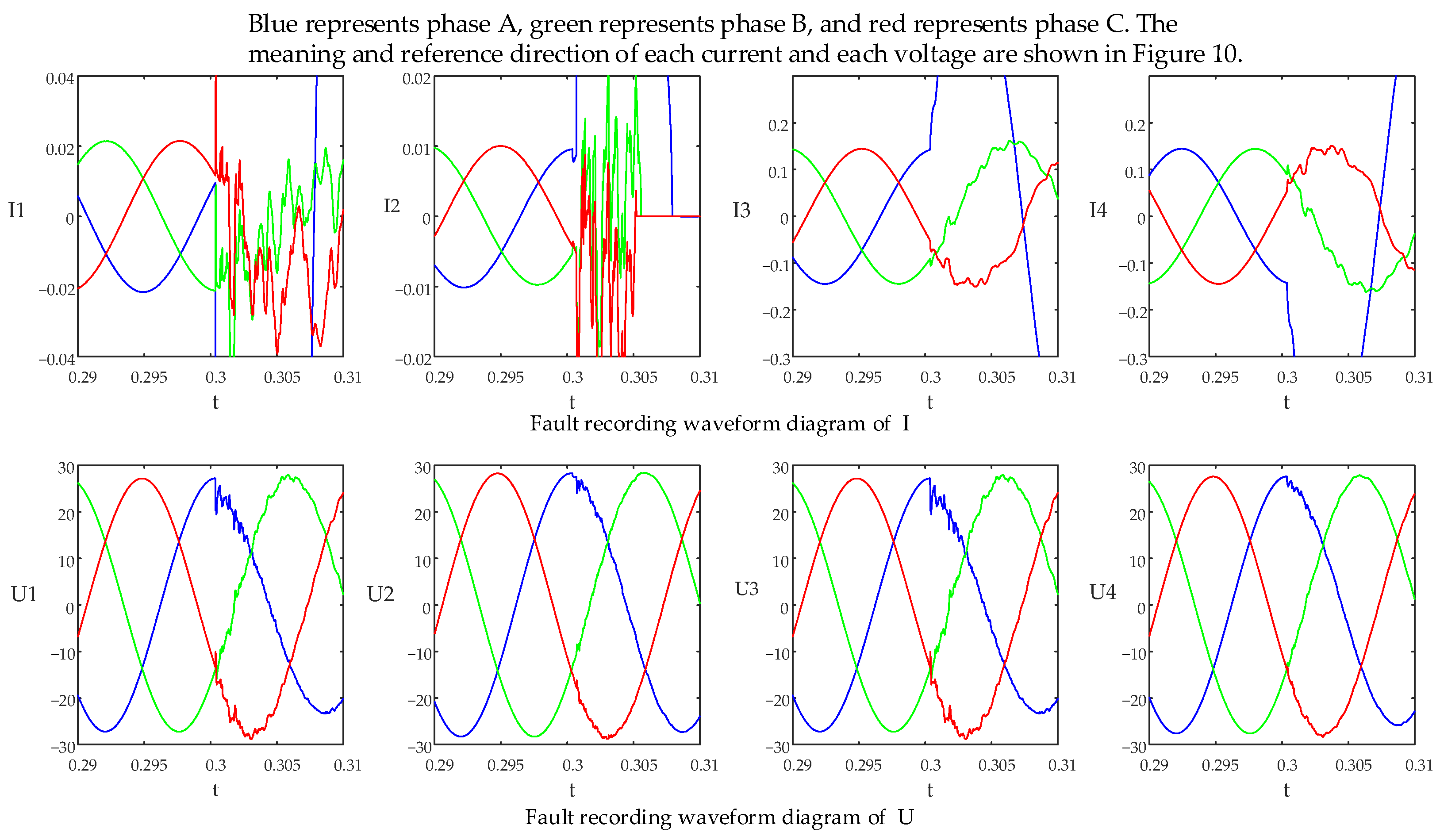

After getting the diagnosis result of the real-time processing system, the dispatching center starts a batch processing system. The fault recording documents of related circuit breakers of elements in V_e5 (CB4, CB5, CB6 and CB7) are called through the fault recording information net. Their waveform diagrams are shown in Figure 11.

According to the mutation monitoring algorithm [10], the minimum fault time is 0.3002 s. The positive-sequence fault component of each current and voltage and the zero-sequence fault component of current is calculated by the symmetrical component method [10]. According to the fault direction discrimination method [10], the I1 fault direction is negative, the I2 fault direction is positive, the I3 fault direction is positive and the I4 fault direction is negative, so L3 is the faulty element.

The zero-sequence fault components of I1 and I2 are large, and the difference between the current phasor of phase A of I1 and the current phasor of phase BC is large, and the difference between the current phasor of two phases BC of I1 is almost zero. Thus A-phase grounding short circuit fault occurs in L3. According to the single-end fault location method [13], the fault location of L3 is 50.2 km away from CB6 and 149.8 km away from CB7.

Fault details of L6 and B15 can be obtained in the same way. Due to space limitations, this article does not repeat.

5.2. Time-Consuming Test and Analysis

In order to verify the computational efficiency of the system, a time-consuming test is carried out in this article, which is shown in Figure 12.

It can be seen from Figure 12 that the work and data acquisition of the three subsystems are in parallel operation and do not interfere with each other. The initialization of a real-time processing system takes a long time. If the grid topology is stored in the system in advance, this part of time can be reduced. However, pre-initialization may take up a lot of stored space. Since the quasi-real-time processing system needs to wait for diagnostic results of the real-time processing system, pre-initialization can also help improve efficiency in fault trace. The batch processing system needs to wait for the transmission and scheduling of fault recording wave data, and its reasoning process does not take a short time.

However, under ideal conditions, the faulty elements can be diagnosed in about 2.9 s after the fault, the fault tracking process can be completed in about 4.2 s, and the detailed fault diagnosis report can be completed in about 5.0 s. It meets the actual needs of the power system.

Time-consuming tests are also carried out with different fault examples on different power grid systems, and the results are shown in

Table 12. Time-consuming tests of different fault examples on different systems.

	n-1 (1)	n-2	n-3
IEEE 14bus system	2.71 s (2)	3.04 s	3.38 s
IEEE 30bus system	2.73 s	3.06 s	3.40 s
IEEE 69bus system	2.76 s	3.09 s	3.44 s
IEEE 118bus system	2.80 s	3.14 s	3.51 s
IEEE 300bus system	2.87 s	3.25 s	3.64 s
2746bus system	3.41 s	3.82 s	4.17 s

⁽¹⁾ n-1 scenario represents the scenario where only one V_e class element fails in the power grid. n-2 scenario represents the scenario where two V_e class elements of the power grid fail at the same time. n-3 scenario represents the scenario where three V_e class elements of the power grid fail at the same time. ⁽²⁾ The time in the table represents the time from initialization of the real-time processing subsystem to completion of the entire fault diagnosis system.

.

It can be seen from Table 12 that this fault diagnosis system not only performs well when dealing with relatively simple power systems (IEEE 14bus system and IEEE 30bus system) but also maintains a high efficiency when dealing with more complex power systems with a large number of buses. The topological relationship of the entire power grid is only involved in the initialization of the real-time processing system. The subsequent fault diagnosis and tracking link will not search the entire power grid, and its operating efficiency has little to do with the complexity of the power grid system. Therefore, the time consumed by this fault diagnosis system only slightly increases with the increase in the complexity of the power system being processed, and this fault diagnosis system can still maintain high computational efficiency.

However, as the number of simultaneous faulty elements increases, the time-consuming time of this fault diagnosis system increases a lot. This is essentially because the number of circulations required in fault diagnosis and tracking link increases at the rate that is a multiple of the increasing number of simultaneous faulty elements. However, in actual engineering applications, there are usually only one or two faulty elements at the same time. This problem will not bring a big reduction in computational efficiency.

This paper also makes a transverse comparison between this fault diagnosis system and related technologies, and the results are shown in

Table A1. Transverse comparison.

	Fault Diagnosis	Fault Tracking	Partial Information Loss	Output Results
Expert system used in reference [6]	The reasoning process needs to search the rule base and cyclical calculate, which involves hard disk files, and the diagnosis speed is slow.		A large number of rules also can be listed for fault diagnosis during partial information loss. Fault diagnosis can still be performed.	Faulty elements
Petri net used in reference [7]	The initialization time is a bit long, but the diagnosis speed is fast.		Fault diagnosis cannot be performed during partial information loss.	Faulty elements
Fault diagnosis method during partial information loss used in reference [8]			Only the elements that may fail according to probability can be output during partial information loss.	Suspicious faulty elements and probabilities of their failure
Fault tracking method based on inference chain and Bayesian network used in reference [12]		High efficiency but a bit low reliability led by no completely considering information loss.	The problem of partial information loss is not considered completely and systematically.	Reasons for incorrect actions of protections and circuit breakers
Fault diagnosis method based on multiple information sources used in reference [13]	Fault diagnosis based on fault recording data and accident-level information together. Reliability is high, but efficiency is low.	Unable to provide the reasons for incorrect actions.	The problem of partial information loss is considered and solved.	Fault diagnosis report including faulty elements, fault details (1) and incorrect action protections and circuit breakers
Fault diagnosis method based on multiple information sources used in reference [14]	First use colored Petri net for fault diagnosis, and then supplement fault details based on fault recording data. Both reliability and efficiency are high.	Unable to provide the reasons for incorrect actions.	Without considering the problem of information loss, there is a risk that fault diagnosis cannot be performed when partial information is lost.	Fault diagnosis report including faulty elements, fault details and incorrect action protections and circuit breakers
Fault diagnosis system proposed in this article	Fault diagnosis is completed through the cooperation of real-time processing system and batch processing system. Both efficiency and reliability are high.	Efficiency is as high as the efficiency of method used in reference [12], and reliability is higher than the reliability of it.	Through the cooperation of three subsystems, the problem of partial information loss is solved.	Fault diagnosis report including faulty elements and fault details;Fault tracking report including incorrect action protections and circuit breakers and reasons for incorrect actions

⁽¹⁾ The fault details include fault locations, phases, types and times of faulty elements.

in Appendix A.

It can be seen from Table A1 that compared with other technologies, the fault diagnosis system proposed in this paper takes into account the reliability and efficiency of fault diagnosis and fault tracking. At the same time, this system can still provide diagnosis and output results even when partial information is missing. The output results of this system are also more comprehensive, which is conducive to the self-healing and maintenance of the power grid after a fault. Therefore, this system has preferable application value in actual engineering.

6. Conclusions

In this article, the fault diagnosis system is divided into a real-time processing system, quasi-real-time processing system and batch processing system from the perspective of data processing real-time capability.

The real-time processing system in the dispatching center establishes a fault diagnosis model based on the object-oriented information representation of power grid topology and electrical elements. According to accident-level information, this subsystem can find faulty elements by Algorithms 2 and 3, provide the judgment of incorrect actions of protections and circuit breakers by Algorithm 3 and analyze the problem of partial accident-level information loss by Algorithm 4.

According to warning-level information, quasi-real-time processing systems in substations output the reasons for incorrect actions of circuit breakers and relay protection devices by fault reason tracking process in Section 4.1.2.

The batch processing system in the dispatching center verifies the diagnosis results of the real-time processing system and provides a detailed fault diagnosis report according to fault recording documents and related technologies in Section 4.2.

Tests in different power systems show that the fault diagnosis and tracking system can accurately and rapidly complete the fault diagnosis and tracking work in the case of partial information missing and output a complete fault report including faulty elements, fault phases, fault types, fault times, fault locations, protections and circuit breakers that operate incorrectly and reasons for incorrect actions.

Compared with the existing related fault diagnosis and tracking methods and systems, this system fully considers the current status of data sources available in the power system and the processing needs of dispatching centers and substations after fault, which improves the efficiency and reliability of fault diagnosis. It helps to rapidly complete the maintenance and self-healing work of the power grid after a fault and has a preferable application value.
