3.1. Electronic Nose

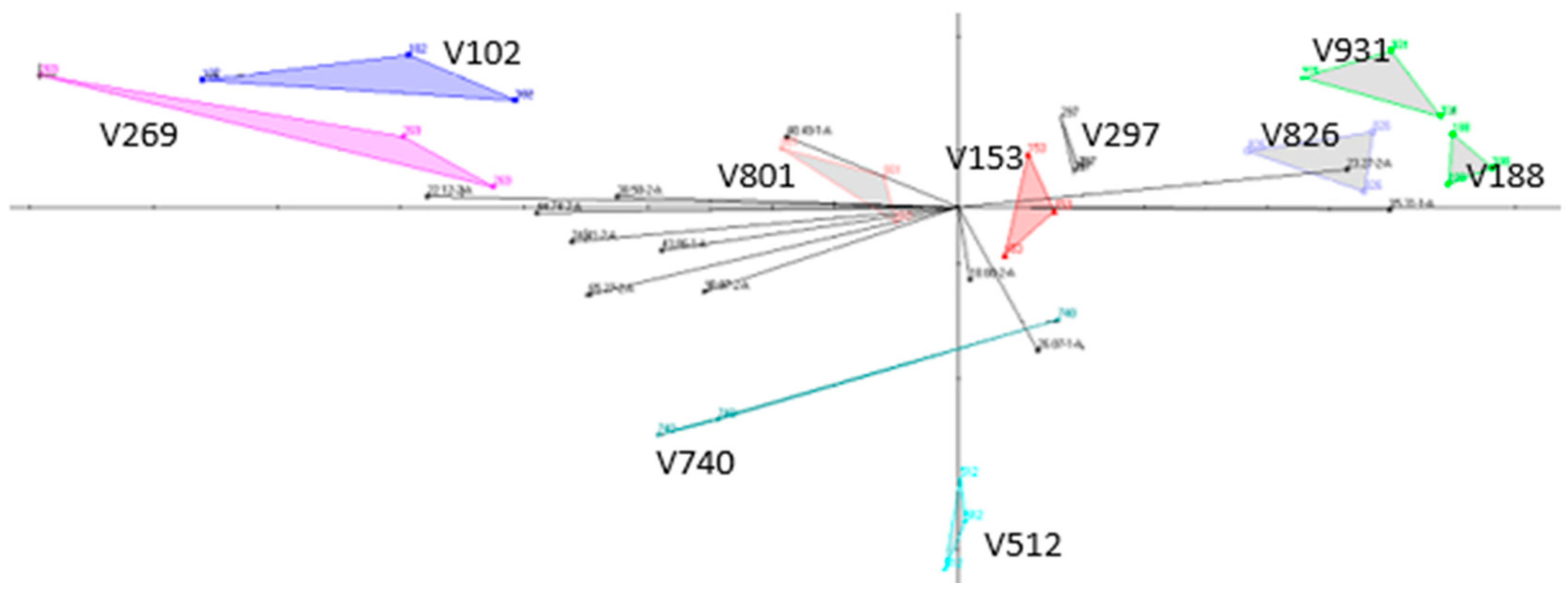

The distribution of the samples based on the total odor profile is shown in
Figure 1. This distribution was based on the volatile organic compounds released during the analysis process. We selected 12 major odorants based on discriminant strength relative to all observed samples. From this figure, we can see that samples V740 (SR), V102 (NL) and V269 (SR) have a volatile profile as they form a large triangle during the measurement time. We consider samples V297 (BE) and V512 (CZ) to be stable and least variable in the change of the odor profile. The other samples have an approximately constant odor spectrum, which means that they are almost equally extractive. The position of samples V102 (NL) and V269 (SR) suggests to us that these samples are similar. These two samples are also characterized by high odor content. Interestingly, these samples represent hydroponically (V269) and conventionally (V102) grown samples. The Slovak sample of hydroponically grown tomatoes (V801) also shows similarities with these two samples.
Samples (V826, V931, V188) that are in the same quadrant are similar. These samples represent tomatoes that have been stripped of their top leaves in the processing and packaging process.
This figure also shows the odors captured by the e-nose during the analysis of the samples. Specific odorous substances produced by volatile organic compounds are represented by lines in the figure and their direction indicates the products that contain the most of them. At the ends of the lines are numbers used to identify the compounds that were present in the samples. We can confirm that samples V102 (NL), V269 (SR) and V740 (SR) are more extractive even though they contain fewer types of odorous compounds compared to the others. Odor compounds 26.07-1-A and 15.31.1-A (listed in
Table 1) are typical of most hydroponically grown samples with strong discrimination power.
In the following procedure, we discussed the most basic identifiers that occurred in significant amounts in tomato samples grown hydroponically. From the total odor profile that was detected and generated from the electronic nose database, we selected the first five basic odor markers that occurred in the greatest amount in the samples through the program. Based on this, the localization and odor spectrum of the samples were changed. This is illustrated in
Figure 2. Since 98% of the 100% results obtained were evaluated, we assess that the results obtained are reliable as well as quantitatively and qualitatively adequate.
E-nose was able to identify differences between the evaluated samples and classify them into two groups: hydroponically and conventionally grown tomatoes. The device assessed the hydroponic tomatoes as demonstrably similar and placed them side by side on the graph. For better clarity, we marked all these samples in the form of a triangle. Bottom left quadrant represents the samples that the device assessed as conventionally grown. This includes sample V102 (NL), but also samples V801 (SR) and V269 (SR), which are incorrectly classified in this category as they are hydroponically grown tomatoes. The erroneous categorization of these two samples can be explained by the fact that these samples represent stemless tomatoes. The device also included sample V826, which represents conventionally grown tomatoes, in the triangle representing hydroponically grown tomatoes. This sample appears to contain a similar odor spectrum to hydroponically grown tomatoes. After discounting this one sample, our study indicates that e-nose has potential to be a suitable instrumental sensory analysis tool that can be used to detect hydroponically and conventionally grown crops. Similar study indicates that there is potential for the use of the e-nose to complement routine sensory analysis of tomatoes [
24]. A similar view is shared by the authors [
25], who state that e-nose is a fast and effective technique that does not require special sample preparation to determine the aroma of the product and it is therefore widely used for the detection of food adulteration. They further suggest that in the case of some foods, the aroma of the product is specific enough to distinguish the original product from its counterfeit or adulterated product. Several studies have used this fact and thus e-nose has also been used in the context of authentication and adulteration of fresh juices made from cherry tomatoes. Other authors [
26] confirmed the possibility of using this device to detect adulterated food. Our results may indicate the possibility of using e-nose in the process of food authentication and in estimating food adulteration, specifically hydroponically grown tomatoes. To confirm this, we recommend working with a larger number of samples in future research.
In the past, much research has led to the development of extraction and analytical techniques useful for obtaining a detailed profile of volatiles from tomatoes. A large number of volatiles have been identified and the volatile profile of tomato has been investigated in detail in many studies. Already in 1998 [
4], relationships between chemical compounds and sensory properties of tomatoes were established. (Z)-3-hexenal, hexanal, 1-octen-3-one, methional, 1-penten-3-one, and 3-methylbutanal were among the most odor-active aromatic volatiles in fresh tomatoes. The aroma, taste and aftertaste of different tomato varieties were evaluated by quantitative descriptive analysis. Using PCA analysis, they found that the first three components presented 70% of the total variance. According to [
5], volatiles characteristic of tomatoes include acyclic, cyclic and heterocyclic hydrocarbons, alcohols, phenols, ethers, aldehydes, ketones, carboxylic acids, esters and lactones, as well as compounds containing nitrogen, sulfur and halogens. Of these, molecules such as 1-penten-3-one, hexanal, cis-3-hexenal, trans-2-hexenal, 1-penten-3-ol, 3-methylbutanol, cis-3-hexen-1-ol, 2-isobutylthiazole, trans-2 heptanal, 6-methyl-5-hepten-2-one, 6-methyl-5-hepten-2-ol, methyl salicylate, geranyl acetone, and phenyl ethanol are important.

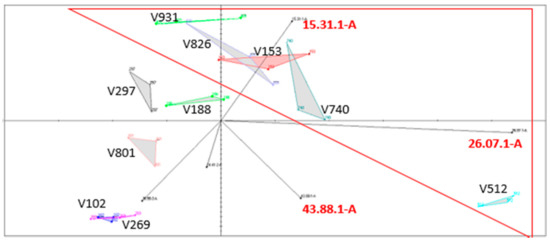

As mentioned earlier, in this study, we focused on the five basic odors that were present in the samples in the highest amount. After the electronic nose divided the odor profile of the evaluated samples into hydroponic (inside the triangle) and conventionally grown, we were able to identify three main odor cues characteristic for hydroponically grown tomatoes (
Figure 2). These are substances listed as 15.31.1-A, 26.07.1-A and, marginally, 43.88.1-A. Under the label 15.31.1-A, we are most likely to recognize the chemical organic compound 2-methylpropanol. This substance is responsible for the typical fruity flavor and the green, unripe notes of the fruit. It is highly likely that the compound dimethyl sulphide, presenting fruity and vegetal notes, also completes this set of odors. The odor substance labeled 26.07.1-A is the chemical compound 2,3-pentanedione representing a fruity flavor. This substance also promotes the freshness feeling of the fruit and participates in the formation of the sweet character. The last compound associated with the sensory character of hydroponically grown tomatoes is (Z)-3-hexen-1-ol or 1-hexanol, causing a fruity, grassy, fresh, and unripe flavor or aroma to the fruit. Correlation between (Z)-3-hexen-1-ol and flavor intensity was also proven in the study of contribution of C6 volatiles to taste and aroma [
9]. Other authors report that C6 compounds are the most widespread volatiles in tomato fruit and contribute to tomato flavor in various ways. Similar to our study, the presence of (Z)-3-hexen-1-ol in hydroponically grown tomatoes was also detected by those authors [
1]. In some studies, this substance is associated with consumer acceptability [
27].
Therefore, our study has shown that presence of substances: 2-methylpropanol, 2,3-pentanedione, (Z)-3-hexen-1-ol or 1-hexanol is potentially the difference between hydroponically and conventionally grown tomatoes. All four volatiles were also identified in a review of proven volatiles in tomatoes and tomato products in 1986 [
2]. To confirm this, in future research, we recommend to upgrade research design with larger number of tested samples. In the case of machine learning analysis, we used the original electronic language dataset, whose most discriminative odorants/retention index is shown in
Table 2. The dataset was then divided into 80% training data and 20% data for validation.

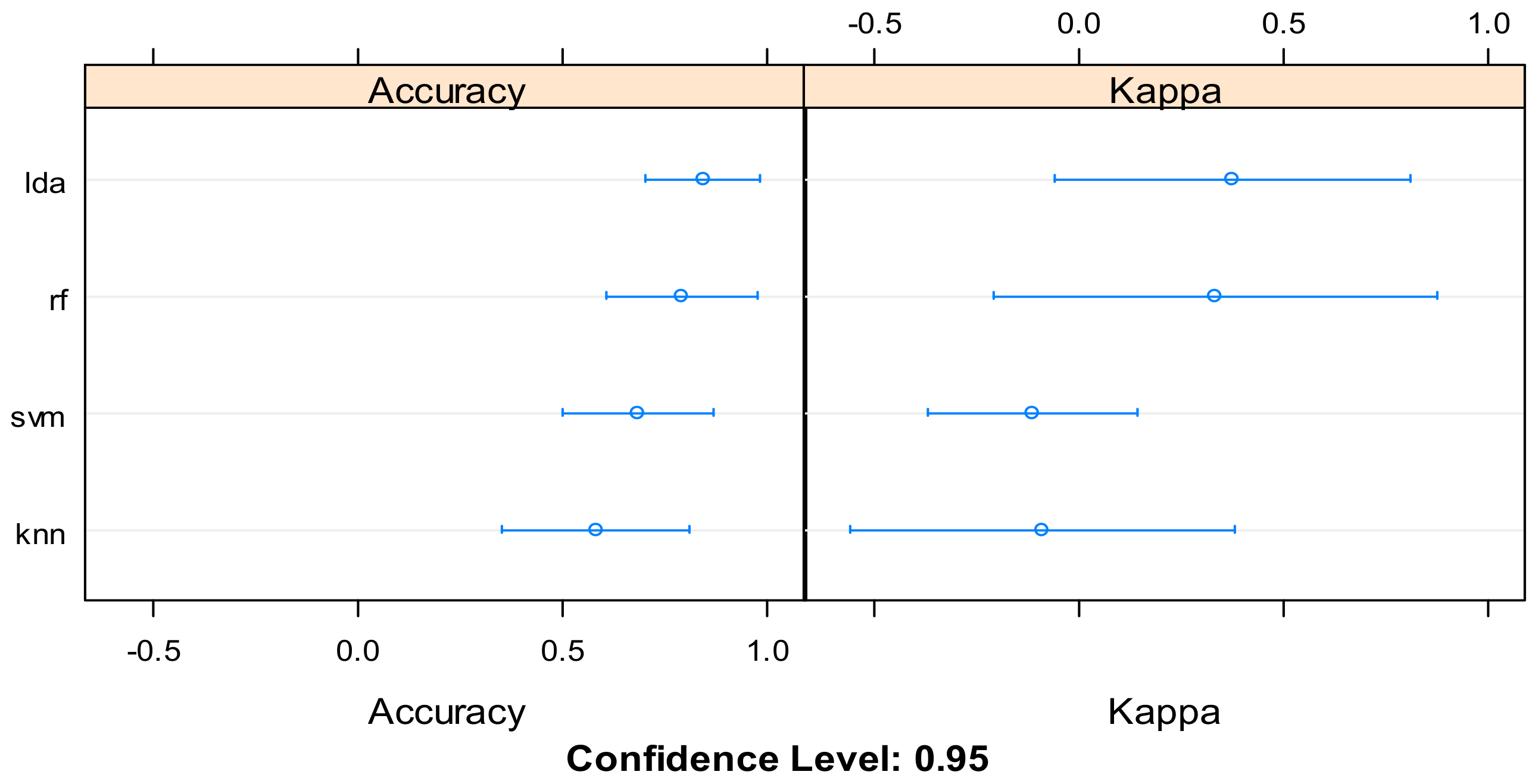

Using various algorithms, we found that LDA (0.879) was the most suitable, followed by Random Forrest (0.78) and SVM (0.684) using the Caret statistical package from R 4.0.2; KNN (0.578) were not suitable to predict hydroponic or conventional cultivation. The results including Kappa parameter are shown in
Figure 3.
3.2. Sensory Analysis Carried Out by the Evaluators
Sensory analysis can be affected by various factors. Compared to production methods, variety had greater influence on sensory attributes of tomatoes [
28]. Similarly, Treftz et al. [
20] reported that sensory evaluation can be influenced by several factors such as genetic composition, pre-harvest factors (light, temperature, humidity, and wind) and post-harvest factors. Other influences include price, brand, and consumer mood, which affect the sensory evaluation of the product. These authors suggest that these are all important factors to consider when evaluating the hydroponically grown product for sensory attributes. Other authors have shown that the inner tissues of tomato fruit contained higher concentrations of 3-methylbutanol, 2-methylbutanol, 3-methylbutanol, and 2-methylbutanol than pericarp [
6]. The composition and types of contents in tomato were studied by some authors and they concluded that the concentration of alcohol in tomato seeds was higher than that in other tissues. This finding was focused on higher amounts of 2-methylpropanol, 3-methylbutanol, and 2-methylbutanol [
29]. There is a consistent relationship between color and taste, especially in red cultivars, but according to study by Oluk et al. [
30], brown cultivars were appreciated as much as their red counterparts. The brown variety had the highest sweetness, typical aroma and hardness scores, while the yellow variety had the lowest typical aroma sweetness score. In terms of sensory parameters, the red and brown varieties scored higher than the yellow and orange varieties. This means that during sensory analysis, it is important to evaluate same-color samples.
In our study, sensory panel evaluated homogenic-looking samples and the evaluation was divided into two parts. In the first part of the sensory evaluation, a 5-level scoring test was used, which focused on the more complex agricultural character of tomatoes. The results obtained were analyzed in SensoMiner software, based on which we obtained a graphical representation of the different attributes and the results obtained are shown in the form of

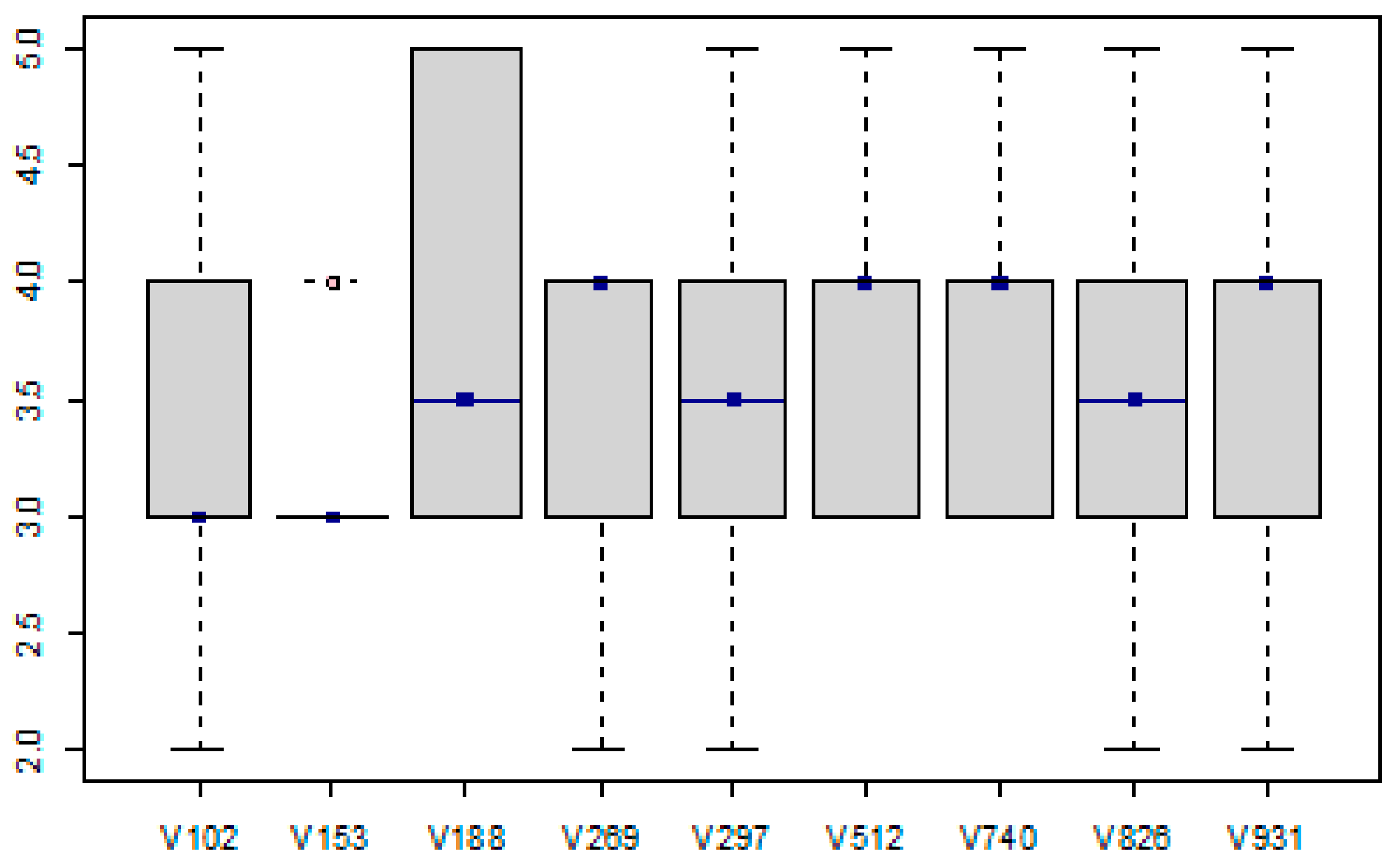

Figure 4. From this graphical representation, we can see that in the odor attribute, samples V102 (NL) and V153 (CZ) were judged as the least intense and they achieved worse evaluation. Medium values were assigned by the evaluators to samples representing conventionally grown tomatoes: V188 (NL), V297 (BE), and V826 (IT). Of all the samples evaluated, no sample proved to be dominantly more intense in the odor attribute compared to the other samples. Samples representing hydroponically grown tomatoes: V269 (SR), V512 (CZ), V740 (SR), and V931 (SR) were ranked with the highest values obtained, which means that they showed a more intense odor. These results correspond with those obtained using e-nose.

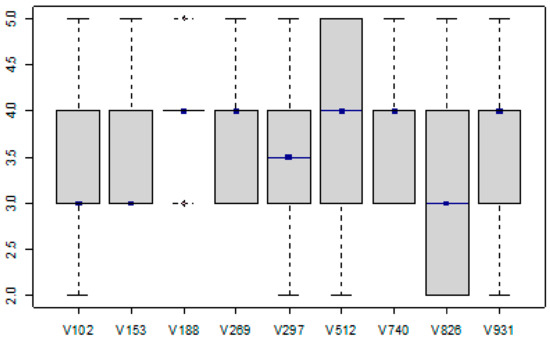

Another attribute evaluated by the sensory panel was the smell of the tomato fruit on the cut. From the data shown in the form of

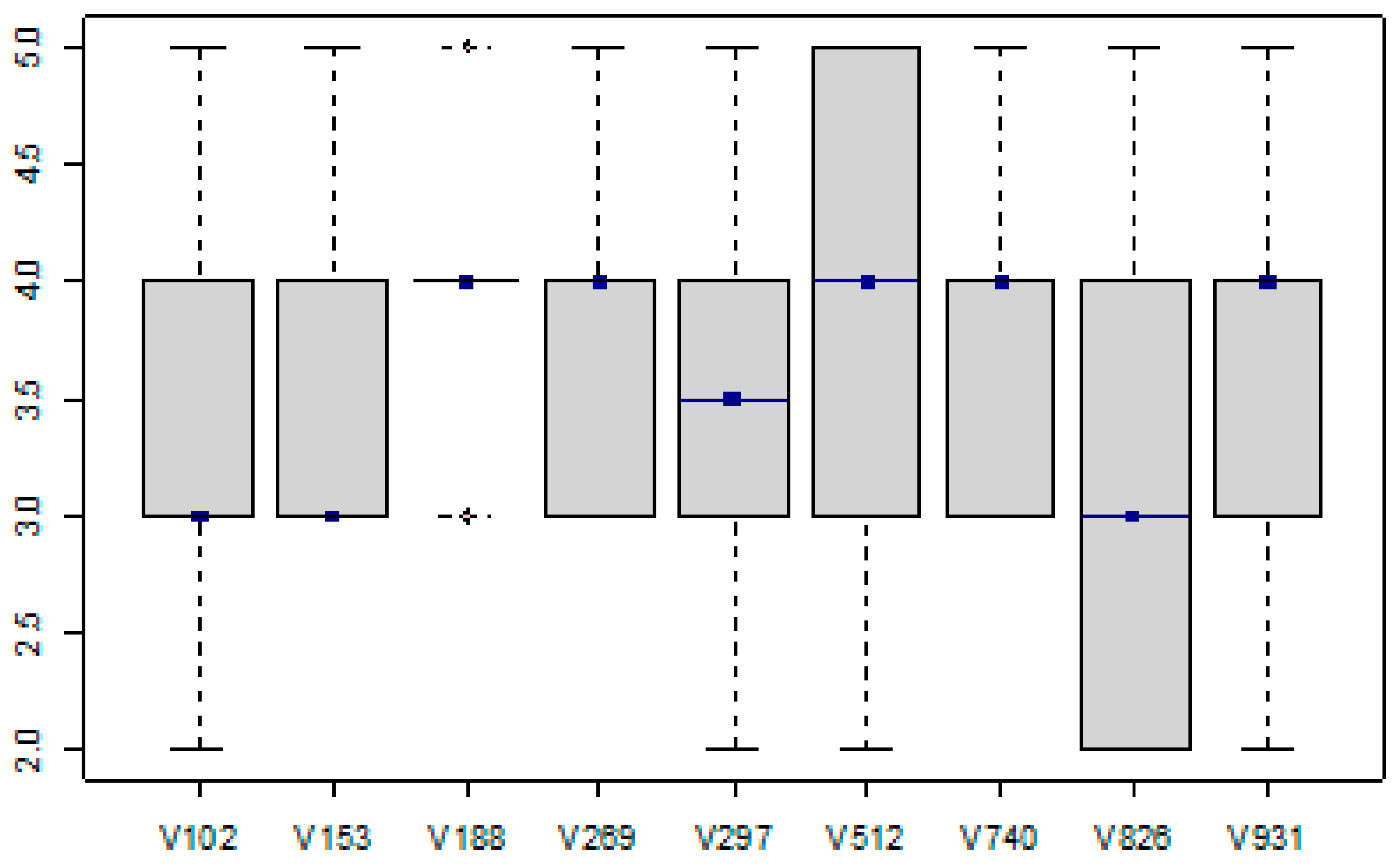

Figure 5, we can see that there were no clear worse or better results between the samples. Samples V188 (NL), V269 (SR), V512 (Strabena, CZ), V740 (SR), and V931 (SR) were evaluated as more satisfactory by the sensory panel in terms of odor on the cut. In contrast, samples V102 (NL), V153 (CZ), and V826 (IT) were characterized by a less intense aroma profile. In terms of the attribute evaluated, sample V297, which represents conventionally grown Belgian tomatoes, was rated as the most pleasant. The graphical distribution of samples V512 (CZ) and V826 (IT) tells us that these samples had a wide odor spectrum.
The human perception of tomato flavor lies in the integration of taste and aroma. Tomato aroma is a balance of acid and sugar recognized by the tongue and the effect of volatile compounds in the fruit that cause the aroma is recognized by the nose, therefore, we considered important the results obtained by sensory evaluation of tomato flavor, which are graphically represented in the form of

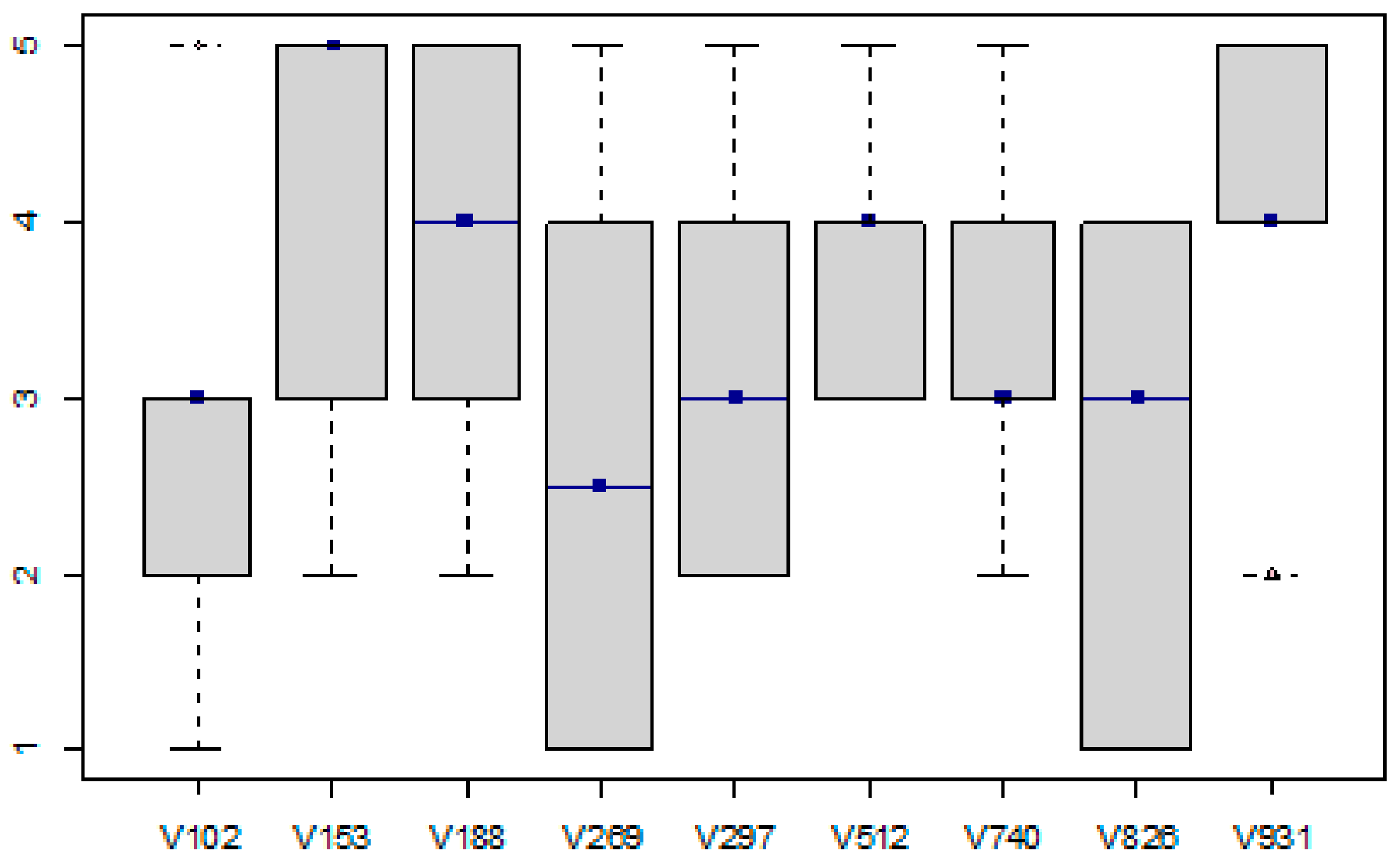

Figure 6. For the flavor attribute, the sample V153 (CZ) stood out as more intense. This sample received, on average, the highest possible score and it is the sample that represents hydroponically grown tomatoes. Compared to this sample, samples V188 (NL), V512 (CZ), and V931 (SR) were rated as less intensive. These samples represent the tomatoes of both groups. The sample that was rated lowest by the sensory panel and rated as less suitable for this attribute was sample V269 (SR). The other samples were at the level of average taste acceptable by consumers.
The results obtained by the scoring test were subjected to PCA analysis and

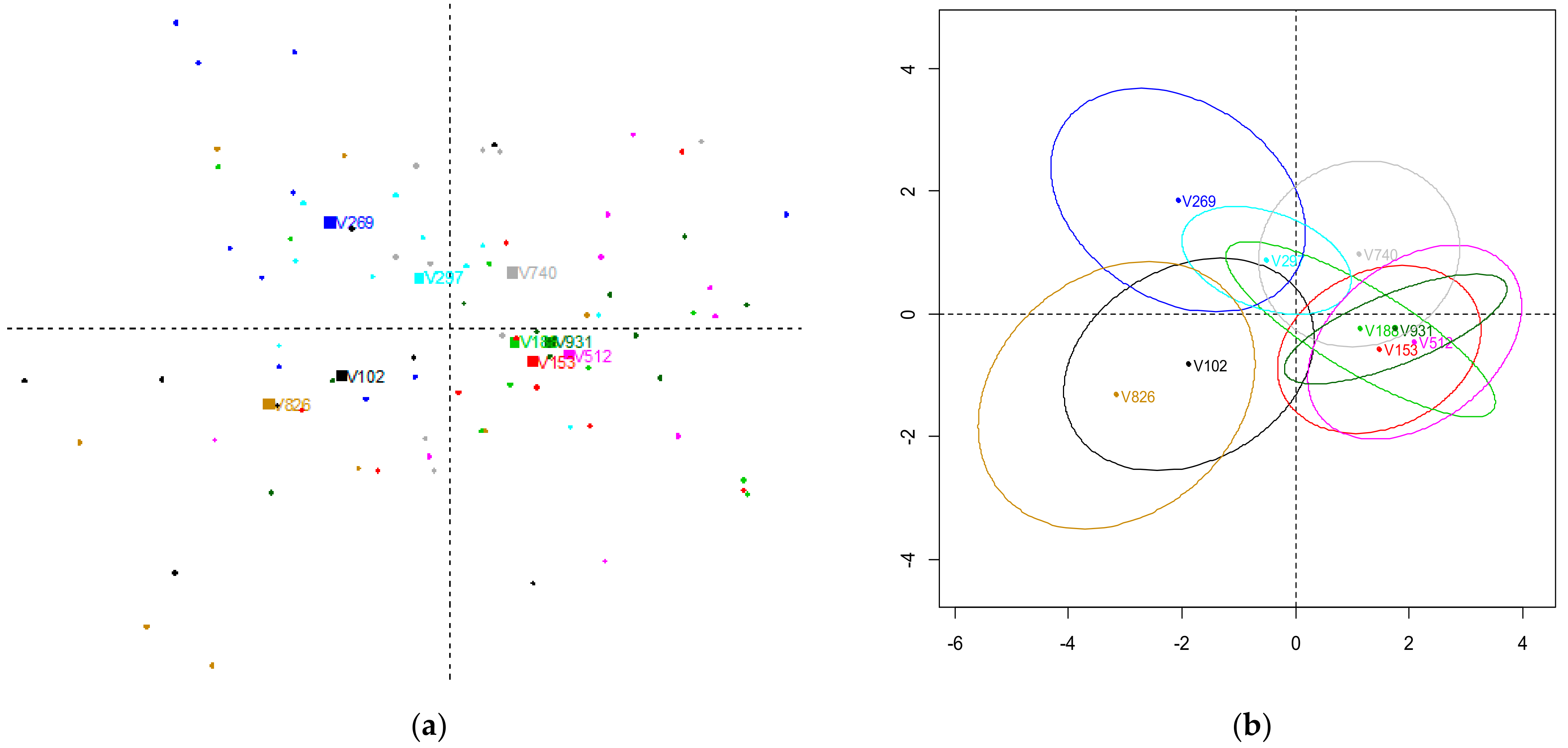

Figure 7 was constructed. The first part of
Figure 7a shows the distribution of the samples within the summary scores of all the attributes evaluated, namely: appearance, smell, smell of the fruit on the cut, texture, taste, and overall impression. Based on the data obtained from the sensory analysis, we can rank samples V269 (SR) and V297 (BE), as well as samples V102 (NL) and V826 (IT) as statistically significantly similar. The remaining evaluated samples scored similarly, meaning that these samples show similar sensory characteristics. Based on the samples’ position within the graph, we can conclude that the sensory evaluators were also able to detect differences between hydroponic and conventional tomatoes. This means that also through the panelists’ evaluation with the simple scoring test and subsequent PCA analysis, it is possible to show differences between tomatoes grown in two different ways. Other authors have compared hydroponically and conventionally grown crops from sensory point of view. For example, in one study, the authors compared hydroponically and conventionally grown strawberries. The study found that consumers did not have strong preference between hydroponic and soil-grown strawberries, but indicated that of the 13 attributes examined, overall aroma and aroma intensity were the only attributes that reached statistical significance (
p < 0.05). Hydroponically grown strawberries showed higher mean ratings for these two categories. Consequently, they reported that due to the environmental benefits of hydroponic production combined with the favorable ratings of descriptive sensory analysis, it may be desirable for the consumer and beneficial for the environment to grow strawberry varieties in infertile areas to provide fresh fruit [
20]. In 2011, a study was conducted to compare hydroponically, conventionally, and organically grown lettuces. A significant difference was found between either hydroponically and conventionally grown lettuces (
p = 0.03) or between organically and conventionally grown lettuces (
p = 0.009), but not between hydroponically and organically grown lettuces (
p = 0.6956). In the opinion of the sensory panel, hydroponically and organically grown lettuces had more intense smell (odor) [
31]. Similarly, in our study, consumers rated hydroponically grown tomatoes with the highest scores, meaning that they demonstrated a more intense odor. These results were confirmed by e-nose.
Within the second part of
Figure 7b, the ellipses shown represent the variance of the values given in the sensory evaluation of each attribute. We can say that the samples V297 (BE) and V931 (SR) have the narrowest variance of the values obtained. A very wide variance is visible for samples V826 (IT), V102 (NL), and V269 (SR).
Table 3 was subsequently generated from the results of the scoring test, showing the demonstrability of differences between the tested samples. The resulting values, which are highlighted in yellow in the table, indicate that there is a difference between them at the alpha level of significance = 0.05. For us, the most important results are indicated in bold. Sample V826 (IT), which belongs to conventionally grown tomatoes, was marked as statistically significantly different. Its dissimilarity was not proven for samples V102 (NL) and V269 (SR). This means that these samples had similar sensory characteristics to the tomatoes that were stemless. The Slovak hydroponically grown tomatoes V931 were statistically significantly different from other samples, namely samples V102 (NL), V297 (BE), and V826 (IT). Similarly, to the Slovak sample, the Czech tomato (V512) differed from the samples that were grown conventionally (V102, V297, and V826).
The second part of the sensory analysis performed by the sensory panel consisted of assessing the sensory profiles through the hedonic scale. Our evaluators assessed the odor-flavor profile of the tomato, i.e., the flavor. Flavor refers to the sensory impression of the food or other substance, which is determined mainly by chemical combinations of taste and smell. To obtain the results, we used a similar program to the scoring test, namely SensoMiner, and we provide the results by visualizing them in the table evaluating the treated averages of the measured values. From a statistical point of view, we used Friedman’s non-parametric test. The provable differences between the samples are demonstrated to us by the values shown in
Table 4. Statistically demonstrably stronger, more pronounced attributes are shown in blue. Attributes in which specific samples were rated as statistically demonstrably weaker are shown in yellow. From the values shown, we can see that in terms of sweet flavor, tomato sample with stem V931, hydroponically grown in Slovakia, dominates. The evaluators identified the foreign, conventionally grown samples V297 (BE) and V826 (IT) as statistically significantly less sweet. In this context, lower fruit ripeness was also associated with sample V826 and a demonstrably more acidic flavor with sample V297. Sample V740 (SR) was also found to be sour. Sample V269 (SR) was less acidic than the other samples. In terms of the other evaluated flavors, there was no clear difference between the samples. This means that there were no spicy, peppery, hot, metallic, or other foreign odors or flavors present in the samples that would significantly affect the character of the tomatoes. As a result, it can be said that samples V297 (BE) and V826 (IT), which represented foreign conventionally grown tomato varieties, were marked as less ripe or underripe by this method of evaluation and were therefore less sweet but more acidic to the evaluators compared to other samples. These results can be explained with the findings from previous studies that have shown that tomato volatiles which affect odor and taste of the tomato are formed during the ripening process in the intact tomato and during maceration of the tomato, for example, when slicing, chewing or blending. A reasonable amount of cis-3-hexenal also exists in the ripe green tomato, but its concentration increased more than 20 times in the ripe form [
11]. These samples were from abroad and had to be shipped to Slovakia; they may be chilled during the transportation and as a result of that, their volatile content may have been reduced as shown in the study by Tieman et al. [
9] where refrigeration of tomatoes have previously been found to reduce the volatile content of fresh tomato fruit. It has been reported that chilling injury results in membrane damage, which can disrupt the lipoxygenase enzymatic pathway that results in C-6 aldehydes (hexanal, hexanol, cis-3-hexenal, cis-3-hexenol, trans-2-hexenal, etc.) from membrane lipids [
8]. On the other hand, Yilmaz [
32] gave a list of volatiles whose amount increases after disruption of tissues (cis-2-hexenal, trans-2-hexenal, hexanal, trans-2-heptenal, 1-penten-3-one, 1-penten-3-ol, and geranyl acetone).
The demonstrability of the differences from the results of the sensory profile evaluations at alpha level = 0.05% is shown in
Table 5. The sample V826 (IT) was also the most different according to this analysis. This sample is statistically significantly different from all samples except the Dutch stemless tomatoes. Tomato sample V740 (SR) was significantly different from sample V153 (CZ) and from V269 (SR).
The similarity between the samples was then also analyzed using PCA method and a similarity map of the samples was constructed (

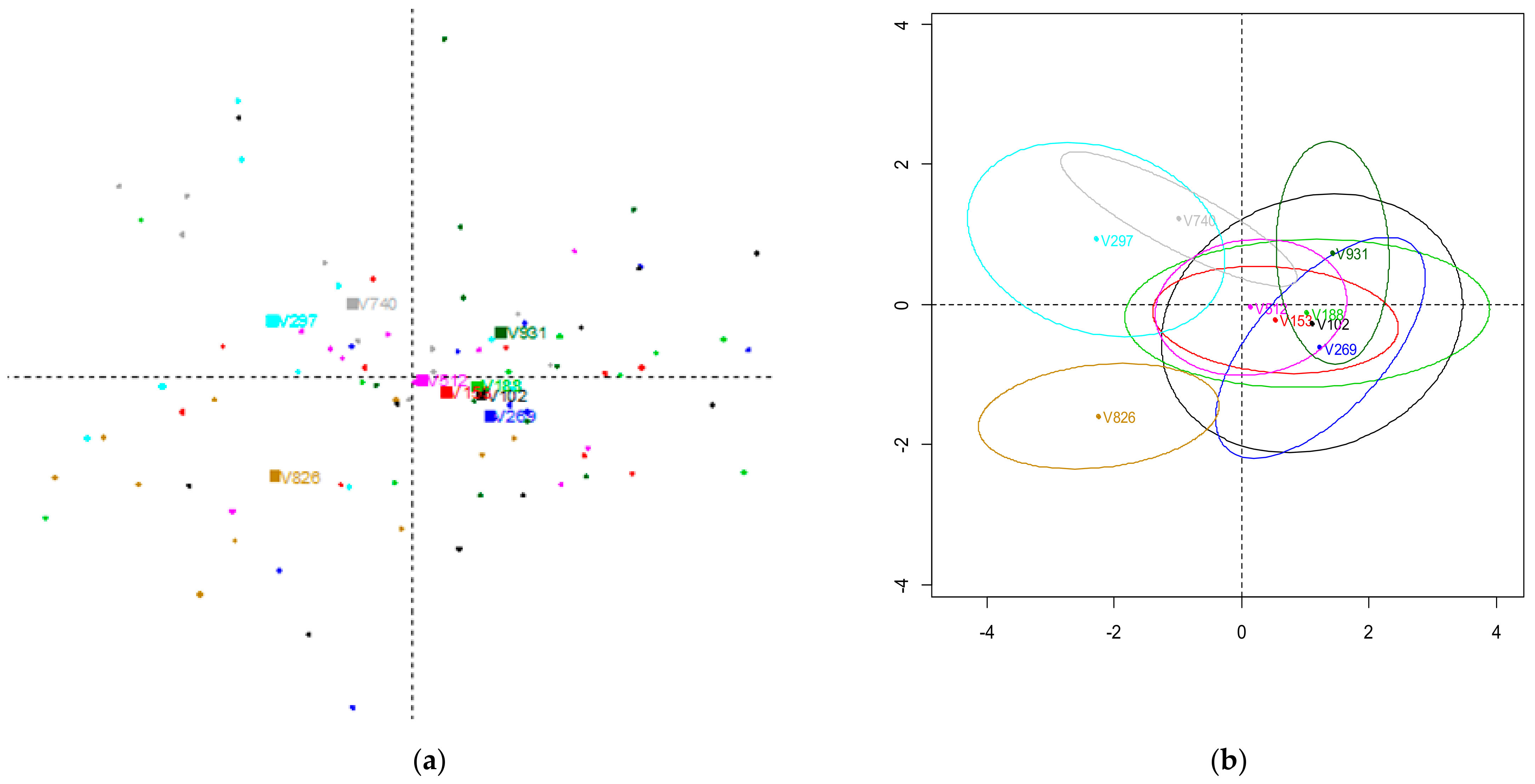

Figure 8). An extract from
Figure 8a shows the individual description and distribution of the samples through a complex odor profile by combining the individual flavors assessed. The resulting position of the samples in the graph indicates that samples V740 (SR) and V297 (BE) are rated as statistically demonstrably similar, meaning that these samples are similar in their odor profile composition. Since sample V826 (IT) is located in a separate quarter, we can conclude that this sample is statistically significantly different from the other samples. In the graph, the other samples are placed close to each other, indicating that these samples are very similar.
A PCA similarity map was also constructed (
Figure 8b), which shows the variances obtained from the results of the sensory profile evaluations. In this case, each ellipse represents values from minimum to maximum. Sample V826 (IT) also emerged as statistically demonstrably different from the other samples in this case, which does not have such a large variance, but apparently quite different sensory properties, as we have confirmed in the previous results. We observe a similar flavor in samples V740 (SR) and V297 (BE). Among the group of samples with related characteristics, the conventionally grown samples from the Netherlands (V102 and V188) have a broad profile.

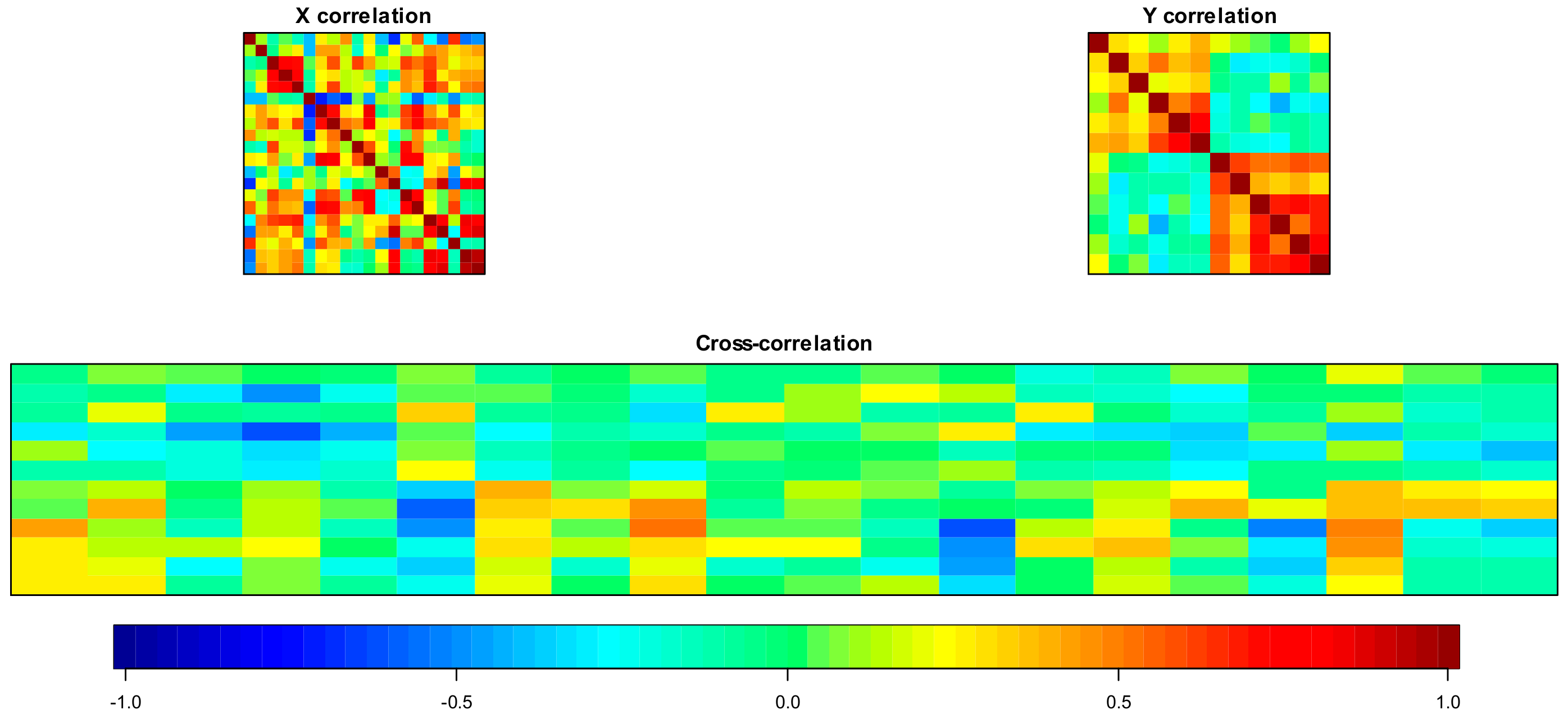

In the analysis of the relationship between the two types of measurements, we can conclude that there is no relationship between the data from the electronic nose to the data from the sensory evaluation. The odor profile is complex in both types of tomato grown and the two methods do not correlate with each other at all (R = 0.07). The results are demonstrated in
Figure 9.
