Numerical Analysis of Additional Stresses in Railway Track Elements Due to Subgrade Settlement Using FEM Simulation

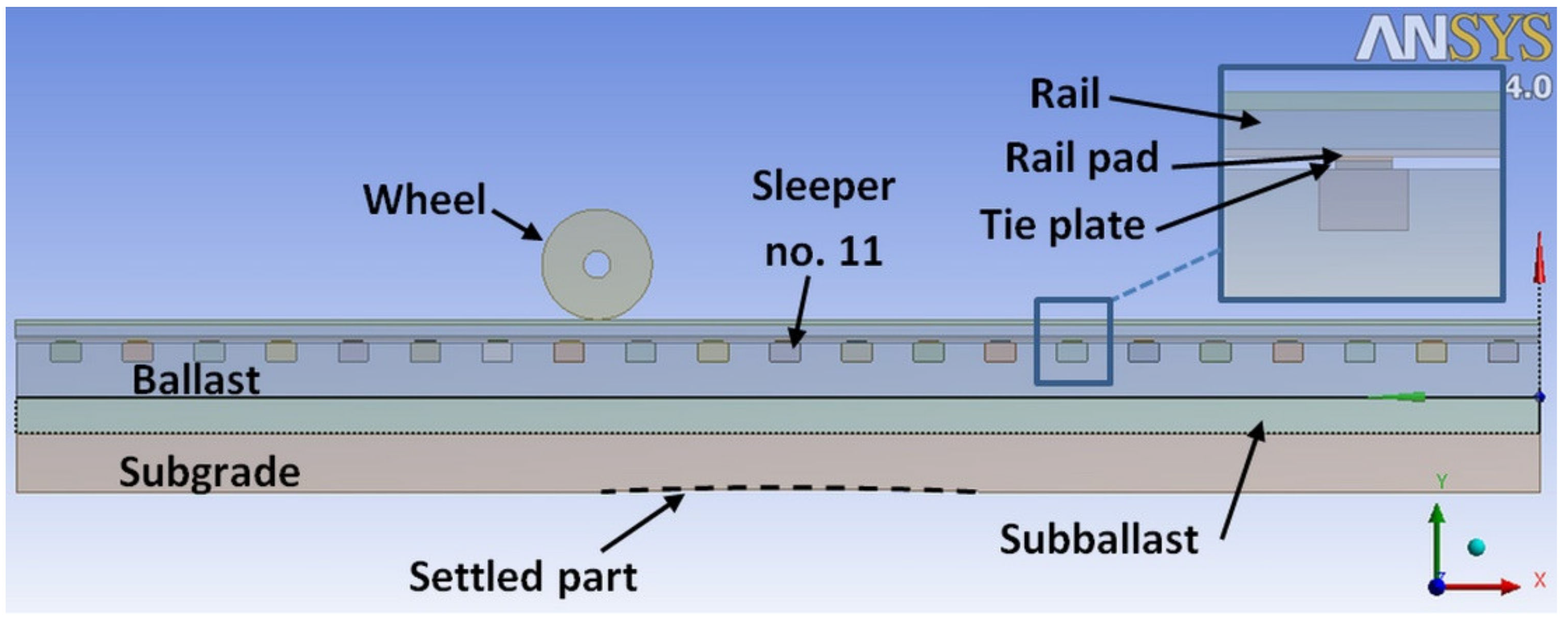

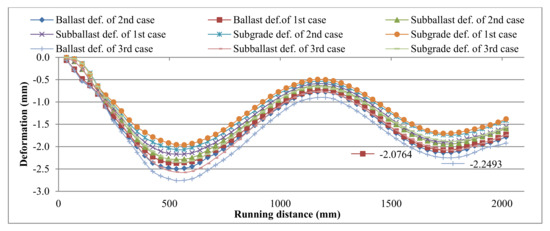

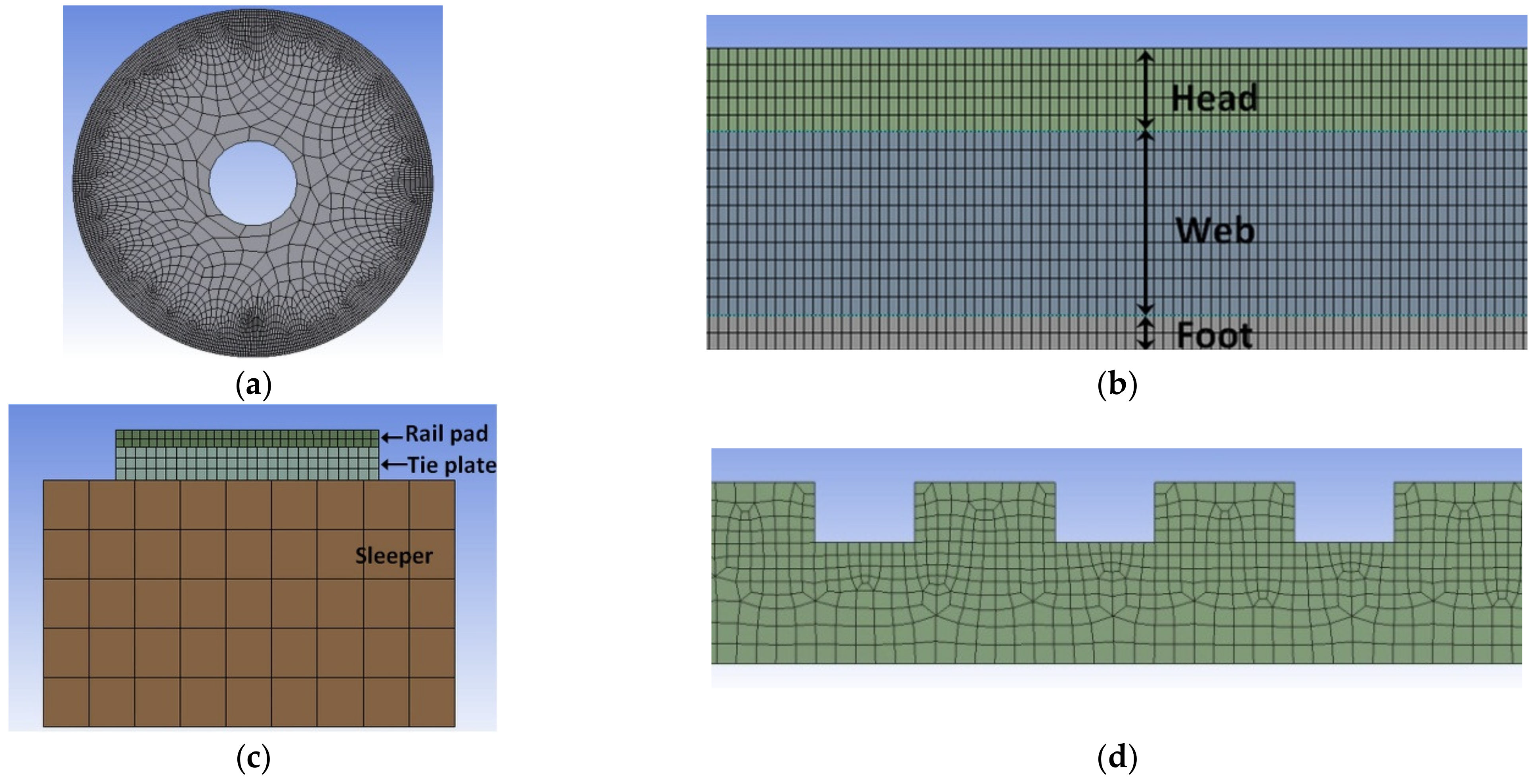

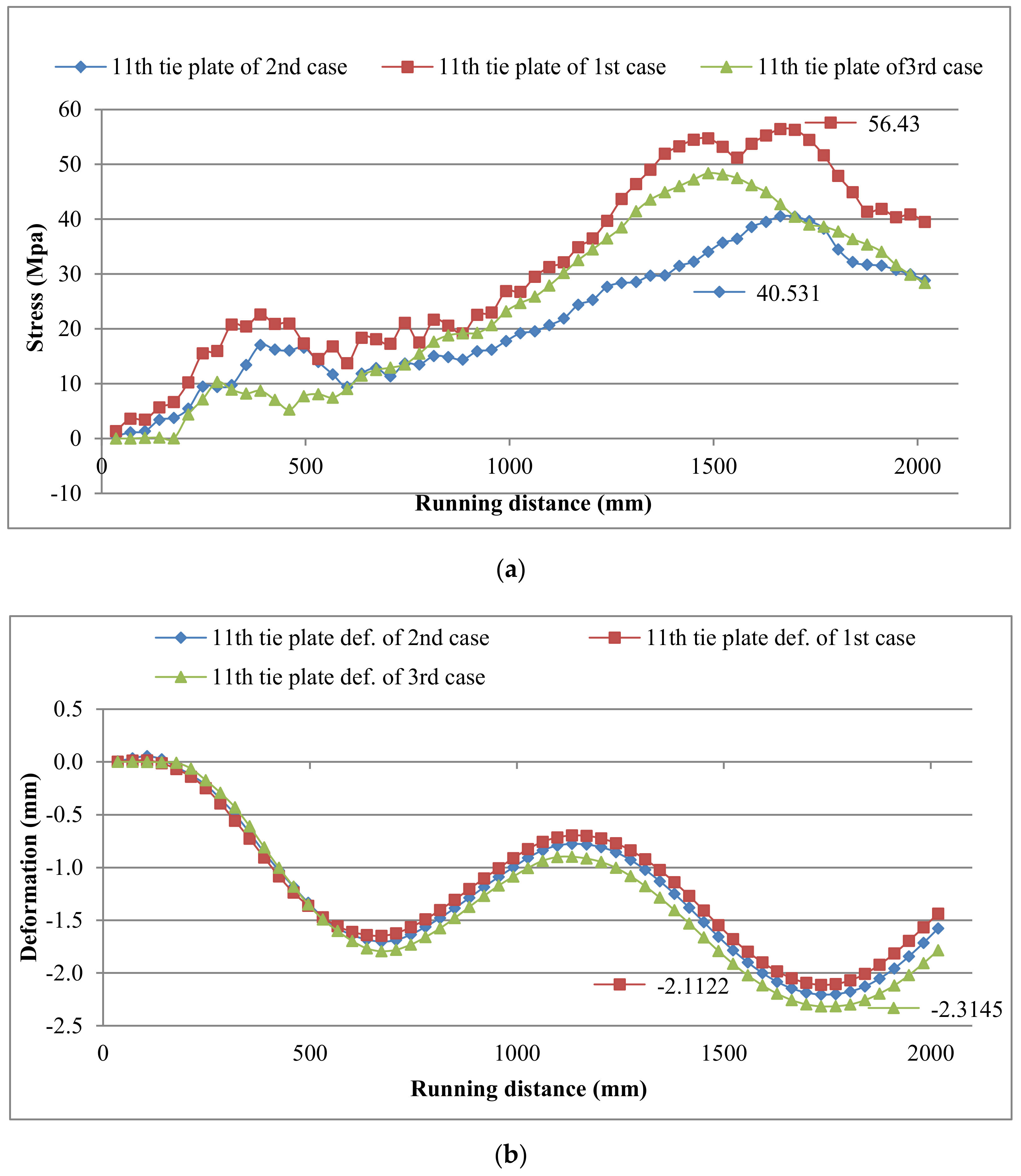

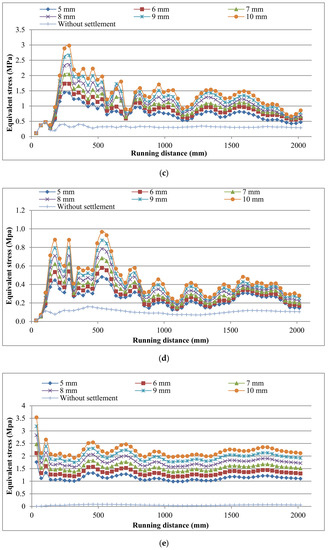

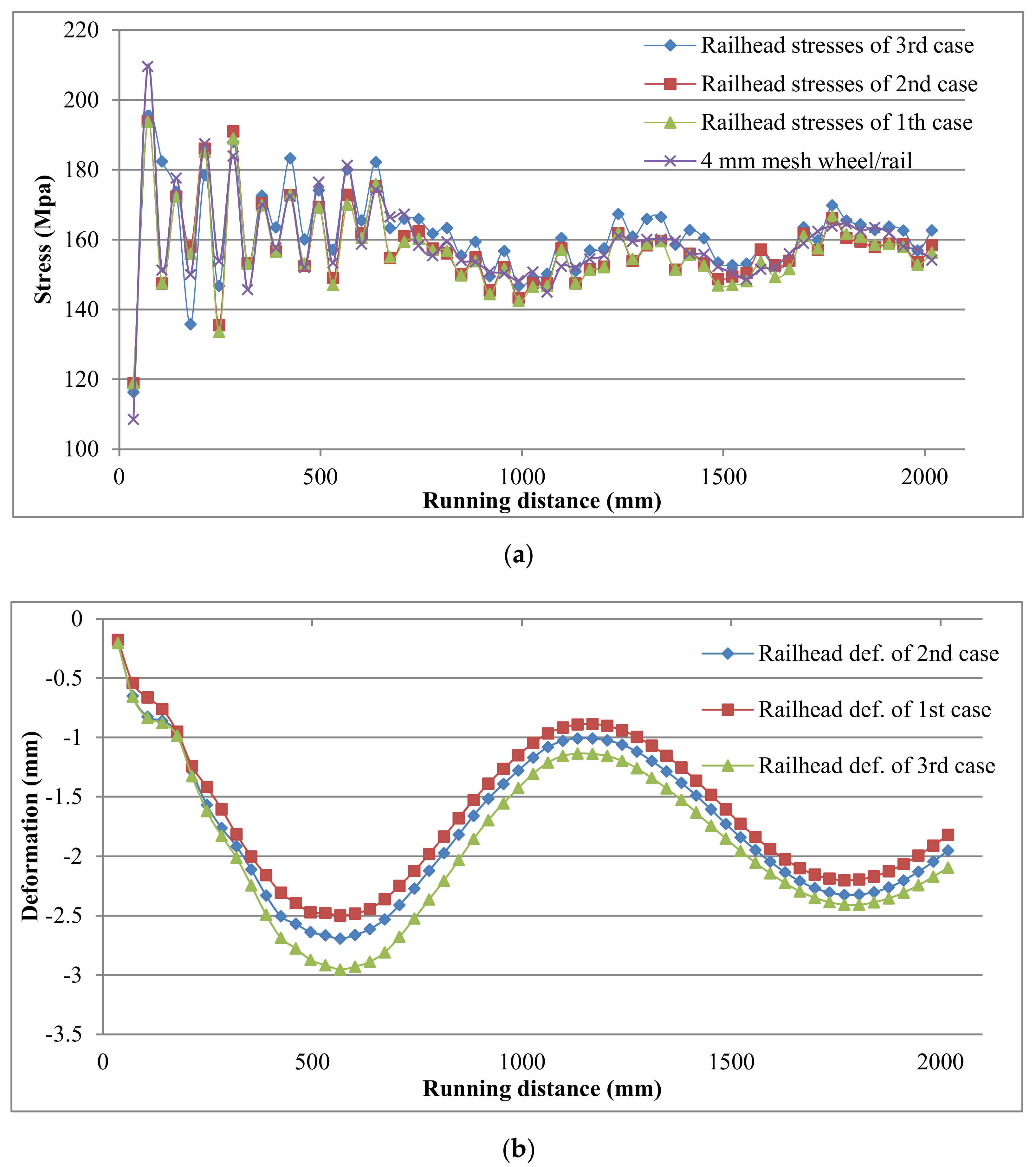

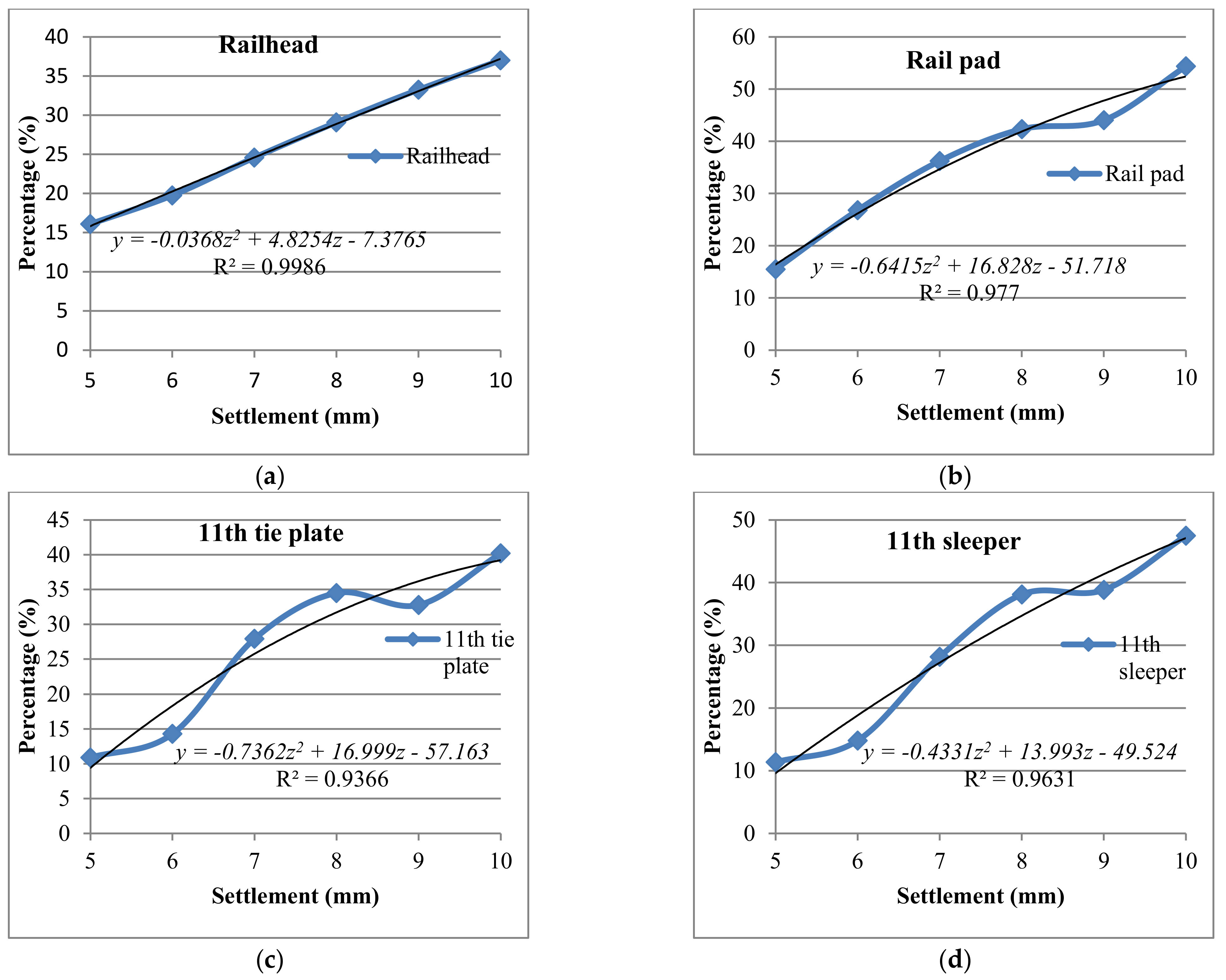

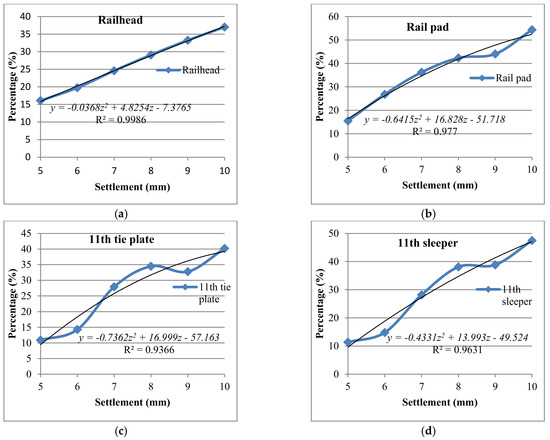

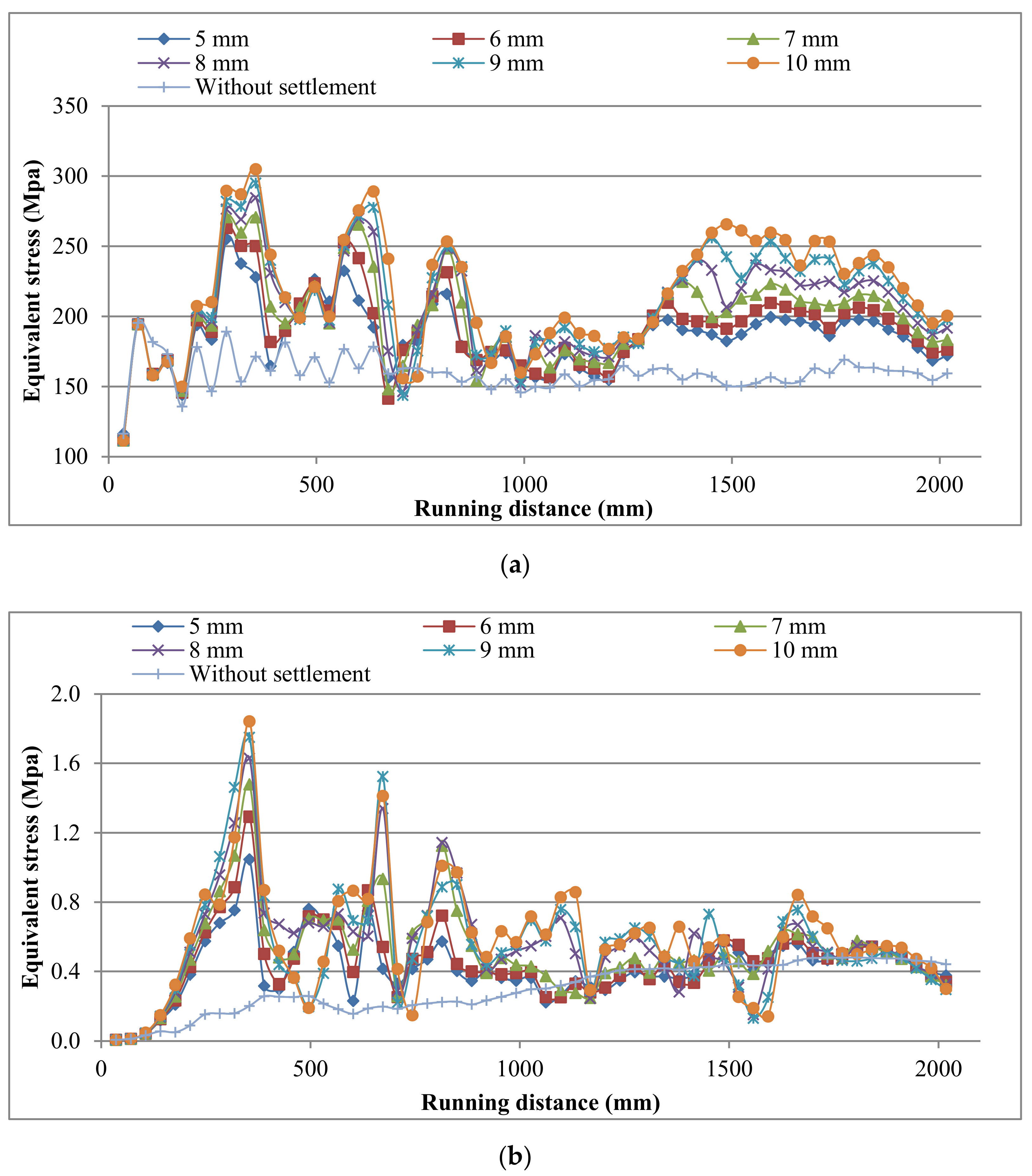

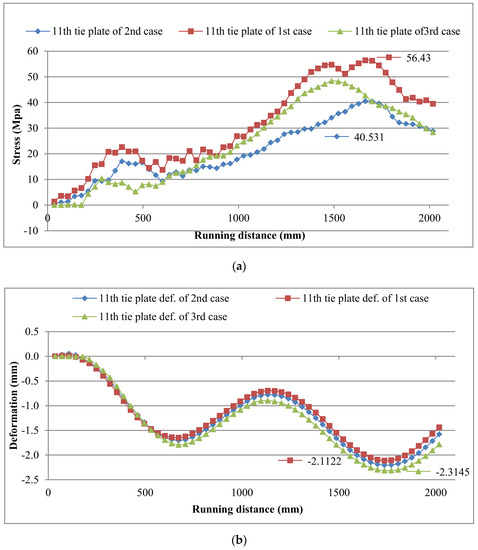

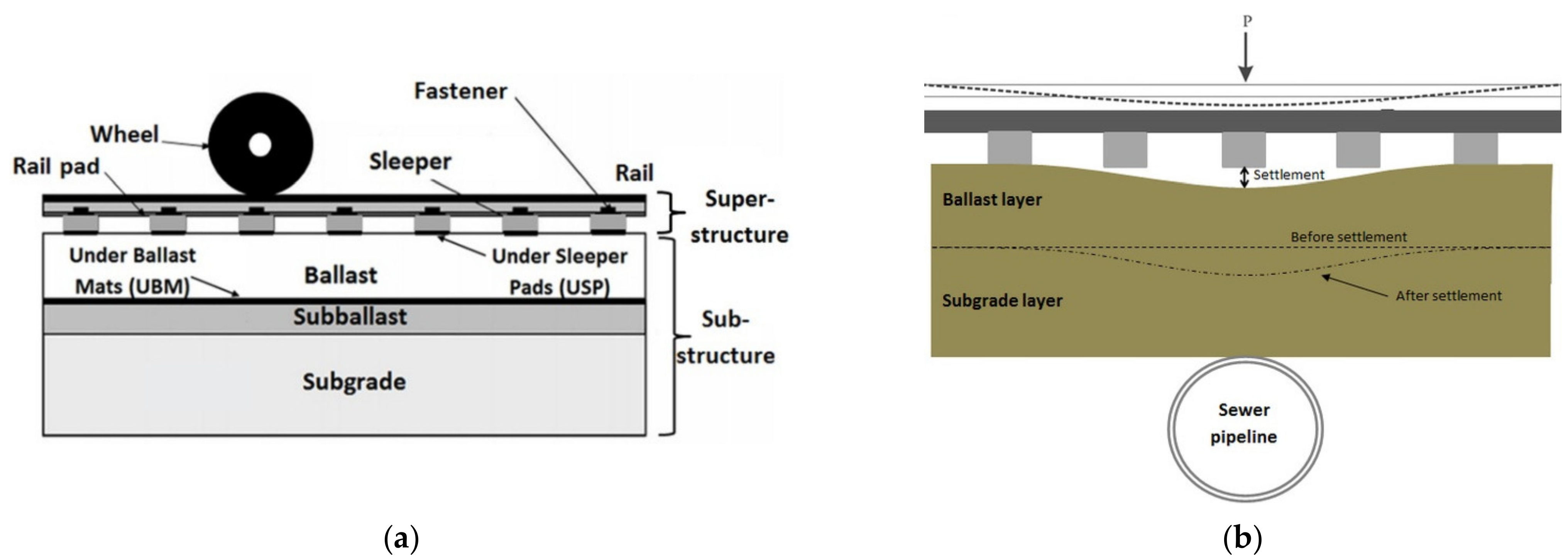

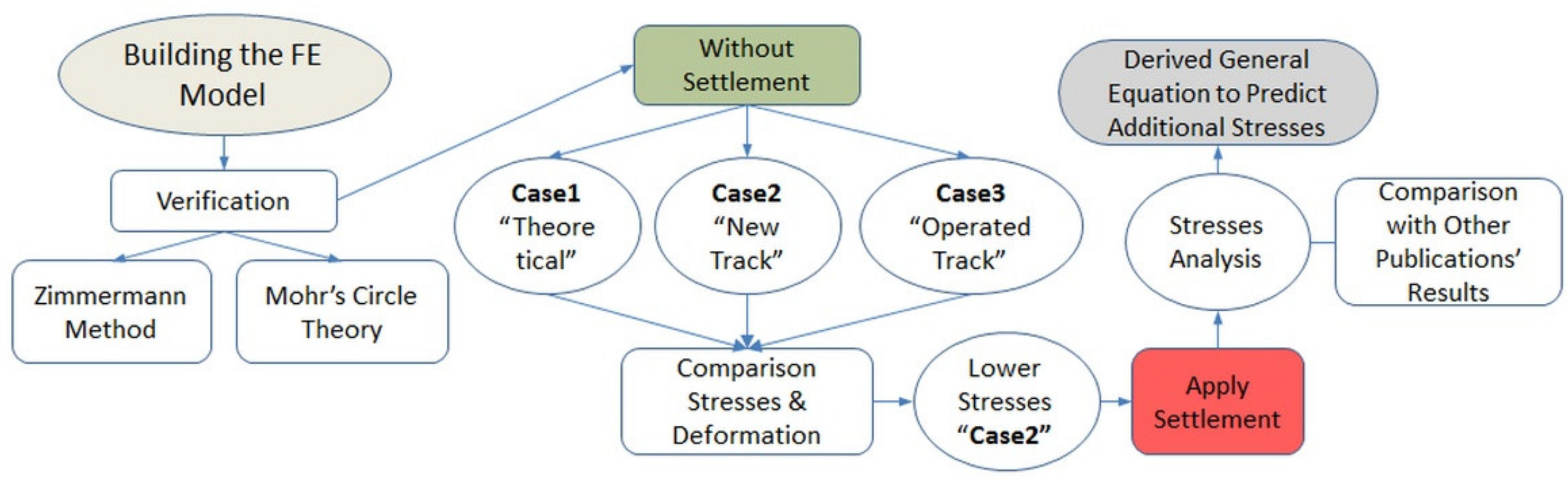

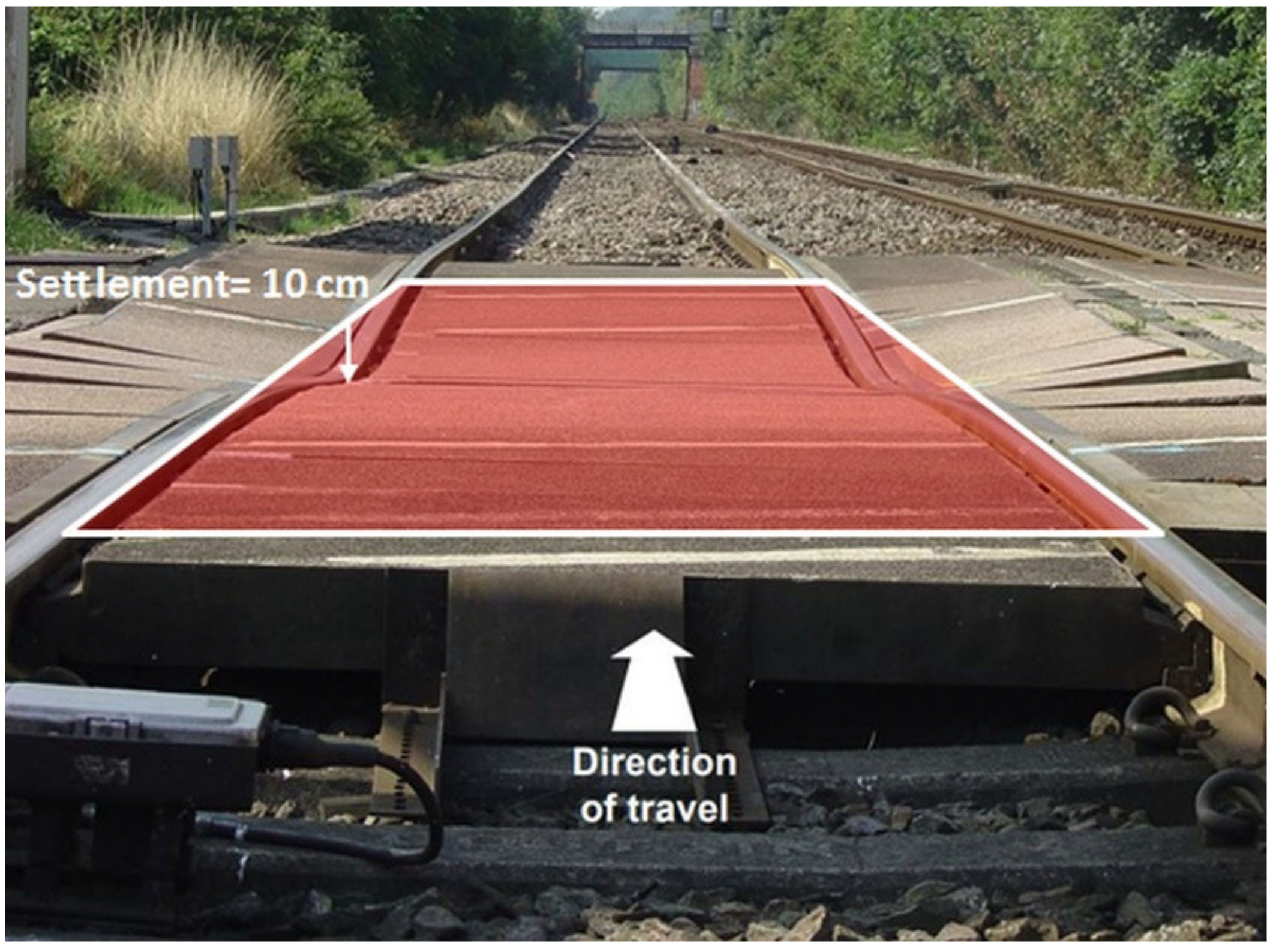

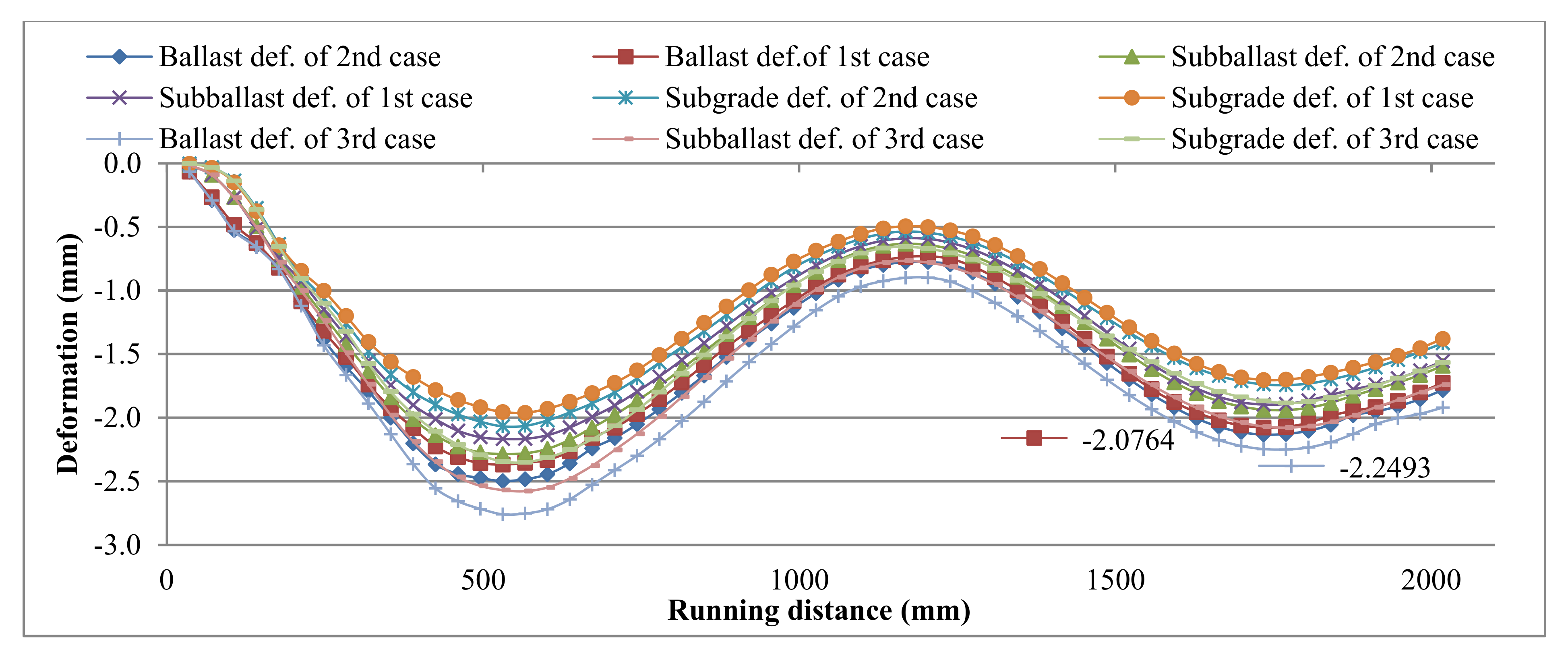

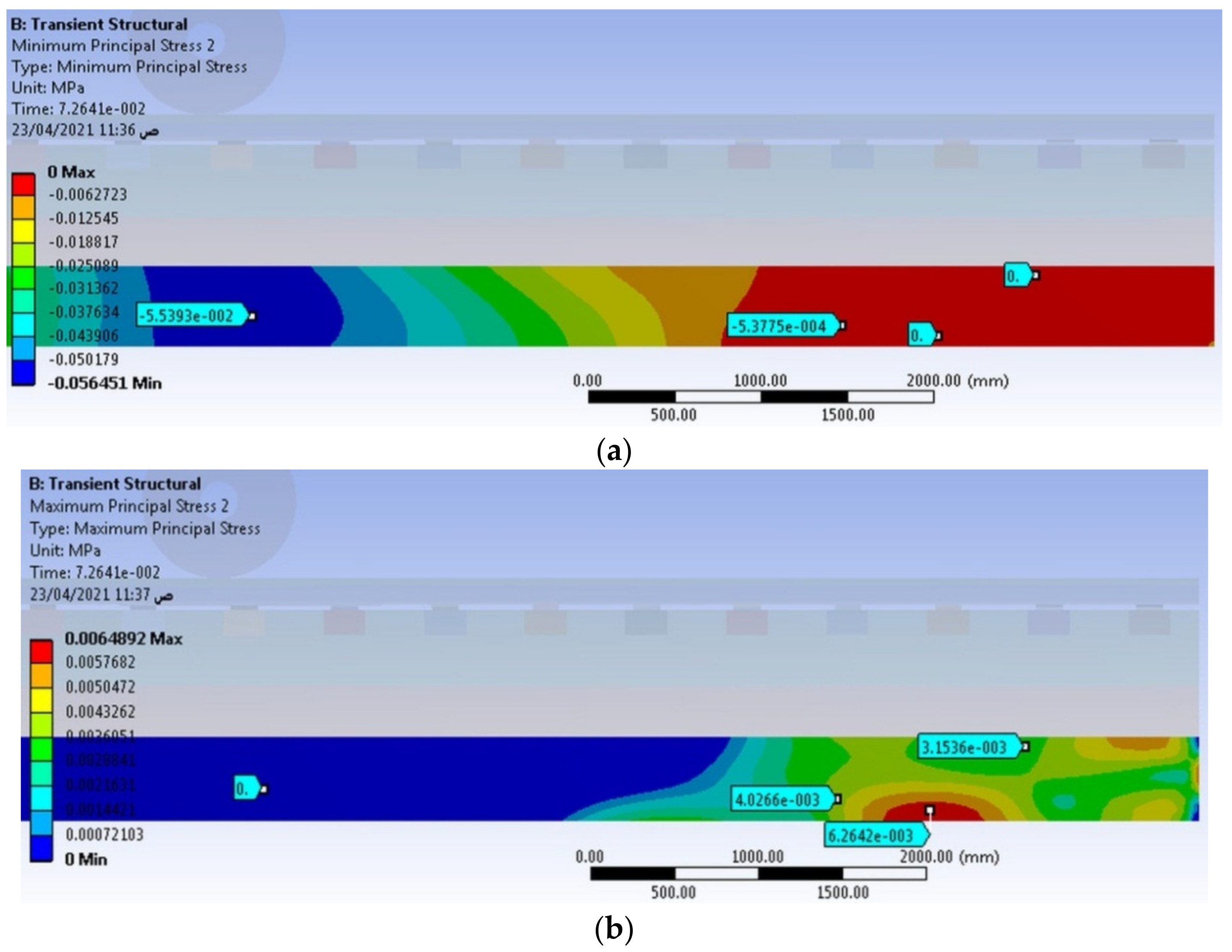

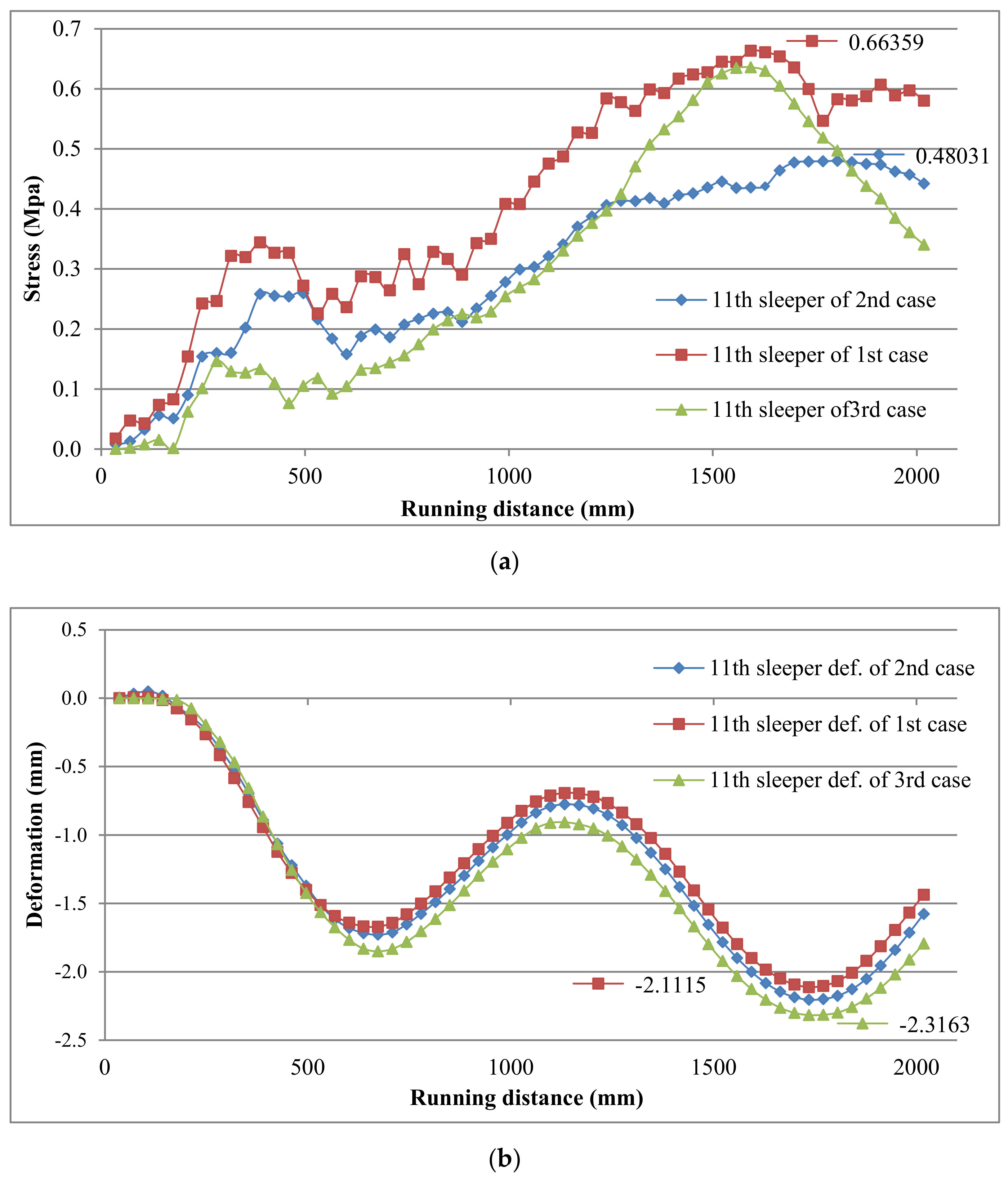

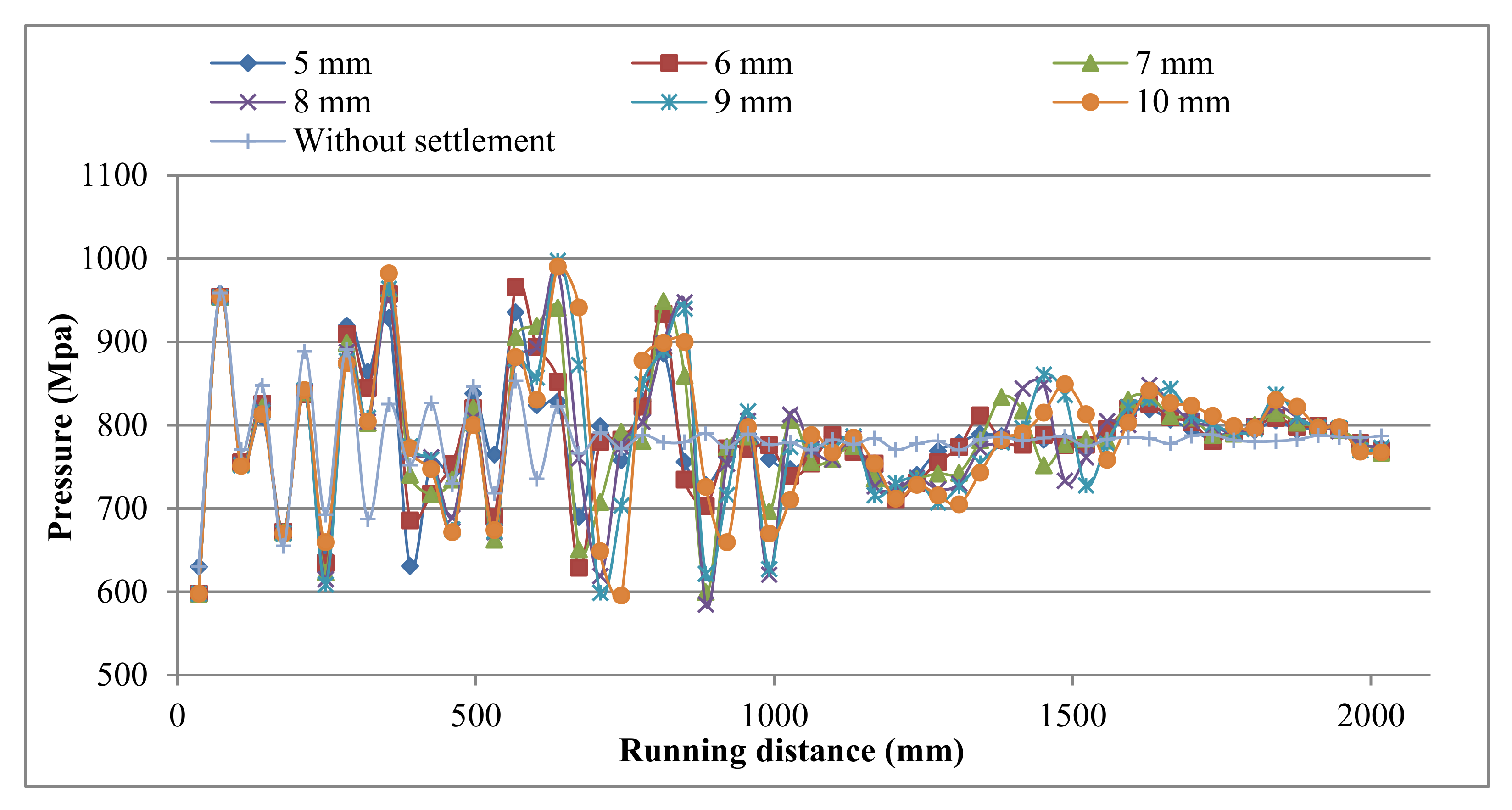

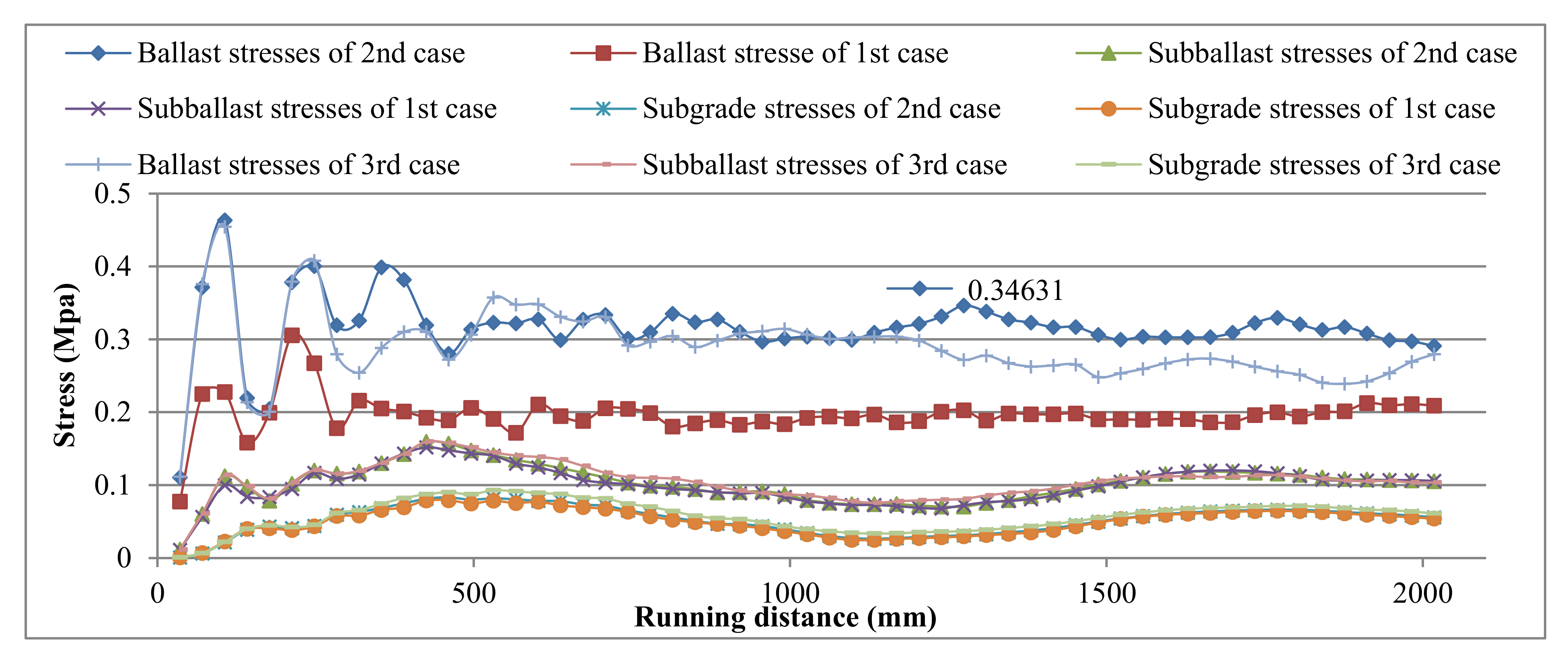

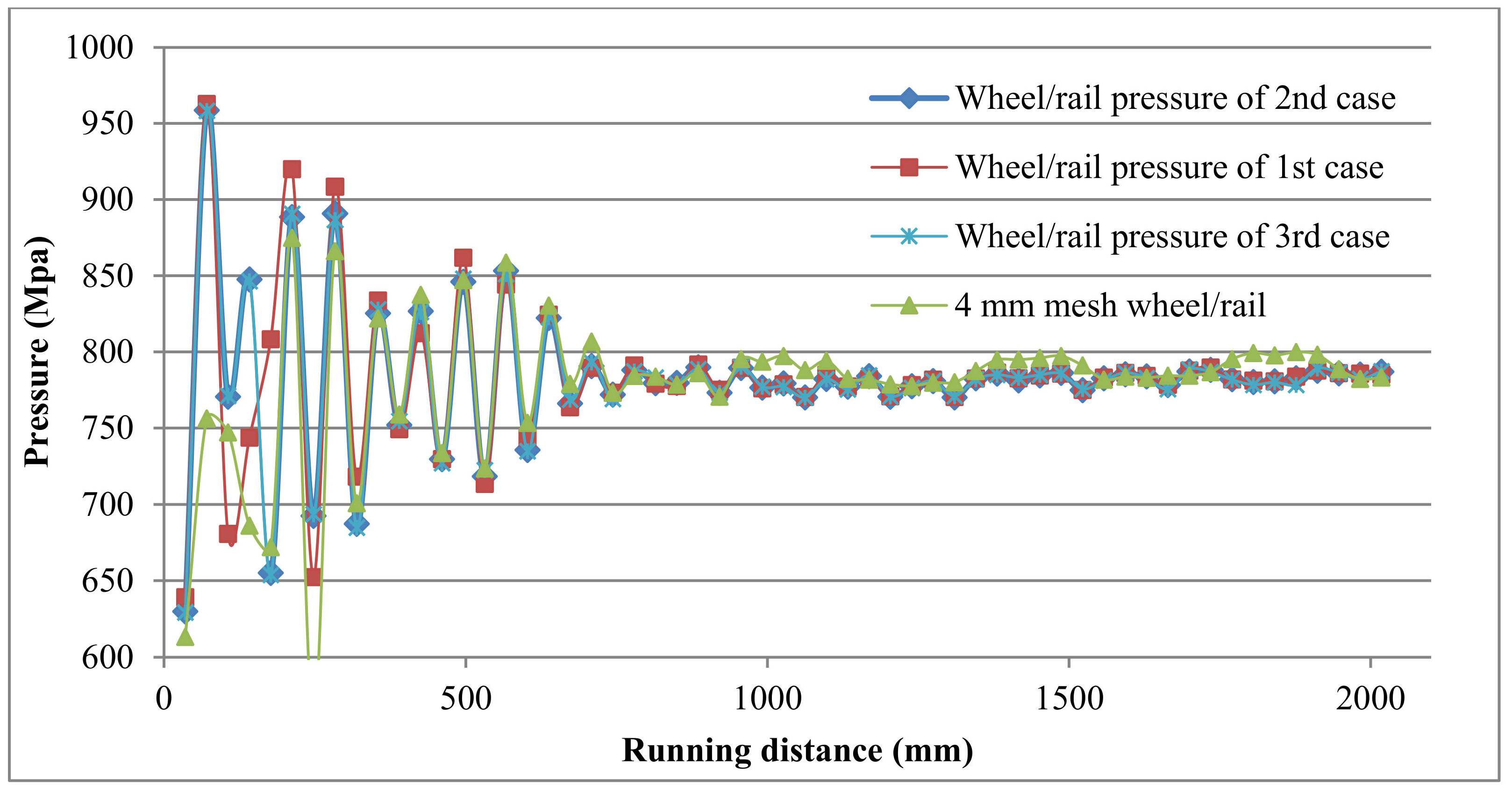

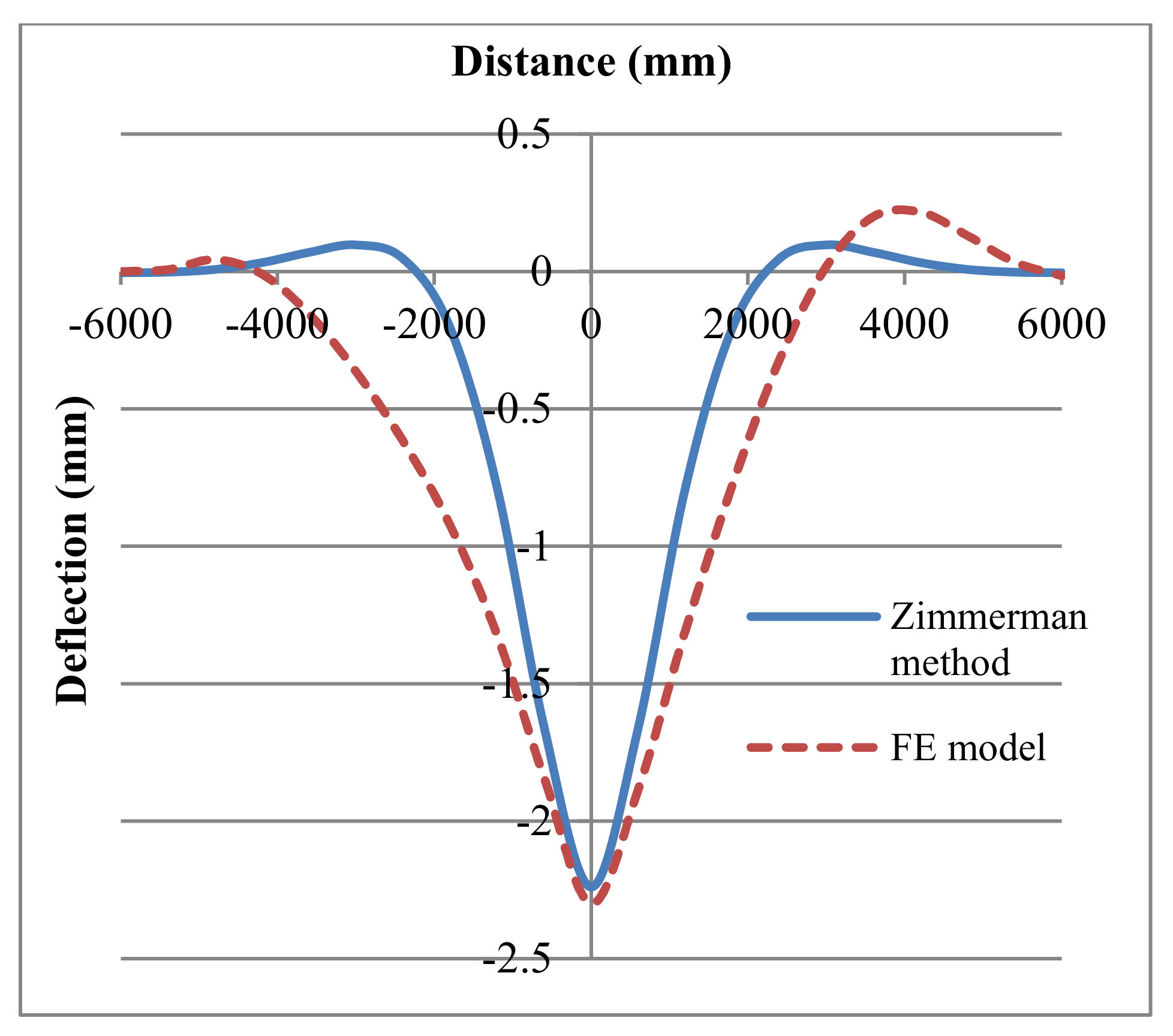

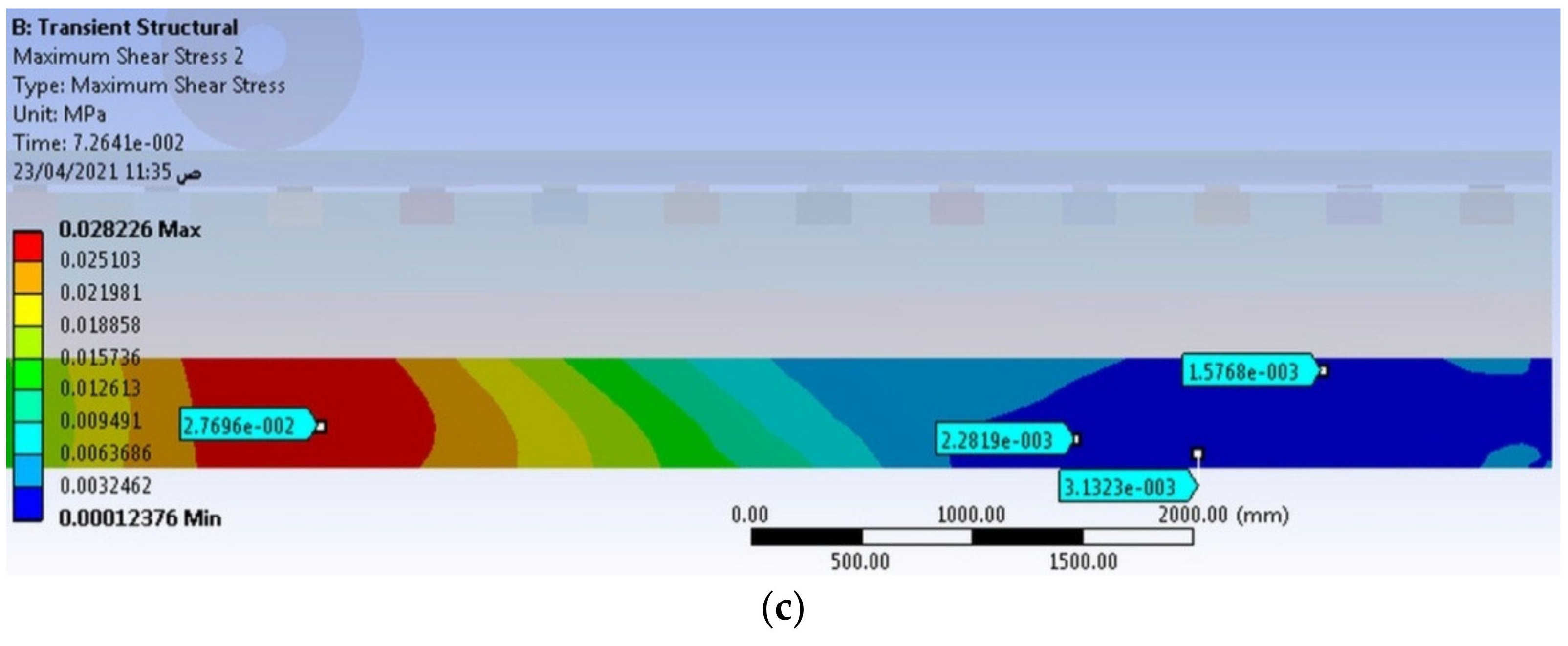

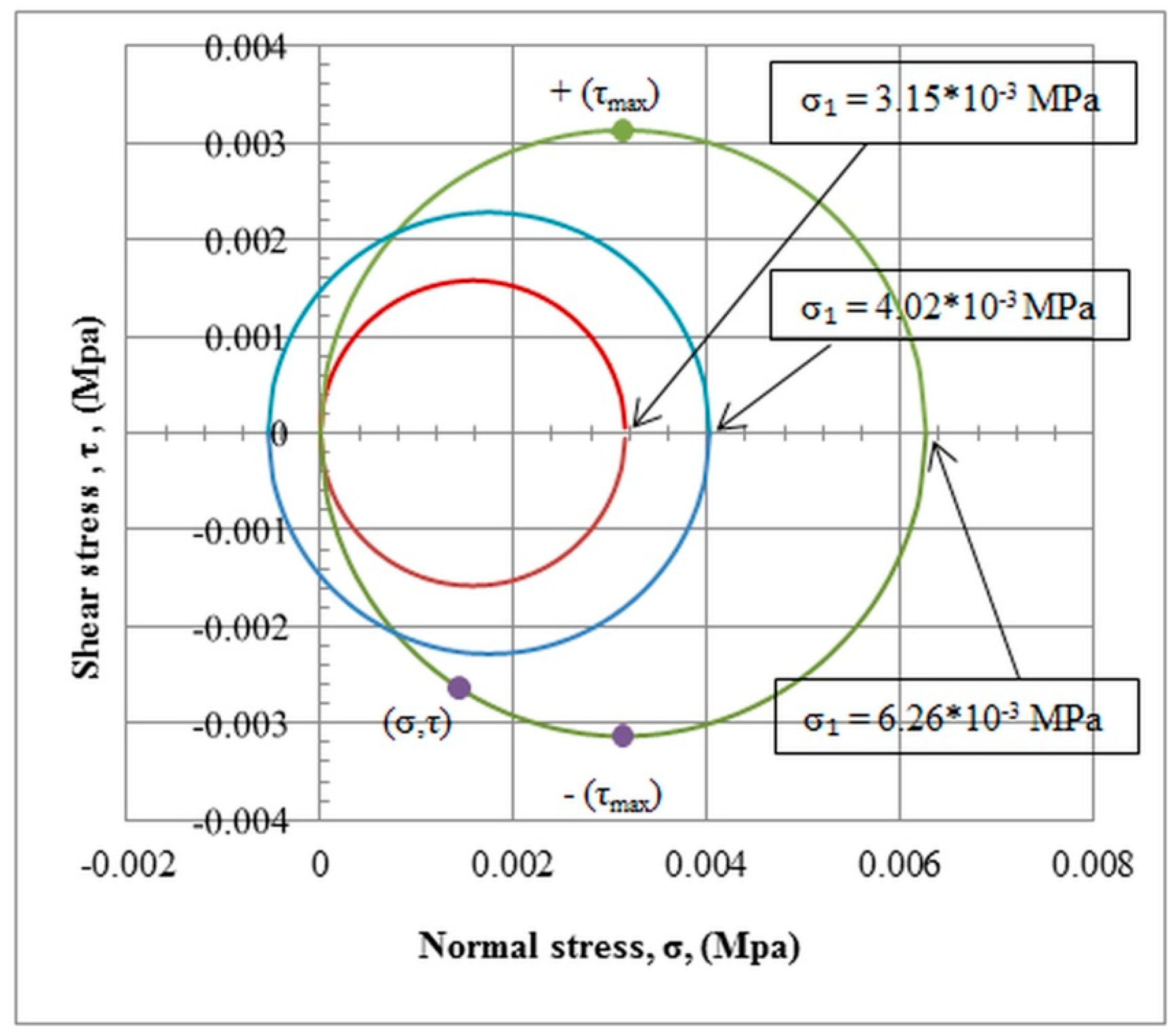

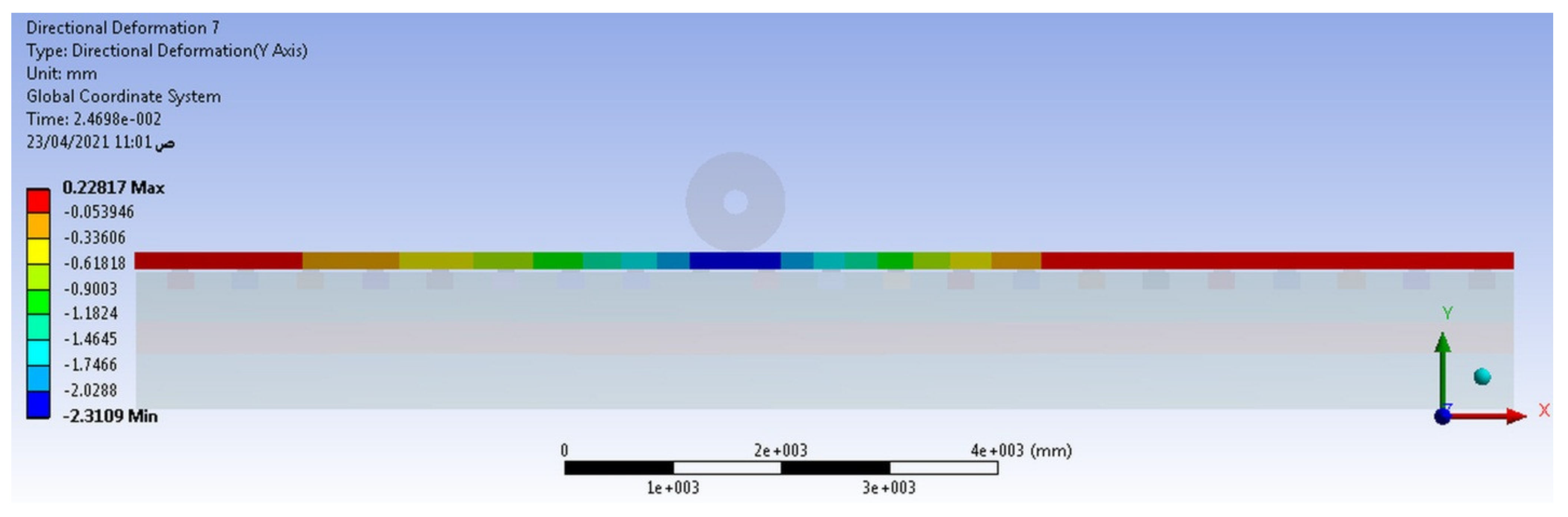

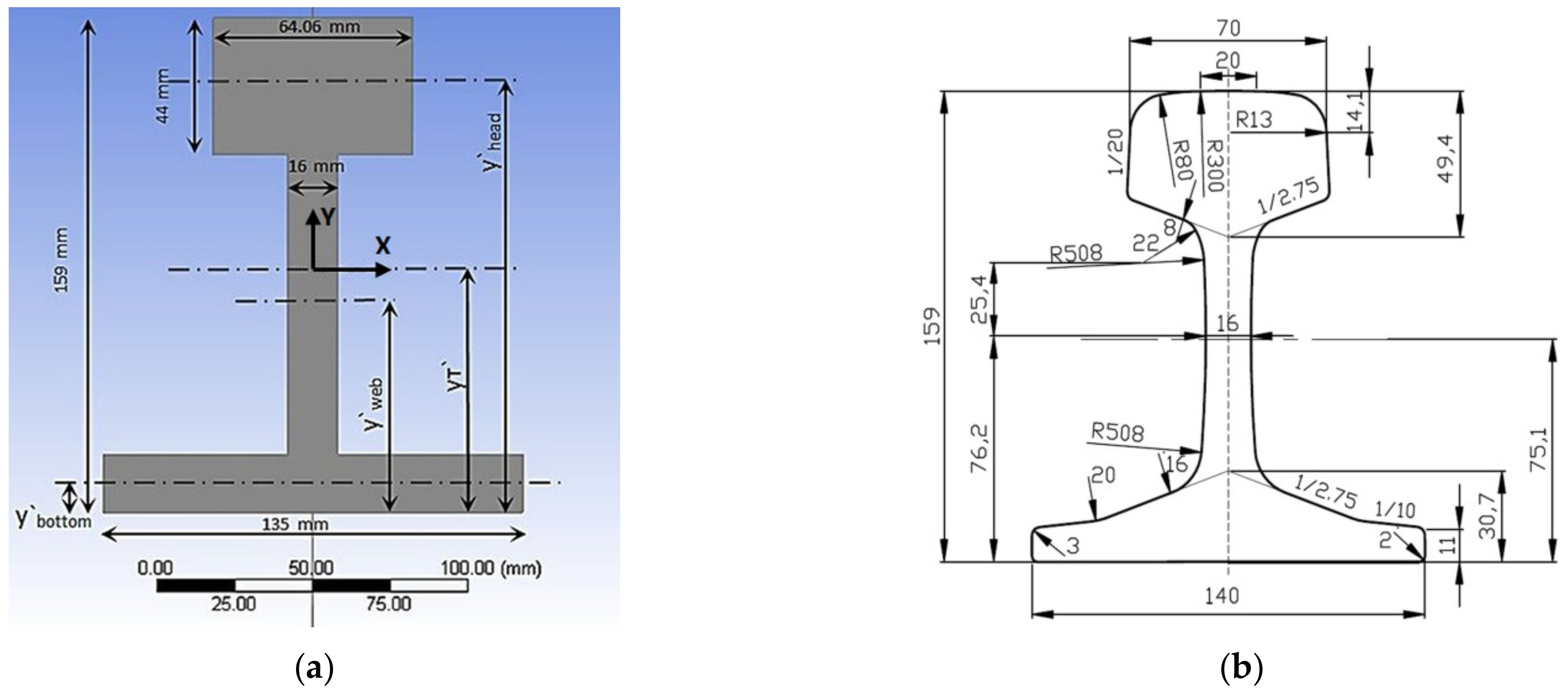

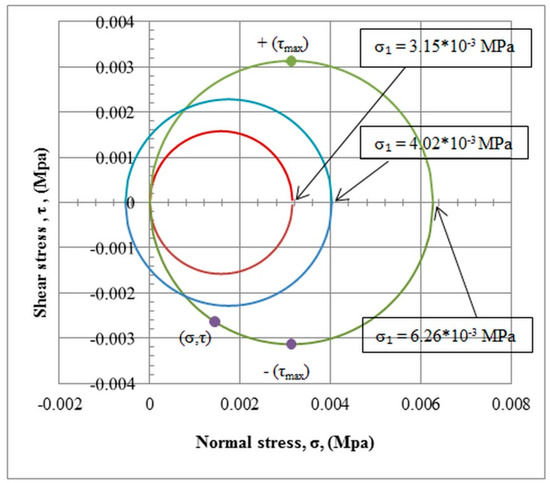

The prediction of additional stresses in ballasted track due to subgrade deformation is the main objective of the present paper. In this context, a 2D finite element model of ballasted railway track was built using the ANSYS Workbench program. Based on this model, an investigation of stresses and deformation values of track elements was conducted in three cases with different contact types. It was found that the case introducing the status of a new track, which has frictional contacts between sleepers and ballast with bonded contacts between other elements, has lower stresses in most of the track elements. Moreover, this case was applied for studying the effect of the settlement on track elements. It was found that stresses increased with increasing the settlement value. The average percentages of increased stresses are 4.18%, 5.85%, and 7.21% in railhead, tie plate, and sleeper, respectively, due to a 1 mm increase in the settlement. Finally, a second-degree polynomial equation was derived to predict the additional stresses in each element due to track settlement. It is expected that this study would help to decrease the maintenance costs and extend the service life of the track elements by predicting the additional stresses in them.
