Article

Alternaria Black Spot (Alternaria brassicae) Infection Severity on Cruciferous Oilseed Crops

by
Eve Runno-Paurson
1,2,*,
Peeter Lääniste
1,
Helina Nassar
1,
Merili Hansen
2,
Viacheslav Eremeev
1,
Luule Metspalu
2,
Liina Edesi
3,
Astrid Kännaste
1 and
Ülo Niinemets
1,4
1
Chair of Crop Science and Plant Biology, Institute of Agricultural and Environmental Sciences, Estonian University of Life Sciences, Kreutzwaldi 1, 51006 Tartu, Estonia
2
Chair of Plant Health, Institute of Agricultural and Environmental Sciences, Estonian University of Life Sciences, Kreutzwaldi 1, 51006 Tartu, Estonia
3
Department of Agrotechnology, Estonian Crop Research Institute, J. Aamisepa 1, 48309 Jõgeva, Estonia
4
Estonian Academy of Sciences, Kohtu 6, 10130 Tallinn, Estonia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(18), 8507; https://doi.org/10.3390/app11188507
Submission received: 27 July 2021 / Revised: 7 September 2021 / Accepted: 9 September 2021 / Published: 13 September 2021
(This article belongs to the Special Issue Food Toxicity: Mechanism, Analysis and Disease)
Browse Figures
Versions Notes

Abstract

:
The increase in the cultivation area of cruciferous oilseed crops and the use of short crop rotation has resulted in the enhanced spread of several major pests in Northern latitudes. There is currently limited information about incidence and severity of Alternaria black spot disease (Alternaria brassicae) on the main oilseed crop, spring oilseed rape (Brassica napus), in the Northern Baltics. Thus, spring oilseed rape and five alternative cruciferous oilseed crops were selected and their resistance to black spot disease was evaluated in field conditions during two growing seasons. We hypothesized that spring oilseed rape is more susceptible to Alternaria black spot disease than other alternative cruciferous oilseed crops. Both growing seasons were warmer and drier compared to the long-term average, and were thus suitable for A. brassicae development and assessments. In both years, incidence of Alternaria black spot infection was recorded on all cruciferous species, yet the disease development differed considerably among the crops. During both growing seasons, black mustard (B. nigra) plants were the most infected. Based on our observations during warm growing seasons we conclude that alternative oilseed crops such as Sinapis alba, Eruca sativa and Raphanus sativus are more resistant to the Alternaria black spot infection than the traditional oilseed crops and thus, possess a great potential to grow with limited chemical disease control in Northern Baltic conditions.

1. Introduction

The area of cultivation of cruciferous oilseed crops has been increasing and oilseed rape (Brassica napus var. oleifera) has become one of the most important oilseed crops worldwide [1]. In Estonia, oilseed rape (B. napus) and turnip rape (B. rapa) have been important cash crops for farmers since the middle of 1990s. In 2010, the cultivation area of cruciferous oilseed crops culminated in 100,000 ha, comprising approximately 26% of the total cultivation area of cereal-dominated crop rotations [2]. However, by now, the area of these two cruciferous crops has stabilized at 75,000 ha [2]. Similar trends have been observed in the two other Baltic countries Latvia and Lithuania in the early 1990s to 2005 [3,4]. In recent years, the reduction in growth area is due to serious pest problems, especially for spring oilseed rape and turnip rape [5,6]. The major cruciferous pests with enhanced dispersal include several insects such as pollen beetle (Brassicogethes aeneus) [7], flea beetles (Phyllotreta spp.) [8], etc., and difficult-to control soilborne diseases Sclerotinia stem rot (Sclerotinia sclerotiorum) [5], Phoma stem canker (Leptosphaeria spp.) and clubroot (Plasmodiophora brassicae) [9]. Heavy input of various synthetic pesticides for disease and insect control puts considerable economic pressure on farmers as it causes plant disease resistance to pesticides [10] and reduces soil biodiversity [11].
Temperature and humidity are the main environmental factors that favor the spread of plant diseases, while mild and wet winters affect the survival of debris-borne fungi such as Alternaria disease [12]. Alternaria black spot (Alternaria brassicae) is a major pathogen that has worldwide distribution on oilseed rape, mustard and other cruciferous crops and can cause significant yield losses [13,14]. In addition to A. brassicae, Alternaria black spot can also be caused by other related species, including A. japonica, whichhas been found on oilseed rape in Australian field surveys [15,16]. In Australia, Alternaria spp. have caused field yield losses of over 58% on oilseed rape [15]. In the Baltic region, Alternaria black spot disease is one of the main destructive oilseed rape diseases after Sclerotinia stem rot and Phoma stem canker [5,17,18]. In the southern Baltics, in Lithuania, Alternaria black spot occurrence and severity have been studied in winter and spring oilseed rape and spring turnip rape [4,19], and the susceptibility of winter oilseed rape cultivars to the disease has been determined [20]. In Lithuania, a considerable loss of seed yield in spring oilseed rape due to Alternaria black spot has been recorded, whereas the yield loss varied between 11–30% among growing seasons [17]. In Latvia, a winter oilseed rape disease monitoring during 2005–2008 showed that the incidence of Alternaria black spot disease increased in time, but its severity remained insignificant [5]. In Estonia, Alternaria black spot infection score was studied in fertilization trials at the Estonian Crop Research Institute in Jõgeva in 2008–2009; the studied winter oilseed rape cultivar ‘Silva’ had 20–75% damage depending on treatment variant and year [21].
Crop yields also depend on the use of land management practices. Cruciferous crops like winter oilseed rape (B. napus), white mustard (S. alba) and oilseed radish (R. sativus) grown as green manure and cover crops efficiently suppress soil-born potato pathogens that could otherwise reduce potato tuber quality and yield [22]. A recent study demonstrated that the mustard blend of S. alba and R. sativus used as green manure and other Brassica rotations as an autumn cover crop significantly reduced common scab, silver scurf and black scurf on potato tubers [23]. Some reduction of potato late blight (Phytophthora infestans) infestation at early stages of disease development has been achieved using cruciferous winter oilseed crops [24]. Thus, usage of cover crops in agriculture could be a promising alternative disease control strategy for environmentally friendly agriculture. In Estonia, several cruciferous crops have been tested as trap crops that can reduce insect pressure on the main cash crops. Oilseed radish, rucola (Eruca sativa), white mustard and mustard green (brown mustard) (B. juncea) have been previously shown to be effective trap plants for flea beetles, pollen beetles and cabbage seedpod weevil (Ceutorhynchus obstrictus) [6,8,25]. Infected B. nigra and R. sativus can also serve as a source for insect pest parasitoids; both species supported the parasitoids of cabbage seedpod weevils [6]. Furthermore, oilseed radish has the features of a dead-end trap crop because 35% of the larvae of pollen beetles failed to survive [26].
The pathogen A. brassicae overwinters inside and outside of the seeds and on the crop residues of cruciferous agricultural crops and weeds [27]. Given the short rotation time of cruciferous crops, it is very important that the plants selected for cover crop, trap cropping, lodging culture, etc., are not susceptible to Alternaria black spot, and therefore, their disease sensitivity should be studied elaborately before harnessing.
In the Baltics, some information about Alternaria black spot occurrence and severity on winter and spring oilseed rape and on spring turnip rape, and the resistance of some winter oilseed rape cultivars to disease, is available [4,5,19,20]. Until now, there is a lack of information about the incidence and severity of Alternaria black spot disease on spring oilseed rape in Estonia. In regard to oilseed radish, rucola, black mustard, white mustard and mustard green, no relevant studies have been conducted in the Baltic countries, but given the climatic modifications due to global change, the Alternaria black spot disease is expected to become more severe in the near future. Thus, it is important to gain insight into interspecific variability in Alternaria black spot disease resistance among cruciferous crops grown as green manure, intercrop, oilseed or trap crop. In this pilot study, we assessed the variation in infection severity of Alternaria black spot disease in spring oilseed rape and five alternative cruciferous crops under organic farming conditions and hypothesized that spring oilseed rape is more susceptible to the plant disease than other alternative cruciferous crops in Northern Baltics.

2. Materials and Methods

2.1. Experimental Site and Design

Alternaria black spot (Alternaria brassicae) infection was evaluated in 2010 and 2011 on six different cruciferous plant species in an experimental field of the Estonian University of Life Sciences, Tartu County, Estonia (58°21′ N, 26°39′ E). The plants were grown in a randomized complete block design with three replicates of each of the following species: spring oilseed rape (Brassica napus (L.) cv. ‘Maskot’), mustard green (brown mustard) (B. juncea cv. ‘Jadrjonaja’), black mustard (B. nigra (L.) W. D. J. Koch), rucola (also called arugula, garden rocket, etc.) (Eruca sativa subsp. sativa (E. sativa) cv. ‘Poker’), oilseed radish (Raphanus sativus var. oleiformis (R. sativus) cv. ‘Bille’) and white mustard (Sinapis alba cv. ‘Branco’) (Scheme 1). In both years, the seeds were obtained from the seed collection of the Estonian University of Life Sciences. The size of each plot (1 m × 5 m) was similar to that used earlier for cruciferous crops in biotic stress studies at the site. To minimize inter-plot interactions, there was a 1 m wide buffer zone of bare soil around each plot. The whole experimental field was surrounded by a hay meadow. Plots were sown on 12 May in 2010 and 9 May in 2011, at 250 seeds per m2. Seed germination was similar for different species in different years and no differences were noticed in plant density (on average 200 plants per m2) between the plots. In both years, the same standard crop management practices were used in all trial plots. The fertilizers and pesticides were not used and the trials were undertaken in a system certified for organic agriculture. The plant growth stage (BBCH-scale is used to identify the phenological development stages of plants) was assessed using the decimal code system [28].

2.2. Disease Assessment

Alternaria black spot disease (A. brassicae) infection on test plants was assessed according to the 0–100% scale, where 0% corresponds to no disease, and in the case of 100%, the leaf area was totally covered with lesions [29]. The disease assessments were made visually under natural infection conditions from 7 July to 2 August in 2010 (five observations) and from 8 July to 5 August in 2011 (five observations), from the growth stage of BBCH 55–63 (inflorescence to flowering) to BBCH 86–89 (ripening) (Table 1 and Table 2). The degree of infection was characterized as a percentage of total foliage once a week until the disease peaked. In the case of all species and replications, ten randomly selected plants per plot were assessed for Alternaria black spot disease infection.
The area under the disease progress curve (AUDPC) was calculated from the date of the first occurrence of Alternaria black spot until the last observation of the disease in the trial according to Shaner and Finney (1977) [30] by using the following formula: ΣR = n[(Ri+1 + Ri)/2)] (ti+1 − ti), where Ri is the disease severity (percentage of leaf surface blighted) for the previous assessment (i-th observation), Ri+1 is the severity for the current observation, ti and ti+1 are the corresponding times of measurements (day of year), and n is the total number of observations.

2.3. Data Analysis

Statistical analysis of collected data was performed with Statistica 13 (Quest Software Inc., Aliso Viejo, CA, USA). Differences in the severity of Alternaria black spot infection in dependence on year, cruciferous crop species and their interaction were tested by ANOVA. Both factors ‘year’ and ‘species’ were treated as fixed categorical variables. Tukey HSD post-hoc tests (p = 0.05) were applied to separate the differences among the means between years and cruciferous crop species. The level of statistical significance for all effects was p = 0.05 except when noted.

3. Results

3.1. Weather Conditions

Weather data were collected from Rõhu weather station situated 0.5 km from the trial site. In May and June 2010, the air temperature was similar to the long-term (48-year) average, but in July, the temperature was 4.7 °C higher than the long-term average (Table 3). In June of the same year, the precipitation was similar to the long-term average, while in July (36.0 mm) and in the beginning of August (13.4 mm for the first two weeks of August), the rainfall was significantly lower than the long-term average (48-year averages of 70.6 mm for July and 33.3 mm for the first ten-day period of August). In May 2011, the temperature was similar to the long-term average, but June was hotter by 1.9 °C and July by 2.4 °C (Table 3). In May, the rainfall was similar to the long-term average, but it was much lower in June, July and the beginning of August (Table 3). In the third ten-day period of July, the warm and humid climate (temperatures over 30 °C for more than 10 days, relative air humidity >72%) was the most favorable period for black spot disease infection and spread.

3.2. Development of Alternaria Black Spot Disease

The weather conditions were very favorable for Alternaria black spot development and assessments on both observation years. In 2010, the first occurrence of Alternaria black spot infection was found on 7 July on B. juncea and B. napus plants, but the infection level was very low (Figure 1a). Five days later, on 12 July, the degree of infection was 7.6 ± 0.3% (average ± SE) on B. napus and 10.9 ± 4.5% on B. juncea, whereas the degree of infection was already 33.0 ± 2.3% on B. nigra plants (Figure 1a). S. alba plants were also infected (4.9 ± 4.2%). After 26 July, Alternaria black spot development progressed on B. nigra, B. juncea, S. alba and B. napus, being the most severe on plants of B. nigra (49.2 ± 3.8%) and B. juncea (27.2 ± 5.4%) plots (F5.12 = 16.38, p < 0.001 for comparison between species). On 26 July, the infection was also observed on E. sativa plants with 0.5 ± 0.3% and on R. sativus with 8.2 ± 1.5% (Figure 1a). By the end of the observation period, 83.2 ± 2.9% of foliage of B. nigra plants (BBCH 81–83) and 60.2 ± 6.8% of foliage of S. alba plants (BBCH 83–86) were infected. These percentages are significantly higher compared to other cruciferous species (F5.12 = 23.84, p < 0.001) (Figure 1a). At the end of the observation period, the lowest Alternaria black spot infection severities were observed on E. sativa plants with 17.2 ± 8.7% and on R. sativus plants with 20.8 ± 4.1% (Figure 1a).
In 2011, the first Alternaria black spot symptoms were recorded on 8 July on B. napus and B. nigra plants (Figure 1b). A week later, on 15 July, low-level infection was observed on E. sativa and B. juncea plants (Figure 1b). At that date, the disease infection on B. napus had increased to 15.7 ± 4.5% and on B. nigra plants to 12.7 ± 4.4% (Figure 1b). From 29 July, the disease infection rapidly progressed on B. napus, B. nigra and E. sativa and culminated on B. napus (BBCH 78–81) with 79.8 ± 4.1%, on B. nigra (BBCH 82–85) with 72.5 ± 4.0% and on E. sativa (BBCH 74–74) with 46.5 ± 14.9% (F5.12 = 6.91, p < 0.01). At the end of the observation period, low infection severity was recorded only on S. alba plants with 5.2 ± 1.9% and on R. sativus plants with 14.7 ± 2.4% (Figure 1b).
In both study years, Alternaria black spot infection and development differed considerably in all six cruciferous crops. In both growing seasons, a severe infection was recorded on B. nigra and by the end of the observation period, the disease was so advanced that infection exceeded 70% (Figure 1a). In 2011, too, by the end of the growing season, the disease severity on B. napus reached up to 79%, which was the highest value among the tested species. However, in 2010, the development rate of Alternaria black spot on B. napus remained moderate compared to B. nigra and S. alba (Figure 1). The lowest degree of infection was recorded in both growing seasons on R. sativus, and very low Alternaria black spot infection rate was also found on E. sativa in 2010 and on S. alba in 2011 (Figure 1).

3.3. Evaluation of AUDPC

Based on AUDPC values, Alternaria black spot disease pressure did not differ significantly between the two observation years. Across the species, it averaged 424.1 ± 51.3 in 2010 and 403.5 ± 92.1 in 2011 (Figure 2), but AUDPC values differed significantly between the six species studied (Table 4) in both years (F5.12 = 23.48, p < 0.001 for 2010 and F5.12 = 9.08, p < 0.001 for 2011; Figure 2). In 2010, the highest mean ± SE AUDPC value of 953.5 ± 11.5 was observed on B. nigra followed by B. juncea with a value of 561.8 ± 64.9 and B. napus with a value of 516.1 ± 70.2. The lowest AUDPC values were observed on E. sativa with 54.4 ± 27.9 and R. sativus with 111.9 ± 19.8 (Figure 2). In 2011, the highest AUDPC values were 943.0 ± 52.3 on B. napus and 734.0 ± 187.9 on B. nigra (Figure 2), showing high susceptibility to Alternaria black spot. Brassica juncea plants with the AUDPC value of 354.2 ± 208.0 and E. sativa plants with AUDPC value 253.1 ± 59.6 were classified as moderately susceptible to A. brassicae. The lowest AUDPC values were found on S. alba with 60.1 ± 27.7 and on R. sativus with 76.4 ± 16.7 (Figure 2).
Combining the two-year AUDPC values, the most susceptible crops to Alternaria black spot were B. nigra (843.7 ± 97.5) and B. napus (729.7 ± 103.1), and both were considerably different from other tested crops (F5.30 = 15.18, p < 0.001). Significantly lower AUDPC values were observed on E. sativa (154.0 ± 53.2) and S. alba (203.1 ± 69.0). Based on two years data, the most resistant cruciferous species was R. sativus with a very low average AUDPC value of 94.2 ± 14.1 (Figure 3).

4. Discussion

Weather conditions strongly influence the Alternaria black spot development [31], and previous studies have demonstrated that under suitable weather conditions mass spread of this pathogen can occur [14,16]. In this research, development of Alternaria black spot disease was assessed on spring oilseed rape and on five alternative cruciferous oilseed crop species. Both growing seasons, 2010 and 2011, were hotter and dryer compared to long-term (48 years) average and thus, were suitable for pathogen A. brassicae development and disease assessments.
Our research findings clearly showed that Alternaria spp. is an important pathogen on spring oilseed rape and on some alternative oilseed crops (B. nigra, B. juncea) in Northern Baltic conditions. The optimum temperature for sporulation of A. brassicae is 18–24 °C [32]. In our results, the main triggers for higher disease damage on some cruciferous species were warm weather conditions. Similarly, Al-lami et al. (2020) have found in lab experiments that the infection of B. napus and B. juncea by A. brassicae was less, 42%, under low temperatures of 14/10 °C (day/night) compared with higher temperatures of 22/17 °C (day/night), where 88.2% leaf area was infected [33]. Wet periods during the growing season are another factor promoting Alternaria black spot pathogen sporulation and disease development [32]. According to Brazauskiene et al. (2011), Alternaria black spot disease incidence and severity on winter and spring oilseed rape are greater in years with a wet growing season than in years with dry or very dry growing seasons [4]. In our research, the combination of two-year weather data showed a negative relationship between temperature and relative humidity, with lower temperatures and higher humidity in both years in May and drier and warmer weather in August. Thus, the high degree of infection of B. napus and B. juncea by A. brassicae in our study in 2010 and 2011 is consistent with the main role of growing season weather conditions as highlighted by Brazauskiene et al. (2011) [4].
Alternaria brassicae is a well-known seed-borne pathogen, causing also pod infection and thereby early maturation by pod splitting and seed fall-off. In Estonia, A. brassicae has been found on several species belonging to the Brassicaceae family: Brassica oleracea var. botrytis L., B. napus subsp. napus, B. rapa subsp. oleifera, indicating that the pathogen is able to infect a wide spectrum of cruciferous crops and weeds from the Brassicaceae family and other families [27]. Plant pathogen resistance is considered the most promising control method in sustainable agriculture. Common cultivated Brassica crops have very low genetic variability and are therefore highly susceptible to several diseases that can cause major yield losses [34]. In our field trial, AUDPC values were the lowest in R. sativus, E. sativa and S. alba compared to the other species. In both seasons, the infection severity was very low before the last observation week in all these three species. Sinapis alba is a wild member of the Brassicaceae family and is considered to possess high resistance against Alternaria black spot [35]. On the other hand, the information on E. sativa vulnerability to Alternaria black spot has been limited. According to a recent report by da Silva et al. (2020) [36] from Brazil, A. brassicae infects older plants of E. sativa, and it is likely that the association between A. brassicae and E. sativa is widespread there, though the degree of disease damage in cultivated plants is unknown. A higher tolerance of 35-day old cruciferous plants to A. brassicola compared to the 45- or 55-day-old plants is another possible reason why R. sativus and E. sativa, both in an earlier growth phase, were more resistant to the Alternaria black spot disease than B. napus, B. nigra and B. juncea, which were in a more advanced growth phase (Figure 1, Table 1 and Table 2) [37]. In 2020, Macioszek et al. [38] showed that due to lower foliar contents of protective and antifungal polyphenolic compounds and glucosinolates, the older B. juncea leaves had a considerably greater A. brassicola damage than the younger leaves. A similar result was obtained by Mathpal et al. (2011) [39], who compared different plant genotypes with varying susceptibility against Alternaria black spot disease and found that, compared to B. juncea as the most susceptible species, the resistance of B. alba was related to higher content of phenolic compounds in the leaves. Nevertheless, there is evidence that during the infection, the contents of antifungal phenolic compounds increase [38], but the capacity for accumulation of protective compounds might decrease with increasing leaf age and onset of leaf senescence.
As discussed above, higher temperatures promote the Alternaria black spot disease development. Thus, climate warming could directly enhance the risk for Alternaria black spot pressure on cruciferous species, including oilseed crops [33], and might increase the yield gap. Similarly, in the Northern Baltics, recent unusually warm summers have increased the spread of Alternaria spp. on potato fields and led to severe infections [24,40]. In addition, the predicted increase in the frequency of warmer and drier summers with temporary heat waves [41] could increase problems due to Alternaria spp. pathogen spread, damage and Alternaria black spot disease control in Northern regions. Recent research has shown that in the Baltic Sea region, the climate has warmed particularly fast compared to the global average [42]. In the current study, Alternaria black spot disease infection was high on half of the tested cruciferous species, and we consider that this pathogen constitutes a direct threat to oilseed crops. Altered climatic conditions for plant growth due to global change and the growing population of the world reinforce the development of strategies for a sustainable agriculture and food system that ensure the efficient land use and high nutritional value of plants [43]. Thus, the knowledge of Alternaria black spot spread and plant vulnerability allows selection of more resistant species and cultivars, and this information is highly relevant for oilseed, intercrop, cover crop and green manure production, especially in sustainable farming systems. Currently, there is a limited assortment of alternative cruciferous and non-cruciferous oilseed crops for cultivation in upper latitudes, and there is a strong demand for new oilseed crops by local producers [44]. Alternative cruciferous species should be recommended for cultivations as green manure, intercrop, oilseed or for trap crop only if their susceptibility to Alternaria black spot is examined/known in a certain region. In the case of use of susceptible cultivars, one should carefully assess whether the losses do not exceed profits.
Until this work, information about the Alternaria black spot disease climatic sensitivity and cruciferous crop resistance was not available for Northern Baltic region conditions. Based on our observations in two extremely warm growing seasons in the Northern Baltics, we suggest that under favorable conditions for Alternaria black spot infection, alternative oilseed crops such as S. alba, E. sativa and R. sativus possess a great potential to grow with limited chemical inputs even in the case of conventional farming. The results of this work can be harnessed by local organic and sustainable farmers, who have already started to cultivate alternative cruciferous crops such as B. juncea, S. alba and R. sativus as intercrop and green manure. Furthermore, in the Northern Baltics, white mustard has growing importance in organic farming as an alternative lodging culture due to increasing the lodging resistance of field peas [45]. Based on our findings, in cultivating B. juncea plants, farmers should consider some need of chemical input for Alternaria black spot control; however, the pesticide requirements depend strongly on the weather conditions in the particular growing season.

5. Conclusions

This is the first report about infection rate of black spot disease (A. brassicae) on alternative cruciferous oilseed crop plants (Brassica juncea, Brassica nigra, Sinapis alba, Raphanus sativus, Eruca sativa) and evaluation of host species resistance in organic field conditions in the Northern Baltics. All tested cruciferous oilseed crops were infected by Alternaria black spot disease, but the infection severity varied strongly between the species and growing seasons. Two species, B. napus and B. nigra, were the most heavily infected by Alternaria black spot and thus, cannot be recommended for cultivations without chemical input for conventional growers. Based on our observations under extremely warm growing seasons that were favorable for Alternaria black spot infection, alternative oilseed crops S. alba, E. sativa and R. sativus are promising cultures for cultivation in organic farming or in the case of conventional farming with limited chemical input in Northern Baltic conditions.

Author Contributions

Conceptualization, E.R.-P., P.L. and L.M.; methodology, E.R.-P., L.M., P.L. and H.N.; formal analysis, E.R.-P., M.H., V.E. and P.L.; data curation, E.R.-P., V.E., M.H. and H.N.; writing—original draft preparation, E.R.-P. and A.K.; writing—review and editing, P.L., E.R.-P., Ü.N., A.K., L.M., H.N. and L.E.; visualization, V.E. and E.R.-P.; funding acquisition, E.R.-P., A.K. and Ü.N. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by the European Regional Development Fund (Center of Excellence EcolChange: Ecology of global change: natural and managed ecosystems), the Estonian University of Life Sciences project (base funding P190259PKTT) and Institutional Research Funding (project no. IUT36-2 of Estonian Research Council).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Williams, I.H. Biocontrol-Based Integrated Management of Oilseed Rape Pests; Springer: Berlin/Heidelberg, Germany, 2010; p. 461. [Google Scholar]
  2. Statistics Estonia 2019. Sown Area of Field Crops, Data Base. Available online: http://andmebaas.stat.ee/Index.aspx?lang=en&SubSessionId=98b16850-36fb-4113-8f45-1bc7fa42b930&themetreeid=3 (accessed on 1 June 2020).
  3. Gaile, Z.; Balodis, O.; Bankina, B. Advances of Fungicide Application for Winter Oilseed Rape; Fungicides, O.C., Ed.; InTech: Rijeka, Croatia, 2010; pp. 157–176. ISBN 978-953-307-266-1. Available online: http://www.intechopen.com/books/fungicides/advances-of-fungicide-application-for-winter-oilseed-rape (accessed on 1 June 2020).
  4. Brazauskiene, I.; Petraitiene, E.; Brazauskas, G.; Semaškiene, R. Medium-term trends in dark leaf and pod spot epidemics in Brassica rapa in Lithuania. J. Plant Dis. Prot. 2011, 118, 197–207. [Google Scholar] [CrossRef]
  5. Balodis, O.; Bankina, B.; Gaile, Z. Fungicide use efficiency for disease control in winter rape. Zemdirbyste 2008, 95, 13–18. [Google Scholar]
  6. Kovács, G.; Kaasik, R.; Kaart, T.; Metspalu, L.; Luik, A.; Veromann, E. In search of secondary plants to enhance the efficiency of cabbage seed weevil management. BioControl 2017, 62, 29–38. [Google Scholar] [CrossRef]
  7. Metspalu, L.; Veromann, E.; Kaasik, R.; Kovács, G.; Williams, I.H.; Mänd, M. Comparison of sampling methods for estimating the abundance of Meligethes aeneus on oilseed crops. Int. J. Pest Manag. 2015, 61, 312–319. [Google Scholar] [CrossRef]
  8. Metspalu, L.; Kruus, E.; Ploomi, A.; Williams, I.H.; Hiiesaar, K.; Jõgar, K.; Veromann, E.; Mänd, M. Flea beetle (Chrysomelidae: Alticinae) species composition and abundance in different cruciferous oilseed crops and the potential for a trap crop system. Acta Agric. Scand. B Soil Plant Sci. 2014, 64, 572–582. [Google Scholar] [CrossRef]
  9. Järvan, M. Kas nuutrihaigus võib rapsikasvatust ohustada? Põllumajanduslikud infopäevad 2016, (Does clubroot limits oilseed rape cultivation?). Oilseeds 2016, 2, 4–5. (In Estonian) [Google Scholar]
  10. Brandes, M.; Heimbach, U. Pyrethroid resistance of insect pests of oilseed rape in Germany. IOBC-WPRS. Bull. 2018, 136, 69–72. [Google Scholar]
  11. Harkes, P.; Suleiman, A.K.A.; van den Elsen, S.J.J.; De Haan, J.J.; Holterman, M.; Kuramae, E.E.; Helder, J. Conventional and organic soil management as divergent drivers of resident and active fractions of major soil food web constituents. Sci. Rep. 2019, 9, 13521. [Google Scholar] [CrossRef]
  12. Siebold, M.; Von Tiedemann, A. Potential effects of global warming on oilseed rape pathogens in Northern Germany. Fungal Ecol. 2012, 5, 62–72. [Google Scholar] [CrossRef]
  13. Prasad, R.; Saxena, D.; Chandra, S. Yield losses by Alternaria blight in promising genotypes of Indian mustard. Indian Phytopathol. 2003, 56, 205–206. [Google Scholar]
  14. Kumar, D.; Maurya, N.; Bharati, Y.K.; Kumar, A.; Kumar, K.; Srivastava, K.; Chand, G.; Kushwaha, C.; Singh, S.K.; Mishra, R.K.; et al. Alternaria blight of oilseed brassicas: A comprehensive review. Afr. J. Microbiol. Res. 2014, 8, 2816–2829. [Google Scholar]
  15. Al-lami, H.F.D.; You, M.P.; Barbetti, M.J. Role of foliage component and host age on Alternaria leaf spot (caused by Alternaria japonica and A. brassicae) in canola (Brassica napus) and mustard (B. juncea) and yield loss in canola. Crop Pasture Sci. 2019, 70, 969–980. [Google Scholar] [CrossRef]
  16. Al-Lami, H.F.D.; You, M.P.; Barbetti, M.J. Incidence, pathogenicity and diversity of Alternaria spp. associated with alternaria leaf spot of canola (Brassica napus) in Australia. Plant Pathol. 2019, 68, 492–503. [Google Scholar] [CrossRef]
  17. Brazauskiene, I.; Petraitiene, E. Effects of fungicide application timing on the incidence and severity of Alternaria blight (Alternaria brassicae) and on the productivity of spring oilseed rape (Brassica napus L. ssp. oleifera annua Metzg.). Agron. Res. 2004, 2, 121–133. [Google Scholar]
  18. Piliponytė-Dzikienė, A.; Andriūnaitė, E.; Petraitienė, E.; Brazauskienė, I.; Statkevičiūtė, G.; Brazauskas, G. Genetic diversity and occurrence of Leptosphaeria spp. on Brassica oleracea and B. napus in Lithuania. J. Plant Pathol. 2015, 97, 265–271. [Google Scholar]
  19. Brazauskiene, I.; Petraitiene, E. Dark leaf and pod spot (Alternaria brassicae) on oilseeds (Brassica napus) in Lithuania. Plant Prot. Sci. 2002, 38, 384–387. [Google Scholar] [CrossRef]
  20. Brazauskienė, I.; Petraitienė, E.; Brazauskas, G.; Ronis, A. Susceptibility of winter rape cultivars to fungal diseases and their response to fungicide application. Turk. J. Agric. For. 2013, 37, 699–710. [Google Scholar] [CrossRef]
  21. Veromann, E.; Toome, M.; Kännaste, A.; Kaasik, R.; Copolovici, L.; Flink, J.; Kovács, G.; Narits, L.; Luik, A.; Niinemets, Ü. Effects of nitrogen fertilization on insect pests, their parasitoids, plant diseases and volatile organic compounds in Brassica napus. Crop Prot. 2013, 43, 79–88. [Google Scholar] [CrossRef]
  22. Larkin, R.P.; Halloran, J.M. Management Effects of Disease-Suppressive Rotation Crops on Potato Yield and Soilborne Disease and Their Economic Implications in Potato Production. Am. J. Potato Res. 2014, 91, 429–439. [Google Scholar] [CrossRef]
  23. Larkin, R.P.; Lynch, R.P. Use and Effects of Different Brassica and Other Rotation Crops on Soilborne Diseases and Yield of Potato. Horticulturae 2018, 4, 37. [Google Scholar] [CrossRef] [Green Version]
  24. Runno-Paurson, E.; Lääniste, P.; Eremeev, V.; Tähtjärv, T.; Kaurilind, E.; Tosens, T.; Niinemets, Ü.; Williams, I.H. Does winter oilseed rape as a winter cover crop influence potato late blight development in an organic crop rotation? Biol. Agric. Hortic. 2020, 36, 71–83. [Google Scholar] [CrossRef]
  25. Veromann, E.; Metspalu, L.; Williams, I.H.; Hiiesaar, K.; Mand, M.; Kaasik, R.; Kovács, G.; Jogar, K.; Svilponis, E.; Kivimagi, I.; et al. Relative attractiveness of Brassica napus, Brassica nigra, Eruca sativa and Raphanus sativus for pollen beetle (Meligethes aeneus) and their potential for use in trap cropping. Arthropod Plant Interact. 2012, 6, 385–394. [Google Scholar] [CrossRef]
  26. Veromann, E.; Kaasik, R.; Kovács, G.; Metspalu, L.; Williams, I.H.; Mänd, M. Fatal attraction: Search for a dead-end trap crop for the pollen beetle (Meligethes aeneus). Arthropod Plant Interact. 2014, 8, 373–381. [Google Scholar] [CrossRef]
  27. Koike, S.T.; Gladders, P.; Paulus, A.O. Vegetable Diseases: A Colour Handbook; Academic Press is An Imprint of Elsevier: Boston, MA, USA, 2007; p. 448. [Google Scholar]
  28. Lancashire, P.D.; Bleiholder, H.; Boom, T.V.D.; Langelüddeke, P.; Stauss, R.; Weber, E.; Witzenberger, A. A uniform decimal code for growth stages of crops and weeds. Ann. Appl. Biol. 1991, 119, 561–601. [Google Scholar] [CrossRef]
  29. EPPO Bulletin. Efficacy Evaluation of Fungicides: Root, Stem, Foliar and Pod Diseases of Rape; EPPO Bulletin: Hoboken, NJ, USA, 2003; Volume 33, pp. 25–32. [Google Scholar]
  30. Shaner, G.; Finney, R.E. The effect of nitrogen fertilization on the expression of slow-mildewing resistance in Knox wheat. Phytopathology 1977, 67, 1051–1056. [Google Scholar] [CrossRef] [Green Version]
  31. Shrestha, S.K.; Munk, L.; Mathur, S.B. Role of weather on Alternaria Leaf Blight Disease and its effect on Yield and Yield Components of Mustard. Nepal Agric. Res. J. 2005, 6, 62–72. [Google Scholar] [CrossRef] [Green Version]
  32. Humpherson-Jones, F.M.; Phelps, K. Climatic factors influencing spore production in Alternaria brassicae and Alternaria brassicola. Ann. Appl. Biol. 1989, 114, 449–458. [Google Scholar] [CrossRef]
  33. Al-Lami, H.F.; You, M.P.; Barbetti, M.J. Temperature drives contrasting Alternaria leaf spot epidemic development in canola and mustard rape from Altenaria japonica and A. brassicae. Plant Dis. 2020, 104, 1668–1674. [Google Scholar] [CrossRef]
  34. Kumari, P.; Singh, K.P.; Bisht, D.; Kumar, S. Somatic hybrids of Sinapis alba + Brassica juncea: Study of backcross progenies for morphological variations, chromosome constitution and reaction to Alternaria brassicae. Euphytica 2020, 216, 4–14. [Google Scholar] [CrossRef]
  35. Kumari, P.; Bisht, D.S.; Bhat, S.R. Stable, fertile somatic hybrids between Sinapis alba and Brassica juncea- show resistance to Alternaria brassicae and heat stress. Plant Cell Tissue Organ Cult. 2017, 133, 77–86. [Google Scholar] [CrossRef]
  36. Da Silva, N.M.P.; Aucique-Perez, C.E.; Silva, A.L.; Barreto, R.W. Alternaria brassicae causes leaf spots on Eruca sativa in Brazil. Australas. Plant Dis. Notes 2020, 15, 23. [Google Scholar] [CrossRef]
  37. Nowakowska, M.; Wrzesińska, M.; Kamiński, P.; Szczechura, W.; Lichocka, M.; Tartanus, M.; Kozik, E.U.; Nowicki, M. Alternaria brassicicola—Brassicaceae pathosystem: Insights into the infection process and resistance mechanisms under optimized artificial bio-assay. Eur. J. Plant Pathol. 2019, 153, 131–151. [Google Scholar] [CrossRef] [Green Version]
  38. Macioszek, V.K.; Wielanek, M.; Morkunas, I.; Ciereszko, I.; Kononowicz, A.K. Leaf position-dependent effect of Alternaria brassicicola development on host cell death, photosynthesis and secondary metabolites in Brassica juncea. Physiol. Plant. 2020, 168, 601–616. [Google Scholar] [CrossRef] [PubMed]
  39. Mathpal, P.; Punetha, H.; Tewari, A.K.; Agrawal, S. Biochemical defense mechanism in rapeseed-mustard genotypes against Alternaria blight disease. J. Oilseed Brassica 2011, 2, 87–94. [Google Scholar]
  40. Runno-Paurson, E.; Loit, K.; Hansen, M.; Tein, B.; Williams, I.H.; Mänd, M. Early blight destroys potato foliage in the northern Baltic region. Acta Agric. Scand. B Soil Plant Sci. 2015, 65, 422–432. [Google Scholar] [CrossRef]
  41. Kim, S.; Sinclair, V.A.; Räisänen, J.; Ruuhela, R. Heat waves in Finland: Present and projected summertime extreme temperatures and their associated circulation patterns. Int. J. Clim. 2018, 38, 1393–1408. [Google Scholar] [CrossRef]
  42. Lakson, M.; Post, P.; Sepp, M. The Impact of Atmospheric Circulation on Air Temperature Rise in Estonia. Front. Earth Sci. 2019, 7, 131. [Google Scholar] [CrossRef]
  43. Kumari, P.; Singh, K.P.; Rai, P.K. Draft genome of multiple resistance donor plant Sinapis alba: An insight into SSRs, annotations and phylogenetics. PLoS ONE 2020, 15, e0231002. [Google Scholar] [CrossRef] [Green Version]
  44. Runno-Paurson, E.; Eremeev, V.; Tõrra, T.; Niinemets, Ü.; Lääniste, P. Optimization of Cultivation Technologies for Industrial Hemp (Cannabis sativa cv. Finola); Tupits, I., Tamm, S., Tamm, Ü., Toe, A., Eds.; Agronomy: Tartu, Estonia, 2019; pp. 96–103. (In Estonian) [Google Scholar]
  45. Waterer, J.G.; Vessey, J.; Stobbe, E.H.; Soper, R.J. Yield and symbiotic nitrogen fixation in a pea-mustard intercrop as influenced by N fertilizer addition. Soil Biol. Biochem. 1994, 26, 447–453. [Google Scholar] [CrossRef]
Applsci 11 08507 sch001 550

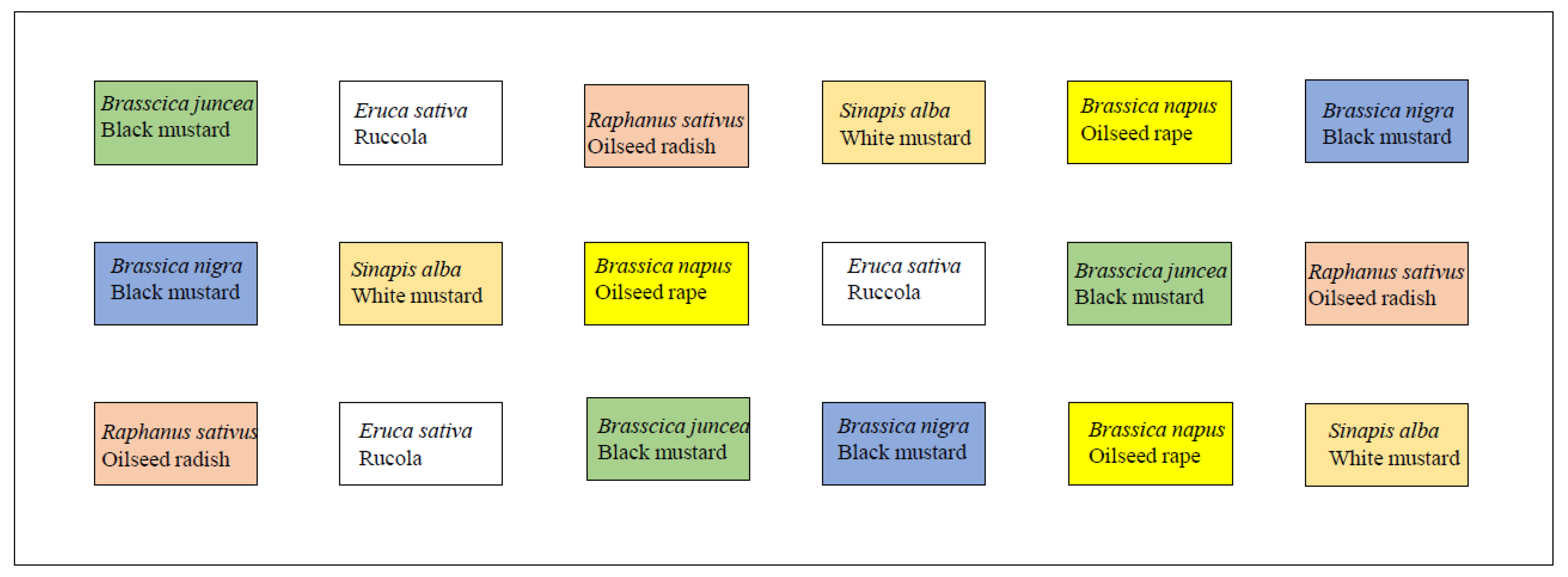

Scheme 1. Field experimental layout with six different cruciferous oilseed crops in both study years (2010 and 2011). The individual plot size was 1 m × 5 m and the distance between the trial plots from each other, as well the width of field edges was 1 m.
Scheme 1. Field experimental layout with six different cruciferous oilseed crops in both study years (2010 and 2011). The individual plot size was 1 m × 5 m and the distance between the trial plots from each other, as well the width of field edges was 1 m.
Applsci 11 08507 sch001
Applsci 11 08507 g001 550

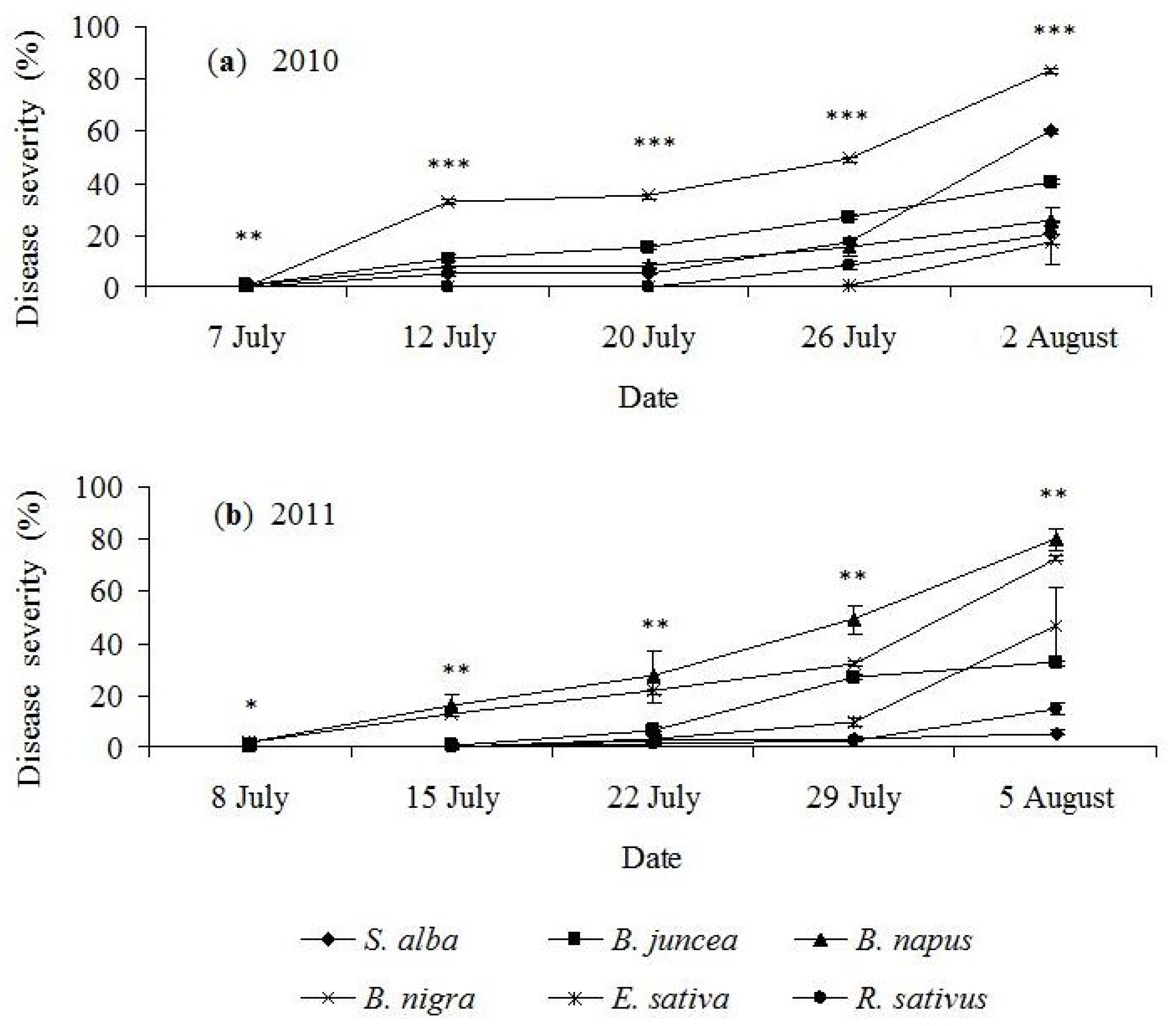

Figure 1. Development and Alternaria black spot (A. brassicae) severity (mean ± SE, %) on six different cruciferous oilseed crops in 2010 (a) and 2011 (b). The growing season of 2010 during the disease observations was hotter (22.2 °C for the period 1 July–10 August) than the growing season of 2011 (18.9 °C for the period 1 July–10 August). The asterisks demonstrate the significance of the species effect at p < 0.05 (*); p < 0.01 (**); and p < 0.001 (***).
Figure 1. Development and Alternaria black spot (A. brassicae) severity (mean ± SE, %) on six different cruciferous oilseed crops in 2010 (a) and 2011 (b). The growing season of 2010 during the disease observations was hotter (22.2 °C for the period 1 July–10 August) than the growing season of 2011 (18.9 °C for the period 1 July–10 August). The asterisks demonstrate the significance of the species effect at p < 0.05 (*); p < 0.01 (**); and p < 0.001 (***).
Applsci 11 08507 g001
Applsci 11 08507 g002 550

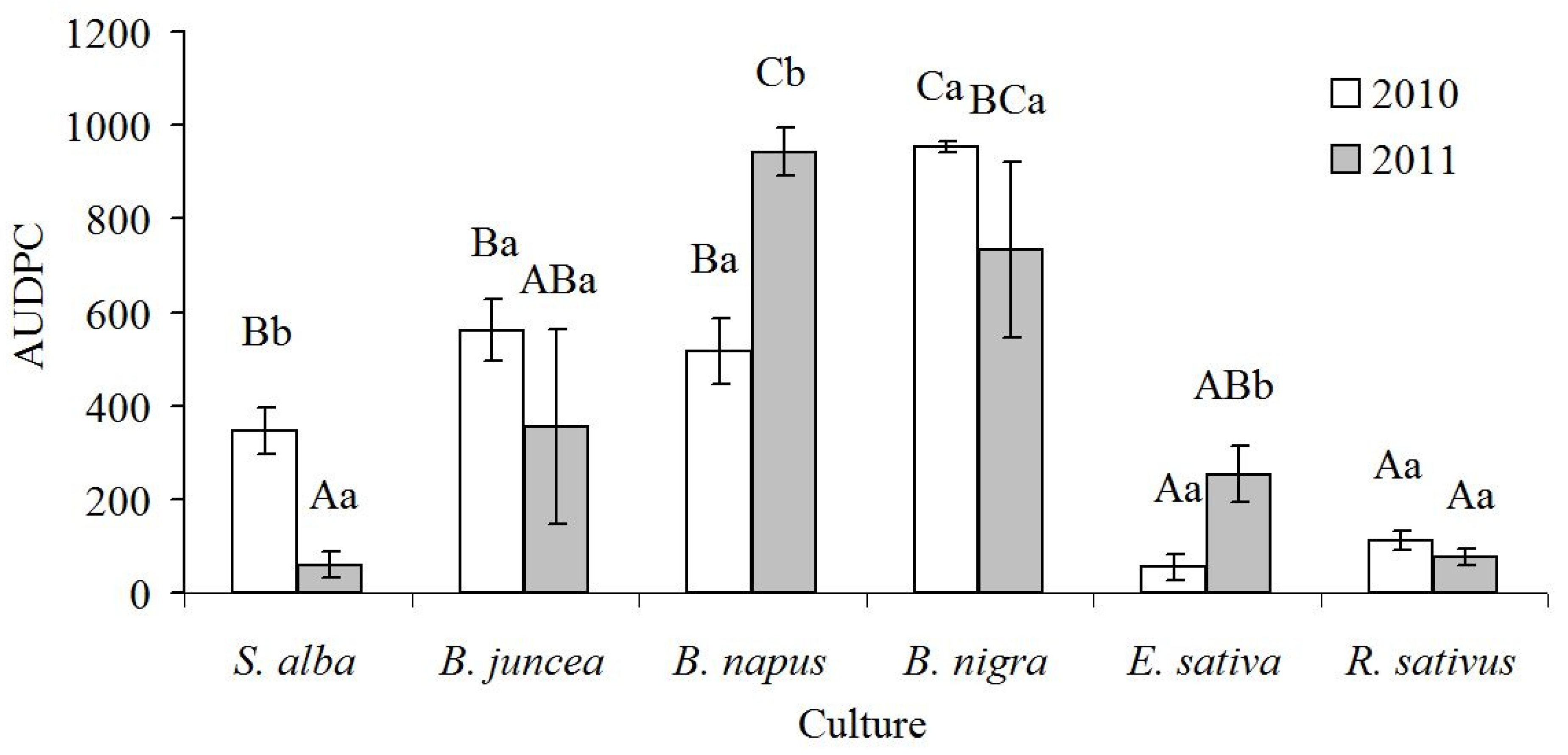

Figure 2. Mean area under the disease progress curve (AUDPC) values of Alternaria black spot (A. brassicae) infection in different cruciferous oilseed crops in the two study years. Error bars denote the standard error of the means. Means followed by different capital letters above each bar indicate a significant influence (p < 0.05) of cruciferous oilseed crop species in different years (Tukey HSD test). Means followed by different lowercase letters above each bar indicate a significant influence (p < 0.05) of year (Tukey HSD test).
Figure 2. Mean area under the disease progress curve (AUDPC) values of Alternaria black spot (A. brassicae) infection in different cruciferous oilseed crops in the two study years. Error bars denote the standard error of the means. Means followed by different capital letters above each bar indicate a significant influence (p < 0.05) of cruciferous oilseed crop species in different years (Tukey HSD test). Means followed by different lowercase letters above each bar indicate a significant influence (p < 0.05) of year (Tukey HSD test).
Applsci 11 08507 g002
Applsci 11 08507 g003 550

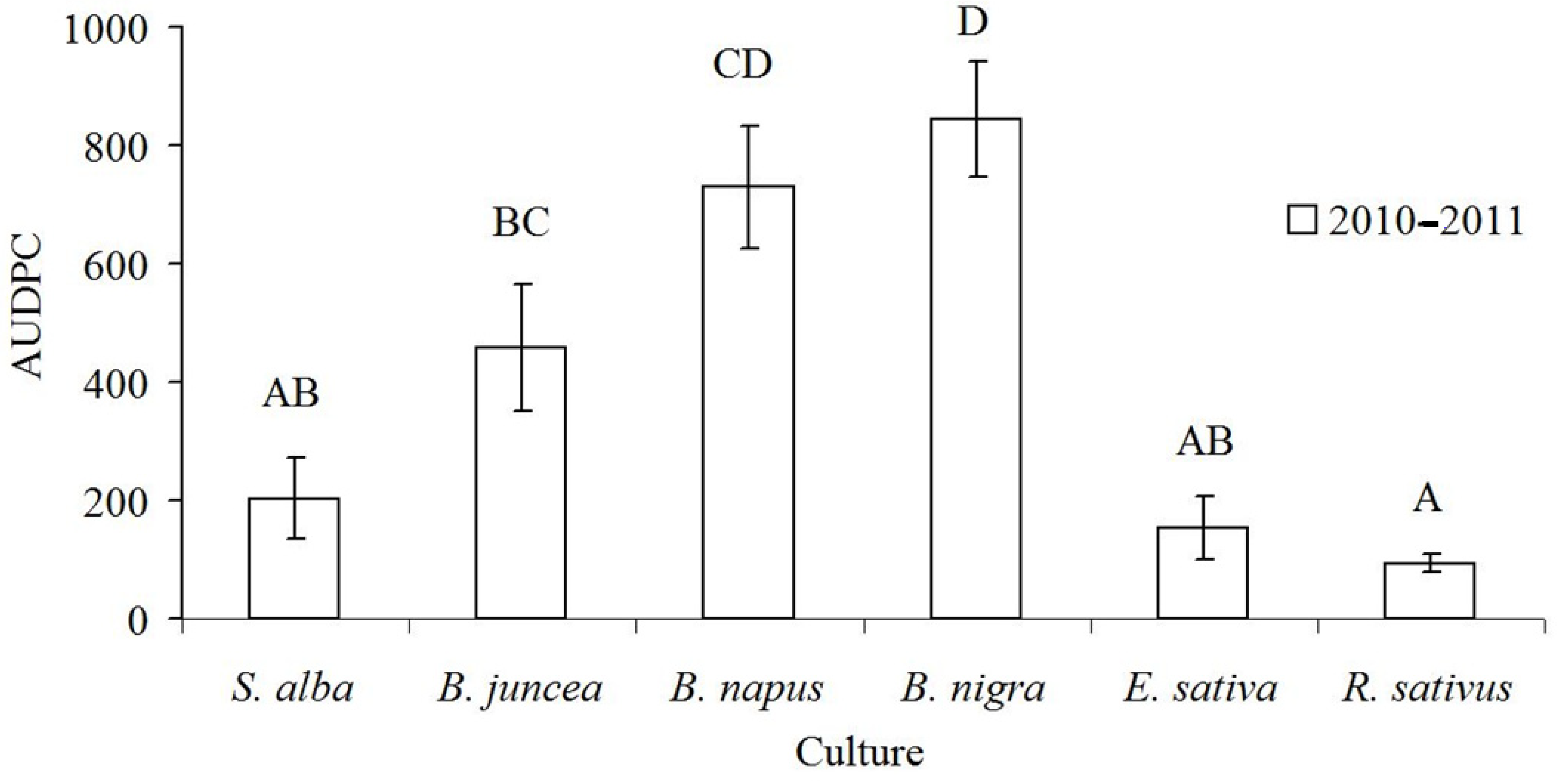

Figure 3. Mean area under the disease progress curve (AUDPC) of Alternaria black spot (A. brassicae) infection in different cruciferous oilseed crops (averages for the two study years). Error bars denote the standard error of the means. Means followed by different capital letters (A–D) above each bar indicate a significant influence (p < 0.05) of cruciferous oilseed crop species (Tukey HSD test).
Figure 3. Mean area under the disease progress curve (AUDPC) of Alternaria black spot (A. brassicae) infection in different cruciferous oilseed crops (averages for the two study years). Error bars denote the standard error of the means. Means followed by different capital letters (A–D) above each bar indicate a significant influence (p < 0.05) of cruciferous oilseed crop species (Tukey HSD test).
Applsci 11 08507 g003
Table
Table 1. Growth stages (GS) of studied cruciferous species at each observation date in 2010.
Table 1. Growth stages (GS) of studied cruciferous species at each observation date in 2010.
SpeciesDate of Disease Evaluation
7 July12 July20 July26 July2 August
Brassica napus65–68 168–7172–7577–7979–81
Oilseed rape ‘Maskot’
Brassica nigra68–7071–7275–7778–8081–83
Black mustard
Brassica juncea69–7071–7270–7980–8586–88
Mustard green ‘Jadrjonaja’
Eruca sativa57–6363–6659–6668–7171–73
Rucola ‘Poker’
Raphanus sativus55–6358–6564–6969–7070–73
Oilseed radish ‘Bille’
Sinapis alba72–7472–7475–7979–8183–86
White mustard ‘Branco’
1 Growth stages using the BBCH scale according to Lancashire et al. (1991) [29]: 55–59 (inflorescence emergence), 60–69 (flowering), 70–79 (development of pods), 80–89 (ripening).
Table
Table 2. Growth stages (GS) of studied cruciferous species at each observation date in 2011.
Table 2. Growth stages (GS) of studied cruciferous species at each observation date in 2011.
SpeciesDate of Disease Evaluation
8 July15 July22 July29 July5 August
Brassica napus68–70 171–7272–7475–7778–81
Oilseed rape ‘Maskot’
Brassica nigra71–7272–7475–7778–8182–85
Black mustard
Brassica juncea71–7273–7475–7778–8486–89
Mustard green ‘Jadrjonaja’
Eruca sativa65–6768–6971–7272–7373–74
Rucola ‘Poker’
Raphanus sativus67–6871–7373–7577–8080–83
Oilseed radish ‘Bille’
Sinapis alba73–7473–7475–7777–8283–87
White mustard ‘Branco’
1 Growth stages using the BBCH scale according to Lancashire et al. (1991) [29]: 55–59 (inflorescence emergence), 60–69 (flowering), 70–79 (development of pods), 80–89 (ripening).
Table
Table 3. Average monthly temperature (°C), precipitation (mm) and relative humidity (%) in Eerika experimental field during the vegetation period and the corresponding long-term averages (1964–2011).
Table 3. Average monthly temperature (°C), precipitation (mm) and relative humidity (%) in Eerika experimental field during the vegetation period and the corresponding long-term averages (1964–2011).
MonthTen-Day PeriodTemperature (°C)Rainfall (mm)Relative Humidity (%)
201020111964–2011201020111964–2011201020111964–2011
I 17.88.09.736.20.212.976.056.165.5
MayII17.311.811.410.446.620.970.573.366.3
III12.813.012.814.811.622.871.167.866.9
I13.619.714.925.80.020.972.254.467.5
JuneII14.015.915.18.624.826.971.569.770.9
III16.116.216.238.210.428.071.970.172.9
I20.220.017.310.69.219.369.572.672.9
JulyII23.318.617.48.030.424.865.770.274.7
III23.021.017.817.48.626.569.572.475.8
AugustI21.416.117.613.416.233.375.466.276.3
May–AugustI–III16.916.014.6183.4158.0236.371.367.371.0
1 Period of 10 days.
Table
Table 4. Impact of study year and species and their interaction on Alternaria black spot (A. brassicae) AUDPC values according to a two-way ANOVA.
Table 4. Impact of study year and species and their interaction on Alternaria black spot (A. brassicae) AUDPC values according to a two-way ANOVA.
FactorBlack Spot Disease
Year (Y)F1,24 = 0.16; p = 0.70
Crop species (C)F5,24 = 24.29; p < 0.001 *
Y × CF5,24 = 4.77; p < 0.01 *
*—p < 0.05.
