Energy Efficiency of Inland Waterways Transport for Agriculture: The Ukraine Case Study

Abstract

In Ukraine, there has been an increase in agricultural production. The availability of river basins and seaports contributes to the use of inland shipping. However, there is a lack of understanding of how to reduce the energy consumption of inland shipping. We assume the hypothesis that the energy efficiency of inland shipping is much higher than it is technically possible. The purpose of this study is to identify perspective energy-saving technologies for IWT. We use statistical information to determine the export potential and to reveal the status of inland navigation. Traction efficiency, theoretical and actual specific fuel consumption were used as indicators to determine the energy efficiency. The main results are as follows. We have found the grain and sunflower seed production in the Dnieper Basin (Ukraine). Their shares range from 34.75 to 50.92% of national production. Therefore, there is a significant flow of products for inland shipping. The present status of inland waterways transport has been analyzed. The main novelty of this study is the finding of actual and theoretical technical specific energy consumption. It is revealed that actual specific energy consumption is five times higher compared to the theoretical one. Self-propelled vessels are inferior in energy efficiency to towing barges. The energy efficiency of inland waterways transport has been compared to railways and road freight transport. Transport management was identified as the more effective tool to improve the energy efficiency of inland shipping.

1. Introduction

The Government of Ukraine has developed some programs to increase the production of grain. The first program was developed in 1998. It set a goal to reach 50 million tons by 2005 [1]. According to The Grain of Ukraine Program—2015, Ukrainian farmers are expected to harvest 80 million tons by 2017. Some experts estimate the grain potential up to 100 million tons [2]. Moreover, Ukraine is ranked first in sunflower oil production. Since 2008 Ukraine has harvested more than 50 million tons [3,4]. At the same time, domestic consumption does not exceed 27 million tons per year. Thus, the country has significant export potential. To implement this potential, it is necessary to create appropriate conditions, including a developed export infrastructure. Furthermore, transport is its integral part.

A significant share of agricultural crop products is exported, which requires transportation from the fields to seaports. Oversea shipping provides trade in agricultural products between countries and continents. The international seaborne trade has been increasing over the last decades. Further, one of its important problems is the determining of optimal serviced ports [5]. The coordination between inland transportation and maritime transportation is considered by Qi et al. [6]. They showed that the optimal ship schedule depends on cargo arrival patterns, storage cost, and the bunker price.

To hold competitive positions and avoid financial losses, shipping companies have to improve the efficiency of their vessel schedules. The vessel scheduling problem was studied by Dulebenets [7]. His results demonstrate that optimization between shipping companies and terminal operators may significantly reduce the production costs of transportation. Vessel schedules are found to be sensitive to fuel prices.

The current practice confirms the advisability to deploy a combination of ships of different types with different carrying capacities (a so-called heterogeneous fleet). It is a common practice for the shipment of agricultural products. Wand et al. [8] studied scheduling problems for a fleet of heterogeneous vessels in a shipping route. They found that a heterogeneous fleet can reduce the total cost by 5% compared to a homogeneous fleet. However, heterogeneous fleets have been investigated by very few studies [9].

There are some transportation modes such as roads, railways, and inland waterway transport (IWT). This transportation is currently carried out mainly by trucks. This fact leads to increased energy consumption, cost, and reduced profitability [10]. Growth of transportation increases in harmful impacts on the environment. Road transport is the most polluting one. Harmful emissions cause external costs, and consumers must cover them. Therefore, there is a problem in reducing energy consumption, harmful emissions, and the cost of transport operations. To solve the above problems, inland waterways transport should be used [11,12]. This transportation mode is low-cost and environmentally friendly [11,12].

Connecting seaports with agricultural producers using IWT infrastructure may become a competitive advantage for farmers and ports [13]. The sustainable development of seaports and IWT infrastructure are important elements of economic policy [14].

2. Literature Review

Many scientists have studied the problems of reducing energy consumption and operating costs of products transportation. The inland waterway transport is a spotlight of many studies. Biswas was a pioneer in studying the use of IWT for the transportation of agricultural products [15]. Ivanchenko et al. [16] analyzed the regulation of curbing harmful emissions for river and sea vessels which depend on energy efficiency too. Yerofeev V.L. and Yerofeeva E.V. [17] considered the prospects of improving energy efficiency. Furfari [18] studied the energy efficiency of engines for transport. There are scientific works devoted to the assessment of the use of different types of fuels, including alternative ones [19,20,21]. It is noteworthy that agricultural residues can be used as an energy resource [22]. Song et al. [23] investigated energy consumption and energy efficiency of the transportation sector in Shanghai. Van Lier and Macharis [24] recommended applying a life-cycle analysis (LCA) to assess the environmental impact of IWT. Jonkeren et al. [25] presented a tool that can be used to evaluate how IWT contributes to energy and carbon dioxide saving. The NAIADES (Navigation and Inland Waterway Action and Development in Europe) action program aims at enhancing the quality of IWT. The further integration of IWT in the supply chains studied by Caris et al. [26]. A concept of freight trains for the Dnieper, Black Sea, and the Danube has been developed [27]. The historical stages and problems of the inland waterways transport in Ukraine have been analyzed by Pidlisnyi [28].

IWT is a link in the export transport chain of agricultural products: agricultural production → road transport → IWT → maritime transportation → consumers. Its energy efficiency directly affects the cost of transportation and, consequently, the competitiveness of farmers. However, at present, more attention is paid to economic indicators, and the energy component has not been studied enough. Currently, there is a lack of studies devoted to comparing the actual and theoretically possible energy efficiency of IWT. This information is of importance for the correct identification of promising energy-saving technologies. Some issues of determining innovative ways to reduce the energy intensity of product transportation need further research. We have put forward a hypothesis that the energy efficiency of IWT is far apart from a technically possible value. The novelty of this study is the evaluation of the difference between the actual and technically achievable energy efficiency and, on this base, the choosing prospect ways to improve this energy indicator.

Therefore, the purpose of this study is to determine energy efficiency of IWT and to identify perspective energy-saving technologies for IWT. Objectives are as follows: to determine the export potential of agricultural products (grain and sunflower oil) in the Dnieper Basin; to analyze the energy efficiency of inland waterway transportation (potential and actual); to reveal the prospective way for energy saving.

3. Materials and Methods

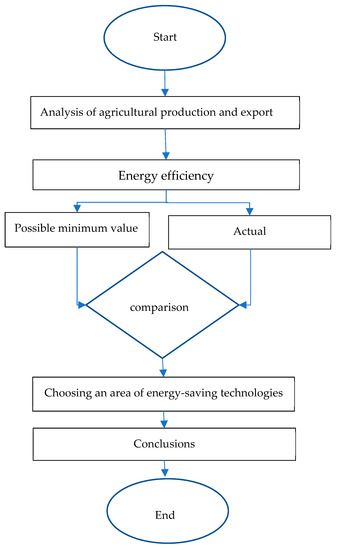

According to Yin [29], this case study research includes the formulation of a hypothesis, the collection of necessary data, its analysis, and the drawing of conclusions. Thus, a case study comprises four steps (Figure 1). A flowchart identifying the different stages in the research methodology is presented in Figure 2.

To achieve the purpose of this study, the research field has to be determined. Different foci such as geographical, temporal, material, and modal are considered. Geographically (where?), we focus on the area along the Dnieper Basin. This is the main waterway of Ukraine. The temporal focus looks for an answer to the question “when?”. The IWT is outlined up to its current state. We also focus on the future. As to the material focus, we investigate the energy efficiency of IWT. Further, and finally the modal focus (How?)—we use a number of indicators such as traction efficiency, specific energy consumption, actual energy consumption.

This study begins by identifying the export potential of the regions that are located in the Dnieper Basin. This step is necessary to determine the volume of shipments to seaports, and consequently, the potential volume of inland waterways transportation. That is why the market potential for inland shipping for the Dnieper basin is estimated. We used official statistical information to determine grain and sunflower seed production history, their export history. This information allows us to find the export potential of regions located in the Dnieper Basin. Based on statistical data, the current status of IWT as a transport facility for agricultural products is determined.

Energy efficiency is determined for road, railway, and IWT. To compare different kinds of transport, we used such indicators as specific energy consumption, traction efficiency, and actual specific energy consumption. Railway, road, and IWT specific energy consumption are combined with tkm data, allowing the calculation of energy intensities for freight activity. Data from the specification of transport means (self-propelled vessels, barges, tugs, and pushers) are taken to determine the energy indicators from the specification. To find actual energy consumption, statistical yearbooks are used (carriage of goods and consumption of fuels). When transport companies do not report any energy consumption, we calculated this indicator using technical data of transport facilities. Actual specific energy consumption is the total energy consumption to the carriage of goods:

$$AEC={\displaystyle \sum _{i=1}^n\left(E{C}_i\right)}\cdot OE\cdot AC{G}^{-1}, \mathrm{kJ}/\mathrm{tkm},$$

(1)

where OE is the oil equivalent, OE = 41,800 kJ/kg; ACG is the carriage of goods tkm; EC_i is the fuel consumption of ith kind, kg of oil equivalent.

Theoretical minimum specific energy consumption (loaded voyage) is:

$$SECT=LF\cdot RP\cdot be\cdot LHV\cdot {\left(LC\cdot v\right)}^{-1}, \mathrm{kJ}/\mathrm{tkm},$$

(2)

where LC is the cargo capacity, t; LF is the load factor; RP is the rated power, kW; be is the specific fuel consumption, kg/kWh; LHV is the lower heating value of fuel, kJ/kg; v is the speed, km/h.

Traction efficiency can be found as cargo carried to a rated power ratio:

$$CCPR=LC\cdot R{P}^{-1}, \mathrm{t}/\mathrm{kW}.$$

(3)

4. Results and Discussion

4.1. Grain and Sunflower Oil Export Potential

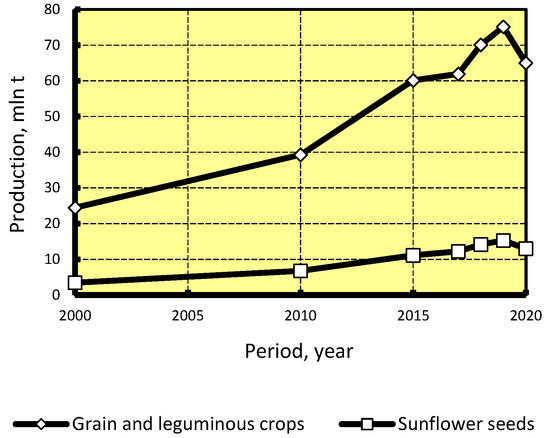

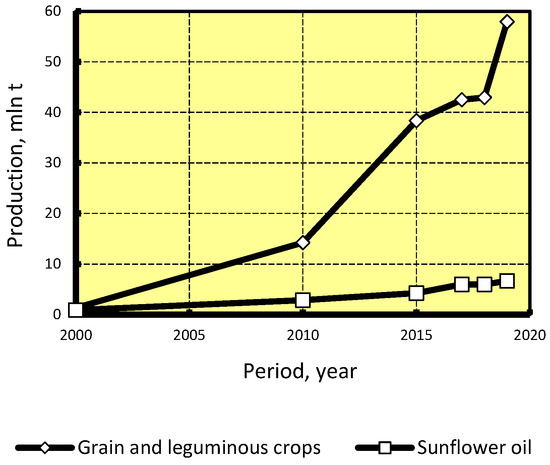

Production of primary agricultural products (grain and sunflower seeds) is increasing. It results in growing their export (Figure 3 and Figure 4) [3,4]. Ukraine is a significant player in the international market of agricultural products. In the 2019–2020 marketing year, Ukraine ranked first in sunflower oil imports and second in grain imports [30]. Asia, Africa, and Europe are major consumers of Ukrainian grain. In 2020, China and Egypt held top positions in the rating of the largest importers [31]. Most of the grain and sunflower oil are delivered to consumers by water transport.

Cherkasy, Dnipropetrovsk, Kyiv, Kherson, Mykolaiv, Poltava, and Zaporizhzhya regions are located in the Dnieper Basin. They produce a significant value of the above products (

Table 1. Modal split of agricultural products, million t.

Item	2000	2010	2015	2017	2018	2019	2000	2010	2015	2017	2018	2019
	Grain and Leguminous Crops						Sunflower Seeds
Ukraine	24.46	39.27	60.13	61.92	70.06	75.14	3.46	6.77	11.12	12.24	14.17	15.25
Regions
Dnipropetrovsk	1.57	2.71	3.87	3.58	3.49	4.29	0.45	0.86	1.20	1.20	1.28	1.45
Zaporizhzhya	1.15	1.91	2.73	2.91	2.23	3.34	0.44	0.76	0.96	0.87	0.72	1.02
Kyiv	1.43	2.00	2.82	2.65	4.08	4.22	0.03	0.12	0.29	0.40	0.51	0.51
Mykolaiv	0.92	2.20	2.90	2.67	2.67	3.14	0.25	0.59	0.94	0.88	1.09	1.06
Poltava	1.41	2.86	5.36	4.24	6.34	6.12	0.20	0.47	0.85	0.73	0.94	0.98
Kherson	1.12	1.51	2.62	2.55	2.27	2.74	0.15	0.36	0.49	0.50	0.55	0.64
Cherkasy	1.59	2.53	3.75	2.93	4.64	4.56	0.11	0.30	0.54	0.50	0.64	0.67
Sum	9.19	15.72	24.04	21.52	25.73	28.40	1.63	3.45	5.27	5.07	5.73	6.33
Fraction, %	37.57	40.03	39.98	34.75	36.72	37.79	47.22	50.92	47.36	41.47	40.47	41.52

) [3,4]. Their share is within the range: grain and leguminous crops from 34.75 to 40.03%; sunflower seeds from 40.47 to 50.92%. They can be transported by inland waterways transport. These regions are favorable for export of agricultural products. The export of grain and sunflower oil may exceed 60 million tons (Figure 1). Thus, the export potential of the above regions reaches around 35 million tons (Table 1).

4.2. Inland Waterways Transportation: Present Status

At present, railway transport is the most widely used. A significant part of the cargo is transported by road (

Table 2. Transportation of grain, million t.

Transport	2015	2016	2017	2018	2019
Road	14.71	15.74	17.61	16.70	24.37
Railway	29	32	37	34	40
IWT	0.561	0.491	0.377	0.419	0.461

) [32]. The principal reasons are economic problems. The cost structure of typical cabotage transportation under the Ukrainian flag includes, for example, the rent for the use of water resources. There are no such taxes in America or Europe. The excise tax on fuel is also taken into account. Today foreign fleet, which enters the internal territorial waters of Ukraine, does not pay the excise tax on fuel and purchases fuel cheaper than the Ukrainian fleet. At the same time, the Government of Ukraine has raised the fee for passing ships through locks and railway bridges by three times [33].

Large reserves of energy savings for transportation are the use of more economical inland waterway transport. The experience of many countries shows that the cost of water transport is almost four times cheaper than railway and road transport [10].

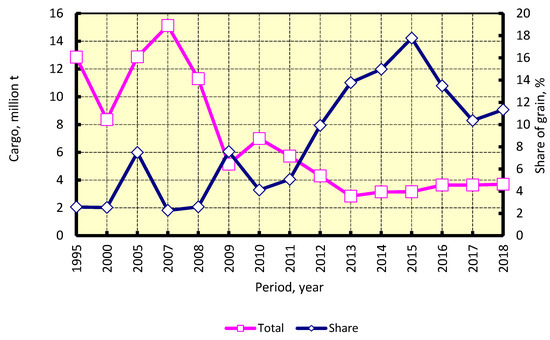

Some regions of Ukraine are located in the Dnieper Basin (Mykolaiv, Kherson, Dnipropetrovsk, Zaporizhzhya, Kyiv, Poltava, and Cherkasy). Mykolaiv and Kherson regions have access to the Black Sea and, accordingly, seaports. Moreover, Ukraine has access to the Danube River system (Odesa region). The use of waterways of the Dnieper transport hub will reduce the cost of logistics and unload highways. Inland shipping can carry a significant part of this export flow, which will reduce transport costs. However, IWT currently transports approximately 4 million tons (Figure 5) [34].

For many years, no river dredging works have been carried out in Ukraine. Ukraine has obligations to the international community to maintain the depth along the waterway from the mouth of the Dnieper River to Kyiv at the level of 3.65 m. Today, in some sections of this route, the depth is 2.9 m. Therefore, today all agreements on the transit of goods from Belarus, the Baltic states to the ports of Odesa, Mykolaiv, and Ochakiv are impossible without dredging. This situation leads to the fact that the workload of ships does not exceed 65% [33]. Currently, the river fleet began to be restored. One of the largest national agricultural producers is JV Nibulon LLC. This company plans to restore the Dnieper transport hub. Since 2009, JV Nibulon LLC has built 24 tugs and pushers, 48 barges, etc. The company’s fleet includes 85 vessels with a total load capacity of more than 195 thousand tons [35]. It can transport agricultural products by such rivers as Southern Bug, Dnieper, Danube, etc., and in the coastal zone of the Black Sea. In addition, JV Nibulon LLC builds elevators and river terminals. Restoring river navigation will allow agricultural producers of Dnipropetrovsk, Zaporizhzhya, Kyiv, Poltava, and Cherkasy regions to export their products on more favorable terms with lower transport costs.

National costs on water transport infrastructure are relatively cheap. The investment costs for road transport (road construction and maintenance) are relatively low. Thus, it kind of transport is the most attractive (in terms of capital investment). However, infrastructural and external costs are EUR 40/(1000 tkm). Railway transport has the highest infrastructural and external costs of EUR (68–71)/(1000 tkm). Inland waterways transport is the most attractive. The same indicator for IWT is equal to EUR 24/(1000 tkm) [36]. Thus, if a country has waterways, it should pay attention to inland shipping. For comparison, infrastructure and external costs in the European Union are as follows, EUR/(1000 tkm): road transport—from 28 to 77; railway transport—from 41 to 211; IWT—from 19 to 38 [37,38].

IWT has low transport costs. Its average values vary from USD 0.011/tkm to USD 0.027/tkm. The same indicator for road transport is around USD 0.24/tkm. Railways are between them, and their average transport costs are from USD 0.015/tkm to USD 0.018/tkm [36]. In the European Union, transport costs have the same trend. For road freight, this indicator ranges from EUR 0.0572/tkm to EUR 0.142/tkm. It depends on load capacity and distance of transportation. Railway transport has a wider range: from EUR 0.02882/tkm to EUR 0.164/tkm. As to inland shipping, the unit of transport costs depend on the distance of transportation, the vessel draft, and the type of return voyage (empty return or loaded return). For empty return voyage, transport costs are within the range from EUR 0.0241/tkm to EUR 0.0515/tkm. For loaded return voyage, this indicator decreases and ranges from EUR 0.0167/tkm to EUR 0.0344/tkm [10].

4.3. Energy Efficiency: Possible Minimum Value

Supply chains of agricultural products comprise road transport, IWT, and maritime transport. Road transport delivers products from farmers to river terminals or elevators. Its distances of haulage are relatively short. In many cases, they do not exceed 50 km [39]. IWT supplies seaports. Its distances can be up to some hundred kilometers. Further, marine ships deliver agricultural products to end consumers. In this study, we analyze only IWT.

Transportation increases the costs of agricultural products and energy consumption due to the additional fuel consumption. Some characteristics of trucks are given in

Table 3. Characteristics of selected trucks (road grain carriers).

Make	Engine Rated Power, kW	Load Capacity, t	Cargo Carried to a Rated Power Ratio, t/kW	Fuel Economy, L/100 km	Specific Fuel Consumption, L/(1000 tkm)
HOWO ZZ3327N4347C	246.96	30	0.121	36	12.00
KamAZ 6520-10	374.85	20	0.080	39	19.50
KamAZ 53229	235.20	14	0.085	36	25.71
FORD 3535D	176.40	22	0.079	32	14.55
KrAZ 6230C4	220.50	18	0.100	35	19.44
KraAZ 65055-073-02	242.55	18	0.074	33	18.33
MAZ 5516A8-336	243.00	20	0.074	37	18.50
HOWO ZZ3317N3867C1	294.00	40	0.068	48	12.00
MAN TGX 33.480 BB-WW	275.63	50	0.145	55	11.00

[40,41]. The fuel economy depends on the truck make, trailers, cargo class, condition of roads, load factor, driver qualifications, etc. This indicator varies from 0.011 to 0.025 l/tkm. Traction efficiency or cargo carried to a rated power ratio is calculated by Formula (3).

To reduce energy intensity, both organizational and technical measures can be applied. Organization measures include the use of road trains (reduction of fuel consumption by 20…25%), maintaining the proper technical condition of equipment, training of drivers, etc. Technical measures should include, first of all, the use of modern commercial vehicles. Adoption of relevant state standards will also contribute to this. Thus, in the United States, these measures have reduced the cost of road transportation per unit of mileage [42].

IWT uses dry cargo vessels, tankers, barges, tugs, etc. Barges with a carrying capacity of up to 9.2 thousand tons are used to transport goods by rivers. They can be combined into trains carrying up to 40 thousand tons of cargo. Pusher tugs are used to move them. Their main characteristics are given in

Table 4. Characteristics of river fleet.

Type of Vessel	Project	Rated Power on Main Engines, kW	Cargo Capacity, t	Cargo Carried to a Rated Power Ratio, t/kW
Dry cargo self-propelled vessels	RSD44	2400	5698	2.37
	RSD06	1470	4492	3.06
	RSD11	1766	4434	2.51
	RSD49	2400	4505	1.88
	RSD59	2400	5320	2.22
Pushers and Tugs	121	882.0	6000	6.80
	T410	367.5	3000	8.16
	81340	110.0	1300	11.82
	81200	544.0	8000	14.71
	P153	1100.0	15,000	13.64
	947	1837.5	20,000	10.88
	81170	441.0	5000	11.34

[43,44,45].

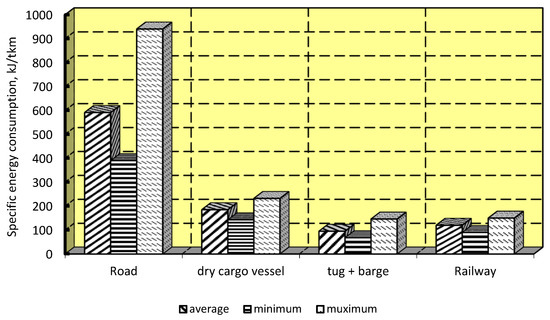

Pushers with barges have the lowest theoretical energy consumption per freight tkm (Figure 6). We used our calculations and data from the International Energy Agency and the International Union of Railways [46]. We used Formula (2) to calculate the specific energy consumption.

Traction efficiency of IWT is higher compared to road transport (Table 3 and Table 4) and railways. Electric trains have the traction efficiency within the range from 0.68 to 1.35 [47]. Specific energy consumption of IWT is lower compared to road transport (Figure 4). The use of barges (and, accordingly, pushers) with a capacity of more than 3 thousand tons reduces fuel consumption and the costs of waterway transportation.

4.4. Actual Energy Efficiency

In 2018, transport by sectors consumed energy, thousand ton of oil equivalent: road—7267; railway—603; IWT—39 [32]. In the same year, freight transport operations were equal to, million tkm: road—65; railway—181.8; IWT—1.6 [48]. The actual specific energy consumptions were equal, kJ/tkm: road—4673.2; railway—138.64; IWT—1018.9. To determine the above, Formula (1) is used. Actual specific energy consumptions of Ukrainian transport systems exceed theoretical values (Figure 6) and similar indicators for European countries (Figure 7) [10,49]. Ukrainian railway has better specific energy consumption compared to European Union countries. It is a result of the fact that it has a higher load factor.

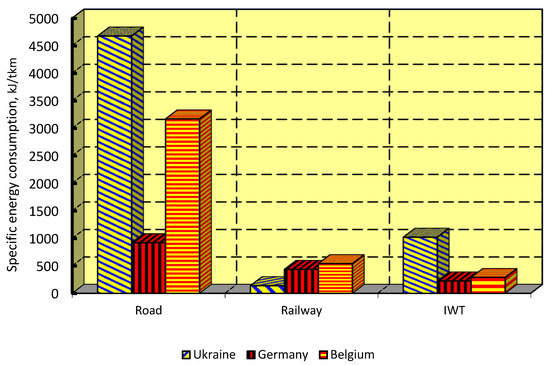

According to the data of the Royal Commission for Environmental Contamination Monitoring (Great Britain), the specific consumption of energy according to the transport mode is as follows, kJ/tkm: road—2890; railway—677; river—423 [50]. As can be seen, inland waterway transport is 1.6 times more efficient than railway transportation and seven times than road transport. Its energy efficiency is closer to Ukrainian than Germany or Belgium. Radmilović and Dragović studied the traction efficiency of transportation means. They found the following limits, t/kW: IWT—from 2.5 to 8; road—around 0.194; railway—from 0.523 to 1.7. These values coincide with our results.

Energy-saving technologies are within three main domains: technical, operational, and transport management. They have different energy and economic efficiency (

Table 5. Possible innovations to improve energy performance of IWT.

Area	Measure	Applicability	Decrease in Energy Consumption, %	Payback Period, Years
Technical	Father–son engine	New and retrofit	10	7–8
	Diesel–electric propulsion	New vessels	10	10
	Electric propulsion	new	10	15
	Optimized hull form	new	10	3–4
	Weight reduction by composite materials	New vessels	5–15	10–15
Operational	Speed reduction	All vessels	10–30	0.1–0.2
	On-board information systems		10	<1
	Optimal maintenance		5	<1
Transport management	Reduction of empty trips		high	No general quantification possible
	Improving interface in seaports		high
	Electronic chart display and information system for inland navigation		high

) [51].

Ship power plants and their conditions cannot result in a fourfold increase in specific energy consumption. It means that reserves are within the following domains: the optimal deadweight and type of ships, the excluding empty voyages, the enhancing of load factor, etc. Ship-owners should optimize types of vessels and their dead weight. Barges may be a suitable type of vessel in national conditions. Sippers and ship-owners are both interested in excluding empty trips. It allows shippers to cut transport costs and ship-owners to increase profit. It is quite natural that, in this case, the energy consumption for cargo transportation is reduced. The enhancing of load factor is a function of the following: deadweight, type of vessel, waterway depth, and logistics. Dredging of waterways is the responsibility of authorities and businesses. Appropriate ships and logistics are the responsibility of shippers and ship-owners.

Shipping companies are looking for more energy-effective and cost-effective solutions for navigations [52,53,54]. The e-Navigation concept may be a solution. This concept has been developed by the International Maritime Organization (IMO) and the International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA) [55]. It helps to ensure the efficiency and safety of inland waterway traffic [56,57].

5. Conclusions

The novelty of this study is within four domains. One important result is the estimation of the export potential of regions located in the Dnieper Basin. Since 2000, there has been a significant increase in agricultural production and its export. The share of these regions ranges from 37.57% to 50.92%. Further, IWT is suitable to transport agricultural products to seaports.

The second result is that the possible minimum energy consumption has been determined. IWT has better traction efficiency (from 1.88 to 11.82 t/kW) compared to road transport (from 0.07 to 0.145 t/kW) and railway transport (from 0.68 to 1.35 t/kW). The average specific fuel consumption of barges has the best value (around 100 kJ/tkm). Dry cargo ships are inferior to the railway.

The third contribution is the determining of actual energy consumption. The average specific energy consumption of IWT is between railway and road transport. It exceeds the specific energy consumption of European countries. Inland waterways transport is currently less energy efficient than railway one. Its actual specific energy consumption is five times higher than the theoretically possible value and four times higher compared to European Union’s countries. Therefore, IWT has significant reserves for its development.

The fourth result is an analysis of possible energy-saving measures. First of all, reserves are within transport management. Its optimization should be used to improve the energy efficiency of IWT. The primary objectives are minimization of empty return voyages, downtime, and full use of the carrying capacity. The results obtained will allow authorities and shipping companies of any country to make reasonable decisions for its development.

Further research is planned to improve the results obtained. We will proceed to elaborate on problems of transport management as an energy-saving tool. Collecting data from IWT operators is part of the above aim. Moreover, road and maritime transport will be added to the methodology for an energy assessment of a whole product supply chain.
