Numerical Investigation of High-Purity Polarization-Entangled Photon-Pair Generation in Non-Poled KTP Isomorphs

Abstract

We investigated the high-purity entangled photon-pair generation in five kinds of “non-poled” potassium titanyl phosphate (KTP) isomorphs (i.e., KTiOPO₄, RbTiOPO₄, KTiOAsO₄, RbTiOAsO₄, and CsTiOAsO₄). The technique is based on the spontaneous parametric down-conversion (SPDC) under Type II extended phase matching (EPM), where the phase matching and the group velocity matching are simultaneously achieved between the interacting photons in non-poled crystals rather than periodically poled (PP) KTPs that are widely used for quantum experiments. We discussed both theoretically and numerically all aspects required to generate photon pairs in non-poled KTP isomorphs, in terms of the range of the beam propagation direction (or the spectral range of photons) and the corresponding effective nonlinearities and beam walk-offs. We showed that the SPDC efficiency can be increased in non-poled KTP isomorphs by 29% to 77% compared to PPKTP cases. The joint spectral analyses showed that photon pairs can be generated with high purities of 0.995–0.997 with proper pump filtering. In contrast to the PPKTP case, where the EPM is achieved only at one specific wavelength, the spectral position of photon pairs in the non-poled KTP isomorphs can be chosen over the wide range of 1883.8–2068.1 nm.

1. Introduction

Spontaneous parametric down-conversion (SPDC) in second-order (χ⁽²⁾) nonlinear optic media has been a practical source of entangled quantum systems, especially due to its high stability [1,2]. In particular, two photons generated simultaneously via Type II SPDC have orthogonal polarizations in the basis that is distinguished by crystallographic axes, thus directly implementing a polarization-entangled photon-pair source. Several χ⁽²⁾ crystals, such as β-barium borate (β-BaB₂O₄, BBO), bismuth triborate (BiB₃O₆, BiBO), and periodically poled (PP) potassium titanyl phosphate (KTiOPO₄, KTP), have been utilized as material platforms for the implementation of Type II SPDC-based photon-pair sources [3,4,5]. Among these, PPKTP has attractive advantages over other crystals: (1) improvement of SPDC efficiency by using longer crystals than other cases under the collinear quasi-phase matching (QPM); (2) for Type II interaction, higher effective nonlinearity than other cases; and (3) most importantly, the generation of high-purity polarization-entangled photon pairs in the telecom C-band through the extended phase matching (EPM) [6,7,8,9,10]. In particular, “PPKTP Sagnac-loop” type SPDC sources have been used to demonstrate many quantum information experiments [9,10]. However, PPKTP requires sophisticated fabrication techniques, and despite the mature technology level, it is still challenging to form uniform-period PP structures in long-length KTP crystals. In addition, the actual thickness of PPKTP that can be manufactured by the electric poling method is limited to ~0.5 mm, due to the high electric conductivity of KTPs [11]. A higher voltage must be applied to the crystal to fabricate a thicker PPKTP, but if the voltage value required for periodic poling exceeds the limit, the crystal burns or breaks during the fabrication. Although the PPKTP is still an attractive source of entangled quantum systems with the high spectral purity of photon pairs, Type II SPDC is also possible even without PP structures since non-poled KTPs are biaxial birefringent crystals. In addition, the effective nonlinear optic coefficients of KTP in the direction of crystallographic axes are larger than that of BBO or BiBO. Therefore, it is necessary to investigate whether the generation of high-purity photon pairs through Type II EPM is still possible and useful for practical quantum systems, even without the PP structure in KTP. To the best of our knowledge, no studies have been reported on SPDC-based photon-pair sources under Type II EPM in non-poled KTP isomorphs.

In this paper, we investigate both theoretically and numerically the high-purity polarization-entangled photon-pair generation in five kinds of non-poled KTP isomorphs—KTP, KTiOAsO₄ (KTA), RbTiOPO₄ (RTP), RbTiOAsO₄ (RTA), and CsTiOAsO₄ (CTA). The technique relies on the SPDC under Type II EPM, where the phase matching and the group velocity (GV) matching are simultaneously achieved between the interacting photons in non-poled crystals rather than PP ones. First, we investigated Type II EPM characteristics of five non-poled KTP isomorphs, in terms of the range of the beam propagation direction (or the spectral range of photon pairs) and the corresponding effective nonlinearities and beam walk-offs. We showed that the SPDC efficiency can be increased in non-poled KTP isomorphs by 29% to 77% compared to PPKTP. The joint spectral analyses showed that photon pairs can be generated with high purities of 0.995–0.997 with proper pump filtering. In contrast to the PPKTP case, where the EPM is achieved only at one specific wavelength, the spectral position of a photon pair in the non-poled KTP isomorphs can be chosen over the wide range of 1883.8–2068.1 nm. This means that the photon-pair spectra can be flexibly chosen in the range of interest while maintaining the high spectral purity of the photon pairs generated via Type II EPM.

2. Material and Theories

KTP isomorphs are usually expressed by the formula MTiOXO₄, where M can be potassium (K), rubidium (Rb), or cesium (Cs), and X can be arsenic (As) or phosphorus (P) [12]. Here, combinations other than KTP, RTP, KTA, RTA, and CTA are not commonly used because, except for these five, the growth of large and homogeneous bulk crystals is very difficult [13]. The KTP isomorphs have point symmetry of orthorhombic mm2 and exhibit biaxial birefringence. Their crystallographic axes a, b, and c are all perpendicular to each other and correspond to the optical axes x, y, and z, respectively, as shown in Figure 1a. In this definition, the order of refractive-index magnitudes is given by n_x < n_y < n_z [14]. A wave vector representing the direction of beam propagation is defined in the spherical coordinate shown in Figure 1a, as follows:

$$\overrightarrow{k}=(\sin \theta \cos \varphi ,\sin \theta \sin \varphi ,\cos \theta ).$$

(1)

Here, φ and θ are the azimuthal and polar angles, respectively. For Type II SPDC, an input single photon (pump) with a frequency of 2ω generates a pair of photons (signal and idler) with the same frequency of ω that are orthogonally polarized to each other, as illustrated in Figure 1b.

When the light is incident into the crystal, the refractive indices (RIs) of two eigen polarization modes for the given $\overrightarrow{k}$-direction can be obtained by solving the Fresnel equation of the wave normal as follows [15],

$$n_{q\omega }^{(p)}=\sqrt{\frac{2}{-B_q\pm \sqrt{B_q^2-4C_q}}},$$

(2)

where the definitions of parameters are:

$$B_q=-k_x^2(b_q+c_q)-k_y^2(a_q+c_q)-k_z^2(b_q+a_q),$$

(3)

$$C_q=k_x^2{b}_q{c}_q+k_y^2{a}_q{c}_q+b_q{a}_q{k}_z^2,$$

(4)

$$a_q=n_{q\omega ,x},b_q=n_{q\omega ,y},c_q=n_{q\omega ,z}.$$

(5)

Here, q can be 1 or 2, then in the frequency-degenerate SPDC process, n_2ω and n_ω represent the RIs of pump photon with the frequency 2ω and signal (or idler) photon with the identical frequency ω, respectively. k_x, k_y, and k_z in Equations (3) and (4) are defined in Equation (1). p in Equation (2) can be h or l, representing high or low RI. Each of these corresponds to when taking minus and plus in the ± symbol of the denominator in Equation (2). The RIs of all 5 KTP isomorphs (i.e., n_x, n_y, and n_z) in Equation (5) are found in [16,17,18,19].

When photons of different frequencies pass through the crystal, a temporal walk-off (ΔT) between the interacting photons occurs due to their difference in GV. This GV mismatch is defined as ΔT per unit crystal length as follows,

$$\frac{\mathsf{\Delta }T}{L}=\frac{\mathsf{\Delta }{n}_g}{c},$$

(6)

where L, c, and Δn_g represent the crystal length, the speed of light in vacuum, and the group index difference between interacting photons, respectively. Therefore, when Δn_g = 0, the GV matching is satisfied. Since the phase-matching (PM) condition between the pump, signal, and idler photons is given by k_p = k_s + k_i, the PM and GV matching conditions for Type II SPDC can be simplified as:

$$2n_{2\omega }^{(l)}=n_{\omega }^{(h)}+n_{\omega }^{(l)},$$

(7)

$$2n_{g,2\omega }^{(l)}=n_{g,\omega }^{(h)}+n_{g,\omega }^{(l)}.$$

(8)

Now Type II EPM conditions are defined as when Equations (7) and (8) are satisfied simultaneously. Each of the equations is a 3-variable function for pump wavelength (λ_p), θ, and φ, thus by solving a system of equations (i.e., Equations (7) and (8)) for a given λ_p, we can find a set of θ and φ, i.e., the direction of $\overrightarrow{k}$. Thus, by sweeping $\overrightarrow{k}$ in the range of directions where the set of solutions exists, it is possible to continuously tune the resonant wavelength of the pump that produces pure biphoton states. This means that the spectral position of the photon pair can be selectively determined or tuned in the range of interest. In contrast, in the cases of PPKTPs or bulk uniaxial crystals (e.g., β-BaB₂O₄ and LiNbO₃) that are widely used in quantum experiments, the EPM is satisfied only at one wavelength.

The mm2 crystals such as KTP isomorphs show biaxial birefringence. When the crystallographic axes and the optical axes have the relationships of x = a, y = b, and z = c, the effective nonlinearity for Type II interaction is generally expressed as [20],

$$d_{eff}={\xi }_1{d}_{15}+{\xi }_2{d}_{24}+{\xi }_3{d}_{31}+{\xi }_4{d}_{32}+{\xi }_5{d}_{33},$$

(9)

where the nonlinear optic coefficients (d₁₅, d₃₁, d₂₄, d₃₂, and d₃₃) of 5 KTP isomorphs are listed in

Table 1. Non-zero nonlinear optic coefficients of 5 KTP isomorphs at 1064 nm (in pm/V).

Crystals	d15	d31	d24	d32	d33
KTP [21]	2.02 ± 0.15	2.01 ± 0.07	3.75 ± 0.07	3.75 ± 0.07	15.4 ± 0.2
RTP [21]	1.98 ± 0.34	2.05 ± 0.07	3.98 ± 0.39	3.82 ± 0.1	15.6 ± 0.3
RTA [21]	2.17 ± 0.20	2.25 ± 0.07	3.92 ± 0.15	3.89 ± 0.08	15.9 ± 0.3
KTA [21]	2.30 ± 0.05	2.30 ± 0.05	3.64 ± 0.34	3.66 ± 0.08	15.5 ± 0.3
CTA [22]	2.1 ± 0.4 1	2.1 ± 0.4	3.4 ± 0.7 1	3.4 ± 0.7	18.1 ± 1.8

¹ Reasonably, assuming that Kleinman symmetry is valid, d₂₄ = d₃₂ and d₁₅ = d₃₁.

with their references [21,22]. Under the relationships of x = a, y = b, and z = c, the ξ-coefficients in Equation (9) are given as follows:

$$\begin{array}{l}{\xi }_1=-AH{(BEG+CH)}^2-AE(BGH-CE)(BEG+CH),\\ {\xi }_2=-AH{(BCE-GH)}^2-AE(BCE-GH)(BCH+EG),\\ {\xi }_3=-AE(BGH-CE)(BEG+CH),\\ {\xi }_4=-AE(BCE-GH)(BCH+EG),\\ {\xi }_5=-A^3{E}^{2}H,\end{array}$$

(10)

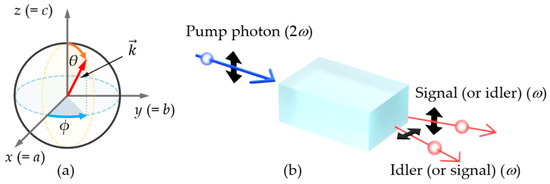

where the angle-dependent parameters of A, B, C, G, E, and H are given by sinθ, cosθ, sinφ, cosφ, sinδ, and cosδ, respectively. θ and φ are the angles defined in Figure 1a. δ is an angle introduced only for convenience and is defined as:

$$\tan \delta \equiv \frac{2BCG}{A^2{\cot }^2{V}_z+C^2-B^2{G}^2},$$

(11)

where V_z represents the angle between the z-axis and the optic axis of biaxial birefringence when the relation of n_x < n_y < n_z is valid, as in the case of KTP isomorphs. V_z is related to Sellmeier equations of the crystal [20]. Therefore, d_eff is also a 3-variable function for λ_p, θ, and φ, and thus can be obtained by substituting the solution sets of λ_p, θ, and φ that satisfy Type II EPM (i.e., Equations (7) and (8)). The SPDC efficiency is proportional to the square of the d_eff coefficient for a given k_p-direction [23].

When the interacting beams pass through a birefringent crystal, the spatial walk-off between the beams occurs due to the difference between $\overrightarrow{k}$ and $\overrightarrow{s}$ (Poynting vector) directions in the crystal. In biaxial birefringent crystals, the angle ${\rho }_q^{(p)}$ between $\overrightarrow{k}$ and $\overrightarrow{s}$ is given by,

$$\tan {\rho }_q^{(p)}\equiv {\left\{n_{q\omega }^{(p)}\right\}}^2{\left[{\left(\frac{k_x}{{\left\{n_{q\omega }^{(p)}\right\}}^{-2}-a_q}\right)}^2+{\left(\frac{k_y}{{\left\{n_{q\omega }^{(p)}\right\}}^{-2}-b_q}\right)}^2+{\left(\frac{k_z}{{\left\{n_{q\omega }^{(p)}\right\}}^{-2}-c_q}\right)}^2\right]}^{-1/2},$$

(12)

where all parameters of Equation (12) are defined in Equations (1)–(5). For Type II EPM, the low-RI signal (or idler) beam (${\rho }_1^{(l)}$) is always placed between the low-RI pump beam (${\rho }_2^{(l)}$) and the high-RI idler (or signal) beam (${\rho }_1^{(h)}$), as can be seen from Equation (7) [24]. In this case, the walk-off angle w can be defined as the largest angle between the Poynting vectors of the interacting photons:

$$\cos w=\cos {\rho }_1^{(h)}\cos {\rho }_2^{(l)}.$$

(13)

As expected in Equation (13), w is also the 3-variable function for λ_p, θ, and φ, which can be obtained by substituting the set of solutions of λ_p, θ, and φ that satisfies Type II EPM. Then the maximum deviation between the interacting beams after passing through a crystal of length L can be expressed as:

$$\mathsf{\Delta }=L\tan w.$$

(14)

The construction of the signal-idler joint spectral amplitude (JSA) and the calculation of the purity of biphoton state via Schmidt decomposition is a good way to quantify the heralded-state spectral purity of SPDC output. The biphoton state $|\psi \rangle$ generated from SPDC can be expressed as,

$$|\psi \rangle ={\displaystyle {\int }_0^{\infty }{\displaystyle {\int }_0^{\infty }d{\omega }_{s}d{\omega }_{i}f({\omega }_s,{\omega }_i){\widehat{a}}_s^{†}({\omega }_s){\widehat{a}}_i^{†}({\omega }_i)|0\rangle |0\rangle }},$$

(15)

where ${\widehat{a}}_s^{†}$ and ${\widehat{a}}_i^{†}$ denote the creation operators of the signal and idler photons, respectively, and ω_s and ω_i are the corresponding frequencies [25]. Here, the normalized correlation function $f({\omega }_s,{\omega }_i)$, representing the biphoton JSA, is expressed as the product of pump envelop function and the PM function as follows:

$$f({\omega }_s,{\omega }_i)=\alpha ({\omega }_s,{\omega }_i)\phi ({\omega }_s,{\omega }_i).$$

(16)

Assuming a pump with Gaussian spectral shape, the pump envelope (PE) function can be written as,

$$\alpha ({\omega }_s,{\omega }_i)\propto \exp \left[-\frac{{({\omega }_s+{\omega }_i-{\omega }_p)}^2}{{\sigma }_p^2}\right],$$

(17)

where ω_p and σ_p represent the center frequency and bandwidth of the pump, respectively. The PM function is given in the form of a sinc function as shown below,

$$\phi ({\omega }_s,{\omega }_i)\propto \mathrm{sinc}\left(\frac{\mathsf{\Delta }kL}{2}\right),$$

(18)

where Δk represents the phase mismatch defined as Δk = |k_p − k_s − k_i|. For the given k_p-direction (i.e., θ and φ) that satisfies the EPM, Equation (16) is given as a function of the signal and idler wavelengths (or λ_s and λ_i), thus the JSA can be plotted on a two-dimensional plane as a function of λ_s and λ_i. The purity can be calculated via the following Schmidt decomposition related to Equation (15),

$$f({\omega }_s,{\omega }_i)={\displaystyle \sum _j\sqrt{c_j}|{\zeta }_{s,j}\rangle |{\zeta }_{i,j}\rangle },$$

(19)

where Schmidt coefficients, c_j, denote a set of non-negative real numbers satisfying the normalization condition, ${\displaystyle \sum _j{c}_j}=1$. $|{\zeta }_{s,j}\rangle$ and $|{\zeta }_{i,j}\rangle$ represent the orthonormal basis states (i.e., Schmidt modes), respectively. Then the purity, P, is defined as the sum of squares of Schmidt coefficients as [25]:

$$P={\displaystyle \sum _j{c}_j^2}.$$

(20)

Therefore, once we plot the JSA as a function of λ_s and λ_i in a 2-dimensional plane, P can be calculated via the Schmidt decomposition in Equation (20).

3. Simulations and Discussion

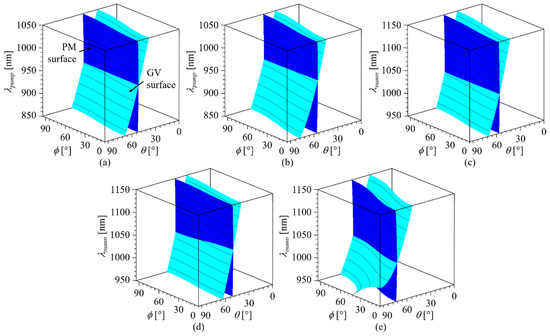

Figure 2 shows the numerical simulation results of the PM and GV matching for Type II EPM: Figure 2a–e correspond to KTP, RTP, RTA, KTA, and CTA in turn. In each graph, the blue and cyan surfaces represent the PM and GV matching calculated using Equations (7) and (8), respectively. The crossing line of two surfaces means the range of $\overrightarrow{k}$-direction (i.e., θ and φ) satisfying the EPM, which spans a specific wavelength region as expected in Section 2. Figure 3 plots θ and φ as a function of the resonant λ_p, corresponding to the crossing lines in Figure 2. Figure 3a–e correspond to KTP, RTP, RTA, KTA, and CTA, respectively, as in Figure 2. For each KTP isomorph, Type II EPM is possible for all azimuthal angles (φ = 0–90°), whereas for polar angles (θ) only in a specific angular region as plotted in Figure 3. Type II EPM properties calculated for all five crystals are summarized in

Table 2. $\overrightarrow{k}$ -direction and wavelength ranges of the interacting photons satisfying Type II EPM.

Crystals	φ [°]	θ [°]	λp [nm]	λs (or λi) [nm]	Δλs (or Δλi) [nm]
KTP [16]	0–90	40.3–49.2	941.9–952.2	1883.8–1904.4	20.6
RTP [19]	0–90	42.7–52.8	950.3–965.0	1900.5–1930.0	29.4
RTA [18]	0–90	45.1–53.9	1023.4–1035.3	2046.8–2070.5	23.7
KTA [17]	0–90	42.3–48.1	1032.0–1051.4	2064.0–2102.8	38.8
CTA [17]	0–90	47.3–69.4	1026.1–1034.0	2052.2–2068.1	15.9

with the references to Sellmeier equations used for the simulations [16,17,18,19]. The spectral ranges of the entangled photon pairs calculated for all five crystals span 1883.8–2068.1 nm, which is still within the silica fiber transparency (e.g., SM2000, 1700 nm to 2300 nm, Thorlabs) [26]. Therefore, quantum light sources based on KTP isomorphs have good potential for quantum communication in the sense that the existing optical communication infrastructure can be used almost as it is. In addition, since absorption lines of various gas molecules (e.g., hydrogen chloride (HCl), ammonium (NH₃), water vapor (H₂O), carbon dioxide (CO₂), and nitrous oxide (N₂O)) exist in this spectral region, the KTP isomorph-based quantum light sources can be exploited in sensing applications [27]. The spectral ranges of the photon pairs, which can be tuned by sweeping the direction of k_p, reach tens of nm as listed in Table 2, which provides flexibility in choosing the wavelength of the quantum light source while maintaining the high spectral purity.

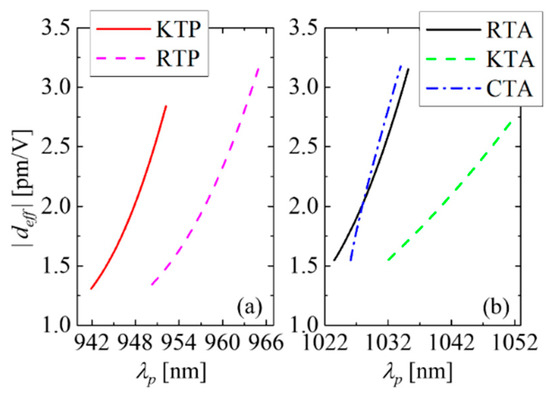

Since the SPDC efficiency is proportional to the square of d_eff, it is critical to estimate the effective nonlinearity for the given $\overrightarrow{k}$-direction that satisfies the EPM. Figure 4 shows the d_eff values plotted as a function of λ_p, which are calculated numerically using Equation (9). The λ_p values in the horizontal axes in Figure 4 correspond to the λ_p range of Type II EPM listed in Table 2. For each case, the d_eff value is larger at longer wavelengths under Type II EPM. The maximum d_eff values are obtained at φ = 0 for all five crystals (i.e., the case that k_p lies on the x-z plane shown in Figure 1a). These d_eff values at φ = 0 and their corresponding polar angles θ and resonant λ_p’s are listed in

Table 3. Type II EPM conditions for the maximum effective nonlinearities: the resonant pump wavelength (λ_p), the k-direction (i.e., θ and φ), the effective nonlinear optic coefficient (d_eff), the walk-off angle (w), and the beam deviation (Δ).

Crystals	λp [nm]	φ [°]	θ [°]	deff [pm/V]	(deff/dQPM)2	w [°]	Δ [μm/mm]
KTP	952.19	0	49.2	2.80	1.37	2.8	48.9
RTP	964.98	0	52.8	3.17	1.76	2.7	47.2
RTA	1035.27	0	53.9	3.17	1.76	2.2	38.4
KTA	1051.40	0	48.1	2.71	1.29	2.3	40.2
CTA	1034.04	0	69.4	3.18	1.77	1.9	33.2
PPKTP	775	0	90	2.39 1	1	-	-

¹d_QPM = (2/π)d₂₄, the first-order quasi-phase matching (QPM).

. In the PPKTP case, the nonlinear optic coefficient (d_QPM) is given as (2/π)d₂₄ for the first-order QPM. The simulation results show that the d_eff values are larger for non-poled crystals (2.71–3.18) than for PPKTP (2.39). The ratios of d_QPM to the d_eff values of the non-poled KTP isomorphs are summarized in Table 3. Since the SPDC efficiency is proportional to the square of d_eff, (d_eff/d_QPM)² represents the ratio of efficiency that can be increased for each case compared to the case of PPKTP. As shown in Table 3, the SPDC efficiency is expected to be improved as much as from 29% to 77% in a quantum light source using non-poled KTP isomorphs.

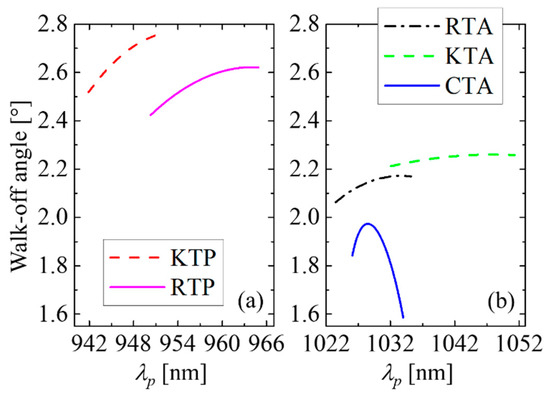

Figure 5 shows the walk-off angles (w) calculated using Equation (13) under Type II EPM: (a) KTP and RTP and (b) RTA, KTA, and CTA plotted as a function of the EPM λ_p values. Over the whole range of λ_p, the calculated w spans 1.6–2.8° for the five crystals. The corresponding beam deviation (Δ) per unit millimeter crystal length calculated using Equation (14) spans 27.9–48.9 μm/mm, which can be sufficiently overcome by a large beam window in thick crystals. In each crystal, the calculated values of w and Δ for the case with the maximum d_eff value are also summarized in Table 3.

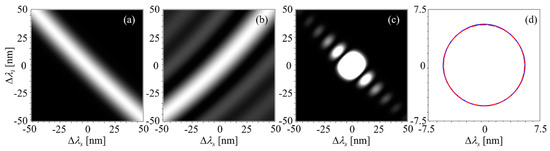

In order to quantify the heralded-state spectral purity of SPDC output, we analyzed the signal-idler JSA properties and calculated the purity of the biphoton state. Figure 6 shows the joint spectral properties of Type II SPDC in the non-poled KTP with the largest d_eff shown in Table 3. Note that in this case, k_p lies on the x-z plane (i.e., φ = 0 in Figure 1a), thus the optical alignment is relatively easy compared to the other cases for φ ≠ 0 (Table 2). The density plot of the PM function (Figure 6b) shows typical EPM characteristics as in the PPKTP case [10]. The joint spectral intensity (JSI) calculated for the 3.3-nm bandwidth PE function (Figure 6a) is plotted in Figure 6c. Here, the crystal length of 10 mm is used for calculations, and the JSI is defined as |JSA|². The solid and dashed lines in Figure 6d represent the contour lines for JSI = 0.5 and a circle with a diameter of 11 nm, respectively. The contour line shows a circular shape, and the purity calculated using Schmidt decomposition in Equation (20) is as high as 0.996.

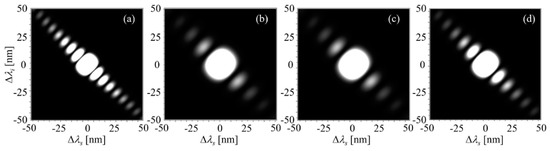

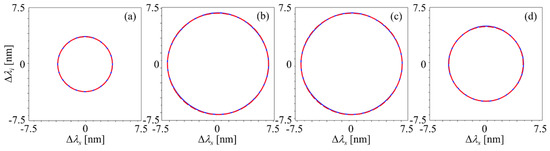

Figure 7 shows the JSIs of Type II SPDC in non-poled RTP, RTA, KTA, and CTA with maximum d_eff values (Table 3), where the PE functions of 2.2-nm, 4.05-nm, 4.05-nm, and 3.0-nm bandwidth, respectively, were considered for higher purities. The contours of JSI = 0.5 (blue solid line) for each case shown in Figure 7 are plotted in Figure 8. The red dashed lines shown in Figure 8 represent the circles with diameters of 7.35 nm, 13.6 nm, 13.6 nm, and 10 nm, respectively. All calculation results in Figure 7 and Figure 8 were performed for 10-mm crystal length. To clearly compare the spectral bandwidths of the photon pairs, all density plots in Figure 6 and Figure 7 are displayed in a window with the size set to 100 nm × 100 nm, and Figure 6d and Figure 8 are displayed in a 15 nm × 15 nm window. As shown in Figure 8, the contours of JSI = 0.5 exhibit circular shapes for all five crystals, and the calculated spectral purities are 0.997 for RTP and 0.995 for RTA, KTA, and CTA, respectively. This means that very high-purity entangled photon pairs can be generated in five non-poled bulk KTP isomorphs, as well as in the case of the well-known PPKTP [10]. In addition, in terms of SPDC efficiency, all five non-poled KTP isomorphs discussed in this study show advantages over the case of PPKTP using the first-order QPM, as discussed in Table 3.

4. Conclusions

We theoretically and numerically investigated the entangled photon-pair generation in five kinds of non-poled KTP isomorphs: KTP, RTP, RTA, KTA, and CTA. The SPDC properties under Type II EPM were theoretically investigated in the mm2 biaxial crystal to which the KTP isomorphs belong, including PM, GV matchings, effective nonlinearities, and spatial walk-offs between the interacting photons. The heralded-state spectral purities of SPDC output were quantified via JSA analyses, and the results show that the purities calculated for Type II EPM with a proper pump filtering are as high as 0.995–0.997. The spectral position of photon-pairs produced by KTP isomorphs can be chosen over the broad range of 1883.8–2068.1 nm, which is still within the silica fiber transparency. Therefore, the spectral position of the photon pair can be selectively determined or tuned in the range of interest while maintaining the high spectral purity of the photon pairs generated via Type II EPM. In addition, the use of non-poled crystals is expected to increase the SPDC efficiency by 29% to 77% compared to the PPKTP. Since KTP isomorphs have been commercialized as high-level crystal growth techniques, quantum light sources based on non-poled KTP isomorphs have good potential for fiber-optic and free-space quantum communication and sensing.
