Monitoring the Antibacterial Effect of Rosin Acids in an Austrian Beet Sugar Plant by Amplicon-Based Sequencing and Flow Cytometry

Abstract

For decades, microorganisms in beet sugar production have been studied using culture-based methods. However, these methods are not sufficient to describe such a complex bacterial community. In this study, therefore, an amplicon-based sequencing technique (Illumina MiSeq platform) was applied to characterize the bacterial community and its dynamics in the extraction area and juice purification station of an Austrian beet sugar plant. Depending on the process conditions thermophilic bacteria, such as Geobacillus spp., Caenibacillus spp., and Thermus spp., and mesophilic bacteria, such as Leuconostoc spp. and Bacillus spp., were found. Besides these microbiological characteristics, the antimicrobial effect of a rosin acid-based product (Defostab 220) on the bacterial communities was investigated in industrial and laboratory trials. The antimicrobial effect of a given concentration of rosin acid varies from bacteriostatic to bactericidal effects on different occurring groups of bacteria.

1. Introduction

The extraction of sucrose from sugar beets takes place in several steps. In Austrian plants, a combination of a countercurrent mixer and an extraction tower is employed. First, sugar beets are sliced into cossettes, which are treated in a solid-liquid extraction process using the countercurrent principle to extract sucrose (Figure 1).

In this area of the tower extraction system, the temperatures vary from 20 °C in raw juice to 72 °C in the tower end of the countercurrent mixer. In the next step, juice purification, temperatures of over 90 °C and pH values of up to 12 are necessary to reduce non-sugars and to stabilize the juice. Then, water from the so-called thin juice is evaporated, and the resulting thick juice is used to crystallize white sugar in a multistage crystallization process [1]. Due to the conditions of high pH values and high temperatures in these processing steps, the growth of microorganisms was not considered to be of any technological relevance for a long time. This assumption changed in 1930 with the observation of microorganisms influencing the storage of beets [2]. In addition to technological challenges, microorganisms can cause financial losses due to sucrose losses, as sucrose may be metabolized into different microbiological metabolites. The total sucrose losses caused by microorganisms are calculated to range between 0.02% and 0.66% of processed beets [3,4]. Since 1930, various methods have been employed to determine the microbiota present during sugar beet production to obtain a better understanding of the process and to limit microbial activity. For example, a large set of different antimicrobial agents have been applied to combat microorganisms in different processing steps. Most investigations have been carried out using culture-based methods [5,6,7,8]. These methods are limited because many species are difficult to culture or are even not culturable due to special growth requirements. Furthermore, culture-based methods require preselection of media and cultivation conditions [9]; this preselection of incubation conditions may subsequently influence the identification of microorganisms, which is undesired. Characterizing the whole bacterial community and its diversity is therefore quite difficult. This difficulty led to the use of molecular-based methods mostly based on DNA analysis that are more sensitive, more accurate and more specific and may even be faster [10]. Despite this progress, microscopic or cultural methods are most often used to identify microorganisms. Some methods, which have also been applied in the sugar industry, combine culture-based methods with molecular biological methods, such as 16S rDNA sequencing or Matrix Assisted Laser Desorption Ionization-Time of Flight Mass Spectrometry (MALDI-TOF MS), to identify isolates [11,12,13]. The advantages of these combined molecular biological methods include identifying microorganisms with greater sensitivity and accuracy. However, these methods still have the disadvantage of requiring pure cultures. Further applicable culture-independent methods could include real-time polymerase chain reaction (PCR) or specific microscopic techniques such as transmission electron microscopy (TEM) or scanning electron microscopy (SEM) [10]. Detecting and characterizing all occurring microorganisms in one sample is very challenging and almost impossible with the methods mentioned above, as the interactions between microorganisms may interfere with the detectability of the microbiota.

A possible time and cost saving solution for characterizing a complex bacterial community is utilizing high-throughput sequencing techniques. These techniques provide qualitative and semi-quantitative data about the composition of the bacterial community. Flow cytometric analyses can help to normalize these data and additionally provide information about the physiological state of the microorganisms. Notably, this application of flow cytometric analysis is becoming increasingly important for rapid, ecological, environmental, and food microbiology studies [14,15,16].

2. Materials and Methods

To date, no investigations have been conducted to determine the bacterial community, including non-culturable organisms in beet sugar production and to characterize the influence of microbial interactions. Due to the processing conditions, such as lower temperatures and pH values, microorganisms are found mostly in the beet end of production, extending from the fresh beet to the evaporation station [2,8,12]. Therefore, the present work attempts to characterize the microorganisms present in the extraction area and juice purification station in an Austrian beet sugar factory by amplicon-based sequencing for a more detailed description of the microbial composition in addition to the investigations carried out by Kohout et al. [13]. Additionally, the quantities and physiological state of microorganisms were monitored by flow cytometry. To the best of our knowledge, this report describes for the first time the application of two high-throughput methods for the characterization of microorganisms in the sugar industry, including a more detailed evaluation of the antibacterial effects of a rosin acid-based formulation (Defostab 220) in a lab and industrial scale in parallel [13,17,18]. Since 2000, AGRANA has been using rosin acid product containing abietic acid, combined with fatty acids to combat microorganisms in the sugar industry. Like the hop acids, these show a stabilizing effect on the pH value [18]. In addition, building on the knowledge from Kohout et al. [13], this study aims to investigate how the resin acids affect the bacteria by analyzing them with flow cytometer technique.

2.1. Trial Setup

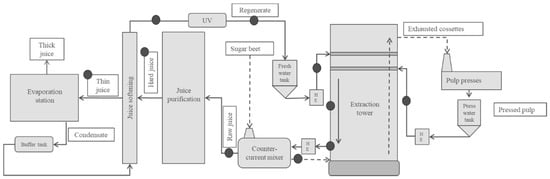

In total, 156 samples were obtained from an Austrian beet sugar plant with a daily beet slicing capacity of approximately 12,000 t within three months (November, December, and January) during the 2017/18 season. Additionally, to the samples from the extraction area microbiologically analysed by Kohout et al. [13], also 48 samples from juice purification (Figure 1; thin juice, hard juice, eluate before and after UV-treatment) were taken for more detailed analyses including amplicon-based sequencing to obtain further knowledge about the bacterial community. The sampled extraction system had two extraction lines, two extraction towers and two countercurrent mixers. The press water and fresh water used for the two extraction lines were identical for both lines. The raw juice produced in both lines was combined, and a sample was taken from the combined juice. The trial was set up according to Kohout et al. [13]. In November 2018, December 2018, and January 2019, samples were taken on two consecutive days when the rosin acid-based antimicrobial formulation was applied in the extraction area and on two consecutive days when no antimicrobial agent was used in the whole extraction process. Sampling using sterile sampling containers at all sites of extraction (Nine sampling points: raw juice, juice tower 1 and 2, juice of mid-tower 1 and 2, cossette-juice mixture 1 and 2, fresh water and press water) and all sites in juice purification (Four sampling points: hard juice, thin juice, eluate before and after UV-treatment) took place at the same time in the afternoon on day 1 and 2.

2.2. DNA Isolation

All samples were treated immediately after sampling: 50 mL of every sample from the extraction process, with the exception of fresh water, was aseptically transferred into 50 mL sterile centrifugation tubes (VWR, Radnor, PA, USA), and afterwards, they were centrifuged at 8000 rpm for 6 min at 4 °C. The supernatant was discarded such that the remaining pellet was still covered with liquid. Because of the very low DNA concentration expected in samples from the juice purification process and fresh water, 500 mL samples were centrifuged under the same conditions as mentioned above to generate pellets for DNA extraction. The pellets were stored at −20 °C until further processing. Total bacterial DNA was extracted using the DNeasy PowerFood Microbial Kit (Qiagen, Venlo, Netherlands) according to the manufacturer’s instructions. To quantify DNA concentrations, a Qubit 2.0 fluorometer with the dsDNA HS Assay Kit (Invitrogen, Waltham, MA, USA) was applied.

2.3. Amplicon-Based Metagenomic Sequencing (Illumina MiSeq) and Metagenomic Data Processing

The V3 and V4 regions of the bacterial 16S rRNA gene were sequenced by creating two-step and three-step, Nextera barcoded, PCR libraries using the locus specific primer pair 341F (5′-CCT ACG GGN GGC WGC AG-3′) and 805R (5′-GAC TAC HVG GGT ATC TAA TCC-3′). The PCR libraries were sequenced on an Illumina MiSeq platform using a v3 600 Cycle kit (Illumine Inc., San Diego, CA, USA) to produce paired-end reads. The reads that passed Illuminas chastity filter were subject to demultiplexing and trimming of any Illumina adaptor residuals by Illuminas own real-time analysis software (MiSeq reporter software v2.6 (Illumina Inc., San Diego, CA, USA); no further refinement or selection). The FastQC software version 0.11.7 (Babraham Institute, Cambridge, UK) was used for determining the quality of the reads [19]. Paired-end reads were discarded if the locus-specific V3-V4 primer could not be trimmed from the sequencing reads with the software cutadapt v1.18 [20]. The sequenced molecule was reformed in silico with the software USEARCH version 11.0.667 by merging the trimmed forward and reverse reads of each paired-end read with a minimal overlap of 15 bp [21]. After a quality filtration step of the merged sequences, whereby maximal one expected erroneous base per merged read was accepted other reads including ambiguous bases or outliers regarding the expected amplicon size distribution were discarded. The surviving reads were denoised using the UNOISE algorithm implemented in USEARCH to form operational taxonomic units (OTUs) with a similarity level of 97% discarding singletons and chimeras in the process [22]. After filtering the resulting OTU abundance table for possible barcode bleed-in contaminations with the UNCROSS algorithm, the UNBIAS algorithm was used for adjusting the abundances for 16S copy numbers [23,24]. OTUs were compared against the reference sequences of the RDP 16S database release 11. The determination of the taxonomies was done with the SINTAX algorithm implemented in USEARCH whereby a minimum confidence threshold of 0.6 was set [25,26]. For visualizing the metagenome krona charts were used [27]. Alpha diversity was calculated by using the richness (observed), Simpson and Shannon indices. The weighted UniFrac distance method based on rarefied OTU abundance counts per sample was used for the calculation of the beta diversity. To expose possible patterns of inter-sample relations, these sample distances were then used in a detrended correspondence analysis (DCA). Further analyses of the tested groups such as the variance (PERMANOVA) and similarities (ANOSIM) were done. Alpha diversity calculations (Simpson and Shannon indices) beta diversity calculations including DCA and rarefaction analysis were performed with the R software packages phyloseq v1.22.3 and vegan v2.5-1. The Simpson index can take values between 0 and 1.0; the closer the value is to 1.0, the less diverse the microbial community is. This index is contrary to the Shannon index, where a high value means a high diversity of the microbial population [28,29,30]. The library construction, sequencing and data analysis described in this section were performed by Microsynth AG (Balgach, Switzerland).

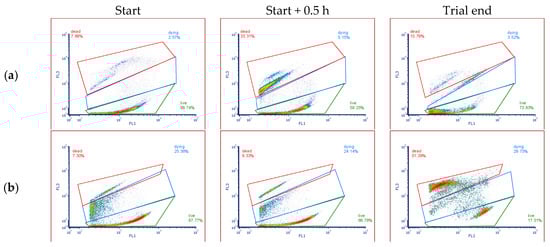

2.4. Live/Dead Quantification of Bacteria by Flow Cytometry

Twenty-millilitre aliquots of the samples were frozen at −20 °C. SYBR-Green (Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA) working solution at a concentration of 1:100 (10,000* concentrate in dimethyl sulfoxide (Merck KGaA, Darmstadt, Germany)) [31] and propidium iodide (PI, Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA) in ultrapure water at a concentration of 0.5 mg/mL were used for the staining procedure to determine the physiological state of the cell [15].

Samples taken from the extraction area (except for fresh water) were passed through 20 µm filters (Sysmex Austria GmbH, Wien, Austria) and diluted 1:10 with 0.9% sodium chloride solution (Merck KGaA, Darmstadt, Germany). Raw juice and samples from the mini-fermenter trial were diluted 1:100 before staining. For samples from juice purification, no filtration step was necessary to remove fine particles. SYBR Green was added at a final dilution of 1:10,000, and incubation was performed at 37 °C for 15 min in the dark. After adding PI at a final concentration of 5 µg/mL [31], the prepared samples were measured with CyFlow Cube 6 (Sysmex Austria GmbH, Wien, Austria). Fluorescence from SYBR Green-stained cells was acquired on the FL1 channel (525 nm), and the signal from PI-stained cells was acquired on the FL3 channel (700 nm). The forward scattered light is called forward scatter and correlates with the size of the cell. Wider scattered light is called side scatter and describes the structure of the cell [15]. The flow rate was set to 1 µL/s, approximately 4000–5000 events/s, and the measurement duration was set to 50 s. Before each measurement, the instrument was washed for 50 s with sheath fluid. FCS Express Cytometry Software v6 (De Novo Software, Pasadena, CA, USA) was used for data analysis. Gates to quantify live and dead populations were established with the help of controls with living or dead cells in the sample matrix. Therefore, samples with different matrices were centrifuged (13,400 rpm, 10 min) before sterile filtration, and they were diluted. The E. coli DSM 5695 suspension (diluted in 0.9% sodium chloride solution) for defining the dead cell gate was heated in the microwave (>100 °C; 10 min) to kill the bacteria. The effect was verified by attempting to culture the samples. To set the viable cell gate, an E. coli DSM 5695 suspension (diluted in 0.9% sodium chloride solution) was added to the sterile-filtered sample and to the filtered sample to separate the signal of living cells from the autofluorescence background signal.

2.5. Mini-Fermenter Trial Setup

Samples from the juice of the central part of the extraction tower (mid-tower) were taken in December 2018 and stored in 20 mL aliquots at −20 °C. The aliquot was added to 480 mL of a nutrient broth (10 g/L Bacto peptone, 5 g/L meat extract, 5 g/L yeast extract, 1.31 g/L K₂HPO₄·3H₂O, 0.1 g/L MgSO₄·7H₂O and 0.01 g/L FeSO₄·7H₂O) preheated in a mini-fermenter to 65 °C [18]. The temperature and pH value (Mettler-Toledo GmbH, Vienna, Austria) were measured online every 5 s with a customized program written in C#. L-Lactic acid and glucose were analysed every hour with Super GL (Dr Müller Gerätebau GmbH, Freital, Germany) following the manufacturer’s guidelines [32] until a pH value of 5.8 was reached. At a pH value of approximately 5.8, antibacterial agent was dosed to stop lactic acid formation and stabilize the pH value. The necessary concentration of the antibacterial agent was determined in pretrials. One millilitre of rosin acid-based product, Defostab 220 (Defotec Entschäumer Vertriebs-GmbH, Krefeld, Germany) was added at a concentration of 3 mg/L. For the control sample, the trials were carried out the same way without adding the product. Before dosing, 15, 30, and 45 min after dosing and at the end of the trial (after 24 h), samples were collected for viability measurement and additional L-lactic acid and glucose analyses. The mean value and standard deviation of all analyses were calculated from at least three mini-fermenter tests and compared with the values obtained from untreated mini-fermenters (control samples).

2.6. Statistical Analyses

All data were investigated by repeated measures analysis (MANOVA) using JMP© pro software (JMP© pro 15-1-0, 6-bit version, 2019 SAS Institute, Inc., Cary, NC, USA). Statistical analysis of the industrial trial results was performed as described by Kohout et al. (JMP Pro Model specification: MANOVA fit with repeated measures response) [13]. Again, “sampling points”, “treatments” and “periods”, as well as their simple interaction terms, were treated as fixed model effects, and effects on the response variables were considered to be significant at p < 0.05. Additionally, the same model was applied with special focus on the extraction area. Therefore, a reduced data set was analysed by including only responses from samples taken at the extraction tower and the countercurrent mixer. Data from the mini-fermenter trial were also analysed by repeated measures analysis but only with “treatments” as a fixed model effect to detect significance between differing treatments as well as time effects during sampling. Furthermore, multiple comparisons for responses by condition based on Least Significant Difference (LSD) means were made to demonstrate the effects of dosing rosin acid-based product between sampling during the mini-fermenter trial.

At the beginning, the plausibility and validity of the raw data were verified, and the bacterial count results were subjected to log10 transformation. The repeated measures analysis was performed separately for each response variable to obtain a standard univariate fit. Significant effects were further examined by contrast analysis with Bonferroni correction at a significance level of 5%.

3. Results and Discussion

3.1. Identification of Microorganisms in the Extraction Area and Juice Purification

The output of the metagenomic sequencing of the duplicates sampled on two consecutive days in an Austrian sugar factory over the beet sugar process was in total approx. 22.1 million reads with a length of 300 bp. The reads and operational taxonomic units (OTU) per sample are tabularized in

Table 1. Reads and Operational taxonomic unit (OTU) calculated based on amplicon-based metagenomic (Illumina MiSeq) sequencing analyses and bacterial count based on flow cytometry measurements. Values are expressed as means of two replicates and the standard deviations (SD).

Periods	Process Stage	Sampling Points	Reads				OTU
			Rosin Acid		No Treatment		Rosin Acid		No Treatment
			Mean	SD	Mean	SD	Mean	SD	Mean	SD
November	Extraction	Fresh water	12,228.00	*	15,911	*	4	*	9	*
		Press water	15,090.50	10,115.16	3251.5	2305.88	16	1.41	11	1.41
		Juice of mid-tower 1	26,274.50	2267.69	19095	24,744.49	13	0.00	3.5	2.12
		Juice of mid-tower 2	15,928.00	21,374.42	24,194.5	6767.72	12.5	0.71	2.5	0.71
		Tower juice 1	18,143.50	2551.95	12,786	*	13	1.41	12	*
		Tower juice 2	26,064.50	8954.09	12,136.5	692.26	19	1.41	9.5	4.95
		Cossette-juice mixture 1	15,843.00	3358.76	5182	6313.05	13.5	3.54	9	1.41
		Cossette-juice mixture 2	30,421.00	12,539.83	6596	9277.24	32	12.73	10	9.90
		Raw juice	3726.00	3445.02	10,562.5	8495.89	55	8.49	25	24.04
	Juice purification	Hard juice	178,524.00	28,550.14	173,944	15,253.71	1	0.00	21	4.24
		Thin juice	119,452.00	22,429.43	124,578	6853.28	1.5	0.71	1	0.00
		Eluat before UV	18,015.00	*	15,325.5	4868.43	4	*	4	0.00
		Eluat after UV	14,614.50	211.42	22,596.5	11,916.87	4	0.00	4	0.00
December	Extraction	Fresh water	43,396.50	35,391.40	12,021.5	3995.86	3.5	0.71	4	0.00
		Press water	9637.00	562.86	8569	1043.69	19.5	2.12	16.5	0.71
		Juice of mid-tower 1	26,288.50	3160.06	27,570	6057.08	14	5.66	7.5	4.95
		Juice of mid-tower 2	30,174.00	*	38,261.5	3270.37	13	*	2	0.00
		Tower juice 1	13,319.00	3798.58	11,126.5	1731.70	31.5	24.75	11	0.00
		Tower juice 2	15,014.50	7008.14	12,591	76.37	63.5	24.75	11	0.00
		Cossette-juice mixture 1	8181.00	10,504.78	11,426.5	1997.58	64.5	40.31	15.5	4.95
		Cossette-juice mixture 2	22,260.50	10,693.58	12,601	353.55	71	32.53	11	0.00
		Raw juice	22,420.50	5838.58	7326.5	2069.70	119.5	4.95	70	12.73
	Juice purification	Hard juice	143,327.00	10,534.48	123,280.5	84,686.64	18	14.14	19.5	4.95
		Thin juice	145,599.00	2979.75	126,441	4167.69	1	0.00	1	0.00
		Eluat before UV	70,983.50	86,489.77	208,905.5	100,409.87	6	2.83	8.5	2.12
		Eluat after UV	104,739.00	*	42,854	28,629.34	6	*	7	2.83
January	Extraction	Fresh water	10,228.00	*	43,980	34,129.22	4	*	21	24.04
		Press water	11,162.50	3650.79	9279.5	1177.33	18.5	2.12	14	0.00
		Juice of mid-tower 1	18,860.50	10,550.74	36,115.5	1593.11	11.5	3.54	12.5	3.54
		Juice of mid-tower 2	1852.50	1697.76	32,030	4236.98	29.5	6.36	9	4.24
		Tower juice 1	15,531.50	4796.31	26,656	11,820.00	88	1.41	13	2.83
		Tower juice 2	20,088.00	12,682.67	17,257	415.78	116.5	4.95	14	1.41
		Cossette-juice mixture 1	25,381.50	6385.88	14,483	2616.30	99	7.07	17	2.83
		Cossette-juice mixture 2	19,220.50	12,271.84	28,385	11,631.91	114	4.24	18.5	2.12
		Raw juice	79,043.50	47,853.45	24,697	7937.98	94.5	17.68	98	16.97
	Juice purification	Hard juice	181,206.50	16,917.53	198,801	30,549.84	27.5	9.19	21.5	3.54
		Thin juice	91,786.00	20,605.09	109,973	5115.21	1	0.00	1	0.00
		Eluat before UV	10,240.00	1012.58	17,774.5	9613.12	4	0.00	10.5	9.19
		Eluat after UV	27,725.00	*	11,998.5	4780.75	4	*	4	0.00

* Only one Illumina MiSeq Sequencing analyze was possible.

. The majority of total bacteria sequences over all samples were from the phyla Thermus (60%), followed by Firmicutes (29%) and Proteobacteria (6%). The Firmicutes contained mostly the class Bacilli (99%), which are divided in Bacillales (79%) and Lactobacillales (21%).

The different conditions in the production process of beet sugar strongly influence the bacterial community. In the extraction area, bacteria belonging to the phylum Firmicutes were mainly detected. In juice purification, bacteria belonging to the phylum Deinococcus-Thermus were predominant. In the regenerate/eluat, which is used as fresh water in the extraction tower, bacteria belonging to the phyla Proteobacteria and Actinobacteria were primarily observed (

Table 2. Summary Overview of the most frequently occurring bacteria on each sampling point in the extraction and juice purification area as identified by amplicon-based metagenomic sequencing (Illumina MiSeq) technology. 1: fresh water, 2: press water, 3.1: juice of mid-tower 1, 3.2: juice of mid-tower 2, 4.1: tower juice 1, 4.2: tower juice 2, 5.1: cossette-juice mixture 1, 5.2: cossette-juice mixture 2, 6: raw juice, 7: hard juice, 8: thin juice, 9: regenerate before UV-treatment, 10: regenerate after UV-treatment.

Genus	Family	Order	Class	Phylum	Gram Stain	Growth Temperature	Relation to Oxygen	Spore Former	Sample Point	Literature
Tumebacillus	Alicyclobacillaceae	Bacillales	Bacilli	Firmicutes	positive	5–37 °C	aerobic	+	2	[33]
Bacillus	Bacillaceae	Bacillales	Bacilli	Firmicutes	positive	35–50 °C	aerobic or microaerophilic	+	2	[34]
Bacillus	Bacillaceae	Bacillales	Bacilli	Firmicutes	positive	25–65 °C	facultatively anaerobic	+	2	[35]
Geobacillus	Bacillaceae	Bacillales	Bacilli	Firmicutes	positive	42–70 °C	anaerobic	+	5.1; 5.2; 4.1; 4.2	[34,36]
Geobacillus	Bacillaceae	Bacillales	Bacilli	Firmicutes	positive	45–70 °C	aerobic	+	5.1; 5.2; 4.1; 4.2	[34,37,38]
Anoxybacillus	Bacillaceae	Bacillales	Bacilli	Firmicutes	positive	55–67 °C	aerobic	+	5.1; 5.2; 4.1; 4.2	[39]
Caenibacillus	Sporolacto-bacillaceae	Bacillales	Bacilli	Firmicutes	positive	40–65 °C	aerobic	+	3.1; 3.2; 4.1; 4.2	[40]
Leuconostoc	Leuconostocaceae	Lactobacillales	Bacilli	Firmicutes	positive	20–30 °C	anaerobic	−	6	[41]
Leuconostoc	Leuconostocaceae	Lactobacillales	Bacilli	Firmicutes	positive	20–30 °C	anaerobic	−	6	[41]
Leuconostoc	Leuconostocaceae	Lactobacillales	Bacilli	Firmicutes	positive	20–30 °C	anaerobic	−	6	[41]
Leuconostoc	Leuconostocaceae	Lactobacillales	Bacilli	Firmicutes	positive	20–30 °C	anaerobic	−	6	[41]
Fructobacillus	Leuconostocaceae	Lactobacillales	Bacilli	Firmicutes	positive	20–30 °C	aerobic	−	6	[42]
Lactobacillus	Lactobacillaceae	Lactobacillales	Bacilli	Firmicutes	positive	at 45 °C, not at 15 °C	anaerobic	−	3.1	[43]
Lactobacillus	Lactobacillaceae	Lactobacillales	Bacilli	Firmicutes	positive	at 45 °C, not at 15 °C	micro aerophilic	−	2, 3.1	[43]
Lactobacillus	Lactobacillaceae	Lactobacillales	Bacilli	Firmicutes	positive	at 45 °C, not at 15 °C	anaerobic	−	2; 6	[43]
Lactobacillus	Lactobacillaceae	Lactobacillales	Bacilli	Firmicutes	positive	at 45 °C, not at 15 °C	anaerobic	−	2	[43]
Lactobacillus	Lactobacillaceae	Lactobacillales	Bacilli	Firmicutes	positive	at 37 °C	anaerobic	−	6	[44]
Arthrobacter	Micrococcaceae	Actinomycetales	Actino-bacteria	Actinobacteria	positive	30 °C	aerobic	−	1; 9; 10	[45,46]
Ralstonia	Burkholderiaceae	Burkholderiales	Betaproteo-bacteria	Proteobacteria	negative	28, 30 and 37 °C	aerobic	−	1; 9; 10	[47]
Burkholderia	Burkholderiaceae	Burkholderiales	Betaproteo-bacteria	Proteobacteria	negative	30 °C not at 42 °C	aerobic	−	1; 7; 9; 10	[48,49]
Thermus	Thermaceae	Thermales	Deinococci	Deinococcus-Thermus	negative	49–72 °C	facultatively anaerobic	−	7; 8	[50,51,52]

).

Raw juice represents the sample with rather low temperature in the extraction area owing to the countercurrent processing principle resulting in highest alpha diversity (

Table 3. Number of bacteria and alpha diversity expressed as Simpson and Shannon index, calculated based on amplicon-based metagenomic (Illumina MiSeq) sequencing analyses and bacterial count based on flow cytometry measurements (detailed rarefaction curves shown in Figure S1 and Table S1). Values are expressed as means of two replicates and the standard deviations (SD).

Periods	Process Stage	Sampling Points	Bacterial Count (log10/mL)
			Rosin Acid			No Treatment			Rosin Acid			No Treatment
			Mean	SD	Mean	SD	Mean	SD	Mean	SD	Mean	SD	Mean	SD
November	Extraction	Fresh water	0.35	*	0.16	*	1.18	*	2.01	*	5.12	0.69	3.89	1.53
		Press water	0.34	0.07	0.51	0.08	1.48	0.10	1.17	0.12	6.08	0.10	6.04	0.15
		Juice of mid-tower 1	0.57	0.20	0.68	0.09	0.92	0.43	0.58	0.22	6.80	0.70	6.46	0.22
		Juice of mid-tower 2	0.44	0.38	0.74	0.01	1.35	1.04	0.43	0.00	6.63	0.74	6.52	0.28
		Tower juice 1	0.88	0.05	0.88	*	0.35	0.13	0.34	*	5.96	0.87	6.82	0.21
		Tower juice 2	0.68	0.41	0.93	0.09	0.67	0.77	0.22	0.26	5.79	0.86	5.91	0.11
		Cossette-juice mixture 1	0.87	0.04	0.55	0.44	0.38	0.08	1.05	0.93	5.99	0.83	5.94	0.06
		Cossette-juice mixture 2	0.65	0.36	0.61	0.34	0.75	0.56	0.74	0.43	5.89	0.78	5.81	0.02
		Raw juice	0.16	0.17	0.61	0.54	2.82	1.10	1.06	1.42	7.22	0.10	7.17	0.01
	Juice purification	Hard juice	1.00	0.00	0.95	0.04	0.00	0.00	0.18	0.12	5.25	0.53	3.70	0.26
		Thin juice	1.00	0.00	1.00	0.00	0.00	0.00	0.00	0.00	5.58	0.06	6.40	0.83
		Eluat before UV	0.39	*	0.38	0.02	1.11	*	1.13	0.04	4.59	0.16	4.05	0.89
		Eluat after UV	0.38	0.01	0.37	0.00	1.13	0.01	1.15	0.01	4.34	0.17	3.54	1.17
December	Extraction	Fresh water	0.69	0.44	0.35	0.01	0.57	0.79	1.17	0.01	5.13	0.64	4.56	0.55
		Press water	0.17	0.05	0.20	0.01	2.13	0.21	1.90	0.05	5.96	0.18	5.83	0.21
		Juice of mid-tower 1	0.66	0.06	0.65	0.12	0.72	0.20	0.68	0.34	6.11	0.30	5.98	0.16
		Juice of mid-tower 2	0.42	*	0.73	0.01	1.09	*	0.44	0.01	6.24	0.26	5.72	0.08
		Tower juice 1	0.88	0.04	0.84	0.01	0.43	0.21	0.46	0.02	5.11	0.15	5.58	0.13
		Tower juice 2	0.82	0.02	0.86	0.03	0.68	0.09	0.40	0.08	4.99	0.15	5.59	0.19
		Cossette-juice mixture 1	0.37	0.44	0.82	0.02	2.24	1.43	0.50	0.08	5.05	0.01	5.43	0.01
		Cossette-juice mixture 2	0.51	0.11	0.86	0.01	1.32	0.30	0.39	0.02	5.49	0.61	5.66	0.12
		Raw juice	0.17	0.04	0.19	0.06	2.79	0.23	2.55	0.57	7.40	0.36	7.16	0.05
	Juice purification	Hard juice	0.82	0.16	0.79	0.03	0.42	0.31	0.53	0.04	4.18	0.83	3.43	0.10
		Thin juice	1.00	0.00	1.00	0.00	0.00	0.00	0.00	0.00	5.43	0.08	5.87	0.20
		Eluat before UV	0.52	0.23	0.52	0.07	0.90	0.38	0.90	0.26	4.81	0.22	4.33	0.22
		Eluat after UV	0.64	*	0.32	0.07	0.81	*	1.39	0.04	4.79	0.13	3.99	0.14
January	Extraction	Fresh water	0.38	*	0.21	0.21	1.13	*	2.16	1.44	5.36	0.89	4.88	0.41
		Press water	0.18	0.06	0.28	0.03	2.06	0.21	1.59	0.08	6.11	0.06	6.14	0.17
		Juice of mid-tower 1	0.48	0.22	0.55	0.12	1.08	0.39	0.99	0.32	5.95	0.07	4.69	2.64
		Juice of mid-tower 2	0.12	0.05	0.73	0.00	2.58	0.31	0.48	0.02	5.64	0.01	6.31	0.21
		Tower juice 1	0.65	0.11	0.68	0.32	1.32	0.36	0.63	0.46	5.27	0.11	5.31	0.33
		Tower juice 2	0.18	0.24	0.87	0.06	3.36	1.56	0.38	0.16	5.34	0.05	5.58	0.02
		Cossette-juice mixture 1	0.50	0.14	0.86	0.07	1.49	0.05	0.42	0.17	5.33	0.04	5.47	0.01
		Cossette-juice mixture 2	0.25	0.33	0.65	0.28	3.07	1.94	0.75	0.44	5.46	0.02	5.61	0.02
		Raw juice	0.29	0.01	0.22	0.04	1.87	0.06	2.37	0.49	7.11	0.13	7.33	0.07
	Juice purification	Hard juice	0.91	0.08	0.96	0.00	0.28	0.23	0.13	0.01	3.25	0.09	3.58	0.09
		Thin juice	1.00	0.00	1.00	0.00	0.00	0.00	0.00	0.00	5.60	0.26	5.29	0.57
		Eluat before UV	0.36	0.00	0.37	0.03	1.15	0.00	1.25	0.09	3.31	0.04	4.90	0.19
		Eluat after UV	0.37	*	0.37	0.00	1.13	*	1.13	0.01	2.62	0.52	4.58	0.01

* Only one Illumina MiSeq Sequencing analyze was possible.

, Figure S1 and Table S1). The fresh cossettes cool the juice coming from the extraction tower through the countercurrent mixer (Figure 1). This step results in a raw juice temperature of approximately 30 °C. The lower temperature causes the predominance of mesophilic bacteria, such as Leuconostoc and Lactobacillus species (Table 2). This finding supports the results of previous studies based on cultural methods [8,12,13]. In addition to the predominating phylum Firmicutes mentioned above, bacteria belonging to the phyla Proteobacteria, Actinobacteria, Acidobacteria, and Nitrospiraceae occur in raw juice. The microbiota of Chinese sugar beets in different growth stages of the plant was identified based on amplicon-based sequencing (Illumina technique) and resulted in bacterial groups of the same phyla as detected in this study [53]. These bacteria may have been washed off from fresh beet cossettes by the raw juice due to the countercurrent processing principle. In the previous process step, the extraction as well as in the following step, the juice purification, these bacteria could no longer be detected or were only measured at very low relative abundance. In the extraction area, countercurrent mixer and extraction tower (sample 3–5 in Table 2), a mixture of aerobic and anaerobic thermophilic endospore-forming bacteria could be found (Table 2). To extract sucrose from the cossettes, extraction water is used. This water consists of regenerated water from the regeneration of ion exchangers used to remove calcium from juice after the juice purification process, known as fresh water, and press water generated by pressing the exhausted cossettes (Figure 1). Bacteria detected in extraction water were rarely found or could not be detected in further steps in the extraction area. This absence of bacteria is observed because the fresh water in the investigated factory is treated with UV radiation. Press water showed high microbial contamination levels [13] and high alpha diversity (Table 3, Figure S1 and Table S1), but these bacteria were not predominant in the juice from the mid-tower or the tower juice. In both extraction lines, the bacterial community was very similar, except for the sampling point at the central part of the extraction tower. In the juice from mid-tower 1, Lactobacillus species were found (Table 2). This finding confirmed the results of a previous study based on culture methods, where a significantly higher number of lactic acid bacteria were detected in these samples from mid-tower 1 [13].

In the samples originating from juice purification, hard juice and thin juice, the calculated alpha diversity was very low (Table 3, Figure S1 and Table S1), and the Thermus species was found to be typical. Additionally, in hard juice, other bacterial species, such as Burkholderia species, could be detected, but this genus was no longer present in thin juice (Table 2). This finding may be attributable to bacteria that remained in the ion exchanger resin usually used for decalcification of the juice and were washed out in the regeneration cycle with the regenerate. Regarding the effect of high temperatures (approximately 80 °C) on the bacterial community and typical for the resin columns, it could be assumed that the Burkholderia cells are not viable. In previous studies, no aerobic mesophilic bacteria were detected in such samples. Nevertheless, microbial contamination of the resin has been reported in plant protocols. The regeneration treatment, which also mechanically affects the resin material, can cause cracks and crevices in the resin, where microorganisms can grow and persist. In this context, a previous study reported the occurrence of nitrite-forming Thermus species located in ion exchanger columns [51]. These species could not be identified in the regenerate, suggesting that they survive in the resin. No published investigation based on cultural methods could detect growth in hard and thin juice samples [54].

The influence of the processing time period and the related storage period of the beet was also investigated in this study. Practical experience has shown that beets stored for an extended period of time are more difficult to process than fresh beets. The texture of the beets changes [55] and the changes in chemical composition of the beets during storage can lead to slicing problems also involving reduced processing quality [56]. The increase in levels of non-sucrose substances, such as betaine, raffinose and invert sugar (glucose and fructose), results in poor beet quality and a stronger need for processing aids [56]. For example, dextran can be produced by Leuconostoc species. This effect especially occurs after freeze-thaw cycles during the storage period of beets [57]. To prevent technological problems, the addition of dextranase is recommended in such cases. Deteriorated processing quality observed at the end of the season could be of microbiological origin, but our investigations showed no significant influence of processing period/storage duration on the diversity of the bacterial community in the process. The sampling points where different processing conditions are observed seem to be the primary influence on the diversity of the detected antimicrobial effects of rosin acids.

3.2. Industrial-Scale Application of a Rosin Acid-Based Product in the Extraction Area

In the 1990s, AGRANA company voluntarily stopped using formaldehyde to combat microorganisms in the production process. As an alternative, hop acid- or rosin acid-based products were used instead [18,58]. Previous studies have demonstrated a significant reduction in microbial metabolites, such as lactic acid, acetic acid, butyric acid, glucose and fructose, due to the application of a rosin acid-based product in the extraction area, but no influence on microbial counts was detected [13]. These culture method-based results could be confirmed with a culture-independent method, flow cytometry. No significant difference in the total number of bacteria in the samples was detected in the samples with and without rosin acid application in the industrial or laboratory batch trials. The alpha diversity expressed as the Simpson and Shannon indices increased significantly (p = 0.0110 and p = 0.0064) when only samples from the extraction tower and countercurrent mixer were included in the statistical analyses, where the product was dosed. Furthermore, the dosing also influenced the increasing diversity at all sampling points, which also included samples from juice purification (

Table 4. Statistical evaluation of significant differences of bacterial count, based on flow cytometric analyses, alpha diversity expressed as Simpson and Shannon index and OTU quantity, based on Illumina sequencing based on MiSeq analyses. Samples of extraction area and juice purification with or without treatment (adding of rosin acid-based product in extraction area) were statistically analyzed; calculations are based on repeated measures analysis and contrast analysis with Bonferroni correction at a significant level of 5%.

Responses	N	n	Processing Periods (p-Values *)	Contrast Analysis: Significant Difference between	Treatments (p-Values *)	Sampling Points (p-Values *)
(log10) Bacterial Count	78	2	0.0101	November and January	0.7794	<0.0001
Simpson Index	70	2	0.1506		0.0559	<0.0001
Shannon Index	70	2	0.1528		0.0244	0.0006
OTU Quantity	70	2	0.0584	November and January	0.0007	<0.0001

N, complete cases; n, replicates of measurements; no significant interactions between the model effects with the exception of treatment-sampling points at OTU. *, Effects were considered as significant at p < 0.05.

).

In some samples, only the relative abundance of the microorganism shifted, but in others, additional bacterial species were detected. In tower juice and in the cossette-juice mixture, the alpha diversity also increased due to the occurrence of additional bacteria belonging to Actinobacteria, such as Arthrobacter and Proteobacteria. These bacteria may have been detected because some of them were gram-negative. Rosin acid-based products are not effective against Gram-negative bacteria [59]. Thus, the dosing of the rosin acid-based product caused a shift in the bacterial community composition.

3.3. Lab Scale Trials Using a Rosin Acid-Based Product

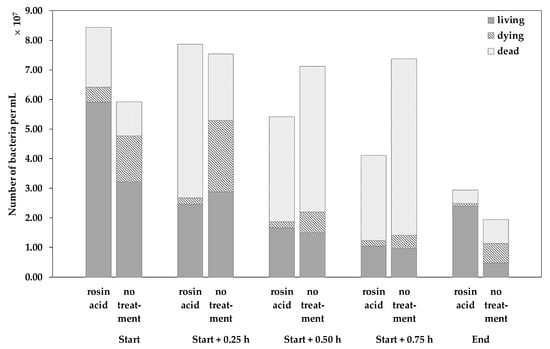

Treatment with the rosin acid-based product had no significant influence on the total number of bacteria in the mini-fermenter trials. However, the total number of bacteria decreased significantly during the trial period (p < 0.05). By dosing the rosin acid-based product, the L-lactic acid concentration was reduced significantly (p < 0.05) compared to no dosing. Furthermore, the number of living cells decreased significantly immediately after dosing the rosin acid product (p = 0.0220). The L-lactic acid concentration over the trial period was also significantly lower (p < 0.05) in samples from the fermenter treated with rosin acid-based product compared to untreated samples at the same stage of trial. The treatment showed no significant effect on total count of viable cells over the trial period compared with untreated samples at the same stage of the trial. These observations indicate on the one hand a very specific effect of rosin acids on certain bacterial species. While the concentration is bactericidal for some species, for others, it is only inhibiting (bacteriostatic) for a certain time period. Emerstorfer et al. described the bactericidal concentration for different gram-positive bacteria. Rosin acids (10–15 mg/kg) inhibited the growth of different Clostridia species. For Lactobacilli, the concentration was considerably higher (up to 400 mg/kg) [59]. On the other hand, if only total living cells were considered, it could be misleadingly assumed that the dosing of rosin acid-based product is not necessary to combat microorganisms in the extraction process. Our study showed that the viable cells undergoing no treatment were more active and secreted L-lactic acid by sucrose assimilation during the trial, while the pH value was constant for 6.0 ± 2.60 h (values not shown) when treated with 3.0 mg/L of the rosin acid-based product. This bacteriostatic effect was confirmed by data from large-scale studies in the Austrian beet sugar plant. The low pH value caused by lactic acid production is responsible for additional sucrose losses by hydrolytic cleavage. A typical rate is 14–44 mg per 100 g sucrose at 60 °C–70 °C and a pH of 5.4 [60]. At the end of the trial, the number of viable cells was higher in the samples of the rosin-acid-treated mini-fermenter compared to the control (see Figure 2 and Figure 3).

Additionally, the metabolic activity of the bacteria, such as the formation of organic acids, increased (

Table 5. L-Lactic acid concentration and pH-value of samples treated with (3 mg/L) or without a rosin acid-based product and as monitored in mini-fermenter trials; values are expressed as mean and standard deviation of three independent trials. Start: pH < 5.8, start of treatment; End: End of trial, 24 h.

Treatment	Analyzed Parameter	Start	Start + 0.25 h	Start + 0.5 h	Start + 0.75 h	End
Rosin acids	L-Lactic acid (mg/L)	586 ± 83	655 ± 73	676 ± 50	676 ± 47	956 ± 265
	pH	5.78 ± 0.01	5.66 ± 0.03	5.65 ± 0.04	5.65 ± 0.04	5.31 ± 0.21
No treatment	L-Lactic acid (mg/L)	681 ± 41	838± 108	966 ± 217	979 ± 222	1410 ± 219
	pH	5.78 ± 0.01	5.56 ± 0.19	5.45 ± 0.27	5.42 ± 0.28	4.99 ± 0.16

). This result indicates that these bacteria had or developed tolerance and adapted to rosin acids or that rosin acids were no longer active due to absorption into the matrix or similar processes. To prohibit bacterial growth, further dosing may be necessary, which is the case in the sampled beet sugar extraction plant.

4. Conclusions

Compared to 16S amplicon-based metagenome analysis, the classical characterization of typical microorganisms associated with beet sugar plants are often based on cultural methods, as it only provides an incomplete picture of the real bacterial community. This observation is especially true for the samples from the high-temperature part of the extraction area, the juice of the central part of the tower, the tower juice and the cossette-juice mixture. The set of cultural-based methods has to be extended by specific media and culturing conditions for species such as Geobacillus spp. and Caenibacillus spp. Based on lab-scale experiments accompanied by industrial-scale administration of rosin acids, specific antimicrobial effects and their persistence could be clarified in this study. As a result of addition of the antimicrobial, the total number of bacteria and the production of metabolites such as L-lactic acid could be reduced. However, the rosin acids-based product was only effective for a certain time period. Then, microbial growth including the production of metabolites started again. Further studies will be necessary to investigate more in depth the effect of rosin acids on the cellular level of the bacteria, as well as its stability under processing conditions.
