An Evaluation of the Microstructure of High-Aluminum Cast Iron in Terms of the Replacement of Aluminum Carbide with Titanium Carbide or Tungsten Carbide

Abstract

One of the problems with recycling is that of widespread contaminated steel scrap with an unwanted aluminum addition. In this paper, we will present a specific solution to this problem. The implementation of high-aluminum cast iron production has been considered. This cast iron is a cheap material resistant to high temperatures; additionally, it has increased abrasion resistance. Despite the above-mentioned advantages, high-aluminum cast iron has not been widely used in the industry so far, due to the difficulties encountered during machining and the occurrence of the phenomenon of spontaneous disintegration. The paper presents a method for replacing aluminum carbide with titanium carbide or tungsten carbide. This research shows that the carbide replacement procedure is sufficient in stopping the phenomenon of self-disintegration of a casting made of high-aluminum cast iron. Moreover, a new material was obtained, i.e., high-aluminum cast iron with precipitates of hard tungsten carbide and flake graphite. When considering the abrasive resistance of this material, flake graphite can be treated as the natural lubricant phase and tungsten carbide precipitation, as the hardening phase.

1. Introduction

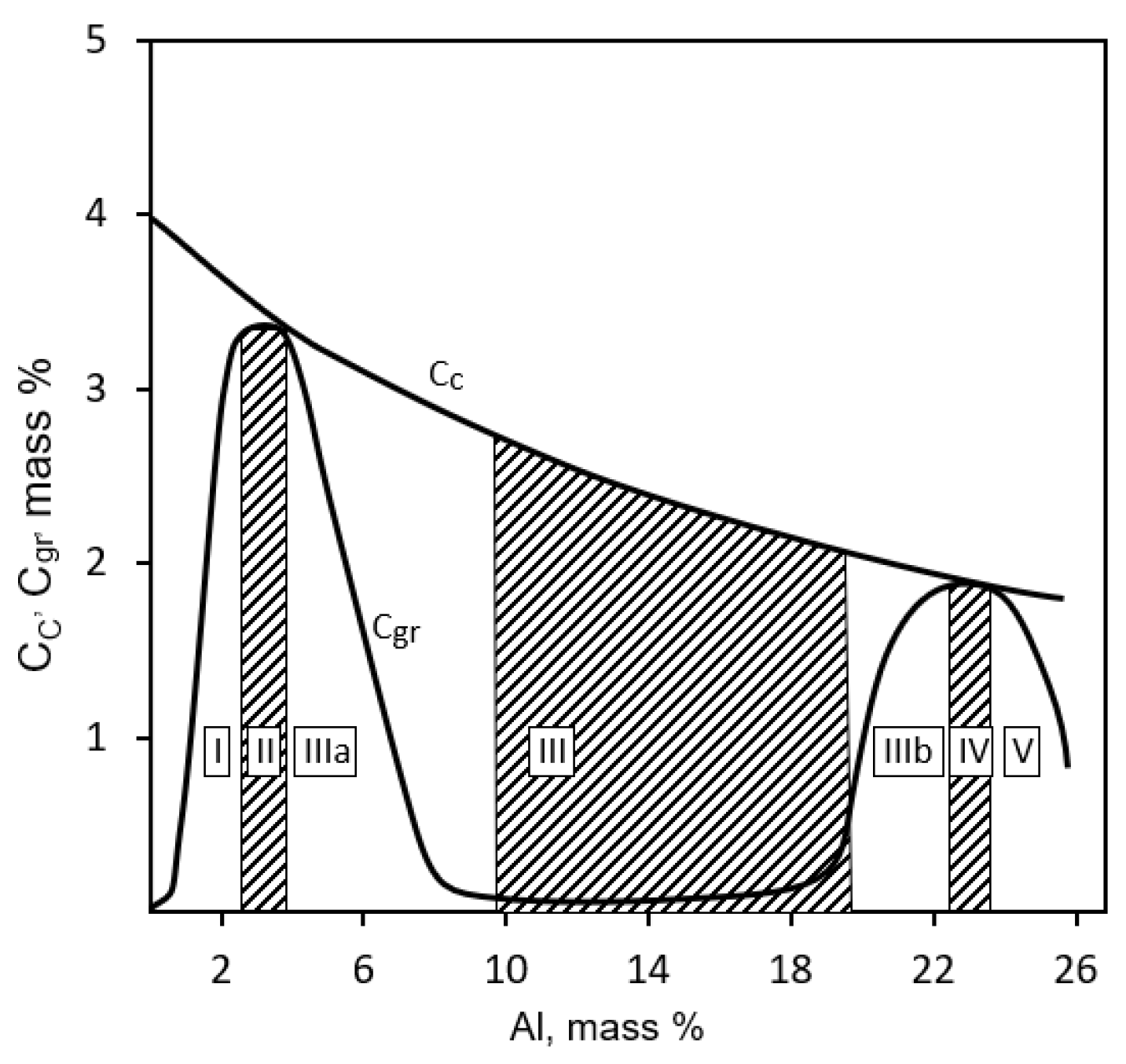

Aluminum, depending on its content in cast iron, promotes or prevents graphitization. It can act as a graphitizer or stabilizer depending on the quantity in which it is present in cast iron. Therefore, taking into account the widespread presence of aluminum in iron or steel scrap, it is possible to use this contaminated scrap for the production of high-aluminum cast iron [1,2,3,4], which should be used in the construction of machine elements. Fe-C-Al alloys, which contain up to 30% mass Al, show two characteristic ranges of graphitization. The first one includes alloys with up to 8 wt. Al, while the second alloys with a content of 18–26 mass % Al. With a content of 9–16 mass % Al and with a content exceeding 26 mass % with Al in cast iron, carbon is found only in the bound form [5,6,7,8]. Figure 1 shows the relation between the aluminum content in cast iron and the form of carbon occurrence [9] and several areas can be defined, including [% mass]:

Area I-When a small amount of aluminum is introduced into cast iron, in the order of 1.5–2.5%, it shows a ferritic-pearlitic structure. A further increase of the aluminum content to 3.6% increases the proportion of ferrite in the matrix. Increasing the aluminum content to 3.6% causes the formation of thick particles of graphite. The addition of aluminum in this area causes, in principle, structural changes analogous to those that occur with the addition of silicon contents;

Area II-It corresponds to cast iron with an aluminum content of 3.2–3.8%. The structure is ferritic with the most extensive precipitates of graphite;

Area IIIa-Eutectoid appears in this range; ferrite + ε. It is a perlite-like structural mixture;

Area III-In this area (9.7–11.5% Al), there is no longer any graphite. The structure of this area does not change with the increased cooling rate of the castings; Area IIIb-The structure of this area (19.0–23.0% Al) consists of coarse particles of graphite, primary particles of phase ε and ferrite. As is the case of the structure in area IIIa, the structure of area IIIb changes during the different cooling rates of the alloys.

Area IV-In this area (22.7–23.5% Al), similarly to area II, there is a structure containing ferrite and graphite.

Area V-This area includes cast iron with a content of 24.0–30.0% Al. and contains: graphite, ferrite, and aluminum carbides; however, with increased aluminum content, the graphite content decreases until it disappears. Cast iron with about 30% Al is a special purpose cast iron. It shows very good resistance to an oxidizing atmosphere at a high temperature, but castings made of this iron tend to break down during operation, as shown in Figure 1.

In general, high-alumina cast iron is very similar to the well-known materials from the iron aluminides group [10,11,12,13]. Increasing the content of aluminum in cast iron reduces its density and improves resistance to oxidation. For this purpose, a metal charge contaminated with Al can be used [1,2,3,4]. High-aluminum cast iron with higher aluminum content belongs to the group of so-called white cast iron. It turns out that the barrier in the field of application of this material is the concentration of carbon in cast iron and the formation of hygroscopic Al₄C₃ carbide from aluminum. The property of this carbide and its morphology in the form of fibers and plates with a thickness of several micrometers cause that, the reaction to water in the form of liquid or gas is intensive and leads to the destruction of the material, the so-called “self-decay” as a result of volume expansion, after the reaction of aluminum carbide to water particles, according to this:

Al₄C₃ + 12H₂O→ 4Al(OH)₃ + 3CH₄↑

(1)

4Al(OH)₃ → 2Al₂O₃ + 6H₂O

(2)

The reason for this is the appearance of the Al(OH)₃ compound, the volume of which is about 2.5 times greater than the specific volume of Al₄C₃ carbides that react with water. This phenomenon causes high stress and breaks the continuity of the alloy matrix.

2. The Triple Phase Equilibrium System of Fe-Al-C Alloys Developed in the Thermo-Calc Program

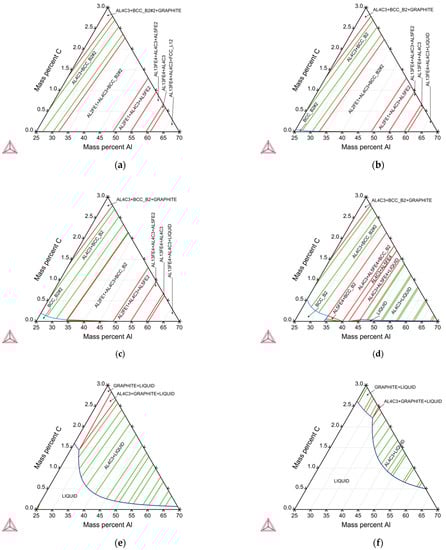

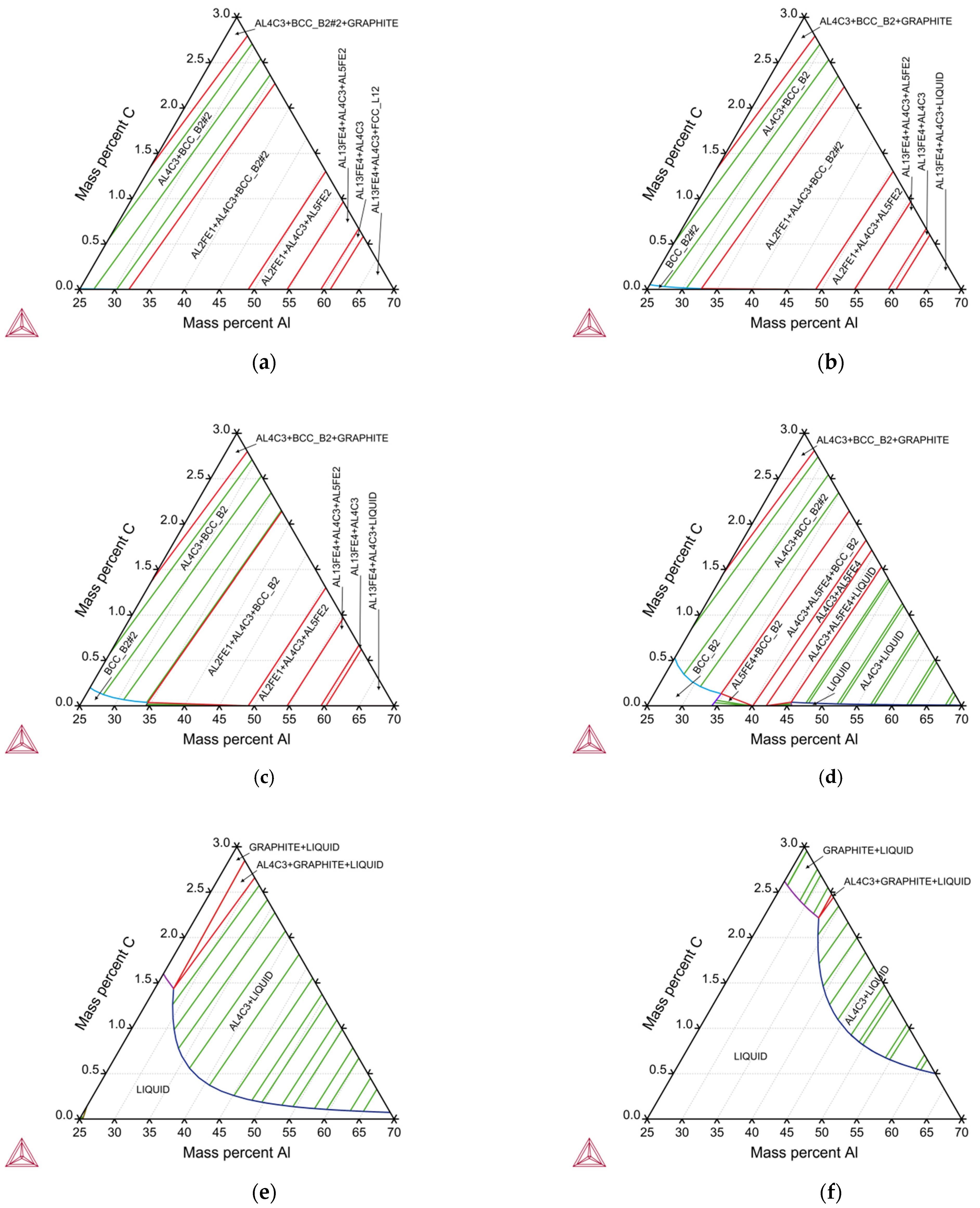

The Thermo-Calc program was used to plot the triple system of the Fe-Al-C alloy that can provide relevant information. These graphs were made for various temperature values. They are presented in Figure 2. It is worth noting that at a temperature above 800 °C, it is possible to separate carbon in the form of graphite, starting from the carbon content of 2.5%.

3. Methodology

The PIT 30 medium frequency induction furnace with a thyristor inverter and a brick crucible, with a charge capacity of 30 kg was used to perform the melts. The melted alloy was superheated to 1540 °C and then cast-iron samples were cast at 1420 °C. A bentonite mass was used to make the molds, which is made of quartz sand-matrix, bentonite-binder, water, and coal dust as an additive. The molds were dried in a core and mold dryer at a temperature of 200 °C. In order to carry out the tests, three rollers with a diameter of 30 mm and a length of 260 mm were cast simultaneously in one mold. The so-called grate bars for a power boiler were also cast.

The microscopic observations of the samples were carried out on the LEICA optical microscope, coupled with a computer, according to the Leica Q Win program. The assessment of the SEM microstructure and the analysis of the phase composition in the structure of the investigated cast iron and the analysis of the chemical composition were carried out on the JEOL 500LV SEM scanning microscope with an X-ray microanalysis (EDS) attachment.

4. Assessment of the Structure of Cast Iron Prone to Spontaneous Disintegration

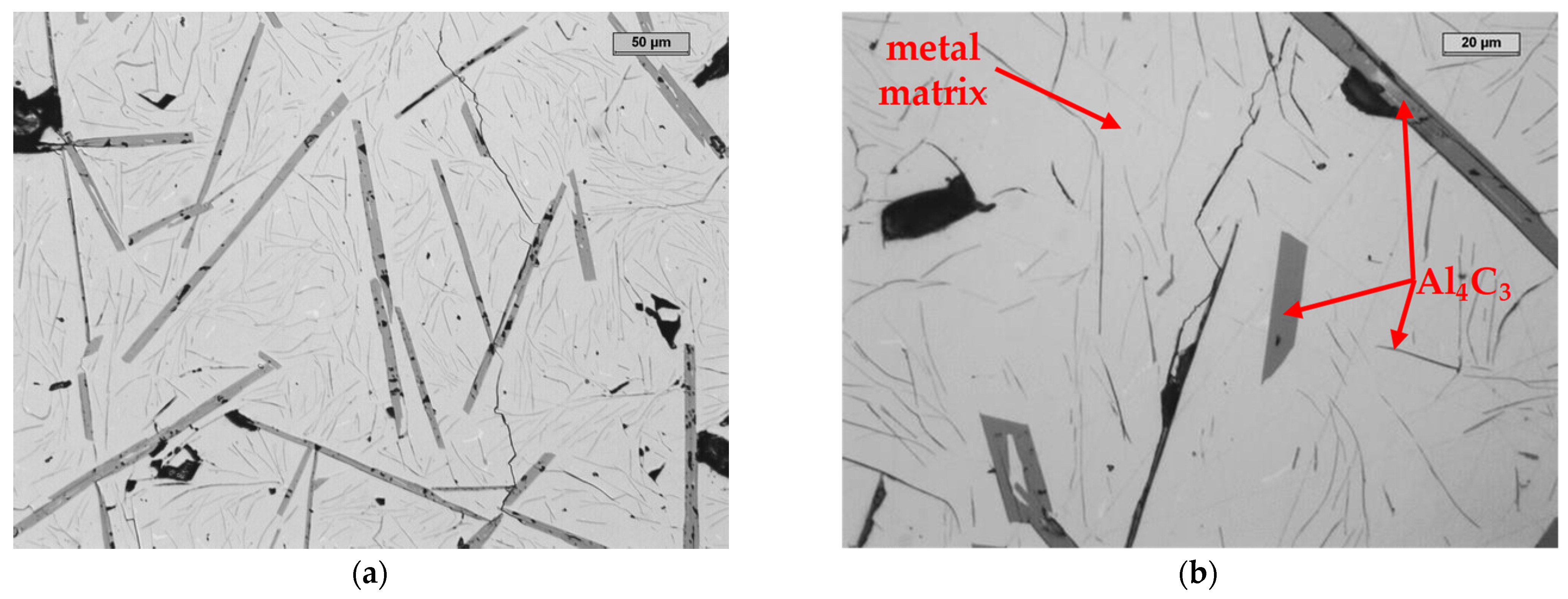

To determine the structure, samples were made of high-aluminum cast iron with the following chemical composition [mass%]: 34.7% Al, 0.91% C, 0.29% Si, 0.25% Mn. The microstructure of the obtained cast iron is shown in Figure 3 and was characterized by a structure composed of wall aluminum carbides and a ferritic matrix.

Figure 3a,b shows matrix cracks along the carbide plates, suggesting that the mechanical strength of carbide is greater than the metal matrix. During the crystallization of the alloy and its free contraction, aluminum carbide can resist the metal matrix, causing mechanical stress. The largest of them are accumulated on the periphery of the carbide, causing the notch effect, and hence a straight path to the destruction of the metal matrix. In an extreme case, when the bending strength R_g of the carbide is exceeded, it also undergoes destruction, as shown in Figure 4. During the resulting decohesion of the metal matrix and the carbide, a micro-gap is formed, into which water vapor in the air can diffuse without any obstacles, thus reacting with the aluminum carbide. Subsequently, the Al₄C₃ carbide begins to increase its volume, causing destruction of the casting in its entire volume, not only in the outer layers. After microcracks appear, water vapor can get into the internal structures of the casting faster and as a secondary factor, it can destroy it quicker.

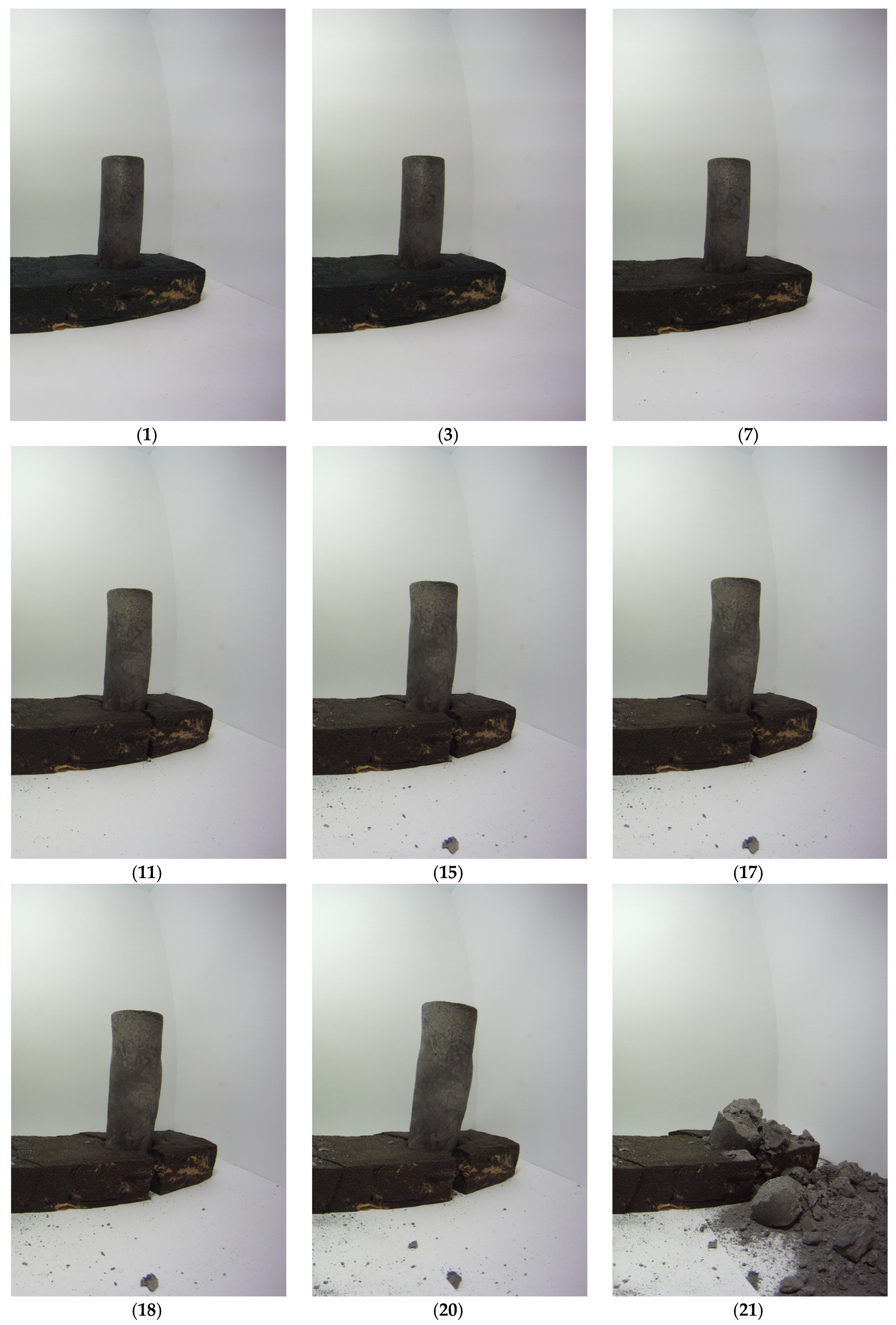

Over a period of 21 days, the sample disintegrated as shown in the photos in Figure 4. When analyzing the posted photos, it can be quickly noticed that the tested sample swells and increases its volume over time. After analyzing the above observation, it seems advisable to replace the Al₄C₃ carbide with another with carbide-forming elements, e.g., Ti, V, W. Such treatment may not only cause complete elimination of the Al₄C₃ carbide but also change the shape of the carbide. The compact shape of the new carbide, e.g., TiC, VC, WC, will not cause excessive stress during free shrinkage, contributing to the durability of the casting. This paper presents the effect of titanium and tungsten on the change of the microstructure, which includes precipitations of titanium carbide or flake graphite and various precipitations of tungsten carbide. In addition, it has been proven that castings can be produced from this material.

5. An Example of Producing a High-Aluminum Cast Iron

The study assumes the development of the simplest possible method of obtaining high-aluminum cast iron, which would not be prone to “self-disintegration”. In earlier studies, a method of replacing aluminum carbide with another type of carbide, e.g., TiC, was developed. Figure 5 shows the changes in the microstructure that will be visible when we introduce the appropriate titanium content into the cast iron. The research shows that the degree of replacement of aluminum carbides with titanium carbides depends on the content of the introduced titanium (according to Equation (3)).

Ti + C → TiC,

(3)

Reaction (3) shows that 1 g of titanium binds 0.25 g of carbon, which gives 1.25 g of TiC carbide. For the casting conditions, the ΔG free energy of Al₄C₃ carbide reaction formation will be −96 kJ. On the other hand, the free energy of ΔG⁰ reaction formation of TiC carbide is −166 kJ. Thus, with the minimum amount of titanium needed to replace the Al₄C₃ carbide, TiC carbide will appear in the structure.

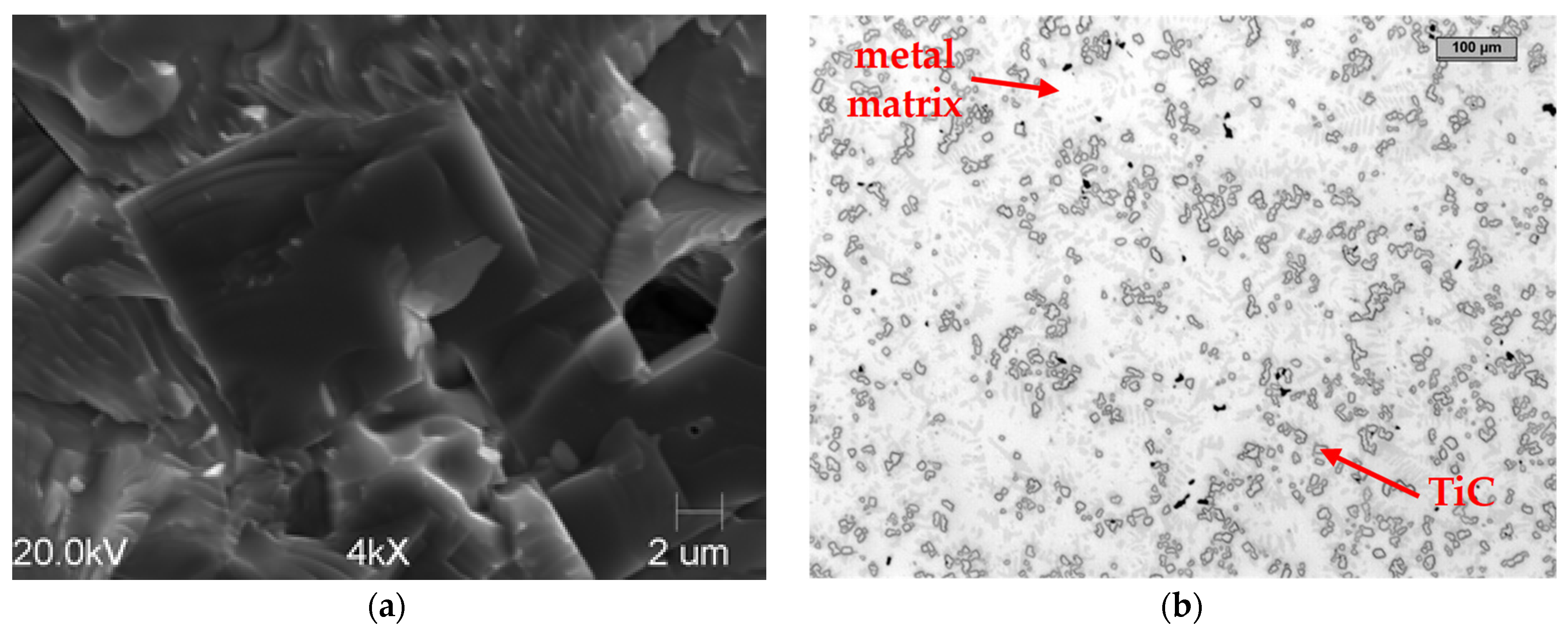

An experiment with the use of titanium as a carbide-forming element ended the initial period of searching for a method blocking the “self-disintegration” of a casting made of high-aluminum cast iron. For example, an industrial application was tested in the form of casting the so-called grate bars for a power boiler.

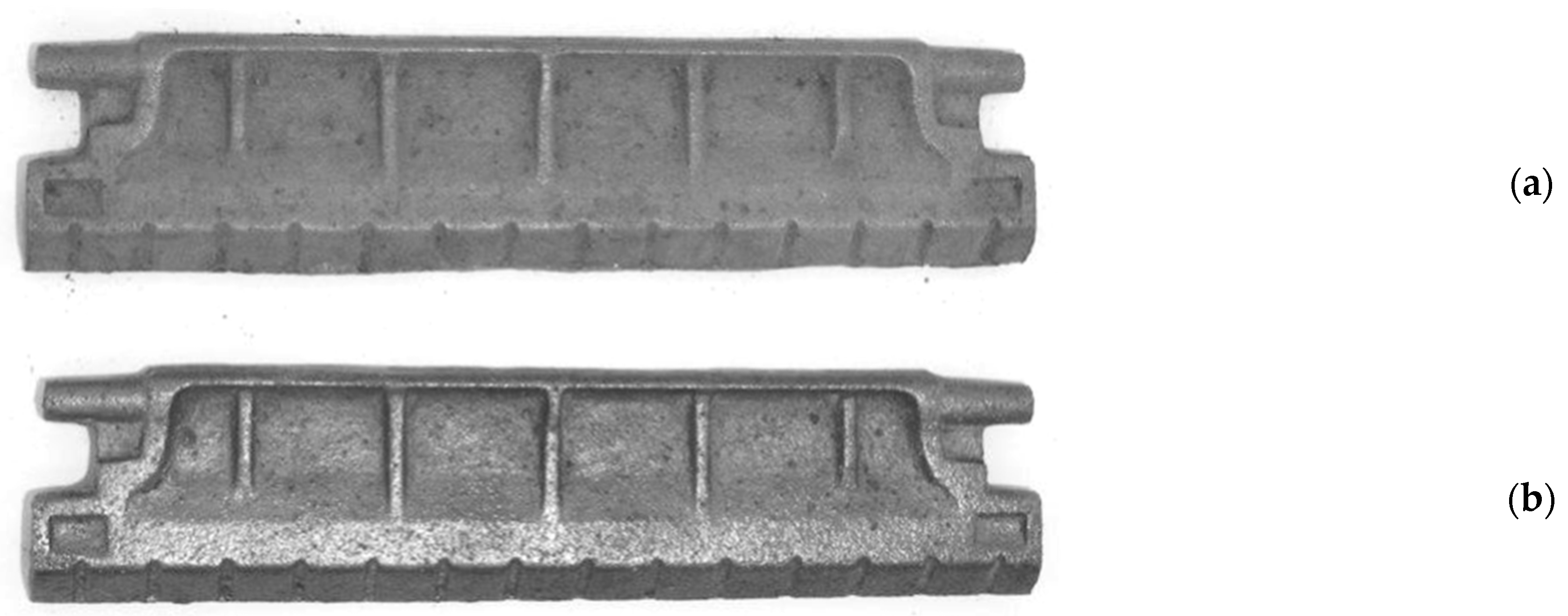

The furnaces of power boilers have belt grates with fully mechanized feeding and cleaning. The grate surface is made of separate cast-iron grates. This method of construction ensures that the drive chain articulated links are remote from the “heat”, and the gratings can be easily replaced. The fuel slides automatically from the coal basket onto the grate deck and moves along with it through the furnace. The grate bars are rotatably mounted in the pins in the so-called “Holders” attached to the grate chains. In the upper run, the grate strips overlap, while in the lower run they fall vertically, which allows them to clean from slag and ash. The mass of the burned fuel can be adjusted with the grate advance speed (max. 0.8 m/min.) and the thickness of the fuel layer, which (depending on the type of coal) is 50–150 mm. The grates in power boilers operate in very harmful conditions of use. The most unfavorable is the increased operating temperature, sometimes reaching 800 °C, and in some cases, e.g., in the event of a blower failure, much higher. The method of feeding the boiler by pouring solid fuel (coal), the hardness of which will affect the accelerated wear (“abrasion”) of the grate bars, is also important. The chemical effect of sulfur contained in coal (max. 0.6%) on the grate material also has a considerable influence. For research purposes, two castings were made (Figure 6a,b). The first (reference) with the chemical composition presented in

Table 1. Chemical composition of the reference cast iron.

Element	Al	C	Si	Mn	Ti	S	Fe
% mass	34.70	0.91	0.29	0.25	---	0.01	remain

and the second one in

Table 2. Chemical composition of the investigated cast iron.

Element	Al	C	Si	Mn	Ti	S	Fe
% mass	33.61	2.12	1.08	0.40	5.60	0.01	remain

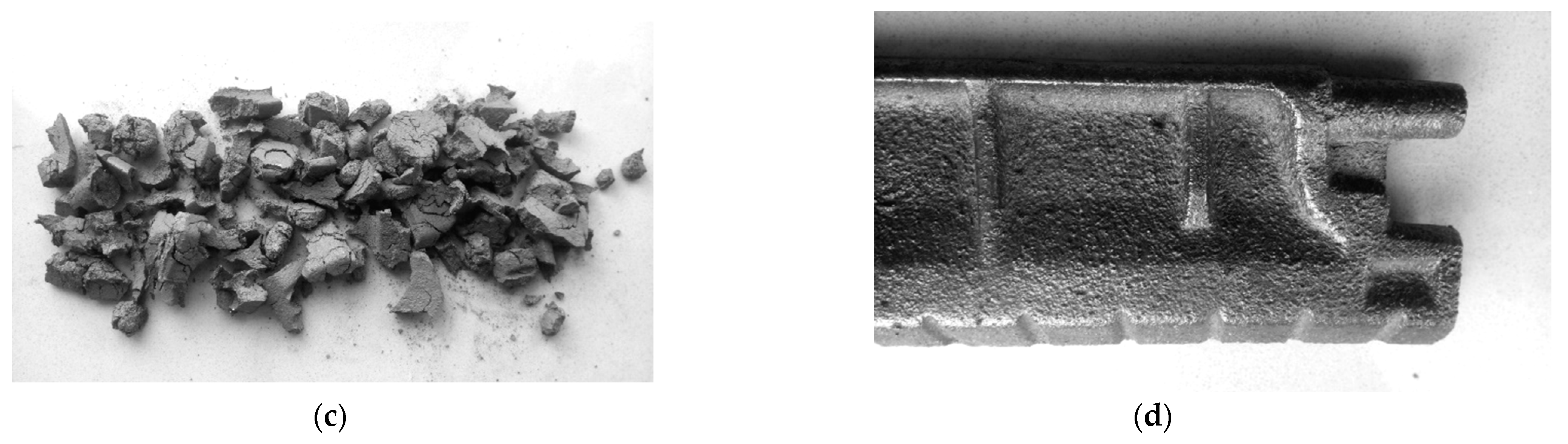

. After about 14 days, signs of spontaneous disintegration of the first grate were noticed (Figure 6c), while the second grate, containing titanium carbide precipitates, Figure 6d, functioned for five years; it did not disintegrate, maintaining its glossy surface.

When developing the chemical composition of a casting, it should not be assumed that every mass of carbon in the molten alloy can be freely “exchanged” with carbide-forming elements. At high carbon concentrations, casting is expected to be thixotropic in nature even in the presence of elevated temperatures in excess of 1600 °C. Therefore, it was decided to change the structure of high-aluminum cast iron with another carbide-forming element, in this case, tungsten, which was assumed to affect the strength properties of the metal matrix of the cast iron.

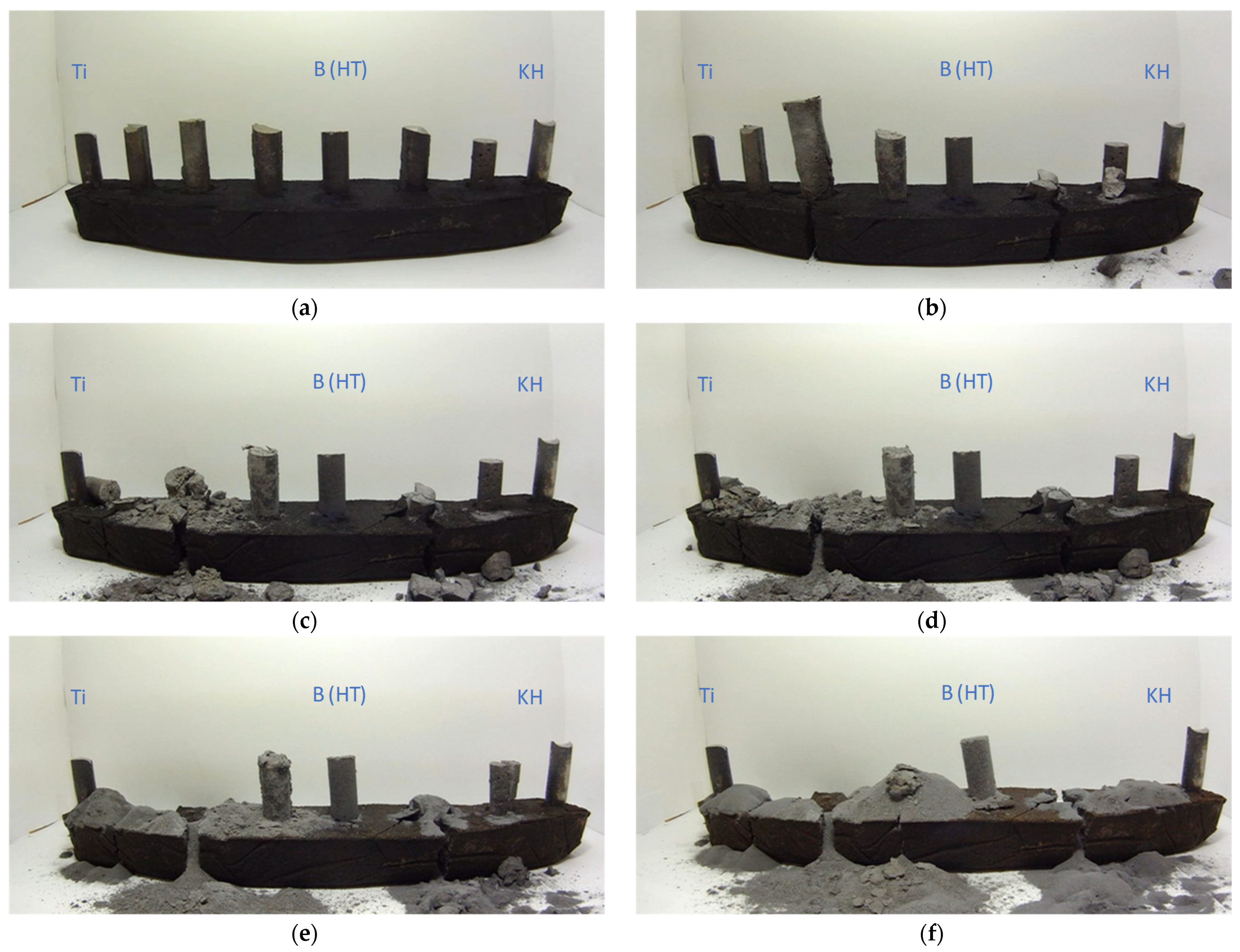

In addition, a comparative test was carried out in which several high-aluminum cast iron specimens were inserted into a special stand. Over a 7-month period of examination, 21,000 images were taken and the results are shown in Figure 7.

Three of the eight samples of high aluminum cast iron were not subject to the self-destruction mechanism. First with titanium added (Ti), second with boron-modified and heat treatment [14], and the third sample represents the authors’ know-how.

6. The Structure of Cast Iron after Introducing Tungsten and Its Resistance to Abrasive Wear

In the case of tungsten as an alloying additive to high-aluminum cast iron, the complete substitutability of the Al₄C₃ carbide by WC carbide is uncertain. The reason is the value of the free energy ΔG⁰ of the WC carbide formation reaction, which is about −34 kJ (for W₂C carbide, similarly ΔG⁰ = −35 kJ). Therefore, it can be assumed that the degree of replacement of aluminum carbides with tungsten carbides does not have to depend on the content of tungsten introduced (according to Equation (4)), as it was in the case with the introduction of titanium (Equation (3)).

W + C → WC,

(4)

Equation (4) shows that 1 g of tungsten binds 0.065 g of carbon, which gives 1.065 g of WC carbide. It is four times less than titanium. Therefore, a much larger addition of tungsten was assumed in the research. The melted alloy with the chemical composition presented in

Table 3. Chemical composition of the investigated cast iron.

Element	Al	C	Si	Mn	W	S	Fe
% mass	31.30	1.35	1.05	0.37	16.08	0.01	remain

was superheated to a temperature of 1510 °C, and then samples were poured for metallographic tests at a temperature of 1420 °C. Tungsten in the form of ferroalloy was then introduced into the thus prepared melted cast iron. The samples were cast into dried molds made of bentonite mass, from which metallographic specimens were later made. In order to obtain information on the influence of tungsten on the structure of high-aluminum cast iron, the microstructure of the samples was examined.

The analysis of the metallographic specimens shows, that after the addition of tungsten, with its content of approx. 16 mass %, The Al₄C₃ aluminum carbide was completely replaced by WC tungsten carbides.

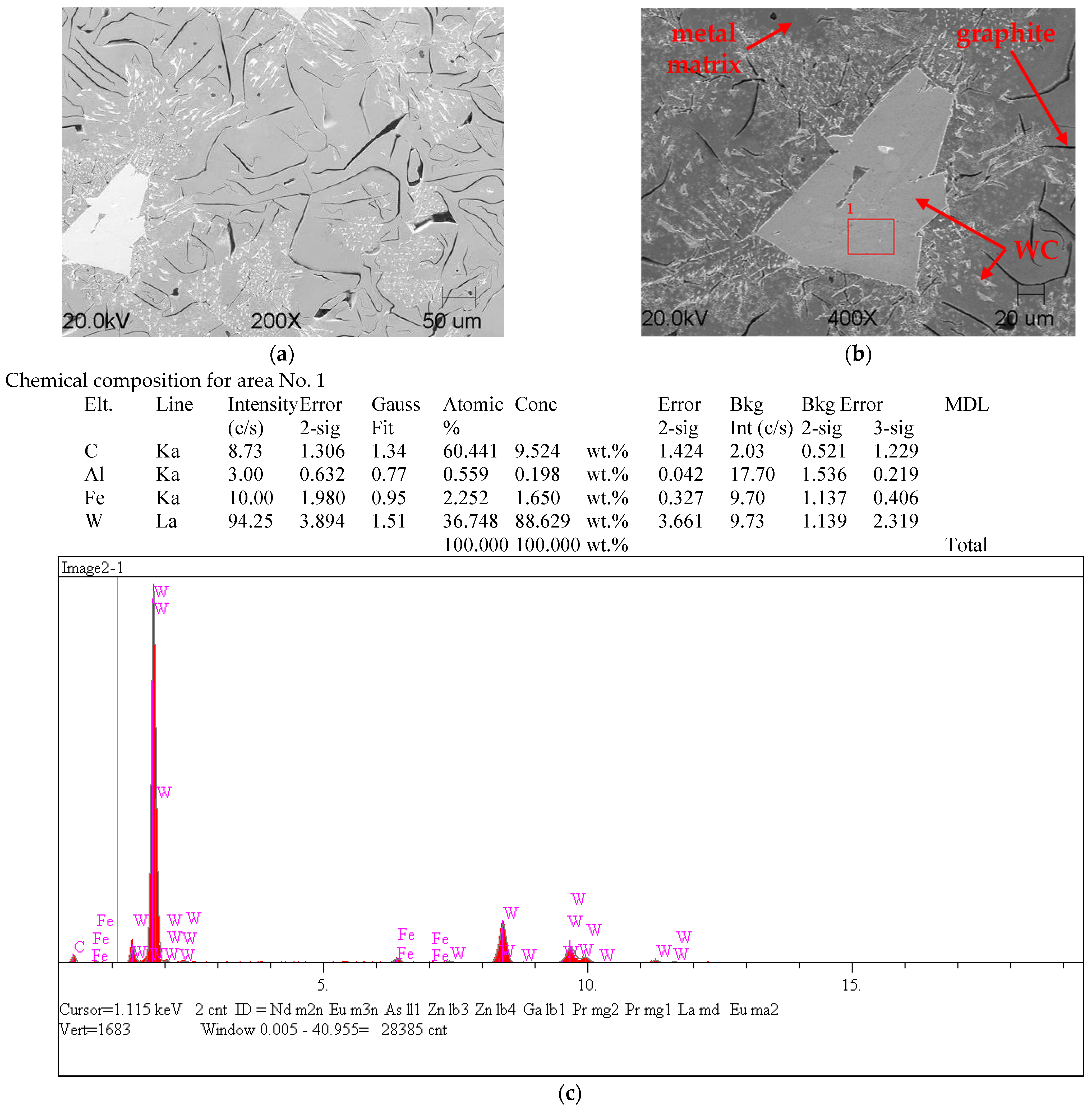

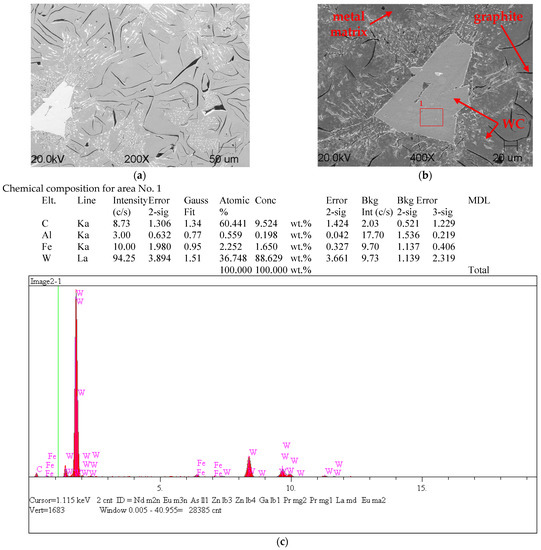

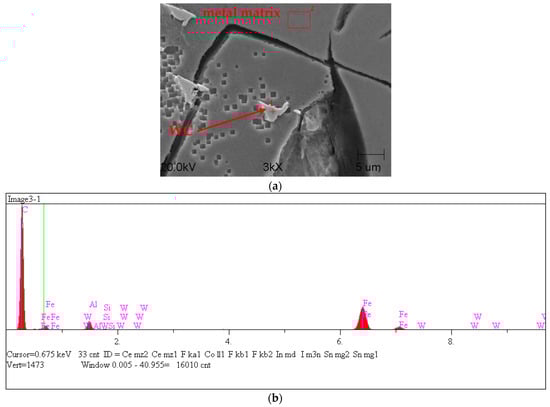

No aluminum carbide was found in the tungsten sample either, which shows the effect of the complete replacement of the aluminum carbide with tungsten carbide. Figure 7 presents the morphology of WC carbide precipitates in the alloy and their chemical composition. Moreover, graphite is present in the structure of the obtained high-aluminum cast iron.

According to G. Hägg’s rule, this type of formed carbide can be determined, when it depends on the ratio of the radius of the carbon atom r_w to the radius of the metal atom r_m. Thus, according to this rule, carbides can be divided into two types:

• when r_w/r_m < 0.59—straight carbides are formed; this group includes carbides of the MC type, i.e., TiC, NbC, WC, VC, ZrC, and the M₂C type, i.e., Mo₂C, W₂C, Nb₂C. If various transition metals appear in the thermodynamic system, the formation of complex carbides can be predicted with high probability. Moreover, in some carbides, not all interstitial spaces are filled with “non-metal” atoms. Then the average chemical composition of these phases’ changes and, for example: instead of the MC carbide, the M₄C₃ phase, with a deficiency of non-metal atoms may appear in the structure;
• when r_w/r_m > 0.59—complex structure iron, chromium, and manganese carbides are formed. The M₃C type carbide crystallizes in the orthorhombic pattern. On the other hand, the M₂₃C₆ and M₆C carbides are characterized by a complex cubic lattice, and the M₇C₃ carbide crystal lattice is a complex hexagonal lattice (possibly orthogonal and rhombohedral). Good examples of these carbides are: Fe₂₁W₂C₆ ternary carbides, for the M₆C type—W₆C, Fe₃W₃C, Fe₄W₂C ternary carbides, visible from the EDS tests presented in Figure 8, Figure 9, Figure 10 and Figure 11.

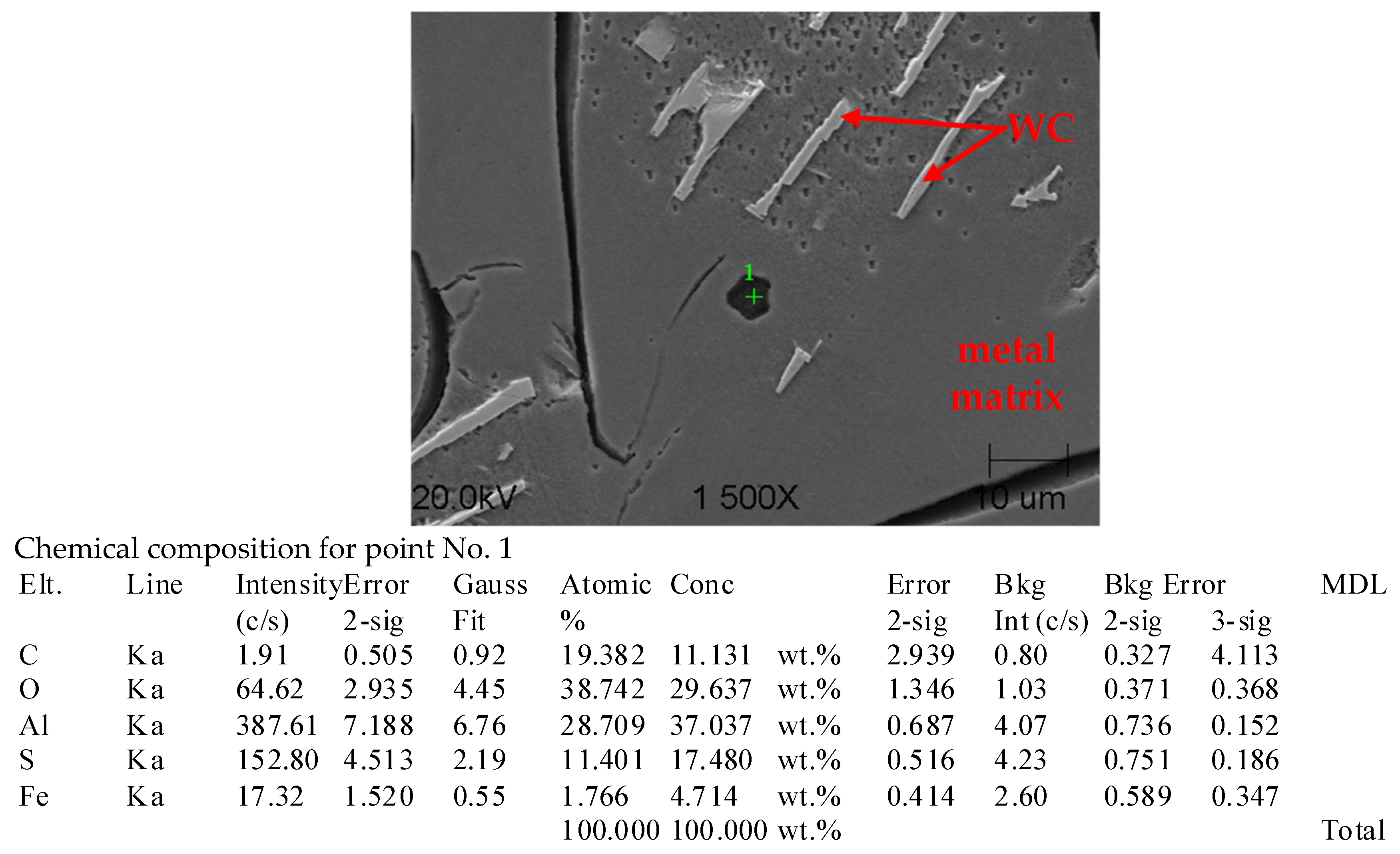

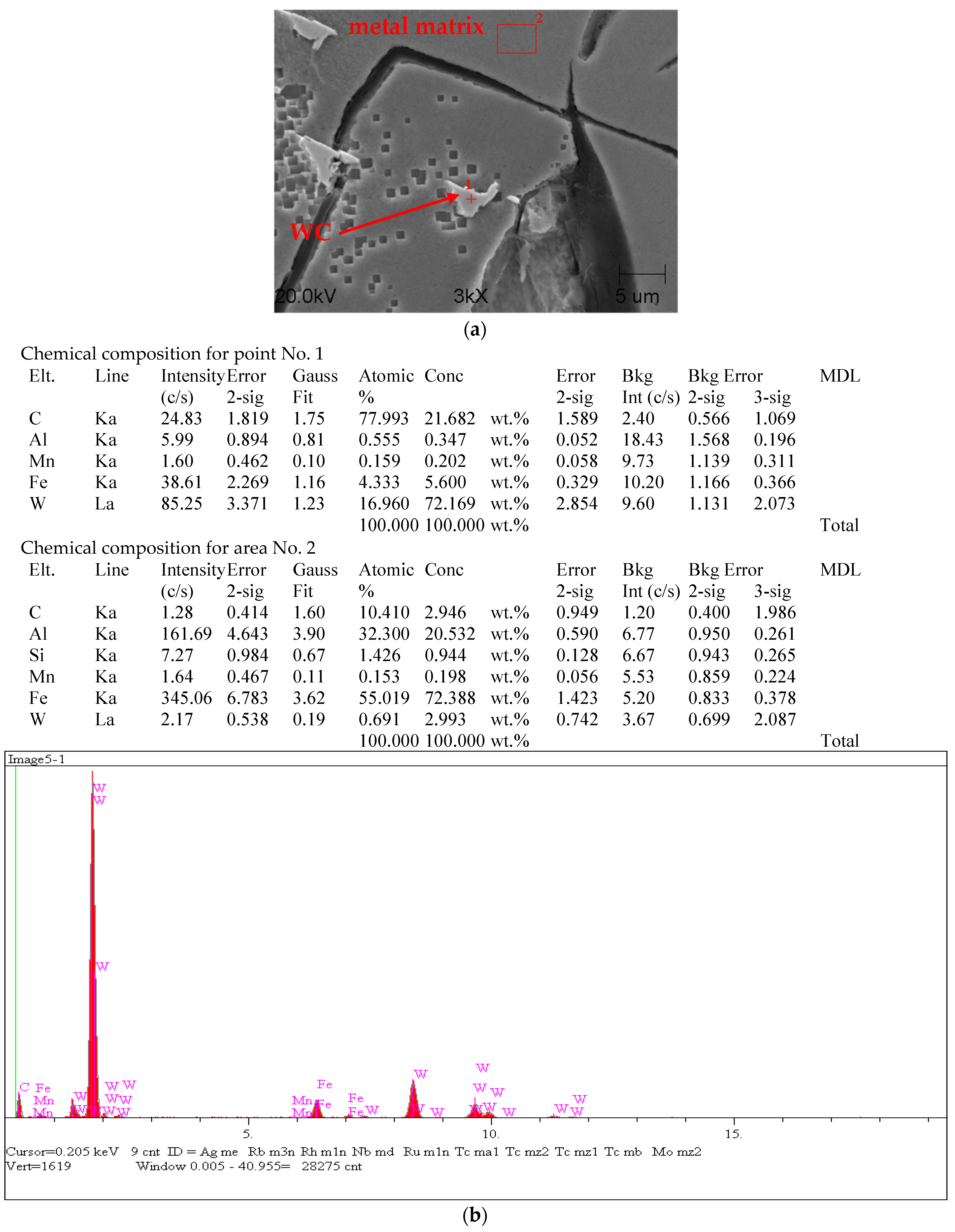

Figure 11 shows the SEM image of samples with a porous metal matrix (the result of etching and preparation of the sample surface). The metal matrix of the alloy ferrite is 20.5 mass % to 20.7 mass % aluminum. In addition, the structure includes particles of sulfide and oxide conglomerates with aluminum.

As already mentioned, the presence of graphite was also revealed in the microstructure of the obtained cast iron, which is confirmed by the Fe-Al-C triple system diagram generated by the Thermo-Calc program shown in Figure 2. The fracture of the sample is shiny, fine-grained, and compact. There is also no visible systolic cavity.

Then, an abrasion test was carried out on the Miller machine. The applied test method is used to compare the resistance to abrasion of construction materials of different hardness or materials covered with a layer of ceramic material (e.g., nitrides). The test consists in making at least three attempts, each in not less than 2 h. A 16-h series of 4 four-hour runs is recommended. This makes it possible to determine the wear curve. Figure 12 shows the microstructures after the full abrasion test on the Miller machine.

The mass wear rate V_w was calculated, as determined by the tangent of the angle of inclination of the tangent line to the curve in the second hour of the abrasion wear test [15]:

V_w = A ^. B ^. 2^(B−1).

(5)

where: A, B—constants determined by the method of least squares.

Table 4. The results of the abrasion wear test.

Sample No.	Starting Weight	Weight of the Sample in Grams after the Time of				Vw
		4 h	8 h	12 h	16 h
(A) [15]	19.75	19.52	19.35	19.16	18.90	0.05537
(B)	18.22	18.12	18.05	17.97	17.89	0.02300
(C) [15]	15.64	15.55	15.45	15.36	15.28	0.02299
(D)	No abrasive wear test results were obtained due to the high slip of the specimen
	Designations [mass%]: (A) High-chromium cast steel (0.059% C, 25.30% Cr); (B) High-chromium cast iron (3.35% C and 21.10% Cr); (C) High-aluminum cast iron (2.12% C and 30.33% Al and 6.12% V, (D) High-aluminum cast iron (2.12% C and 30.33% Al and 16.08% W.

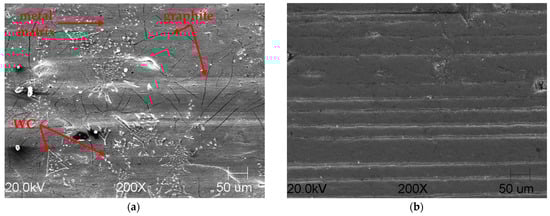

Due to the graphite present in the microstructure in sample (D), acting in this case as a natural lubricant, the test results are not fully reliable, but confirm the high resistance of this material to abrasive wear. Generally, after the test on the Miller machine, no significant wear of the high-aluminum cast iron with the addition of a tungsten sample was found. On the other hand, the surface was well polished, which is clearly shown in Figure 12a. For comparison, the surface appearance of a sample made of chrome cast iron after a full abrasion test with the Miller machine is shown in Figure 12b.

presents the results of abrasion wear tests expressed as a mass loss of the sample.

For high-chromium steel (A), the weight loss was the greatest, i.e., 0.85 g [15]. For chromium cast iron (B)—with the chemical composition [% mass]: 3.35% C; 1.5% Si; 0.63% Mn; 21.10% Cr, the weight loss of the sample was 0.33 g and for sample (C) of high aluminum cast iron with vanadium addition was 0.36 g.

7. Conclusions

The conducted experimental studies show that high-aluminum cast iron, despite unfavorable casting properties, is a very interesting construction material that can be used in practice. The conducted research has shown that by appropriate selection of the chemical composition of high-aluminum cast iron, mainly in the field of carbide-forming elements, cast iron with special abrasion resistance properties is obtained.

During this research, a method of counteracting the phenomenon of spontaneous decay was developed, which involves replacing the Al₄C₃ carbide with another with the use of a carbide-forming element, which is tungsten. Such treatment not only causes its complete elimination but also changes the shape of the mentioned carbide. In addition, it was shown that the introduction of tungsten into high-aluminum cast iron, leads to a change in thermodynamic conditions and the possibility of the separation of flake graphite in the structure of the tested cast iron, which has a positive effect on the abrasive properties of this material and casting properties.

It should also be noted that during the research it was observed that there is a certain correlation—the more carbides in the metal bath, the higher its viscosity (the case of cast iron with the addition of titanium). Thus, in order to maintain the castability of the molten metal at an appropriate level for proper filling of the mold cavity, the content of carbides in it cannot be arbitrary. The problem practically does not exist in a situation when the element passes into the metal matrix or, as in the case of high-aluminum cast iron with the addition of tungsten, graphite appears next to the carbides.
