The Influence of Drying Temperature on Color Change of Hornbeam and Maple Wood Used as Surface and Inner Layers of Wood Composites

Abstract

The thermal treatment of wood changes its structure due to the degradation of wood polymers (cellulose, hemicellulose and lignin), so the physical properties of wood are either improved or degraded. Color changes apply not only to natural wood, but also to such wood composites for which some amount of glue is used in their construction (e.g., plywood, blockboard or laminboard). This article is focused on the analysis of hornbeam and field maple wood color changes influenced by drying temperature. Two types of drying modes were used: hot-air mode where the temperature of the drying environment was 60 °C, and high-temperature mode with a drying temperature of 120 °C. The drying mode was divided into two phases depending on the moisture content of the wood. The compared woods had similar values of color coordinates at the beginning of drying. During hot-air drying, the largest changes in color coordinates occurred during the first 24 h. The total color difference between the color at the end and the beginning of drying was 7.3 for hornbeam and 11.1 for maple. The overall color difference between the compared woods was minimal. During high-temperature drying (120 °C), the color changes of the dried woods were more pronounced. In the case of maple wood, there was a very significant change in color and the value of ΔE* was twice as high as for hornbeam. The total color difference between the color at the end and at the beginning of drying was 8.7 for hornbeam and 18.9 for maple.

1. Introduction

The drying conditions and structure of wood can substantially affect the intensity of color change. Wood discoloration is a complex phenomenon, mainly affected by heat, light, and physiological and biochemical reactions. It is generally accepted that color changes increase as temperature increases. For that reason, deciduous wood species change color at lower temperatures compared to coniferous wood species [1,2]. Color, including texture and gloss, is one of the most important esthetic attributes of wood, and distinctively influences its commercial value [3,4]. Color varies widely across wood species and is primarily determined by the amount and chemical composition of the prevalent extractives [5]. The discoloration of wood due to kiln drying for set drying conditions is a remarkable problem and can affect the intensity of color change. The color of wood is primarily determined by the chemical compounds cellulose, hemicelluloses and lignin, as well as extractives [6,7].

The color change in the drying process is more pronounced in tree species, which are naturally pale in color. Maple and hornbeam also belong to the category of pale wood species. In these wood species, discoloration in the drying process is undesirable. This is in opposition to the effort to achieve the shortest possible drying time. Maple and hornbeam are among the tree species sensitive to color change in drying processes. We also include beech, birch and alder in this group of tree species.

High-temperature drying of wood is a special drying process. This process is characterized by a drying temperature above 100 °C. This special process is known for a very short drying time. As was also shown by research [7] focused on the change in hornbeam (Carpinus betulus L.) wood’s properties, applying high-temperature drying results in a remarkable impact on color change as well. Research by these authors also found that equilibrium moisture content and color change of the hornbeam wood decreases with increasing temperature of the surrounding air. The smallest decrease was observed during the treatment at 170 °C for 4 h. Similar research [8] focused on the effect of moisture content (EMC) and drying temperature on the color change of poplar and locust trees. Results showed that the color of locust trees did not change remarkably at 20 °C in the moisture range below the fiber saturation point. Drying temperatures over 40 °C resulted in the reduction of lightness, increased redness and decreased yellowness for locust trees. The color change of poplar trees was dominated by the loss of free water above the fiber saturation point. The color of wood changed remarkably only at 80 °C, in the bound-water range. The differences between heartwood and sapwood decreased as a consequence of moisture loss at all researched temperatures as the color coordinates of heartwood shifted towards the coordinates of sapwood. Comparing the reaction to moisture loss and temperature on the part of poplar and locust trees, the latter was more sensitive to heat. Other research [9] similarly discovered that treatment temperature had a more remarkable effect on color changes than treatment time.

Similarly, the work in [10] was focused on the analysis of beech wood with red false heart wood (FHW) and mature wood (MW) color changes by different methods. Research showed using high-temperature drying caused changes in the coordinates of the color space (L*, a*, b*). The biggest change in color was measured in the lightness coordinates (L*). Remarkable change was observed in mature wood after the drying process. Mature wood and red false heartwood had reached identical lightness (L*) at the end of high-temperature drying. Color change of beech wood (Fagus sylvatica L.) was also observed in another study [11] where the high-temperature drying process was used. Temperature inside the drying chamber during these experiments was 120 °C. The drying process revealed significant differences between color changes and measured values. Color changes were more noticeable in sapwood than in red heartwood, and measurements corroborated this observation In [12], where the combination of hot-air drying and high-temperature drying of birch timber was used, the color change of wood during the high-temperature drying of birch timber could be effectively reduced using hot-air drying during the early phase of the drying process. Drying conditions and methods can affect the intensity of color change [13], but so can conditions during the cutting process, such as cutting forces [14,15] sawdust granularity [16,17], and physical properties [18,19,20].

This paper is focused on the comparison of color changes due to hot-air drying (60 °C) and high-temperature drying (120 °C). The aim of this study is to compare the color properties of hornbeam and maple using different chromaticity coordinates and to determine the effect of drying conditions and time on color change. This paper also compares the differences in hot-air and high-temperature drying kinetics.

2. Material and Method

Two wood species were used for experimental measurements: hornbeam (Carpinus betulus L.) and maple (Acer campestre L.) from forests belonging to the University Forest Enterprise of the Technical University in Zvolen, Slovakia. The samples were made from two hornbeam logs with a diameter of 29 cm and two maple logs with a diameter of 27 cm and a length of 150 cm. The dimensions of the samples were 30 mm thickness, 120 mm width and 500 mm length; 30 samples were made from each wood species.

The oven-dry method was used to determine moisture content. Weighing was performed with an accuracy of 0.01 g. The drying process to an absolutely dry condition was performed in a laboratory kiln at 103 ± 2 °C. The moisture content (MC) was calculated using Equation (1) according to the norm [21].

$$MC=\frac{m_w-m_0}{m_0} \cdot 100(\%)$$

(1)

where m_w is the weight of the wet sample (g) and m₀ is the weight of the absolutely dry sample (g).

Density in the absolutely dry state was determined for every sample with the content of red false heartwood and mature wood. The measurement was performed under laboratory conditions. Density in the absolutely dry state was calculated by Equation (2) according to the norm [22].

$${\rho }_0=\frac{m_0}{V_0}(\mathrm{kg}·{\mathrm{m}}^{-3})$$

(2)

where m₀ is the weight of oven-dried moisture samples (kg) and V₀ is the volume of oven-dried moisture samples (m⁻³).

2.1. Drying Mode and Method

Drying was performed in a laboratory oven from Memmert HCP 108 (Memmert GmbH + Co. KG, Schwabach, Germany). Two types of drying modes were used—hot-air mode, where the temperature of the drying environment was 60 °C, and high-temperature mode with a drying temperature of 120 °C. Each of these modes was divided into two phases depending on the moisture content of the dried wood. The parameters of the drying modes are given in

Table 1. Used drying modes.

Drying Mode	1. Phase MC (%) ≥ FSP			2. Phase MC (%) < FSP
	Temperature of Environment (°C)	Psychometric Difference (°C)	Relative Humidity of Environment (%)	Temperature of Environment (°C)	Psychometric Difference (°C)	Relative Humidity of Environment (%)
60	60	2	91	60	12	52
120	100	2	94	120	-	-

.

The last part of the drying schedule was cooling to approximately 20 °C. The average final moisture content was 10 ± 1%.

Based on the cited work [23], color measurements of all samples (n = 30) were recorded from the surface of wood specimens with a CR-10 Color Reader colorimeter (Konica Minolta Sensing, Inc., Sakura, Japan). Color measurement was performed every 24 h. All color parameters are described below and were calculated using the following Equations (3)–(6).

2.2. Color Difference ΔE*

The scale of ΔE* was classified according to the grading rules reported in

Table 2. The scale of ΔE* [24].

∆E* < 0.2	No visible difference
2 > ∆E* > 0.2	Small difference
3 > ∆E* > 2	Color difference visible with high-quality screen
6 > ∆E* > 3	Color difference visible with medium-quality screen
12 > ∆E* > 6	High color difference
∆E* > 12	Different colors

by [24]. All these properties (hue angle, color saturation and saturation) were measured with by [23].

$$\mathsf{\Delta }{E}^{*}=\sqrt{{\left(L_2^{*}-L_1^{*}\right)}^2+{\left(a_2^{*}-a_1^{*}\right)}^2+{\left(b_2^{*}-b_1^{*}\right)}^2} (-)$$

(3)

where: L₁*, a₁* and b₁* are the values of color spectra before the drying process. L₂*, a₂* and b₂* are the values of color spectra after the drying process.

2.3. Hue Angle—h*

Hue angle is one of the main properties of a color defined technically in the CIECAM02 model. The transformed L*, a* and b* values are used in calculation of hue angle, chroma and lightness as well as chroma and hue differences, and these quantities are designated by a prime mark in the equations used [13]. Hue angle, ranging from 0 to 360 degrees in the Redness—Greenness (a*) and Yellowness—Blueness (b*) planes, is based on the concept of equal perceived difference. Equation (4) was used to determine hue angle.

$$h^{*}={\tan }^{-1}\frac{b^{*}}{a^{*}} (°)$$

(4)

2.4. Color Saturation—C*_ab

Intensity of color was measured by color saturation [23]. For determining color saturation, Equation (5) was used.

$$C_{ab}^{*}=\sqrt{a^{*2}+b^{*2}}$$

(5)

2.5. Saturation—S_ab

The saturation [23] of a color is determined by a combination of light intensities, calculated with use of Equation (6). The most saturated color is achieved by using just one wavelength at a high intensity, such as in laser light.

$$S_{ab}=\frac{C_{ab}^{*}}{\sqrt{C_{ab}^{*2}+L^{*2}}}· 100 (\%)$$

(6)

3. Results and Discussion

The values of initial and final moisture contents, density in an absolutely dry state and drying times for individual wood species and drying modes are shown in

Table 3. Data about drying modes, initial and final moisture contents, density in absolutely dry state and drying times.

Drying Mode	Samples	Initial Moisture Content MCi (%)	Final Moisture Content MCf (%)	Density in Absolutely Dry State (kg·m−3)	Drying Time (h)
60	Hornbeam	66.25 ± 0.43	9.00 ± 0.28	795.50 ± 3.42	384
	Maple	65.54 ± 0.64	9.36 ± 1.46	579.92 ± 4.81	336
120	Hornbeam	68.14 ± 0.22	1.71 ± 0.14	799.10 ± 2.90	168
	Maple	69.59 ± 0.31	2.19 ± 0.07	574.99 ± 3.11	168

.

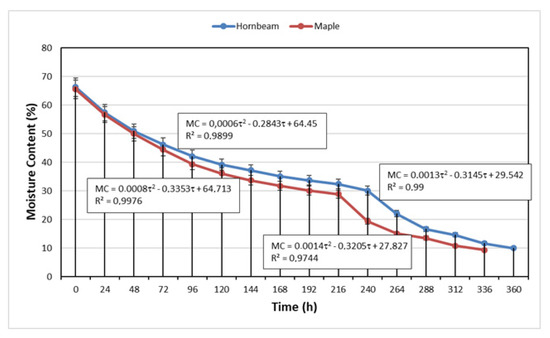

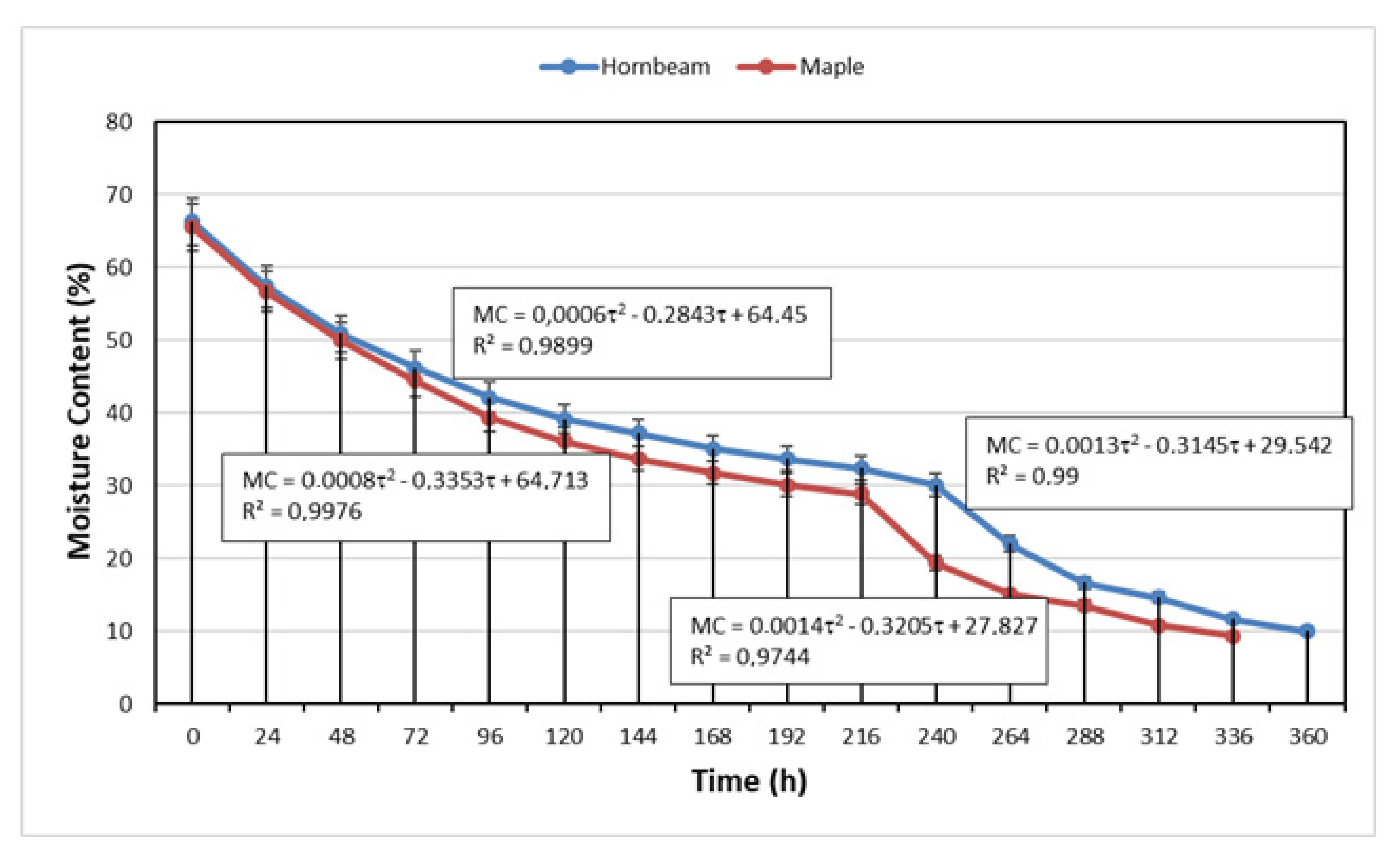

The initial moisture content of the samples in both trees ranged from 66% to 70%. The required final moisture content was reached by hot-air drying at a temperature of 60 °C (Figure 1). The drying time of the maple samples was 48 h shorter than that of hornbeam. During high-temperature drying (120 °C), the final moisture contents were remarkably lower than the required values for both wood species. This was due to a very rapid loss of moisture in the area below the fiber saturation point (Figure 2) when the drying temperature was raised to 120 °C. In this drying mode, the final time was not affected by the wood. Figure 1 and Figure 2 show the drying curves for the individual wood species and drying modes.

When comparing the drying curves between wood species, it can be seen that the maple samples dried faster than the hornbeam. According to [20], it could be that moisture losses are affected by different factors. According to the equation used to determine the moisture conductivity coefficient, density is the most influential factor, alongside the wood’s structure and temperature. Therefore, the wood’s density along with the treatment temperature, influence the drying curve. As the wood density increases, its moisture content conductivity decreases due to the relative reduction in the volume of the capillaries. This is the main reason for the slower drying of hornbeam. In high-temperature drying, this effect is compensated for by the increased drying temperature [20]. During hot-air drying (Figure 1), a difference was visible in both the area of free water and in the area of bound water. However, when the moisture content of the samples dropped below 50%, the differences in moisture losses between the wood species increased.

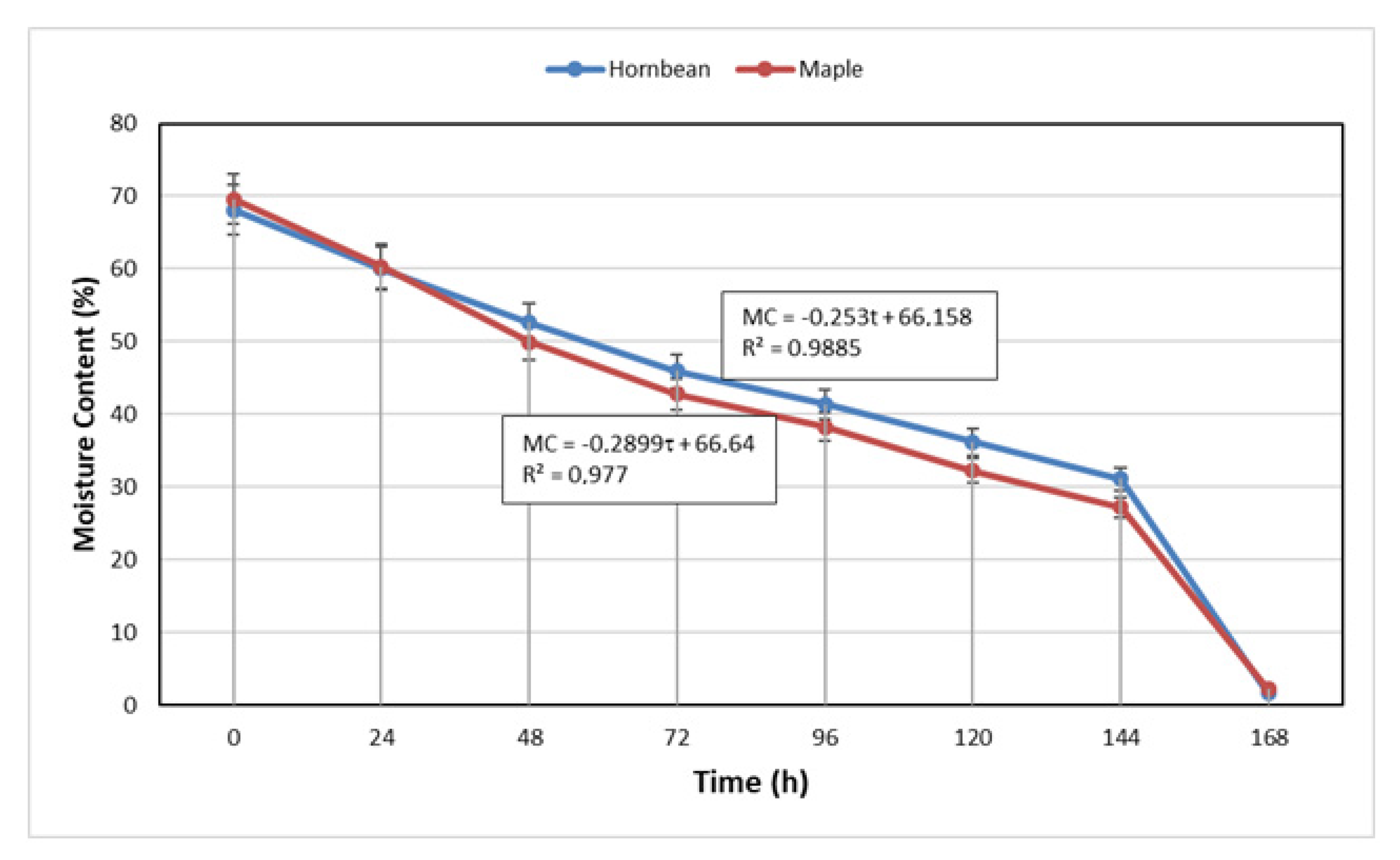

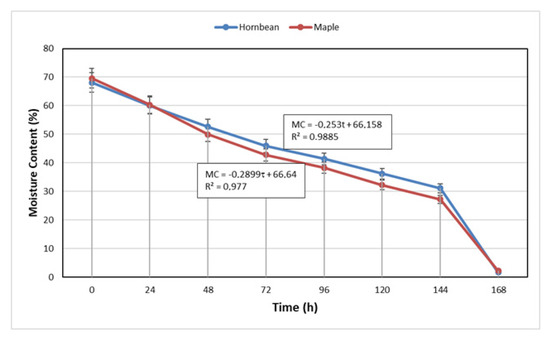

During high-temperature drying (Figure 2), a difference between the wood species in the first drying phase (MC > FSP) was also visible. In the second phase of drying, when the temperature was raised to 120 °C, there was a very intense loss of moisture and both wood species reached a very low final humidity in 24 h. The resulting drying time was the same.

The coordinates of the color space L*, a* and b* were measured on the surface of the samples every 24 h and then the color difference ΔE* was calculated according to Equation (3). The change of the color coordinate values and the calculated values of the color difference for the individual drying modes and wood species are graphically shown in Figure 3 and Figure 4.

The compared wood species had similar values of color coordinates in the beginning of drying. Based on the L* coordinate, which expresses the brightness, we can characterize both wood species as light.

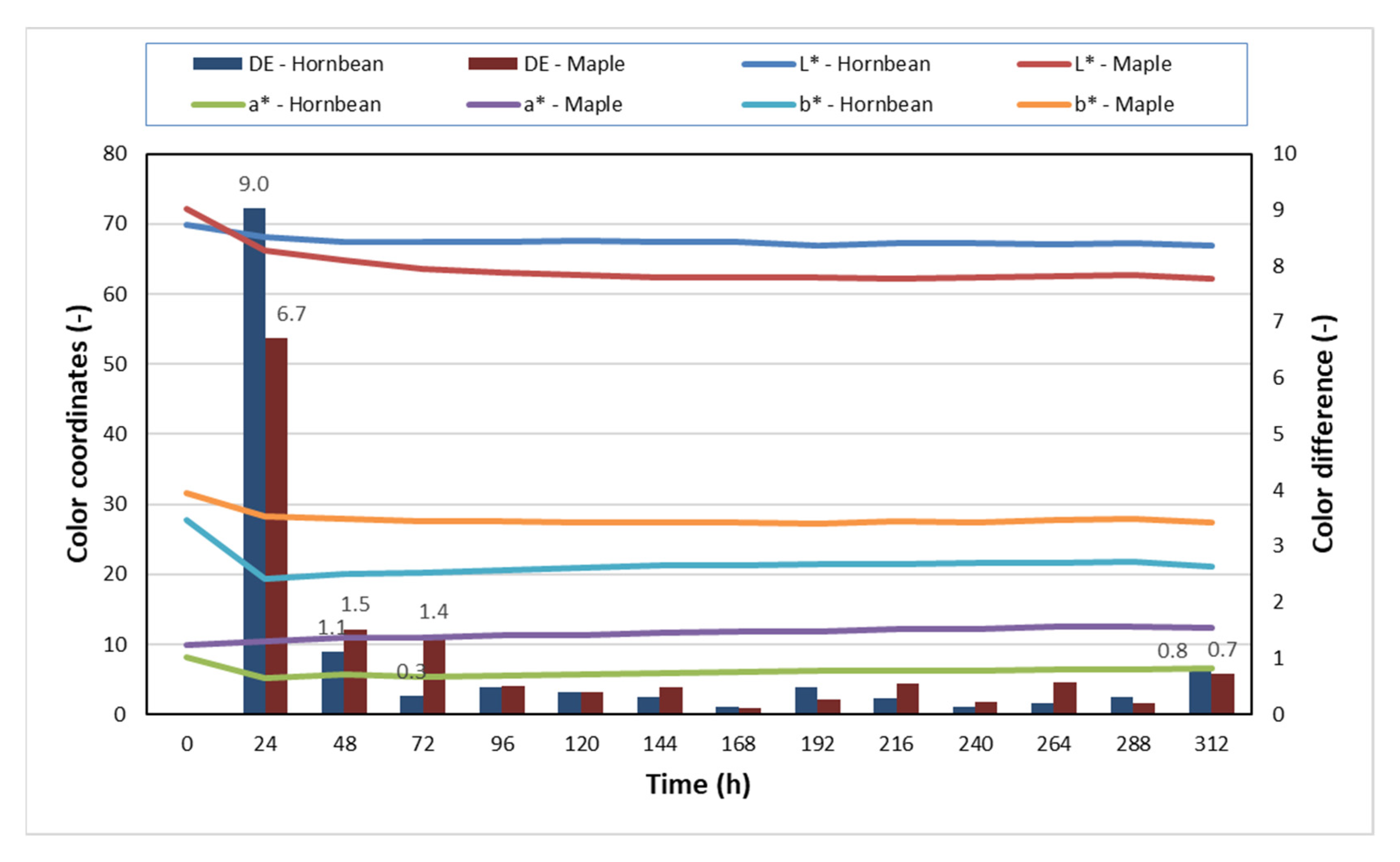

During hot-air drying (Figure 3), the largest changes in color coordinates occurred during the first 24 h. According to the values of the color difference in both wood species, a high color difference was found (Table 2). That is, the color changes were visible to the naked eye. For maple, the brightness value (L*) decreased remarkably and the samples darkened most significantly up to 144 h of drying. After this point, the brightness did not change. The brightness of hornbeam decreased less than that of maple. The total color differentiation between the color at the end and the beginning of the drying process was 7.3 for hornbeam and 11.1 for maple. For maple wood, the coordinate a* did not change during the drying process. The change in the coordinate b* was also smaller for maple than for hornbeam. The overall color difference between the compared wood species was minimal.

Similarly, in [8], they dried poplar wood and differences between a* values were found, but these differences decreased as moisture loss increased. The b* coordinates decreased significantly during the whole drying process. For temperatures of 60 °C and 80 °C, the yellow hue values increased during drying.

The present observations [8,9] showed that temperature had a much more remarkable impact on color changes than the duration of drying. These results agree with the work of [9,10,11], where a more remarkable effect of temperature than the time of drying on wood color change was confirmed.

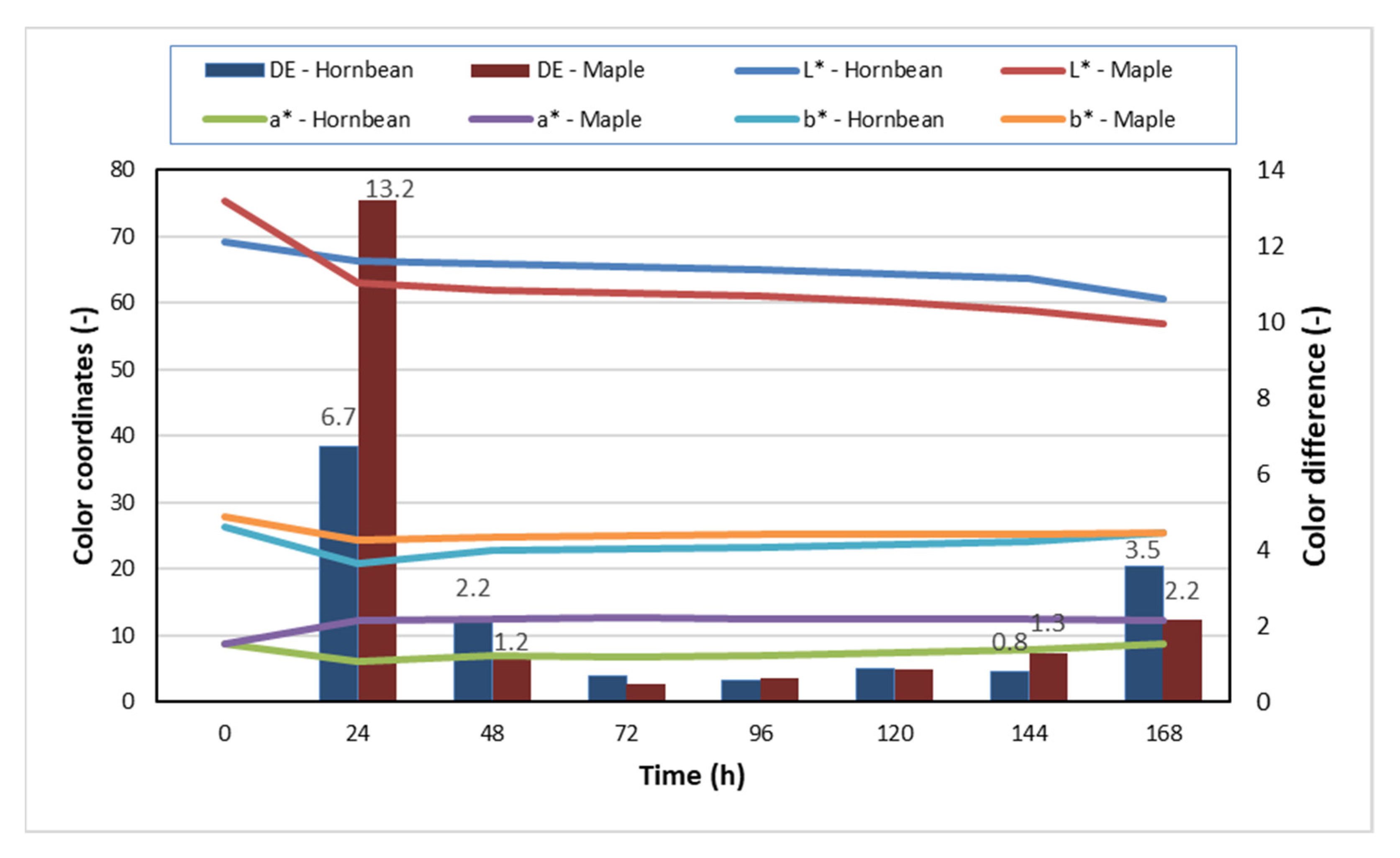

During high-temperature drying (120 °C), the color changes in the dried wood species were more pronounced. Very pronounced changes in brightness, and therefore also the color of the samples, occurred in the first 24 h of drying. In contrast to hot-air drying, during the high-temperature drying there was a change in the coordinates of the color space even after raising the temperature to 120 °C, where the change in the brightness of the samples (L*) was visible. The values of color difference were also highest after 24 h, where a very remarkable change of color (to a different color) occurred in maple wood and the value of ΔE* was twice as high as in hornbeam wood. After raising the drying temperature to 120 °C, the color difference values increased. After high-temperature drying, the color difference was remarkable. Maple samples were remarkably darker than hornbeam samples. These results are also confirmed by [1,2], which state that the degradation of some chemical components of wood (hemicelluloses and lignin), depending on the wood species and the duration of action, occurs even at temperatures below 100 °C.

In [9], L* decreased at all treatment temperatures, indicating that the color became darker. At 170 °C, L* decreased steadily, and the maximum decrease in lightness was approximately 48.21% after 12 h. Darkening of color was observed at 210 °C during the first 4 h and the darkest color occurred (L* reduced by 64.23%) after 12 h.

The total color difference between the color at the end and the beginning of the drying process was 8.7 for hornbeam and 18.9 for maple. The change of individual coordinates of the color space was similar for the compared wood species. The difference was in the coordinate a*, where in the first drying stage the value of this coordinate increased for maple wood, while it decreased for hornbeam.

Table 4. Average values and basic statistical characteristics of the coordinates of the color space L*, a* and b* for samples from hornbeam and maple.

Samples		Color Coordinates	Before Drying			After Drying			Count
			Mean	Standard Deviation	Sample Variance	Mean	Standard Deviation	Sample Variance
60 °C	Hornbeam	L*	69.8	1.503	2.259	67.0	3.277	10.737	30
		a*	8.3	0.747	0.558	6.6	0.610	0.372	30
		b*	27.7	0.361	0.130	21.1	0.946	0.896	30
	Maple	L*	66.1	1.842	3.393	62.2	0.587	0.344	30
		a*	12.7	0.669	0.448	12.4	0.541	0.293	30
		b*	33.0	1.129	1.275	27.3	0.158	0.025	30
120 °C	Hornbeam	L*	69.3	0.533	0.284	60.6	1.373	1.886	30
		a*	8.7	0.507	0.257	8.8	0.567	0.322	30
		b*	26.3	0.706	0.498	25.4	0.083	0.007	30
	Maple	L*	75.3	0.816	0.666	56.8	1.202	1.444	30
		a*	8.7	0.422	0.178	12.2	0.446	0.199	30
		b*	27.9	0.501	0.251	25.5	0.620	0.385	30

shows the average values and basic statistical characteristics of the parameters L*, a* and b* before and after drying.

The present observations are comparable with research [6,11] that was focused on the analysis of beech wood with red false heartwood (FHW) and mature wood (MW) color changes. When using high-temperature drying, it was discovered that the red false heartwood and mature wood had almost identical lightness (L*) at the end of the drying process.

From the measured data it can be seen that changes in the coordinates of the color space were detected in high-temperature drying (120 °C) of maple wood. Calculated values of standard deviation and sample variance confirmed a small variance of the measured values of the color space coordinates from the average value. Thirty measurements of L*, a* and b* coordinates were made on each sample. The calculated values of hue angle, color saturation and saturation are given in

Table 5. Calculated values of hue angle, color saturation and saturation in the hot-air drying (60 °C) and high-temperature drying (120 °C) processes.

Samples		Process	Hue Angle h* (°)	Color Saturation C*ab	Saturation Sab (%)
60 °C	Hornbeam	Before drying	73.4	28.9	38.2
		After drying	72.7	22.1	31.4
	Maple	Before drying	69.0	35.3	47.2
		After drying	65.5	30.0	43.5
120 °C	Hornbeam	Before drying	71.7	27.7	37.2
		After drying	71.0	26.8	40.5
	Maple	Before drying	72.6	29.2	36.2
		After drying	64.5	28.3	44.5

.

The hue angle values of both groups of samples were approximately the same before drying. Maple wood exhibited lower values. During drying, there was a remarkable decrease in the value of the hue angle towards the red-brown color of maple wood during high-temperature drying. Similar results were observed in [12], where a remarkable color change in birch samples was confirmed. During the drying of mature wood (MW), there was a noticeable decrease in the hue angle towards the red-brown color. It changed from 72° before drying to 57.4° after drying on MW. As also shown in [12], the combination mode (hot-air drying and high-temperature drying) could remarkably reduce the color change in the early phase of drying process.

There were minimal differences in hot-air drying. There were minimal differences in hot-air drying. The values of S_ab and C*_ab decreased in both wood species during hot-air drying 60 °C (Table 5). During high-temperature drying (120 °C) the values increased. A more significant increase was seen in the maple wood. Color changes of hornbeam and maple during hot-air drying (60 °C) and high-temperature drying 120 °C are shown in Figure 5. A similar result was evident in [19], where a red coloration of maple wood was discovered when it was exposed to high temperatures.

4. Conclusions

• During hot-air drying (60 °C), maple samples dried faster than hornbeam samples. The difference in drying times of wood species is directly proportional to their density.
• During high-temperature drying, maple samples were dried faster in the first drying section (MC > FSP), but after raising the temperature of the drying environment to 120 °C, the resulting times for both woods were identical.
• For maple wood, there were remarkable changes in the coordinates of the color space L*, a* and b* with both methods of drying. At a maximum drying temperature of 60 °C, the most remarkable change in coordinates occurred during the first 24 h of drying. For maple, the brightness value L* decreased remarkably, but the a* coordinate hardly changed. The change in the b* coordinate was also smaller for maple than for hornbeam. The color difference between the compared woods at a drying temperature of 60 °C was minimal. The total color difference between the color at the end and at the beginning of drying was 7.3 for hornbeam and 11.1 for the maple.
• During high-temperature drying (120 °C), the color changes of the dried woods were more pronounced. There was a remarkable change at the beginning of drying, but also after raising the temperature to 120 °C, where there was mainly a change in the coordinate of L*. The maple samples were darker than the hornbeam samples, likely due to enhancement of oxidation during high-temperature drying. The total color difference between the color at the end and the beginning of the drying was 8.7 for hornbeam and 18.9 for maple. The color change was visible to the naked eye.
• A remarkable change in color of the maple samples during high-temperature drying was also confirmed by the values of hue angle, color saturation and saturation in individual measurement sections. During the drying of maple samples, there was a remarkable decrease in the value of the hue angle towards a red-brown color. The change was 8.1° for maple and 0.7° for hornbeam.
• The S_ab and color saturation values decreased in both wood species during hot-air drying (60 °C). A more significant reduction in S_ab was observed in hornbeam, a difference of 6.8°. During high-temperature drying (120 °C) the values increased. There was a more remarkable increase in maple wood (8.3°).

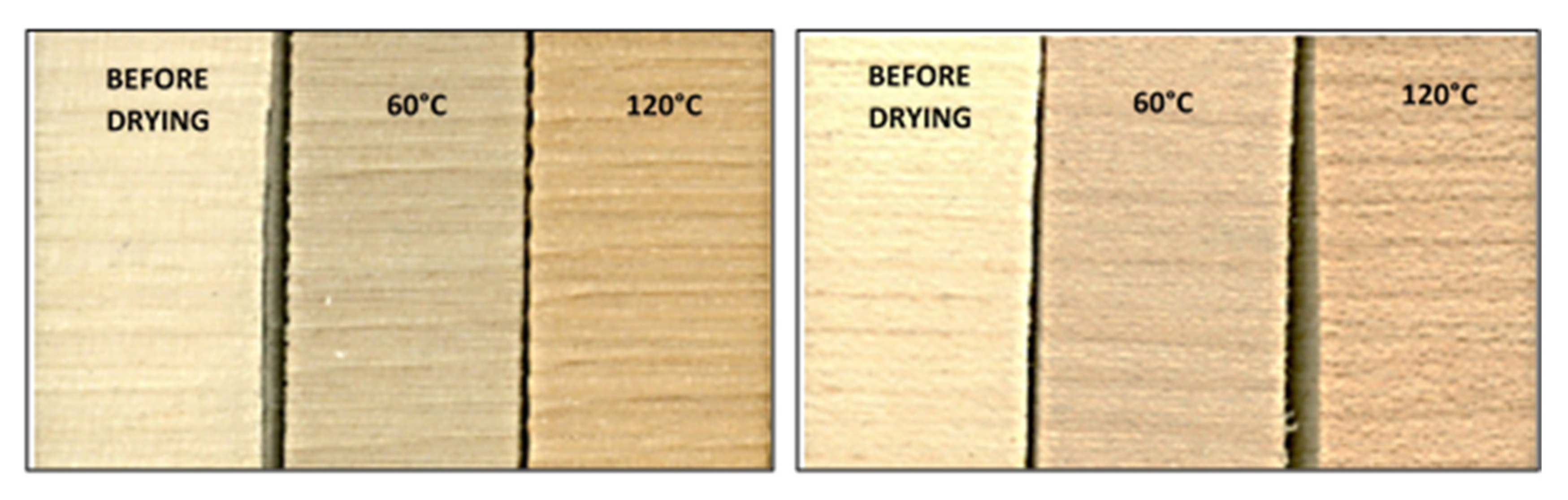

• There was a visible color change in both monitored wood species due to the drying process. An effect of the temperature of the drying medium in combination with the humidity of the dried wood was confirmed. Differences were observed in the brightness and color shade. These differences are due to the chemical composition of individual trees and thus also to different hydrolysis reactions due to the interaction of temperature and humidity.

Wood color is one of the most attractive properties for the modern wood industry. However, during processing, especially during drying, the wood may undergo color changes. The color change can be regulated by drying conditions with changing wood moisture content. Such color changes apply not only to natural wood, but also wood composites such as plywood, blockboard or laminboard, where thin and quality surface layers are made by rotary peeling of veneer, including both hornbeam and maple logs.
