Assessment the Visual Clarity of the Projector in Classroom and Innovative Asymmetric Distribution LED Tube Applications

by
Chun-Hsi Liu
1,
Chun-Yu Hsiao
1,*,
Jyh-Cherng Gu
1,
Kuan-Yi Liu
1,
Chih-Hung Chang
2,
Chen-En Lee
1 and
Shu-Fen Yan
3
1
Department of Electrical Engineering, National Taiwan University of Science and Technology (NTUST), Taipei City 106335, Taiwan
2
General Manager of LIDlight INC., New Taipei City 235038, Taiwan
3
Department of Civil and Construction Engineering, National Taiwan University of Science and Technology (NTUST), Taipei City 106335, Taiwan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(23), 11153; https://doi.org/10.3390/app112311153
Submission received: 26 October 2021 / Revised: 15 November 2021 / Accepted: 21 November 2021 / Published: 24 November 2021
(This article belongs to the Collection Optical Design and Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

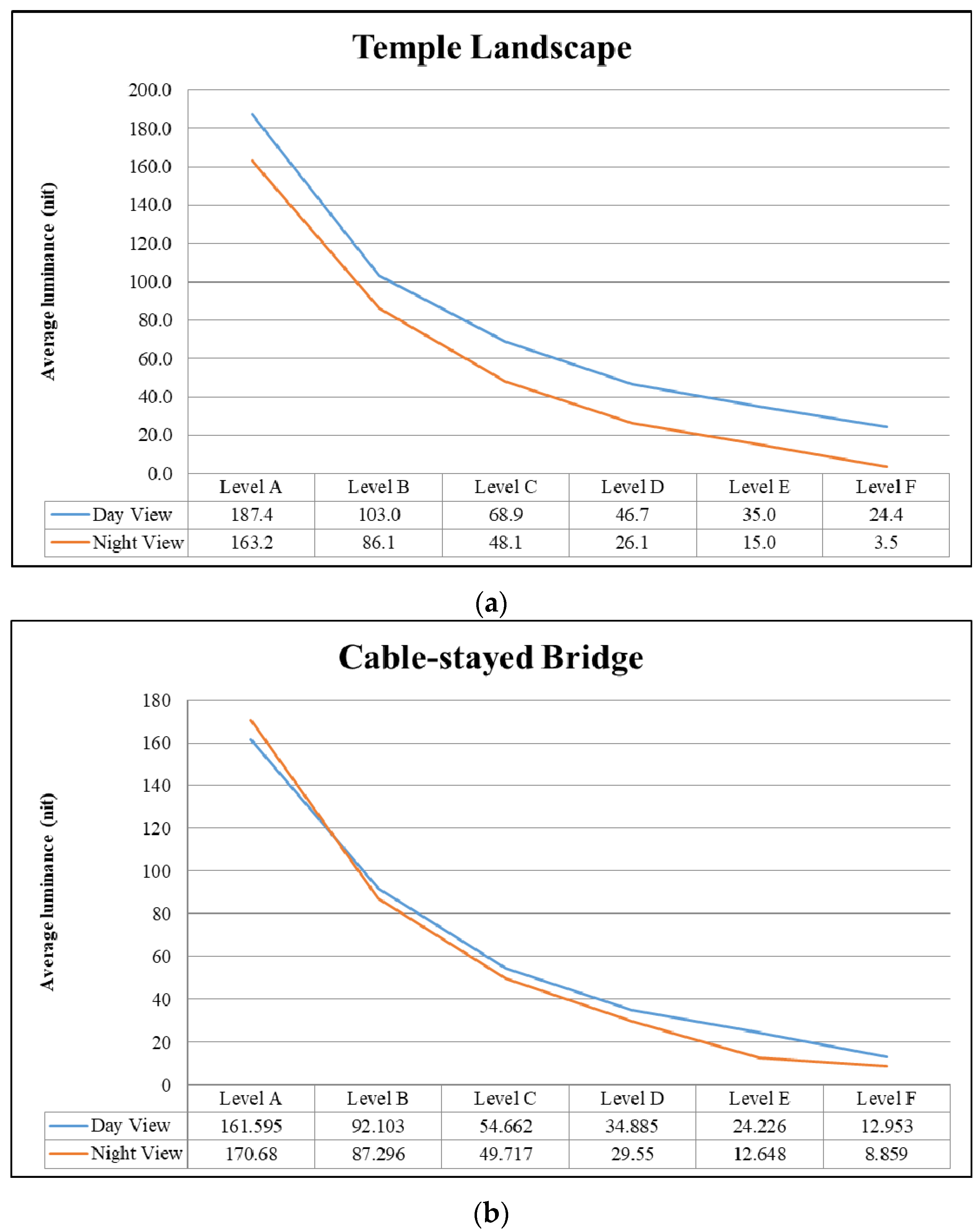

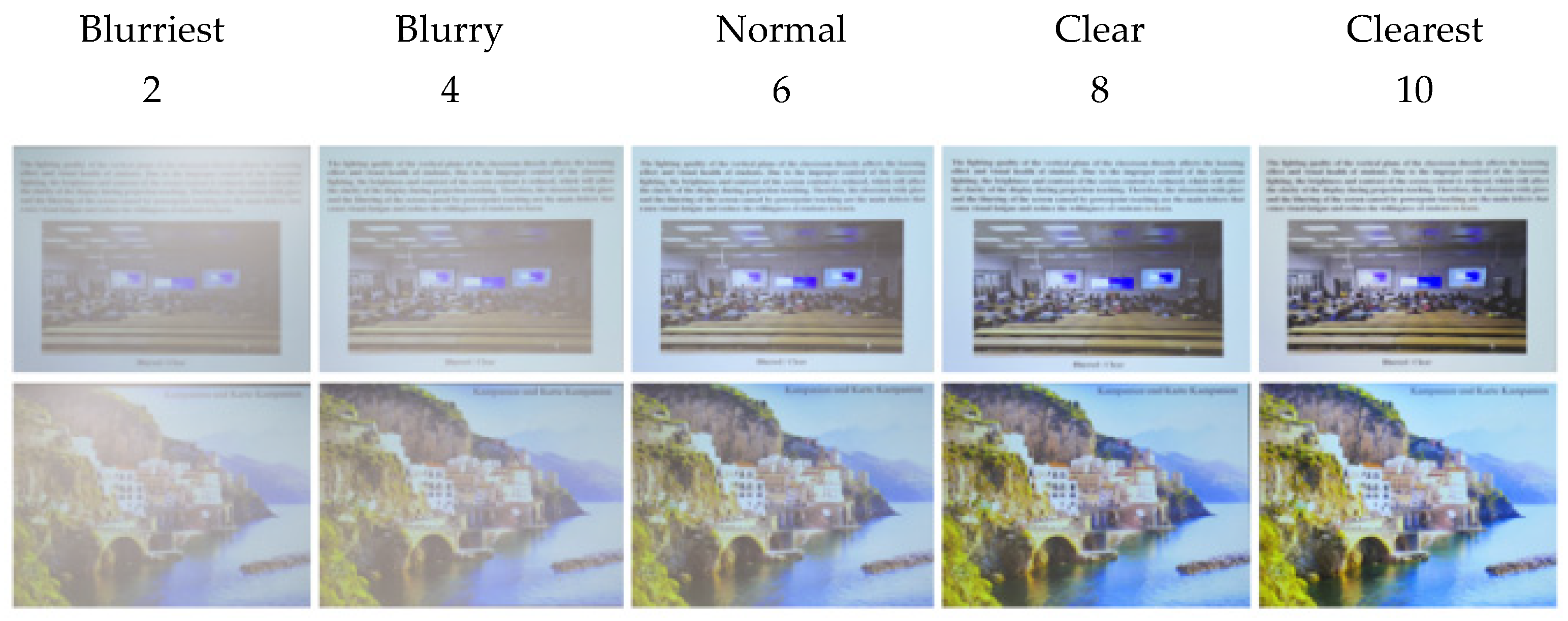

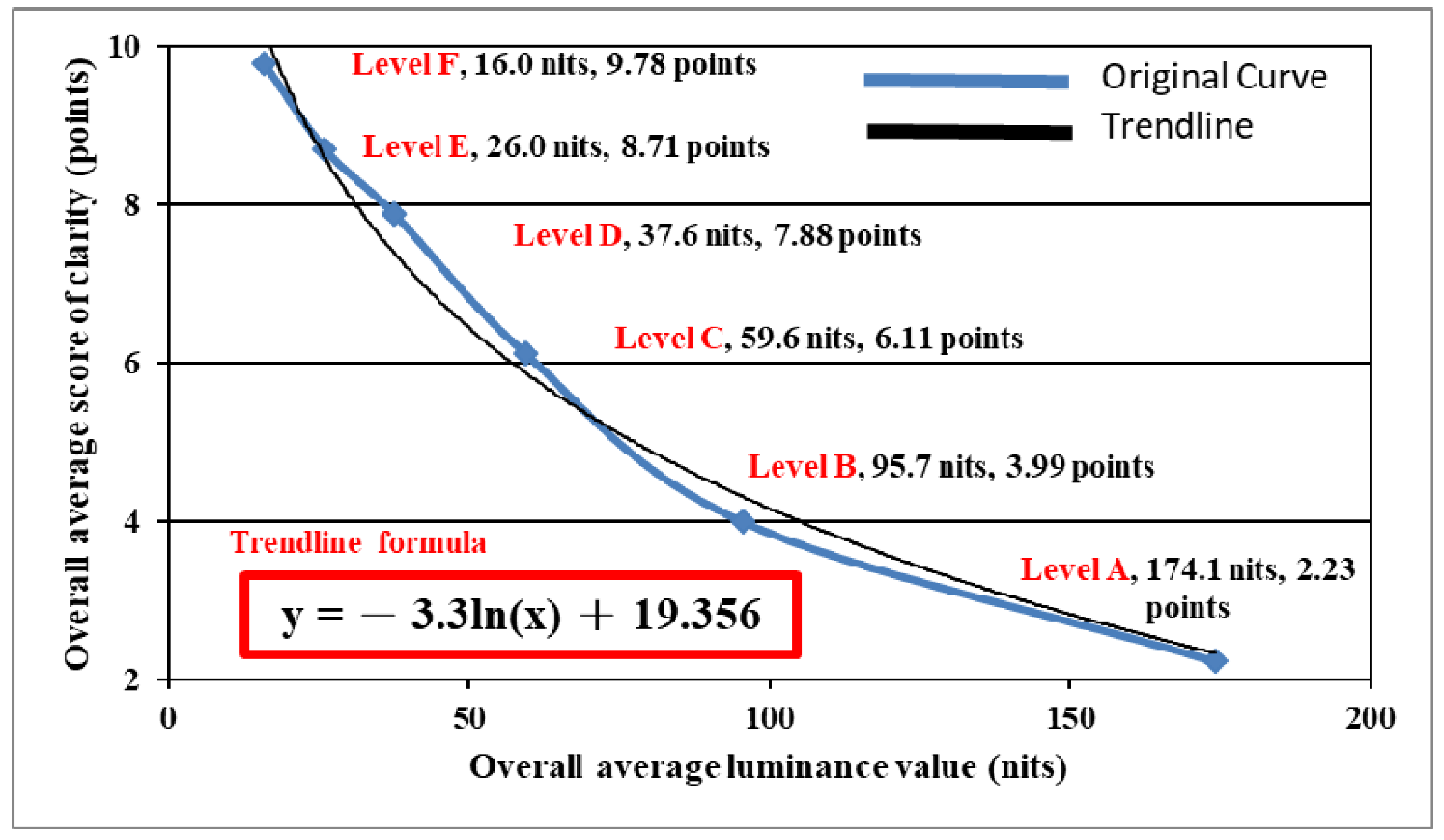

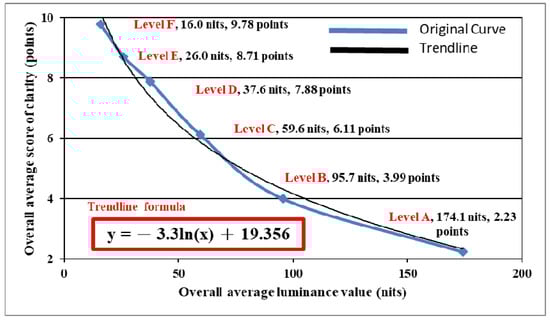

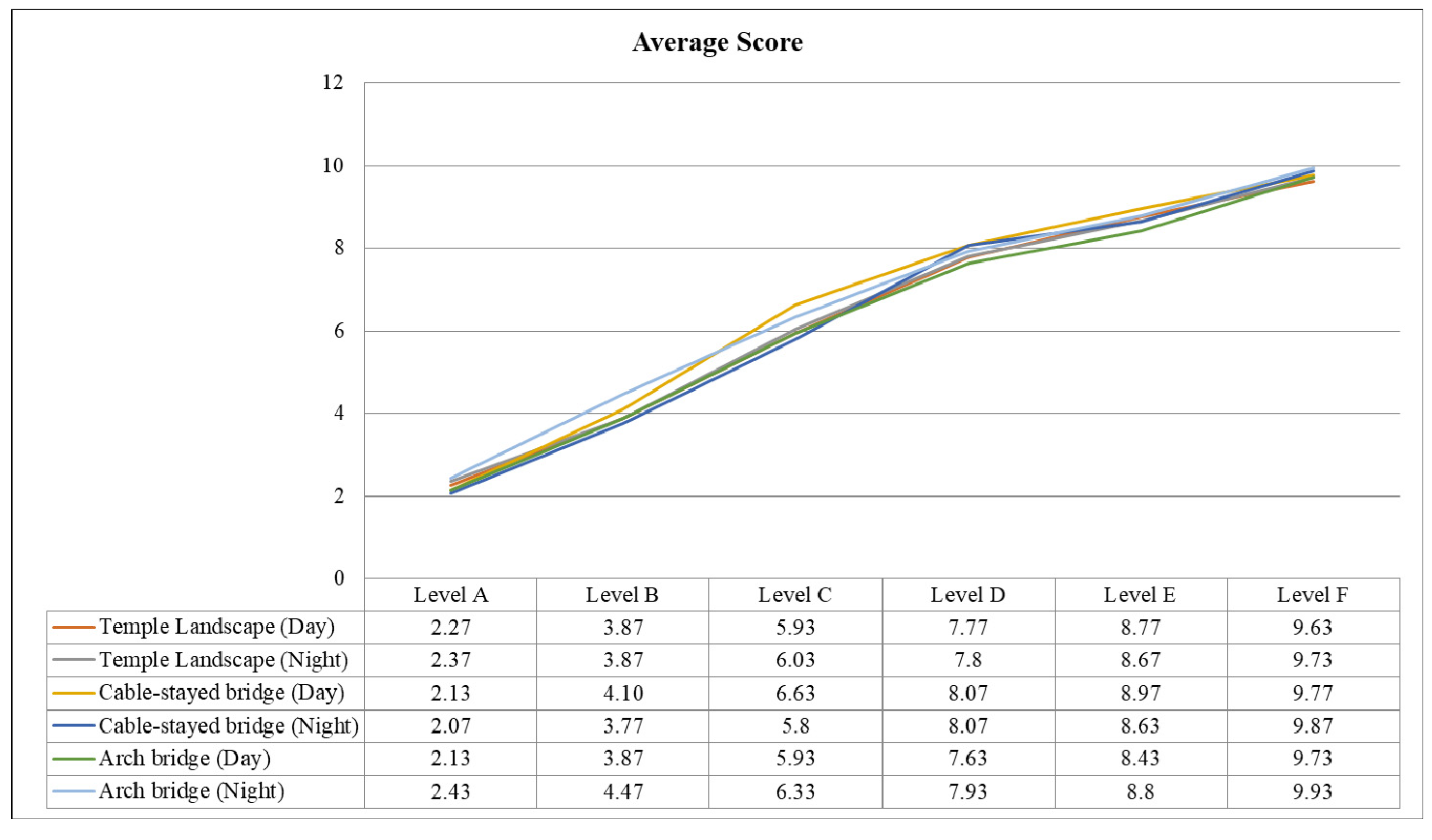

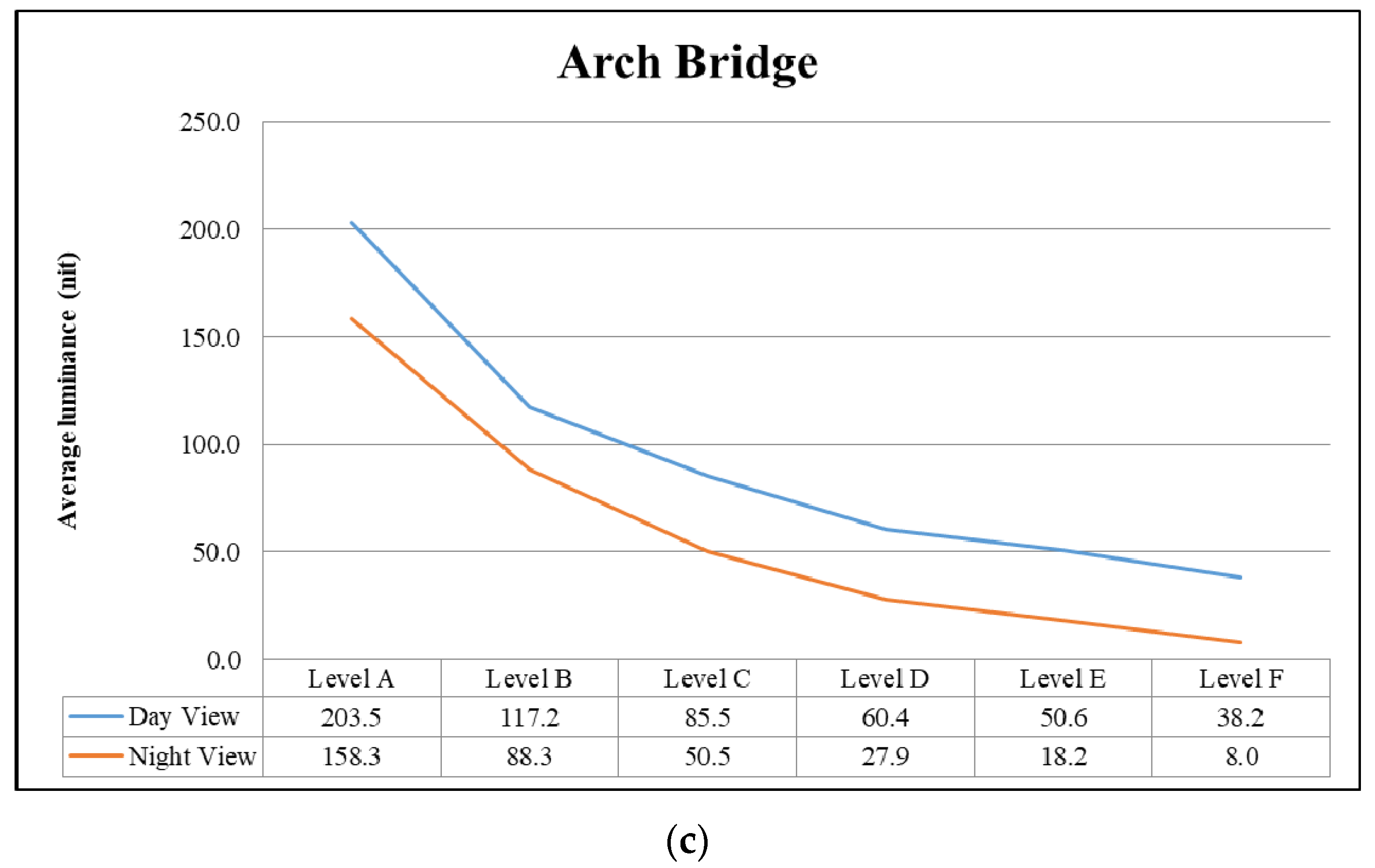

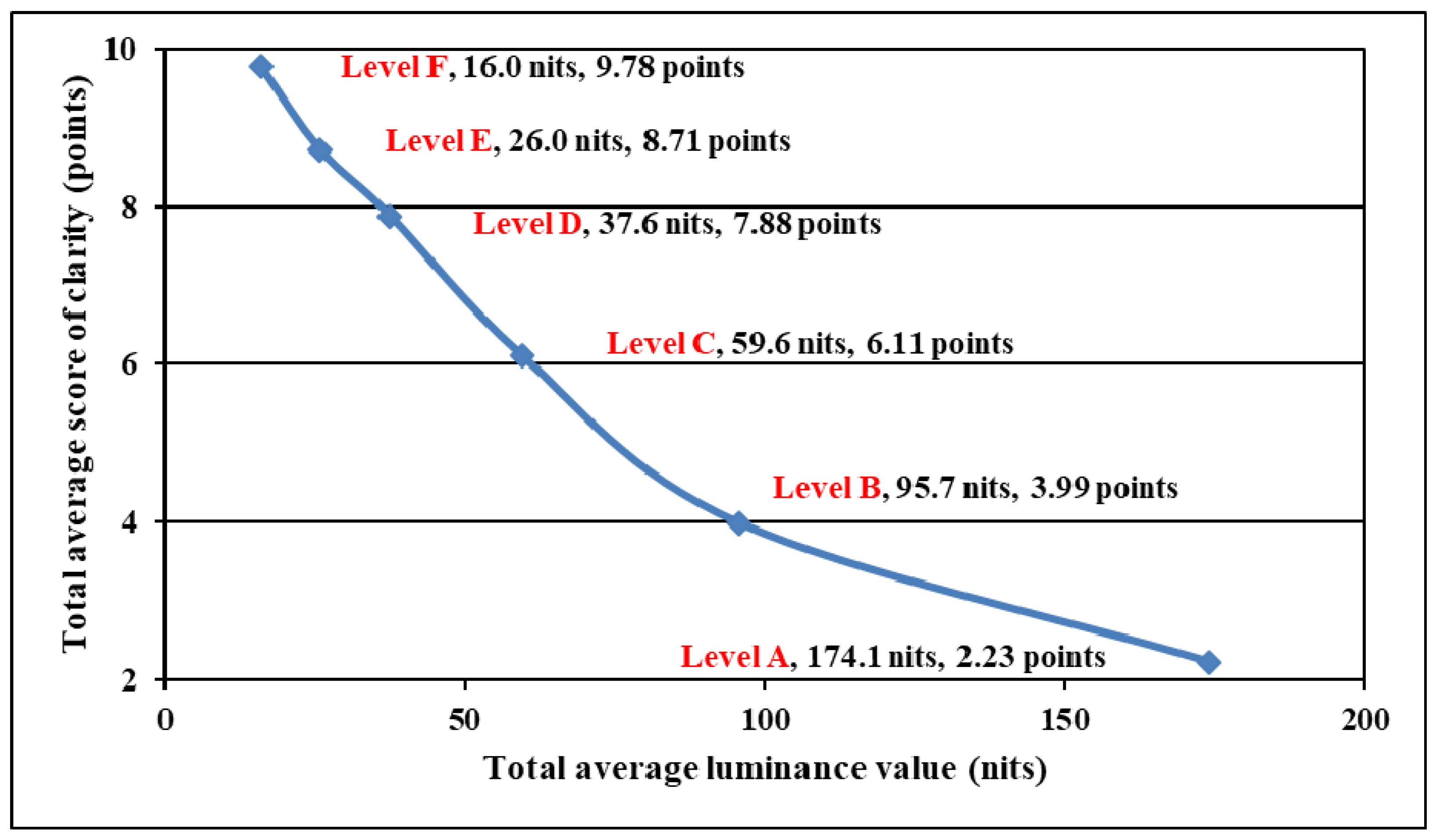

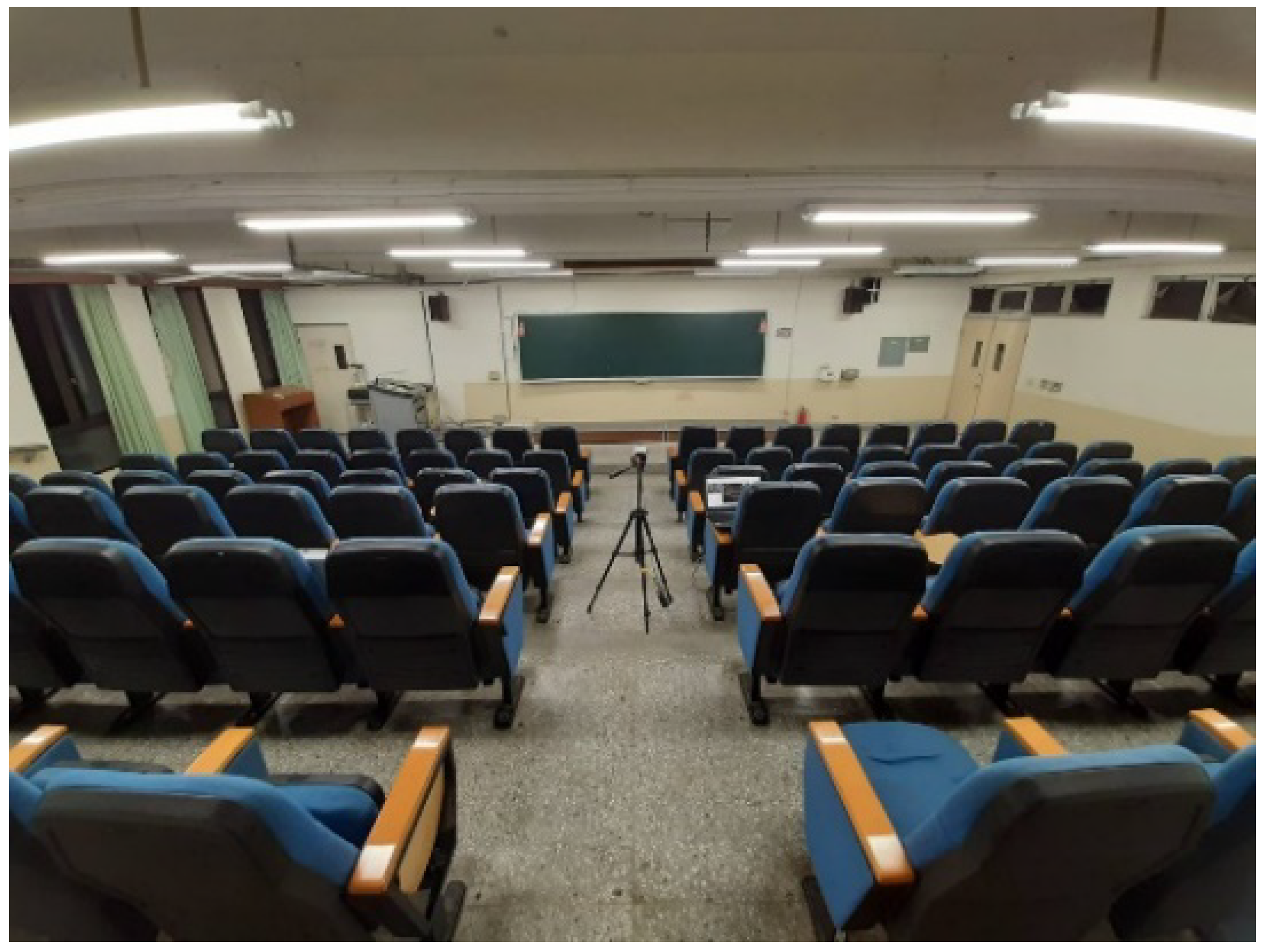

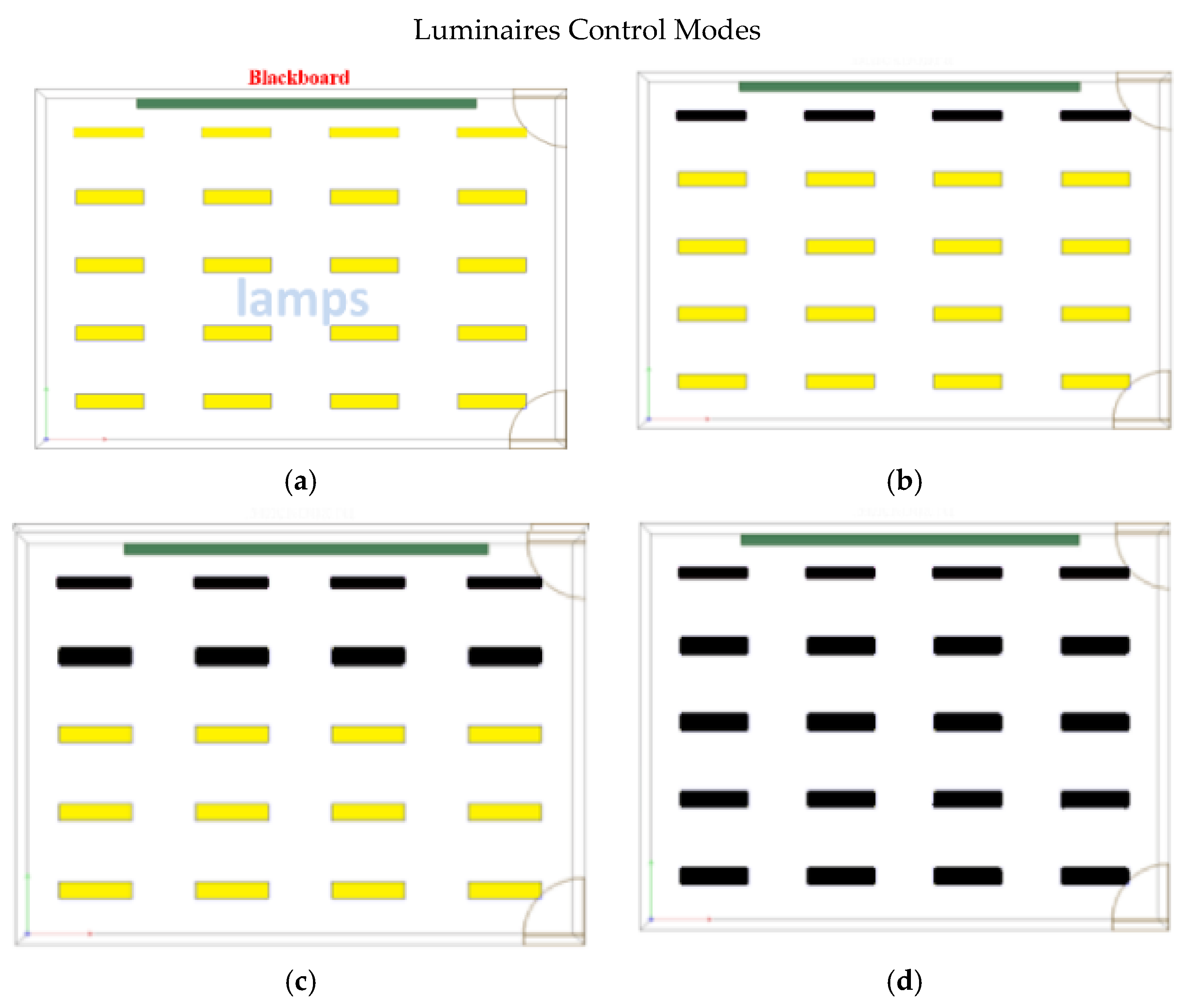

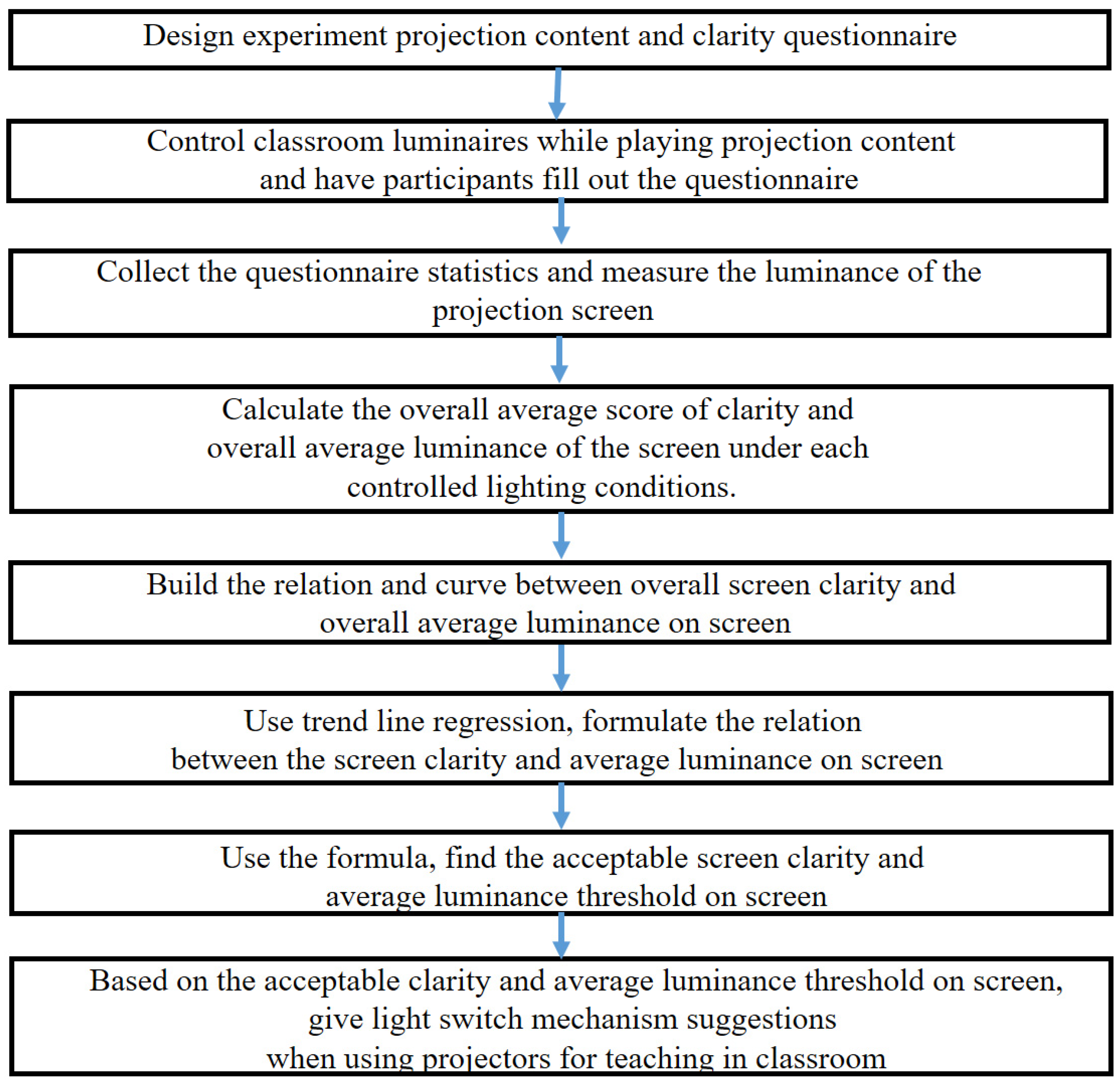

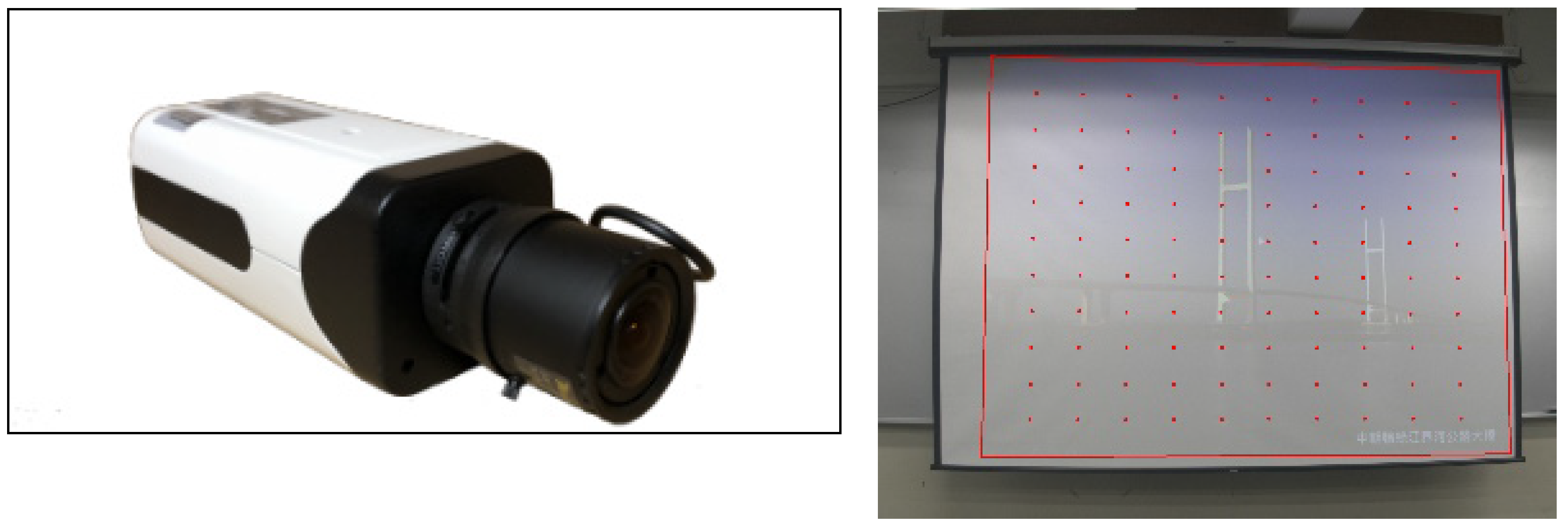

The paper aims to explore the relationship between the vertical plane luminance on projection screens and human visual clarity in the classroom or meeting room. While controlling the lighting environment conditions of the classroom to create different luminous distributions and luminance on the projection screen, a survey is conducted to understand students’ visual experience about screen clarity during the field experiment. The luminance of each picture on the projection screen is measured under the specified lighting conditions of luminaires in the classroom, and the relationship is formulated between the average luminance on the projection screen and the visual satisfaction based on clarity of experience. This will be useful for further studying the acceptable threshold of luminance distribution in the classroom to provide a better visual clarity and lighting quality of projection screens while teaching. In this study, the measurement and performance evaluation on a projection screen were carried out at a classroom in the National Taiwan University of Science and Technology (NTUST). By using an image luminance meter and analyzing the research results, we propose an improvement strategy for asymmetric luminous distribution design of LED light tube and light switch control mechanism of luminaires to resolve the inadequate luminance of the vertical projection screen area to improve the lighting quality and visual clarity of the projection screen while teaching with the least cost.
Keywords: classroom lighting; luminance of vertical plane; projection screen area; screen clarity; average luminance classroom lighting; luminance of vertical plane; projection screen area; screen clarity; average luminance
