Influence of HFM Thermal Contact on the Accuracy of In Situ Measurements of Façades’ U-Value in Operational Stage

Abstract

Accurate information on the actual thermal transmittance of walls is vital to select appropriate energy-saving measures in existing buildings to meet the commitments of the European Green Deal. To obtain accurate results using the heat flow meter (HFM) method, good thermal contact must be made between the heat flow meter plate and the wall surface. This paper aimed to assess the influence of the non-perfect thermal contact of heat flow meter plates on the accuracy of in situ measurement of the façades’ U-value when a film was applied to avoid damage to the wall surface. Given the fact that to avoid harm to the wall surface, the laying of a film is a usual procedure in the installation of equipment during the building’s operational stage. The findings show that deviations between measured U-values when an HFM was installed directly on the wall surface and when an HFM was installed with a PVC film were found to differ significantly from the theoretical effect of including a PVC film during the monitoring process.

1. Introduction

Efficiency in terms of energy and resources is required by the European Green Deal when building and renovating the European building stock [1] for achieving the European Union’s energy efficiency targets [2]. To meet the 2050 long-term climate and energy targets, 97% of the residential building stock, which is responsible for around 36% of CO₂ emissions in the European Union [3], needs to be upgraded to become highly energy efficient and obtain the Energy Performance Certificate (EPC) label A [4]. This high percentage is due partly to the average age of European residential building stock: more than 80% of residential buildings are over 25 years old (

Table 1. Distribution of residential floor space by year of construction in the European Union 27, Switzerland and Norway [9].

Region	Floor Space Distribution	Average Age of Residential Floor Space
		Pre 1960	1961–1990	1991–2010
North and West	50%	42%	39%	19%
Central and East	14%	35%	48%	17%
South	36%	37%	49%	14%

) and, therefore, most of them were built without thermal regulation. Construction is considered the sector with the most potential for energy saving. Buildings represent 40% of the energy used in the European Union [5]. Almost 26% of Europe’s total final energy consumption is used in residential buildings [6]. Space heating represents a large amount of energy consumption in the housing sector [7,8] and, therefore, has a significant capacity for energy saving.

According to the IEA EBC Annex 71-project [10], measuring the actual energy performances discloses a notable gap between actual and expected energy performances of buildings. The actual thermal behaviour of building envelopes could contribute to this energy performance gap in buildings. Deviations between the predicted and actual behaviour of envelopes are related to aspects of the design and construction stages [11]. Moreover, assumptions about energy efficiency improvements resulting from building refurbishment are not always met [12,13]. Consequently, accurate in situ measurements of the actual U-value of façades are necessary.

The thermal performance of building façades is a fundamental parameter that should be evaluated to obtain an accurate energy diagnosis of buildings [14,15,16,17,18,19,20,21]. Successful decision-making during energy renovation processes of existing buildings requires precise characterization of thermal properties of building components [22,23]. Classifying the opaque part of the façades is essential to precisely analyse the thermal performance of façades in the housing sector.

In recent years, the thermal behaviour of the materials that compose façades had been studied in depth by several authors such as Laaroussi et al. [24] measuring the thermal properties of brick materials, Kuman and Suman [25] or Björk and Enochsson [26] measuring the properties of thermal insulation materials. However, when analysing the thermal transmittance of walls, assumed U-values have been a meaningful source of error in estimations of energy savings and carbon emissions [27]. Evidence suggests that assumptions concerning heat loss from a dwelling pre-retrofit and post-retrofit are not correct [12]. Therefore, accurate on-site measurements are required to provide information on the actual thermal transmittance of façades. To effectively quantify the actual performance of buildings, optimized on-site measurements combined with dynamic data analysis techniques are needed [28].

Several methods can be used for the in situ measurement of U-value of existing buildings’ façades [29,30]. One of the most common is the heat flow meter method, standardised by ISO 9869-1:2014 [31]. This method obtains the thermal transmittance by measuring the heat flow rate that passes through a wall and the inside and outside environmental temperatures. However, difficulties can arise in on-site measurements of walls U-value in the existing building stock, leading to inaccuracies [32]. These difficulties can be classified into three groups, according to the IEA EBC Annex 58-project [33]: errors related to the measurement accuracy, errors related to the analysis of data and errors related to the boundary conditions of the in situ measurement. Difficulties related to the measurement accuracy include factors like reading and calibration of heat flow meters and temperature sensors and had been deeply analysed by authors such as Ficco et al. [17], Trethowen [34] and Meng et al. [35]. Difficulties related to the analysis of data were recently analysed in depth [32,36,37,38,39]. Difficulties related to the boundary conditions include factors as an imbalance of the heat flow, edge heat loss and accuracy on the position of sensors, which were highly analysed by Peng and Wu [32], Meng et al. [35], Cesaratto et al. [40], Ahmad et al. [41] and Guattari et al. [42]. Delving into boundary monitoring conditions, the factor of contact between the wall surface and the heat flow meter was analysed by simulations but has not been analysed in experimental tests [40], so as for the present study focuses on this aspect.

The IEA EBC Annex 58-project [33] and authors such as Cesaratto et al. [40], Tadeu et al. [43] and Gori and Elwell [44] highlight the importance of ensuring good thermal contact between the heat flow meter plate and the wall to be measured to obtain accurate results. However, conducting HFM in situ measurements during the operational stage of dwellings is challenging due to the need for avoiding damage to wall surfaces. In this sense, the usual practice is placing a PVC film to preserve the wall surface [27,45].

Considering all the aspects aforementioned, the study aimed to analyse the influence of the non-perfect thermal contact of heat flow meter plates on the accuracy of in situ measurement of the façades’ U-value when a film was applied to avoid damage to the wall surface, as a usual equipment installation procedure during the building’s operational stage. This research provides valuable additional evidence on the accuracy of in situ monitoring of the actual U-value of existing buildings’ façades and will therefore assist practitioners in pre-retrofit diagnosis.

The method used to analyse the influence of the non-perfect thermal contact of heat flow meter plates on the accuracy of in situ measurement of the façades’ U-value is explained in the second section following this introduction. The third section presents the results. Finally, the discussion and conclusions are given in the fourth section.

2. Materials and Methods

2.1. Methodology

The method for assessing the impact of the heat flow meter thermal non-perfect contact on the accuracy of in situ measurement of walls U-value consists of three steps (Figure 1):

• First, two façades with a range of theoretical thermal transmittance values were selected.
• Second, in situ measurements of walls’ U-value were conducted with two heat flow meters. One heat flow meter was installed by applying a layer of interface material between the heat flow meter and the wall surface, and the other heat flow meter was installed by applying a PVC film between the layer of interface material and the wall surface. During the monitoring process, recommendations on apparatus and environmental conditions were considered [31]. Then, data were analysed using the dynamic method.
• Third, the variability of results was analysed by comparing the differences between the measured thermal transmittances obtained from the two heat flow meters with the theoretical effect of including a PVC film during the monitoring process, for the two case studies.

2.2. Case Studies

To analyse the implications of using a protective film during the installation process of heat flow meters on the accuracy of in situ measurements of the façades’ thermal transmittance, two brick masonry walls with varying theoretical thermal transmittances were selected as case studies (Case studies 1 and 2).

Case study 1 was built in 1960 and according to Gaspar et al. [46] can be defined as a single-skin wall with no air cavity or insulation. This case study is located between an interior habitable zone and an interior non-habitable zone. Case study 2 was built in 2005, it is a double-skin façade with internal insulation but no air cavities finished with continuous covering [46]. This case study is located between an indoor habitable zone and an outdoor zone.

The theoretical total thermal resistance (RT) of the two multilayer walls can be calculated as follows [47]:

$$R_T\left(\frac{{\mathrm{m}}^2·\mathrm{K}}{W}\right)= \frac{1}{U_t} =R_{si}+R_1+R_2+\dots +R_N+R_{se}$$

(1)

where U_t is the theoretical thermal transmittance of the wall, R_si and R_se are the internal and external superficial resistance values (0.13 m²·K/W and 0.04 m²·K/W, respectively [47]) and R₁ + R₂ + …. + R_N are the design thermal resistance values for layers from 1 to N.

To calculate the design thermal resistance (R) of a uniform layer, the following expression was used:

$$R \left(\frac{{\mathrm{m}}^2·\mathrm{K}}{W}\right)= \frac{d }{\lambda }$$

(2)

where d is the thickness of the layer and λ is its design thermal conductivity.

Design data to calculate the designed thermal transmittance was obtained from the buildings’ executive projects and reports. This information was corroborated by the facility managers of the buildings. Subsequently, the thickness of the wall was measured on-site. The theoretical U-values of the two case studies were determined according to Equations (1) and (2), following guidelines of ISO 6949:2007 [47] and the Spanish Technical Building Code’s Catalogue of Building Elements [48]. Even though the theoretical U-values were not absolutely certain were taken as reference values.

Table 2. Composition of the case studies.

Case Study	No. Layer	Material Layer (Inside-Outside)	Thickness (m)	Thermal Conductivity (W/m·K)	Thermal Resistance (m2·K/W)	Total Thickness (m)	Theoretical U-Value (W/m2·K)
Case study 1					0.13	0.12	2.20
	1	Mortar plaster	0.01	0.570	0.018
	2	Hollow brick wall	0.10		0.160
	3	Mortar plaster	0.01	0.570	0.018
					0.13
Case study 2					0.13	0.34	0.36
	1	Mortar plaster	0.02	1.300	0.015
	2	Hollow brick wall	0.10		0.160
	3	Polyurethane insulation	0.06	0.028	2.143
	4	Perforated brick wall	0.14		0.210
	5	Single-layer mortar plaster	0.02	0.340	0.059
					0.04

provides a summary of the thickness, thermal conductivity and thermal resistance of each layer and the theoretical thermal transmittance for the case studies.

2.3. In Situ Measurement of Façades’ Thermal Transmittance

This section specifies the instrumentation and data collection process and the subsequent analysis of data.

2.3.1. Instrumentation

Proper instrumentation was carefully selected for the in situ measurement of the actual thermal transmittance of the walls. The apparatus consisted of an internal acquisition system, to which two heat flow plates and an internal environmental temperature sensor were connected, and an external environmental temperature sensor with its acquisition system.

Table 3. Main specifications of the instrumentation.

Type of Equipment	Model and Manufacturer	Range	A Priori Accuracy
Heat flow meter plates	HFP01, Hukseflux	±2000 W/m2	±5%
Inside environmental temperature sensor	T107, Campbell Scientific, Inc.	−35° to +50 °C	±0.5 °C
Inside acquisition system	CR850, Campbell Scientific, Inc.	Input ±5 Vdc	±0.06% of reading
Outside environmental temperature sensor and its acquisition system	175T1, Instrumentos Testo, SA	−35° to +50 °C	±0.5 °C

summarises the main specifications and a priori accuracy of the calibrated instrumentation.

The monitoring process was designed following ISO guidelines [31]. Taking into account the considerations of Asdrubali et al. [14], Evangelisti et al. [16], Ahmad et al. [41], Tejedor et al. [49,50], Barreira et al. [51] and Nardi et al. [52], the placement of equipment was examined with an infrared thermographic camera (FLIR E60bx Infrared Camera). Proximity to defects, joints and borders of the wall, direct solar radiation and direct impact of heating or cooling devices were avoided, as recommended by Guattari et al. [42] and Evangelisti et al. [53].

The two heat flow meter plates were placed on the inner side of the wall due to it is the location where the temperature was most stable. Proper thermal contact was ensured between the entire area of one heat flow meter plate and the wall surface by carefully applying a layer of thermal interface material. The other heat flow meter plate was meticulously installed by applying a film between the layer of thermal interface material and the wall (Figure 2), which is usual procedure to protect the wall surface, as described in Section 1.

During the experimental campaign, climatic conditions were observed. The monitoring process took into consideration that the internal environmental temperature always exceeded the external environmental temperature, ensuring a stable heat flow direction. Alternating this flow direction could lead to inaccurate measurements, as described by Tadeu et al. [43], and could greatly influence the minimum test duration and the variability of the results [39]. Data were sampled every 1 s and recorded every 30-min averaged data in both dataloggers.

Data obtained from process monitoring is depicted in Figure 3, where Tin is the inside environmental temperature, Tout is the outside environmental temperature, qNF is the heat flow measured with a heat flow meter plate installed with direct contact on the wall surface and qF is the heat flow measured with a heat flow meter plate installed by applying a PVC film between the layer of thermal interface material and the wall surface. The experimental campaign of Case study 1 was conducted from 10–17 June 2016 (from 12:00 a.m. to 12:00 a.m.) and of Case study 2 from 24–30 October 2016 (from 12:30 p.m. to 12:30 p.m.).

2.3.2. Data Analysis

The measured thermal transmittance was determined according to the standardised dynamic method described by ISO 9869-1:2014 [31] and extensively detailed in Gaspar et al. [54]. To apply the dynamic analysis, a spreadsheet was programmed following the recommendations of Gaspar et al. [54]. The best estimate of the thermal transmittance was obtained for each cycle of 24 h. A confidence interval of 95% was adopted in the study to evaluate the quality of the thermal transmittance estimation results [31,55].

The duration of the test was evaluated considering the requirements established in the ISO 9869-1:2014 standard [31,56]. The three requirements are summarised in the following equations (Equations (3)–(5)):

$$D_T \left(days\right)\ge 3$$

(3)

$$\left|\frac{U_m{}_i-U_m{}_{i-1}}{U_m{}_{i-1}}\times 100\right|\le 5\%$$

(4)

$$\left|\frac{U_m{}_{i=1}^{INT\left(2\times \frac{DT}{3}\right)}-U_m{}_{i=DT-INT\left(2\times \frac{DT}{3}\right)+1}^{DT}}{U_m{}_{i=DT-INT\left(2\times \frac{DT}{3}\right)+1}^{DT}}\times 100\right|\le 5\%$$

(5)

where DT is the length of the test in days, U_m is the measured U-value of the wall, index i indicates the number of the cycle and INT is the integer part.

2.4. Analysis of Variability of Results

The introduction of a PVC film during the monitoring process changes the theoretical U-value of the wall due to its inherent thermal resistance plus the thermal contact resistance between the film and the wall surface. The theoretical maximum thermal resistance associated with the inclusion of a PVC film is estimated according to Equations (1) and (2), as follows:

$$R_{film\_max}\left(\frac{m^2·K}{W}\right)=0.0005+ \frac{15·{10}^{-6}}{0.12}=6.25·{10}^{-4}$$

(6)

where the thermal contact resistance is usually between 0.000005 to 0.00005 m²·K/W according to Çengel and Ghajar [57], the thickness of the film is usually between 7 × 10⁻⁶ to 15 × 10⁻⁶ m, the thermal conductivity of the material is between 0.12 to 0.25 W/m·K and R_{film_max} is the maximum thermal resistance associated to the inclusion of a PVC film, considering the most insulation case of the film inclusion.

The theoretical effect of the inclusion of a PVC film on the thermal transmittance is calculated according to Equation (1) for the two case studies and shown in

Table 4. Theoretical impact of the inclusion of a PVC film on the thermal transmittance in the two case studies.

Case Study	Theoretical U-Value NF (W/m2·K)	Theoretical U-Value F (W/m2·K)	Deviation between U-Values(%)
Case study 1	2.20	2.19	0.14
Case study 2	0.36	0.36	0.02

. The deviations between the theoretical thermal transmittance (NF) and the thermal transmittance when using a PVC film during the installation of the heat flow meter (F) are practically imperceptible values, 0.14% in Case study 1 and 0.02% in Case study 2.

To assess the use of a protective film during the installation of heat flow meters, two values of the measured thermal transmittance were calculated for each case study. The first value was obtained using a heat flow meter plate installed with a layer of thermal interface material directly on the wall surface (U_mNF) and the second value was obtained using a heat flow meter plate installed with a PVC film between the layer of thermal interface material and the wall (U_mF). To check the adjustment between both measured U-values, the absolute value of the relative difference between measured U-values were calculated using the following expression:

$$Absolute value of the relative difference U_{m NF}-U_{m F}(\%)=\left|\frac{\left(U_{m NF}-U_{m F}\right)}{U_{m NF}}\times 100\right|$$

(7)

where U_mNF is the measured U-value of the wall using the dynamic method using an HFM installed without film and U_mF is the measured U-value of the wall using the dynamic method using an HFM installed with a PVC film between the layer of thermal interface material and the wall.

The variability of results was analysed by comparing the relative difference between the measured thermal transmittances obtained according to Equation (7), with the theoretical effect of including a PVC during the monitoring process shown in Table 4.

3. Results

The data acquisition process was conducted following the indications in Section 2, with a sampling duration of 168 h in Case study 1 (337 readings) and of 144 h in Case study 2 (289 readings). Two measured thermal transmittances and its confidence interval were calculated, for 24-h test cycles using the dynamic method in the two case studies [54]. One value was calculated using data from the heat flow meter plate installed with a layer of thermal interface material directly on the wall surface and the other value was calculated using data from the heat flow meter installed with a PVC film between the layer of thermal interface material and the wall.

The minimum test duration was checked considering the ISO standard [31]. The first requirement is that the sampling duration must be an integer of 24 h and at least 72 h (Equation (3)). Consequently, the second and third requirements were verified from the third day onwards. The second requirement for test completion is that the value of thermal transmittance obtained at the end of the sampling duration shall not deviate more than 5% from the value obtained 24 h before (Equation (4)). In accordance with this condition, in Case studies 1 and 2 the test could be ended after 72 h, as the requirement was met for all cycles with both HFM installation methods. The last requirement for ending the test is that the U-value obtained by analysing data from the first 2/3 of the sampling duration shall not deviate more than 5% from the value obtained from the data for the last period of the same length (Equation (5)). According to this condition, in Case study 1 the monitoring process could be ended in 96 h using an HFM installed directly on the wall surface and in 120 h when an HFM was used with a PVC film between the layer of thermal interface material and the wall surface. In Case study 2, the test could be stopped at 72 h when the heat flow meter was installed directly on the wall surface and in 120 h when the heat flow meter was installed with a PVC film between the layer of thermal interface material and the wall surface. The minimum test duration when using an HFM installed directly on the wall surface was found to be shorter than when using an HFM installed with a PVC film between the layer of thermal interface material and the wall surface.

The results of the measured thermal transmittance for the two case studies are shown in

Table 5. Measured thermal transmittance values using the dynamic method in 24-h cycles, using an HFM installed with a layer of thermal interface material directly on the wall surface (HFM_NF) and an HFM installed with a PVC film between the layer of thermal interface material and the wall surface (HFM_F).

Duration of the Test (h)	Case Study 1		Case Study 2
	Um-Dyn ± I95% (W/m2·K)		Um-Dyn ± I95% (W/m2·K)
	HFMNF	HFMF	HFMNF	HFMF
24 h	2.19 ± 0.12	2.03 ± 0.10	0.34 ± 0.02	0.27 ± 0.02
48 h	2.21 ± 0.10	1.62 ± 0.05	0.35 ± 0.01	0.28 ± 0.01
72 h	2.25 ± 0.09	1.64 ± 0.05	0.35 ± 0.01	0.27 ± 0.01
96 h	2.24 ± 0.06	1.69 ± 0.03	0.34 ± 0.01	0.27 ± 0.01
120 h	2.24 ± 0.05	1.70 ± 0.03	0.35 ± 0.01	0.28 ± 0.01
144 h	2.23 ± 0.04	1.70 ± 0.02	0.35 ± 0.01	0.28 ± 0.01
168 h	2.24 ± 0.04	1.70 ± 0.02	-	-

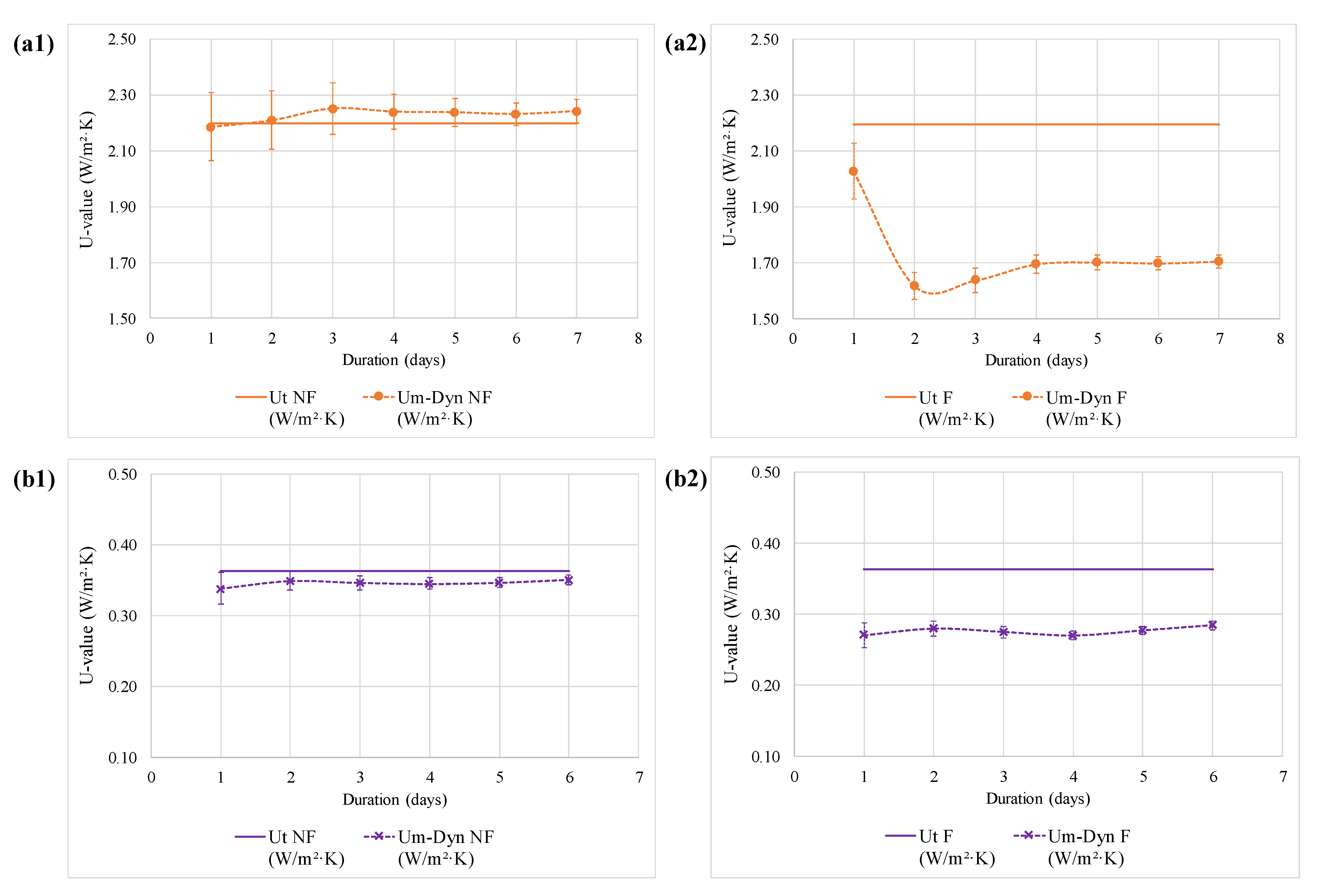

and depicted in Figure 4, where U_{m-Dyn ± I95%} is the measured U-value using the dynamic method, HFM_NF indicates the use of a heat flow meter plate installed with a layer of thermal interface material directly on the wall surface and HFM_F indicates the use of a heat flow meter installed with a PVC film between the layer of thermal interface material and the wall.

As tests lengthened, the confidence intervals were reduced. These findings are aligned with those analysed in the existing literature, in which the length of the test that was too short led to greater confidence intervals [14,37].

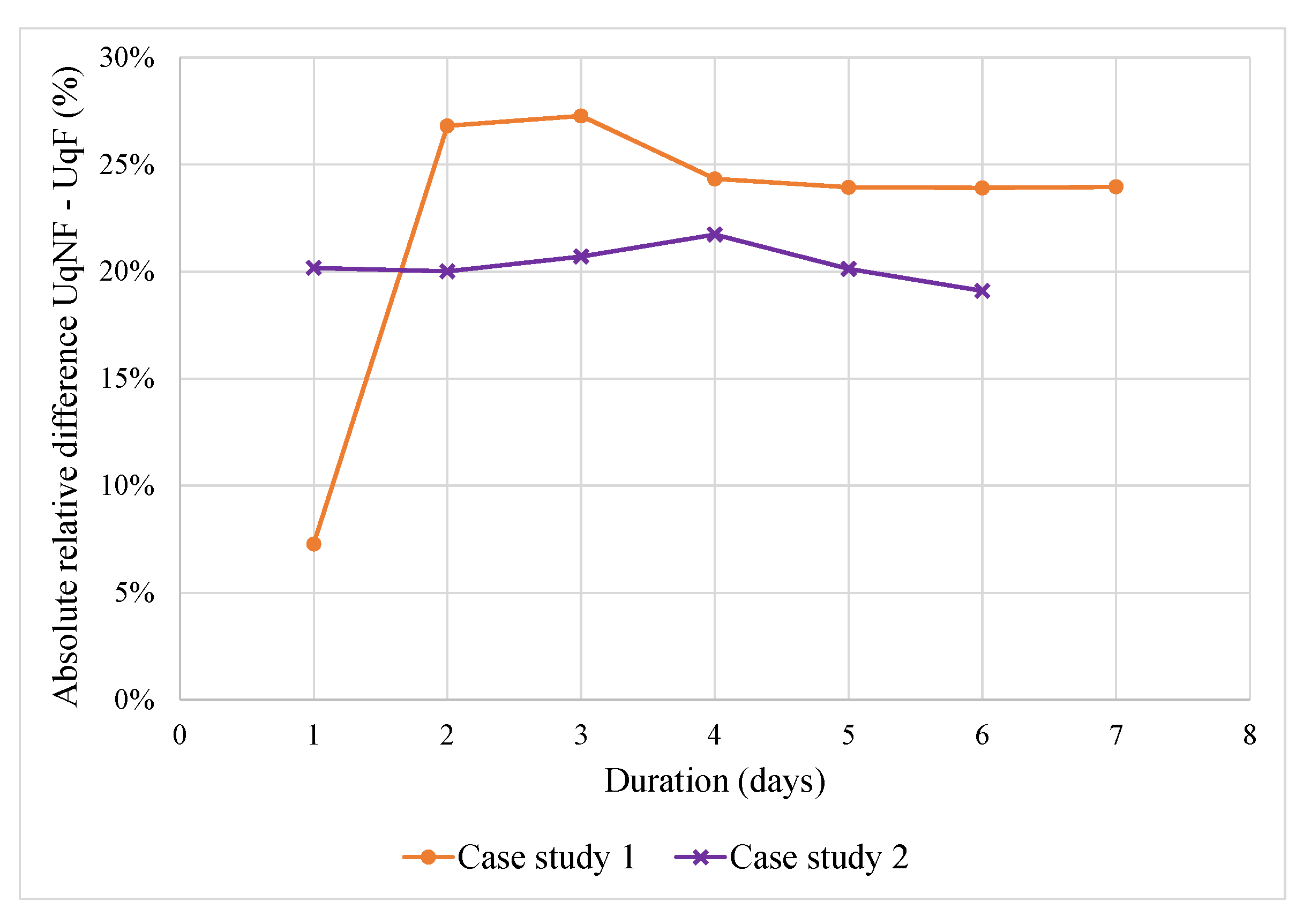

Deviations between the two measured thermal transmittance values were calculated following Equation (7), using an HFM installed with a layer of thermal interface material directly on the wall surface and an HFM installed with a PVC film between the layer of thermal interface material and the wall surface. These relative differences between measured U-values using both heat flow meters for the two case studies are depicted in Figure 5 and summarised in

Table 6. Influence of using a PVC film between the layer of thermal interface material and the wall surface on the in situ measurement of the thermal transmittance in the two case studies.

Duration of the Test (h)	$\left|\frac{\left({\mathit{U}}_{\mathit{q}\mathit{N}\mathit{F}}-{\mathit{U}}_{\mathit{q}\mathit{F}}\right)}{{\mathit{U}}_{\mathit{q}\mathit{N}\mathit{F}}}\right| (\%)$
	Case Study 1	Case Study 2
24 h	7.27	20.17
48 h	26.81	20.01
72 h	27.27	20.70
96 h	24.33	21.74
120 h	23.94	20.13
144 h	23.91	19.09
168 h	23.96	-

.

4. Discussion and Conclusions

This research assesses the influence of the heat flow meter plate non-perfect thermal contact on the accuracy of the in situ measurement of walls’ thermal transmittance using the standardised heat flow meter method. The assessment considers usual practices in the installation of heat flow meters, consisting of the application of a PVC film to avoid damage to the wall in occupied buildings, in two case studies with different theoretical thermal transmittance values. The experimental campaign was designed to isolate measurement errors related to non-perfect thermal contact from those related to the measurement accuracy and the analysis of data. In situ measurements were conducted in the same conditions and equipment, with two heat flow meters: one was carefully installed with a layer of thermal interface material directly on the wall surface and the other was carefully installed by applying a film between the thermal interface material and the wall. Data were analysed in 24-h periods using the dynamic method. Finally, the variability of results was analysed by comparing the deviation between the measured thermal transmittances obtained from the two heat flow meters with the theoretical effect of including a PVC film during the monitoring process.

Test completion results indicate that the minimum duration of experimental campaigns was influenced by the installation of the heat flow meter plate. Generally, when the heat flow meter was installed by applying a PVC film between the thermal interface material and the wall to protect its surface, the minimum duration of the test was longer than when the heat flow meter was directly installed on the wall surface without a PVC film. In Case study 1, the test lasted 24 h more and in Case study 2, the test lasted 48 h more.

The findings show that the use of a PVC film hinders the installation of sensors, worsening the thermal contact between sensor and wall. Relative differences between the measured U-values were found to be greater than the expected by the theoretical calculation and also by the ISO standard quantification in both case studies. Deviations between the two measured thermal transmittance values, using an HFM installed with a layer of thermal interface material directly on the wall surface and an HFM installed with a PVC film between the layer of thermal interface material and the wall surface, were found to be significantly different than those expected resulting from the calculation of the theoretical effect of including a PVC during the monitoring process summarised in Table 4. In the theoretical estimation, the use of a PVC film between the layer of thermal interface material and the wall surface had an expected deviation of 0.14% in Case study 1 and 0.02% in Case study 2. However, in the experimental tests results from the third cycle onwards showed that for Case study 1, the relative differences were around 24% to 27%, and in Case study 2 around 19% to 21%. On the other hand, random variations caused by a non-perfect thermal contact between the sensors and the surface are quantified by 5% according to ISO 9869-1:2014 [31]. The experimental results also differ significantly from those quantified by ISO standard [31]. These considerable differences between the expected differences and the measured ones might be due to collateral effects when installing an HFM with a PVC film between the layer of thermal interface material and the wall surface that hampers a good thermal contact, as Li et al. [27] suggested. Including a PVC film to protect the wall may complicate the sensor installation process and consequently, the quality of the thermal contact might be hampered. Additionally, the theoretical calculation of including a PVC film on the thermal transmittance does not consider random variations in the thermal contact of the HFM with the surface of the wall tested. Moreover, extending the duration of the test did not seem to reduce the differences between the measured U-values. Therefore, it is highly recommended to avoid the use of a PVC film between the layer of thermal interface material and the wall surface in the in situ measurement of the thermal transmittance of existing buildings’ façades when accurate results are required.

This research could be useful for practitioners when they conduct energy audits. It was found that when HFMs were installed with a PVC film between the layer of thermal interface material and the wall surface, the measured thermal transmittance was around 19 to 27% lower than when HFMs were installed with a layer of thermal interface material directly on the wall surface. Therefore, depending on the installation of heat flow meter plates, technical staff could take into account these possible deviations in the in situ measurement of the façades’ actual thermal transmittance during building’s operational stage and, consequently, propose appropriate energy retrofitting strategies.
