Technological Advances in Ozone and Ozonized Water Spray Disinfection Devices

by
Luis Alberto Breda Mascarenhas
1,
Fabricia Oliveira Oliveira
1,
Eduardo Santos da Silva
1,
Laerte Marlon Conceição dos Santos
1,
Leticia de Alencar Pereira Rodrigues
1,
Paulo Roberto Freitas Neves
1,
Alex Álisson Bandeira Santos
1,
Greta Almeida Fernandes Moreira
1,
Gabriela Monteiro Lobato
2,
Carlos Nascimento
2,
Marcelo Gerhardt
2 and
Bruna Aparecida Souza Machado
1,*
1
SENAI Institute of Innovation (ISI) in Health Advanced Systems (CIMATEC ISI SAS), University Center SENAI/CIMATEC, Salvador 41650-010, Brazil
2
CTG Brazil Group Rio Paraná Energia S.A. Rodovia MS-444 s/nº km 58, Ilha Solteira, Selviria 79590-000, Brazil
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(7), 3081; https://doi.org/10.3390/app11073081
Submission received: 10 March 2021 / Revised: 27 March 2021 / Accepted: 27 March 2021 / Published: 30 March 2021
(This article belongs to the Section Applied Biosciences and Bioengineering)

Abstract

:
To control infectious diseases such as the severe acute respiratory syndrome coronavirus (Covid-19) that caused the current pandemic, disinfection measures are essential. Among building measures, disinfection chambers can help to decrease the transmission rate through the sanitizing capacity of the disinfectant used, which can thereby clean surfaces or humans. Out of existing biocides, ozone is considered one of the safest for humans, but one of the most powerful oxidizers, making the substance a better alternative as the biocidal solution in disinfection chambers. Analyses were carried out by using all patented documents related to disinfection chambers that used ozone as a disinfectant. A Derwent Innovation Index (DII) database search was undertaken to find these patents. Patent prospecting resulted in 620 patent documents that were divided into 134 patent families. There was no technology related to protective barriers for individuals, and the majority of patents in the retrieved data aimed at sterilizing medical devices and surfaces. Given that the specific Cooperative Patent Classification (CPC) code for ozone dissolved in liquid was used in the methodology search, but not included among the 10 most used codes in the patents, the use of ozonized water may be an innovative approach in the technology landscape of sterilization chambers.

1. Introduction

Microbial infections caused by human pathogens follow a historical evolution in which they appear for the first time causing epidemics, undergo adaptations to become unstable pathogens, periodically reappear, and, in some cases, become endemic with the potential for future outbreaks [1]. The appearance of new human pathogens is usually related to the remodeling of relations between humans and microorganisms. Examples are human activity in geographical areas, the globalization of economic activities and culture, the spread of urbanization that allows for faster and more accessible contact, and hyperhygienic life that reduces exposure and creates tolerance to microorganisms [2]. Another example of this relationship is the current global pandemic related to the new coronavirus (SARS-CoV-2), a virus that displays high mortality rates, and of which the case fatality rate (CFR) has varied among countries [3]. SARS-CoV-2 (the causative agent of 2019 coronavirus disease (COVID-19)) is the result of viral recombinations that allowed for it to infect humans from breaking the animal–animal biological barrier to which it was related, thus characterizing itself as a zoonosis that, due to evidenced genetic relations, indicates bats as the primary host [4]. Although most initial cases were associated with the place where the first patients visited—the seafood market in which the patients may have been infected by zoonotic or environmental exposure—it is the transmission between humans that enhances the epidemic characteristic of this infection [5]. This characteristic was and is being proven by studies indicating that the occurring pandemic is gradually growing due to the rapid transmission of SARS-CoV-2 among populations [4], generating great uncertainties for daily life and aggressively affecting the economy in several areas, mainly the aeronautical industry [6]. In addition, studies indicate that coronaviruses identified so far may only be the beginning of a series of revelations for newer and more serious zoonotic events [7].
Due to the current situation, concern about controlling the spread of respiratory viruses is growing [8]. In fact, contamination through contaminated surfaces and direct person-to-person contact is characterized as potential sources of dissemination of many pathogens, not only viral, but also bacterial and fungal [9,10]. Given these facts, it is extremely important to promote improvements in cleaning, disinfection, and sterilization processes of environmental surfaces and individuals in order to allow for safe interactions between humans and microbial pandemics that could arise [11]. Despite the effort and access to technologies that act for the control of infections, and contrary to expectations, their risks grow every day, affecting people’s lives. This situation is aggravated by the increasing number of susceptible people to infections [12]. Therefore, the use of disinfectant solutions in environmental decontamination may be required in the fight against infections that, in addition to combating several emergent microorganisms, can help in the control of multiresistant microorganisms [13].
Surface disinfection was included in several national and international policies and recommendations to combat environmental infections. In contrast to hand hygiene, which is normally a daily activity, the opinion that environmental disinfection is important, and the methodologies and technologies that can support this process recently started to gain ground [14]. The introduction of protocols for carrying out surface-disinfection processes against this virus is, therefore, essential, especially in healthcare environments [15] since exposure to the virus is more pronounced in these places. Previous studies demonstrated the benefits of using ultraviolet-light devices for disinfecting hospital environments [16], portable devices with spraying systems for the decontamination of surfaces [17], and disinfection chambers with different biocidal agents [18,19], which drew attention with the SARS-CoV-2 pandemic. The development, advertising, and marketing of tunnels or cabins, or disinfection chambers have spread in several countries, although there is still no scientific evidence to support them [20]. City halls have installed this kind of system in several places, such as streets areas with heavy pedestrian traffic, highways, industries, malls, and offices [20]. It is usually set up at the entrances of, or inside, public transports [21,22]. These devices make use of substances such as sodium hypochlorite, ozonized water, ozone, or other biocidal agents [23].
In Brazil, this equipment was developed to meet the demand of institutions interested in disinfecting employees at workplace entrances and exits. Regarding the regulation of this equipment, the National Health Surveillance Agency (Anvisa) and other regulatory agencies clarified that there is no evidence that this measure is effective against the coronavirus pandemic [21,23]. The choice of chemical agent to be applied to these technologies is of paramount importance, and should be based on the recommendations of their manufacturers and on reports of agencies that alert and control the use of these substances in order to avoid safety and toxicity problems [24].
Among the list of sanitizers, one of the most promising biocide agents is ozone gas (O3(g)). It consists of a natural configuration of three oxygen atoms, and it has a half-life of about 1 h at room temperature, with subsequent degradation and the spontaneous formation of oxygen gas [25]. It is naturally produced by sunlight, involving nitrogen oxides and volatile organic compounds [26], and can also be produced from electricity generators [27]. O3 has unique biological properties, acting as a powerful oxidizer against viruses, bacteria, and protozoa; at recommended levels, it can be used as a microbicide gas and be dispersed in water [28]. O3 leads to microbiological destruction through metabolic interferences. However, viral susceptibility might fluctuate in its presence. For example, for enveloped viruses, such as coronaviruses, O3 effectiveness may be more accentuated than that on nonenveloped viruses due to the O3 interaction with the envelopes of the lipid layer [28]. There are few studies that report the action of O3 on SARS-CoV-2 [29]. However, some authors reported O3 disinfection in the influenza A virus, respiratory syncytial virus [30], and SARS-CoV-1 [31], which can serve as reasonable substitutes in studies of O3 disinfection against SARS-CoV-2. O3 action is also proving effective against other types of microorganisms, expanding the possibilities of using this gas as a microbicide agent.
Nonetheless, O3 can be toxic in gaseous form; when dissolved in water, its degree of toxicity is reduced, and the sanitizing effect is maintained [32,33,34,35]. In addition, O3 dissolved in water (or ozonized water (O3(aq))) already has wide application in the treatment of dental diseases [36], and its use has been growing in other areas. Therefore, this substance can be a better alternative as a biocide solution in disinfection chambers. In fact, O3(aq) has several advantages, being effective in reducing several pathogenic microorganisms, including not only viruses, but also bacteria and fungi [34,35,37]. In this sense, the use of O3(aq), associated with disinfection-chamber technology enables a range of uses both in the current pandemic and in other contexts where infectious diseases may spread.
Several disinfection chambers are being produced and commercialized with the purpose of being used by humans as a protective barrier. However, there are no scientific data that show evidence in this regard, given that those studies were limited to in vitro experiments. Limitations are likely related to challenges in human clinical research of which obstacles include obtaining committee approval, establishing clinical trials, recruiting participants, obtaining consent agreements, systematic reviews, and meta-analysis studies [38,39]. For this reason, it is extremely important to evaluate the effectiveness of these structures, so that their use by people is safely conducted, improving the current and emergency demand of COVID-19, and during future public-health demands in relation to protection against other infections.
Thus, in order to investigate the current development of technologies based on disinfection chambers using O3(g) or O3(aq), this study examines the possibility of applying these devices, and identifies if there have been any applications for use as a protective barrier for individuals.

2. Materials and Methods

The study was based on technological prospection in order to collect technical and qualified information about disinfection chambers using O3(g) or O3(aq). Data were obtained using the Derwent Innovation Index (DWPI) database, Thomson Innovation©, with license to use from SENAI CIMATEC University Center on 2 December 2020.
Data were obtained from the use of Cooperative Patent Classification (CPC) codes according to the following search strategy: (A61L2202/122) AND (A61L2/183 OR A61L2/202). Table 1 shows the meaning of each code used in technological prospecting, chosen from the formulation of a scope table (data not shown); analysis of the results was performed from the produced combinations.
Since patent applications can be written in several languages, classification was used on the basis of CPC codes in order to obtain a broader research outcome, thereby resulting in the analysis of the largest number of patents in this area. As a result of technological research, a total of 620 individual patents and 134 DWPI families were generated. Some patents may not appear in the search results because of the secrecy period of 18 months. GraphPad Prism 8.4 software (San Diego, CA, USA) was used for the construction of the graphs considering indicators of time analysis (priority year and expiry year), applicants (main applicants), status of patents, and main CPCs. Results concerning geographical distribution (main countries or regions, initial protection request locations, main competitor markets) and main technological areas were directly obtained from the DWPI database.

3. Results and Discussion

The use of patents is an important tool in the analysis of technologies and innovative activities. In this study, this tool was used to evaluate the technology of interest: chambers for disinfection or sterilization using O3 or O3(aq). Figure 1 shows the annual distribution of patent applications related to the described technology, and the first applications were found in 1999 (Figure 1a). Applications for patent documents were more significant in 2009, reaching a peak of 154 applications, followed by a peak in 2016 with 96 applications. The evolution of the number of patent applications may be related to the need to promote improvements in the processes of the cleaning and disinfection of environmental surfaces, which have been expanding in several areas, such as health, environment, and food [12]. According to the found results, exponential growth was observed between 2008 and 2009, and between 2014 and 2016 in relation to the number of priority patents related to the proposed theme.
The increase in patent applications may be related to the frequency of reported outbreaks of infectious diseases in the last decade. Recent major outbreaks of highly pathogenic or communicable infectious diseases include plague (Madagascar), diphtheria (Bangladesh), Ebola (West Africa and Democratic Republic of Congo), monkey pox (Nigeria), Zika (South and Central America), Middle East respiratory syndrome (MERS-CoV; Saudi Arabia and Korea), and Lassa fever (LF; Nigeria). In addition to sudden morbidities and mortalities, pandemics, and epidemics cause social, political, and economic disorders [40]. However, they promote the search for preventive and strategic methods to contain the spread of diseases [41].
Documents in these specific years were assessed to identify if they could be related to possible epidemics occurred in these periods. In 2009, several countries suffered from the H1N1-related pandemic, at that time still known as swine flu. The global outbreak was characterized by a variant of swine flu of which the first cases occurred in Mexico in mid-March 2009 [42]. In addition to this, other situations could be highlighted, such as outbreaks related to avian influenza in the same year. The second and third years of the greatest observed deposits, 2015 and 2016, were significant for the infection of another world-infamous coronavirus, MERS-CoV [43]. Moreover, the epidemic associated with Zika virus infection greatly impacted mainly South American countries, later being associated to cases of microcephaly and Guillain–Barré syndrome [44,45].
Despite not presenting the specific focus related to these and other cited emergencies in their scope, the vast majority of the developed technologies in the found patent documents focused on applications in health. Patent US007563329B2 (2009) refers to methodology for monitoring the cleaning processes of medical instruments involving a cleaning chamber [46]. Patent US007582257B2 (2009) refers to improvement in the method of the sterilization of medical articles in an O3(g) humidification chamber [47]. Patent US 20090011044A1 is a technology based on packaging containing sanitizing agent O3(g) used in the transport of products that need to be kept free from decontamination [48]. Another example, patent US009474815B2 (2016), refers to a method of sequential sterilization aimed at article sterilization based on the action of a conditioning agent and then a sterilizing agent, hydrogen peroxide, and O3(g), respectively [49].
Cleaning and disinfection processes in this area are important since the use of disinfectant solutions in environmental and surface decontamination is, in a certain way, one of the actions required in the fight against infections due to the growing increase in multiresistant microorganisms to treatments with antimicrobials, associated with high rates of nosocomial infections [13]. This is because, through diverse surfaces (which include articles, medical instrumentation, and equipment), contamination by pathogens can also occur within these environments.
The use of O3 in the development of these technologies to promote decontamination or sterilization processes can be understood because of its powerful oxidizing action. When it decomposes, this gas generates an oxidizing reaction by the release of free radicals (ROS), including generating hydroxyl radical (OH–), which has greater oxidative potential (2.83 volts) than that of O3; and both act on the inactivation of bacteria, fungi, viruses, and protozoa [50,51,52]. O3 is an effective and practical antibacterial agent, useful for the inactivation of bacteria of medical importance. Studies showed that a single topical application by nebulization with a low dose of O3(g) completely inhibits the growth of potentially pathogenic bacterial strains with known resistance to antimicrobial agents, such as oxacillin-resistant Staphylococcus aureus, vancomycin-resistant Enterococcus faecalis, broad spectrum beta-lactamase-producing Klebsiella pneumoniae, and carbapenem-resistant Acinetobacter baumannii [51]. Sharman and Hudson [53] demonstrated that O3(g) at 25 ppm with a short exposure of 20 min and relative humidity of 90% is a bactericide for bacterial strains that commonly cause nosocomial infections. The biocide effect of O3, according to Kowalski et al. [54], is very similar in both gaseous and aqueous forms.
In fungi, studies using O3(g) and ozonized oil were performed with genera Epidermophyton, Microsporum, and Trichophyton. Results showed that ozonized oil was more efficacious than O3(g) is, acting through an oxidative mechanism in cell membranes and revealing their fungicidal effects causing an increase in the evasion of sugar and electrolytes, an effect upon hydrolytic enzymes (such as amylase, lipase, and alkaline phosphatase), and inhibition of sporulation [55].
Regarding viruses, the scientific literature suggested that inactivation by O3 happens mainly by lipid and protein peroxidation [56,57,58]. Moreover, O3 can inactivate viruses, damaging their genetic material, both DNA and RNA [56,59]. The efficacy of O3 against a variety of simple and complex viruses was demonstrated, including those enveloped and without envelope of DNA and RNA [56,60,61]. Some viruses were more susceptible to the inactivation of O3(aq) in short contact time. In about 1 min, 99% of inactivation occurred [35]. In addition, O3(g) is highly effective in inactivating the SARS virus with a rate of no less than 99% [56,62].
Table 2 shows examples of studies that evaluated the effectiveness of O3 use against microorganisms.

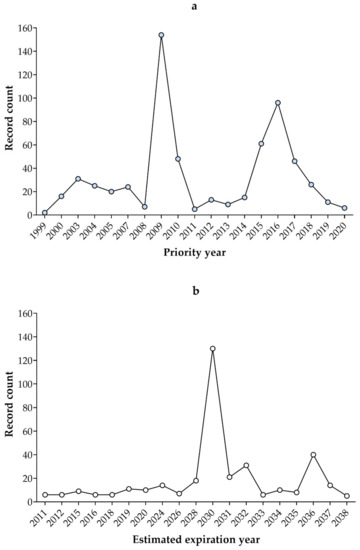

Figure 1b presents the expiry year of patent applications according to the protection period of each country. According to the results, documents should expire between 2028 and 2030 according to the legal validity related to invention patents, which usually last 20 years [69]. The largest number of documents with loss of exclusivity are in 2030, which means that the developed technology will enter the public domain and could be reproduced by other companies or institutions in the market in which they were valid. After 2038, a total of 262 documents will expire. These results are in line with the first patent application in 2009, which may be indicative that most patented technologies consist of invention patents that have a protection period of 20 years from the deposit date of the patent. The period of the validity of a patent, whether invention or utility model, may vary according to industrial property laws of each country. In Brazil, for example, it is possible to obtain a technology patent letter in both forms: invention patents with validity of 20 years or utility model patents with validity of 15 years [70].
In many sectors, serious losses in sales and profits for established companies and a drop in productivity in R&D follow the loss of patent protected exclusivity. However, the expiry of patent protection promotes participation and competitiveness among manufacturers of the product in the market, reduction of prices because of increased competition and innovation for the development of new products related to the area of disinfection technologies that use O3(g) or O3(aq) as a decontaminating agent [71].

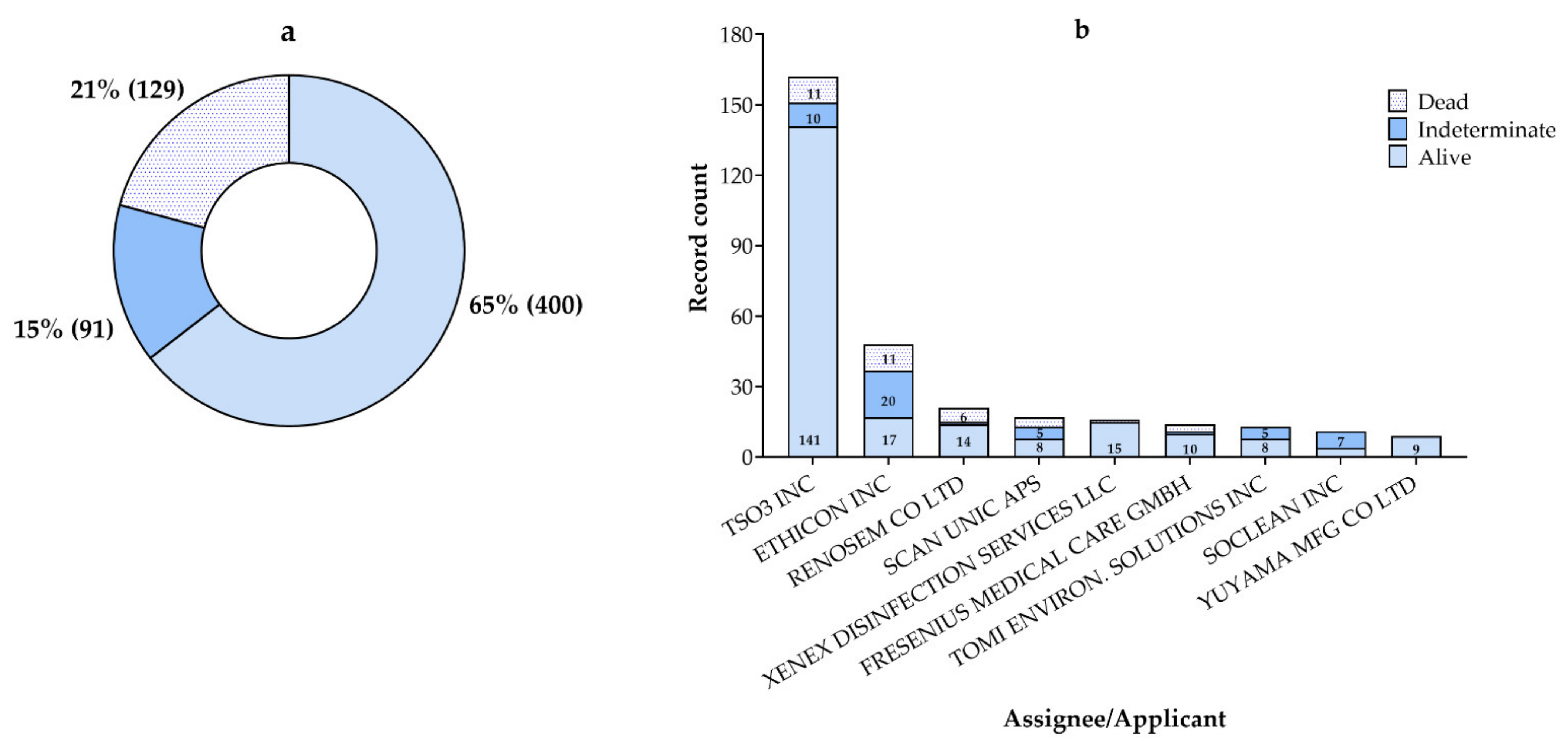

Analysis of the holders and their legal status (Figure 2) showed that 65% of the found patent applications are live patents (400), while 21% are in an undetermined state (129). and 15% are dead (91), totaling the 620 individual documents found in the technological search (Figure 2a). These results indicate the potential development of technologies based on the creation of devices that use O3(g) or O3(aq) as a biocide agent for sterilization and disinfection in several areas. The company TSO3 Inc. has a higher number of current records (141; Figure 2b), comparatively, almost a monopoly of technologies possibly related to O3 disinfection chambers. These results indicate that this company has 238% more records than its nearest competitor, Ethicon Inc. Although TSO3 Inc. has some dead records, the number of living records is much higher. In comparison to the top 10 applicants in this set of results, TSO3 Inc. has 51% of these applicants. Founded in 1998, TSO3 Inc. covers the sale, production, maintenance, research, development, and licensing of sterilization processes, and related consumable supplies and accessories for heat-sensitive medical devices. The company designs products for sterile processing areas in hospital environments, offering low-temperature sterilization products for hospitals and outpatient surgical centers [72]. According to information generated by the database used in this search (DWPI) on the distribution of the number of patent applications by companies, TSO3 Inc. filed several applications in the last 20 years, varying in number and having presented a peak in 2013, and always maintained a constant production of patentable technologies, with applications of at least 10 patents between 2013 and 2019. Some companies have documents with diversified legal status, i.e., patents alive (pending, granted), dead (expired, revoked, lapsed), or indeterminate.
The second depositor company is Ethicon Inc., a Johnson and Johnson subsidiary that develops, manufactures, and markets sutures, bandages, staplers, and other wound-closure products [73]. This company went from a lower number of patents filed from 2006 to 2009, to 32 patent applications in 2018. The third depositor, Renosem Co. Ltd., is a supplier of low-temperature plasma sterilizers that aims to ensure infection prevention and microbial reduction. In addition, it develops several medical devices using high-tech plasma applications [74]. Renosem’s contribution in patent filings related to technologies involving O3 occurred mostly between 2007 and 2013. Yuyama Mfg Co. only has dead patents (9).

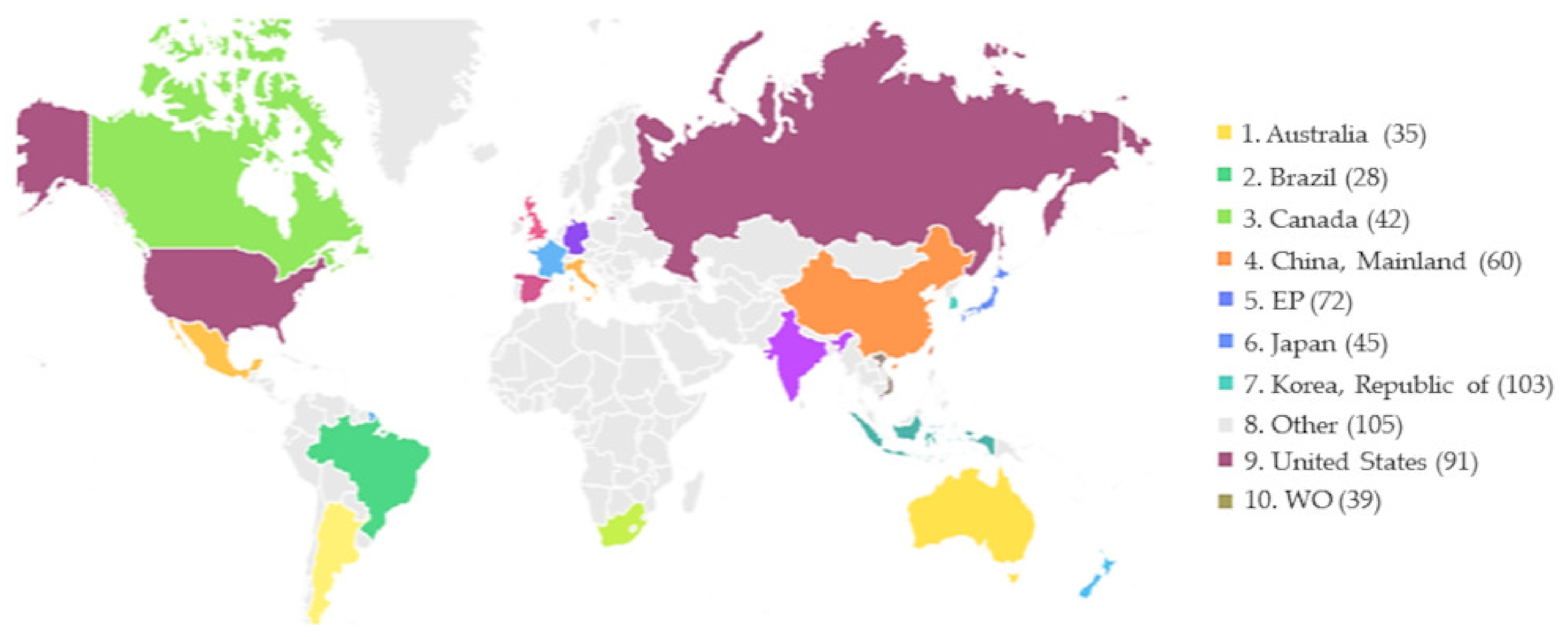

The main countries and regions of deposit of this type of technology are demonstrated in Figure 3. This result usually highlights the main protection sites of technologies related to disinfection chambers using O39g) or O3(aq). South Korea and United States have the largest number of patent applications, with a total of 103 and 91 applications, respectively.
From Korea, patent number KR1863560B1 deals with a sterilization chamber for medical equipment with support for supplying O3(g) to a reaction chamber; patent number KR2012093790A can also be used in healthcare, highlighting that both O3(g) and hydrogen peroxide are used in a mixture for sanitization. Many patent applications by the country are filed in the United States, which corroborates other outcomes found in this technological assessment, indicating that the United States is the largest market for the development of these inventions, and the most active in technological development. Thus, examples include documents no. US10660980B2 (sanitation system using O3(g) for cleaning, disinfection, and sterilization of various objects such as medical devices. It comprises an O3-generating device coupled with a container to receive O3(g) to sanitize objects), US10632220B2 (medical-device sterilization cabinet as endoscope), and US10632218B2 (method for the continuous debacterization of solid food products that involves transporting the product through the entrance of the chamber in continuous motion, so that the product is continuously exposed to the O3 atmosphere inside the chamber).
Other countries were identified related to these results: China received 60 orders, Canada 42, and Japan 45 requests for deposits. At least two international organizations were identified, namely, the European Patent Office (EPO) and World Intellectual Property Organization (WIPO) with 72 and 39 applications, respectively. Through these organizations, several international applications can be made through a single application, such as the WIPO Patent Cooperation Treaty (PCT) [75]. Most of those responsible for the technologies seek to protect their inventions through international requests via the EPO and WIPO in order to reduce costs and simplify the process of individual deposits in each country, simultaneously protecting their technology in several countries [76].
In South America, Brazil stands out with 28 deposits referring to this type of technology, and it has its publications focused on the sterilization of medical devices, pharmaceutical products, surgical instruments, and articles in general. The difference and perhaps the technology that most resembles the proposed use as a barrier for individuals, is in BR112017015030A2, which deals with a device for hand sanitization, with an O3(aq) outlet with distribution openings that allow for the spread of water over the palm and back of the hands.
Table 3 shows some documents found in this prospecting.
The prospected documents in this study did not have a specific focus on the control of emergency infections. However, a great majority of the developed technologies through chambers or methods of disinfection with the use of O3(g) or O3(aq) are directed to health applications for processes of pathogen decontamination. These technologies could be applied for the control of emergency diseases (or at least the method by which they act), for example, COVID-19. Tunnels, cabs, or disinfecting chambers gained popularity because they represent an efficient option for surface disinfection since the disinfecting agent is dispersed by means of a spraying system, and can thus act in large and complex areas in a short amount of time [19]. Thus, its application was directed to environments with great circulation of people, such as industries [24], and has gained more attention due to the potential for microorganism transmission, such as SARS-CoV-2. There are some companies in the market that already sell cabins, tunnels, and cameras coupled to an O3 generator for the disinfection of people, clothing, or equipment, and some are already previously installed in public environments (examples are shown in Table 4). Nevertheless, no information is shown regarding the stability of the obtained product, or technical reports that guarantee efficacy for a reduction in general microbial load on different surfaces and over an adequate amount of time after exposure to the biocide agent; therefore, the efficacy of these structures has not been clarified to date, which generates doubts for supervising sanitary agencies regarding the real applicability of these products.
In terms of scientific publications, some studies approached the use of disinfection chambers and tunnels not only via O3(g) or O3(aq). Maurya et al. [22] developed one that is used for the disinfection of people’s body with the application of a disinfection solution and far-ultraviolet C. This aims at reducing viral contamination on clothing, skin, and any other exposed surface. This and other studies are summarized in Table 5.
These findings, together with the number of documents that address O3-based disinfection technologies, indicate that the use of disinfection chambers or similar structures to carry out disinfection processes against pathogens is promising, especially when it comes to their health application, whether for the disinfection of medical articles or for utensils, protective equipment, and others. However, regarding use as a protection barrier for individuals, no considerable number of studies and patent applications were found that could better substantiate this type of application.

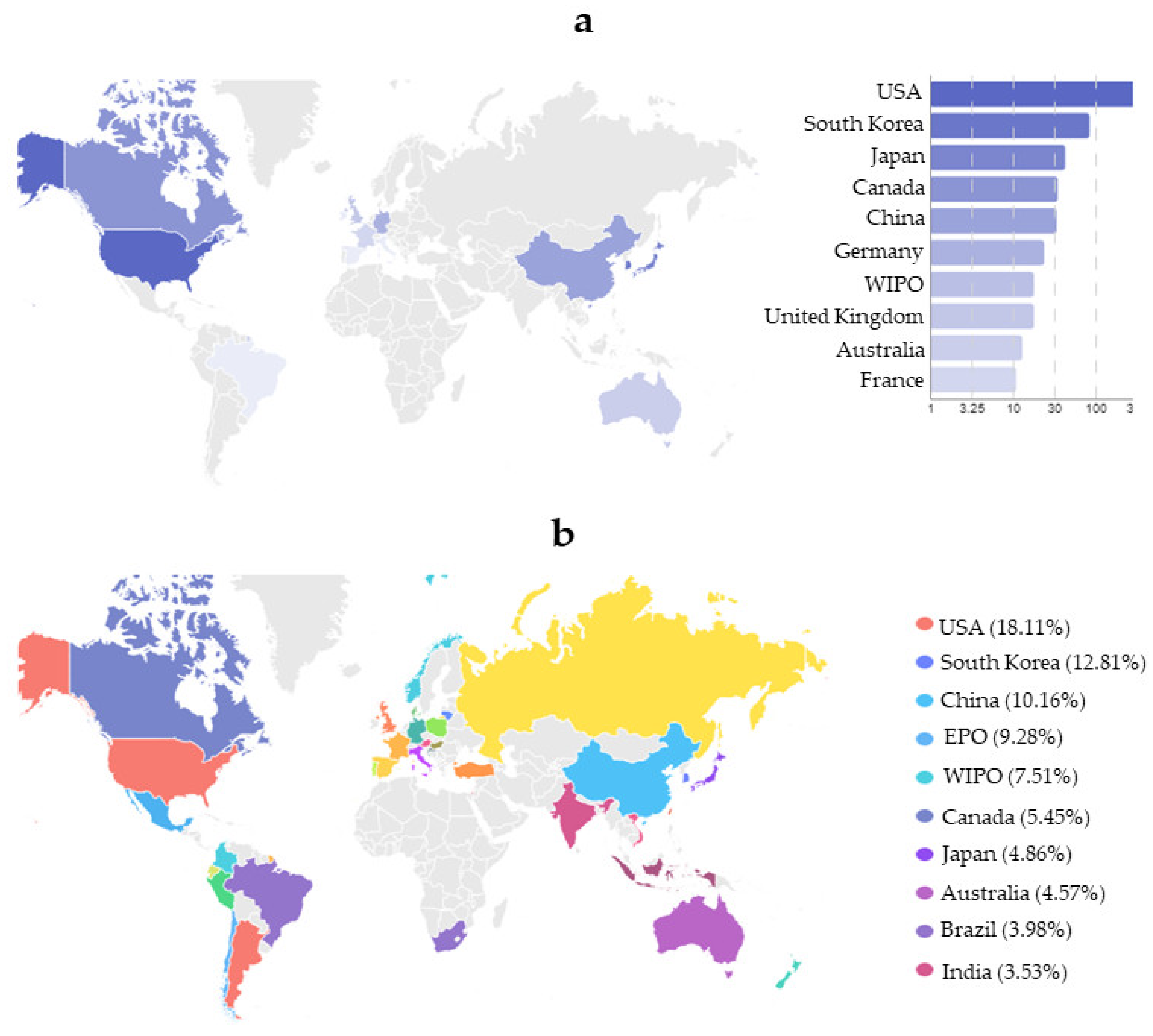

Some countries stand out in relation to the choice of applicants for the request for initial protection. Figure 4a shows the relevant countries and regions. According to the generated data in the research base, 4% of the companies seek protection in the four largest markets: the United States, South Korea, Japan, and Canada. This shows a compromised investment of the countries and a wider market for these inventions. In general, 10% of the companies are entering orders in more than four countries. A global archiving strategy can demonstrate a greater market potential in this space. In the analysis of potential markets for deposit of this type of technology (Figure 4b), it makes sense that the United States and South Korea are the main markets for deposit and search of protection after deposit in the countries of origin since they are the most promising markets for the development of this type of technology.
The United States is a powerhouse in the development of solutions in several areas, including surface disinfection, probably because of the promotion of a competitive scenario with the participation of multinational companies, which increases the demand for the development of these technologies [93]. This may be one of the reasons why it is one of the preferred markets for the protection of technologies developed by other countries. Given that they are world powers, it is expected that competitors want to protect their technologies in the United States before it is developed in the country.
In analysis performed by the DWPI database in relation to this result, 45% of the global requests in these results are granted, which indicates the protection for active patents (alive) in the relevant markers, and 55% of this set of results are pending as requests. To better understand the results, countries or organizations with higher percentages point to new or growing markets, while those with lower order rates may indicate established markets or areas of low growth. The United States, South Korea, and China are at 18.11%, 12.81%, and 10.16%, respectively, so they are the most promising markets and in greater competition in relation to the development of disinfection chambers with the use of O3(g) or O3(aq).
In the case of Brazil, which consists in 3.98% of deposits, only one patent application was from a Brazilian company (Futura Industrial e Comercial LTDA). The document refers to a utility model of a sterilization and deodorization cabin that uses O3(g). The purpose of the system is the general sanitization of garments and objects. The remaining percentage consists of applications made by companies from other countries, mainly by TSO3 Inc., Canada. Other examples of depositing countries in Brazil are Denmark, the United States, and Germany.
In analyzing the main dominant areas to which the prospected technology is directed (Figure 5), the three main categories were selected (among 20 found) according to the percentage of development by the main applicants (TSO3 Inc., Québec, QC, Canada). The technologies were: (a) tissue, scaffold, hydrogel, implant, medical, dressing, collagen; (b) container, packaging, beverage, shipping, pallet, lid, bag; (c) packaging, bag, container, wrapping, filling, blister, packing. Technologies (a) and (b) were found in 94% of the patent documents. High percentages of the technologies of interest demonstrate technological saturation in this area, while small percentages point to diverse technological representation. This same year presented itself as the most significant in relation to technological diversity, with over 63% representation of all found technologies.

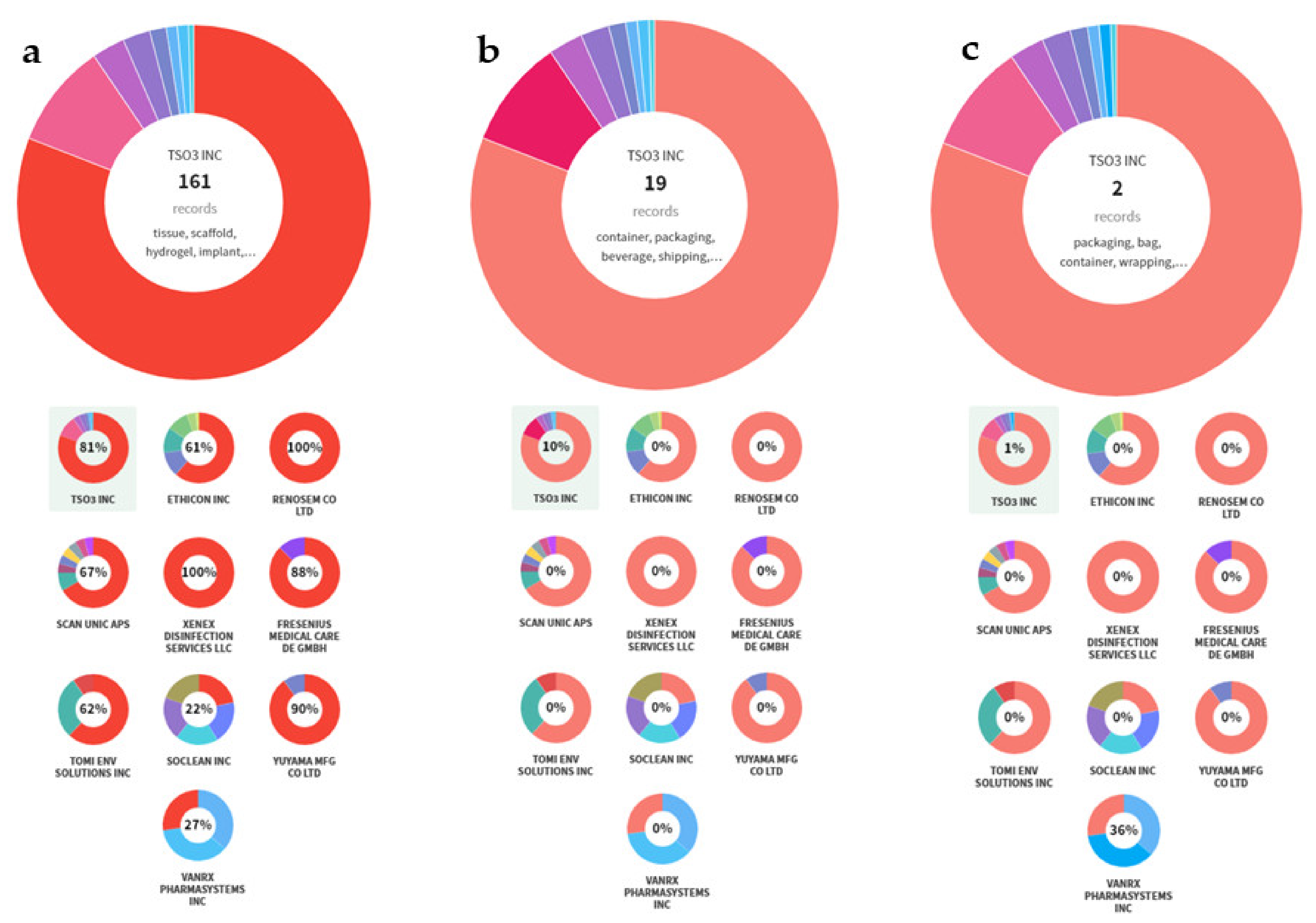

Of TSO3 Inc. patent applications, 81% refer to main technology (a). According to database analysis, this technology presented a peak in 2018 with an average of three registers per year. Concerning other applicants, all documents (100%) of Renosem Co. Ltd. and Xenex Disinfection Services LCC are in this technological area, while SoClean Inc. had the lowest percentage (22%). Analyzing technology (b), only TSO3 Inc. had patent applications in this area, but only 10% corresponded to this technology. Lastly, in relation to technology (c), the representativity of TSO3 Inc. loses space to Vanrx Pharmasystems Inc., with the highest percentage of applications in this area (36%).

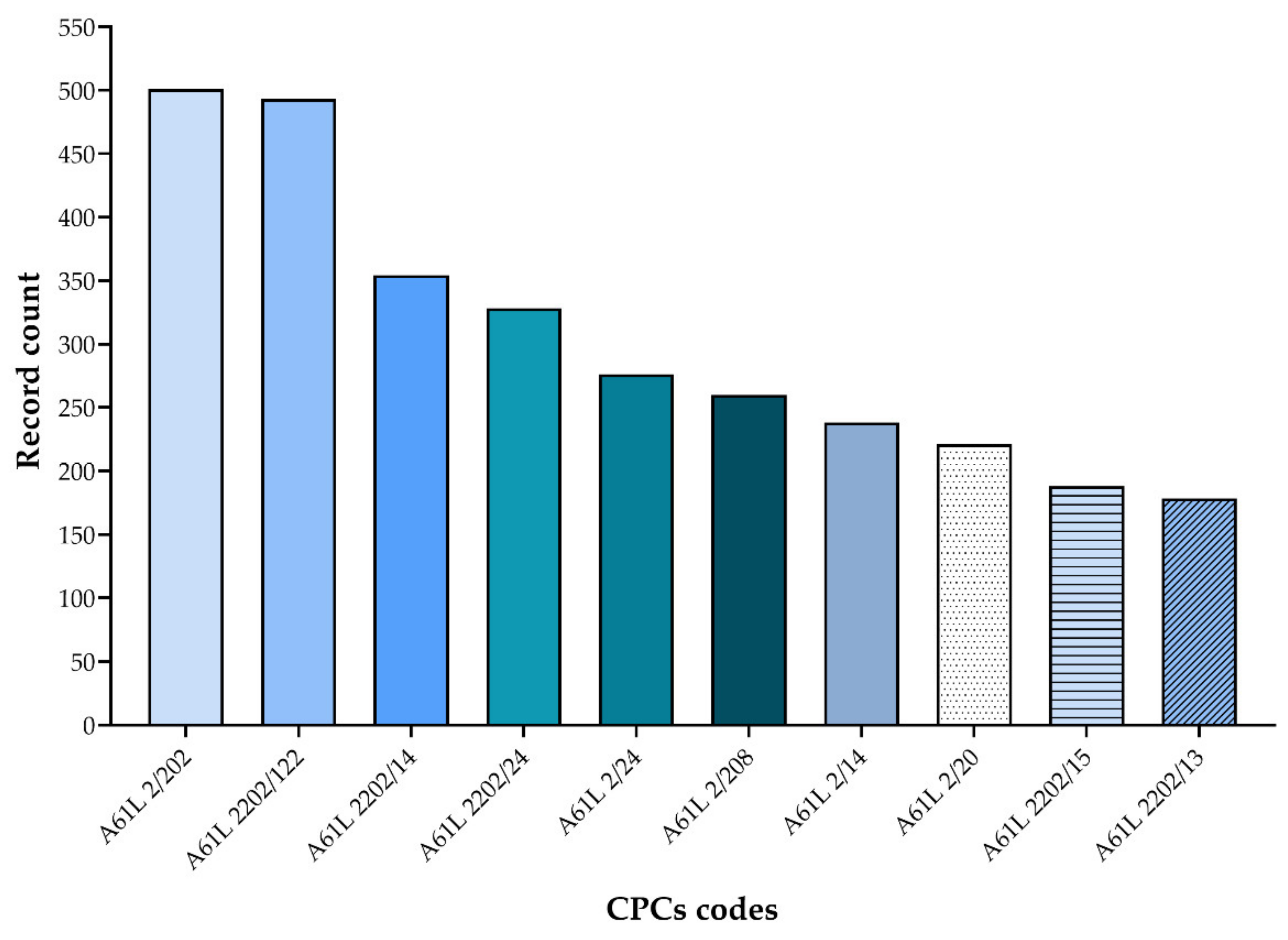

In the evaluation of classifications through CPC codes found in the documents (Figure 6), two of the codes used in the prospection (A61L2/202—ozone (gas); A61L2202/122—chambers for sterilization) were the most found, displaying a total of 501 and 493 records, respectively. The third most-used code (A61L2202/14) is specific to means to control sterilization processes, data processing, presentation and storage means, being present in 354 records. Code A61L2202/24 (medical instruments, e.g., endoscopes, catheters, perforators) was the fourth most-used in 328 records. The presence of these codes demonstrates that the disinfection of surfaces and instruments is being protected in the great majority of documents. Table 6 shows the description of the CPC codes in the records.
Surprisingly, the other code used in the search strategy (A61L2/183—ozone dissolved in liquid), was not among the 10 most used codes. Since this code was used in the search strategy for the documents, however, in the results it was not present among the 10 most used codes, it may be an indication that the number of applications involving disinfection chamber technologies using O3(aq) must be low. Furthermore, it may be an indication that there should be more intense focus by research centers and companies on the development of sterilization processes using O3(g), since it is a safe, fast, and economical alternative when compared to other low-temperature sterilization methods for the disinfection and/or sterilization of medical devices and environments. Thus, the application of O3(aq) becomes a field of opportunity to be explored regarding the applications of disinfection measures. In addition, these findings highlight inventiveness and a promising area for inventions related to the use of this technology as a human protection barrier. Furthermore, the presence of these codes demonstrates the surface- and instrument-disinfectant character of the great majority of documents. This highlights the main protected technologies in the set of documents, showing the distribution of the main codes in this particular portfolio of patents, and may help to identify thematic areas in which new technologies, such as the development of disinfection chambers that can be used safely by people, can be developed.

4. Conclusions

Research into new technologies linked to the development of disinfection chambers using O3(g) or O3(aq) as a decontamination agent is increasingly evolving, mostly driven by the COVID-19 pandemic. In the 620 documents found in this prospection, none of the technologies observed had its use directed to the protection of individuals; the majority was instead directed to the sterilization or decontamination of medical devices and surfaces. Furthermore, the absence of the specific CPC code for O3 dissolved in liquid indicated the innovation potential that could be used as a barrier to protect individuals, using O3(aq) as sanitizer. Nevertheless, inventions based on this type of development must be duly scientific in order to guarantee the effectiveness of this decontaminating agent against several pathogens, including SARS-CoV-2, without disregarding safe use.
