Effects of a Curved Heel Shape in a Running Shoe on Biomechanical Variables and Comfort

Abstract

(1) Background: The purpose of this study was to investigate the effects of a rounded heel shoe (RHS) and rounded lateral heel shoe (RLHS) on impact and lower extremity stability as well as their relationships with comfort during running. (2) Methods: Twenty healthy male adults participated in the study. The data were collected using eight infrared cameras while participants were running at a speed of 2.7 m/s in three shoe conditions on an instrumented treadmill. (3) Results: The peak vertical ground reaction force (PVGRF) was statistically smaller for the RHS and RLHS compared with the normal shoes (NS) (p < 0.05). The range of motion of inversion–eversion at the ankle joint was statistically smaller for the RLHS compared with the NS and RHS (p < 0.05). Increased dorsiflexion of the ankle joint at heel contact was negatively related to the comfort of a running shoe, and increased dorsi-plantarflexion ROM was positively related to comfort. (4) Conclusions: Based on these results, a curved heel shape of a running shoe may provide a positive influence on the biomechanical function and the comfort of running shoes. Future study, including measurements of lower extremity muscle activations and long-term comfort, would be beneficial to help validate current findings and develop further applications.

1. Introduction

In running, impact is absorbed through ankle joint eversion with dorsi-flexion from when the heel contacts the ground until mid-stance [1]. It has also been suggested that excessive eversion of the foot may induce limb injury during running [2,3,4]. Thus, a strategy to reduce impact and maintain lower extremity joint stability is necessary to reduce injury risk factors and run efficiently [5,6].

Shoes play an important role in protecting the foot and lower extremity joints [7]. Shoes not only absorb impact upon the foot’s contact with the ground during various physical activities that include running but offer stability [7]. Therefore, the materials and structures of shoes are crucial factors that directly affect a human body’s motion. Many previous footwear studies have examined the effect of changes in the hardness of the sole on impact and ground reaction force (GRF) variables, such as loading rate and planter pressure, as well as the ankle joint range of motion during running [8,9,10,11,12,13,14,15]. Other studies investigated changes in motion and impact with changes in other material properties of a shoe related to a shoe’s thickness, elasticity and bending stiffness during running [8,16,17].

While previous studies have mainly examined the effect of a shoe’s material characteristics, only a few studies have investigated the influence of a shoe’s structure and shape. For example, an earlier study investigated the effects of the flare at the heel of a shoe on ankle joint eversion and impact in running [18]. Recently, the biomechanical function of a rounded heel in badminton shoes has been investigated, and results showed that the vertical loading rate (VLR) was smaller with a rounded heel shoe (RHS) than other types of shoes during a lunge motion. Therefore, it was reported that an RHS would be effective in reducing the impact on the human body during the lunge motion in badminton. These findings suggest that an RHS may lead to a reduced impact in running, and the changes in the structure and shape of the heel are required to reduce excessive eversion and improve the stability of the ankle joint [19]. Several previous studies have speculated that heel shape would alter lower extremity biomechanics (i.e., cushioning and motion control) and comfort perception during running [18,20]. Therefore, a shoe manufactured with a curved heel is expected to have a positive effect on the reduction of impact as well as lower extremity stability in running.

In addition to evaluating how running shoes affect biomechanical factors, the perception of comfort is also an important factor [21]. It has been reported that overall comfort increases as loading rate decreases and the total pressure to the sole is evenly distributed [22]. Therefore, it is necessary to investigate the relevance of a shoe’s subjective comfort, and examining biomechanical factors that have a positive effect on the comfort of a shoe can provide meaningful information.

The purpose of this study was to examine the effects of a curved heel shape of a running shoe (i.e., a rounded heel shoe (RHS) and rounded lateral heel shoe (RLHS)) on impact and lower extremity stability as well as relationships with comfort during running. The hypotheses of this study were as follows: first, a running shoe with a curved heel shape (RHS and RLHS) would reduce the peak vertical ground reaction force (PVGRF) and the vertical loading rate (VLR) during the stance phase, second, the RLHS would reduce the maximum eversion angle compared with the RHS and NS. In addition, changes in biomechanical variables would be closely related to shoe comfort.

2. Materials and Methods

2.1. Participants

Twenty healthy adult males (age: 23.6 ± 2.9 years, body mass: 71.0 ± 8.7 kg, and height: 175.8 ± 5.0 cm) wearing US size 9 footwear were selected as the subjects of this study. This study was approved by the University’s IRB (IRB Project No.: 1263-201706-HR-007-01). All the subjects who participated in this study provided written consent before the test.

2.2. Procedure

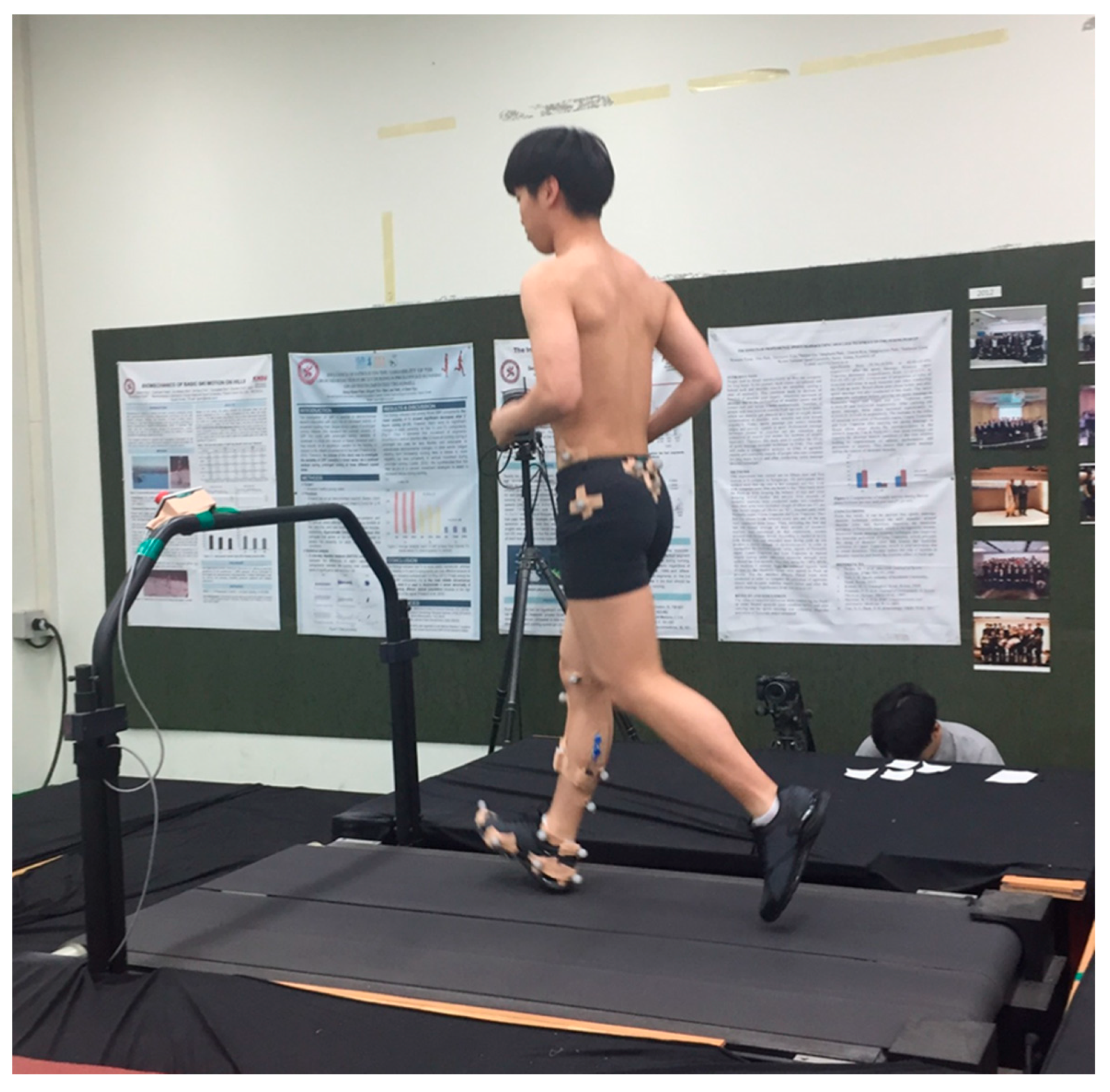

The subjects participated in the experiment by wearing shoes in a randomized order, and the selection of the shoes was blinded during the experiment. Each subject had a 5–10 min adaptation period to perform natural running on a treadmill (Instrumented Treadmill, Bertec, Columbus, OH, USA). Subsequently, 15 reflective markers (left and right posterior superior iliac spine, sacrum, left and right greater trochanter, right medial femoral condyle, right lateral femoral condyle, right medial malleolus, right lateral malleolus, right heel bone, right medial talus, right lateral calcaneus, right first metatarsal head, right fifth metatarsal head and right first phalanges) were attached to the lower extremity of each subject. Each subject ran at a speed of 2.7 m/s on the treadmill where eight infrared cameras (Oqus 300, Qualisys, Göteborg, Sweden) were installed (Figure 1) [23]. Ten consecutive strides showing a consistent running pattern were collected and analyzed. The data were collected at a sampling rate of 100 Hz for kinematic data and 1000 Hz for kinetic data.

2.3. Characteristics of the Shoes

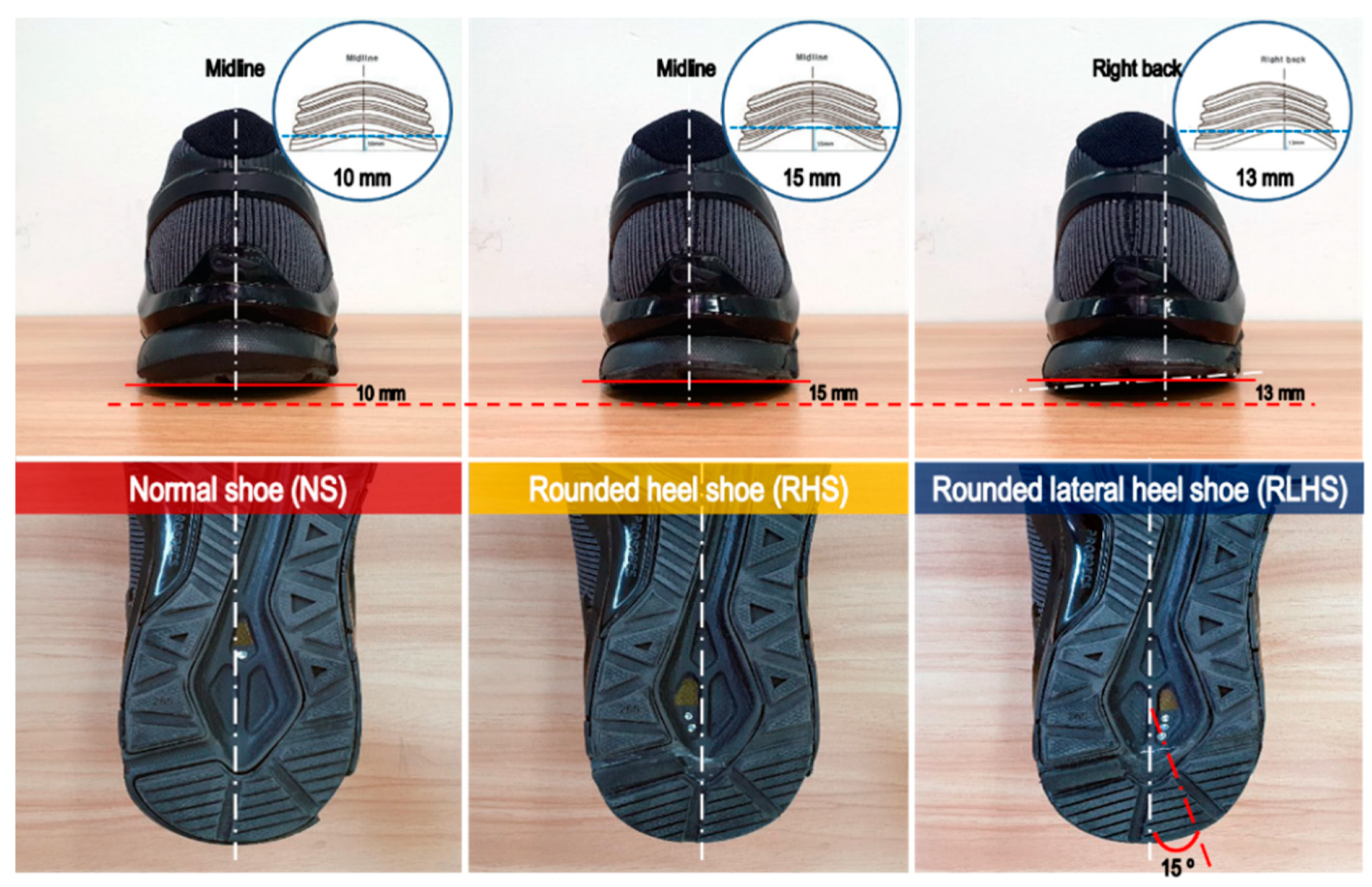

The normal shoes (NS) utilized were commercially available (Figure 2, left). The RHS was a modified NS with a curved shape 5 mm higher than the NS in the central heel (Figure 2, middle). The RLHS had a curved shape of about 15° laterally, and it was manufactured 3 mm higher (Figure 2, right) compared with the NS. The shoes used in this study were manufactured and provided by the same manufacturer (LS Networks, Gimhae-si, Korea) to keep the shoe materials and structures the same except for the differences in the curved shape of the outsole. These modifications in heel design were based on biomechanical considerations regarding heel contact during running (i.e., sagittal heel strike [20,24] and toe out angles [25,26,27] as well as the location of impact [28]).

2.4. Data Processing

Ankle joint angles were analyzed with Qualisys Track Manager software (Qualisys, Goteborg, Sweden) and Matlab R2009b software (The Mathworks, Natick, MA, USA), and they were obtained through the conversion of the reflective markers’ coordinate values into 3D coordinate values using the non-linear transformation (NLT) method. Smoothing was conducted for the kinematic data and GRF data with a Butterworth fourth-order low-pass filter to remove noise during data collection, with the cut-off frequencies being set to 6 Hz and 50 Hz, respectively. The cut-off frequency was determined using a Fast Fourier Transform (FFT) analysis, calculating the Power Spectral Density (PSD) of the signals, which was converted into frequency, and then regarding 99.9% of the accumulated PSD as representative characteristics of each signal [29].

2.5. Analysis Variables

When PVGRF in running was observed (i.e., landing or absorbing phase), VLR was calculated by dividing the PVGRF by the time of its occurrence. Furthermore, the GRF data were normalized by body weight (BW) [30,31]. Three-dimensional Euler ankle joint angles during running were calculated relative to a neutral standing position [29,30,32,33]. The angle definitions were as follows: x axis rotation represented dorsiflexion (+) and plantarflexion (−), and y axis rotation represented inversion (+) and eversion (−). Joint moments were calculated by the inverse dynamics method and normalized by each subject’s mass (i.e., unit: Nm/kg). For comfort testing, a visual analogue scale (VAS) questionnaire was completed after the subjects wore each shoe and performed light running for 1 km [34,35,36]. The questions regarded rear foot cushioning and overall comfort.

2.6. Statistical Processing

To examine the differences between shoes with different heel shapes, a repeated measure one-way ANOVA was performed, and the least square difference (LSD) method was used for post-hoc analysis. To investigate the effects of biomechanical factors on the comfort perception of running shoes, a multiple regression analysis was performed. The variance Inflation Factor (VIF), which indicates multicollinearity between the independent variables, was calculated. The VIF serves as an index to judge multicollinearity, which is a precondition for the multiple regression analysis. A VIF index exceeding 4.0 implies a problem in multicollinearity. When a problem occurred, variables were removed from the highest independent variables in terms of VIF until all independent variables’ VIF values were 4.0 or less [37]. SPSS Ver. 18.0 software (IBM, Armonk, NY, USA) was used, and significance was set at an alpha level of 0.05.

3. Results

3.1. Impact Variables

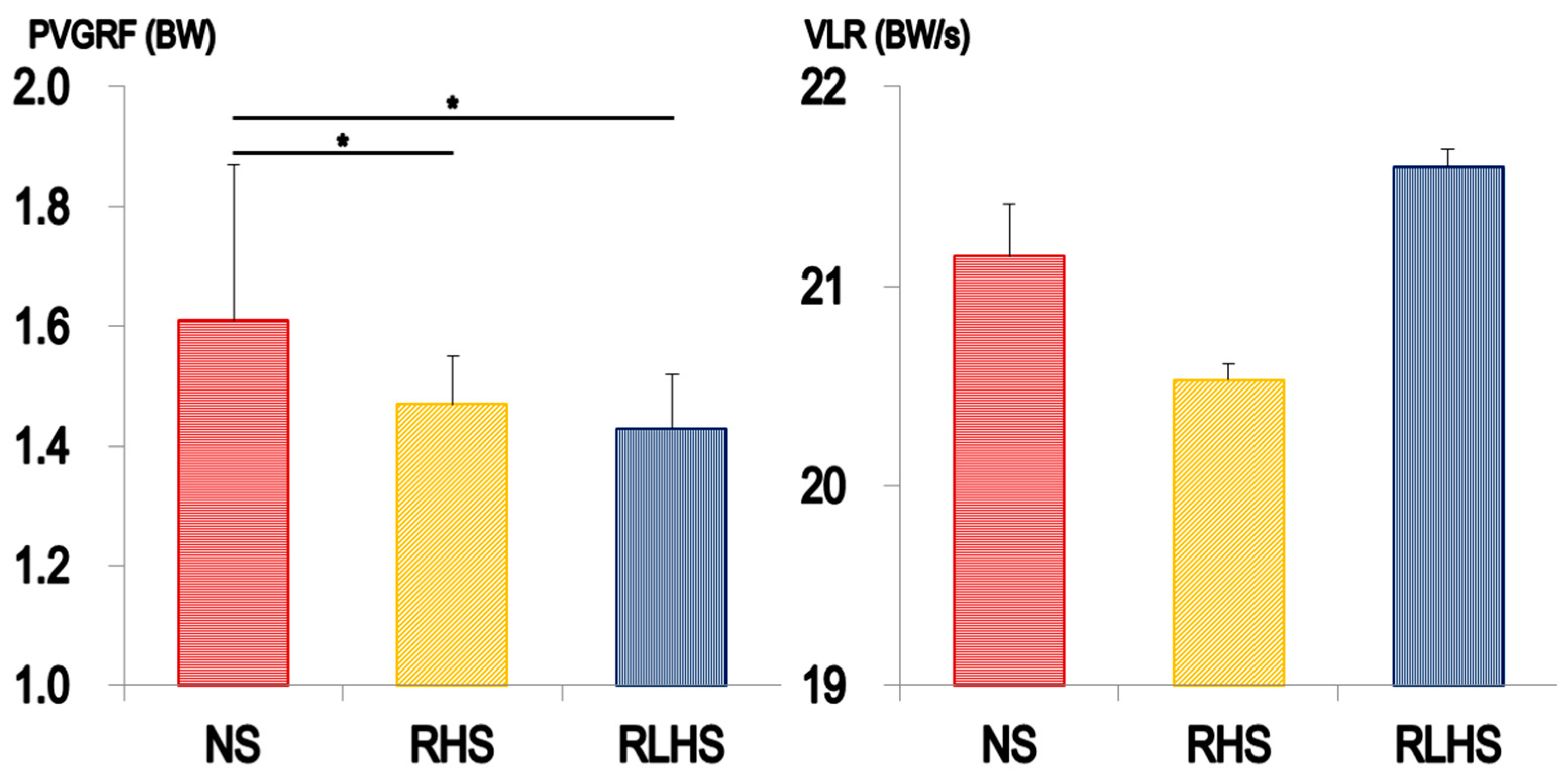

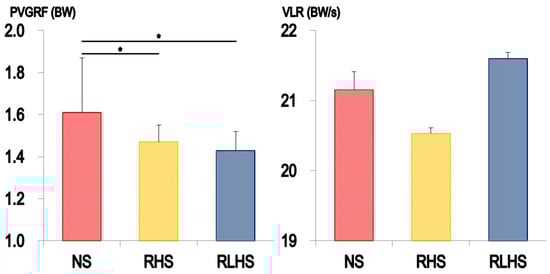

PVGRFs of NS, RHS and RLHS were 1.61 ± 0.26 BW, 1.47 ± 0.08 BW, and 1.43 ± 0.09 BW, respectively (Figure 3,

Table A1. Descriptive information for impact variables during the stance phase of running.

Variables	NS a	RHS b	RLHS c	F	p	Post-hoc	Effect Size $\left({\mathit{\eta }}_{\mathit{p}}{}^2\right)$	Statistical Power
PVGRF (BW)	1.61 ± 0.26	1.47 ± 0.08	1.43 ± 0.09	5.193	0.010 *	b, c < a	0.147	0.589
VLR (BW/s)	21.15 ± 2.90	20.53 ± 2.90	21.60 ± 2.17	0.674	0.515	-	0.037	0.164

^a: NS, ^b: RHS, ^c: RLHS, PVGRF: peak vertical ground reaction force, VLR: vertical loading rate. * indicates significant difference between the shoes at α = 0.05.

). There were significant differences between the shoes, F = 5.193 (p = 0.010), the effect size was ${\eta }_p{}^2$= 0.147, and the statistical power was = 0.589 with the PVGRF of both RHS and RLHS being statistically smaller than NS (p < 0.05).

3.2. Ankle Joint Biomechanics

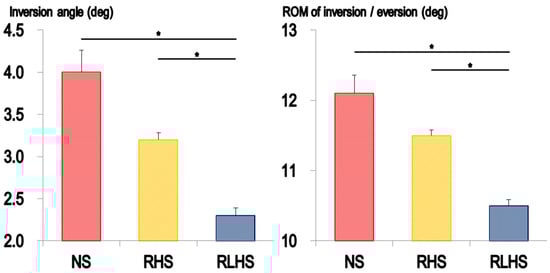

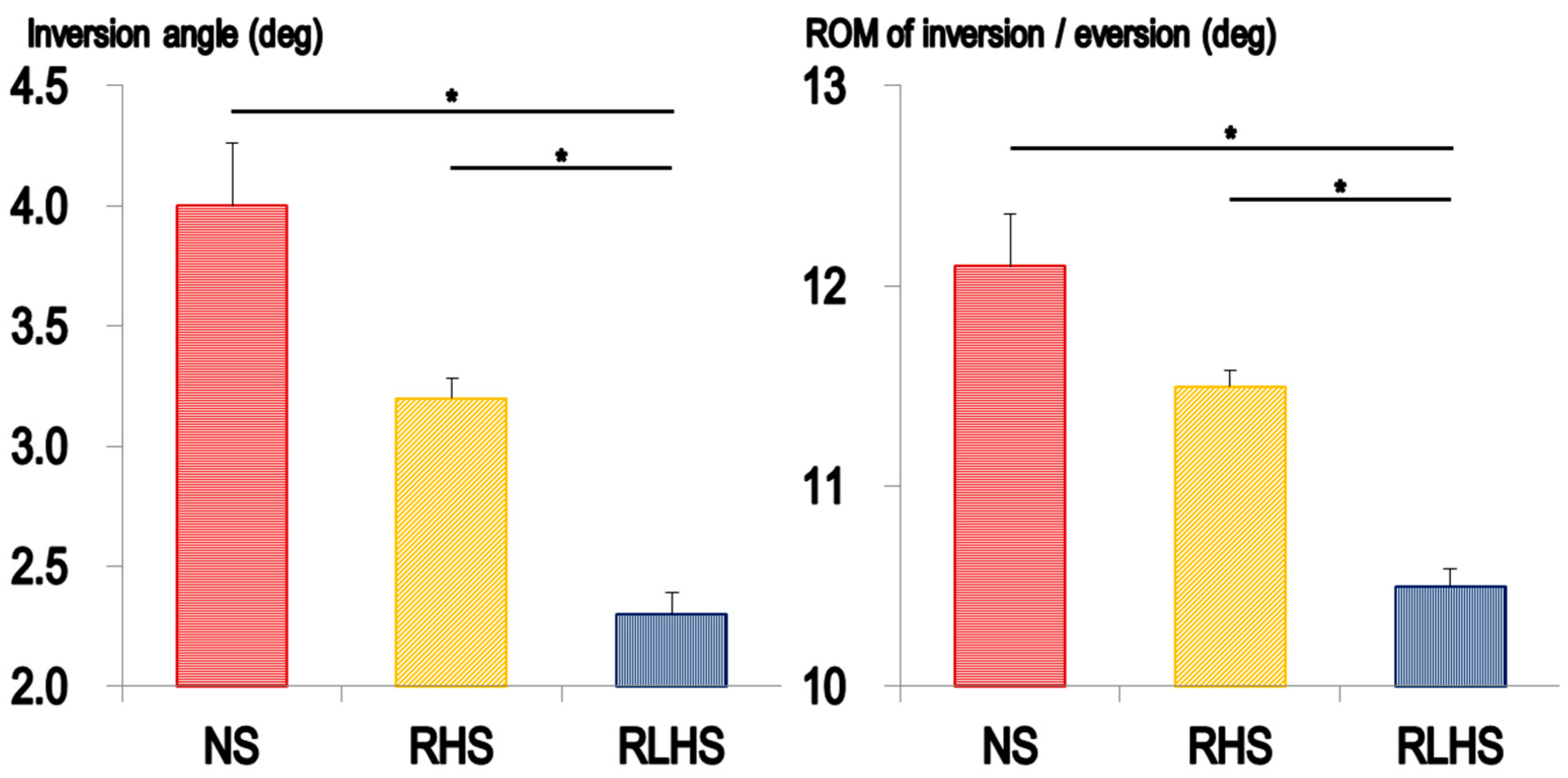

Concerning the ankle joint inversion angle at toe-off, the value for NS was 4.0 ± 4.5°, for RHS was 3.2 ± 3.9° and for RLHS was 2.3 ± 3.7° (Figure 4,

Table A2. Descriptive information for ankle joint angle during the stance phase of running.

Ankle Joint Angle (Deg)	Variables	NS a	RHS b	RLHS c	F	p	Post-hoc	Effect Size $\left({\mathit{\eta }}_{\mathit{p}}{}^2\right)$	Statistical Power
(+) Dorsiflexion (−) Plantarflexion	Heel contact	3.1 ± 3.6	2.8 ± 3.4	3.2 ± 3.3	0.287	0.752	-	0.015	0.092
	Toe off	−22.7 ± 3.8	−22.7 ± 3.8	−22.8 ± 4.3	0.015	0.985	-	0.001	0.052
	Range of motion	28.9 ± 4.2	28.7 ± 4.0	29.2 ± 4.3	0.566	0.573	-	0.029	0.137
(+) Inversion (−) Eversion	Heel contact	−0.7 ± 2.5	−0.8 ± 2.4	−0.7 ± 2.1	0.159	0.854	-	0.008	0.073
	Toe off	4.0 ± 4.5	3.2 ± 3.9	2.3 ± 3.7	4.305	0.021 *	c < a, b	0.185	0.715
	Maximum eversion	−7.7 ± 2.8	−7.9 ± 2.5	−7.5 ± 2.6	0.460	0.635	-	0.024	0.120
	Range of motion	12.1 ± 4.3	11.5 ± 4.3	10.5 ± 3.8	5.041	0.011 *	c < a, b	0.210	0.785

^a: NS, ^b: RHS, ^c: RLHS, * indicates significant difference between the shoes at α = 0.05.

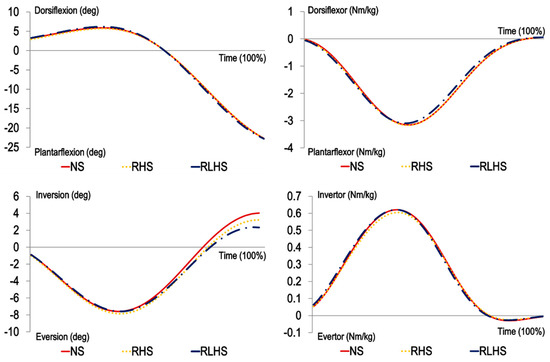

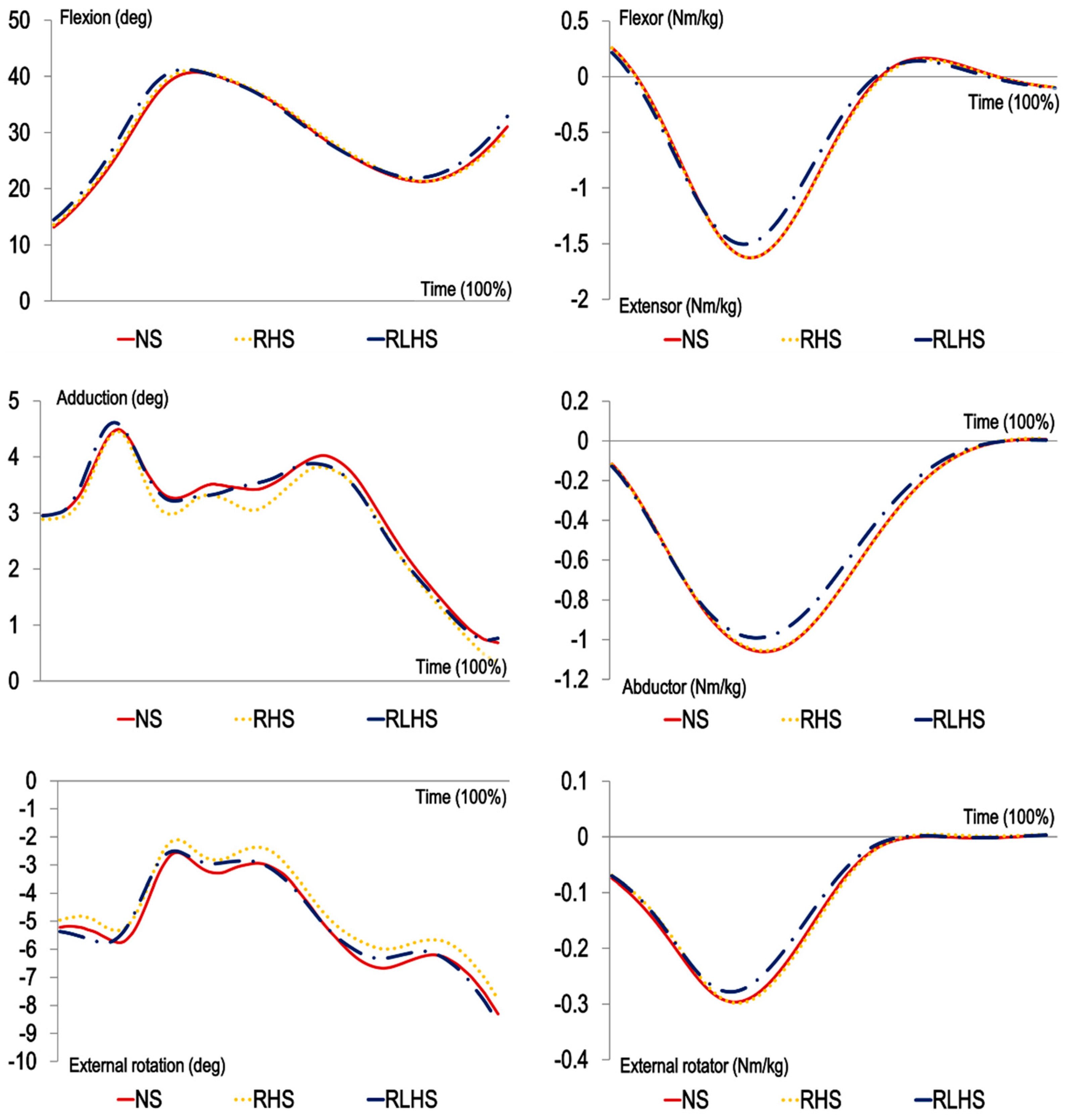

, Figure A1.). There were significant differences between the shoes: F = 4.305 (p = 0.021), the effect size was ${\eta }_p{}^2$= 0.185 and the statistical power was 0.715. The inversion angle of the RLHS at toe-off was statistically smaller than for the NS and RHS (p < 0.05). As for inversion–eversion ROM during running, NS was 12.1 ± 4.3°, RHS was 11.5 ± 4.3° and RLHS was 10.5 ± 3.8°. There were significant differences between the shoes: F = 5.041 (p = 0.011), the effect size was ${\eta }_p{}^2$= 0.210 and the statistical power was 0.785. The inversion–eversion ROM of the RLHS was smaller than for the NS and RHS (p < 0.05). There were no significant differences in ankle joint moments between the shoes (Figure A2).

3.3. Shoe Comfort

None of the subjective ratings showed statistically significant differences between the shoes (

Table A3. Descriptive information of comfort test.

Questions	NS a	RHS b	RLHS c	F	p	Post-hoc	Effect Size $\left({\mathit{\eta }}_{\mathit{p}}{}^2\right)$	Statistical Power
Rear foot Cushioning	57.0 ± 14.9	59.7 ± 14.7	62.1 ± 10.7	1.143	0.330	-	0.057	0.236
Overall comfort	53.6 ± 15.1	56.7 ± 16.6	58.4 ± 14.9	0.609	0.549	-	0.031	0.144

^a: NS, ^b: RHS, ^c: RLHS.

).

3.4. Multiple Regression Analysis

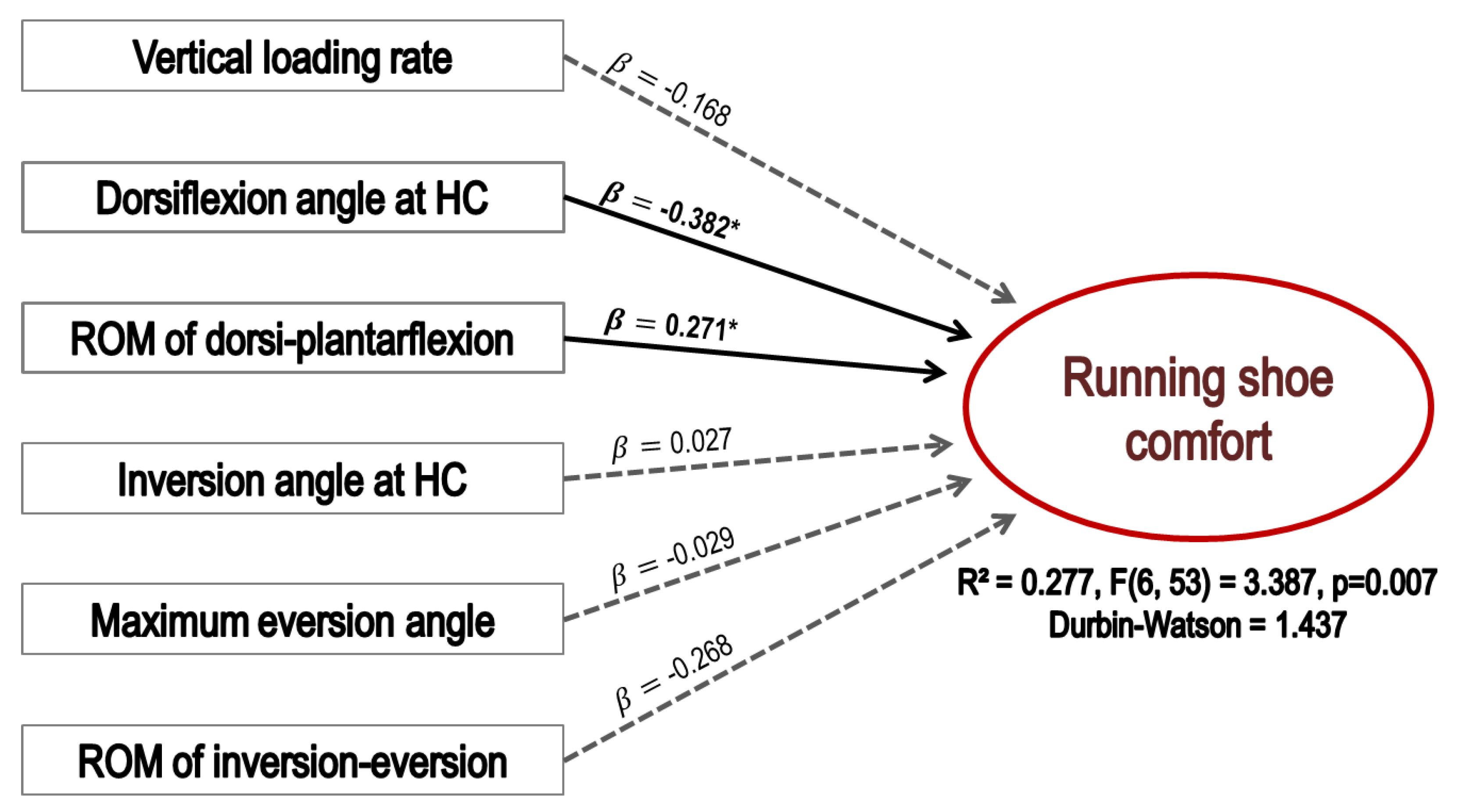

Figure 5 and

Table A4. Descriptive information of multiple regression analysis for shoe comfort using biomechanical factors.

Independent Variables	Non-Standardized Coefficients		Standardized Coefficients (β)	t	p	VIF
	B	Standard Error
(constant)	114.619	36.481		3.142	0.003
VLR	−1.074	0.975	−0.168	−1.102	0.276	1.705
Dorsiflexion angle at HC	−1.740	0.561	−0.382	−3.102	0.003 *	1.114
ROM of dorsi-plantarflexion	1.021	0.477	0.271	2.138	0.037 *	1.176
Inversion angle at HC	0.179	1.154	0.027	0.155	0.877	2.171
Maximum eversion angle	−0.169	1.133	−0.029	−0.149	0.882	2.679
ROM of inversion-eversion	−1.007	0.528	−0.268	−1.908	0.062	1.450
R2 = 0.277, F (6, 53) = 3.387, p = 0.007, Durbin-Watson = 1.437

* indicates significant difference at α = 0.05.

show the results of the multiple regression analysis for shoe comfort using the biomechanics variables. The coefficient of determination indicating the explanation power, with an R2 of 0.277, and Durbin–Watson value of 1.437, as well as a statistically significant model fit, was shown at F (6, 53) = 3.387, p = 0.007. The estimated multiple regression equation was as follows: running shoe comfort = −1.074 × (VLR) − 1.740 × (dorsiflexion angle at HC) + 1.021 × (ROM of dorsi-plantarflexion) + 0.179 × (inversion angle at HC) − 0.169 × (maximum eversion angle) − 1.007 × (ROM of inversion–eversion) + 114.619. The dorsiflexion angle at HC (ß = −0.382, t = −3.102, p = 0.003) had a statistically significant negative effect on running shoe comfort. The ROM of dorsi-plantarflexion (ß = 0.271, t = −2.138, p = 0.037) had a statistically significant positive effect on running shoe comfort.

4. Discussion

This study aimed to investigate the effect of running shoe heel shape (RHS and RLHS) on impact variables, ankle joint biomechanics and shoe comfort and to analyze the contributions of biomechanical variables to shoe comfort using multiple regression analysis. This study was performed on runners who ran at the same speed and heel strike pattern in the three shoes, as foot strike pattern and running speed may affect running mechanics [38,39].

The first hypothesis—i.e., that a running shoe with a curved heel shape would reduce the magnitude of impact variables (i.e., PVGRF and VLR) during running—was partially accepted. No differences in VLR, which may be related to injury during running [31], were shown between the shoes. However, the PVGRF of the RHS and RLHS was smaller than that of the NS. Small reductions of impact may be beneficial to reduce the risk of running injuries, especially when repetitive high loads are more pronounced, such as in long distance running [40].

The second hypothesis—that the RLHS would reduce the maximum eversion angle—was not supported. The RLHS showed a smaller inversion–eversion ROM due to a smaller inversion angle at toe-off compared with the NS and RHS. A study has suggested that a certain level of eversion or pronation of the foot is required during running to dampen the impact shock at heel contact [31]. In addition, it has been reported that excessive eversion (i.e., greater than an eversion ROM of 15°) of the foot may cause discomfort and pain followed by lower extremity joint injuries in running [18,41,42]. Therefore, footwear manufacturing companies have focused on the reduction of excessive foot eversion using alterations of the shoe structure and material (i.e., heel design, heel material and hardness of the midsole), but the findings are still controversial in current studies [31]. In this study, the maximum eversion angle between the shoes did not exhibit any difference. The current finding is in accordance with the result of a previous study, in which shoes with changes in the heel flare at the side of heel had no effect on the maximum eversion during the stance phase [18].

Shoe comfort is an important factor influencing running performance as well as the incidence of lower extremity joint injury in runners [43,44]. Considering the biomechanical factors that had a positive correlation with the overall comfort of running shoes, the independent variables representing a statistically significant explanation power were dorsiflexion angle at heel contact and dorsi-plantar flexion ROM. In particular, excessive dorsiflexion angle at heel contact has been shown to have a negative effect on the comfort of running shoes, but an increase of dorsi-plantar flexion ROM has been shown to have a positive effect on the comfort of running shoes. Based on these results, it is believed that the proper use of rounded heel shoes, considering the natural movement [45] of dorsi-plantar flexion, can help improve comfort and performance during running. Further study including more detailed information about foot kinematics and kinetics (i.e., trajectory of the center of pressure and movement coupling of the ankle joint complex) would be warranted to understand the underlying mechanism, as this would be closely related to comfort as well as running performance.

Some limitations need to be mentioned for a proper interpretation of the findings and to obtain insights into the direction of future studies. As running was performed at a slow speed of 2.7 m/s, it is not clear how running shoes with rounded heels may affect running biomechanics at higher running speeds. A further study would be required to examine running motions at faster speeds to investigate the functions of a rounded heel during these higher loading conditions. Furthermore, shoe comfort was tested during a short time period. It is important to test perceived comfort for longer periods of time and also monitor the changes in muscle activation patterns around the ankle joint to better understand the relationship between comfort and running efficiency [43]. On the other hand, depending on the shape and materials of running shoe models, natural abrasion may result in a rounding of the lateral heel to a small extent during extended wear. However, long-term use (i.e., shoe age or mileage) may decrease the functions of impact attenuation and stability because of the degradation of shoe material compared with new shoes with an originally curved heel shape [46,47].

5. Conclusions

In summary, this study aimed to investigate the effects of a rounded heel running shoe on impact and lower extremity biomechanics as well as their relationship with comfort during running. Based on the findings, it is concluded that the heel’s curved shape showed a positive effect on the reduction of impact magnitude during running. Furthermore, the regression analysis suggests that shoe comfort is closely related to ankle kinematics in the sagittal plane. Therefore, in the development of a running shoe, dorsiflexion at heel contact and dorsi-plantarflexion ROM may be important to consider with respect to shoe comfort. Future study, including the measurements of lower extremity muscle activations and long-term comfort, would be beneficial to help validate current findings and develop further applications.
